Guard RFID Solutions ST Users manual

Conforms to UL-294
FCC ID: VZKST

Guard RFID Solutions Inc.

www.guardrfid.com

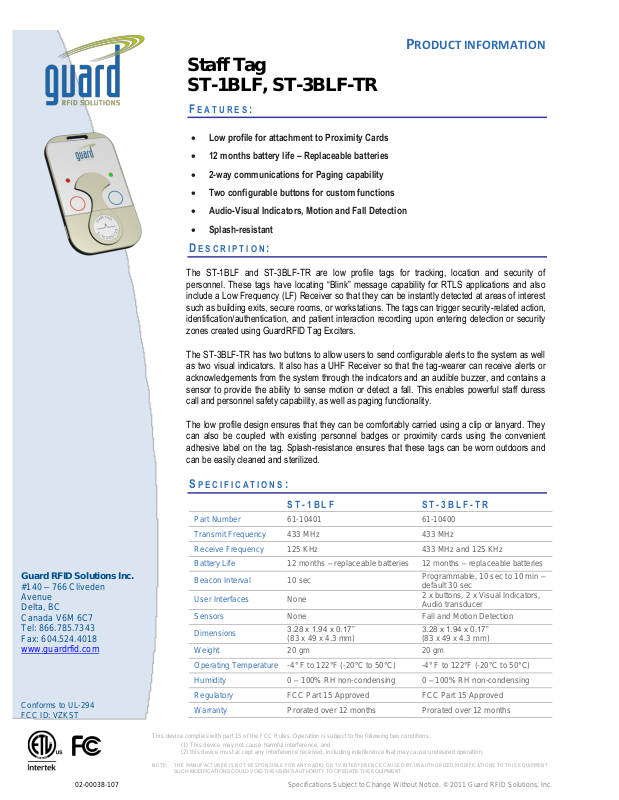

Staff Tag

S T - 1 B L F

S T - 3 B L F - TR

Part Number

61-10401

61-10400

Transmit Frequency

433 MHz

433 MHz

Receive Frequency

125 KHz

433 MHz and 125 KHz

Battery Life

12 months – replaceable batteries

12 months – replaceable batteries

Beacon Interval

10 sec

Programmable, 10 sec to 10 min –
default 30 sec

User Interfaces

None

2 x buttons, 2 x Visual Indicators,
Audio transducer

Sensors

None

Fall and Motion Detection

Dimensions

3.28 x 1.94 x 0.17”
(83 x 49 x 4.3 mm)

3.28 x 1.94 x 0.17”
(83 x 49 x 4.3 mm)

Weight

20 gm

20 gm

Operating Temperature

-4° F to 122°F (-20°C to 50°C)

-4° F to 122°F (-20°C to 50°C)

Humidity

0 – 100% RH non-condensing

0 – 100% RH non-condensing

Regulatory

FCC Part 15 Approved

FCC Part 15 Approved

Warranty

Prorated over 12 months

Prorated over 12 months

ST-1BLF, ST-3BLF-TR

F E A T U R E S :

 Low profile for attachment to Proximity Cards
 12 months battery life – Replaceable batteries
 2-way communications for Paging capability
 Two configurable buttons for custom functions
 Audio-Visual Indicators, Motion and Fall Detection
 Splash-resistant

PRODUCT INFORMATION

#140 – 766 Cliveden
Avenue
Delta, BC
Canada V6M 6C7
Tel: [phone]
Fax: [phone]

D E S C R I P T I O N :

The ST-1BLF and ST-3BLF-TR are low profile tags for tracking, location and security of
personnel. These tags have locating “Blink” message capability for RTLS applications and also
include a Low Frequency (LF) Receiver so that they can be instantly detected at areas of interest
such as building exits, secure rooms, or workstations. The tags can trigger security-related action,
identification/authentication, and patient interaction recording upon entering detection or security
zones created using GuardRFID Tag Exciters.

The ST-3BLF-TR has two buttons to allow users to send configurable alerts to the system as well
as two visual indicators. It also has a UHF Receiver so that the tag-wearer can receive alerts or
acknowledgements from the system through the indicators and an audible buzzer, and contains a
sensor to provide the ability to sense motion or detect a fall. This enables powerful staff duress
call and personnel safety capability, as well as paging functionality.

The low profile design ensures that they can be comfortably carried using a clip or lanyard. They
can also be coupled with existing personnel badges or proximity cards using the convenient
adhesive label on the tag. Splash-resistance ensures that these tags can be worn outdoors and

can be easily cleaned and sterilized.

S P E C I F I C A T I O N S :

02-00038-107 Specifications Subject to Change Without Notice. © 2011 Guard RFID Solutions, Inc.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT

SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
