Guard RFID Solutions PT User Manual

This device complies with part 15 of the FCC Rules and with Industry Canada license‐exempt RSS standard(s). Operation is subject to the
following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Cet appareil est conforme à la spécification RSS-210 d'Industry Canada. Son fonctionnement est soumis aux deux conditions suivantes:

(1) cet appareil ne peut engendrer aucune interférence et
(2) il doit accepter toute interférence qu'il reçoit, y compris celles qui peuvent altérer son fonctionnement

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Guard RFID Solutions Inc.

[e-mail]

Tel: [phone]
Fax: [phone]

PT- 1 B L F

Part Number

61-10100

Transmit Frequency

433 MHz

Receive Frequency

125 KHz

Battery Life

12 months

Beacon Interval

10 seconds

Dimensions

1.1 x 0.57” (28 x 14.5 mm)

Weight

6.62 gm

Operating
Temperature

14° F to 122°F (-10°C to 50°C)

Humidity

0 – 100% - Waterproof

Regulatory

FCC, IC, CE, UL-294

Warranty

12 months

FCC ID: VZKPT
IC ID: 9937A-PT

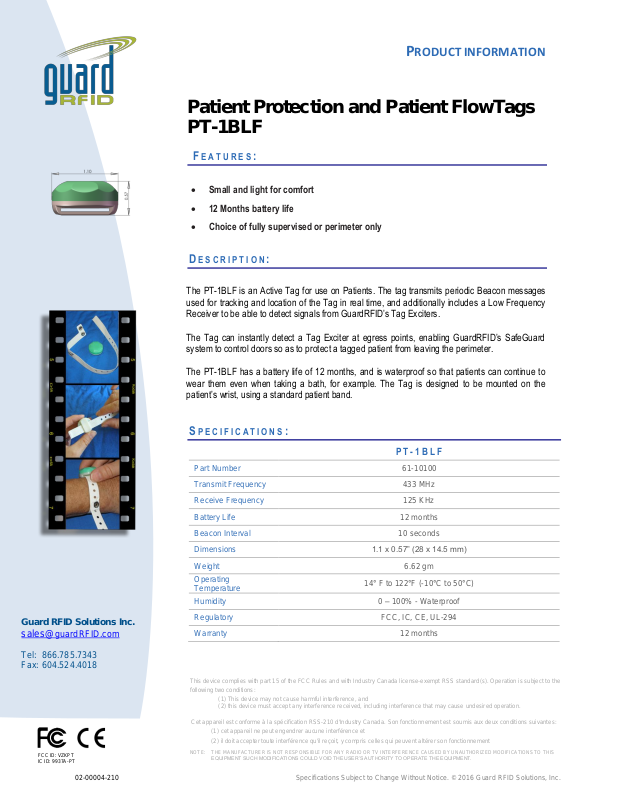

Patient Protection and Patient FlowTags
PT-1BLF

F E A T U R E S :

 Small and light for comfort
 12 Months battery life
 Choice of fully supervised or perimeter only

D E S C R I P T I O N :

The PT-1BLF is an Active Tag for use on Patients. The tag transmits periodic Beacon messages
used for tracking and location of the Tag in real time, and additionally includes a Low Frequency
Receiver to be able to detect signals from GuardRFID’s Tag Exciters.

The Tag can instantly detect a Tag Exciter at egress points, enabling GuardRFID’s SafeGuard
system to control doors so as to protect a tagged patient from leaving the perimeter.

The PT-1BLF has a battery life of 12 months, and is waterproof so that patients can continue to
wear them even when taking a bath, for example. The Tag is designed to be mounted on the
patient’s wrist, using a standard patient band.

S P E C I F I C A T I O N S :

02-00004-210 Specifications Subject to Change Without Notice. © 2016 Guard RFID Solutions, Inc.

PRODUCT INFORMATION
