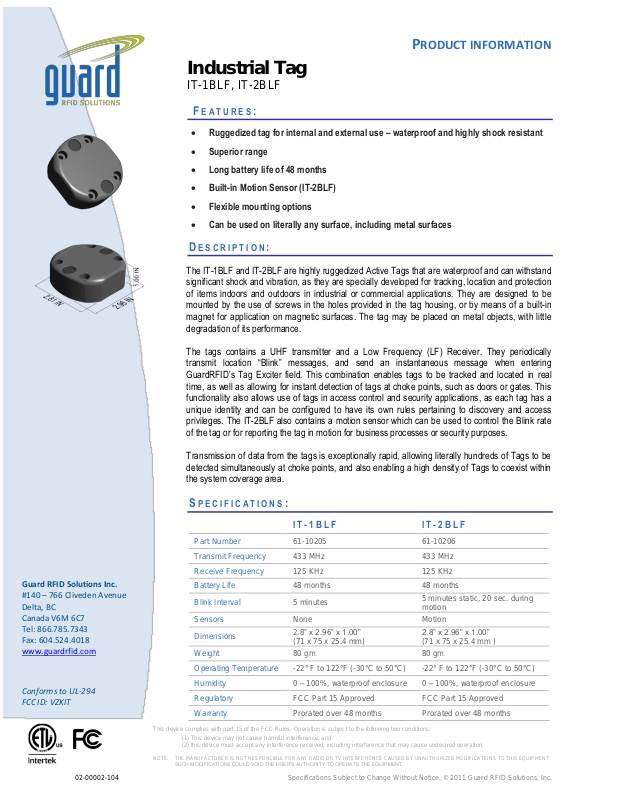

Guard RFID Solutions IT Users manual
Guard RFID Solutions Inc.
#140 – 766 Cliveden Avenue
Delta, BC
Canada V6M 6C7
Tel: 866.785.7343
Fax: 604.524.4018
www.guardrfid.com
Conforms to UL-294
FCC ID: VZKIT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT
SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
Industrial Tag
IT- 1 B L F
IT- 2 B L F
Part Number
61-10205
61-10206
Transmit Frequency
433 MHz
433 MHz
Receive Frequency
125 KHz
125 KHz
Battery Life
48 months
48 months
Blink Interval
5 minutes
5 minutes static, 20 sec. during
motion
Sensors
None
Motion
Dimensions
2.8” x 2.96” x 1.00”
(71 x 75 x 25.4 mm)
2.8” x 2.96” x 1.00”
(71 x 75 x 25.4 mm )
Weight
80 gm
80 gm
Operating Temperature
-22° F to 122°F (-30°C to 50°C)
-22° F to 122°F (-30°C to 50°C)
Humidity
0 – 100%, waterproof enclosure
0 – 100%, waterproof enclosure
Regulatory
FCC Part 15 Approved
FCC Part 15 Approved
Warranty
Prorated over 48 months
Prorated over 48 months
IT-1BLF, IT-2BLF
F E A T U R E S :
Ruggedized tag for internal and external use – waterproof and highly shock resistant
Superior range
Long battery life of 48 months
Built-in Motion Sensor (IT-2BLF)
Flexible mounting options
Can be used on literally any surface, including metal surfaces
D E S C R I P T I O N :
The IT-1BLF and IT-2BLF are highly ruggedized Active Tags that are waterproof and can withstand
significant shock and vibration, as they are specially developed for tracking, location and protection
of items indoors and outdoors in industrial or commercial applications. They are designed to be
mounted by the use of screws in the holes provided in the tag housing, or by means of a built-in
magnet for application on magnetic surfaces. The tag may be placed on metal objects, with little
degradation of its performance.
The tags contains a UHF transmitter and a Low Frequency (LF) Receiver. They periodically
transmit location “Blink” messages, and send an instantaneous message when entering
GuardRFID’s Tag Exciter field. This combination enables tags to be tracked and located in real
time, as well as allowing for instant detection of tags at choke points, such as doors or gates. This
functionality also allows use of tags in access control and security applications, as each tag has a
unique identity and can be configured to have its own rules pertaining to discovery and access
privileges. The IT-2BLF also contains a motion sensor which can be used to control the Blink rate
of the tag or for reporting the tag in motion for business processes or security purposes.
Transmission of data from the tags is exceptionally rapid, allowing literally hundreds of Tags to be
detected simultaneously at choke points, and also enabling a high density of Tags to coexist within
the system coverage area.
S P E C I F I C A T I O N S :
02-00002-104 Specifications Subject to Change Without Notice. © 2011 Guard RFID Solutions, Inc.
PRODUCT INFORMATION
