Guard RFID Solutions AT4 User Manual

Guard RFID Solutions Inc.

#140 – 766 Cliveden Place
Delta, BC
Canada V6M 6C7
Tel: [phone]
Fax: [phone]

guardRFID.com

AT- 4 B L F

Part Number

61-10500

Transmit Frequency

433 MHz

Receive Frequency

125 KHz

Battery Life

12 months nominal based on 60% motion

24 months nominal based on 5% motion

Beacon Interval

10 minutes static, 12 seconds while in motion

Sensors

Motion, Temperature - 14° to 140° F (-10° to +60° C)

Dimensions

1.56” x 1.26” x 0.23” (40mm x 32 mm x 5.95mm)

Weight

6 gm

Operating Temperature

-4° F to 122°F (-20°C to 50°C)

Tag Replacement Warranty – Prorated up to a maximum term of 12 months

This device complies with part 15 of the FCC Rules and with Industry Canada license‐exempt RSS standard(s). Operation is subject to
the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

FCC ID: VZKAT4
IC: 9937A-AT4

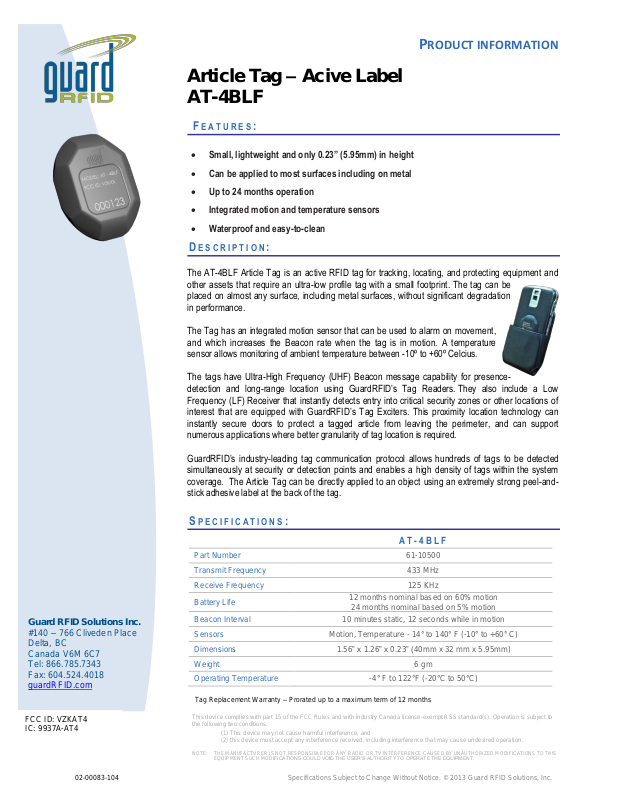

Article Tag – Acive Label
AT-4BLF

F E A T U R E S :

 Small, lightweight and only 0.23” (5.95mm) in height
 Can be applied to most surfaces including on metal
 Up to 24 months operation
 Integrated motion and temperature sensors
 Waterproof and easy-to-clean

D E S C R I P T I O N :

The AT-4BLF Article Tag is an active RFID tag for tracking, locating, and protecting equipment and
other assets that require an ultra-low profile tag with a small footprint. The tag can be
placed on almost any surface, including metal surfaces, without significant degradation
in performance.

The Tag has an integrated motion sensor that can be used to alarm on movement,
and which increases the Beacon rate when the tag is in motion. A temperature
sensor allows monitoring of ambient temperature between -10º to +60º Celcius.

The tags have Ultra-High Frequency (UHF) Beacon message capability for presence­detection and long-range location using GuardRFID’s Tag Readers. They also include a Low
Frequency (LF) Receiver that instantly detects entry into critical security zones or other locations of
interest that are equipped with GuardRFID’s Tag Exciters. This proximity location technology can
instantly secure doors to protect a tagged article from leaving the perimeter, and can support
numerous applications where better granularity of tag location is required.

GuardRFID’s industry-leading tag communication protocol allows hundreds of tags to be detected
simultaneously at security or detection points and enables a high density of tags within the system
coverage. The Article Tag can be directly applied to an object using an extremely strong peel-and­stick adhesive label at the back of the tag.

S P E C I F I C A T I O N S :

02-00083-104 Specifications Subject to Change Without Notice. © 2013 Guard RFID Solutions, Inc.

PRODUCT INFORMATION
