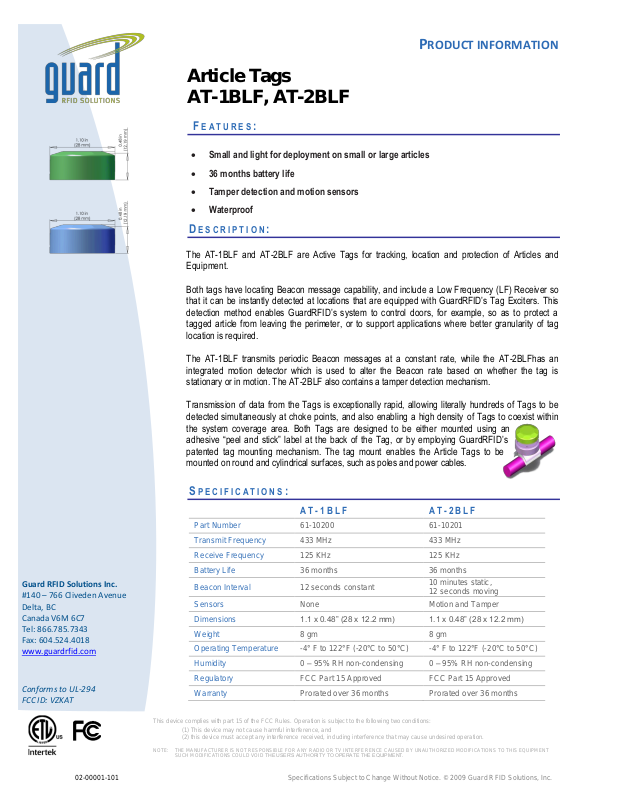

Guard RFID Solutions AT Users manual

Guard RFID Solutions Inc.

#140 – 766 Cliveden Avenue
Delta, BC
Canada V6M 6C7
Tel: [phone]
Fax: [phone]

www.guardrfid.com

Conforms to UL-294
FCC ID: VZKAT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT

SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

A T - 1 B LF

A T - 2 B L F

Part Number

61-10200

61-10201

Transmit Frequency

433 MHz

433 MHz

Receive Frequency

125 KHz

125 KHz

Battery Life

36 months

36 months

Beacon Interval

12 seconds constant

10 minutes static,
12 seconds moving

Sensors

None

Motion and Tamper

Dimensions

1.1 x 0.48” (28 x 12.2 mm)

1.1 x 0.48” (28 x 12.2 mm)

Weight

8 gm

8 gm

Operating Temperature

-4° F to 122°F (-20°C to 50°C)

-4° F to 122°F (-20°C to 50°C)

Humidity

0 – 95% RH non-condensing

0 – 95% RH non-condensing

Regulatory

FCC Part 15 Approved

FCC Part 15 Approved

Warranty

Prorated over 36 months

Prorated over 36 months

Article Tags
AT-1BLF, AT-2BLF

F E A T U R E S :

 Small and light for deployment on small or large articles
 36 months battery life
 Tamper detection and motion sensors
 Waterproof

D E S C R I P T I O N :

The AT-1BLF and AT-2BLF are Active Tags for tracking, location and protection of Articles and
Equipment.

Both tags have locating Beacon message capability, and include a Low Frequency (LF) Receiver so

that it can be instantly detected at locations that are equipped with GuardRFID’s Tag Exciters. This
detection method enables GuardRFID’s system to control doors, for example, so as to protect a

tagged article from leaving the perimeter, or to support applications where better granularity of tag
location is required.

The AT-1BLF transmits periodic Beacon messages at a constant rate, while the AT-2BLFhas an
integrated motion detector which is used to alter the Beacon rate based on whether the tag is
stationary or in motion. The AT-2BLF also contains a tamper detection mechanism.

Transmission of data from the Tags is exceptionally rapid, allowing literally hundreds of Tags to be
detected simultaneously at choke points, and also enabling a high density of Tags to coexist within
the system coverage area. Both Tags are designed to be either mounted using an

adhesive “peel and stick” label at the back of the Tag, or by employing GuardRFID’s

patented tag mounting mechanism. The tag mount enables the Article Tags to be
mounted on round and cylindrical surfaces, such as poles and power cables.

S P E C I F I C A T I O N S :

02-00001-101 Specifications Subject to Change Without Notice. © 2009 Guard RFID Solutions, Inc.

PRODUCT INFORMATION
