Guardian IPK-101 User Manual
KVM over IP (Dongle Type)
1 / 4

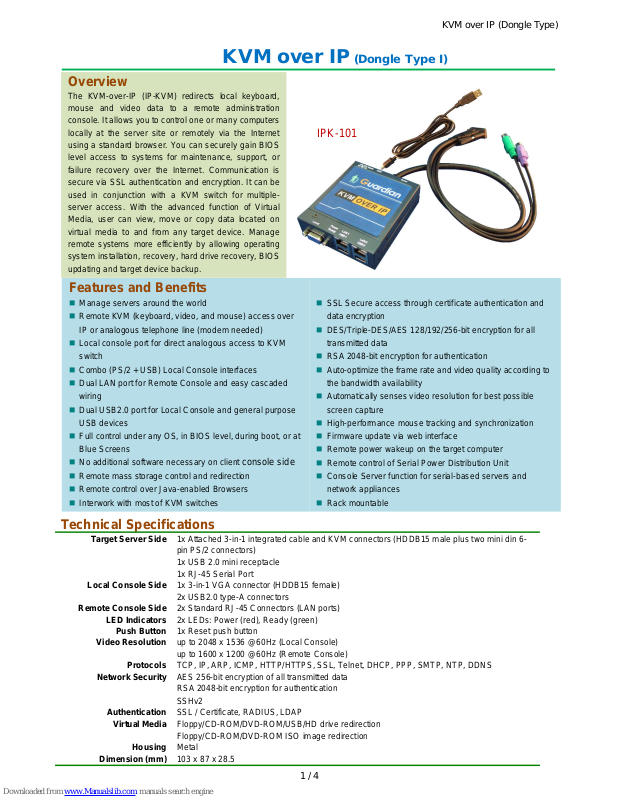

KVM over IP (Dongle Type I)
Technical Specifications
1x Attached 3-in-1 integrated cable and KVM connectors (HDDB15 male plus two mini din 6pin PS/2 connectors)
1x USB 2.0 mini receptacle
Target Server Side
1x RJ-45 Serial Port
1x 3-in-1 VGA connector (HDDB15 female) Local Console Side
2x USB2.0 type-A connectors
Remote Console Side 2x Standard RJ-45 Connectors (LAN ports)
LED Indicators 2x LEDs: Power (red), Ready (green)
Push Button 1x Reset push button
up to 2048 x 1536 @60Hz (Local Console) Video Resolution
up to 1600 x 1200 @60Hz (Remote Console)
Protocols TCP, IP, ARP, ICMP, HTTP/HTTPS, SSL, Telnet, DHCP, PPP, SMTP, NTP, DDNS
AES 256-bit encryption of all transmitted data
RSA 2048-bit encryption for authentication
Network Security
SSHv2
Authentication SSL / Certificate, RADIUS, LDAP
Floppy/CD-ROM/DVD-ROM/USB/HD drive redirection Virtual Media
Floppy/CD-ROM/DVD-ROM ISO image redirection
Housing Metal
Dimension (mm) 103 x 87 x 28.5
Features and Benefits
Manage servers around the world
Remote KVM (keyboard, video, and mouse) access over
IP or analogous telephone line (modem needed)
Local console port for direct analogous access to KVM
switch
Combo (PS/2 + USB) Local Console interfaces
Dual LAN port for Remote Console and easy cascaded
wiring
Dual USB2.0 port for Local Console and general purpose
USB devices
Full control under any OS, in BIOS level, during boot, or at
Blue Screens
No additional software necessary on client
console side
Remote mass storage control and redirection
Remote control over Java-enabled Browsers
Interwork with most of KVM switches
SSL Secure access through certificate authentication and
data encryption
DES/Triple-DES/AES 128/192/256-bit encryption for all
transmitted data
RSA 2048-bit encryption for authentication
Auto-optimize the frame rate and video quality according to
the bandwidth availability
Automatically senses video resolution for best possible
screen capture
High-performance mouse tracking and synchronization
Firmware update via web interface
Remote power wakeup on the target computer
Remote control of Serial Power Distribution Unit
Console Server function for serial-based servers and
network appliances
Rack mountable
Overview
The KVM-over-IP (IP-KVM) redirects local keyboard,
mouse and video data to a remote administration
console. It allows you to control one or many computers
locally at the server site or remotely via the Internet
using a standard browser. You can securely gain BIOS
level access to systems for maintenance, support, o
r
failure recovery over the Internet. Communication is
secure via SSL authentication and encryption. It can be
used in conjunction with a KVM switch for multipleserver access. With the advanced function of Virtual
Media, user can view, move or copy data located on
virtual media to and from any target device. Manage
remote systems more efficiently by allowing operating
system installation, recovery, hard drive recovery, BIOS
updating and target device backup.
IPK-101
KVM over IP (Dongle Type)
2 / 4

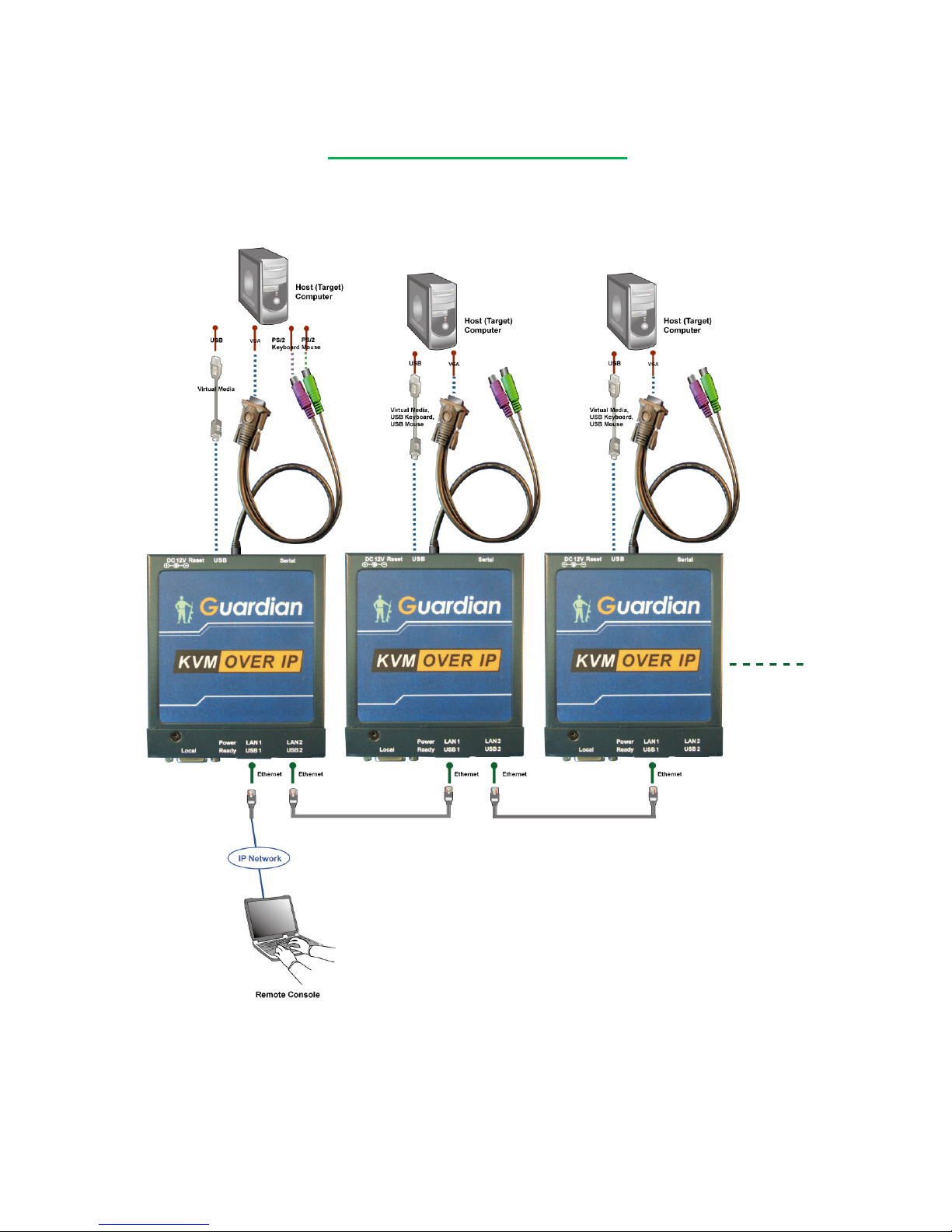

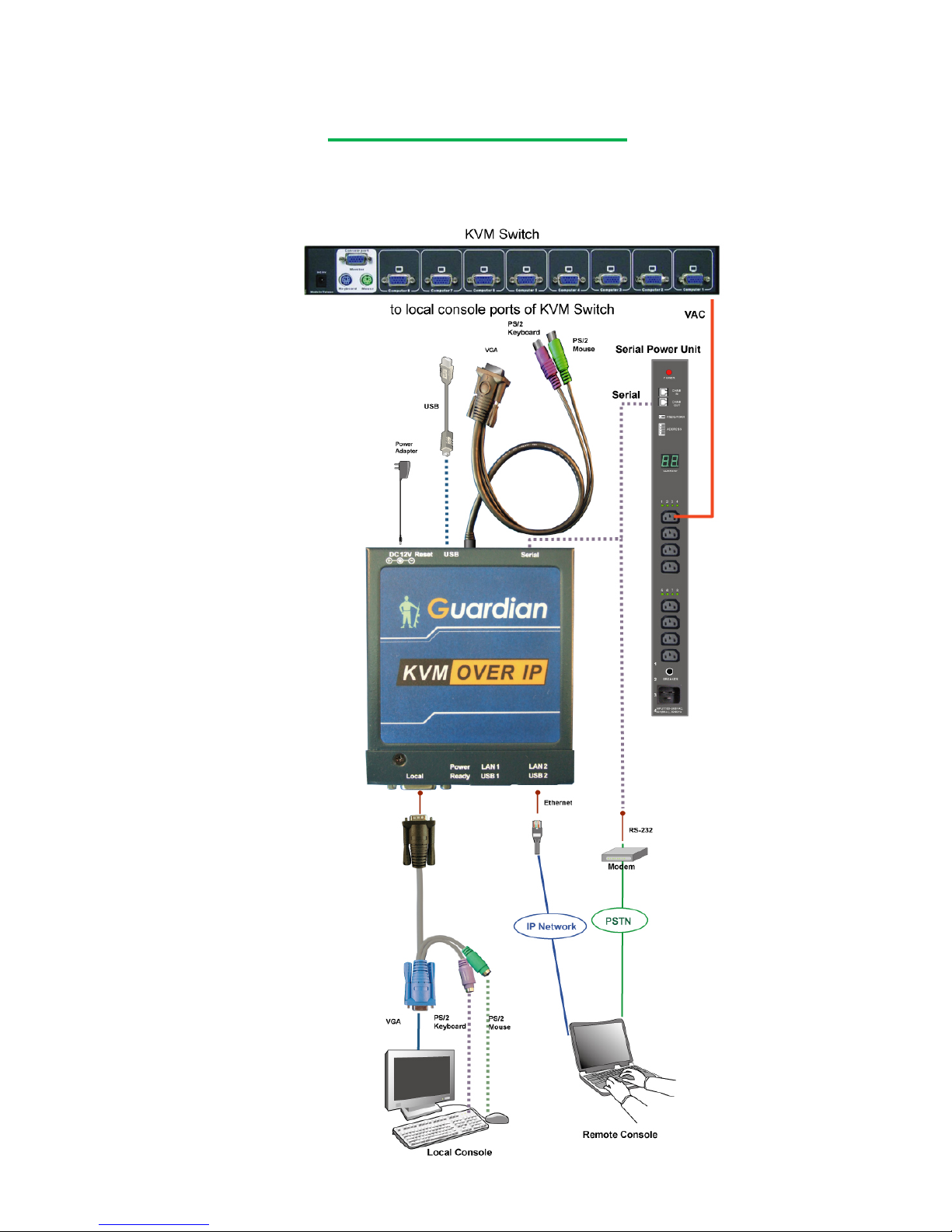

Application of PS/2 Interface Application of USB Interface
