Guardall RX16i, PX48i, QX32i, PX80i, PX500 User Manual

PX/QX/RX Version 4.20

User Manual

Issue B

PX/QX/RX Version 4.20 User Manual – Issue B

Contents

CONTENTS..........................................................................................................................................................2

INTRODUCTION................................................................................................................................................5

EVENT LOG .........................................................................................................................................................5

AREAS & SET GROUPS ........................................................................................................................................5

CIRCUITS .............................................................................................................................................................5

USER, SET GROUP AND CIRCUIT IDENTIFICATION................................................................................................5

USER CODES........................................................................................................................................................6

OPERATOR CONTROLS AND DISPLAYS....................................................................................................6

SYSTEM KEYPADS ...............................................................................................................................................6

MINI KEYPAD......................................................................................................................................................6

Cards/Fobs..................................................................................................................................................... 6

DUAL USER CODE OPERATION............................................................................................................................7

USER CARD+PIN OPERATION .............................................................................................................................7

USING THE SYSTEM.............. ......................... ................................................. .................................................7

EASY SET ............................................................................................................................................................8

HELP ...................................................................................................................................................................8

REMOTE ASSIST...................................................................................................................................................8

INCORRECT CODES..............................................................................................................................................9

SET ......................................................................................................................................................................10

SETTING FROM A KEYPAD..................................................................................................................................10

SETTING WITH A MINI KEYPAD .........................................................................................................................10

KEYSWITCH/RADIO KEYFOB SETTING...............................................................................................................11

AUTOMATIC SETTING ........................................................................................................................................11

Aborting The Setting Procedure.............................................. .....................................................................11

SETTING WITH WARNINGS.................................................................................................................................11

EASY SET ..........................................................................................................................................................11

SETTING RESTRICTIONS.....................................................................................................................................12

SETTING FAULTS ...............................................................................................................................................12

DUAL SET (PX250HS ONLY)............................................................................................................................13

UNSET.................................................................................................................................................................14

UNSETTING METHODS.......................................................................................................................................14

Unsetting from a keypad...............................................................................................................................14

Unsetting with Keyswitch or Radio Keyfob..................................................................................................14

Automatic Unsetting........................................................... ..........................................................................15

UNSETTING WARNINGS.....................................................................................................................................15

UNSETTING RESTRICTIONS ................................................................................................................................15

UNSET DELAY (PX250HS ONLY) .....................................................................................................................16

DUAL UNSET (PX250HS ONLY).......................................................................................................................16

RESET.................................................................................................................................................................17

MANAGED RESET ..............................................................................................................................................17

TEST....................................................................................................................................................................18

ENGINEER.........................................................................................................................................................19

PIN.......................................................................................................................................................................19

USER ...................................................................................................................................................................20

NAME................................................................................................................................................................20

PIN....................................................................................................................................................................20

CARD.................................................................................................................................................................21

AUTHORITY....................................................................................................................................................... 21

ACM AUTHORITY (PX ONLY) ..........................................................................................................................22

- 2 -

PX/QX/RX Version 4.20 User Manual – Issue B

Level ............................................................................................................................................................. 22

SCHEDULE.........................................................................................................................................................22

LOCKOUT (PX ONLY)........................................................................................................................................23

EXPIRY DATE (PX ONLY)..................................................................................................................................23

TEL NUMBER...................................................................................................................................................23

LOGS...................................................................................................................................................................24

TIME...................................................................................................................................................................24

HOLIDAY...........................................................................................................................................................25

SCHEDULE........................................................................................................................................................25

GROUP TEXT....................................................................................................................................................25

MINUTES LEFT (PX250HS ONLY)...............................................................................................................26

LATE WORK.....................................................................................................................................................26

BYPASS...............................................................................................................................................................27

CHIME................................................................................................................................................................27

SHUNT................................................................................................................................................................28

PRINT TEXT......................................................................................................................................................28

PRINT HOLS......................................................................................................................................................28

IDENTIFY USER.......................................................................................... .....................................................28

COPY USER.......................................................................................................................................................29

COPY A/USER (PX ONLY)..............................................................................................................................29

CCT STATUS.....................................................................................................................................................29

ACCESS FEATURES (PX ONLY) .................................... ..............................................................................30

ADD A/USER......................................................................................................... .............................................30

DELETE USER..................................................................................................................................................31

DOOR UNLOCK................................................................................................................................................31

DOOR LOCKOUT.............................................................................................................................................32

ACM TEXT.........................................................................................................................................................32

APPENDIX A – USER AUTHORITIES..........................................................................................................33

APPENDIX B – EDITING TEXT...................................................................... ...............................................34

APPENDIX C - LOG MESSAGES...................................................................................................................35

APPENDIX C – ACCESS LOG MESSAGES............. ................................................................................. ...38

APPENDIX E - MENU RESTRICTIONS.......................................................................................................39

- 3 -

PX/QX/RX Version 4.20 User Manual – Issue B

APPENDIX E - LOG ON MESSAGES................................................................. ...........................................40

APPENDIX F – AUDIO COMMANDS...................................................... ........................... ..........................41

APPENDIX G - SYSTEM DETAILS...............................................................................................................42

KEYPADS...........................................................................................................................................................42

SET GROUPS ......................................................................................................................................................42

CIRCUITS ...........................................................................................................................................................43

USERS................................................................................................................................................................44

- 4 -

PX/QX/RX Version 4.20 User Manual – Issue B

Introduction

The PX Electronic Intruder Alarm System is design ed to provide sec ure protec tion for the installation.
The system comprises a main control panel, normally located out of sight in a secure area, and at
least one keypad. The panel has a wide range of features, which are programmed by the engineer on
installation, to suit the security requirements of the particular installation. Some of the features may be
reprogrammed, edited, or viewed as required by an authorise d user.

Feature RX16i QX32i PX48i PX80i PX500 PX250

HS

Max. Panel Users 32 32 50 100 200 200
Max. Access Users

 

1000 1000 1000 1000
Areas 4 8 8 16 32 16
Set Groups
Sub systems




8 8 16 32 16

4 4 8 16 8
Max Keypads 4 8 8 16 32 16
Access Modules

 

32 32 32 32
Audio Modules 2 4 8 16 32 16
Radio Modules 2 2 4 8 16 8
Max. Transmitters 16 16 24 40 128 128
Tel Numbers 8 8 8 8 8 8
Schedules 2 4 32 32 32 32
Holidays



14 14 14 14 20
Event Log Size 250 500 1000 1000 1000 2000
Access Log Size

 

1000 1000 1000 1000

Event Log

The event log will record all events, for example, user log-on times and user numbers, keypad
numbers, setting and unsetting times, alterations made to programmed settings, fault conditions, etc.
When the event log is full, the oldest event will be automatically removed when the next event occurs.
All log events are date and time stamped an d may be viewed, or printed if a printer is fitted to the
system.

Areas & Set Groups

For protection purposes, the premises may be divided into a number of areas. Individual areas may
be grouped together in to a setting gro up (Not RX16i) whic h provides the user w ith a convenient way
of setting and unsetting more than one area at the same time. The installation company engineer will
have configured your system for the ap propriate number of areas and groups to comply with your
specific security requirements. Where more than one group is incorporated in the system, a group
can be configured by the installation engineer as a common group. A common group will
automatically set if all other areas of the system are set and will automatically unset if any one of the
other areas is unset. The R X16i varian t does not in clude the s et group fe ature. If using a RX16i then
all references to set groups through ou t this manual should be interpreted as areas.

Circuits

Each detector or sensor in the installation is allocated a unique circuit number. The installation
engineer will have programmed each circuit to respond in a certain way when the circuit is activated,
when the area is set and unset. The way in which the circuit is pro gr ammed to respond will depend on
the type of circuit and its location and purpo se. If a circ uit is faulty, the ala rm respon se may be turned
off by an authorised user. This process is referred to as bypassing.

User, Set group and Circuit Identification

Each user, set group, circuit, c oncentr ator and ac cess control module can be pr ogrammed with a text
description.

- 5 -

PX/QX/RX Version 4.20 User Manual – Issue B

User Codes

Each user of the system is identified by a unique code. This code can be a PIN code, a magnetic
swipe card, proximity car d o r fob. A card o r fob can o nly be u sed on a k eypad var iant w ith a p roximity
interface (internal or external). The default PIN code for user 2 is 0202. Throughout this manual user
codes are only referred to as codes.

Operator Controls and Displays

System Keypads

2 x 16 character
LCD backlit display

Mains indicator

Proximity reader
target area
(optional)

The operator keypad unit incorporates a backlit liquid crystal display (LCD) comprising 2 lines of 16
characters, and a backlit keypad to gain access to the system and to perform all authorised user
functions. The backlighting will be turned on during the entry time, during code entry and while a user
is logged on. It may also be turned on using any button except  and

 buttons. Keypads may be fitted with an internal p roximity reader . The keypad in corpor ates a mains

and turned off using the  or

power indicator. This indicator will flash if the system is operating on standby battery power.

Mini Keypad

2 x 16 character LCD backlit
display

Alarm LED
Set LED
230v LED

Part Set 1/Part set 2 buttons

Proximity reader target area

Cards/Fobs

A user PIN code can be replaced by a card or fob if the keypad is fitted with the optional internal or
external reader. All Guardall proximity cards and fobs are manufactured with a unique code and
duplicate cards or fobs ca nnot be obtain ed. Spar e or rep laceme nt cards or fobs c an be o btained from
the installation compan y.

- 6 -

PX/QX/RX Version 4.20 User Manual – Issue B

Dual User Code Operation

Where a higher level of security is required a keypad may have been programmed to require two user
codes to be entered before logging a user on t o the system. Both user codes must be author ised an d
are logged by the system. The author ity of the second user code entered is used by t he sy st em. The
second user code must be entered within 15 seco nd s of the first user code.

User Card+PIN Operation

Each user can be programmed with both a PIN and a card. If the user Card+PIN option is
programmed then both codes have to be entered before the user can log on to a key pad.

Using the System

The LCD keypad will normally display the time, date and company name. If a valid code is entered the
user menu will normally be displayed. The default manager code is 0202

1

. Enter this code followed by

the button to log on.

12:00 Mon 27 Sep

Guardall

0 2 0 2 

02=Set
04=Test

05=Engineer
06=PIN
07=User
08=Tel Number
10=Log-Full
11=Log-Cct
12=Log-User





=Confirm

LogOff

user token on mini keypad



Unset

-Move -Select
Set

Reset Alarms
User
Log-Full
Late Work
Bypass

Time
13=Log-KP
14=Log-Date
15=Log-Alarm
20=Time
24=Holiday
25=Schedule
26=Group Text
28=Late Work
30=Bypass

Enter the 2 digit code to select an option

32=Chime
52=Identify User
71=Copy User
89=Cct Status

Use the and buttons to change the displayed options



Press to move quickly through the menu.

The menu options shown are for a manager user on a system without access control. The actual
menu options available to a user will depend on the user authority, the system configuration and the
current system status. Refer to appendix A for details. Only 2 options are visible on the display but
any available option can be selected by entering the 2-digit code without viewing the actual option
number. Each menu option is discussed in detail in this manual. If no option is selected the user will
be automatically logged off after 2 minutes. If a chosen option is not available a reason will be
displayed. Refer to appendix D for details. Information about the system may be displayed when
logging on. Refer to appendix E for det a ils.

1

It is recommended that the manager code is changed from the default as soon as possible.

- 7 -

PX/QX/RX Version 4.20 User Manual – Issue B

Easy Set

If your system is programmed w ith the easy set option then al l PIN codes are 4 digits long and PIN
codes can be entered with out co nfirming with the

 button. A card or fob may still be used in place of

a PIN when easy set is programmed.

Help

When the main user menu is on display press the help button (

?) to display information about the

system. There are 3 options.

Option Description

Assist Selec t to connect to a remote service operator. Your alarm company may not

support this feature.

Contract The customer contract number is a 6-digit number programmed by the

installation engineer that uniquely identifies your system.

Product Info The product info option displays t h e con trol panel order code and firmware

version number and, if fitted the Di aller version number.

An authorised user can change some of the system parameters. When changing an it em the help
button can be used to display the allowe d values.

Remote Assist

Before using the remote assist option you must obtain a number from your alarm company. When you
need to use the remote service, you will be prompted to enter this number, and the panel will dial the
alarm company. The alarm company will then be able to check the condition of your system and
identify and resolve problem s.

02=Set
04=Test



?

0=Assist
1=Contract

2=Product Info



Assist
Number _

0

Service not available

on

entered number

1

Assist-1

=Dial



You will now be logged off and
the system will now connect to
the remote service centre.

12:00 Mon 27 Sep

Guardall

- 8 -

PX/QX/RX Version 4.20 User Manual – Issue B

Incorrect Codes

If Easy Set is not programmed and an incorrect user code is entered, the incorrect code message will
be displayed for a few seconds or until another key is pressed. The installation en gineer will have
programmed a limit on the number of incorrect code attempts that can be made. If more than the
programmed number of code attempts are made to enter a valid user code, the keypad will be locked
out and the display will show

Out of Service for a period of 5 minutes. Any attempt to enter a user

code during the locked out period will exte nd the period by another 5 minutes.

12:00 Mon 27 Sep

Guardall

02 0 2 

5 Min.
Delay

12:00 Mon 27 Sep
Enter- ****

Maximum Code

attempts

12:00 Mon 27 Sep

Incorrect Code

12:00 Mon 27 Sep

Out Of Service

- 9 -

PX/QX/RX Version 4.20 User Manual – Issue B

Set

Code-02

The system can be partitioned into a number of parts called set groups, each of which can be
individually set. The programmed user authority level must allow setting and the programmed user
area access will determine which set groups are available to a user.

Setting can be started by:

1. A user request on a keypad

2. A user activating a keyswitch or radio Keyfob

3. Automatically by a timer schedule

4. Remotely from a PC using the Guardall GuardStation software

5. A user request on an ACM Proximity Reader.

Setting modes include:

1. Instant, where setting is completed immediately

2. Timed, where setting is completed at the end of the programmed exit time

3. Exit point, where setting is completed by opening an d closing the final exit circuit

4. Push button, where setting is completed by pushing the external PB circuits after opening and
closing the final exit circuit

Your installation engineer shou ld advise which of the above options h av e bee n programmed on your
system.

Setting from a keypad

12:00 Mon 27 Sep

Guardall

0 2 0 2 

12:00 Mon 27 Sep
Enter- ****

Log on set programmed, one group available

and no problems or warni n gs to display

Log on set programmed

Log off after set

programmed

02=Set
04=Test

0 2

1=Workshop
2=Office

Log off after set

not programmed

Setting with a Mini Keypad

The mini keypad has two quick set butto ns. The actual areas or groups controlled
by the green and yellow buttons will depend on how the system has been

programmed by the installer. The green button
group and the yellow button
and holding both

and will set the first and second group or area.

will set/unset the second programmed area or set group. Pressing

1

Workshop
Setting

Workshop
Seconds Left-005

Exit time

expired

Workshop
Set

will set/unset the first programmed area or set

- 10 -

PX/QX/RX Version 4.20 User Manual – Issue B

Keyswitch/Radio Keyfob Setting

As an alternative to setting and unsetting from a keypad, your system may be fitted with an optional
keyswitch, which permits setting an d unsetting of a group by operating a keyswitch. The keyswitch
may be configured for any set mode. If your system is fitted with a radio interface then a radio Keyfob
may be programmed for setting.

Automatic Setting

The system may have been programmed by the installation engineer to automatically set all or parts
of the system according to a pre-programmed schedule. The schedule will have been programmed to
take into account the normal closing time, non-working days and holidays. The schedule may be
configured for any set mode.

Aborting The Setting Procedure

The setting procedure can be aborted at any time during the exit time by pr essing on the keypad
that was used to start setting, logging on to any other keypad, turning a keyswitch to the unset
position or an appropriate radio Keyfob.

Setting with Warnings

The system will automatically display any conditions that the user should be aware of before setting
the system. These conditions are de scribed as set w arnings and do n ot prohibit the us er from setting
the system in the normal way.

1=Workshop
2=Office

1

Loading Door
Isolated

=Set



The set warnings i n c lude:

1. Bypassed circuit(s)

2. Circuit(s) on soak test has failed (a special circuit test mode set up
by the insta l l ation engineer)

3. Isolated circuit(s)

4. Line Fault (only when setting with telephone line fault is allowed)

5. Shunted circuit(s)

6. Battery test faults, when setting is allowed with this type of fault.

7. 230v mains faults, when setting is allowed with this type of fault.



Workshop
Seconds Left-005

If easy set mode 1 is programmed then the system will start to part set when you log on. During the
part set exit time, if the exit door circuit is opened and closed, the system will full set. Pressing the

key during the setting time will cancel setting. If easy set mode 2 is programmed then the system

can be set without logging on to a keypad. Up to 8 parts can be set in this way (depends on the
control panel type). For example to set part 1 of your system from 1 +
entering 0 +

If using a mini keypad then the house symbol buttons can be used to set.

+  = set first group or area.
+  = set second group or area.

and +  = set first and second group or area.

.

Easy Set

. The system can be set by

- 11 -

PX/QX/RX Version 4.20 User Manual – Issue B

Setting Restrictions

1. The selected group is programmed with a set level and a lower level set group(s) has not been
set.

2. If a user attempts to set a high level set group when a lower level is not set then a warning
message will be displayed.

In a PX250HS, there are several additional conditions that apply when setting.

1. The keypad may be programmed to disable setting

2. The selected group may be programmed for dual user set

Setting Faults

If the group cannot set a message will be displayed. This can occur at the start of setting or at the end
of the exit time depending on how your system is set up and when the fault occurs. If a fault occurs
during the exit time the exit tone will change to a warning tone. The external sounder may also have
been programmed by the installat ion engineer to activate in the event of a failure to set.

1=Workshop
2=Office

1

Cannot Set

Cct Fault
PIR in Hall

=Force Set



PIR in Hall
Bypassed

=Set



Workshop
Seconds Left-005

After the setting fault(s) is displayed the force set
option may be presented (if programmed by the
installation engineer). The force set option will attempt
to automatically bypass all faults. The circuit(s) with
the fault must be programmed by the engineer to allow
bypass.

- 12 -

PX/QX/RX Version 4.20 User Manual – Issue B

Dual Set (PX250HS Only)

12:00 Mon 27 Sep

Guardall

0 2 0 2 

12:00 Mon 27 Sep

In the example the vault area is programmed for dual
user set. The first user code is 0202 and the second
user code is 1234. Both users must have the authority
to set the vault area.

Both user actions are logged.

Enter- ****

02=Set
04=Test

0

2

Logon time limit reached

1=Vault
2=Office

1

Dual Code
Enter-

2 

1 3 4

Vault
Setting

- 13 -

PX/QX/RX Version 4.20 User Manual – Issue B

Unset

Code-01

The system will have been partitioned by the installation engineer into a number of set groups. The
user authority will determine the choice of groups, which can be unset. There are several methods of
unsetting available to the user, which are discussed in the following section.

Unsetting can be started by:

1. A user request on a keypad

2. A user activating a keyswitch or rad i o Keyfob

3. Automatically by a timer schedule

4. Remotely from a PC using the Guardall Gua rdStation software

5. A user request on an ACM Proximity Reader.

Your installation engineer should advis e which of the above options ha ve been programmed on your
system.

Unsetting Methods

If a set group inco rpor a tes an entr y r ou te in th e u ns ettin g p r oce du re th en open ing a fina l en tr y do or to
the area will start a pre-programmed entry timer. The user must proceed directly to the keypad or
keyswitch via a pre-determined entry route and unset the group as described. If the group is not unset
before the entry time has expired a warning period of 30 seconds will be given. This is to warn the
user that an alarm condition will occur if the group is not unset by the end of the warning period. If the
group is not unset by the time that the total entry time and warning time has expired, an alarm
condition will be initiated. To comply with the requirements of DD243 (2002), during the entry time, all
alarms in the unsetting area(s) are ignored.

Unsetting from a keypad

Your installer may have set up your system to allow automatic unset when your user code is entered.
The diagram shows all 3 possible unset scenarios when a user logs on to a keypad when area(s) are
set.

12:00 Mon 27 Sep

Guardall

Log off after uns et programmed

0 2 0 2 

12:00 Mon 27 Sep

Log on unset programm e d

Enter- ****

01=Unset
04=Test

0

1

1=Workshop
2=Office

Log off after unset not programmed

1

Workshop
Unset

Unsetting with Keyswitch or Radio Keyfob

To unset an area from a keyswitch, turn the keyswitch to the unset position. The area under the
control of the keyswitch will immediately unset. . If your system is fitted with a radio interface then a
radio Keyfob may be programmed for setting.

- 14 -

PX/QX/RX Version 4.20 User Manual – Issue B

Automatic Unsetting

The system may have been programmed by the installation engineer to automatically unset all or
parts of the system according to a pre-programmed schedule. The schedule will have been
programmed to take into account the no rma l op en ing time, non-working days and holidays.

Unsetting Warnings

When unsetting from a keypad, the user is informed on the display of any warnings, e.g. circuits
isolated or on soak. The warning display will appear for approximately 4 seconds during the unsetting
procedure. If more than one warning exists, the display will automatically scroll through the list of
warnings.

Workshop
Unset

The unset warnings are:

1. Bypassed circuit(s) (the circuit must have a 24hr response)

PIR in Store
Isolated

02=Set
04=Test

2. Circuit(s) on soak test has failed (a special circuit test mode set up by
the installation engineer)

3. Isolated circuit(s)

4. Line Fault (onl y when setting with telephone line f a ul t is allowed)

5. Shunted circuit(s)

6. Circuit has reached the programmed multiple alarm limit

7. Battery test faults

8. 230v mains faults

Unsetting Restrictions

The selected group is programmed with a set level and a higher level set group(s) has not been
unset. If a user attempts to unset a high level set group when a lower level is set then a warning
message will be displayed.

In a PX250HS, there are several additional conditions that apply when unsetting.

1. The keypad must be programmed by the engineer to allow unset

2. The selected group may be programmed for dual user unset

3. An open/close schedule may be programmed for the selected group and the time is after the
programmed close time. This condition may be ignored following an alarm in one of the set group
areas if the set group is programmed with an alarm unset time. In this case, after unsetting, the
set group will automatically set after the programmed Alarm Unset period.

4. The selected group may be pr ogrammed with an Unset Delay time and set group will only unset
at the end of the programmed unset delay pe riod. A message will be displayed during this time
and the user unset request will be logged.

5. If a group is manually set before the scheduled set time then it may be unset up to the number of
programmed Early Set minutes after the time the group was set.

- 15 -

PX/QX/RX Version 4.20 User Manual – Issue B

Unset Delay (PX250HS Only)

12:00 Mon 27 Sep

Guardall

0 2 0 2 

12:00 Mon 27 Sep
Enter- ****

01=Unset
04=Test

0

1

1=Vault
2=Office

1

In the example the vault area is programmed with an
unset delay. The unset delay time is programmed by
the installation engineer.

Unset
Please Wait . . .

Vault
Unset

Log off after unset

programmed

02=Set
04=Test

12:00 Mon 27 Sep

Guardall

Dual Unset (PX250HS Only)

12:00 Mon 27 Sep

Guardall

0 2 0 2 

12:00 Mon 27 Sep

In the example the vault area is programmed for dual
user unset. The first user code is 0202 and the second
user code is 1234. Both users must have the authority
to unset the vault area.
Both user actions are logged in the event log.

Enter- ****

01=Unset
04=Test

0

1

1=Vault
2=Office

1

Dual Code
Enter-

2 

1 3 4

Vault
Unset

02=Set
04=Test

Logon time limit reached

- 16 -

PX/QX/RX Version 4.20 User Manual – Issue B

Reset

Code-03

The resetting method programmed by the alarm company engineer for each area and the system will
depend on the particular security re qu irements of the area or system. There are 3 types of reset:

1. Customer reset, where the customer can reset any alarm

2. Engineer reset, where the alarm company engineer must reset all alarms

3. Managed reset, where the customer ca n reset an a larm after reporting the event to the alarm

company

Workshop
Unset

Alarm
PIR in Office

Alarm cannot be reset

=Reset



01313333802
Code:123456



02=Set

If your system is programmed for engineer reset a
telephone number and code will be displayed. Call this
number and quote your code. if your system is
configured for managed reset you will be given a code
to reset your system. This code can only be used
once.

If an engineer or managed reset is required, it will not
be possible to set the system.

04=Test

Managed Reset

If the system is programmed for man aged reset and an engineer reset is required contact th e alarm
installation company. You will be issued with a special 6-digit PIN code. This PIN code can be used
only once to reset the system. Logon to the keypad with this PIN code to clear the engineer reset
condition.

12:00 Mon 27 Sep

Guardall

reset code +

12:00 Mon 27 Sep
Enter- *****

Reset OK

- 17 -



PX/QX/RX Version 4.20 User Manual – Issue B

Test

Code-04

Each area of the system can be tested individually or all are as can be tested at the same time. The
test time is limited to 1 hour. If the user does not end the test by the end of the test time then the panel
will exit test mode automatically.

04=Test

4



0

Area
Number _



1=Sounder

Enter the area number,

or 0 to test the system

1

Sounder On



2=Audio
3=Strobe

4=Walk Test
5=Comms Test

2

Strobe On



6=Detector

3

Audio On



4

PIR in Hall
Not Tested

5

Tel Number 1
Please Wait . . .

Untested circuits
will be displayed

Front Door
Not Tested

Tel Number 2
Please Wait . . .

Acknowledge
received

Walk Test
All Tested

All circuits
tested

All numbers
Tested

The panel records all ac tivations fr om sens ors du ring the uns et period. W hen wa lk test is s elected th e
panel will display all circuits which have not alarmed since the panel was last u nset. If all circuits are to
be tested then select walk test, then press the

button and select walk test a second time . When the

panel exits walk test mode, either manually or automatically at the end of the test time then:

1. Any fire sensor still in alarm will give a normal alarm response.

2. Circuits with a 24-hour response, which are still in alarm, will be temporarily bypassed.

3. A warning will be displayed if any PA sensor is still in alarm.

If the comms test is selected then the panel will make a test call to all telephone numbers that have
been programmed for test by the installation engineer.

- 18 -

PX/QX/RX Version 4.20 User Manual – Issue B

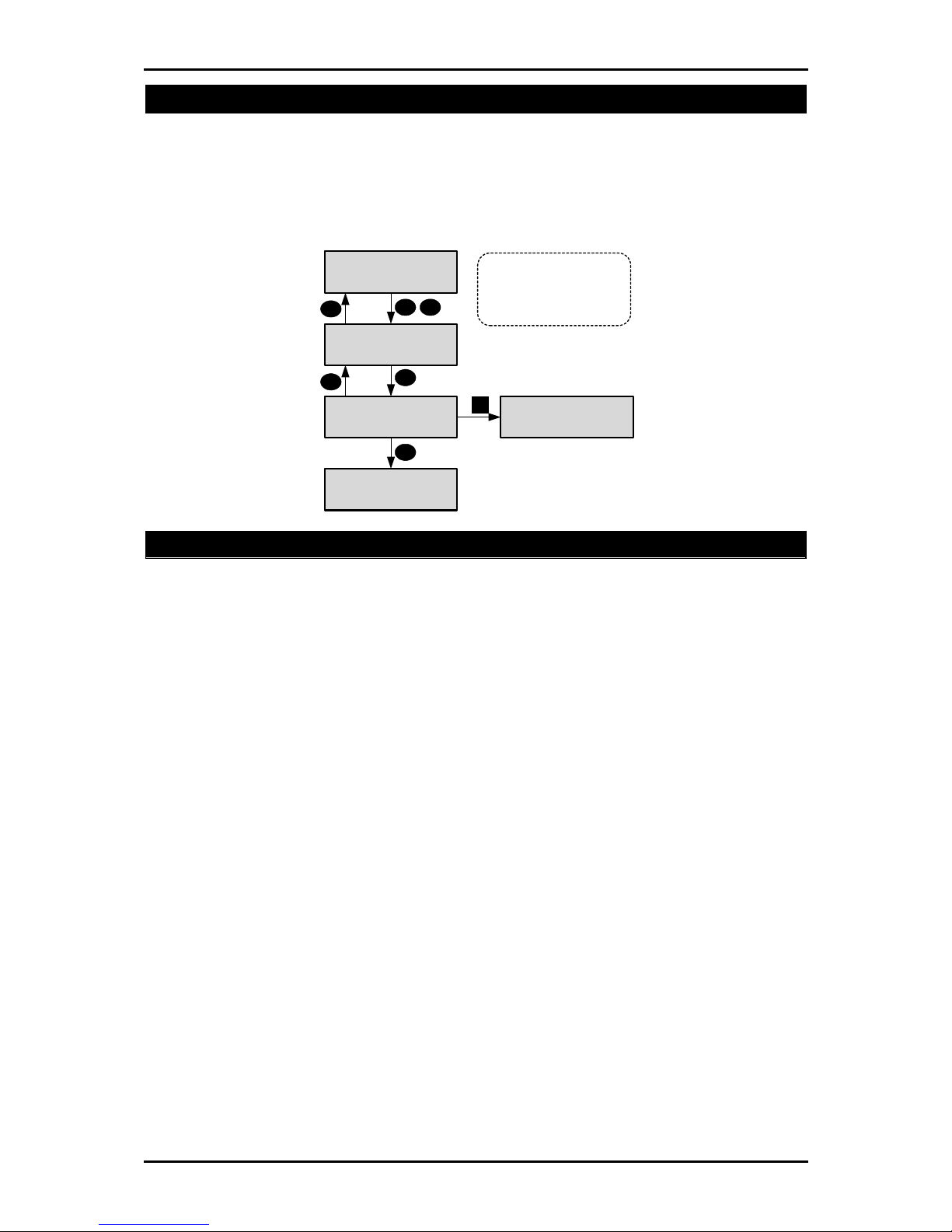

Engineer

Code-05

The Eng option will only be available if the system is con figured for user authorised engineer access.
This option applies to both local and remo te engineer access. When the Eng option is selected the
system will prompt for the engineer PIN code to be entered.

05=Engineer

0 5

Engineer
Guardall

 or time out (2 minutes)

When an engineer logs on to a keypad, all other
keypads in the system will be inoperable and the
display will show

Out of Service.

12:00 Mon 27 Sep

Guardall

Once logged on the engineer working time is li mit ed to 8 hours.

PIN

Code-06

All users on the system are identified by a 4, 5 or 6-digit PIN code. To c hange user PIN c ode, log on
to the keypad using your current PIN code and choose the PIN option. Then follow the display
prompts. All user PIN code changes are recorded in the system event log. If the PIN code option is
not available this means that the system has been programmed to prevent you from changing your
user PIN code, and a new PIN code must be allocated by the security system manager. In the
example shown the user changes code to 1234.

06=PIN

PIN OK

0 6

New PIN
1234

PIN not

unique

2 1 3 4

New PIN
Not Available

If another user on the system already uses the chosen PIN code then that user will be alerted when
next logging on to the system. The user whos e PIN is known must ch ange PIN code to avoid se eing
the warning message on every log on.

- 19 -

PX/QX/RX Version 4.20 User Manual – Issue B

User

Code-07

Any master user can ch ange the name, us er code an d authority for an y user exce pt the engineer. To
modify a user’s details enter th e us er number in the range 2-max us ers. In the programmin g example
user 3 is used.

07=User



0 7

User
Number ____



3 

1=Name
2=PIN

3=Card
4=Authority
5=ACM Authority
6=Schedule
7=Lockout
8=Expiry Date

The user 2 configuration may only be changed by user 1 or user 2. Access system users can be
added quickly using the “Add User” menu option (50), rather than programming the m in dividually.

User Menu

Name

Code-1

When the name option is selec ted the current user descriptor will be displayed and can be edited.
Refer to appendix B for details. User names can be up to 10 characters long.

User Menu

PIN

Code-2

For details of changing a code refer to the main menu code change option. The defaul t u ser codes
are shown in the table. The maximum PIN code length is 6 digits.

Default Codes

User Number PIN

2 0202
3-last user Off

1=Name
2=PIN

3=Card
4=Authority

2

New PIN
1234

PIN OK

2 1 3 4

PIN not unique

New PIN
Not Available

5=ACM Authority
6=Schedule
7=Lockout
8=Expiry Date

- 20 -

PX/QX/RX Version 4.20 User Manual – Issue B

User Menu

Card

Code-3

The procedure for adding a card is similar to adding a new PIN. Present the new card to reader when
prompted to do so. Alternatively, if the card number is known, it can be entered on the keypad. The
maximum number of card digits, excluding the optional site ID, is 8 digits

User Menu

Authority

Code-4

Users can be programmed with a number of options including authority level, group access and timed
access. The available menu options are dependent on the programmed user authority. Refer to the
menus options section for details of the menu opt ions available to each authority leve l

Option Range Description

Code Change On/Off Some user types are allowed by default to change their own

code (refer to authority table). This f ea tu re can be disabled for
any user without manager authority.

LogOnSet On/Off If this option is on, the system will show a list of set groups that

are available to set. If only one set group is available setting
will start automatically.

LogOn/Unset On/Off If this opt i o n is on th en the authorised set groups, which are

set will be unset when the user logs on.

Shunt On/Off If this option is on the user has access to the shunt menu

option (33).

Card+PIN On/Off If the user is configured with the Card+PIN option then BOTH

the PIN code and the card must be used to log onto a keypad.
The PIN code and card may be used in any order. This option
does not apply when using an access module. I f Card+PIN is
off then a user may log onto a keypad using EITHER a PIN
code or card.

Set group 1, max On/Off A user can be programmed any combination of set groups.

3

1=Name
2=PIN

3=Card
4=Authority
5=ACM Authority
6=Schedule
7=Lockout
8=Expiry Date

User-3

User Name

User-3
Off

0 2

User-nnnn
Ordinary

Code Change-Off
LogOn/Set-Off
LogOn/Unset-Off
Shunt-Off
Card+PIN-Off
Group 1-Off
Group 2-Off
…
Group 32-Off

?

0=Off
01=Master

02=Ordinary
03=Set/Uns
04=Set
05=Unset
06=Cleaner
07=Access
10=ATM
11=Log
12=Bank Reset
14=Guard

- 21 -

PX/QX/RX Version 4.20 User Manual – Issue B

User Menu

ACM Authority (PX Only)

Code-5

This option will only be available if at least one ACM is fitted to the system.

Option Range Description

Enable On/Off If this option is off no further user ACM options will be

displayed in this menu.

Level Normal,

The access authority of each user can be programmed.
Visitor,
Escort or
Supervisor

ACM 1 ­maximum

On/Off A user can be authorised for access through any combination

of ACM doors.

Challenged On/Off If a user is programmed as challenged then the ACM door

release and open times will be automatically doubled for the

user.

1=Name
2=PIN

3=Card
4=Authority
5=ACM Authority
6=Schedule
7=Lockout
8=Expiry Date



4

User-3
Enable-Off

User-3
Enable-On

Level-Normal
ACM 1-Off
ACM 2-Off
. . .
ACM 32-Off
Challenged-Off

1

0=Normal

?

1=Visitor
2=Escort
3=Supervisor

ACM Authority

Level

Access level Help Menu

User access right will depend on the programmed user level and the programmed access door mode
(programmed by the installation e ng i ne er ). There are no restrictions on exit.

User Access Restrictions

Door Mode User Mode

Normal Dual Escort Supervisor

Normal

Visitor
Escort



1

 


1 4

 

2




Supervisor  (3)  (3)  (3)  (3)

Notes:

1. Dual mode access requires 2 users with either Normal, Escort or Supervisor authority.

2. A visitor user may only gain access withi n 10 secon ds o f an escort user presenting their token.

3. A supervisor user can access a door with lockout en abled.

4. An escort user can gain access by presenting t he i r token twice within 10 seconds.

User Menu

Schedule

Code-6

A user can be programmed with a schedule to control access times. Program 00 to allow 24hr
access. The schedules can be programmed using o pt i on 25 .

- 22 -

PX/QX/RX Version 4.20 User Manual – Issue B

User Menu

Lockout (PX Only)

Code-7

This option will only be available if at least one ACM is fitted to th e system. If the lockout option is on
for a user then the user code will be ign ored until the lockout is turned off.

User Menu

Expiry Date (PX Only)

Code-8

Expiry dates can be programmed for all users (panel and access users).

7

1=Name
2=PIN

3=Card

Expiry Date
Off



4=Authority
5=ACM Authority
6=Schedule
7=Lockout
8=Expiry Date

Expiry Date
Enter DDMMYYYY

0 1 0 1 2 0 0 4

Expiry Date



Thu 01 Jan 2004

To delete an expiry date, enter the day and month of 0000 and the c urrent year. The user authority
and codes will be removed from the system at midnight on the expiry date.

Tel Number

Code-08

An authorised user can ch ange any telephon e number that ha s been programmed to use the speech
format, home beep or SMS formats. The available formats will depend on the system hardware
options. A telephone number of up to 16 digits can be programmed. This number can include pause
digits. Pause digits can be entered using the Ð button. This will be displayed as a “,” character. Each
pause digit represents a 1 s econd delay. Pau ses may be requ ired if you are signalling via a PABX or
if the call is routed through an old exchange.

Enter a single zero to turn off a telephone number. Press

to delete a single digit.

08=Tel Number



An alarm in the home beep format is transmitted as a s eri es of D TMF tone s . For exam ple if cha nnel 3
was active the transmitted message would be:

3 3 3 < 2s delay> 3 3 3 < 2s delay > 3 3 3 < 2s delay> 3 3 3 < 2s delay >3 3 3

Where ‘3’ is the tone pair for DTMF digit 3. Th e channel information is repeated a maxi mum of 5 times
during a call.



Tel Numb er
Number _

Tel Number-1

01313332900

Tel Number-1
01313333802

018

the number is not used

for speech messages

enter the
telephone number+

- 23 -

Not Available
No Authority



PX/QX/RX Version 4.20 User Manual – Iss ue B

Logs

The panel logs all events that occur in the system. All events stored in the event log are numbered in
the range 0-65535 (the event index). The event index will be reset to 0 when more than 65535 events
have been recorded. There are 2 logs, the security log and, if an ACM(s) is fitted, an access log. Eac h
log can be viewed in full or filtered form on a keypad and printed if a printer is connected to the
system. Options 16-18 will only be displayed if th ere is at least one ACM on the s ystem. Only events
for authorised areas and access doors will be displayed or printed.

10=Log-Full
11=Log-Cct

12=Log-User
13=Log-KP
14=Log-Date
15=Log-Alarm
16=A/Log Full
17=A/Log User
18=A/Log Door

1

101

1 2

1 3

1 4
1 5

1
1

1

Circuit
Number-___

User
Number-____

Keypad
Number-__

Filter Date
Enter-DDMMYYYY

6
7

User
Number-____

8

Door
Number-__

1=Display
2=Print

2

Use the button to change th e
display view of an event and the
buttons to change t h e event being
displayed. When an event is printed all
the event data is print e d.

1

PIR in Hall
Bypassed

12:00:00 Cct1
Bypassed

Fri 3 Jan 2003
00071

U2 Cct1
Bypassed

?

?

?

?

?

00001 Mon 07 Apr 2003 00:00:02 User 2 (Mr Smith) Logged On on KP 0

Event index Event date Event time Event details

Refer to the appendix C for details of all log messages.

Time

Code-20

Some users have the authority to change the time by up to 75 minutes from the time set by the
engineer if the user clock edit option is programmed. Time changes are recorded in the eve nt log.

20=Time Time

02

12:00



Time

Change greater

than 75 minutes

Out of Range

Enter HH:MM

1 3 0 0



Time
13:00

- 24 -

PX/QX/RX Version 4.20 User Manual – Issue B

Holiday

Code-24

The programmed holidays are used in conjunction with the programmable schedules. The holiday
date format is day and month only. No year is entered therefore the entered date will remain
programmed as a holiday for all years, or until it is removed from the holiday schedule. It is not
possible to program a holiday period that sta rts in December an d ends in January. To achieve th is 2
holiday periods must be programmed.

24=Holiday

2 4

Holiday
Number __



10

Holiday 1
Start-Off

End-Off
Set Group-00

Holiday 1
Enter DDMM

To disable a holiday enter a da te of 00:00. The start and end dates must be in chronological order.
Holidays may be optionally progra mme d to apply to individual set groups

Schedule

Code-25

A schedule consists of 4 times for each day of the week and 4 times for days which are holidays. A
schedule can be used to:

1. Auto set and unset parts of th e system

2. Control outputs

3. Enable/disable keypads

4. Enable/disable user access

5. Lock/unlock access doors

25=Schedule

2 5

Schedule
Number __

0 1

1=Mon
2=Tue

3=Wed
4=Thu
5=Fri

1

Schedule 1 Mon
Start 1-00:00

Stop 1-00:00
Start 2-00:00
Stop 2-00:00

Schedule 1 Mon
Enter HH:MM

6=Sat
7=Sun
8=Hol

Group Text

Code-26

A descriptor of up to 10 characters may be entered for each set group. Refer to appendix B for details
of how to change a descriptor.

- 25 -

PX/QX/RX Version 4.20 User Manual – Issue B

Minutes Left (PX250HS Only)

Code-27

This option is only available to an ATM us er. When an ATM user code and a non-zero ATM de lay
period is programmed then a delay prompt will be displayed when the ATM user code is first entered.

27=Minutes left

2 7

10 Minutes left

=Ext. Time



01=ATM 1
02=ATM 2

ATM 2
Unset

The actual unset menu
will depend on the ATM
user authority and the

0

2

group descriptors

Ext. Time
OK

If the working time is less than 10 minutes, and an extension time is programmed, then the ATM user
may extend the working time. If the programmed ATM working time is more than 10 minutes then a
warning will be given when the ATM user has 10 minutes working time left and the extend time prompt
will be displayed automatically. Requests to extend the time will be logged.

At the end of the working
time the ATM user will be automatically logged off and areas that were unset by the ATM user
will be automatically set. If an ATM user logs off without setting the ATM user authorised areas
will be automatically set.

Late Work

Code-28

The late working option will only be displayed if at least one set group is programmed with a schedule
and late working has not been already selected. When the late working option is selected a list of all
available set groups will be displayed. The late work time can be any time, including times after
midnight. All late working actions are logg ed.

28=Late Work





1=Perimeter
2=Vault

Late Work
00:00

Late Work
19:00

2 8

1

Late Work
Enter HH:MM

1 9 0 0

- 26 -

PX/QX/RX Version 4.20 User Manual – Issue B

Bypass

Code-30

The bypass option will only be ava ilable if a circuit(s) has been programmed as bypassable by the
installation engineer. The bypass circuit option allows the user to bypass a circuit that is in a fault
condition. When bypassed the alarm con dition of a circuit is ignore d. When a circuit is bypasse d it is
ignored until the bypass is automatically removed when the circuit is next unset or until a user
removes the bypass. All bypass actions are stored in the event log. A bypass limit will have been
programmed by the installation engineer to limit the number of circuits that can be bypassed at any
one time. The system will display an error m essa ge if y ou tr y to exceed this limit.

30=Bypass





Circuit
Number ___

Circuit was

not bypassed

Cct-01
Bypassed

Enter circuit

number

3 0

?

Circuit
Limit 1 to max

10

Circuit cannot

be bypassed

Not Available
No Authority

Circuit was

bypassed

Cct-01
Normal

Max. Number of

circuits already

bypassed

Cct-01
Normal

Not Available
At Bypass Limit

Circuit has a 24hr

response and is

already bypassed

Cct-01
Active

Circuit is in a set

area

Cct-01
Set

Chime

Code-32

Certain circuit types can be selected as chime circuits when unset. To select the chime function for a
circuit, enter the circuit number. In the example chime is turned on for circuit 1.

32=Chime





Circuit
Number ___

Circuit-1
Front Door

Press any

Circuit-1
Chime-Off

Circuit-1
Chime-On

3 2

10

button

1

- 27 -

PX/QX/RX Version 4.20 User Manual – Issue B

Shunt

Code-33

A manager or ordinary user can be programmed with the shunt option. The shunt option will only be
displayed if there are sh untable circ uits in the u ser author ised area s. Shunted c ircuits ma y be viewed
at any time using option 89 (Cct St atus). All shunt actions are logged.

33=Shunt





Circuit

3 3

Number ___

Enter circuit

number

Circuit was

not shunted

Cct-01
Shunt On

10

Circuit cannot

be shunted

Not Available
Not Programmed

Circuit was

shunted

Cct-01
Shunt Off

Max. Number of
circuits already

shunted

Not Available
Shunt Limit

Print Text

Code-40

This option will only be available if a printer is connected to the system. The print text option will print
all text descriptors.

Print Hols.

Code-42

This option will only be available if a printer is connected to the system. The print holiday option will
print all holiday periods.

Identify User

Code-52

This option allows a user to be identified by presenting the card/fob.

52=Identify User



5 2

Present Card/Fob

Unused card/fob presen t e d

User 3 fob presented

Code Not Used User 3

J Smith

User 20 fob presented

User 20
J Black

- 28 -

PX/QX/RX Version 4.20 User Manual – Issue B

Copy User

71=Copy User



7 1

Copy User ___
___-___

Enter the user to copy
here.

Enter the first and last user
in the copy range here.

To copy a single user, enter the same user number as th e first and last.

Copy A/User (PX Only)

This option will only be available if at least one ACM is fitted to the system.

73=Copy A/User



7 3

Copy A/User ____
____-____

Enter the user to copy
here.

Enter the first and last user
in the copy range here.

To copy a single user, enter the same user number as th e first and last.

Cct Status

89=Cct Status



Code-71

Code-73

Code-89



8 9

Cct Status
Normal

When the Cct Status option is selected the circuits that
are on soak test, bypassed, isolated or shunted will be
scrolled on the dis p l ay.

Cct 1
Bypassed

- 29 -

PX/QX/RX Version 4.20 User Manual – Issue B

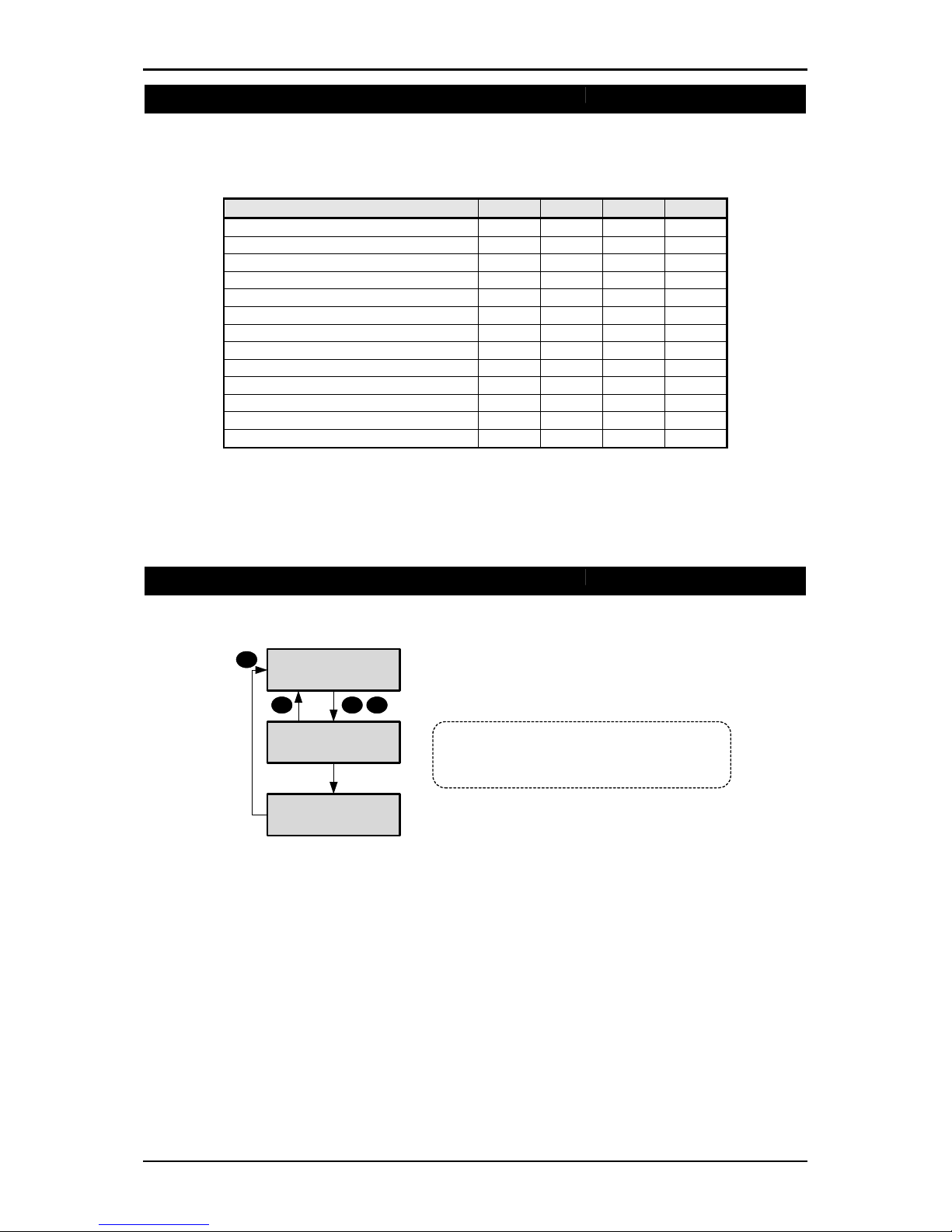

Access Features (PX Only)

The number of ACMs that can be connected depends on the panel variant:
The table shows the access features across the panel range.

Feature PX18 PX34 PX80 PX500

ACMs 2 4 16 32
Panel Users 20 40 100 200
Access Users 100 100 1000 1000
User expiry dates
Challenged user option
User lock out from keypad
ACM Door lock/unlock from keypad
Programmable unlock time
Programmable Aux. relay time
Anti pass back

   
   
   
   
   
   
   

Access log events 1000 1000 1000 1000
Access log real time print
Set & unset

   
   

Note: The panel users must be the fir st users in th e system. For examp le on the PX 500 users 2-200
may be access or panel users, users 201-1000 can only be access users and user 1 is always the
engineer. The PX access control system can be configured through a security system keypad or a PC
running GuardStation™ Access. Guardall PX proximity cards or fobs may only be introduced to the
system through a PX keypad with an integrated proximity reader.

Add A/User

Code-50

This option will only be available if at least one ACM is fitted to the system.



50=Add A/User

 5 0

User 3
Present Card/Fob

Valid Card/Fob

read

The first free user number is displayed
The user number is automatically incremented when a

valid card/fob is presented.

User 4
Present Card/Fob

The user authority is automatically set to Access for all ACM doors and the user text descriptor will be
defaulted. If required the user authority can be changed using the edit user option.

- 30 -

PX/QX/RX Version 4.20 User Manual – Issue B

Delete User

Code-51

This option will only be available if at least one ACM is fitted to the system. In the example s hown user
3 is deleted from the system.

51=Delete Users

 5 1

Delete Users
____-____

3 

Enter the range of users t o de l ete.
To delete a single user, enter the
user number twice. User numbers
can be entered without leading zeros.

Delete Users
3___-____

3 

Delete Users
3___-3___

Door Unlock

Code-53

This option will only be available if at least one ACM is fitted to the system. An ACM door can be
manually locked/unlocked from a keypad. An optional unlock time of up to 255 minutes can be
programmed. If a time of zero is programmed the door will remain unlocked until the unlock option is
turned off. While a door is locked it can still be opened by presenting a valid user card.

53=Door Unlock



5 3

Door
Number _



1

Door 1
Door Unlock-Off

Unlock Time-000

The system can be
programmed by the
engineer to allow the
manual door lock /
unlock option t o
override the schedule
control.

1

Door 1
Door Unlock-On

- 31 -

PX/QX/RX Version 4.20 User Manual – Issue B

Door Lockout

Code-54

This option will only be available if at least one ACM is fitted to the system. The locked out ACM door
will remain locked and will refuse all access attempts until the lockout is removed. The ACM door
lockout can only be removed through this programming option. The ACM door lockout will over-ride
any user/ACM schedule permissions or otherwise immediately, and for the applied duration. Upon
removal the ACM door will be returned to its previo us st ate (if that state still applies ). Proximity read er
LED’s will show the ACM door as locked out for the applied duration.

54=Door Lockout



45

An access user with
supervisor authority can
gain access through a door
with lockout enabled.

Door
Number _



Door 1
Door Lockout-Off

1

?

0=Off
1=On

1

Door 1
Door Lockout-On

ACM Text

Code-55

A descriptor of up to 1 0 chara cters ma y be enter ed for ea ch ACM. Refe r to the appe ndix B for d etails
of how to change a descriptor.

- 32 -

PX/QX/RX Version 4.20 User Manual – Issue B

Appendix A – User Authorities

All user options with the appropriate authority level are shown in the tabl e.

Code Menu Option

Set

Set/Uns

Ordinary

01 Unset
02 Set
03 Reset
04 Test

Manager

          
          
          
          

05 Engineer 1 1 1 1
06 Code
07 User
08 Tel Number
10 Log-Full
11 Log-Cct
12 Log-User
13 Log-KP
14 Log-Date
15 Log-Alarm
16 A/Log-Full
17 A/Log-User
18 A/Log-ACM
20 Time 3 3
24 Holiday
25 Schedule 7
26 Group Text
27 Minutes Left
28 Late Work
30 Bypass 4 4
32 Chime
33 Shunt
40 Print Text 5
42 Print Hols. 5
50 Add A/User 6
51 Delete User 6
52 Identify User
53 Door Unlock 6
54 Door Lockout 6
55 ACM Text 6
71 Copy User
73 Copy A/User
89 Cct Status



2 2 2

          
          
          
          
          
          
          
          
          
          
          

        

          

         
          
          
          

        
          
          

         
         
         
         

          

         
         

         
          
          
          

Unset

Cleaner

Access

      
      

ATM

Log

Guard

Bank Reset

Notes:

1. The Engineer option is not available to a user if the panel is programmed to allow the
engineer to log on without user authorisation.

2. The code option for some users will only be available if configured as part of the user
authority.

3. The time can only be changed by a user if programmed by the enginee r. User time changes
are limited to +/- 75 minutes.

4. The bypass option is only available if at least one circuit has been programmed to allow
bypass.

5. The print options are only available of a printer is connected to the system.

6. The access options are only available if an ACM is fitted to the system

7. The schedule option is only available if programmed by the engineer.

- 33 -

PX/QX/RX Version 4.20 User Manual – Issue B

Appendix B – Editing Text

A number of text descriptors may be changed by an authorised user. All changes to descriptors are
logged.

Item Max. Length Default

User 10 User xx
Set group 10 Group x
Access control module 10 ACM x

User Number-03

J Smith

User Number-03

K Smith

1

MZ

1A2 3

amz

4 5 6

19

7 8 9

save move

 0

space

clear

?

When a descriptor i s displayed t he c h ar acter being edited wi l l
be flashing (th i s is shown as a grey character in the
diagram).

You can change a character using the numeric keys and/or
use the and buttons to move through the text
character set.

User Number-03

A Smith

The allowed characters are:

 

User Number-03

ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz .-/
+#%^&*@<>:!$?_0123456789

A Smith

- 34 -

PX/QX/RX Version 4.20 User Manual – Issue B

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

Appendix C - Log Messages

Alarm & Event Log messages

Log Text Additional Data Display Text Event Description

230v Fault NONE (see note) NONE Mains supply failed
230v OK NONE (see note) NONE Mains supply restored

/Set Fault Usnn, Area m Usnn, Am

n area auto set with faults
ctive Circuit Circuit nnn Cctnnn User selected active circu i t test
larm Circuit nnn Cctnnn

Circuit alarm
larm (master shunt) Circuit nnn Cctnnn Master shunt type circuit alarms
larm Abort User nn, Keypad m Usnn, KPm
nti mask Circuit nnn Cctnnn

larm abort signal transmitted.

Circuit program with the anti-

mask option has alarmed
uth. Fail User nn Usnn Encryption authentication fail
uto Check Fail Circuit nnn Cctnnn

Circuit has failed to activate

during the auto check period.
uto Check OK NONE NONE Circuit Auto Check was OK

Bat. Restore NONE (see note) NONE The battery voltage is normal

after a battery low

Bat.Monitor Fail NONE (see note) NONE Battery voltage is low or not

present during a battery test

Battery Low NONE (see note) NONE The battery has reached the low

volts threshold (after a mains

fail)

Battery Low Transmitter number TXm Transmitter battery low
Bypass User nn, Circuit mmm Usnn Cctmmm Circuit bypassed
Cannot set User nn, Area m Usnn, Am User was not able to set an area
Cct Tested Circuit nnn Cctnnn Cir cuit responded in walk test
Changed Code User nn, Keypad m Usnn, KPm User changes own code
Changed Code User nn, User mm Usnn, Usmm Manager or GSR user changes

code for another user

Changed Time User nn, Keypad m Usnn, KPm Time modified, old time and new

time are logged

Check Fuse n N Panel fuse number
Check Fuse Conc n Conc n Concentrator fuse
Check Fuse OPM n OPM n Output module fuse
Check Fuse

CM n

CM n

CM fuse
Clear Circuit nnn Cctnnn Master shunt type circuit clears
Clear Circuit nnn Cctnnn

Circuit alarm has cleared.
Code Clash User nn, User mm Usnn, Usmm User has chosen a new code

which is the same as another
user

Comm Acknowledge n N Central station acknowledge

alarm report

Comm Fail NONE NONE Control panel comm fail input

active.

Comm Fail n N Central station fails to

acknowledges alarm report

Comm Fail

Module name Module name

Module has reported a
communications fail

Comm Test User nn, Keypad m Usnn, KPm User or the panel tested the

communicator(s)
Commission Fail User nn Usnn Encryption commission fail
Commissioned User nn Usnn Encryption commission OK
Data Route Fail NONE NONE

call using the Dual comm data

route has failed.
Data Route OK NONE NONE

call using the Dual comm data

route was successful.
Date Changed Usnn Usnn Date changed (manual or auto)

- 35 -

PX/QX/RX Version 4.20 User Manual – Issue B

A

A

A

A

A

A

A

A

A

A

A

A

A

Alarm & Event Log messages

Log Text Additional Data Display Text Event Description

Det Test Fail Usnn, Area m Usnn, Am One or more detector test

circuits failed
Det Test OK Usnn, Area m Usnn, Am

ll detector test circuits tested

OK
Det.Test Fail

User nn, Circuit mmm Usnn CctmmmA detector circuit has failed to

respond during a detector test.
Dorm Confirm Circuit nnn Cctnnn Dormitory circuit confirmed
Dorm Init. Circuit nnn Cctnnn Dormitory circuit first activation
Download Fail GSRx GSRx Download from GSR x failed
Download OK GSRx GSRx Download from GSR x OK
Enc.Sequence User nn Usnn Encryption sequence fail
Engineer Reset Circuit nnn Cctnnn Engineer reset type circuit

alarms
Entry Alarm

rea n

n The area is not unset before the

end of the entry warning period
Entry Started Circuit nnn Cctnnn Entry circuit opens
Expiry Date Usnn Usnn Config change: User expiry date

change.
Ext.Time User nn, Keypad m Usnn, KPm

TM user selected a time

extension
Failed Auto Set User nn, Area m Usnn, Am Event programmer failed to auto

set due to circuits in alarm
Fault Radio module number RM nn Radio Module fault (no response

when unset). The system fault

response option must be

programmed. This option is only

available in EN50131 compliant

variants.
Fault Circuit nnn Cctnnn

Circuit short circuit when

unset
Fault Keypad n KPn Failed poll when unset
Fault Conc nn Conc nn Failed poll when unset
Fault OPM nn OPM nn Failed poll when unset
Fault SM n SM n Failed poll when unset
Fault
Fire Circuit nnn Cctnnn

CM nn

CM nn Failed poll when unset

fire type circuit alarm
Fire Door Open Circuit nnn Cctnnn Fire door open wh en unse t
First code User nn, Keypad m Usnn, KPm User entered code on Dual code

keypad

GSM Route Fail NONE NONE

call using the Dual comm

GSM route has failed.

GSM Route OK NONE NONE

call using the Dual comm

GSM route was successful.
GSR Poll Fail GSRx GSRx GSR number x poll fail.
GSR Poll Rest. GSRx GSRx GSR number x polling restarted
GSR Rejected NON E NONE

call from an unauthorised
GSR was rejected by the panel
(the serial number was not
programmed)

Head Count Number Number of activations of all

circuits programmed with the
head count option while the
panel was unset.

Incorrect PIN Keypad n KPn Maximum PIN attempts reached
Isol. Limit

rea n

n The isolate limit for the system

has been reached.

Isolate User nn, Circuit mmm Usnn Cctmmm Circuit isolated by user
Isolate User nn, Concm Usnn, m Concentrator isolated by user

- 36 -

PX/QX/RX Version 4.20 User Manual – Issue B

A

A

An A

r

A

A

A

A

A

A

A

A

A

A

Alarm & Event Log messages

Log Text Additional Data Display Text Event Description

Isolate User nn, Keypad m Usnn, KPm Keypad isolated by user
Isolate User nn, RMm Usnn, RMm Radio module isolated by user
Jamming Radio module number RM nn Receiver jammed
Key Fail User nn Usnn Encryption key fail
Knock Circuit nnn Cctnnn Circuit first knock
Late Working Usnn, Area m Usnn, Am Late working has been selected

for the area

Line Fault

Module name Module name

Module has reported a line fault

Lockout Keypad n KPn Incorrect code attempt limit

reached on the keypad

Logged Off User nn, Keypad m Usnn, KPm User logged off keypad
Logged On User nn, Keypad m Usnn, KPm User logged on keypad
Managed Rst Keypad m KPm Managed reset code entered
Marginal Circuit nnn Cctnnn

Circuit is marginal

Mult. Alarm Circuit nnn Cctnnn Circuit has ala rme d up to th e

multiple alarm limit

Normal User nn, Concm Usnn, m Isolate removed from a

concentrator

Normal User nn, Circuit mmm Usnn Cctmmm Bypass or isolate removed from

a circuit

Not Unset

rea n

set group was not unset by
the schedule close time

Panel Tamper NONE NONE Panel case or off the
PC Access GSRx Operator YY GSRx Operator

YY

PC Disconnect GSRx Operator YY GSRx Operator

YY

Personal Attack Circuit nnn Cctnnn

wall tampe
GSR operator number YY has
logged on from GSR number x.
GSR operator number YY has
logged on from GSR number x.

PA type circuit alarm

Poll Fail Transmitter number TX nn, RM mm Transmitter polling failure
Poll Fault Radio module number RM nn Receiver polling fault
Power Fail NONE (see note) NONE Supply voltage has

fallen to the power fail threshold

PSTN Route Fail NONE NONE

call using the Dual comm
PSTN route has failed.

PSTN Route OK NONE NONE

call using the Dual comm
PSTN route was successful.

Remote Service GSRx GSRx Remote Service Co mple te
Reprogrammed Refer to table Refer to table Item menu description plus

optional number (see note)

Reset Circuit nnn Cctnnn
Reset User nn, Area m Usnn, Usnn
Restored Code(s) User nn, Keypad m Usnn, KPm

n area has been reset

n area has been reset

ll codes have been restored to
default

Rmt.Auth Fail NONE NONE Repeated attempt to log on by a

remote host

Session End User nn Usnn Encryption session end
Set User nn, Area m Usnn Am

rea has been set by a user

Set User nn, Group m Usnn m Group has been set by a user
Set Req. Circuit nnn Cctnnn Key type circuit alarms
Set Req. User nn, Keypad m Usnn, KPm

user requested set on a
keypad (dual set programmed)

Shunt Limit

rea n

n The shunt limit for the system

has been reached.

Shunt Off User nn, Circuit mmm Usnn Cctmmm Shunted removed from circuit
Shunt On User nn, Circuit mmm Usnn Cctmmm Shunt applied to circuit

- 37 -

PX/QX/RX Version 4.20 User Manual – Issue B

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

An A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

Alarm & Event Log messages

Log Text Additional Data Display Text Event Description

Sndr Tamper NONE NONE Panel sounder tamper
Soak Alarm Circuit nnn Cctnnn

circuit on soak test has
alarmed

Soak Failed Circuit nnn Cctnnn

t the end of the soak period
any circuit which has alarmed is
logged as failed

Soak Off Circuit nnn Cctnnn
Soak On Circuit nnn Cctnnn
Software Error N N

circuit has been taken off soak

circuit has been put on soak

software error has been
logged

Tamper n n Concentrator Tamper
Tamper Circuit nnn Cctnnn
Tamper Keypad n KPn
Tamper SM n SMn
Tamper OPM n OPMn
Tamper

CM n

CMn

circuit tamper

keypad tamper

serial module tamper

n output module tamper

n ACM tamper

Tamper Radio module number RM nn Radio Module tamper
Temp Bypass Circuit nnn Cctnnn

circuit has been temporarily
(until clear) bypassed

TX Off N N TX channel N off
TX On N N TX channel N on
Unset User nn, Area m Usnn Am

user has unset the area

Unset User nn, Group m Usnn m Group has been unset by a user
Unset Req. Circuit nnn Cctnnn Key type circuit clears
Unset Req. User nn, Keypad m Usnn, KPm

user requested unset on a
keypad (dual unset or unset
delay programmed)

Upload Fail GSRx GSRx Upload to GSR x failed
Upload OK GSRx GSRx Upload to GSR x OK
Verify Alm

rea n

verified alarm has occurred

Watchdog NONE NONE Software watchdog active

Appendix C – Access Log Messages

Access Control log only messages

Log Text Additional Data Display Text Event Description

ccess User nn, ACM m Usnn, ACMm User accessed ACM m

Card Exit User nn, ACM m Usnn, ACMm User exit by ACM m, which has

no door contact

Denied User nn, ACM m Usnn, ACMm User de nie d acce ss ACM m
Door Open

CM m

CMm

CM door held open

Exit User nn, ACM m Usnn, ACMm User exit by ACM m
Forced
Lock
Pending
RTE

CM m
CM m
CM m
CM m

CMm
CMm

CM door forced open

CM door lock

CMm Schedule unlock pending
CMm

CM Door RTE button active

Set Req. User nn, ACM m Usnn, ACMm User request to set from ACM m
Unlock

CM m

CMm

CM door unlocked

Unset Req. User nn, ACM m Usnn, ACMm User request to unset from ACM

m

- 38 -

PX/QX/RX Version 4.20 User Manual – Issue B

Appendix E - Menu Restrictions

If a menu number is entered and the option is not available, then a reason will be displayed. For
example if no area is set and yo u selec t uns et

the panel will prompt with the reason the unset option is

not available.

Not Available
No Set Area

This indicates that there is no set area available to the us er.

There are many reasons why an option is not available. If you think an option should be available but
the prompt is not on display then enter the menu number and the panel will display an appropriate
message. The following table shows the reasons why a menu option is not available:

Not Available Message Where Used

At Bypass Limit User attempts to bypass a ci rcuit when the number of bypas sed circuits is

at the programmed bypass limit.
Call Engineer User attempts to set when an engineer reset is required.
High Level Set User attempts to unset a lower level group without unset higher levels
Isolate Limit User attempts to isolate a circuit when the maximum allowed number of

circuits are already isolated
Isolated User attempts to bypass a circuit that is isolated.
Key Not Used The key (button) which has been pressed is never used in the current

menu.
Keypad Busy User attempts to turn off a keypad that is being used.
Low Level Unset User attempts to set a higher level group without setting lower levels
No Authority User tries to select an option that is not allowed with their programmed

authority level.
No Set Area User selects unset when all areas that can be unset from the keypad are

already unset.
No Unset Area User selects set when all areas that can be set from the keypad are

already set.
Not Applicable User attempts, for example, to reset when there are no alarms logged.
Not Programmed The option selected is not programmed.
Option in Use User selects an option, such as test, which is in being used by another

user.
Printer Busy User attempts to print and the printer is in use.
Set Area User attempts to access test when an area is set.
Shunt Limit User attempts to shunt a circuit when the maximum allowed number of

circuits are already shunted
System Not Unset User attempts to access an option that is only available when the s ystem

is unset, for example the even t log.
Test in Progress User attempts to set an area that is being tested (on another keypad).
Test System Circuit check fail has occurred and the user has selected set
Timer Control On User attempts to log on outwith the schedule times.
Unset Area User attempts to unset an unset area.

- 39 -

PX/QX/RX Version 4.20 User Manual – Issue B

A

A

f

A

A

A

A

A

A

Appendix E - Log On Messages

When a user logs on, the system may display a special message(s) before the normal menu is
displayed. The special messages are shown in the ta ble.

Message Reason

larm Abort User logs on within the alarm abort period (programmable option)
Call Engineer You should call the installation company. The details will then be displayed.
Cannot Set The system cannot set, the reason(s) will then be displayed.
Code Known

nother user has chosen your code. You will then be given the option o
immediately changing your code. This message will always be displayed on
log on until the code is changed.

Det.Test Fail

rea x

Group Unset

detector in area x has failed an automatic detector test. Note that this
warning will not be shown if the log on set option applies.

group(s) is set and is progra mmed to automatically unset when a user logs
on.

Mult.Alarm

circuit(s) has alarmed the maximum number of times allowed
(programmable). The circuit details will then be displayed.

Reset OK

managed reset code has been accepted

Setting Stopped User logs on during the setting exit period
Soak Cct Fails Circuits which have been put on special test by the installation engineer have

alarmed.

Unset Alarm

n unset alarm has occurred, the details will then be displayed.

- 40 -

PX/QX/RX Version 4.20 User Manual – Issue B

Appendix F – Audio Commands

This section only applies to systems that are fitted with an audio bus or a speech module. The speech
and audio functions of the system by using a DTMF telephone handset. To use an audio or speech
function:

1. Dial the control panel telephone number

2. Log on using your PIN code and terminate with the # button

3. Enter the required function code

Code Meaning

*01# - *32# Activate TalkBack modules 1 to 32
*00# Activate all TalkBack modules
# Toggle between listen and talk modes
*59# Replay stored audio (the system must be fitted with an audio interface

with the speech record option)
*40# Record main message
*41# - *49# Record channel messages 1 to 8
*410# Record set message
*411# Record unset message
*50# Play main message
*51# - *59# Play channel message 1 to 8
*510# Play set message
*511# Play unset message
*61# - *68# Turn on output 1 to 8 (the selected output must be pr og rammed by the

engineer)
*171# - *178# Turn off output 1 to 8 (the selected output must be pro gr ammed by the

engineer)

*010# Unset system
*01nn# Unset group n, where n = 1 to 32
*020# Set system
*02nn# Set group n, where n = 1 to 32
*03nn# Status of set group n, where n = 1 to 32

* Cancel command
*# shut down call

Note that all commands except tog gle are p receded with a “*” and you mus t wait for the confirm tone
after the “*” before pressing “#”.

Message Length

Function

(seconds)

0 8 Main message sent with all speech format alarm reports

1-8 4 Channel messages sent when the corresponding channel is

active

9 6 Memo message or stored audio message

- 41 -

PX/QX/RX Version 4.20 User Manual – Issue B

Appendix G - System Details

Number of Areas
Number of keypads
Number of Circuits
Number of Users
Service Number
Contract Number

Keypads

Number Location

1
2
3
4
5
6
7
8

Set Groups

1 2 3 4 5 6 7 8

1
2
3
4
5
6
7
8

Areas Number Description

- 42 -

PX/QX/RX Version 4.20 User Manual – Issue B

Circuits

Number Description Location

Cct 1
Cct 2
Cct 3
Cct 4
Cct 5
Cct 6
Cct 7
Cct 8
Cct 9
Cct 10

Cct 11
Cct 12
Cct 13
Cct 14
Cct 15
Cct 16
Cct 17
Cct 18

Cct 19
Cct 20
Cct 21
Cct 22
Cct 23
Cct 24
Cct 25
Cct 26
Cct 27

- 43 -

PX/QX/RX Version 4.20 User Manual – Issue B

Number Description Location

Cct 28
Cct 29
Cct 30
Cct 31
Cct 32
Cct 33
Cct 34

Users

2
3
4
5
6
7
8

Areas Number Description

1 2 3 4

- 44 -

Guardall Limited

Lochend Industrial Estate

Newbridge

Edinburgh EH28 8PL

Tel: [phone]

FAX: [phone]

Technical Hotline: [phone]

Part Number: 320995-0B
