HomeSpot® Bluetooth Adapter for
NSwitch
The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks
by HomeSpot
Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other
countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the
United States and other countries.
®
is under license.
Package Contents
HomeSpot HS3 NS001 User Guide
Mini Mic
Pouch Warranty Card
USB-C to USB-A
Adapter
About your HomeSpot HS3 NS001
P1 Button
Press to Connect / Hold to Pair
P1 LED
On = Connected / Flashing = Connecting or Pairing*
Codec LED
Off = SBC / Blue = aptX / Amber = aptX Low Latency
P2 LED
On = Connected / Flashing = Connecting or Pairing*
P2 Button
Press to Connect / Hold to Pair
USB-C Plug
Setting up your hardware
1. Turn on the NSwitch and go to the Home menu.
2. Insert the HomeSpot HS3 NS001 into the NSwitch USB-C port.
3. LED indictors on the HomeSpot HS3 NS001 will start flashing.
4. HomeSpot HS3 NS001 is ready for pairing and connecting with your headphones
once the LEDs have stop flashing.
5.
For in-game voice chatting, insert the bundled mini mic to the top 3.5mm audio port.
Connecting to one Bluetooth headphones
1. Upon powering up, HomeSpot HS3 NS001 automatically enters pairing mode on
first use.
2. Make sure the Bluetooth headphones is in pairing mode.
3. Keep the headphones close to the HS3 NS001 during initial pairing.
4. Once connected, the P1 LED will be on and headphones will start receiving audio
from the NSwitch.

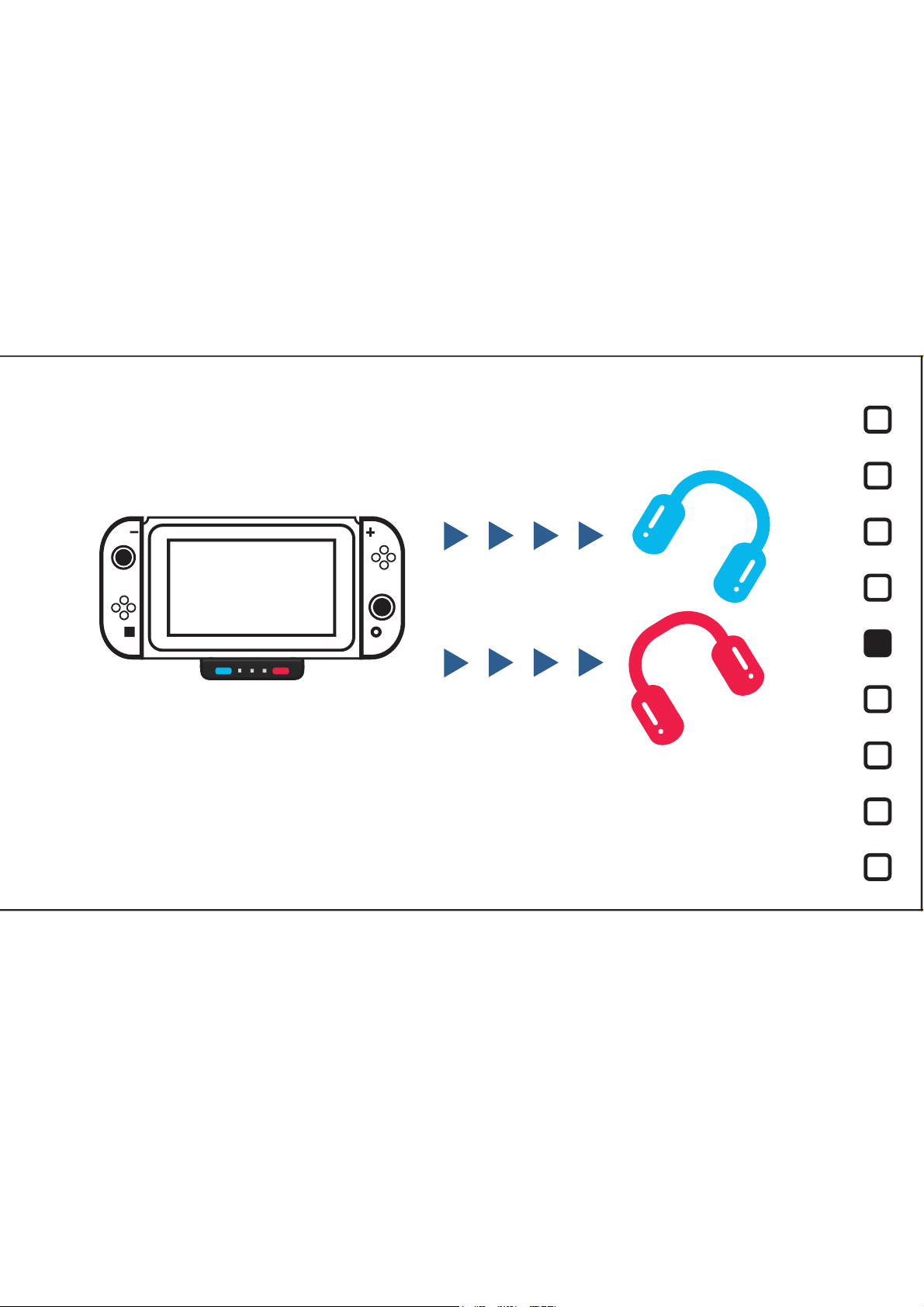

Connecting to two Bluetooth headphones
1. Pair and connect to the first headphones.
2. Pair the 2nd headphones by pressing the P2 button for 3 seconds.
3. Keep the 2nd headphones close to the HS3 NS001 during initial pairing.
4. Once the 2nd headphones is connected, the P2 LED will be on.
5. Both headphones will start receiving audio from the NSwitch.
Reconnecting to a previously paired headphones
.
Automatic re-connect
When a previously paired headphones is turned on, it will automatically re-connect
to the HomeSpot HS3 NS001.
.
Manual re-connect
You may also manually initiate a re-connect by pressing either the P1 or P2
button, the corresponding previously paired 1st or 2nd headphones will be
re-connected respectively.

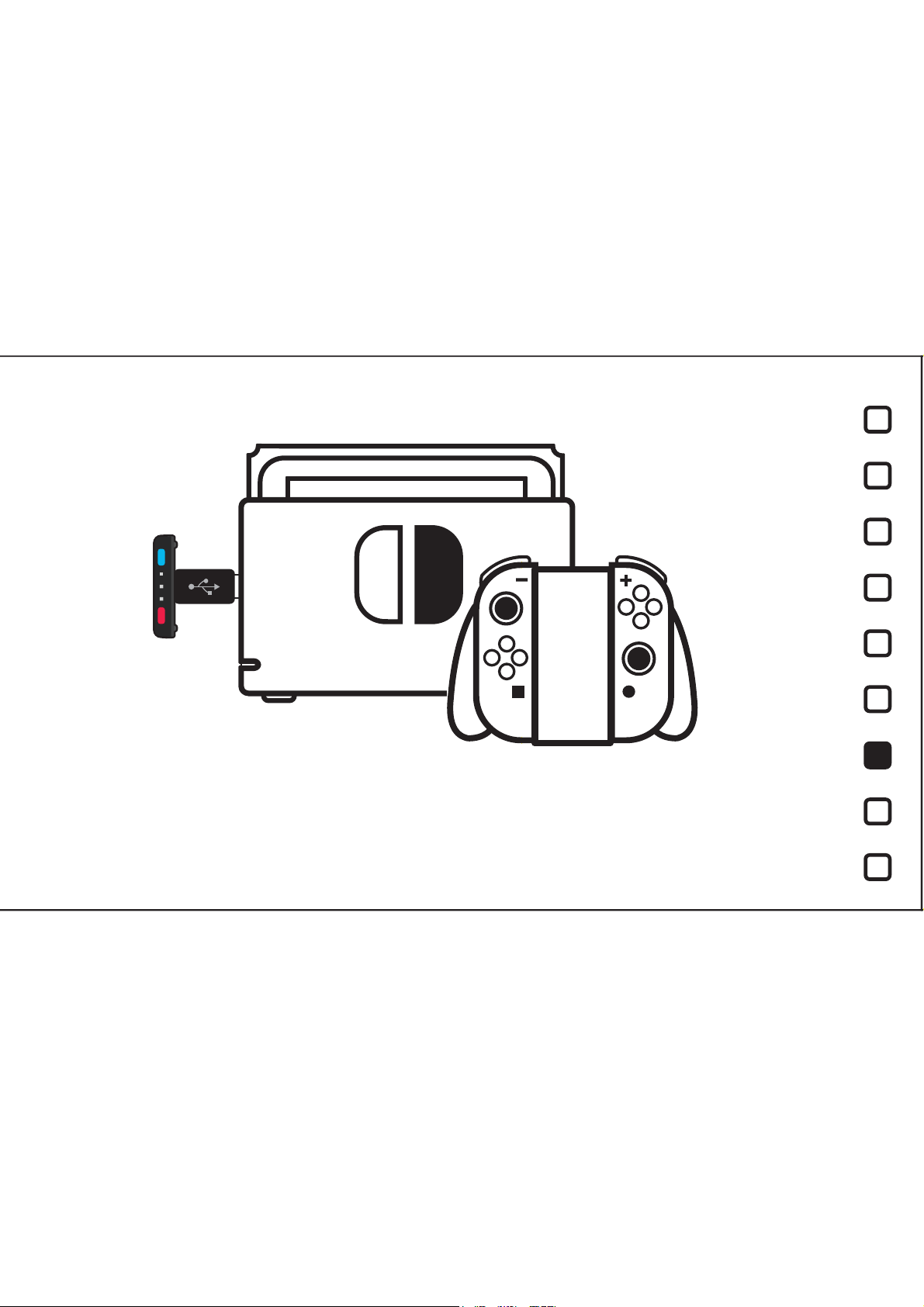

TV Mode
The HomeSpot HS3 NS001 can also be used with the TV dock. Simply plug the
bundled USB-C to USB-A adapter to the USB-A port on the side of the TV dock,
then insert the HS3 NS001 into USB-C port on the adapter.
Follow the previous pairing procedures for headphones connection.
LED Indicators
Operation
Power on NSwitch and insert NS3 NS001
Power off NSwitch or unplug NS3 NS001
Hold P1 button for 3 secs
Press P1 button once
Hold P2 button for 3 secs
Press P2 button once
When connected headphones supports SBC only
When connected headphones supports aptX
When connected headphones supports aptX Low Latency
When connected headphones supports SBC only
When connected headphones supports aptX
When connected headphones supports aptX Low Latency
When any of connected headphones supports SBC only
When both connected headphones support aptX
When both connected headphones support aptX Low Latency
Hold P1 and P2 buttons together for 5 secs
Powering ON
P1 Connected with aptX Low Latency
P2 Connected with aptX Low Latency codec
Dual Link with aptX Low Latency codec
(LEDs flashing from left to right)
Power OFF/ Standby
P1 Pairing
P1 Connecting
P2 Pairing
P2 Connecting
P1 Connected with SBC codec
P1 Connected with aptX codec
P2 Connected with SBC codec
P2 Connected with aptX codec
Dual Link with SBC codec
Dual Link with aptX codec
Factory Reset
(All LEDs flash 2 times)
LED PatternStatus
Lined box – LED solid on Dashed box – LED flashing
Product Specification
Bluetooth version
Operating Frequency
Supported Bluetooth Profiles
Supported Codec
Operating Range
Operating Temperature Range
Bluetooth 5.0
2402 – 2408MHz
A2DP
aptX Low Latency, aptX and SBC
Up to 10 meters line of sight
0˚C to 45˚C
Safety Instructions
.
Do not use this device in medical facilities, aircraft, refueling points, close to
automatic doors, automatic fire alarms or other remotely controlled devices.
.
Keep this device at least 20 cm from pacemakers and other medical devices as
Bluetooth signal may interfere with their operation.
FCC Statement
：
This device complies wit h part 15 of the FCC rules Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, incl uding interference that may cause undesi red oper ation.
NOTE: The manufacturer is not responsible for any radio or TV interference cau sed by unauthorized modifications to this e quipment. Such modifications could void the user’s authority to operate the equipment.
NOTE: This equipment has b een tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of t he FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generat es uses and can radi ate radio frequenc y energy and, if no t installed and us ed in accordance wi th the instructi ons, may cause harmful int erference to radio communications. However, there is no guarantee that i nterference will not occur in a particular installation. If this
equipment does cause harmf ul interference to radio or television reception, which can be determin ed by turning the equipment off and on, the user is enco uraged to try to correct the interference by one or mo re of the following measures:
- Reorient or relocate the receiv ing antenna.
- Increase the separati on between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
- This device and its ante nna(s) must not be co-located or operating in conj unction with any other antenna or transmitter.
RF Exposure In formation and Statem ent :
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated w ith minimum distance of 20 cm between the radiator a nd your body. This transmitter mus t not be co-located or operating
in conjunction with any oth er antenna or transmitter.
