GT tronics BC5MMFPX User Manual

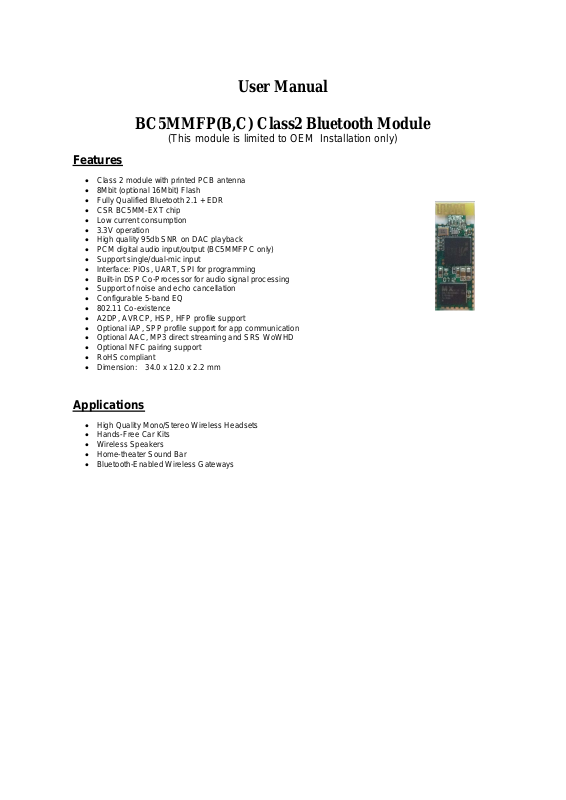

User Manual

BC5MMFP(B,C) Class2 Bluetooth Module

(This module is limited to OEM Installation only)

Features

 Class 2 module with printed PCB antenna
 8Mbit (optional 16Mbit) Flash
 Fully Qualified Bluetooth 2.1 + EDR
 CSR BC5MM-EXT chip
 Low current consumption
 3.3V operation
 High quality 95db SNR on DAC playback
 PCM digital audio input/output (BC5MMFPC only)
 Support single/dual-mic input
 Interface: PIOs, UART, SPI for programming
 Built-in DSP Co-Processor for audio signal processing
 Support of noise and echo cancellation
 Configurable 5-band EQ
 802.11 Co-existence
 A2DP, AVRCP, HSP, HFP profile support
 Optional iAP, SPP profile support for app communication
 Optional AAC, MP3 direct streaming and SRS WoWHD
 Optional NFC pairing support
 RoHS compliant
 Dimension: 34.0 x 12.0 x 2.2 mm

Applications

 High Quality Mono/Stereo Wireless Headsets
 Hands-Free Car Kits
 Wireless Speakers
 Home-theater Sound Bar
 Bluetooth-Enabled Wireless Gateways

Block Diagram

BC5MMFPB(C) is a Class 2 Bluetooth sub-system using BlueCore5 –Multimedia Ext Flash chipset from leading Bluetooth
chipset supplier Cambridge Silicon Radio. .It interfaces to a 8/16 MBit parallel Flash. The software stack running on the BlueCore5
MM Ext chipset is fully compliant to Bluetooth Specification v2.1 + EDR. BC5MMRPB(C) also has necessary balun and bandpass
filters to interface with a build-in PCB antenna, which forms a very cost effective radio subsystem.
