GTO SW-2002XL Installation Manual

Installation Manual for the

1-800-543-GATE (4283) • www.gtopro.com

1-800-543-GATE (4283) • www.gtopro.com

®

DUAL Gate Operator System

FOR PROFESSIONAL INSTALLATION ONLY!

WARNING!

This equipment is similar to other gate or door equipment and meets or exceeds
Underwriters Laboratory Standard 325 (UL 325). However, gate equipment has
hazards associated with its use and therefore by installing this product the installer
and user accept full responsibility for following and noting the installation and
safety instructions. Failure to follow installation and safety instructions can result
in hazards developing due to improper assembly. You agree to properly install this
product and that if you fail to do so GTO, Inc. shall in no event be liable for direct,
indirect, incidental, special or consequential damages or loss of profits whether
based in contract tort or any other legal theory during the course of the warranty
or at any time thereafter. The installer and/or user agree to assume responsibility
for all liability and use of this product releasing GTO, Inc. from any and all
liability. If you are not in agreement with this disclaimer or do not feel capable
of properly following all installation and safety instructions you may return this
product for full replacement value.

READ ALL INSTRUCTIONS CAREFULLY AND COMPLETELY before
attempting to install and use this automatic gate operator. This gate operator
produces a high level of force. Stay clear of the unit while it is operating and
exercise caution at all times.

All automatic gate operators are intended for use on vehicular gates only.

This product meets and exceeds the requirements of UL 325, the standard which regulates gate operator safety,

as established and made effective March 1, 2000, by Underwriters Laboratories Inc.

3121 Hartsfield Road • Tallahassee, Florida, USA 32303

Telephone GTO Sales: 1-800-543-GATE (4283) or [phone] • Fax [phone]

or GTO Technical Service: 1-800-543-1236 or [phone] • Fax [phone]

www.gtopro.com

©

2007 GTO, Inc.

R2002XL INST

rev - 2/22/07

The GTO/PRO® 2002XL Gate Operator is intended for use with vehicular swing gates. The opener can be used in
Class I, Class II, Class III and Class IV applications.

VEHICULAR GATE OPENER CLASS CATEGORIES

Residential Vehicular Gate Opener-Class I: A vehicular gate opener (or system) intended for use in a home of

one-to-four single family dwelling, or a garage or parking area associated therewith.

Commercial/General Access Vehicular Gate Opener-Class II: A vehicular gate opener (or system) intended
for use in a commercial location or building such as a multifamily housing unit (five or more single family units),
hotel, garages, retail store, or other building servicing the general public.

Industrial/Limited Access Vehicular Gate Opener–Class III: A vehicular gate opener (or system) intended for
use in an industrial location or building such as a factory or loading dock area or other locations not intended to
service the general public.

Restricted Access Vehicular Gate Opener–Class IV: A vehicular gate opener (or system) intended for use in
a guarded industrial location or building such as an airport security area or other restricted access locations not
servicing the general public, in which unauthorized access is prevented via supervision by security personnel.

Conversion Chart

Converting Metric Units to English Equivalents

When You Know Multiply By To Find Symbol

centimeters 0.3937 inches in. (or ")
meters 3.2808 feet ft. (or ')
kilograms 2.2046 pounds lb. (or #)

Converting English Units to Metric Equivalents

When You Know Multiply By To Find Symbol

inches 2.5400 centimeters cm
feet 0.3048 meters m
pounds 0.4535 kilograms kg

Converting Temperature

deg. Celsius (ºC x 1.8) + 32 deg. Fahrenheit ºF
deg. Fahrenheit (ºF-32) ÷ 1.8 deg. Celsius ºC

FOR YOUR RECORDS

Please record the product serial number (located on the right hand side of the control
box), and the date and place of purchase in the spaces provided below. Refer to this
information when calling GTO for service or assistance with your automatic gate

Serial Number ____________________ Date of Purchase ____________________

Place of Purchase ____________________

Remember to keep all receipts for proof of purchase.

Table of Contents

Gate Opener Class Categories ------------------------------------------------------------- inside cover
Units and Standards Conversion Chart ---------------------------------------------------inside cover

PLEASE READ THIS FIRST! --------------------------------------------------page iii

Important Safety Instructions --------------------------------------------------page 1

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Disconnecting the Opener -------------------------------------------------------------page 1
Important Safety Instructions for the Consumer ------------------------------------page 2
Secondary Means of Protection Against Entrapment ------------------------------ page 5
Required Safety Precautions for Gates ----------------------------------------------­ Warning Signs and Labels -------------------------------------------------------------

page 6
page 7

Installation --------------------------------------------------------------------------page 8

Parts List --------------------------------------------------------------------------------­ Technical Specifications -------------------------------------------------------------page 10

Installation Overview ---------------------------------------------------------------- page 11

Installation of the Mounting Hardware ----------------------------------------------page 12
Mounting the First Opener ------------------------------------------------------------page 16
Installing the Second Opener ----------------------------------------------------------page 16
Installation of the Closed Position Stops --------------------------------------------page 17
Mounting the Control Box -------------------------------------------------------------page 19
Connecting the Opener Power Cables ----------------------------------------------- page 20

page 8

Powering the System --------------------------------------------------------------page 21

Solar Chart -------------------------------------------------------------------------------page 21
Connecting the Transformer -----------------------------------------------------------page 22

Control Board Settings ----------------------------------------------------------page 24

Stall Force ------------------------------------------------------------------------------- page 27
Main DIP Switches ---------------------------------------------------------------------page 24
Dual Mode DIP Switches -------------------------------------------------------------­ Setting Closed Position Limits --------------------------------------------------------

page 24
page 25

Setting Your Personal Transmitter Code -------------------------------------page 26

Installing the Receiver -----------------------------------------------------------page 27

Connecting Additional Safety Devices ----------------------------------------page 28
Connecting Accessories ----------------------------------------------------------page 30

Push to Open Installation --------------------------------------------------------page 32

Setting Open Position Limits ----------------------------------------------------------page 33

Maintenance & Troubleshooting Guide --------------------------------------page 35

Warranty and Repair Service --------------------------------------------------page 38

Accessory Catalog ----------------------------------------------------------------page 39

PLEASE READ THIS FIRST!

®

Thank you for purchasing a GTO/PRO® 2002XL When correctly installed and properly used, your GTO/PRO®
2002XL Operator will give you many years of reliable service. Please read the following information and watch the

enclosed videotape to ensure you have the correct system for your particular needs. Furthermore, this manual and the
videotape will enable you to properly install your GTO/PRO® 2002XL Automatic Gate Operator.

The GTO/PRO® 2002XL Operator is designed for installation on a pull-to-open dual leaf gate (gates that open

into the property). By purchasing an accessory bracket, the GTO/PRO® 2002XL Operator can accommodate a
push-to-open dual leaf gate (gates that open out from the property). The gate must not exceed 12 feet in length and
weigh more than 400 pounds per leaf (please see Technical Specifications on page 10). The GTO/PRO® 2002XL
Operator can be used on vinyl, aluminum, chain link, farm tube, and wrought iron gates. Use on solid (wood) gates is

not recommended. Solid surface gates have a high resistance to the wind. If the wind is strong enough, the opener will
obstruct and stop.

The GTO/PRO® 2002XL Operator accommodates extra transmitters, digital keypads, solar panels, push buttons,
automatic gate locks, and other access control products. These optional accessories (see the enclosed GTO/PRO®
Accessory Catalog) are available at most stores. Your store should be able to special order any accessory not in stock.
If your store cannot special order accessories, please call the GTO Sales Department (800-543-GATE).

The GTO/PRO® 2002XL Operator features adjustable obstruction sensing. This safety feature makes the gate
stop and reverse direction within 2 seconds when it comes in contact with an obstruction. MIN is the factory setting;
meaning the gate will exert the minimum force on an obstruction before it stops and reverses direction.

The GTO/PRO® 2002XL Operator also has an adjustable auto-close feature. After the gate reaches the fully open
position, it can be set to remain open up to 120 seconds before automatically closing. Pressing the transmitter button
at any time after the gate opens fully will cause it to close immediately. OFF is the factory setting; meaning the gate
will stay open until you press the transmitter (or keypad, etc.) again.

PLEASE NOTE—If your application requires any of the following:

Swing gates longer than 18 feet or weighing more than 850 pounds;
Slide gates;
Heavy duty or commercial uses;
Professional installation;

please call GTO at (800) 543-GATE [4283] or [phone] for information about our GTO/PRO professional
line of gate openers and accessories. Our Sales Department will be glad to give you the name and phone number of a

GTO/PRO dealer near you.

BEFORE YOU BEGIN TO INSTALL YOUR AUTOMATIC GATE OPERATOR:

Read these instructions carefully and completely to become

familiar with all parts and installation steps.

You must read the installation manual for detailed instructions on

gate operator safety and proper use of the gate operator.

iii

IMPORTANT SAFETY INSTRUCTIONS

Clevis Pin

Hairpin Clip

Gate Bracket

Front Mount

Bushing

Because automatic gate openers produce high levels of force, consumers need to know the potential hazards associated with
improperly designed, installed, and maintained automated gate opener systems. Keep in mind that the gate opener is just
one component of the total gate operating system. Each component must work in unison to provide the consumer with
convenience, security, and safety.

This manual contains various safety precautions and warnings for the consumer. Because there are many possible
applications of the gate opener, the safety precautions and warnings contained in this manual cannot be completely exhaustive
in nature. They do, however, provide an overview of the safe design, installation, and use of this product. CAREFULLY

READ AND FOLLOW ALL SAFETY PRECAUTIONS, WARNINGS, AND INSTALLATION INSTRUCTIONS TO
ENSURE THE SAFE SYSTEM DESIGN, INSTALLATION, AND USE OF THIS PRODUCT.

Precautions and warnings in this manual are identified with this warning symbol. The symbol identifies conditions
that can result in damage to the opener or its components, serious injury, or death.

Because GTO automatic gate openers are only part of the total gate operating system, it is the responsibility of the
consumer to ensure that the total system is safe for its intended use.

To Manually Open and Close the
Gate, Follow the Procedure Below:

CAUTION: The gate will move freely and uncontrolled when the gate opener is
removed from the gate. ONLY disconnect the opener when the control box power

switch is OFF and the gate is NOT moving.

Disconnecting the Opener

1. Turn control box power switch OFF.

2. Remove hairpin clip, clevis pin, and bushing
from either the front or rear mounting point.

3. Remove the opener from the mount.

The gate can be opened and closed manually

when the opener is disconnected.

NOTE: Substitute a Pin Lock for the clevis pin on the front
mount of each gate opener to prevent unauthorized removal of
the opener from the gate (see Accessory Catalog).

1

IMPORTANT SAFETY INSTRUCTIONS

5ObSW\bVS
=^S\>]aWbW]\

5ObSW\bVS
=^S\>]aWbW]\

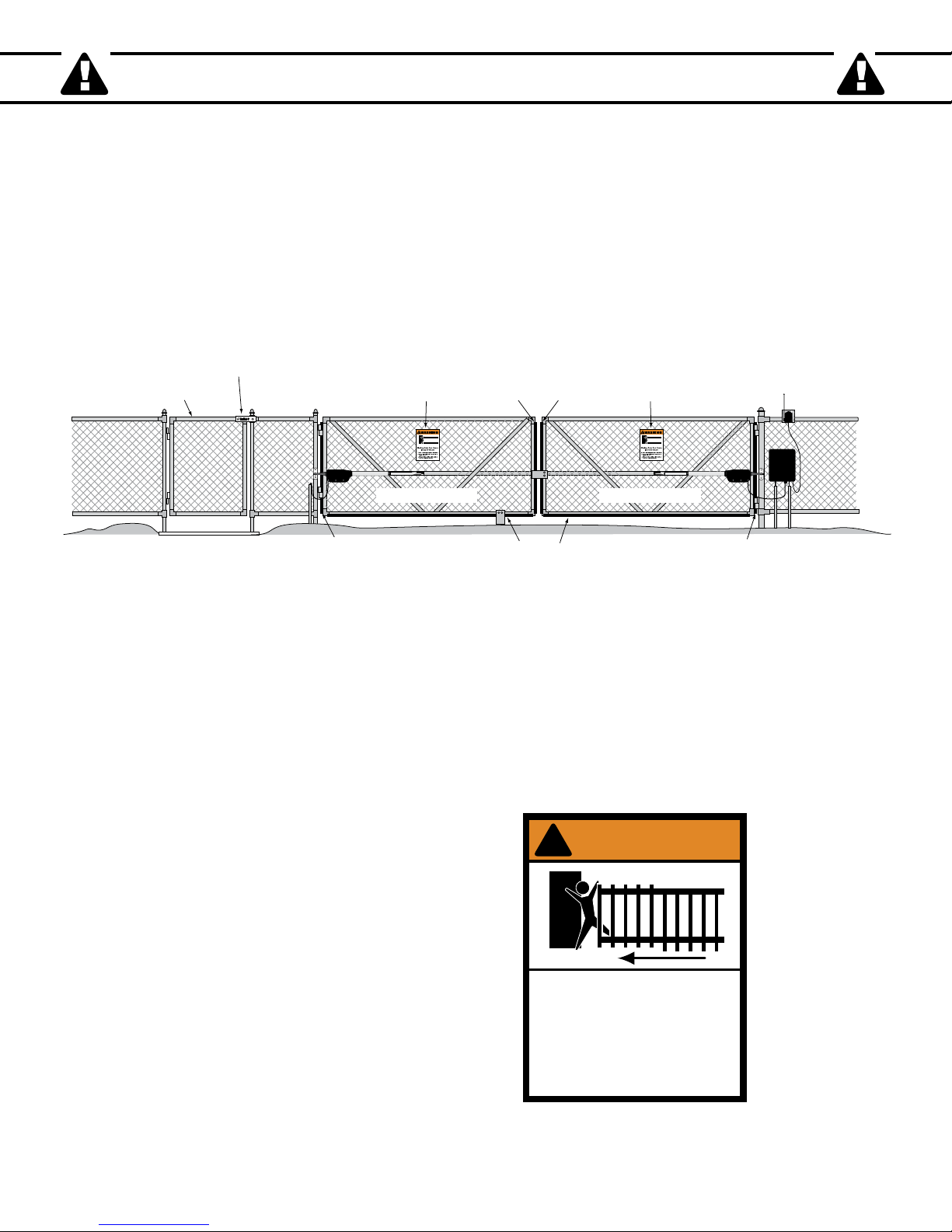

ZONE 2

ZONE 3

ZONE 4

ZONE 5

2`WdSeOg

ZONE 1

ZONE 2

ZONE 4

ZONE 5

ZONE 3

For The Consumer

WARNING: To reduce the risk of injury or death:

1. READ AND FOLLOW ALL INSTRUCTIONS. Failure to meet the requirements set forth in the instruction

manual could cause severe injury and/or death, for which the manufacturer cannot be held responsible.

2. When designing a system that will be entered from a highway or main thoroughfare, make sure the system is placed
far enough from the road to prevent traffic congestion.

3. The gate must be installed in a location that provides adequate clearance between it and adjacent structures when
opening and closing to reduce the risk of entrapment. Swinging gates must not open into public access areas.

4. The gate and gate opener installation must comply with any applicable local codes.

I. Before Installation

1. Verify this dual opener is proper for the type and size of gate, its frequency of use and the proper class rating.

2. Make sure the dual gate has been properly installed and swings freely in both directions. Repair or replace all worn
or damaged gate hardware prior to installation. A freely moving gate will require less force to operate and will
enhance the performance of the opener and safety devices used with the system.

3. Review the operation of the system to become familiar with its safety features. Understand how to disconnect the
opener for manual gate operation (see page 1).

4. This gate opener is intended for vehicular gates ONLY. A separate entrance or gate must be installed for pedestrian
use (see page 6).

5. Always keep people and objects away from the gate and its area of travel. NO ONE SHOULD CROSS THE

PATH OF A MOVING GATE.

6. Pay close attention to the diagram below and be aware of these areas at all times.

Entrapment Zones for a
Pull-To-Open Application

2

IMPORTANT SAFETY INSTRUCTIONS

Moving Gate

Area

Moving Gate

Area

2`WdSeOg







NEVER INSTALL

any control device

within gray area

Entrapment Zones for a proper Pull-To-Open installation:
Zone 1 – area between two gates.
Zone 2 – between the gate and the gate post.
Zone 3 – the path of the gate.
Zone 4 – the space between the gate in the open position and any object such as a wall, fence, tree, etc.
Zone 5 – pinch points between the opener and gate.

II. During Installation

1. Install the gate opener on the inside of the property and fence line. DO NOT install an opener on the outside of the
gate where the public has access to it.

2. Be careful with moving parts and avoid close proximity to areas where fingers or hands could be pinched.

3. Devices such as contact sensors (safety edges) and non contact sensors (photo beams) provide additional protection
against entrapment.

4. If push buttons or key switches are installed, they should be within sight of the gate, yet located at least 10 feet from
any moving part of the gate (see diagram below). Never install any control device where a user will be tempted to
reach through the gate to activate the gate opener.

5. Do not activate your gate opener unless you can see it and can determine that its area of travel is clear of people,
pets, or other obstructions. Watch the gate through its entire movement.

6. Secure outdoor or easily accessed gate opener controls in order to prohibit unauthorized use of the gate.

Pull-To-Open Application

3

IMPORTANT SAFETY INSTRUCTIONS

III. After Installation

1. Attach the warning signs (included) to each side of the gate to alert the public of automatic gate operation. It is
your responsibility to post warning signs on both sides of your gate. If any of these signs or warning decals become

damaged, illegible or missing, replace them immediately. Contact GTO for free replacements.

2. The gate is automatic and could move at any time, posing a serious risk of entrapment. No one should be in contact
with the gate when it is moving or stationary.

3. Do not attempt to drive into the gate area while the gate is moving; wait until the gate comes to a complete stop.

4. Do not attempt to "beat the gate" while the gate is closing. This is extremely dangerous.

5. Do not allow children or pets near your gate. Never let children operate or play with gate controls. Keep the
remote controls away from children and unauthorized users; store controls where children and unauthorized users do
not have access to them.

6. KEEP GATES PROPERLY MAINTAINED. Always turn power to opener OFF before performing any
maintenance. Clean the push-pull tube with a soft, dry cloth and spray with silicone at least once per month.

7. Service the gate and gate opener regularly. Grease hinges, spray push pull tube with high quality silicone spray and
replace the battery every 3-5 years.

8. To operate this equipment safely, YOU must know how to disconnect the opener for manual gate operation

(see page 1). If you have read the instructions and still do not understand how to disconnect the opener, contact the

GTO Service Department.

9. Disconnect the opener ONLY when the power is TURNED OFF and the gate is NOT moving.

10. Make arrangements with local fire and law enforcement for emergency access.

11. Distribute and discuss copies of the IMPORTANT SAFETY INSTRUCTIONS section of this manual with all
persons authorized to use your gate.

12. IMPORTANT: Save these safety instructions. Make sure everyone who is

using or will be around the gate and gate opener are aware of the dangers
associated with automated gates. In the event you sell the property with the
gate opener or sell the gate opener, provide a copy of these safety instructions
to the new owner.

Should you lose or misplace this manual, a copy can be obtained by

downloading one from the GTO/PRO® web site (www.gtopro.com), by
contacting GTO, Inc., at 3121 Hartsfield Road, Tallahassee, Florida 32303
or by calling 1-800-543-4283 and requesting a duplicate copy. One will be

4

IMPORTANT SAFETY INSTRUCTIONS

Bottom Edge Contact Sensor

on both sides of the gate

Leading Edge Contact Sensor

on both sides of the gate

Post Edge Contact Sensor

on both sides of the gate

Post Edge Contact Sensor

on both sides of the gate

Vehicular Gate Vehicular Gate

500

UL325 SERIES

®

E-Z GATE OPENER

1-800-543-GATE (4283)

www.mightymule.com

Secondary Means of Protection Against
Entrapment

As specified by Gate Operator Safety Standard, UL 325 (30A.1.1), automatic gate openers shall have an inherent entrapment
sensing system, and shall have provisions for, or be supplied with, at least one independent secondary means to protect
against entrapment. The GTO/PRO® 2002XL utilizes Type A, an inherent (i.e., built-in) entrapment sensing system as
the primary type of entrapment protection. Also, the GTO/PRO® 2002XL has provisions for the connection of Type B2
protection to be used as the secondary type of entrapment protection, if desired.

1. For gate operators utilizing a contact sensor (e.g., safety edge sensor– Type B2) in accordance with UL 325 (51.8.4 [i]):

A. One or more contact sensors shall be located at the leading edge, bottom edge, and post edge, both inside and

outside of a vehicular swing gate system.

B. A hard wired contact sensor shall be located and its wiring arranged so that the communication between the

sensor and the gate opener is not subjected to mechanical damage.

C. A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate opener for entrapment

protection functions shall be located where the transmission of the signals are not obstructed or impeded by building
structures, natural landscaping or similar obstruction. A wireless contact sensor shall function under the intended
end-use conditions.

ENTRAPMENT ALARM (UL 325; 30A.1.1A)

The GTO/PRO® 2002XL Automatic Gate Operator is designed to stop and reverse within 2 seconds when the
gate comes in contact with an obstruction. Additionally, these openers are equipped with an audio entrapment
alarm which will activate if the unit obstructs twice while opening or closing. This alarm will sound for
a period of 5 minutes, or until the opener receives an intended signal from a hard wired entry/exit source
(e.g. push button control or keypad) and the gate returns to a fully open or fully closed position. Turning the
power switch on the control box OFF and back ON will also deactivate the alarm. Wireless controls such as
transmitters and wireless keypads will not deactivate the alarm.

5

IMPORTANT SAFETY INSTRUCTIONS

1. KEEP CLEAR! Gate may move at any time.

2. Do not allow children to operate gate or
play in gate area.

3. This gate is for vehicles only. Pedestrians
must use a separate entrance.

Moving Gate Can Cause

Injury Or Death

WARNING

!

Pedestrian Gate

Bulldog Pedestrian

Gate Lock

(recommended, not included

)

Warning Sign Warning Sign

Contact Sensor

(

recommended, not included

)

Contact Sensor

(

recommended, not included

)

Vehicular Gate Vehicular Gate

Contact Sensor

(

recommended, not included

)

Contact Sensor

(

recommended, not included

)

Required Safety Precautions for Gates

Install Warning Signs

Warning signs alert people of automatic gate operation and are required when installing the GTO/PRO® 2002XL Automatic
Gate Operator. Furthermore, a walk-through gate must be installed if pedestrian traffic is expected near the vehicular gate.
We recommend using the GTO Bulldog Pedestrian Gate Lock (Call the GTO Sales Department) for controlled access.

Entrapment Protection

GTO’s inherent obstruction settings, even when properly adjusted, may not be sensitive enough to prevent bodily injury in
some circumstances. For this reason, safety devices such as safety edge sensors (or photoelectric sensors), which stop and

reverse gate direction upon sensing an obstruction, are suggested for enhanced protection against entrapment.

Warning Signs

The warning signs (at right) must
be installed on both sides of the
gates (see page 7 for details).

6

!

Warning signs (2 enclosed) to be installed on each side
of the gate (3–5 feet above the bottom of the gate)

Maximum Gate: 400 lb. (294.8 kg); 12 ft. (4.8 m)
Voltage: 12 Vdc; Frequency: 0 Hz; Power: 25 W
Class I, II, III and IV Vehicular Swing Gate Operator.
Serial Number: XXXXXXXXXX

#xxxxxxx

Conforms to UL 325 STANDARDS

TO MANUALLY OPEN AND CLOSE THE GATE:

1. Turn control box power switch OFF.

2. Disconnect front or rear mount from gate bracket.

3. Pull operator away from front or real mounts.

DC SW-2002XL SERIES

GTO, Inc. Tallahassee, Florida USA

Disconnect operator ONLY when the control box power
switch is OFF and the gate is NOT moving.

L

I

S

T

E

D

US

C

Product identification and manual operation instruction
label (1) installed on right hand side of control box.

Logo and warning labels (2) installed on each side of operator housing.

1. KEEP CLEAR! Gate may move at any time.

2. Do not allow children to operate gate or play in
gate area.

3. This gate is for vehicles only. Pedestrians must
use separate entrance.

WARNING

!

MOVING GATE

Can Cause Injury or Death

1-800-543-GATE (4283) • www.gtopro.com

IMPORTANT SAFETY INSTRUCTIONS

These warning labels should be found at
the locations specified below. If any of
them are missing, immediately contact
GTO for replacements.

7

Dual Gate Opener Parts List

&<gZ]\1OPZSBWS 

6O`ReO`S

5ObS=^S\S`
e$>]eS`1OPZS

5ObS=^S\S`
e! >]eS`1OPZS

5ObS0`OQYSb 

>]ab>Wd]b0`OQYSb 

1cab][S`Ac^^]`b1O`R

>]ab0`OQYSb"

1Z]aSR>]aWbW]\
Ab]^>ZObS 

®

E-Z GATE OPENER

6OW`^W\1ZW^"

!&f"1ZSdWa>W\"

#$f!"0]Zb 

!&f 0]Zb 

!&f!0]Zb"

!&f&0]Zb&

!&EOaVS`&

!&:]QYEOaVS`"

#$EOaVS` 

!&<cb"

#$<cb 

@SQSWdS`;]c\bW\UAQ`Se#

!&0caVW\Ua"

 f !"0]Zb"

 EOaVS`&

!&f!"0caVW\U 

 :]QY<cb&

!&f!"1ZSdWa>W\ 

Opener and Mounting Hardware

8

Dual Gate Opener Parts List (continued)

Transformer (1)

Battery (1)

Control Box (1)

Warning Signs (4)

GTO Transmitter(1)

1. KEEP CLEAR! Gate may move at any time.

2. Do not allow children to operate gate or
play in gate area.

3. This gate is for vehicles only. Pedestrians
must use a separate entrance.

Moving Gate Can Cause

Injury Or Death

WARNING

!

Receiver (1)

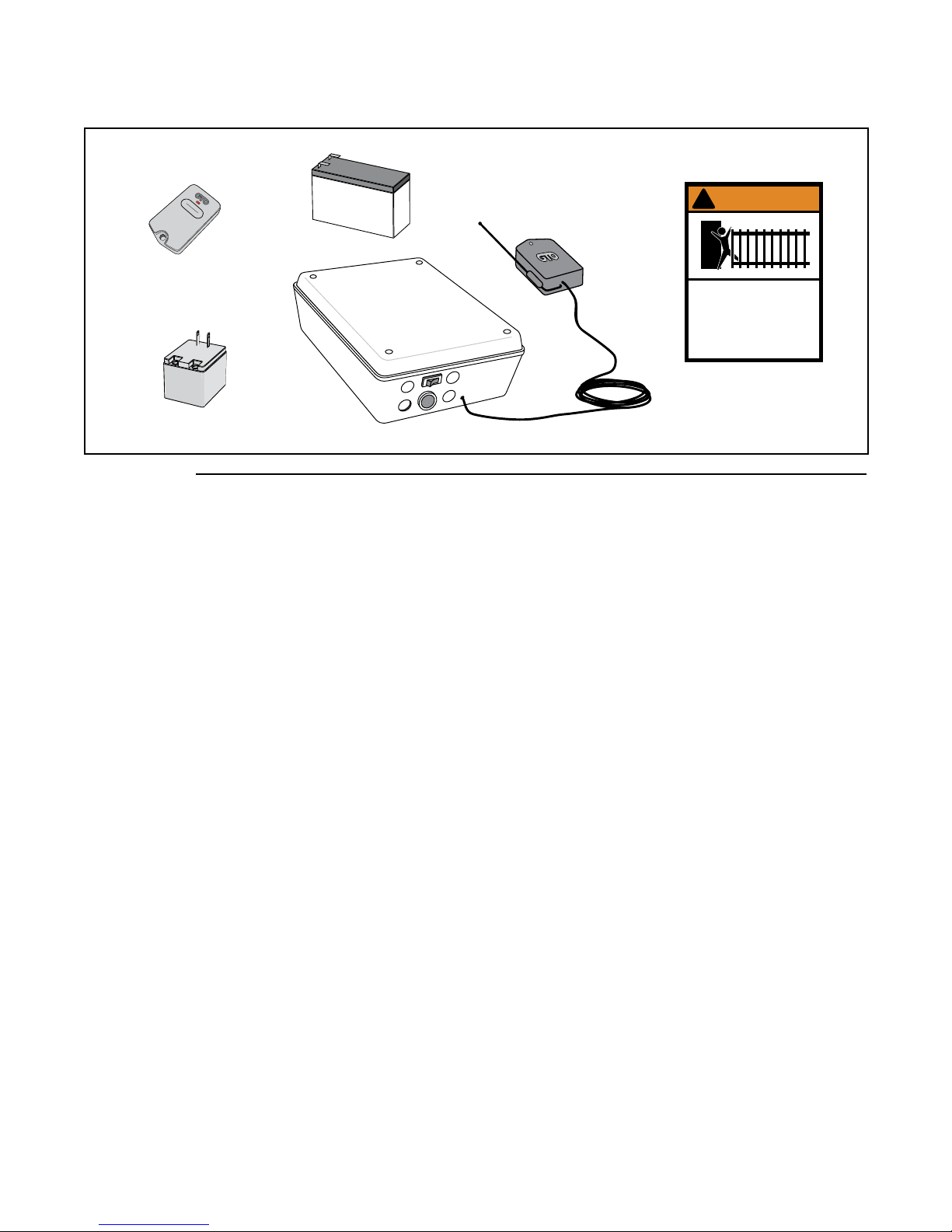

Control Box and Electrical Components

Tools Needed

• Power Drill

• Open End Wrenches — 3/8", 7/16", 1/2", and 9/16"

• 3/8" Drill Bit

• Hacksaw or Heavy Duty Bolt Cutters

• Small (Flat Bladed) Screwdriver

• Phillips Screwdriver

YOU MAY ALSO NEED THESE ITEMS BEFORE YOU BEGIN THE INSTALLATION
(Some of these items can be found in the Accessory Catalog page 39):

• Low voltage wire (RB509 Series) will be needed to run from the transformer to the control box; length depends upon
the distance between the transformer power supply and the control box. See Powering the System on page 21, and the
Accessory Catalog.

• Tape Measure

• Level

• Wire Strippers

• C-Clamps — small, medium, and large

• Center Punch

• An extra person will be helpful

• PVC conduit.

• If your gate is more than 1000' away from an ac power source you will need to use at least 10 to 30 Watts of solar charging
power to trickle charge the battery. See the Accessory Catalog.

• If your fence post is made of wood and is less than 6" in diameter or 6" square, see page 12.

• If your fence post is larger than 6" in diameter you will need threaded rods or carriage bolts longer than 8". See page 15.

• If you have thin walled tube or panel gates, see Recommended Reinforcement Examples on page 12.

• Depending on the type of gate, a horizontal cross member or mounting plate may be needed to mount the front of the
opener and gate bracket to the gate. See page 11, step 2; page 15, step 10.

• Surge protection for transformer.

• Some types of installations require U-Bolts.

• If the gate is a push-to-open refer to page 32

• Additional washer or a metal plate may be needeed for wooden post.

• Low profile ground stop will be needed if you are using a gate lock.

• Push-to-open applications will require Push-to-open brackets (347 IH).

9

Technical Specifications

Number of Cycles Per Day

GTO/PRO 2002XL Gate Capacity /Cycle Chart

Estimated number of daily cycles, based on use with a transformer and one(1) 12 Volt battery.

Gate Weight

Gate Length

400 lbs.
300 lbs.
200 lbs.
150 lbs.
100 lbs.

50 lbs.

73
78
83
88
93

5’ - 6’

68

63

58 53
68
73
78
83
88

8’

63

68

73

78

83

10’

58
63
68
73
78

12’

GTO/PRO® 2002XL AUTOMATIC GATE OPERATOR

DRIVE

• Low friction screw drive (linear actuator) rated for -5 ºF to +160 ºF (-21 ºC to +71 ºC).

• Powered by a 12 V motor with integral case hardened steel gear reducer. Motor speed reduced to 260 rpm.

• Maximum opening arc of 110º. Approximate opening time (90º): From 15 seconds, depending on weight of gate.

• Generates 330 ft lbs of torque at 12v.

POWER

• The system is powered by a 12 Vdc, 7.0 Ah, sealed, rechargeable acid battery.

• Battery charge is maintained by a 120 Vac, 18 Vac output transformer rectified to 14.5 Vdc (40 VA) through the GTO
control board. One (1) blade-style control board fuse rated for 15 A.

NOTE: The transformer should not be directly connected to any battery. Do not replace fuses

with higher ampere rated fuses; doing so will void your warranty and may damage your control board.

• Battery charge is maintained by GTO Solar Panel Charger: float voltage of 14.5 Vdc output from solar panel. A gated
diode on the control board prevents battery discharge.

CONTROL

• GTO microprocessor-based control board is set for pull-to-open gate installations. DIP switches can be adjusted to
accommodate an optional kit for push-to-open gates (see Accessory Catalog).

• Control board has temperature compensated circuits.

• A circuit on the control board regulates charging. "Sleep draw" is 15 mA; "active draw" is 2 to 5 A.

• Auto-memorization of digital transmitter code.

• GTO remote-mounted RF receiver tuned to 318 MHz.

• Operator length with push-pull tube fully retracted is 33¾", mounting point to mounting point. Max stroke is 13".

• Adjustable auto-close timer and obstruction sensitivity.

• Power terminal bock accommodates a transformer or solar panels.

• DIP switches simplify setup of gate opener.

• Accessory terminal lock is fully compatible with push button controls, digital keypads, safety loops, etc.

• Control board allows connection of safety edge sensors and photoelectric sensors.

• Audio entrapment alarm sounds if the unit encounters an obstruction twice while opening or closing.

OPERATIONAL CAPACITY

• The Gate Capacity Chart shows approximate cycles, per day, you can expect from the GTO/PRO® 2002XL Auto­matic Gate Operator when powered with a transformer. Actual cycles may vary slightly depending upon the type and
condition of gate and installation.

NOTE: "NR" indicates this
size and weight combination
is not recommended for the
GTO/PRO 2002XL.

IMPORTANT: BALL BEAR­ING HINGES SHOULD
BE USED ON ALL GATES
WEIGHING OVER 250 Lbs.

To determine the number of cycles the gate opener will perform using solar panels, please see the specifications

listed on page 21 or call [phone] or [phone] for more information.

* An operation cycle is one full opening and closing of the gate.

These specifications are subject to change without notice.

10

Installation Overview

Horizontal Cross Member

Vertical Cross Member

Gate Swings Evenly and Freely
Hung Firmly and Plumb

Receiver

PVC conduit (not included)
to protect second opener
power cable and low voltage wire
from lawn mowers and weed eaters.

Post Bracket Assembly

Control Box with Battery

Gate Bracket

Master Gate Opener

Concrete Poured
Around Gate Post

Run 1000' (max.) of low
voltage wire to control
box from transformer
(wire not included).

6' Power Cable

Closed Position Positive Stop Plates

120 Volt Indoor
Transformer

(surge protector

not supplied)

Slave Gate Opener

Wood Block

Pull-to-Open Gates (Gate Opens into the Property)

The diagram shown below is an example of a pull-to-open installation on a chain link fence and dual gates. Furthermore, if
you have push-to-open gates, you will need to purchase two (2) push-to-open brackets (see Accessory Catalog) to properly
configure your system. See Push to Open Installation on page 32 before proceeding.

Preparation of the Gate

Step 1

The gates must be plumb, level, and swing freely on
their hinges. Wheels must not be attached to the gates.
The gates must move throughout their arc without

binding or dragging on the ground. Note that gates
over 250 lb. should have ball bearing hinges with grease

fittings.

Step 2

The fence posts must be secured in the ground with
concrete so they will minimize twist or flex when the
openers are activated. We recommend you position the
openers near the centerline of the gates to keep the gates
from twisting and flexing. The addition of horizontal
or vertical cross members (if they are not already in
place) to provide a stable area for mounting the gate
brackets is also important.

11

Installation of Mounting Hardware

Post 
Bracket

Post 
Pivot Bracket

Metal Plate

Wooden Post

Post
Bracket

Post
Pivot Bracket

Metal Plate

Wooden Post

Thin Walled Tube Gate

Steel Pipe Cut in Half

Gate Bracket

Gate Bracket

Wood or Metal
Reinforcement

Gate Bracket

Panel Gate

1" x 6" Wood Reinforcement

(not supplied)

(not supplied)

The position of the post bracket determines the leverage and efficiency of the opener. The post bracket position also sets the
clearance between the opener and gate in the open and closed positions (minimum 2 inches).

The curved design of the post bracket works well for installations on round and square fence posts. Because the post bracket
carries the entire thrust of the active opener, bolts that completely penetrate the fence post must be used.

On wooden posts, place a metal plate or washer
(not supplied) between the nuts and the fence
post to prevent the thrust of the opener from
pulling the bolts and washers out of the wood.

NOTE: A fence post smaller than 6" in diameter
or 6" square should be made of metal instead
of wood so that it will remain stable while the
opener is moving the gate.

IMPORTANT:

We strongly recommend using steel pipe, wood or metal to reinforce thin walled tube gates or wood to reinforce panel gates
as shown. These reinforcement methods will prevent damage to the opener and gate when the opener is installed.

Recommended Reinforcement Examples

12

:SdSZ=^S`Ob]`

4S\QS>]ab

5ObS7\=^S\>]aWbW]\

:3D3:V]`Wh]\bOZQ`]aa[S[PS`

>]ab0`OQYSb/aaS[PZg

5ObS0`OQYSb

Clevis Pin

Hairpin Clip

Post Bracket Assembly

Rear Mount

Opener

Bushing

Clevis Pin

Hairpin Clip

Gate Bracket

Front Mount

Bushing

Determining the Mounting Position

3/8" x 2" Bolt

3/8" Nut

Post Pivot Bracket

Post Bracket

Post Bracket

3/8" Lock Washer

Post Bracket Assembly

3/8" Washer

of the Post Bracket Assembly and the Gate Bracket

Step 3

IInsert the 3/8" x 2" bolt through
the center hole of the post
brackets and post pivot bracket

as shown. Fasten a 3/8" lock
washer, 3/8" washer and 3/8" nut

on the end of the bolt. DO NOT
overtighten the nut because the
post pivot bracket will have to be
adjusted later.

NOTE: The following steps are
intended for pull-to-open gate
installations. If you are mounting
your gate openers on a push-to­open gate (e.g., a gate on a sloped
driveway) you will need to purchase
two Push To Open brackets (see

Accessory catalog). Also, see Push-
to-Open Installation beginning on

page 32.

Step 4

Attach post bracket assembly and gate bracket to the opener with the clevis pins and bushings. Secure the clevis pins with
hairpin clips.

Step 5

With the gate in the open position (up to 110º from its closed position) and the gate opener fully retracted, adjust the post
bracket assembly and gate bracket until the opener is level. While holding the opener level, use C-clamps to temporarily
keep the post bracket assembly and gate bracket in their respective positions on the fence post and gate.

13

Gate in the

CLOSED POSITION

Pinch Area

Gate in the
OPENED POSITION

Pinch Area

2" minimum

2" minimum

Be sure gate opener
and bracket don't bind.

IMPORTANT: While determining the mounting point for the post pivot bracket assembly, be sure that the position allows

Post

Post Bracket
pivot point

Gate

A

B

Post Mount Example
(A + B can not exceed 10 inches)
Example: If A is 2" then B can not exceed 8"

Hinge

for minimum 2 inches of clearance between the gate and the opener in both the open and closed positions, as shown in the
diagrams below. This clearance will give the opener the most efficient leverage point for opening and closing the gate and
more importantly provides the least possible pinch area.

Step 6

When you have achieved the required position for the post pivot bracket in the open position, insert the 5/16" x 1-3/4" bolt
through the aligned holes of the post bracket and post pivot bracket to hold it in place. Remove the clevis pin from the front
mount and while supporting the gate opener, swing the gate and gate opener to the closed position. With the gate and gate
opener in the closed position check the clearance and be sure that the gate opener is not binding at the post pivot bracket.

If you don't have 2 inches of clearance or the gate opener is binding on the post pivot bracket, remove the 5/16" x 1-3/4" bolt
and readjust the pivot bracket until you can achieve these important clearances.

With the post pivot bracket in the optimum position for clearance and freedom of movement, reattach the opener to the gate
bracket in the open position and recheck the gate opener level and make sure the brackets are clamped securely.

TIP: Turning the pivot bracket over gives

more hole alignment options for the post
pivot bracket assembly. You can also move
the entire post pivot bracket assembly to
different positions on the gate post to help
achieve the proper clearances.

14

Installing the Post Bracket Assembly and Gate Bracket

5ObS7\=^S\>]aWbW]\

:3D3:V]`Wh]\bOZQ`]aa[S[PS`

;O`YQ`]aa[S[PS`bV`]cUV[WRRZS]T
UObSP`OQYSbaZ]baO\RR`WZZ!&V]ZSa

Post Bracket
Assembly

Mark fence post through 
middle of bracket slots
and drill 3/8" holes

Round Metal Post

Round Wood Post

Square Metal Post

Square Wood Post

Remove excess bolt length 
with hacksaw or bolt cutters

SIDE VIEW

TOP VIEW

EXAMPLES

@]c\RBcPS1VOW\:W\Y5ObS

A_cO`SBcPS5ObS

;]c\bW\U>ZObS
1`SObSRT]`
2SQ]`ObWdS5ObS
`S_cW`SRPcb\]b
ac^^ZWSR

@S[]dSSfQSaaP]ZbZS\UbV
eWbVVOQYaOe]`P]ZbQcbbS`a

4@=<BD73E

A723D73E

4@=<BD73E

A723D73E

Step 7

Mark reference points for bolt holes on the fence post through middle of bracket slots. Marking reference points in this
manner allows room for adjustment when mounting the post bracket assembly and gate bracket. After marking your
reference points, remove the
opener and brackets from the
fence and gate.

Step 8

Drill 3/8" holes into fence post
as marked.

Step 9

Fasten post bracket assembly to
the fence post using

(4) 3/8" x 8" bolts, washers,
lock washers, and nuts
(provided). Remove excess
bolt length extending beyond
the tightened nuts with a
hacksaw or bolt cutters.

NOTE: In cases where the
fence post has a diameter larger
than 6", threaded rods or

carriage bolts longer than 8"

(not supplied) must be used.

Step 10

Mark reference points for bolt holes on
the gate cross member through middle of

gate bracket slots. Drill 3/8" holes into
the gate cross member as marked.

Mount gate bracket using (2)

3

/8" x 3" bolts, washers, lock washers,
and nuts (provided). Cut off excess bolt
length extending beyond the tightened
nuts.

Gate Bracket Mounting Examples

15

Mounting the Master Arm

:SdSZ=^S`Ob]`

4S\QS>]ab

5ObS7\=^S\>]aWbW]\

:3D3:V]`Wh]\bOZQ`]aa[S[PS`

>]ab0`OQYSb/aaS[PZg
P]ZbSRb]TS\QS^]ab

1ZSdWa>W\0caVW\UO\R6OW`^W\1ZW^

1ZSdWa>W\0caVW\UO\R6OW`^W\1ZW^

5ObS0`OQYSbP]ZbSR
b]UObSQ`]aa[S[PS`

Step 11

Attach the opener to the securely bolted post bracket assembly and gate bracket using clevis pins, bushings, and hairpin
clips, or optional Pin Locks (see Accessory Catalog). Verify that the opener is level and adjust the post bracket assembly if
necessary.

Installing the Slave Arm

Step 12

Install the second opener on the remaining gate leaf by repeating Step 3 through Step 11, starting on page 13.
After you have mounted the second opener, proceed to Installing the Positive Stops on the next page.

16

Closed Position 
Stop Plates

Gate Hinge

CONTROL BOX

Gate Hinge

The gate leaf can open
up to 110˚ (max.)

Optional Ground Stop

(beneath gate)

The gate leaf can open
up to 110˚ (max.)

MASTER GATE SLAVE GATE

Installation of the Closed Position Stops

Closed Position Stop Plate mounted 
horizontally on metal post with U-bolts.

SLAVE Gate Frame

MASTER Gate Frame

TOP VIEW

FRONT VIEW

The GTO/PRO® 2002XL Gate Operators firmly hold the gates in the closed position using positive
stops. The positive stops help stabilize the gate leaves in the closed position. To further enhance
stability and security, we strongly recommended using an optional GTO/PRO® Automatic Gate
Lock (see Accessory Catalog) with your dual gate.

IMPORTANT: You need to determine

which side of the driveway you will mount the
control box. From this point on the gate and
gate opener on the same side as the control box
will be referred to as the MASTER gate and
gate opener. The gate and gate opener on the
opposite side of the driveway from the control
box will be referred to as the SLAVE gate and
gate opener.

Step 1

Attach the horizontal closed position stop plate to the
MASTER gate leaf.

Detach the gate operators from the gates and move the
gates to their closed position (Illustration A). Using
appropriate hardware for your type of gate (U-bolts for
tube or chain link; screw or bolts for wood or metal)
attach the closed position stop plate (horizontally) about
mid height on the MASTER gate frame. Do not tighten
it completely at this time. Slide the stop plate toward the
frame of the SLAVE gate leaf until they touch (Illustration
B). Once you have moved the stop plate to the correct
position, tighten its hardware completely.

Illustration B

NOTE:

against. If you will be using the GTO/PRO Horizontal Gate Lock accessory with your gate opener
system, the closed position ground stop is REQUIRED, as shown in Steps 2 and 3 on the next page.

The optional ground stop post is used to provide a secure point for the SLAVE gate to close

17

Post Bracket Assembly

Gate Bracket

MASTER ARM

Closed Position
Positive Stop Plates

SLAVE ARM

OPTIONAL Closed Position
Ground Stop Post

Step 2

Closed Position Stop Plate mounted
on the gate leaf that CLOSES FIRST

Closed Position Stop Plate


Low Profile Ground Stop
in Near the Center of Driveway

FRONT VIEW

SIDE VIEW

Mount Vertically

Install a low profile ground stop (not provided) beneath the
SLAVE gate stop plate.

The ground stop needs to be positioned near the end of the
gate as shown in Illustration A and may be made of metal
or concrete and should be firmly secured in the ground (we
recommend setting it in concrete).

Step 3

Attach a vertical closed position stop plate to the SLAVE
gate.

Using appropriate hardware for your type of gate attach the
vertical closed position stop plate to the SLAVE gate frame
at the point where it will come in contact with the ground
stop post.. Do not tighten it completely at this time. You must slide the closed position stop plate toward the ground stop until
they touch (Illustration C). Once you have moved the stop plate to the correct position, tighten its hardware completely.

NOTE: For a push-to-open installation (gate opens out from the property) attach the closed position stop plate to the outside
of the gate.

At this stage of the installation, the openers should be installed on the
gate leaves and the open and closed position stops should be in place.

18

Mounting the Control Box

RED wire to POSITIVE (+) terminal

BLACK wire to NEGATIVE (–) terminal

RED

BLACK

25

FUSE

BATT+

BATT-

1 2 3 4

ON DIP

STATUS

LEARN RMT

RECEIVER

LEARN

MAST LIMIT

LEARN

SLV LIMIT

S3

S4

ALM

S2

OFF

SOFT START OFF

WARNING OFF

OPEN PULL

SLV OPEN DLY.

MODE1 OFF

MODE2 OFF

ONONPUSH

SIMULT.ONON

120 MIN MAX

CHARGING

PWR IN

GTO RCVR.

WHT

BLU

BRN

ORG

RED

BLK

GRN

WHT

BLU

BRN

ORG

RED

BLK

GRN

COM

GRN

BLK

RED

CYCLE

SAFETY

EXIT

SHADOW

OPEN
EDGE

COM

GTO

TRANSF

LOCK

PWR

AUX

RLY

POWER

INPUTS

CONTROL

OUTPUTS

MASTER CABLESLAVE CABLE

CONTROL INPUTS

AUTO CLOSE TIME STALL FORCE

CLOSE
EDGE

18 VAC

or

SOLAR

GTO

LOCK

AUX

Operator Power Cable

Strain Relief

Battery wires for
optional second battery.

12 Volt Battery
(included)

Space for optional
second 12 Volt battery
(see Accessory Catalog)

Sealing Nut

Hub

Lock Nut

Strain Relief

Use mounting
holes and screws
provided to mount
control box to a
secure surface.

Step 1

Mount the control box using the screws (provided) or another
secure mounting method. The control box must be mounted at
least 3 feet above the ground to protect it from rain splash,
snow, etc., and at least 3 feet from an AC power source to

prevent electrical interference.

NOTE: The battery that came with your GTO/PRO®

2002XL, MUST be placed in the top (horizontal)
battery slot with the terminals on the RIGHT. The extra
(vertical) battery slot is for an optional second battery.
A second battery is recommended for solar and/or high
traffic applications, if needed.

Step 2

Make sure the control box power switch is in the OFF
position. The ON/OFF Switch is located on the bottom of
the control box. Remove the control box cover and slide
the battery into position with its terminals to the RIGHT
(see illustration). Connect the BLACK battery wire to the
NEGATIVE (–) battery terminal. Connect the RED battery
wire to the POSITIVE (+) terminal. Pay close attention to

the color of the wires. If the wires are connected incorrectly,
the control board will be damaged. NEVER insert the

battery with the terminals to the left.

Step 3

Strip approximately 3/16" of insulation from each
wire of the power cable. Twist each exposed wire
tightly (there are seven [7] wires inside the power cable
sheath). Loosen sealing nut on strain relief hub at
bottom of control box. Insert power cable into control
box through strain relief. Thread approximately 6"

of the power cable into the control box and retighten
sealing nut until the power cable locks into place.

19

Power Cable from the

Master Operator Arm

RECEIVER

GTO RCVR.

WHT

BLU

BRN

ORG

RED

BLK

GRN

COM

GRN

BLK

RED

CYCLE

SAFETY

EXIT

SHADOW

OPEN
EDGE

COM

MASTER CABLE

CONTROL I NPUTS

CLOSE

EDGE

Correct

Wrong Wrong

Wire

Terminal 
Block

Terminal 
Block

Terminal 
Block

Wire Wire

Connecting Opener Power Cables

Power Cable from the

Slave Operator Arm

WHT

BLU

BRN

ORG

RED

BLK

GRN

WHT

BLU

BRN

ORG

RED

BLK

GRN

COM

CYCLE

COM

LOCK

PWR

AUX

RLY

CONTROL

OUTPUTS

MASTER CABLESLAVE CA BLE

CON

GTO

LOCK

AUX

MASTER Operator Arm

Step 4

Insert the stripped power cable wires into the appropriate
terminals on the MASTER CABLE terminal block. The
green wire should be inserted into the GRN terminal, the
white wire into WHT, the blue wire into BLU, brown
wire into BRN, the orange wire into ORG, the red wire
into RED, and the black wire into the BLK terminal.

Tighten the set screws against the end of the wires. A
dab of petroleum jelly on each terminal will help prevent
corrosion.

SLAVE Operator Arm

Step 5

Review the Installation Overview illustration on page 11 before proceeding.

Cut a slot into the driveway to accommodate PVC conduit (not provided). The buried conduit will protect the 32 foot power
cable from automobile tires, lawn mower blades, weed eaters, and grazing animals. Pull the 32 foot second opener power
cable through the conduit and secure them into the slot in the driveway.

Step 6

Strip approximately 3/16" of insulation from each wire
of the 40 foot power cable. Twist each exposed wire
tightly. Insert the slave arm power cable upward through
the right strain relief (if necessary, loosen the sealing

nut). Thread approximately 4" of wire into the control
box. Retighten strain relief (on the black sheath of the
power cable) until the power cable locks into place.

Insert the stripped wires of the power cable into the
appropriate terminals on the SLAVE CABLE terminal
block. The green wire should be inserted into the GRN
terminal, the white wire into WHT, the blue wire into
BLUE, brown wire into BRN, and the orange wire into
the ORG terminal, red wire into RED, and black wire
into BLK.

Tighten the set screws against the end of the wires.

20

Powering the System

ON/OFF Switch

Installation of the Transformer

IMPORTANT:

• The transformer is designed and intended for indoor use. If the transformer can be plugged only into
an outside electrical outlet, a weatherproof cover or housing (available at local electrical supply stores)
must be used.

• All low voltage wire used with the GTO/PRO® 2002XL Gate Opener must be 16 gauge dual conductor,

multi-stranded, direct burial wire (see page 22 and the Accessory Catalog). Do not run more than

1000 feet of wire.

• If your gate is more than 1000 ft. from an ac power source, you will need to use at least one 10 watt
Solar Panel to charge the battery (see Accessory Catalog). Refer to the Solar Panels and Gate
Activity chart below.

OPTIONAL Solar Panels and Gate Activity

Winter Ratings Zone 1 Zone 2 Zone 3

The table and map illustrate
the maximum number of
gate cycles to expect per day
in a particular area when
using from 10 to 30 watts of
solar charging power. (see
Accessory Catalog). The

figures shown are for winter
(minimum sunlight) and do not account for
the use of any accessory items. Accessories

connected to your system will draw additional
power from the battery.

12 v dual gate (10 watts) solar charger 4 8 13
12 v dual gate (15 watts) solar charger 7 13 20
12 v dual gate (20 watts) solar charger 10 18 27
12 v dual gate (25 watts) solar charger 13 23 34
12 v dual gate (30 watts) solar charger 16 28 41

NOTE: A maximum of 30 watts of solar
charging power can be connected to the GTO/
PRO® 2002XL Gate Opener. Consult Solar

Panel Installation Instructions for further
information.

Step 1

Make sure the power switch is OFF before proceeding to the next step.

Step 2

Select the electrical outlet into which you will plug the transformer.
Measure the distance from this outlet to the control box following the
path where the wire will be laid. After you have measured how much
wire is needed, cut the wire to the appropriate length.

21

IMPORTANT INFORMATION ABOUT LOW VOLTAGE WIRE

WHT

BLU

BRN

ORG

RED

BLK

GRN

WHT

BLU

BRN

ORG

RED

BLK

GRN

POWER

INPUT

LOCK

PWR

AUX

RLY

CONTROL

OUTPUTS

MASTER CABLESLAVE CA BLE

GTO 18VOLT

TRANSFORMER

OR SOLAR

GTO

LOCK

AUX

RED

BLACK

RED

BLACK

Low Voltage Wire
from AC Transformer
or Solar Panel

Low Voltage Wire
from Transformer

Power Cable from
Master Arm

Power Cable from
Slave Arm

PVC Pipe

25

FUSE

BATT+

BATT-

1 2 3 4

ON DIP

STATUS

LEARN RMT

RECEIVER

LEARN

MAST LIMIT

LEARN

SLV LIMIT

S3

S4

ALM

S2

OFF

SOFT START OFF

WARNING OFF

OPEN PULL

SLV OPEN DLY.

MODE1 OFF

MODE2 OFF

ONONPUSH

SIMULT.ONON

120 MIN MAX

CHARGING

PWR IN

GTO RCVR.

WHT

BLU

BRN

ORG

RED

BLK

GRN

WHT

BLU

BRN

ORG

RED

BLK

GRN

COM

GRN

BLK

RED

CYCLE

SAFETY

EXIT

SHADOW

OPEN
EDGE

COM

GTO

TRANSF

LOCK

PWR

AUX

RLY

POWER

INPUTS

CONTROL

OUTPUTS

MASTER CABLESLAVE CABLE

CONTROL INPUTS

AUTO CLOSE TIME STALL FORCE

CLOSE
EDGE

18 VAC

or

SOLAR

GTO

LOCK

AUX

The only wire acceptable for use with GTO products is 16 gauge multi-stranded, low voltage, PVC
sheathed wire. This particular gauge enables the transformer to provide an adequate charge through the
control board to the battery at distances up to 1000 ft.

DO NOT use telephone wire or solid core wire. Unlike multi-stranded wire, these types of wire are

inadequate for use with your gate opener system. Telephone wire and solid core wire do not deliver
enough voltage for your gate opener to function and will cause the system to go into a condition known
as "low voltage lockout."

NEVER splice wires together. Splicing permits corrosion and seriously degrades the wire's ability to

carry an adequate current.

Step 3

Lay the measured length of low voltage wire in a trench following a path from
the selected electrical outlet to the control box. Wires coming up from the
ground should be run through PVC conduit to protect them from lawn mower
blades, weed eaters, and grazing animals. Be sure to bury the wire laid in the
trench.

Step 4

Feed the low voltage wires upward through the strain relief opening on the
lower left of the control box. Pull 6" to 8" of wire into the control box and
tighten the strain relief screw to secure the wires.

WARNING! DO NOT PLUG THE TRANSFORMER
INTO AN OUTLET DURING THIS STEP! THE
TRANSFORMER MUST ONLY BE PLUGGED INTO
AN OUTLET DURING STEP 7!

Step 5

Strip 3/16" off the ends of the low voltage wire and
twist tightly. Attach these ends to the GTO 18VOLT
TRANSFORMER OR SOLAR (GTO Transformer)

terminals located on the POWER INPUTS (GTO
Transformer) terminal block (see illustration at right).

Be certain not to let the exposed wires touch each
other!

Insert one transformer wire into an GTO
TRANSFORMER terminal. Insert the other
transformer wire into the remaining GTO
TRANSFORMER terminal. The transformer wires

can be connected to the GTO TRANSFORMER
terminals regardless of polarity or color.

Tighten set screws against exposed end of wires. A

22

Step 6

SURGE PROTECTOR

Transformer

1

Strip

/2" of insulation from the ends of the low voltage

wire. Attach these stripped ends to the transformer
terminals.

A dab of household petroleum jelly on each terminal will
help prevent corrosion.

Make sure the exposed wires do not touch each other!

Step 7

Plug the transformer into the electrical outlet.
(Use of a surge protector with the transformer is strongly
recommended.)

HINT: Keep a few mothballs in the control box to
discourage insects from entering it and damaging the
control board.

23

1 2 3 4

ON DIP

STATUS

LEARN RMT

LEARN

MAST LIMIT

LEARN

SLV LIM IT

S3

S4

S2

OFF

SOFT STA RT OFF
WARNING OFF
OPEN PUL L
SLV OPE N D LY.
MODE1 OFF
MODE2 OFF

ON
ON
PUSH
SIMULT.
ON
ON

120 MIN MAX

AUTO CLOSE TIME STALL FORCE

1 2 3 4

ON DIP

STATUS

LEARN

MAST LIMIT

LEARN

SLV LIM IT

S3

S4

S2

OFF

SOFT STA RT OFF

WARNING OFF

OPEN PUL L

SLV OPE N D LY.

MODE1 OFF

MODE2 OFF

ON

ON

PUSH

SIMULT.

ON

ON

120

MIN

MAX

AUTO CLOSE TIME

STALL FORCE

1 2 3 4

ON DIP

SOFT STA RT OFF
WARNING OFF
OPEN PUL L
SLV OPE N D LY.
MODE1 OFF
MODE2 OFF

ON
ON
PUSH
SIMULT.
ON
ON

120 MIN

ON

OFF

1

ON DIP

2 3 4

CONTROL BOARD SETTINGS

Auto Close Time Pot

1 2 3 4

ON DIP

STAT US

LEARN RMT

LEARN

MAST LIMI T

S3

S2

OFF

SOFT START OF F
WARNING OFF
OPEN PU LL
SLV OPE N DLY.

MODE1 OF F
MODE2 OF F

ON
ON
PUSH
SIMULT.

ON
ON

120 MIN MAX

AUTO CLOSE TIME STALL FORCE

DIP Switches

Main DIP Switch Settings (MODES)

DIP Switch #1 - Soft Start/Stop
ON - Soft start enabled (factory preset).
OFF - Soft start disabled.

The Soft Start/Stop feature slowly starts the gate

as it begins to open and slows the gate as it comes
to the closed position. This saves wear and tear on
the gate and gate opener system.

DIP Switch #2 - Warning Buzzer
ON - Buzzer warning enabled (factory preset).
OFF - Buzzer warning disabled.

The Warning Buzzer alerts you when the gate

opener is beginning to either open or close the
gate. It sounds for the first 2 seconds in each
direction. It also sounds a warning when the gate
obstructs two times in one cycle. Switching this to
OFF only disables the open and close warning not
the obstruction warning.

DIP Switch #3 - Push/Pull-to-Open
ON - Push to open.
OFF - Pull to open (factory preset).

If your gate opens into the property the DIP

Switch is set to the OFF position (factory setting).
If your gate opens out from the property the DIP
Switch must be set to the ON position. NOTE:
if you have a Push-to-Open gate application you
will need a Push-to-Open bracket (see Push-to­Open Instructions on page 32).

DIP Switch #4 - Delay/Simultaneous operation
ON - Slave opens simultaneously with master.
OFF - Slave opens after master.
NOTE: Not applicable for single gate operator.

Auto Close

The 'AUTO CLOSE TIME' pot controls
auto close feature.

Turning the pot all the way counter-clockwise

will turn auto close feature off. The minimum
auto close time is 3 seconds. The maximum
(turn the pot all the way clockwise) auto close
time is 120 seconds.

24

Setting the Closed Position Limits

1 2 3 4

ON DIP

STATUS

LEARN RMT

LEARN

MAST LIMIT

LEARN

SLV LIM IT

S3

S4

S2

PULL

OFF
OFF

ON
ON
PUSH
SIMULT.

ON
ON

120 M IN MAX

Learn Master Limit

Button

Learn Slave Limit

Button

for Pull to Open Applications

TURN CONTROL BOX ON

Your GTO/PRO® 2002XL has two Limit Settings

1) OPEN Limit setting: (Gate in the OPEN POSITION / FACTORY SET NOT ADJUSTABLE) The open limit setting is
the fully open position.

2) CLOSED Limit setting: (Gate in the CLOSED POSITION) To achieve optimum closed position, you are required
to complete the following SEVEN STEPS:

Step 1

Confirm that the power switch is in the ON position, and the gates are in the OPEN POSITIONS.

Step 2

Activate your openers by pressing the entry transmitter
button. Your gates should now be moving from the fully
open positions toward their closing position. Prepare to
STOP gate that reaches the desired closed position first
by pressing the entry transmitter button again. This step
may be repeated until desired close position is achieved.
Once the desired CLOSED position has been achieved,
proceed to step 3.

Step 3

Note which gate has reached the desired closed position
(typically it's the slave gate), program the closed limit
setting by pressing and holding the corresponding
'LEARN MAST LIMIT' or 'LEARN SLV LIMIT' for 5
seconds or until the buzzer sounds.

Step 4

Press the transmitter button and allow the gates to
return to the fully open position. YOUR FIRST
GATE’S CLOSED POSITION LIMIT IS NOW
PROGRAMMED.

Step 5

Activate your openers again by pressing the entry transmitter button. Your gates should now be moving from the fully open
positions toward their closing position. The first gate will stop at the spot you just programmed and the second gate will
continue to close until you press the transmitter button again. The optimum CLOSED POSITION for the second gate is
when it closes firmly, without excess tension, against the first gate. This step may be repeated until desired close position is
achieved. Once the desired CLOSED position has been achieved, proceed to step 6.

Step 6

Repeat step 3 for the other gate that has not been set in step 3.

Step 7

Press the transmitter button and allow the gates to return to the fully open position. BOTH YOUR MASTER AND SLAVE
GATE’S CLOSED POSITION LIMITS ARE NOW PROGRAMMED.

25

TESTING YOUR CLOSED LIMIT SETTING:

Learn Remote

Button

1 2 3 4

ON DIP

STATUS

LEARN RMT

LEARN

MAST LIMIT

LEARN

SLV LIM IT

S3

S4

S2

PULL

OFF
OFF

ON
ON
PUSH
SIMULT.

ON
ON

120 MIN MAX

+

0

ECE

1 2 3 4 5 6 7 8 9

1

2

3 4 5 6 7 8

9

EC

E

A23S 12V

ALKALINE BA

TT

ER

Y

+
0

–

LE

D

Press your entry transmitter and allow your gates to close. If CLOSED positions are not correct or need to be changed, you
will need to CLEAR your CLOSED LIMIT settings and follow Steps 1-7 again.

CLEARING PROGRAMMED CLOSED LIMIT SETTING:

If you make a mistake and set the limit at the wrong position – press your transmitter to return the gates to their fully opened
positions, then press and hold the 'LEARN MAST LIMIT' or 'LEARN SLV LIMIT' button for 5 seconds. This will clear the
memory for the closed limit positions. Follow Steps 1-7 again.

Setting Your Personal Transmitter Code

All GTO transmitters are set to a standard code at the factory and are ready to operate your GTO/PRO 2002XL® Gate
Opener®. For your safety and security, however, we strongly recommend that you replace the factory setting with your own
personal code. Follow the directions below:

1. Remove the Transmitter Cover

On the back of the transmitter use a small phillips head screw driver to remove
the two screws on the sides of the visor clip and separate the front cover from the
transmitter. With the front cover removed, the battery and the DIP switches will
be exposed. To set a new code, use a small screwdriver to move the switches.

2. Set the transmitter DIP Switches

There are nine (9) transmitter DIP switches; each can be placed in three different
positions (+, 0, –). DO NOT set all the switches in the same position, such as all +,
all 0, or all –. Once the DIP switches have been set to a personal code, replace front
cover.

WARNING: No other adjustments should be made inside the transmitter.

3. “Teach” the New Code to Control Board Memory

A. Press and hold transmitter button.
B. Press and hold the LEARN RMT (Learn Remote) button

on the control board until the buzzer sounds.
C. Release transmitter button. The new code
is stored in control board memory.
D. Release the LEARN RMT (Learn Remote) button.

26

Stall Force Potentiometer

1 2 3 4

ON

OFF

SOFT START OFF
WARNING O FF
OPEN PULL
SLV OPE N DLY.

MODE1 OFF
MODE2 OFF

ON
ON
PUS
SIM

ON
ON

120 MIN

AUTO CLOSE TIME STALL FO

1

2 3 4

O

N

OFT S TART OF

F

WARNING O FF

LV OPEN DLY

.

O

N

O

N

U

S

I

M

O

N

TALL F

O

1 2

ON

ON

0 MIN MAX

MIN MAX

STALL FORCE

IMPORTANT: For safety reasons the
obstruction setting or Stall Force on the GTO/
PRO® 2002XL control board comes from
the factory set at MIN (minimum). In many
gate installations this setting will need to be
adjusted to overcome the weight and size of
the gates.

The Stall Force potentiometer on the control
board operates like a volume control on a radio.
It controls the obstruction sensitivity (or the amount
of force the opener will apply to an obstruction)
before it automatically stops and reverses direction for
approximately two (2) seconds.

Use a small slotted screwdriver to turn the arrow in the center of
the potentiometer. Adjust the sensitivity from the MINIMUM position
where the gate operates without obstructing from its own weight or the
wind conditions in your area.

NOTE: You may need to increase the stall force in cold weather due to
increased resistance from gate hinges.

ALWAYS KEEP SAFETY AT THE TOP OF YOUR LIST WHEN ADJUSTING OR

Installing the Receiver

Use the transmitter to check the range of the receiver before permanently mounting it.

Consider the following when mounting the receiver:

SERVICING YOUR AUTOMATIC GATE OPENER!

• Standard receiver cable length is 10 feet (receivers with a longer cable are available as special
order items; call the GTO Sales Department). NEVER splice receiver cable!

• Run the cable through PVC conduit to protect it from damage.

• DO NOT run cable through metal conduit because the receiver signal range will be decreased.

• DO NOT run cable in conduit containing ac wiring.

• DO NOT mount receiver on a metal fence or post; doing so will decrease signal range.

• The receiver range can vary from 50 to 100 feet depending upon weather, topography, and
external interference.

• DO NOT mount upside down.

• MOUNT so that you have line of sight between remote and antenna.

• MOUNT 3 feet away from AC voltage.

FCC Regulation

This device complies with FCC rules Part 15. Operation is subject to the following
conditions:

1. This device may not cause harmful interference.

2. This device must accept an interference that may cause undesired operation.

Transmitter distance may vary due to circumstances beyond our control. NOTE:

The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.

27

Connecting Additional Safety Devices

Wire from Contact Sensor
(open safety edge)

Wire from Contact Sensor
(close safety edge)

RECEIV ER

ALM

GTO RCVR.

BLK

COM

GRN

BLK

RED

CYCLE

SAFETY

EXIT

SHADOW

OPEN

EDGE

COM

CONTROL INPUT S

CLOSE

EDGE

Although GTO strongly recommends the use of additional safety devices, we do not endorse any

specific brand names. Only use products that are certified and listed to be in compliance with any

applicable UL standards (Underwriters Laboratories) and national and regional safety codes.

Call GTO Sales at 1-800-543-4283 for information on compatible

products for your specific application.

The GTO/PRO® 2002XL will ONLY accept accessory devices with normally open dry contact output.

Contact Sensors (safety edges)

If not installing a contact sensor skip to next section.

PLEASE NOTE: Contact sensors are not included with the GTO/PRO® 2002XL.

The GTO/PRO® 2002XL is equipped with built-in obstruction sensitivity. The opener is designed to stop and reverse the
gate within 2 seconds when it comes in contact with an obstruction. However, obstruction sensitivity, although functioning
properly, may not be sensitive enough to prevent bodily injury in some circumstances. To augment your protection against
entrapment, GTO recommends using some form of additional safety device. When installed, contact sensors must be
mounted in compliance with UL 325, Underwriters Laboratories safety standard for gate openers. Review page 5 for infor­mation about mounting requirements for safety edges ("contact sensors").

Refer to the sensor manufacturer’s instructions for information
about installing these devices on a vehicular gate.

Make sure the power switch to the opener is
turned off before connecting safety device
wiring to the terminal blocks. Unplugging
the transformer does not turn power to the
opener OFF.

Contact Sensor Input Connection:

Connect one of the OPEN EDGE contact sensor wires
to the COMMON (COM) terminal and the other to the
OPEN EDGE terminal on the GTO/PRO® 2002XL
control board.

Connect one of the CLOSE EDGE contact sensor wires
to the COMMON (COM) terminal and the other to the
CLOSE EDGE terminal on the GTO/PRO® 2002XL
control board.

Activation of a contact sensor while the gate is in motion will
cause the gate to stop and reverse within two (2) seconds.

NOTE: If the close edge is contacted when the gate is opening, nothing happens. If the close edge
is contacted when the gate is closing, then it reverses. If the open edge is contacted when the gate is
closing, nothing happens. If the open edge is contacted when the gate is opening, then it reverses.

28

Non-Contact Sensors (photo beams/loop detectors)

Wire from Non-Contact
Sensor (photo beam/loop detectors)

RECEI VER

ALM

GTO RCVR.

BLK

COM

GRN

BLK

RED

CYCLE

SAFETY

EXIT

SHADOW

OPEN

EDGE

COM

CONTROL INPUTS

CLOSE

EDGE

Wire from Loop Detector

RECEI VER

ALM

GTO RCVR.

BLK

COM

GRN

BLK

RED

CYCLE

SAFETY

EXIT

SHADOW

OPEN

EDGE

COM

CONTROL INPUT S

CLOSE

EDGE

If not installing a non-contact sensor skip to next section.

PLEASE NOTE: Non-contact sensors are not included with the GTO/PRO® 2002XL.

The GTO/PRO® 2002XL can also accept "Safety" input from normally open "dry-contact" output devices such as safety
beams connected to the SAFETY input terminal.

Refer to the sensor manufacturer’s instructions for
information about installing these devices on a vehicular
gate.

Make sure the power to the opener is turned
off before connecting safety device wiring to the
terminal blocks. Unplugging the transformer
does not turn power to the opener OFF.

Non-Contact Sensor Connection:

Connect one of the non-contact sensor dry contact output
wires to the COMMON (COM) terminal and the other to the

This input is ONLY monitored when the gate
is closing. Activating the non-contact sensor
(obstructing the safety beam path) will cause the
gate to reverse to the fully open position and will
remain open as long as the contact is held.

Shadow Loop

If not installing a shadow loop skip to next section.

PLEASE NOTE: Non-contact sensors are not included with the GTO/PRO® 2002XL.

The GTO/PRO® 2002XL can accept "Shadow Loop" input
from Loop Detector that provides normally open "dry-contact"
connected to "Shadow" input terminal.

Refer to the sensor manufacturer’s instructions for information
about installing these devices on a vehicular gate.

Make sure the power to the opener is turned
off before connecting safety device wiring to the
terminal blocks. Unplugging the transformer does
not turn power to the opener OFF.

Shadow Loop Connection:

Connect the COM wire from the Loop Detector to the COMMON
(COM) terminal and the Normally open Wire from the Loop

Detector to the SHADOW terminal on the GTO/PRO® 2002XL
control board.

The SHADOW LOOP is a detector located with the moving path
of the gate to prevent the gate from closing when a vehicle is in the
path.

This input is ONLY monitored when the gate is at
the fully open position. Activating this will prevent
the gate from closing.

29

Connecting Accessories

OPEN STOP CLOSE STOP

Wire from Accessory
(push button, key pad, etc.)

RECEI VER

ALM

GTO RCVR.

BLK

COM

GRN

BLK

RED

CYCLE

SAFETY

EXIT

SHADOW

OPEN

EDGE

COM

CONTROL INPUTS

CLOSE

EDGE

Wire from Exit/Entry Device
(GTO Wand, Loop Detector etc.)

RECEI VER

ALM

GTO RCVR.

BLK

COM

GRN

BLK

RED

CYCLE

SAFETY

EXIT

SHADOW

OPEN

EDGE

COM

CONTROL INPUTS

CLOSE

EDGE

If not connecting accessories skip to next section.

The GTO/PRO® 2002XL can accept NORMALLY OPEN, DRY-CONTACT accessories, such as; Push Button Entry
Devices and Key Pads.

Refer to the sensor manufacturer’s instructions for information about installing these devices on a vehicular gate.

Make sure the power to the opener is turned off
before connecting Cycle Input device wiring to
the terminal blocks. Unplugging the transformer
does not turn power to the opener OFF.

Accessory Input Connection:

Connect one of the accessory wires to the COMMON
(COM) terminal and the other to the CYCLE terminal on the

GTO/PRO® 2002XL control board.

Each activation of the accessory will cause the
gate to cycle as follows:

Free Exit Input

The GTO/PRO® 2002XL can accept NORMALLY OPEN,
DRY-CONTACT free exit/entry devices such as GTO Wand and
Loop Detector.

Refer to the sensor manufacturer’s instructions for
information about installing these devices on a
vehicular gate.

Make sure the power to the opener is turned off
before connecting Free Exit/Entry device wiring to
the terminal blocks. Unplugging the transformer
does not turn power to the opener OFF.

Free Exit Connection:

Connect one of the accessory wires to the COMMON (COM)
terminal and the other to the EXIT
terminal on the GTO/PRO® 2002XL control board.

Activation of this input will cause the gate to open
to the fully opened position. As long as contact is
held, gate will remain open.

30

GT

O L

OCK

SOLAR

or

18 VAC

ORGBLUEWHTGRN BRN

SLAVE INPUT

LOCK

GTO AUX

GTO

TRANSF

LOCK

PWR

AUX

RLY

POWER
INPUTS

CONTROL
OUTPUTS

SLAVE CAB

Wire from
Automatic GTO Lock

Connecting GTO Automatic Gate Lock

If not connecting gate lock skip to next section.

GTO Lock:

For use exclusively with GTO Lock (FM143 or FM144).
Connecting other devices to these terminals may cause incorrect
operation and void your warranty. You do not use the lock board
with this control board.

GTO Lock Connection:

Connect the red and black leads from the lock to the GTO LOCK
terminal on the GTO/PRO® 2002XL control board.

Connecting Other Auxiliary Devices (Mag Locks,
Sirens, Lights, etc.}

• These 2 terminals are normally open 'dry-contact' (no voltage) relay ouput.

• These 2 terminals are ON (shorted) whenever the gate is moving and OFF (opened) otherwise.

• These 2 terminals maximum rating is 24Vdc, 1 Amp.

31

Gate in the Closed Position

Pinch Area (gray)

Gate in the Open Position

Pinch Area (gray)

Two inch minimum

Two inch minimum

Push to Open Installation

3/8" x 2" Bolt

3/8" Nut

Push-To-Open Bracket
(optional accessory)

Post Bracket

Post Bracket

3/8" Lock Washer

Post Bracket Assembly

3/8" Washer

Determining The Mounting Position
of The Post Bracket Assembly

Swinging gates shall not open into public access areas!

A "Push-to-Open" gate opens out from the property.

A Push-to-Open Bracket is required for this type of installation (see
Accessory Catalog). If you have a pull-to-open gate (gate opens into the

property), return to page 13; step 3.

In a PUSH-TO-OPEN installation the openers are installed while the gates
are in the closed position.

Step 1

With the gates closed, adjust the post bracket assembly and the gate
bracket until the opener is level. While holding the opener level, use
C-clamps to temporarily keep the post bracket assembly and gate
bracket in their respective positions on the fence post and gate.

IMPORTANT: While determining the mounting point for the post

pivot bracket assembly be sure that the position allows for maximum
clearance between the gate and the opener in both the open and closed
positions, as shown in the diagrams below. This clearance will give the
opener the most efficient leverage point for opening and closing the gate
and more importantly provides the least possible pinch area.

Step 2

After verifying that you have the best position
for the post pivot bracket, insert the 5/16" x 1 3/4"

bolt through the aligned holes of the post bracket
and post pivot bracket and fasten it with the 5/16"

washer and nut.

IMPORTANT: If you loosened the clamp on
the post bracket to achieve the optimum position,
tighten it in its new position and recheck the gate
bracket with the gate in the open position (move the
gate bracket and re-clamp it if necessary).

32

Operator

Fence Post

Gate Post and Gate Cross Member
(In Closed Position)

POST PIVOT BRACKET level with the
horizontal surface of the GATE BRACKET

LEVEL

LEVEL

LEVEL

Step 3

DIP#3
ON Push-to-open operation.
OFF Pull-to-open operation (factory setting).

ON

OFF

1

ON DIP

2 3 4

1 2 3 4

ON

OFF

SOFT START OFF

WARNING OFF

OPEN PULL

SLV OPEN DLY.

MODE1 OFF

ONONPUSH

SIMULT.

ON

120 MIN MAX

AUTO CLOSE TIME STALL FORCE

1 2 3

4

N

FF

FT

S

TART

O

FF

LV

O

PEN DLY.

N

N

PU

S

H

IMULT.

MIN

AX

T

O

C

L

OS

E TIME

1 2 3 4

ON DIP

OFF

OFF

ONONPUS

SIMUONON

120 MIN

With the gate in the fully closed position and the opener retracted, swing the opener to the gate. Mark reference points for
bolt holes on gate cross member through middle of gate bracket slots. The opener must be level. (Some vertical adjustment

is possible by sliding the post bracket assembly up and down.) Drill 3/8" holes into the gate cross member as marked. Fasten
gate bracket to cross member using (2) 3/8" x 3" bolts, washers, lock washers, and nuts. Attach the opener to the post bracket
assembly and gate bracket using clevis pins, bushings, and hairpins clips.

Step 4

Make sure the control box power switch is OFF.
Use a small screwdriver to move the Number
3 DIP switch from the factory setting (OFF /
Pull-To-Open) to ON for Push-To-Open. Turn
power switch ON. The control board is now

Step 5

Install the second gate opener on the other
gate in the same manner. Then refer to the
CONTROL BOARD SETTINGS on page 24 for
gate sequencing and other programming steps
before proceeding.

Setting the Open Position Limit

Step 1

Confirm that the power switch is in the ON position, and the gates are in the CLOSED POSITIONS.

Step 2

Activate your openers by pressing the entry transmitter button. Your gates should now be moving from the closed positions
toward their open position. Prepare to STOP gates by pressing the entry transmitter button again when the first gate reaches
the desired open position. This step may be repeated until desired open position is achieved. Once the desired OPEN
position has been achieved, proceed to step 3.

33

Step 3

1 2 3 4

ON DIP

STAT US

LEARN RMT

LEARN

MAST LIMI T

LEARN

SLV LIMIT

S3

S4

S2

PU LL

OFF
OFF

ON
ON
PUSH
SIMULT.

ON
ON

120 MIN MAX

Learn Master Limit

Button

Learn Slave Limit

Button

Note which gate has reached the desired closed position (typically it's the slave gate), program the closed limit setting by
pressing and holding the corresponding 'LEARN MAST LIMIT' or 'LEARN SLV LIMIT' button for 5 seconds.

Step 4

Press the transmitter button and allow the gates to return to the closed position. YOUR FIRST GATE’S OPEN POSITION
LIMIT IS NOW PROGRAMMED.

Step 5

Activate your openers again by pressing the
entry transmitter button. Your gates should now
be moving from the closed positions toward
their open positions. The first gate will stop at
the spot you just programmed and the second
gate will continue to open until you press the
transmitter button again. Press the transmitter
button when the second gate reaches the desired
open position. This step may be repeated until
desired open position is achieved. Once the
desired OPEN position has been achieved,
proceed to step 6.

Step 6

Repeat step 3 for the other gate that has not been
set in step 3.

Step 7

Press the transmitter button and allow the
gates to return to the closed position. BOTH
YOUR MASTER AND SLAVE GATE’S
OPEN POSITION LIMITS ARE NOW
PROGRAMMED.

TESTING YOUR OPEN LIMIT SETTING:

Press your entry transmitter and allow your gates to open. If OPEN positions are not correct or need to be changed, you will
need to CLEAR your OPEN LIMIT settings and follow steps one (1) to seven (7) again.

CLEARING THE PROGRAMMED OPEN LIMIT SETTING:

If you make a mistake and set the limit at the wrong position – press your transmitter to return the gates to their closed
positions, then press and hold the 'LEARN MAST LIMIT' or 'LEARN SLV LIMIT' button for 5 seconds. This will clear the
memory for the open limit positions. Follow steps one (1) to seven (7) again.

34

Maintenance & Troubleshooting Guide

If your gate opener does not function properly after it is installed, use this guide before calling the GTO Service Department.

‘PR03040-G3’ DIAGNOSTIC INDICATOR GUIDE

This guide provides detail explanations of various alarm sound and led indicators for the new PRO3040­G3 board).

A. LED INDICATORS ON WORKING OPENER:

In the following modes, the control boards will indicate various conditions of the operator. The operator
is fully operational in these modes.

1. Input Changed indicators:
Alarm: None.
‘STATUS’ Led: 1 blink.

• Whenever there is a change in state in any of the following inputs: retracted limit switch, DIP-
Switches, Cycle, Safety, Exit, Shadow, Close Edge or Open Edge.

2. ‘CYCLE’ Input Activated indicators:
Alarm: None.
‘STATUS’ Led: 1 blink with 2 second pause (Idle state only)

• ‘CYCLE’ input is continuously shorted to common/ground.

3. ‘SAFETY’ Input Activated indicators:
Alarm: None.
‘STATUS’ Led: 2 blinks with 2 second pause (Idle state only)

• ‘SAFETY’ input is continuously shorted to common/ground.

4. ‘EXIT’ Input Activated indicators:
Alarm: None.
‘STATUS’ Led: 3 blinks with 2 second pause (Idle state only)

• ‘EXIT’ input is continuously shorted to common/ground.

5. ‘SHADOW’ Input Activated indicators:
Alarm: None.
‘STATUS’ Led: 4 blinks with 2 second pause (Idle state only)

• ‘SHADOW’ loop input is continuously shorted to common/ground.

6. ‘CLOSE EDGE’ Input Activated indicators:
Alarm: None.
‘STATUS’ Led: 5 blinks with 2 second pause (Idle state only)

• ‘CLS EDGE’ input is continuously shorted to common/ground.

7. ‘OPEN EDGE’ Input Activated indicators:
Alarm: None.
‘STATUS’ Led: 6 blinks with 2 second pause (Idle state only)

• ‘OPN EDGE’ input is continuously shorted to common/ground.

8. ‘POWER IN’ Input indicator:
Alarm: None.
‘POWER IN’ Led (Green): ON/OFF (see description below)

• ON: Transformer is detected.

• OFF: Transformer installation: No AC input power is present. The battery is not being charged...

35

9. Battery charging indicator:
Alarm: None.
‘CHARGING’ Led (Red): vary (see description below)

• Constantly ON: The charging circuit is in fast charge mode. The battery is being charge with a
constant current (~ 1Amp)

• 2 blinks per second: Soak charge mode. The charger has completed fast charge mode and
the battery has reached the desired voltage (~14.1 Volts). The charger circuit will remain at this
stage for a maximum of 2 hours then switch to float charge mode.

• 1 blink per 2 seconds: Float charge mode. The battery has reached full capacity; a constant volt
age is applied to keep the battery at fully charged capacity. (~13.8 Volts)

• OFF: Battery is not being charge. This led will be OFF if there is no transformer or
solar panel power.

10. Low Battery indicators:
Alarm: 1 beep every 10 seconds (Idle state only)
‘STATUS’ Led: 1 blink every 10 seconds (Idle state only)
‘CHARGING’ Led: Rapid pulses every second.

• Operator will continue to operator as normal. However, the battery will need to be charged.
Low battery indicator will only be activated while gate is idle.

• While in idle state and the battery voltage drop below 11.4 volts (this voltage is temperature
compensated) the unit will enter low battery indicator mode as described above. The operator
will ‘exit’ low battery indicator mode when the voltage is above 12Volts.

11. Receiver/RF indicators:
Alarm: None
‘RECEIVER’ Led: blinking or OFF.

• When the ‘RECEIVER’ led is blinking, the controller is receiving ‘GTO scheme’ 318 MHz
signal from the receiver. This indicates that the transmitter and receiver are working properly.
However, if the transmitter is not being pressed and the ‘RECEIVER’ led is blinking, this
indicates that there is significant interference (i.e. A stuck transmitter sending out
unwanted signal).

• The ‘RECEIVER’ led is normally off if the transmitter is not pressed/transmitting.

B. LED INDICATORS ON NON-WORKING OPENER:

In the following modes, the operator is not functional. Power-on reset is required to return the operator
to normal operation after the problem has been corrected.

1. Master arm limit switch error indicators: Error Code ‘1’
Alarm: 1 beep with 2 second pause.
‘STATUS’ Led: 1 blink with 2 second pause.

• The limit switch from the master arm is not detected. This typically indicates that the master
arm is not connected or both the normally open (brown wire) and the normally close (orange
wire) are shorted to common/ground.

2. Slave arm limit switch error indicators: Error Code ‘2’
Alarm: 2 beeps with 2 second pause.
‘STATUS’ Led: 2 blinks with 2 second pause.

• The limit switch from the slave arm is not detected. This typically indicates that both the nor
mally open (brown wire) and the normally close (orange wire) are shorted to common/ground.
Note: If no slave arm is connected, the control board will automatically switch to single
mode operation.

• After 2 seconds of extending and the retracted limit switch still being activated (Stuck limit
switch).

36

3. Master arm running error indicators: Error Code ‘3’
Alarm: 3 beeps with 2 second pause.
‘STATUS’ Led: 3 blinks with 2 second pause.

• No pulses are detected from the master arm rev counter input during the first 1-2 seconds of
running the gate.

• After 2 seconds of extending and the retracted limit switch still being activated (Stuck limit
switch).

4. Slave arm running error indicators: Error Code ‘4’
Alarm: 4 beeps with 2 second pause.
‘STATUS’ Led: 4 blinks with 2 second pause.

• No pulses are detected from the slave arm rev counter input during the first 1-2 seconds of run
ning the gate.

• After 2 seconds of extending and the retracted limit switch still being activated (Stuck limit
switch).

5. Current Sensing (Obstruction) error indicators: Error Code ‘5’
Alarm: 5 beeps with 2 second pause.
‘STATUS’ Led: 5 blinks with 2 second pause.

• Current sensing circuit for detecting obstruction is not working properly. The current sensing
circuit is tested prior to running the motor.

6. Board have NOT been tested (and passed QA): Error Code ‘25’
Alarm: 2 beeps then 5 beeps with 2 second pause.
‘STATUS’ Led: 2 blinks then 5 blinks with 2 second pause.

• The board has not been tested and/or have not passed QA test.

7. Master Motor Terminals Shorted: Error Code ‘12’
Alarm: 1 beep then 2 beeps with 2 second pause.
‘STATUS’ Led: 1 blink then 2 blinks with 2 second pause.

• The master motor terminals and/or leads are shorted.

8. Slave Motor Terminals Shorted: Error Code ‘13’
Alarm: 1 beep then 3 beeps with 2 second pause.
‘STATUS’ Led: 1 blink then 3 blinks with 2 second pause.

• The master motor terminals and/or leads are shorted.

37

VOLTAGE RATINGS

PROFESSIONAL ACCESS SYSTEMS

®

18 Vac Transformer ___________________________ 18.0 to 22.0 Vac

10 W Solar panel (dual) _______________________ 18.0 to 22.0 Vdc 600 mA
measure voltage at panel and control box.

12 V Battery ________________________________12.0 to 13.5 Vdc 7.0 Ah

Charging circuit _____________________________12.0 to 14.8 Vdc
measure voltage with battery connected

Repair Service

If your GTO/PRO® 2002XL Gate Opener is not operating properly, please follow the steps below:

1. First use the procedures found in the Troubleshooting Guide (see page 35).

2. If you are unable to solve the problem, call the GTO/PRO Service Department at [phone], or [phone].
Refer to the serial number (located on the right hand side of the control box) and date of purchase when calling
for assistance.

3. If repair or replacement of your gate opener is necessary, the Service Department will assign a Return Goods
Authorization (RGA) number to you for warranty repair.

4. Securely pack the component(s) authorized for return to the factory. Include a copy of proof of purchase. Write the RGA
number issued to you on the outside of the package in LARGE BOLD PRINT. Ship the package(s) freight prepaid to:
GTO/PRO, 3121 Hartsfield Road, Tallahassee, Florida, USA 32303.

NOTE: Products returned to GTO/PRO without a Return Goods Authorization (RGA) number in LARGE
BOLD PRINT on the outside of the package WILL NOT be accepted. Also, items returned to GTO/PRO
freight collect WILL NOT be accepted.

The GTO, Inc. Technical Service Department is open

Monday – Friday 8:00 A.M. – 7:00 P.M. (Eastern Time)

Telephone [phone]
Telephone [phone]

Fax [phone] • Web site: www.gtopro.com

E-Mail: [e-mail]

38

®

ACCESSORIES

AUTOMATIC
G

ATE

L

OCK

®

ELECTRONIC SECURITY L

OCK

1

2

ABC

3

DEF

4

GHI

5

JKL

6

MNO

7

PRS

8

TUV

9

WXY

0

POW

E

R

K

e

y

p

a

d

B

a

t

t Lo

w

Gran

t

Pe

rm

i

ssio

n

An

s

w

er

D
V

9V

A

CC

ES

S CONTR

OL

S

YS

T

E

MS

1-

80

0

-5

4

3

-

4

2

8

3

Solar Panel (FM123), (FM122)

The Solar Panel is a 10 watt solar powered battery charger for use with the all GTO/PRO DC gate
operator systems. Particularly suited for remote installations, each Solar Panel comes with tubular
steel support, mounting clips, wire connectors, and 8 ft. of low voltage wire (see Low Voltage Wire
for additional wire). The GTO/PRO® control board has clearly labeled terminal connections for easy
installation of the Solar Panel. Installation in some regions of the world will require multiple solar

panels for adequate charging power. Solar Panel (FM122) is a 5 watt solar powered battery

charger with all the same features as (FM123).

Push Button Control (RB101)

Unlit doorbell button for remote entry or exit control. Wires directly to the control board and uses 16
gauge multi-stranded, dual conductor low voltage wire (sold separately).

Pin Lock (FM345)

The Pin Lock substitutes for the clevis pin at the front end of the GTO/PRO® 2002XL gate operator.
Helps prevent theft of the operator from the gate, while allowing quick release of the operator.

Key Chain Two Button Transmitter (RB742)

The Key Chain Mini Transmitter is a miniature version of the GTO/PRO® entry transmitter and has
the same adjustable code settings. 12 Volt battery included.

Single Button Transmitter (RB741)
The GTO/PRO® entry transmitter, with adjustable code settings, is standard equipment with all
GTO/PRO® systems. 12 Volt battery included.

Digital Keypad (F310)

The specially designed digital keypad can be easily installed as a wireless or wired keypad. It can be
programmed to use up to 25 different personal identification number (PIN) codes. Each code is face
programmable with additional security features built in. Wired installations require 16 gauge, low
voltage, multi-stranded, dual conductor, direct burial wire (sold separately). Requires 3 AA batteries

(not included).

GTO/PRO 50' Exit Wand (FM139), 100' Exit Wand (FM140), 150' Exit Wand (FM141)

The GTO/PRO® Exit Wand is designed for residential and agricultural applications and is
compatible with all GTO/PRO® automatic gate operator models. The wand is an electromagnetic
sensor, which offers 'hands free' operation of the GTO/PRO® Gate Operators with a 12 ft. radius of
detection of vehicles in motion.

Automatic Gate Lock Pull-to-Open (FM144)

A MUST for added security. Solenoid driven, with a steel housing. Unlocks and locks automatically
as gates open and close. Used with GTO/PRO® DC swing gate operating systems for maximum
stability and security. Comes with a keyed manual release. Recommended for gates over 8 ft. long.
Ideal for animal enclosures or high wind areas.

Wireless Entry Intercom / Keypad (F3100MBC)

Allows owner to screen guest at the gate before allowing access to the property. Keypad also allows
owner to give up to 25 programmable entry codes to family, friends or approved delivery personnel.
Codes can be permanent of temporary. Can be wireless up to 500 feet or hard wired up to 1000 feet.

39

ACCESSORIES

HEDDOLF

UNIVERSAL

RECEIVER

MODEL 294

Replacement Battery (RB500)

Standard 12 volt, 7.0 amp-hour, maintenance-free battery for the GTO/PRO® 2500, GTO/PRO® 2002XL,
GTO/PRO® 3000, GTO/PRO® 4000 gate operator systems. This is the only battery approved for use with the
GTO/PRO® gate operator systems. Life expectancy is 3-5 years.

Low Voltage Wire (RB509)

The 16 gauge, multi-stranded, dual conductor Low Voltage Wire is for connecting the AC powered
transformer, or the Solar Panel to the control board. Also used for the connection of accessories, such as locks,
keypads, push buttons and other wired control devices. This specially designed wire is UV treated, PVC coated
and ready for direct burial. Available in 1000' rolls or special lengths.

Push to Open Bracket (347 IH)

Required when GTO/PRO® 2002XL gate operator(s) must push the gate open, such as on a sloping driveway or
where space prevents gate(s) from opening inward (pulled open). Order two PTO brackets for conversion of a dual

swing gate installation.

Column Mount Lock Receiver (433IH)

For mounting the Automatic Gate Lock on brick columns, walls, or for other applications with limited space
between gate and post.

Replacement Transformer (RB570)

Standard 18 volt AC transformer for maintaining the battery included with the GTO/PRO® 3200 gate operator. This
is the only transformer approved for use with all UL325 GTO/PRO® gate operator systems.

Garage Door Receiver (RB709)

The Garage Door Receiver allows you to use the same GTO/PRO® entry transmitter (see Dual and Triple
Transmitters) to operate your gate operator and your garage door operator. Compatible with most garage door
operators.

If you have a question about GTO/PRO accessories

just call 1-800-543-GATE!

The contents of all material available on this installation manual are copyrighted by GTO, Inc. (“GTO”), unless otherwise indicated. All rights are reserved by GTO, and content may not be reproduced,

downloaded, disseminated, published, or transferred in any form or by any means, except with the prior, written permission of GTO. Any reprinting of GTO publications is by permission only. Copyright

GTO®, GTO/PRO®, Bulldog® are registered trademarks of GTO, Inc. Professional Access Systems™ is a trademark of GTO, Inc. and are the exclusive property of GTO, Inc. (“GTO”).

All rights are reserved by GTO, and these marks may not be used, in any for without the prior, written permission of GTO.

infringement is a violation of federal law.

40
