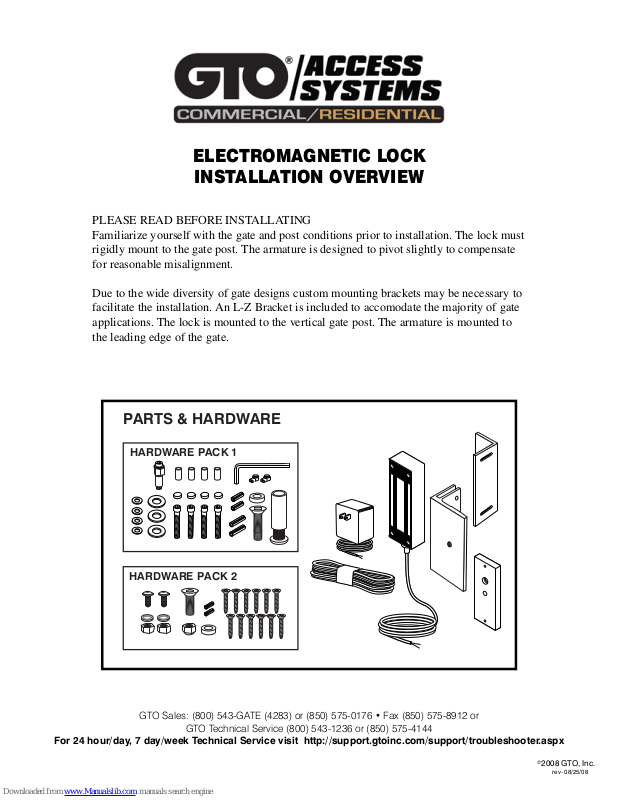

ELECTROMAGNETIC LOCK
PARTS & HARDWARE
HARDWARE PACK 1
HARDWARE PACK 2
INSTALLATION OVERVIEW
PLEASE READ BEFORE INSTALLATING
Familiarize yourself with the gate and post conditions prior to installation. The lock must
rigidly mount to the gate post. The armature is designed to pivot slightly to compensate
for reasonable misalignment.
Due to the wide diversity of gate designs custom mounting brackets may be necessary to
facilitate the installation. An L-Z Bracket is included to accomodate the majority of gate
applications. The lock is mounted to the vertical gate post. The armature is mounted to
the leading edge of the gate.
GTO Sales: (800) 543-GATE (4283) or (850) 575-0176 • Fax (850) 575-8912 or
GTO Technical Service (800) 543-1236 or (850) 575-4144
For 24 hour/day, 7 day/week Technical Service visit http://support.gtoinc.com/support/troubleshooter.aspx
©
2008 GTO, Inc.
rev- 08/25/08
Page 2
L-Z BRACKET ASSEMBLY
SLIDE GATE APPLICATION EXAMPLE
SWING GATE APPLICATION EXAMPLE
SURVEY THE INSTALLATION
Inspect the gate and determine if supplemental brackets and/or special mounting hardware will be
required for installation. If you are using the L-Z Bracket refer to the instructions furnished for specific installation information. Fabricate/procure custom bracket(s), hardware, and/or attachments as
necessary.
PREPARE THE GATE POST FOR MOUNTING THE GATE LOCK ASSEMBLY
Determine the desired location for mounting the Gate Lock assembly on the gate post. If you are
mounting the lock assembly directly to the post, locate, mark, and drill four mounting screw holes. If
using an intermediate bracket to affix the lock assembly to the post, prep the mounting screw holes
accordingly.
PREPARE THE GATE FOR ARMATURE MOUNTING
If the L-Z bracket will be used to affix the armature to the gate, prep the amature mounting and antispin pin holes on the bracket accordingly.
1
Page 3
MAG LOCK
ARMATURE
FENCE POST
GATE POST
MAG LOCK
ARMATURE
FENCE POST
GATE POST
GATE FLUSH WITH POST
MAG LOCK
ARMATURE
FENCE POST
GATE POST
NO OFFSET
REQUIRED
MAG LOCK
ARMATURE
FENCE POST
GATE POST
1” OFFSET MAX
FENCE POST
GATE POST
MOUNTING THE ARMATURE
FENCE POST
GATE POST
Locate the two 3/16” dia. anti-spin pins from the hardware kit. Place the armature face-down on a soft
surface and drive the anti-spin pins into the holes provided. Refer to the illustrations below to select the
correct mounting hardware and mount the armature. Firmly tighten the armature mounting screw.
MOUNTING THE MAGNET
Mount the magnet assembly to the gate with the four selftapping screws provided. Install the anti-tamper
plugs over the mounting screws with a soft mallet.
VERIFY PROPER ALIGNMENT
Close the gate and verify the lock face and armature are making full contact for the entire armature
length. Make corrective adjustments as necessary.
SWING GATE EXAMPLES
SLIDE GATE EXAMPLES
2
Page 4
1
3
4
9
5
6
10
2
7
8
1. Magnet Lock
2 Armature
3. Mounting Screw
4. Anti-tamper Plug
5. Rubber Washer
6. Anti-spin Pin
7. Steel Washer
8. Armature Bolt
9. Spacer
10. Sex Nut
Mag Lock
24vDC Max, 1 Amp Max
To negative (-) terminal of
mag-lock power supply
To positive (+) terminal of
mag-lock power supply
To Lock N/C terminal of
gate operator control board
To Lock COM terminal of
gate operator control board
Wiring diagram
NOTE: GTO’s GP-Series (SL050, SL100, SW050 and SW100) operators are Magnetic Lock
ready with a NORMALLY CLOSED contact Lock Terminal. GTO’s low voltage (2000XL,
3000XL, 4000XL, SL1000 and SL2000) operators do not have a NORMALLY CLOSED
contact Lock Terminal and will require the addition of a NORMALLY OPEN contact relay.
Parts diagram
GTO Hours of Operation: Mon. – Fri., 8:00 A.M. - 7:00 P.M. (ET)
E-mail: techsupport@gtoinc.com • GTO Web site: www.gtoaccess.com
Phone (800) 543-1236 • FAX (850) 575-8950
3
