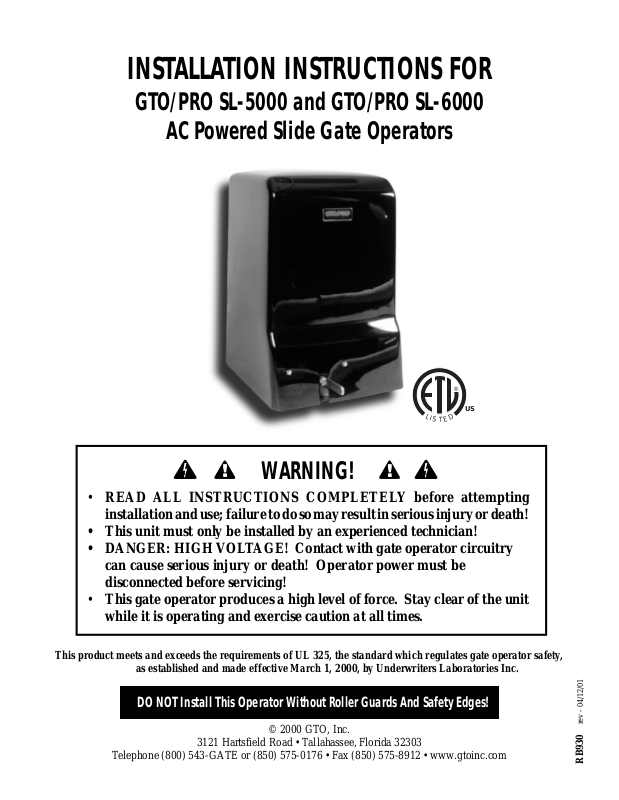

GTO PRO-SL 50006000 User Manual

INSTALLATION INSTRUCTIONS FOR
L
I
S
T
E
D
US
GTO/PRO SL-5000 and GTO/PRO SL-6000
AC Powered Slide Gate Operators
WARNING!
READ ALL INSTRUCTIONS COMPLETELY before attempting installation and use; failure to do so may result in serious injury or death!
This unit must only be installed by an experienced technician!
DANGER: HIGH VOLTAGE! Contact with gate operator circuitry can cause serious injury or death! Operator power must be disconnected before servicing!
This gate operator produces a high level of for ce. Stay clear of the unit while it is operating and exercise caution at all times.
This product meets and exceeds the requirements of UL 325, the standard which regulates gate operator safety,
as established and made effective March 1, 2000, by Underwriters Laboratories Inc.
© 2000 GTO, Inc.
3121 Hartsfield Road • Tallahassee, Florida 32303
Telephone (800) 543-GATE or (850) 575-0176 • Fax (850) 575-8912 • www.gtoinc.com
rev - 04/12/01
RB930
The GTO/PRO SL-5000 and SL-6000 automatic gate operators are intended for use with vehicular slide gates. The operators can be used in Class I, II, III, and IV applications.
VEHICULAR GATE OPERATOR CLASS CATEGORIES
Residential Vehicular Gate Operator–Class I: A vehicular gate operator (or system) intended for use in
a home of one-to-four single family dwelling, or a garage or parking area associated therewith.
Commercial/General Access Vehicular Gate Operator–Class II: A vehicular gate operator (or system) intended for use in a commercial location or building such as a multifamily housing unit (five or more single family units), hotel, garages, retail store, or other building servicing the general public.
Industrial/Limited Access Vehicular Gate Operator–Class III: A vehicular gate operator (or system) intended for use in an industrial location or building such as a factory or loading dock area or other locations not intended to service the general public.
Restricted Access Vehicular Gate Operator–Class IV: A vehicular gate operator (or system) intended for use in a guarded industrial location or building such as an airport security area or other restricted access locations not servicing the general public, in which unauthorized access is prevented via supervision by security personnel.
Conversion Chart
Converting Metric Units to English Equivalents
When Y ou Know Multiply By T o Find Symbol
centimeters 0.3937 inches in. (or ") meters 3.2808 feet ft. (or ') kilograms 2.2046 pounds lb. (or #)
Converting English Units to Metric Equivalents
When Y ou Know Multiply By T o Find Symbol
inches 2.5400 centimeters cm feet 0.3048 meters m pounds 0.4535 kilograms kg
Temperature
deg. Celsius (ºC x 1.8) + 32 deg. Fahrenheit ºF deg. Fahrenheit (ºF-32) / 1.8 deg. Celsius ºC
TABLE OF CONTENTS
Gate Operator Class Categories ....................................................................................................................Inside Cover
Metric Conversion Chart .......................................................................................................................................................Inside Cover
Safety Instructions for the GTO/PRO-SL-5000 and GTO/PRO SL-6000 Slide Gate Operators.......................................1
Important Safety Instructions for the System Designer.........................................................................................................................1
GTO Foot Pedal Release........................................................................................................................................................................1
Important Safety Instructions for the Installer......................................................................................................................................2
Important Safety Instructions Specific to Secondary Means of Protection Against Entrapment............................................................ 3
Important Safety Instructions for the Consumer/End User.................................................................................................................... 4
Required Safety Precautions for Gates..................................................................................................................................................5
Warning Labels.....................................................................................................................................................................................6
Technical Specifications..................................................................................................................................................7
Parts Identification.........................................................................................................................................................8
Installing the Gate Operator..........................................................................................................................................9
Preparation of the Gate........................................................................................................................................................................9
Operator Installation Overview.............................................................................................................................................................9
Using the Mounting Template.............................................................................................................................................................10
Removing the Operator Housing.........................................................................................................................................................11
Mounting the Operator .......................................................................................................................................................................11
Installing the Chain.............................................................................................................................................................................11
Connecting Power to the Operator......................................................................................................................................................12
Adjusting the Limit Switches........................................................................................................................................13
Gate Operator Control Board.......................................................................................................................................14
Control Board Settings ........................................................................................................................................................................15
Setting Your Personal Transmitter Code.......................................................................................................................17
Mounting the Receiver .................................................................................................................................................17
Reinstalling the Operator Housing ..............................................................................................................................18
Compatible Safety Devices...........................................................................................................................................19
Installing a Dual System..............................................................................................................................................20
Maintenance.................................................................................................................................................................23
Trouble Shooting Guide...............................................................................................................................................24
Warranty and Repair Service .......................................................................................................................................25
Installation Check List.....................................................................................................................................Back Cover
Important Safety Instructions
SAFETY INSTRUCTIONS FOR THE GTO/PRO SL-5000 AND GTO/PRO SL-6000 SLIDE GATE OPERATORS
Because automatic gate operators produce high levels of force, all system designers, installers, and consumers have an obligation to know the potential hazards associated with improperly designed, installed, or maintained gate operator systems. Keep in mind that the gate operator is just one component of the total gate operating system. Each component must work in unison to provide the consumer with convenience, security, and safety.
This manual contains various safety precautions and warnings for the system designer, installer, and consumer. Because there are many possible applications of the gate operator, the safety precautions and warnings contained in this manual cannot be completely exhaustive in nature. They do, however, provide an overview of the safe design, installation, and use of this product. CAREFULLY READ AND FOLLOW ALL SAFETY PRECAUTIONS,
WARNINGS, AND INSTALLATION INSTRUCTIONS TO ENSURE THE SAFE SYSTEM DESIGN, INSTALLATION, AND USE OF THIS PRODUCT.
The precautions and warnings in this manual are identified with these warning symbols.
This symbol identifies the conditions that can result in serious injury or death from electrical shock.
This symbol identifies the conditions that can result in damage to the operator or its components, serious injury, or death.
Because GTO automatic gate operators are only part of the total gate operating system, it is the responsibility
of the designer, installer, and purchaser to ensure the total system is safe for its intended use. Bypassing safety devices or neglecting to use safety devices with the gate operator is NOT acceptable.
Use the GTO FOOT PEDAL RELEASE (Patented) to Manually Operate the Gate
CAUTION: NEVER attempt to operate the foot pedal release while the gate is in motion. DO NOT attempt to operate the gate with a transmitter or other activation device while the foot pedal is in use.
To disengage the gate operator:
Place your foot on the pedal, then step down and push the pedal to the right until it stops against the operator frame. Lift foot from pedal. This procedure disengages the chain sprocket and allows the gate to be opened and closed manually.
To re-engage the gate operator:
Place your foot on the pedal, then step down and push the pedal to the left until it stops against the operator frame. Lift foot from pedal. This procedure re-engages the chain sprocket and allows the gate operator to drive the gate.
®
The foot pedal release can be secured with a Master
pin lock (accessory available from your GTO dealer).
IMPORTANT SAFETY INSTRUCTIONS for the System Designer
WARNING: To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. This operator is intended for use only on vehicular gates. Pedestrians must be supplied with a separate walk-
through gate (see Entrapment Protection on page 5).
3. When designing a system that will be entered from a highway or main thoroughfare, make sure the system is placed far enough from the road to prevent traffic congestion.
1
Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS for the Installer
WARNING–To reduce the risk of injury or death:
I. Before Installation
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Verify this operator is proper for the type and size of gate, and its frequency of use.
3. Make sure that the gate has been properly installed and slides freely in both directions. Repair or replace all worn or damaged gate hardware prior to installation. A freely moving gate will require less force to operate and will enhance the performance of the operator and safety devices used with the system.
1
4. All openings of a horizontal slide gate must be guarded or screened to prevent a 2 passing through openings anywhere in the gate. This screen (or guard) must also be installed over the portion of adjacent fence that the gate covers in the open position (see page 5).
5. Review the operation of the system and become familiar with its safety features. Understand how to disengage and re-engage the operator with the foot pedal release (see GTO Pedal Release on page 1).
/4 inch diameter sphere from
6. This gate operator is intended for vehicular gates ONLY. A separate entrance or gate must be installed for pedestrian use (see page 5). NO ONE SHOULD CROSS THE PATH OF A MOVING GATE.
II. During Installation
1. Install the gate operator on the inside of the property and fence line. DO NOT install an operator on the outside of the gate where the public has access to it.
2. Be careful with moving parts and avoid close proximity to areas where fingers or hands could be pinched.
3. Determine the best obstruction sensing setting for this installation. The gate MUST stop and reverse on contact with an obstruction or when an object activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust and retest the gate operator properly can increase the
risk of injury or death.
4. Additional safety equipment such as roller guards and safety edges (or photoelectric sensors) MUST be installed to prevent bodily injury (see page 9).
5. Mount access controls away from the gate (minimum distance is 10 feet). The user must have full view of the gate but be unable to touch it while operating the controls.
6. Secure outdoor or easily accessed gate operator controls in order to prohibit unauthorized use of the gate.
III. After Installation
1. Review ALL safety instructions with the consumer/end user and explain the basic operation and safety systems of the entire gate operator system, including operation of the foot pedal release.
2. Inform the consumer/end user that servicing of the operator must only be done by an experienced technician.
3. Attach the warning signs (included) to each side of the gate to alert public of automatic gate operation. Take a photo of warning signs installed on gate. Record the date of the photo for your reference.
SA VE THESE INSTRUCTIONS. Leave IMPORT ANT SAFETY INSTRUCTIONS
4. (included) with consumer/end user.
2
Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Specific to Secondary Means of Protection Against Entrapment
As specified by Underwriters Laboratories Inc. UL 325 (30A.1.1), automatic gate operators shall have provisions for, or be supplied with, at least one independent primary and one independent secondary means to protect against
entrapment. GTO gate operators utilize Type A, an inherent entrapment sensing system, as the primary type of entrapment protection. The GTO/PRO SL-5000 and GTO/PRO SL-6000 operators have provisions for the connection of Type B1, B2, or D protection to be used as the secondary type of entrapment protection.
1. For gate operators utilizing a non-contact sensor (Type B1) in accordance with UL 325 (51.8.4 [h]):
A. Refer to the sensor manufacturer’s instructions on the placement of non-contact sensors for each type of application. B. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate is still moving. C. One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists, such as the perimeter reachable by a moving gate or barrier.
2. For gate operators utilizing a contact sensor (Type B2) in accordance with UL 325 (51.8.4 [i]):
A. One or more contact sensors shall be located at the leading edge, trailing edge, and post mounted both inside and outside of a vehicular slide gate system. B. A hard wired contact sensor shall be located and its wiring arranged so that the communication between the sensor and the gate operator is not subjected to mechanical damage. C. A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate operator for entrapment protection functions shall be located where the transmission of the signals are not obstructed or impeded by building structures, natural landscaping or similar obstruction. A wireless contact sensor shall function under the intended end-use conditions.
3. For gate operators utilizing an actuating device requiring continuous pressure to maintain opening or closing motion of the gate (Type D) in accordance with UL 325 (51.8.4 [e]):
A. The gate operator controls must be placed so that the user has full view of the gate area when the gate is moving. B. Warning signs (see page 6) shall be placed adjacent to the controls. C. An automatic closing device (timer, loop sensor, etc.) shall not be employed. D. No other activation device shall be connected.
ENTRAPMENT ALARM (UL 325; 30A.1.1A)
The GTO/PRO SL-5000 and GTO/PRO SL-6000 operators are designed to stop and reverse for 2 seconds when the gate comes in contact with an obstruction or when an object activates the non-contact sensors. Additionally, these operators are equipped with an audio entrapment alarm which will function if the unit obstructs twice while opening or closing. This alarm will sound for a period of 5 minutes or until the operator receives an intended signal (e.g., transmitter signal) and the gate returns to a fully open or fully closed position.
3
Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS for the Consumer/End User
WARNING: To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Distribute and discuss copies of the IMPORTANT SAFETY INSTRUCTIONS manual with all persons authorized to use your gate. SAVE THESE INSTRUCTIONS.
3. Always keep people and objects away from the gate and its area of travel.
NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4. Your automatic gate is not for pedestrian use. If pedestrian traffic is expected near the gate, a walk-through gate must be installed for this purpose (see page 5).
5. Do not allow children or pets near your gate. Never let children operate or play with gate controls. Keep the remote controls away from children and unauthorized users; store controls where children and unauthorized users do not have access to them.
6. If push buttons or key switches are installed, they should be within sight of the gate, yet located far enough from the gate (at least 10 feet) so the gate cannot be touched while in operation. Do not operate any control without watching the movement of the gate.
7. Do not activate your gate operator unless you can see it and can determine that its area of travel is clear of people, pets, or other obstructions.
8. If your gate has open rollers, be sure that roller guards have been installed to prevent hands and fingers from being caught in the rollers (see page 5).
9. It is your responsibility to make sure that the installer posted warning signs on both sides of your gate. If any of these signs or warning decals become damaged, illegible or missing, replace them immediately. Contact your installer or GTO for replacements.
10. Verify that electric safety edge sensors or photoelectric sensors have been installed (see page 5). These safety devices should be tested monthly.
11. KEEP GATES PROPERLY MAINTAINED. Have a qualified service person make repairs to the gate hardware. NEVER REMOVE THE OPERATOR HOUSING.
12. DANGER: HIGH VOLTAGE! Contact with gate operator circuitry can cause serious injury or death! DO NOT attempt to service this operator yourself; for service, contact your installer or another experienced technician.
13. Have your gate operator tested monthly and serviced regularly by an experienced technician. The gate MUST stop and reverse on contact with an obstruction or when an object activates the non-contact sensors. If these functions are observed to operate improperly, discontinue use and have operator serviced immediately.
14. To operate this equipment safely, YOU must receive detailed instructions on the operation of the foot pedal release (see GTO Foot Pedal Release on page 1). If you feel you have not received full and proper instructions, contact your installer.
15. Use the foot pedal release only when the gate is not in motion. Do not operate the gate with a transmitter or other activation device while the foot pedal is in use.
4
Important Safety Instructions
Required Safety Precautions for Gates
Install Screen Guard Over Gate and Fence
Injuries may occur when people put their hands, arms, legs, etc., through openings in the grill when the gate is operated, trapping them between the grill and the fence post (or fence). All openings of a horizontal slide gate must be guarded
1
or screened to prevent a 2 must also be installed over the portion of adjacent fence that the gate covers in the open position. Screening will prevent access through openings in areas where the gate travels
Safety Edge
/4” diameter sphere from passing through openings anywhere in the gate. This screen/guard
Screen Mesh
Safety Edge Safety Edge
Roller guard to prevent pinch point hazard.
Safety Edge
Roller Guards
Injuries occur when
!
WARNING
hands become caught between the gate and the roller. Roller guards and enclosed tracks must be installed to prevent this pinch point hazard.
Roller guard to prevent pinch point hazard.
Warning Signs
The large warning signs (with orange panel) must be installed on both sides of the gate. The small warning signs (above left) must be installed adjacent to entry controls such as keypads and push buttons (see page 6 for
WARNING
!
Moving Gate Can Cause Injury Or Death. Do Not Start Gate Unless Path Is Clear.
Entry controls should be installed far enough from the gate (at least 10 feet) so that the user cannot touch the gate while operating the controls.
Moving Gate Can Cause
Injury Or Death
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or play in gate area.
3. This gate is for vehicles only. Pedestrians must use a separate entrance.
details).
Entrapment Protection
GTO’s internal obstruction settings, even when properly adjusted, may not be sensitive enough to prevent bodily injury. For this reason, safety devices such as safety edges MUST be installed. Furthermore, a walk-through gate must be installed if pedestrian traffic is expected near the gate. We recommend the GTO Bulldog Pedestrian Gate Lock (available as an accessory) for controlled access.
Pedestrian Gate
Safety Edge
Warning Sign
Safety Edge
Roller Guard
!
WARNING
Moving Gate Can Cause
Injury Or Death
1.KEEP CLEAR! Gate may move at any time.
2.Do not allow children to operate gate or play in gate area.
3.This gate is for vehicles only. Pedestrians must use a separate entrance.
®
CAUTION
AUTOMATIC GATE
STAND CLEAR
1-800-543-GATE
Vehicle Gate
Operator
Roller Guard
5
Important Safety Instructions
Warning Labels
These warning signs and labels should be found at the locations specified below. If any of them are missing, immediately contact your installer for replacements.
!
WARNING
!
WARNING
Moving Gate Can Cause
Injury Or Death
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or play in gate area.
3. This entrance is for vehicles only. Pedestrians must use a separate entrance.
4. Read the owner's manual and safety instructions.
5. For gate operators using Type D entrapment protection, an automatic closing device shall
not be employed.
Moving Gate Can Cause
Injury Or Death
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or play in gate area.
3. This gate is for vehicles only. Pedestrians must use a separate entrance.
warning signs (2) to be installed on each side of the gate (3–5 feet above the bottom of the gate)
WARNING
!
Moving Gate Can Cause Injury Or Death. Do Not Start Gate Unless Path Is Clear.
Entry controls should be installed far enough from the gate (at least 10 feet) so that the user cannot touch the gate while operating the controls.
warning signs (2) to be placed adjacent to an entry control (such as a push button or keypad)
warning label (1) installed on operator housing
Manual Operation of Gate
To manually open or close the gate, step on Foot Pedal Release and push it to the right. Use Foot Pedal Release only when gate is NOT moving.
RB3272
manual operation instruction label (1) installed on operator housing
6
TECHNICAL SPECIFICATIONS
for the GTO/PRO SL-5000 & SL-6000 AC Gate Operators
Motor
• GTO/PRO SL-5000: 1/2 hp GTO-Leeson 1625 rpm TEFC; C-Face connection; 115 V, single phase.
• GTO/PRO SL-6000: 1 hp GTO-Leeson 1600 rpm TEFC; C-Face connection; 115 V, single phase.
Gear Reducer
• Totally enclosed 30:1, 60 series reducer, with vertical motor flange.
• Machine cut bronze gears run in an oil bath.
• Oil temperature range: –22 °F to 806° F (–30 °C to 430 °C).
Power
• GTO/PRO SL-5000: 115 Vac, 60 Hz, 5 A; GTO/PRO SL-6000: 115 Vac, 60 Hz, 9.8 A.
Requires copper conductors.
• Must be wired by a licensed electrician in accordance with National Electric Code (NEC) and local codes.
• Product relies on a 15 A main disconnect circuit breaker (supplied by the installer).
• One 115 Vac GFCI outlet (located below control box) for additional accessories.
Control
• Adjustable auto-close timer: 1 – 120 seconds.
• Independent obstruction settings for opening and closing cycles.
• Diagnostic and error condition LEDs.
• Potentiometers and DIP switches for easy adjustments.
• Six separate terminals for N/O contacts (e.g., safety edges or photoelectric beams).
• Mechanical limit controls.
• GTO remote mounted RF receiver tuned to 318 MHz (other receivers can be accommodated).
Construction
• Zinc plated steel parts for maximum corrosion resistance.
• Mounting brackets can be welded or bolted.
• UHMW plastic guide rollers.
• GTO/PRO SL-5000 requires #40 chain; GTO/PRO SL-6000 requires #50 chain (20’ chain included with each operator).
• Lockable foot pedal release (patented) allows manual operation of gate.
Operational Capacity
• Operator compatible with all types of horizontal slide gates.
• GTO/PRO SL-5000: weight up to 1000 lb.; length up to 60 ft. (with an opening of 50 ft.)
• GTO/PRO SL-6000: weight up to 2500 lb.; length up to 60 ft. (with an opening of 50 ft.)
• Duty Cycle: Continuous.
Dimensions
• Housing: Width 20 in.; Depth 22 in.; Height 31 in.
• Control Box: Width 14 in.; Depth 6 in.; Height 16 in.
• Shipping Weight: GTO/PRO SL-5000 166 lb.; GTO/PRO SL-6000 172 lb.
7
PARTS IDENTIFICATION
GTO/PRO AC Slide Gate Operator Parts
AUTOMATIC GATE OPERATORS
!
®
WARNING
Receiver (1)
Moving Gate Can Cause
Injury Or Death
Manual Operation of Gate
To manually open or close the gate, step on Foot Pedal Release and push it to the right. Use Foot Pedal Release only when gate is NOT moving.
Fully Assembled Operator
GTO Transmitter (1)
Gate Warning Signs
S
D
R
A
D
L
N
A
D
T
S
I
5
2
E
S
3
T
L
®
U
o
t
s
m
r
o
f
n
o
C
9901178
RB3272
Hardware
(one for each side)
Entry Control
Warning Signs (2)
IMPORTANT SAFETY INSTRUCTIONS
GTO/PRO SL-5000 & GTO/PRO SL-6000
AC Powered Slide Gate Operators
Installation Instructions for
GTO/PRO SL-5000 & GTO/PRO SL-6000
AC Powered Slide Gate Operators
WARNING
WARNING
Installation & Safety
Manuals
(1 each)
Chain Brackets (2)
1/2" Nut (4)
Ty Wraps (8)
8
Chain (1)
Chain Adjuster Bolts (2)
INSTALLING THE GATE OPERATOR
Safety Edges
Safety Edges or Photoelectric Beams
are Required
Roller Guard
Receiver
Roller Guard
Safety Edge
Operator
GTO/PRO
(REQUIRED)
Roller Guard
(REQUIRED)
(REQUIRED)
Safety Edge
Use Rigid Conduit for inbound AC wire.
Chain Bracket
Chain Bracket
AC POWER
Photo Beam
Chain
Use PVC Conduit for Receiver
(REQUIRED)
(REQUIRED)
(REQUIRED)
THIS UNIT MUST ONLY BE INSTALLED BY AN EXPERIENCED TECHNICIAN.
Preparation of the Gate
Before installing the GTO/PRO slide gate operator, make sure:
• the gate is properly installed.
• the gate is plumb, level, and moves freely.
• the gate does not bind or drag on the ground.
• the gate is screened if necessary (see page 5.)
• roller guards are installed (see page 5.)
Overview of the Operator Installation
The diagram below is an example of a single slide gate installation with required safety features. The operator must be installed on the inside of the gate. You must install safety edges (or photoelectric sensors) and roller guards
(not included) to reduce the possibility of bodily injury. NOTE: A separate gate or entrance must be installed for pedestrian use.
9
Using the Mounting Template
The mounting template (see insert) is designed to simplify mounting the operator. It provides the installer with the proper locations for running power and accessory wiring conduits. The template is also marked with the correct distance between the operator mounting holes and shows the installer how to position the operator for the correct clearance between the housing and the gate.
NOTE: The operator must be securely mounted on a level concrete pad. If you do not have an existing pad to work
1
with, be sure to install wiring conduit before pouring concrete. You must use (4) washers, and nuts (not included) to mount the operator on the pad.
Study the mounting template. Lay the mounting template on the level concrete pad and mark the pad according to the instructions on the template.
Before mounting the operator, check the following:
• The concrete pad is level.
• Four (4)
1
/2” diameter mounting anchors are in their correct positions.
• Conduit for power and accessory wiring is installed.
Installation Alignment
/2” diameter mounting anchors,
Safety Edges
(REQUIRED)
4" to 6"
Chain Bracket
Chain brackets must be installed (welded or bolted) to provide 4 to 6 inches between chain and inside of gate. This will insure adequate clearance between the operator housing and the gate.
Pad mounting holes line up with chain idler wheels and should be no closer than 4 inches and no futher than 6 inches from the gate.
Driveway
Gate
Safety Edge
(REQUIRED)
C
L
Fence Post
Roller
Operator must be mounted with the chain rollers and sprocket aligned with the chain.
Fence Post
Roller
Safety Edge
(REQUIRED)
center to center mounting holes
Use 1/2" dia. concrete mounting bolts in mounting pad.
7"
1811/16" center to center mounting holes
10
Removing the Operator Housing
Before you can gain access to the operator frame and its mounting holes, the housing will have to be removed from the operator.
3
1. Remove the (2) located on the front of the housing). Lift the housing off the operator and set it aside.
/8” chrome acorn nuts and (2) 3/8” washers from the operator housing (this hardware is
Acorn nuts
Washers
Mounting the Operator
1. Lift the operator and align its mounting holes over the 1/2” diameter concrete mounting anchors. Lower the operator into position and fasten it to the mounting anchors with (4) 1/2” washers and nuts (not provided).
2. Step down on the foot pedal to disengage chain sprocket (see GTO FOOT PEDAL RELEASE on page 1).
Installing the Chain
1. Bolt or weld (when correct position is determined) the chain brackets (included) on the operator side of the gate (see illustration on next page).
1
2. Insert a chain adjuster bolt (included) in each bracket. Secure chain adjuster bolt using the (2) (included), one on each side of the bracket. Do not overtighten the nuts; they will be used to adjust chain tension.
2. Attach chain to one chain adjuster bolt. Use #40 chain with the GTO/PRO SL-5000, and #50 chain with the GTO/PRO SL-6000.
3. Thread chain through chain sprockets (foot pedal release should already be activated). Attach chain to second chain adjuster bolt. Allow a minimum of 1 inch slack in chain for every 10 feet of gate.
/2” nuts
11
4. Chain adjuster bolts: adjust outside nut until desired chain tension is achieved. Tighten inside nut to secure bolt (see illustration below).
5. Release foot pedal to re-engage chain sprocket.
Chain Bracket
Sprocket
Roller Guides
!
WARNING
•Fingers, hands, and loose clothing may be dragged into chain sprockets.
•Fingers and hands can be injured by rotating sprockets.
•Keep hands, fingers, and loose clothing away from chain and sprockets.
Chain
Chain Bracket and Adjustment Bolt
(included)
Chain Bracket
slack (1" for every 10' of chain)
Gate
Chain (included)
Master Link (included)
Connecting Power to the Operator
Have a licensed electrician run 115 Vac wiring into a Field Wiring Connection Compartment (ON/OFF) box. The 115 Vac line will power the gate operator system. The circuit must be protected with a 15 A main disconnect breaker (not provided).
NOTE: Power and wiring connections MUST be installed by a licensed electrician in accordance with NEC (National Electric Code) and local codes.
NEVER run low voltage (e.g., accessory or receiver) wires in conduit containing 115 Vac wiring.
After the gate operator is connected to the 115 Vac power supply, the limit switches can be set. See ADJUSTING THE LIMIT SWITCHES on the next page.
12
ADJUSTING THE LIMIT SWITCHES
The limit switches determine how far the gate travels to open and close. The closer the limit nut is to the limit switch, the less distance the gate will travel to open or close. Adjust the limit switches by moving the limit nuts.
MAKE SURE THE OPERATOR POWER IS OFF BEFORE ADJUSTING THE LIMIT SWITCHES.
Lift and release the limit switch plate to unlock the limit nuts (see illustration at right). Using a fingertip, roll the limit nuts along the travel shaft until the correct open and closed gate positions are determined.
If the gate opens from LEFT to RIGHT (see illustration below): the right limit switch adjusts the closed position. The left limit switch adjusts the open position.
If the gate opens from RIGHT to LEFT (see illustration below): the left limit switch adjusts the closed position. The right limit switch adjusts the open position.
Limit Adjustment Lock
Limit Switch Plate
Test the operator to verify that the limit switches are properly set. The operator should open and close the gate completely. After properly setting the limit switches, the control board must be set according to the operator application. The system accessories should also be connected to the control board.
Left Limit Nut
OPEN position stop – if gate opens LEFT to RIGHT
CLOSED position stop – if gate opens RIGHT to LEFT
Limit Switch
Right Limit Nut
CLOSED position stop – if gate opens LEFT to RIGHT
OPEN position stop – if gate opens RIGHT to LEFT
Lift limit switch plate to release, then adjust limit nut.
Limit Switch
Limit Switch Plate
Travel Shaft
The closer the limit nut is to the limit switch, the less distance the gate will travel to open or close.
13
GATE OPERATOR CONTROL BOARD (not actual size)
CLS. SENS.
MIN MAX
OPN. SENS.
MIN MAX
INERTIA
Potentiometers
MIN MAX
CLOSE TIMER
60
1 120
GROUND
SCREW
Diagnostic LEDs
PWR OK TIMER ON OBSTRUCT MAX TIME SENSOR ERR. LIM SW ERR. OPEN MTR. INTERN.ERR.
1/2 amp slow blow fuse
Reset/Learn Button
RST / LEARN
SWNG/SLD
MAST/SLV
GATE R/L
SEQUENC 1
SEQUENCE 2
TMR. OFF/ON
EDGE 6 EDGE 5 EDGE 4 EDGE 3 EDGE 2 EDGE 1
DUAL GATE INTER­FACE
GTO RCVR.
CLOSE
OPEN
FIRE DEPT.
SHAD. LOOP
SAFE LOOP
ENTRY LOOP
FREE EXIT
CYCLE
COMMON COMMON COMMON COMMON
COM COM
RX
TX
123456
+
+
G R B
ON
DIP switches
TB1
TB2
TB3
TB4
TB5
TB6
Terminals
L2 L1 M1 M2 M3
REV
FWD
GTO Inc., Tallahassee, FL
copyright 1999
14
24VDC
ACCES. PWR
AUX 2
ALARM
LOCK 2
LOCK 1
+
TB7
TB8
TB10
TB9
TB11
CONTROL BOARD SETTINGS
123456
ON
SWNG/SLD
MAST/SLV
GATE R/L
SEQUENC 1
SEQUENCE 2
TMR. OFF/ON
EDGE 6 EDGE 5
ST / LEARN
DIP switches
THESE SETTINGS SHOULD BE ADJUSTED ONLY BY AN EXPERIENCED INSTALLER OR TECHNICIAN! RST/LEARN:
1) Use to set transmitter code in control board memory.
2) Press this button to clear the diagnostic and error LEDs.
DIP switches (To change these settings, you must turn power OFF; move
the switch; then turn power back ON.)
SWNG/SLD (swing or slide gate operation): SWNG = swing gate SLD = slide gate [factory default is SLD]. MAST/SLV (master or slave unit): This DIP switch must be set to MAST for single gate applications. For dual gate applications set one control board to
MAST and the other to SLD [factory default is MAST]. See Installing a Dual System on pages 21-22. GATE R/L (gate opens right or left): The direction a gate opens is determined
by standing inside the property and facing toward the gate. Set the DIP switch to R for a gate that opens to the right. Set the DIP switch to L for a gate that opens to the left.
SEQUENCE 1: This DIP switch is used for sequencing slide gates [factory default is OFF]. For single gate applications this switch MUST be set to OFF. SEQUENCE 2: Same as SEQUENCE 1 above. TMR. OFF/ON (auto-close timer OFF or ON; close timer is set to 1 second at the factory): When this DIP switch is set to ON, the CLOSE TIMER potentiometer must be adjusted [factory default is OFF].
Potentiometers
CLS. SENS.
Potentiometers (All potentiometers are set to MIN at the factory. The size and type of gate
MIN MAX
OPN. SENS.
MIN MAX
INERTIA
MIN MAX
CLOSE TIMER
60
1 120
Diagnostic LEDs (Press RST / LEARN to clear these LEDs)
PWR OK: Power (115 Vac) is being delivered to the unit. This light will not be on when operator is in “LEARN” mode.
TIMER ON: The auto-close timer has been enabled. OBSTRUCT: An obstruction has been encountered. MAX TIME: Indicates operator ran longer than 60 seconds without reaching a
limit switch and the motor has shut OFF.
installation must be accommodated by adjusting the potentiometers. HOWEVER–potentiometer settings should not be used to compensate for worn, damaged, or improper gate hardware.)
CLS. SENS. (closing sensitivity): Adjusts obstruction sensitivity of the gate in closing mode. The MIN setting is for minimum gate force. The MAX setting is for maximum gate force (i.e., the operator will require greater resistance before obstructing). OPN. SENS. (opening sensitivity): Adjusts obstruction sensitivity of the gate in opening mode (see CLS. SENS. above). INERTIA: This potentiometer fine tunes the operator obstruction settings in the open and close modes. This potentiometer can be adjusted to allow the operator to push against an obstruction for a maximum of 2 seconds before “obstructing” (i.e., stopping and reversing). CLOSE TIMER: Controls the auto-close feature (factory default is 1 s): Is disabled and enabled with the TMR. OFF/ON DIP switch (see DIP switches above). The potentiometer adjusts the amount of time that the gate will remain open before it closes. The limits are 1
Diagnostic LEDs
to 120 seconds.
PWR OK TIMER ON OBSTRUCT MAX TIME SENSOR ERR. LIM SW ERR. OPEN MTR. INTERN.ERR.
15
Error Condition LEDs (Press RST / LEARN to clear these LEDs)
SENSOR ERR.: Indicates obstruction sensing circuitry has malfunctioned. LIM SW ERR.: Indicates a fault in the limit switch or limit switch wiring (This LED cannot be reset with the RST
/ LEARN button).
OPEN MTR.: Control board does not detect the operator motor. INTERN ERR.: Indicates a microprocessor error has occurred. An internal error
cannot be reset by pressing the LEARN/RESET button. The ON/OFF switch must be turned OFF, then back ON to reset the LED.
Terminals (Note: use common connections for ground. To
ground CLOSE/OPEN, FIRE DEPT., SHAD. LOOP, ENTRY ENAB, ENTRY LOOP, FREE EXIT, and CYCLE, use the center post).
EDGE 1EDGE 6 : These six terminals accommodate safety edges and photo beams.
COM (common): Terminal for connecting a ground wire. DUAL GATE INTERFACE RX TX: This terminal allows the
addition of a second gate operator for dual gate systems. ONLY Belden Wire
23) is compatible with this terminal. All four (4) connectors plus one (1) COMMON must be wired.
GTO RCVR.: For connecting a GTO receiver ONLY. Other receivers may be connected to the 24VDC terminal block (see CAUTION at
24VDC). CLOSE/OPEN: OPEN requires constant pressure on entry device to
pen the gate; CLOSE requires constant pressure on entry device to close the gate. NOTE: When a constant pressure entry device is installed the unit will not accept any other open or close input except FIRE DEPT and FREE EXIT (requires constant input). FIRE DEPT.: N/O contact reserved for public safety agency use (e.g., fire box) only.
SHAD. LOOP: Shadow loop connection for swing gates. SAFE LOOP: N/O contact that prevents the gate from closing if the
safety device (ground loop, photo beam, etc.) is activated.
ENTRY LOOP: N/O contact for entry device. FREE EXIT: N/O contact for an exit loop or exit wand. CYCLE: N/O contact for doorbell button or key switch. COMMON (ground): Terminal for connecting a ground wire 24 VDC: Accommodates accessory power up to
power supply (
than 24 Vdc or rated higher than (not provided).
AUX2: Activates devices such as another unit in a 2-stage security application. ALARM: Activates devices such as lights or alarms when gate is obstructed.
LOCK2: Provides a contact closure when the gate is in motion. LOCK1: Provides a contact closure when the gate is not in motion.
®
(see Installing a Dual Slide Gate System on pages 22-
1
/2 A. This is a fused
1
/2 A; 3AG fuse only). CAUTION: Accessories other
1
/2 A require a separate power supply
Terminals
EDGE 6 EDGE 5 EDGE 4 EDGE 3 EDGE 2 EDGE 1
COM COM
RX
DUAL
+ GATE INTER-
FACE
TX
+
G
GTO
R
RCVR.
B
CLOSE
OPEN
FIRE DEPT.
SHAD. LOOP
SAFE LOOP
ENTRY LOOP
FREE EXIT
CYCLE
COMMON COMMON COMMON COMMON
24VDC
+
ACCES. PWR
AUX 2
ALARM
LOCK 2
LOCK 1
TB1
TB2
TB3
TB4
TB5
TB6
TB7
TB8
TB10
TB9
TB11
16
SETTING A PERSONAL TRANSMITTER CODE
, In
c
.
, In
c
.
, Inc.
All GTO transmitters are set to a standard code at the factory and are ready to operate the GTO/PRO SL-5000 & GTO/ PRO SL-6000 series operators. For safety and security, however, we strongly recommend that the factory setting be replaced with a personal code. Follow the directions below:
1. Remove the Transmitter Cover
Grasp the sides of the access cover and slide it away from the transmitter button (see illustration). When the access cover is removed, the battery and the DIP switches will be exposed. To set a new code, use a small screwdriver to move the switches.
2. Set the DIP Switches
There are nine (9) DIP switches; each of which can be placed in three different positions (+,0,–). DO NOT set all the switches in the same position, such as all +, all –, or all zeros. Once the DIP switches have been set to a personal code, replace and close the access cover.
WARNING: No other adjustments should be made inside the transmitter.
3. “Teach” the New Code to Control Board Memory
A. Turn power to unit OFF B. While pressing the LEARN/RESET button turn the operator power ON.
Release LEARN/RESET button. Wait 15 seconds for receiver to charge.
C. Press transmitter button until PWR OK light comes on.
MOUNTING THE RECEIVER
Check the receiver range before permanently mounting it. Wire receiver to the control board at the terminal marked “GTO RCVR.
Consider the following when mounting the receiver:
•Cable length is 20 feet. DO NOT splice receiver cable!
•Run the receiver cable through PVC conduit to prevent damage to cables. DO NOT run cable through metal conduit, because it can decrease signal range. DO NOT run cable with AC wiring.
• DO NOT mount receiver on metal fence or post, because it will decrease signal range.
• DO NOT overtighten mounting screws; it may warp the receiver housing and damage the weather seal.
• The receiver range can vary from 50 feet to 100 feet depending upon weather, topography, and outside interference.
FCC Regulation This device complies with FCC rules Part 15. Operation is subject to the following conditions:
1. This device may not cause harmful interference.
2. This device must accept an interference that may cause undesired operation.
Transmitter distance may vary due to circumstances beyond our control. NOTE: The manufacturer is not
responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
17
REINSTALLING THE OPERATOR HOUSING
Check to make sure the roller guards, fence screen, safety edges (or photoelectric beams), warning signs, and pedestrian gate (if necessary) are installed (see pages 5-6) before fastening the housing to the operator. Also, verify that the chain is properly aligned and not kinked or binding along its path of travel. The control box should be closed and fastened with (3) screws.
3
1. Lower the operator housing into position over the operator. Fasten the housing to the operator with (2) washers and chrome acorn nuts (see illustration on page 11).
The installation is complete. Test the operator, accessories, and safety devices for correct function. Read and fill out the INSTALLATION CHECK LIST on the back cover of this manual.
/8
18
COMPATIBLE SAFETY DEVICES
Although GTO strongly recommends the use of safety devices, we do not endorse any specific brand names. Below is a list of some products compatable with GTO operators systems, some of which require their own power supply. Check with the individual manufacturer for specific power needs.
Only use products that are certified and listed to be in compliance with national and regional safety codes.
Check with manufacture to insure product compatibility.
Free Exit and Safety Loops
Advanced American Access, Inc. 9345 Melvin Ave., Wharehouse “8” Northridge, CA 91324-2465 Phone (800)368-7921 * Fax (800)304-4111
EMX. Inc. 15437 Neo Parkway Cleveland, OH 44128 Phone (800)426-9912 • Fax (216)560-9884
Perferred Technology Group 2741B Lititz Pike Lancaster, PA 17601 Phone (800)223-4743 • Fax (717)560-1700
Sarasota Automation, Inc. 1500 N. Washington Blvd. Sarasota, FL 34236 Phone (941)366-8770 • Fax (941)365-0837
Emergency Overrides
Siren Operating Signal 3315 Addison Ave. E. Twin Falls, ID 83301 Phone (800)767-4283 • Fax (208)734-0829
Miscellaneous / Gate Hinges
DAC Industries, Inc. 982 Maple Hill, S.E. Grand Rapids, MI 49546 Phone (800)888-9768 • Fax (616)235-29011
19
Installing a Dual Slide Gate Operator System
IMPORTANT: With a dual gate system certain control board settings and connections are required on the MASTER unit only and some are required on both the MASTER and the SLAVE unit. The list below gives an overview.
MASTER
• Gate Sequencing (set on MASTER, left OFF on SLAVE)
• Alarms (wired to MASTER only)
• Entry Devices (all entry/exit devices, shadow loops, Fire Dept. and free exit devices are wired to the MASTER unit)
• Adjustable Auto Close (MASTER controls opening and closing for both gates)
• Locks are controlled by the MASTER unit)
BOTH (Master & Slave)
• Safety Edges (wired to unit it controls)
• Adjustable Inertia and Adjustable Sensitivity (each unit controls its own gate)
NOTE: In a dual gate system the diagnostic LED lights on the MASTER unit are used to diagnose both units. (The LED lights on the SLAVE are nonfunctional.)
Setting Dual Gate Sequence
SL-5000 and SL-6000 operators come from the factory with the Sequence 1 and 2 DIP switches set to OFF, for single gate operation. DIP Switches must be changes to accommodate dual gate operation. The chart below shows the various combinations to suite your specific application.
IMPORTANT: The SEQUENCE DIP Switch Settings are set on the MASTER Operator only -- the SEQUENCE DIP Switch Settings on the SLAVE Operator are set to OFF only.
Seq 1 Seq 2 Operation set to: set to:
OFF ---- OFF ---- (FACTORY) No slave gate attached, Master will not wait for slave to complete. ON ----- OFF ---- Both units operate together. OFF ---- ON ----- Master unit Opens First, Slave unit closes First. ON ----- ON ----- Master unit Opens and Closes First.
Wiring the Dual Gate Syatem
A dual gate operator system requires a 5 wire connection between two single units.
NOTE: 22 AWG, type 8723, 2-pair shielded (with one ground) wire manufactured by Belden Inc. is the ONLY wire compatible for use with the DUAL GATE INTERFACE terminal. Read warnings below.
Adjust the MAST/SLV for each unit; select unit for “master” (MAST), and the other for “slave” (SLV). Adjust the GATE R/L DIP switches for each unit; select one for gate R (gate opens to the right), and the other for gate L (gate opens to the left). Connect the receiver for the MAST unit only.
20
Dual Gate Interface
Master Control Board
(MAST)
DUAL GATE INTER­FACE
GTO RCVR.
COM COM
RX
TX
+
+
G R B
GND
TB2
TB3
Set DIP Switches for Swing Gates
ST / LEARN
SWNG/SLD
MAST/SLV
GATE R/L
SEQUENC 1
SEQUENCE 2
TMR. OFF/ON
EDGE 6 EDGE 5
ON
123456
Use 22 AWG (minimum) individually shielded paired direct burial wire manufactured by Belden Inc. to connect the two units.
ONLY BELDEN® type 8723, 22 AWG 2-pair shielded (w/ one ground) wire is compatible with the DUAL GATE INTERFACE TERMINAL.
(Ground wire is unshielded [bare]).
Set MAST/SLV switch on each operator – one for master and the other for slave
Set GATE R/L switch on each operator – R for the gate that closes to the right L for the gate that closes to the left
Auxiliary Control Board
(SLV)
DUAL GATE INTER­FACE
GTO RCVR.
COM COM
RX
TX
+
+
G R B
GND
TB2
TB3
The DUAL GATE INTERFACE RX TX terminal requires 22 AWG direct burial wire manufactured
®
by Belden Inc. BELDEN WIRE
is the ONLY wire compatible with this terminal. If another
manufacturer’s wire is connected, the DUAL GATE INTERFACE terminal will NOT FUNCTION!
®
BELDEN WIRE
®
WIRE
should NEVER be run in conduit containing ac wiring!
must be run through its own PVC conduit to protect it from damage. BELDEN
All four (4) connectors plus one (1) COMMON must be wired.
NOTE: A separate gate or entrance must be installed for pedestrian use.
21
Receiver
Safety Edge
(REQUIRED)
Roller Guards
Operator
Chain Bracket
Master Operator
AC POWER
Roller Guard
(REQUIRED)
Roller Guard
Use Rigid Conduit
for AC power
(REQUIRED)
Safety Edge
Safety Edges
Chain
Chain Bracket
are Required
Safety Edges
Chain Bracket
Safety Edges or Photo Beams
Chain
Safety Edge
Photo Beam
(REQUIRED)
Roller Guard
2-pair shielded with GROUND
Run Belden Wire® ONLY, 22 AWG, type 8723
Separate PVC conduit for DUAL GATE INTERFACE wire
(REQUIRED)
Roller Guard
Chain Bracket
Slave Operator
Safety Edge
22
Operator
Roller Guard
(REQUIRED)
AC POWER
Use Rigid Conduit
for AC power
MAINTENANCE
WARNING: ALWAYS TURN OPERATOR OFF BEFORE
ADJUSTING OR SERVICING IT.
Maintenance Schedule:
Test the operator, accessories, and safety devices monthly. Service the gate operator, accessories, and safety devices regularly.
Maintenance Checklist
Test the safety edges (Grasp edges and squeeze). Check the obstruction settings (both open and close modes). Oil and adjust the chain when necessary. Check for wear on all moving parts, and tighten bolts as necessary. Check the gearbox for any sign of oil leakage. If the gearbox is leaking, call the GTO Service Department for assistance. DO NOT ADD OIL! Check rollers or hinges on the gate and lubricate if needed. Check for loose or corroded wires. Test the transmitter battery function (replace every 3 years). Grease the spline (located behind chain sprocket) twice per year. Make sure the warning signs, roller guards, fence screen, etc. (see page 6) are installed.
NOTES: [1] Always use the proper lubricant for your area. Check the temperature range of the lubricant; lubricant with an improper temperature range may cause the unit to stop operating or cause an obstruction condition.
[2] In extremely cold climates, maintain the proper operating temperature of the unit by installing heat tape around the gear reducer (see illustration below).
Grease Spline
Heat Tape on Gear Reducer
23
TROUBLE SHOOTING GUIDE
WARNING: ALWAYS TURN OPERATOR OFF BEFORE
ADJUSTING OR SERVICING IT.
1. If the PWR OK light will not come on:
A. Check the operator for inbound (ac) power. B. The operator is in “learn” mode (see SETTING A PERSONAL TRANSMITTER CODE on page 17).
2. If the unit does not function:
A. Check the operator for inbound power. B. Make sure the ON/OFF switch is in the ON position. C. Control board may be damaged; call the GTO Service Department.
3. If the control board lights are on but the unit will not operate:
A. Press the reset button on the motor. B. If you are using the transmitter to open the gate, jumper the CYCLE terminal. If the unit operates,
the transmitter batteries may be discharged. Install fresh batteries in the transmitter. If problem persists, the receiver may be damaged. Call the GTO Service Department.
C. Disconnect the accessories from the control board and jumper the CYCLE terminal. If the unit operates;
then reconnect each accessory, and test each; one at a time.
4. If the gate starts; then stops or reverses:
A. The transmitter button is being held too long. B. If using a loop or entry exit, make sure the wires are connected to the correct terminal. C. The gate operator may have been improperly installed. D. Gate rollers need service. Be sure that grease/lubricant has the proper temperature range for your area. E. The gate is not level. F. The obstruction level setting is too low.
5. If the gate opens but will not close:
A. The auto-close timer (TMR. OFF/ON DIP switch) is OFF. B. An input (e.g., loop relay, push button, etc.) may be stuck. C. Limit switch may be defective.
6. If the thermal overload button constantly trips (i.e., “pops out”):
A. Gate rollers may need servicing. B. Motor current may be excessive; call the GTO Service Department. C. Check wire connections. D. The gate has cycled too many times for the ambient temperature.
24
WARRANTY AND REPAIR SERVICE
If the GTO gate operator system is not working properly, please follow the steps below:
Instructions for the Consumer/End User:
1. Call your dealer or installer for service. Only an experienced technician may service this unit.
2. If your dealer or installer is unable to solve the problem, he will contact the GTO Service Department.
Instructions for the Dealer/Installer:
1. Call the GTO Service Department at (850) 575-0176 to discuss the problem with a service technician.
2. If repair or replacement is necessary, you will be assigned a Return Goods Authorization Number (RGA).
3. Carefully pack the component(s) authorized for return and write the RGA number on the outside of the package in LARGE BOLD PRINT. Ship freight prepaid to GTO, Inc., 3121 Hartsfield Road, Tallahassee, FL 32303. NOTE: GTO products shipped without a Return Goods Authorization Number (RGA) or shipped freight collect will not be accepted at the factory.
4. If GTO, Inc. determines that the warranty covers the repair or replacement of your gate operator:
GTO will pay shipping costs (equivalent to United Parcel Service ground rate) for return to owner of items
repaired under warranty.
GTO Hours of Operation: Mon. – Thurs., 7:30
Phone (850) 575-0176 • FAX (850) 575-8950
E-mail: techsupport@gtoinc.com • GTO Web site: www.gtoinc.com
A.M. - 5:30 P.M. and Fri., 8:00 A.M. - 12:00 P.M. (ET)
GTO/PRO AC Powered Gate Operator Limited Warranty
GTO/PRO AC powered gate operators are warranted by the manufacturer against defects in materials and manufacturer workmanship for a specific period of time beginning from the date of purchase, provided recommended installation
procedures have been followed.
The warranty period for residential installations is five (5) years for mechanical parts; three (3) years for electronic components. The warranty period for commercial installations is three (3) years for mechanical parts; two (2) years for electronic components.
In the case of product failure due to defective material or manufacturer workmanship within the warranty period, the operator will be repaired or replaced (at manufacturer's option) at no charge to the customer, if returned freight prepaid to GTO, Inc., 3121 Hartsfield Road, Tallahassee, Florida 32303. IMPORTANT: Call (850) 575-0176 or Fax (850) 575- 8950 for a Return Goods Authorization (RGA) number before returning to factory. Products received at the factory without an RGA number will not be accepted. Replacement or repaired parts are covered by this warranty for the remainder of the warranty period or six (6) months, whichever is greater. GTO will pay shipping charges (equivalent to United Parcel Service ground rate) for return to owner of items repaired under warranty.
The manufacturer will not be responsible for any charges or damages incurred in the removal of the defective parts for repair, or for the reinstallation of those parts after repair. This warranty shall be considered void if damage to the product(s) was the result of improper installation or use, tampering, connection to an improper power source, or if damage was caused by lightning, wind, fire, flood, insects or other natural agent. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. This warranty is issued in lieu of all other warranties, expressed or implied. NOTE: Verification of the warranty period requires copies of receipts or other proof of purchase. Please
retain these records.
After the warranty period, GTO or one of its authorized service centers will make any necessary repairs for a nominal fee. Call GTO at (850) 575-0176 for more information.
25
INSTALLATION CHECK LIST
The installation of this operator conforms to CLASS __________.
The installer verifies that (each item must be checked):
___ Required safety edges were installed.
___ Roller guards were installed over gate rollers.
___ Fence was screened so that no one can reach through the gate to operate controls.
___ Customer was informed that this gate is for vehicular use ONLY. Pedestrians MAY NOT use this gate.
___ A separate gate or entrance was installed for pedestrian use.
___ All warning signs and labels were installed as specified in the IMPORTANT SAFETY INSTRUCTIONS.
___ Safety instructions were reviewed with the customer.
___ The IMPORTANT SAFETY INSTRUCTIONS manual was given to the customer.
___ Customer was instructed about proper use of the foot pedal release.
___ Customer was instructed about proper use of transmitter and (or) other entry controls.
___ Customer was asked to fill out customer support card and mail it to GTO, Inc.
___ Customer was asked to retain all receipts (receipts provide proof of warranty).
___ Customer was asked to retain IMPORTANT SAFETY INSTRUCTIONS, etc. for future reference.
___ The completed installation was photographed from both the front and back of the gate. Photo was dated.
Customer’s Signature
Date
Installer’s Signature
Date
Loading...
