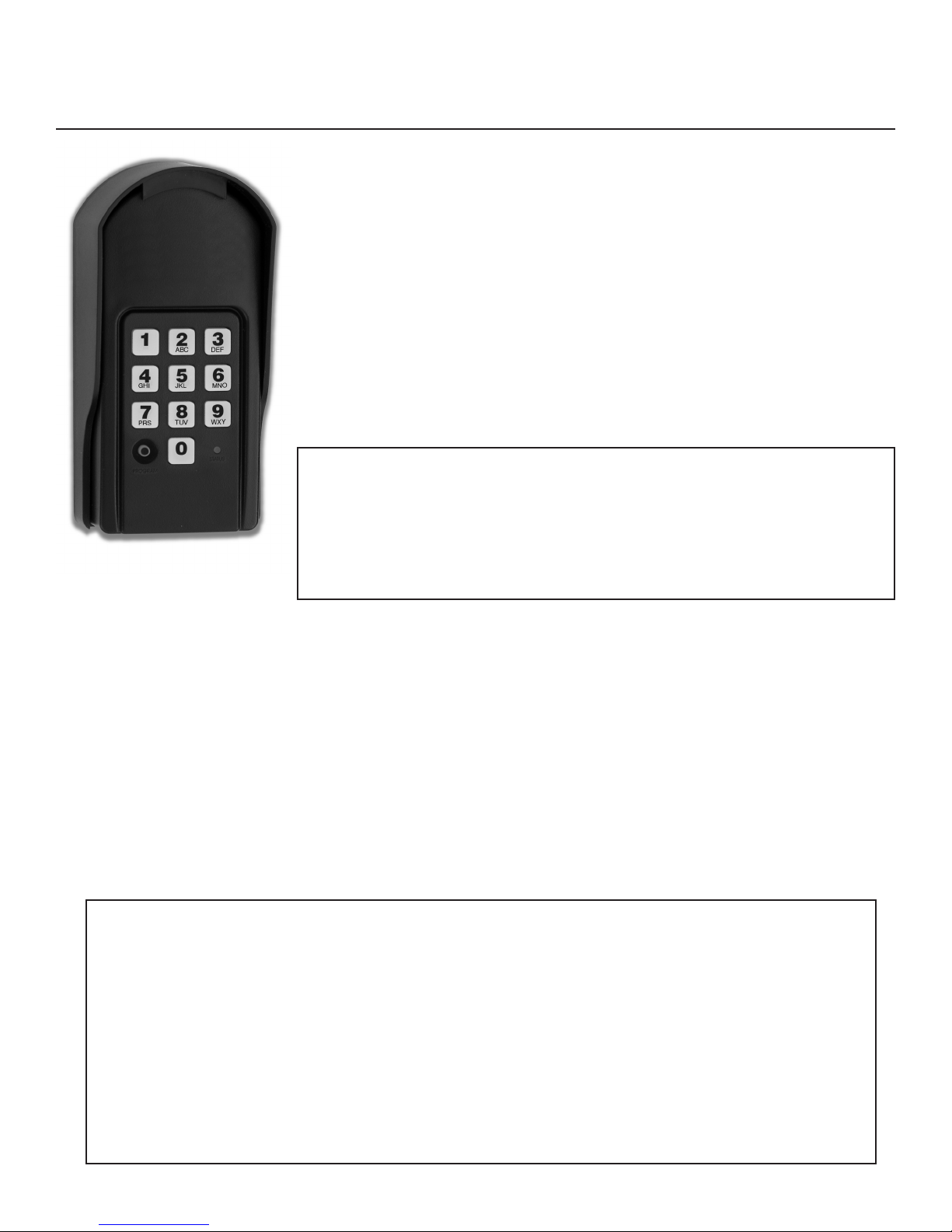

25 Code GTO Digital Keypad
Instructions for Wired and Wireless Installations (FM137-G3 only)
Thank you for purchasing the GTO Digital Keypad. Be sure to read the directions carefully
and completely. Before permanently mounting the keypad, please program the keypad and test
its range.
IMPORTANT: Your keypad may need to be hard wired due to the fact that it must accept
interference according to FCC regulations listed below. For example, applications
that are relativity close to cell towers or airports may receive intermittent interference and
require hard-wiring.
The GTO Digital Keypad is a multipurpose keypad that can work with other applications in
addition to GTO gate openers and locks. As a wireless keypad it can be used with any gate or
garage door opener and must be used in conjunction with the GTO garage door receiver kit
(part # RB709).
SAFETY NOTE: Never install the keypad where a person can reach through the gate to activate
it, or where a person can touch the gate while activating the keypad. The recommended minimum distance between the gate and keypad is 10 ft.
FCC WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in particular installations. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures: • Reorient or replace the receiver antenna. • Increase the
separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.
Features of the Keypad
You may program up to 25 different personal entry codes, allowing you to give different entry codes to different users. For example,
you can give a delivery person their own entry code, which you can easily change after they have made the delivery. This will prevent
them from being able to regain access, while still allowing those to whom you gave other entry codes full access.
As a safety feature, after entering a valid code, pressing any key during a 40 second time period from the last key pressed while the
gate is opening will stop the gate. Pressing any key while the gate is stopped will reverse direction of the gate. The keypad will not affect the auto-close setting of your gate opener system.
The keypad face will light up and the beeper will beep at the press of any key. The keypad memory will recognize your entry code in
a string of up to 20 digits. As a security feature, you have a maximum of 20 digits in which to enter the correct code before the keypad
locks you out for 40 seconds. This will discourage an unauthorized person from trying to use random numbers to access your property.
Your entry codes will remain stored in memory even when the batteries go dead. The keypad will remember your entry codes as long
as you don’t press the RESET button.
Limited One Year Warranty
GTO, Inc. gate opener accessories are warranted by the manufacturer against defects in workmanship for a period of one (1) year from the date of purchase, provided recommended installation procedures have been followed.
In the case of product failure due to defective material or manufacturer workmanship within the one (1) year warranty period, the accessory will be repaired or replaced (at the manufacturer’s option) at no charge to the customer, if returned freight prepaid to GTO, Inc., 3121 Hartsfield Rd., Tallahassee,
FL 32303. IMPORTANT: Call 850/575-4144 or fax 850/575-8950 for a Return Goods Authorization (RGA) number before returning goods to factory.
Products received at the factory without an RGA will not be accepted. Replacement or repaired parts are covered by this warranty for the remainder of the
one (1) year warranty period or six (6) months, whichever is greater. GTO, Inc. will pay the shipping charges for return to the owner of items repaired.
The manufacturer will not be responsible for any charges or damages incurred in the removal of the defective parts for repair, or for the reinstallation
of those parts after repair. This warranty shall be considered void if damage to the product(s) was due to improper installation or use, connection to an
improper power source, tampering, or if damage was caused by lightning, wind, fire, flood, insects, or other natural agent.
After the one (1) year warranty period, GTO Inc. or one of its authorized service centers will make any necessary repairs for a nominal fee. Call GTO
at 850/575-4144 for more information. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to
state. This warranty is in lieu of all other warranties, expressed or implied. NOTE: Verification of the warranty period requires copies of receipts or other
proof of purchase. Please retain those records.
©2008 GTO, Inc.rev - 10-15-08 • Printed in China for GTO, Inc.

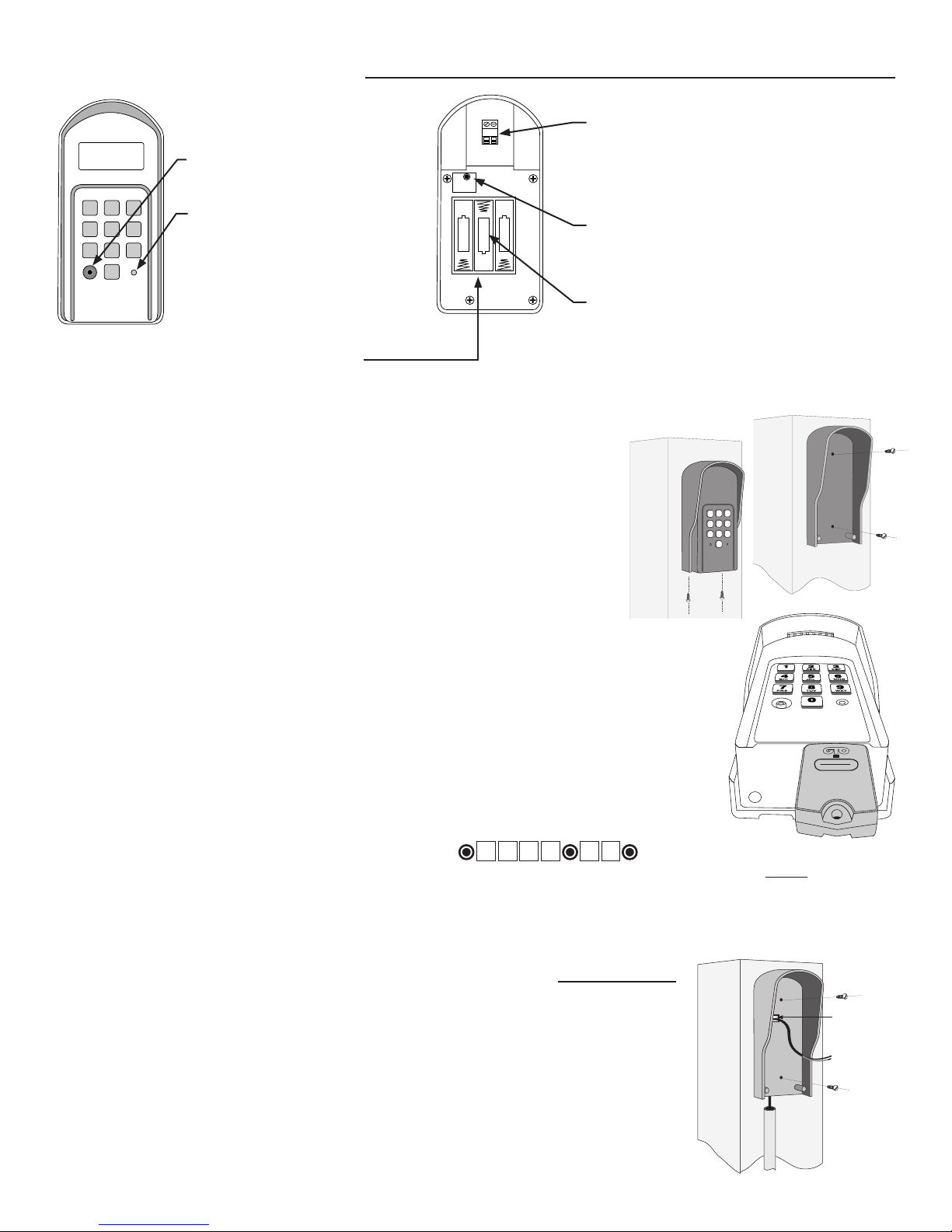

Keypad Description
"#$%&'
()*+,-./0
13456789:
OUT COM.
RESET
+
–
–
–
+
+
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
0
Knock-out
Keypad - Front
PROGRAM Button:
Used to program access codes.
STATUS Light:
This led will blink once when
any key is pressed and provides
visual feedback during access
code programming.
Keypad - Inside
Open Collector Output:
Used to connect Keypad to gate opener that
accepts logic inputs (All GTO gate openers)
in hard-wired applications. We recommend
using 16 AWG wire.
RESET Button:
Pressing this button for 2 seconds will
reprogram key pad to factory settings. All
codes are deleted. Default master code is 1234.
Battery Holder:
Use 3 AA batteries.
Installing Batteries
NOTE: 3 AA batteries are required to power the keypad.
Step 1: Remove the two screws from the bottom of the keypad and separate the keypad from its housing.
Step 2: Install 3 AA batteries (not included).
Wireless Installation of the Keypad
NOTE: For wireless applications, the distance from the keypad to the opener’s receiver
should not exceed 50 ft. Always test the keypad range before permanently mounting it.
Step 1: Mount the keypad cover using the screws provided.
Step 2: Slide the keypad into the cover and secure with the small screws provided.
NOTE: If you have not changed your opener’s transmitter code from the factory setting,
see the “Setting Your Personal Transmitter Code” section in the gate openers manual then
‘Learn’ the transmitter code into the keypad. See ‘Learn Transmitter Code’ section below.
‘Learn’ Transmitter Code (for wireless installation)
IMPORTANT: Make sure the transmitter operates the gate opener.
• Turn off the gate opener so that there is no unintended operation of the gate during the learning process.
• Press and release the PROGRAM button.
• Enter the Master Code then press and release the PROGRAM button.
• Enter 0,5 then press and release the PROGRAM button.
• Press and hold the transmitter button while holding the transmitter to the bottom of the keypad as shown.
• The keypad will beep 3 times to conrm that the transmitter is successfully ‘Learned.’ Release the
transmitters button at this time.
Example: Learn transmitter code with Master Code of ‘1234’. Then press and hold
transmitter button until you hear 3 beeps. The round black dot is the ‘PROGRAM’ button.
• Turn the gate opener back on and conrm that the keypad operates the gate using the master code.
1 2 3 4 0 5
IMPORTANT: Transmitter must
be placed exactly as shown, and
against the bottom of the keypad
in order for the ‘learning’ process
to work correctly.
Wired Installation of the Keypad
Step 1: Turn the gate opener’s power switch OFF. Use 16 gauge, stranded, direct burial low volt-
age wire (part no. RB509) to connect the keypad to the opener control board. Run wire through
PVC pipe from the ground to keypad and from the ground to the opener control board to protect
the wire from lawn mowers or grazing animals.
Determine how the wire will enter the keypad (i.e. from the back through a hole drilled in the
mounting post or running the wire on the surface of the post). Remove the small rectangular
knock-out on the back of the keypad cover and pull the wire into the cover. Then mount the cover
to the post using the screws provided.
2
