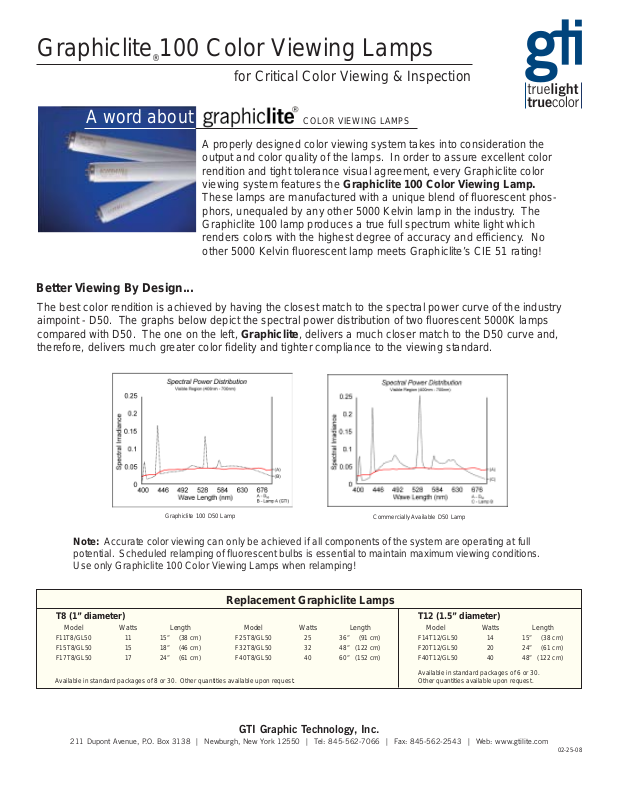

Graphiclite®100 Color Viewing Lamps

for Critical Color Viewing & Inspection

A word about

COLOR VIEWING LAMPS

A properly designed color viewing system takes into consideration the
output and color quality of the lamps. In order to assure excellent color
rendition and tight tolerance visual agreement, every Graphiclite color
viewing system features the Graphiclite 100 Color Viewing Lamp.
These lamps are manufactured with a unique blend of fluorescent phos­phors, unequaled by any other 5000 Kelvin lamp in the industry. The
Graphiclite 100 lamp produces a true full spectrum white light which
renders colors with the highest degree of accuracy and efficiency. No

other 5000 Kelvin fluorescent lamp meets Graphiclite’s CIE 51 rating!

Better Viewing By Design...

The best color rendition is achieved by having the closest match to the spectral power curve of the industry
aimpoint - D50. The graphs below depict the spectral power distribution of two fluorescent 5000K lamps
compared with D50. The one on the left, Graphiclite, delivers a much closer match to the D50 curve and,
therefore, delivers much greater color fidelity and tighter compliance to the viewing standard.

Graphiclite 100 D50 Lamp

Commercially Available D50 Lamp

Note: Accurate color viewing can only be achieved if all components of the system are operating at full
potential. Scheduled relamping of fluorescent bulbs is essential to maintain maximum viewing conditions.
Use only Graphiclite 100 Color Viewing Lamps when relamping!

Replacement Graphiclite Lamps

T8 (1” diameter)

Model Watts Length

F11T8/GL50 11 15” (38 cm)
F15T8/GL50 15 18” (46 cm)
F17T8/GL50 17 24” (61 cm)

Available in standard packages of 8 or 30. Other quantities available upon request.

Model Watts Length

F25T8/GL50 25 36” (91 cm)
F32T8/GL50 32 48” (122 cm)
F40T8/GL50 40 60” (152 cm)

T12 (1.5” diameter)

Model Watts Length

F14T12/GL50 14 15” (38 cm)
F20T12/GL50 20 24” (61 cm)
F40T12/GL50 40 48” (122 cm)

Available in standard packages of 6 or 30.
Other quantities available upon request.
