G Tech Technology BS01R User Manual

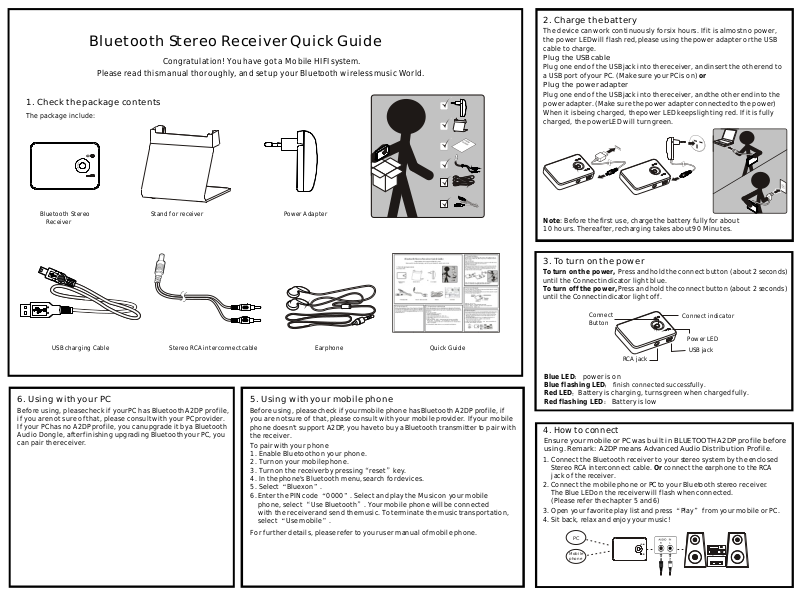

Bluetooth Stereo Receiver Quick Guide

Please read this manual thoroughly, and set up your Bluetooth wireless music World.

1. Check the package contents

The package include:

Bluetooth Stereo
Receiver

Stand for receiver

Congratulation! You have got a Mobile HIFI system.

Power Adapter

2. Charge the battery

The device can work continuously for six hours. If it is almost no power,
the power LED will flash red, please using the power adapter or the USB
cable to charge.

Plug the USB cable

Plug one end of the USB jack into the receiver, and insert the other end to
a USB port of your PC. (Make sure your PC is on) or

Plug the power adapter

Plug one end of the USB jack into the receiver, and the other end into the
power adapter. (Make sure the power adapter connected to the power)
When it is being charged, the power LED keeps lighting red. If it is fully
charged, the power LED will turn green.

Note: Before the first use, charge the battery fully for about
10 hours. Thereafter, recharging takes about 90 Minutes.

3. To turn on the power

To turn on the power, Press and hold the connect button (about 2 seconds)
until the Connect indicator light blue.
To turn off the power, Press and hold the connect button (about 2 seconds)
until the Connect indicator light off.

USB charging Cable

Stereo RCA interconnect cable

Before using, please check if your PC has Bluetooth A2DP profile,
if you are not sure of that, please consult with your PC provider.
If your PC has no A2DP profile, you can upgrade it by a Bluetooth
Audio Dongle, after finishing upgrading Bluetooth your PC, you
can pair the receiver.

Earphone

Quick Guide

5. Using with your mobile phone6. Using with your PC

Before using, please check if your mobile phone has Bluetooth A2DP profile, if
you are not sure of that, please consult with your mobile provider. If your mobile
phone doesn't support A2DP, you have to buy a Bluetooth transmitter to pair with
the receiver.

To pair with your phone

1. Enable Bluetooth on your phone.

2. Turn on your mobile phone.

3. Turn on the receiver by pressing reset key.

4. In the phone's Bluetooth menu, search for devices.

5. Select Bluexon .

6.

Enter the PIN code 0000 . Select and play the Music on your mobile
phone, select Use Bluetooth . Your mobile phone will be connected
with the receiver and send the music. To terminate the music transportation,
select Use mobile .

For further details, please refer to your user manual of mobile phone.

Connect
Button

RCA jack

Connect indicator

Power LED

USB jack

Blue LED power is on
Blue flashing LED finish connected successfully.
Red LED Battery is charging, turns green when charged fully.
Red flashing LED Battery is low

4. How to connect

Ensure your mobile or PC was built in BLUETOOTH A2DP profile before
using. Remark: A2DP means Advanced Audio Distribution Profile.

1. Connect the Bluetooth receiver to your stereo system by the enclosed
Stereo RCA interconnect cable. Or connect the earphone to the RCA
jack of the receiver.

Connect the mobile phone or PC to your Bluetooth stereo receiver.

2.

The Blue LED on the receiver will flash when connected.
(Please refer the chapter 5 and 6)

3. Open your favorite play list and press Play from your mobile or PC.

4. Sit back, relax and enjoy your music!

PC

Mobile
phone

7. Troubleshooting

If the Bluetooth Stereo System does not work, try the following:

Ensure your mobile or PC was built - in BLUETOOTH A2DP profile.
Check whether the system is out off power.
Check the operation distance.
Power off the receiver and reconnect again and ensure the right

paring password 0000 .
Check whether other Bluetooth device is connected.
Check whether the system is connected correctly.
Check whether Bluetooth function of device is turned on.

8. Specifications

Operating frequency band: 2.4 to 2.48GHz unlicensed ISM band
Bluetooth specification: V1.2
Output power class: class 2
Transmission power: +3dbm to -20dbm
Maximum data rate
Asynchronous: 723.2/57.6kbps
Synchronous: 433.9/433.9Kbps
Operation temperature: -40 to +85 degrees
Receiving signal range: -83dbm to -20 dbm
Receiving sensitivity: -83 dBm 0.1% BER
Storage temperature: -40 to +105 degrees
Transmit power consumption: 46mA
Pairing code: 0000
Power supply: Standard Li-lon battery, 350mAh Rating: 3.7V 5vdc
50 100mA
Only use the USB cable and net adaptor supplied.
Physical Specification: Dimension: 62 mm x 42 mm x 12 mm

9. Caution:

This device complise with Part 15 of the FCC Rules. Operation is subiect to
the following two conditions:(1)this device may not cause harmful
interference, and (2)this device must accept any interference
received,including interference that may cause undesired operation.

Note THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR
TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY
TO OPERATE THE EQUIPMENT.

10. Copyright

Bluedio is a trademark owned by G.Tech Technology Ltd.
Other product names used in this quick guide are the properties of their
respective owners and are acknowledged.
