Gtech ST02 Safety And Instruction Manual

Safety and Instruction Manual for

handheld grass trimmer

ST02

www.gtechonline.co.uk

ST02_UKManual09.indd 1 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

2

Introduction

It is my pleasure to introduce the ST02 handheld grass trimmer from Gtech. Designed,
patented and developed in the heart of England we hope that you find this product helps
you effortlessly stay on top of garden chores. If you have any queries or comments about
your new garden tool, we would love to hear from you.
Our friendly customer service team are available from 9am-5.30pm Monday-Thursday,
and 9am-3.30pm on Fridays on 01905 345891 or, alternatively, please visit our website
www.gtechonline.co.uk. Thank you for your purchase from Gtech, we hope you have many
happy hours using your ST02.

Nick Grey,
Chairman, Grey Technology

Contents

pg

3 Safety Information

6 Part Location

7 Battery Charging and Recharging

8 Assembly

8 Fitting and Replacing the Blade

9 Telescopic Tube Adjustment

9 Assist Handle Adjustment

10 Cutting Head Adjustment

11 Using Your Trimmer

12 Cutting & Edging

12 Care and Maintenance

13 Troubleshooting

14 Environment and Product Recycling

14 Battery Disposal

14 Technical Specification

15 Warranty Information

16 Declaration of Conformity

ST02_UKManual09.indd 2 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

3

IMPORTANT: FOR YOUR OWN
SAFETY AND BYSTANDERS READ
THE INSTRUCTIONS BEFORE
OPERATING THE MACHINE.

PLEASE KEEP THE INSTRUCTIONS SAFE
FOR FUTURE REFERENCE.

WARNING: When using the machine the
safety instructions must be followed.

WARNING: THIS PRODUCT CAN CAUSE
SERIOUS INJURIES.

Read all instructions. Failure to follow all
instructions listed below may result in electric
shock, fire and/or serious injury. The term
“power tool” in all of the warnings listed below
refers to your mains-operated (corded) power
tool or battery-operated (cordless) power tool.

WARNING: When using any electrical
appliance, basic safety precautions should
always be observed, including the following, to
reduce the risk of fire, electrical shock, or injury.

Work area:

• Keep work area clean and well lit. Cluttered
and dark areas invite accidents.

• Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust
and fumes.

• Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.

• Not to be used as a toy. Not to be used near
children. Never allow children to use the
power tool. When not in use store the power
tool out of the reach of children.

• Always be sure of your footing on ladders
or slopes, do not over-reach or use on
excessively steep slopes.

Electrical safety:

• Power tool plugs must match the outlet.
Never modify the plug in any way.

• Do not use any adaptor plugs with earthed
(grounded) power tools.

• Unmodified plugs and matching outlets will
reduce the risk of electric shock.

• Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts.

• Damaged or entangled cords increase the risk
of electric shock.

• When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.

• If the cord becomes damaged during use
disconnect the cord from the power supply
immediately - DO NOT touch the cable
before disconnecting.

• Before use check the power supply and
charger cables for signs of damage or ageing.

• If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD
reduces the risk of electric shock. NOTE:
The term residual current device (RCD)” may
be replaced by the term “ground fault circuit
interrupter (GFCI)” or “earth leakage circuit
breaker (ELCB)”

• When charging or operating the power tool it
is recommended that the appliance should be
supplied via a residual current device (RCD)
with a tripping current of not more than 30mA.

• Do not handle the charger or the power tool
with wet hands.

• Before use check the power supply and
charger cord for signs of damage or ageing.
To avoid damage it is not recommended to
wrap the cord around the charger. A damaged
charger cord can increase the risk of fire and
electric shock.

Important Safety Information

ST02_UKManual09.indd 3 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

4

• Do not abuse the charger cord as this can
increase the risk of fire and electric shock.
Never carry the charger or battery by the cord.
Do not pull the cord to disconnect the charger
from an electrical outlet.

Personal Safety:

• Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use any power tool while you are tired
or under the influence

• of drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.

• Always be aware of your surroundings and
stay alert for possible hazards that you may
not be aware of due to concentration on the
power tool.

• Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard
hat or hearing protection used for appropriate
conditions will reduce personal innjuries.

• Do not operate when barefoot or wearing
open sandals.

• Always wear substantial footwear and
long trousers.

• Dress appropriately. Do not wear loose
clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught in
moving parts.

• Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, pick up or carrying
the tool. Carrying power tools with your fingers
on the switches or plugging in power tools that
have the switch on invites accidents.

• Remove any adjusting key or wrench before
starting the power tool. A key or wrench left in
a rotating part of the power tool may result in
personal injury.

• Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.

• Take care in slippery conditions, and on
slopes and uneven ground.

• Do not run with the power tool.

• When operating the power tool ensure that
both hands are correctly positioned on
both handles. Do not operate this product if
incomplete or with unauthorized modifications.

• Keep hands and feet away from the cutting
element at all times, and especially when
switching on.

• Warning, the cutting element will continue to
move after the motor is switched off.

• Ensure that the motor has fully stopped and
the battery/mains supply is disconnected
before cleaning, clearing a blockage,
checking, or carrying out maintenance on the
power tool.

• Never operate the power tool with damaged
guards or without the guards in place.

• The operator or user is responsible for
accidents or hazards occuring to other people
at their property.

• Never fit metal cutting elements.

• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety.

• Children should be supervised to ensure that
they do not play with the appliance.

• Take care against any device fitted for
trimming the filament line length. After
extending a new cutter line always return
the machine to its normal operating position
before switching on.

• If devices are provided for the connection of dust
extraction and collecton facilities, ensure that
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.

Power tool use and care:

• Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at
the rate for which it was designed.

• Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.

ST02_UKManual09.indd 4 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

5

• Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measure reduce the risk
of starting the power tool accidentally. Store
idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the
hands of untrained users.

• Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tools operation. If damaged, have
the power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.

• Check that the cutting blades are clean and
without damage. If the blade becomes worn a
replacement should be fitted before use.

• Keep cutting tools sharp and clean. Properly
maintained cutting toolswith sharp cutting edges
are less likely to bind and are easier to control.

• Use the power tool, accessories etc. In
accordance with these instructions and inthe
manner intended for the particular type of power
tool, taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.

• Only use the machine in daylight or good
artificial light.

• Before using the machine and after any
impact, check for signs of wear or damage
and repair as necessary.

• Always ensure that ventilation openings are
kept clear of debris.

• Keep the product and all accessories away
from hot surfaces.

• Store the tool in a secure, dry place out of
reach of children and animals.

• Never modify the trimmer in any way as this
may increase the risk of personal injury.

Battery use and care:

• Recharge only with the charger specified by
the manufacturer. A charger that is suitable

for one type of battery may create a risk of fire
when used with another battery pack.

• Using a charger from a different product may
cause a risk of fire.

• Leaks from battery cells can occur under
extreme conditions. If the liquid gets on the
skin wash immediately with soap and water.
If the liquid gets into the eyes, flush them
immediately with clean water for a minimum of
10 minutes and seek medical attention.

• This product contains Ni-Cd batteries. Do
not incinerate batteries or expose to high
temperatures, as they may explode.

• Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.

• When the battery pack is not in use, keep
away from other metal objects such as: paper
clips, coins, keys, nails, screws, or other small
metal objects that can make a connection
from one terminal to another. Shorting the
battery terminals may cause burns or fire.

• In an emergency situation contact professional
help immediately!

• Under abusive conditions liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If
liquid contacts eyes additionally seek medical
help. Liquid ejected from a battery may cause
irritation or burns.

Service:

• Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the
power tool is maintained.

• Do not attempt to repair any damaged parts on
this product unless you are qualified to do so.

• Never use replacement parts or accessories not
provided or recommended by the manufacturer.

Intended use:

• This product is intended for DOMESTIC
USE ONLY

ST02_UKManual09.indd 5 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

6

1 Main unit
2 Safety button
3 Power switch
4 Rotating head
5 Cutting blade (x20)
6 Battery Pack
7 Battery Release Buttons
8 Battery Pack Charging Socket
9 Charging Adaptor
10 Charging Connector

Part Location

4

2

3

5

6

7

8

9

10

1

ST02_UKManual09.indd 6 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

7

WARNING: if the battery is damaged in any way do not attempt to charge it and
replace it immediately.

Before first use charge the battery for 16 hours.

Ensure that the start/stop lever can not accidentally be
switched to the on position while charging on the product
or when refitting the battery

To charge that battery you can either remove it or leave it
plugged into the product. The battery will charge either way.

Connect the charger plug with the battery socket, and then
plug the charging adaptor into a mains outlet.

The battery needs 8 hours to charge fully from flat.
To keep the battery in optimum condition it is best to let the battery run flat before charging.

Note: the battery will not be damaged if charged for more than 8 hours.

WARNING: do not pull the charger by the cord.

WARNING: ensure the start switches are not in the on position before reconnecting
the battery to the product.

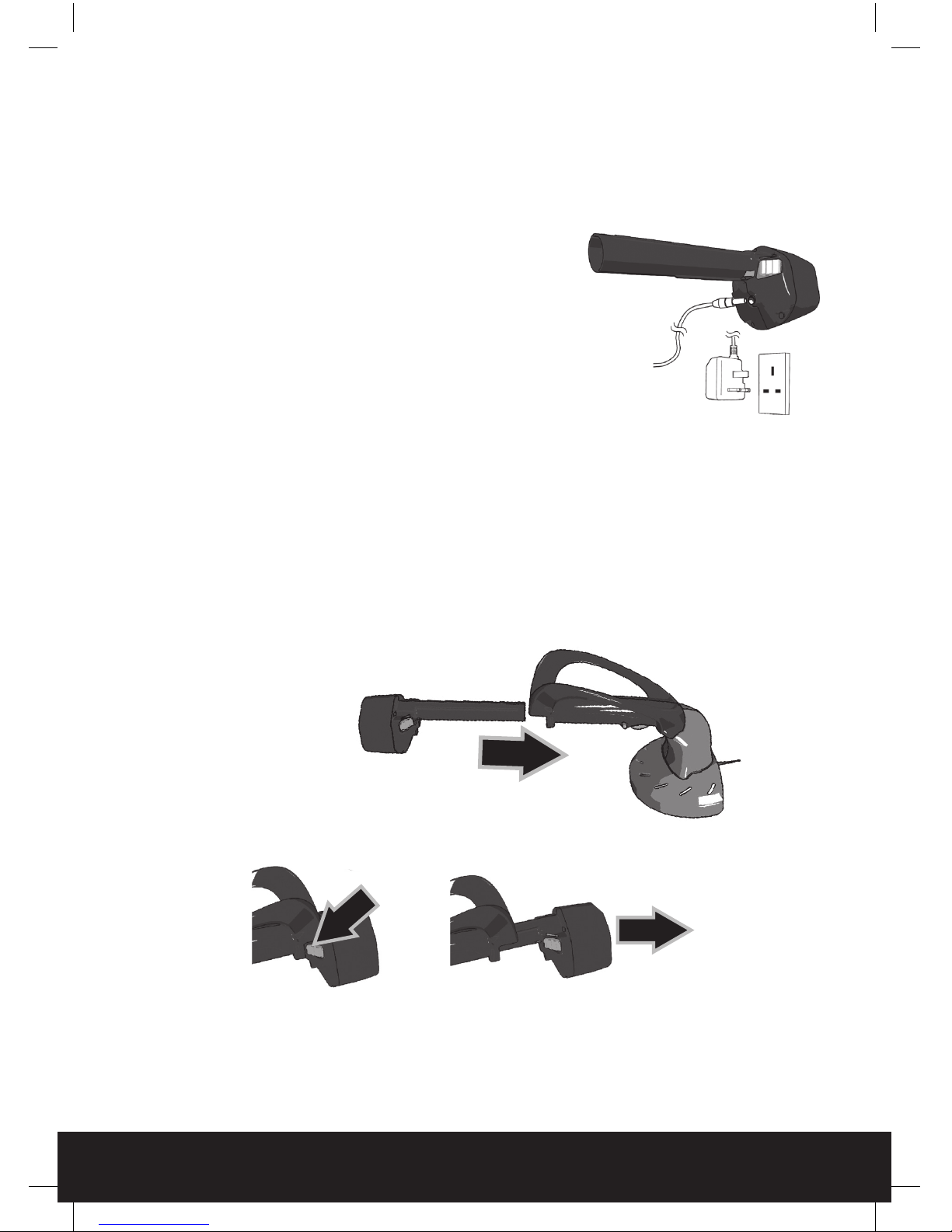

To fit the battery:

Slide it in the back of the product handle. Ensure that it is correctly aligned, and push in until
you hear the snaps lock in place.

To remove the battery:

Press both battery lock buttons on the battery pack and pull backwards, away from the trimmer.

Battery Charging & Recharging

WARNING: only use the charger provided with the product. Using any other charger
may damage the product and the battery.

Only use replacement batteries as supplied by the manufacturer.
Spare and replacement batteries can be purchased from Grey Technology
Tel [phone] or online at www.gtechonline.co.uk

ST02_UKManual09.indd 7 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

8

Assembly

The trimmer has removable plastic blades that can be replaced with new blades quickly and easily.

WARNING: do not attempt to remove the blades whilst the unit is running. Wait unitl
the blade has stopped before attempting to remove the blade.

WARNING: Never fit metal blades. Only fit blades recommended by the manufacturer.

WARNING: For safety ensure the battery is removed when working near or on the blades.

Fit the large part of the hole in the blade over the metal lug located on the hub in the bottom
of the trimmer head.

Pull the blade away from the centre of the blade hub until you feel it snap into place.

Replacing the cutting blades:

The blades on the trimmer will wear and need replacing after time. The two blades must both
be changed at the same time to ensure the product stays balanced. If your trimmer vibrates
when in use, check that both blades are worn evenly.

WARNING: Ensure the battery is disconnected from the product before working near
or on the blades.

Grip the blade and push towards the centre of the hub. Remove both blades and dispose of
in normal waste. To fit a new blade follow the procedure as described in the top of the page.

WARNING: only fit blades recommended by the manufacturer.
Replacement blades can be purchased from Grey Technology Ltd
Tel [phone] or online at www.gtechonline.co.uk

blade locked

blade unlocked

ST02_UKManual09.indd 8 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

9

Cutting Head Adjustment

WARNING: Ensure that the start/stop lever can not accidentally be switched to the
on position while adjusting the head.

The Handy Trimmer can be very easily transformed from trimmer mode to edging mode.

WARNING: do not attempt to rotate the cutting head whilst the blades are rotating.

Grasp the head part of the trimmer and simply turn it round half a turn relative to the handle.

WARNING: Keep your fingers clear of the power switch and ensure that power is not
engaged during adjustment.

WARNING: Ensure the cutting head is securely in position before starting the trimmer.

edging
mode

trimming
mode

ST02_UKManual09.indd 9 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

10

Using your trimmer

The trimmer can be used for many jobs in the garden, edging lawns, trimming long grass,
topping weeds and thistles and non-wooden plants.

Starting & stopping the trimmer

Press and hold the safety button located on either side of the handle, then squeeze the power switch.

Release the power switch to stop the trimmer.

WARNING: The blades continue to rotate for a few seconds after the trimmer is
switched off. Do not touch the rotating blades and keep hands clear of the cutting area
until the blade stops rotating.

safety button

power switch

!

Read instruction
manual before
use

Do not use in rain
or leave outdoors
whilst raining.

General hazard
safety alert.

Wear eye protection
when using this
product.

Sound pressure:
69dB(A)
Guaranteed sound
power level: 92dB(A)

Note: This product produces little noise, so
ear protection is not required.

dB

LWA

92

Warning Label Descriptions

ST02_UKManual09.indd 10 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

11

Cutting and edging

Caution: before use remove any stones, loose debris and other objects from the
cutting area.

Always take care when other people are around you.

The trimmer may throw out stones and debris at high speed.

WARNING: Always wear eye protection when using the trimmer.

Take care not to overload the trimmer. Attempting to force the trimmer to cut may damage the
motor. To prevent overloading cut long or difficult foliage in stages with several light cuts.

NOTE: the trimmer is fitted with a self-resetting protective cut-out. This will stop the
trimmer if the motor becomes overloaded. If this occurs, wait a few seconds for the
cut-out to reset and then use lighter cuts.

Take care not to grind the rotating parts against the ground as this will wear parts and cause
damage to the trimmer.

Take care when trimming around objects such as stone or concrete as these can damage the
trimmer blade and parts that attach the blade.

WARNING: Do not hold the guard or cutting head when using the product. Keep
hands clear of the rotating blades and cutting area.

Care and maintenance

To ensure long and reliable service, carry out the following maintenance regularly:

Check for obvious defects such as loose, dislodged, worn or damaged parts.

Before use, visually check the condition of the cutting blades. If worn replace with fresh blades.

Clean inside the cutting guard after use. Remove any dirt or debris using a suitable wooden
or plastic tool. Do not use water, solvents, or polishes to clean the trimmer. Wipe clean with a
dry cloth.

Store in a dry place away from children.

Do not expose to moisture.

It is not necessary to oil the product.

When storing the trimmer for longer then 6 weeks

Fully discharge the battery (by running the product) and then re-charge the battery for 8 hours.

ST02_UKManual09.indd 11 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

12

The symbol indicates that this product is covered by legislation for waste electrical and
electronic products (EN2002/96/EC)

When the product has reached the end of its life please do not dispose of it with general
household waste. Consider the environment and take it to a recognised recycling facility. Call
your local council, civic amenity site, or recycling centre for information on the disposal and
recycling of electrical products.

Alternatively visit www.recycle-more.co.uk for advice
on recycling and to find your nearest recycling facilities.

Battery Disposal

The product contains a NiCd battery which should not be disposed of with general household
waste. At the end of the product’s or battery’s life the battery pack should be disposed of
properly at a recycling facility.

For safety we do not recommend to dis-assemble and remove the battery from the battery
pack, and this should only be carried out by a professional or technically competent person.
It is recommended to dispose of the complete battery pack at a recognised recycling facility.

Environmental and Product Recycling

Technical Specification

ST02 handheld grass trimmer

Cutting Width: 15cm
Unit operating cycle with full battery: up to 40 mins*
Battery type: 7.2V DC, 25W Ni-Cd
Charging period for fully discharged battery: 10 hours
Charger output: 9V DC, 300mA
Charger input: 230V AC 50Hz 6.5W
Guaranteed sound power level: LwA,d 92 dB(A)
Weight: 0.85Kg
Vibration (according to EN50144-2-15) 0.6m/s²

*dependant on length and thickness of material being trimmed

WARNING: ONLY USE THE CHARGER PROVIDED WITH THE PRODUCT.
USING ANY OTHER CHARGER MAY DAMAGE THE PRODUCT AND THE BATTERY.

ST02_UKManual09.indd 12 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

13

Troubleshooting

PROBLEM POSSIBLE REASON POSSIBLE SOLUTION

Trimmer fails to operate

1. Battery flat

2. Cord not connected to battery pack

3. Faulty switch

1. Recharge battery

2. Check connection of cord

3. Switch in handle will ‘click’ if
operating properly

Cutting blade will not cut

1. Blade worn

2. Blade damaged

3. Trimmer not fast enough

1. Replace blade

2. Replace blade

3. Charge battery

Cutting time low

1. Battery not fully charged

2. Blade damaged

3. Guard has build up of debris

4. Overloaded motor

5. Battery damaged or not holding charge

1. Recharge battery

2. Replace blade

3. Clean guard

4. Use lighter cutting action

5. Replace battery

Trimmer vibrates when
running

1. Blade worn / damaged or missing

2. Balance weight damaged or missing

1. Fit new blade

2. Call helpline

Trimmer stops
when cutting

1. Overloaded motor

2. Battery flat

1. Wait for cut-out to reset, use
lighter cutting action

2. Charge battery

Battery not charging

1. Charger not well connected to
battery pack.

2. Charger not fully pushed into
mains socket.

3. Mains socket not switched on

4. Defective mains socket, cable,
or charger

5. Charger faulty

1. Check charger plug is well
connected to battery pack

2. Push the charger fully into
mains socket

3. Switch on mains socket

4. Consult a qualified electrician
to check the socket. Contact
customer service centre or dealer.

5. Charger should feel warm
when charging correctly.

If the product needs to be repaired or replaced only use parts which are approved
by the manufacturer.

Should you experience any problems please do not return the product to the shop.
For any help and assistance please contact the customer support helpline:

Tel: [phone] email: [e-mail]

ST02_UKManual09.indd 13 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

14

Grey Technology has provided the ST02 handheld grass trimmer with a 12 month guarantee.

In Guarantee: Please retain your receipt as proof of purchase. In the rare and unfortunate
event of your Gtech product being faulty, please accept our apologies and we will aim to
remedy the problem as fast as possible once brought to our attention. However please be
aware that due to company policy Grey Technology can only repair or replace all or part of
the product if proof of purchase is provided and the claim is made within 12 months of the
purchase date.

If your product is within the 12 months warranty period you should either return this product
with its receipt to the retailers where the product was purchased or if a simple part or advice is
required ring the Gtech customer services line where we will be more than happy to assist.
Please note: Gtech can not refund any monies if the product was brought from a third party.

We would like to remind our customers that the Gtech guarantee does not cover any
unauthorised repairs and will be annulled:

1. if the product has been damaged due to incorrect use or maintenance.

2. if any part is modified or replaced or if it is used in any way that is not
recommended by Gtech.

3. if it is used with any parts not produced or not recommended by Gtech.

4. if it is used for purposes other than those specified by Gtech.

Please note: the battery is a consumable item and is not covered by the 12 month guarantee.

If after reading the manual and following the instructions you are sure that the product is
defective please call the Gtech customer service helpline on 01905 345891. A customer
service advisor will be on hand to deal with any problems you have with our product. To assist
them please be ready with the product, a detailed description of the problem, and your proof
of purchase.

Out of Guarantee: If your Gtech product is over 12 month old and you need any parts or
advice then please contact our customer services department. Parts will be sent out usually
within 3 weeks of request.

WARNING: only use the charger supplied with the product. Using another charger
may damage the product and the battery and will invalidate your guarantee.

Warranty Information

ST02_UKManual09.indd 14 17/12/2009 16:02

helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk

15

EC Declaration of Conformity

We, manufacturer/importer

Grey Technology Ltd
Units 1&2 Cupola Court
Spetchley
Worcester
WR5 1RL

declare that the product

ST02 handheld grass trimmer

complies with the essential health and safety requirements of the following directives:

89/336/EEC - EMC Directive.
93/68 EC - Machinery Directive
73/23/EC - Low Voltage Directive
2000/14/EC - Noise emission in the environment by equipment for use outdoors.

Technical documentation holder: Grey Technology Ltd

Standards and technical specifications referred to:
EN60335-1
EN60335-2-94
EN55014-1
EN55014-2
EN61000-3-2
EN61000-3-3
EN61000-6-3

ST02_UKManual09.indd 15 17/12/2009 16:02

Grey Technology Ltd
Units 1&2 Cupola Court
Spetchley
Worcester

WR5 1RL

tel: [phone]
email: [e-mail]
www.gtechonline.co.uk

© Copyright Grey Technology Ltd 2010

01/10

ST02_UKManual09.indd 16 17/12/2009 16:02
