Gtech ATF036, AR29 User Manual

Model number: ATF036
Model number: AR29
OPERATING MANUAL
2859_System_TE_manual_update_aw.indd 1 31/05/2018 13:24
IMPORTANT SAFEGUARDS:
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING: Basic safety precautions should always be observed when
using an electrical appliance, including the following to reduce the risk of re, electrical shock, or injury:
Personal Safety:
• Store indoors in a dry place out of the reach of children.
• Always use responsibly. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Don’t let children play with the appliance; supervise children using or maintaining the appliance.
• Use only manufacturer’s recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury.
• Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not block the appliances openings or hinder air ow; keep openings free of any objects including dust, lint, clothing, ngers (and all parts of the body).
• Particularly keep hair away from openings and moving parts.
Electrical safety:
• Only use batteries and chargers supplied by Gtech.
• Never modify the charger in any way.
• The charger has been designed for a specic voltage. Always check that the mains voltage is the same as that
2
stated on the rating plate.
A charger that is suitable for one type
of battery pack may create a risk of re when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.
• Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of re and electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect from a socket; grasp the plug and pull to disconnect.
• Don’t wrap the cord around the charger when storing.
• Keep the charger cord away from hot surfaces and sharp edges.
• The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced.
• Do not handle the charger or the appliance with wet hands.
• Do not store or charge the appliance outdoors.
• The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.
• Ensure the Multi is off before connecting or disconnecting the motorised brush bar.
Battery safety:
• This appliance includes Li-Ion batteries;
do not incinerate batteries or expose to high temperatures, as they may
2859_System_TE_manual_update_aw.indd 2 31/05/2018 13:24
explode.
• Liquid ejected from the battery may cause irritation or burns.
• In an emergency situation contact professional help immediately!
• Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, ush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.
• Shorting the battery terminals may cause burns or re.
• When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
• When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.
Service:
• Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.
• Do not use the appliance if any part is damaged or defective.
• Repairs should be carried out by a service agent or a suitably qualied person in accordance with relevant safety regulations. Repairs by unqualied persons could be dangerous.
• Never modify the appliance in any way as this may increase the risk of personal injury.
• Only use replacement parts or accessories provided or recommended by Gtech.
Intended use:
• This appliance has been designed for domestic dry vacuum cleaning only.
• Do not pick up liquids or use on wet
surfaces.
• Do not pick up anything that is ammable, burning or smoking.
• Use only as described in this manual.
• Don’t use on concrete, tarmacadam or other rough surfaces.
• The brush bar may damage certain oor surfaces. Before vacuuming ooring, rugs or carpets, check the ooring manufacturer’s recommended cleaning instructions.
• May damage delicate fabrics or upholstery. Care should be taken on loose-weave carpets and coverings or where there are loose threads. If in doubt please test on an inconspicuous area rst.
• The Gtech AirRam has been designed to clean a wide variety of oor surfaces without the need to change settings. However some surfaces such as delicate loose-pile rugs or carpets, tasselled rug edges or damaged carpets with exposed threads are not suitable for cleaning with a rotary brush.
• The AirRam can still be used to clean such surfaces by removing the brush bar as shown on page 11 and 7 and using the supplied plug in the brush bar hole. This setting should also be used to give the best performance on hard oors with deep crevices
• The AirRam and Multi have a constantly rotating brush bar. Never leave the cleaning head in one spot for an extended period of time as this may damage the oor surface.
WARNING:
• Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth.
• Never immerse the unit in water and do not clean in a dish washer.
• Never use the appliance without the lter tted.
• Ensure the battery is removed before changing tools.
3
2859_System_TE_manual_update_aw.indd 3 31/05/2018 13:24
Thank you for choosing the Gtech AirRam and Multi.
“I started Gtech to create sensible, easy to use products, which do a great job. Your
opinion is important to us and we will use your feedback to improve our products and services and let other people know what it’s like to be part of the Gtech family.”
Nick Grey – Inventor, Owner of Gtech
Please take the time to write a review of the Gtech AirRam and Multi by visiting www.gtech.co.uk/product-reviews or if you didn’t purchase directly from Gtech please leave a review with the retailer.
Make a note of both your product’s serial number codes for future reference. You can nd them on the underside of the AirRam and the underside of the Multi once the battery has been removed.
_ - _ _ - _ _ _ ~ _ _ _ _ _ ~
X-XX-XXX~ XXXXX~ WWYY~ 00~0000000
_ _ _ _ ~ _ _ ~ _ _ _ _ _ _ _
What’s in the box
1
4
7
5
8
10
2
6
3
9
Head full assembly
1
Upper handle
2
Lower handle
3
Brush bar hole plug
4
4
Multi main unit
5
Power brush
6
Dusting brush
7
Crevice tool (stored inside the handle)
8
Extension tube
9
Charger (shared)
10
2859_System_TE_manual_update_aw.indd 4 31/05/2018 13:24
AirRam: Assembly
To attach the lower handle to the head assembly, insert the metal pin on the lower handle into the hole located on the pivot yoke. Make sure the green locking clip is pulled out to allow the lower handle to t.
The green locking clip, when correctly tted, will click and hold the lower handle in place. Should the handle assembly need to be removed the clip can be pulled out to unlock the lower handle. The green locking clip remains permanently attached to the head assembly.
Ensure the lower handle is sitting completely ush against the yoke. Then push the green locking clip into the back of the head.
Insert the upper handle into the lower handle. You will need to press the button on the upper handle to t it in. Once it slides down you will hear it click into place.
5
2859_System_TE_manual_update_aw.indd 5 31/05/2018 13:24
Storage
Upper Button
Lower Button
To stow or extend the upper handle simply press the button on the lower handle to unlock the upper handle. The upper handle will now slide up or down depending on required position.
Operation
Without pressing the power button, place your foot on the left side of the AirRam head and pull the handle back.
The upper handle can be set in two positions: Lowered for storage and raised for use. To lower the handle, release the upper button. To raise the handle from the stored position, release the lower button.
The power button is located on the left hand side of the AirRam head assembly.
6
2859_System_TE_manual_update_aw.indd 6 31/05/2018 13:24
Press the power button with your foot to turn the AirRam on.
Battery charging
To get the best performance on hard oors with deep crevices, remove the brush bar as shown on page 11. Insert the supplied brush bar hole plug into the side of the head assembly as shown in the image above.
When the state of charge indicator starts to ash one green LED, recharge the battery.
The battery can be charged whilst it’s in the AirRam, or when it’s off the product. To remove the battery, squeeze the latch underneath and pull upwards.
7
2859_System_TE_manual_update_aw.indd 7 31/05/2018 13:24
4
hours
1
hour
boost
Plug the charger into the mains and connect it to the battery. Switch on at the mains. The battery can be charged from at in 4 hours. The state of charge indicator will show 4 solid green lights when it is charged.
Replace the battery by sliding it down into the head assembly. It will click into place.
It is OK to charge for 1 hour for a burst of cleaning.
8
2859_System_TE_manual_update_aw.indd 8 31/05/2018 13:24
State of Charge
100% - 75% 75% - 50%
50% - 25% 25% - 1%
The battery state of charge indicator shows how much charge the AirRam has. As you use the product, the green lights will turn off in a downwards direction.
Emptying the bin
Holding onto the AirRam with one hand, pull the bin handle and lift the bin out of the AirRam.
While the battery is on charge, the LEDs will pulsate and in turn illuminate. When the battery is fully charged all of the LEDs will be solid green.
Lift and release the latch marked with the green arrow, to pull open the lid.
9
2859_System_TE_manual_update_aw.indd 9 31/05/2018 13:24
Hold the AirRam’s bin over a rubbish bin and push the green lever towards the lid to empty the dirt.
Pull the green lever back towards the bottom of the bin. Close the bin lid and reinsert the bin into the AirRam.
Cleaning the lters - do this once a month or more frequently depending on use.
Holding onto the AirRam with one hand, pull the bin handle and lift the bin out of the AirRam.
Pull the lter out of the lter housing. Tap the dirt from the lter and tip any dirt from the lter housing. Wash the lter if necessary.
10
2859_System_TE_manual_update_aw.indd 10 31/05/2018 13:24
Remove the lter from the inner shroud, by twisting and pulling. Tap the inner shroud over a bin to remove any excess dirt.
Wash the lter under a tap. Squeeze out any excess water then let it dry completely before reinserting into the AirRam. Recommended water temperature 40°C. Do not use detergent or soaps. Never put
the bin back without lter inside. You could damage the motor.
Replacing the lters
Slide the lter onto the inner shroud. Slide the lter and inner shroud into the
lter housing.
11
2859_System_TE_manual_update_aw.indd 11 31/05/2018 13:24
Removing and cleaning the brush bar
If the brush bar jams during use, the AirRam will stop and the LEDs will appear red. Before checking for a blockage, remove the battery.
The brush bar can now be removed, starting at the button end.
Rest the AirRam on its side and locate the brush bar button on the right hand side. Press the button inwards and then pull the brush bar out from the bottom of the AirRam.
To remove hair from the brush bar, run an open pair of scissors down the groove to cut the hair, then pull it out.
12
2859_System_TE_manual_update_aw.indd 12 31/05/2018 13:24
Re-insert the brush bar, starting by the end furthest away from the button. Then line up and push the brush bar into the AirRam until it clicks into place.
Clearing a jam / fault
Replace the battery by sliding it down into the head assembly. It will click into place.
10
seconds
If the brush bar jams during use, the AirRam will stop and the LEDs will appear red. You will need to remove and clean the brush bar (see page 11).
2859_System_TE_manual_update_aw.indd 13 31/05/2018 13:24
The AirRam will not re-start until the red lights go out. This will take ten seconds.
If the problem persists, follow the troubleshooting instructions below.
13
Product Care
Your Gtech AirRam doesn’t need much maintenance: keep the lters clean, keep the brush bar tangle-free and charge the battery. Wipe it with a dry cloth if it gets dirty, including under the bin.
Troubleshooting
AirRam is not cleaning well 1. Empty the bin
2. Check bin is correctly tted
3. Check lter is correctly tted
4. Clean and/or replace lter
5. Check brush bar tment
AirRam has stopped or won’t work 1. Charge battery
2. Clear debris from brush bar
Battery will not charge 1. Check the charger is correctly
connected to the battery and mains supply
2. Check wall socket
Product Support
If these initial tips don’t solve your problem, we have various other ways to help.
Visit: www.gtech.co.uk/support
support@gtech.co.ukLive chat supportOnline How to Videos
AIRRAM TECHNICAL SPECIFICATION
Battery model 103A022 Battery 22V 2000mAh Li-Ion Charging period 4 hours Battery charger output 27V DC 500mA Weight 3.2kg
14
2859_System_TE_manual_update_aw.indd 14 31/05/2018 13:24

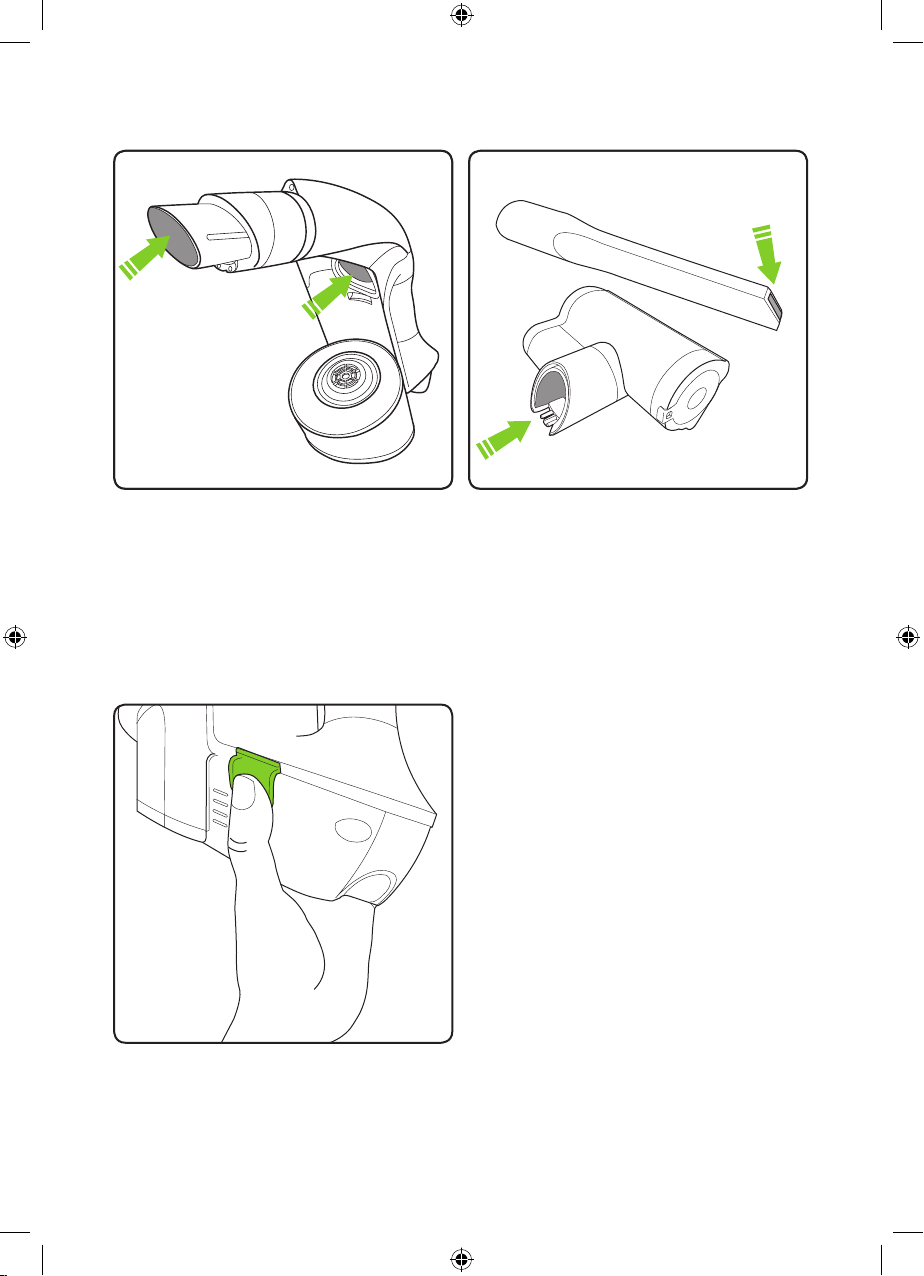

Multi: Operation
The dusting brush can be slotted onto the active nozzle. The crevice tool is stored
Press the button above the handle to turn the Multi on and off.
on board the product for easy access.
An active nozzle is built into your Multi. The dusting brush, crevice tool, extension tube and power brush all attach to the active nozzle.
15
2859_System_TE_manual_update_aw.indd 15 31/05/2018 13:24
Power brush
Make sure the terminals on the Power Brush and Active nozzle are correctly lined up and gently push the Power brush onto the Active nozzle. The battery should be removed when changing attachments.
To clean the brush bar, rst remove the power brush. Rotate the latch from the lock to the unlock position and pull out the brush bar.
Gently pull the Power Brush from the Multi to remove. The battery should be removed when changing attachments.
To remove hair from the brush bar, run an open pair of scissors down the groove to cut the hair, then pull it out. Never operate the power brush without the brush bar in.
16
2859_System_TE_manual_update_aw.indd 16 31/05/2018 13:24
Battery charging
When a single green light ashes, recharge the battery.
4
hours
After 4 hours, the LEDs turn solid green and charging is complete.
The battery can be charged on or off the main unit
1
hour
boost
It is OK to charge for 1 hour for a burst of cleaning.
17
2859_System_TE_manual_update_aw.indd 17 31/05/2018 13:24
State of Charge
100% - 75% 75% - 50%
50% - 25% 25% - 1%
The battery state of charge indicator shows how much charge the Multi has. As you use the product, the green lights will turn off in a downwards direction.
While the battery is on charge, the LEDs will pulsate and in turn illuminate. When the battery is fully charged all of the LEDs will be solid green.
18
2859_System_TE_manual_update_aw.indd 18 31/05/2018 13:24
Emptying the bin
There’s no latch, the bin just pulls off. It’s easier if you wiggle it as you pull it.
Cleaning the lter
Remove the lter by pulling it from the top of the bin. Tap the dirt from the lter and tip any dirt from the lter housing. Wash the lter if necessary.
Hold the Multi’s bin over a rubbish bin and release the latch to empty the dirt. A gentle tap will help. Remove the lter and tap off the excess debris each time you empty the bin.
Wash the lter under a tap, squeeze it out then let it dry completely before using it. Recommended water temperature 40°C. Do not use detergent or soaps. (You can buy more at www.gtech.co.uk)
Never put the bin back without the lter inside. You could damage the motor.
19
2859_System_TE_manual_update_aw.indd 19 31/05/2018 13:24
If the suction is low when the bin is empty and lter is clean...
...you have a blockage. Remove the battery & bin and look through both ends of the tube. Remove any blockages.
Removing the battery
Press the green buttons and pull to remove the battery. The battery can be charged on or off the main unit. If you want to buy a spare battery go to www.gtech.co.uk or call 01905 345891
20
The tools can block too, sometimes.
2859_System_TE_manual_update_aw.indd 20 31/05/2018 13:24
Product Care
Your Gtech Multi doesn’t need much maintenance: keep the lter clean, check for blockages, remove hair from the brushbar and charge the battery. Wipe it with a dry cloth if it gets dirty, including the area under the bin. Never wash it with liquid, run it under a tap or use it without the lter.
Troubleshooting
Multi is not cleaning well 1. Empty the bin
2. Clean the holes in the lter housing
3. Wash the lter
4. Check for blockages
5. Remove hair from brushbar
Multi has stopped or won’t work 6. Charge the battery (check the
socket works and is turned on)
7. It might be blocked – check items 1 to 4 above
4 red lights displayed on battery 8. Brush bar jammed.
9. Turn off Multi, remove the battery and clear the blockage.
Product Support
If these initial tips don’t solve your problem, we have various other ways to help.
Visit: www.gtech.co.uk/support
support@gtech.co.ukLive chat supportOnline How to Videos
GTECH MULTI TECHNICAL SPECIFICATION
Battery model 113A1003 Battery 22V 2000mAh Li-Ion Charging period 4 hours Battery charger output 27V DC 500mA Weight (with standard nozzle) 1.5kg
21
2859_System_TE_manual_update_aw.indd 21 31/05/2018 13:24
WARRANTY – REGISTRATION
Visit www.gtech.co.uk/warrantyregistration to register your product to ensure that we have all the information required to provide you with quick and efcient support.
You will need both your product’s serial codes.
X-XX-XXX~ XXXXX~ WWYY~ 00~0000000
If you purchased directly from Gtech your details are already registered and your 2 year warranty will start automatically.
If you purchased from an authorised Gtech retailer, please register your warranty within 3 months and you will need to provide proof of purchase to support any claim against your warranty.
WARRANTY – TERMS AND CONDITIONS
Your Gtech Multi and AirRam are guaranteed against material or manufacturing faults for 2 years from the date of purchase, subject to the following terms and conditions:
WHAT ISN’T COVERED SUMMARY
Gtech does not guarantee the repair or replacement of a product as a result of:
• Normal wear and tear (e.g. lters & brush bar)
• Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with Gtech operating manual.
• Blockages - please refer to the Gtech operating manual for details of how to unblock your vacuum cleaner.
• Use of the vacuum cleaner for anything other than the normal domestic household purposes.
• Use of parts and accessories which are not Gtech genuine components.
• Repairs or alterations carried out by parties other than Gtech or its authorised agents.
• If you are in doubt as to what is covered by your guarantee, please call the Gtech Customer Care Helpline on 01905 345 891.
22
2859_System_TE_manual_update_aw.indd 22 31/05/2018 13:24
• The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery/purchase before any work can be carried out on the vacuum cleaner. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised agents.
• Any parts which are replaced will become the property of Gtech.
• The repair or replacement of your vacuum cleaner is under guarantee and will not extend the period of guarantee.
The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2002/96/EC)
When the vacuum has reached the end of its life, it and the Li-Ion battery it contains should not be disposed of with general household waste. The battery should be removed from the vacuum and both should be disposed of properly at a recognised recycling facility.
Call your local council, via amenity site, or recycling centre for information on the disposal and recycling of electrical products. Alternatively visit www.recycle-more.co.uk for advice on recycling and to nd your nearest recycling facilities.
FOR HOUSEHOLD USE ONLY
23
2859_System_TE_manual_update_aw.indd 23 31/05/2018 13:24
Grey Technology Limited
Brindley Road, Warndon, Worcester WR4 9FB
email: support@gtech.co.uk
CPN2859
telephone: 01905 345891 www.gtech.co.uk
2859_System_TE_manual_update_aw.indd 24 31/05/2018 13:24
Loading...
