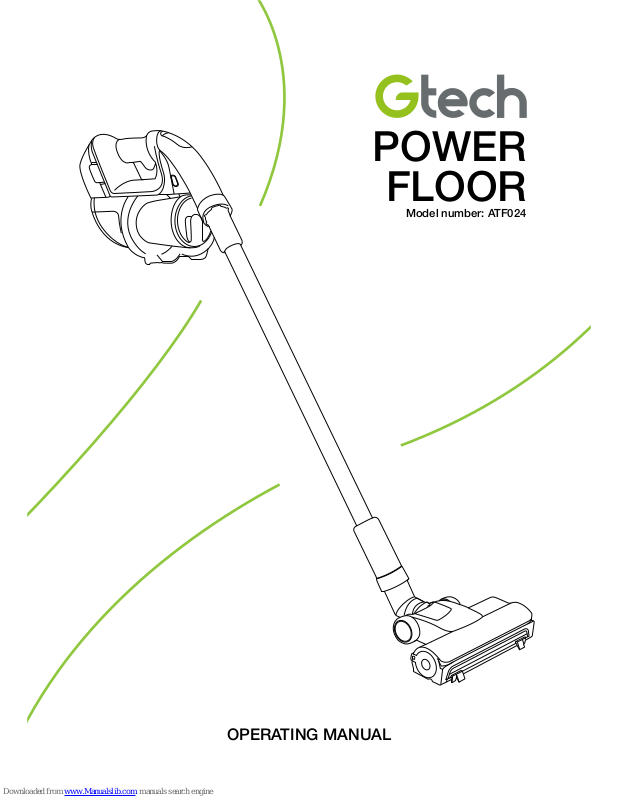

OPERATING MANUAL
POWER
FLOOR
Model number: ATF024
32
IMPORTANT SAFEGUARDS:
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Do not use outdoors or on wet surfaces.
WARNING: Basic safety precautions should always be observed when
using an electrical appliance, including the following to reduce the risk of
re, electrical shock, or injury:
Personal Safety:
• Store indoors in a dry place out of the
reach of children.
• Always use responsibly. This appliance
can be used by children aged from
8 years and above and persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved.
• Don’t let children play with the appliance;
supervise children using or maintaining
the appliance.
• Use only manufacturer’s recommended
attachments as described in this
manual; misuse or use of any accessory
or attachment other than those
recommended, may present a risk of
personal injury.
• Take extra care when cleaning stairs.
• Keep the appliance and accessories away
from hot surfaces.
• Do not block the appliances openings
or hinder air ow; keep openings free of
any objects including dust, lint, clothing,
ngers (and all parts of the body).
• Keep hair, loose clothing, ngers, and all
parts of body away from openings and
moving parts.
• The Power Floor does not stay upright
without constant support. Between uses,
lie at on the oor in a suitable location so
that it does not become a trip hazard or
can be stepped on.
• The Power Floor has a constantly rotating
brushbar. Never leave the cleaning head
in one spot for an extended period of time
as this may damage the oor surface.
• The Power Floor can be used for above
oor cleaning and hard to reach places.
Extra care should be taken when using
the Multi Power Floor for above the oor
cleaning.
Electrical safety:
• Only use batteries and chargers supplied
by Gtech.
• Never modify the charger in any way.
• The charger has been designed for a
specic voltage. Always check that the
mains voltage is the same as that stated
on the rating plate.
A charger that is suitable for one type
of battery pack may create a risk of re
when used with another battery pack;
never use the charger with another
appliance or attempt to charge this
product with another charger.
• Before use, check the charger cord for
signs of damage or ageing.
A damaged or entangled charger cord
increases the risk of re and electric
shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect from
a socket; grasp the plug and pull to
disconnect.
• Don’t wrap the cord around the charger
when storing.
• Keep the charger cord away from hot
surfaces and sharp edges.
• The supply cord cannot be replaced. If
the cord is damaged the charger should
be discarded and replaced.
• Do not handle the charger or the
appliance with wet hands.
• Do not store or charge the appliance
outdoors.
• The charger must be removed from
the socket before removing the battery,
cleaning or maintaining the appliance.
• Ensure the appliance is off before
connecting or disconnecting the
motorised brush bar.
Battery safety:
• This appliance includes Li-Ion batteries;
do not incinerate batteries or expose
to high temperatures, as they may
explode.
• Do not incinerate the appliance even if it
is severely damaged. The batteries can
explode in a re.
• Liquid ejected from the battery may cause
irritation or burns.
• In an emergency situation contact
professional help immediately!
• Leaks from the battery cells can occur
under extreme conditions. Do not touch
any liquid that leaks from the battery. If the
liquid gets on the skin wash immediately
with soap and water. If the liquid gets
into the eyes, ush them immediately
with clean water for a minimum of 10
minutes and seek medical attention. Wear
gloves to handle the battery and dispose
of immediately in accordance with local
regulations.
• Shorting the battery terminals may cause
burns or re.
• When the battery pack is not in use, keep
it away from paper clips, coins, keys,
nails, screws or other small metal objects
that could make a connection from one
terminal to another.
• When you dispose of the appliance
remove the battery and dispose of the
battery safely in accordance with local
regulations.
Service:
• CAUTION – To reduce the risk of injury
from moving parts, remove battery before
servicing.
• Before using the appliance and after
any impact, check for signs of wear or
damage and repair as necessary.
• Do not use the appliance if any part is
damaged or defective.
• Repairs should be carried out by a
service agent or a suitably qualied
person in accordance with relevant
safety regulations. Repairs by unqualied
persons could be dangerous.
• Never modify the appliance in any way
as this may increase the risk of personal
injury.
• Only use replacement parts or
accessories provided or recommended
by Gtech.
• If appliance is not working as it should,
has been dropped, damaged, left
outdoors, or dropped into water, return it
to a service center.
Intended use:
• This appliance has been designed for
domestic dry vacuum cleaning only.
• Do not pick up liquids or use on wet
surfaces.
• Do not pick up anything that is ammable,
burning or smoking.
• Use only as described in this manual.
• Don’t use on concrete, tarmacadam
or other rough surfaces.
• The brush bar may damage certain oor
surfaces. Before vacuuming ooring,
rugs or carpets, check the ooring
manufacturer’s recommended
cleaning instructions.
• May damage delicate fabrics or
upholstery. Care should be taken on
loose-weave fabrics or where there
are loose threads. If in doubt please test
on an inconspicuous area rst.
WARNING:
• Do not use water, solvents, or polishes
to clean the outside of the appliance;
wipe clean with a dry cloth.
• Never immerse the unit in water and do
not clean in a dish washer.
• Never use the appliance without the lter
tted.
• Never use the extension tube without a
tool attached.
• For household use only.
4 5
Thank you for choosing a Gtech Power Floor
“I started Gtech to create sensible, easy to use products, which do a great job. Your opinion
is important to us. Please take the time to write a review of the Power Floor either on the
website of the store you bought it from or at Trustpilot.co.uk. We will use your feedback to
improve our products and services and let other people know what it’s like to be part of the
Gtech family.”
Nick Grey – Inventor, Owner of Gtech
1
What’s in the box
6
2
3
Battery (tted)
Dusting brush
Deep cleaning tool
4
9
Power Floor Head
7
Nozzle
2
Extension Tube
1
Crevice tool
(stored inside the handle)
5
Gtech Power Floor
3
Charger
8
Bin (tted)
6
4
8
5
9
7
10
10
Tool congurations
PRODUCT SERIAL NUMBER:
You can nd this on the underside of your product
There are many congurations for the Power Floor, most of which involve the nozzle.
Refer to this diagram to see how each tool can be used.
76
There’s no latch, the bin just pulls off.
It’s easier if you wiggle it as you pull it.
Hold the Power Floor bin over your rubbish
bin and release the latch to empty the dirt.
Emptying the bin
Attach the extension tube to the Power
Floor, making sure the white dots are
aligned. It will click into place.
To attach the powered oor head, remove
the nozzle by pulling gently on the green
locking ring until the nozzle comes free
from the body. The power must be off
while changing tools.
Take the powered oor head and attach it
to the extension tube. It will click into place.
Power oor head assembly
Push the button to switch the Power Floor
on. Push again to switch off.
Operation
The crevice tool is stored inside the handle.
8 9
To remove hair from the brush bar, run an
open pair of scissors down the groove to
cut the hair, then pull it out.
Never operate the power oor head without
the brush bar in.
Before you remove the brush bar, you will
need to remove the power oor head from
the extension tube. To do this, gently pull
on the green locking ring.
Remove the extension tube from the Power
Floor by pulling gently on the green locking
ring.
Rotate the latch on the side of the powered
oor head and pull out the brush bar.
Removing and cleaning the brush bar
Plug the charger in and connect it to
the battery.
Battery charging
After 4 hours the LEDs turn green
and charging is complete.
It is OK to charge for 1 hour for a burst
of cleaning.
When a single green light ashes, recharge
the battery.
4
hours
1
hour
boost
1110
If the suction is low when the bin is empty and lter is clean...
you have a blockage.
Remove the battery & bin from the body
and look through both ends of the tube.
Remove any blockages.
The powered oor head can also
get blocked. To check for blockages
thoroughly, remove the brush bar.
(See page 8)
The extension tube and crevice tool can sometimes block too.
Remove the lter by pulling it from the top
of the bin. Tap the dirt from the lter and tip
any dirt from the lter housing. Wash the
lter if necessary.
Wash the lter under a tap, squeeze it out
then let it dry completely before using it.
(You can get more at www.gtech.co.uk)
Never put the bin back without
the lter inside. You could damage
the motor.
Cleaning the lter
Press the green buttons and pull to remove
the battery. The battery can be charged on
or off the main unit. If you want to buy a
spare battery go to www.gtech.co.uk
or call 01905 345 891
Removing the battery
1312
The symbol indicates that this product is
covered by legislation for waste electrical and
electronic products (EN2002/96/EC)
When the vacuum has reached the end of its life,
it and the Li-Ion battery it contains should not be
disposed of with general household waste. The
battery should be removed from the vacuum and
both should be disposed of properly at a
recognised recycling facility.
Call your local council, via amenity site, or
recycling centre for information on the disposal
and recycling of electrical products. Alternatively
visit
www.recycle-more.co.uk for advice on recy-
cling and to nd your nearest recycling facilities.
FOR HOUSEHOLD USE ONLY
Product Care
Troubleshooting
Your Gtech Power Floor doesn’t need much maintenance: keep the lter clean,
check for blockages and charge the battery. Wipe it with a dry cloth if it gets
dirty, including the area under the bin. Never wash it with liquid, run it under a tap
or use it without the lter.
Power Floor is not cleaning well 1. Empty the bin
2. Clean the lter case
3. Wash the lter
4. Check for blockages
5. Remove hair from brushbar
Power Floor has stopped or won’t
work
6. Charge the battery (check the
socket works and is turned on)
7. It might be blocked
– check items 1 to 4 above
If this doesn’t solve your problem don’t worry, we will help.
Go to www.gtech.co.uk or call 01905 345 891
GTECH POWER FLOOR
TECHNICAL SPECIFICATION
Battery model 113A0105
Battery 22V 2000mAh Li-Ion
Charging period 4 hours
Battery charger output 27V DC 500mA
Weight (with standard nozzle) 1.6kg
WARRANTY – TERMS AND CONDITIONS
If your Gtech Power Floor breaks, don’t worry, we’re here to help.
Go to www.gtech.co.uk or call 01905 345 891 for assistance.
To qualify for your 2-year warranty, register your Power Floor within 3 months
of purchase at:
www.gtech.co.uk/warrantyregistration or call 08000 518353
WHAT ISN’T COVERED SUMMARY
• The guarantee becomes effective at the date of
purchase (or the date of delivery if this is later).
• You must provide proof of delivery/purchase
before any work can be carried out on the
vacuum cleaner. Without this proof, any work
carried out will be chargeable. Please keep your
receipt or delivery note.
• All work will be carried out by Gtech or its
authorised agents.
• Any parts which are replaced will become the
property of Gtech.
• The repair or replacement of your vacuum cleaner
is under guarantee and will not extend the period
of guarantee.
• The guarantee provides benets which are
additional to and do not affect your statutory right
as a consumer.
Gtech does not guarantee the repair or
replacement of a product as a result of:
• Normal wear and tear (e.g. lters)
• Accidental damage, faults caused by negligent use
or care, misuse, neglect, careless operation
or handling of the vacuum cleaner which is not
in accordance with Gtech Power Floor operating
manual.
• Blockages - please refer to the Gtech Power Floor
operating manual for details of how to unblock your
vacuum cleaner.
• Use of the vacuum cleaner for anything other than
the normal domestic household purposes.
• Use of parts and accessories which are not Gtech
genuine components.
• Faulty installation (except where installed by Gtech)
• Repairs or alterations carried out by parties other
than Gtech or its authorised agents.
• If you are in doubt as to what is covered by your
guarantee, please call 01905 345 891.
14 15
Grey Technology Limited
Brindley Road, Warndon, Worcester WR4 9FB
email: support@gtech.co.uk
telephone: 01905 345891
www.gtech.co.uk
CPN01314
Loading...
