Gtech AR30 Instruction manual

Model number: AR30
OPERATING MANUAL
IMPORTANT SAFEGUARDS:
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Do not use in rain or leave outdoors whilst raining.
WARNING: Basic safety precautions should always be observed when
Personal Safety:
• Store indoors in a dry place out of the reach of children.
• Always use responsibly. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Don’t let children play with the appliance; supervise children using or maintaining the appliance.
• Use only manufacturer’s recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury.
• Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not block the appliances openings or hinder air ow; keep openings free of any objects including dust, lint, clothing, ngers (and all parts of the body).
• Particularly keep hair away from openings and moving parts.
stated on the rating plate.
A charger that is suitable for one type
of battery pack may create a risk of re when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.
• Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of re and electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect from a socket; grasp the plug and pull to disconnect.
• Don’t wrap the cord around the charger when storing.
• Keep the charger cord away from hot surfaces and sharp edges.
• The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced.
• Do not handle the charger or the appliance with wet hands.
• Do not store or charge the appliance outdoors.
• The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.
Electrical safety:
• Only use batteries and chargers supplied by Gtech.
• Never modify the charger in any way.
• The charger has been designed for a specic voltage. Always check that the mains voltage is the same as that
2
Battery safety:
• This appliance includes Li-Ion batteries;
do not incinerate batteries or expose to high temperatures, as they may
explode.
• Liquid ejected from the battery may cause irritation or burns.
• In an emergency situation contact professional help immediately!
• Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, ush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.
• Shorting the battery terminals may cause burns or re.
• When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
• When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.
Service:
• Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.
• Do not use the appliance if any part is damaged or defective.
• Repairs should be carried out by a service agent or a suitably qualied person in accordance with relevant safety regulations. Repairs by unqualied persons could be dangerous.
• Never modify the appliance in any way as this may increase the risk of personal injury.
• Only use replacement parts or accessories provided or recommended by Gtech.
Intended use:
• This appliance has been designed for domestic dry vacuum cleaning only.
• Do not pick up liquids or use on wet surfaces.
• Do not pick up anything that is ammable, burning or smoking.
• Use only as described in this manual.
• Don’t use on concrete, tarmacadam or other rough surfaces.
• The brush bar may damage certain oor surfaces. Before vacuuming ooring, rugs or carpets, check the ooring manufacturer’s recommended cleaning instructions.
• May damage delicate fabrics or upholstery. Care should be taken on loose-weave carpets and coverings or where there are loose threads. If in doubt please test on an inconspicuous area rst.
• The Gtech AirRam K9 has been designed to clean a wide variety of oor surfaces without the need to change settings. However some surfaces such as delicate loose-pile rugs or carpets, tasselled rug edges or damaged carpets with exposed threads are not suitable for cleaning with a rotary brush.
• The AirRam K9 can still be used to clean such surfaces by removing the brush bar as shown on page 11 and 7 and using the supplied plug in the brush bar hole. This setting should also be used to give the best performance on hard oors with deep crevices
• The AirRam K9 has a constantly rotating brush bar. Never leave the cleaning head in one spot for an extended period of time as this may damage the oor surface.
WARNING:
• Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth.
• Never immerse the unit in water and do not clean in a dish washer.
• Never use the appliance without the lter tted.
3
Thank you for choosing a Gtech AirRam K9
“I started Gtech to create sensible, easy to use products, which do a great job.
Your opinion is important to us. Please take the time to write a review of the AirRam K9 at Trustpilot.co.uk. We will use your feedback to improve our products and services and let
other people know what it’s like to be part of the Gtech family.”
Nick Grey – Inventor, Owner of Gtech
What’s in the box
Head full assembly
1
Lower Handle
2
X 2 components
Upper Handle
3
X 2 components
Battery
4
Charger
5
Bin
6
7
Filter
Brush bar
8
hole plug
5 x spare cented
9
cartridges
(Filter, battery and bin are already in place)
5
1
3
2
4
7
6
8
9
PRODUCT SERIAL NUMBER:
You can nd this on the underside of your product
4
Assembly
Fit the two components of the Upper Handle together in the orientation shown in the image above. They will only t together one way. The components will click into place and will remain permanently xed.
To attach the lower handle to the head assembly, insert the metal pin on the lower handle into the hole located on the pivot yoke. Make sure the green locking clip is unlocked to allow the lower handle to t.
Fit the two components of the lower handle together in the orientation shown in the image above. They will only t together one way. The components will click into place and will remain permanently xed.
Ensure the lower handle is sitting completely ush against the yoke. Then push the green locking clip into the back of the head.
5
Assembly (continued)
Upper Button
Lower Button
The green locking clip, when correctly tted, will click and and hold the lower handle in place. Should the handle assembly need to be removed the clip can be pulled out to unlock the lower handle. The green locking clip remains permanently attached to the head assembly.
Storage
To stow or extend the upper handle simply press the button on the lower handle to unlock the upper handle. The upper handle will now slide up or down depending on required position.
6
Insert the upper handle into the lower handle. You will need to press the button on the upper handle to t it in. Once it slides down you will hear it click into place.
The upper handle can be set in two positions: Lowered for storage and raised for use. To lower the handle, release the upper button. To raise the handle from the stored position, release the lower button.
Installing scented cartridge

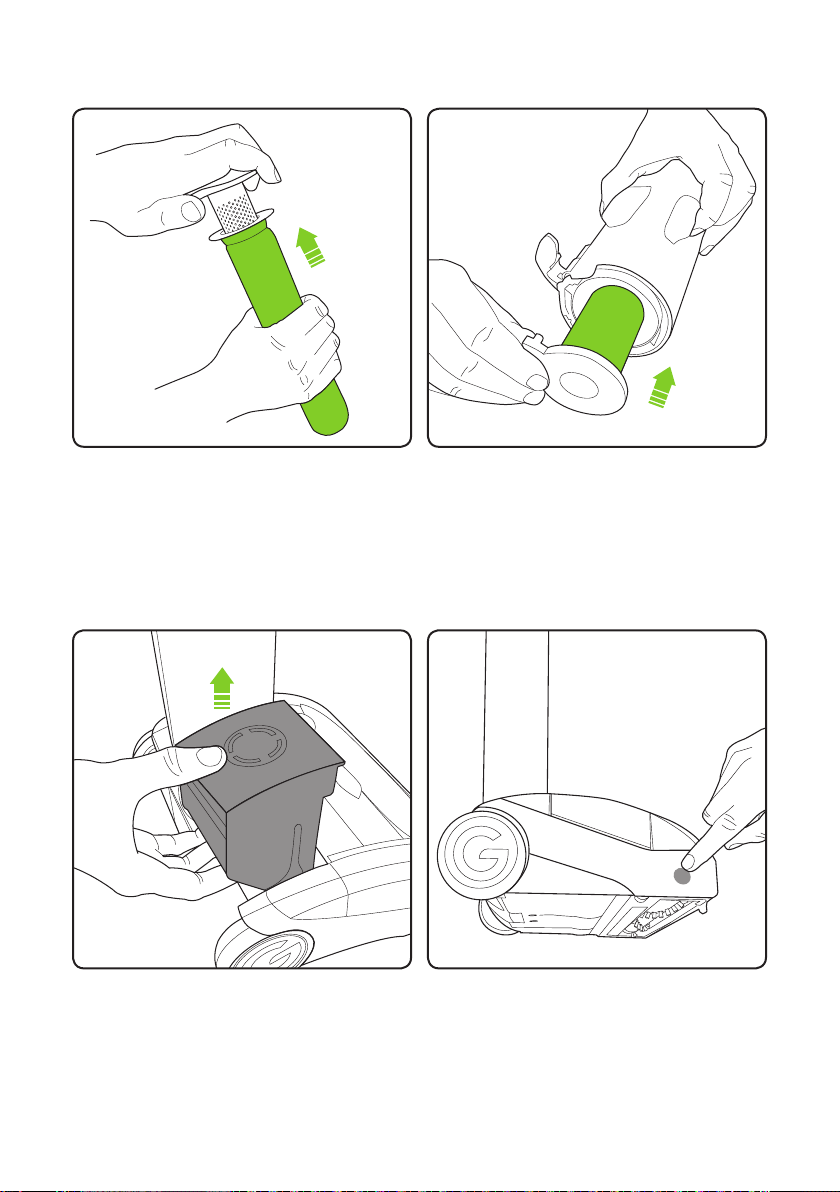

Slide the lter and inner shroud out of the lter housing.
Remove the scented cartridge from its box then slide the plastic sleeve off.
Please refer to page 14 for scented cartridge health warnings.
Remove the lter from the inner shroud, by twisting and pulling.
Slide scented cartridge into the end of the shroud. Replace lter and return to lter housing.
7
Operation
Without pressing the power button, place your foot on the left side of the AirRam K9 head and pull the handle back.
Press the power button with your foot to turn the AirRam K9 on.
The power button is located on the left hand side of the AirRam K9 head assembly.
To get the best performance on hard oors with deep crevices remove the brush bar as shown on page 12. Insert the supplied brush bar hole plug into the side of the head assembly as shown in the image above.
8
Battery charging

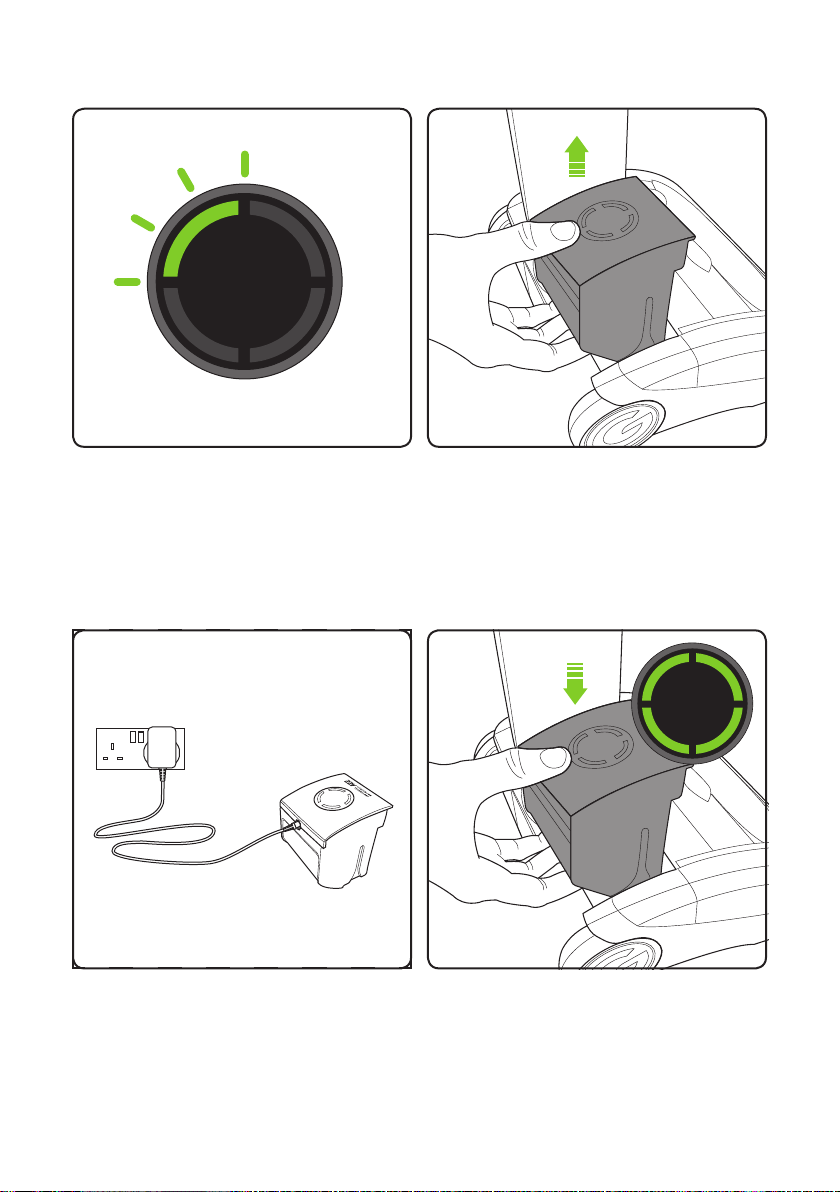

When the state of charge indicator starts to ash one green LED, recharge the battery.
Plug the charger into the mains and connect it to the battery. Switch on at the mains.
9
The battery can be charged whilst it’s in the AirRam, or when it’s off the product. To remove the battery, squeeze the latch underneath and pull upwards.
4
hours
The battery can be charged from at in 4 hours. The state of charge indicator will show 4 solid green lights when it is charged. It is OK to charge for 1 hour for a burst of cleaning. Replace the battery by sliding it down into the head assembly. It will click into place.
Emptying the bin
Holding onto the AirRam K9 with one hand, pull the bin handle and lift the bin out of the AirRam.
Hold the AirRam’s bin over a rubbish bin and push the green lever towards the lid to empty the dirt.
Release the latch with the green arrow, to pull open the bin lid.
Pull the green lever back towards the bottom of the bin. Close the bin lid and reinsert the bin into the AirRam.
10
Cleaning the lters - do this once a month or more frequently depending on use.
Holding onto the AirRam K9 with one hand, pull the bin handle and lift the bin out of the AirRam.
Remove the lter from the inner shroud, by twisting and pulling. Tap the inner shroud over a bin to remove any excess dirt.
11
Pull the lter out of the lter housing. Tap the dirt from the lter and tip any dirt from the lter housing. Wash the lter if necessary.
Wash the lter under a tap. Squeeze out any excess water then let it dry completely before reinserting into the AirRam. Recommended water temp 40ºC do not use detergent. Never put bin back
without lter inside. You could damage the motor.
Replacing the lters
Slide the lter onto the inner shroud. Slide the lter and inner shroud into the
lter housing.
Removing and cleaning the brush bar
If the brush bar jams during use, the AirRam K9 will stop and the LEDs will appear red. Before checking for a blockage, remove the battery.
Rest the AirRam K9 on its side and locate the brush bar button on the right hand side. Press the button inwards and then pull the brush bar out from the bottom of the AirRam.
12

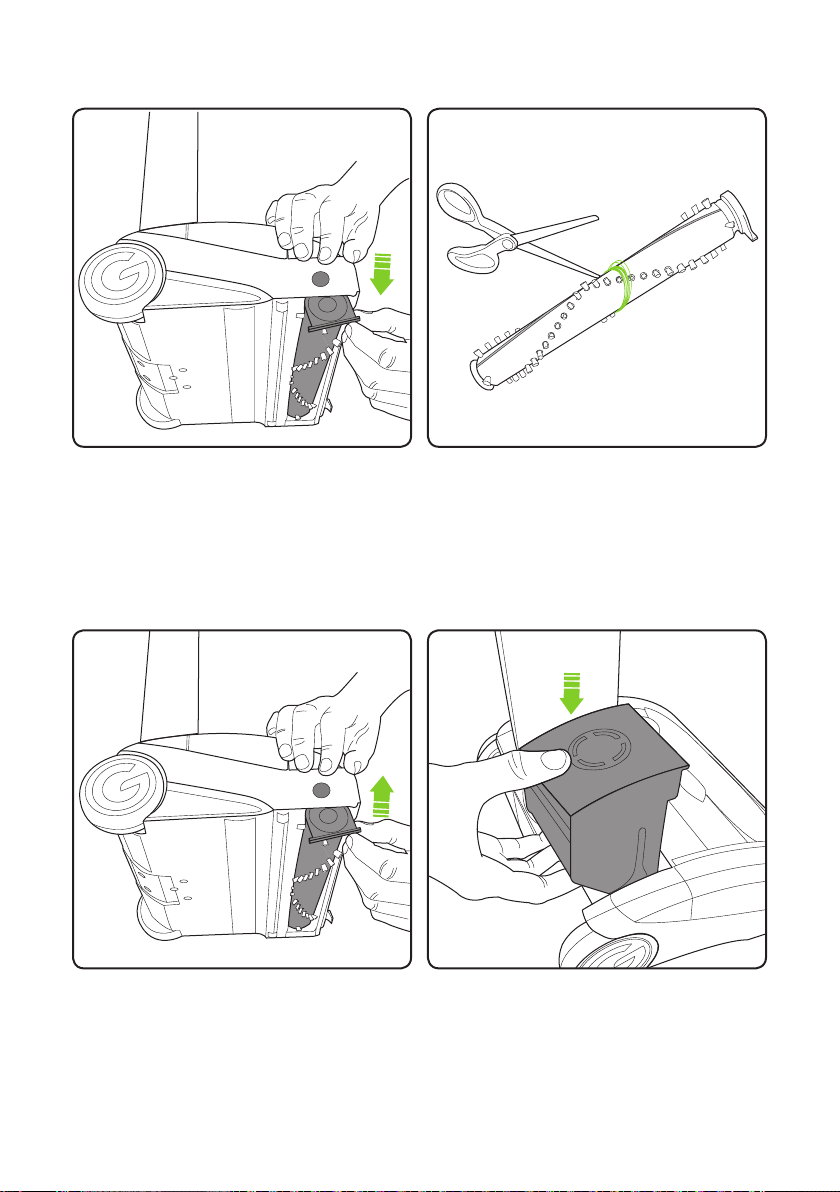

The brush bar can now be removed, starting at the button end.
To remove hair from the brush bar, run an open pair of scissors down the groove to cut the hair, then pull it out.
Re-insert the brush bar, starting by the end furthest away from the button. Then line up and push the brush bar into the AirRam K9 until it clicks into place.
13
Replace the battery by sliding it down into the head assembly.
It will click into place.
Clearing a jam / fault
10
seconds
If the brush bar jams during use, the AirRam K9 will stop and the LEDs will appear red. You will need to remove and clean the brush bar (see page 11).
Scented Cartridge
Scented cartridge rells: Keep out of the reach of children. People suffering from perfume sensitivities should be cautious when using this product as it may produce an allergic reaction or cause sensitisation by skin contact. If swallowed, seek medical advice immediately and show this container or label. Toxic to aquatic organisms, may cause long-term adverse effects in the aquatic environment. Scented rells contain: Linalyl acetate, Limonene, Linalool, Lilial, Lavender oil, Vanillin, Borneol, Polysorbate 20
The AirRam K9 will not re-start until the red lights go out. This will take ten seconds.
If the problem persists, follow the troubleshooting instructions below.
14
Troubleshooting
AirRam K9 is not cleaning well 1. Empty the bin
2. Check bin is correctly tted
3. Check lter is correctly tted
4. Clean and/or replace lter
5. Check brush bar tment
AirRam K9 has stopped or won’t work
Battery will not charge 1. Check the charger is correctly
If this doesn’t solve your problem don’t worry, we will help. Go to www.gtech.co.uk/support or call 01905 345 891
1. Charge battery
2. Clear debris from brush bar
connected to the battery and mains supply
2. Check wall socket
15
Product Care
Your Gtech AirRam K9 doesn’t need much maintenance: keep the lters clean, keep the brush bar tangle-free and charge the battery. Wipe it with a dry cloth if it gets dirty, including under the bin.
AIRRAM K9 TECHNICAL SPECIFICATION
Battery model 103A022 Battery 22V 2000mAh Li-Ion Charging period 4 hours Battery charger output 27V DC 500mA Weight 3.3kg
The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2002/96/EC)
When the vacuum has reached the end of its life, it and the Li-Ion battery it contains should not be disposed of with general household waste. The battery should be removed from the vacuum and both should be disposed of properly at a recognised recycling facility.
Call your local council, via amenity site, or recycling centre for information on the disposal and recycling of electrical products. Alternatively visit www.recycle-more.co.uk for advice on recycling and to nd your nearest recycling facilities.
FOR HOUSEHOLD USE ONLY
16
WARRANTY – TERMS AND CONDITIONS
If your Gtech AirRam K9 breaks, don’t worry, we’re here to help. Go to www.gtech.co.uk or call 01905 345 891 for assistance.
The warranty on your AirRam K9 is 2 years from date of purchase.
WHAT ISN’T COVERED SUMMARY
Gtech does not guarantee the repair or replacement of a product as a result of:
• Normal wear and tear (e.g. lters, brush bar)
• Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with Gtech AirRam K9 operating manual.
• Blockages - please refer to the Gtech AirRam K9 operating manual for details of how to unblock your vacuum cleaner.
• Use of the vacuum cleaner for anything other than the normal domestic household purposes.
• Use of parts and accessories which are not Gtech genuine components.
• Faulty installation (except where installed by Gtech)
• Repairs or alterations carried out by parties other than Gtech or its authorised agents.
• If you are in doubt as to what is covered by your guarantee, please call the Gtech Customer Care Helpline on 01905 345 891.
• The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery/purchase before any work can be carried out on the vacuum cleaner. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised agents.
• Any parts which are replaced will become the property of Gtech.
• The repair or replacement of your vacuum cleaner is under guarantee and will not extend the period of guarantee.
