GTCO CalComp ScanPlus 7 HD736 Base, ScanPlus 7 HD936 Base, ScanPlus 7 HD736 Plus, ScanPlus 7 HD936 Plus Brochure & Specs

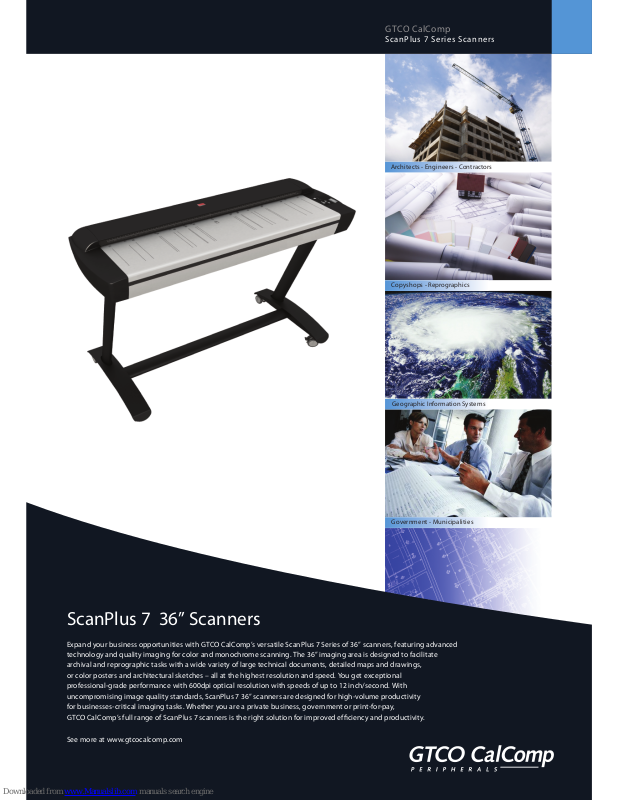

ScanPlus 7 36” Scanners

Expand your business opportunities with GTCO CalComp’s versatile ScanPlus 7 Series of 36” scanners, featuring advanced
technology and quality imaging for color and monochrome scanning. The 36” imaging area is designed to facilitate
archival and reprographic tasks with a wide variety of large technical documents, detailed maps and drawings,
or color posters and architectural sketches – all at the highest resolution and speed. You get exceptional
professional-grade performance with 600dpi optical resolution with speeds of up to 12 inch/second. With
uncompromising image quality standards, ScanPlus 7 36” scanners are designed for high-volume productivity
for businesses-critical imaging tasks. Whether you are a private business, government or print-for-pay,
GTCO CalComp’s full range of ScanPlus 7 scanners is the right solution for improved efciency and productivity.

See more at www.gtcocalcomp.com

Architects - Engineers - C ontractors

Copyshop s - Reprographics

Geographic Information Systems

Government - Munic ipalities

GTCO CalComp

Sc anP lus 7 Ser i e s Sca nne rs

4-Cha nnel CCD Techno logy produces
unparall eled image quality

See our enti re pro du ct ra nge an d do wnl oad furt her deta i ls at ww w.g tc oc al c omp .co m

Features

•

600dpi optical resolution standard

•

48-bit color and 16-bit grayscale image data

capture from 4-channel CCD technology

•

Ultra fast USB 2.0 interface with xDTR (Extended

Data Transfer Rate)

•

On-board Image Processing: Built-in Sharpen, Blur,

Descreen, Error Diusion, Adaptive Thresholding

•

Scan-to-Net function for scanner sharing over

a network, and sending les to remote PCs

•

Color calibration to sRGB color space

•

Upgrade to PLUS model to get higher speed and

resolution

Image Quality Without Compromise

With 600dpi optical resolution, the combination of highly sensitive
4-channel CCD cameras and full-sized high-quality camera lenses,
ScanPlus 7 HD736 and HD936 scanners provide the best image quality
available in wide format scanning. With image processing performed
inside the scanner, your PC is free to run software more efciently.

Speed When You Need

GTCO CalComp ScanPlus 7 HD736 and HD936 wide format scanners are ­the fastest in the business with up to 12 inch/second scanning speeds.
With two unique models in four dierent congurations, choosing the right
blend of speed and connectivity for your business is simple.

SPECIFICATIONS

ScanPlus 7 HD736 ScanPlus 7 HD936

BASE PLUS BASE PLUS

Optical Resolution 600dpi 600dpi

Maximum Resolution 1200dpi 9600dpi 1200dpi 9600dpi

Maximum Scan Width 36in. (914mm) 36in. (914mm)

Maximum Media Width 44in. (1118mm) 44in. (1118mm)

Maximum Media Thickness 0.6in. (15mm) 0.6in. (15mm)

Accuracy 0.1% +/- 1 pixel 0.1% +/- 1 pixel

Scanning Speed (inch/sec.):

400dpi (Turbo) 24-bit RGB Color 0.6 1.0 1.5 3.0

400dpi (Turbo) 8-bit Index Color 1.5 3.0

400dpi (Turbo) 8-bit Grayscale 12.0 12.0

400dpi (Turbo) 1-bit Monochrome 12.0 12.0

Interface:

High Speed USB 2.0 with xDTR

 

Power 110/220/240V, 60/50cs, 180W

Weight & Dimensions 61 kg / 55” x 19” x 7” inches (139 x 46 x 18 cm)

Device Drivers Windows XP, Server 2003, Vista (32-bit only)

Corpor ate Oce

GTCO C alComp, I nc.
7125 Ri verwood Dr ive
Columb ia, Mary land 210 46
Tel: [phone] or 1.800.3 44.4723
Fax: [phone]
E-mail : Sales @gtcocal comp.com

West ern Sal es Oc e

GTCO CalComp, Inc.
8224 Ea st Evans Road
Scottsd ale, Ariz ona 85260
Tel: [phone] or 1.800.856.0732
Fax: [phone]
E-mail: [e-mail]

Eur opea n Sa les Head quar ters

GTCO CalComp GmbH
Krei ller S trasse 24
81673 Muenc hen, Germany
Tel: [phone]
Fax: [phone]
E-mail: E USale s@gtc ocalc omp.co m

Copyri ght 2008 © GTCO CalC omp, Inc . (Rev. 3-20-08)

Extended Data Transfer Rate improves
scanner speed at high resolution
