Chapter 1 Product Introduction
GST5000 Intelligent Fire Alarm Control Panel (FACP) is designed by EN 54-2 standard
with qualities of simple installation, operation, and easy maintenance. It is used in fire
alarm system with the following features:
(1) It controls maximum 60 fire zones. Each zone has Alarm and FLT/Disable LEDs
and a zone label separately. It’s expandable to a maximum of 256 zones.
(2) It provides 4 Class A loops as standard, which can be expanded to maximum 28
loops. Each loop can have up to 235 addressable devices. It is compatible with a
series of addressable GST products, which are intelligent sounder strobe (I-9403)
complying with EN 54-3, photoelectric smoke detector (I-9102) complying with EN
54-7, rate of rise and fixed temperature heat detector (I-9103) complying with EN
54-5, intelligent manual call point (I-9202) complying with EN 54-11, intelligent
reflective beam detector (I-9105R) complying with EN 54-12, input and output
module (I-9300, I-9301) complying with GEI 1-084, and loop isolator (C-9503)
complying with GEI 1-052.
(3) Graphic display can show 320×240 dot matrix, assisting the 15 LEDs to display
important information.
(4) The memory does not lose data even if power supply is accidentally removed.
(5) It has manual keys for each zone, which can activate/mute the sounder strobe
separately.
(6) Automatically prompting operation steps for every alarm device and for smoke
exhaust and fire extinguisher by field programming.
(7) Sounder strobe interface provides 0.5A/24V output, compatible with GST
conventional sounder strobe (C-9403) designed according to EN 54-3.
(8) RS232 interface enables communication with PC.
(9) RS485 interface enables networking.
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 2
Chapter 2 Technical Specifications
2.1 Operating Voltage
Input Voltage: 220/230VAC
Frequency: 50/60Hz
Input Current: 0.75A
Fuse: 2A delay
Recommended Wiring: 1.5mm
2
or above screened cable, complying with local
installation codes.
2.2 Standby Batteries
Maximum Charge Current: 27.2V@0.8A float charge
Type: Sealed lead acid batteries
Maximum Charge Capacity: 38 Ah
Fuse: 8A
Wiring: GST FireCable®2E/1.5 2core and Earth 1.5mm
2
CSA (subject to local
installation codes).
2.3 Communication Loop Parameters
2.3.1 RS485 Communication Loop
NETWORK (A, B): Communication cable for connecting with up to 32 network
control panels of different model.
REPEATER (A, B): Communication cable for connecting with up to 64
repeater panels.
Recommended Wiring: GST FireCable ® 2E/1.0 2core and Earth 1mm
2
CSA
(subject to local installation codes).
2.3.2 RS232 Communication Loop
RS232 communication loop is connected with CRT system installed in PC through RJ45
plug connector.
Wiring: Cable length should be less than 15m.
2.4 Detection Loop Parameters
LOOP OUT (+, -): Polarized signal bus from GST5000, connecting with 235
addressable devices at most.
LOOP IN (+, -): Polarized signal bus returning to GST5000.
Output Voltage: 24V pulse
Output Current: 0.3A
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 3
Recommended Wiring: GST FireCable ® 2E/1.0 2core and Earth 1mm
2
CSA
2.5 Output Loop Parameters
Recommended Wiring: GST FireCable ® 2E/1.0 2core and Earth 1mm2 CSA
(1) FIRE ALARM OUTPUT (+, -)
Output Voltage: 21VDC～27VDC
Output Current: 0.5A
Terminal Resistor: 4.7KΩ
(2) F.P.E OUTPUT (+, -)
Output Voltage: 21VDC～27VDC
Output Current: 0.5A
Terminal Resistor: 4.7KΩ
(3) SOUNDER CIRCUIT OUTPUT (+, -)
Output Voltage: 21VDC～27VDC
Output Current: 0.5A
Terminal Resistor: 4.7KΩ
(4) FAULT OUT P UT (NC, COM, NO)
Contact Capacity: 24VDC @1.0A
In fault state, NC and COM open, NO and COM close.
2.6 Dimension
2.6.1 Wall-mounted GST5000W FACP
Dimension (L × W × H): 500mm×170mm×700mm
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 4
CLOCK
GST5000 Intelligent Fire Alarm Control Panel
×
Display and
operation area
LCD
Printer
Zone indication and
manual interventional
panel
Fireman's
control panel
1
7
0
m
m
500mm
700mm
Fig. 2-1
2.6.2 Rack type GST5000 FACP
Dimension (L × W × H): 580mm×520mm×1715mm
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 5
Printer
LCD
PSU24-6RM Intelligent PSU
580mm
1
7
1
5
m
m
5
2
0
m
m
3
9
6
×
2
8
5
1
7
4
0
*
+
=
GST5000 Intelligent Fire Alarm Control Panel
CLOCK
INTELLIGENT PSU
GST64ZCP Zone Indication and Manual Intervention Panel
GST014FCP Fireman's Switch Panel
TEST
SELF
MANUAL
01
GST64ZCP Zone Indication and Manual Intervention Panel
GST014FCP Fireman's Control Panel
Display and operation area
GST64ZCP Zone Indication and
Manual Intervention Panel
Optional units
Optional units
Fig. 2-2
2.6.3 Console type GST5000 control panel
Dimension (L × W × H, single unit ): 555mm × 933mm (with table) × 1350mm
Dimension (L × W × H, double unit): 1045mm × 933mm (with table) × 1350mm
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 6
INTELLIGENT PSU
GST64ZCP Zone Indication and Manual Intervention Panel
=
+
*
0
4
7
1
5
8
2
×
6
9
3
GST5000 Intelligent Fire Alarm Control Panel
CLOCK
GST014FCP Fireman's Switch Panel
TEST
SELF
10
MANUAL
Display and operation area
LCD
Printer
GST014FCP
Fireman's Control Panel
Optional Units
534mm
370mm
100mm
563mm
750mm
484mm
484mm
1045mm
50mm
1350mm
GST64ZCP Zone Indication
and Manual Intervention Panel
PSU24-6RM Intelligent PSU
Fig. 2-3
Note: There are three types of GST5000 FACP: wall-mounted type, rack type and
console type. In the following parts of this manual, differences between the three types
will be elaborated separately and the similarities described together.
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 7
Chapter 3 Structure and Configuration
3.1 Display and Operation Area
The display and operation area is shown in Fig. 3-1, which consists of LCD display,
indicators, clock display, keypad and printer.
0
8
5
4
7
*
9
6
×
=
2
1
3
+
CLOCK
GST5000 Intelligent Fire Alarm Control Panel
Fig. 3-1
3.1.1 Indicators
FIRE: Red. This LED lit means the FACP has checked fire alarm state of
connected detectors. Detailed messages are shown on the LCD. When fire
alarm is cleared, press RESET key to turn it off.
COMMON FAULT: Yellow. Lit when any fault occurs.
DISABLED: Yellow. Lit when connected devices, F.P.E. output or SOUNDER
output are disabled.
MUTE: Yellow. When the FACP sounds alarm, pressing MUTE key, this LED
illuminates, and the speaker stops alarming. If MUTE key is pressed again or
there are new alarms, it goes out and the FACP sounds again.
POWER HEALTHY: Green. It illuminates when mains or standby battery of
the system works normally.
SYSTEM FAULT: Yellow. Lit when the program fails or the system cannot
operate normally.
AC FAULT: Yellow. Lit when mains power is cut off or defected, and goes out
when it resumes.
BATTERY FAULT: Yellow. Lit when standby power system is in fault and goes
out when it’s cleared.
F.P.E. FLT/DISABLE: Yellow. Lit when F.P.E. output is in fault or is disabled.
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 8
SOUNDER FLT/DISABLE: Yellow. Lit when SOUNDER output is in fault or is
disabled.
PLANT CONTROL: Green. Action message indication. Lit when there are
feedback signal inputs of fire-protective plant.
SECURITY MODE: Green. Lit when there is delay message with the FACP.
EXTINGUISHING SYSTEM RELEASE: Green. Lit when connected
extinguishing system has been activated.
EXTINGUISHING SYSTEM REQUEST: Green. Lit when extinguishing system
is ready to be activated or in delay state.
EXTINGUISHING SYSTEM PERMIT: Green. Lit when extinguishing system
gets permission to be activated.
3.1.2 Key Functions
MUTE: Silencing the panel.
RESET: System reset.
TAB: Transferring time display mode.
ESC: Returning to the previous menu or normal operation screen.
VIEW FIRE: Viewing fire alarm messages.
VIEW FAULT: Viewing fault messages.
VIEW DISABLE: Viewing disabled messages.
VIEW PLANT: Viewing messages of started fire suppression devices in the
system.
SELF TEST: Self-testing the panel.
DISABLE: Disabling a system device.
ENABLE: Re-enabling a disabled device.
CLOCK: Modifying system time.
START: Starting fire suppression devices.
STOP: Stopping fire suppression devices.
PRINT: Setting printing mode.
SECURITY MODE: Setting security mode.
EXTNGUISHING MODE: Setting gas extinguishing mode.
BROWSE: Viewing system configuration.
LOG: Viewing history records.
SYSTEM: System menu.
ENTER: Confirming an operation.
△
＝
and
＝
▽
: Page up and down.
3.2 Zone Indication and Manual Intervention Panel (ZCP)
The zone indication and manual intervention panels of the three types of GST5000
FACP have the same structure and function. The cabinet of wall-mounted GST5000W
FACP can connect with only one GST64ZCP zone indication and manual intervention
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 9
panel. Rack type and console type can be expanded with more on order.
3.2.1 Structure
The ZCP includes two LED boards and one control board. Control board connects with
the two LED boards through pins. Structure of the control board is shown in Fig. 3-2.
Fig. 3-2
Every loop card can drive 4 ZCPs. All of them are connected together with a 10p ribbon
cable through XS1 of the control board.
We can use the switch to set a code for each ZCP.
z No. 1: 1, 6, 8 at ON, others at OFF.
z No. 2: 2, 6, 7 at ON, others at OFF.
z No. 3: 3, 5, 8 at ON, others at OFF.
z No. 4: 4, 5, 7 at ON, others at OFF.
3.2.2 Functions
Fig. 3-3
Each switch includes a red LED, a yellow LED, a key (which can directly initiate
connected devices) and a label (brief description of the start key).
The ZCP can be defined as three operation modes:
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 10
a) Zone direction mode [ZoneDir]
When fire occurs in a zone, corresponding red LED is lit and the sounder strobe is
automatically initiated; when fault occurs, corresponding yellow LED flashes; when
disabling all devices in the zone, corresponding yellow LED is constantly lit.
When pressing the key of the zone, the sounder strobe is initiated; press again, it is
stopped.
b) Silence mode [Silence]
Press this key, all connected sounder strobes are silenced and red LED lit; press it
again, the silenced sounder strobes sound again, and red LED goes out. In silence
mode, when new alarm occurs, all silenced sounder strobes activate again.
c) Point device mode
Single startable devices can also be defined on the ZCP. Press the key, corresponding
device is initiated and red LED is lit. Press the key again, corresponding device stops,
red LED goes out.
3.3 Configuration
3.3.1 Typical Configuration
(1) Wall-mounted GST5000W FACP
A typical FACP system consists of a control cabinet, a loop interface board, a P.S.U
system, display and operation area and a ZCP.
① Control cabinet
Cabinet is the core part of the FACP, mainly consisting of 3 parts: motherboard, main
board, and loop card. RS232 and RS485 communication cards can be inserted like in
Fig. 3-4.
A: Motherboard Illustration
Fig. 3-4
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 11
Fig. 3-4 shows the structure of the motherboard installed on the bottom of the control
part. It connects with the AC-DC100W power supply through terminals. There are 4
channel slots for plugging main board, loop card and 232 and 485 communication
cards.
XT4: Connecting with AC-DC100W power supply.
XT7: Connecting with switchboard.
B: Illustrations of main board, loop card and communication card
Appearances of main board, loop card and communication card are shown in Fig. 3-5.
Communication LED
Run LED
485 Communication Board
Mainboard
Circuit Board
To Switch Board
Communication LED
Run LED
To Zone Indication and
Manual Intervention Panel
Fault LED
Run LED
Tens degit
Ones degit
232 Communication Board
To CRT
Communication LED
Run LED
Fig. 3-5
There are two code switches on each loop card and communication card respectively,
representing tens digit and ones digit. They are used to set the channel number of loop
card and communication card. The loop card is of dual-channel. The code switch sets
the channel number of the first channel, and automatically adding 1 for the second
channel. The numbers of communication card and loop card can be mixed randomly.
Example: On code switch of loop card, tens digit is 0, ones digit is 1. The channel
number of the first loop is 1, and that of the second loop is 2.
② Loop interface board
It is signal interface board of the FACP, which has communication port, detecting port,
fire alarm output port, fault output port and etc. The loop interface board makes field
devices and the FACP compose a whole fire alarm system.
③ Power supply
It provides the control cabinet, loop interface board and printer with voltage. Non-lost
electricity ensures that all the registered devices being monitored after commission.
④ Display and operation area
It can indicate and show all kinds of status information resulting from operations from
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 12
keypad (such as browsing, setting, and printing).
⑤ Zone indication and manual intervention panel (ZCP)
Indicating fire, and fault/disablement of corresponding devices, and starting or stopping
them.
(2) Typical configurations of GST5000 rack type and console type:
Comparing with wall mounted type, the rack and console types can have more loop
cards connected to the control cabinet and an intelligent PSU is used.
① Control Cabinet
Main control unit is the core part of the control panel, including motherboard, main board,
232 communication card, 485 communication card and loop card.
A: Motherboard
Fig. 3-6 shows the structure of the motherboard of the control panel installed on the
bottom of the control part. It connects with the DC-DC convertor through terminals.
There are 10 channel slots for plugging main board, loop card and communication cards.
The control panel is expandable to at most two motherboard boxes.
Signal Bus
Channel Slot
Communication Bus in Parallel Communication Bus in Parallel
Fig. 3-6
Communication bus in parallel: Used for system extension
Channel Slot: Used to plug main board, loop card and communication card on.
XP3: Connecting with DC-DC convertor
ZAn, ZBn（n=1～20）: 1～10 channel signal bus terminals
Note: When DC-DC convertor is switched off, loop 24V is not cut off. If you want
to plug in or pull out the circuit boards in the main unit, please disconnect main
and standby power.
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 13
B: Main board, loop card, communication card
Appearances of main board, loop card and communication card are the same as
GST5000W wall mounted control panel.
C: Illustration of DC-DC Convertor
DC-DC converting module is shown in Fig. 3-7.
GND
ACF
BATTERY
FUSE(10A)
BATTERY
+5V1
GND1
BAF
+5V2
GND2
Battery Fuse
RUN
Battery Switch
Work Switch
1
2
BAT
BAT
Battery Terminal
5V
MAIN
5V
24V
COM
Main Power 5V LED
Communication 5V LED
Main power 24V LED
+5V1
+5V1
24V
ACF
GND
Work LED
WORK
GND1
GND1
Motherboard XP3
DC-DC CONVERTOR
24V
Battery Check
AC Check
+24V
GND
Switch Board 5V
Display Board 5V
Printer
Fig. 3-7
② PSU24-6RM Intelligent PSU
PSU24-6RM intelligent PSU is used to supply power to modules and corresponding
controlled devices.
PSU24-6RM is shown in Fig. 3-8.
INTELLIGENT PSU
Fig. 3-8
A Indicators and switches:
MUTE Key: Pressing MUTE can silence the PSU panel when fault occurs. The
sound will resume when new fault occurs.
TEST/RESET Key: Under monitoring state, this is TEST key, testing all display
components as pressing it, which should be normally lit; after self-test, press
TEST key again, it will self-test again. Under fault state, this is RESET key to
clear the fault. RESET key can clear the fault display and fault alarm sound.
POWER ON LED: Green. For AC power indication.
CHARGING LED: Green. Indicating the charging mode.
AC FAULT LED: Yellow. Lit when AC power voltage is higher than 260VAC or
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 14
lower than 160VAC. The buzzer will alarm at the same time.
BATTERY FAULT LED: Yellow. Lit when battery voltage is lower than 15VDC
or higher than 28VDC. The buzzer will alarm at the same time.
OVERLOAD LED: Red. Lit when battery voltage is higher than 28VDC. The
buzzer will alarm at the same time.
OUTPUT FAULT LED: Yellow. Lit when a break or short circuit occurs or output
current is higher than 8A. The buzzer will alarm at the same time.
MUTE LED: Red. Lit when in mute state.
Display windows indicate the input AC voltage, output voltage and output
current.
B Terminals
Back of the PSU and terminals are shown in Fig. 3-9.
220V
AC
3.15A
INTERNAL
OUTPUT
BAT. FUSE
OFF
OFF
BATTERY
BAT.
EXTERNAL
OUTPUT
OUTPUT FUSE
10A
ON ON
-
+
GND +24V
10A
GND
+24V
Fig. 3-9
AC ON/OFF: AC ON applies AC power, and AC OFF disconnects AC power.
BATTERY ON/OFF: BATTERY ON applies battery, and BATTERY OFF
disconnects battery.
+, - (BAT.): Battery input.
+24V, GND (EXTERNAL OUTPUT): 24VDC main output.
+24V, GND (INTERNAL OUTPUT): 24VDC multi-wire power output.
AC socket: 220V/230VAC power input (including chassis earth).
3.3.2 Optional Configuration
(1) Fireman’s Control Panel (FCP)
Fireman’s Control Panel is an important device in the system. These devices include
fire pump, smoke exhauster and blower. The FCP of GST5000 intelligent fire alarm
control panel can control at most 12 equipments by option. For devices needing both
start and stop, it can control at most 6. The panel can check short circuit and broken
circuit with corresponding audio and visual instruction, which can ensure the reliability of
connection between the control panel and important devices as much as possible.
(2) Thermal Printer
The thermal printer adopts special structure to be installed on a small mounting hole
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 15

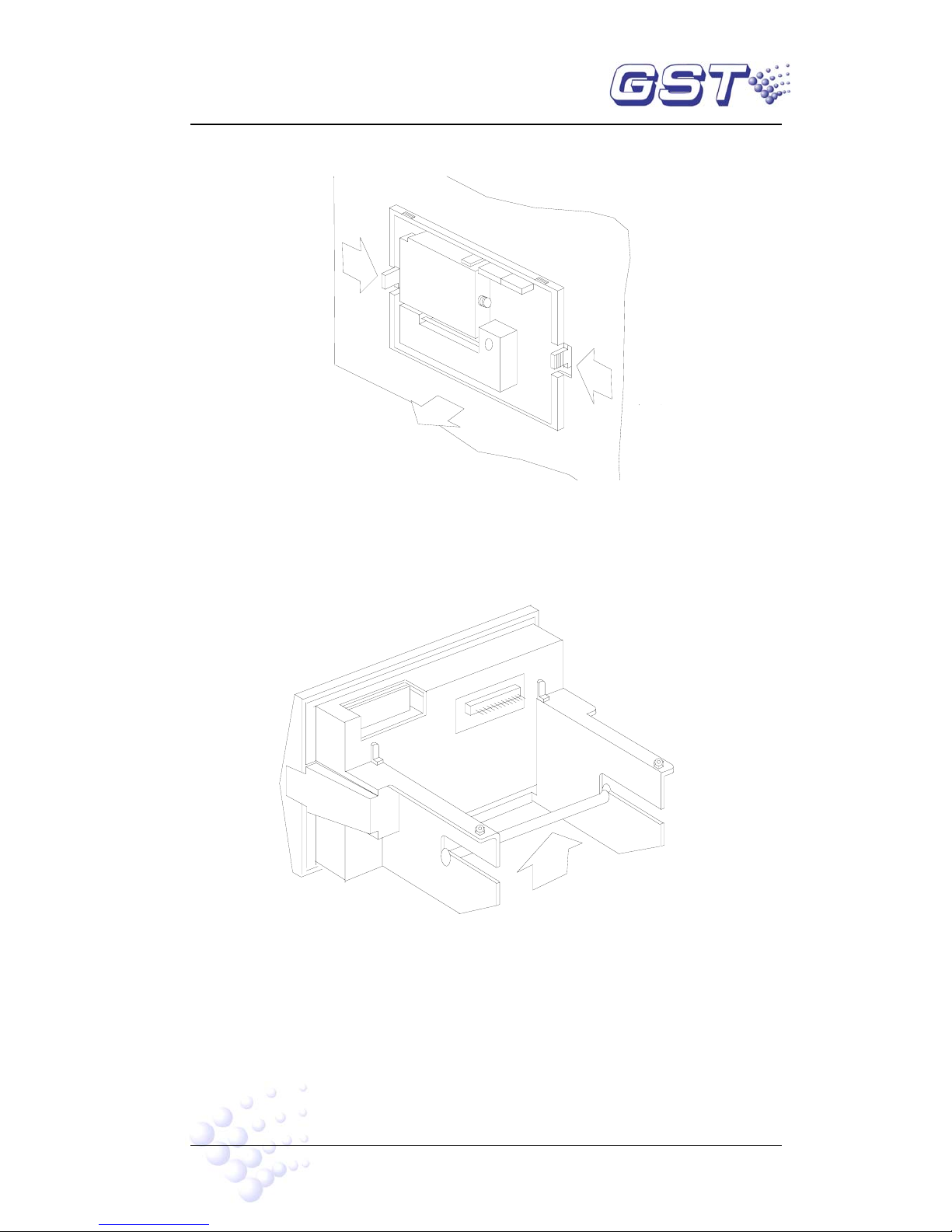

(103mm×57mm) on the front panel of the control panel. The printer is made up of front
cover, rack, head, circuit, spindle and scroll. There are “SEL” and “LF” keys and
indicators on the right-upper side of the front panel on the control panel, and paper-out
slot with cutting saws on lower part. The printer head is installed in the rack, and at the
bottom of the head is paper-in slot. Fix the printer on the panel with flexible bars. Place
the scroll spindle on the rack. The rack and printer can be simply pulled out or plugged
into the control panel for changing paper.
(3) Communication Card
GST5000 Intelligent Fire Alarm Control Panel provides a multi-functional
communication port, connecting with network cards to realize networking among GST
series fire alarm control panels, to form urban fire alarm supervisory network through
public telephone network and to fulfill graphic supervision by connecting with CRT
system in the control center of buildings. The control panel watches network cards
running in real time, that is, the cards can take effect as inserted.
Note: Y ou need to purchase a CRT card for your first order of GST5000. Only with
this CRT card, device definition and C&E equations can be downloaded from PC.
3.4 Field Devices
3.4.1 A Series of Intelligent Fire Detectors
GST 5000 can connect with a series of fire detectors, such as I-9102, I-9103, and
I-9105R. The detectors installed in the protected area transmit monitoring message to
the FACP through Class A loop. Every detector has its own address with which the
FACP can supervise the information of alarm, fault, and normal status of the detectors.
3.4.2 Modules
GST5000 can connect with I-9300 addressable input module and I-9301 addressable
single I/O module. I-9300 module receives the signal of normally open switching signal,
and transmits the information to the FACP (This type of FACP is able to activate the
connected devices). I-9301 single I/O module connects with the devices controlled by
the FACP, such as smoke exhauster, fan blower and fire valve. It can also receive the
self-answering signal.
3.4.3 Loop Isolator
Loop Isolator can disable the shorted part of loop from the whole system to ensure
normal operation of other devices and to ascertain the location of the part in fault. When
the fault is repaired, the loop isolator can automatically reset the disabled part and
include it into the system.
3.4.4 Manual Call Point
A series of manual call point (such as I-9202) can be connected with the bus of
GST5000. When fire is confirmed manually, press the glass on the MCP, alarm signal
can be sent to the FACP. After receiving the alarm signal, the FACP will show the
number and location of the MCP, and sound alarm.
GST5000 Intelligent Fire Alarm Control Panel
Installation and Operation Manual (Generic Part)
The Intelligent Solution
Page 16
3.4.5 Addressable Sounder Strobe
Addressable Sounder Strobe is a kind of audible/ visual alarm device installed in field,
which can be activated by FACP in fire control center or by manual call point installed in
field. A series of GST addressable sounder strobes (such as I-9403) can be connected to
the bus of GST5000. Having been activated, it will generate strong audible/ visual alarm
signal to warn people in field.
3.4.6 GST852RP Repeater Panel
GST852RP Repeater Panel is designed with a microprocessor. When one or more
detectors alarm fire, the repeater panel can display the location numbers and
information of the detectors and send out audible and optical signals. Through
communication loops, it can be connected with FACPs, disposing and displaying the
data transmitted from the FACPs. When monitoring several floors or several zones with
one FACP, a repeater panel on each floor or in each zone can replace zonal FACPs.
3.5 C&E Equation and Device Definition Software
The software owns the functions of editing and downloading definition of device and
C&E equation. Before the system starts operation, you need to define the device and
C&E through configuration software via computer and then download it to the FACP.
Loading...
