GSS PRS 1080 CI Operating Instructions Manual

Download

Bedienungsanleitung

Operating Instructions

Grundig SAT SystEms

Digital Satellite Recorder

PRS 1080 CI

English

Operating Instructions

GSS Grundig SAT Systems GmbH Beuthener Strasse 43

Bedienungsanleitung

90471 Nuremberg, Germany

Phone: +49 (0) 911 / 703 8877 Fax: +49 (0) 911 / 703 9210 E-mail: info@gss.tv Internet: http://www.gss.tv

- 2 -

Contents

Index .............................................................................................................................4

1 General information ..................................................................................................5

1.1 Package contents ........................................................................................5

1.2 Accessories for satellite receivers..................................................................5

1.3 Digital satellite reception .............................................................................5

1.4 Special features of your digital recorder ........................................................5

1.5 The common interface .................................................................................6

2 Set-up and safety ......................................................................................................6

3 Your device at a glance .............................................................................................7

3.1 The digital recorder ....................................................................................7

3.2 The SAT mouse ...........................................................................................8

3.3 The remote control ......................................................................................8

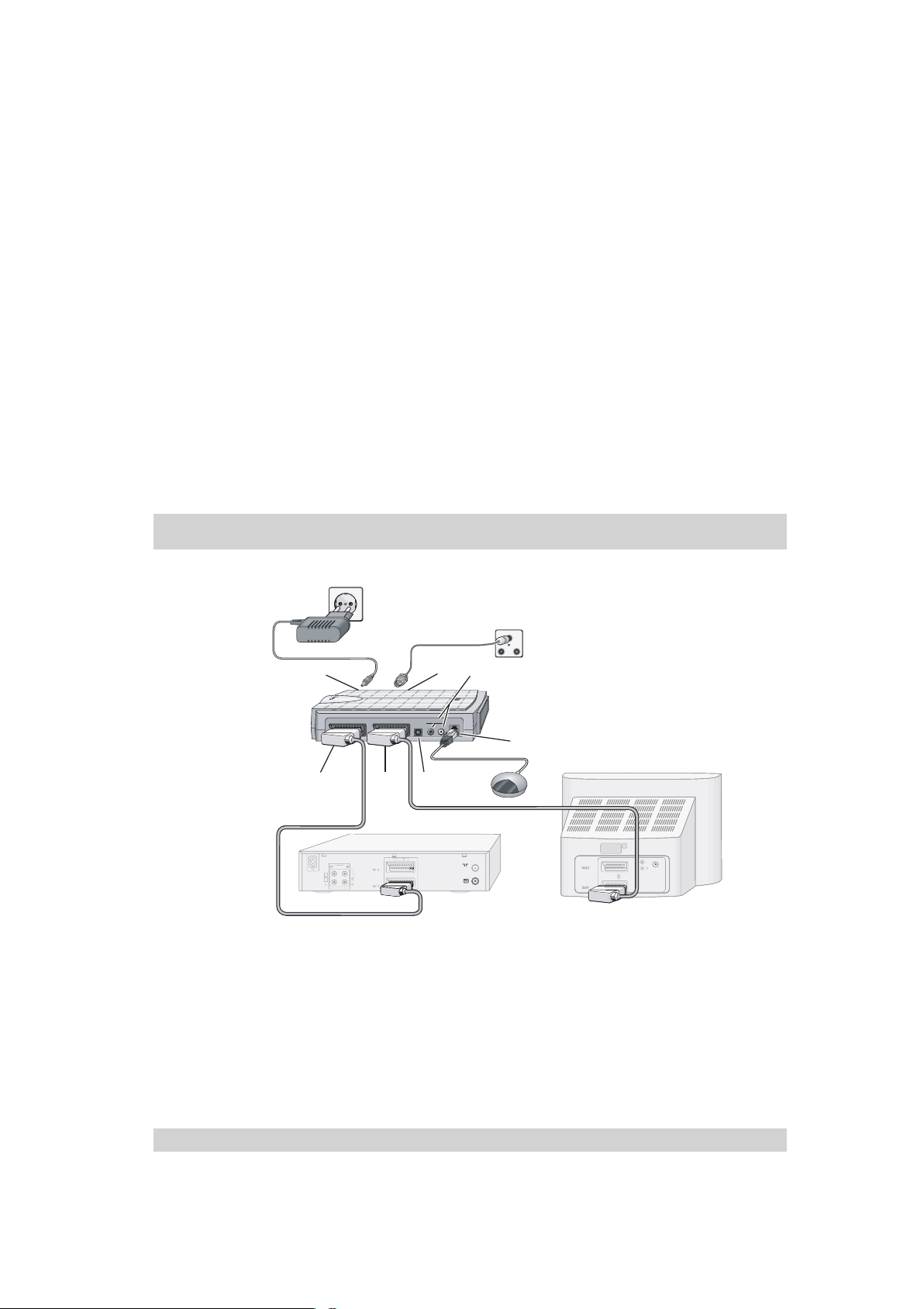

4 Connecting the device ..............................................................................................10

4.1 Connecting the satellite antenna ................................................................. 11

4.2 Connecting the television ...........................................................................11

4.3 Connecting the AV recorder/player ............................................................ 11

4.4 Connecting the SAT mouse ........................................................................ 11

4.5 Connecting the hifi system .........................................................................12

4.6 Connecting the digital multi-channel amplifier (SPDIF) ..................................12

4.7 Connecting the mains adapter ...................................................................12

5 Preparations ...........................................................................................................13

5.1 Switching the recorder on and off ..............................................................13

5.2 General menu information .........................................................................13

5.3 Setting the menu language ........................................................................14

5.4 Setting the local time ................................................................................14

5.5 Adjusting the digital recorder to the television set .........................................15

Setting the video signal for the Euro-AV output .............................................15

Setting the screen format for the television ..................................................15

Automatic picture format identification ........................................................16

Setting the teletext style ............................................................................. 16

Cinch audio output level ............................................................................16

5.6 Adjusting the digital recorder to the satellite antenna ....................................17

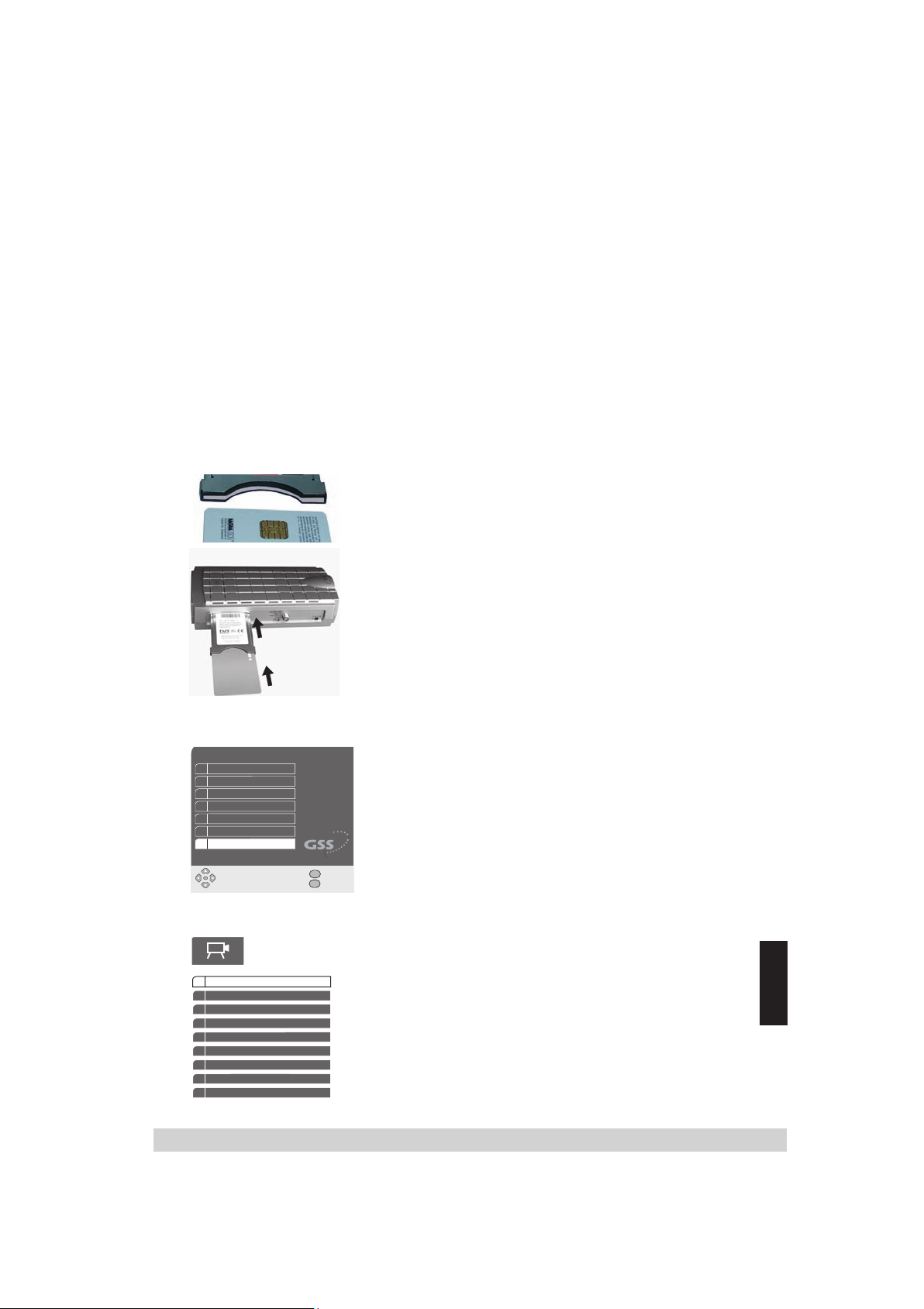

5.7 Reception of signals from encoded satellite channels .................................... 19

6 Editing channel lists .................................................................................................20

6.1 Creating lists of favourites..........................................................................20

6.2 Deleting channels .....................................................................................21

6.3 Moving channels ...................................................................................... 21

6.4 Locking channels ......................................................................................21

6.5 Undoing the channel lock ..........................................................................22

- 2 -

- 3 -

7 Basic functions ........................................................................................................22

7.1 Adjusting the volume .................................................................................22

7.2 Muting ....................................................................................................22

7.3 Selecting channels – numerical preset channel selection................................22

7.4 Preset AV channel .....................................................................................23

7.5 Selecting channels from the TV/radio channel lists ........................................23

7.6 Selecting channels from the list ...................................................................23

7.7 Alphanumerical program selection – entering letters .....................................23

7.8 Selecting locked channels .........................................................................24

7.9 Zapping function ......................................................................................24

7.10 Selecting the audio channel .......................................................................24

7.11 Teletext ...................................................................................................25

8 Updating the channel list .........................................................................................26

9 Electronic programme guide (EPG) ...........................................................................28

9.1 Displaying programme information .............................................................28

9.2 Entering programmes in the recording timer .................................................28

10 Timer functions ........................................................................................................29

10.1 Entering the switch-off time for the sleep timer ..............................................29

10.2 Automatically setting the timer ...................................................................29

10.3 Manually setting the timer .........................................................................29

10.4 Setting (lead time / follow-up time) options ..................................................31

10.5 Ending the active timer .............................................................................. 31

10.6 Deleting a timer position ...........................................................................31

11 Recording / playback functions ...............................................................................32

11.1 Recording ................................................................................................32

11.2 Playback .................................................................................................33

11.3 Information on current operation ...............................................................34

11.4 Editing the “Archives” ................................................................................35

11.5 Deleting a recording .................................................................................36

12 Special functions .....................................................................................................36

12.1 Hotel mode ..............................................................................................36

12.2 Changing the password ............................................................................37

12.3 Restoring the factory settings......................................................................38

12. 4 U pdating s of twa re ....................................................................................38

12.5 Deleting channel lists ................................................................................39

13 Information .............................................................................................................40

13.1 Displaying information on reception of channels ..........................................40

13.2 Querying device information .....................................................................40

13.3 Technical data .........................................................................................41

13.4 Warranty ................................................................................................41

13.5 Troubles hooting ........................................................................................42

ENGLISH

- 3 -

- 4 -

Index

Application of data ............ 29

Archives ............................. 8

Backward ..........................31

Batteries ............................. 9

Batteries low ....................... 9

Beginning of the recording .. 30

Blocking channels ...............21

Blocking the menu ............. 36

Change channel name ........18

Channel lists .................20, 39

Cinch output level ...............16

CI module ..........................19

Cinch sockets .....................16

Common interface ........... 6, 7

Condition on delivery ......... 38

CVBS ................................15

Degree of longitude ............14

Deleting channel lists .......... 39

Device information ............. 40

DVB receivers ...................... 6

Electronic programme

guide .............................28

Encoded channels ...............19

End of the recording........... 30

Entering letters ................... 23

Environmental note ............... 6

EPG ..................................28

Euro-AV .............................15

Euro-AV cable ....................11

F-conn ector ........................11

Fast forward ...................... 34

Fast rewind ....................... 34

Frequency ......................... 27

GMT .................................14

Information on reception..... 40

inset picture....................... 33

Language...........................14

Large screen...................... 33

Lead time ...........................31

Limiting the volume ..............37

Lists of favourites ................ 20

LNB power supply ..............17

Local time ..........................14

Main menu ........................13

Mains adapter ....................12

Main menu ....................... 20

Menu information ...............13

Menu language ..................14

Moving channels ................21

Multi-channel ampliﬁ er ........12

Multi-channel sound ........... 22

Operating software ........... 38

Optical connection .............. 7

Pause ................................. 8

Picture quality.....................15

PIN .............................21, 36

Playback ........................8, 33

Polarisation ....................... 27

Power consumption .............. 6

Preset AV channel .............. 23

Radio station ..................... 27

Range of accessories ........... 5

Remote control..................... 8

Remote control level ............. 9

Removing the menu block ....37

RGB ..................................15

Satellite antenna .................11

Satellite antennas................17

Satellite s ............................18

SAT mouse .....................8, 11

Scart cable ......................... 5

Screen format .....................15

Sleep timer ........................ 29

Smartc ard ..........................19

Software update ................ 38

Station search ................... 27

Stereo sound ..................... 22

Summer time ......................14

System settings ...................15

Teletext ........................ 16, 25

Time ..................................14

Time difference ...................14

Timer .................................31

Timer functions .................. 29

Timer setting ...................... 29

Time shift .......................... 32

Time shift recording ............ 33

Transponder data .............. 27

Update ............................. 38

Volume ............................. 22

Winter time ........................14

WSS .................................16

YUV ................................ 15

Zapping ........................... 24

- 4 -

- 5 -

1 General information

1.1 Package contents

• PRS 1080 CI with 80 Gbyte hard disk

• SAT mouse (infrared receiver)

• Remote control incl. 2 batteries (2 x 1.5 V, Mignon, e.g. UM-3 or AA)

• Euro-AV cable ( scart cable)

• Mains adapter

• Operating instructions

1.2 Accessories for satellite receivers

You can find out more about the extensive GSS range of accessories for satellite receiving devices at your specialist dealer or at the website of Grundig SAT Systems GmbH: http://www.gss.tv.

1.3 Digital satellite reception

To use this device you need a satellite receiving device that must be prepared for receiving digital signals. Unlike analogue satellite broadcasting, digital TV or radio channels are not all assigned their own frequencies; instead, several TV and/or radio channels are transmitted by a single transponder using the same frequency. To help you with the choice and settings for satellite stations, a selection of TV and radio stations have already been programmed for this device. You can use the channel search to find new satellite channels that are not yet in the channel list of your device. You can also compile your favourite channels and store them in four separate channel lists.

1.4 Special features of your digital recorder

This digital recorder can receive and record free satellite channels as well as certain encoded digital satellite channels via common interface. To ensure that your digital recorder always uses the latest software, we recommend that you update the operating software (see page 38). The electronic programme guide provides an overview of all the stations‘ programmes for the next few hours. You can call up detailed information on each TV programme at the touch of a button. This digital recorder has a comprehensive, easy-to-use menu system. It is displayed on the television screen and the functions of the remote control buttons are explained. In addition to the receiver unit, the digital recorder also has a hard disk with a capacity of 80 Gbyte. The technology used enables the simultaneous recording of a SAT programme and playback of a recorded programme. This procedure is used for the time shift (time-delayed television).

- 5 -

ENGLISH

- 6 -

1.5 The common interface

Common interface (CI) is the interface for DVB receivers (digital recorders, set top boxes etc.) for decoding encoded channels. The smart card required for decoding is available at the broadcasting station. This device has a common interface (CI) slot for this smart card and the corresponding CI module.

2 Set-up and safety

• This digital recorder set is designed to receive and display video and audio signals. Any other use is expressly prohibited.

• When setting up the device, make sure the mains socket is easily accessible.

• If the digital recorder is subject to a sudden change in temperature, for example when brought in from the cold to a warm room, let it stand for at least two hours before you connect it to the mains supply.

• Do not expose the digital recorder to any moisture. The digital recorder is designed for use in dry rooms. If you do use it outdoors, please ensure that it is protected from moisture, such as rain or splashing water.

• Make sure that the digital recorder is ventilated adequately.

• Do not use the device close to heating units or in direct sunlight.

• Place the device on a flat, solid surface for use.

•

If placed in a cabinet, make sure there is a minimum space of approx. 10 cm around it!

• Thunderstorms are a danger to all electrical devices. Even if the device is switched off, it can be damaged by a stroke of lightning to the mains or the antenna cable. Therefore always disconnect the device from the mains and from the antenna unit during a thunderstorm.

• Never open the device under any circumstances. No liability is accepted for any damage caused by incorrect handling.

Environmental note If you do not intend to use the digital recorder for some time (for example at night), we recommend that you switch it with approx. 0.5 Watts.

 to stand by. Power consumption is reduced to

- 6 -

- 7 -

3 Your device at a glance

3.1 The digital recorder

CI MODULE Common interface slot. INPUT SAT Antenna socket for the satellite antenna. 12-24 V DC Socket for the supplied mains adapter.

RECORDER Euro AV socket (input and output) for the video or DVD recorder TV Euro AV (output) socket for the television.

DIGITAL AUDIO OUT Optical connection for digitally encoded audio signals to the dig-

ital multi-channel amplifier (SPDIF).

AUDIO OUT R L Left/right stereo output sockets (cinch) for the hifi system. SOFTWARE/MOUSE Socket for SAT mouse or for a PC cable.

- 7 -

ENGLISH

- 8 -

3.2 The SAT mouse

3.3 The remote control

ABC DEF

1 2 3

JKL MNOGHI

4 5 6

TUV WXYZPQRS

7 8 9

Fav

TV/RA/B

Ton e

Channel

TXT

SAT LIST

RCR 100

Exit

Timer

EPG

The SAT mouse receives the infrared signals for the remote control and forwards the commands via cable to the recorder.

• Position the SAT mouse visibly so that it can receive the commands by the remote control.

Note:

– The red operation indicator goes out in standby mode. –

The operation indicator flashes if a recording timer has

been set and the recorder is in standby mode, and during recording.



Switches to standby, and from standby to the

channel last selected.

1 … 0 Select channels. 0 AV mode

Switches between digital recorder mode and the audio and video signals from the device connected to the “RECORDER” socket.

Switches the sound to mute and back on again.

TV/R Switches between radio mode and the channel

lists and lists of favourites.

MENU Opens the main menu, ends settings. i Displays channel information. Z Zapping function.

In menu mode: returns to the previous menu. A/B Switches between audio channels A, B and

stereo.

◀▶ Changes the volume, controls the cursor in the

menus .

▲▼ Switches channels up and down one by one, se-

lects menu items.

OK Opens the channel list, confirms entries. TXT Opens teletext. EPG SAT Switches to remote control level SAT 2.

Record, deletes entries in the menus.

LIST Displays and hides “ Archives”.

Opens the electronic programme guide.

Time shift recording, Pause, Freeze frame.

Fast rewind, moves entries in the menus.

Fast forward, opens the text editor in the Archives. Playback, opens sub-menus.

Stop.

- 8 -

- 9 -

Inserting batteries in the remote control

• Open the battery compartment and remove the lid.

• Insert the batteries (Mignon, e.g. UM-3 or AA, 2 x 1.5 V). Observe the polarity marked in the battery compartment base.

• Close the battery compartment.

Notes:

– If the digital recorder no longer reacts properly to remote

control commands or if the message “Low Battery!” appears, we recommend that the batteries are changed.

– Always remove used batteries. The manufacturer accepts no liability for damage result-

ing from leaking batteries.

– The first time you use the digital recorder after changing

batteries, the message “ Low Battery!” appears. Ignore this message.

Environmental note

Do not throw away used batteries with your normal household waste. Instead take

them to a battery collection box in a shop or a public collection point.

Selecting remote control level SAT 1 or SAT 2

If you wish to use an RCR 100 remote control to operate two PRS 1080 CI digital recorders, you must select a different remote control level for one of the two digital recorders.

TV Setup

Picture Format

WSS

Teletext

IR Level

Cinch Audio

Select

RGB

Auto

West

SAT 1

SAT 2

Fixed

Connect the device and switch it on

(see chapters 4 and 5, pages 10 … 19).

• Press MENU to open the main menu.

• Use

▼/▲

in the main menu to select “System Setup” and

press OK to confirm.

• Use

▼/▲

to activate “TV Setup” and press OK to confirm.

• Select “IR Level” with

Exit

Back

• Use

▼/▲

to select remote control level “SAT 1” or “SAT 2”

and press OK to confirm.

▼/▲

and press OK to confirm.

•

– If you wish to use the digital recorder with remote control

level “SAT 2” press and hold the button SAT and at the same time press the desired function button on the remote control.

ENGLISH

- 9 -

- 10 -

Switching the remote control to SAT 2 level

VCR,

You can switch the remote control permanently to the SAT 2 remote control level.

• Press the button SAT and hold.

• At the same time press the buttons 4, 5, 6.

To return to SAT 1 remote control level

• Press the button SAT and hold.

• At the same time press the buttons 1, 2, 3.

• To finish your setting: press MENU.

4 Connecting the device

Overview





RECORDER TV



DIGITAL

SOFTWARE/

AUDIO OUT

AUDIO

MOUSE

OUT

SAT

TV R





AUDIO

AUDI

O U

VCR, DVD etc.

DVD etc



DEC. - AV 2

DEC. -



- 10 -

- 11 -

4.1 Connecting the satellite antenna

4.2 Connecting the television

4.3 Connecting the AV recorder/player

• Connect the antenna cable to the the digital recorder (screw connector, F-connector).

• Plug the Euro-AV cable into the TV 2 socket on the digital recorder and into the corresponding Euro-AV socket on the television.

• Plug the commercial Euro-AV cable into the RECORDER 3 socket on the digital recorder and into the Euro-AV socket on

the AV recorder/player (e.g. video or DVD recorder).

INPUT SAT 1 socket on

4.4 Connecting the SAT mouse

Note: To view a video or DVD recording, switch on the digital

recorder and press the 0 button to select AV mode.

• Insert the plug of the SAT mouse into the SOFTWARE/ MOUSE

4 socket.

- 11 -

ENGLISH

- 12 -

4.5 Connecting the hifi system

4.6 Connecting the digital multi-channel amplifier (SPDIF)

4.7 Connecting the mains adapter

• Plug a commercial cinch cable into the AUDIO OUT R L (right/left)

responding input sockets on the hifi system.

• Remove the socket cover.

• Plug a commercial optical cable (SPDIF) into the DIGITAL

AUDIO OUT

responding socket on the digital multi-channel amplifier.

• Plug the jack plug of the supplied mains adapter into the

12-

24 V DC 7 socket on the digital recorder.

• Plug the mains adapter into the socket.

5 sockets on the digital recorder and the cor-

6 socket on the digital recorder and the cor-

- 12 -

- 13 -

5 Preparations

Note

Your digital recorder was set at the factory so that it is ready for operation once you

have connected it and to receive Astra channels. If required, you only need to correct the local time difference, adjust the LNB settings for receiving more satellites and select the menu language

Default is: Language: “German”, LNB settings: “Single LNB”).

5.1 Switching the recorder on and off

• Switch the television to AV.

• Press  on stand by to switch on the digital recorder (operation indicator lights up red) or to switch it to stand by (operation indicator goes out).

– If a recording timer has been set, the operation indicator

flashes.

Note:

The only way to disconnect the digital recorder from the

mains supply is to unplug the mains adapter.

5.2 General menu information

Main Menu

1 Channel List

2 System Setup

3 Channel Search

4 Timer

5 Sleep-Timer

6 Software Update

7 CI-Module

– This device has a comprehensive, easy-to-use menu system.

The menus are displayed on the television screen.

– The digital recorder responds to many functions that you

can select on the remote control with informative menus and icons on the screen. It enables you to select many different settings and it contains information on using your digital recorder.

Select

Exit

Back

– The buttons on the remote control for using the menu are

explained in the menus.

– The main menu contains the most important controls for your

digital recorder. The menu system controls the dialogue between you and the digital recorder.

–

Press the MENU button on the remote control and press

▼/▲ to select the desired menu item. It is displayed on a

light background.

–

Press OK to confirm your selection. Use ▼/▲ in the cor- responding sub-menu that is now displayed to select the desired menu item. It is displayed on a light background.

– Press OK to confirm your selection. Normally another menu

then appears. There you can press

▼/▲ to select the de-

sired menu item.

– You can also select the numbered menu items directly using

the numerical buttons 1 … 0.

- 13 -

ENGLISH

- 14 -

◀/▶ buttons are control buttons.

– The – On closing the menu function, your settings are automati-

cally saved.

–

You return to the previous menu via Z.

– To close the menu function press MENU.

Note:

In menu mode, you cannot press



to switch the digital

recorder to standby.

5.3 Setting the menu language

Language, Time

Language

Time Offset

Deutsch

English

GMT +1 Stunde

Cesky Türkce Español

• Press MENU to open the main menu.

• Select “System Setup” with ▼/▲ and press OK to confirm.

• Select “Language, Time” with

▼/▲ and press OK to con-

firm.

• Open “ Language” with “OK”.

• Use ▼/▲ to select the desired language and press OK to confirm.

Select

Exit

Back

•

To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

5.4 Setting the local time

To ensure that the electronic programme guide always shows the current programmes

at the right time, you must enter the difference between your local time and GMT (Greenwich Mean Time, degree of longitude “0”). All times given by the electronic programme guide are then adapted to your local time.

Language, Time

Language

Time Offset

Select

GMT -3 hr GMT -2 hr GMT -1 hr GMT

GMT +1 hr

GMT +2 hr GMT +3 hr GMT +4 hr

• Press “MENU” to open the main menu.

• Select “System Setup” with ▼/▲ and press OK to confirm.

• Select “Language, Time” with ▼/▲ and press OK to con- firm.

• Select “Time Offset” with ▼/▲ and press OK to confirm.

• Use ▼/▲ to change the time difference in one-hour steps.

Exit

Back

Note:

For Germany: GMT + 1 hour. “ Summer time/winter time” conversion is carried out auto-

matically.

• Confirm the setting: press OK.

•

To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

- 14 -

- 15 -

5.5 Adjusting the digital recorder to the television set Setting the video signal for the Euro-AV output

You can choose between the settings “ CVBS” (normal pic-

ture quality, factory setting), “ RGB” (high picture quality) and “YUV” (e.g. for a connected beamer or LCD TV set).

TV Setup

Picture Format

WSS

Teletext

IR Level

Cinch Audio

Select

TV Setup

Picture Format

WSS

Teletext

IR Level

Cinch Audio

Select

RGB

CVBS

YUV

Auto

West

SAT 1

Fixed

• Select “ System Setup” in the main menu with ▼/▲ and

press OK to confirm.

• Select “TV Setup” with

• Select “TV” with

• Use

▼/▲ to select “RGB”, “ CVBS” or “ YUV” and press OK

to confirm.

Exit

Back

Note: For the setting “RGB” and “YUV” the TV set has to be pre-

pared appropriately.

• To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

Setting the screen format for the television

If you have a “standard” 4:3 format television, select the

“4:3” setting. If you have a 16:9 format screen, select the “Auto” setting.

• Select “System Setup” in the main menu with ▼/▲ and

RGB

4:3

Auto

SAT 1

West

SAT 1

Fixed

Exit

Back

press OK to confirm.

• Select “TV Setup” with

• Select “Picture Format” with confirm.

• Use

▼/▲ to select the desired screen format and press OK

to confirm.

• To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

▼/▲ and press OK to confirm.

▼/▲ and then press OK to confirm.

▼/▲ and press OK to confirm.

▼/▲ and then press OK to

- 15 -

ENGLISH

- 16 -

Automatic picture format identification

If problems with the automatic picture format switchover

(e.g. 4:3, 16:9, Letterbox) arise with the connected device, you can switch off Wide-Screen-Signaling ( WSS) in this menu.

TV Setup

Picture Format

WSS

Teletext

IR Level

Cinch Audio

Select

TV Setup

Picture Format

WSS

Teletext

IR Level

Cinch Audio

Select

RGB

Auto

SAT 1

Off

West

SAT 1

Fixed

Exit

Back

Setting the teletext style

RGB

Auto

West

SAT 1

East

SAT 1

Fixed

Exit

Back

Cinch audio output level

• Use ▼/▲ in the main menu to select “System Setup” and press OK to confirm.

• Select “TV Setup” with

• Use

▼/▲ to select “WSS” and press OK to confirm.

• Use

▼/▲ to switch WSS on/off.

▼/▲ and press OK to confirm.

• To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

This menu is for setting the parameters required to display

West European or Slavic characters.

• Use ▼/▲ in the main menu to select “System Setup” and press OK to confirm.

• Select “TV Setup” with

• Use

▼/▲ to select “Teletext” and press OK to confirm.

• Use

▼/▲ e.g. for Germany to select “West” and press OK

▼/▲ and press OK to confirm.

to confirm.

• To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

This menu is for determining whether the cinch socket output

level is to be controlled via remote control or fixed.

TV Setup

Picture Format

WSS

Teletext

IR Level

Cinch Audio

Select

RGB

Auto

West

SAT 1

Fixed

Fest

Adjustable

• Use ▼/▲ in the main menu to select “System Setup” and press OK to confirm.

• Select “TV Setup” with

• Use

▼/▲ to select “Cinch Audio” and press OK to confirm.

• Use

▼/▲ to select “Fixed” or “Adjustable” and press OK to

▼/▲ and press OK.

confirm.

• To return to the previous menu: press the Z button.

Exit

Back

• To finish your setting: press MENU.

- 16 -

- 17 -

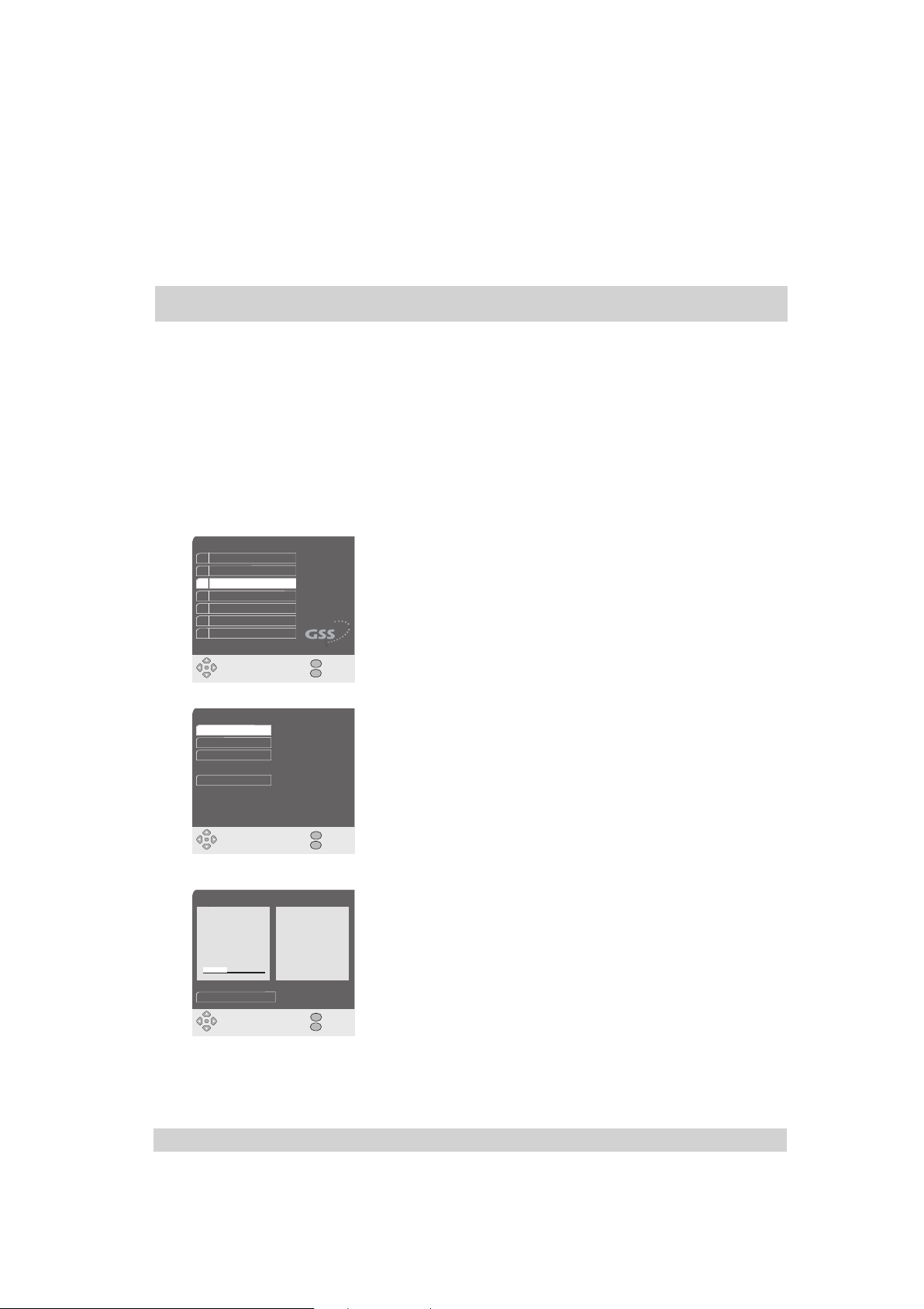

5.6 Adjusting the digital recorder to the satellite antenna

This digital recorder was factory set so that it is ready for operation with most satellite antennas and LNB configurations. Changes in this menu have a direct effect on the reception characteristics of the digital recorder and should therefore only be made by an expert.

System Setup

1 LNB Settings

2 TV Setup

3 Language, Time

4 Hotel Mode

5 Information

6 Password Setting

7 Clear Channel List

8 Factory Settings

Select

LNB Settings

LNB System

SAT System 1

Select

SAT System 1

Name

LNB Type

Oscillator Low

Oscillator High

Select

Exit

Back

Off

Einzeln

Single

Astra

Tone Burst DiSEqC 1.0

Exit

Back

Receiving signals from a single satellite

Astra

Low + High Band

09750 MHz

10600 MHz

Exit

Back

• Select “System Setup” in the main menu with ▼/▲ and press OK to confirm.

• Select “LNB Settings” in the “System Setup” menu with

▼/▲

and press OK to confirm.

– The “LNB Settings” menu appears.

• Select “LNB System” in the “LNB Settings” menu with ▼/▲ and press OK to confirm.

– The following is displayed in the sub-menu: “Off”: “Single”:

For switching off the LNB power supply. A single satellite is used for reception.

“Tone Burst”: Signals from two satellites can be re-

ceived.

“DiSEqC 1.0”: Signals can be received from up to 4

satellites.

• Select “LNB System” in the “LNB Settings” menu with

▼/▲

and press OK to confirm.

• Use

▼/▲ to select “Single” and press OK to confirm.

• Select “SAT System 1” with

• Use

▼/▲ to select the menu item to be changed and press

▼/▲ and press OK to confirm.

OK to confirm: – “Name“ Change the satellite name.

• Use

◀/▶ to place the cursor under

the letter to be changed.

• Use

▼/▲ to set letters.

• Press OK to confirm. – “LNB Type”

• Use ▼/▲ to select the LNB that is used.

• Press OK to confirm. – “Oscillator Low” • Set the LNB oscillator frequency (Low band).

• Use

◀/▶ to place the cursor un-

der the number to be changed. —> Enter value with 1 … 0.

• Press OK to confirm. – “Oscillator High“ • Set the LNB oscillator frequency (High band).

ENGLISH

- 17 -

- 18 -

LNB Settings

LNB System

SAT System 1

Select

SAT System 1

Name

LNB Type

Oscillator Low

Oscillator High

Tone Burst

Select

• Press OK to confirm.

• To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

Receiving signals from two or more satellites

• Select “LNB System” in the “LNB Settings” menu with

Off

Einzeln Single

Astra

Tone Burst

DiSEqC 1.0

and press OK to confirm.

• Use

▼/▲ to select “Tone Burst” for 2 satellites or

“DiSEqC 1.0” for up to 4 satellites and press OK to confirm.

• Select “SAT System 1” with

• Use

▼/▲ to select the item to be changed and press OK to

confirm:

Exit

Back

Astra

Low + High Band

09750 MHz

10600 MHz

– “Name“ Change satellite name.

• Use

• Press OK to confirm. – “LNB Type“ • Use

• Press OK to confirm.

Exit

Back

– “Oscillator Low“ • Set the oscillator frequency (Low band).

• Use

—> Enter value with 1 … 0.

• Press OK to confirm. – “Oscillator High“ • Set the oscillator frequency (High band).

• Use

—> Enter value with 1 … 0.

• Press OK to confirm. – “Tone Burst“ or “DiSEqC”

• Use

DiSEqC switch (A … D).

• Press OK to confirm.

• Use ◀/▶ to place the cursor under the number to be changed. —> Enter value with 1 … 0.

▼/▲

▼/▲ and press OK to confirm.

◀/▶ to place the cursor under

the letter to be changed.

▼/▲ to set letters.

▼/▲ to select the LNB that is

used.

◀/▶ to place the cursor under

the number to be changed.

◀/▶ to place the cursor under

the number to be changed.

▼/▲ to assign the LNB to the

input for the Tone Burst (A/B) or

• Repeat the setting for all satellites “SAT System 2” etc.

• To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

- 18 -

- 19 -

5.7 Reception of signals from encoded satellite channels

This digital recorder has a common interface (CI) slot. It allows you to connect a CI

module for various encryption systems and broadcasting stations. Encoded channels can only be viewed with a CI module suitable for the encoding system and the corresponding smart card. The smart card has all the functions for authorization, decoding and subscription.

Note:

Follow the operating instructions of the corresponding manufacturer for the CI

module.

• Insert the smart card into the CI module in such a way that the chip on the smart card faces the thicker side (top) of the CI module (1.).

• Rotate CI module with inserted smart card 180° around the longitudinal axis (bottom facing upwards, see illustration opposite).

• Insert the CI module with the bottom facing upwards into the common interface slot “CI-MODULE” (2.).

Main Menu

1 Channel List

2 System Setup

3 Channel Search

4 Timer

5 Sleep-Timer

6 Software Update

7 CI-Module

Select

1 General information

2 Film 1 – 10:10

3 Film 2 – 11:00

4 Film 3 – 10:30

5 Film 4 – 10:40

6 Film 5 – 10:00

7 Film 6 – 13:00

8 Film 7 – 10:30

9 Film 8 – 10:00

• Use ▼/▲ in the main menu to select “CI-Module” and press OK to confirm.

– A menu generated by the CI-module appears on the

screen. For information on how to use the CI-module, see its operating instructions.

• To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

Exit

Back

Note:

If “Camera” is displayed in a channel window, this means

that sub-programmes are available.

• To open sub-programmes: press OK.

• Select the desired channel with

▼/▲ and ◀/▶ and

ENGLISH

press OK to open.

- 19 -

- 20 -

6 Editing channel lists

This menu is for changing the order of the preset TV and RA (Radio) channels as

desired, deleting channels you do not need and locking channels. You can select your favourite channels and save them in four separate lists of favourites.

Main Menu

1 Channel List

2 System Setup

3 Channel Search

4 Timer

5 Sleep-Timer

6 Software Update

7 CI-Module

Select

Exit

Back

6.1 Creating lists of favourites

Channel List TV

1 Das Erste

2 SAT.1

3 RTL Television

4 RTL2

5 ZDF

6 Super RTL

7 VOX

8 Pro Sieben

TVR

TV/RA... Delete

Info Sort Protect List 1...

2 34

Insert

1 234

Insert

1 234

Exit

Back

• Select “Channel List” in the “ Main Menu” with ▼/▲ and press OK to confirm.

– The TV Channel list appears.

• To change channel lists: press the TV/R button repeatedly.

Channel List TV —> Channel List RA —> Channel List 1 —> Channel List 2 —> Channel List 3 —>

Channel List 4 —> Channel List TV.

• Select “Channel List TV” with TV/R.

• Select the channel to be entered into the list of favourites with

▼/▲ or ▼/▲ and

◀/▶

press the (yellow) button to

open the “List of favourites” menu.

• Select the desired list of favourites with ◀/▶ and press OK to highlight in white the selection.

• To enter a channel in the list of favourites: press the (yellow) button.

– The selected channel is stored in the list of favourites

(white).

– The next channel is automatically selected in the TV chan-

nel list

• If you wish to enter the automatically selected channel in the list of favourites, press the (yellow) button, otherwise use

▼/▲ and

◀/▶

to select the channel to be moved and

proceed as described above.

Notes:

– You can enter the selected channels in several lists of

favourites at the same time:

•

Use ◀/▶ to place the cursor in succession under the

icons to be activated from the lists of favourites and press

OK each time to confirm.

– To deactivate an active

list of favourites

use ◀/▶ to place

the cursor under the icon for this list and press OK to confirm.

- 20 -

- 21 -

6.2 Deleting channels Note:

If a channel is deleted from a TV or radio channel (RA) list,

it is also deleted from the list of favourites.

If a channel is deleted from one of the lists of favourites, the

channels still remain in the TV / radio channel list.

Channel List

1 Das Erste

2 SAT.1

3 RTL Television

4 RTL2

5 ZDF

6 Super RTL

7 VOX

8 Pro Sieben

TVR

TV/RA... Execute

Info Sort Protect

Are you sure?

Yes No

Exit

Back

• Select a channel list with TV/R.

• Select the channel to be deleted with

▼/▲ and press

the (red) button to highlight it.

– The channel entry is highlighted in red.

• If you wish, select any other channel with

▼/▲.

• To delete channels: press the (red) button again.

• Use

◀/▶ to select “Yes” in the security query that appears

and press OK to confirm the “Delete channel” action.

6.3 Moving channels

Channel List TV

1 Das E rste

2 SAT.1

3 RTL Television

4 RTL2

5 ZDF

6 Super RTL

7 VOX

8 Pro Si eben

TVR

TV/RA... Delete

Info Dest. Protect

Are you sure?

Yes No

Exit

Back

• Select the desired channel list with TV/R.

• Select the channel to be moved with

▼/▲ and press the

(green) button to highlight it.

• Any other channels are selected with

▼/▲.

• Press the (green) button to confirm the selected channels.

• Use

▼/▲ to select the channel in front of which the selected

channel is to be inserted.

• To move channels: press the (green) button.

• Use

◀/▶ to select “Yes” in the security query that appears

and press OK to confirm.

– The highlighted channels are moved.

• To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

6.4 Locking channels

This menu is for locking channels with a password that is valid for all protected chan-

nels.

Channel List TV

1 Das Erste

2 SAT.1

3 RTL Television

4 RTL2

5 ZDF

6 Super RTL

7 VOX

8 Pro Sieben

TVR

TV/RA... Delete

Info Sort Protect List 1…

Input Password

* * * *

234

Exit Back

• To open the desired channel list: press TV/R.

• Select the channel to be locked with

▼/▲ and press the

(blue) button to confirm.

– “ Input Password” appears.

• Enter the password with 1 … 0. – The default password is “0 0 0 0”. – Locked channels are marked with a key.

• Confirm the channel lock with MENU.

- 21 -

ENGLISH

- 22 -

6.5 Undoing the channel lock

• Select the locked channel in the channel list with TV/R and

▼/▲

• Press the (blue)

• Enter the password with 1 … 0.

•

Confirm the “undo” channel lock action with

button

– “Input Password” appears.

7 Basic functions

7.1 Adjusting the volume Notes:

– You cannot adjust the volume in menu mode. –

The changes in volume refer to the level of the audio signals at the “TV” output socket of the recorder.

• Use ◀/▶ to set the volume.

– A volume scale is displayed on the screen.

7.2 Muting

• Muting: press the button on the remote control.

• To end muting: press the button .

7.3 Selecting channels – numerical preset channel selection

• Enter single-digit or multi-digit preset channel numbers by

pressing 1

• Switch preset channels up and down one by one: press

… 0 on the remote control.

▼/▲ as often as required.

• To “scroll” quickly through preset channels: press ▼/▲ and

hold as long as is necessary.

Note:

After each change of channel, a short screen text is dis-

played with the following information:

– Preset channel number – Name of the channel – Time – Title and start time of the current programme and the fol-

lowing programme

–

Information on the audio signal of the current channel:

Used symbols:

p Digital multi-channel sound

1/2 For example, 2 languages are transmitted; language 1 is selected eng The selected language is e.g. English

Stereo sound / Dual sound / Mono sound

- 22 -

- 23 -

7.4 Preset AV channel

As soon as the set connected to the socket “

activated and provides a switching voltage the Digital Recorder switches to AV operation.

• To select a preset AV channel manually: press the 0 button.

– The device switches to the external signal at the

“RECORDER” input.

• To switch back to TV mode: press the 0 button again.

7.5 Selecting channels from the TV/radio channel lists

You can choose between the channel lists

– TV (TV channels), – RA (radio channels) and – 4 lists of favourites.

Lists of favourites without channels are not displayed.

• Select the desired channel list with TV/R.

• Use

▼/▲ and ◀/▶ to select a channel and press OK to

open.

7.6 Selecting channels from the list

• Open the channel list with OK.

• Use

▼/▲ and ◀/▶ to select a channel and press OK to

open.

7.7 Alphanumerical program selection – entering letters

You can select channels by entering their channel names.

For this purpose the numbers 2 … 9 on the remote control are assigned to groups of letters.

RECORDER

” is

• Open the channel list with OK.

• Press 0 to activate the input of letters.

• Press 2 … 9 to enter the first letter of the channel name

(e.g. 9 for the letter Z, 3 for the letter D etc.).

– A list of all the channels beginning with the letters W, X,

Y or Z appears on the screen.

– With each additional letter entered, the list of channels

displayed is reduced.

• Select the desired channel with

OK to open it.

- 23 -

▼/▲ and ◀/▶ and press

ENGLISH

- 24 -

7.8 Selecting locked channels

7.9 Zapping function

If you select a locked channel, you will only see the chan-

nel name with a key symbol. By entering the password, you can activate locked channels until the next time the device is switched off (see also page 22, chapter “Undoing the channel lock”).

• Use ▼/▲ or 1 … 0 to select a preset channel.

– “Input Password” appears. – If “Input Password” is not displayed, press OK to call the

text message.

• Enter the password with 1 … 0.

– All locked channels are activated until you switch the dig-

ital recorder off again.

This function allows you to save the channel you are cur-

rently watching and switch to and between this channel and other channels (zapping).

• To save a channel in the zapping memory: press 1 … 0 or

▼/▲ to select the channel and save it with Z.

– The channel name appears on the screen, e.g. “TV 8”.

• Press 1 … 0 or

• Press Z to switch to the saved channel and back to the chan-

nel last seen.

• Press i to finish your setting.

▼/▲ to select a different channel.

7.10 Selecting the audio channel

For channels broadcasting in several languages you can se-

• Press i.

• Press i repeatedly to select the desired audio type:

Mono sound 1/2 For example, 2 languages or audio channels

• Press OK to save your setting.

lect a different language, the audio type and digital sound (AC 3), if provided. Digital sound is only available at the optical SPDIF output.

– The channel information is displayed.

p Digital multi-channel sound (AC 3)

Stereo sound

Dual sound

are transmitted; language 1 is selected.

- 24 -

- 25 -

7.11 Teletext

Note:

If a stereo transmission is faulty, the left stereo channel might

transmit a different language than the right one.

• Use A/B to change stereo channels.

Teletext is a service offered by some broadcasters that is

provided along with the video and audio signals. These signals are converted by the digital recorder and can be displayed on the TV screen as teletext.

• Select the TV channel for which you wish to view teletext

with 1 … 0 or

• To open teletext: press TXT. – Text page 100 appears on the screen.

• Enter the three-digit number of a text page with 1 … 0 or use

▼/▲.

▼/▲ to “scroll” between text pages.

• To close teletext: press TXT.

- 25 -

ENGLISH

- 26 -

8 Updating the channel list

Preset channel lists

This digital recorder was programmed at the factory with

most digital TV and RADIO channels on the Astra 19.2° East, EutelSat/Hotbird 13° East and Turksat 1C satellites. You can open the corresponding lists in the “Channel List”

by pressing every now and then or because satellite data is changed, it is advisable to occasionally start an automatic search on the digital recorder and update the channel lists.

Automatic channel search

Main Menu

1 Channel List

2 System Setup

3 Channel Search

4 Timer

5 Sleep-Timer

6 Software Update

7 CI-Module

Select

Exit

Back

During the automatic channel search, the selected satellite is

scanned for new channels.

• Select “Channel Search” in the “Main Menu” with

press OK to confirm.

◀/▶. Because there are new satellite channels

▼/▲ and

Channel Search

Method

Satellite

Option

Start

Select

Channel Search

Astra V high

11828 MHz 22000

3 Suchlauf

TV: 25

4 Timer

RA: 1

5 Sleep-Timer

Cancel

Select

Satellite

Astra

Free

Exit

Back

80 Pro Sieben 250 Radio S25 444 TERRA NOVA 993 ASTRA HD 10 SR1 1 Bayern 1 9 NDR Info

Exit

Back

• Select “Method” with ▼/▲ and press OK to confirm.

• In the menu use

▼/▲ to select “Satellite” and press OK to

confirm.

• Use

▼/▲ to select “Satellite” and press OK to confirm.

• Use

▼/▲ to select the desired satellite and press OK to

confirm.

• Select “Option” with

• Use

▼/▲ to set “Free” or “All” (encoded channels are also

▼/▲ and press OK to confirm.

searched for) and press OK to confirm.

• Select “Start” with

▼/▲ and press OK to start the search.

– The window on the left shows the current transponder

settings and the number of TV channels (black) and radio channels (blue) found. The window on the right shows the channels last found and the channel number.

– New TV or radio channels are added to the end of the

channel list.

– To cancel the search: press OK (reaction time approx.

3 seconds).

• To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

- 26 -

- 27 -

Main Menu

1 Channel List

2 System Setup

3 Channel Search

4 Timer

5 Sleep-Timer

6 Software Update

7 CI-Module

Select

Manual Channel search

If the channel search does not automatically find a particu-

lar channel, you can set it using the manual search. To do so, enter all the parameters of the channel you are looking for. You can find the latest transponder data on the teletext pages of various broadcasters, in a new satellite TV magazine or on the Internet.

Exit

Back

• Select “Channel Search” in the “Main Menu” with

press OK to confirm.

▼/▲ and

Channel Search

Method

Satellite

Option

Start

Select

Channel Search

Method

Satellite

Frequency

Pol.

Symbolrate

Option

Start

Select

Satellite

Astra

Free

Transponder

Astra

11836 MHz

Horizontal

27500

Free

Exit Back

• Select “Method” with ▼/▲ and press OK to confirm.

• In the menu use

▼/▲ to select “Transponder” and press OK

to confirm.

• Use ▼/▲ to select the item to be set and press OK to con-

firm.

• Use

▼/▲ to set the parameters and press OK each time to

confirm.

If required, use

◀/▶ to place the cursor under the number

to be set:

– “Satellite“: Satellite selection. – “ Frequency”: Enter the five-digit channel frequency

with 1 … 0. – “ Pol.”: For setting the polarization of the channel (“Horizontal” or “Vertical”). – “Symbol rate”: Enter five-digit channel symbol rate

with 1 … 0. – “Option”: Set “Free” or “All” (encoded channels

are also searched for).

• Select “Start” with

▼/▲ and press OK to start the search.

– The new TV or radio channel is automatically added to

the end of the channel list.

• To return to the previous menu: press the Z button.

• To finish your setting: press MENU.

ENGLISH

- 27 -

- 28 -

9 Electronic programme guide (EPG)

The electronic programme guide provides information on

the current programme such as the title and a short description. You can also list the following programmes and call up the corresponding descriptions.

9.1 Displaying programme information

• To display information on the current programme: Press the EPG button.

• Press EPG again.

– The first table with the following programmes is dis-

played.

• Use

◀/▶ to open other tables.

• Use

▼/▲ to select a programme.

• Press OK to call up information on the selected programme.

• To return to the table with today‘s programmes: press the Z button.

9.2 Entering programmes in the recording timer

TIMER

Date Prog Start Stop

Timer 1

22/07 TV 0001 22:00 – 23:00

Timer 2

Mon TV 0012 17:15 – 18:00

Mo – Fr 0008 18:45 – 19:00

Timer 3

Mo – Sa RA 0001 06:00 – 08:00

Timer 4

Mo – Su TV 0006 20:00 – 20:15

Timer 5

24/07 TV 0001 22:00 – 23:00

Timer 6

Pro Sieben

Options Delete

Select

• Press the EPG button twice.

• Select the programme with

• Press the (green) button.

– The displayed programme is entered in the timer with all

relevant data, such as date, start and finish times, channel name, information etc.

– The “TIMER” menu is displayed (see also chapter “Timer

Exit

Back

functions”, pa ge 29).

• To close the electronic programme guide: press MENU.

▼/▲ ◀/▶.

- 28 -

- 29 -

10 Timer functions

Your digital recorder has a sleep timer for switching off your

device at a defined time.

Furthermore your digital recorder has 30 timer positions that

you can set manually or automatically by applying the data selected in the EPG.

10.1 Entering the switch-off time for the sleep timer

Main Menu

1 Channel List

2 System Setup

3 Channel Search

4 Timer

5 Sleep-Timer

6 Software Update

7 CI-Module

Select

Exit

Back

10.2 Automatically setting the timer

10.3 Manually setting the timer

• Select “Sleep-Timer” in the “Main Menu” with press OK to confirm.

• Confirm “Time” with OK.

• Select the switch -off time in 30 minute steps (sleep timer “OFF”, 30 … 240 minutes) with

• To finish your setting: press MENU.

– The digital recorder switches to standby mode after the

set time.

Data is adapted from the EPG for the automatic setting of

the timer (chapter “Electronic programme guide”, p age 28). This data can be changed manually (chapter “Manually set- ting the timer”).

The manual timer setting enables you to let your digital

recorder record …

… on a particular date, … on particular weekdays, … every day from Monday to Friday, … every day from Monday to Saturday, … every day from Monday to Sunday, … from a TV or radio channel that can be freely selected

from the channel lists,

… at a particular time.

▼/▲ and

▼/▲ and press OK to confirm.

Main Menu

1 Channel List

2 System Setup

3 Channel Search

4 Timer

5 Sleep-Timer

6 Software Update

7 CI-Module

Select

• Select “Timer” in the “Main Menu” with ▼/▲ and press OK to confirm.

ENGLISH

• Select timer position (Timer 1…30) with ▼/▲ and press OK

Exit

Back

to confirm.

– The current date is displayed.

- 29 -

- 30 -

TIMER

Timer 1

22/07 TV 0001 22:00

23:00

Date Prog Start Stop

Timer 1

22/07 TV 0001 22:00 – 23:00

Timer 2

Mon TV 0012 17:15 – 18:00

Mo – Fr 0008 18:45 – 19:00

Timer 3

Mo – Su RA 0001 06:00 – 08:00

Timer 4

Mo – Sa TV 0006 20:00 – 20:15

Timer 5

24/ 07 - - - - - - - - : - - – - - : - -

Timer 6

Pro Sieben

Daily

• Use ▼/▲ or 0 … 9 to set the day of recording. Move the cursor on (month) and use

– Instead of the date you can set: Mo – Monday

▼/▲ or 0 … 9 to set the month.

Tu – Tuesday We – Wednesday

End

Back

Th – Thursday Fr – Friday Sa – Saturday Su – Sunday Mo–Fr – Monday to Friday Mo–Sa – Monday to Saturday Mo–Su – Monday to Sunday

• Press

– use

◀/▶ to move the cursor on (Prog),

▼/▲ to activate the desired channel list

(TV, radio, list of favourites).

– Move the cursor on with

◀/▶ and use ▼/▲ or 0 … 9 to

select the preset channel. The channel name is displayed in the menu.

• Use

◀/▶ to move the cursor on (Start/Stop) and use ▼/▲

or 0 … 9 to set the beginning of the recording or the end of the recording.

• Make your entries and press OK to confirm.

Example:

Timer 2

Mon TV 0012 17:15 – 18:00

–

Timer 2: The device records from channel no. 0012 from the TV chan-

nel list every Monday from 17:15 – 18:00.

• To delete entries of an active timer (white background):

press the (red) button.

• To return to previous menu: press the Z button.

• To finish your setting: press MENU.

– The digital recorder records the specified programme at

the set time.

- 30 -

- 31 -

10.4 Setting ( lead time / follow-up time) options

This menu enables the individual shifting of the actual

switch-on and switch-off times in both directions (lead time and follow-up time), regardless of the preset switch-on and switch-off times.

Options

Lead time

Follow-up time

Select

00 Min.

10 Min.

Exit

Back

10.5 Ending the active timer

10.6 Deleting a timer position

• To activate the function “Options” in the “Timer” menu: press the (blue) button.

• Use

▼/▲ to select “Lead time” or “Follow-up time” and

use

◀/▶ to set the forward or backward time (0 … 60

minutes).

• To return to previous menu: press the Z button.

• To finish your setting: press MENU.

Once the timer starts a recording, the selection of channels

is locked.

• To prematurely stop the timer recording: press the (red) button for approx. 3 seconds.

• Use

▼/▲ to select the timer position to be deleted.

• Press the (red) button.

- 31 -

ENGLISH

- 32 -

11 Recording / playback functions

The technology used for this digital recorder enables the simultaneous recording of a SAT programme and playing of a recorded programme. This procedure is used for the time shift. Time shift means that you can record a programme and start to play it from the beginning e.g. delayed in time by 30 minutes while it is still being recorded. Another option for using the time shift is e.g. the following situation: You are watching a film and the telephone rings. You now switch on “time shift” and when you come back you can continue to watch the film from where you were interrupted.

11.1 Recording

The saved programmes are stored in the “Archives”.

Recording a live programme

You wish to record a programme that is just live on TV.

• Press the (red) record button.

◷ 16:00

Record

Setting the recording time

• Press the (red) record button again.

◷ 16:00

Duration -01:30

—>

◷ 16:00

Tagesschau

◷ 16:00

Record stopped

• Press the (red) record button repeatedly to set the length of the recording in steps of 30 minutes from 00:30 … 06:00 hours.

Ending the recording

• To stop the recording, press the (red) button for approx. 3 seconds.

- 32 -

- 33 -

Time shift recording

You are watching a programme, you are interrupted and

wish to continue to watch the programme from the time of interruption.

◷ 16:00

Pause 00:00:02 Tagesschau

Recording with the timer

11.2 Playback

• Press the Pause button

– The picture on the screen is “frozen” (freeze frame).

◷ 16:00

—>

Tagesschau 00:00:02 Tagesschau

• To start playing the time shift recording at this point:

press Pause

or Playback .

Note: Press the button for fast forward . Once the end of

the time shift recording is reached, the programme is played.

• To end the delayed recording: press the (red) button for approx. 3 seconds.

You can find more information on programming recordings

with the timer in the chapter “Timer functions”, page 29.

You have the following playback options: – “Time shift” (see chapter “Time shift recording”) – Playback of saved programmes while another programme

is being recorded (Archives)

– Interference-free freeze frame – Fast forward and reverse in 5 stages with picture

Playback from the “Archives”

You can play stored programmes from the “Archives” even while you are recording.

• To open the “Archives”: press LIST.

– Any programmes that you have not yet seen are identi-

fied in the inset picture by “New”.

• Use

◀/▶ and ▼/▲ to select the desired recording.

– To call up information on the content of this recording: press the EPG button.

• Press OK to confirm.

– The recording is displayed as inset picture in the preview

window.

• To switch to large screen: press Playback

– The “Archives” menu disappears from the screen.

- 33 -

ENGLISH

▶.

- 34 -

Freeze frame playback

• Play recording.

• Press the Pause button

Resuming playback

• Press Pause button

Fast forward / rewind

• Press the forward or rewind button.

– You can select Forward

5 stages by repeatedly pressing the corresponding button.

• To end the function: press the Stop button

Ending playback

• To stop playing: press the Stop button

– When this recording is played again, it is continued at

this point.

• To end playback: press the Stop button again.

– When this recording is played again, it is continued at

the beginning.

11.3 Information on current operation

• To briefly display information on the current activities of the digital recorder:

Press the i button.

again or press Playback .

or Rewind functions in

, Pause or Playback

◷ 16:00

Wunderbare Welt 00:30:02 Tagesschau

Example: – Recording a programme – Simultaneous playback of another recording

The message shows … – the current time, – the selected audio type, – the function “Playback

” with the title of the recording and

how long it is,

– the function “Record ” with the title of the programme

- 34 -

- 35 -

11.4 Editing the “Archives”

Moving recordings
