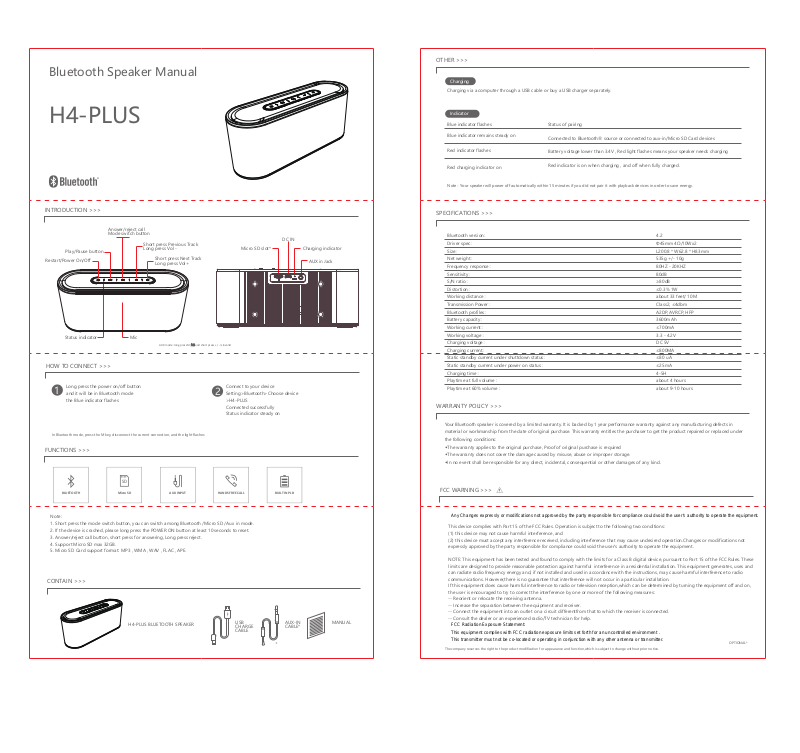

Bluetooth Speaker Manual
H4-PLUS
INTRODUCTION >>>
Answer/reject call
Mode switch button
Short press Previous Track
Play/Pause button
Restart/Power On/Off
Status indicator
HOW TO CONNECT >>>
Long press the power on/off button
1
and it will be in Bluetooth mode
the Blue indicator flashes
In Bluetooth mode, press the M key, disconnect the current connection, and the light flashes
FUNCTIONS >>>
Long press Vol -
Mic
Short press Next Track
Long press Vol+
AUX mode: long press M/ and short press + /- is invalid
Micro SD slot*
Connect to your device
2
Setting>Bluetooth>Choose device
>H4-PLUS
Connected successfully
Status indicator steady on
DC IN
Charging indicator
AUX in Jack
Charging
Charging via a computer through a USB cable or buy a USB charger separately.
Indicator
Blue indicator flashes
Blue indicator remains steady on
Red indicator flashes
Red charging indicator on
Note：Your speaker will power off automatically within 15 minutes if you did not pair it with playback devices in order to save energy.
Status of pairing
Connected to Bluetooth® source or connected to aux-in/Micro SD Card devices
Battery voltage lower than 3.4V , Red light flashes means your speaker needs charging
Red indicator is on when charging , and off when fully charged.
SPECIFICATIONS >>>
Bluetooth version:
Driver spec：
Size：
Net weight：
Frequency response：
Sensitivity：
S/N ratio：
Distortion：
Working distance：
Transmission Power：
Bluetooth profiles：
Battery capacity：
Working current：
Working voltage：
Charging voltage：
Charging current：
Static standby current under shuttdown status：
Static standby current under power on status：
Charging time：
Playtime at full volume :
Playtime at 60% volume :
4.2
Φ45mm 4Ω/10Wx2
L200.8 * W62.8 * H83mm
535g +/- 10g
80HZ - 20KHZ
80dB
≥80dB
≤0.3% 1W
about 33 feet/ 10M
Class2, ≤4dbm
A2DP, AVRCP, HFP
3600mAh
≤700mA
3.3 - 4.2V
DC 5V
≤800MA
≤80 uA
≤25mA
4-5H
about 4 hours
about 9-10 hours
WARRANTY POLICY >>>
Your Bluetooth speaker is covered by a limited warranty. It is backed by 1 year performance warranty against any manufacturing defects in
material or workmanship from the date of original purchase. This warranty entitles the purchaser to get the product repaired or replaced under
the following conditions:
◆The warranty applies to the original purchase, Proof of original purchase is required
◆The warranty does not cover the damage caused by misuse, abuse or improper storage.
◆In no event shall be responsible for any direct, incidental, consequential or other damages of any kind.
SD
BLUETOOTH AUX INPUT
Note:
1. Short press the mode switch button, you can switch among Bluetooth /Micro SD /Aux in mode.
2. If the device is crashed, please long press the POWER ON button at least 10 seconds to reset.
3. Answer/reject call button, short press for answering, Long press reject.
4. Support Micro SD max 32GB.
5. Micro SD Card support format: MP3 , WMA , WAV , FLAC , APE.
Micro SD
HANDS FREE CALL BUILT IN PLB
CONTAIN >>>
H4-PLUS BLUETOOTH SPEAKER
USB
CHARGE
CABLE
FCC WARNING >>>
Any Changes expressly or modifications not approved by the party responsible for compliance could
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not
expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However,there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.
AUX-IN
CABLE*
*
MANUAL
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The company reserves the right to the product modification for appearance and function,which is subject to change without prior notice.
void the user's authority to operate the equipment.
OPTIONAL*
