GSOU Technology BTF1 User Manual

正面 背面
F1 WIRELESS SPEAKER
MANUAL
INTRODUCTION >>>
Play/Pause button
HOW TO CONNECT >>>
Previous Track
Answer/reject call
Status indicator
Mode switch button
Next Track
CONTAIN >>>
USB CHARGE
CABLE
GSOU F1 WIRELESS SPEAKER
MANUAL
AUX-IN CABLE
(Not contain)
OTHER >>>
charging
Using a USB cable to connect to a computer or buy USB charger separately.
Blue indicator flashes
Blue indicator remains steadily on
Low power indicator flashes
Red charging indicator light
Note:Your speaker will power off automatically within 15 minutes if you did not pair it with playback devices in order to save energy.
Status of waiting for connecting
Connected to Bluetooth® source or connected to aux-in devices
Battery voltage lower than 3.3V , Red light flashes means your speaker
needs to be charged
Red indicator is on when charging , and off when fully charged
SPECIFICATIONS >>>
Driver speec:
Size:
Net weight:
RMS:
Frequency response:
Sensitivity:
S/N ratio:
MicPower On/Off
TF Card
AUX in Jack
DC IN
Distortion:
Transmission Power:
Bluetooth profiles:
Frequency range:
Working current:
Working voltage:
Charging voltage:
Charging current:
Φ45mm 2Ω/5W
L162*W64.2*H28.3 mm
256g
2.6W x 2
100HZ - 20KHZ
80db
≥-80db
≤0.4% @1W
about 33 feet
Class2 Class2, 4dbm
A2DP,AVRCP,HFP
2.40—2.480GHz
≤600mA
3.7V
DC 5V
700-800MA
WARRANTY POLICY >>>
1
FUNCTIONS >>>
Long press the power on/off button and it will be in Bluetooth mode
the Blue indicator flashes
WIRELESS MUSIC HAND FREE CALL
SETTING
BLUETOOTH
F1
Note: short press the Mode switch button, to switch between Bluetooth \ TF card \ Aux-in.
2
Connect to your device Setting>Bluetooth>Choose device >F1 Connected successful Blue indicator steddily on
Your Bluetooth speaker is covered by a limited warranty. It is backed by 1 year performance warranty against any manufacturing defects in
material or workmanship from the date of original purchase. This warranty entitles the purchaser to get the product repaired or replaced under
the following conditions:
◆The warranty applies to the original purchaser, Proof of original purchase is required
◆The warranty does not cover the damage caused by misuse, abuse or improper storage.
◆In no event shall Gsou be responsible for any direct, incidental, consequential or other damages of any kind.
FCC Warnings >>>
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However,there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
    Changes or modifications not expressly approved by the party responsible for compliance could void the user's
*
Bluetooth play 3.5mmAudio/TF Card support*Hands free call
The company reserves the right to the product modification for appearance and function,which is subject to change without prior notice.

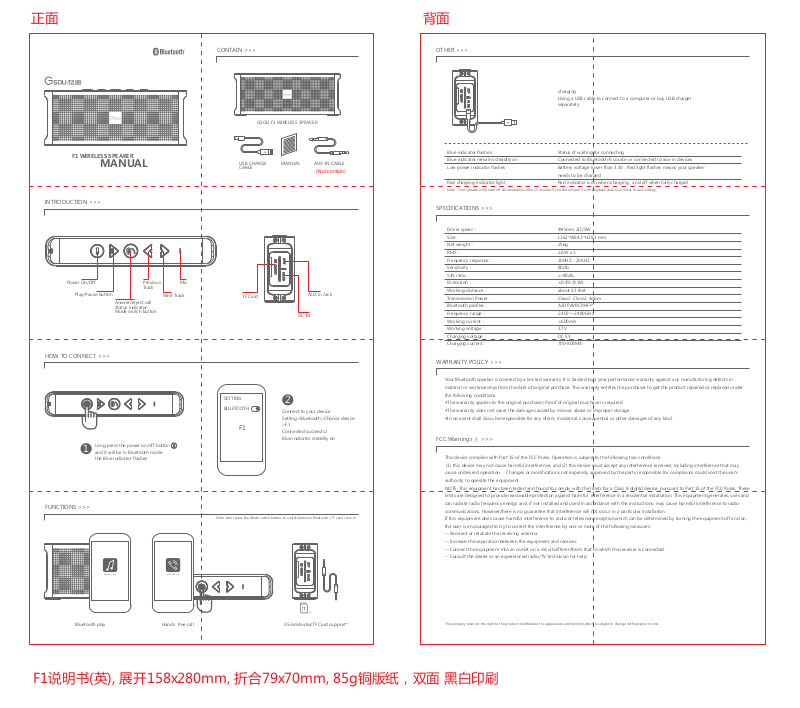

F1说明书(英), 展开158x280mm, 折合79x70mm, 85g铜版纸,双面 黑白印刷
