GSOU Technology BT210 User Manual

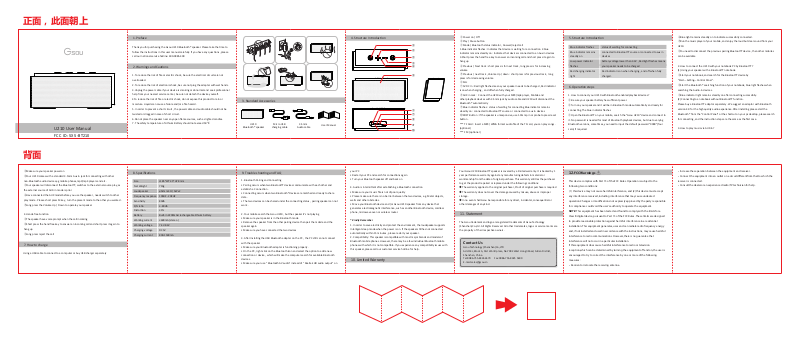

正面，此面朝上

U210 User Manual

FCC ID: SXS-BT210

背面

①Make sure your speaker power on
②Your U210 comes with a standard 3.5mm Aux in jack for connecng with other

non-Bluetooth audio devices,eg mobile phones,mp3/mp4 players and etc.
③Your speaker will disconnect the Bluetooth®, switches to the external source play, as

the external source of AUX-in mode is prior
④Have connected the AUX model before you use the speaker , needs switch to other

play mode . Please short press M key , turn the present mode to the other you wanted .
⑤Long press the Volume Up / Down to operate your speaker

4. Hands-free Funcon

①The speaker have voice prompt when the call incoming
②Short press the hand free key to answer an incoming call and short press it again to

hang up

③Long press reject the call

7. How to charge

Using a USB cable to connect to a computer or buy USB charger separately

1. Preface 5. Structure Introducon 4. Structure Introducon

Thank you for purchasing the Gsou U210 Bluetooth® speaker. Please take the me to

follow the instrucons in this user manual carefully. If you have any quesons , please

call our naonal service hotline: [phone]

2. Warnings and Cauons

1. To reduce the risk of fire or electric shock, be sure the electrical circuits are not

overloaded.

2. To reduce the risk of electronic shock, be sure not plug the adapter with wet hands.

3.Unplug the power cable if your device is smoking or abnormal and seek professional

help from your nearest service center, be sure not detach the device yourself.

4.To reduce the risk of fire or electric shock, do not expose this product to rain or

moisture. Liquids can cause a failure and/or a fire hazard.

5. In order to prevent a short circuit , the power cable and audio cable should not be

twisted or dragged in case of short circuit.

6.Do not place the speaker near any open flame sources, such as lighted candles.

7. The safety temperature of Lithium Baery should not exceed 50

℃

8. Specificaons

Size

Net Weight

Loudspeaker

Frequency response

Sensivity

S/N rao

Distoron

Baery

Working current

Working voltage

Charging voltage

Charging current

L185*W72.5*H78 mm

710g

ø52mm 4Ω / 5Wx2

100HZ - 20KHZ

80db

≥ -80db

≤1%

Built-in 2200mAH rechargeable lithium baery

≤600mA (stereo )

7.4V-8.4V

DC 5V

800-1500mA

3. Standard Accessories

U210

Bluetooth® speaker

Micro USB

charging cable

3.5mm

Audio cable

User Manual

9. Trouble shoong and FAQ

1. Bluetooth Pairing and Connecng

• Pairing occurs when two Bluetooth® devices communicate with each other and

establish a Connecon .

• Connecng occurs when two Bluetooth ®devices are matched and ready to share

data .

• The two devices can be shared under the connecng status , pairing speaker can not

work .

2. Your mobile search the Gsou U210 , but the speaker it’s not playing

• Make sure your speaker is in the Bluetooth mode

• Remove the speaker from the other pairing device then pair the mobile and the

speaker again

• Make sure you have connected the two devices

3. Aer Installing the USB Bluetooth adapter on the PC , the PC sll can not connect

with the speaker

• Make sure your Bluetooth adapter is funconing properly .

• On the PC , right-click on the Bluetooth icon and select the opon to add a new

connecon or device , which will make the computer search for available Bluetooth

devices .

• Make sure your use “ Bluetooth AV audio” instead of “ Realtek HD audio output” on

your PC

• Restart your PC and search for connecons again

• Turn your Bluetooth speaker off and back on

4. Audio is intermient aer establishing a Bluetooth connecon

• Make sure your music file is not of poor quality

• Please make sure there is no barrier between the two devices, e.g. Metal objects ,

walls and other obstacles .

• Move your Bluetooth device and /or Gsou U210 speaker from any device that

generates electromagnec interference, such as another Bluetooth device, cordless

phone, microwave oven or wireless router.

* Kindly Remember

1. In order to save electricity and protect the environment, the loudspeaker supports

Intelligent sleep mode when the power is on. If the speaker sll has not connected

automacally within 15 minutes , please restart your speaker .

2. Compability: This speaker is compable with most major brands and models of

Bluetooth mobile phones. However, there may be a few individual Bluetooth mobile

phones with which it is not compable. If you experience any compability issues with

this speaker, please call our customer service hotline for help.

10. Limited Warranty

① Power on / Off

③

④

②

⑤
⑥

⑨

①
⑦

⑧

*

⑩

② Play / Pause buon
③ Mode / Bluetooth status indicator , Answer/reject call

1.Blue indicator flashes : Indicates that device is waing for a connecon 2.blue

indicator remains steadily on : Indicates that device is connected to an Aux in devices

3.Short press the hand free key to answer an incoming call and short press it again to

hang up

④ Previous / Next track : short press is for next track , long press is for increasing

volume
⑤ Previous / next track , Volume Up / down : short press is for previous track , long

press is for decreasing volume

⑥ Mic
⑦ 5V DC In : Red light flashes means your speaker needs to be charged , Red indicator

is on when charging , and off when fully charged .
⑧ AUX in Jack：

other playback devices with 3.5mm jack by audio cable and U210 will disconnect the

Bluetooth® automacally
⑨ Blue indicator flashes : status of waing for connecng Blue indicator remains

steadily on : connected to Bluetooth® source or connected to aux in devices
⑩ ROST Buon : If the speaker is unresponsive, use 1.0mm pin or probe to press reset

buon .

*** TF Card : Insert a MP3/ WMA format audio file of the TF card, you can play songs .

(oponal)

*** FM ( oponal )

Your Gsou U210 Bluetooth® speaker is covered by a limited warranty. It is backed by 1

year performance warranty against any manufacturing defects in material or

workmanship from the date of original purchase. This warranty entles the purchaser

to get the product repaired or replaced under the following condions:

◆The warranty applies to the original purchaser, Proof of original purchase is required

◆The warranty does not cover the damage caused by misuse, abuse or improper

storage.

◆In no event shall Gsou be responsible for any direct, incidental, consequenal or

other damages of any kind.

Connect the U210 with your MP3/mp4 player, Mobile and

11. Statement

The Gsou trademark and logo are registered trademarks of Gsou Technology

(Shenzhen)Co.,Ltd. All Rights Reserved. All other trademarks, logos or service marks are

the property of their respecve owners.

Contact Us

Gsou Technology (Shenzhen)Co.,LTD
Add:14c, Block A, First World plaza, No.7002 West Hongli Road, Fuan District,
Shenzhen, China.
Tel:[phone] Fax:[phone]
E-mail:[e-mail]

Blue indicator flashes

Blue indicator remains

steadily on

Low power indicator

flashes

Red charging indicator

light

status of waing for connecng

connected to Bluetooth® source or connected to aux in

devices

baery voltage lower than 3.3V , Red light flashes means

your speaker needs to be charged

Red indicator is on when charging , and off when fully

charged .

6. Operaon steps

1. How to connect your U210 with Bluetooth-enabled playback devices?
①Be sure your speaker baery has sufficient power.
②Turn on your speaker and it will be in Bluetooth mode automacally and ready for

connecng. The blue indicator flashes
③Open the Bluetooth® on your mobile, search the “Gsou U210” device and connect to

it. No password is needed for most of Bluetooth playback devices, but due to varying

Bluetooth versions, somemes, you need to input the default password “0000”(four

zero) if required.

12.FCC Warnings

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired

operation.Changes or modications not expressly approved by the party responsible

for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However,there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception,which can be determined by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

-- Reorient or relocate the receiving antenna.

④Blue light remains steadily on to indicate successfully connected.
⑤Run the music player of your mobile, and enjoy the loud but clear sound from your

U210.

⑥You need to disconnect the previous pairing Bluetooth® device , then other mobiles

can be available

2. How to connect the U210 with your notebook PC by Bluetooth®?

(1) Using your speaker with a Bluetooth® notebook.
①Start your notebook, and search for the Bluetooth® device by

“Start—Seng—Control Panel”.
②Start the Bluetooth® searching funcon of your notebook, blue light flashes when

searching the Audio-in devices.
③Blue indicator light remains steadily on aer connecng successfully.

(2) Connecng to a notebook without Bluetooth® funcon.

Please buy a Bluetooth® adaptor separately . We suggest an adaptor with Bluetooth

version 4.0 for the high quality audio experience. Aer installing please start the

Bluetooth® from the “Control Panel” or the shortcut on your pc desktop, please search

for connecng, and the instrucon steps are the same as the first case.

3. How to play music via AUX-in?

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit dierentfrom that to which the

receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.
