1. INTRODUCTION
Smart-Cell is a repeater, which has been designed to improve signals in blanket/shadow
areas inside of buildings to transmit Veri zon’s signals at 700MHz, 850MHz, 1900MHz, and
2100MHz frequencies. User may choose filtering configuration according to the specific
site circumstances.
1.1. Warning
1.1.1 FCC Warning Statements
1) FCC Part 15.19 :
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
2) FCC Part 15.105 :
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
expense.
3) FCC Part 15.21 :
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Verizon User Manua l
5
Smart-Cell Repeater
4) FCC Part 27.5, IC SRSP-518
Antennas must be installed in accordance with FCC 27.50 and SRSP 518.
Please note that EIRP based on antenna gain after accounting for cable loss should be less
than 50 Watt (47 dBm) for Donor side. For Service side, with 2dBi gain antennas the height
of the antenna above average terrain (HAAT) must not exceed 14.496 m. For different gain
antennas refer to the relevant rules.
5) FCC Warning Label
WARNING. This is NOT a CONSUMER device. It is designed for installation by FCC
LICENSE and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or
express consent of an FCC Licensee to operate this device.
Unauthorized use may result in significant forfeiture penalties, including penalties in excess
of $100,000 for each continuing violation.
Verizon User Manua l
6
1.1.2. IC Warning state
Smart-Cell Repeater
1) RSS-GEN, Sec. 7.1.2 – (transmitters)
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that t he equivalent isotr opically radiated power (e.i.r.p.) is not more than that necessary
for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut
fonctionneravec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour
l’émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage radioélectrique à l’intention desautres
utilisateurs,
il faut choisir le type d’antenne et son gain de sorte que la puissance isotroperayonnée
quivalente (p.i.r.e.) ne dépassepas l’intensité nécessaire à l’établissement d’une communication
satisfaisante.
2) RSS-GEN, Sec. 7.1.2 – (detachable antennas)
This radio transmitter (identify the device by certification number, or model number if Category
II)has been approved by Industry Canada to operate with the antenna types listed below with
the maximum permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro
de modèle s’il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour
fonctionner avec les types d’antenne énumérés ci-dessous et ayant un gain admissible maximal
et l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette
liste,ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour
l’exploitation de l’émetteur.
3) RSS-131 Section 5.3 User Manual
The following notice: "The Manufacturer's rated output power of this equipment is for single carrier
operation. For situations when multiple carrier signals are present, the rating would have to be reduced
Verizon User Manua l
7
Smart-Cell Repeater
by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band
users. This power reduction is to be by means of input power or gain reduction and not by an attenuator
at the output of the device."
4) RF Radiation Exposure
This equipment complies with RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of at
least 110 cm with 2dBi antenna gain or 500 cm with 15dBi antenna gain between the radiator
and your body. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter. RF exposure will be addressed at time of installation and the use
of higher gain antennas require larger separation distances.
5) RSS-102 RF Exposure
L'antenne du donneur a une antenne 15dBi gain.Antenna doit être installé pour maintenir en
tout temps un minimum de distance d'au moins 500 cm entre la source de rayonnement
(antenne) et toute personne physique.
L'antenne de service comporte une antenne 2 dBi gain.Antenna doit être installé pour maintenir
en permanence une distance minimale d'au moins 110 cm entre la source de rayonnement
(antenne) et toute personne physique.
Cet appareil ne doit pas être installé ou utilisé en conjonction avec une autre antenne ou
émetteur.
1.1.3. etc.
1) Use of unauthorized antennas, cables, and/or coupling devices not conforming with
ERP/EIRP and/or indoor-only restrictions is prohibited.)
2) Home/ per sonal use are prohibited.
Verizon User Manua l
8
Smart-Cell Repeater
1.2. GST Smart-Cell Repeater Advantages
It provides selectable RF power levels for any wireless technology / band.
It has individual monitoring multiple technology.
FPGA digital filtering provides optimized RF performance.
It allows modification of technology via customer interface.
It is easily installed.
Frequency is easy to add / delete / change.
It has scalable single and multi-service design.
Customer data service is improved by adding 4G (LTE).
It meets all Verizon’s technology requirements.
It guarantees 5 year warranty for all individual components.
Its modular design is a customer friendly and efficient.
1.3. Repeater Operation
Simple replacing of the amplifier unit allows changing the service. Smart-Cell repeater
provides service at 700MHz, 800MHz, 850MHz, 1900MHz, and 2100MHz. One PSU
supplies electricity to maximum 4 amplifier units
9
1.4. Abbreviation
DFM Digital Filter Module
PSU Power Supply Unit
ALC Auto Level Control
SNMP Simple Network Management Protocol
AOC Auto Oscillation Check
Caution: Risk of explosion if battery on the controller board is replaced by an
Verizon User Manua l
Smart-Cell Repeater
incorrect type.
Verizon User Manua l
10
Smart-Cell Repeater
2. SYSTEM CONFIGURATION
2.1. Smart-Cell Repeater Service Network Configuration
Smart-Cell RF Repeater is designed for improving coverage and capacity of Verizon’s LTE
& CDMA services nationwide. The repeater can provide coverage for all troubled areas
such as suburban, shadow areas, backside of mountains, urban and metropolitan
locations.
GST products are easy to install, have remote status monitoring and control functions
(NMS System) via wired line and wireless modems.
<Figure 1> In-building Repeater Service Organization
11
2.2. System Design and Operation
2.2.1. System Design
Verizon User Manua l
Smart-Cell Repeater

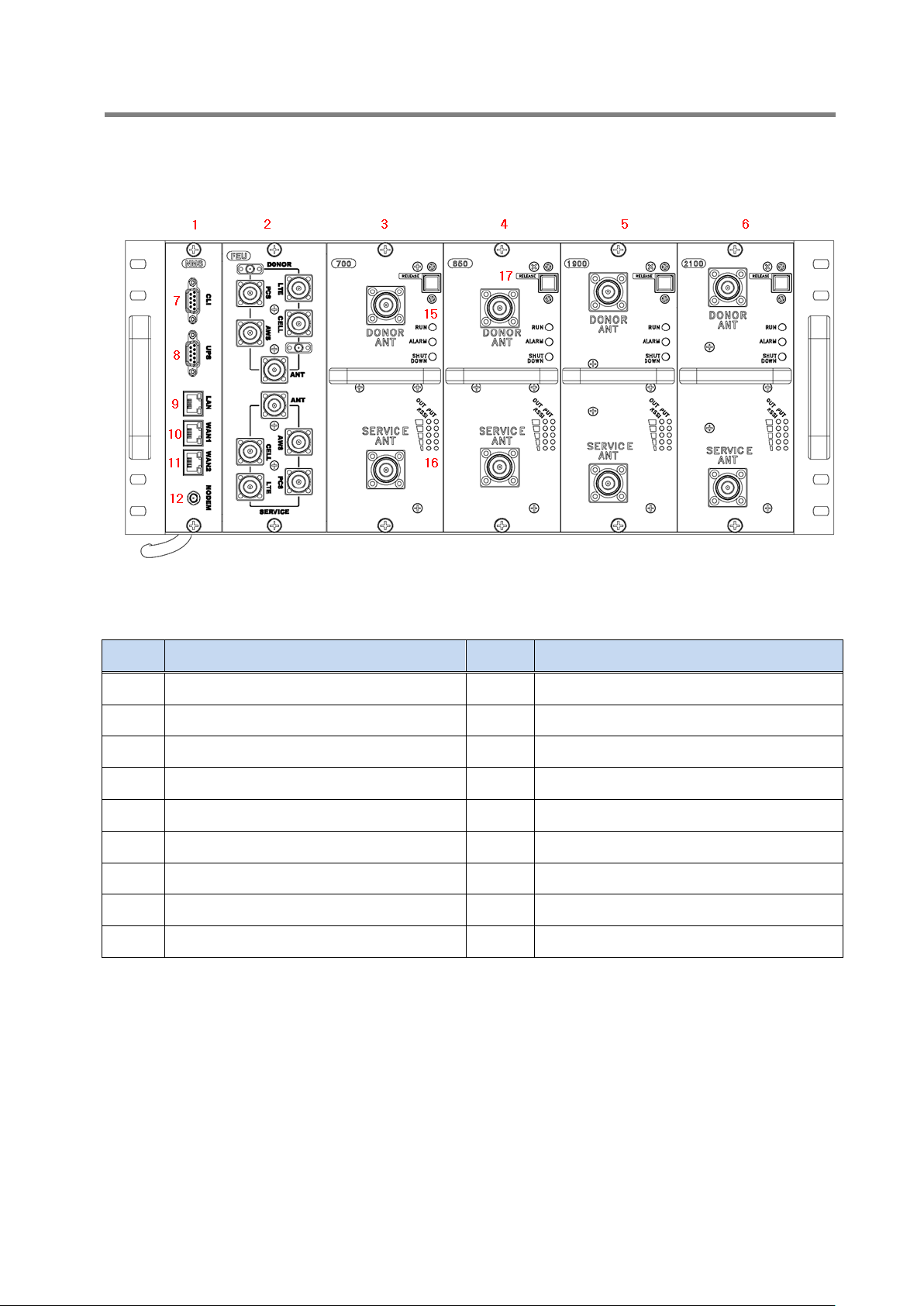

<Figure 2> Smart-Cell Repeater Front Design
NO. PART NO. PART
1 SNMP 10 WAN 1
2 FEU (Cavity Filter) , optional 11 WAN 2
3 Service Unit #1 12 Modem Connector
4 Service Unit #2 13 Donor Port
5 Service Unit #3 14 Coverage Port
6 Service Unit #4 15 Status LED (RUN/Alarm/Shutdown)
7 CLI 16 Input / Output LED
8 UPS 17 Release Button
9 LAN
Verizon User Manua l
12
1
2 3 5
4
Smart-Cell Repeater
<Figure 3> Repeater Port Design (Rear View)
NO. PORT NO. PORT
1 Main FAN 4 DC 12V output (for EMB)
2 PSU FAN 5 Power Cable
3 Main Switch
2.2.2. Downlink/ Uplink Path
The Smart-Cell repeater improves service in the 700MHz, 800MHz, 850MHz, 1900MHz
and 2100MHz frequency bands. User may select frequency band according to the site
peculiarities. After receiving a weak signal from donor antenna, the repeater improves
and sends securely isolated signal out to service antenna.
Amplifier unit is designed for correspondent operation with digital filter module (DFM).
The AMP unit consists of a down and up converters, cavity filter and power amplifier
(PAU).
In Downlink Path, a weak RF signal is received from Donor Antenna. Being converted
from RF to IF signal, it is transferred to the DFM, where after digitalizing by DA
converter, signal is filtered by FPGA. After filtering digital, signal is converted into
analog RF signal with modulator. Transmit to amplifier. Desirable signal is amplified and
outputted through Service Antenna. Uplink path works vice versa.
Verizon User Manua l
13
BAND
DL
UL
Remarks
Smart-Cell Repeater
<Figure 4> Smart-Cell Repeater Block Diagram
2.2.3. 700MHz Frequency Selection (LTE )
<Figure 5> Smart-Cell Repeater 700 Block Diagram
700MHz Amp Unit provides a service that meets the 3GPP2 LTE standard. Support up to
two non-contiguous blocks. And each block has the minimum 5MHz bandwidth.
Lower A 731 701 LTE 5MHz
Lower B 737 707 LTE 5MHz
Lower C 743 713 LTE 5MHz
Upper C 751 782 LTE 10MHz
Verizon User Manua l
14
Smart-Cell Repeater
2.2.4. 800MHz Frequency Selection (iDEN)
<Figure 6> Smart-Cell Repeater 800 Block Diagram
800MHz Amp Unit has service Cellular 1FA and provides LTE 5MHz (25RB) by default.
On / Off control of the service Block is possible. Each block‘s bandwidth are as follows.
(CDMA[UL] – 1.25MHz, LTE[UL] – 4.505MHz, CDMA[DL] – 1.25MHz, LTE[DL] – 4.505MHz)
2.2.5. 850MHz Frequency Selection (Cellular)
<Figure 7> Smart-Cell Repeater 850 Block Diagram
850MHz Cellular service provides by default, and supports up to two non-contiguous
blocks. Each block‘s bandwidth are as follows, and it is possible to choose any
combination of any band. (A1 - 11MHz, B1 - 10MHz, A2 - 1.5MHz, B2 - 2.5MHz.)
2.2.6. 1900MHz Frequency Selection (PCS)
<Figure 8> 1900MHz Band Frequency
1900MHz AMP Unit is basically complied with PCS Band block, where maximum three
non-contiguous filtering configurations are available. Each sub block is adjustable per
1.25MHz bandwidth step up to 20MHz. Following table shows user selectable channel
numbers.
Verizon User Manua l
15
Smart-Cell Repeater
BAND
A1
guard 1935 100 1968.75 775
A
A2
guard 1940 200 1973.75 875
A3
guard 1945 300 1978.75 975
D
DL CENTER
[MHz]
1931.25 25 guard 1965 700
1932.5 50
1933.75 75 1967.5 750
1936.25 125 guard 1970 800
1937.5 150
1938.75 175 1972.5 850
1941.25 225 guard 1975 900
1942.5 250
1943.75 275 1977.5 950
1946.25 325 guard 1980 1000
1947.5 350
CHANNEL BAND
E
F
C1
DL CENTER
[MHz]
1966.25 725
1971.25 825
1976.25 925
1981.25 1025
CHANNEL
1948.75 375 1982.5 1050
guard 1950 400 1983.75 1075
1951.25 425 guard 1985 1100
B
B1
guard 1955 500 1988.75 1175
B2
guard 1960 600
B3
1952.5 450
1953.75 475 1987.5 1150
1956.25 525
1957.5 550
1958.75 575
1961.25 625
1962.5 650
1963.75 675
C
C2
1986.25 1125
C3
Verizon User Manua l
16
Smart-Cell Repeater
2.2.7. 2100MHz Frequency Selection (AWS)
F1 F2
<Figure 7> 2100MHz Band Frequency
2100 Amp Unit has basically satisfies the CDMA standard, and supports non-contiguous
2 block. If you select “contiguous button”, Web UI has select the contiguous F band.
And you don’t select “Contiguous button”, Web UI has select the each band of F1 and
F2. Frequency range of each band as follows.
BAND
F1 2145.15 2149.85 1745.15 1749.85
F
guard - - - -
F2 2150.15 2154.85 1750.15 1754.85
Start Stop Start Stop
Downlink Uplink
17
3. SYSTEM SPECIFICATIONS
3.1. RF Performance
Item Specification Remark
DL : 728.5MHz ~ 739.5MHz
Verizon User Manua l
Smart-Cell Repeater
700MHz
800MHz
Frequency
850MHz
1900MHz
2100MHz
Maximum Input Power -27dBm
Output Power (ANT Port) +33dBm / 2W To t a l
746MHz ~ 756MHz
5MHz / 10MHz
UL : 698.5MHz ~ 709.5MHz
777MHz ~ 787MHz
DL : 862MHz ~ 863.8MHz
864MHz ~ 868.6MHz
1.8MHz + 4.8MHz
UL : 817MHz ~ 818.8MHz
819MHz ~ 823.6MHz
DL : 869MHz ~ 894MHz
UL : 824MHz ~ 849MHz
DL : 1930MHz ~ 1990MHz
UL : 1850MHz ~ 1910MHz
DL : 2145MHz ~ 2155MHz
UL : 1745MHz ~ 1755MHz
25MHz
60MHz
10MHz
18
3.2. System Specifications
Parameter Specification Remark
Range 60dB ~ 90dB
Verizon User Manua l
Smart-Cell Repeater
Gain
Adjust Accuracy ±1dB
700MHz
< 3.0dBp-p
800MHz
Flatness
Propagation Delay ≤ 6us
Noise Figure Max Gain < 7dB
850MHz
1900MHz
2100MHz
VSWR 1.7 : 1
750MHz 45dBc @±5MHz/10MHz
800MHz
< 5.0dBp-p
> 45 dBc ±750KHz
>50dBc@±1.98KHz
45dBc @±5MHz/10MHz LTE
> 45 dBc ±885KHz
Adjust Step ±0.5dB
CDMA
ACP
Roll off
Characteristic Impedance 50Ω
850MHz
1900MHz
2100MHz 45dBc @±5MHz/10MHz
700MHz ±1MHz ＞ 45dBc
800MHz ±1MHz ＞ 45dBc
±1MHz ＞ 45dBc
850MHz
±250kHz ＞ 30dBc
1900MHz ±1MHz ＞ 50dBc
2100MHz ±1MHz ＞ 40dBc
>52dBc@±1.98KHz
<-13dBm@Fc±2.25MHz (RBW: 1MHz)
> 45 dBc ±750KHz
>52dBc@±1.98KHz
<-13dBm@Fc±2.25MHz (RBW: 1MHz)
19
3.3. Electrical and Environmental Specifications
Item Specification Remark
RF Connector N-Type Female Donor & Server ANT Port
AC Supply AC 110V 60Hz 3.0A
3.1” x 15.5” x 7.7” AMP unit
Out Dimension
19” x 19” x 7.9” System (Rack mount)
13lbs 700 unit
11.5lbs 850 unit
Verizon User Manua l
Smart-Cell Repeater
Weight
Operation Temperature -10℃ ~ +50℃ Convection cooling
Humidity 5% ~ 95% Non-condensing
Vibration Resistance
MTBF 50,000 hours
11.5lbs 1900 unit
10lbs 2100 unit
19” rack + NMS + PSU
23
(except AMP units and FEU)
1G, 10~150Hz
0.1 Octaves/min
3.4. Functions
Parameter Specification
Gain Control
• Adjustable DL and UL Gain range 60dB ~ 90dB.
• Display default Gain and current Gain function
ALC
Auto Limit
Control
Band Select
• To limit output powers as far as default range.
• Used for DAS configuration and when oscillation/isolation is a concern.
• Automatic Gain decrement when output power of repeater is higher than
default level.
• Automatic Gain recovery when output power of repeater is reduced.
• Shutdown when output power is higher than default level in the minimum gain.
• Automatic Recovery Algorithm conversion after shutdown status.
• 700MHz : Lower A(5MHz)/Lower B(5MHz)/Upper C(10MHz)
• 850MHz : A1(11MHz)/B1(10MHz)/A2(1.5MHz)/B2(2.5MHz)
• 1900MHz : 1.25MHz ~ 20MHz/1.25MHz step
Verizon User Manua l
20
Oscillation
AOC on
Isolation Detect
< I solation Limit
ALC Attenuation
+5dB
Isolation Detect
< I solation Limit-4
ALC Attenuation
+1dB
No
Yes
ALC Attenuation
≥30dB
Shutdown
Yes
Yes
No
Isolation Detect
> Isolat ion Limit-3
ALC Attenuation-1dB
Yes
No
No
Smart-Cell Repeater
• 2100MHz: 5MHz/10MHz
Power
Monitoring
Oscillation Check
Automatic
Recovery
Security
• Monitoring repeater’s output level.
• Isolation Check in initial set up or Reset.
• When Oscillation occurred, repeater attempts to stabilize Isolation through Gain
control function.
• Shutdown repeater when oscillation still occurs in the minimum Gain.
• Automatic Recovery Algorithm conversion after shutdown status.
• When repeater is shutdown, it periodically recovers output power of repeater
then monitors alarming.
• Support HTTPS for Web Browser security.
• User authentication through User ID and Password.
• AOC Use for prevented oscillation
AOC
Auto
Check Function
VSWR
Monitoring
DHCP Client • Automatic IP assignment.
DHCP Server • Server function for automatic IP assignment.
Web GUI • Remote and local user browser support through Web Browser.
SNMP Agent • NMS report via SNMPv2 Trap.
LED Display
• Monitoring VSWR of Service ANT Port.
• Reporting VSWR Alarm and Shutdown when the rate is 3:1.
• LED displays power and operation status on front side of repeater system.
• Input and Output signal levels are verified by LED bars.
Verizon User Manua l
21
Smart-Cell Repeater
4. SETUP
4.1. Equipment Needed for Repeater Setup
Parameter Item Quantity Remark
Major Component Smart-Cell Repeater 1 EA Provided by GST
Additional
Components
Antenna
RF Cable Antenna connection Cable TBD Not Included
Testing and
Measuring Equipment
WALL Mounting Bracket
CD which contains User Manual
V.1.0 and Installation Guide V.1.0
Ethernet Cable 6.6ft (2m)
Ground Cable 6.6ft (2m)
Ground Sems Screw M4 x 8mm
Bracket Sems Screw M6 x 10mm
Lag Screw 12.7mm x 50.8mm
FEU-AMP unit cable
FEU-Wall Bracket cable
Donor ANT
Server ANT
Spectrum Analyzer 1 EA Not Included
1 EA
1 EA
1 EA
1 EA
Provided by GST
4 EA
4 EA
4 EA
8 EA
2 EA
1 EA
Not Included
1 EA
4.1.1. Check points before turning on the Repeater
1) System Power Check
① AC electrical power to the repeater should be 110V, input electricity only after
power verification.
2) Input RF Signal Range
① Optimal input RSSI into the repeater is -57dBm ~ -27dBm for
700MHz/850MHz/1900MHz/2100MHz. User should verify input condition of
Donor ANT. If the input RSSI exceeds -27dBm, then external attenuators should
be used.
22
3) Isolation check between DONOR/SERVEICE ANT
① Isolation condition of this equipment is 105dBc (Gain+15dB). User should check
its condition before installation.
4.1.2. Open for Service
1) Check points before open:
① Verification of system installation status :
Electricity, In/Out antennas, cable connection, and equipment mount status.
② Verification of system accessories :
User should check all necessary accessories.
③ Check receipt signal level :
Installer should check whether environmental conditions are in accordance
Verizon User Manua l
Smart-Cell Repeater
with system specification to ensure that system operation will be optimized.
2) Check points after open:
① Check external LED
RUN: Green light ON (Off: all lights off)
ALARM: Green light in normal status, Red light in alarming
SHUT DOWN: Green light in normal status, Red light in Shutdown status
Verizon User Manua l
23
Smart-Cell Repeater
4.1.3. Signal Strength LED Check
Number of LED bars Input Signal Level Output Power Signal Level
LED 1 bar Less than -86dBm Less than +5dBm
LED 2 bars -85dBm ~ -79dBm +6dBm ~ +10dBm
LED 3 bars -78dBm ~ -72dBm +11dBm ~ +15dBm
LED 4 bars -71dBm ~ -65dBm +16dBm ~ +20dBm
LED 5 bars More than -64dBm More than +21dBm
<Figure 9> Modular Repeater Front LED
Verizon User Manua l
24
Smart-Cell Repeater
4.2. Setting up the Repeater
4.2.1. Quick GUI/Configuration
Use the following steps to commission the Repeater after all the cabling and antennas
are fixed in place and the Repeater is supplied with proper electrical power. The
repeater will need a good quality stable Downlink RSSI input level in the range of -
85dBm to -60dBm.
1) Connect your laptop to the repeater with a Crossover Ethernet cable.
2) Verify that your laptop has all wireless connections off and is Obtaining an IP address
automatically, or is using a proper fixed IP address such as: Use the following IP
address: 172.16.6.81 with a Subnet Mask of 255.255.255.252.
3) Open Internet Explorer and go to: 172.16.6.81
4) User name: admin
5) Password: admin
4.2.2. Quick Setup
1) Go to the RF Configuration page.
2) Before the Amplifier (HPA) can be turned on, set the Uplink and Downlink
attenuation (ATT) to the maximum value and click Apply.
3) Select the correct Band Block and set the ALC Downlink and Uplink Limits to the
desired level and click Apply. (To adjust the Output Power, change the ALC
Downlink and Uplink Limits to the desired levels).
4) To check the Repeater’s status, click on the Status page.
5) To change the Repeater’s gain/attenuation, adjust the Uplink and Downlink
attenuation in equal amounts not more than 5dB at a time and click Apply.
25
4.3. Web UI Ranges Table
GUI Feature Range Description
Verizon User Manua l
Smart-Cell Repeater
Downlink and Uplink Output
Power Display
Downlink Low RF Power 2dB to 10dB Threshold for Low RF Power
Downlink and Uplink
Attenuation Control
Downlink and Uplink ALC
Limit
Downlink RSSI Display -100dBm to -27dBm
Downlink Low RSSI -93dBm to -57dBm Threshold for Low RSSI
Downlink and Uplink AMP
Control
Gain Balance Control On/Off Equalizes Uplink and Downlink Gain
Gain Balance Value 0dB to 15dB Subtract Uplink Gain by G/B Value
Below 0dBm to
The output Power of the Repeater
35dBm
0dB to 30dB Reduces Gain Internally
0dBm to 33dBm Limits Output Power
Downlink Receive Level at Donor
Antenna Port
On/Off High Powered Amplifier
Shutdown Control On/Off Shutdown if Major Alarm is Reported
Automatic Gain Setting for the
Auto Gain Setting On/Off
Repeater
Auto Oscillation Check On/Off Preventing Oscillation
Temperature Display 32 to 260.6 Degrees Internal Repeater Temperature
AMP Temperature Upper
0 to 299 Degrees Threshold for Temperature Alarm
Limit
The Channel the Repeater will be
Band Blocks Used/Bandwidth Each AMP
using
Time Delay of Reporting after Alarm is
Delay Alarm Report 0 or 5 Minutes
Detected
Verizon User Manua l
26
* The Downlink Output Power should not exceed the
xceeding the
composite power spec for this unit, try to increase
* Add equal amounts of Uplink and Downlink
attenuation until the Downlink Output Power is less
ALC Downlink Limit on the RF Configuration
Smart-Cell Repeater
4.4. Troubleshooting
In case of abnormal operation, technician should diagnose abnormality via remote
access or directly connecting to repeater using Ethernet cable. If technician is required
to conduct repairs due to major alarm, repeater should first be powered off, and then
technician should prepare the proper measurement equipment before trying to fix the
problem. In most cases of major repairs, GST will simply replace the unit and conduct
repairs at the appropriate facility.
4.4.1. Simple Troubleshooting Method
1) Verify LED Status, both on external LED’s as well as internal module LED’s
- Normal operation: Green light on. Alarming: Red LED on.
2) Technician should check external and internal connectors to ensure that all
connections are tightly secure. These connectors should be cleaned regularly.
3) If technician thinks there is a serious problem, call after sales team for over-the-
phone technical support. 1-866-9-GST-USA (1-866-947-8872)
4.4.2. Alarm Information
Alarm
Name
Downlink
Spurious
emissions
out of spec
What causes this
alarm
Downlink Output
Power exceeds
Downlink Upper Limit
maximum composite power spec for this unit.
* If the Downlink Output Power is not e
the Downlink Upper Limit on the RF Configuration
Page.
Troubleshooting Methods
than the Downlink Upper Limit.
* Set the
Page to a value lower than the Downlink Upper Limit
27
on the
power too
Limit level on the
the line" to check for loose or damaged
* If after checking the entire Server side, the VSWR
alarm still exists and the system is working fine,
power too
s Tech Support Team and exchange the
resolved in accordance
Uplink Out
of band
* The Uplink Output Power should not exceed the
* If the Uplink Output Power is not exceeding the
composite power spec for this unit, try to increase
Downlink
Hardware
failure
Downlink
Donor
low
Downlink
Verizon User Manua l
Smart-Cell Repeater
* By default, if the Downlink Low Output Variance is
Downlink path gain is
set to 10dB, the Repeater will not report this alarm.
6dB less than RSSI
* Increase the Downlink Low Output Variance
plus Output Power
RF Configuration Page.
* By default, if the RSSI Lower Limit is set to -93dBm,
Input RSSI from
the Repeater will not report this alarm.
Donor site is 8dB less
* Decrease the Downlink Low RSSI
than Downlink Low
RF Configuration Page.
Input Limit
* Increase the RSSI level into the Repeater.
* "Sweep
When the VSWR
connectors and/or cabling.
Ratio on the Server
VSWR
Downlink
Donor
high
Downlink
Synthesizer
failure
Downlink
Interfere
power
Port is greater than
3 : 1
Downlink Input
Power exceeds -
25dBm
Synthesizer (in
Downlink path) has
occur Failure
If an external signal is
higher than the in
band signal, more
Disable the alarm on the Alarm Configuration page.
* Check the direction of donor antenna
* Even if higher input power after the modifying
direction of donor antenna, Be adding an attenuator
at the Donor port.
* By using a switch on the back of the repeater,
resets the power
* Call to GST’
AMP unit.
* Call the GST’s Te ch Te am ,
with the procedure.
exceeded
emissions
out of spec
than 15dB signal
Uplink Output Power
exceeds Uplink Upper
Limit
maximum composite power spec for this unit.
28
* Add equal amounts of Uplink and Downlink
attenuation until the Uplink Output Power is less
* Set the ALC Uplink Limit on the RF Configuration
Power at
port too
Uplink to adjust the output of the additional
s Tech Support Team and exchange the
s Tech Support Team and exchange the
or antenna is on the same side
* Change the types of antennas used, such as Yagi to
Reflector for outdoors, and Omni to a Panel
t indoor service antenna farther
Uplink
Verizon User Manua l
Smart-Cell Repeater
the Uplink Upper Limit on the RF Configuration Page.
than the Uplink Upper Limit.
Page to a value lower than the Uplink Upper Limit
* Check the direction of Coverage antenna
* When another device is connected to the Coverage
coverage
high
Uplink
Synthesizer
failure
(Uplink
Hardware
failure)
Uplink
(Downlink)
Software
failure
Uplink Input Power is
higher than -25dBm
Synthesizer (in uplink
path) has occur
Failure
When an alarm
occurs in DFM's at
the AMP unit.
port as DAS System
1) Add an attenuator on Coverage port, or
2)
equipment.
* By using a switch on the back of the repeater,
resets the power
* Call to GST’
AMP unit.
* By using a switch on the back of the repeater,
resets the power
* Call to GST’
AMP unit.
Insufficient isolation
Oscillation
is detected when the
detected/Lo
w isolation
Repeater is at
minimum gain
* Verify that the Don
of the building as the Donor site, and if needed, raise
the Donor antenna up on a pole.
Corner-
for indoor use.
* Move the closes
away from the outside Donor antenna.
29
* Close the repeater door if opened and verify that
the closest indoor coverage antenna is not in the
* Call to GST's Tech Support Team to verify that all
the Alarm
Supply out
* If the system is working fine, disable the alarm on
* Call to GST's Tech Support Team to verify that all
* Verify that the Temperature Limit is set between
176 °F ~ 201 °F on the RF Configuration page.
Field
Replaceable
module
failure
Verizon User Manua l
Smart-Cell Repeater
same room as the repeater.
Filter service has not
matches between
the settings are correct.
Amp Unit and DFM
Tam p er
Detected
Communicat
ion Failure
Power
of range
Over
When mount
information (in the
system ) is changed
If the communication
between the NMS
Board and Amp Unit
would not operating
normally
The internal Power
Supply detects
improper Voltage
Internal AMP
temperature exceeds
* After 5 minutes clear automatically.
* If you want to disable, you can on
Configuration page.
* SNMP board or AMP unit need to reset.
* Open the rear cover and check the each cable.
the Alarm Configuration page.
the settings are correct.
Temperature
Reset alarm
Manual
Shutdown
FAN
the Temperature
Limit
When the unit has
reset
When the operates
shutdown algorithm,
after re-check
in the event of a fan
failure
(Default Value is 163°F)
* After 30 seconds clear automatically.
* By using a switch on the back of the repeater,
resets the power
* Reset the AMP unit, By Web UI.
* Replace the fan
30
Please check quantity of all accessories with
Fit cable length in accordance with field
that the antennas are securely mounted
Connection status between antennas and RF
Cable connection status against leakage of
4.4.3. Troubleshooting Guide Related to RF
Item Check Point Troubleshooting
Verizon User Manua l
Smart-Cell Repeater
Check before
system
operation
System input power
range
System gain
(DL/UL)
Output power
at server port
Check points before
open for service
-Downlink: -100dBm ~ -27dBm
-Uplink: -100dBm ~ -27dBm
- 60dB ~ 90dB
- Downlink: 33dBm ± 2dB
- Uplink: 33dBm ± 2dB
-
specification before you set up
-
condition
Check following status;
-Verify
and pointed in the correct directions
-
Check after
Check points after open
system
for service
operation
When
repeater
Check electricity cord
does not
connection status
work
properly
cable
-Verify that the Repeater is securely mounted
-Proper AC power status
-Grounding status of electrical circuit
-Coaxial cable (RF) construction status
-Connectors and combiners connection status
-
water
-Re-plug in Adapter cord
Verizon User Manua l
31
Please reset Adapter upon completing Alarm
upon completing Alarm
Please make sure output level is operating
Please reset Adapter upon completing Alarm
Please Reset Adapter upon completing Alarm
Please Reset Adapter upon completing Alarm
When Red light on the Shutdown LED, technician
should troubleshoot the alarm via Notebook
Increase output power or check input change of
Smart-Cell Repeater
Please Check following status;
-Make sure Server Antenna Port is disconnected.
DL VSWR alarm
-
troubleshooting
-Make sure output power is operating normally
When in
alarming
DL over-output alarm
UL over-output alarm
Temperature alarm
RF off
-Please Reset Adapter
troubleshooting
-
normally
-
troubleshooting
Check following status;
-Setting level of maximum temperature limit
-Temperature offset is normal or not
-Circumstances of temperature
-
troubleshooting
-Verify that the HPA’s are On
-
troubleshooting
Technician should verify
category of alarm at the
front side of repeater
When output
power is no
longer
problem
-Technician should
connect antenna with
output port of repeater
-Please make sure all
connectors are fastened
Check the input level
-
computer
-Reconnect the connector
-Change it if the connector is defective
-
BTS side
32
If the Gain is different from normal level, please
It is possible for connectors to get too tight and
Please contact installer or service provider upon
Increase output power level of repeater by
Contact network management team or service
If connection is not proper, reconnect cable and
Check performance of each module (Diagnosed
In case of
dropped call
or bad signal
after set up
Check gain of the unit
Cable connector loose
Check input signal
strength in the service
area
If input signal strength
is not a problem, please
check delay of calling
time
Verizon User Manua l
Smart-Cell Repeater
-
contact A/S team
-
damage the equipment or throughput
-
verification
-
adjusting attenuation level
-Increase output level of Uplink signal, then set to
optimal level.
In case
output
Signal
wavelength
is not shown
flat or looks
like
oscillation
Check RSSI signal
strength
Check connection
fastened between
antenna and cable
(Signal wavelength
should be flat and
stable if technicians
shake CABLE. If not, it is
connection problem)
Input level change or
module overheating
Please check VSWR of
the cable is normal
-
provider
-
connector and then check the output power again
-Check input level from BTS side.
-
by A/S team)
-Change to normal Cable
Verizon User Manua l
33
In case of Ethernet, verify IP addressing, DHCP
Verify that a crossover Ethernet cable is being
CLI connection, cable
Follow instructions in the installation guide for
6900 College Blvd. Suite 850
Overland Park, Kansas 66211
Tel: 913 469 6699
Fax: 913 661 0163
Email: support@gsteletechinc.com
Web: http//www.gsteletechinic.com
6900 College Blvd. Suite 850
Overland Park, Kansas 66211
Tel: 913 469 6699
Fax: 913 661 0163
Email: support@gsteletechinc.com
Web: http//www.gsteletechinic.com
Smart-Cell Repeater
4.4.4. Troubleshooting Guide Related to NMS
Symptom Check Points Troubleshooting
-
Communication
problem
function, and that cookies are deleted
-
used
Link Fail
-Make sure 1:1 connection
-
status check
this connection procedure
CLI connection Check by
USB to serial cable
-Please verify port number of PC communication
-Please check cable connection status
If technician thinks there is a serious problem, call after sales team for over-the-phone
Technical support. 1-866-9-GST-USA (1-866-947-8872).
Loading...
