HOME 3000
User Guide
700
850
1900
2100
HOME Cellular Signal Booster
This publication provides instructions for installing Cellular Signal Booster Home 3000.
Copyright© 2019, American Booster Inc.
All Rights Reserved.
Revision History
Memo
Date
2019, January Version 1.0 Original
Certication
This equipment complies with the FCC / IC directives.
Version Changes
Technical Support : 913 469 6699 www.americanbst.com
Memo
INDEX
Product Introduction
Package Contents
Application Example
Installation Guide
STEP 1. Find the Strongest Signal
STEP 2. Install the Outside Antenna
STEP 3. Run the Antenna Cable
STEP 4. Run the Cable to the Booster
STEP 5. Install the Signal Booster
LED Indicators
Troubleshooting
Specications
Safety Guidelines
FCC Warning Statements
4
5
6
7
8
8
10
12
13
15
16
17
18
19
IC Warning Statements
Warranty
Memo
20
21
22
HOME 3000
WARRANTY
Opening or tampering with the Signal Booster will void all warranties.
American Booster provides a 2-year warranty with all of its equipment.
Every product of American Booster is guaranteed to be free of material defects or component
malfunctions.
This warranty does not cover any Signal Boosters that have been exposed to any misuse, abuse,
physical damage or inadequate maintenance.
Products returned by customers must be in their original, unmodied condition, shipped in the
700
850
1900
2100
original packaging with proof of purchase documentation enclosed, and a Return Merchandise
Authorization (RMA) number printed on the outside of the shipping box.
To repair or replace damaged Signal Boosters we may include refurbished American Booster’s products.
American Booster Home 3000 has been designed to provide an advanced solution for boosting your
®
signal and increasing the cellular data speeds in your house or oce.
How it works
Receives Signal
The signal booster’s outside
antenna receives voice and
data signals from a nearby
cell tower.
Boosts Signal
The signal booster receives
the signal from the outside
antenna and amplies the voice
and data signals.
Distributes Signal
The boosted signals are
distributed inside your
house/oce.
130 E Covey Run, Union, WA 98592
Technical Support : 913 469 6699 www.americanbst.com
IC Warning Statements
RSS-GEN, Sec. 7.1.2 – (transmitters)
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum
(or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users,
the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
Package Contents
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionneravec une antenne
d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage radioélectrique à l’intention desautres utilisateurs, il faut choisir le type
d’antenne et son gain de sorte que la puissance isotroperayonnée quivalente (p.i.r.e.) ne dépassepas l’intensité
nécessaire à l’établissement d’une communication satisfaisante.
RSS-GEN, Sec. 7.1.2 – (detachable antennas)
This radio transmitter (identify the device by certication number, or model number if Category II)has been approved
by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required
antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (identier le dispositif par son numéro de certication ou son numéro de modèle s’il fait
partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d’antenne
énumérés ci-dessous et ayant un gain admissible maximal et l’impédance requise pour chaque type d’antenne. Les
types d’antenne non inclus dans cette liste,ou dont le gain est supérieur au gain maximal indiqué, sont strictement
interdits pour l’exploitation de l’émetteur.
RF Radiation Exposure
This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of UL : 40cm, DL : 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. RF exposure
will be addressed at time of installation and the use of higher gain antennas require larger separation distances.
RSS-102 RF Exposure
L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance minimum de au moins
UL : 40cm, DL : 20cm entre la source de radiation (l’antenne) et toute personne physique. Cet appareil ne doit pas être
installé ou utilisé
en conjonction avec une autre antenne ou émetteur.
700
850
1900
2100
Signal Booster
Code No. : 0182
AC/DC Adaptor
Code No. : 835U3
Outside Antenna Kit
Code No. : 83615
5D-FB Cable, 40 ft.
(N-SMA)
Outside Coaxial Cable
Code No. : 8384S
HOME 3000
User Guide
Bar Antenna
Code No. : 837K3
5D-FB Cable, 20 ft.
(SMA-SMA)
Outside Coaxial Cable
Code No. : 837K2
Window Flat Cable, 1ft.
(SMA-SMA)
Code No. : 837K1
700
850
1900
2100
HOME Cellular Signal Booster
User Guide
Application ExampleApplication Example
FCC Warning Statements
FCC Part 15.105 statement Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Part 15.21 statement
Any changes or modications not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
HOME 5000
700
850
1900
2100
2Signal Booster
1 Outside Antenna
RF Exposure Statement
The antenna(s) must be installed such that a minimum separation distance of at least UL : 40cm, DL : 20cm is maintained
between the radiator (antenna) and all persons at all times. This device must not be co-located or operating
in conjunction with any other antenna or transmitter.
Use of unauthorized antennas, cables, and/or coupling devices not conforming with ERP/EIRP and/or indoor‐only
restrictions is prohibited.
Safety Guidelines
WARNING
ELECTRIC SHOCK
Opening the Signal Booster could result in electric shock and may cause severe injury.
DAMAGE TO EQUIPMENT
Use only the power supply provided in this package.
Operating the Signal Booster with antennas in very close proximity facing each other could lead to
a severe damage to the Signal Booster.
The installation height of the antenna for AWS band (1700/2100 MHz) operations is limited to 10 meters
above ground for compliance with Section 27.50
CAUTION
THE SIGNAL BOOSTER SHOULD BE INSTALLED AS CLOSE AS POSSIBLE TO THE POWER SOURCE.
THIS REPEATER IS FOR INDOOR USE ONLY AND SHOULD BE INSTALLED INSIDE OF THE HOUSE.
Installation Guide
STEP 1. Find the Strongest Signal
1-1. Using an iPhone
Dial *3001#12345#*, then press Call.
1-2. Using an Android
Download the ‘Network Signal info’ from the Google Play store.
After installing, you will be able to view your dB strength.
1-3. Using a Meter
If you have a meter that detects and displays the current signal levels, you can use it.
Distance from Cell Tower
-50-60-70-80-90-100
(dBm)
FCC ID : U88-HOME3000 IC : 8137A-HOME3000
This is a CONSUMER device
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have
your provider’s consent. Most wireless providers consent to the use of signal boosters.
Some providers may not consent to the use of this device on their network. If you are unsure,
contact your provider. In Canada, BEFORE USE you must meet all requirements set out in ISED
CPC-2-1-05. You MUST operate this device with approved antennas and cables as specied
by the manufacturer. Antennas MUST be installed at least
NOT be installed within
immediately if requested by the FCC (or ISED in Canada) or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls
served by using this device.
operate in a xed location only) for in-building use.
UL : 40cm, DL : 20cm
This device may be operated ONLY in a xed location (i.e may
of) any person.You MUST cease operating this device
UL : 40cm, DL : 20cm
MODEL : HOME 3000
from (i.e.. MUST
For more information on registering your signal booster with your wireless provider, please see below
https://www.sprint.com/en/legal/signal-boosters.html?id16=signal%20booster
https://support.t-mobile.com/docs/DOC-9827
https://www.verizonwireless.com/solutions-and-services/accessories/register-signal-booster/
https://securec45.securewebsession.com/attsignalbooster.com/
https://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp
Excellent signalVery good signalGood signalLess weak signalWeak signal
Specications
STEP 1. Find the Strongest Signal
Note The stronger signal you receive from the base station, the better coverage you will have
inside your house/oce.
-70dBm
HOME 5000
700
850
1900
2100
If you have -70dBm outside signal, then you will have an excellent signal inside your house or oce.
Parameter
700MHz LTE
850MHz Cellullar
1900MHz PCS
2100MHz AWS
Output Power
Maximum Gain
Noise Figure
Impedance
RF Connector
Power Connector
Power
Size, inch
Weight, lbs
Operation Temperature
Humidity
Downlink Uplink Remark
734~757MHz
2110~2155MHz
5dBm 23dBm
60dB
5dB nominal
50 Ohm
SMA Female
DC Jack(DC-045B)
DC 12V/3A Adaptor
7.68" x 5.71" x 1.83"
< 1.98
23 ~ 122°F (-5°C ~ +50°C)
0 ~ 80%
704~716MHz
776~787MHz
824~849MHz869~894MHz
1850~1910MHz1930~1990MHz
1700~1755MHz
Band 17 & 13
Band 17
Band 5
Band 25
Band 4
Per Band
W × H × D
For a detected oscillation, the device output will turn o within 300 ms for the Uplink and 1 second for the Downlink
and remained o for 1 minute.
And, the device will have a maximum of 5 attempts at restart from oscillation before permanently shutting o.
Noise power, gain, and linearity are maintained by the device’s microprocessor.
-90dBm
HOME 5000
700
850
1900
2100
If you have -90dBm outside signal, then you will have a good signal inside your house & oce.
Troubleshooting
Instructions to x ashing or solid red.
If you have a good voice signal and fast data speeds even though one or two of LEDs are solid red,
you may continue to use the Signal Booster as it is.
However, if one of the LED’s has ashing or solid red, your voice signal is weak and data speeds are low,
Then follow the troubleshooting steps below.
1. Unplug the Signal Booster’s power adapter.
2. Check if the outside antenna and Home 3000 signal booster are located a minimum distance of 20 feet
from each other.
3. Plug the Signal Booster into a power source.
4. Check the LED on the Signal Booster. If one or two of the LEDs are still ashing or solid red, then try
moving the signal booster further away from the outside antenna and repeat steps 1 through 3 to see
if the additional distance resolves the problem.
5. If you have any diculties with installation or troubleshooting the Signal Booster, please contact
our technical support team for assistance (Tel : 913-469-6699).
LED’s O
1. If none of the LEDs on the Home 3000 Signal booster are lit, verify that the signal booster is connected
properly to the AC/DC power adapter cord and then verify that the power adapter is plugged into a live
AC outlet in the house.
2. Check if there is any damage in the power cable.
3. Check if there is any damage in the Signal Booster’s connector.

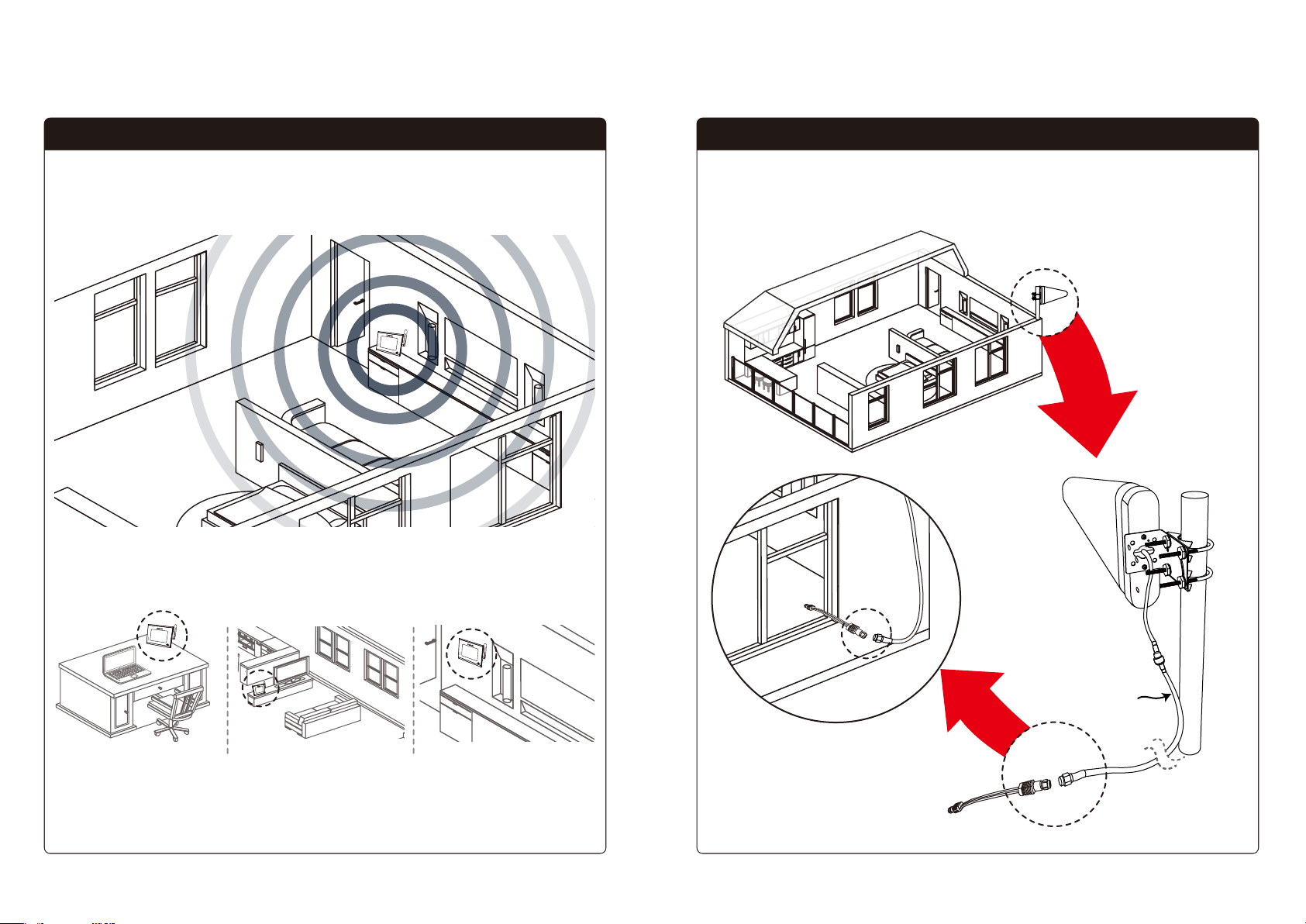

STEP 2. Install the Outside Antenna
The outside antenna is shaped like a triangle. This antenna must be mounted as high as possible
on the exterior of the house or oce, but never higher than 10m above the ground.
Mount the outside antenna on the side of the house where you detected the strongest cell phone
signal. The point of the antenna triangle should be pointed towards the location of the strongest
cell phone signal (which should also be the direction of the closest cell tower) and away from
the expected placement of the signal booster.
HOME 5000
700
850
1900
2100
Separation Between Outside Antenna and Signal Booster
For the best performance, the outside antenna and the signal booster should be a minimum
distance of 20 ft. apart from each other. A bigger separation between outside antenna and
signal booster will provide a stronger signal and better coverage.
HOME 5000
700
850
1900
2100
HOME 5000
Antenna Separation 20 ft.
700
850
1900
2100
700
850
1900
2100
STEP 2. Install the Outside Antenna
Install the outside antenna in a location where you can receive the strongest signal according to
the instructions described in STEP 1.
Make sure outside antenna is installed with the point of the triangle facing toward the cell tower.
1
2
3
LED
LED Indicators
700
850
1900
2100
Flashing Green
After the Signal Booster is powered on, ashing green will last for 20 seconds.
It means that the Signal Booster is being set up for optimal performance.
The Signal Booster will need a few minutes to adapt to the network environment and start boosting
the signal at the highest power.
The Signal Booster provides a real-time self-diagnosis, so in case of ashing or solid red, refer to the
Troubleshooting instructions on the next page.
Solid Green
This indicates that the Signal Booster has been installed and works properly.
Solid Orange
If one or more LEDs are solid orange, it means that the input signal from the nearby cell tower is between
-25dBm and -30dBm (very strong). In this event, we recommend that you reposition the outside antenna
to point in a dierent direction to weaken the signal. If the rest of the LEDs are green and you have a
strong signal and fast data speeds on your cell phone, then troubleshooting is not needed.
Flashing & Solid Red
If one or more of the LEDs is ashing or solid red, this indicates that the input signal from the nearby
cell tower is too strong.
After ashing red for 10 seconds the solid red will appear.
Signal Booster will stop amplifying signals of the frequency with a solid red indicator automatically
to prevent the Booster from any damage.
If the rest of LEDs are green and you have a strong signal and fast data speeds on your cell phone or
tablet, then troubleshooting is not needed.
STEP 5. Install the Signal Booster
STEP 3. Run the Outside Antenna Cable
Home 3000 has a 360° directional bar antenna. It means you can put the booster on the table
or oor or any other place you would like to. Home 3000 can also be attached to the wall,
using provided wall-mount brackets.
700
850
1900
2100
Connect the outside N-SMA cable with the yagi antenna.
Then, connect the window at cable with the outside cable.
700
850
1900
2100
700
850
1900
2100
700
850
1900
2100
Outside Antenna
to 40 ft. cable
STEP 4. Run the Cable to the Booster
To Booster
Cable (20 ft.)
To Booster
Cable (20 ft.)
STEP 5. Install the Signal Booster
Connect the cable from the booster to the window at cable.
Choose a location for the signal booster, preferably away from excessive heat, direct sunlight,
moisture and free from high temperatures. Do not place the signal booster in an air-tight
enclosure. Attic installations may expose the booster to high heat.
700
850
1900
2100
The Booster should be installed a minimum distance of 20 ft. from the outside antenna.Note
Power
HOME 3000 Cable Line
Outside
Antenna
40 ft. N-SMA
Coaxial Cable
1 ft. Window Flat
Cable
Coaxial Cable
700
850
1900
2100
Signal Booster20 ft. SMA-SMA
Connect the Bar antenna to the ‘Inside Antenna’ port.
Connect the AC/DC power adaptor to the booster and plug into a power source.
Signal Booster’s Back View
The power LED will light, indicating that the signal booster is ready for use.
Loading...
