1. SUMMARY

US PCS 1900 RF repeater is an analog RF repeater, which improves PCS network.
US PCS 1900 RF repeater receives RF signal from BTS and transmits it to the blanked and
shadowed area, thus providing and improving voice and image data services. US PCS 1900 RF
repeater’s goal is to support BTS’s functions proportionately.
US PCS 1900 RF repeater communicates with BTS wirelessly, thus saving additional costs for its
maintenance.
US PCS 1900 RF repeater consists of PA (Downlink, Uplink), IF, LNA (Downlink, Uplink), I/O &
Control divisions, which are supplied with Alarm LED, thus providing quick and easy
maintenance and troubleshooting of the repeater.
This manual describes in general structure of US PCS1900 repeater, its application, maintenance
and troubleshooting, installation and operation etc.
Abbreviation
PAM: POWER AMPLIFIER MODULE
LNA: LOW NOISE AMPLIFIER
AGC: AUTO GAIN CONTROL
ALC: AUTO LIMIT CONTROL
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCT-R07-013 4/33
4
FCC ID : U88GSTR1930DT-SPR
Ethernet Instruction “ This equipment is indoor use and all the communication wirings are limited to inside of the building” or similar texts.
For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible.
Replaceable batteries instruction
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECTIVE TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
5
Report No. : HCT-R07-013 5/33
FCC ID : U88GSTR1930DT-SPR

2. System Configuration

2.1 US PCS 1900 service organization
US PCS 1900 repeater decreases blanked and shadowed areas and extends cell coverage by re-
transmitting signal. The signal is received from BTS via Antenna directly, thus excluding
additional expenses for signal transmission (like cabling). Service organization of CDMA In-
building RF repeater is shown at the picture below. Donor Antenna is directed to BTS, and being
divided at Service Antennas are installed in the building and parking place. Pass Loss should be
taken into consideration while dividing and cabling.
<Pic.1> US PCS 1900 Service organization
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCT-R07-013 6/33
6
FCC ID : U88GSTR1930DT-SPR
2.2 System Design and Operation
2.2.1 System design
4567 89
4567 89
12
12
Donor Cavity
Donor Cavity
Donor Cavity
Donor Cavity
1
1
1
1
IF-15MHz
IF-15MHz
IF-15MHz
IF-15MHz
5
5
5
5
Waveform Detector
Waveform Detector
Waveform Detector
Waveform Detector
9
9
9
9
HUB
HUB
HUB
HUB
13
13
13
13
10 11
10 11
12
12
Service Cavity
Service Cavity
Service Cavity
Service Cavity
2
2
2
2
IF-20MHz
IF-20MHz
IF-20MHz
IF-20MHz
6
6
6
6
10
10
10
10
FWD HPA
FWD HPA
FWD HPA
FWD HPA
<Pic.2> Repeater’s inside structure
3
3
13
13
I/O & NMS Board
I/O & NMS Board
I/O & NMS Board
I/O & NMS Board
3
3
3
3
RVS LNA
RVS LNA
RVS LNA
RVS LNA
7
7
7
7
11
11
11
11
RVS HPA
RVS HPA
RVS HPA
RVS HPA
IF-10MHz
IF-10MHz
IF-10MHz
IF-10MHz
4
4
4
4
FWD LNA
FWD LNA
FWD LNA
FWD LNA
8
8
8
8
12
12
12
12
Power Supply
Power Supply
Power Supply
Power Supply
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCT-R07-013 7/33
7
FCC ID : U88GSTR1930DT-SPR
2 1
2 1
5
5
3
3
6
6
4
4
Donor Antenna
Donor Antenna
Donor Antenna
Donor Antenna
1
1
1
1
CLI
CLI
CLI5CLI
5
5
5
Service Antenna
Service Antenna
Service Antenna
Service Antenna
2
2
2
2
Ethernet HUB
Ethernet HUB
Ethernet HUB
Ethernet HUB
6
6
6
6
<Pic.3> Repeater’s Top and Bottom panels
AC Input Port
AC Input Port
AC Input Port
AC Input Port
3
3
3
3
DC Input Port
DC Input Port
DC Input Port
DC Input Port
4
4
4
4
<Pic.4> AC & DC ports
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCT-R07-013 8/33
8
FCC ID : U88GSTR1930DT-SPR
2.2.2 Uplink Path
FWD and RVS Gain Budgets have similar structure. In case of Uplink Path, RF signal is
transmitted from Service Antenna to Service Cavity Filter and RVS LNA division, then the signal
is transferred to IF division, where desirable Band is selected by passing 6 Paths of RF Switch
and SAW filter. Selected Band is got together in FWD LNA division, and then transmitted to
Donor Antenna passing through Digital ATT (10dB ATT Range) and Donor Cavity Filter. Then the
signal is transmitted to BTS through Donor Antenna.
<Pic.5> Uplink Block Diagram
2.2.3 Downlink Path
Downlink Path is organized in reverse order of Uplink Path.
In case of Downlink Path, RF signal is transmitted from Donor Antenna to Donor Cavity Filter
and FWD LNA division, then the signal is transferred to IF division, where desirable Band is
selected by passing 6 Paths of RF Switch and SAW filter. Attenuation range is 40dB in Digital
Attenuator. Selected Band is transmitted to FWD Drive Am and Service Cavity Filter, after that
the signal is transferred to Service Antenna.
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
9
Report No. : HCT-R07-013 9/33
FCC ID : U88GSTR1930DT-SPR
<Pic.6> Downlink Block Diagram

2.2.4 US PCS Frequency Selection

1930
1930
1850
1850
AB CDEF G
1945 1950 1965 1970 1975 1990 1995
1945 1950 1965 1970 1975 1990 1995
AB CDEF G
1865 1870 1885 1890 1895 1910 1915
1865 1870 1885 1890 1895 1910 1915
B CDEF GA
< Forward Band Structure >
< Forward Band Structure >
B CDEF GA
< Reverse Band Structure >
< Reverse Band Structure >
f (MHz)
f (MHz)
f (MHz)
f (MHz)
<Pic.7> PCS Band Structure
US PCS 1900 repeater has 5MHz, 10MHz, 15MHz, 20MHz Paths in IF division, so any of these
bandwidths can be chosen for providing service. But there are some cases when this choice is
not applicable.
- Not continuous 4 Paths [5 MHz each], so total band is 20MHz (i.e. A1A3B2C1,
A1A2B1B2)
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
10
Report No. : HCT-R07-013 10/33
FCC ID : U88GSTR1930DT-SPR

3. SPECIFICATIONS

3.1 System Specifications (applicable to both Uplink & Downlink)

Characteristics Specification
Frequency Range
System Group Delay
Characteristic Impedance 50 ohm
Gain Adjustment Step(Accuracy) 1dB(±0.5dB)
Maximum Output Power 1W / 30dBm
Forward 1930 ~ 1995MHz
Reverse 1850 ~ 1915MHz
< 5
VSWR Max1.5 : 1
Input Power Range -100 ~ -20dBm (for both Uplink and Downlink)
System Isolation > 90dB
Gain Range 50dB ~ 90 dB
Noise Figure
Pass Band Ripple 2.5dB(±1.25dB)
Spurious Emissions
<-13dBm @Fc±2.25MHz (RBW: 1MHz)
< 4.5 dB @ Max Gain
<12 dB @Min Gain
>45 dBc @885kHz
>55 dBc @1.98kHz
IF Path 5MHz/10MHz/15MHz/20MHz
IF Frequency FWD: 200 MHz, RVS: 120MHz
Band Select Local Shift & RF Switching
Roll Offs > 50dBc @1MHz
Waveform Quality Factor min 0.912

3.2 Electrical and Environment Specifications

Characteristics Specification
Size(inch) / Type 16.1(W) x 20.5(L) x 6.1(H)
Power AC 120V 60Hz 5.5A
Temperature / Weight
Connector TYPE N Type Female
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
11
Report No. : HCT-R07-013 11/33
-10 ~+50/℃℃44.5lbs
FCC ID : U88GSTR1930DT-SPR

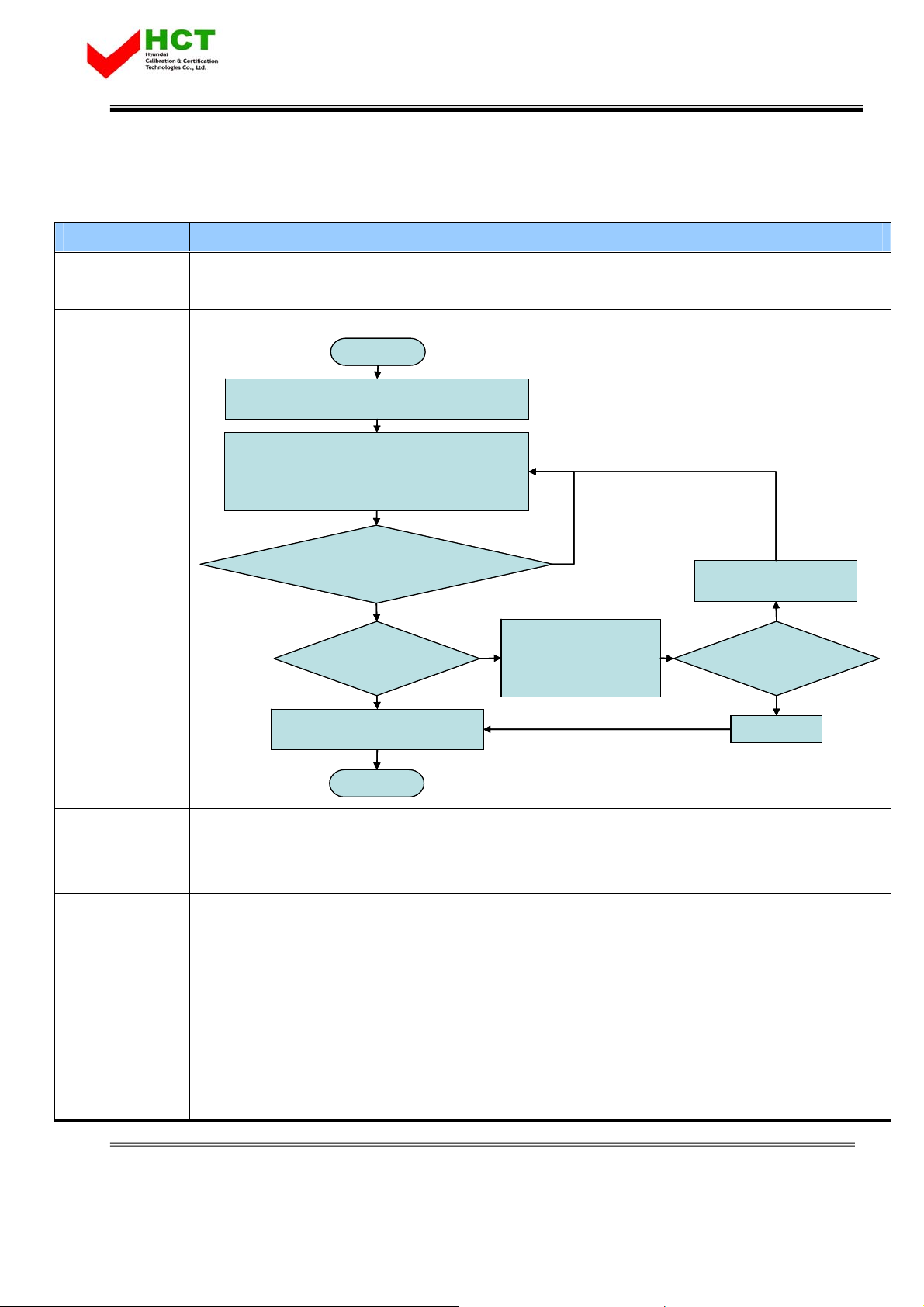

3.3 Functions

Parameter Specification
Gain Control
AGS
Auto Gain
Setting
• Adjustable DL and UL Gain range 50~90dB
• Display default Gain and current Gain function
• AGS (Auto Gain Setting) Use convenient Set-up
AGS start
AGS start
D/L,U/L ATT: 0dB
D/L,U/L ATT: 0dB HPA: ON, ALC: ON, Isolation Check: ON
HPA: ON, ALC: ON, Isolation Check: ON
Isolation generation: Wave detection using
Isolation generation: Wave detection using noise floor level detect
noise floor level detect Isolation analysis: isolation fault Æ System
Isolation analysis: isolation fault Æ System Gain 1dB reduce
Gain 1dB reduce
System Gain + 7dB
System Gain + 7dB<
isolation detection value
isolation detection value
Gain reduce &
Gain reduce &
No
No
isolation O.K
Max. Gain & isolation O.K
Max. Gain & isolation O.K
Yes
Yes
HPA: ON, Gain balance: ON,
HPA: ON, Gain balance: ON, AGC: ON, Shut-down: ON
AGC: ON, Shut-down: ON
isolation O.K Display Notice
Display Notice HPA: Off
HPA: Off
AGS (Auto Gain Setting)
AGS (Auto Gain Setting)
Installation time calculation: in AGS .
Installation time calculation: in AGS .
No
No
Sever ANT Tuning
Sever ANT Tuning Re-installation: AGS
Re-installation: AGS
Current setting
Current setting
maintenance
maintenance
HPA: ON
HPA: ON
NoYes
NoYes
Yes
Yes
AGS done
AGS done
AGC
Auto Gain
Control
• It always operates in Downlink AGC ON status
• To maintain same Downlink output power despite flexible input signal strength.
• To add or subtract Attenuation level referring to AGC Power Limit level.
• To limit output power as far as default range
• Set up via GUI
ALC
• Automatic Gain decrement when output power of repeater is higher than default level
Auto Limit
• Automatic Gain recovery when output power of repeater is reduced.
Control
• Shutdown when output power is higher than default level in Minimum Gain
• Automatic Recovery Algorithm conversion after Shutdown status
• Downlink ATT is applied to Uplink during AGC state
Gain Balance
• Setting and maintenance of output level
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
12
Report No. : HCT-R07-013 12/33
FCC ID : U88GSTR1930DT-SPR
• Additional attenuation to ALC Level
• Isolation Check in initial set up or Reset
• Monitoring Oscillation comparing to minimum/maximum Noise Floor level
Oscillation Check
Spurious
Emission Alarm
Band Select • To select either 5MHz/10MHz/15MHz/20MHz
Power
Monitoring
Function
DL Input control • Monitoring Donor ANT input power of DL
Automatic
Recovery
Security
• When Oscillation occurred, repeater attempts to stabilize Isolation through Gain control function.
• Shutdown repeater when Oscillation still goes in Minimum Gain
• Automatic Recovery Algorithm conversion after Shutdown status
• Noise Floor Observation in case of ±2.25MHz down at the center
• In case of Noise level > –13dBm, Spurious Emission is stabilized automatically
• In case of Oscillation Spurious Emission Alarming in Minimum Gain, repeater will be shutdown
• Automatically Switch to Recovery Algorithm at Shutdown
• Monitoring repeater’s output level
• When in repeater shutdown, it periodically recovers output power of repeater then monitors
alarming
• Support HTTPS for Web Browser security
• User authentication through User ID and Password
Temperature
control
VSWR
Monitoring
IP address
report via E-mail
DHCP Client • Automatic IP assignment
DHCP Server • Server function for automatic IP assignment
Web GUI • Remote and local user browser support through Web Browser
SNMP Agent • NMS report via SNMPv2 Trap
LED Display
• Monitoring temperature of repeater
• Maximum and minimum set up is possible. Shutdown in over temperature
• Automatic recovery after temperature becomes normal. (Hysteresis 10 degree)
• Monitoring VSWR of Donor ANT Port (Every one and half minute)
• Reporting VSWR Alarm and Shutdown when the rate is 3:1
• Automatic Recovery Algorithm conversion after Shutdown status
• When in PPP reconnection, E-mail which includes HTML to connect to newly assigned IP Address,
reports to operator.
• LED displays power and operation status on front side of repeater system.
• DL input and output signal level is verified by LED bar.
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
13
Report No. : HCT-R07-013 13/33
FCC ID : U88GSTR1930DT-SPR
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
14
Report No. : HCT-R07-013 14/33
FCC ID : U88GSTR1930DT-SPR

4. SET UP

4.1 System Set up

4.1.1 Constitution (based on 1 SET)

Parameter Item Quantity Remark
Major accessory CDMA 30dBm repeater 1 EA Manufacture company supply
Ethernet Cable (cross)
Power Supply Cable
Additional
components
User Manual Installation Guide (Book) 1 EA Manufacture company supply
Antenna
RF Cable Antenna connection Cable TBD
Repeater quality
confirmation
equipment
Fixable Screw x 4 (Size: φ1/2”,
length: 2” )
Ground Cable
CD which contains User Manual
and installation Guide
Donor ANT
Server ANT
Spectrum Analyzer 1EA
1 EA
1 EA
1 SET
1 EA
1 EA
1EA
1EA
Manufacture company supply
Establishment construction company
preparation
Establishment construction company
preparation
Establishment construction company
preparation
4.1.2 Notice
1) System Power check: Major electricity is AC 1 1 0 V, therefore please input electricity after power
verification.
2) Input condition optimization: DL input condition is -56 ~ -16dBm. User should verify input condition of
Donor ANT.
3) Isolation check between DONOR/SERVICE ANT: Isolation condition of this equipment is 95dBc (Gain+
15dB). User should check its condition before installation.
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
15
Report No. : HCT-R07-013 15/33
FCC ID : U88GSTR1930DT-SPR
<Pic. 8> MS 3100 A 10SL-3 (Wall Mount Receptacle) & MS3010 A 10SL-3(Plug)
4.1.3 System set up
1)
This equipment is basically wall mountable installation.
2) Once aforementioned process is done, open for service get ready.
3) For grounding, there is a grounding terminal in main power supply side and the grounding
terminal on a site and unit should be connected same.
4) System installation work is basically performed more than two people and should be careful for
unexpected accident.
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
16
Report No. : HCT-R07-013 16/33

4.1.4 Open for service

FCC ID : U88GSTR1930DT-SPR
<Pic.9> Case mounts
1) Check points before open
a. Verification of system installation status
Electricity, In/out antenna, coaxial cable connection, equipment mounts status.
b. Verification of system accessories
User should check whole necessary accessories.
c. Check receipt signal level
User should check whether receipt environmental condition is in accordance with system specification,
so that system operation will be optimized.
2) Check points after open
a. Check by external LED
RUN: Green light ON (Off: Green light off)
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
17
Report No. : HCT-R07-013 17/33
FCC ID : U88GSTR1930DT-SPR
ALARM: Green light in normal status, Red light in alarming
SHUT DOWN: Green light i n normal status, Red light in Shutdown
Number of LED bar on front side of repeater will show input signal level.
Less than -56dBm: LED 1bar
-56dBm~-48dBm: LED 2bars
-48dBm~-39dBm: LED 3 bars
-39dBm~-31dBm: LED 4 bars
-31dBm~-23dBm: LED 5 bars
Number of LED bar in output power side will show output power signal level
Less than +24dBm: LED 1bar
+25dBm~+26dBm: LED 2 bars
+27dBm: LED 3 bars
+28dBm: LED 4 bars
More than +29dBm: LED 5 bars
<Pic.10> Front LED Indicator

4.2 Troubleshooting

In case, abnormal operation is detected, user should check abnormal parts via remote accessible
function or field debug, then conduct repair after turn it off.
4.2.1 Necessary Testing and Measuring equipment
a. RF Power Meter: 10Watt Max, 50ohm
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCT-R07-013 18/33
18
FCC ID : U88GSTR1930DT-SPR
b. Signal Generator: 3GHz
c. Spectrum Analyzer: 3GHz
d. Multi Meter
4.2.2 Notice
a. Trouble shooting should be performed with drastic knowledge basis.
b. Unsure parts should not be disassembled.
c. When in trouble shooting, technician should use attenuator to check output side.
4.2.3 Note at set up process / Check point after open for service
Item Check Point Trouble shooting
Note
before
system
operation
Same as
above
Same as
above
Input Level
D -1own Link 00dBm/Total ~ -20dBm/Total
* System Input power range
U -1p Link 00dBm/Total ~ -20dBm/Total
Gain
D 50own Link ~ 90dB
* System Gain
U 50p Link ~ 90dB
Output power
D 30own Link dBm/Total
* Output power at edge port side
U 30p Link dBm/Total
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
19
Report No. : HCT-R07-013 19/33
FCC ID : U88GSTR1930DT-SPR
* Please check quantity of all accessories with specification
Check in
Advance
Check
after
open
* Check points before open for
service
* Check points after open for service
before you set up.
* Fit cable length in accordance with field condition.
* Set up Donor antenna to assure enough Isolation (More
than 97dBc)
* Check following status
- Fixable level of antenna support pole
- Connection status between antenna and RF cable
- RF Cable construction and fixed status
- fix of repeater and installation status
- Electricity construction and proper AC power status
- Plug status and electricity voltage status
- wall socket and voltage status
- Grounding (EARTH) status
- Direction of Donor antenna
(PN Offset and neighborhood BTS to be considered.)
- Ground status of repeater (unit itself)
- Coaxial cable construction status
- Connector combiner connection status
- Cable connection status against leakage of water
4.2.4 Trouble shooting guide related to RF
Symptom Check Point Troubleshooting
When repeater
* Re-plug in AC power cord
* Checking Electricity Cord
does not work
connection status
properly
* Checking electricity input to
* Please verify AC power input by using DVM (Digital Voltage
Same as above
AC power outlet.
Meter)
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
20
Report No. : HCT-R07-013 20/33
FCC ID : U88GSTR1930DT-SPR
* Please Check following status
- Proper maximum output power limit level
- BTS input level (Spectrum Level)
When in
alarming
When in
alarming
When in
alarming
When in
alarming
* DL over-input alarm
* DL over-output alarm
* UL over-output alarm
* VSWR alarm
- Input RSSI value at Status mode
- Downlink Attenuation level
- Downlink Attenuation Table
* Please reset AC power upon complete Alarm trouble shooting
* Please make sure output power is operated normally.
* Please reset AC power upon complete Alarm trouble
shooting.
* Please make sure output level is operated normally
* Please reset AC power upon complete Alarm trouble shooting
* Please Check following status
- Antenna port connection
- Whether inner-output cable is damaged or not.
* Please reset AC power upon complete Alarm trouble
When in
* IF Module alarm
alarming
When in
* DL, UL PAM alarm
alarming
When in
alarming * DC matter/Current alarm
When in
alarming * UL Oscillation
When in
* DL / UL LNA alarm
alarming
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCT-R07-013 21/33
shooting
* Please verify IF Module LED is On.
* When LED is Off, module should be defective.
* Please reset AC power upon complete Alarm trouble shooting
* Please verify DC power by using DVM (Digital Voltage Meter)
* Please reset AC power upon complete Alarm trouble
shooting.
* Please check Isolation between Donor and Server.
* Please reset AC power upon complete Alarm trouble
shooting.
* Please check connection status of LNA.
* Please reset AC power upon complete Alarm trouble shooting
21
FCC ID : U88GSTR1930DT-SPR
When in
alarming
When in
alarming
When in
alarming
When in
alarming
* Temperature alarm
* DL low-input alarm
* DL low-output alarm
* RF OFF
* Please Check following status
- Setting level of maximum temperature limit
- Temperature offset is normal or not.
- Circumstance temperature.
* Please reset AC power upon complete Alarm trouble shooting
* Please reset AC power upon complete Alarm trouble shooting
* Please Check following status
- Output power level is normal or not.
- Whether minimum output limit level is normal.
* Please reset AC power upon complete Alarm trouble shooting
* Please reset AC power upon complete Alarm trouble shooting
When output
* When Red light on the Shutdown LED, technician should
* Technician should verify
power is no
troubleshoot the alarm via Notebook computer.
category of alarm at the front
longer strong
side of repeater.
or problem
Same as above * Technician should connect
antenna with output port of
* Reconnect the connector.
* Please change it if the connector is detective.
repeater.
* Please make sure all
connectors are fastened
Same as above * Check the input level not to
* Increase output power or check input change of BTS side.
be too low.
Same as above
* If the Gain is different from normal level, please contact A/S
* Check Gain of the unit
team.
Same as above * Cable loose or over loss. * Please contact installer or service provider upon verification.
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
22
Report No. : HCT-R07-013 22/33
FCC ID : U88GSTR1930DT-SPR
In case of drop
* Check receipt signal strength
call or bad
in the service area not to be
signal after
too low.
set up
* If receipt signal strength is
Same as above
not a problem, please check
delay of calling time.
Same as above * Check receipt signal strength
In case, output
Signal
wavelength is
not shown flat
or looks like
oscillation
* Check connection fastened
between antenna and cable
(Signal wavelength should be
flat and stable if technicians
shake CABLE. If not, it is
connection problem.)
* Increase output power level of repeater by adjusting
attenuation level.
* Please increase output level of Uplink signal, then setting by
optimal level..
* Please contact network management team or service
provider
* If connection is not proper, please make sure connector and
cable to be re-connected then check the output power again.
Same as above
* Input level change or
module blazing
.
* Please check VSWR of the
* Check input level from BTS side.
* Check performance of each module.
(Diagnosed by A/S team.)
* Change to normal Cable.
Same as above
Cable is normal.
4.2.4 Trouble shooting guide related to NMS
Symptom Check Points Troubleshooting
Link fail * Communication problem
* CLI Connection, Cable
Same as above
status check
* CLI connection Check by
Same as above
USB to Serial Cable
* In case of Ethernet, check set up level of IP, Gateway and so
on, when you use Ethernet.
* Make sure 1:1 connection.
* Please verify Port number of PC communication.
* Please check Cable connection status.
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
23
Report No. : HCT-R07-013 23/33
FCC ID : U88GSTR1930DT-SPR
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
24
Report No. : HCT-R07-013 24/33
FCC ID : U88GSTR1930DT-SPR

5. WEB USER INTERFACE

5.1 IP Address verification and Explorer setting

5.1.1 IP Address verification and Explorer setting

(1) Start->Control Panel->Network Connections
(2) Double-click Local Area Connections at LAN or High Speed internet
(3) Click Internet Protocol (TCP/IP) at General tap and click Properties.
(4) Apply automatic IP address assignment at local connection
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
25
Report No. : HCT-R07-013 25/33
FCC ID : U88GSTR1930DT-SPR
(5) Verify assigned IP address at local connection. (Unless IP address is not assigned, please click repair.)
5.1.2 Explorer option setting
- Proceed step by step as indicated in below. All files and records should be removed.
- Set up mode will be displayed after (2) click.
- Please proceed along following set up mode screen shot.
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
26
Report No. : HCT-R07-013 26/33

5.2 PCS Web UI

5.2.1 Web UI connection

- Input desirable IP address.
FCC ID : U88GSTR1930DT-SPR
- Default Use Name and Password for Web UI is ‘admin’.

5.2.2 Link menu

- Following screen shot is located left-top side of main menu and those are linked to relative
window.
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCT-R07-013 27/33
27

5.3 Web UI control

5.3.1 Status

FCC ID : U88GSTR1930DT-SPR
- Currently setting level check at this menu tap.

5.3.2 RF Configuration

- Setting level can be changed at this menu tap.
- (1) Level change
- (2) Click Apply button
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
28
Report No. : HCT-R07-013 28/33
FCC ID : U88GSTR1930DT-SPR

5.3.3 Alarm Configuration

- (1) On/Off function for entire alarm report
- (2) Alarm status
- (3) On/Off function for individual alarm category
- (4) Alarm SNMP Mapping
- User may set and change its level per it field condition and click apply button.

5.3.4 Communication Configuration

- This provides all necessary information related to network
- To provide relative information about DHCP and modem
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
29
Report No. : HCT-R07-013 29/33

5.3.5 User Management

FCC ID : U88GSTR1930DT-SPR
- Add and Remove user, Assigning accessibility
- (1) User Registration: Click Register after input required information
- (2) User Removal: Click Delete upon click of user name you wish to remove.
- (3) Super User: Accessible to all kinds of information path
Read/Write: Accessible to all kinds of information path except for User management path.
Read: Checking status only. No control

5.3.6 Logs

- All users’ access record will be saved as a log.
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCT-R07-013 30/33
30
FCC ID : U88GSTR1930DT-SPR
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
31
Report No. : HCT-R07-013 31/33
FCC ID : U88GSTR1930DT-SPR

5.3.7 Sub System/Mailing List

- Set up e-mail address the place you wish to receive alarm.

5.3.8 Troubleshooting

Following is a trouble shooting table, which is frequently occurred to repeater and treatment
method.
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
32
Report No. : HCT-R07-013 32/33
FCC ID : U88GSTR1930DT-SPR

5.3.9 Remote Software Upgrade

- Upload repeater operation program.

5.3.10 System Reset

- Reset repeater.
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
33
Report No. : HCT-R07-013 33/33
Loading...
