GS Instech GRS 1923R SPR User Manual
FCC ID : U88-GRS-1923R-SPR
ATTACHMENT E.
- USER MANUAL -
HCT CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCTR1007FR27 1/1
Sprint User Manual
/
3G Indoor Repeater
3G Indoor Repeater
GRS-1923R-SPR
User Manual
May, 2010
Version 0.1
1
23
Sprint User Manual
/
3G Indoor Repeater
- INDEX -
1. SUMMARY................................................................................... 3
2. SYSTEM CONFIGURATION ......................................................... 4
2.1 GRS-1923R-SPR Service Organization.......................................................4
2.2 System Design and Operation....................................................................5
3. SPECIFICATIONS ..................................................................... 11
3.1 System Specifications(Applicable to both Uplink & Downlink)................11
3.2 Electrical and Environmental Specifications............................................12
3.3 Functions .................................................................................................12
4. SET UP...................................................................................... 15
4.1 System Set up..........................................................................................15
4.2 Troubleshooting.......................................................................................19
2
23
Sprint User Manual
/
3G Indoor Repeater
1. SUMMARY
GRS-1923R-SPR is an Digital RF repeater, which improves PCS network.
GRS-1923R-SPR receives RF signal from BTS and transmits it to the blanked and shadowed area,
thus providing and improving voice and image data services. GRS-1923R-SPR’s goal is to
support BTS’s functions proportionately.
GRS-1923R-SPR communicates with BTS wirelessly, thus saving additional costs for its
maintenance.

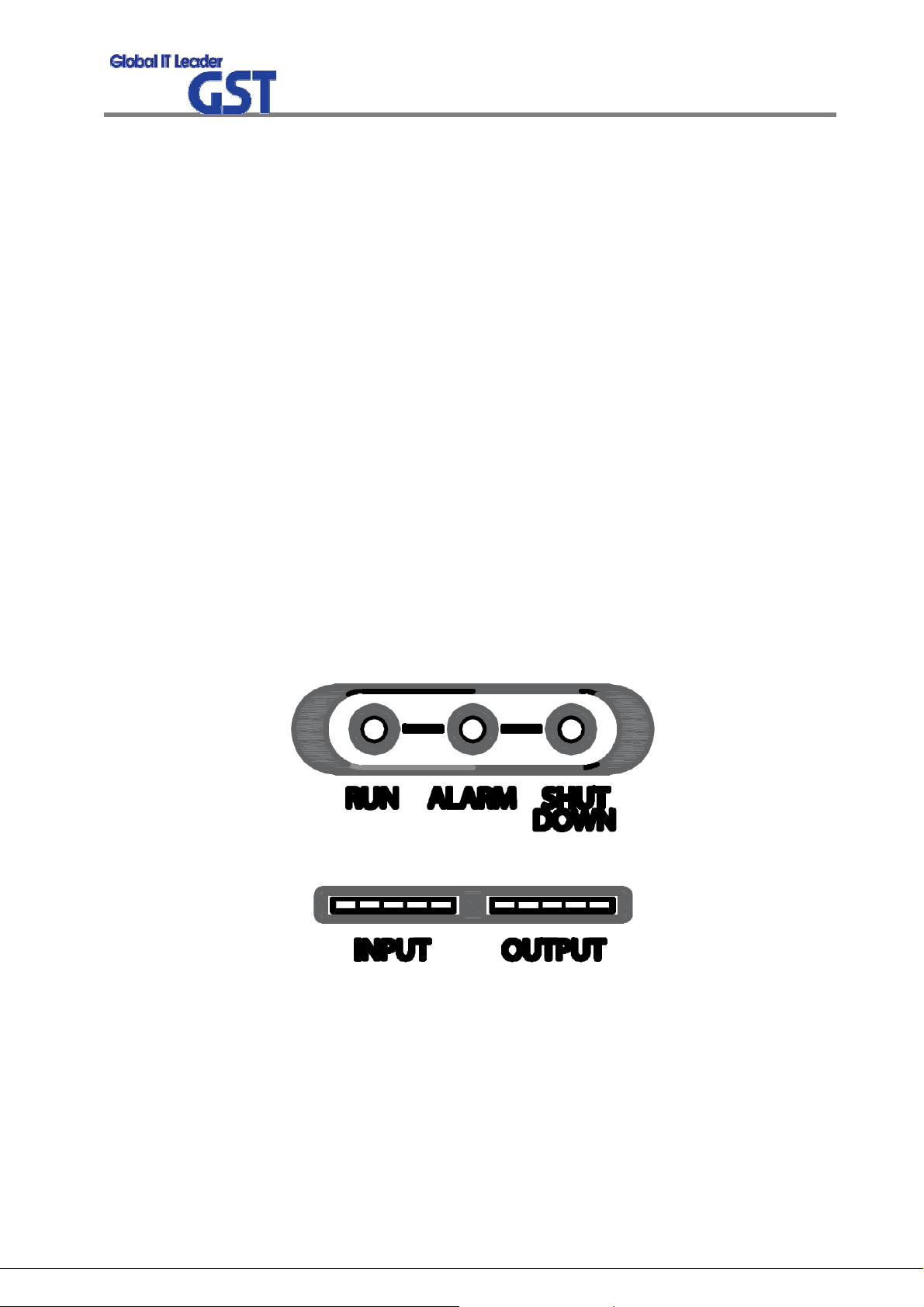

GRS-1923R-SPR consists of RF/IF part module, Digital Filter module, and I/O & Control module
divisions, which are supplied with Alarm LED, thus providing quick and easy maintenance and
troubleshooting of the repeater.
This manual describes in general structure of GRS-1923R-SPR, its application, maintenance and
troubleshooting, installation and operation etc.
Abbreviation
PCS : Personal Communication System
RF: Radio Frequency
BTS: Base Transceiver Station
IF: Intermediate Frequency
I/O : Input/Output
3
23
Sprint User Manual
/
3G Indoor Repeater
2. System Configuration
2.1 GRS-1923R-SPR Service Organization
GRS-1923R-SPR decreases blanked and shadowed areas and extends cell coverage by re-trans
mitting signal. The signal is received from BTS via Antenna directly, thus excluding additional ex
penses for signal transmission (like cabling). Service organization of CDMA In-building RF repeat
er is shown at the picture below. Donor Antenna is directed to BTS, and being divided at Servic
e Antennas are installed in the building and parking place. Pass Loss should be taken into consi
deration while dividing and cabling.
<Pic.1> US PCS 1900 Service Organization
4
23
/
2.2 System Design and Operation
2.2.1 System Design
Sprint User Manual
3G Indoor Repeater
<Pic.2> GRS-1923R-SPR Repeater
5
23
Sprint User Manual
/
3G Indoor Repeater
<Pic.3> Internal Design
NO DESCRIPTION
①
②
③
④
⑤
⑥
⑦
PSU MODULE(RS-100-9) - (Converter, LED, NMS Power Supply)
CAVITY FILTER - (Frequency Filtering)
CONVERTER MODULE - (Frequency Conversion)
I/O Board - (Input/Output Board)
NMS BOARD - (System Control Board)
DIGITAL FILTER - (Digital Filtering)
ETHERNET BOARD - (Web UI Board)
6
23
Sprint User Manual
/
3G Indoor Repeater
②
①
①
②
③
③
④
④
<Pic.4> Outside Port Design
NO DESCRIPTION
①
②
⑤
⑤
DONOR ANT PORT
SERVER ANT PORT
⑥
⑥
③
④
⑤
⑥
7
POWER SWITCH PORT
AC POWER PORT
CLI MONITOR PORT
ETHERNET PORT
23
