GS Instech B25K User Manual

B-25K

User Guide

B-25K

Building Cellular Signal Booster

This publication provides instructions for installing Cellular Signal Booster B-25K.

Copyright© 2018, American Booster Inc.

All Rights Reserved.

Revision History

Date

2018, November Version 1.0 Original

Certication

This equipment complies with the FCC directives.

Version Changes

Technical Support : 913 469 6699 www.americanbst.com

INDEX

Product Introduction

Package Contents

Application Example

B-25K Optional Components

Installation Guide

STEP 1. Find the Strongest Signal

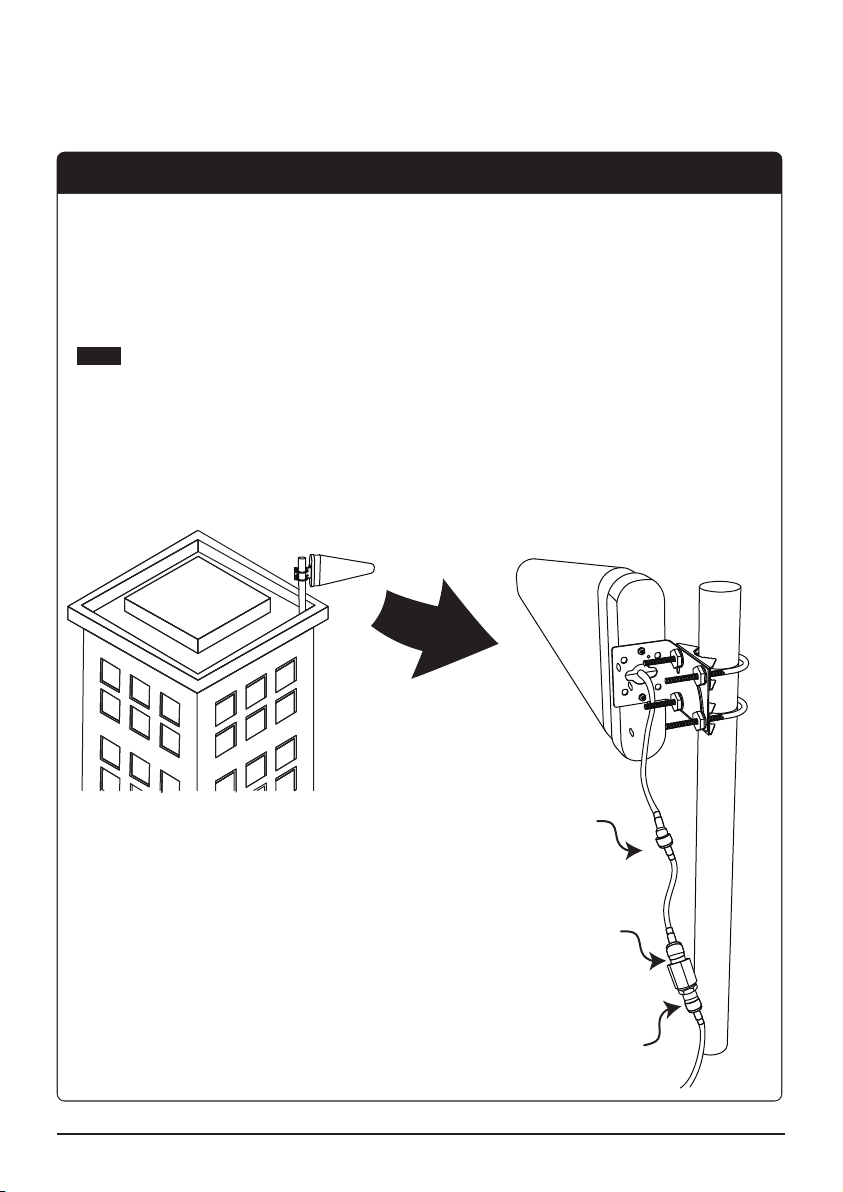

STEP 2. Install the Outside Antenna

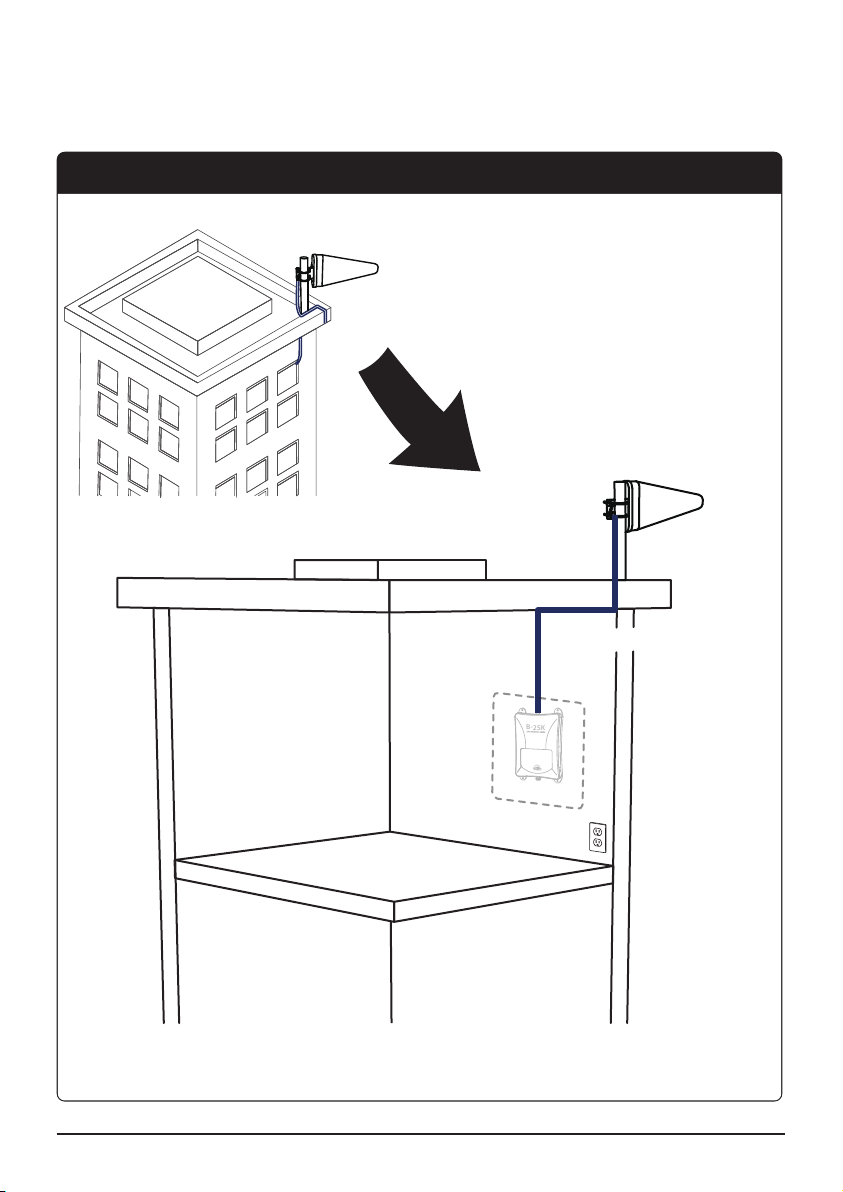

STEP 3. Run the Outside Antenna Cable

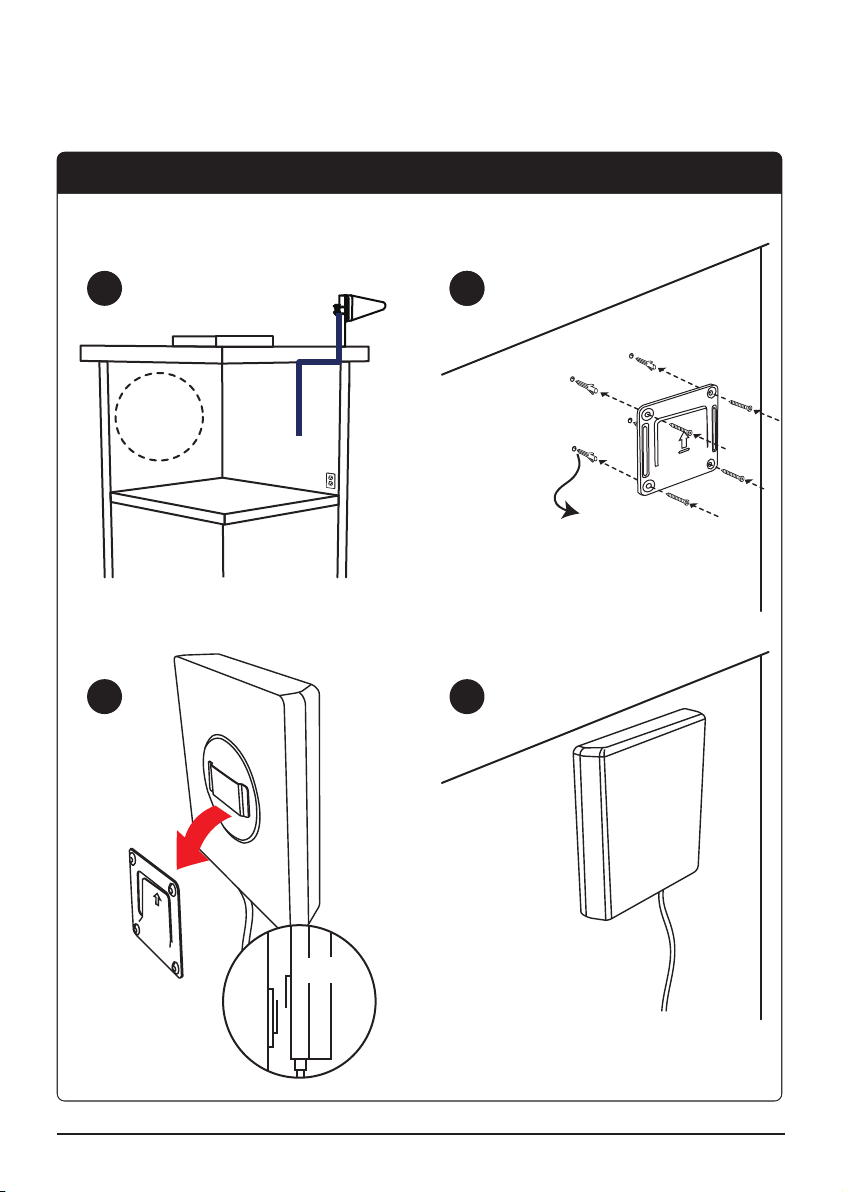

STEP 4. Install the Inside Antenna

STEP 5. Install the Signal Booster

LED Status & Troubleshooting

LED Bar Display

Functions

Specications

4

5

6

7

8

8

10

12

14

16

18

20

21

22

Safety Guidelines

Warranty

Memo

23

25

26

B-25K

Yagi Antenna

B-25K

B-25K

American Booster B-25K has been designed to improve and extend cellular coverage inside

®

the buildings. B-25K amplies signals from the nearest base station and re-transmits them at higher
power level. B-25K provides service at 700MHz LTE, 850MHz Cellular, 1900MHz PCS and 2100MHz AWS
frequencies without any additional setup or conguration.

How it works

Receives Signal

The signal booster’s outside

antenna receives voice and

data signals from a nearby

cell tower.

Receives Signal

The signal booster receives
the signal from the outside

antenna and after amplifying

the voice and data signals, sends

them to the inside antenna.

Improves Signal

The inside antenna

distributes the boosted

signals inside your building.

4

B-25K User Guide

Package Contents

B-25K

Signal Booster B-25K

Code No. : 0167

AC Power Cord

Code No. : 82W54

Inside Antenna Kit

Code No. : 83616

AC/DC Adaptor

Code No. : 833PU

Outside Antenna Kit

Code No. : 83615

Lightning Protector

Code No. : 834TJ

B-25K

User Guide

B-25K

Building Cellular Signal Booster

Coaxial Cable 75 ft.

Code No. : 836WN

Coaxial Cable 60 ft.

Code No. : 834TM

B-25K User Guide

Coaxial Cable 2 ft.

Code No. : 834TK

User Guide

5

Application Example

3

Inside Antenna

B-25K

2

B-25K

1

Outside Antenna

6

B-25K User Guide

B-25K Optional Components

Optional components enable signal amplication to a further area.

Outside Antenna

1

2 ft. cable to
lighting protector

3

Inside Antenna

Option Contents

Using multiple inside antennas for increased coverage.

To Donor Port

B-25K

2

B-25K

2 ft. Cable to
lighting protector

75 ft. Cable to
Ouside Antenna

60 ft. Cable to
Inside Antenna

2 ft. Cable to
Optional Splitter

Inside Antenna Kit

Code No. : 83616

Coaxial Cable 75 ft.

Code No. : 836WN

Optional Splitter

(2-Way)

Coaxial Cable 2 ft.

Code No. : 834TK

Optional Splitter

(3-Way)

Optional Splitter

B-25K User Guide

(4-Way)

7

Installation Guide

STEP 1. Find the Strongest Signal

1-1. Using an iPhone

Dial *3001#12345#*, then press Call.

1-2. Using an Android

Download the ‘Network Signal info” from the Google Play store.
After installing, you will be able to view your dB strength.

1-3. Using a Meter

If you have a meter that detects and displays the current signal levels, you can use it.

8

B-25K User Guide

STEP 1. Find the Strongest Signal

Note The stronger signal you receive from the base station, the better coverage you will have

inside your building.

-70dBm

B-25K

-90dBm

B-25K

B-25K User Guide

9
