GSI GS880E36T-80I, GS880E36T-80, GS880E36T-66I, GS880E36T-66, GS880E36T-11I Datasheet

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

100-Pin TQFP

512K x 18, 256K x 32, 256K x 36

Commercial Temp
Industrial Temp

Features

• FT pin for user-configurable flow through or pipelined
operation

• Dual Cycle Deselect (DCD) operation

• 3.3 V +10%/–5% core power supply

• 2.5 V or 3.3 V I/O supply

• LBO pin for Linear or Interleaved Burst mode

• Internal input resistors on mode pins allow floating mode pins

• Default to Interleaved Pipeline mode

• Byte Write (BW) and/or Global Write (GW) operation

• Common data inputs and data outputs

• Clock Control, registered, address, data, and control

• Internal self-timed write cycle

• Automatic power-down for portable applications

• 100-lead TQFP package

-11 -11.5 -100 -80 -66

Pipeline

3-1-1-1

Flow

Through

2-1-1-1

tCycle

t

KQ

I

DD

t

KQ

tCycle

I

DD

10 ns

4.0 ns

225 mA

11 ns
15 ns

180 mA

10 ns

4.0 ns

225 mA

11.5 ns
15 ns

180 mA

8Mb Sync Burst SRAMs

10 ns

4.0 ns

225 mA

12 ns
15 ns

180 mA

12.5 ns

4.5 ns

200 mA

14 ns
15 ns

175 mA

15 ns

5.0 ns

185 mA

18 ns
20 ns

165 mA

Functional Description

Applications

The GS880E18/32/36T is a 9,437,184-bit (8,388,608-bit for
x32 version) high performance synchronous SRAM with a 2­bit burst address counter. Although of a type originally
developed for Level 2 Cache applications supporting high
performance CPUs, the device now finds application in
synchronous SRAM applications, ranging from DSP main
store to networking chip set support.

Controls

Addresses, data I/Os, chip enables (E1, E2, E3), address burst
control inputs (ADSP, ADSC, ADV) and write control inputs
(Bx, BW, GW) are synchronous and are controlled by a
positive-edge-triggered clock input (CK). Output enable (G)
and power down control (ZZ) are asynchronous inputs. Burst
cycles can be initiated with either ADSP or ADSC inputs. In
Burst mode, subsequent burst addresses are generated
internally and are controlled by ADV. The burst address
counter may be configured to count in either linear or

100 MHz–66 MHz

3.3 V V

DD

3.3 V and 2.5 V I/O

interleave order with the Linear Burst Order (LBO) input. The
Burst function need not be used. New addresses can be loaded
on every cycle with no degradation of chip performance.

Flow Through / Pipeline Reads

The function of the Data Output register can be controlled by
the user via the FT mode pin (Pin 14). Holding the FT mode
pin low places the RAM in Flow Through mode, causing
output data to bypass the Data Output Register. Holding FT
high places the RAM in Pipeline mode, activating the rising­edge-triggered Data Output Register.

DCD Pipelined Reads

The GS880E18/32/36T is a DCD (Dual Cycle Deselect)
pipelined synchronous SRAM. SCD (Single Cycle Deselect)
versions are also available. DCD SRAMs pipeline disable
commands to the same degree as read commands. DCD RAMs
hold the deselect command for one full cycle and then begin
turning off their outputs just after the second rising edge of
clock.

Byte Write and Global Write

Byte write operation is performed by using Byte Write enable
(BW) input combined with one or more individual byte write
signals (Bx). In addition, Global Write (GW) is available for
writing all bytes at one time, regardless of the byte write
control inputs.

Sleep Mode

Low power (Sleep mode) is attained through the assertion
(high) of the ZZ signal, or by stopping the clock (CK).
Memory data is retained during Sleep mode.

Core and Interface Voltages

The GS880E18/32/36T operates on a 3.3 V power supply, and
all inputs/outputs are 3.3 V- and 2.5 V-compatible. Separate
output power (V

from the internal circuit.

) pins are used to decouple output noise

DDQ

Rev: 1.11 11/2000 1/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

GS880E18 100-Pin TQFP Pinout

A6

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

DD

E3

E1

A7

E2

BB

BA

NC

NC

SS

V

V

BW

GW

G

CK

ADSC

A8

ADV

ADSP

A9

NC
NC
NC

VDDQ

VSS

NC

NC
DQB1
DQB2

VSS

VDDQ
DQB3
DQB4

FT
VDD
NC
VSS

DQB5
DQB6

VDDQ

VSS

DQB7
DQB8
DQB9

NC
VSS

VDDQ

NC
NC
NC

100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

512K x 18

Top View

80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51

A18
NC
NC
VDDQ
VSS
NC
DQA9
DQA8
DQA7
VSS
VDDQ
DQA6
DQA5
VSS
NC
VDD
ZZ
DQA4
DQA3
VDDQ
VSS
DQA2
DQA1
NC
NC
VSS
VDDQ
NC
NC
NC

A5

A4

A3

A2

A1

A0

NC

NC

LBO

VSS

A17

NC

VDD

A11

A10

A12

A13

A14

A16

A15

Rev: 1.11 11/2000 2/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

GS880E32 100-Pin TQFP Pinout

A6

A7

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

DD

E3

E1

E2

BB

BA

BC

BD

SS

V

V

BW

GW

G

CK

ADSC

A8

ADV

ADSP

A9

NC

DQC8
DQC7

V

DDQ

V

SS

DQC6
DQC5

DQC4
DQC3

V

V

DDQ

DQC2
DQC1

FT

V

DD

NC

V

SS

DQD1
DQD2

V

DDQ

V
DQD3
DQD4

DQD5

DQD6

V

V

DDQ

DQD7
DQD8

NC

SS

SS

SS

100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

256K x 32

Top View

80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51

NC
DQB8
DQB7
V

DDQ

V

SS

DQB6
DQB5
DQB4
DQB3
V

SS

V

DDQ

DQB2
DQB1
V

SS

NC
V

DD

ZZ
DQA1
DQA2
V

DDQ

V

SS

DQA3
DQA4
DQA5
DQA6
V

SS

V

DDQ

DQA7
DQA8
NC

SS

A5

A4

A3

A2

A1

A0

NC

LBO

NC

DD

A17

NC

V

V

A11

A10

A12

A13

A14

A16

A15

Rev: 1.11 11/2000 3/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

GS880E36 100-Pin TQFP Pinout

A6

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

DD

E3

E1

A7

E2

BB

BA

BC

BD

SS

V

V

BW

GW

G

CK

ADSC

A8

ADV

ADSP

A9

DQC9
DQC8
DQC7

V

DDQ

V

SS

DQC6
DQC5
DQC4
DQC3

V

SS

V

DDQ

DQC2
DQC1

FT

V

DD

NC

V

SS

DQD1
DQD2

V

DDQ

V

DQD3
DQD4
DQD5
DQD6

V

V

DDQ

DQD7
DQD8
DQD9

SS

SS

100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

256K x 36

Top View

80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51

DQB9
DQB8
DQB7
V

DDQ

V

SS

DQB6
DQB5
DQB4
DQB3
V

SS

V

DDQ

DQB2
DQB1
V

SS

NC
V

DD

ZZ
DQA1
DQA2
V

DDQ

V

SS

DQA3
DQA4
DQA5
DQA6
V

SS

V

DDQ

DQA7
DQA8
DQA9

SS

A5

A4

A3

A2

A1

A0

NC

LBO

NC

DD

NC

V

A17

V

A11

A10

A12

A13

A14

A16

A15

Rev: 1.11 11/2000 4/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

TQFP Pin Description

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

Pin Location Symbol

37, 36 A0, A1 I Address field LSBs and Address Counter preset Inputs

35, 34, 33, 32, 100, 99, 82, 81, 44, 45, 46,

47, 48, 49, 50, 43

80 A18 I Address Inputs

63, 62, 59, 58, 57, 56, 53, 52
68, 69, 72, 73, 74, 75, 78, 79

13, 12, 9, 8, 7, 6, 3, 2

18, 19, 22, 23, 24, 25, 28, 29

51, 80, 1, 30

51, 80, 1, 30 NC — No Connect (x32 Version)

58, 59, 62, 63, 68, 69, 72, 73, 74

8, 9, 12, 13, 18, 19, 22, 23, 24

51, 52, 53, 56, 57

75, 78, 79,

1, 2, 3, 6, 7

25, 28, 29, 30

87 BW I Byte Write—Writes all enabled bytes; active low

93, 94 BA, BB I Byte Write Enable for DQA, DQB Data I/Os; active low

95, 96 BC, BD I

95, 96 NC — No Connect (x18 Version)

89 CK I Clock Input Signal; active high
88 GW I Global Write Enable—Writes all bytes; active low

98, 92 E1, E3 I Chip Enable; active low

97 E2 I Chip Enable; active high
86 G I Output Enable; active low
83 ADV I Burst address counter advance enable; active low

84, 85 ADSP, ADSC I Address Strobe (Processor, Cache Controller); active low

64 ZZ I Sleep mode control; active high
14 FT I Flow Through or Pipeline mode; active low
31 LBO I Linear Burst Order mode; active low

15, 41, 65, 91

5,10,17, 21, 26, 40, 55, 60, 67, 71, 76, 90

4, 11, 20, 27, 54, 61, 70, 77

16, 38, 39, 42, 66 NC — No Connect.

Typ

e

A2–A17 I Address Inputs

DQA1–DQA8
DQB1–DQB8
DQC1–DQC8
DQD1–DQD8

DQA9, DQB9,

DQC9, DQD9

DQA1–DQA9
DQB1–DQB9

NC — No Connect

V

DD

V

SS

V

DDQ

I/O Data Input and Output pins (x32, x36 Version)

I/O Data Input and Output pins

I/O Data Input and Output pins

Byte Write Enable for DQC, DQD Data I/Os; active low (x32, x36

I Core power supply
I I/O and Core Ground
I Output driver power supply

Description

Version)

Rev: 1.11 11/2000 5/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

GS880E32 Block Diagram

A0–An

LBO
ADV

CK
ADSC

ADSP
GW

BW
BA

Register

D Q

A0

A1

D0
D1

Counter

Load

Register

D Q

Q0
Q1

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

A0
A1

A

Memory

Array

Q D

BB

BC

BD

E1
E2
E3

G

FT

Register

D Q

Register

D Q

Register

D Q

Register

D Q

Register

D Q

Register

D Q

36 36

4

DQ

Register

Register

DQ

ZZ

Note: Only x36 version shown for simplicity.

Power Down

Control

0

DQx0–DQx9

Rev: 1.11 11/2000 6/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Preliminary

Linear Burst Sequence

I

GS880E18/32/36T-11/11.5/100/80/66

Mode Pin Functions

Mode Name Pin Name State Function

Burst Order Control LBO

Output Register Control FT

Power Down Control ZZ

Note:
There are pull-up devices on the LBO and FT pins and a pull down device on the ZZ pin, so those input pins can be unconnected and the chip will
operate in the default states as specified in the above table.

Burst Counter Sequences

L Linear Burst

H or NC Interleaved Burst

L Flow Through
H or NC Pipeline
L or NC Active

H

Standby, IDD = I

nterleaved Burst Sequence

SB

A[1:0] A[1:0] A[1:0] A[1:0]

1st address 00 01 10 11

2nd address 01 10 11 00

3rd address 10 11 00 01
4th address 11 00 01 10

Note: The burst counter wraps to initial state on the 5th clock.

1st address 00 01 10 11

2nd address 01 00 11 10

3rd address 10 11 00 01
4th address 11 10 01 00

Note: The burst counter wraps to initial state on the 5th clock.

A[1:0] A[1:0] A[1:0] A[1:0]

Byte Write Truth Table

Function GW BW BA BB BC BD Notes

Read H H X X X X 1

Read H L H H H H 1
Write byte a H L L H H H 2, 3
Write byte b H L H L H H 2, 3
Write byte c H L H H L H 2, 3, 4
Write byte d H L H H H L 2, 3, 4

Write all bytes H L L L L L 2, 3, 4

BPR 1999.05.18

Write all bytes L X X X X X

Notes:

1. All byte outputs are active in read cycles regardless of the state of Byte Write Enable inputs.

2. Byte Write Enable inputs BA, BB, BC, and/or BD may be used in any combination with BW to write single or multiple bytes.

3. All byte I/Os remain High-Z during all write operations regardless of the state of Byte Write Enable inputs.

4. Bytes “C” and “D” are only available on the x32 and x36 versions.

Rev: 1.11 11/2000 7/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Synchronous Truth Table

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

Operation

Deselect Cycle, Power Down None X H X X L X X High-Z

Deselect Cycle, Power Down None X L F L X X X High-Z

Deselect Cycle, Power Down None X L F H L X X High-Z

Read Cycle, Begin Burst External R L T L X X X Q

Read Cycle, Begin Burst External R L T H L X F Q

Write Cycle, Begin Burst External W L T H L X T D

Read Cycle, Continue Burst Next CR X X H H L F Q

Read Cycle, Continue Burst Next CR H X X H L F Q

Write Cycle, Continue Burst Next CW X X H H L T D

Write Cycle, Continue Burst Next CW H X X H L T D
Read Cycle, Suspend Burst Current X X H H H F Q
Read Cycle, Suspend Burst Current H X X H H F Q
Write Cycle, Suspend Burst Current X X H H H T D
Write Cycle, Suspend Burst Current H X X H H T D

Notes:

1. X = Don’t Care, H = High, L = Low.

2. For x36 Version, E = T (True) if E2 = 1 and E3 = 0; E = F (False) if E2 = 0 or E3 = 1.

3. W = T (True) and F (False) is defined in the Byte Write Truth Table preceding.

4. G is an asynchronous input. G can be driven high at any time to disable active output drivers. G low can only enable active drivers (shown
as “Q” in the Truth Table above).

5. All input combinations shown above are tested and supported. Input combinations shown in gray boxes need not be used to accomplish
basic synchronous or synchronous burst operations and may be avoided for simplicity.

6. Tying ADSP high and ADSC low allows simple non-burst synchronous operations. See BOLD items above.

7. Tying ADSP high and ADV low while using ADSC to load new addresses allows simple burst operations. See ITALIC items above.

Address

Used

Diagram

5

Key

E1

State

2

E2

(x36only)

ADSP ADSC ADV

W

3

DQ

4

Rev: 1.11 11/2000 8/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Preliminary

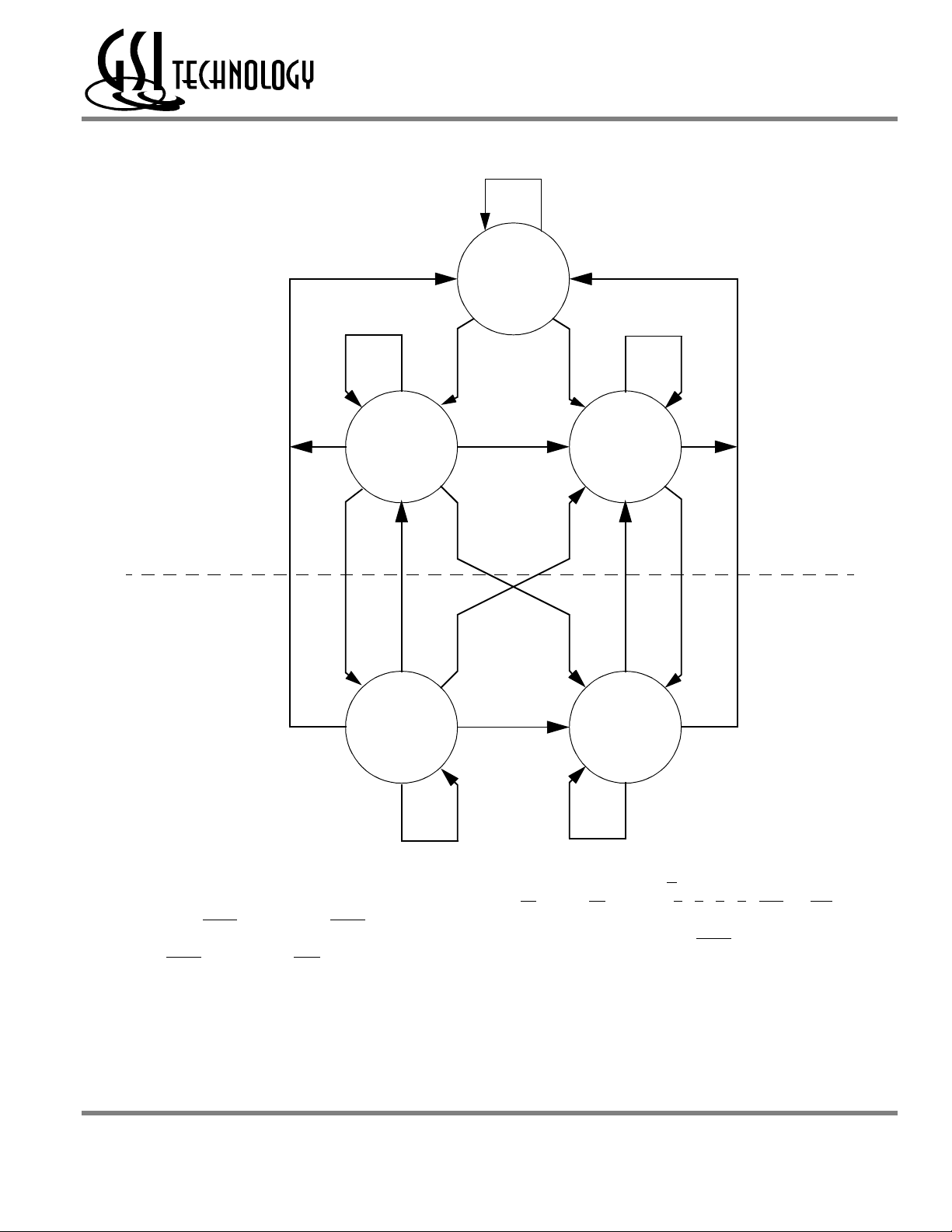

Simplified State Diagram

GS880E18/32/36T-11/11.5/100/80/66

X

Deselect

W R

W

X

Simple Synchronous OperationSimple Burst Synchronous Operation

First Write

W R

Burst Write

CW CR

R

CR

R

CR

R

First Read

Burst Read

X

CRCW

XX

Notes:

1. The diagram shows only supported (tested) synchronous state transitions. The diagram presumes G is tied low.

2. The upper portion of the diagram assumes active use of only the Enable (E1, E2, and E3) and Write (BA, BB, BC, BD, BW, and GW) control
inputs, and that ADSP is tied high and ADSC is tied low.

3. The upper and lower portions of the diagram together assume active use of only the Enable, Write, and ADSC control inputs, and
assumes ADSP is tied high and ADV is tied low.

Rev: 1.11 11/2000 9/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Simplified State Diagram with G

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

X

Deselect

W R

W

X

First Write

W

X

Burst Write

CW CR

R

CR

R

CR

W

CW

W

CW

R

First Read

R

Burst Read

X

CRCW

X

Notes:

1. The diagram shows supported (tested) synchronous state transitions plus supported transitions that depend upon the use of G.

2. Use of “Dummy Reads” (Read Cycles with G High) may be used to make the transition from Read cycles to Write cycles without passing
through a Deselect cycle. Dummy Read cycles increment the address counter just like normal Read cycles.

3. Transitions shown in grey tone assume G has been pulsed high long enough to turn the RAM’s drivers off and for incoming data to meet
Data Input Set Up Time.

Rev: 1.11 11/2000 10/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

Absolute Maximum Ratings

(All voltages reference to VSS)

Symbol Description Value Unit

V

DD

V

DDQ

V

CK

V

I/O

V

IN

I

IN

I

OUT

P

D

T

STG

T

BIAS

Note:
Permanent damage to the device may occur if the Absolute Maximum Ratings are exceeded. Operation should be restricted to Recommended
Operating Conditions. Exposure to conditions exceeding the Absolute Maximum Ratings, for an extended
period of time, may affect reliability of this component.

Voltage on VDD Pins

Voltage in V

Pins –0.5 to V

DDQ

–0.5 to 4.6 V

DD

V

Voltage on Clock Input Pin –0.5 to 6 V

Voltage on I/O Pins

Voltage on Other Input Pins

–0.5 to V

–0.5 to V

+0.5 (≤ 4.6 V max.)

DDQ

+0.5 (≤ 4.6 V max.)

DD

V
V

Input Current on Any Pin +/–20 mA

Output Current on Any I/O Pin +/–20 mA

Package Power Dissipation 1.5 W

Storage Temperature –55 to 125

Temperature Under Bias –55 to 125

o

o

C
C

Recommended Operating Conditions

Parameter Symbol Min. Typ. Max. Unit Notes

Supply Voltage

I/O Supply Voltage

Input High Voltage

Input Low Voltage

Ambient Temperature (Commercial Range Versions)

Ambient Temperature (Industrial Range Versions)

Notes:

1. Unless otherwise noted, all performance specifications quoted are evaluated for worst case at both 2.75 V ≤ V
(i.e., 2.5 V I/O) and 3.6 V ≤ V

≤ 3.135 V (i.e., 3.3 V I/O), and quoted at whichever condition is worst case.

DDQ

2. This device features input buffers compatible with both 3.3 V and 2.5 V I/O drivers.

3. Most speed grades and configurations of this device are offered in both Commercial and Industrial Temperature ranges. The part number of
Industrial Temperature Range versions end the character “I”. Unless otherwise noted, all performance specifications quoted are evaluated
for worst case in the temperature range marked on the device.

4. Input Under/overshoot voltage must be –2 V > Vi < V

V

DD

V

DDQ

V

IH

V

IL

T

A

T

A

+2 V with a pulse width not to exceed 20% tKC.

DD

3.135 3.3 3.6 V

2.375 2.5

1.7 —

–0.3 — 0.8 V 2

0 25 70 °C 3

–40 25 85 °C 3

V

DD

V

+0.3

DD

V 1
V 2

≤ 2.375 V

DDQ

Rev: 1.11 11/2000 11/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

GS880E18/32/36T-11/11.5/100/80/66

Undershoot Measurement and Timing Overshoot Measurement and Timing

V

IH

VDD + 2.0 V

V

SS

50%

20% tKC

Preliminary

50%

VSS – 2.0 V

20% tKC

V

DD

V

IL

Capacitance

(TA = 25oC, f = 1 MHZ, V

DD

= 3.3 V)

Parameter Symbol Test conditions Typ. Max. Unit

Input Capacitance

Input/Output Capacitance

Note: These parameters are sample tested.

C

IN

C

I/O

V

V

IN

OUT

= 0 V

= 0 V

4 5 pF
6 7 pF

Package Thermal Characteristics

Rating Layer Board Symbol Max Unit Notes

Junction to Ambient (at 200 lfm) single
Junction to Ambient (at 200 lfm) four

Junction to Case (TOP) —

Notes:

1. Junction temperature is a function of SRAM power dissipation, package thermal resistance, mounting board temperature, ambient. Temper­ature air flow, board density, and PCB thermal resistance.

2. SCMI G-38-87

3. Average thermal resistance between die and top surface, MIL SPEC-883, Method 1012.1

R
R
R

ΘJA
ΘJA

ΘJC

40 °C/W 1,2
24 °C/W 1,2

9 °C/W 3

Rev: 1.11 11/2000 12/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

GS880E18/32/36T-11/11.5/100/80/66

AC Test Conditions

Parameter Conditions

Input high level 2.3 V

Input low level 0.2 V

Input slew rate 1 V/ns

Input reference level 1.25 V

Output reference level 1.25 V

Output load Fig. 1& 2

Notes:

1. Include scope and jig capacitance.

2. Test conditions as specified with output loading as shown in Fig. 1 unless otherwise noted.

3. Output Load 2 for tLZ, tHZ, t

4. Device is deselected as defined by the Truth Table.

DQ

and t

OLZ

Output Load 1

OHZ

Preliminary

Output Load 2

2.5 V

DC Electrical Characteristics

Parameter Symbol Test Conditions Min Max

Input Leakage Current

(except mode pins)

ZZ Input Current

Mode Pin Input Current

Output Leakage Current

Output High Voltage
Output High Voltage

Output Low Voltage

I

INZZ

I

INM

I

V
V
V

I

OL

IL

OH

OH

OL

50Ω

VT = 1.25 V

I

OH

I

OH

*

30pF

* Distributed Test Jig Capacitance

V

= 0 to V

IN

V

DD ≥ VIN ≥ VIH

0 V ≤ V

V

DD ≥ VIN ≥ VIL

0 V ≤ V

IN

IN

DD

≤ V

≤ V

IH

IL

Output Disable,

V

= 0 to V

OUT

= –8 mA, V
= –8 mA, V

I

OL

DDQ

DDQ

= 8 mA

DD

= 2.375 V
= 3.135 V

DQ

5pF

–1 uA 1 uA

–1 uA
–1 uA

300 uA

–300 uA

–1 uA

–1 uA 1 uA

1.7 V —

2.4 V —
— 0.4 V

*

1 uA

1 uA
1 uA

225Ω

225Ω

Rev: 1.11 11/2000 13/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Operating Currents

Parameter Test Conditions Symbol

Device Selected;

Operating

Current

Standby

Current

Deselect

Current

All other inputs

≥VIH or ≤ V

Output open

ZZ ≥ V

Device Deselected;

All other inputs

≥ VIH or ≤ V

DD

- 0.2V

Pipeline

IL

Flow-Thru

Pipeline

Flow-Thru

Pipeline

IL

Flow-Thru

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

-11 -11.5 -100 -80 -66

0

–40

to

70°C

I

DD

I

DD

I

SB

I

SB

I

DD

I

DD

225 235 225 235 225 235 200 210 185 195 mA

180 190 180 190 180 190 175 185 165 175 mA

30 40 30 40 30 40 30 40 30 40 mA

30 40 30 40 30 40 30 40 30 40 mA

80 90 80 90 80 90 70 80 60 70 mA

65 75 65 75 65 75 55 65 50 60 mA

to

85°C

0

to

70°C

–40

to

85°C

0

to

70°C

–40

to

85°C

0

to

70°C

–40

to

85°C

0

to

70°C

–40

to

85°C

Unit

Rev: 1.11 11/2000 14/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

AC Electrical Characteristics

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

Pipeline

Flow-

Thru

Parameter Symbol

-11 -11.5 -100 -80 -66

Min Max Min Max Min Max Min Max Min Max

Clock Cycle Time tKC 10 — 10 — 10 — 12.5 — 15 — ns

Clock to Output Valid tKQ — 4.0 — 4.0 — 4.0 — 4.5 — 5 ns

Clock to Output Invalid tKQX 1.5 — 1.5 — 1.5 — 1.5 — 1.5 — ns

Clock to Output in Low-Z

tLZ

1

1.5 — 1.5 — 1.5 — 1.5 — 1.5 — ns

Clock Cycle Time tKC 15.0 — 15.0 — 15.0 — 15.0 — 20 — ns

Clock to Output Valid tKQ — 11.0 — 11.5 — 12.0 — 14.0 — 18 ns

Clock to Output Invalid tKQX 3.0 — 3.0 — 3.0 — 3.0 — 3.0 — ns

Clock to Output in Low-Z

tLZ

1

3.0 — 3.0 — 3.0 — 3.0 — 3.0 — ns

Clock HIGH Time tKH 1.7 — 1.7 — 2 — 2 — 2.3 — ns

Clock LOW Time tKL 2 — 2 — 2.2 — 2.2 — 2.5 — ns

Clock to Output in High-Z

tHZ

1

1.5 4.0 1.5 4.2 1.5 4.5 1.5 4.5 1.5 4.8 ns

G to Output Valid tOE — 4.0 — 4.2 — 4.5 — 4.5 — 4.8 ns

G to output in Low-Z

G to output in High-Z

tOLZ

tOHZ

1

1

0 — 0 — 0 — 0 — 0 — ns

— 4.0 — 4.2 — 4.5 — 4.5 — 4.8 ns

Setup time tS 1.5 — 2.0 — 2.0 — 2.0 — 2.0 — ns

Hold time tH 0.5 — 0.5 — 0.5 — 0.5 — 0.5 — ns

ZZ setup time

ZZ hold time

tZZS
tZZH

2

2

5 — 5 — 5 — 5 — 5 — ns
1 — 1 — 1 — 1 — 1 — ns

ZZ recovery tZZR 20 — 20 — 20 — 20 — 20 — ns

Unit

Notes:

1. These parameters are sampled and are not 100% tested.

2. ZZ is an asynchronous signal. However, in order to be recognized on any given clock cycle, ZZ must meet the specified setup and hold
times as specified above.

Rev: 1.11 11/2000 15/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Preliminary

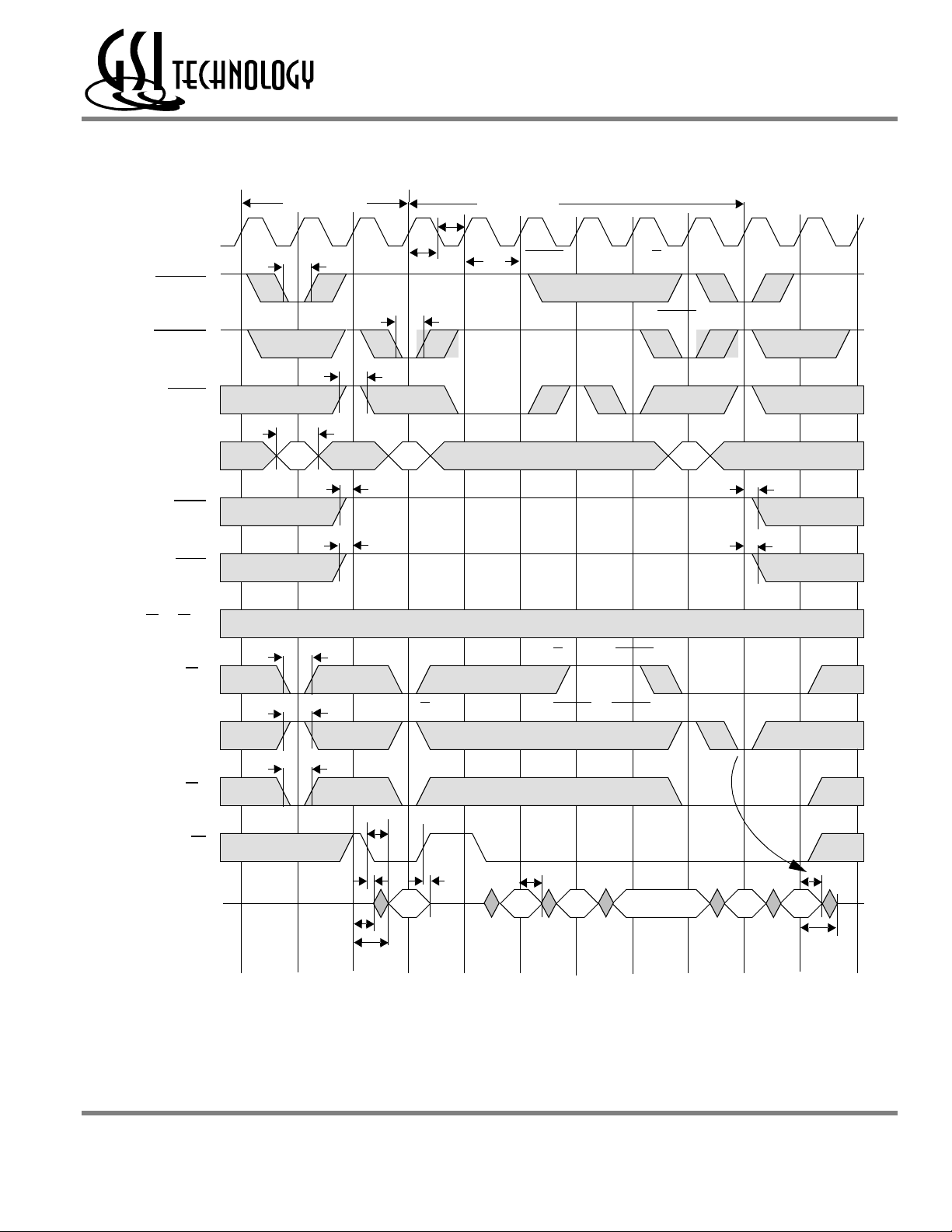

Write Cycle Timing

GS880E18/32/36T-11/11.5/100/80/66

CK

ADSP

ADSC

ADV

A0–An

GW

BW

BA–BD

Single Write

tH

tS

tH

tS

WR1

tS

tH

Burst Write

ADSP is blocked by E inactive

tKC

tKL

tKH

tH

tS

tH

tS

ADV must be inactive for ADSP Write

WR2 WR3

tS tH

tH

tS

tS

tH

WR1 WR2 WR3

WR1

WR2 WR3

E1 masks ADSP

Write

ADSC initiated write

Deselected

E1

tH

tS

Deselected with E2

E2

tS

tH

E2 and E3 only sampled with ADSP or ADSC

E3

G

tS

tH

DQA–DQD

Hi-Z

D1A

Rev: 1.11 11/2000 16/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Write specified byte for 2A and all bytes for 2B, 2c& 2D

D2A D2B

D2C D2D D3A

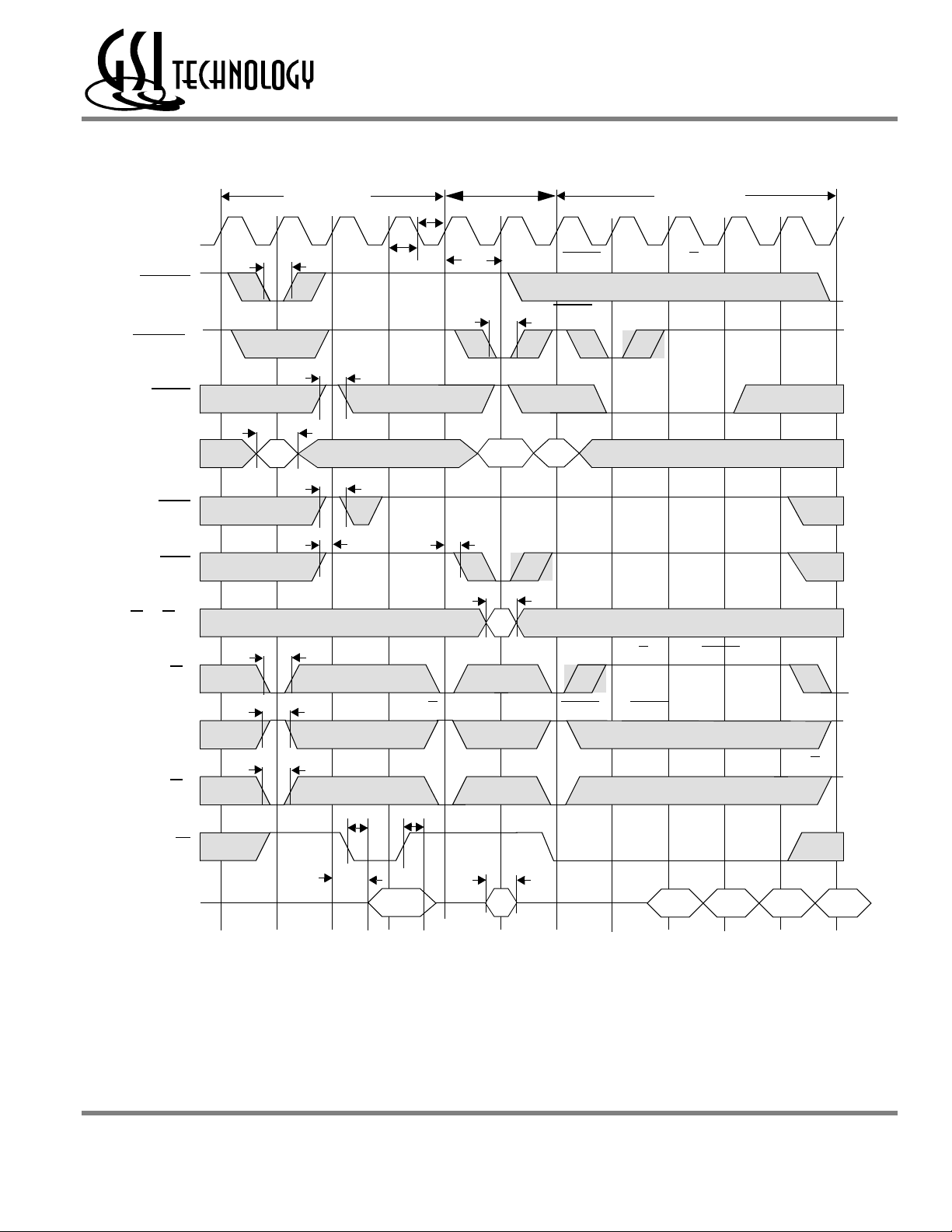

Flow Through Read-Write Cycle Timing

Single Read

CK

tH

tS

ADSP

ADSC

tH

tS

ADV

tS

tH

tKH

tKL

tS

Single Write

tKC

tH

ADSC initiated read

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

Burst Read

ADSP is blocked by E inactive

A0–An

GW

BW

BA–BD

E1

E2

E3

G

DQA–DQD

Hi-Z

tS

tS

tS

RD1

tH

tH

tH

tOE

tKQ

tS

tS

tH

tOHZ

Q1A

WR1

tS

tH

tS

E2 and E3 only sampled with ADSP and ADSC

tS

tH

WR1

tH

D1A

RD2

E1 masks ADSP

Q2A

Deselected with E3

Q2B Q2c

Q2D

Q2A

Burst wrap around to it’s initial state

Rev: 1.11 11/2000 17/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Preliminary

Flow Through Read Cycle Timing

GS880E18/32/36T-11/11.5/100/80/66

CK

ADSP

ADSC

ADV

A0–An

GW

BW

BA–BD

Single Read

tS

tH

tS

tS

tH

RD1

tS

tS

tH

tS

tKL

tKH

tS

tH

tH

RD2 RD3

Burst Read

ADSP is blocked by E inactive

tKC

Suspend Burst

E1 masks ADSP

ADSC initiated read

Suspend Burst

tH

tH

E1

tH

tS

E2 and E3 only sampled with ADSP or ADSC

Deselected with E2

E2

tS

tH

E3

tOE

tOHZ

G

DQA–DQD

tOLZ

Hi-Z

Q1A

tLZ

tKQ

Q2A

tKQX

Q2CQ2B

Q2D

Rev: 1.11 11/2000 18/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

tKQX

Q3A

tHZ

Preliminary

Pipelined DCD Read Cycle Timing

GS880E18/32/36T-11/11.5/100/80/66

CK

ADSP

ADSC

ADV

A0–An

GW

BW

BA–BD

E1

Single Read

tH

tS

tS

tH

RD1

tH

tS

tH

tS

Burst Read

tKL

ADSP is blocked by E1 inactive

tKH

tS

tH

tS

tH

RD2

tS

tS

E2 and E3 only sampled with ADSP or ADSC

tKC

Suspend Burst

E1 masks ADSP

ADSC initiated read

RD3

tH

tH

E2

tS

tH

Deselected with E2

E3

tOE

G

tOHZ

Q1A

DQA–DQD

Hi-Z

tOLZ

tLZ

tKQ

Rev: 1.11 11/2000 19/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Q2A

tKQX

Q2B

Q2c

Q2D

tKQX

Q3A

tHZ

Preliminary

Pipelined DCD Read-Write Cycle Timing

GS880E18/32/36T-11/11.5/100/80/66

CK

ADSP

ADSC

ADV

A0–An

GW

BW

BA–BD

E1

tS

tS

tS

tS

tH

tH

RD1

tH

tH

Single Read

tS

tH

tS

tH

tS

Single Write

tKL

tKH

E2 and E3 only sampled with ADSP and ADSC

tH

tKC

tS tH

WR1

tH

tS

WR1

ADSP is blocked by E1 inactive

ADSC initiated read

RD2

E1 masks ADSP

Burst Read

E2

tS

tH

Deselected with E3

E3

tOE tOHZ

G

tS

DQA–DQD

Hi-Z

tKQ

Q1A

Rev: 1.11 11/2000 20/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

tH

D1A Q2A

Q2B Q2c

Q2D

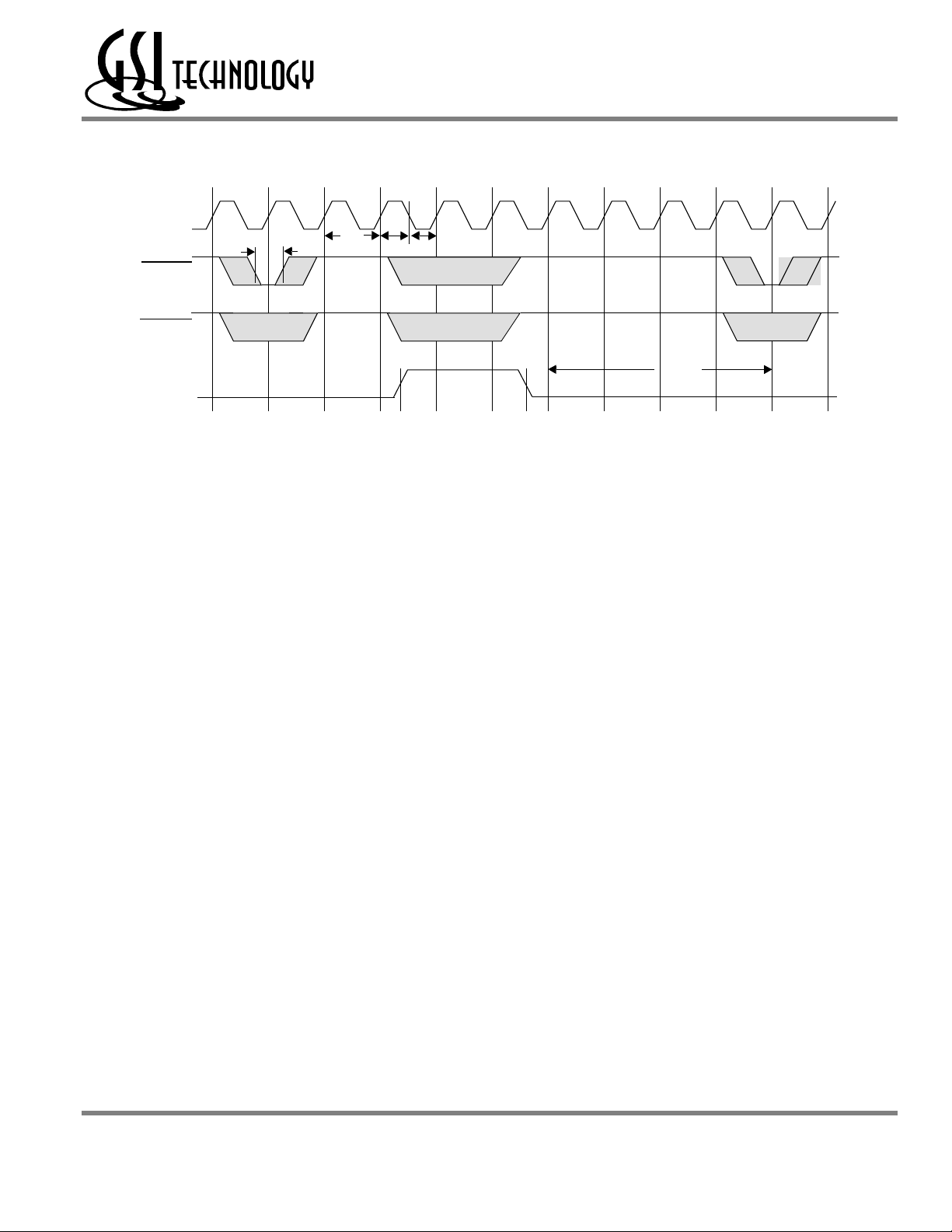

Sleep Mode Timing Diagram

CK

tH

tS

ADSP

ADSC

ZZ

Application Tips

tKC

tKH

tKL

tZZS

~

~

~

~

~

~

~

~

~

~

~

~

Snooze

tZZH

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

tZZR

Single and Dual Cycle Deselect

SCD devices force the use of “dummy read cycles” (read cycles that are launched normally but that are ended with the output
drivers inactive) in a fully synchronous environment. Dummy read cycles waste performance but their use usually assures there
will be no bus contention in transitions from reads to writes or between banks of RAMs. DCD SRAMs do not waste bandwidth on
dummy cycles and are logically simpler to manage in a multiple bank application (wait states need not be inserted at bank address
boundary crossings) but greater care must be exercised to avoid excessive bus contention.

Rev: 1.11 11/2000 21/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

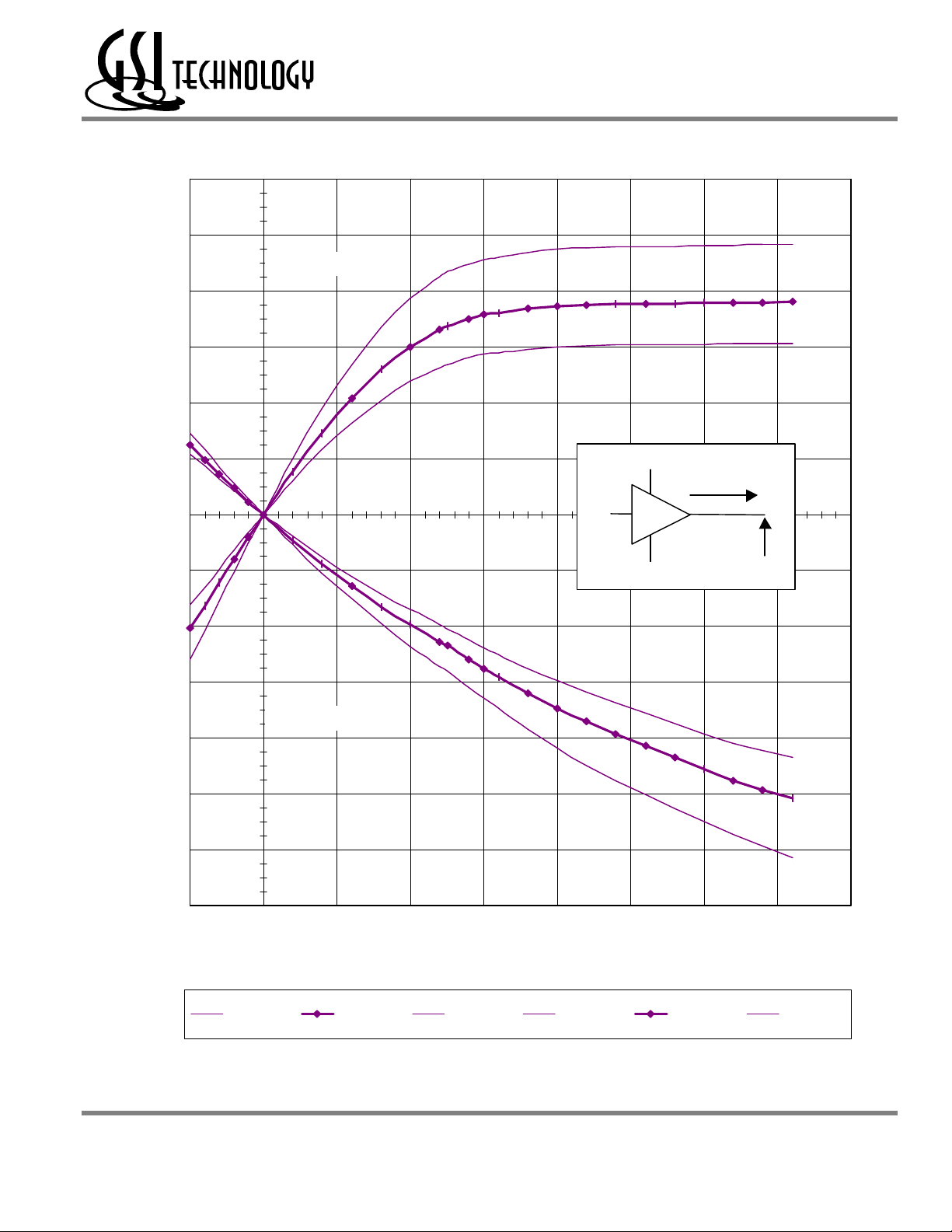

Output Driver Characteristics

I Out (mA)

120.0

100.0

Pull Down Drivers

80.0

60.0

40.0

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

20.0

VDDQ

I Out

0.0

VOut

-20.0

VSS

-40.0

-60.0

Pull Up Drivers

-80.0

-100.0

-120.0

-140.0

-0.5 0 0.5 1 1.5 2 2.5 3 3.5 4

V Out (Pull Down)

VDDQ - V Out (Pull Up)

3.6V PD HD 3.3V PD HD 3.1V PD HD 3.1V PU HD 3.3V PU HD 3.6V PU HD

Rev: 1.11 11/2000 22/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

TQFP Package Drawing

D

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

Symbol Description Min. Nom. Max

A1 Standoff 0.05 0.10 0.15
A2 Body Thickness 1.35 1.40 1.45

b Lead Width 0.20 0.30 0.40
c Lead Thickness 0.09 — 0.20

D Terminal Dimension 21.9 22.0 22.1

D1 Package Body 19.9 20.0 20.1

E Terminal Dimension 15.9 16.0 16.1

E1 Package Body 13.9 14.0 14.1

e Lead Pitch — 0.65 —
L Foot Length 0.45 0.60 0.75

L1 Lead Length — 1.00 —

Y Coplanarity — — 0.10
θ Lead Angle 0° — 7°

L1

A1

θ

L

c

Pin 1

e

D1

b

A2

Y

E1

E

Notes:

1. All dimensions are in millimeters (mm).

2. Package width and length do not include mold protrusion.

BPR 1999.05.18

Rev: 1.11 11/2000 23/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

Ordering Information for GSI Synchronous Burst RAMs

2

Org

514K x 18 GS880E18T-11 DCD Pipeline/Flow Through TQFP 100/11 C
514K x 18 GS880E18T-11.5 DCD Pipeline/Flow Through TQFP 100/11.5 C
514K x 18 GS880E18T-100 DCD Pipeline/Flow Through TQFP 100/12 C
514K x 18 GS880E18T-80 DCD Pipeline/Flow Through TQFP 80/14 C
514K x 18 GS880E18T-66 DCD Pipeline/Flow Through TQFP 66/18 C
256K x 32 GS880E32T-11 DCD Pipeline/Flow Through TQFP 100/11 C
256K x 32 GS880E32T-11.5 DCD Pipeline/Flow Through TQFP 100/11.5 C
256K x 32 GS880E32T-100 DCD Pipeline/Flow Through TQFP 100/12 C
256K x 32 GS880E32T-80 DCD Pipeline/Flow Through TQFP 80/14 C
256K x 32 GS880E32T-66 DCD Pipeline/Flow Through TQFP 66/18 C
256K x 36 GS880E36T-11 DCD Pipeline/Flow Through TQFP 100/11 C
256K x 36 GS880E36T-11.5 DCD Pipeline/Flow Through TQFP 100/11.5 C
256K x 36 GS880E36T-100 DCD Pipeline/Flow Through TQFP 100/12 C
256K x 36 GS880E36T-80 DCD Pipeline/Flow Through TQFP 80/14 C
256K x 36 GS880E36T-66 DCD Pipeline/Flow Through TQFP 66/18 C
514K x 18 GS880E18T-11I DCD Pipeline/Flow Through TQFP 100/11 I
514K x 18 GS880E18T-11.5I DCD Pipeline/Flow Through TQFP 100/11.5 I
514K x 18 GS880E18T-100I DCD Pipeline/Flow Through TQFP 100/12 I
514K x 18 GS880E18T-80I DCD Pipeline/Flow Through TQFP 80/14 I
514K x 18 GS880E18T-66I DCD Pipeline/Flow Through TQFP 66/18 I
256K x 32 GS880E32T-11I DCD Pipeline/Flow Through TQFP 100/11 I
256K x 32 GS880E32T-11.5I DCD Pipeline/Flow Through TQFP 100/11.5 I
256K x 32 GS880E32T-100I DCD Pipeline/Flow Through TQFP 100/12 I
256K x 32 GS880E32T-80I DCD Pipeline/Flow Through TQFP 80/14 I
256K x 32 GS880E32T-66I DCD Pipeline/Flow Through TQFP 66/18 I
256K x 36 GS880E36T-11I DCD Pipeline/Flow Through TQFP 100/11 I
256K x 36 GS880E36T-11.5I DCD Pipeline/Flow Through TQFP 100/11.5 I
256K x 36 GS880E36T-100I DCD Pipeline/Flow Through TQFP 100/12 I
256K x 36 GS880E36T-80I DCD Pipeline/Flow Through TQFP 80/14 I
256K x 36 GS880E36T-66I DCD Pipeline/Flow Through TQFP 66/18 I

Notes:

1. Customers requiring delivery in Tape and Reel should add the character “T” to the end of the part number. Example: GS880E18TT.

2. The speed column indicates the cycle frequency (MHz) of the device in Pipeline mode and the latency (ns) in Flow Through mode. Each
device is Pipeline/Flow Through mode-selectable by the user.

3. TA = C = Commercial Temperature Range. TA = I = Industrial Temperature Range.

4. GSI offers other versions this type of device in many different configurations and with a variety of different features, only some of which
are covered in this data sheet. See the GSI Technology web site (www.gsitechnology.com) for a complete listing of current offerings.

Part Number

1

Type Package

Speed

(MHz/ns)

3

T

A

Status

Rev: 1.11 11/2000 24/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Revision History

Preliminary

GS880E18/32/36T-11/11.5/100/80/66

DS/DateRev. Code: Old;

New

GS880E18/32/36TRev1.04h

5/1999;

1.05 9/1999I

GS880E18/32/36T1.05 11/

1999K880E18/32/36T1.06 1/

2000L

GS880E18/32/36T1.06 1/

2000L;

GS880E18/32/36T1.07 3/

2000N;

Types of Changes
Format or Content

Format/Typos

Content

Content

Content

Page;Revisions;Reason

• Last Page/Fixed “GSGS..” in Ordering Information Note.

• Fromatted Pin Outs and Pin Description to new small caps.

• Formatted Block diagrams to new small caps.

• Formatted Timing Diagrams to new small caps.

• Changed “Flow thru” to “Flow Through” in Timing Diagrams.

• Package Diagram/Changed “Dimesion” to “Dimension”.

• 5/Fixed pin description table to match pinouts.

• Pin Description/Changed chip enables to match pins.

• Pin Description/Changed pin 80 from NC to Address Input.

• Pin Description/Rearranged Address Inputs to match order of
Pinout

• Package Diagram/Changed Dimension D Max from 20.1 to

22.1

• Changed Flow Through Read-Write Cycle Timing Diagram for
accuracy.

• Changed order of TQFP Address Inputs to match pinout.

• Changed order of TQFP DATA Input and Output pins to
match pinout.

• New GSI Logo.

• Changed all speed bin information (headings, references,
tables, ordering info..) to reflect 150 - 80Mhz

GS880E18/32/36T1.07 3/

2000N;

GS880E18/32/36T1.08 3/

2000O;

GS880E18/32/36T1.08 3/

2000O;

880E183236_r1_09

880E18_r1_09;

880E18_r1_10

880E18_r1_10;

880E18_r1_11

Rev: 1.11 11/2000 25/25 © 2000, Giga Semiconductor, Inc.

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

Content

Content/Format

Content

Content

• Corrections to AC Electrical Characteristics Table -

• Removed 150 MHz speed bin

• Changed 133 MHz and 117 MHz speed bins to 11 ns and

11.5 ns (100 MHz) numbers

• Updated format to comply with Technical Publications
standards

• Updated Capitance table—removed Input row and changed
Output row to I/O

• Corrected typo in AC Electrical Characteristics table
