Gryphon Twister Instructions Manual
Gryphon
wister
Convertible Grinder
Instructions

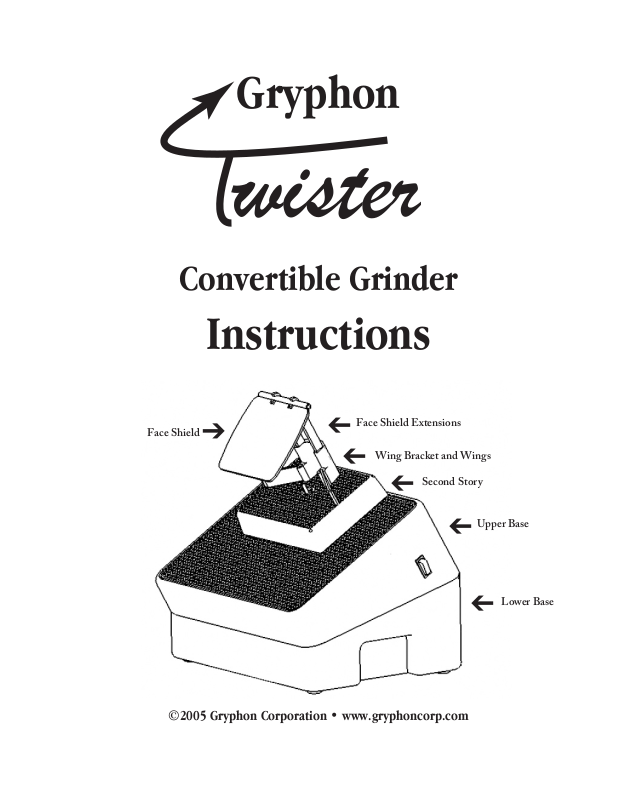

Face Shield
➔
➔
Face Shield Extensions
➔
Wing Bracket and Wings
➔
Second Story
➔
Upper Base
➔
Lower Base
©2005 Gryphon Corporation • www.gryphoncorp.com
Safety Precautions
1. Always use eye and body protection when using power tools such as this grinder.
2. Remove any jewelry or loose clothing which could become entangled in the grinding head.
3. Set power switch to off before plugging in the grinder.
4. Use only a properly grounded three prong 110 volt 60 cycle outlet. Extension cords are not
recommended.
5. Place grinder in an area where water will not reach electrical outlet and route cord to avoid water
dripping down the cord to the outlet.
6. Turn off grinder when not in use.
7. Do not leave hex wrench or other tools on grinder when in use.
Grinder Orientation Setup
1. The grinder may be used with the platform surface parallel to the table top or at an approximately 30°
angle.
2. If the grinder is to be used in the at position (parallel to the table top), no further setup is required.
3. To rotate the base to allow the platform to be tilted, rst make sure the grinder is unplugged. Turn the
grinder on its side to expose the bottom.
4. Locate the thumbscrew in the center of the Lower Base, and remove by turning counter-clockwise.
5. Separate Lower Base from Upper Base. Rotate Lower Base 180°, and snap into place.
6. Replace thumbscrew and tighten until snug (do not overtighten).
7. Reverse this procedure to return grinder to at orientation.
Assembly and Preparations for use
1. Leave grinder unplugged until ready to use.
2. Place Face Shield Extensions into slots on the Wing Bracket with the open end of the “C” bracket facing
forward.
3. Snap Face Shield into top of Extensions.
4. Insert rubber wings into slots on either side of Wing
Bracket.
5. Press assembly with wings and face shield into slots on
platform.
6. Preferred hose location: Locate hose guide in plastic
bag. Raise platform and snap hose guide into bottom
of platform so that it will direct water ow directly onto
Hose Guide
➔
2
