Reader Series
Instinctive Reading Intelligent Scanner
Features
Applications
General Description
Distinctive Features
Models and Accessories
Description
Application Environments
(Gryphon™ D100/D200)
Application Environments
(Gryphon™ M100/M200)
Models and Accessories Table
Specifications
Reading diagrams
Instinctive readers
ONLY MODELS WITH CABLE
FIVE YEARS
Warranty
(view details)
FEATURES
● Outstanding reading and decoding speed
● Linear and PDF417 bar code decoding
● Tethered and cordless models
● Plug & Play with Enhanced Multistandard Architecture
● Ergonomic and user friendly for intuitive operation
● Modular design open to upgrades
APPLICATIONS
● Data capturing in retail and office environments
● Suitable for any residential environment or wherever instinctive reading
distance is preferred
● Small warehousing
GENERAL DESCRIPTION
Datalogic has moved a step ahead in the concept of "instinctive reading". The new
Gryphon™ reader series has been developed to provide optimised reading
performance through excellent ergonomic design, a natural instinctive reading
approach and innovative good reading feedback.
The "INSTINCTIVE READING DISTANCE," a concept introduced by Datalogic a few
years ago based on in-depth ergonomic studies, represents the natural position of
the user while reading a code. The Gryphon™ series takes this concept one step
further. The series includes two tethered (D100 and D200) and two cordless
(M100 and M200) models, allowing operations anywhere mobility is required at
the desk/POS and around the shop floor, as well as in a small warehouse. The
new "green spot," (Datalogic patent application) produced by the Gryphon™
provides "good reading" feedback directly on the code, where the user usually
tends to be looking. Correct pointing becomes quick and easy thanks to the sharp
and bright illumination line. All these characteristics are coupled with outstanding
performance in terms of reading quickness and decoding capability thanks to stateof-the-art optics and a decode rate of 270 scans/sec, making the Gryphon™ very
user friendly, intuitive and fast.
Especially optimised optics allow reading of the most popular standard codes with
superior depths of field from near contact to over 30 cm. High resolution codes,
which can reach 3 mils are also easily read. Two specific models of the Gryphon™
series (D200 and M200) have also been designed to provide decoding of the most
popular stacked codes such as PDF417, CODABLOCK and CODE 16K, as well as
traditional bar codes. The Gryphon™ reader series is paving the road for
innovative bar code reading.
DISTINCTIVE FEATURES
Plug & Play
The enhanced multi-interface architecture allows quick and easy connection to the
system. The user simply plugs the cable into the reader or the cradle and reads
the selected interface configuration code. No other settings are required to be
operative quickly. For the cordless models a simple iijoinls of the reader to its
cradle is sufficient to start the transmission.
Reading Aggressiveness
Once connected, the user can take advantage of the excellent reading speed
instantly, guaranteed both by a powerful hardware architecture and an enhanced
decoding software. In addition, idstate-of-the-artl optics permit the Gryphon™ to
read at superior depths of field (over 30 cm) never reached before by similar
products when reading the most popular codes. In the cordless models, the fast
reading cycle is guaranteed by a prompt response from the cradle.
Ergonomics and Friendliness
The Gryphon™ has been designed keeping in mind user's comfort. The handy
shape, wide reading angle, light weight and new patented iagreen spotle for good
reading feedback, are well combined features that prevent users from
overworking, making use of the Gryphon™ easy, intuitive and comfortable in a
number of applications. Acknowledgement from the cradle produces additional
feedback as result of transmission.
Flexibility and Versatility
The large set of configurable parameters allow the user to customise the
Gryphon™ for specific needs. Data Formatting, Data Editing, Reverse-Code
Reading and Hands-Free Reading with auto-trigger mode are only some of the
features available. The four models offered cover the needs of a large number of
applications.
Mobility and Autonomy
The cordless models of the Gryphon™ address the needs of many applications,
giving an additional value to the product wherever mobility is a must. Free from
cable constraint and entanglement, the models are ideal for small warehousing,
POS In Store and Cash and Carry applications and more than 6,000 operations
are possible per recharging cycle.
Broad Range Radio Coverage
A two way 433 MHz low power narrow band radio avoids interference and allows
an operating range of more than 30 m, covering an area of more than 2500
square meters.
GRYPHON MODELS AND ACCESSORIES
Gryphon™ D100 and D200 Models
The Gryphon™ D100 and D200 are the first two models of the reader series.
Created to satisfy the needs of a wide range of applications in retail and office
environments, they both provide reading of linear codes, while the D200 model
can also read 2D stacked codes such as PDF 417, CODABLOCK and Code 16K.
Gryphon™ M100 and M200 Models
The same set of features are available in the Gryphon™ M100 and M200, two
cordless models which add value wherever mobility is at a premium. The
ergonomically designed cradle functions both as a radio station and a recharge
base.
Stand, Desk Holder and Wall Holder
A small footprint to optimize desk space and
the modern design of the Gryphon™ stand
make this reader ideal for the needs of
smart environments, where elegance and
ergonomics are at a premium. The
Desk/Wall Holder add ease-of-use and
flexibility in many environments where work
space is limited.
GRYPHON™ D100/D200: APPLICATIONS ENVIRONMENTS
DISTRIBUTION AND RETAIL
● POS/In-Store
● Shop/Small Warehouse
Management
● Document Handling
In typical retail environments such
as a supermarket point-of-sale, the
Gryphon™ complements flat bed
scanners perfectly, providing support
by reading heavy and large items as
well as poor quality and damaged
labels. It can also be useful in all
activities that take place on the shop
floor (e.g.
department store) where
incoming goods data logging,
inventory management, price
verification and document
management are common activities.
The ergonomic retail stand together with the automatic code detecting function
allow hand-free scanning typical of a presentation scanner, in checkout
environments where small items must be read frequently.
TRANSPORTATION AND LOGISTICS
● Document Handling
● Front Office Services
● Shipping and Receiving
Document handling and front desk
processing are some of the most
common applications in post offices,
as shipping and receiving inside
warehouses. In these environments,
where ergonomics and reading
performance are a must, the
Gryphon™ series produces highly
productive results, especially in
sequential operations, thanks to its
promptness and flexibility.
The new optimized optics provide
outstanding reading performance,
while the hands-free stand allows
the operator to better manage
documents and small parcels
providing ergonomics and a userfriendly working environment.
MANUFACTURING
● Work in Progress
● Quality Control
● Tracking
The Gryphon™ also provides
excellent value for applications in
manufacturing environments. There
are various processes in the
manufacturing environment,
typically consisting of assembly line
material tracking, inventory
management, quality control and
work-in-progress. These processes
are performed at the highest level of
accuracy and speed thanks to the
new Gryphon™ reader. Its high
mechanical resistance guarantees
product duration and investment
protection. The good reading iegreen
spotle directly on the bar code also provides the user with clear reading
feedback, useful in noisy environments. The Desk and wall holder accessories
allow the user to put the reader in a safe place when not in use.
GRYPHON™ M100/M200: APPLICATIONS ENVIRONMENTS
DISTRIBUTION AND RETAIL
● POS/In-Store
● Small Warehouse
● Shop Inventory Management
● Cash & Carry/DIY
Management
● Document Handling
● Front Office Services
● Shipping and Receiving
The introduction of instinctive
reading distance technology in a
cordless scanner permits the
Gryphon™ M100 and Gryphon™
M200 to answer the needs of a wide
range of applications.

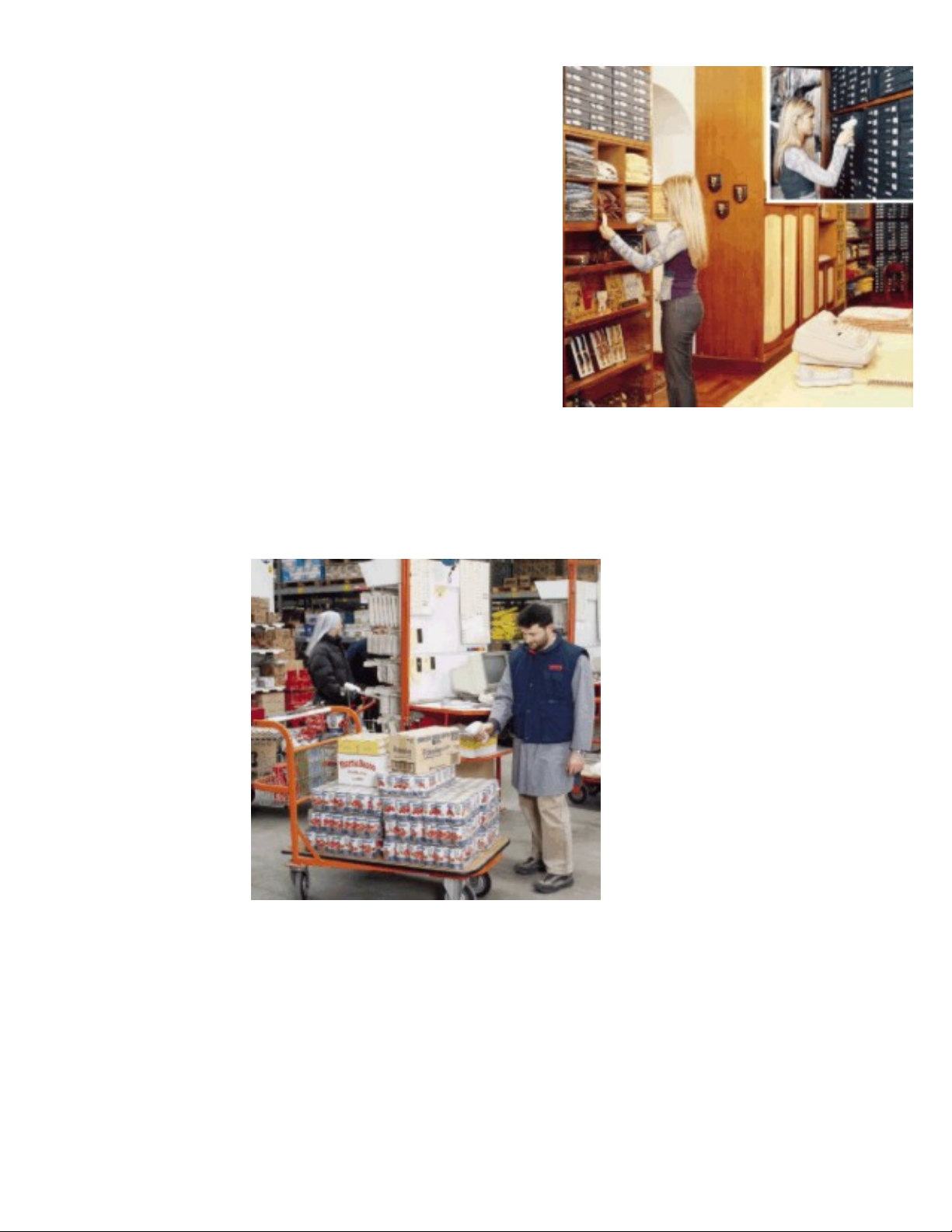

Management of traditional shops
from receiving to point-of-sale becomes easier with the use of a reader without
cable constraints. Merchandise no longer needs to be moved around the store
floor during inventory and price checks. Time consuming activities such as
reordering and stock replacement recording typically done on paper can now be
executed in real time thanks to instant data transmission to the information
system.
In particular point-of-sale
environments such as wholesale,
cash & carry and DIY stores where
goods are usually large and heavy,
the items cannot be lifted easily onto
flat-bed scanners. In this case, the
Gryphon™ M readers are ideal due to
their mobility, which lets the operator
move around the sales cart.
The Gryphon™ M200, which reads
linear and stacked codes, provides an
additional value in applications where
PDF417 codes are used, such as in
document handling, shipping and
receiving.
Both models supply cordless
alternatives in many activities where
the operator needs flexibility and
mobility. In distribution
environments, the cordless Gryphon™ M readers are very useful in managing
damaged and returned item applications, as well as picking operations.
TRANSPORTATION & LOGISTICS/MANUFACTURING
● Shipping and Receiving
● Document Handling
● Work in Progress
● Quality Control
● Tracking
In Transportation and Logistics
environments, such as on loading
docks, where goods shipping and
receiving requires freedom from
cable constraint, the Gryphon™ M
models offer the ideal solution. The
Gryphon™ M200 decodes information
contained in stacked codes typically
used to store data of an entire pallet
of merchandise.
Regarding Manufacturing, the
cordless Gryphon™ fulfils the needs
of new industry standards that recommend the use of linear and PDF417 codes
on tracking and shipping labels, as well as guaranteeing safety by eliminating the
use of cables.
MODELS AND ACCESSORIES
Models
•
Gryphon™ D100
Hand-Held reader for linear bar codes
•
Gryphon™ D200
Hand-Held reader for linear and stacked codes
•
Gryphon™ M100
Hand-Held cordless reader for linear bar codes (433 MHz)
•
Gryphon™ M100
Hand-Held cordless reader for linear bar codes (910 MHz)
•
Gryphon™ M200
Hand-Held cordless reader for linear and stacked codes (433 MHz)
•
Gryphon™ M200
Hand-Held cordless reader for linear and stacked codes (910 MHz)
Accessories
•
CAB362
RS232 coiled cable, 9-pin female connector (DCE config.)
•
CAB363*
RS232 coiled cable, 25-pin female connector (DCE config.)
•
CAB364*
RS232 coiled cable, 25-pin male connector (DTE config.)
•
CAB365
IBM PS/2 wedge coiled cable, minidin connector
•
CAB366
IBM AT/XT wedge coiled cable, din connector
•
CAB348
Pen emulation coiled cable, 9-pin male connector
•
CAB350*
RS232 straight cable, 9-pin female connector (DCE config.)
•
CAB327
RS232 straight cable, 9-pin female connector (DCE config.)
•
CAB328*
RS232 straight cable, 25-pin female connector (DCE config.)
•
CAB320*
RS232 straight cable, 25-pin male connector (DTE config.)
•
CAB389
RS232/Beetle straight cable, 9-pin male connector
•
CAB321**
IBM PS/2 wedge straight cable, minidin connector
•
CAB322
IBM AT/XT wedge straight cable, din connector
•
CAB324
IBM vdt. 31xx, 32xx, 37xx wedge straight cable, din 240° connector
•
CAB325
IBM vdt. 3151, 34xx wedge straight cable, 8-pin telephone connector
•
CAB326
IBM vdt. 3153 wedge straight cable, 6-pin telephone connector
•
CAB323
Pen emulation straight cable, 9-pin male connector
•
CAB373
WYSE VDT 60/120/160/185/370 wedge straight cable, 4-pin telephone
connector
•
CAB374
APPLE VDT (ADB-BUS) wedge straight cable, minidin connector
•
CAB375
DEC VDT VT200/220/240/300/320/340/420 wedge straight cable, 4-pin
telephone connector
•
ADP-102
5P din T-pass adapter
•
ADP-103
6P minidin T-Pass adapter
•
ADP-200
USB adapter
•
Operator's Manual
Software manual for Gryphon™ series
•
SPC-Gryphon™
Desk/Wall holder
•
STD-Gryphon™
Hands-free stand
•
OM-Gryphon™
Base/Charger with multistandard interface (433 MHz)
•
OM-Gryphon™
Base/Charger with multistandard interface (910 MHz)
•
PG5 (110 Vac)
Power supply unit 5 Vdc
•
PG5 (220 Vac)
Power supply unit 5 Vdc
•
PG110 (110 Vac)
Power supply unit 12 Vdc for OM-Gryphon™
•
PG220 (220 Vac)
Power supply unit 12 Vdc for OM-Gryphon™
*Power supply available on pin 9 or 25 of the connector.
**CAB321 SH1738 (cod. 90A051140) also available for Notebook and IBM
SureOne, minidin connector.
SPECIFICATIONS
GRYPHON™ D MODEL
•
POWER SUPPLY
5 VDC ±5%
•
CONSUMPTION
250 mA operating, 330 mA max.
•
OPERATING TEMPERATURE
0 to 55 °C
•
WEIGHT
180 g
GRYPHON™ M MODEL
•
BATTERY TYPE
2 AA NiMh batteries
•
RECHARGE TIME
3 hours max.
•
OPERATING AUTONOMY
25,000 reads - NiMh
•
OPERATING TEMPERATURE
0 to 40 °C
•
RADIO FREQUENCY
433.92 MHz (Europe); 910 MHz (USA)
•
BIT RATE
19,200 baud (Europe); 36,800 baud (USA)
•
EFFECTIVE RADIATED POWER
<10 mW (Europe); <1mW (USA)
•
RADIO RANGE
30m open air (Europe); 15m open air (USA)
•
MAX. NR. COEXISTING SYSTEMS
2048
•
WEIGHT
280 g (with batteries)
OM GRYPHON™ CRADLE
•
POWER SUPPLY
9 to 28 VDC
•
POWER CONSUMPTION
8W max. (charging)
•
READING INDICATORS
Battery charging (red); Charge completed (green); Power/Data (yellow)
•
RECHARGE TIME
3 hours max.
•
RADIO FREQUENCY
433.92 MHz (Europe); 910 MHz (USA)
•
BIT RATE
19,200 baud (Europe); 36,800 baud (USA)
•
EFFECTIVE RADIATED POWER
<10 mW (Europe); <1mW (USA)
•
MAX. NR. COEXISTING SYSTEMS
2048
•
WEIGHT
250 g
•
DIMENSIONS
208 x 107 x 55.5 mm
•
CASE MATERIAL
ABS
GRYPHON™ D & GRYPHON™ M MODELS
•
SENSOR
CCD solid state (3648 pixels)
•
MAX. SCAN RATE
270 scans/sec
•
MAX. RESOLUTION
0.076 mm (3 mils)
•
PRINT CONTRAST RATIO (min.)
pcs=15%
•
READING ANGLE
Skew: ±80°; Pitch: 65°; Tilt: ±35° (EAN13, M=0.8, PCS=0.9)
•
READING INDICATORS
Good Read LED, "green spot" on the code, adjustable tone "beeper"
•
BAR CODES
2/5 family, Code 39 (plus Code 32, Cip 39), EAN/UPC, ISBN/ISSN, EAN 128,
Code 128, ISBT 128, Code 93, Code 11, CODABAR, TELEPEN, PLESSEY, Code
MSI, Code Delta IBM (D200/M200 model only) CODABLOCK, Code 16K, PDF
417, Code 49
•
PROGRAMMING METHOD
Manual: Reading special bar codes
Automatic (with RS232): S/W commands through the serial port
WinSetPlus: Windows configuration program
•
INTERFACES
RS232, pen emulation, Wedge (PC IBM AT/PS2, IBM SureOne, Notebook, IBM
terminals: 31xx, 32xx, 34xx, 37xx, 3153, WYSE VDT 60/120/160/185/370,
DEC VDT VT200/220/240/300/320/ 340/420, APPLE ADB BUS) ALT mode
Wedge option for PC/AT and Notebook, keyboard set-up
•
ENHANCED FEATURES
Puzzle Solver™, data editing and data concatenation
•
CASE MATERIAL
ABS and Polycarbonate, plus co-moulded rubber
•
AMBIENT LIGHT CONDITIONS
Up to 100.000 lux
•
STORAGE TEMPERATURE
-20 to 70 °C (without batteries)
•
HUMIDITY
90% non condensing
•
DROP RESISTANCE
IEC 68-2-32 Test ED; withstands repeated drops from 1.8 m onto a concrete
surface
•
ENVIRONMENTAL PROTECTION
IP30
READING DIAGRAMS
Gryphon™ D100/M100
Gryphon™ D200/M200
Loading...
