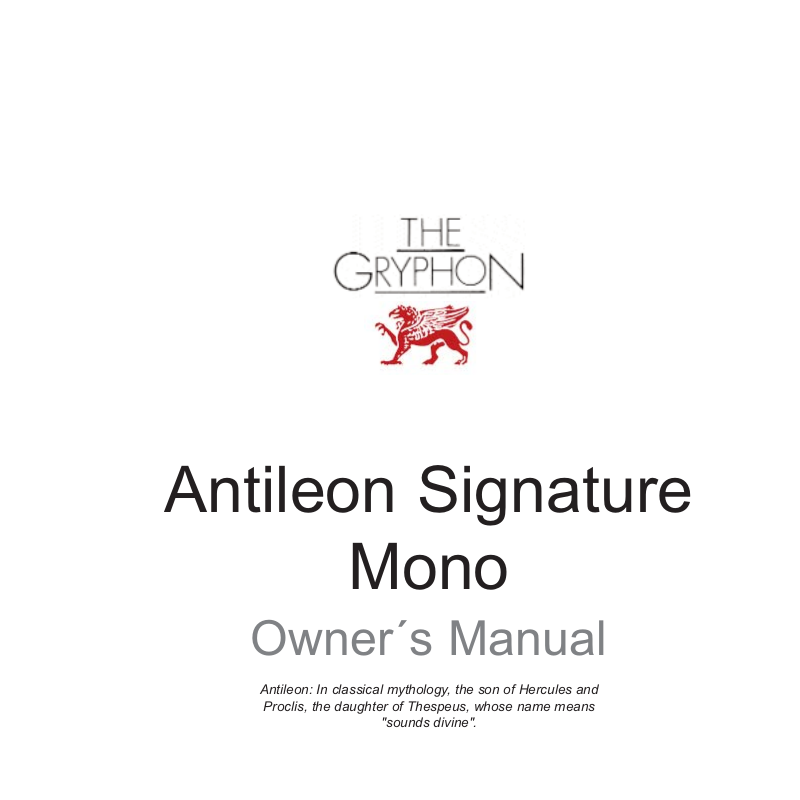

Page 1
Antileon Signature
Mono
Owner´s Manual
Antileon: In classical mythology, the son of Hercules and
Proclis, the daughter of Thespeus, whose name means
"sounds divine".
Page 2
Table of Contents:
Introduction....................... 3
The Gryphon....................... 3
The Man.............................. 4
Made in Denmark............... 4
Musical Objectives.............. 5
The Gryphon Master Tape
Collection............................ 5
Design Principles................ 5
Exterior Design................... 7
Manufacture and Assembly. 8
Using Your Gryphon
......... 8
AC Voltage.......................... 8
Burn-In and Warm-Up.......... 8
Placement............................ 9
Balanced Connections........ 9
Choice of Cables................. 9
Care and Maintenance........ 9
Antileon Signature............... 10
Sonic Excellence................. 10
Power Supply....................... 10
Circuit Topology.................... 11
Class A................................. 11
Protection............................. 11
Exterior................................. 11
Installation............................ 14
AC Power, Placement.......... 14
Power Cords....................... 15
Front Panel Functions............ 15
Green Bias............................ 16
Rear Panel Functions............ 17
Balancet Inputs..................... 17
Protection system.................. 17
Fuses .................................. 18
Troubleshooting ................... 19
Warranty................................ 20
Page 3
Introduction
Welcome to the global family of
proud owners of fine audio components from Gryphon Audio
Designs of Denmark. Your new
Gryphon unit has been painstakingly designed to re-create the
sound of live music taking place
in its original recorded space.
Every Gryphon product is
designed to cater to the needs of
the most discerning music
enthusiast with sumptuous
styling and superb user-friendliness which elevate it above the
mundane world of conventional audio components.
As audiophiles, the
members of the
Gryphon design team are constantly reminded to keep their
priorities straight. We are not
involved in “hi-fi” for its own
sake, but strictly as a means to
an end, in the service of our lifelong love of the live music experience in all its sonic and emotional glory.
Our higher goal is to bring to the
listener a “You-Are-There” sensation. In taking up this challenge, the Gryphon designers go
back to basics to analyze the
essential nature of the live music
experience. For us, an awareness of soundstaging, ambience
and concert hall dimensions are
necessary components.
Dynamics and an unambiguous
sense of instrument location
even in the loudest passages
are also high priorities. To
achieve these objectives,
Gryphon products offer exceptional speed and agility along
with seamless coherence in the
time domain.
Since 1985, Gryphon Audio
Designs has quietly gone about
the business of creating fine
home audio components. We
know that you will appreciate and enjoy the benefits
of our accumulated experience and share our abiding passion for music.
The Gryphon
In Greek mythology: A fabled
creature, half-lion and halfeagle, combining the power of
the “King of Beasts” with the
grace of the “King of Birds”. The
guardian of the source of gold
and protector of the Dionysian
cup of infinite wealth.
In the real world: An acclaimed
Danish audio engineering company employing cutting edge
technology and common sense
in the pursuit of the purest musical experience. We feel that the
gryphon is an appropriate symbol for our high sonic goals.
3
Page 4
The Man
Gryphon Audio Designs is the
brainchild of Flemming E.
Rasmussen and the fulfillment of
a lifelong dream to allow the
purest essence of the live music
experience to be recreated in the
home environment.
Rasmussen holds a degree in
painting and graphic arts from
the Aarhus Art Academy,
Denmark. During his studies,
Rasmussen developed close
relationships with the local music
community and designed many
LP covers and concert posters.
After graduation, he taught photography and painting and
designed textiles, before founding 2R Marketing, which quickly
became Denmark’s leading High
End audio import company.
Gryphon Audio Designs was
founded in 1985 as an offshoot
of 2R Marketing, The first product, the now legendary Gryphon
Head Amp, grew from a one-off
spare time project developed
only for the designers’ own home
systems. Although the Gryphon
project was initially strictly a
hobby, not an actively pursued
commercial venture, demand
generated by reviews and wordof-mouth led to the formal establishment of Gryphon Audio
Designs as a separate corporate
entity.
Following the immediate success of the Gryphon brand, all
import business was phased out
in 1993, so that Rasmussen
could dedicate his efforts entirely to Gryphon.
Made In Denmark
Every product from Gryphon
Audio Designs is designed and
built in Denmark. This is much
more than just a geographical
fact. It is also a seal of approval,
a stamp of quality. Living in a
region with no natural resources
(no oil, coal, precious metals,
etc.), the Danes have learned to
rely on their quick wits and
skilled hands. Innovative technology, beautiful craftsmanship,
pride in one’s craft and a keen
eye for attractive design are
some of the long-standing
Danish traditions which are distilled to their finest essence in
every unit that bears the
Gryphon name.
Musical Objectives
While scientific method and
sophisticated technology play an
important role in our electronics
design work, at Gryphon we
never lose sight of the fact that
the keen ears of an experienced
listener are the most crucial “calibration tools.” Therefore, every
The Gryphon Head Amp 1985
4
Flemming E. Rasmussen painting 1967
Page 5
Gryphon product exists for one
simple purpose: to bring the user
closer in the never-ending quest
for a more natural and convincing musical illusion.
Every Gryphon design has been
built to cruise effortlessly through
even the most demanding musical passages, regardless of volume level, with a musical presentation defined by supreme
articulation and immediacy, subtle dynamic shading and razorsharp focus. Refinement and
delicacy are combined with
power and authority for a natural, involving listening experience.
The Gryphon Master
Tape Collection
In the Gryphon listening rooms,
we are fortunate to possess a
unique library of more than
1,000 original master tapes of
recordings made during the
Golden Age of studio engineering from 1956-1976.
Unlike conventional commercial
releases, our master tapes capture the dynamic contrasts and
subtle inner harmonic structure
of the musical event, forcing us
to work to a higher standard in
our efforts to maintain the integrity of the original musical performance.
Design Principles
With state of the art technical
equipment and some of the
finest minds in the audio engineering field at our disposal, the
Gryphon brand name continues
to define the highest audiophile
standards of subjective and
technical performance.
The dual mono configuration
radically eliminates any possibility of crosstalk or other interference between channels and provides infinite channel separation
which contributes to the ability to
create space, focus, depth and
transparency.
Because the electrical power
coming out of your wall fluctuates wildly in terms of voltage
and distortion, Gryphon incorporates heavily regulated multistage power supplies that act as
effective mains conditioning filters. Displays and control circuits
are fed by a separate power supply to isolate any digital noise
artifacts and effectively prevent
them from contaminating the signal path.
While the printed circuit boards
in more conventional audio products utilize conductor tracks a
mere 35 micron thick, Gryphon
employs at least 70 micron
traces of the highest purity.
Gryphon is located in beautiful tranquil surroundings.
5
Page 6
Beginning with our very first
product, “The Head Amp” all
Gryphon products have featured
extremely wide frequency bandwidth, because the ability to
reproduce ultra-sonic frequencies with no difficulty ensures linear phase across the audible frequency range.
The implementation of circuits
with wideband frequency
response is a painstaking
endeavor in which the actual layout and ground pattern of the PC
boards are crucial to the
achievement of superior sonic
performance with no loss of
inherent stability.
Wideband frequency response
ensures the high slew rate
essential to the realistic handling
of the ultra-fast transients which
routinely occur in live music and
is crucial in recreating the natural decay of musical instruments.
Wide bandwidth also improves
phase characteristics, for more
correct soundstaging and imaging.
All Gryphon designs are realized
with an absolute minimum of
negative feedback, which when
present in large amounts can
actually increase TIM distortion.
All Gryphon preamplifiers are
designed with zero negative
feedback. Gryphon power ampli-
fiers apply negative feedback
judiciously for improved linearity
and bandwidth.
Gryphon research into the detrimental effects of magnetically
induced distortion (MID) has led
to the elimination of magnetizable materials wherever possible. To eliminate the effects of
stray magnetic fields, non-magnetic materials are employed
throughout, with the unavoidable
exception of the transformer
shield box.
The mechanical design of the
cabinet and assembly methods
are all carefully calculated to
ensure minimal resonance,
either through the use of
mechanically grounded high
mass or decoupling. Vibrationsensitive components, capacitors in particular, are thus guaranteed a non-resonant environment.
The heavy, thick chassis offers a
vibration-proof environment for
the sensitive electronics inside
and provides crucial shielding
from a polluted world of low and
high-frequency radio waves,
power-line radiation and other
electrical interference.
Meticulous attention to such
issues makes a significant contribution to the relaxing, open
and transparent Gryphon sound.
Typical Gryphon module
6
Page 7
Unique, non-invasive protection
circuitry offers reliable, fuss-free
protection without compromising
signal purity and signal path simplicity, with no conventional
relays in the signal path to
degrade or compress sound.
The ground path has been carefully laid out in order to achieve
superior sonic performance with
no loss of stability. Component
layout has been designed to
ensure the shortest conceivable
signal path.
Exhaustive investigation underlies the selection of every component part and many original,
proprietary components are custom-built exclusively for
Gryphon. Because what is left
out is just as important as what
goes in, an absolute minimum of
internal wiring is included.
By lavishing attention on each
aspect of the circuit and fully
understanding the purpose and
behavior of every single part of
the whole, our designers can
optimize performance in each
section, before moving on to the
next step. This ensures simplicity, a short signal path and a unity
of purpose with a single, welldefined objective: musical purity.
In the interest of ultimate fidelity,
tone controls, balance controls
and other unnecessary components have been banished from
the signal path.
Exterior Design
From the very beginning, every
Gryphon product has offered
stunning audio performance,
sumptuous styling and superb
user-friendliness, catering to the
needs of the discerning audiophile who demands musicality,
convenience and aesthetics, all
without compromise.
In every Gryphon product, form
follows function in a unique synthesis of aesthetics and practicality. Gryphon stands for
sophisticated technology with a
high standard of industrial finish
that also incorporates the best of
handcraftsmanship.
The peerless finish, build quality,
ergonomics and pride of ownership that contribute to the totality
of the Gryphon concept can only
be fully understood and appreciated up close and in person.
Rasmussen’s background in fine
arts and industrial design gives
every Gryphon product a distinctive, luxuriant finish which arises
organically out of the audio circuit design and the user interface for a truly unique integration
of form and function.
Gryphon Audio Designs in the
outskirts of the small town of Ry
7
Page 8
Manufacture and
Assembly
At our laboratories and manufacturing facilities in Denmark, we
maintain full control over every
aspect of development and production, and the members of our
conscientious staff diligently follow each Gryphon model from
initial concept to early prototype,
through to final quality control.
Printed circuit boards are
assembled by a supplier of precision military and medical
equipment with strict standards
of quality control and pre-inspection of components. Chassis
parts are manufactured by a
specialist chosen solely for the
outstanding quality of workmanship. In every aspect of every
Gryphon product, the same
stringent standards of excellence apply.
Following a 48-hour burn-in,
each product is tested again,
before being subjected to
Gryphon’s custom-developed
transport simulator which simulates the inevitable shaking that
a product will encounter in transit. The product is placed on top
of a very large loudspeaker
which plays a special CD with
low frequencies which simulate
the vibrations of an airplane.
Each unit “travels” the equivalent
of 40 round trips from Denmark
to Australia before leaving the
factory.
AC Voltage
Your Gryphon unit is especially
made for the AC voltage of the
country to which it has been
shipped.
If the voltage has been
changed, the warranty is void
and the product may be unsafe
or malfunction.
Correct AC polarity contributes
greatly to optimum performance.
If you are not using a three-pin,
non-reversible power plug,
please experiment with the orientation of the plug for optimum
performance.
Burn-In and WarmUp
Your Gryphon unit has been
thoroughly tested and burned in
before shipping. Performance
will continue to improve during
the first 40 – 50 hours of normal
use. After this period optimum
performance will be reached
approximately 45 minutes after
turn-on. With the exception of
Class A power amplifiers, we
recommend leaving your
Gryphon components powered
up at all times.
8
Page 9
Balanced
Connections
All Gryphon products use the
AES standard for balanced connections.
1. Ground
2. Positive
3. Negative
We recommend the use of dedicated balanced cables. Avoid the
use of adaptors as they degrade
performance.
Choice of Cables
Because your Antileon is a highresolution Gryphon audio
device, it will immediately reveal
the characteristics and possible
limitations of the other components in your system, as well as
those of the interconnects and
loudspeaker cables used to connect your system.
Wiring should never be utilized
as "equalizers" to correct errors
elsewhere in the system.
Instead, any error should be corrected at the source, so that
interconnects and loudspeaker
cables can be selected solely on
the basis of sonic neutrality. For
this reason, we employ
Gryphon's own range of interconnects and cables in every
stage of the design of every
Gryphon product.
Care and
Maintenance
Gryphon products are handcrafted by individuals who take great
pride in the high level of fit and
finish which we achieve. To
maintain your Gryphon components in pristine condition,
please follow these simple
instructions.
Metal surfaces may be cleaned
with a damp cloth. Some product
made for treatment of vinyl interiors in cars may be useful. Test
the product on a non-visible surface, before using any fluids.
Acrylic surfaces should only be
wiped with a very soft, dry cloth.
Small scratches may be
removed with fiberglass polish.
Fingerprints may be removed
with a damp cloth. Do NOT use
spirits or paper tissue.
9
Page 10
Antileon
Signature
User Guide & Introduction
Features:
*Fully balanced circuit
175 Watts per channel Pure
Class A
*40 High current bipolar output
transistors
*440,000 µF power capacitor
bank
*Flat frequency response to
beyond 350 kHz
*Minimum negative feedback
*No output relays
*User-programmable Green
Class A bias
*DC servo coupling
*Frequency-independent damping factor
*Rigid mechanical structure
*Microprocessor controlled,
non-invasive “smart” protection
system
*Upgradeable software.
*Double sealed, mil spec PCB
with 105 µm copper trace
*Integrated service log.
Sonic excellence
The Antileon impresses immediately with its ability to cruise
effortlessly through even the
most demanding musical passages, regardless of volume
level. As a result of the constant
high power reserves available at
all times, the amplifier simply
does not "see" the speaker, so
the speaker's reactive load cannot degrade amplifier performance. Unlike other high power
amplifiers, Gryphon's no compromise pure Class A topology
allows the Antileon to offer high
power as well as refinement and
delicacy in musical presentasion. It is our fundamental philosophy that all electronics in the
playback chain must ideally be
neutral and not add or subtract
anything from the recording no
matter how "attractive" such distortions may be. The Antileon is
by nature a product for the fortunate few who can afford such a
statement, just as it is a product
for the increasing number of
audiophiles who seek purity in
the reproduction of music, a
product for the music lover who
respects both the musicians and
recording engineers enough to
refrain from adding or subtracting anything in relation to the
original intention of the recording.
10
Page 11
Circuit Topology
Power is the name of the game
and the Antileon is equipped to
take on even the most vicius and
nightmarish of speaker loads.
The output section uses Sanken
bipolar output devices which
have demonstrated extreme reliability in addition to outstanding
sonic performance. These transistors can be called upon to
deliver momentary peak power
of 4,000 watts per channel without overload. Each of the 40
transistors is bypassed with individual film capacitors. The separate driver section has its own
supply from individual windings
on the custom-made toroidal
transformers. Unique mechanical design ensures optimal thermal tracking between drivers
and output devices. The driver
section features its own generous bank of proprietary Gryphon
capacitors.
The power capacitor bank is an
astounding 400,000 uF array of
capacitors.
Negative feedback is minimal
and DC coupling employs DC
servo circuitry. Internal wiring in
the signal path is kept to an
absolute minimum. The input
wiring is Gryphon Guideline
Reference gold-embedded silver
cable. Only balanced inputs are
provided.
Unique even in this price range,
the Gryphon Antileon utilizes a
completely independent transformer and power supply for display and control circuits, effectively preventing digital noise
generated by these circuits from
reaching the amplifier circuits.
Gryphon proprietary speaker terminals accept bare wire, spade
lugs, banana connectors or any
combination.
Because of the considerable
power consumption inherent in a
Class A design, the Gryphon
Antileon constantly monitors AC
voltage status. Variations
caused by heavy industry in the
daytime may also be registrered
by the display.
Class A
True Class A operation has
always been a Gryphon benchmark, simply because nothing in
our experience can match the
sonic glories of pure Class A.
Unfortunately, true Class A is
even rarer today than when we
introduced the DM100. Rising
consumer awareness has forced
some manufacturers to stop
making outrageous unsubstantiated claims of Class A power ratings that only exist in the fevered
imagination of some marketing
"expert".
Still, there is a growing number
of so-called "new" Class A
topologies based on automatic
biasing which, simply explained,
somehow allow the amplifier to
11
Page 12
sense when the bias should
increase to ensure constant
Class A performance!
If such thing were to actually
work as claimed, it would be tantamount to a re-writing of the
laws of physics. In order for an
amplifier to be able to increase
bias and stabilize thermally to
instantaneously track the
dynamics of the input, it would
have to be able to predict what is
going to happen next on the
recording. Auto-biasing can by
nature only respond to something that has already happened
and the bias will rush up and
down in a desperate attempt to
follow the last note.
Put bluntly, there is no such thing
as a free lunch when it comes to
pure Class A, so we repeat with
no apologies: TRUE PURE
CLASS A means heavy transformers, very large heatsinks,
lots of heat, lots of electricity,
expensive parts and costly
assembly.
While we appreciate and
endorse every effort to conserve
energy and preserve our global
resources, our research into
efforts to obtain Class A performance from class A/B topologies
makes it clear that there simply
is no substitute for the sheer
magic of pure class A.
However, based on thorough
analysis of typical listening situations, we have devised Green
bias (green for reduced environmental impact). Green bias
offers TRUE, PURE CLASS A
with considerably lower power
consumption than the traditional
solution.
With the DM100, Gryphon was
the first amplifier manufacturer
ever to offer programmable
Class A bias as a means of
reducing power consumption
without compromising Class A
performance.
Green bias in the Gryphon
Antileon allows the user to select
the amount of Class A at any
given time, taking into account
such factors as speaker sensitivity, room size , musical dynamics
and overall volume level.
Green bias improves on our programmable bias by giving the
fortunate owners of a Gryphon
preamplifier the option of letting
the preamplifier automatically
control the bias.
Instead of a conventional potentiometer, the Gryphon
Preamplifier employs a 44-positiion volume attenuator which can
be used to select the bias to
match the overall playback level,
thus ensuring pure Class A at all
times.
Unlike signal-sensing "auto-biasing systems" Green bias does
not attempt to follow the signal at
all, the current position of the
12
Page 13
Protection
The unique, non-invasive protection system offers reliable, fussfree protection without compromising signal purity and signal
path simplicity, with no conventional relays in the signal path to
degrade or compress sound.
When DC or HF is detected at
the input, the amplifier mutes
until the error condition is corrected.
The output signal is constantly
compared to the input, so that, in
the presence of a difference
which exceeds predetermined
limits (typically a short circuit
condition), the amplifier mutes
until the error condition has been
corrected or take out the internal
protection fuse will blow.
Heatsink temperature is constantly monitored by a thermistor. In the event of overheating
(temperature in excess of 90°
C), the amplifier will muteand go
in stand-by mode. Normal operation will resume when a safe
operating temperature is
reached. At temperatures above
100°, the amplifier will turn off
and can not be turned on again
before temperature is below 50°.
Exterior
Non-magnetic materials are
employed throughout, the only
exception being the mechanically isolated transformer housing
13
volume control determines the
bias setting whether music is
playing or not. In effect, this
means that if the user selects,
for instance, position 11 ( Sonata
Allegro ) on the volume control,
then the bias will increase to
100% (High Bias) producing 150
Watts pure Class A. This bias
level will be maintained even
when music is absent or when
the amplifier or preamp is muted.
If the user turns the volume control down below position 10, the
Preamplifier will automatically
instruct the amplifier to reduce
bias to 50 watts of pure Class A.
Standby is selected manually
from the front panel. To leave
standby ,you must select low og
high bias on the front panel.
If Green bias is activated,
GB
will be lit for 5 sec. in the dispaly
and the amplifier will automatically adjus bias to match the
postion of the preamp volume
control.
While Green bias does not offer
the extreme low power consumption of Class A/B, or even
the low power consumption of
"auto-biasing" systems, it does
offer significantly lower power
consumption without sacrifice or
compromise of even a fraction of
its PURE CLASS A performance.
The Antileon user who do not
own a Gryphon preamplifier can
access the progammable bias
system manually.
Page 14
which incorporates a special
epoxy resin to optimise transformer vibration damping.
The faceplate is machined from
a solid 40 mm black acrylic
block. An LED display provides
continuous information on Class
A status and AC condition.
With the exception of the faceplate, the Antileon exterior consists entirely of brushed, black
anodized alluminium. Allen
screws are countersunk for
clean appearance.
Installation
Unpacking
Obviously, the purpose of packing materials in the transportation of heavy amplifiers is to protect the product on its perilous
journey from manufacturer to
proud owner.
Unfortunately, in our experience
this often results in sprained
backs and bleeding fingers at
the moment of truth: the uncrating of hefty power amplifier.
The instructions found on top of
the box you will find instructions
and illustrations for disassemble
and assembling the transportation box.
The cases can be completely
dismantled for easy storage.
Keep the boxes and all the parts
in a dry place
The following items are
enclosed:
2 Antileon Signature mono´s
1 Pair of gloves
1 Acrylic polish
2 XLR adaptors
2 AC power cords
1 Warranty card
If anything is missing or damaged, please contact your
Gryphon dealer immediately.
AC Power
VERY IMPORTANT
Before installation, you must
ensure that sufficient current is
available from you domestic AC
power supply:
Minimum: 10A for 220/240 V
Minimum: 20A for 100/120 V
It is also very important that the
wiring from your AC breaker can
carry the high constant AC voltage with only a minimum of loss.
A conductor with a minimum
gauge of 1.5 sq. mm. Is recommended.
The Antileon should ideally be
connected to a separate AC
breaker group independent of
other equipment.
Placement
The Antileon is a high bias Class
A design and
MUST be placed
so that air may circulate freely
around the heatsinks. The
14
Page 15
Antileon is equipped with tall feet
for free air circulation, even on
thick carpets. The feet also allow
you to push the amplifier across
the floor without lifting it.
AC Fuses
Antileon Fuseholder:
220-240v. 2x6.3 AT
100-120v. 2x12 AT
AC Power Cords
Use only a dedicated AC power
cord. Do NOT use loudspeaker
cable or other wire not expressly
designed to carry high current.
Improper cable or cables of
insufficient gauge will generate
heat and the insulation may melt
with disastrous results.
AC cords DO have an audible
effect on sound quality, but
experiments should be carried
out with due consideration to
safety.
Power Line
Conditioners?
We do not recomend the use of
any kind of power line conditioning with the Antileon Signature.
If you wish to experiment with
external line conditioners or
other devices, we strongly recommend that you listen to the
Antileon without these devices
before making your decision.
Remember to listen for correct
sound and not merely different
sound.
15
AC Polarity
Do not run, thin, coiled, extension cords.
The Antileon Signature is a true
dual mono construction and we
must stongly emphasize the
importance of symmetrical AC
power polarity for each channel.
Asymmetrical AC polarity will
seriously degrade soundstage
recreation and other important
aspects of the Antileon performance. The Antileon Signatures
display will warn you if AC polarity is assymetrical.
Front panel functions
From left:
1.ON/OFF
Turns off all active circuitry, but
there is still AC power inside the
Amplifier. For full shutdown use
the 2 master AC power switches
on rear or disconnect the AC
cords.
When turning the Antileon on
from the front, the Gryphon logo
and all display indications will
flash for approx 15 sec. before
the amplifier is fully operational.
When the amplifier is ready the
Gryphon logo will stay on and 2
green
OK indicators will be on
for 5 sec. If Green bias cable is
connected, Green bias (GB)
light will also be on for 5 sec.
If AC the cords are not connected with the same polarity, the
PHASE indicator remain on until
problem is solved.
Page 16
16
2. MUTE
Use this function when changing
speaker cables or interconnects
without turning the amplifier off.
3.
STANDBY
Use to keep circuitry in amplifier
ready for listening without initial
warm-up. If left in stand-by for
longer periods, use the mute
function, too.
4.
LOW BIAS Can only be used
when the Automatic Green bias
is disabled. This position provides 50 Watts of pure class A,
more than enough for normal listening conditions and speakers
with normal sensitivity. In this
setting 150 watts of Class A/B
power is available.
5.
HIGH BIAS - 100% Class A
power for the ultimate performance.
6.
CHECK This function allows
you to check that all indicators
are operational.
The selectors (4-5) determinesthe degree of Class A operation.
In the 100% mode the Antileon
provides 150 watts of PURE
CLASS A power into an 8 ohm
load. The bias adjustments do
not change total output power,
but only the Class A operation
range.
With very efficient speakers,
175Watts of pure Class A might
rightly be considered overkill.
With LOW BIAS, efficient speakers will be driven in Class A
most of the time.
Naturally, lowering the Class A
operation range reduces AC
power consumption at idle.
When evaluating the sonic effect
of the 3 bias adjustment modes,
it must be taken into consideration that the Antileon requires
time to settle when bias is
changed. (5 min.)
Bias may be adjusted with the
Antileon turned on. However, we
recommende that bias adjustment be made once and for all
during initial installation.
If the Antileon has been turned
off using the front panel on/off
switch, it will remember the last
bias setting. After using the master on/off switch at the rear
panel, it will return to its last setting.
Green Bias
If you own a Gryphon preamplifier with the green bias link, The
Antileon will automatically
change bias with reference to
the current position of the
Preamplifier´s volume control,
independent of the music signal.
If you wish the Antileon to go to
Stand-by for idling, you must use
the stand-by switch on the front
panel. Remember, the Green
Page 17
bias system is not in the signal
path and has only reference to a
separate deck on the
Preamplifier´s attenuator.
The Antileon responds to preprogrammed switching points at the
volume control, based on our
experience with most speakers.
It is however, possible to lower
the switching positions if you
have efficient speakers or if you
wish to play at 100% Class A
even at low playback levels.
Please refer to the preamplifier´s
manual for further information
about this.
If you remove the link between
the Antileon and the preamplifier,
the Antileon will automatically
revert to manual operation only.
Rear Panel Functions
Speaker terminals
The binding posts are custom
designed by Gryphon. The special design will provide a tight
reliable connection to: plugs,
lugs or bare wire. Do not use
tools or excessive force when
tightening the terminals.
Balanced Input.
The Antileon provides only balanced input. There are no deteriorating phono sockets in parallel
with the balanced input.
The Antileon balanced inputs are
made to AES standards:
Pin # 1 Shield
Pin # 2 Positive
Pin # 3 Negative
The single-ended to balanced
adaptors provided with the
amplifier should only be used as
a temporary solution and MUST
be replaced with a dedicated
balanced cable connection, or a
cable that converts single ended
to balanced.
BIAS
Connection for Green bias link
between compatible Gryphon
preamplifier´s and the Antileon
The Antileon
protection System
Gryphon has designed a unique
comprehensive system with no
circuit breakers in the signal
path. The “smart” Gryphon protection system constantly monitors the amplifier by checking 10
times per sec. when the amplifier is on regardless if whether the
amplifier is on stand-by or active.
DC & HF:
When DC or HF from the source
component is detected, the
Antileon will mute immediately:
Normal operation will resume
when the error condition is corrected.
17
Page 18
OVERHEATING:
When excessive heat is detected, the thermal sensor will mute
and the amplifier will go in standby mode. Normal operation can
resume when the temperature is
within safe operating limits.
SHORT CIRCUIT:
Special care should be taken at
all times to avoid shorting the
loudspeaker outputs. If a short
circuit should occur, the Antileon
will open an internal (not userreplacable) fuse. Contact your
dealer/distributor for service.
We are aware that the Antileon is
the choice of the very experienced audiophile, so please
bear with us while we repeat certain ground rules:
TURN-ON PROCEDURE:
1. Turn on source components,
Turntable, CD Player, etc.)
2. Turn on preamplifier
3. Allow a few moments for components to stabilize, (tube equipment may require more time).
4. Turn on power amplifier
TURN-OFF PROCEDURE:
1. Turn off power amplifiers.
2. Turn off rest of the system.
PLEASE
ALWAYS TURN OFF OR MUTE
THE POWER AMPLIFIER
BEFORE CONNECTING OR
DISCONNECTING ANY
CABLES IN THE SYSTEM.
INTERNAL FUSES
Under the small top cover,
behind faceplate.
From left
Fuse # 1 1 A F (spare)
Fuse # 2 1 A F (spare)
Fuse # 3 1 A F
Fuse # 4 200 mA T
Fuses 1 & 2 are only spare fuses
for fuseholder # 3
Fuse # 3 is the protection system
fuse.
Fuse # 4. is the fuse for the AC
power-up system.
Main AC fuse is located on the
back plate.
Replace only with same value
fuses. Be very carefull when
replacing fuses not to drop fuse
inside amplifier.
WARNING
Do not remove cover of amplifier
unless AC cords are removed
from amplifier.
18
Page 19
TROUBLESHOOTING
No Light in Gryphon Logo
*Check both AC cords
*Check both on/off switches on
rear panel
*Check your domestic AC supply
*Check AC fuses on rear panel
*Check fuse no.4 under top plate
(200 mA )
Logo Light is on but amplifi-
er will not start up.
*Check error indicators on display
Error and Fuse indicator is
flashing.
*Check Fuse no. 3 under top
plate. ( Remove AC cords first )
Error and Low Power indi-
cators are flashing.
*Available AC power is too low.
Minimum requirement is:
100 - 120v. countries : 95 v.
200 - 240v. countries : 190 v.
Error and Temp. L indica-
tors are flashing:
Left channel is overheating. Turn
off amplifier and secure air circulation around the unit. Start
amplifier again after 5 min.
Error and Temp R. indica-
tors are flashing:
Right channel is overheating.
See above.
Tweak Alert
In the best Gryphon tradition we
have spent a huge amount of
time with our prototypes before
we release a new product. We
are obsessed with what we do
and consider ourselves to be
open-minded and are fascinated
by the "Grey area" between logical, technical facts and things we
just hear that make no obvious
technical sense.We will implement them as long as it does not
sacrifice safety or reliability. In
the Antileon design a number of
tweaks can be found and the
result is a fine balance that can
easily be disturbed.
We strongly advise against any
alteration of the original design,
it will void the warranty and most
certainly only provide a diffence,
not a real improvement of musical realism.
We are fully aware of the fun of
playing with AC conditioners,
bricks, platforms, cables and so
on. We appreciate much of it,
but please listen to our intentions
before you go ahead and if you
do, do yourself (and us) the favor
of now and then going back and
listening to the "naked" design
as it was intended.
19
Page 20
Warranty
The Gryphon Antileon is warranted against failures arising
through faulty workmanship and
materials for a period of 2 years
from date of purchase. The warranty is not transferable.
This
warranty is only valid in the
country where the product was
purchased
. All claims under this
warranty must be made to the
distributor in the buyer
`
s country
by returning the unit securely
packed in the original box with all
accessories, postage/freight prepaid and insured. The unit will be
repaired or replaced at no
charge for parts and labor.
This warranty remains valid only
if the serial number of the unit
has not been defaced or
removed and if repairs are performed only by authorized
Gryphon dealers or distributors.
It does not cover damage due to
misuse, accident or neglect. This
warranty is not valid if the operation voltage of the product has
been changed. The distributor or
manufacturer, Gryphon Audio
Designs, Denmark, retains the
exclusive right to make such
judgement on the basis of
inspection.
The retailer, distributor or manufacturer of the Gryphon shall not
be liable for consequential damage arising from the use, misuse
or failure of this product, includ-
ing injuries to persons or property.
To qualify, the enclosed warranty
registration card must be filled
out and returned to the manufacturer within 10 days of purchase.
Alternatively, you may choose to
register your Gryphon on our
website:
www.gryphon-audio.dk
