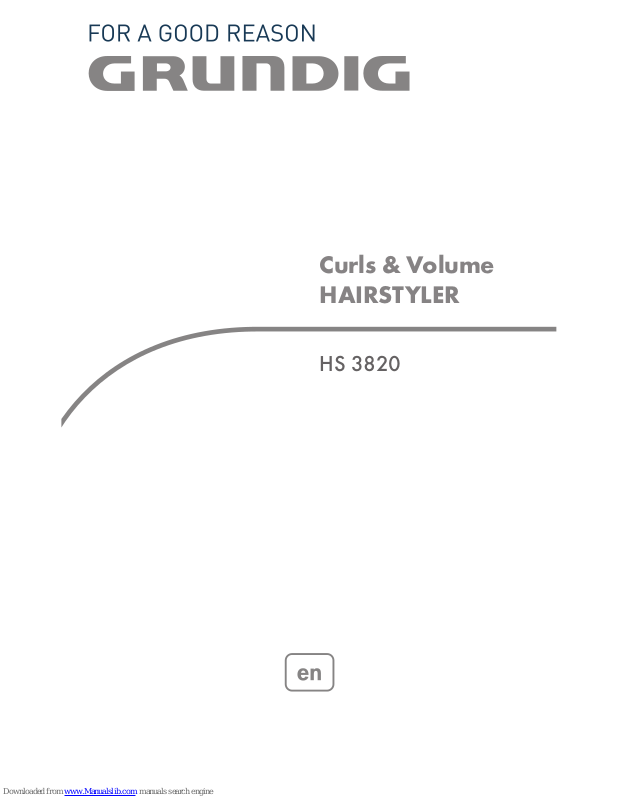

Grundig HS 3820 User Manual

Curls & Volume
HAIRSTYLER

HS 3820

------------------------------------------------------------------------------------------------------------------------------------------------------------------

2

A

1 2

F E G

B C D

3ENGLISH

SAFETY

--------------------------------------------------------------------------------------------------------------------------

Please observe the following instructions when using
the appliance:

7

This appliance is intended for domestic use only.

7

Never use the appliance in the
bathtub, shower, above a water­filled basin or with wet hands.

7

Do not immerse the appliance in
water or let it come into contact
with water, even during cleaning.

7

Do not use the appliance near water in bathtubs,
wash basins or other vessels.

7

If the appliance is used in the bathroom, it is essen­tial that the power plug is pulled out after use, as
water close to the appliance can still pose a haz­ard, even if the appliance is switched off.

7

If not already present, for additional protection it is
recommend to install a residual-current-operated
protective device (RCD) with a rated residual
operating current not exceeding 30 mA in the
electrical circuit of your bathroom. Ask your
electrician for advice.

7

Never place the appliance on soft cushions or
blankets during operation.

7

Ensure that the air suction and exhaust openings are
not covered during operation.

4 ENGLISH

SAFETY

--------------------------------------------------------------------------------------------------------------------------

7

The appliance is equipped with an overheating pro­tection system.

7

Pull out the power plug after use. Do not disconnect
the plug by pulling on the cable.

7

Never use the appliance if it or the power cord is
visibly damaged.

7

If the power cord is damaged, it must be replaced
by the manufacturer, its service centre or a similarly
qualified person to prevent danger arising.

7

Keep the appliance out of the reach of children.

7

The device may not be used by the following peo­ple, including children: those with limited physical,
sensory or mental capabilities and also those with a
lack of experience and knowledge. This does not
apply to the latter if they were instructed in the use
of the device or if they use it under the supervision
of a person responsible for safety. Children should
always be supervised to ensure that they do not
play with the device.

7

Do not open the appliance under any circum­stances. No warranty claims are accepted for dam­age caused by incorrect handling.

5ENGLISH

OVERVIEW

------------------------------------------------------------------------------------------------------

Dear customer,
Congratulations on the purchase of your Curls & Volume

HS 3820 hair styler.
Read the following user instructions carefully to ensure

you can enjoy your quality product from Grundig for
many years to come.

Special features

The switchable voltage allows this hair styler to be used
the world over.

The large round brush attachment is especially gentle to
hair due to its ceramic coating.

Controls

See the illustrations on page 2.

Detachable brush (styling attachment).
Catch for detaching the styling attachment.
Switches the appliance on and off. Regulator for

two temperature/blower settings and the cold air
setting (“cool shot”).

Switches between mains voltages of 120 V and
220 - 240 V.

Air inlet grille.
Handle.
Power cord with rotatable cable joint.

G

F

E

D

C

B

A

6 ENGLISH

OVERVIEW

------------------------------------------------------------------------------------------------------

Accessories

Round brush Ø 20 mm, with soft bristles.
Round brush

Ø 38 mm, with ceramic coating.

Settings

Your appliance has the following setting options:

Temperature/blower setting and cold
air setting

– 0: off.
–

1: gentle air flow and moderate temperature for

gently drying and styling.

–

2: stronger airflow and high temperature for fast

drying and styling.

–

?

: interrupts the heating to supply a cold air flow.

A responsible approach!

GRUNDIG focuses on contractually
agreed social working conditions with fair
wages for both internal employees and

suppliers, as well as on the efficient use of
raw materials with continual waste reduction of several
tonnes of plastic each year – and availability of at least
5 years for all accessories.

For a future worth living.
For a good reason. Grundig.

2

1

7ENGLISH

ACCESSORIES

----------------------------------------------------------------------------------------

Putting on the styling attachment

1 Put the styling attachment onto the markings

(figure 1).

2 Press the locking button and turn the styling

attachment to the right until both key symbols are
facing one another (figure 2).

3 Release the locking button.

– The styling attachment is secured.

Removing the styling attachment

1 Press the locking button and turn the styling

attachment to the left until the key symbol on the
attachment is facing the bar symbol on the
appliance (figure 3).

2 Release the locking button and remove the

attachment.

B

B

B

B

1

1

1

8 ENGLISH

ACCESSORIES

----------------------------------------------------------------------------------------

1

3

2

9ENGLISH

ACCESSORIES

----------------------------------------------------------------------------------------

Putting on the styling attachment

1 Put the styling attachment onto the markings

(figure 1).

2 Turn the styling attachment to the right until both

key symbols are facing one another and the
attachment clicks (figure 2).
– The styling attachment is secured.

Removing the styling attachment

1 Press the locking button and turn the styling

attachment to the left until the key symbol on the
attachment is facing the bar symbol on the
appliance (figure 3).

2 Release the locking button and remove the

attachment.

B

B

2

2

2

10 ENGLISH

ACCESSORIES

----------------------------------------------------------------------------------------

1

3

2

11ENGLISH

OPERATION

--------------------------------------------------------------------------------------------------

Use

Check the on-site mains voltage and set the voltage to
this specification with the switch .

1 Towel dry your hair thoroughly after washing.
2 Plug the power cord into the wall socket.
3 Turn on the appliance with the switch and set the

temperature/blower level.

4 If desired, interrupt the heating by moving the switch

to position ?.

Note:

The “cool shot” interrupts the heating to supply a
flow of cold air. This allows you to fix your hairstyle
better and more lastingly.

5 After use, switch off the appliance with the switch

and pull the power cord from the wall socket.

Important:

Never wind the power cord around the appliance,
since this could lead to damage.

Please regularly check the power cord and the
appliance itself for visible damage.

GC

C

C

G

D

12 ENGLISH

INFORMATION

--------------------------------------------------------------------------------

Cleaning and care

Pull the plug out before cleaning.
Never submerge the appliance in water.
Use a soft, dry cloth to clean the housing. Remember to

clean the air inlet grille occasionally with a soft brush
to remove hairs and dust.

Environmental note

This product was constructed from high-quality parts
and materials which can be re-used and recycled.

Therefore, do not throw the product away with normal
household waste at the end of its service life. Take it to
a collection point for recycling electrical and electronic

devices. The symbol on the product, in
the operating manual or on the pack­aging indicates recyclability.
Please consult your local authority for
collection points in your area.
Help protect the environment by recy-

cling used products.

13ENGLISH

Technical and design modifications reserved.

INFORMATION

--------------------------------------------------------------------------------

Technical data

This product conforms to the European
directives 2004/108/EU, 2006/95/EU
and 2009/125/EU.

Voltage supply

120 V, 220 - 240 V, 50/60 Hz

Power

350 - 400 W
