Grundig 32GFB5622, 42VLE5521 Schematic [en, de]

TV Service Manual

Service
Manual

NUR FÜR INTERNEN GEBRAUCH

FOR INTERNAL USE ONLY

Chassis CN

32 GFB 5622 PHF000
32 GFB 5623 PHG000
32 GFB 5624 PHH000
32 GFB 5625 PHJ000
32 GFB 5626 PHK000
32 GFB 5627 PHL000
32 GHB 5602 PGX000
32 GHB 5603 PGY000
32 GHB 5604 PGZ000
32 GHB 5605 PHA000
32 GHB 5606 PHB000
32 GHB 5607 PHC000
32 VLE 4503 BF PBV000
32 VLE 5501 BG PBG000
32 VLE 5503 BG PCA000
32 VLE 5503 BN PHD000
32 VLE 5521 BG PBH000
32 VLE 5523 BG PCB000
32 VLE 5523 BN PFC000

43 VLE 5521 BG PBJ000
43 VLE 5523 BG PCC000
43 VLE 5523 BN PFD000
43 VLE 5523 WG PFA000

49 VLE 4523 BF PBY000
49 VLE 5521 BG PBK000
49 VLE 5523 BN PFE000
49 VLE 5523 WG PMP000

55 VLE 5523 BG PCE000
55 VLE 5523 BN PFF000

Zusätzlich erforderliche Unterlagen für den Komplettservice
Additionally required Service Documents for the Complete Service

Sicherheit

Safety

Materialnr./Part No.

720108000001

Materialnummer / Part Number 720100570500
Änderungen vorbehalten / Subject to alteration
TCC 1016…1215 MP • Prepared in Germany
http://www.grundig.com

GRUNDIG Service Chassis CN

Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Material­nummer 720108000001, sowie zusätzlich die even­tuell abweichenden, landesspezifischen Vorschriften!

Inhaltsverzeichnis

Allgemeiner Teil

Allgemeine Hinweise .....................................................................1-2

Spezial-Funktionen
Geräte- und Display-Varianten
Servicehinweis

Technische Daten ..........................................................................1-6

Bedienhinweise
Service- und Sonderfunktionen

.................................. 1-2…1-40

........................................................................1-3

......................................................1-4

..............................................................................1-4

...........................................................................1-28

...................................................1-38

Seite

Platinenabbildungen
und Schaltpläne

Chassisplatte ZNS190R-3 .............................................................2-1

– Blockschaltplan ..........................................................................2-4

– Scaler-Bootstrap ........................................................................2-4

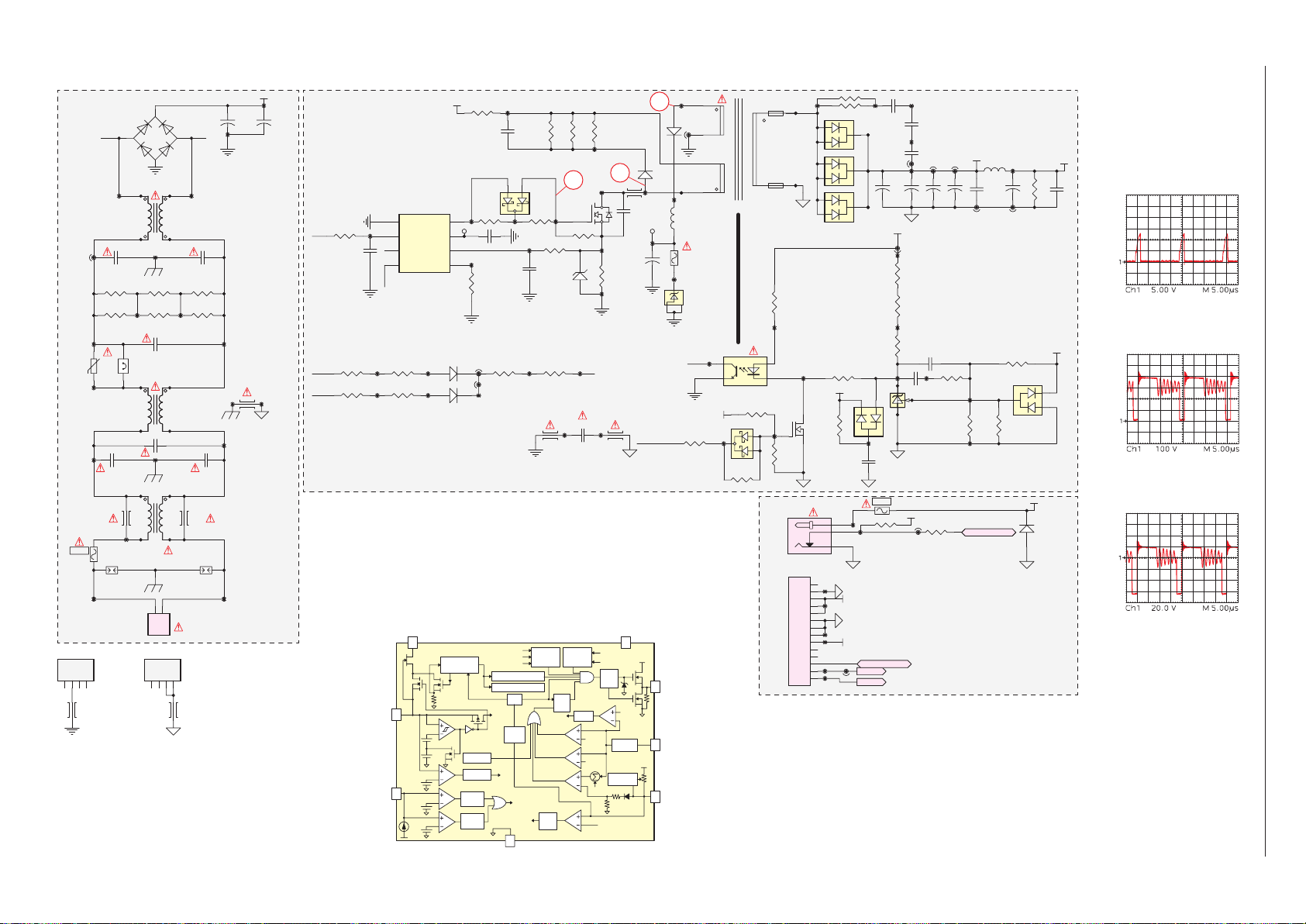

– Netzteil .......................................................................................2-5

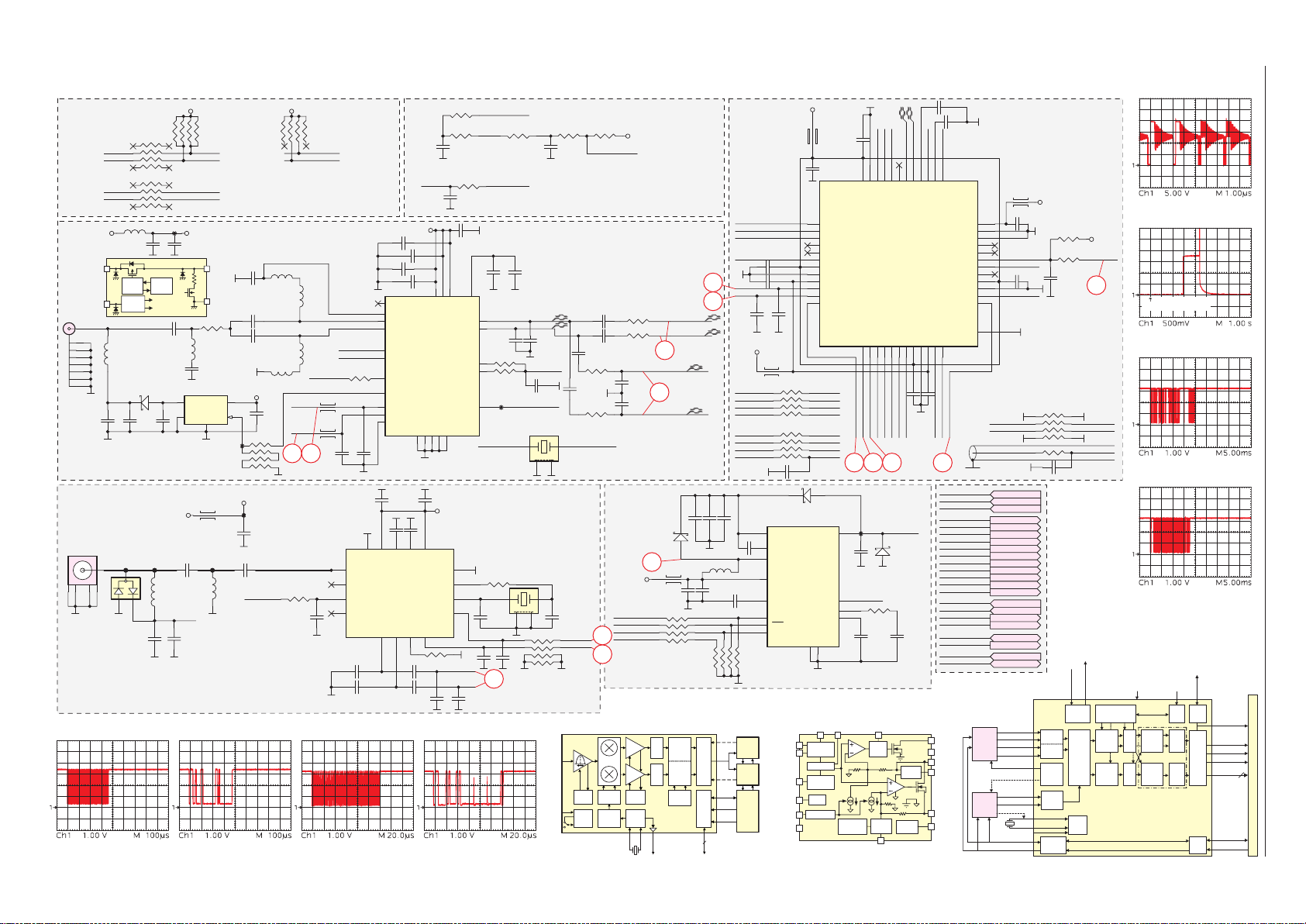

– Tuner ..........................................................................................2-6

– HDMI..........................................................................................2-7

– SCART .......................................................................................2-7

– USB, Service .............................................................................2-8

– PCMCIA-Interface ......................................................................2-8

– IR/LED, Keyboard Flash ............................................................2-9

– LVDS ..........................................................................................2-9

– Verstärker .................................................................................2-10

LED-Konverter ZNL193-05
Netzteil ZNV194-03
IR-/LED-Platte

.............................................................................2-15

.................................. 2-1…2-15

..........................................................2-11

.....................................................................2-12

The regulations and safety instructions shall be valid
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
national deviations.

Table of Contents

General Section

General Notes ...............................................................................1-2

Special Functions
Product and Display Variants
Service Hint
Technical Data
Operating Hints
Service and Special Functions

...................................................................................1-4

...............................................................................1-6

.................................. 1-2…1-40

..........................................................................1-3

.........................................................1-4

............................................................................1-32

....................................................1-38

Page

Layout of the PCBs
and Circuit Diagrams

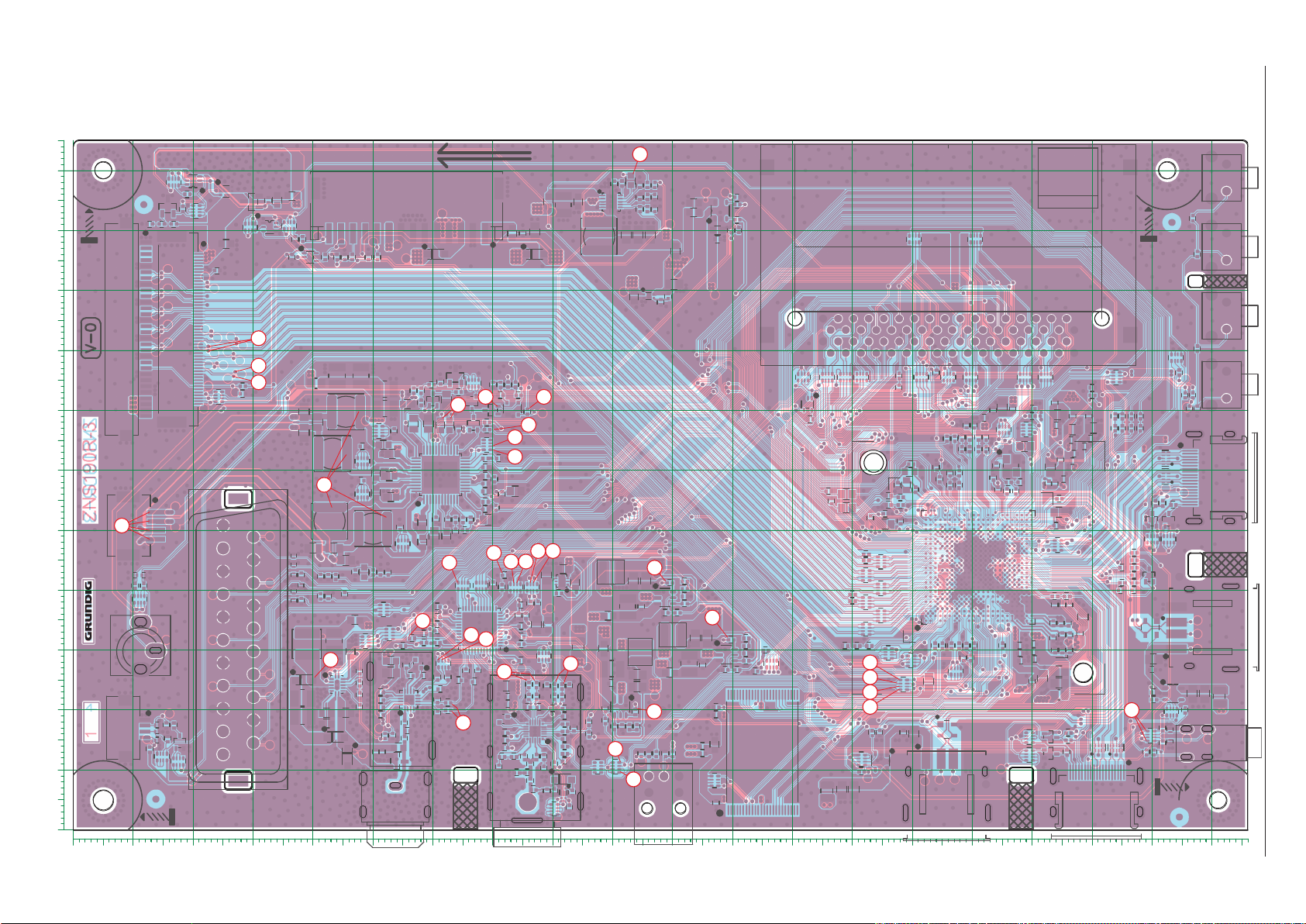

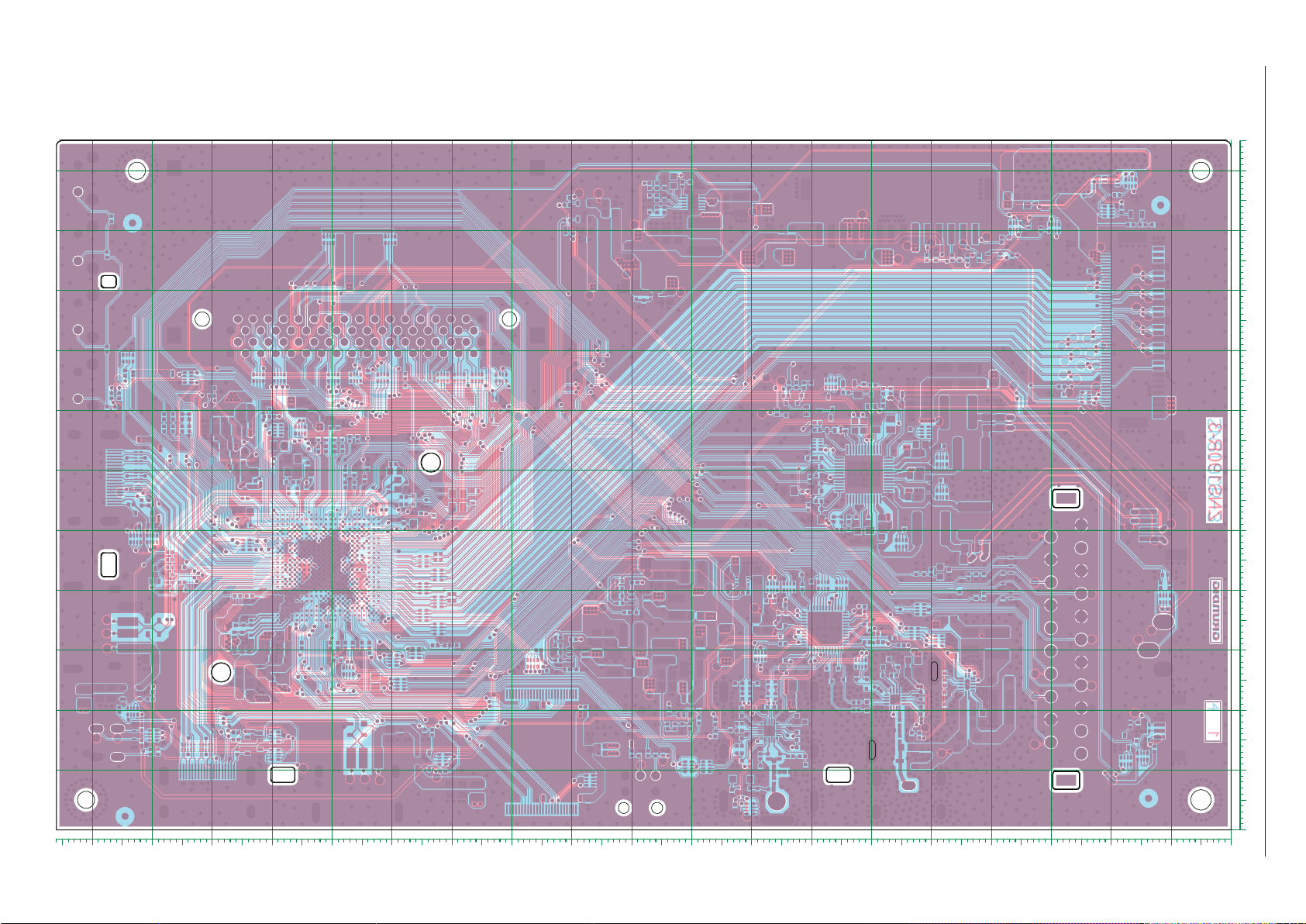

Chassis Board ZNS190R-3 ...........................................................2-1

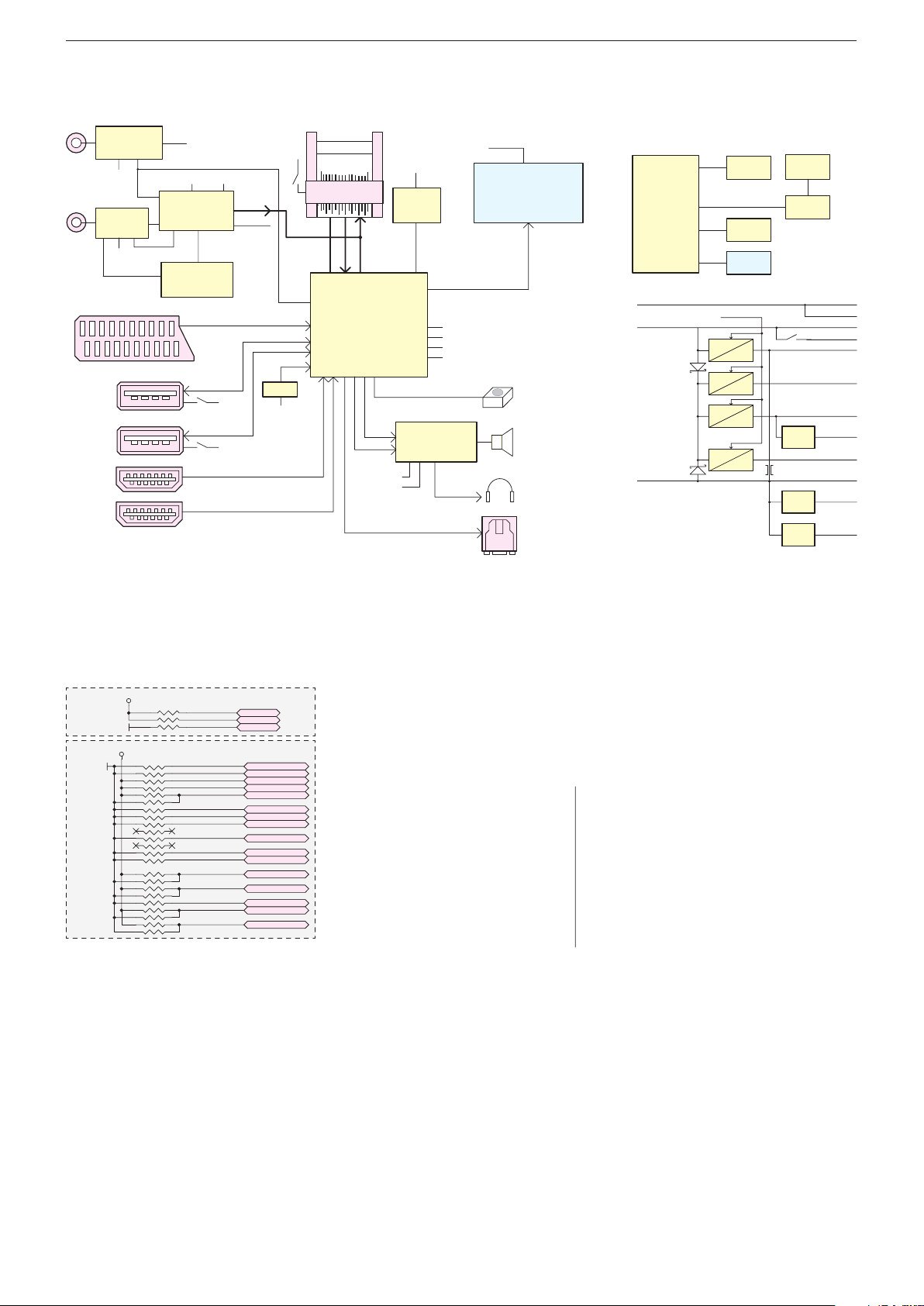

– Block Circuit Diagram ................................................................2-4

– Scaler-Bootstrap ........................................................................2-4

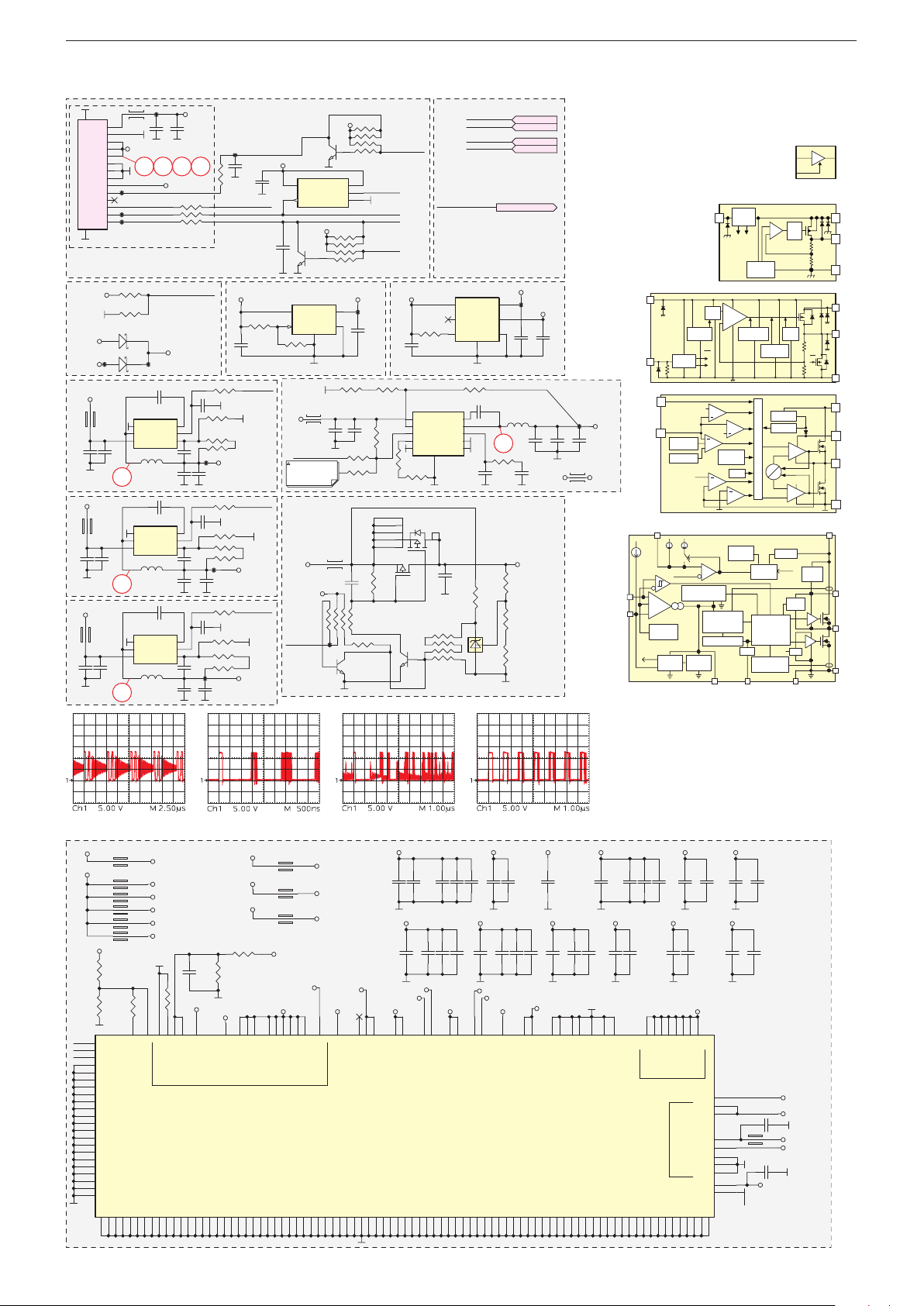

– Power Supply .............................................................................2-5

– Tuner ..........................................................................................2-6

– HDMI..........................................................................................2-7

– SCART .......................................................................................2-7

– USB, Service .............................................................................2-8

– PCMCIA Interface ......................................................................2-8

– IR/LED, Keyboard Flash ............................................................2-9

– LVDS ..........................................................................................2-9

– Amplifier ...................................................................................2-10

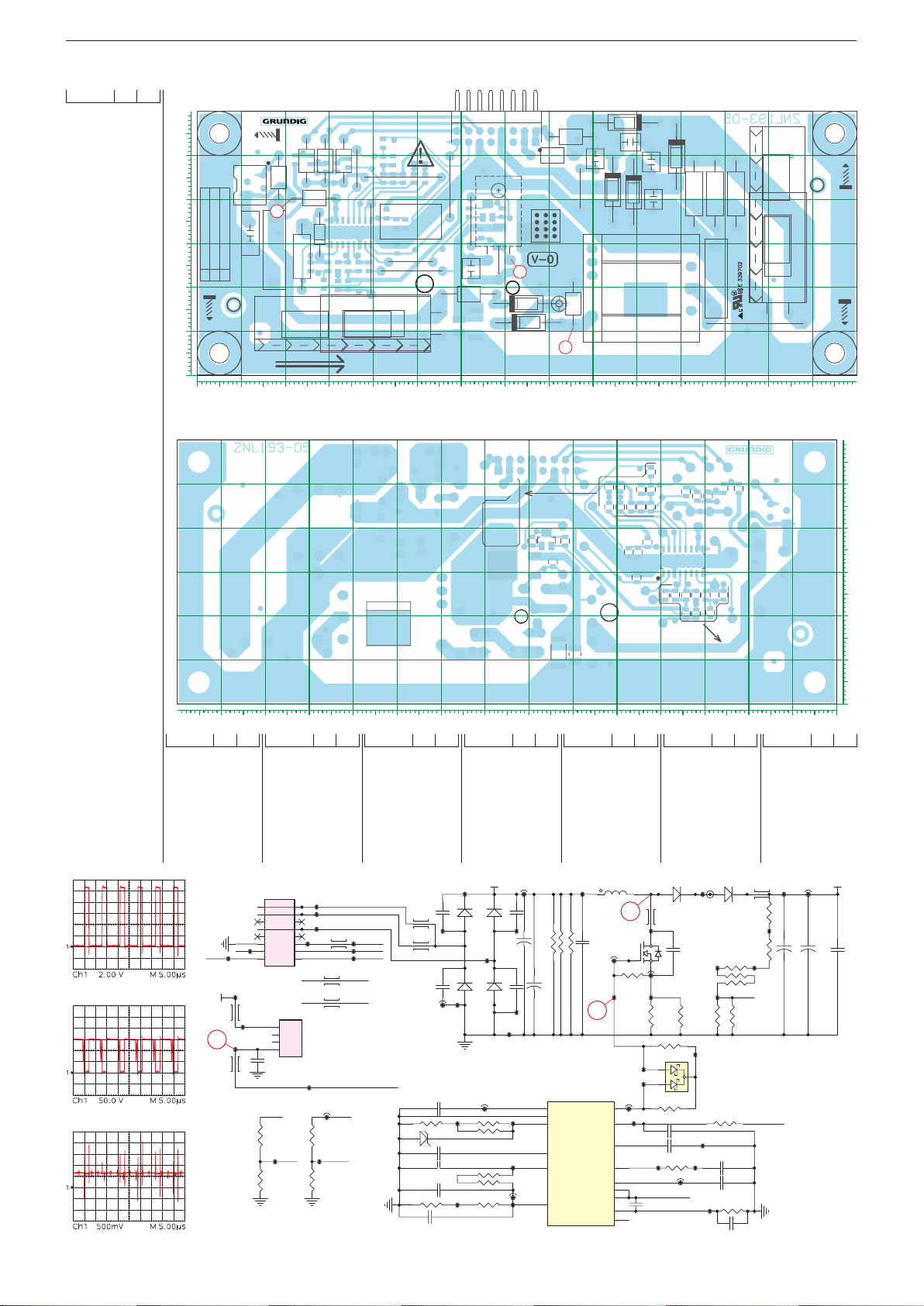

LED Converter ZNL193-05

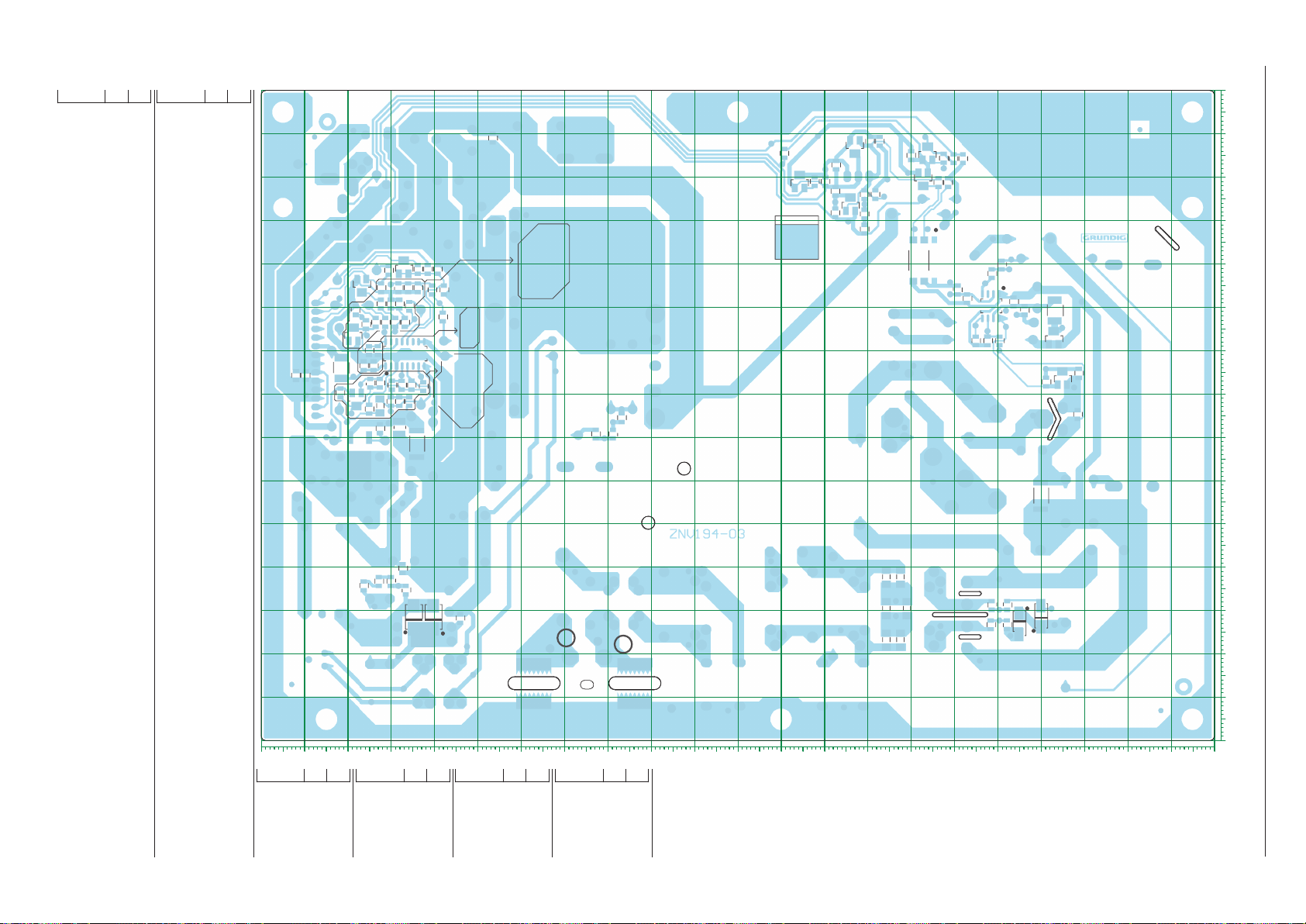

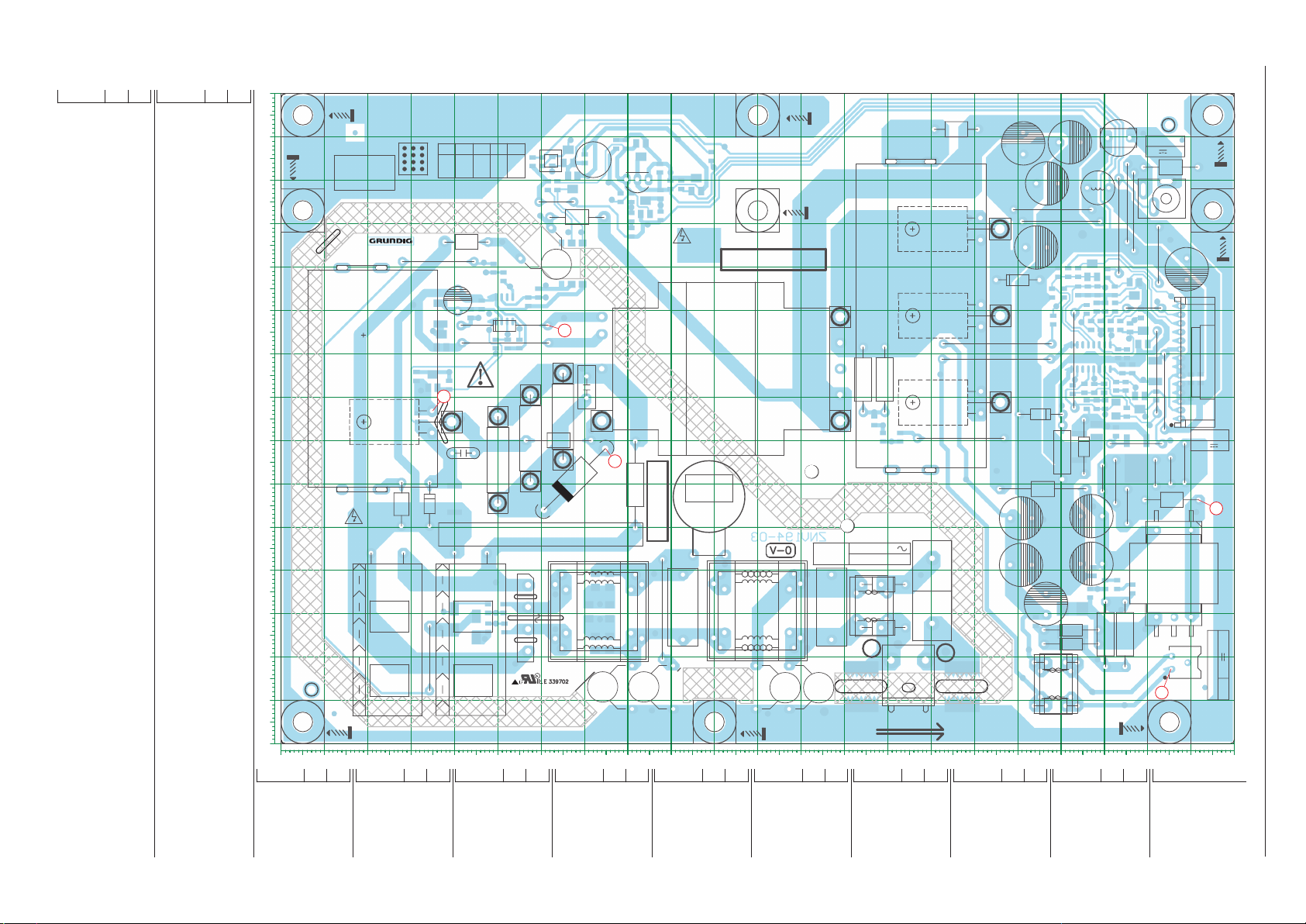

Power Supply ZNV194-03
IR / LED Board

............................................................................2-15

......................... 2-1…2-15

..........................................................2-11

...........................................................2-12

Ersatzteillisten .................................... 3-1…3-17

Allgemeiner Teil

Allgemeine Hinweise

Vor dem Öffnen des Gehäuses den Netzstecker ziehen!

Achtung: ESD-Vorschriften beachten

Leitungsverlegung

Bevor Sie die Leitungen und insbesondere die Masseleitungen lösen,
ist die Leitungs ver legung zu den einzelnen Baugruppen zu beachten.
Nach erfolgter Reparatur ist es notwendig, die Leitungsführung wieder
in den werkseitigen Zustand zu versetzen um evtl. spätere Ausfälle
oder Störungen zu vermeiden.

Durchführen von Messungen

Bei Messungen mit dem Oszilloskop an Halb leitern sollten Sie nur
Tast köpfe mit 10:1 - Tei ler verwen den. Außerdem ist zu beachten, dass
nach vorheriger Messung mit AC-Kopp lung der Koppelkondensator
des Oszillo skops auf geladen sein kann. Durch die Ent ladung über das
Messobjekt können Bau teile beschä digt werden.

Spare Parts Lists ................................ 3-1…3-17

General Section

General Notes

Before opening the cabinet disconnect the mains plug!

Attention: Observe the ESD safety regulations

Wiring

Before disconnecting any leads and especially the earth connecting
leads observe the way they are routed to the individual assemblies.
On completion of the repairs the leads must be laid out as originally
fitted at the factory to avoid later failures or disturbances.

Carrying out Measurements

When making measurements on semi-con duc tors with an oscillo scope,
ensure that the test probe is set to 10:1 dividing factor. If the previous
measurement was made on AC input, please note that the coupling
capacitor in the oscilloscope will be charged. Discharge via the item
being checked can damage the components.

1 - 2

GRUNDIG Service Chassis CN

Messwerte und Oszillogramme

Bei den in den Schaltplänen und Oszillogrammen angegebenen
Messwerten handelt es sich um Näherungswerte!

Austausch der Chassisplatte

Nach Austausch der Chassisplatte müssen alle Einstellungen im
Service Mode nach Tabelle "Grundeinstellwerte" (Punkt 1 im Kapitel
"Service- und Sonderfunktionen" auf Seite 1-38) eingestellt werden.

Spezial-Funktionen

Kindersicherung

Mit der Master-Pin 2356 kann der persönliche Pin geändert werden.

Hotel-Mode

Bei aktiviertem Hotel-Mode ist die maximale Lautstärke begrenzt
und das Menü "
denspezifischen Einstellungen (z.B. Signalquelle, Sprache) werden
beim Einschalten des Gerätes auf die eingestellten Werte bei der
Aktivierung des Hotel-Modes zurückgesetzt.
Aufruf: MENU –> 8500 –> 4 "
"

Hotel

" –> 1 2 "Ein".

Hotel-Mode temporär ausschalten

Bei dieser Funktion ist der Hotel-Mode bis zum nächsten Ausschalten
(Standby) des Gerätes deaktiviert.
Aufruf: MENU –> 4658 –> MENU –> MENU –> 43 "
EINSTELLUNGEN
In dem zusätzlich erscheinenden Menü
sind folgende Einstellungen möglich:
– Maximale Lautstärke
– Einschaltlautstärke
– Erstes Einschalten (Standby / Einschalten)

Cloning-Funktion

Mit dieser Funktion können folgende Daten auf den extern angeschlos­senen USB-Speicher gesichert und zurück kopiert werden:
–

Channel/Video set.

–

Service set.

–

User set.

–

Übersicht

Daten auf USB-Stick kopieren:
Leeren USB-Speicher anschließen –> MENU –> 8500 –> 43 "
Configuration
Item

" –> 1 2

"Start Cloning" –> starten mit 2 –> am Ende wird "

Daten von USB-Stick in das Gerät zurück speichern:

Gegebenenfalls Hotel-Mode kurzzeitig ausschalten (s.o.) –> USB-Stick
anschließen –> MENU –> 8500 –> 43 "

4 "

Kopieren
Set., Service Set., User Set
starten mit 2 –> am Ende wird "

INSTALLATION

" –> OK

Programmtabellen und Einstellungen der Si-

gnalquellen - diese sind auch übertragbar auf

Geräte-Einstellwerte der Service- und Sonder-

Kundenspezifische Einstellungen.

Für den Servicefall: sollte die defekte Chassis-

"–> 4658 –> 4 "

" –> 1 2

weitere Geräte gleicher Serie und Software.

Funktionen ohne Display-Einstellwerte.

platte noch so weit funktionieren, können alle
Einstellwerte gespeichert werden um diese
dann in die neue Chassisplatte zu übertragen.

Channel/Video Set., Service Set., User Set

USB to TV

" ist nicht mehr vorhanden. Alle kun-

System Configuration

Kopieren

–> 4 "

oder

Übersicht (alles)

Erfolgreich

HOTEL-TV-EINSTELLUNGEN

" –> 1 2

Cloner Configuration

Copy Item

" angezeigt.

" –> OK –> 43

TV to USB

oder

Erfolgreich

" –> 1 2

–> 4 "

Start Cloning

Channel/Video

HOTEL-TV-

Cloner

–> 4 "

Copy

ALLE

–> 4

" angezeigt.

"–> 4658 –>

" –>

Measured Values and Oscillograms

The measured values given in the circuit diagrams and oscillograms
are approximates!

Change of the Chassis Board

After changing the chassis board all settings in the service mode must
be done according to the table "Basic Settings" (point 1 in chapter
"Service and Special Functions" on page 1-38).

Special Functions

Parental Control

The personal pin can be changed with master pin 2356.

Hotel Mode

Maximum volume is limited and Menu "
at activated hotel mode. After switch on the TV set, all user settings
(e.g. signal source, language) are set back to values by activation of
the Hotel Mode.
Call up: MENU –> 8500 –> 4 "

Hotel

" –> 1 2 "On".

"

Switching off the Hotel Mode temporarily

At this function the activated hotel mode is deactivated until the set
is switched off (standby).
Call up: MENU –> 4658 –> MENU –> MENU –> 43 "
TINGS

"–> OK

Following adjustment are available in the additionally menu
TV SETTINGS
– Maximum Volume
– Start-Up Volume
– First Power (Standby / Power On)

Cloning Function

It is possible to copy following data to an external USB stick and back
to TV set:
– Channel/Video set.

– Service set.

– User set.
– All

In case of service: If the defective chassis board

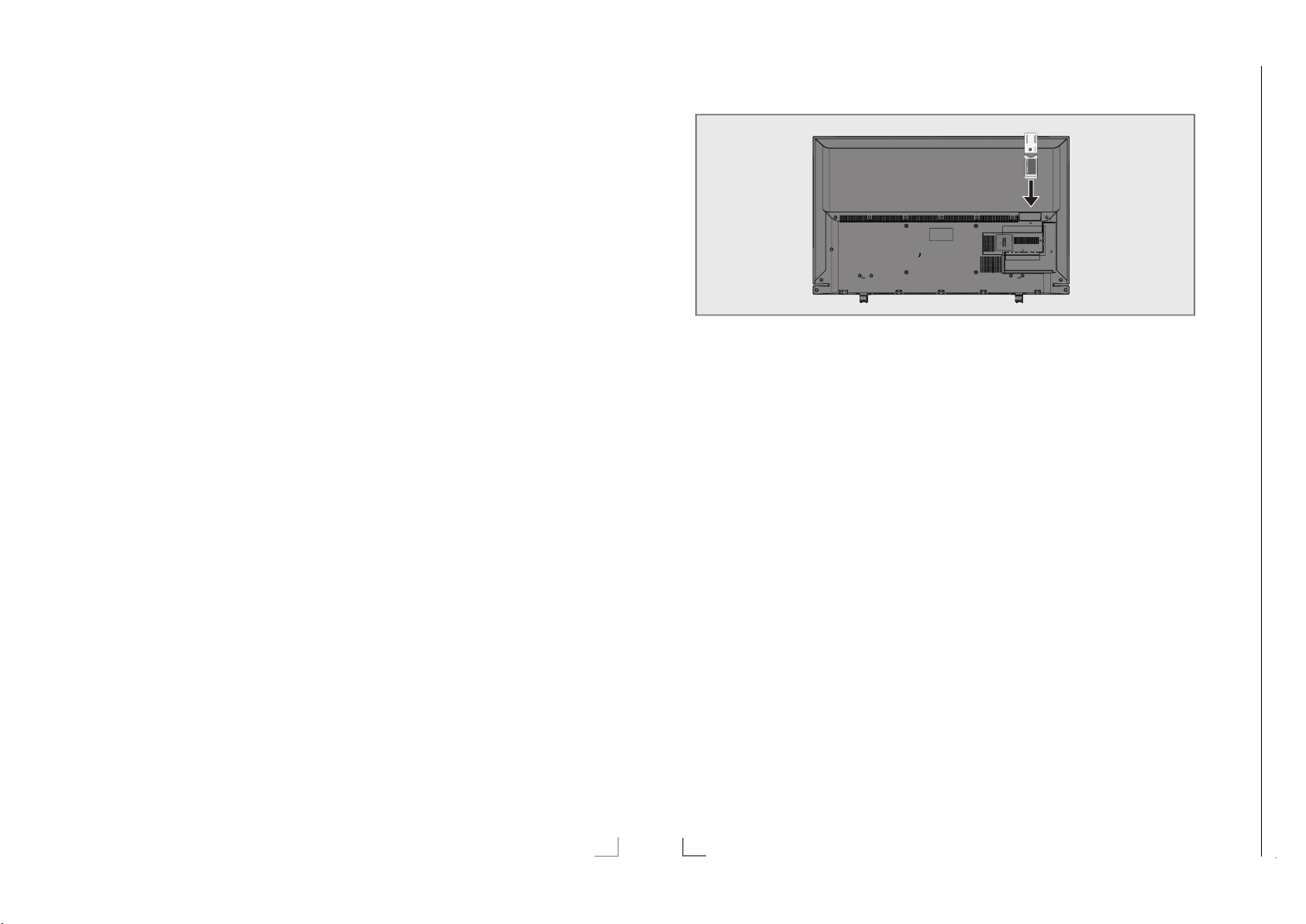

Copy data to USB stick:
Connect empty USB memory –> MENU –> 8500 –> 43 "
figuration

1 2

Channel/Video Set., Service Set., User Set

–> start with 2 –> "

Copy data from USB stick into TV set:

If necessary switch off Hotel Mode temporarily (see above) –> MENU
–> 8500 –> 43 "

–> 4 "

to TV
ALL

–> 4 "

:

Programme tables and settings of signal sourc-

es - they are transferable into further TV sets of

TV adjustments of service and special functions

User settings.

"–> 4658 –> 4 "

Copy Item

Start Cloning

same version and software.

without panel values.

are still operate, it is possible to save all adjust­ments / settings and copy into new chassis
board.

Copy

" –> 1 2

Success

" is showing at the end.

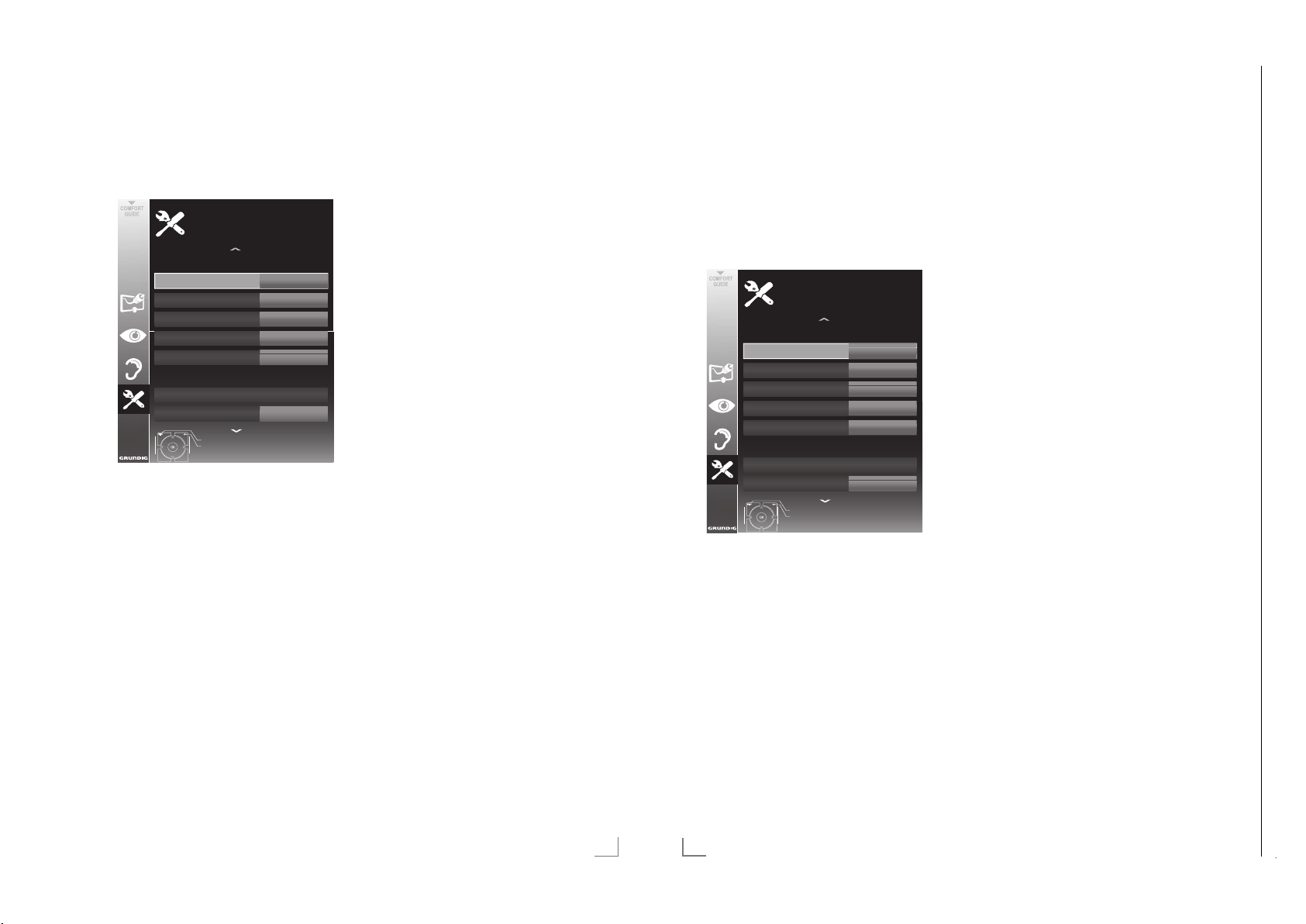

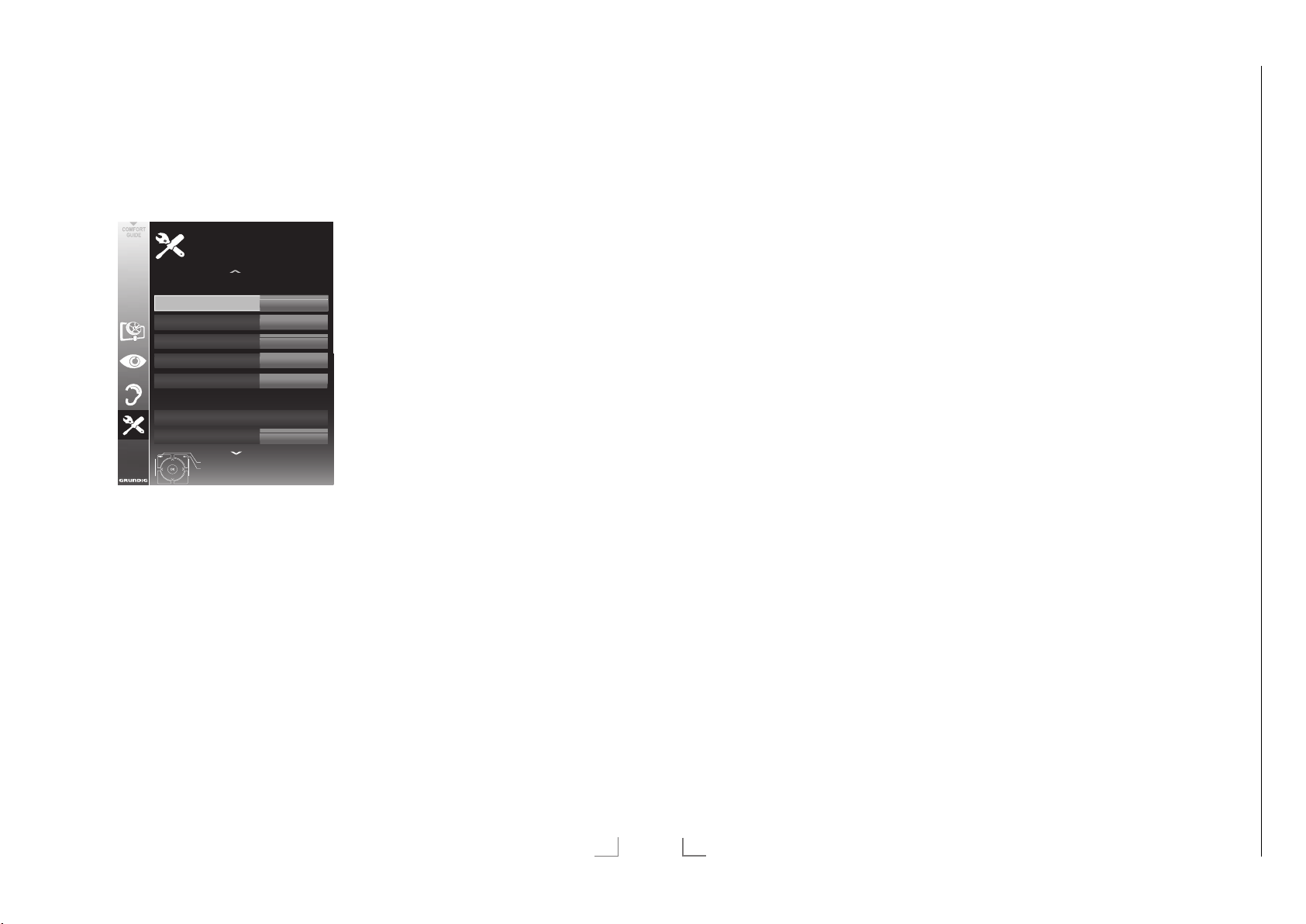

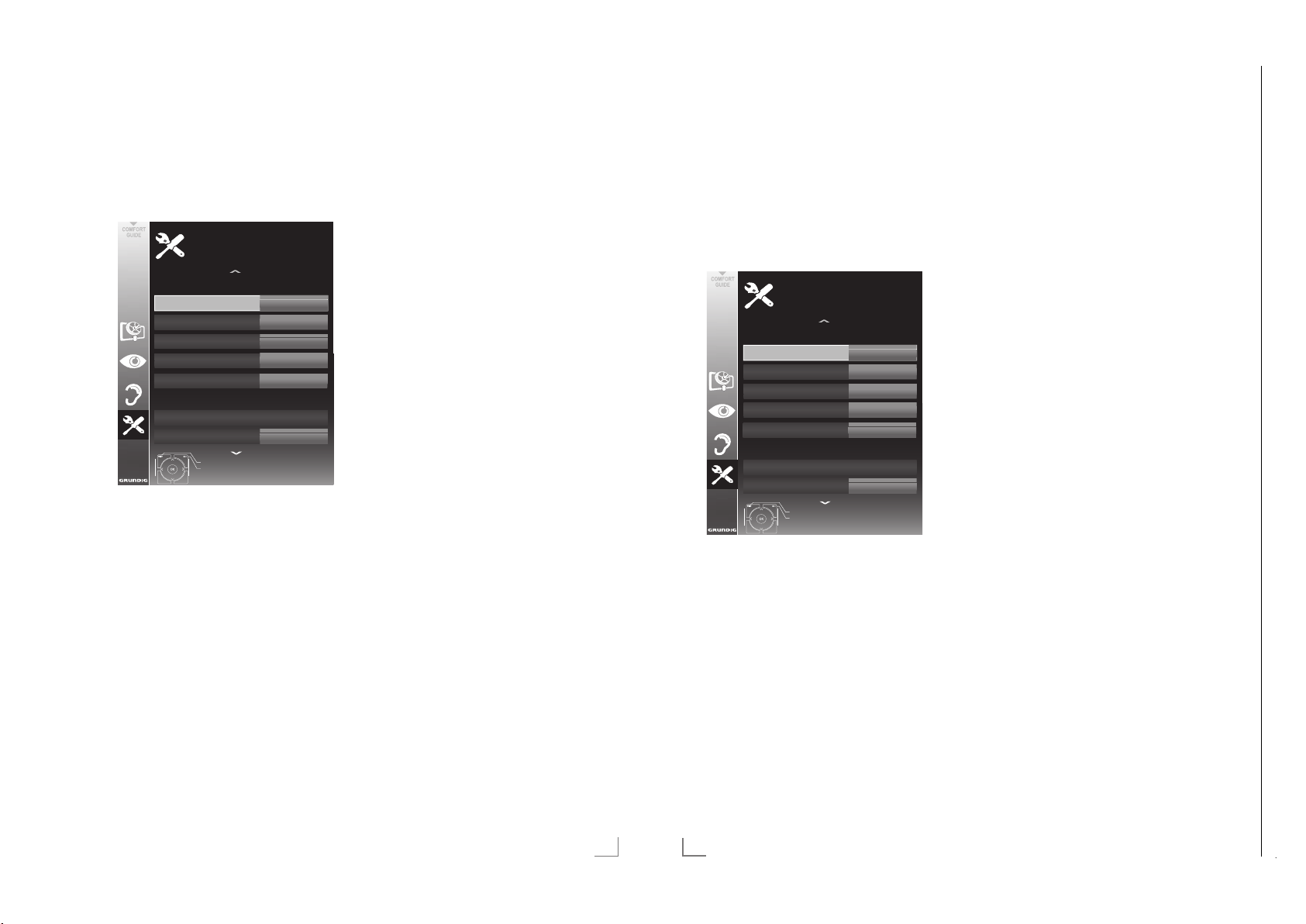

Cloner Configuration

" –> 1 2

Channel/Video Set., Service Set., User Set

" –> start with 2 "

SOURCE SETUP

System Configuration

TV to USB

"–> 4658 –> 4 "

Success

–> 4 "

or

ALL

–> 4 "

" is showing at the end.

Copy

" is no available

" –> OK –> 43

HOTEL TV SET-

HOTEL

Cloner Con-

Copy Item

Start Cloning

" –> 1 2

" –>

USB

or

"

1 - 3

GRUNDIG Service Chassis CN

Geräte- und Display-Varianten

Display- und Product Code

Je nach Verfügbarkeit werden Dis­plays verschiedener Hersteller ein­gebaut. Dies führt zu unterschied­lichen Chassis-Bestückungen, so­wie zu Änderungen in der Software.
Bei Ersatzteilbestellungen und
Software-Updates achten Sie bitte
auf das eingebaute Display, sowie
auf den "Product Code". Angaben
dazu finden Sie auf der Geräterück­seite. Sollte in der Ersatzteilliste
des Service Manuals Ihr "Product
Code" oder Ihre Display-Variante
nicht aufgeführt sein, können
Sie eine aktualisierte Version auf
dem GRUNDIG Service-Portal
"http://service.grundig.de" finden.

Überprüfen Sie vor Platinen­Tausch, ob die Aufkleber der Plati­nen identisch sind (z.B. PCB Code).

Product Code

Display Type

Display Code

Servicehinweis

Abnehmen des BMS-Gehäusevorderteils (Backlight Modul System)

– Lautsprecher abnehmen.
– Fig. 1/3: Schrauben A herausdrehen.
– IR-LED-Baustein und Linse abnehmen.
– Fig. 1: Halter B in Pfeilrichtung schieben und abnehmen.
– Fig. 2/4: Gerät wie abgebildet auf eine weiche Unterlage legen.
– Fig. 2: Alle seitlichen Schrauben C herausdrehen.
– Fig. 2: Alle seitlichen Rasthaken D lösen und Gehäusevorderteil

abnehmen.

Fig. 4: Gehäusevorderteil beginnend an der Geräteunterseite vor-

sichtig so nach außen drücken, dass sich alle seitlichen Rasthaken
lösen. Gehäusevorderteil abnehmen.

Hinweis: Gerät nicht ohne Gehäusevorderteil umdrehen!

Product and Display Variants

Bestellnummer / Order Number

Chassis

Serialnummer /
Serial Number

PCB Code

Display- und Product Code

Depending on availability displays
of different manufacturer are built
in. This results in different chassis
mountings as well as a different
software. On spare parts orders as
well as software updates take care
of the fitted display as well as of the
"Product Code". Therefore you can
find information on the labels on the
rear side. If your "Product Code" or
display variant is not mentioned in
the spare parts list of the service
manual, please look for a current
version at the GRUNDIG service
portal "http://service.grundig.de".

Before changing any board please
check whether the labels on the
boards are identical (eg. PCB Code).

Service Hint

Remove the BMS Front Cabinet (Backlight Modul System)

– Remove the speakers.
– Fig. 1/3: Undo screws A.
– Remove IR/LED Board and Lens.
– Fig. 1: Push the holders B in arrow direction and remove it.
– Fig. 2/4: Lay device as shown on a soft pad.
– Fig. 2: Undo all screws at the side C.
– Fig. 2: Unlock all locking catches D and remove the front cabinet.
Fig. 4: Begins at below side to push front cabinet to outside, so that

unlock all locking catches. Remove front cabinet.

Note: Do not return the TV set without front cabinet!

B B BB

Fig. 1 Fig. 2

A A

Fig. 3 Fig. 4

A

A

A

C

CDD

1 - 4

GRUNDIG Service Chassis CN

32"

43"

1 - 5

Technische Daten / Technical Data 32"

32 GFB 5622 32 GFB 5623 32 GFB 5624

Order No.
Product Code
Country
Approbations

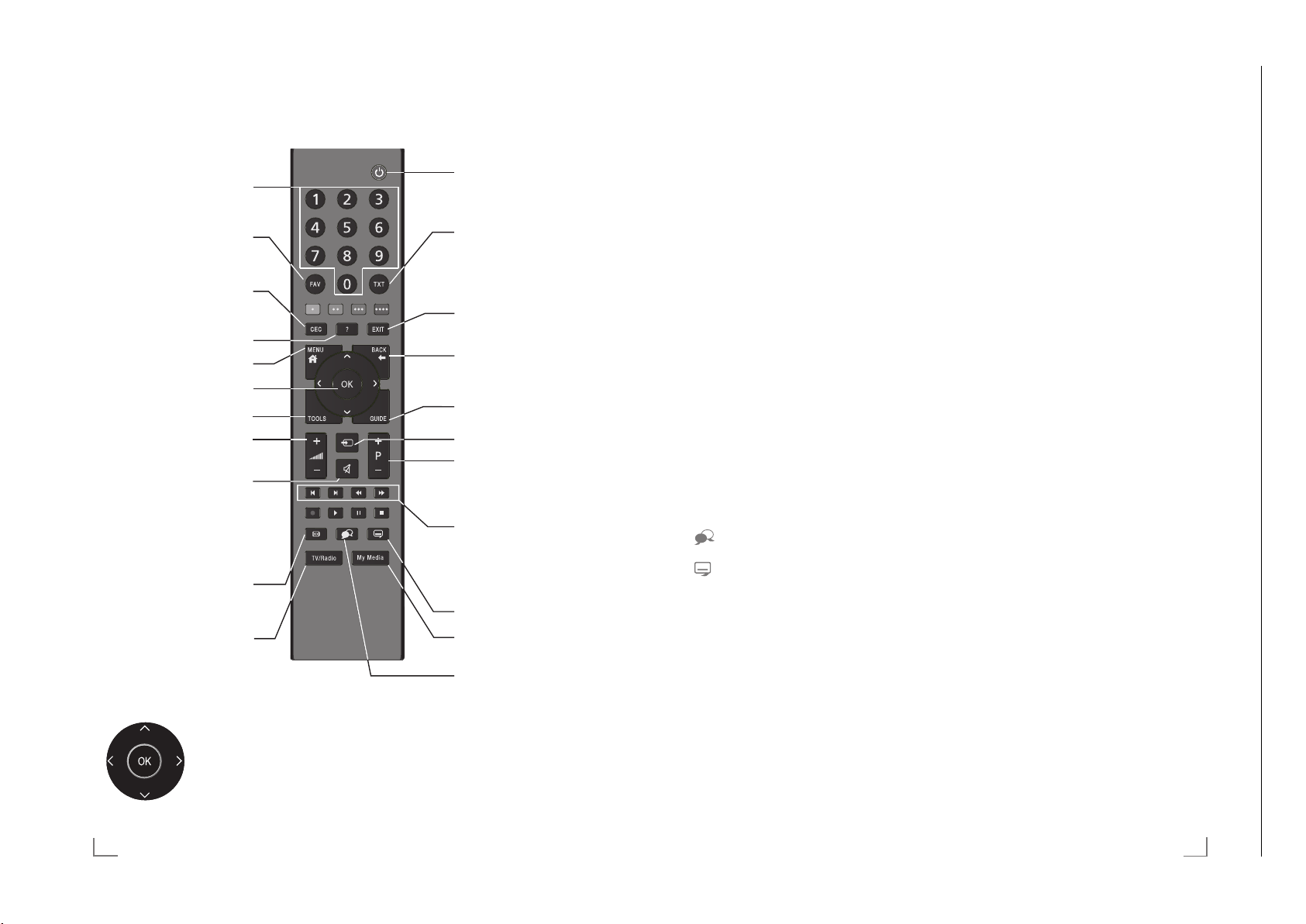

Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
2D/3D Converter
Local / Micro Dimming
Dynamic contrast
HDR / Wide Color Gamut
Panel Frequency
Physical display resolution max. pixel
Motion Picture Improvement (MEMC)
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Trans. Improv. (DLTI)
Picture Noise Reduction
Preset picture modes

Aspect ratios (Format switching)
PIP

PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICT. + PICT.)
Picture freezing
Zoom with point function
Blue Background
AUDIO
Mono/Stereo/Nicam
Loudspeaker
SRS
Dolby digital
Subwoofer
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Scaler
Keyboard
ELECTRONIC
Stand by indicator
Programmable off timer
Programmable on timer
Zap / Swap
Programme Edit
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
HEVC/H.265
Childlock

Menue languages OSD

Game mode
Hotel mode

Digi Link
Miracast
Special feature
Wifi
DLNA
DLNA Supported Format
Internet Applications
Netflix
Smart Inter@ctive TV 3.0
Online SW Update
RC over IP
Bluetooth (TV)
Easy use remote control compatible
TUNING
Autom. Tuning System w. country select.
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
EPG (Electronic Programme Guide)

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
VPS - VBI insertion
Programme table

PHF000

PHF

PHG000

PHG

PHH000

PHH
DE
CE

DE
CE

TP6 (New)

40 13833-01200 9

TP6 (New)

40 13833-01201 6

DE
CE

TP6 (New)

40 13833-01202 3

Black Black

32"/80 cm

DIRECT LED (BMS)

32"/80 cm

DIRECT LED (BMS)











/



/



Black

32"/80 cm

DIRECT LED (BMS)







/



DCR PLUS



/



DCR PLUS



/



50Hz

FHD (1.920x1.080)

50Hz

FHD (1.920x1.080)



3D DeInterlacer



3D DeInterlacer



DCR PLUS



/



50Hz

FHD (1.920x1.080)



3D DeInterlacer





3D



3D







User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle

User, Vivid, Natural, Movie



uto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle









3D




User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle



















/  / 

/  /



2 wide band at the front side





2 wide band at the front side












/  /



2 wide band at the front side












5 Band



5 Band



natural, music, speech, user





natural, music, speech, user



2 x 7/14W nominal/music power (R/L)



2 x 7/14W nominal/music power (R/L)









5 Band



natural, music, speech, user



2 x 7/14W nominal/music power (R/L)



CN

COREMAX-

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by 4 keys: Volume/Programm, +/-, stand-by

Blue Led



Blue Led







/



/



CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by

Blue Led







/









100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



1000 pages



1000 pages












100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment Simple hotel mode possible via service adjustment















24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment









































full automatic sorting full automatic sorting








For cable tuning can be done by entering

the frequency (MHz) in digital search menu



For cable tuning can be done by entering

the frequency (MHz) in digital search menu




full automatic sorting




For cable tuning can be done by entering

the frequency (MHz) in digital search menu




EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





8 days via DVB-T, DVB-C, DVB-S2





If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





If broadcasted
If broadcasted
If broadcasted

PDC based

full automatic sorting

PDC based

full automatic sorting

PDC based

full automatic sorting

Chassis CNGRUNDIG Service

1 - 6

32 GFB 5622 32 GFB 5623 32 GFB 5624

DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
DVB-S2 Front end

Input frequency range
Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T2 Front end
Input frequency range
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Video Decoder
MPEG profiles
Resolution

Picture formats

Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Last station memory
Favourite mode
Mute function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power frequency
Power switch
Integrated supply
Plug-in AC adaptor
Energy class
Nominal Power Consumption
Stand-by Power Consumption
Annual On-Mode Energy Consumption
Cabinet without stand (WxHxD)
Cabinet with stand (WxHxD)
Weight - Unpacked

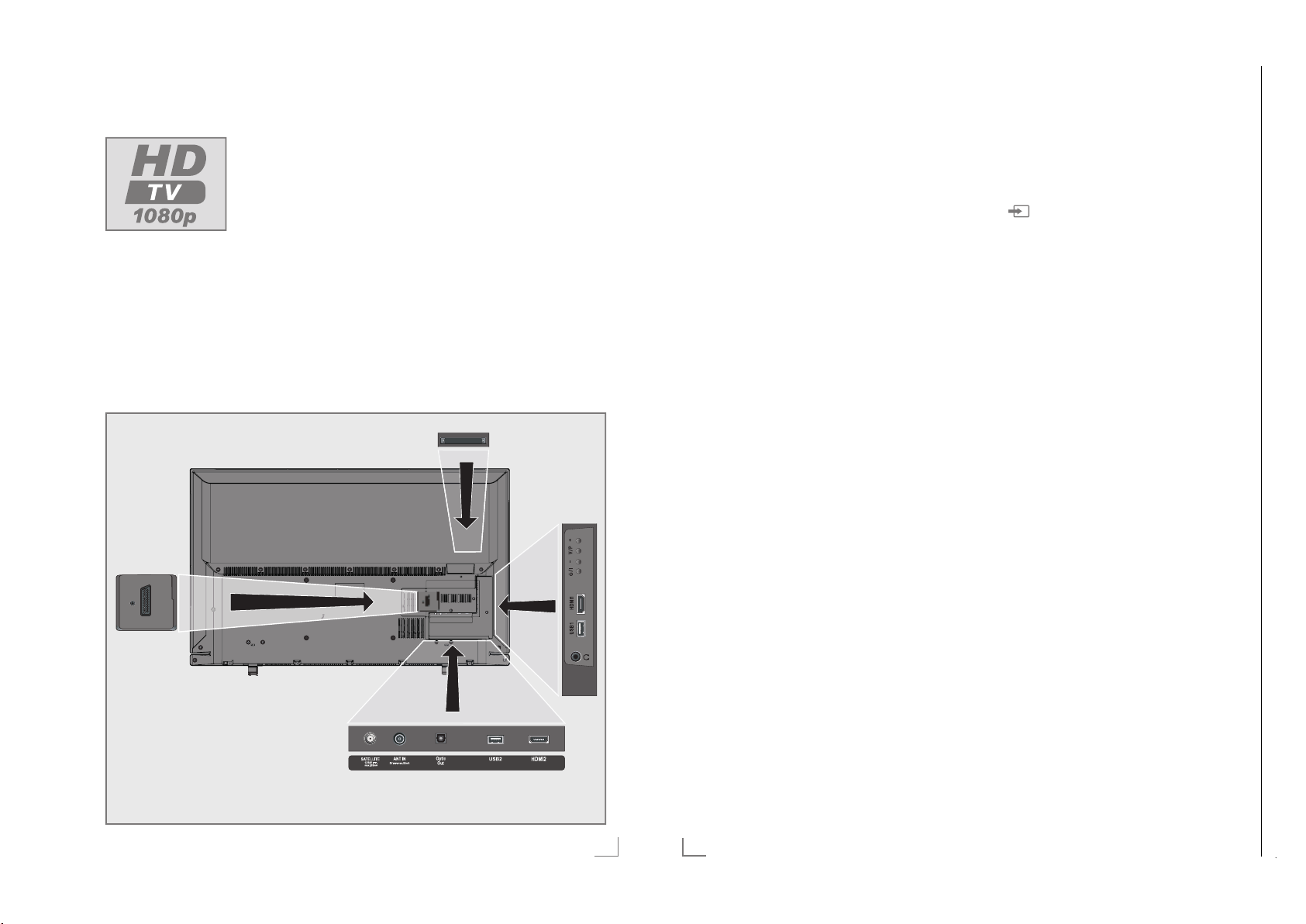

REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI 1.4 / 2.0

- MHL 2.0

- ARC

- 4k2k

- HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB 2.0 / 3.0

Antenna for terrestrial reception
Antenna for satellite reception

DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual
Wall fixture (mm)
Stand
Stand Foot Distance
Cleaning tissue

47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz 950 MHz to 2150 MHz

47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8









177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8














MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle







MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

from stand-by, as TV

DVB enhanced profile

from stand-by, as TV

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

from stand-by, as TV

4x free



4x free












1920 x 1080



1920 x 1080

4x free











1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V 220-240V

50-60Hz 50-60Hz

Tact switch



Tact switch



.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V

50-60Hz

Tact switch




A



A

40,1W

0,3W

40,1W

0,3W

59kWh

738,7 x 474,6 x 78,3mm

59kWh

738,7 x 474,6 x 78,3mm

738,7 x 494,4 x 242mm

ca. 5,8kg

738,7 x 494,4 x 242mm

ca. 5,8kg



A

40,1W

0,3W

59kWh
738,7 x 474,6 x 78,3mm
738,7 x 494,4 x 242mm

ca. 5,8kg

Full wired Full wired
Via Scart
Via Scart

Via Scart
Via Scart



via VGA



via VGA







Full wired
Via Scart
Via Scart



via VGA




2 / 0



2 / 0









via HDMI

(CI+)

via HDMI

(CI+)

3.5mm jack
optical

3.5mm jack
optical

2 / 0





via HDMI

(CI+)

3.5mm jack
optical

via Headphone

2 / 0

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector









via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector






TP6 (New)



TP6 (New)









Prepared for VESA standard adaptor 100 x 150Prepared for VESA standard adaptor 100 x 150



463mm



463mm



TP6 (New)





Prepared for VESA standard adaptor 100 x 150



463mm



Chassis CNGRUNDIG Service

1 - 7

Technische Daten / Technical Data 32"

32 GFB 5625 32 GFB 5626 32 GFB 5627

Order No.
Product Code
Country
Approbations
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
2D/3D Converter
Local / Micro Dimming
Dynamic contrast
HDR / Wide Color Gamut
Panel Frequency
Physical display resolution max. pixel
Motion Picture Improvement (MEMC)
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Trans. Improv. (DLTI)
Picture Noise Reduction
Preset picture modes

Aspect ratios (Format switching)
PIP

PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICT. + PICT.)
Picture freezing
Zoom with point function
Blue Background
AUDIO
Mono/Stereo/Nicam
Loudspeaker
SRS
Dolby digital
Subwoofer
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Scaler
Keyboard
ELECTRONIC
Stand by indicator
Programmable off timer
Programmable on timer
Zap / Swap
Programme Edit
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
HEVC/H.265
Childlock

Menue languages OSD

Game mode
Hotel mode

Digi Link
Miracast
Special feature
Wifi
DLNA
DLNA Supported Format
Internet Applications
Netflix
Smart Inter@ctive TV 3.0
Online SW Update
RC over IP
Bluetooth (TV)
Easy use remote control compatible
TUNING
Autom. Tuning System w. country select.
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
EPG (Electronic Programme Guide)

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
VPS - VBI insertion
Programme table

PHJ000

PHJ

PHK000

PHK

PHL000

PHL
DE
CE

TP6 (New)

40 13833-01203 0

DE
CE

DE
CE

TP6 (New)

40 13833-01204 7

TP6 (New)

40 13833-01205 4

Black

32"/80 cm

DIRECT LED (BMS)

Black Black

32"/80 cm

DIRECT LED (BMS)

32"/80 cm

DIRECT LED (BMS)







/













/



/



DCR PLUS



/



50Hz

FHD (1.920x1.080)

DCR PLUS



/



DCR PLUS



/



50Hz

FHD (1.920x1.080)

50Hz

FHD (1.920x1.080)



3D DeInterlacer





3D DeInterlacer



3D DeInterlacer





3D






3D



3D







User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle




User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle

User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle




























/  /



2 wide band at the front side







/  / 

/  /



2 wide band at the front side





2 wide band at the front side








5 Band










5 Band



5 Band



natural, music, speech, user



2 x 7/14W nominal/music power (R/L)





natural, music, speech, user





natural, music, speech, user



2 x 7/14W nominal/music power (R/L)



2 x 7/14W nominal/music power (R/L)



CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by

CN

COREMAX-

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by 4 keys: Volume/Programm, +/-, stand-by

Blue Led






/



Blue Led



Blue Led







/



/






100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /










100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



1000 pages





1000 pages



1000 pages










24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment Simple hotel mode possible via service adjustment

























































full automatic sorting




full automatic sorting full automatic sorting








For cable tuning can be done by entering

the frequency (MHz) in digital search menu




For cable tuning can be done by entering

the frequency (MHz) in digital search menu



For cable tuning can be done by entering

the frequency (MHz) in digital search menu





EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2



EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





8 days via DVB-T, DVB-C, DVB-S2





If broadcasted
If broadcasted
If broadcasted



If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

PDC based

full automatic sorting

PDC based

full automatic sorting

PDC based

full automatic sorting

Chassis CNGRUNDIG Service

1 - 8

Chassis CNGRUNDIG Service

1 - 8

32 GFB 5625 32 GFB 5626 32 GFB 5627

DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
DVB-S2 Front end

Input frequency range
Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T2 Front end
Input frequency range
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Video Decoder
MPEG profiles
Resolution

Picture formats

Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Last station memory
Favourite mode
Mute function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power frequency
Power switch
Integrated supply
Plug-in AC adaptor
Energy class
Nominal Power Consumption
Stand-by Power Consumption
Annual On-Mode Energy Consumption
Cabinet without stand (WxHxD)
Cabinet with stand (WxHxD)
Weight - Unpacked
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI 1.4 / 2.0

- MHL 2.0

- ARC

- 4k2k

- HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB 2.0 / 3.0

Antenna for terrestrial reception
Antenna for satellite reception

DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual
Wall fixture (mm)
Stand
Stand Foot Distance
Cleaning tissue

47 - 862 VHF & UHF 47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz 950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



























MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

from stand-by, as TV

Dynamic PMT



Dynamic PMT



DVB enhanced profile

from stand-by, as TV

DVB enhanced profile

from stand-by, as TV

4x free





4x free



4x free








1920 x 1080










1920 x 1080



1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V 220-240V

50-60Hz

Tact switch



50-60Hz 50-60Hz

Tact switch



Tact switch





A

40,1W

0,3W



A



A

40,1W

0,3W

40,1W

0,3W

59kWh
738,7 x 474,6 x 78,3mm
738,7 x 494,4 x 242mm

ca. 5,8kg

59kWh

738,7 x 474,6 x 78,3mm

59kWh

738,7 x 474,6 x 78,3mm

738,7 x 494,4 x 242mm

ca. 5,8kg

738,7 x 494,4 x 242mm

ca. 5,8kg

Full wired
Via Scart
Via Scart

Full wired Full wired

Via Scart
Via Scart

Via Scart
Via Scart



via VGA






via VGA



via VGA







2 / 0





2 / 0



2 / 0









via HDMI

(CI+)

3.5mm jack
optical

via HDMI

(CI+)

via HDMI

(CI+)

3.5mm jack
optical

3.5mm jack
optical

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

via Headphone

2 / 0

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector














TP6 (New)





TP6 (New)



TP6 (New)









Prepared for VESA standard adaptor 100 x 150



463mm



Prepared for VESA standard adaptor 100 x 150Prepared for VESA standard adaptor 100 x 150



463mm



463mm



Chassis CNGRUNDIG Service

1 - 9

Chassis CNGRUNDIG Service

1 - 9

Technische Daten / Technical Data 32"

32 GHB 5602 32 GHB 5603 32 GHB 5604

Order No.
Product Code
Country
Approbations
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
2D/3D Converter
Local / Micro Dimming
Dynamic contrast
HDR / Wide Color Gamut
Panel Frequency
Physical display resolution max. pixel
Motion Picture Improvement (MEMC)
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Trans. Improv. (DLTI)
Picture Noise Reduction
Preset picture modes

Aspect ratios (Format switching)
PIP

PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICT. + PICT.)
Picture freezing
Zoom with point function
Blue Background
AUDIO
Mono/Stereo/Nicam
Loudspeaker
SRS
Dolby digital
Subwoofer
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Scaler
Keyboard
ELECTRONIC
Stand by indicator
Programmable off timer
Programmable on timer
Zap / Swap
Programme Edit
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
HEVC/H.265
Childlock

Menue languages OSD

Game mode
Hotel mode

Digi Link
Miracast
Special feature
Wifi
DLNA
DLNA Supported Format
Internet Applications
Netflix
Smart Inter@ctive TV 3.0
Online SW Update
RC over IP
Bluetooth (TV)
Easy use remote control compatible
TUNING
Autom. Tuning System w. country select.
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
EPG (Electronic Programme Guide)

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
VPS - VBI insertion
Programme table

PGX000

PGX

PGY000

PGY

PGZ000

PGZ
DE
CE

DE
CE

TP6 (New)

40 13833-01181 1

TP6 (New)

40 13833-01182 8

DE
CE

TP6 (New)

40 13833-01183 5

Black Black

32"/80 cm

DIRECT LED (BMS)

32"/80 cm

DIRECT LED (BMS)

Black

32"/80 cm

DIRECT LED (BMS)











/



/









/



DCR PLUS



/



DCR PLUS



/



50Hz

HDR (1.366x768)

50Hz

HDR (1.366x768)

DCR PLUS



/



50Hz

HDR (1.366x768)



3D DeInterlacer



3D DeInterlacer





3D DeInterlacer





3D



3D









3D




User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle

User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle







User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle
























/  / 

/  /



2 wide band at the front side





2 wide band at the front side







/  /



2 wide band at the front side












5 Band



5 Band







5 Band



natural, music, speech, user





natural, music, speech, user



2 x 7/14W nominal/music power (R/L)



2 x 7/14W nominal/music power (R/L)





natural, music, speech, user



2 x 7/14W nominal/music power (R/L)



CN

COREMAX-

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by 4 keys: Volume/Programm, +/-, stand-by

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by

Blue Led



Blue Led







/



/



Blue Led







/









100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /







100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



1000 pages



1000 pages









1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment Simple hotel mode possible via service adjustment



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment
























































full automatic sorting full automatic sorting








full automatic sorting




For cable tuning can be done by entering

the frequency (MHz) in digital search menu



For cable tuning can be done by entering

the frequency (MHz) in digital search menu




For cable tuning can be done by entering

the frequency (MHz) in digital search menu




EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





8 days via DVB-T, DVB-C, DVB-S2



EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted



If broadcasted
If broadcasted
If broadcasted

PDC based

full automatic sorting

PDC based

full automatic sorting

PDC based

full automatic sorting

Chassis CNGRUNDIG Service

1 - 10

Chassis CNGRUNDIG Service

1 - 10

Chassis CNGRUNDIG Service

1 - 10

32 GHB 5602 32 GHB 5603 32 GHB 5604

DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
DVB-S2 Front end

Input frequency range
Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T2 Front end
Input frequency range
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Video Decoder
MPEG profiles
Resolution

Picture formats

Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Last station memory
Favourite mode
Mute function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power frequency
Power switch
Integrated supply
Plug-in AC adaptor
Energy class
Nominal Power Consumption
Stand-by Power Consumption
Annual On-Mode Energy Consumption
Cabinet without stand (WxHxD)
Cabinet with stand (WxHxD)
Weight - Unpacked
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI 1.4 / 2.0

- MHL 2.0

- ARC

- 4k2k

- HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB 2.0 / 3.0

Antenna for terrestrial reception
Antenna for satellite reception

DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual
Wall fixture (mm)
Stand
Stand Foot Distance
Cleaning tissue

47 - 862 VHF & UHF 47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz 950 MHz to 2150 MHz

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8




























MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

from stand-by, as TV

DVB enhanced profile

from stand-by, as TV

Dynamic PMT



DVB enhanced profile

from stand-by, as TV

4x free



4x free





4x free












1920 x 1080



1920 x 1080







1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V 220-240V

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V

50-60Hz 50-60Hz

Tact switch



Tact switch



50-60Hz

Tact switch




A



A

40,1W

0,3W

40,1W

0,3W



A

40,1W

0,3W

59kWh

738,7 x 474,6 x 78,3mm

59kWh

738,7 x 474,6 x 78,3mm

738,7 x 494,4 x 242mm

ca. 5,6kg

738,7 x 494,4 x 242mm

ca. 6,3kg

59kWh
738,7 x 474,6 x 78,3mm
738,7 x 494,4 x 242mm

ca. 5,8kg

Full wired Full wired
Via Scart
Via Scart

Via Scart
Via Scart

Full wired
Via Scart
Via Scart



via VGA



via VGA









via VGA




2 / 0



2 / 0









2 / 0





via HDMI

(CI+)

via HDMI

(CI+)

3.5mm jack
optical

3.5mm jack
optical

via HDMI

(CI+)

3.5mm jack
optical

via Headphone

2 / 0

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector














TP6 (New)



TP6 (New)









TP6 (New)





Prepared for VESA standard adaptor 100 x 150Prepared for VESA standard adaptor 100 x 150



463mm



463mm



Prepared for VESA standard adaptor 100 x 150



463mm



Chassis CNGRUNDIG Service

1 - 11

Chassis CNGRUNDIG Service

1 - 11

Chassis CNGRUNDIG Service

1 - 11

Technische Daten / Technical Data 32"

32 GHB 5605 32 GHB 5606 32 GHB 5607

Order No.
Product Code
Country
Approbations
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
2D/3D Converter
Local / Micro Dimming
Dynamic contrast
HDR / Wide Color Gamut
Panel Frequency
Physical display resolution max. pixel
Motion Picture Improvement (MEMC)
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Trans. Improv. (DLTI)
Picture Noise Reduction
Preset picture modes

Aspect ratios (Format switching)
PIP

PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICT. + PICT.)
Picture freezing
Zoom with point function
Blue Background
AUDIO
Mono/Stereo/Nicam
Loudspeaker
SRS
Dolby digital
Subwoofer
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Scaler
Keyboard
ELECTRONIC
Stand by indicator
Programmable off timer
Programmable on timer
Zap / Swap
Programme Edit
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
HEVC/H.265
Childlock

Menue languages OSD

Game mode
Hotel mode

Digi Link
Miracast
Special feature
Wifi
DLNA
DLNA Supported Format
Internet Applications
Netflix
Smart Inter@ctive TV 3.0
Online SW Update
RC over IP
Bluetooth (TV)
Easy use remote control compatible
TUNING
Autom. Tuning System w. country select.
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
EPG (Electronic Programme Guide)

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
VPS - VBI insertion
Programme table

PHA000

PHA

DE
CE

TP6 (New)

40 13833-01184 2

PHB000

PHB

PHC000

PHC
DE
CE

DE
CE

TP6 (New)

40 13833-01185 9

TP6 (New)

40 13833-01186 6

Black

32"/80 cm

DIRECT LED (BMS)







/



Black Black

32"/80 cm

DIRECT LED (BMS)

32"/80 cm

DIRECT LED (BMS)











/



/



DCR PLUS



/



50Hz

HDR (1.366x768)



3D DeInterlacer



DCR PLUS



/



DCR PLUS



/



50Hz

HDR (1.366x768)

50Hz

HDR (1.366x768)



3D DeInterlacer



3D DeInterlacer





3D




User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle






3D



3D







User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle

User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle














/  /



2 wide band at the front side





















/  / 

/  /



2 wide band at the front side





2 wide band at the front side








5 Band



natural, music, speech, user



2 x 7/14W nominal/music power (R/L)












5 Band



5 Band



natural, music, speech, user





natural, music, speech, user



2 x 7/14W nominal/music power (R/L)



2 x 7/14W nominal/music power (R/L)



CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by

Blue Led






/



CN

COREMAX-

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by 4 keys: Volume/Programm, +/-, stand-by

Blue Led



Blue Led







/



/






100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



1000 pages












100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



1000 pages



1000 pages










24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment







24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment Simple hotel mode possible via service adjustment





















































full automatic sorting




For cable tuning can be done by entering

the frequency (MHz) in digital search menu




full automatic sorting full automatic sorting








For cable tuning can be done by entering

the frequency (MHz) in digital search menu



For cable tuning can be done by entering

the frequency (MHz) in digital search menu





EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





If broadcasted
If broadcasted
If broadcasted

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





8 days via DVB-T, DVB-C, DVB-S2





If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

PDC based

full automatic sorting

PDC based

full automatic sorting

PDC based

full automatic sorting

Chassis CNGRUNDIG Service

1 - 12

Chassis CNGRUNDIG Service

1 - 12

32 GHB 5605 32 GHB 5606 32 GHB 5607

DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
DVB-S2 Front end

Input frequency range
Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T2 Front end
Input frequency range
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Video Decoder
MPEG profiles
Resolution

Picture formats

Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Last station memory
Favourite mode
Mute function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power frequency
Power switch
Integrated supply
Plug-in AC adaptor
Energy class
Nominal Power Consumption
Stand-by Power Consumption
Annual On-Mode Energy Consumption
Cabinet without stand (WxHxD)
Cabinet with stand (WxHxD)
Weight - Unpacked
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI 1.4 / 2.0

- MHL 2.0

- ARC

- 4k2k

- HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB 2.0 / 3.0

Antenna for terrestrial reception
Antenna for satellite reception

DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual
Wall fixture (mm)
Stand
Stand Foot Distance
Cleaning tissue

47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz

47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz 950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8






177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8













MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle










MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

from stand-by, as TV

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

from stand-by, as TV

DVB enhanced profile

from stand-by, as TV

4x free








1920 x 1080

4x free



4x free













1920 x 1080



1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V

50-60Hz

Tact switch



.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V 220-240V

50-60Hz 50-60Hz

Tact switch



Tact switch




A

40,1W

0,3W

59kWh
738,7 x 474,6 x 78,3mm
738,7 x 494,4 x 242mm

ca. 5,6kg



A



A

40,1W

0,3W

40,1W

0,3W

59kWh

738,7 x 474,6 x 78,3mm

59kWh

738,7 x 474,6 x 78,3mm

738,7 x 494,4 x 242mm

ca. 5,6kg

738,7 x 494,4 x 242mm

ca. 5,6kg

Full wired
Via Scart
Via Scart



via VGA




Full wired Full wired

Via Scart
Via Scart

Via Scart
Via Scart



via VGA



via VGA







2 / 0





via HDMI

(CI+)

3.5mm jack
optical

2 / 0



2 / 0









via HDMI

(CI+)

via HDMI

(CI+)

3.5mm jack
optical

3.5mm jack
optical

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector






via Headphone

2 / 0

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector









TP6 (New)





Prepared for VESA standard adaptor 100 x 150



463mm



TP6 (New)



TP6 (New)









Prepared for VESA standard adaptor 100 x 150Prepared for VESA standard adaptor 100 x 150



463mm



463mm



Chassis CNGRUNDIG Service

1 - 13

Chassis CNGRUNDIG Service

1 - 13

Technische Daten / Technical Data 32"

32 VLE 4503 BF 32 VLE 5501 BG 32 VLE 5503 BG

Order No.
Product Code
Country
Approbations
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
2D/3D Converter
Local / Micro Dimming
Dynamic contrast
HDR / Wide Color Gamut
Panel Frequency
Physical display resolution max. pixel
Motion Picture Improvement (MEMC)
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Trans. Improv. (DLTI)
Picture Noise Reduction
Preset picture modes

Aspect ratios (Format switching)
PIP

PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICT. + PICT.)
Picture freezing
Zoom with point function
Blue Background
AUDIO
Mono/Stereo/Nicam
Loudspeaker
SRS
Dolby digital
Subwoofer
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Scaler
Keyboard
ELECTRONIC
Stand by indicator
Programmable off timer
Programmable on timer
Zap / Swap
Programme Edit
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
HEVC/H.265
Childlock

Menue languages OSD

Game mode
Hotel mode

Digi Link
Miracast
Special feature
Wifi
DLNA
DLNA Supported Format
Internet Applications
Netflix
Smart Inter@ctive TV 3.0
Online SW Update
RC over IP
Bluetooth (TV)
Easy use remote control compatible
TUNING
Autom. Tuning System w. country select.
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
EPG (Electronic Programme Guide)

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
VPS - VBI insertion
Programme table

PBV000

PBV

PBG000

PBG

FR; ES; IT; HR

CE

DE; AT; CH

CE

TP6 (New)

40 13833-01035 7

TP6 (New)

40 13833-01008 1

Black Black

32"/80 cm

DIRECT LED (BMS)

32"/80 cm

DIRECT LED (BMS)











/



/



DCR PLUS



/



DCR PLUS



/



50Hz

HDR (1.366x768)

50Hz

HDR (1.366x768)



3D DeInterlacer



3D DeInterlacer





3D



3D







User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle

User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle





















/  / 

/  /



2 wide band at the front side





2 wide band at the front side













5 Band



5 Band



natural, music, speech, user





natural, music, speech, user



2 x 7/14W nominal/music power (R/L)



2 x 7/14W nominal/music power (R/L)



CN

COREMAX-

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by 4 keys: Volume/Programm, +/-, stand-by

Blue Led



Blue Led







/



/









100 Analog / 1000 T / 1000 C / AV





/  /



100 Analog / 1000 T / 1000 C / 5000 S2 / AV



/  /



1000 pages



1000 pages









24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment Simple hotel mode possible via service adjustment







































full automatic sorting full automatic sorting







For cable tuning can be done by entering

the frequency (MHz) in digital search menu



For cable tuning can be done by entering

the frequency (MHz) in digital search menu





EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C





8 days via DVB-T, DVB-C, DVB-S2





If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

PDC based

full automatic sorting

PDC based

full automatic sorting

PCA000

PCA

FR; ES; IT; HR

CE

TP6 (New)

40 13833-01040 1

Black

32"/80 cm

DIRECT LED (BMS)







/



DCR PLUS



/



50Hz

HDR (1.366x768)



3D DeInterlacer




3D




User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle










/  /



2 wide band at the front side








5 Band



natural, music, speech, user



2 x 7/14W nominal/music power (R/L)



CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by

Blue Led






/






100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



1000 pages





24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment














‒

full automatic sorting




For cable tuning can be done by entering

the frequency (MHz) in digital search menu




EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





If broadcasted
If broadcasted
If broadcasted

PDC based

full automatic sorting

Chassis CNGRUNDIG Service

1 - 14

Chassis CNGRUNDIG Service

1 - 14

Chassis CNGRUNDIG Service

1 - 14

32 VLE 4503 BF 32 VLE 5501 BG 32 VLE 5503 BG

DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
DVB-S2 Front end

Input frequency range
Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T2 Front end
Input frequency range
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Video Decoder
MPEG profiles
Resolution

Picture formats

Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Last station memory
Favourite mode
Mute function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power frequency
Power switch
Integrated supply
Plug-in AC adaptor
Energy class
Nominal Power Consumption
Stand-by Power Consumption
Annual On-Mode Energy Consumption
Cabinet without stand (WxHxD)
Cabinet with stand (WxHxD)
Weight - Unpacked
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI 1.4 / 2.0

- MHL 2.0

- ARC

- 4k2k

- HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB 2.0 / 3.0

Antenna for terrestrial reception
Antenna for satellite reception

DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual
Wall fixture (mm)
Stand
Stand Foot Distance
Cleaning tissue

47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s



950 MHz to 2150 MHz




-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK





1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2







13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

















MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle



uto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

from stand-by, as TV

DVB enhanced profile

from stand-by, as TV

4x free



4x free












1920 x 1080



1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V 220-240V

50-60Hz 50-60Hz

Tact switch



Tact switch




A



A

40,1W

0,3W

40,1W

0,3W

59kWh

738,7 x 474,6 x 78,3mm

59kWh

738,7 x 474,6 x 78,3mm

738,7 x 494,4 x 242mm

ca. 5,8kg

738,7 x 494,4 x 242mm

ca. 5,6kg

Full wired Full wired
Via Scart
Via Scart

Via Scart
Via Scart



via VGA



via VGA








2 / 0



2 / 0









via HDMI

(CI+)

via HDMI

(CI+)

3.5mm jack
optical

3.5mm jack
optical

via Headphone

2 / 0

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325



1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector









TP6 (New)



TP6 (New)









Prepared for VESA standard adaptor 100 x 150Prepared for VESA standard adaptor 100 x 150



463mm



463mm



47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8









MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

from stand-by, as TV

4x free








1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V

50-60Hz

Tact switch




A

40,1W

0,3W

59kWh
738,7 x 474,6 x 78,3mm
738,7 x 494,4 x 242mm

ca. 5,8kg

Full wired
Via Scart
Via Scart



via VGA




2 / 0





via HDMI

(CI+)

3.5mm jack
optical

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector






TP6 (New)





Prepared for VESA standard adaptor 100 x 150



463mm



Chassis CNGRUNDIG Service

1 - 15

Chassis CNGRUNDIG Service

1 - 15

Chassis CNGRUNDIG Service

1 - 15

Technische Daten / Technical Data 32"

32 VLE 5503 BN 32 VLE 5521 BG 32 VLE 5523 BG

Order No.
Product Code
Country
Approbations
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
2D/3D Converter
Local / Micro Dimming
Dynamic contrast
HDR / Wide Color Gamut
Panel Frequency
Physical display resolution max. pixel
Motion Picture Improvement (MEMC)
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Trans. Improv. (DLTI)
Picture Noise Reduction
Preset picture modes

Aspect ratios (Format switching)
PIP

PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICT. + PICT.)
Picture freezing
Zoom with point function
Blue Background
AUDIO
Mono/Stereo/Nicam
Loudspeaker
SRS
Dolby digital
Subwoofer
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Scaler
Keyboard
ELECTRONIC
Stand by indicator
Programmable off timer
Programmable on timer
Zap / Swap
Programme Edit
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
HEVC/H.265
Childlock

Menue languages OSD

Game mode
Hotel mode

Digi Link
Miracast
Special feature
Wifi
DLNA
DLNA Supported Format
Internet Applications
Netflix
Smart Inter@ctive TV 3.0
Online SW Update
RC over IP
Bluetooth (TV)
Easy use remote control compatible
TUNING
Autom. Tuning System w. country select.
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
EPG (Electronic Programme Guide)

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
VPS - VBI insertion
Programme table

PHD000

PHD

PBH000

PBH

PCB000

PCB

HR; RU; ES

CE

TP6 (New)

40 13833-01192 7

DE; AT; CH

CE

FR; ES; HR; IT

CE

TP6 (New)

40 13833-01009 8

TP6 (New)

40 13833-01041 8

Black

32"/80 cm

DIRECT LED (BMS)

Black Black

32"/80 cm

DIRECT LED (BMS)

32"/80 cm

DIRECT LED (BMS)







/













/



/



DCR PLUS



/



50Hz

HDR (1.366x768)

DCR PLUS



/



DCR PLUS



/



50Hz

FHD (1.920x1.080)

50Hz

FHD (1.920x1.080)



3D DeInterlacer





3D DeInterlacer



3D DeInterlacer





3D






3D



3D







User, Vivid, Natural, Movie



uto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle




User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle

User, Vivid, Natural, Movie



uto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle




























/  /



2 wide band at the front side







/  / 

/  /



2 wide band at the front side





2 wide band at the front side








5 Band










5 Band



5 Band



natural, music, speech, user



2 x 7/14W nominal/music power (R/L)





natural, music, speech, user





natural, music, speech, user



2 x 7/14W nominal/music power (R/L)



2 x 7/14W nominal/music power (R/L)



CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by

CN

COREMAX-

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by 4 keys: Volume/Programm, +/-, stand-by

Blue Led






/



Blue Led



Blue Led







/



/






100 Analog / 1000 T / 1000 T2 / 1000 C / 6000 S2 / AV





/  /










100 Analog / 1000 T / 1000 C / 5000 S2 / AV



/  /



100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



1000 pages





1000 pages



1000 pages










24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment Simple hotel mode possible via service adjustment










































‒













‒

full automatic sorting




full automatic sorting full automatic sorting








For cable tuning can be done by entering

the frequency (MHz) in digital search menu




For cable tuning can be done by entering

the frequency (MHz) in digital search menu



For cable tuning can be done by entering

the frequency (MHz) in digital search menu





EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-T2, DVB-C, DVB-S2



EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





8 days via DVB-T, DVB-C, DVB-S2





If broadcasted
If broadcasted
If broadcasted



If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

PDC based

full automatic sorting

PDC based

full automatic sorting

PDC based

full automatic sorting

Chassis CNGRUNDIG Service

1 - 16

Chassis CNGRUNDIG Service

1 - 16

Chassis CNGRUNDIG Service

1 - 16

32 VLE 5503 BN 32 VLE 5521 BG 32 VLE 5523 BG

DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
DVB-S2 Front end

Input frequency range
Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T2 Front end
Input frequency range
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Video Decoder
MPEG profiles
Resolution

Picture formats

Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Last station memory
Favourite mode
Mute function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power frequency
Power switch
Integrated supply
Plug-in AC adaptor
Energy class
Nominal Power Consumption
Stand-by Power Consumption
Annual On-Mode Energy Consumption
Cabinet without stand (WxHxD)
Cabinet with stand (WxHxD)
Weight - Unpacked
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI 1.4 / 2.0

- MHL 2.0

- ARC

- 4k2k

- HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB 2.0 / 3.0

Antenna for terrestrial reception
Antenna for satellite reception

DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual
Wall fixture (mm)
Stand
Stand Foot Distance
Cleaning tissue

47 - 862 VHF & UHF 47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz 950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



177 - 862 VHF & UHF

-75 to -35dBm / 75Ohm









QPSK, 16QAM, 64QAM, 256QAM

LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6











MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

from stand-by, as TV

Dynamic PMT



Dynamic PMT



DVB enhanced profile

from stand-by, as TV

DVB enhanced profile

from stand-by, as TV

4x free





4x free



4x free








1920 x 1080










1920 x 1080



1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V 220-240V

50-60Hz

Tact switch



50-60Hz 50-60Hz

Tact switch



Tact switch





A

40,1W

0,3W



A



A

40,1W

0,3W

40,1W

0,3W

59kWh
738,7 x 474,6 x 78,3mm
738,7 x 494,4 x 242mm

ca. 5,6kg

59kWh

738,7 x 474,6 x 78,3mm

59kWh

738,7 x 474,6 x 78,3mm

738,7 x 494,4 x 242mm

ca. 5,8kg

738,7 x 494,4 x 242mm

ca. 5,8kg

Full wired
Via Scart
Via Scart

Full wired Full wired

Via Scart
Via Scart

Via Scart
Via Scart



via VGA






via VGA



via VGA







2 / 0





2 / 0



2 / 0









via HDMI

(CI+)

3.5mm jack
optical

via HDMI

(CI+)

via HDMI

(CI+)

3.5mm jack
optical

3.5mm jack
optical

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

via Headphone

2 / 0

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector














TP6 (New)





TP6 (New)



TP6 (New)









Prepared for VESA standard adaptor 100 x 150



463mm



Prepared for VESA standard adaptor 100 x 150Prepared for VESA standard adaptor 100 x 150



463mm



463mm



Chassis CNGRUNDIG Service

1 - 17

Chassis CNGRUNDIG Service

1 - 17

Chassis CNGRUNDIG Service

1 - 17

Technische Daten / Technical Data 32"/43"

32 VLE 5523 BN 43 VLE 5521 BG 43 VLE 5523 BG

Order No.
Product Code
Country
Approbations
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
2D/3D Converter
Local / Micro Dimming
Dynamic contrast
HDR / Wide Color Gamut
Panel Frequency
Physical display resolution max. pixel
Motion Picture Improvement (MEMC)
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Trans. Improv. (DLTI)
Picture Noise Reduction
Preset picture modes

Aspect ratios (Format switching)
PIP

PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICT. + PICT.)
Picture freezing
Zoom with point function
Blue Background
AUDIO
Mono/Stereo/Nicam
Loudspeaker
SRS
Dolby digital
Subwoofer
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Scaler
Keyboard
ELECTRONIC
Stand by indicator
Programmable off timer
Programmable on timer
Zap / Swap
Programme Edit
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
HEVC/H.265
Childlock

Menue languages OSD

Game mode
Hotel mode

Digi Link
Miracast
Special feature
Wifi
DLNA
DLNA Supported Format
Internet Applications
Netflix
Smart Inter@ctive TV 3.0
Online SW Update
RC over IP
Bluetooth (TV)
Easy use remote control compatible
TUNING
Autom. Tuning System w. country select.
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
EPG (Electronic Programme Guide)

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
VPS - VBI insertion
Programme table

PFC000

PFC

PBJ000

PBJ

PCC000

PCC

ES; IT

CE

DE; AT; CH

CE

TP6 (New)

40 13833-01109 5

TP6 (New)

40 13833-01010 4

FR; ES; HR; IT

CE

TP6 (New)

40 13833-01042 5

Black Black

32"/80 cm

DIRECT LED (BMS)

43"/108 cm

DIRECT LED (BMS)

Black

43"/108 cm

DIRECT LED (BMS)











/



/











/



DCR PLUS



/



DCR PLUS



/



50Hz

FHD (1.920x1.080)

50Hz

FHD (1.920x1.080)

DCR PLUS



/



50Hz

FHD (1.920x1.080)



3D DeInterlacer



3D DeInterlacer





3D DeInterlacer





3D



3D









3D





User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle

User, Vivid, Natural, Movie



uto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle







User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle



























/  / 

/  /



2 wide band at the front side





2 wide band at the front side







/  /



2 wide band at the front side













5 Band



5 Band







5 Band



natural, music, speech, user





natural, music, speech, user



2 x 7/14W nominal/music power (R/L)



2 x 10/20W nominal/music power (R/L)





natural, music, speech, user



2 x 10/20W nominal/music power (R/L)



CN

COREMAX-

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by 4 keys: Volume/Programm, +/-, stand-by

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by

Blue Led



Blue Led







/



/



Blue Led







/









100 Analog / 1000 T / 1000 T2 / 1000 C / 6000 S2 / AV





/  /



100 Analog / 1000 T / 1000 C / 5000 S2 / AV



/  /







100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



1000 pages



1000 pages









1000 pages







24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment Simple hotel mode possible via service adjustment



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment



















































‒












full automatic sorting full automatic sorting







full automatic sorting





For cable tuning can be done by entering

the frequency (MHz) in digital search menu



For cable tuning can be done by entering

the frequency (MHz) in digital search menu





For cable tuning can be done by entering

the frequency (MHz) in digital search menu





EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-T2, DVB-C, DVB-S2





8 days via DVB-T, DVB-C, DVB-S2



EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted



If broadcasted
If broadcasted
If broadcasted

PDC based

full automatic sorting

PDC based

full automatic sorting

PDC based

full automatic sorting

Chassis CNGRUNDIG Service

1 - 18

Chassis CNGRUNDIG Service

1 - 18

Chassis CNGRUNDIG Service

1 - 18

Chassis CNGRUNDIG Service

1 - 18

32 VLE 5523 BN 43 VLE 5521 BG 43 VLE 5523 BG

DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
DVB-S2 Front end

Input frequency range
Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T2 Front end
Input frequency range
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Video Decoder
MPEG profiles
Resolution

Picture formats

Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Last station memory
Favourite mode
Mute function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power frequency
Power switch
Integrated supply
Plug-in AC adaptor
Energy class
Nominal Power Consumption
Stand-by Power Consumption
Annual On-Mode Energy Consumption
Cabinet without stand (WxHxD)
Cabinet with stand (WxHxD)
Weight - Unpacked
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI 1.4 / 2.0

- MHL 2.0

- ARC

- 4k2k

- HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB 2.0 / 3.0

Antenna for terrestrial reception
Antenna for satellite reception

DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual
Wall fixture (mm)
Stand
Stand Foot Distance
Cleaning tissue

47 - 862 VHF & UHF 47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz 950 MHz to 2150 MHz

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



177 - 862 VHF & UHF

-75 to -35dBm / 75Ohm









QPSK, 16QAM, 64QAM, 256QAM

LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6










MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

from stand-by, as TV

DVB enhanced profile

from stand-by, as TV

Dynamic PMT



DVB enhanced profile

from stand-by, as TV

4x free



4x free





4x free












1920 x 1080



1920 x 1080







1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V 220-240V

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V

50-60Hz 50-60Hz

Tact switch



Tact switch



50-60Hz

Tact switch




A



A+

40,1W

0,3W

53,1W

0,3W



A+

53,1W

0,3W

59kWh

738,7 x 474,6 x 78,3mm

78kWh

970,3 x 609,4 x 76,4mm

738,7 x 494,4 x 242mm

ca. 6,8kg

970,3 x 625,4 x 242mm

ca. 9,4kg

78kWh
970,3 x 609,4 x 76,4mm
970,3 x 625,4 x 242mm

ca. 9,5kg

Full wired Full wired
Via Scart
Via Scart

Via Scart
Via Scart

Full wired
Via Scart
Via Scart



via VGA



via VGA









via VGA




2 / 0



2 / 0









2 / 0





via HDMI

(CI+)

via HDMI

(CI+)

3.5mm jack
optical

3.5mm jack
optical

via HDMI

(CI+)

3.5mm jack
optical

via Headphone

2 / 0

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector














TP6 (New)



TP6 (New)









TP6 (New)





Prepared for VESA standard adaptor 100 x 150Prepared for VESA standard adaptor 200 x 200



463mm



639mm



Prepared for VESA standard adaptor 200 x 200



639mm



Chassis CNGRUNDIG Service

1 - 19

Chassis CNGRUNDIG Service

1 - 19

Chassis CNGRUNDIG Service

1 - 19

Chassis CNGRUNDIG Service

1 - 19

Technische Daten / Technical Data 43"/49"

43 VLE 5523 BN 43 VLE 5523 WG 49 VLE 4523 BF

Order No.
Product Code
Country
Approbations
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
2D/3D Converter
Local / Micro Dimming
Dynamic contrast
HDR / Wide Color Gamut
Panel Frequency
Physical display resolution max. pixel
Motion Picture Improvement (MEMC)
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Trans. Improv. (DLTI)
Picture Noise Reduction
Preset picture modes

Aspect ratios (Format switching)
PIP

PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICT. + PICT.)
Picture freezing
Zoom with point function
Blue Background
AUDIO
Mono/Stereo/Nicam
Loudspeaker
SRS
Dolby digital
Subwoofer
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Scaler
Keyboard
ELECTRONIC
Stand by indicator
Programmable off timer
Programmable on timer
Zap / Swap
Programme Edit
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
HEVC/H.265
Childlock

Menue languages OSD

Game mode
Hotel mode

Digi Link
Miracast
Special feature
Wifi
DLNA
DLNA Supported Format
Internet Applications
Netflix
Smart Inter@ctive TV 3.0
Online SW Update
RC over IP
Bluetooth (TV)
Easy use remote control compatible
TUNING
Autom. Tuning System w. country select.
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
EPG (Electronic Programme Guide)

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
VPS - VBI insertion
Programme table

PFD000

PFD

HR; ES

CE

TP6 (New)

40 13833-01110 1

Black

43"/108 cm

DIRECT LED (BMS)







/



PFA000

PFA

PBY000

PBY

FR; ES; HR; IT

CE

FR; ES; IT; HR

CE

TP6 (New)

40 13833-01106 4

TP6 (New)

40 13833-01038 8

White Black

43"/108 cm

DIRECT LED (BMS)

49"/123 cm

DIRECT LED (BMS)












/



/



DCR PLUS



/



50Hz

FHD (1.920x1.080)



3D DeInterlacer




3D




User, Vivid, Natural, Movie



uto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle




DCR PLUS



/



DCR PLUS



/



50Hz

FHD (1.920x1.080)

50Hz

FHD (1.920x1.080)



3D DeInterlacer



3D DeInterlacer





3D



3D








User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle

User, Vivid, Natural, Movie



uto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle















/  /



2 wide band at the front side








5 Band



natural, music, speech, user



2 x 10/20W nominal/music power (R/L)



















/  / 

/  /



2 wide band at the front side





2 wide band at the front side














5 Band



5 Band



natural, music, speech, user





natural, music, speech, user



2 x 10/20W nominal/music power (R/L)



2 x 10/20W nominal/music power (R/L)



CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by

Blue Led






/






100 Analog / 1000 T / 1000 T2 / 1000 C / 6000 S2 / AV





/  /



1000 pages





CN

COREMAX-

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by 4 keys: Volume/Programm, +/-, stand-by

Blue Led



Blue Led







/



/










100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



100 Analog / 1000 T / 1000 C / AV





/  /



1000 pages



1000 pages










24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment














‒

24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment Simple hotel mode possible via service adjustment











































‒

full automatic sorting




For cable tuning can be done by entering

the frequency (MHz) in digital search menu




EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-T2, DVB-C, DVB-S2





If broadcasted
If broadcasted
If broadcasted

full automatic sorting full automatic sorting








For cable tuning can be done by entering

the frequency (MHz) in digital search menu



For cable tuning can be done by entering

the frequency (MHz) in digital search menu





EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





8 days via DVB-T, DVB-C





If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

PDC based

full automatic sorting

PDC based

full automatic sorting

PDC based

full automatic sorting

Chassis CNGRUNDIG Service

1 - 20

Chassis CNGRUNDIG Service

1 - 20

Chassis CNGRUNDIG Service

1 - 20

Chassis CNGRUNDIG Service

1 - 20

Chassis CNGRUNDIG Service

1 - 20

43 VLE 5523 BN 43 VLE 5523 WG 49 VLE 4523 BF

DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
DVB-S2 Front end

Input frequency range
Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T2 Front end
Input frequency range
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Video Decoder
MPEG profiles
Resolution

Picture formats

Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Last station memory
Favourite mode
Mute function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power frequency
Power switch
Integrated supply
Plug-in AC adaptor
Energy class
Nominal Power Consumption
Stand-by Power Consumption
Annual On-Mode Energy Consumption
Cabinet without stand (WxHxD)
Cabinet with stand (WxHxD)
Weight - Unpacked
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI 1.4 / 2.0

- MHL 2.0

- ARC

- 4k2k

- HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB 2.0 / 3.0

Antenna for terrestrial reception
Antenna for satellite reception

DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual
Wall fixture (mm)
Stand
Stand Foot Distance
Cleaning tissue

47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz



-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK




1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2







13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10







177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



177 - 862 VHF & UHF

-75 to -35dBm / 75Ohm

QPSK, 16QAM, 64QAM, 256QAM

LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6



MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

177 - 862 VHF & UHF / -

-76,0dBm to -20dBm (at 16 QAM 2/3) / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

















MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

from stand-by, as TV

4x free








1920 x 1080

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

from stand-by, as TV

DVB enhanced profile

from stand-by, as TV

4x free



4x free












1920 x 1080



1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V

50-60Hz

Tact switch




A+

53,1W

0,3W

78kWh
970,3 x 609,4 x 76,4mm
970,3 x 625,4 x 242mm

ca. 9,4kg

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V 220-240V

50-60Hz 50-60Hz

Tact switch



Tact switch





A+



A+

53,1W

0,3W

67,1W

0,3W

78kWh

970,3 x 609,4 x 76,4mm

98kWh

1105,9 x 682 x 76,9mm

970,3 x 625,4 x 242mm

ca. 9,8kg

1105,9 x 702,3 x 242mm

ca. 12,2kg

Full wired
Via Scart
Via Scart



via VGA




2 / 0





via HDMI

(CI+)

3.5mm jack
optical

Full wired Full wired

Via Scart
Via Scart

Via Scart
Via Scart



via VGA



via VGA







2 / 0



2 / 0









via HDMI

(CI+)

via HDMI

(CI+)

3.5mm jack
optical

3.5mm jack
optical

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector






TP6 (New)





Prepared for VESA standard adaptor 200 x 200



639mm



via Headphone

2 / 0

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325











TP6 (New)



TP6 (New)









Prepared for VESA standard adaptor 200 x 200Prepared for VESA standard adaptor 300 x 200



639mm



712mm



Chassis CNGRUNDIG Service

1 - 21

Chassis CNGRUNDIG Service

1 - 21

Chassis CNGRUNDIG Service

1 - 21

Chassis CNGRUNDIG Service

1 - 21

Chassis CNGRUNDIG Service

1 - 21

Technische Daten / Technical Data 49"

49 VLE 5521 BG 49 VLE 5523 BN 49 VLE 5523 WG

Order No.
Product Code
Country
Approbations
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
2D/3D Converter
Local / Micro Dimming
Dynamic contrast
HDR / Wide Color Gamut
Panel Frequency
Physical display resolution max. pixel
Motion Picture Improvement (MEMC)
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Trans. Improv. (DLTI)
Picture Noise Reduction
Preset picture modes

Aspect ratios (Format switching)
PIP

PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICT. + PICT.)
Picture freezing
Zoom with point function
Blue Background
AUDIO
Mono/Stereo/Nicam
Loudspeaker
SRS
Dolby digital
Subwoofer
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Scaler
Keyboard
ELECTRONIC
Stand by indicator
Programmable off timer
Programmable on timer
Zap / Swap
Programme Edit
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
HEVC/H.265
Childlock

Menue languages OSD

Game mode
Hotel mode

Digi Link
Miracast
Special feature
Wifi
DLNA
DLNA Supported Format
Internet Applications
Netflix
Smart Inter@ctive TV 3.0
Online SW Update
RC over IP
Bluetooth (TV)
Easy use remote control compatible
TUNING
Autom. Tuning System w. country select.
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
EPG (Electronic Programme Guide)

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
VPS - VBI insertion
Programme table

PBK000

PBK

PFE000

PFE

DE; CH; AT

CE

ES; HR

CE

TP6 (New)

40 13833-01012 8

TP6 (New)

40 13833-01111 8

PMP000

PMP

FR; ES; IT; HR

CE

TP6 (New)

40 13833-01400 3

Black Black

49"/123 cm

DIRECT LED (BMS)

49"/123 cm

DIRECT LED (BMS)











/



/



White

49"/123 cm

DIRECT LED (BMS)









/



DCR PLUS



/



DCR PLUS



/



50Hz

FHD (1.920x1.080)

50Hz

FHD (1.920x1.080)



3D DeInterlacer



3D DeInterlacer



DCR PLUS



/



50Hz

FHD (1.920x1.080)



3D DeInterlacer





3D



3D







User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle

User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle









3D





User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle



















/  / 

/  /



2 wide band at the front side





2 wide band at the front side















/  /



2 wide band at the front side













5 Band



5 Band



natural, music, speech, user





natural, music, speech, user



2 x 10/20W nominal/music power (R/L)



2 x 10/20W nominal/music power (R/L)









5 Band



natural, music, speech, user



2 x 10/20W nominal/music power (R/L)



CN

COREMAX-

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by 4 keys: Volume/Programm, +/-, stand-by

Blue Led



Blue Led







/



/



CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by

Blue Led







/









100 Analog / 1000 T / 1000 C / 5000 S2 / AV



/  /



100 Analog / 1000 T / 1000 T2 / 1000 C / 6000 S2 / AV





/  /



1000 pages



1000 pages













100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /



1000 pages







24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment Simple hotel mode possible via service adjustment















24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR,

GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture in

HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment


































‒















‒

full automatic sorting full automatic sorting







For cable tuning can be done by entering

the frequency (MHz) in digital search menu



For cable tuning can be done by entering

the frequency (MHz) in digital search menu





full automatic sorting





For cable tuning can be done by entering

the frequency (MHz) in digital search menu





EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





8 days via DVB-T, DVB-T2, DVB-C, DVB-S2





If broadcasted



If broadcasted
If broadcasted
If broadcasted

If broadcasted

If broadcasted

EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2





If broadcasted
If broadcasted
If broadcasted

PDC based

full automatic sorting

PDC based

full automatic sorting

PDC based

full automatic sorting

Chassis CNGRUNDIG Service

1 - 22

Chassis CNGRUNDIG Service

1 - 22

Chassis CNGRUNDIG Service

1 - 22

Chassis CNGRUNDIG Service

1 - 22

Chassis CNGRUNDIG Service

1 - 22

Chassis CNGRUNDIG Service

1 - 22

49 VLE 5521 BG 49 VLE 5523 BN 49 VLE 5523 WG

DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
DVB-S2 Front end

Input frequency range
Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T2 Front end
Input frequency range
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Video Decoder
MPEG profiles
Resolution

Picture formats

Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Last station memory
Favourite mode
Mute function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power frequency
Power switch
Integrated supply
Plug-in AC adaptor
Energy class
Nominal Power Consumption
Stand-by Power Consumption
Annual On-Mode Energy Consumption
Cabinet without stand (WxHxD)
Cabinet with stand (WxHxD)
Weight - Unpacked
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI 1.4 / 2.0

- MHL 2.0

- ARC

- 4k2k

- HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB 2.0 / 3.0

Antenna for terrestrial reception
Antenna for satellite reception

DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual
Wall fixture (mm)
Stand
Stand Foot Distance
Cleaning tissue

47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz 950 MHz to 2150 MHz

47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8






177 - 862 VHF & UHF

-75 to -35dBm / 75Ohm

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8









QPSK, 16QAM, 64QAM, 256QAM

LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6



MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle







MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox /

Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



Dynamic PMT



DVB enhanced profile

from stand-by, as TV

DVB enhanced profile

from stand-by, as TV

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

from stand-by, as TV

4x free



4x free












1920 x 1080



1920 x 1080

4x free











1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V 220-240V

50-60Hz 50-60Hz

Tact switch



Tact switch



.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe,

.trp, .ts, .avi, .mp4, .mkv, H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V

50-60Hz

Tact switch




A+



A+

67,1W

0,3W

67,1W

0,3W

98kWh

1105,9 x 682 x 76,9mm

98kWh

1105,9 x 682 x 76,9mm

1105,9 x 702,3 x 242mm

ca. 12,0kg

1105,9 x 702,3 x 242mm

ca. 12,0kg



A+

67,1W

0,3W

98kWh

1105,9 x 682 x 76,9mm

1105,9 x 702,3 x 242mm

ca. 12kg

Full wired Full wired
Via Scart
Via Scart

Via Scart
Via Scart



via VGA



via VGA







Full wired
Via Scart
Via Scart



via VGA





2 / 0



2 / 0









via HDMI

(CI+)

via HDMI

(CI+)

3.5mm jack
optical

3.5mm jack
optical

2 / 0





via HDMI

(CI+)

3.5mm jack
optical

via Headphone

2 / 0

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector









via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector






TP6 (New)



TP6 (New)









Prepared for VESA standard adaptor 300 x 200Prepared for VESA standard adaptor 300 x 200



712mm



712mm



TP6 (New)





Prepared for VESA standard adaptor 300 x 200



712mm



Chassis CNGRUNDIG Service

1 - 23

Chassis CNGRUNDIG Service

1 - 23

Chassis CNGRUNDIG Service

1 - 23

Chassis CNGRUNDIG Service

1 - 23

Chassis CNGRUNDIG Service

1 - 23

Chassis CNGRUNDIG Service

1 - 23

Technische Daten / Technical Data 49"

55 VLE 5523 BG 55 VLE 5523 BN

Order No.
Product Code
Country
Approbations
Remote control
EAN
Color
DISPLAY
Panel
Backlight
Wide-screen format
3D
2D/3D Converter
Local / Micro Dimming
Dynamic contrast
HDR / Wide Color Gamut
Panel Frequency
Physical display resolution max. pixel
Motion Picture Improvement (MEMC)
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Trans. Improv. (DLTI)
Picture Noise Reduction
Preset picture modes

Aspect ratios (Format switching)
PIP

PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICT. + PICT.)
Picture freezing
Zoom with point function
Blue Background
AUDIO
Mono/Stereo/Nicam
Loudspeaker
SRS
Dolby digital
Subwoofer
AVL (Audio Volume Level)
Equalizer
Space Sound Effect
Sound preset
Audio amplifier
CHASSIS
TV-Chassis
Scaler
Keyboard
ELECTRONIC
Stand by indicator
Programmable off timer
Programmable on timer
Zap / Swap
Programme Edit
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Hbb TV
HEVC/H.265
Childlock

Menue languages OSD

Game mode
Hotel mode

Digi Link
Miracast
Special feature
Wifi
DLNA
DLNA Supported Format
Internet Applications
Netflix
Smart Inter@ctive TV 3.0
Online SW Update
RC over IP
Bluetooth (TV)
Easy use remote control compatible
TUNING
Autom. Tuning System w. country select.
Manual fine tuning
Direct channel selection

Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L

NTSC-Playback via Scart (3,58/4,43)
DVB reception

Fully compliant to
Autmatic/manual channel search

EPG (SI based)
EPG (Electronic Programme Guide)

- now/next

- scheduled

- Exdended Event Info

- Short Event Info
VPS - VBI insertion
Programme table

PCE000

PCE

PFF000

PFF

FR; ES; HR; IT

CE

TP6 (New)

40 13833-01044 9

ES; HR

CE

TP6 (New)

40 13833-01112 5

Black

55"/139 cm

DIRECT LED (BMS)

Black

55"/139 cm

DIRECT LED (BMS)







/









/



DCR PLUS



/



50Hz

FHD (1.920x1.080)

DCR PLUS



/



50Hz

FHD (1.920x1.080)



3D DeInterlacer





3D DeInterlacer





3D






3D





User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle




User, Vivid, Natural, Movie

Auto (WSS), 4:3 / 16:9 / 14:9 / Letterbox / Subtitle



















/  /



2 wide band at the front side







/  /



2 wide band at the front side









5 Band






5 Band



natural, music, speech, user



2 x 10/20W nominal/music power (R/L)





natural, music, speech, user



2 x 10/20W nominal/music power (R/L)



CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by

CN

COREMAX-

4 keys: Volume/Programm, +/-, stand-by

Blue Led






/



Blue Led







/






100 Analog / 1000 T / 1000 C / 6000 S2 / AV





/  /







100 Analog / 1000 T / 1000 T2 / 1000 C / 6000 S2 / AV





/  /



1000 pages





1000 pages






24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR, PL, CZ, SK, SLO, H,

RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR, PL, CZ, SK, SLO, H,

RUS, RO, BG, HR, LT,EE



presets (user changeable) for sound and picture

in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment
































‒

full automatic sorting




full automatic sorting





For cable tuning can be done by entering

the frequency (MHz) in digital search menu




For cable tuning can be done by entering

the frequency (MHz) in digital search menu





EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-C, DVB-S2



EN 300 744 & revided NorDig II spec

(regarding DVB-T front end performance)



/  - ATS type sorting & LCN type sorting



8 days via DVB-T, DVB-T2, DVB-C, DVB-S2





If broadcasted
If broadcasted
If broadcasted



If broadcasted
If broadcasted
If broadcasted

PDC based

full automatic sorting

PDC based

full automatic sorting

Chassis CNGRUNDIG Service

1 - 24

Chassis CNGRUNDIG Service

1 - 24

Chassis CNGRUNDIG Service

1 - 24

Chassis CNGRUNDIG Service

1 - 24

Chassis CNGRUNDIG Service

1 - 24

Chassis CNGRUNDIG Service

1 - 24

Chassis CNGRUNDIG Service

1 - 24

55 VLE 5523 BG 55 VLE 5523 BN

DVB-C Front end
Input frequency (MHz)
Imput level / Impedance

Demodulation / Symbol rate Ms/s
DVB-S2 Front end

Input frequency range
Signal level
Demodulation
Input symbol rate
DiseqC 1.2 support
LNB power & Polarization

FEC MODE

Unicable
DVB-T Front end
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
DVB-T2 Front end
Input frequency range
Input level / Impedance
Modulation
FEC Mode
Activ antenna support
Video Decoder
MPEG profiles
Resolution

Picture formats

Audio Decoder
Profiles
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Last station memory
Favourite mode
Mute function
USB part
Recording
Divx + HD
Repeat
File browser
Video file resolution (max.)

Supported files
Supported subtitles

POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power frequency
Power switch
Integrated supply
Plug-in AC adaptor
Energy class
Nominal Power Consumption
Stand-by Power Consumption
Annual On-Mode Energy Consumption
Cabinet without stand (WxHxD)
Cabinet with stand (WxHxD)
Weight - Unpacked
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
S-Video
Camera-AV
LAN
YUV input / progressive
PC-input
PC-Audio in
HDMI 1.4 / 2.0

- MHL 2.0

- ARC

- 4k2k

- HD ready including HDCP
Common Interface
Headphones
Digital Audio out optical (SPDIF)
Audio out
USB 2.0 / 3.0

Antenna for terrestrial reception
Antenna for satellite reception

DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Wi-Fi Dongle
Remote control (incl. battery)
3D Glasses
Power cord
Instruction manual
Wall fixture (mm)
Stand
Stand Foot Distance
Cleaning tissue

47 - 862 VHF & UHF 47 - 862 VHF & UHF

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz

47 - 70dbµV / 75 Ohm

QAM 16/32/64/128/256 demodulation support

(EN 300 429) 4,0…7,2 Msymbols/s

950 MHz to 2150 MHz

-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



-25 to -80dBm (Only for DVB-S)

-25 to -70dBm (Only for DVB-S2)

QPSK, 8PSK

1 - 45 Msps for DVB-S

5 - 30 Msps for DVB-S2



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



13/18V Selection / Vertical

22 KHz generation / Overload Protection

Auto - QPSK-S: 1/2, 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

QPSK-S2: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10

8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10



177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

177 - 862 VHF & UHF /



-80 to 20/dBm / 75 Ohm

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8








177 - 862 VHF & UHF

-75 to -35dBm / 75Ohm





QPSK, 16QAM, 64QAM, 256QAM

LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6



MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MP@ML, MP@HL, MPEG4 AVC H.264 [email protected]

576i, 576p, 720p, 1080i, 1080p

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Letterbox / Subtitle

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

MPEG 4 , MPEG 2 layer I & II

SP/DIF

Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

from stand-by, as TV

Dynamic PMT



DVB enhanced profile

from stand-by, as TV

4x free





4x free









1920 x 1080







1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe, .trp, .ts, .avi, .mp4, .mkv,

H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V

.mp3, .m4a, .aac, .jpg, .bmp, .png, .mov, .mpg, .mpe, .trp, .ts, .avi, .mp4, .mkv,

H264(L4.0)

SRT, SSA, ASS, SMI, Video SUB

220-240V

50-60Hz

Tact switch



50-60Hz

Tact switch





A+

84,1W

0,3W



A+

84,1W

0,3W

123kWh

1244,2 x 762,3 x 78,7mm

1244,2 x 782 x 242mm

ca. 14,8kg

123kWh

1244,2 x 762,3 x 78,7mm

1244,2 x 782 x 242mm

ca. 14,8kg

Full wired
Via Scart
Via Scart

Full wired

Via Scart
Via Scart



via VGA






via VGA




2 / 0





2 / 0





via HDMI

(CI+)

3.5mm jack
optical

via HDMI

(CI+)

3.5mm jack
optical

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector

via Headphone

2 / 0

1 x Coaxial-socket for TV-tuner-in,

according to DIN 45325

1 x F-connector












TP6 (New)





TP6 (New)






Prepared for VESA standard adaptor 400 x 200



702mm



Prepared for VESA standard adaptor 400 x 200



702mm



Chassis CNGRUNDIG Service

1 - 25

Chassis CNGRUNDIG Service

1 - 25

Chassis CNGRUNDIG Service

1 - 25

Chassis CNGRUNDIG Service

1 - 25

Chassis CNGRUNDIG Service

1 - 25

Chassis CNGRUNDIG Service

1 - 25

Chassis CNGRUNDIG Service

1 - 25

Chassis CNGRUNDIG Service

1 - 26

Bedienhinweise Dieses Kapitel enthält Auszüge aus der Bedienungsanleitung. Weitergehende Informationen entnehmen Sie bitte der gerätespezifischen Bedienungsanleitung, die Sie unter www.grundig.de, Menüpunkt Downloads/Bedienungsanlei-

tungen herunterladen können.

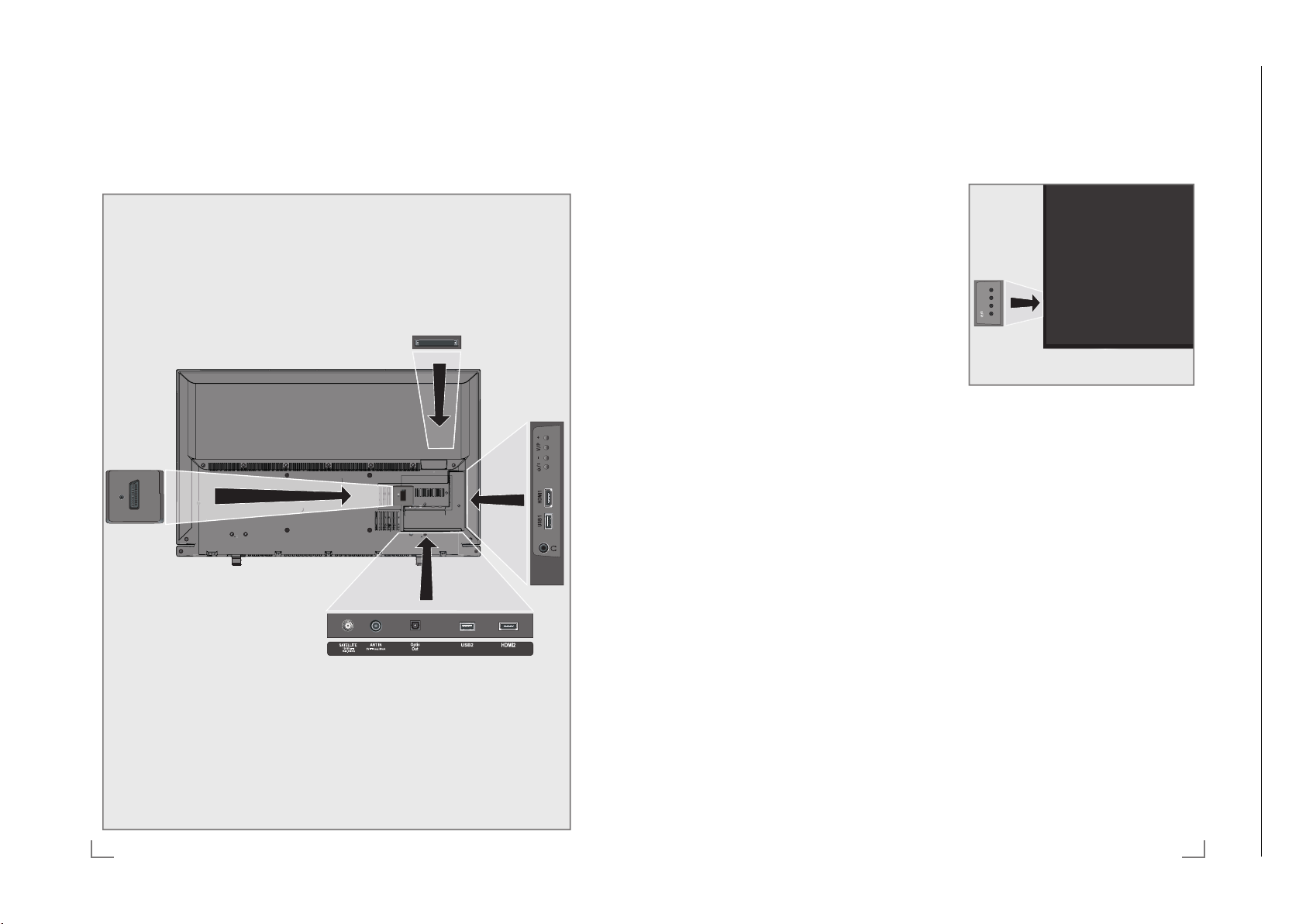

AUF EINEN BLICK

-------------------------------------------------------------------------------------------

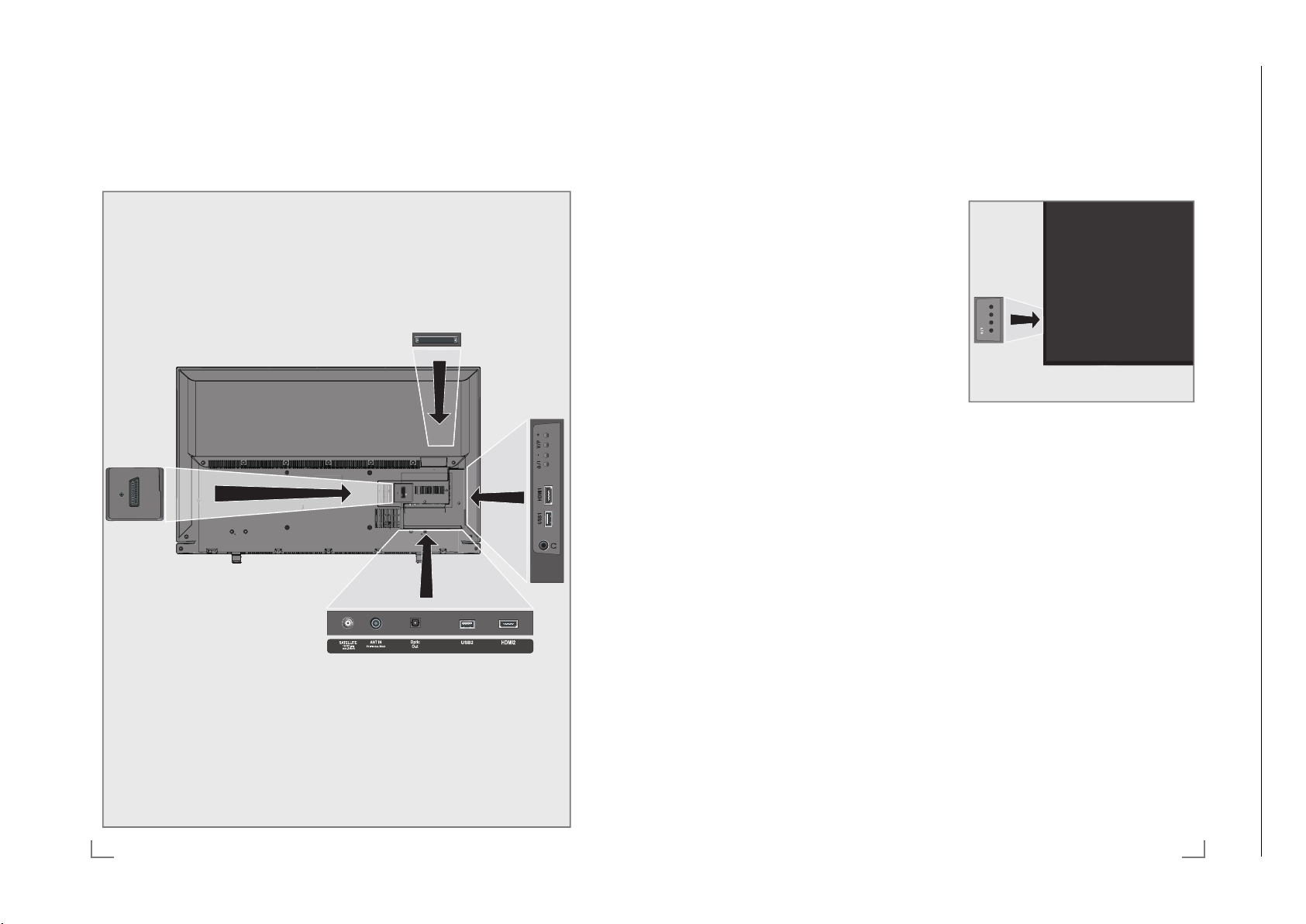

Die Anschlüsse des Fernsehgerätes

SERVICE

AV / S-VHS

AUF EINEN BLICK

SERVICE Nur für Service.
AV / S-VHS Euro/AV-Buchse

-------------------------------------------------------------------------------------------

Die Bedienelemente des
Fernsehgerätes

(FBAS-Signal, RGB-Signal);
Bildsignal-Buchse für
S-Video-Camerarecorder;
Component-Buchse, Ton­Bild-Eingang (YUV-Signal)
über SCART – YPbPr
Adapter.

SATELLITE Antennenbuchse für die

Satellitenantenne (D

VB-S/

+V/P-

S2).

ANT IN Antennenbuchse für

D

VB-T, DVB-C und

analoge Antenne.

Optic Out Tonsignal-Ausgang (op-

tisch, PCM/Dolb
Signale).
Zum Anschluss digitaler
AV-Verstärker oder AV­Receiver.

SERVICE

AV / S-VHS

SATELLITE

ANT-IN

Optic Out

USB2

HDMI2

13/18V

5V

max. 500mA

max. 50mA

USB 2 USB-Buchse für externe

Datentr

HDMI2 HDMI-Ton-/Bildsignal-

Eingang.

U Kopfhörerbuchse

(3,5-mm-Klinkenstecker);
Buchse für Tonsignal­Ausgang über einen han­delsüblichen Adapter.

USB 1 USB-Buchse für externe

Datentr

äger.

äger.

y Digital-

Fernsehgerät in Bereitschaft
schalten

1 »8/I« Schaltet das Fernsehgerät ein und

wieder in Bereitschaft (Stand-by).

Lautstärke ändern oder
Programm wechseln

1 »V/P« Vorwahltaste für Lautstärke oder

Programmwahl.

2 »–« Lautstärke verringern;

Pr

ogrammwahl abwärts.

3 »+« Lautstärke vergrößern;

ogrammwahl aufwärts.

Pr

HDMI1 HDMI-Ton-/Bildsignal-

Eingang.

CI Common Interface-

Steckplatz.

12

DEUTSCH

DEUTSCH

13

Chassis CNGRUNDIG Service

1 - 27

AUF EINEN BLICK

-------------------------------------------------------------------------------------------

OVERVIEW

--------------------------------------------------------------------------------------------------------------

Die Fernbedienung – Hauptfunktionen

Einschalten aus Stand-by;

Programm-Direktwahl

Programmtabelle und Favori-

tenlisten (1 bis 4)

HDMI-Geräteliste

Informationen anzeigen

Hauptmenü

Programmliste

Werkzeuge: Funktionen und

Einstellungen

Lautstärke

Stummschalten

Bildformate

Ein/Bereitschaft

Videotext aufrufen/ausschal­ten

Beendet den Elektronischen
Programmführer

Zapp-Funktion;

in den Menüs eine Menü­ebene zurück

Elektronischer Programm­führer

Signalquelle
Einschalten aus Stand-by;

nächstes/vorheriges
Programm

Nächstes/vorheriges Bild/
Kapitel;

nächster/vorheriger Titel

schalten.

The remote control –
All functions

(red) Selects pages in teletext;

y

(green) Selects/activates various functions

yy

(yellow) in the menus.

yyy

(blue)

yyyy

5 Switches to double character size in

6 Refreshes a teletext page;

3

4

8 Starts playing a programme from an

! Pauses the file executed in the Me-

7 Ends playback of a programme from

teletext;
selects the previous title/previous
picture in the Media Player.

selects the next track/next picture in
the Media Player.

Stops scrolling through pages in

teletext;
starts a fast reverse search in the
Media Player.

Reveals answers in teletext;

starts a fast forward search in the
Media Player.

external data medium.

dia Player.

an external data medium.

Selects different audio languages

(only for digital television channels).

Selects different subtitles

(only for digital television channels).

Umschalten zwischen Fern-

seh- / und Radioprogram-

men (nur digitale Program-

Navigieren in den Menüs

DEUTSCH

14

me).

Bewegen den Cursor in den
Menüs nach oben und unten.

Bewegen den Cursor in den
Menüs nach links und rechts.

Aktiviert verschiedene Funktio­nen und speichert Funktionen/
Einstellungen.

Untertitel wählen

Medienplayer

Tonkanal wählen

ENGLISH

15

JUGENDSCHUTZEINSTELLUNGEN

Chassis CNGRUNDIG Service

1 - 28

Hinweis – Kindersicherung:

Mit dem PIN-Code 2356 können Sie die
Einstellungen ändern.

-------------------------------------------

JUGENDSCHUTZEINSTELLUNGEN

-------------------------------------------

1 Menü mit »MENU« aufrufen.
2 Menüpunkt »EINSTELLUNGEN« mit »

oder »

Λ

« wählen und mit »OK« bestätigen.

– Das Menü »EINSTELLUNGEN« wird

eingeblendet.

EINSTELLUNGEN

Spracheinstellungen

Menü

Audio

Untertitel

Untertitelmodus

Hörgeschädigte

Datum- und Zeiteinstellungen

Datum und Uhrzeit

Zeitanpassung

Beenden
Zurück

Deutsch

Deutsch

Deutsch

Aus

Aus

Automatic

Hinweis:

7

Die weitere Bedienung entnehmen Sie bitte

den folgenden Abschnitten.

V

xx.xx.xxxx

Sendungen autorisieren

«

Es gibt Spielfilme, deren Inhalt oder auch
Szenen, die nicht für Kinder geeignet sind.

Diese Sendungen enthalten Informationen, die
den Inhalt oder die Szenen markieren und sind

15:46

mit Zugangslevel von 4 bis 18 versehen. Sie
können einen der Zugangslevel wählen und
damit die Wiedergabe autorisieren.

1 Zeile »Jugendschutz« mit »

wählen und mit »

>

V

« oder »Λ«

« bestätigen.

2 PIN-Code »1234« mit »1...0« eingeben.
3 Zugangslevel mit »

« oder »>« wählen.

<

Tasten sperren
(Kindersicherung)

Bei aktiver Tastensperre sind die Tasten des
Fernsehgerätes ohne Funktion.

1 Zeile »Tastensperre« mit »

wählen und mit »

2 PIN-Code »1234« mit »1 ... 0« eingeben.
3 Tastensperre mit »

(Ein) oder abschalten (Aus).

4 Eine Menüebene zurückschalten mit

»BACK <« oder Einstellung mit »MENU«
beenden.

V

« bestätigen.

>

<

« oder »Λ«

« oder »>« aktivieren

4 Eine Menüebene zurückschalten mit

»BACK <« oder Einstellung mit »MENU«
beenden.

Hinweis:

7

Bei der Wiedergabe einer Time-Shift
Aufnahme kann es vorkommen, dass ein
Zugangslevel eingegeben werden muss.
Der Grund hierfür ist, die aktuell aufge­zeichnete Sendung im Time-Shift Speicher
ist „jugendgeschützt”.

Menüs sperren

Mit dieser Funktion können Sie folgende Menüs
des Fernsehgerätes sperren: »Automatischer
Suchlauf«, »Manuelle Abstimmung-Digital«,
»Antenneneinstellung« und »Programmtabelle«.
Diese Menüs sind nur durch Eingabe des PIN­Codes zugänglich.

1 Zeile »Menü sperren« mit »

wählen und mit »

>

2 PIN-Code »1234« mit »1...0« eingeben.
3 Sperre mit »

« oder »>« aktivieren (»Ein«).

<

Hinweis:

7

Menüsperre abschalten dazu mit »<« oder

»

« die Einstellung »Aus« wählen.

>

4 Eine Menüebene zurückschalten mit

»BACK <« oder Einstellung mit »MENU«
beenden.

V

« bestätigen.

« oder »Λ«

PIN-Code ändern

Sie können statt des Werkscodes »1234« einen
persönlichen PIN-Code eingeben. Notieren Sie
sich bitte Ihren persönlichen PIN-Code.

1 Zeile »PIN ändern« mit »

V

« oder »Λ«

wählen und mit »OK« bestätigen.

2 Aktuellen PIN-Code 1 2 3 4 mit »1...0«

eingeben.

3 Persönlichen neuen PIN-Code mit »1...0«

viers

tellig eingeben.

4 Persönlichen neuen PIN-Code mit » 1...0 «

noch einmal eingeben.

5 Eine Menüebene zurückschalten mit

»BACK <« oder Einstellung mit »MENU«
beenden.

Fernsehprogramme sperren

Sie können einzelne Fernsehprogramme mit
einem persönlichen PIN-Code sperren, zum
Beispiel Programme, die sich nicht für Kinder
eignen.

1 Menü mit »MENU« aufrufen.

V

V

« oder

« oder

2 Menüpunkt »INSTALLATION« mit »

»

Λ

« wählen und mit »OK« bestätigen.

3 Zeile »Programmtabelle« mit »

»

Λ

« wählen und mit »OK« bestätigen.

4 Im Menü »PROGRAMMTABELLE« mit

»

« (gelb) zur »LISTENVERWALTUNG«

yyy

umschalten.

V

5 Das zu sperrende Programm mit »

»

Λ

« auswählen.

6 Mit »

« oder »>« die Spalte »Sperre«,

<

anwählen und das Programm mit »OK«

ren.

sper

« oder

7 PIN-Code »1234« mit »1...0« eingeben.

– Das Programm wird mit »« markiert.

Hinweis:

7

Zum Aufheben der Sperre das Programm

mit »

V

« oder »Λ« wieder anwählen, mit

»OK« bestätigen und danach den PIN­Code 1 2 3 4 mit »1...0« eingeben.

8 Eine Menüebene zurückschalten mit

»BACK <« oder Einstellung mit »MENU«
beenden.

Ein gesperrtes Fernseh-Pro­gramm ansehen

Sie können ein durch den PIN-Code gesperrtes
Fernseh-Programm freigeben. Die Freigabe
bleibt solange besten, bis ein anderer Pro­grammplatz angewählt wird.

1 Das gesperrte Fernseh-Programm mit

»1…0« oder »P+«, »P–« anwählen.

2 PIN-Code »1234« mit »1 ... 0« eingeben.

– Das gesperrte Fernseh-Programm kann

jetzt angesehen werden.

Hinweis:

7

Das Fernseh-Programm wird nach einem
Wechsel des Programmplatzes wieder
gesperrt.

– Das Menü »PROGRAMMTABELLE« wird

eingeblendet.

DEUTSCH

45

46

DEUTSCH

Chassis TYGRUNDIG Service

1 - 29

Chassis CNGRUNDIG Service

1 - 29

GERÄTESOFTWARE

Signalinformationen anzeigen

(nur bei digitalen Programmen)

1 Menü mit »MENU« aufrufen.
2 Menüpunkt »INSTALLATION« mit »

V

« oder

»

Λ

« wählen und mit »OK« bestätigen.

3 Zeile »Signalinformation« mit »

V

« oder

»

Λ

« wählen und mit »OK« bestätigen.

– Informationen zu Programm, Netzwerk,

Modulation, Symbolrate, Qualität und
Signalstärke werden angezeigt.

Hinweise:

7

Die Signalinformation wechselt je nach

aktueller Signalquelle.

7

Im unteren Bereich des Menüs werden die

Signaleigenschaften dargestellt. Je weiter
die Balken für »Qualität« und »Signalstär­ke« nach rechts ausschlagen, desto besser
ist das empfangene Signal.

7

Der Signalpegel hängt nicht nur von Ihrer

Empfangsanlage, sondern auch von dem
gerade aktiven Kanal ab. Beachten Sie
dies, wenn Sie anhand der Signalstärke­anzeige die Ausrichtung Ihrer Antenne
kontrollieren!

4 Menü mit »MENU« abschalten.

--------------------------------------------------------------------------------------

RESET-FUNKTIONEN

----------------------------------------------------------------------------------

1 Menü mit »MENU« aufrufen.
2 Menüpunkt »EINSTELLUNGEN« mit »

oder »

Λ

« wählen und mit »OK« bestätigen.

– Das Menü »EINSTELLUNGEN« wird

eingeblendet.

EINSTELLUNGEN

Spracheinstellungen

Menü

Audio

Untertitel

Untertitelmodus

Hörgeschädigte

Datum- und Zeiteinstellungen

Datum und Uhrzeit

Zeitanpassung

Beenden
Zurück

Hinweis:

7

Die weitere Bedienung entnehmen Sie bitte

den folgenden Abschnitten.

Softwareversion abrufen

1 Im Menü »EINSTELLUNGEN« die Zeile

»Softwareversion« mit »
wählen.

– Die Softwareversion des Gerätes wird

angezeigt.

2 Eine Menüebene zurückschalten mit

»BACK <« oder Einstellung mit »MENU«
beenden.

Deutsch

Deutsch

Deutsch

Automatic

V

« oder »Λ«

Aus

Aus

V

xx.xx.xxxx

Software aktualisieren

«

(nur bei digitalen Programmen)

1 Im Menü »EINSTELLUNGEN« die Zeile

»Nach Updates suchen« mit »
wählen und mit »OK« bestätigen.

15:46

– Neue Software wird gesucht und – sofern

vorhanden – installiert.

Hinweis:

7

Wenn automatisch nach Softwareaktuali-

V

« oder »Λ«

Fernsehgerät auf die Werks­einstellungen zurücksetzen

Mit dieser Funktion löschen Sie die Programm­tabellen und alle persönlichen Einstellungen.

1 Menü mit »MENU« aufrufen.
2 Menüpunkt »EINSTELLUNGEN« mit »

oder »

Λ

« wählen und mit »OK« bestätigen.

– Das Menü »EINSTELLUNGEN« wird

eingeblendet.

V

«

sierungen gesucht werden soll, die Zeile

Deutsch

Deutsch

Deutsch

Aus

Aus

Automatic

xx.xx.xxxx

15:46

»Auto-Update« mit »
und mit »

<

wählen.

V

« oder »Λ« wählen

« oder »>« die Option »Ein«

– Die Software wird automatisch aktuali-

siert, sofern dies möglich ist.

2 Einstellung mit »MENU« beenden.

Software aktualisieren (USB)

1 USB-Stecker des USB-Memory Sticks in

Buchse USB1 des Fernsehgerätes stecken.

2 Im Menü »EINSTELLUNGEN« die Zeile

»USB-Sof

twareaktuali sierung« mit »

»

Λ

« wählen und mit »OK« bestätigen.

– Die Software vom USB-Memory Stick

wird installiert.

V

« oder

EINSTELLUNGEN

Spracheinstellungen

Menü

Audio

Untertitel

Untertitelmodus

Hörgeschädigte

Datum- und Zeiteinstellungen

Datum und Uhrzeit

Zeitanpassung

Beenden
Zurück

3 Im Menü »EINSTELLUNEN« die Zeile

»Werkseinstellungen« mit »

V

« oder »Λ«

wählen und mit »OK« bestätigen.
– Eine Warnung wird eingeblendet.

4 Warnmeldung mit »yy« (grün) bestätigen.

– Das Menü »INSTALLATION« wird ein-

geblendet.

5 Einstellungen mit Kapitel „Erstinstallation und

F

ernsehprogramme einstellen“ auf Seite 16

fortsetzen.

DEUTSCH

47

48

DEUTSCH

Chassis TYGRUNDIG Service

1 - 30

Chassis CNGRUNDIG Service

1 - 30

BETRIEB MIT EXTERNEN GERÄTEN

-------------------------------------------

BETRIEB MIT EXTERNEN GERÄTEN

-------------------------------------------

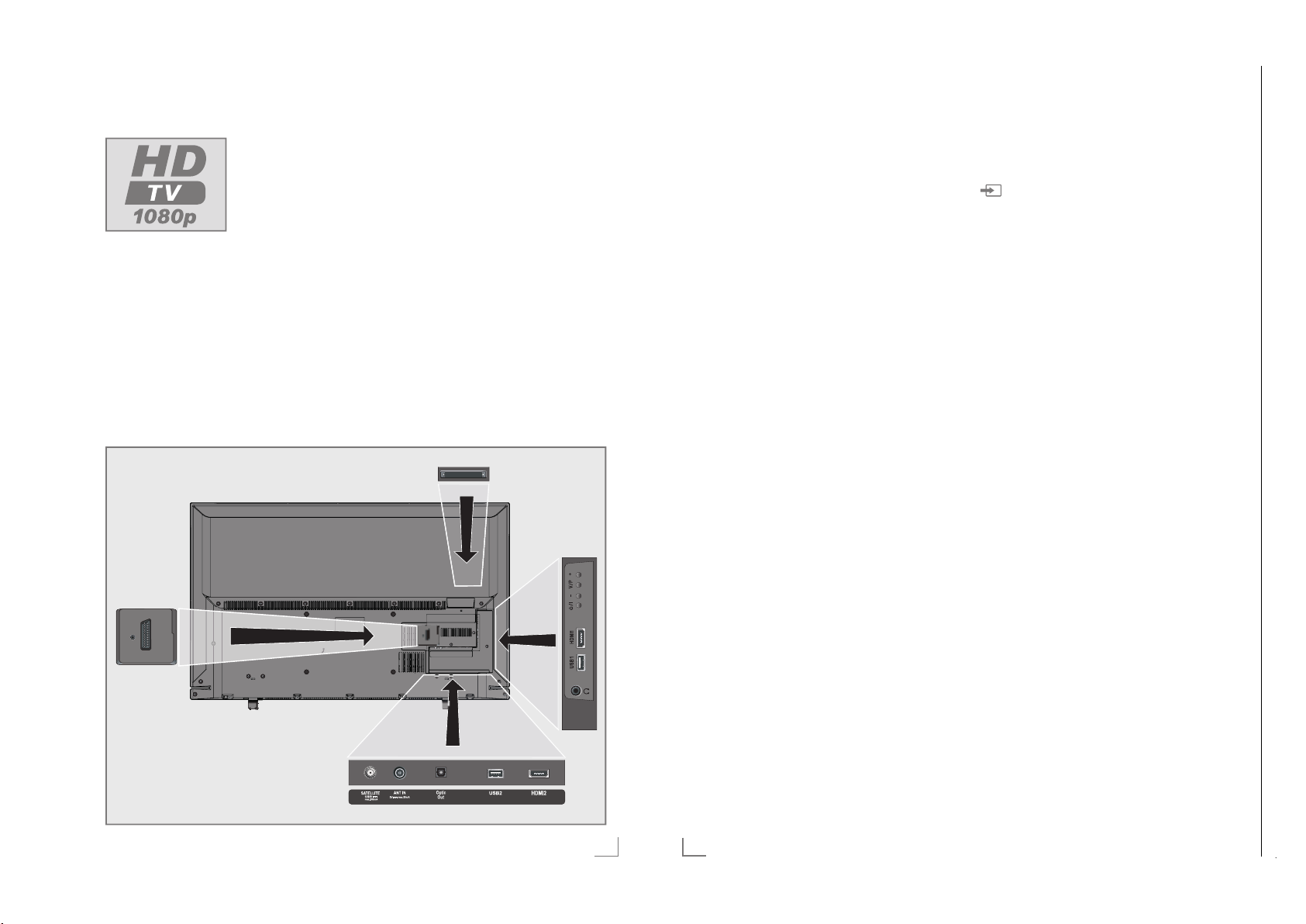

High-Definition – HD ready

Die entsprechenden
Signalquellen (z. B.
HDTV-Empfänger oder
HD-DVD-Player) schlie­ßen Sie an die Buch­sen HDMI (für digitale
HDTV-Quellen) an.

Dadurch können Sie auch digitale HDTV-Sen­dungen, die kopiergeschützt sind (HDCP High
Bandwidth Digital Content Protection), ohne
Probleme ansehen.

SERVICE

AV / S-VHS

Anschlussmöglichkeiten

7

An welche Buchsen des Fernsehgerätes Sie

Ihre externen Geräte anschließen, hängt
davon ab, mit welchen Anschlüssen das
externe Gerät ausgestattet ist und welche
Signale zur Verfügung stehen.

7

Beachten Sie: Bei vielen externen Geräten

muss die Auflösung des Videosignals an die
Eingänge des Fernsehgerätes angepasst
werden (siehe Bedienungsanleitung des
externen Gerätes). Welchen Wert Sie einstel­len müssen, entnehmen Sie bitte den angege­benen Richtwerten in den Kapiteln über die
verschiedenen Anschlussmöglichkeiten.

7

Schließen Sie keine Geräte an, wenn Ihr

Gerät eingeschaltet ist. Schalten Sie vor dem
Anschließen auch die anderen Geräte aus!

7

Stecken Sie den Netzstecker des Ge rätes

erst dann in die Steckdose, wenn Sie die
externen Geräte und die Antenne an­geschlossen haben!

SERVICE

AV / S-VHS

SATELLITE

ANT-IN

Optic Out

USB2

HDMI2

13/18V

5V

max. 500mA

max. 50mA

Externe Geräte anschließen ...

... mit digitalen Ton-/Bildsignalen

7

Geeignete Geräte: Digitaler Satelliten-

Receiver, Playstation, BluRay-Player, DVD­Player/-Recorder, Set Top Box, Notebook,
PC‘s.

7

Bildsignal: Digital; Auflösung: Standard 576p;

HDTV 720p, 1080i, 1080p.

7

Tonsignal: Digital (Stereo, Mehrkanal kompri-

miert, unkomprimiert).

7

Programmplätze »HDMI 1« oder »HDMI2«.

1 Buchse HDMI1 oder HDMI2 des Fernseh-

ger

ätes und die entsprechenden HDMI­Buchse des externen Gerätes mit einem
handelsüblichen HDMI-Kabel verbinden
(digitales Bildsignal und Tonsignal).

... über die EURO-AV-Buchse (FBAS/
RGB-Signal)

7

Geeignete Geräte: Digitaler Satelliten-

Receiver, DVD-Player/-Recorder, Set Top Box,
Spielekonsole, Videorecorder, Decoder.

7

Bildsignal: FBAS/RGB.

7

Tonsignal: Stereo, analog.

7

Programmplatz »AV1«.

1 Buchse AV1/S-VHS des Fernsehgerätes

und die entspr
Gerätes mit einem EURO/AV-Kabel verbin­den (Bild- und Tonsignal).

... mit S-Video-Signal

7

Geeignete Geräte: DVD-Player/-Recorder,

Videorecorder, Camera-Recorder, Notebook
und PC‘s.

7

Bildsignal: Y/C.

7

Tonsignal: Stereo, analog.

7

Programmplatz »S-VHS«.

1 Buchse AV1/S-VHS des Fernsehgerätes

und die entspr
Gerätes mit einem EURO/AV-Kabel verbin­den (Bild- und Tonsignal).

echende Buchse des externen

echende Buchse des externen

Betrieb mit DVD-Player, DVD-Recorder,
Videorecorder oder Set Top-Box

1 Externes Gerät einschalten und die ge-

wünschte Funktion wählen.

2 »

« drücken, mit »V«, »Λ«, »<« oder

»

« den Programmplatz des gewünsch-

>

ten Eingangssignals (»AV1«, »S-VHS«,
»HDMI1«, »HDMI2« oder »Component«)
wählen und mit »OK« bestätigen.

Kopfhörer

Kopfhörer anschließen

1 Kopfhörer-Stecker (3,5 mm ø Klinke) in die

Kopfhörer-Buchse an der rechten Seite des
Gerätes stecken.

Kopfhörer-Lautstärke ändern

1 Menü mit »MENU« aufrufen.
2 Menüpunkt »TONEINSTELLUNGEN« mit

V

« oder »Λ« wählen und mit »OK« be-

»
stätigen.

– Das Menü »TONEINSTELLUNGEN« wird

eingeblendet.

V

3 Zeile »Audioausgang« mit »

wählen und mit »OK« bestätigen.
– Das Menü wird eingeblendet.

4 Zeile »Audio-Ausgang« mit »

»

Λ

« wählen, mit »<« oder »>« die Option

»Kopfhörer« wählen und mit »OK« bestä­tigen.

5 Zeile »Kopfhörer« mit »

wählen.

6 Gewünschte Lautstärke mit »

einstellen.

7 Einstellung mit »MENU« beenden.

Hinweis:

7

Längeres Hören mit Kopfhörern bei hoher

Lautstärke kann zu Hörschäden führen.

« oder »Λ«

V

V

« oder »Λ«

« oder »>«

<

« oder

DEUTSCH

51

52

DEUTSCH

Chassis TYGRUNDIG Service

1 - 31

Chassis CNGRUNDIG Service

1 - 31

BETRIEB MIT EXTERNEN GERÄTEN

Chassis CNGRUNDIG Service

1 - 31

-------------------------------------------

BETRIEB MIT COMMON INTERFACE

---------------------------------------

HiFi-Anlage/AV-Receiver

HiFi-Anlage/AV-Receiver anschließen

1 Buchse Optic Out des Fernsehgerätes und

die entsprechenden Buchse des Gerätes
mit einem optischen Digitalkabel verbinden
(digitales Tonsignal).

Tonformat einstellen

Wenn Ihre HiFi-Anlage/AV-Receiver nur das
Tonsignal im PCM Format verarbeiten kann,
wählen Sie die Option »PCM«, ansonsten kön­nen Sie die Option »Auto« einstellen.

1 Menü mit »MENU« aufrufen.
2 Menüpunkt »TONEINSTELLUNGEN« mit

»

V

« oder »Λ« wählen und mit »OK«

bestätigen.

– Das Menü »TONEINSTELLUNGEN« wird

eingeblendet.

V

3 Zeile »Audioausgang« mit »

wählen und mit »OK« bestätigen.
– Das Menü wird eingeblendet.

4 Zeile »Optic Out« mit »

wählen.

5 Gewünschtes Tonformat (»PCM« oder

»

Auto«) mit »

« oder »>« wählen.

<

Hinweis:

7

Wenn Sie den Ton ausschließlich über

einen Mehrkanalverstärker/AV-Receiver
ausgeben möchten, stellen Sie die Option
»TV-Laut sprecher« im Menü auf »Aus«.

6 Einstellung mit »MENU« beenden.

„ Dolby“ und das Doppel-D-Symbol sind Marken der

Dolby Laboratories.

Hergestellt unter Lizenz der Dolby Laboratories.

« oder »Λ«

V

« oder »Λ«

Tonsignal über die HiFi-Anlage wieder­geben

1 Buchse U des Fernsehgerätes und die

entsprechenden Buchse des AV-Receivers
mit einem handelsüblichen Adapterkabel
verbinden (digitales Tonsignal).

Hinweis:

7

Wenn diese Funktion aktiv ist, wird das

Audiosignal an die HiFi-Anlage/den AV­Receiver (angeschlossen an Buchse

U 3,5

mm ø Klinke) übertragen.

1 Menü mit »MENU« aufrufen.
2 Menüpunkt »TONEINSTELLUNGEN« mit

V

« oder »Λ« wählen und mit »OK«

»
bestätigen.

– Das Menü »TONEINSTELLUNGEN« wird

eingeblendet.

V

3 Zeile »Audioausgang« mit »

« oder »Λ«

wählen und mit »OK« bestätigen.
– Das Menü wird eingeblendet.

V

4 Zeile »Audio-Ausgang« mit »

wählen und mit »
ausgang aktivieren (Option »Line Out«).

5 Zeile »Status« mit »

und mit »

<

oder »Regelbar« wählen.

« oder »>« den Ton-

<

V

« oder »Λ« wählen

« oder »>« die Option »Fest«

« oder »Λ«

Hinweise:

7

Wenn Sie »Regelbar« wählen, kann die

Lautstärke in der Menüoption »Lautstärke«
verändert werden.

7

Soll der Ton ausschließlich über die HiFi-An-

lage/den AV-Receiver ausgegeben werden,
wählen Sie in der Zeile »TV-Lautsprecher«
mit »

« oder »>« die Option »Aus«.

<

6 Einstellung mit »MENU« beenden.

Was ist ein Common Interface?

7

Common Interface (CI) ist eine Schnittstelle

für DVB-Empfänger.

7

Verschlüsselte Programme können nur mit

einem dem Verschlüsselungssystem ent­sprechenden CA-Modul in Verbindung mit
der dazugehörigen Smartcard gesehen
werden.

7

Das Fernsehgerät ist mit einem Common

Interface-Schacht ausgestattet, in den CA­Module verschiedener Anbieter eingesetzt
werden können.

7

In das CA-Modul wird die entsprechende

Smartcard des Anbieters zum „Frei schalten“
gewünschter verschlüsselter Programme
eingeschoben.

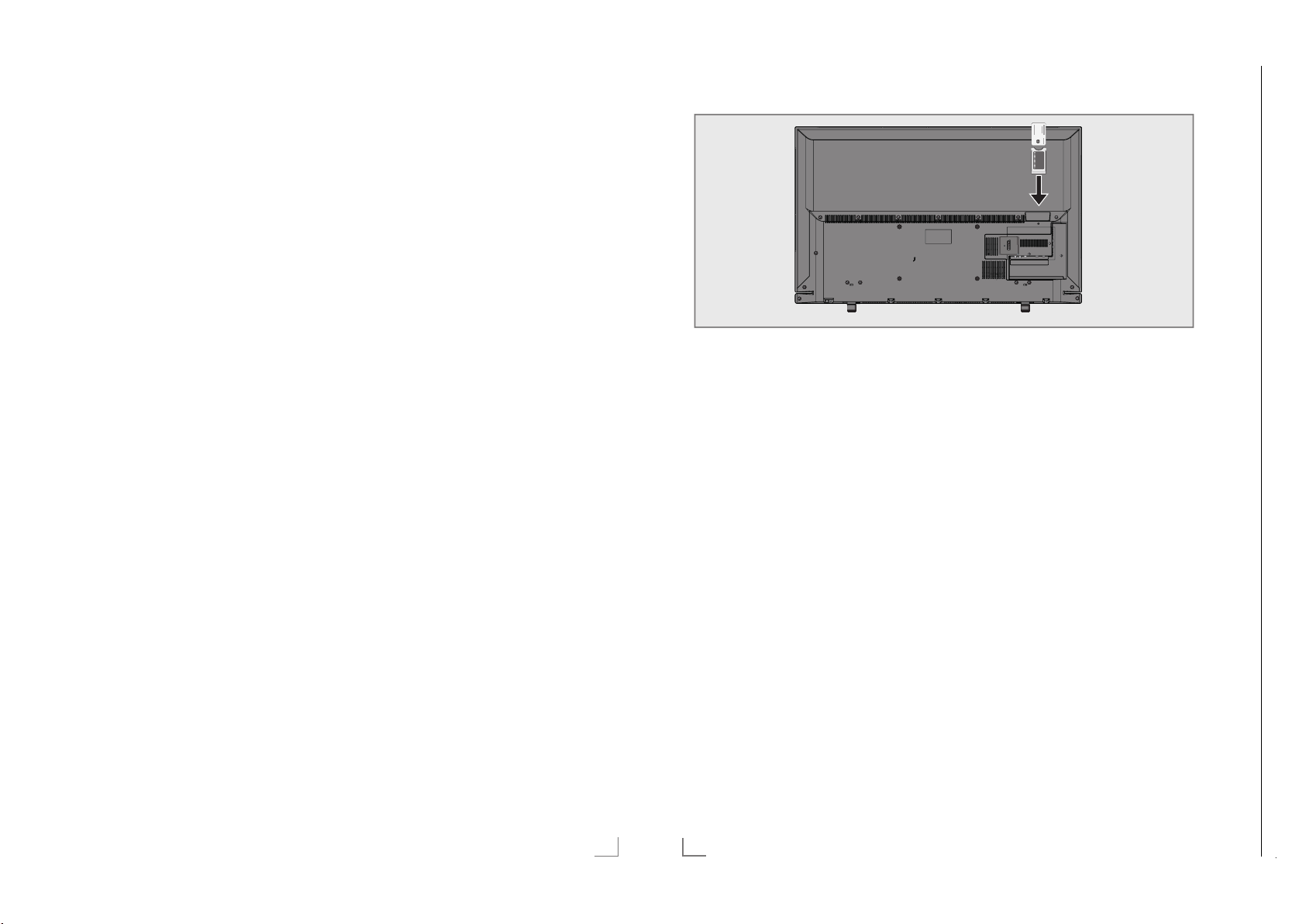

CA-Modul einsetzen

Hinweis:

7

Schalten Sie das Gerät aus, bevor Sie ein

CA-Modul in den »CI«-Steckplatz ein setzen.

1 Entsprechende Smartcard in das CA-Modul

schieben.

2 CA-Modul mit Smartcard in den Schacht

des Fernsehgerätes stecken.

»CI«

SERVICE

AV / S-VHS

SATELLITE

ANT-IN

Optic Out

USB2

HDMI2

13/18V

5V

max. 500mA

max. 50mA

Hinweise:

7

Das »CA-Modul«-Untermenü informiert
Sie, welches CA-Modul im CI-Steckplatz
eingesetzt ist.

7

Wenn Sie ein CA-Modul zum ersten Mal

in den CI-Steckplatz des Fernsehgerätes ein­setzen, müssen Sie einen Moment warten,
bis das CA-Modul erkannt wurde.

Zugriffskontrolle für CA-Modul
und Smartcard

1 Menü mit »MENU« aufrufen.

V

2 Menüpunkt »INSTALLATION« mit »

»

Λ

« wählen und mit »OK« bestätigen.

– Das Menü »INSTALLATION« wird ein-

geblendet.

V

3 Zeile »CA-Modul« mit »

« oder »Λ«

wählen und mit »OK« bestätigen.

Hinweise:

7

Über dieses Menü erhalten Sie Bedien-

hinweise und nach der Eingabe Ihres PIN­Codes den Zugriff auf die Programme des
PAY-TV-Anbieters.

7

Die weiteren Einstellungen entnehmen Sie

bitte der Bedienungsanleitung des CA­Moduls und der Smartcard.

7

Das CA-Modul wird in bestimmten Ländern

und Re gionen nicht unterstützt; bitte wenden
Sie sich an Ihren autorisierten Händler.

4 Einstellung mit »MENU« beenden.

« oder

DEUTSCH

53

54

DEUTSCH

Chassis CNGRUNDIG Service

1 - 32

Operating Hints This chapter contains excerpts from the operating instructions. For further particulars please refer to the appropriate user instructions which can be downloaded by www.grundig.com, submenu Downloads/Manuals.

OVERVIEW

--------------------------------------------------------------------------------------------------------------

Connections on the television set

SERVICE

AV / S-VHS

OVERVIEW

SERVICE Service only.

--------------------------------------------------------------------------------------------------------------

Control elements

AV / S-VHS SCART socket, audio/video

input and output;
S-VHS socket, audio/video
input for S-Video camera
using a SCART-S-VHS
adapter cable;
Component socket, audio/
video input (YUV signal) us­ing a SCART-YPbPr adapter

+V/P-

cable.

SATELLITE For satellite antenna. Suit-

able for single-cable GSCR

stem.

sy

ANT IN For antenna cable (terres-

tr

ial antenna, cable connec-

tion or analogue antenna).

Optic Out Optical audio output.

F

or digital multichannel
audio/video amplifier or
AV receiver connections.

USB2 Connect data media such

xternal hard disk.

SERVICE

AV / S-VHS

SATELLITE

ANT-IN

Optic Out

USB2

HDMI2

13/18V

5V

max. 500mA

max. 50mA

HDMI2 Input for digital audio and

as an e

image data.

U Headphone jack or line

output via adapter.
External audio output (with
headphone-RCA con-

Turning the TV to standby

1 »8/I« Switches the television on and back

into standby mode.

Adjusting the volume or
changing the station

1 »V/P« Pre-selection for volume or channel

selection.

2 »–« Adjusts the volume;

Selects channels in s

3 »+« Adjusts the volume;

Selects channels in s

teps.

teps.

verter).

USB1 USB socket for external

data medium.

HDMI1 Input for digital audio and

image data.

CI For CA modules for receiv-

ing encr

ypted stations.

12

ENGLISH

ENGLISH

13

Chassis CNGRUNDIG Service

1 - 33

OVERVIEW

--------------------------------------------------------------------------------------------------------------

OVERVIEW

--------------------------------------------------------------------------------------------------------------

The remote control – Main functions

Switches on from standby

mode;

selects channels directly

Selects the channel list (»All«,

»FAV 1« to »FAV 4«)

HDMI CEC Device List

Display information

Opens the main menu

Opens the channel list

Opens the TOOLS menu

Adjusts the volume

Muting

Picture formats

Turns on and off the television
set (stand-by)

Switches between
teletext and TV mode

Exits TV guide

Zapping function;

switches back one menu
le

vel in the menus

Opens the TV guide

Signal source
Switches on from standby;

Selects channel – in steps

Next/previous image/ chap­ter, next/previous track

The remote control –
All functions

(red) Selects pages in teletext;

y

(green) Selects/activates various functions

yy

(yellow) in the menus.

yyy

(blue)

yyyy

5 Switches to double character size in

6 Refreshes a teletext page;

3

4

8 Starts playing a programme from an

! Pauses the file executed in the Me-

7 Ends playback of a programme from

teletext;
selects the previous title/previous
picture in the Media Player.

selects the next track/next picture in
the Media Player.

Stops scrolling through pages in

teletext;
starts a fast reverse search in the
Media Player.

Reveals answers in teletext;

starts a fast forward search in the
Media Player.

external data medium.

dia Player.

an external data medium.

Selects different audio languages

(only for digital television channels).

Selects different subtitles

(only for digital television channels).

Switches between

TV and Radio channel

(only for digital

television channels).

Navigation in the menus

Moves the cursor up
and down in the menus.

Moves the cursor to the left and
right in the menus.

Activates various functions and

sav

e functions/settings.

14

ENGLISH

Select subtitle

Opens Media Player menu

Select audio channel

ENGLISH

15

PARENTAL SETTINGS

Chassis CNGRUNDIG Service

1 - 34

Note – Parental control:

Instead of the PIN Code 2356, you can enter a
new personal code.

---------------------------------------------------------------------------------

PARENTAL SETTINGS

---------------------------------------------------------------------------------

Opening the SETTINGS menu

1 Open the menu with »MENU«.
2 Select the menu item »SETTINGS« menu

– The »SETTINGS« menu appears.

V

« or »Λ« and press »OK« to

wit

h »

confirm.

SETTINGS

Language settings

Menu

Audio

Subtitle

Subtitle Mode

Hard of Hearing

Date and time settings

Date & Time

Time Adjustment

Exit
Back

English

English

English

Off

Off

Auto

Note:

7

Additional operations are explained in the
following sections.

xx.xx.xxxx

15:46

Authorising programmes

There are films which may be wholly or partially
unsuitable for children.

These programmes contain information which
marks the content or scenes with access levels of
4 to 18. You can select one of the access levels,
thereby authorising playback.

1 Select the line »Parental Guidance« with

»

V

« or »Λ« and press »>« to confirm.

2 Enter the PIN code »1234« with »1 ... 0«.
3 Select the access level with »

« or »>«.

<

4 Press »BACK <« to go back one menu

le

vel or press »MENU« to end the setting.

Note:

7

When the TV is in review buffer mode, the
parental rating of the program in the live
broadcast is applied on the content being
watched (rather than the actual parental
rating of the content being watched). As
a result, a parental rated content being
watched in the review buffer mode will not
necessarily show as parental rated and
vice versa. This means that if parental rated
program starts in live broadcast the PIN-pop
up message will appear in review buffer, or
the PIN-pop up message will be dismissed in
review buffer as soon as a program without
parental rating starts in live broadcast.”

Locking menus

This function allows you to lock the »Automatic
Channel Search«, »Digital Manual Tuning«,
»Analogue Manual Tuning« and »Program
Table« menus so that they can be only accessed
by entering a PIN code.

1 Select »Menu Lock« with »

press »

« to confirm.

>

2 Enter the PIN code »1234« with »1...0«.
3 Activate the lock with »

Note:

7

To switch off the menu lock, use »<« or »>«
to select the setting (»Off«).

4 Press »BACK <« to go back one menu

vel or press »MENU« to end the setting.

le

V

« or »Λ« and

« or »>« (»On«).

<

ENGLISH

43

Locking keys (Parental lock)

When the key lock is activated, the buttons on
the television set do not function.

1 Select the line »Keypad Lock« with »

»

Λ

« and press »>« to confirm.

V

« or

2 Enter the PIN code »1234« with »1...0«.
3 Activate (On) or deactivate (Off) the key

h »

« or »>«.

<

lock wit

4 Press »BACK <« to go back one menu

le

vel or press »MENU« to end the setting.

Changing the PIN code

You can also enter a personal PIN code instead
of the default code »1234«. Please take note of
your own PIN code.

1 Select »Set PIN« with »

V

« or »Λ« and

press »OK« to confirm.

2 Enter the current PIN code 1 2 3 4 with

»1...0«.

3 Enter your new four digit PIN code with

»1...0«.

4 Enter your new four digit PIN code with

»1...0« again.

5 Press »BACK <« to go back one menu

le

vel or press »MENU« to end the setting.

Locking television channels

You can lock individual television channels, for
example channels unsuitable for children, using
a personal PIN code.

1 Open the menu with »MENU«.
2 Select the menu item »SOURCE SETUP«

3 Select the line »Program Table« with »

– The »PROGRAM TABLE« menu is dis-

4 In the »PROGRAM TABLE« menu, switch

5 Select the channel to be locked with »

44

V

« or »Λ« and press »OK« to

wit

h »

confirm.

»

Λ

« and press »OK« to confirm.

played.

o

ver to the list view with »

or »

Λ

«.

ENGLISH

« (yellow).

yyy

V

V

6 Select the column »Lock« with »

and press »OK« to lock the channel.

7 Enter the PIN code »1234« with »1...0«.

– The channel is marked using »«.

Note:

7

To remove the lock, select the channel
again with »

V

« or »Λ«, press »OK« to

confirm and then enter the PIN code 1 2 3
4 using »1...0«.

8 Press »BACK <« to go back one menu

le

vel or press »MENU« to end the setting.

Watching a blocked television
channel

You can watch a TV channel blocked with PIN
code by selecting the TV channel and entering
the PIN code.

1 Select the blocked channel with »1…0« or

»P+«, »P–«.

2 Enter PIN code »1234« with »1 ... 0« but-

tons on t

– Blocked channel can be viewed.

Note:

7

« or

«

he displayed password screen.

Channel will be blocked again when you
change the channel.

« or »>«

<

Chassis TYGRUNDIG Service

1 - 35

Chassis CNGRUNDIG Service

1 - 35

SOFTWARE OF THE DEVICE

Displaying signal information

(for digital channels only)

1 Open the menu with »MENU«.
2 Select the menu item »SOURCE SETUP«

wit

h »

V

« or »Λ« and press »OK« to

confirm.

3 Select the line »Signal Information« with

»

V

« or »Λ« and press »OK« to confirm.

– Information on the channel, network,

modulation, symbol rate, quality and
signal strength is displayed.

Notes:

7

The signal information changes in ac cord­ance with the current input source.

7

The signal properties are displayed in the
lower section of the menu. The further the
bars for »Quality« and »Signal Strenght«
extend to the right, the better the reception
signal.

7

The signal level not only depends on your

receiver system, but also on the channel
which is currently active. Remember this
when aligning your antenna based upon
the signal level display.

4 Press »MENU« to close the menu.

---------------------------------------------------------------

RESET FUNCTIONS

----------------------------------------------------------------------------------------

Opening the SETTINGS menu

1 Open the menu with »MENU«.
2 Select the menu item »SETTINGS« menu

– The »SETTINGS« menu appears.

Product information

1 In the »SETTINGS« menu use »V« or »Λ«

2 Press »BACK <« to go back one menu

V

« or »Λ« and press »OK« to

wit

h »

confirm.

SETTINGS

Language settings

Menu

Audio

Subtitle

Subtitle Mode

Hard of Hearing

Date and time settings

Date & Time

Time Adjustment

Exit
Back

Note:

7

Additional operations are explained in the
following sections.

to select the line »Software Version« and
press »OK« to confirm.
– Software version information of the pro-

duct is displayed.

vel or press »MENU« to end the setting.

le

English

English

English

Off

Off

Auto

xx.xx.xxxx

Updating software

(for digital channels only)

1 In the »SETTINGS« menu, select the line

»Check F

or Updates updates« with »

»

Λ

« and press »OK« to confirm.

– A search for new software will be made

and – if available – it will be installed.

15:46

Note:

7

If a search for software updates should be

V

« or

Restoring the television to the
default settings

This function allows you to delete the channel
lists and all custom settings.

1 Open the menu with »MENU«.
2 Select the menu item »SETTINGS« menu

– The »SETTINGS« menu appears.

V

« or »Λ« and press »OK« to

with »
confirm.

made automatically, select the line »Auto
OAD Update« with »
»

« or »>« to select the option »On«.

<

V

« or »Λ« and use

SETTINGS

xx.xx.xxxx

15:46

– The software will be updated automati-

cally as far as possible.

2 Press »MENU« to end the setting.

Software update (USB)

1 Plug the memory stick in the USB1 socket at

the side of the television.

2 In the »SETTINGS« menu, select the line

»USB Sof

tware update« with »

and press »OK« to confirm.

– The software on the USB memory stick is

installed.

V

« or »Λ«

Language settings

Menu

Audio

Subtitle

Subtitle Mode

Hard of Hearing

Date and time settings

Date & Time

Time Adjustment

Exit
Back

English

English

English

Off

Off

Auto

3 In the »SETTINGS« menu, select the line

»Restore Factory Defaults« with »
»

Λ

« and press »OK« to confirm.

V

« or

4 Press »yy« (green) to confirm the warning

message.
– The »Source Setup« menu appears.

5 Continue the settings with the chapter “Initial

set-up and tuning tele

vision channels” on

page 16.

ENGLISH

45

46

ENGLISH

Chassis TYGRUNDIG Service

1 - 36

Chassis CNGRUNDIG Service

1 - 36

OPERATION USING EXTERNAL DEVICES

------------------------

OPERATION USING EXTERNAL DEVICES

------------------------

High definition HD ready

Connect the corre­sponding input sources
(e.g. HDTV receiver
or HD-DVD player) to
the HDMI sockets (for
digital HD

This ensures that you
can view digital HDTV programmes, even if they
are copy-protected (HDCP High Bandwidth
Digital Content Protection), without encountering
problems.

SERVICE

AV / S-VHS

TV sources).

Connection options

7

Which television socket(s) you connect your
external devices to depends on the sockets
the external device is equipped with and
the signals which are available.

7

Please note: With many external devices,
the resolution of the video signal must
be adjusted to the input sockets of the
television (see the operating manual of the
external device). You can find out which
values you need to set by referring to the
guidelines in the sections about the various
connection options.

7

Do not connect any other equipment while
the device is switched on. Also switch off
the other equipment before connecting it.

7

Do not plug in the power cord of the device
until you have connected the external
equipment and the antenna.

SERVICE

AV / S-VHS

SATELLITE

ANT-IN

Optic Out

USB2

HDMI2

13/18V

5V

max. 500mA

max. 50mA

Connecting external devices

... with digital audio/video signals

7

Suitable devices: Digital satellite receivers,
Playstation, BluRay player, DVD player/
recorder, set-top box, notebook, PCs.

7

Video signal: Digital video; resolution: stan­dard 576p; HDTV 720p, 1080i, 1080p.

7

Audio signal: digital audio (stereo, multi-chan­nel compression, uncompressed).

7

Presets »HDMI 1« or »HDMI2«.

1 Connect the HDMI1 or HDMI2 socket

on t

he television and the corresponding
HDMI socket on the external device using
a standard HDMI cable (digital video and
audio signal).

... using the SCART socket
(CVBS/RGB signal)

7

Suitable devices: Digital satellite receiver,
DVD player/recorder, set-top box, games
console, video recorder, decoder.

7

Video signal: CVBS/RGB.

7

Audio signal: stereo, analogue.

7

»AV1« preset.

1 Connect the AV1/S-VHS socket on the

vision and the corresponding socket on

tele
the external device using a SCART cable
(video and audio signal).

... with S-Video signal

7

Suitable devices: DVD player/recorder, video
recorder, camera recorder, notebook, PC.

7

Video signal: Y/C.

7

Audio signal: stereo, analogue.

7

»S-VHS« preset.

1 Connect the AV1/S-VHS socket on the

vision and the corresponding socket

tele
on the external device using an EURO/AV
cable (video and audio signal).

Using a DVD player,
DVD recorder, video recorder
or set-top box

1 Switch on the external device and select the

function you wish to use.

2 Press »

«, use »V«, »Λ«, »<« or »>« to
select the preset for the input signal (»AV1«,
»S-VHS«, »HDMI1«, »HDMI2« or »Compo­nent«) and press »OK« to confirm.

Headphones

Connecting the headphones

1 Plug the headphone jack (3.5 mm ø jack

plug) into the headphone socket on the left
side of the television.

Changing the headphone volume

1 Open the menu with »MENU«.
2 Select the menu item »SOUND SETTINGS«

– The »SOUND SETTINGS« menu ap-

3 Select the menu item »Audio Output Setup«

– The »Audio Output Setup« menu ap-

4 Select the line »Audio Out« with »

5 Select the line »Headphone« with »

6 Set the preferred volume with »
7 Press »MENU« to end the setting.

V

« or »Λ« and press »OK« to

wit

h »

confirm.

pears.

h »

V

« or »Λ« and press »OK« to

wit
confirm.

pears.

»

Λ

«, select the option »Headphone« with

»

« and »>« and press »OK« to confirm.

<

»

Λ

«.

V

« and »>«.

<

Note:

7

Prolonged listening with headphones at
loud volumes can damage your hearing.

V

« or

« or

ENGLISH

49

50

ENGLISH

Chassis TYGRUNDIG Service

1 - 37

Chassis CNGRUNDIG Service

1 - 37

OPERATION USING EXTERNAL DEVICES

Chassis CNGRUNDIG Service

1 - 37

------------------------

OPERATION WITH A COMMON INTERFACE

--------------

Hi-fi system/AV receiver

Connecting the hi-fi system/
AV receiver

1 Connect the Optic Out socket on the

television to the corresponding socket of the
device with an optical digital cable (digital
audio signal).

Setting the audio format

You can select whether the audio signal output
via the Optic Out socket should be in the PCM
or A

C2 format.

1 Open the menu with »MENU«.
2 Select the menu item »SOUND SETTINGS«

– The »SOUND SETTINGS« menu appears.

3 Select »Audio Output Setup« with »

– The menu appears.

4 Select the line »Optic Out« with »

5 Select the preferred audio format (»PCM«

6 Press »MENU« to end the setting.

V

« or »Λ« and press »OK« to

with »
confirm.

»

Λ

« and press »OK« to confirm.

»

Λ

«.

or »

Auto«) with »

« or »>«.

<

V

V

« or

Note:

7

If you wish to output the audio only via a
multi-channel amplifier/AV receiver, set the
option »TV Speaker« to »Off« in the menu.

« or

Playing the audio signal via the
HiFi system

1 Connect the U socket on the television to

the corresponding socket of the AV receiver
with an cable (digital audio signal).

Note:

7

If this function is not activated, the audio
signal is transmitted to the HiFi system/
AV receiver (connected to

U 3.5 mm ø jack

plug) into the headphone socket on the left
side of the television.

1 Open the menu with »MENU«.
2 Select the menu item »SOUND SETTINGS«

V

« or »Λ« and press »OK« to

h »

wit
confirm.

– The »SOUND SETTINGS« menu appears.

V

3 Select »Audio Output Setup« with »

»

Λ

« and press »OK« to confirm.

« or

– The menu appears.

V

4 Select the line »Audio Out« with »

»

Λ

« and press »<« or »>« to activate the

« or

audio output (»Line Out«).

5 Select the line » Audio Out Status« with

V

« or »Λ« and select the option »Fixed«

»
or »Adjustable« with »

« or »>«.

<

Notes:

7

If you select »Adjustable«, the volume can
be changed in the menu option » Audio
Out Volume«.

7

If the audio should only be output via the
HiFi system/AV receiver, select the option
»Off« in the line »TV Speaker with »
»

«.

>

<

« or

6 Press »MENU« to end the setting.

Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.

What is a Common Interface?

7

Common Interface (CI) is an interface for
DVB receivers.

7

Encrypted channels can only be viewed
with a CA module suitable for the encryp­tion system and in conjunction with the
corresponding smart card.

7

The television set is equipped with a Com­mon Interface slot into which CI modules
from various providers can be inserted.

7

You can insert the provider’s smart card
into the CA module in order to enable the
encrypted channels you wish to view.

Inserting the CA module

Note:

7

Switch the device off before you insert a
CA module into the »CI« slot.

1 Insert the corresponding smart card into the

CI module.

2 Insert the CI module with the smart card into

t

he »CI« slot on the television.

Notes:

7

In the »CA Module« sub-menu you can see
which CA module has been inserted in the
CI slot.

7

If you are inserting a CA module into the
CI slot of the television for the first time,
you will need to wait a moment until the
CA module is detected.

SERVICE

AV / S-VHS

SATELLITE

ANT-IN

Optic Out

USB2

HDMI2

13/18V

5V

max. 500mA

max. 50mA

Access control for CI module and
smart card

1 Open the menu with »MENU«.
2 Select the menu item »SOURCE SETUP«

– The »SOURCE SETUP« menu appears.

3 Select the line »CA-Module« with »

4 Press »MENU« to end the setting.

V

« or »Λ« and press »OK« to

wit

h »

confirm.

»

Λ

« and press »OK« to confirm.

V

Notes:

7

This menu provides operating instructions
and – after you enter your PIN code – ac­cess to the PAY-TV provider's channels.

7

The remaining settings are described in the
operating manuals for your CI module and
smart card.

7

The CA modul is not supported in certain
countries and regions; please consult your
authorised dealer.

« or

ENGLISH

51

52

ENGLISH

Service- und Sonderfunktionen

Tastenfunktionen

MENU

Aufrufen/Beenden des COMFORT GUIDE /
Beenden des Service Mode

3333 4444Menü-Zeile (Menüpunkt) wählen

OK

Aufrufen der Menüs

1111 22

22

Wert ändern

@@

@@

Untermenü: Zurück zum Hauptmenü

Service-Mode aktivieren

– Taste

MENU

drücken.

– Zahlenfolge 8500 eingeben.

Service-Mode beenden

– Taste

MENU

drücken.

1. Grundeinstellwerte

Service and Special Functions

Functions of the buttons

MENU

Call up/exit the COMFORT GUIDE /
exit the Service Mode

3333 4444Call up the dialogue line (point of menu)

OK

Call up the Menus

1111 2222 Changing the settings

@@

@@

Submenu: Back to main menu

Calling up the Service Mode

– Press button

MENU

.

– Enter the code number 8500.

Exit the Service Mode

– Press button

MENU

.

1. Basic Settings

32 GFB

5622

32 GFB

5623

32 GFB

5624

32 GFB

5625

32 GFB

5626

32 GFB

5627

32 GHB

5602

32 GHB

5603

32 GHB

5604

32 GHB

5605



System Configuration

TV Mode

HDCP Verify

Customer/
Factory

Debug Mode

Plug Play

On/Off

On

Hotel

Off

On/Off

Source Configuration

Code 2356

CI Key Verify

Panel Energy Class

A…D, Default

ATV

Air

Avail/Navail

Avail/Navail

Cable

Satellite

Avail/Navail

Avail/Navail

USB

HDMI1

Avail/Navail

Avail/Navail

HDMI2

AV1 (Scart)

Avail/Navail

Avail/Navail

Component

S-VHS (Hosiden/Scart)

Avail/Navail

Avail/Navail

TV Configuration

Code 2356

OSD Selection

GRFSet1/USB Rec.

Grundig

On/Off

Remote Control

Keypad

6 Button+1 Std,
3 Button+1 Std,
1 Std, Joystick

Line Out

Headphone

On/Off

On/Off

Shop Mode

CEC

On/Off

On/Off

Speaker
Output Power

Hidev Mono

7W&8ohm,
10W@8ohm
12V/19,5V

On/Off

EPG Padding Time

Fransat

On/Off

On/Off

Model Type

T/C/T2/S2,
T/C/T2,
T/C/S2, T/C

Menü
Menu

3333 44

44

Menüpunkt

Point of Menu

OK

Einstellung
Adjustment

1111 22

22

Customer

prüft HDCP im EEPROM / verifies HDCP in EEPROM

Customer Customer Customer

Off

ATS Reset: Netz ein –> Automatischer Sendersuchlauf / Power on –> automatic programme search

OffXOffXOff

Off

OffXOffXOff

prüft CI Key / verifies CI Key

A

A

Avail

Avail

Avail

Avail

A

A

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Grundig

Off

Grundig

Off

Fernbedienung wählen / Select used remote control

3 Button
+ 1 STD

3 Button
+ 1 STD

Grundig

Off

Grundig

Off

3 Button
+ 1 STD

3 Button
+ 1 STD

OnOnOn

On

OffOnOff

On

OnOnOn

On

OffOnOff

On

7W@8

Ω

Off

7W@8

Ω

Off

OffOnOff

On

7W@8

Ω

Off

7W@8

Ω

Off

OffOnOff

On

T/C/S2 T/C/S2 T/C/S2 T/C/S2

Customer Customer Customer Customer

Off

OffXOffXOff

Off

OffXOffXOff

Customer Customer

Off

OffXOffXOff

A

A

Avail

Avail

Avail

Avail

A

A

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

A

A

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Grundig

Off

Grundig

Off

3 Button
+ 1 STD

3 Button
+ 1 STD

Grundig

Off

Grundig

Off

3 Button
+ 1 STD

3 Button
+ 1 STD

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Grundig

Off

Grundig

Off

3 Button
+ 1 STD

3 Button
+ 1 STD

OnOnOn

On

OffOnOff

On

OnOnOn

On

OffOnOff

On

7W@8

Ω

Off

7W@8

Ω

Off

OffOnOff

On

7W@8

Ω

Off

7W@8

Ω

Off

OffOnOff

On

OnOnOn

On

OffOnOff

On

7W@8

Ω

Off

7W@8

Ω

Off

OffOnOff

On

T/C/S2 T/C/S2 T/C/S2 T/C/S2 T/C/S2 T/C/S2

Chassis CNGRUNDIG Service

1 - 38

Alle weiteren Menüs werden über die Gerätesoftware programmiert und dürfen nicht verstellt werden.
All other menus are programmed by the software of the set and must not be adjusted.

Chassis CNGRUNDIG Service

1 - 39

32 GHB

5606

32 GHB

5607

32 VLE

4503 BF

32 VLE

5501 BG

32 VLE

5503 BG

32 VLE

5503 BN

32 VLE

5521 BG

32 VLE

5523 BG

32 VLE

5523 BN

43 VLE

5521 BG



System Configuration

TV Mode

HDCP Verify

Customer/
Factory

Debug Mode

Plug Play

On/Off

On

Hotel

Off

On/Off

Source Configuration

Code 2356

CI Key Verify

Panel Energy Class

A…D, Default

ATV

Air

Avail/Navail

Avail/Navail

Cable

Satellite

Avail/Navail

Avail/Navail

USB

HDMI1

Avail/Navail

Avail/Navail

HDMI2

AV1 (Scart)

Avail/Navail

Avail/Navail

Component

S-VHS (Hosiden/Scart)

Avail/Navail

Avail/Navail

TV Configuration

Code 2356

OSD Selection

GRFSet1/USB Rec.

Grundig

On/Off

Remote Control

Keypad

6 Button+1 Std,
3 Button+1 Std,
1 Std, Joystick

Line Out

Headphone

On/Off

On/Off

Shop Mode

CEC

On/Off

On/Off

Speaker
Output Power

Hidev Mono

7W&8ohm,
10W@8ohm
12V/19,5V

On/Off

EPG Padding Time

Fransat

On/Off

On/Off

Model Type

T/C/T2/S2,
T/C/T2,
T/C/S2, T/C

Menü
Menu

3333 44

44

Menüpunkt

Point of Menu

OK

Einstellung
Adjustment

1111 22

22

Customer

prüft HDCP im EEPROM / verifies HDCP in EEPROM

Customer

Off

ATS Reset: Netz ein –> Automatischer Sendersuchlauf / Power on –> automatic programme search

OffXOffXOff

prüft CI Key / verifies CI Key

A

A

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Grundig

Off

Grundig

Off

Fernbedienung wählen / Select used remote control

3 Button
+ 1 STD

3 Button
+ 1 STD

OnOnOn

On

OffOnOff

On

7W@8

Ω

Off

7W@8

Ω

Off

OffOnOff

On

T/C/S2 T/C/S2

Customer Customer Customer Customer

Off

OffXOffXOff

Off

OffXOffXOff

Customer Customer Customer Customer

Off

OffXOffXOff

Off

OffXOffXOff

A

A

Avail

Avail

Avail

Avail

Class A

Class A

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

AvailAClass A

Avail

Avail

Avail

Avail

Class A

A+

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Grundig

Off

Grundig

Off

3 Button
+ 1 STD

3 Button
+ 1 STD

Grundig

On

Grundig

On

3 Button
+ 1 STD

3 Button
+ 1 STD

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Grundig

Off

Grundig

On

3 Button
+ 1 STD

3 Button
+ 1 STD

Grundig

On

Grundig

Off

3 Button
+ 1 STD

3 Button
+ 1 STD

OnOnOn

On

OffOnOff

On

OnOnOn

On

OffOnOff

On

7W@8

Ω

Off

7W@8

Ω

Off

OffOnOff

On

7W@8ohm

Off

7W@8

Ω

Off

OnOnOn

On

OnOnOn

On

OffOnOff

On

OnOnOn

On

OffOnOff

On

7W@8

Ω

Off

7W@8

Ω

Off

OffOnOn

On

7W@8ohm

Off

10W@8

Ω

Off

OnOnOff

On

T/C T/C/S2 T/C/S2 T/C/T2/S2 T/C/S2 T/C/S2 T/C/T2/S2 T/C/S2

Alle weiteren Menüs werden über die Gerätesoftware programmiert und dürfen nicht verstellt werden.
All other menus are programmed by the software of the set and must not be adjusted.

Chassis CNGRUNDIG Service

1 - 40

43 VLE 5523

BG

43 VLE 5523

BN

43 VLE 5523

WG

49 VLE 4523

BF

49 VLE 5521

BG

49 VLE 5523

BN

49 VLE 5523

WG

55 VLE 5523

BG

55 VLE 5523

BN



System Configuration

TV Mode

HDCP Verify

Customer/
Factory

Debug Mode

Plug Play

On/Off

On

Hotel

Off

On/Off

Source Configuration

Code 2356

CI Key Verify

Panel Energy Class

A…D, Default

ATV

Air

Avail/Navail

Avail/Navail

Cable

Satellite

Avail/Navail

Avail/Navail

USB

HDMI1

Avail/Navail

Avail/Navail

HDMI2

AV1 (Scart)

Avail/Navail

Avail/Navail

Component

S-VHS (Hosiden/Scart)

Avail/Navail

Avail/Navail

TV Configuration

Code 2356

OSD Selection

GRFSet1/USB Rec.

Grundig

On/Off

Remote Control

Keypad

6 Button+1 Std,
3 Button+1 Std,
1 Std, Joystick

Line Out

Headphone

On/Off

On/Off

Shop Mode

CEC

On/Off

On/Off

Speaker
Output Power

Hidev Mono

7W&8ohm,
10W@8ohm
12V/19,5V

On/Off

EPG Padding Time

Fransat

On/Off

On/Off

Model Type

T/C/T2/S2,
T/C/T2,
T/C/S2, T/C

Menü
Menu

3333 44

44

Menüpunkt

Point of Menu

OK

Einstellung
Adjustment

1111 22

22

Customer

prüft HDCP im EEPROM / verifies HDCP in EEPROM

Customer Customer Customer

Off

ATS Reset: Netz ein –> Automatischer Sendersuchlauf / Power on –> automatic programme search

OffXOffXOff

Off

OffXOffXOff

Customer Customer Customer Customer

Off

OffXOffXOff

Off

OffXOffXOff

prüft CI Key / verifies CI Key

A+

A+

Avail

Avail

Avail

Avail

A+

Class A+

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Avail

Avail

Avail

A+

Class A+

Avail

Avail

Avail

Avail

Class A+

A+

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Grundig

On

Grundig

On

Fernbedienung wählen / Select used remote control

3 Button
+ 1 STD

3 Button
+ 1 STD

Grundig

On

Grundig

Off

3 Button
+ 1 STD

3 Button
+ 1 STD

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Navail

Avail

Avail

Avail

Avail

Avail

Grundig

Off

Grundig

On

3 Button
+ 1 STD

3 Button
+ 1 STD

Grundig

On

Grundig

On

3 Button
+ 1 STD

3 Button
+ 1 STD

OnOnOn

On

OffOnOff

On

OnOnOn

On

OffOnOff

On

10W@8ohm

Off

10W@8ohm

Off

OnOnOn

On

10W@8ohm

Off

10W@8ohm

Off

OnOnOff

On

OnOnOn

On

OffOnOff

On

OnOnOn

On

OffOnOff

On

10W@8ohm

Off

10W@8ohm

Off

OffOnOn

On

10W@8ohm

Off

10W@8ohm

Off

OnOnOn

On

T/C/S2 T/C/T2/S2 T/C/S2 T/C T/C/S2 T/C/T2/S2 T/C/S2 T/C/S2

Customer

OffXOff

A+

Avail

Avail

Avail

Avail

Avail

Avail

Navail

Avail

Avail

Avail

Grundig

On

3 Button
+ 1 STD

On

On

Off

On

10W@8ohm

Off

On

On

T/C/T2/S2

Alle weiteren Menüs werden über die Gerätesoftware programmiert und dürfen nicht verstellt werden.
All other menus are programmed by the software of the set and must not be adjusted.

2. Software-Versionsnummer

Die Software-Versionsnummer wird unten im Menü Einstellungen
und im Service Menü angezeigt. z.B.: CNGRMR.-.-.-.-.V02.009.00

2. Software Version Number

The software version number is shown on the lower part of the opti­ons menu and the service menu. e.g.: CNGRMR.-.-.-.-.V02.009.00

GRUNDIG Service Chassis CN

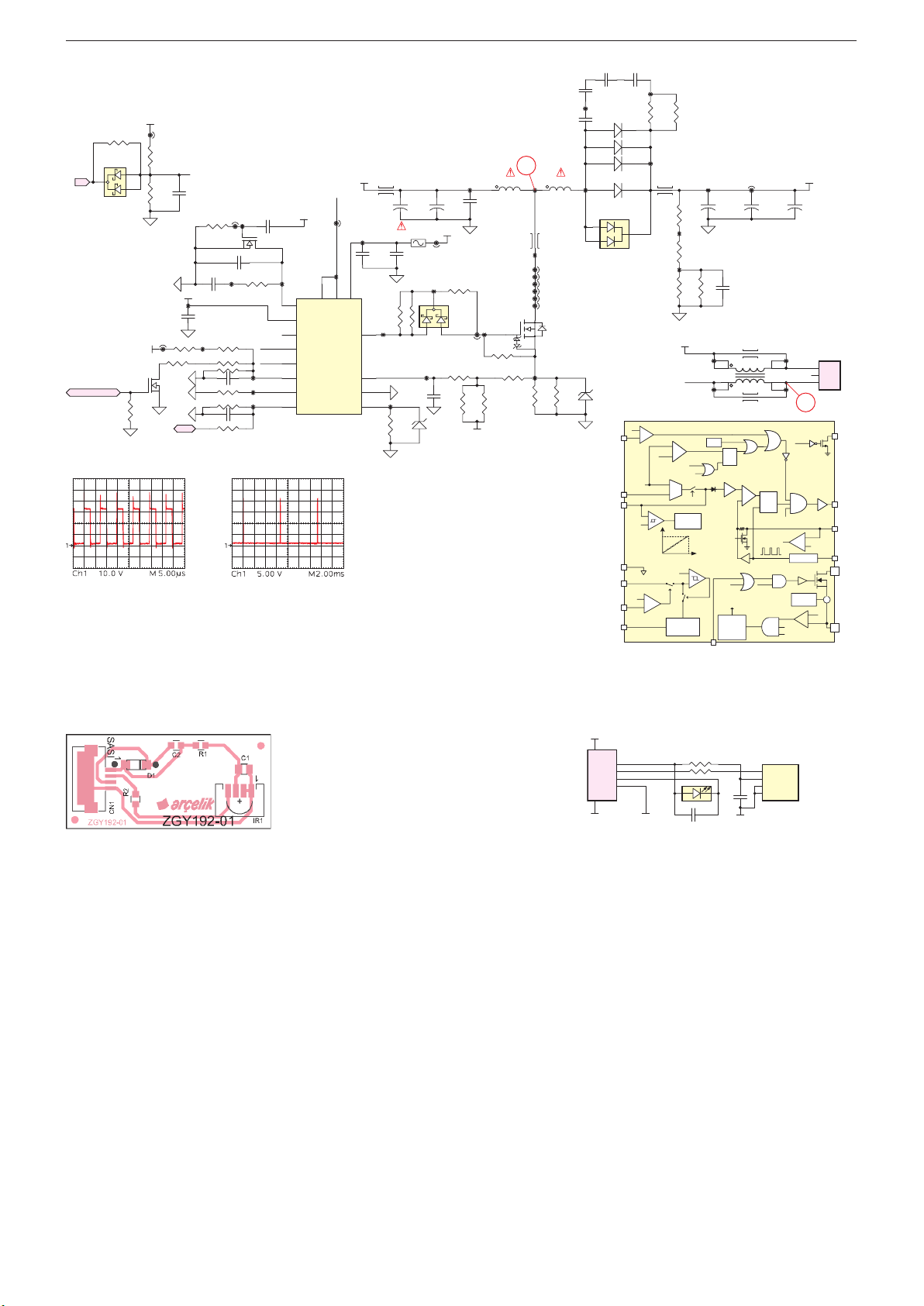

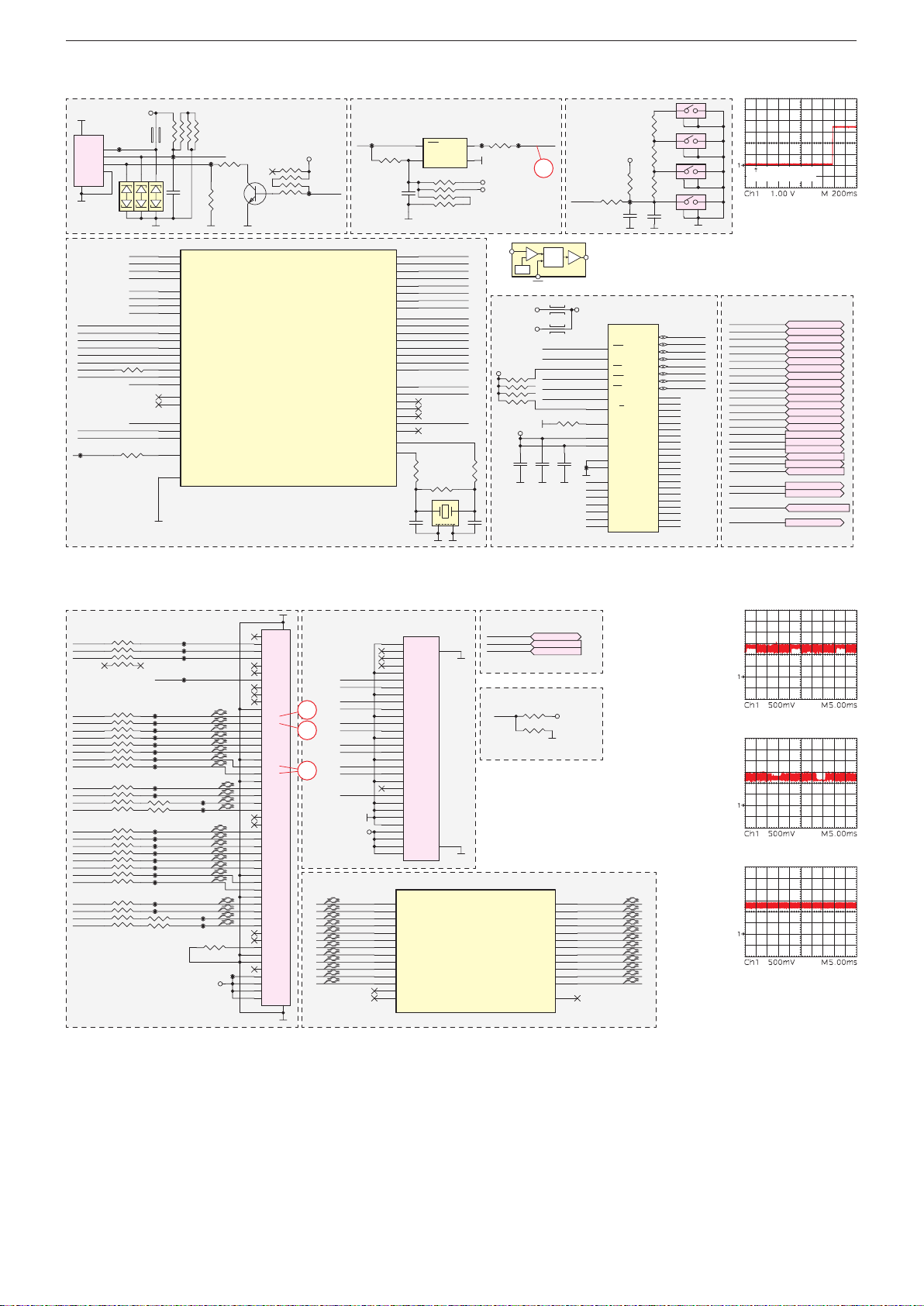

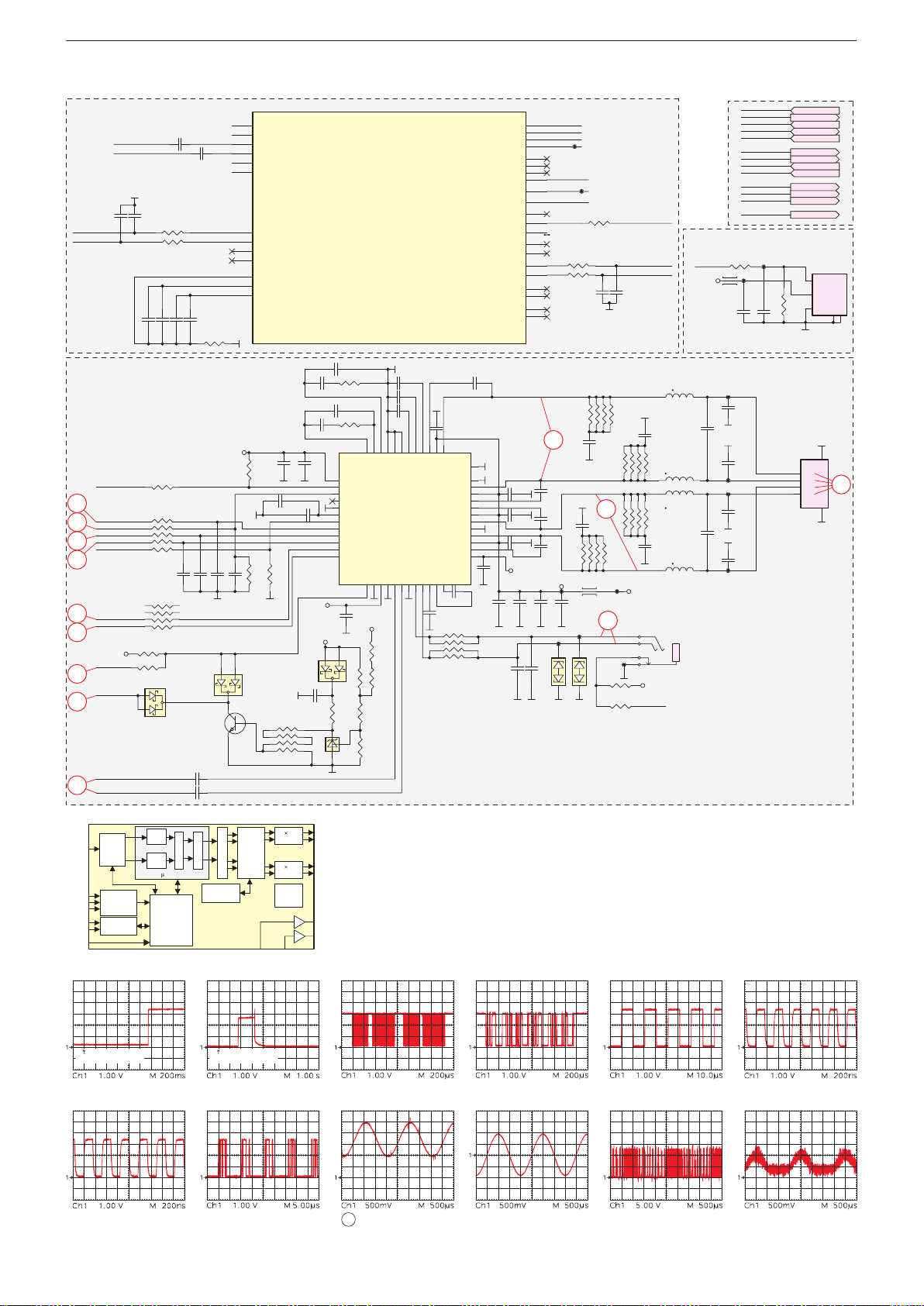

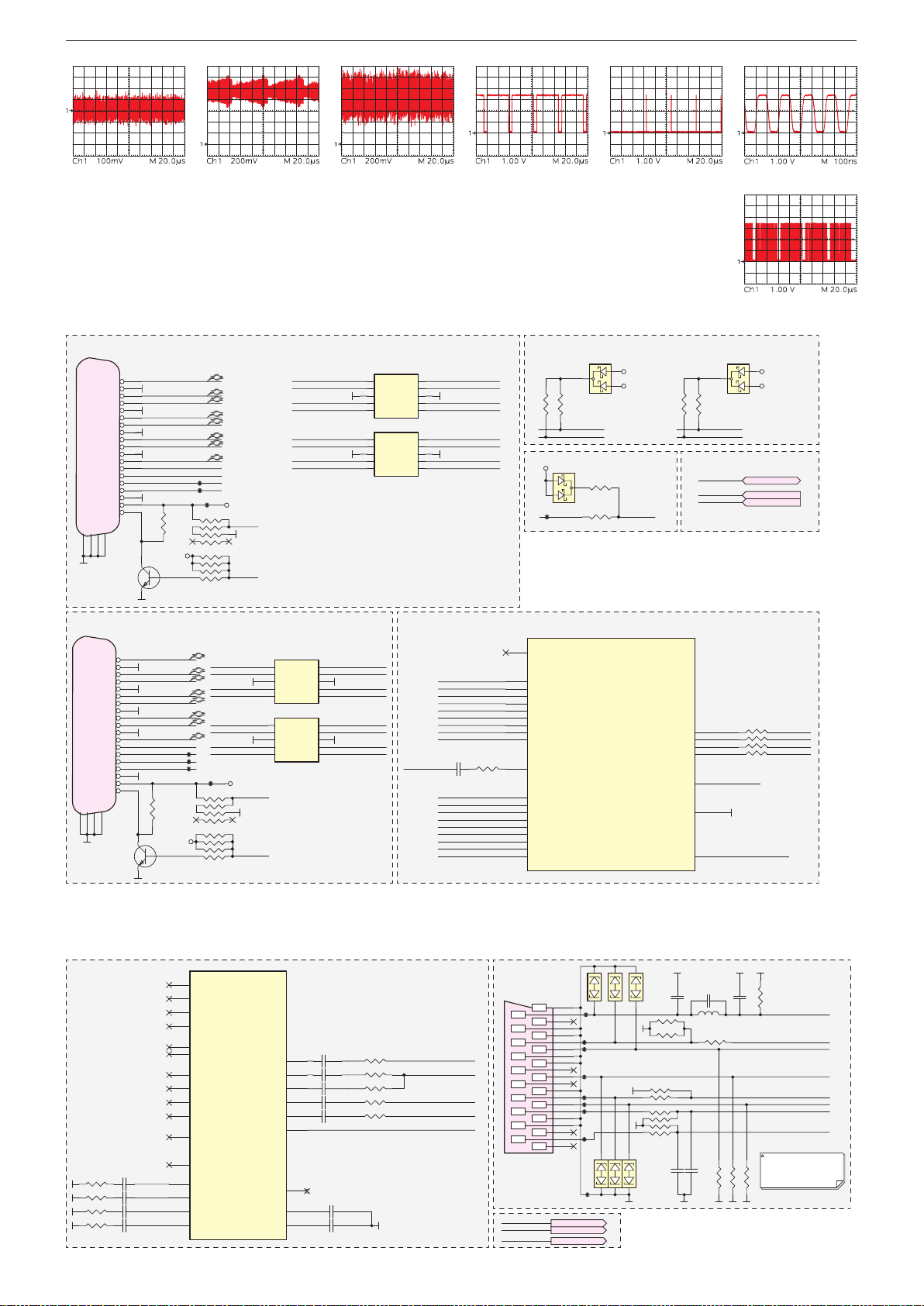

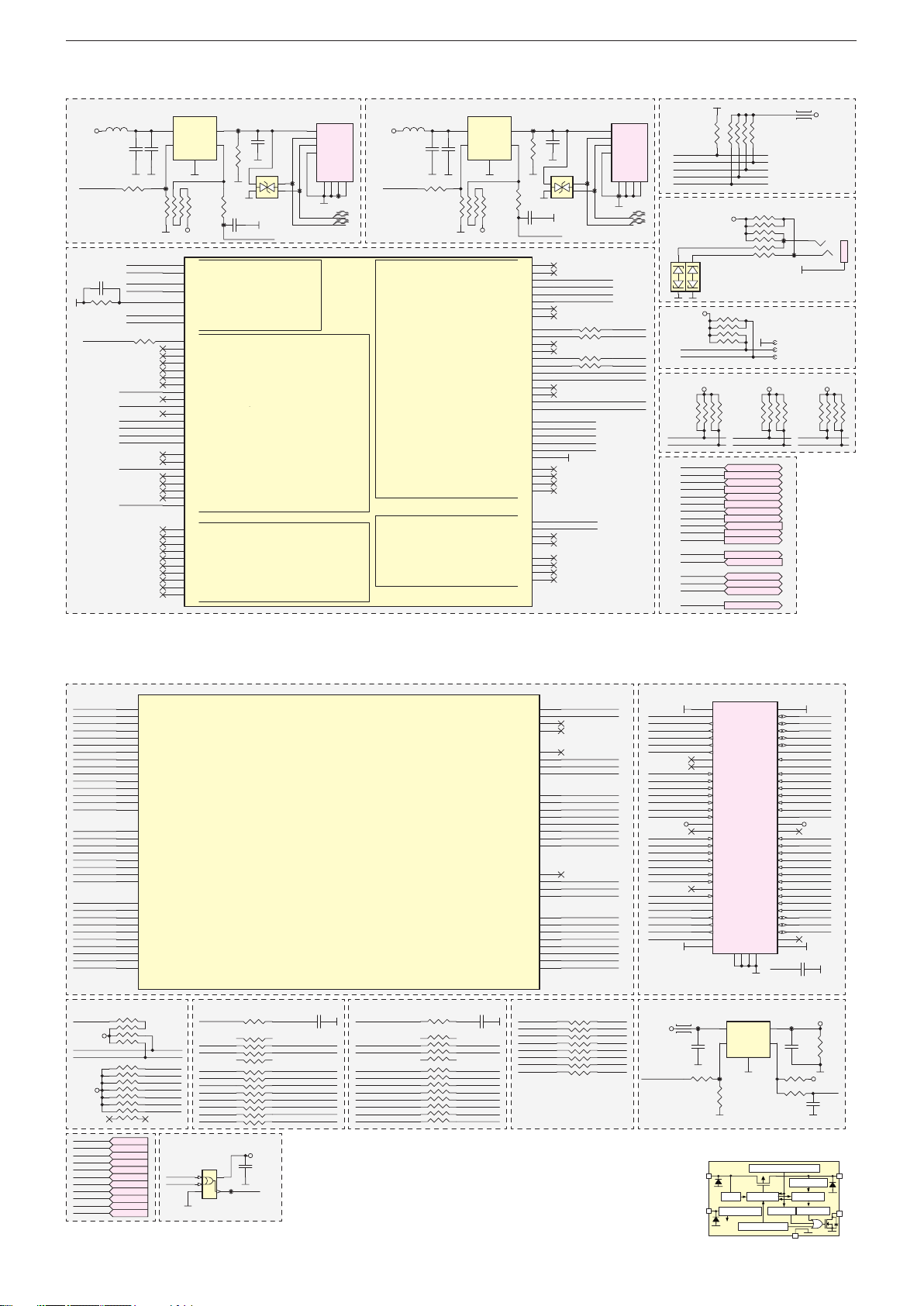

Platinenabbildungen und Schaltpläne / Layout of PCBs and Circuit Diagrams

Chassisplatte / Chassis Board ZNS190R-3

POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y

BD500 T 138 58
BD601 T 105 13
BD602 T 105 14
BD800 T 116 30
BD900 T 165 62

BD901 T 168 33
BD903 T 170 69
BD904 T 160 25
BD905 T 166 33
BD908 T 165 23

BD911 T 164 71
BD913 T 167 69
BD917 T 157 70
BD918 T 164 58

C1 T 143 25
C2 T 159 64
C204 T 166 39
C400 T 47 43
C401 T 51 43

C402 T 178 67
C403 T 174 67
C404 T 175 67
C405 T 177 67
C406 T 147 65

C407 T 127 55
C408 T 126 57
C409 T 50 43
C410 T 148 64
C411 T 150 64

C412 T 151 64
C414 T 149 68
C415 T 152 64
C416 T 150 68
C502 T 129 56

C503 T 129 54
C504 T 63 52
C505 T 60 49
C506 T 58 48
C507 T 64 52

C508 T 61 52
C509 T 66 52
C510 T 62 49
C511 T 46 45
C512 T 44 47

C513 T 136 54
C514 T 136 56
C515 T 65 50
C516 T 48 58
C517 T 58 51

C518 T 55 51
C519 T 69 54
C520 T 40 47
C521 T 69 52
C522 T 74 57

C523 T 53 56
C524 T 51 56
C527 T 53 59
C528 T 54 67
C529 T 39 66

C530 T 51 60
C531 T 41 68
C532 T 72 56
C533 T 53 63
C534 T 48 64

C535 T 52 64
C537 T 39 70
C538 T 56 71
C540 T 71 62
C541 T 69 62

C542 T 69 61
C543 T 69 57
C544 T 139 58
C545 T 141 57
C546 T 140 60

C547 T 140 61
C548 T 146 60
C549 T 148 60
C550 T 57 68
C551 T 52 74

C552 T 48 76
C553 T 52 70
C554 T 44 76
C555 T 64 67
C556 T 59 68

C558 T 182 15
C559 T 182 17
C560 T 99 13
C561 T 96 13
C564 T 62 72

C570 T 63 68
C575 T 61 68
C600 T 16 15
C601 T 71 73

C603 T 186 70
C605 T 188 70
C606 T 107 19
C607 T 107 5
C608 T 107 14

C609 T 158 58
C610 T 154 61
C700 T 104 105
C701 T 108 100
C702 T 138 74

C703 T 144 61
C704 T 110 100
C705 T 123 69
C706 T 144 76
C800 T 140 16

C801 T 180 29
C802 T 189 23
C803 T 187 23
C804 T 130 7
C805 T 128 7

C806 T 135 16
C807 T 180 23
C808 T 133 52
C900 T 165 25
C901 T 165 27

C902 T 160 30
C903 T 161 29
C908 T 167 62
C910 T 160 31
C911 T 165 33

C912 T 169 36
C913 T 164 38
C914 T 165 38
C915 T 166 38
C916 T 170 67

C917 T 167 63
C919 T 152 69
C920 T 163 61
C921 T 165 59
C922 T 165 53

C923 T 164 51
C924 T 154 59
C925 T 154 57
C926 T 162 25
C927 T 158 28

C929 T 169 64
C931 T 158 29
C932 T 155 71
C933 T 154 70
C934 T 136 51

C935 T 138 52
C937 T 158 31
C938 T 164 69
C939 T 164 68
C940 T 167 67

C941 T 167 65
C946 T 164 30
C947 T 163 58
C948 T 170 65
C1000 T 75 100

C1001 T 77 100
C1002 T 49 96
C1003 T 37 96
C1004 T 37 99
C1014 T 94 20

C1015 T 93 108
C1016 T 84 105
C1017 T 82 104
C1018 T 90 27
C1019 T 90 25

C1020 T 90 17
C1021 T 94 99
C1022 T 92 99
C1023 T 96 99
C1024 T 95 106

C1025 T 97 106
C1026 T 94 26
C1027 T 94 24
C1028 T 110 32
C1029 T 34 105

C1030 T 26 98
C1031 T 84 41
C1032 T 82 44
C1033 T 103 28
C1034 T 105 28

C1035 T 112 28
C1036 T 79 43
C1037 T 104 32
C1038 T 106 32
C1039 T 100 41

C1040 T 94 89
C1041 T 100 91
C1042 T 93 37

C1043 T 95 37
C1044 T 102 38
C1045 T 96 42
C1046 T 94 42
C1048 T 89 20

C1049 T 99 36
C1050 T 109 27
C1100 T 75 28
C1101 T 75 32
C1102 T 149 29

C1103 T 77 34
C1104 T 61 33
C1105 T 61 31
C1106 T 75 34
C1107 T 61 36

C1108 T 59 33
C1109 T 74 36
C1110 T 73 21
C1111 T 80 20
C1112 T 72 16

C1113 T 71 11
C1114 T 72 15
C1115 T 82 19
C1116 T 82 20
C1117 T 72 14

C1118 T 75 12
C1119 T 76 8
C1120 T 76 22
C1121 T 61 37
C1122 T 75 38

C1123 T 77 22
C1124 T 76 21
C1125 T 77 12
C1126 T 78 21
C1127 T 80 22

C1128 T 82 22
C1129 T 74 10
C1130 T 83 24
C1131 T 79 24
C1132 T 79 7

C1133 T 80 7
C1134 T 83 4
C1135 T 83 6
C1136 T 82 12
C1137 T 82 15

C1138 T 72 43
C1139 T 73 22
C1140 T 72 24
C1141 T 51 19
C1142 T 51 23

C1143 T 53 26
C1144 T 51 22
C1145 T 51 21
C1146 T 38 19
C1147 T 38 22

C1148 T 48 23
C1149 T 42 18
C1150 T 46 20
C1151 T 42 20
C1152 T 55 15

C1153 T 55 18
C1154 T 46 30
C1155 T 59 26
C1156 T 44 32
C1157 T 48 27

C1158 T 53 16
C1159 T 70 41
C1160 T 56 28
C1161 T 48 21
C1162 T 63 26

C1163 T 61 26
C1164 T 51 13
C1165 T 52 13
C1166 T 61 20
C1167 T 63 20

C1168 T 68 27
C1169 T 61 22
C1170 T 63 21
C1171 T 66 27
C1172 T 84 17

C1173 T 67 25
C1174 T 64 25
C1175 T 76 38
C1176 T 78 38

D200 T 180 52
D201 T 163 16
D202 T 180 43
D400 T 37 46
D402 T 37 44

D403 T 37 43
D404 T 38 41
D405 T 37 40
D406 T 37 38

D500 T 60 72
D501 T 183 17
D502 T 183 15
D503 T 67 68
D504 T 70 70

D600 T 14 18
D601 T 14 17
D602 T 14 15
D801 T 146 17
D802 T 180 34

D803 T 12 43
D804 T 10 43
D1000 T 77 96
D1001 T 61 96
D1100 T 82 8

D1101 T 54 12
D1102 T 39 25
D1103 T 44 16
D1104 T 46 12

IC100 T 151 44
IC500 T 61 59
IC502 T 64 76
IC600 T 73 70
IC601 T 115 13

IC700 T 108 103
IC701 T 123 71
IC800 T 135 12
IC801 T 184 23
IC1000 T 40 96

IC1001 T 16 104
IC1002 T 90 105
IC1003 T 91 21
IC1004 T 82 42
IC1005 T 109 29

IC1006 T 96 89
IC1007 T 99 39
IC1100 T 68 34
IC1101 T 77 17
IC1102 T 82 6

IC1103 T 44 24
IC1104 T 56 22

L400 T 49 43
L500 T 50 50
L501 T 43 52
L502 T 43 63
L503 T 46 70

L504 T 41 75
L506 T 100 13
L600 T 13 14
L700 T 104 103
L800 T 126 7

L801 T 191 22
L1003 T 79 105
L1004 T 89 30
L1005 T 88 99
L1006 T 101 97

L1007 T 95 30
L1008 T 37 106
L1010 T 100 26
L1011 T 100 33
L1012 T 89 36

L1013 T 90 43
L1014 T 73 100
L1100 T 79 34
L1101 T 55 31
L1102 T 74 12

L1103 T 76 36
L1104 T 77 7
L1105 T 76 10
L1106 T 79 12
L1107 T 82 14

L1108 T 82 13
L1109 T 84 31
L1110 T 53 28
L1111 T 39 31
L1112 T 47 35

L1113 T 54 14
L1114 T 56 17
L1115 T 72 12
L1116 T 79 10

R200 T 181 55
R201 T 182 55
R202 T 166 16
R203 T 166 15
R205 T 177 45

R206 T 177 46
R207 T 160 16
R208 T 166 13
R213 T 160 13

R216 T 164 48
R217 T 164 39
R218 T 180 49
R219 T 184 54

R221 T 183 49
R300 T 28 74
R301 T 28 73
R302 T 24 72
R303 T 132 34

R304 T 135 36
R305 T 132 38
R306 T 130 38
R307 T 130 39
R308 T 135 40

R309 T 132 43
R310 T 135 45
R311 T 132 45
R312 T 132 46
R313 T 24 93

R400 T 53 43
R401 T 44 42
R402 T 41 42
R403 T 43 42
R404 T 43 39

R405 T 178 69
R406 T 41 39
R407 T 174 69
R408 T 52 37
R409 T 175 69

R410 T 177 69
R411 T 146 65
R412 T 38 43
R413 T 45 39
R414 T 38 38

R418 T 148 66
R419 T 150 66
R420 T 151 66
R424 T 152 66
R500 T 64 50

R501 T 65 52
R502 T 138 56
R503 T 138 54
R504 T 149 31
R505 T 95 13

R506 T 69 55
R508 T 71 54
R509 T 139 24
R510 T 148 58
R511 T 146 58

R512 T 70 59
R513 T 69 58
R514 T 69 59
R515 T 69 64
R516 T 180 16

R517 T 69 68
R518 T 58 73
R519 T 97 13
R524 T 58 71
R525 T 69 67

R528 T 57 73
R529 T 180 13
R530 T 64 73
R531 T 60 74
R533 T 179 13

R535 T 67 75
R537 T 61 75
R600 T 187 102
R601 T 18 12
R602 T 76 70

R603 T 188 96
R604 T 187 73
R605 T 17 18
R606 T 74 73
R607 T 188 80

R608 T 16 18
R609 T 186 73
R610 T 15 12
R611 T 73 74
R612 T 74 74

R613 T 71 74
R614 T 70 74
R616 T 107 8
R617 T 107 21
R620 T 185 76

R621 T 156 57
R622 T 157 57
R623 T 156 58
R700 T 108 99
R701 T 111 104

R702 T 111 106
R703 T 122 76
R704 T 129 76
R705 T 151 99
R706 T 138 76

R707 T 145 59
R708 T 132 76
R709 T 146 76

R710 T 162 76
R711 T 140 99
R714 T 126 76
R715 T 142 76
R722 T 159 76

R723 T 150 76
R728 T 111 102
R729 T 111 100
R800 T 117 28
R801 T 114 27

R802 T 180 27
R803 T 139 16
R805 T 180 22
R807 T 133 16
R808 T 132 12

R809 T 183 20
R811 T 11 39
R812 T 155 67
R813 T 136 53
R814 T 132 10

R815 T 186 20
R816 T 144 31
R817 T 145 31
R818 T 147 27
R819 T 136 30

R820 T 140 28
R821 T 147 31
R822 T 155 31
R823 T 148 31
R824 T 165 55

R825 T 12 41
R826 T 10 41
R900 T 166 30
R901 T 165 30
R902 T 166 35

R903 T 165 35
R904 T 164 35
R905 T 164 32
R1000 T 51 96
R1001 T 42 96

R1002 T 30 101
R1003 T 38 99
R1004 T 36 101
R1005 T 47 96
R1006 T 17 101

R1007 T 18 104
R1008 T 15 101
R1009 T 19 106
R1010 T 13 101
R1011 T 97 104

R1012 T 96 104
R1013 T 95 104
R1014 T 92 17
R1015 T 93 17
R1016 T 96 106

R1017 T 94 17
R1018 T 92 108
R1019 T 97 108
R1020 T 90 108
R1021 T 33 105

R1022 T 112 30
R1023 T 112 31
R1024 T 17 108
R1025 T 81 40
R1026 T 112 32

R1027 T 102 39
R1028 T 102 40
R1029 T 99 89
R1030 T 102 42
R1031 T 96 108

R1032 T 95 108
R1033 T 44 96
R1034 T 45 96
R1035 T 89 18
R1036 T 101 36

R1037 T 111 27
R1038 T 21 103
R1039 T 98 88
R1100 T 75 31
R1101 T 91 11

R1102 T 150 31
R1103 T 150 29
R1104 T 86 16
R1105 T 79 29
R1106 T 88 11

R1107 T 61 34
R1108 T 77 41
R1109 T 59 31
R1110 T 57 32
R1111 T 65 41

R1112 T 76 11
R1113 T 76 24
R1114 T 77 24

T: Bestückungsseite / Component Side
B: Lötseite / Solder Side

R1115 T 68 41
R1116 T 82 18
R1117 T 82 24
R1118 T 80 11
R1119 T 82 17

R1120 T 74 41
R1121 T 80 24
R1122 T 72 41
R1123 T 80 4
R1124 T 53 33

R1125 T 56 26
R1126 T 86 18
R1127 T 52 16
R1129 T 48 25
R1130 T 62 28

R1131 T 61 24
R1132 T 49 32
R1200 T 133 31
R1201 T 131 31
R1202 T 129 31

R1203 T 174 76
R1204 T 160 69
R1205 T 160 70
R1206 T 159 67
R1207 T 184 79

R1208 T 177 44
R1209 T 177 43
R1210 T 177 41
R1211 T 177 40
R1212 T 175 44

R1213 T 175 41
R1214 T 175 40
R1215 T 170 73
R1216 T 170 74
RP501 T 55 48

RP502 T 48 56
RP503 T 48 62
RP504 T 51 67

S200 T 171 4
S201 T 192 59
S300 T 19 84
S301 T 11 84
S400 T 28 32

S500 T 9 51
S501 T 188 15
S502 T 99 5
S600 T 191 109
S601 T 10 17

S602 T 191 97
S603 T 191 86
S604 T 191 74
S700 T 146 95
S800 T 146 10

S801 T 186 34
S802 T 11 30
S1000 T 55 106
S1100 T 76 5
S1101 T 54 6

T201 T 163 13
T202 T 183 52
T500 T 67 71
T600 T 18 15
T1000 T 33 101

T1001 T 30 105
T1002 T 20 108
T1003 T 26 107

TP1 B 170 16
TP2 B 166 16
TP3 B 171 11
TP4 B 155 10
TP5 B 185 56

TP6 B 182 57
TP7 B 181 55
TP8 B 182 50
TP9 B 22 70
TP10 B 24 72

TP11 B 23 74
TP12 B 27 73
TP13 B 26 75
TP14 B 28 76
TP15 B 23 78

TP16 B 25 78
TP17 B 28 78
TP18 B 26 80
TP19 B 24 80
TP20 B 22 81

TP21 B 28 81
TP22 B 26 82
TP23 B 24 82
TP24 B 22 84
TP25 B 14 80

TP26 B 16 81
TP27 B 14 83

TP28 B 16 84
TP29 B 14 86
TP30 B 16 87
TP31 B 14 89
TP32 B 16 90

TP33 B 14 92
TP34 B 16 94
TP35 B 24 90
TP36 B 22 92
TP37 B 22 97

TP38 B 33 49
TP39 B 33 41
TP40 B 23 39
TP41 B 23 32
TP42 B 33 26

TP43 B 23 24
TP44 B 33 22
TP45 B 33 14
TP46 B 23 20
TP47 B 150 53

TP48 B 149 37
TP49 B 151 35
TP50 B 17 54
TP51 B 17 51
TP52 B 13 48

TP53 B 10 51
TP54 B 54 98
TP55 B 49 68
TP56 B 189 15
TP57 B 186 15

TP58 B 191 13
TP59 B 95 12
TP60 B 99 11
TP61 B 12 15
TP62 B 36 74

TP63 B 78 70
TP64 B 78 76
TP65 B 16 20
TP66 B 20 8
TP67 B 186 71

TP68 B 98 20
TP69 B 186 75
TP70 B 106 106
TP71 B 107 89
TP72 B 109 106

TP73 B 119 69
TP74 B 142 8
TP75 B 188 30
TP76 B 133 9
TP77 B 147 9

TP78 B 188 33
TP79 B 188 35
TP80 B 145 9
TP81 B 185 42
TP82 B 152 8

TP83 B 155 34
TP84 B 13 33
TP85 B 16 32
TP86 B 150 63
TP87 B 75 75

TP88 B 101 93
TP89 B 35 101
TP90 B 50 98
TP91 B 45 98
TP92 B 41 99

TP93 B 80 37
TP94 B 92 90
TP95 B 62 103
TP96 B 56 95
TP97 B 100 101

TP98 B 97 23
TP99 B 105 37
TP100 B 80 103
TP101 B 97 43
TP102 B 75 27

TP103 B 81 2
TP104 B 86 27
TP105 B 51 17
TP106 B 48 13

TPRx B 158 64
TPTx B 153 63

U200 T 171 14
U201 T 174 14
U202 T 182 59
U203 T 182 62

X600 T 157 61
X1100 T 72 19
X1101 T 58 28

2 - 1

Chassisplatte / Chassis Board ZNS190R-3

100

110

0102030405060708090 100 110 120 130 140 150 160 170 180 190

X

Ansicht von der Bestückungsseite / View of Component Side

GRUNDIG Service Chassis CN

2 - 2

R1106

L1005

1

R1205

R1204

X600

R207

R213

C910

C902

C903

BARCODE

R710

C938

C939

C920

C947

R824

C922

C923

R216

R217C204

C901

C926

C900

BD904

BD908

D201

T201

B1

MH2

S600

R600

FID3

S602

S603

R607 R603

R1207

S604

R405

HDMI

S201

C402

D200

R218 R221

D202

D802

C801

R802

C807

R805

R516

R533

R529

U203

U202

R219

R201

R200

T202

USB

S801

1

1

IC801

1

R809

C559

C558

HDMI

S200

1

19

D501

D502

R620

R604

C605

C603

C802

C803

S501

R815 R609

HEADPHONE

MH3

L801

R1203

R1216
R1215

BD911

BD913

C940

C948

C941

C929

C917

C908

C921

BD918

C914

C913

C915

C912

R903 BD900

R904

R902

C911

BD901

BD905

R905

R901

C946

R900

R410

R407

R409

BD903

C916

C403

C404

C405

R206
R205

R1208

R1212

R1209

R1213R 1210

R1211

R1214

33

R202
R203

U200

U201

R208

19

1

FID2

C1015

R1031

R1019

R1032

R1018

R1020

1

L1012

L1013

L1004

C1018

C1019

R1035C1048

IC1002

16

R1101

R1016

C1024

C1025

R1011

R1012

R1013

C1021

C1023

C1022

1

C1040

IC1006

4

C1046

C1045

1

C1042

C1043

C1049R1036

L1007

C1026

C1027

1

IC1003

2

C1014

R1015

R1014

R1017

C1020

R519

C561

R505

17

S502

OPTICAL

C1041

R1029

R1039

IC1007

C1039

L1011

L1010

C560

IC700

R702

C700

R701

L700

1

R728

C701

C704

R729

R700

L1006

CI

S700

R708

R714 R704

R703

1

IC701

C705

C408

C502

C407

C503

R312

R311

R1030
R102

8
7

R102

C1044

3

IC1005

R1026

C1028

C1037

C1038

R1023

1

C1033

C1034

R617

C606

BD602
BD601

L506

R616

C1050R1037

48

C608

C607

1

R1022

C1035

BD800

R800

R801

25

IC601

24

R309

R307
R306

R305

R303

R1202

R1200

R1201

IC800

R808

R814

C805

C804

L800

R711

R715

R706

C702

C547

C546

C544

BD500

C545

C514

R502

C513

R503

R813

C808

C934

C935

R310

R308

R304

R819

R820

31
30

R509

29

R705

C706

R723

R709

C414

R419

R418

R411

C406

C411

C410

C703

C549

C548

R707

R511

R510

R722

C932

BD917

C933C924

C919

C416

R1206

R812

R420

R424

C2

C415

C412

1

C610

R623C609

C925

R621

R622

IC100

1

R821

R817

R816

R823

C1102

R818

C937

R504

R822

R1102

C931

C927

R1103

C1

28

1

D801

R807

C806

R803

C800

1

USB

S800

1

TRANSPORT LINE

R1024

T1002

1

R1009

R1038

R1007

IC1001

51 1

S300

32,43,49,55''FHD

R608

R605

T600

C600

R601

SCART

FID1

S400

1

T1003

R313

R302

C1030

T1001

R300
R301

R1002

1

POWER

S1000

L1014

C1000

D1000

C1017

C1016

L1003

C1001

1

T1000

R1021

C1029

IC1000

R1004

L1008

C1004

R1003

14

1

R1001

C1003

R1033

R1005

C1002

R1000

D1001

27

C538

C518

R1125

R1110

C1153

L1114

C1152

C1160

1

48

X1101

R531

R518

R528

D500

R524

C556

C550

36

1

C517

C506

C1107

7

R1107
C1104

C1108

R1109C1105

1

C1155

C1121

R1131

C508

C505

R1130

C1163

C1166C1169

R537

C575

C1170
C1167

24

36

S110 1

IC502

R530

C564

32

C570

12

C504

C510

C1174

C1162

SATELLITE

C555

IC500

C507

C515

R500

R1111

24

20

R535

R611

R614

R613

R612

C601

R606

R512

R508

C1138

C1159

18

C1112
C1114
C1117

IC600

C532

22 21

R1122

12

1

C1140

C1139
C1110

L1102

IC1101

C1113

11

10

C522

R1120

C1122

C1106

R1100

C1100

1

19

C1129

R602

9

R1108

L1103

C1109

C1101

C1124C1126

13

C1118

L1105

L1104

6

13 12

C1175

C1176

R1105

R1113

R1114

C1123C1125 C1103

C1120

24

R1112

C1119

C1032

C1036

C1031

1

R1025

IC1004

L1100

L1109

19

R1121

R1117

C1131

C1130

C1127R1118

C1128

C1111

C1116

C1115

7

R1116

R1126

R1119

C1172

C1137

1

R1104

L1107
L1108

L1106

C1136

L1116

D1100

1

IC1102

C1133

C1132

C1135

R1123

C1134

8

T500

D504

R517

D503

R525

R515

C541 C540

24

C542

R514
R513
C543

R506
C519

C521

R501

C509

23

R1115

IC1100

15

14

48

C1171

C1168

C1173

X1100

L1115

TERRESTRIAL

S1100

26

C554

L502

34

L501

C512

R401

R402

R403

R406

R404

C1156

5

1

C1151 C1150

C1149

D1103

C552

C551

C553

L503

RP504

C528

C535

C534

C533

RP503

C527

C530

C516

RP502

C524

C523

L500

RP501

C511

C401

L400

C400

R400

C409

R413 R1034

R408

L1112

R1124

R1132

L1101

C1154

L1110

C1143

C1157

R1129

C1142

C1144

C1148

C1145

IC1104

C1141

C1161

R1127

C1158

L1113

C1164

C1165

D1101

D1104

D402

C537

C529

D400

R412

D404

R414

D406D405 D403

IC1103

D1102

C1147

C1146

L504

C531

C520

L1111

25

FID4

MH1

R1006

R1010

R1008

1

90

80

70

30

LVDS

S301
28,32''HD

60

50

ZNS190R-3

40

1

35

4

AUDIO

S500

D803

D804

R826

R825

R811

30

SERVICE

S802

20

10

MH4

1

LOGO

S601

L600

D600

D601

D602

R610

0

Y

Chassisplatte / Chassis Board ZNS190R-3

100

110

0102030405060708090100110120130140150160170180190

X

Ansicht von der Lötseite / View of Solder Side

TP69

TP67

2 - 3

TP6

TP5

TP7

TP8

GRUNDIG Service Chassis CN

TP72

TP70

TP97

TP88

TP71

TP73

Rx

TPRx

GND

TPTx

TP86

Tx

TP47

TP94

TP100

TP64

TP87

TP63

TP95

TP90

TP54

TP96

TP91

TP55

TP89

TP92

TP62

TP37

TP34

TP36

TP35

TP24

TP22

TP23

TP21

TP18

TP19

TP17

TP15

TP16

TP14

TP13

TP11

TP12

TP10

TP33

TP32

TP31

TP30

TP29

TP28

TP27

TP26

TP20

TP25

TP9

90

80

70

60

TP50

TP53

TP38

TP51

TP52

50

TP81

TP48

TP79

TP78

TP75

PT2PT

TP57

TP56

TP58

1

TP3

TP49

TP83

TP4

TP80

TP77

TP82

TP74

TP76

TP101

TP104

TP93

TP102

TP105

TP106

TP103

TP99

TP98

TP68

TP59

TP60

TP39

TP42

TP44

TP45

TP40

TP84

TP41

TP43

TP46

TP85

TP65

TP61

TP66

40

30

20

10

0

Y

GRUNDIG Service Chassis CN

11: 512B (32MB NAND)

When BS678=000 & 100 & 001 & 110, it means "Boot flow select for secure"

MIPS Side:

IC1101

Chassisplatte / Chassis Board – Scaler-Bootstrap

Chassisplatte – Blockschaltplan / Chassis Board – Block Circuit Diagram

DVB-T/C/T2*

Si2151

VCC3.3V

IC1104

DVB-S2*

AV2018

VCC3.3V

SCART

USB1

USB2

HDMI1

HDMI2

T_I2C

IC1100

Demodulator

SI2169

T_S I2C

IC1103

D_IF

VCC3.3V VCC1.2V

LNB supply
and control

LNBH29EQTR

VCC5V

VCC5V

TS_OUT

MAIN_I2C

D_IF

RGB/CVBS+LR

USB2.0

USB2.0

IC600

RESET

VCC3V3-ST

+5V2_ST

+5V2_ST

IC100

PCMCIA/CI

TS_IN

NT72453

TS_OUT

I2S

EAR_OUT

VCC24V

VCC3V3

SPDIF

VCC3V3-ST

IC601

NAND

CI_PCMCIA.SchDoc

Flash

IC500

DSP Audio Amp.

TAS5739

VCC_PANEL

8/10bit LVDS/ 8bit TTL

VCC3V3

VCC1V5

VCC1V15

VCC3V3-ST

PANEL

IR, LED & Keyboard

2 x Speaker

Headphone/Line Out

OPTIC

I2C Bus

IC100

Power Supply

VCC24V

VCC

+5V2_ST

TUN I2C

MAIN I2C

AMP I2C

PNL I2C

D1001

D1000

Optional

SoC

VCC_PWR

POWER_SW

IC1002

IC1007

IC1005

IC1003

IC1101

Terrestrial

Tuner

C0h

IC500

Audio Amplifier

46h

S300

PANEL

IC1104

IC1100

Demodulator

IC1004

L1006
Optional

IC1006

IC700

Satellite

Tuner

C4h

T_S I2C

C8h

VCC24V

VCC_AUDIO

VCC

PANEL_PWR

VCC5V

VCC3.3V

VCC1.5V

VCC1.2V

VCC1.15V

+5V2_ST

VCC3V3-ST

CI_VCC

MIPS Side:

STBC Side:

VCC3.3V

VCC3V3-ST

R120310K*4

R120610k*4

R120710k*4

R120010K
R120110K

NCR1204
10KR1205

10KR1208
NCR1209
NCR1210
10KR1211
10KR1212
NCR1213
10KR1214
10KR1215
NCR1216

BS0
BS1
BS2

10KR1202

NAND_ALE_BS3
BS4
BS5
BS6
BS7

BS8
BS9
BS11

BS12

BS10
BS13

BS14

NAND_CLE_BS15

BS16
NAND_CE1n_BS17

BS18

BS0
BS1
BS2

NAND_ALE_BS3
BS4
BS5
BS6
BS7

BS8
BS9
BS11

BS12

BS10
BS13

BS14

NAND_CLE_BS15

BS16
NAND_CE1n_BS17

BS18

BS0,BS1_System Boot Strap Normal Mode:
Condition: MIPS CPUPLL is 500MHz
00: MIPS 125MHz, DSP 100MHz, AHB 83MHz, AXI 83MHz, and OCP ratio 1:1
01: MIPS 166MHz, DSP 166MHz, AHB 83MHz, AXI 125MHz, and OCP ratio 1:1
10: MIPS 250MHz, DSP 200MHz, AHB 83MHz, AXI 125MHz, and OCP ratio 1:1
11: MIPS 500MHz, DSP 400MHz, AHB 83MHz, AXI 250MHz, and OCP ratio 1:1

BS0_System Boot Strap Test Mode:
0: programming using i2c
1: programming using Pbus

STBC Side:

BS3,BS4_STBC Boot Strap Option:
00: Boot from STBC, Using STBC MaskROM
01: Boot from STBC, Bypass STBC MaskROM
10: Boot from MIPS, Using STBC MaskROM
11: Boot from MIPS, Bypass STBC MaskROM

BS6,BS7,BS8_STBC Boot Strap Option2:
000: STBC boot from SPI, MIPS boot from NAND (NAND 2 Row address cycles)
001: STBC boot from SPI, MIPS boot from NAND (NAND 3 Row address cycles)
010: STBC & MIPS boot from SPI, MIPS SPI use 12MHz OSC
011: STBC & MIPS boot from SPI, MIPS SPI use 48MHz MPLL (need to bypass STBC)
100: STBC & MIPS boot from NAND (NAND 2 Row address cycles)
110: STBC & MIPS boot from NAND (NAND 3 Row address cycles)

BS9_Internal boot strap:
0: internal boot strap disable
1: internal boot strap enable

BS10,BS11_NAND Page size:
When BS678=000 & 001, 100, 110, it means ¡§NAND Page size¡¨
00: 2K
01: 4K
10: 8K

BS2_Bypass MaskROM:
0: Using MIPS MaskROM
1: Bypass MIPS MaskROM

BS5_STBC watchdog:
0: Disable STBC watchdog
1: Enable STBC watchdog

BS12,BS13_NAND Block size:
When BS678=000 & 001, 100, 110, it means ¡§NAND Block size"
00:128 Kbytes
01:256 Kbytes
10:512 Kbytes
11:1 Mbytes

BS14_NAND Boot flow select for secure:

0: boot from ROM then emulator
1: boot from ROM then SRAM

BS15_Security Boot:
0: no security boot
1: security boot

BS17,BS18_NAND ECC Mode + Extra Data Size:
00: RS + 16
01: BCH + 16
10: BCH + 32
11: BCH + 56

BS16_Scramble:
0: Disable
1: Enable

2 - 4

GRUNDIG Service Chassis CN

74LVC1G126

2

1

4

CE

T

V

T

VSENSE

TPS54335

BOOT

EN

VIN

VBST

VFB

1

2 3 4

Chassisplatte – Netzteil / Chassis Board – Power Supply

20037WR-14

VCC3V3-ST

+5V2_ST

VCC

VCC_PWR

C1018

10UF

VCC_PWR

C1033

10UF

VCC_PWR

C1042

10UF

S1000

16

P1

P2

GND

P3
P4
P5
P6
P7
P8

P9
P10
P11
P12
P13

GND

P14

15

PSU OPTION

D1000

D1001

TP95 TP96

L1004

C1019

100NF

L1010

C1034

100NF

L1012

C1043

100NF

1

L1014

2
3
4

VCC

5
6
7
8
9
10

TP90
11
12
13

TP91
14

TP92

R1033

10K

R1034

0R

1
2

TPS562200DDCR

2

1
2

TPS562200DDCR

3

1
2

TPS562200DDCR

4

6 7

ST-BY

DIM

BL_ON/OFF

IC1003

GND
SW
VIN3VFB

L1007

3.3UH

IC1005

GND
SW
VIN3VFB

L1011

3.3UH

IC1007

GND
SW
VIN3VFB

L1013

3.3UH

TP88

+5V2_ST

C1000

C1001

100nF

10uF

Tr igger

8 9

VCC24V

R1003

Power

ADAPTOR_DETECT

VCC_PWR

C1014

C1048

100NF

6

VBST

5

EN

4

C1020

22PF

C1026

22UF

100NFC1028

6

VBST

5

EN

4

C1035

22PF

C1037

22UF

100NFC1039

R1027

6

VBST

5

EN

4

C1044

22PF

C1045

22UF

43"-55" ==>

ADAPTOR_DETECT

0RR1005

0RR1001

0R

R1035

100k

NC

R1014

30.9K

R1015

R1017 1K

TP98

C1027

22UF

R1037

C1050

100K

1uF

R1023

R1026

TP99

C1038

22UF

R1036

C1049

100K

1uF

R1028

R1030

TP101

C1046

22UF

22" ==>

TP89

C1002
1nF

R1000
47R

+5V2_ST

C1041

1UF

POWER_SW

15.4K

VCC1.15V

Imax=1000mA

PDmax=xxxmW

POWER_SW

30.9KR1022

30.9K

0R

VCC1.5V

Imax=700mA

PDmax=xxxmW

POWER_SW

10K

30.9K

2.7K

VCC3.3V

Imax=1000mA

PDmax=xxxmW

Hi: ON
Lo: OFF

POWER_SW

R1029

POWER INPUT BLOCK

VCC=12V EXT. ADAPTOR
VCC=12.5V INT PSU32" ==>
VCC=12V

T1000B

VCC3.3V

C1003

IC1000

5

VCC

1nF

OUT Y4GND

SN74LVC1G126DCKR

VCC3V3-ST

C1004

1nF

5

4 3

T1000A

IC1006
XC6221A332GR-G

4

Vout

Vin

3

EPAD

GND

CE

22K

R1039

5

NC

Pd=1xxmW

L1003

VCC

FUSE 4A

POWER_SW

R1019
Assembled only
in >32" versions

VCC

VCC3V3-ST

PANEL_ON

Hi: Off
Lo: On

VCC3V3-ST

6

1

OE

IN A

1

2

C1017

10UF

L1008

TP100

5

VCC3V3-ST

2

R1002
10K*4

PWM >200Hz

1
2

BRI_ADJUST

3

BRI_CTRL
BL_CTRL

BL_EN

R1004
10k*4

xxmA

TP94

C1040

2.2UF

R1012

R1011

2K

C1016

R1031

100nF

15.4k

R1019

0R

R1032

R1018

2.7k

C1029

R1021
22K

4.7uF

R1024

4*22K

R1009

0R

T1002A

BC847BDW1T1G

4 3

STBC_PW_EN

Hi: Off
Lo: On

Hi: Off
Lo: On

VCC1.5V

C1032

1UF

10K

1
6
8

10

4

R1020

39K

8.2K

8
6
5
2 4
1

T1001

1

PMV65XP

T1002B

2

1 6

ADAPTOR_DETECT

5

R1025

6

22K

IC1002

TPS54335ADRCR

VIN

BOOT

PH

VSENSE

COMP

EN
RT

GND

EPAD

GND

GND

11

T1003
CSD25310Q2

7

3

32

C1030
NC

R1038 10K*4

PANEL_ON
STBC_PW_EN

BRI_ADJUST
BL_ENFrom SoC

IC1004

XC6602A121ER-G

VIN3VOUT

VBIAS

NC

GND

VSS

CE

7

R1013

66.5K

C1015

9

100nF
2
7
3
5

C1024

100PF

R1007
10K

2

1

IC1001

3

AP432SRG-7

PANEL_ON

STBC_PW_EN

BRI_ADJUST

BL_EN

ADAPTOR_DETECT

VCC1.2V

4

TP93

VCC3.3V

1

2

C1036

10UF

L1005

NRS6045T6R3MMGK

6.3UH
C1023

1

10UF

R1016

C1025

6.2K

VCC5V

3.3NF

PANEL_PWR

R1006

26.1K

R1008

0R

R1010

2.7K

C1031

1UF

C1021

10UF

Imax=xxxxmA

TP97

C1022

10UF

L1006

60R

VCC5V

+5V2_ST

TPS54336

AOEY

XC6221A

ON/OFF

Control

-

Curr.
Limit

+

CE CE/

Error

each

Amp

circuit

Voltage

Reference

BIAS

XC6602

ON/OFF

CE

Control

5EN

4

Voltage

Reference

Soft Start

threshold

TPS562200
TPS563200
TPS562209

Ip Ih

Enable
Threshold

OV

SS

ERROR

AMPLIFIER

Voltage

Reference

Hiccup
Shutdown

Overload
Recovery

Volt.
Ref.

Soft Start

only A-type

CE

CE

V

UVP

+
+

OCL

Enable
Comparator

Minimum Clamp

Pulse Skip

HS MOSFET

Slope Comp.

Maximum

Clamp

COMP RT

+
Error

Amp

–

Under Volt.

Lock Out

Thermal

Shutdown

+

Hiccup

UVP

V

OVP

Ton

One-Shot

OCL

+

Current

Comparator

Regulator

+

OVP

PWM

Control Logic

XCON

TSD

ZC

+

TPS54335 TPS54336

Thermal

Hiccup

Shutdown

Logic

Power Stage

& Deadtime

Control

Logic

Osc.

LS MOSFET
Current Limit

EXPOSED THERMAL PAD

UVLO

UVLO

Curr.
Limit

LS

Hiccup
Shut­down

UVLO

HS

VREG5

Boot

Reg.VIN

VREG5

Boot

Charge

V

IN

V

OU

R1

R2

V

SS

IN

V

V

OU

CE

V

SS

3 VIN

6

2SW

1GND

Curr.
Sense

PH

Curr.
Sense

GND

G19

VDD33_USB

GND

N10

R13

GND

GND

N11

N12

VDD11_HDMI

N13

VDD11_CORE

10UFC900

VDD33_1

VDD33_3

VDD11_DEMOD

VDD33_2

W14

V14

H11

VDD33_IO

VDD33_HDMI

VDD33_HDMI

GPIO

GND

GND

GND

GND

GND

N16

N17

N14

N15

10UFC916

H12

VDD33_IO

GNDP8GND

P9

10UFC901

NT72453

POWER/GND

GND

GND

P10

P11

VCC3V3-ST

BD900

VCC3.3V

BD903

BD904

BD917

BD911

BD913

VDD15_DDR_MMU

R902

NC/4.7K

R903
NC

IC100H

A1

NC

AC1

NC

AC23

NC

G6

GND

G7

GND

G16

GND

G17

GND

H7

GND

H8

GND

H9

GND

H10

GND

H15

GND

H16

GND

H17

GND

J7

GND

J8

GND

J9

GND

J10

GND

J11

GND

J15

GND

J16

GND

J17

GND

GNDK7GNDK8GNDK9GND

R904

NC/

1.2K

K10

150ma

AC2

GND

K11

STBC_GPF_10

K13

VDD33_STBC

VDD33_1

VDD33_2

VDD33_3

VDD33_TVADC0

VDD33_TVADC1

AB2

AA1

DDR_RESET

GND

GND

GND

K16

K14

K15

240R F

R905

VDD11_CORE

W1

Y1

DDR_ZQ

GND_CLK

DDR_VREFDQ

GND

GND

GND

L8

K17

K18

W2

DDR_VREFCA

GND

GNDL9GND

MVREF

C946

100NF

VDD15_CLK

P12

VDD11_DDR

NT72453-BA

GND

GND

L11

L12

L10

VCC1.5V

VDD15_DDR_MMU

VCC1.15V

R900

1K 1%

R901
1K 1%

AB1

AB3

AC3

VDD15_CLK

VDD15_DRAM

VDD15_DRAM

DDR

GND

GND

GND

GND

GND

L14

L15

L16

L17

L13

BD901

BD905

BD908

VDD15_DDR_MMU

VDD33_1

VDD15_DDR_MMU

AC5

AA6

AB5

AA5

AB4

VDD15_MMU

VDD15_MMU

VDD15_MMU

VDD15_MMU

VDD15_DRAM

GNDM8GNDM9GND

GND

GND

GND

M10

M11

M12

M13

M14

VDD15_DDR_MMU

VDD15_CLK

4A

VDD11_CORE

AB6

AC6

T13

VDD15_MMU

VDD15_MMU

GND

GND

GND

GND

M16

M15

M17

VDD33_1

VDD33_2

VDD33_DLL

USB

GNDN8GND

N9

10NFC910

100NFC902

100NFC917

10NFC929

1NFC908

VDD33_2

H14

H13

H21

J21

VDD33_LVDS

VDD11_DEMOD

VDD33_DEMOD

LVDSTVDAC

GND

GND

GND

GND

P16

P17

P13

P14

P15

2 - 5

VDD11_DEMOD

1NFC903

10UFC926

VDD33_TVADC0

M20

L19

VDD33_LVDS

VDD33_TVADC1

VDD33_TVADC0

TVADCDEMOD AUDIOHDMI

GND

GND

GNDR8GND

R9

R10

R11

10UFC934

100NFC935

100NFC927

10NFC931

VDD33_TVADC1
VDD33_1

R14

VDD33_TVDAC

GND

GND

GND

GND

GND

R15

R16

R17

R12

VDD15_CLK

1NFC937

VDD33_3

H18

H19

VDD33_AUADC

VDD33_AUDAC

GND

GNDT8GNDT9GND

GND

T7

T15

100NFC911

10UFC932

T14

U14

GND_HDMI

GND_HDMI

GNDU7GNDU8GNDV3GNDV6GNDV7GND

T16

VDD15_DDR_MMU

10UFC912

100NFC933

10NFC919

L18

M18

K19

J13

J14

GND_LVDS

GND_LVDS

GND_DEMOD

GND_TVADC0

GNDW4GNDW5GNDW6GNDW7GNDY2GNDY3GNDY4GNDY5GNDY6GNDY7GND

W3

10UFC922

10UFC940

100NFC941

VDD11_CORE

U12

U11

U10

U13

VDD_CORE

VDD_CORE

VDD_CORE

VDD25_CAP
VDD33_STBC
VDD33_STBC

VDD33_XTAL

VDD10_STBC

GND_XTAL
GND_XTAL
EFUSE_EN

VDD33_CLK

GND_CLK

GND

GND

GND

AA2

AA3

AA4

AA7

VDD25_CAP

100NFC923

VDD33_STBC

VDD_CORE

M19
W17

V17

V16
AC19
U16
V21
T17

W16
U15

GND

GND

AB7

AC7

1uF

100NFC925

C924

10UFC920

100NFC921

VDD25_CAP

VDD33_STBC

C947

100NF

BD918

VDD33_STBC
VDD10_STBC

100NFC948

VDD33_1

VDD10_STBC

10NF

100NFC913

1NFC915

C914

VDD33_TVADC1VDD33_TVADC0VDD33_2 VDD33_3

10UFC938

100NFC939

U9

T12

T11

T10

VDD_CORE

VDD_CORE

VDD_CORE

VDD_CORE

GND_TVADC1

CORE-1.1V

STBC & XTAL

CLK_OUT

Chassisplatte / Chassis Board – Tuner

out

Vss

CE

XTAL

ANT.

DEMOD

DEMOD

3.3V

1.8V

SEQC_OUT

VBOOST

COMP

TCAP

EXTM

VDD

LINEDROP

5

7

@

#

$

%

^

&

GRUNDIG Service Chassis CN

2 - 6

VCC3.3V

R1101

TP104

C1140

22UF

XC8101

Limit

CE

each
circuit

/CE

VCC3.3V

C1152 39PF

L1113
27nH

0.59A

3.3V_Tun

C1139
100NF

/CE

L1105

180NH

IC1102
XC8101AA01GR-G

1

Vout

GND2CE

L1110

75 ohmLine

LNB_P1

C1165

100pF

4.7K*4

TUN_SCL
TUN_SDA

MAIN_SDA
MAIN_SCL

xxmA max

V

Rdischg

R1112

0R

C1129
180PF

Vin

EPAD

5

TP103

TUNER_3V3_MA

L1114

1.2PF

Mode: DVB-S

FROM SoCTo Terr. Tuner

From SoCTo ext.Demod.

R1106

T_SDA

100R*4
R1108

DEM_SDA
DEM_SCL

100R*4

L1109

VCC3.3V

3.3uH

Vin

S1100

1

2
3
4
5
6
7
8

AJ-35

C1132

100NF

SAT

S1101
COAX_F

2

134

5

Gate

Control

ON/OFF

Control

L1104
270nH
0,42A

D1100
PMEG4010EH

C1133

47PF

D1101

NC/NUP1301U

3

1

2

C1164

C1135

100NF

1nF

Current

C1119 47pF

Mode: DVB-S

C1113

1NF

C1118 39pF

C1125 39pF

+5V2_ST

4

3

R1123

10K*4

150mAmax
TP105

C1143

10UF

C1153

6.8NH

IF_AGC_S

L1115

270NH

L1116

270NH

C1134
100NF

VCC3.3V

L1102

270NH

L1106

270NH

T_SCL

T_SDA

17 16

R1127

100R

R1105

4.7K*4

T_S_SCLT_SCL
T_S_SDA

TUNER_FEF

L1107

240R

L1108

240R

C1136

22PF

C1158

100nF

I2C ADDRESS: C4

Mode: DVB-T/C, ATV

From ext. Demod.

X_2151

XTALO_T

R1118

220R

C1137

22PF

C1141

100nF

1

RFIN

2

NC

3

RFAGC

4

RFLP

C1166 10pF

C1169 10pF

C1111

18

19

20
22

13

14

24

1

3

2

23

I2C ADDRESS: C0

C1145

1uF

17

16

EPAD

VCCREG2

RXQP

5

3.3V_Tun

C1112

NC

RF_REF

RF_IP
RF_IN

XTAL_I

XTAL_O

GPIO1

GPIO2

SCL

SDA

ADDR

15

REGCAP2

RXIP

6

1NF

1NF

1NFC1114

100NFC1117

6

C1142

100nF

1nF

14

CP

ADDR0

7

R11310R

C1167

100nF

C1170
100nF

GND

R1100

4.7K

R1126

C1101

100NF

IF_AGC_S

C1104

100NF

C1110

9

17

VDDH15VDDH

VDDH

GND

GND

GND

EPAD

8

16

25

21

TUNER_3V3_MA

C1144

13

AV2018-S85QFG

GND

VCCREG1

XTAL1

XTAL2

SDA

SCL

8

C1173

10pF

Mode: DVB-T/C, AT V

0R

R1107

4.7K

1NF

LIF_P
LIF_N

AGC1

AGC2

XOUT

IC1104

12

11

10

9

QP_S

IP_S

C1174

10pF

IF_AGC_T_DEM

IF_AGC_T

IF_AGC_S_DEM

C1115

1NF

7

IC1101

Si2151-A10-GMR

VDDL

11
10

C1126
33PF

R1116

5

4

R1119

12

X_2151

R1125

0R

C1155

8.2PF

C1162

10pF

20

R1104

0R

C1116

1uF

0R

0R

TP102

1 3

SATELLITE TUNER

X1101

27MHz

1 3

2

C1163

10pF

C1102

100NF

DIF_P
DIF_N

C1124
33PF

IF_AGC_T

100NFC1172

XOUT_2151

X1100

4

2

C1160

4

8.2PF

R1130

100R*4

IN

R1103

10K

C1127

100NF

24MHz

T_S_SDA
T_S_SCL

Si2151

C1120
100NF
C1123
100NF

C1128

100NF

RF

AGC

LDO

R1117

SOC_IFAGC

R1121

XTALO_T

R1102

VCC3.3V

2.2KNC

TERRESTRIAL TUNER

R1113 220R

R1114 220R

18

0R

D_IF_SoC_N

C1130

NC

19

C1131

NC

0R

D_IF_SoC_P

LNB POWER

D1102

PMEG4010EH

5

L1112

VCC

CABLE_COMP
LNB_13V/18V
LNB_EN

15
14

I

PGA

ADC

Q

PGA

ADC

IF

0 / 90 LOW-IF

AGC

FREQ

XOSC

SYNTH

_O

XOUT

XTAL_I

AGC CIRCUITTUNER I2C

DIF_EXTD_P

DIF_EXTD_N

C1156

10UF

R1124

100R*4

DSP

FILTER

10UFC1146

EXTMDISEQC_OUT

12
13

10UFC1147

L1111

10UH

C1154

100NF

AGC

LIF

OUTPUT

INTERFACE

AGC

SDA

SCL

ADDR

CONTROL

INTERFACE

GPIO

IF_AGC_T_DEM
TUNER_FEF

LNB_13V/18V

DISEQC_OUT

DEM_SCL
DEM_SDA

C1175

22PF

VCC3.3V

DEM_PTS_D7
DEM_PTS_D6
DEM_PTS_D5
DEM_PTS_D4

DEM_PTS_D3
DEM_PTS_D2
DEM_PTS_D1
DEM_PTS_D0

100NFC1149

C1151

100NF

C1157

1uF

R1132
10K*4

DTV

ATV

AV

SoC

VCC1.2V

C1106
100nF
C1109
100nF

C1176

22PF

L1103

10mA

R1111

22R*4
R1115

22R*4

C1159
NC

IC1103 MP8124

6

VBOOST

5

BST

3

SW

12

VDD

11

BYPASS

1

LINEDROP

14

13V/18V

2

EN

EN

BYPASS

13V/18V

POK

SGND

L1100

C1100

375mA

100nF

C1103

10UF

1

MP_A

2

MP_B

3

GPIO_0

4

DISEQC_CMD

5

DISEQC_IN

6

DISEQC_OUT

7

VDD_VCORE

8

GND

9

VDD_VIO

10

SCL_SLAVE

11

SDA_SLAVE

12

TS_VAL

CI_MDI_7
CI_MDI_6
CI_MDI_5
CI_MDI_4

CI_MDI_3

DEM_PTS_VAL

CI_MDI_2
CI_MDI_1
CI_MDI_0

21 22 23 24

PMEG4010EHD1103

7

VOUT

C1150

100NF

13

EXTM

10

COMP

9

TCAP

AGND

PGND

8

4

Internal

Regulator

Vref

13V / 18V

Switch

POK

+1V Offset

Frequency

Divider

MP8124

47

48

GND

VDD_VCORE

TS_SYNC

TS_CLK

13

14

DEM_PTS_SYNC

DEM_PTS_CLK

TP106

EXTM

R1129

66.5K

C1161

22NF

Boost

Driver

Shaper

DIF_EXTD_P

DIF_EXTD_N

T_S_SDA

T_S_SCL

XOUT_2151

46

41

45

44

42

43

NC

TC_ADC_P

SCL_MAST

TC_ADC_N

SDA_MAST

CLK_IN_OUT

TS_DATA[2]

TS_DATA[4]

VDD_VCORE

TS_DATA[3]

TS_DATA[1]

TS_DATA[0]/TS_SER

17

19

20

18

16

15

C1121

DEM_PTS_D0

DEM_PTS_D1

DEM_PTS_D2

DEM_PTS_D3

DEM_PTS_D4

LNB_P1

D1104
PMEG4010EH

C1148

3.3NF

Charge

Pump

22kHz

Current

Limit

C1168100nF

100nF

C1171

I2C ADDRESS: C8

IP_S

IM_S

QP_S

QM_S

37

39

40

38

Si2169-B40-GMR

S_ADC_IP

S_ADC_IN

S_ADC_QP

S_ADC_QN

VDD_VANA

XTAL_I/CLK_IN

RESETB

VDD_VCORE

GPIO_1/TS_ERR

TS_DATA[7]

GND

TS_DATA[5]

TS_DATA[6]

VDD_VIO

21

24

22

23

100nF

C1122

100nF

DEM_PTS_D5

DEM_PTS_D6

DEM_PTS_D7

CABLE_COMP
LNB_13V/18V
LNB_EN

CI_MDI_7
CI_MDI_6
CI_MDI_5
CI_MDI_4
CI_MDI_3
CI_MDI_2
CI_MDI_1
CI_MDI_0

CI_MISTART
CI_MIVAL
CI_MICLK

DEMOD_RST
SOC_IFAGC
D_IF_SoC_N
D_IF_SoC_P

MAIN_SDA
MAIN_SCL

TUN_SCL
TUN_SDA

SW

PGND

BST

VOUT

ILIMIT

IC1100

GND

ADDR

XTAL_O

MP_D
MP_C

GND

EPAD

EXTERNAL DEMODULATOR

L1101

36
35

34
33
32
31
30

IF_AGC_S_DEM

29

28

27
26

CABLE_COMP

25

49

DEM_PTS_SYNC
DEM_PTS_VAL

DEM_PTS_CLK

CABLE_COMP

LNB_13V/18V

LNB_EN

CI_MDI_7
CI_MDI_6
CI_MDI_5
CI_MDI_4
CI_MDI_3
CI_MDI_2
CI_MDI_1
CI_MDI_0

CI_MISTART

CI_MIVAL
CI_MICLK

DEMOD_RST

SOC_IFAGC
D_IF_SoC_N
D_IF_SoC_P

MAIN_SDA

MAIN_SCL

TUN_SCL
TUN_SDA

S_ADC_IP
S_ADC_IN

DVB-S

S_ADC_QP

Tuner

S_ADC_QN

MP_C/_D (Sat.)

MP_A/_B (T&C)

TC_ADC_P

ATV

TC_ADC_N

DVB-T/C

Ext. Clk/Xtal

Tuner

CLK_IN_OUT

TUN_SCL/SDA

C1105
100nF

C1107
100nF

R1120

45mA

C1138

VCC3.3V

C1108

100nF

ADC (I)

ADC(Q)

AGCs

ADC

I2C

SWITCH

100R

NC

R1109

22K

R1110

22R*4

22RR1122

DISEQC_IN

DiSEqC™

FRONT

OSC

& PLL

DEMOD_RST

CI_MISTART
CI_MIVAL

CI_MICLK

DI

2.0

END

VCC3.3V

7

SYNCHRO

nPSK
QAM

DEMOD

OFDM

DEMOD

DSP &

Si2169

Mode: DVB-S

Power on (trigger: VCC)

VITERBI

EQ

LDPC BCH

EQ

DVB-T2/T/C/S/S2

FECMODULE

RESETB1.2, 3.3V

GPIO_0

GPIOCTRL

TS_ERR/
GPIO_1

RS

TS_SYNC
TS_VAL
TS_CLK

MPEG TS

INTERFACE

TS_DATA

8

HDTV MPEG S.o.C.

HOST_SDA

I2C

HOST_SCL

I/F

GRUNDIG Service Chassis CN

*

(

)

¡

™

£

≤

Mode: DVB-T/C

Mode: ATV

Chassisplatte / Chassis Board – HDMI

A Port: HDMI & ARC

S200

GND2

GND1

GND0

GND_CLK

CEC_GND

HP_DETECT

GND20GND

21

B Port: HDMI
S201

RX2+

GND2

RX2-

RX1+

GND1

RX1-

RX0+

GND0

RX0-

CLK+

GND_CLK

CLK-

CEC_GND

HP_DETECT

GND

GND22GND

GND

20

21

RX2+

RX2-

RX1+

RX1-

RX0+

RX0-

CLK+

CLK-

CEC
N.C.
SCL

SDA

5V

GND22GND

23

BC847BW

CEC

N.C.
SCL

SDA

5V

23

BC847BW

T202

T201

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

3

2

HDMI_B_RX2_P

HDMI_B_RX2_N
HDMI_B_RX1_P

HDMI_B_RX1_N
HDMI_B_RX0_P

HDMI_B_RX0_N
HDMI_B_RXCK_P

HDMI_B_RXCK_N
HDMI_CEC

HDMI_B_SCL
HDMI_B_SDA

32

HDMI_A_RX2_N
HDMI_A_RX1_P

HDMI_A_RX1_N
HDMI_A_RX0_MHL_P

HDMI_A_RX0_MHL_N
HDMI_A_RXCK_P

HDMI_A_RXCK_N
HDMI_CEC
HDMI_A_ARC
HDMI_A_SCL
HDMI_A_SDA

R208
1K

R213

HDMIA-5V

1

TP5
TP6
TP7

R218

R219
1K

HDMIB-5V

1

TP1
TP2

TP4

4.7K*4R207

10K*4

HDMI_B_RXCK_N
HDMI_B_RXCK_P

HDMI_B_RX0_N
HDMI_B_RX0_P

HDMI_B_RX1_N
HDMI_B_RX1_P

HDMI_B_RX2_N
HDMI_B_RX2_P

TP8

4.7K*4

10K*4R221

HDMIA-5V

HDMI_A_IDENT

HDMI_A_HP

HDMIB-5V

HDMI_B_IDENT

HDMI_B_HP

1
2
3
4

1
2
3
4

CH1­CH1+
GND
CH2­CH1+5NC

CH1­CH1+
GND
CH2­CH1+5NC

HDMI_A_RXCK_NHDMI_A_RX2_P
HDMI_A_RXCK_P

HDMI_A_RX0_MHL_N
HDMI_A_RX0_MHL_P

HDMI_A_RX1_N
HDMI_A_RX1_P

HDMI_A_RX2_N
HDMI_A_RX2_P

NCU202

10

NC

9

NC

8

GND

7

NC

6

NCU203

10

NC

9

NC

8

GND

7

NC

6

HDMI_B_RXCK_N
HDMI_B_RXCK_P

HDMI_B_RX0_N
HDMI_B_RX0_P

HDMI_B_RX1_N
HDMI_B_RX1_P

HDMI_B_RX2_N
HDMI_B_RX2_P

Mode: DVB-S

NCU200

1

CH1-

2

CH1+

3

GND

4

CH2­CH1+5NC

NCU201

1

CH1-

2

CH1+

3

GND

4

CH2­CH1+5NC

NC
NC

GND

NC

NC
NC

GND

NC

HDMI_A_ARC

10

HDMI_A_RXCK_N

9

HDMI_A_RXCK_P
8
7

HDMI_A_RX0_MHL_N
6

HDMI_A_RX0_MHL_P

10

HDMI_A_RX1_N
9

HDMI_A_RX1_P
8
7

HDMI_A_RX2_N
6

HDMI_A_RX2_P

HDMI_A_RXCK_N
HDMI_A_RXCK_P
HDMI_A_RX0_MHL_N
HDMI_A_RX0_MHL_P
HDMI_A_RX1_N
HDMI_A_RX1_P
HDMI_A_RX2_N
HDMI_A_RX2_P
HDMI_A_IDENT

C204

1uF

HDMI_B_RXCK_N
HDMI_B_RXCK_P
HDMI_B_RX0_N
HDMI_B_RX0_P
HDMI_B_RX1_N
HDMI_B_RX1_P
HDMI_B_RX2_N
HDMI_B_RX2_P
HDMI_B_IDENT

Mode: DVB-T/C/S

AB14

AB8
AA9
AB9
AC9

AA10

AC10
AB10

AA11

AC16

R217

AA8

51

AB11

AA12

AB12
AC12

AA13

AC13
AB13

AA14

AB17

HDMI_I2C

HDMIB_5V

3

R201

4.7K

HDMI_B_SDA
HDMI_B_SCL

D202 BAT54CW

2

3

1

D200 BAT54CW

R206

100R

NT72453

HDMI/MHL

R200
47K

VCC3V3-ST

TP3

IC100A

MHL_CBUS/STBC_GPG_30

RXA_CLK­RXA_CLK+
RXA_0­RXA_0+
RXA_1­RXA_1+
RXA_2­RXA_2+
PWR5V_A/STBC_GPF_4

HDMI_ARC

RXB_CLK­RXB_CLK+
RXB_0­RXB_0+
RXB_1­RXB_1+
RXB_2­RXB_2+
PWR5V_B/SBTC_GPF_7

Mode: DVB-T/C/S

1

2

HDMIB-5V

HDMI CEC

R205
27K

HDMI_SOC_CECHDMI_CEC

HDMIA_SCL/STBC_GPF2
HDMIA_SDA/STBC_GPF3

HDMIB_SCL/STBC_GPF5
HDMIB_SDA/STBC_GPF6

STBC_GPF_15/(BS_16)

MHL_CDS/STBC_GPF_1

HDMI_CEC/STBC_GPF_0

R202
47K

HDMIA_5V

AC15
AA16

AB16
AA17

W19

AB15

AA15

3

D201 BAT54CW

R203

4.7K

HDMI_A_SDA
HDMI_A_SCL

BS16

HDMI_A_HP
HDMI_B_HP

GPF2
GPF3
GPF5
GPF6

BS16

HDMI_SOC_CEC

Mode: DVB-T/C/S

Mode: DVB-T/C/S

1

+5V2_ST+5V2_ST

2

HDMIA-5V

BS16

HDMI_A_HP
HDMI_B_HP

R216
22R*4

HDMI_A_SCL
HDMI_A_SDA
HDMI_B_SCL
HDMI_B_SDA

Chassisplatte / Chassis Board – SCART

NT72453MBG-BA-B

IC100C

M23

VGA_R

M22

R419

R420

100RR418

100R

100R

100RR424

C410
100NF

C411
100NF
C412
100NF
C415
100NF

ADC0M

ADC1M

ADC2M

ADC3M

M21

N22

R19
R18

P22

P21

R23

R21

L23

K21

L22

N21

P23

R22

VGA_G

SOG_1

VGA_B

VGA_HS
VGA_VS

YPBPR0_PR

YPBPR0_Y

SOG_0

YPBPR0_PB

CVBS0

TUNER_CVBSIN

ADC0M

ADC1M

ADC2M

ADC3M

NT72453

ADC/DAC

SCART1_R

SCART1_G

SOG_2

SCART1_B

SCART0_Y

SCART0_FB

CVBS_OUT

ADC1VMID

ADC3VMID

N19

N18

P19

P20

L21

L20

K22

P18

R20

C402 47nF

C403 47nF

470PFC404

C405 47nF

C406 47nF

TP47

R405

R407

R409

R410

R411

100NFC414

100NFC416

100R

SCART0_R_SC

SCART0_G

100R

100R

SCART0_B

100R

SCART_0_CVBS_IN_SY

100R

SCART_0_FB

2 - 7

SCART
S400

Full SCART

SC_RIN
SC_LIN

SCART_0_DET

D400
21
20
19

TP38

18
17
16

TP39

15

TP40

14
13
12
11

TP41

10
9
8

TP42

7

TP43

6

TP44

5
4
3
2
1

TP45

TP46

SC_RIN

SC_LIN

SCART_0_DET

D404

SCART_0_FB
SCART0_R_SC

SCART0_G

SCART_0_DET
SCART0_B
SC_LIN

SC_RIN

SCART

C401

R400

330NH

75RR412

R401
47R

75RR413

100PF

75R %1

SCART_0_CVBS_IN_SY

SCART_0_DET:

75RR414

1.94V2.45V -> 4:3 Source

0.92V1.43V -> 16:9 Source
0V0.41V -> Inactive Source

D402

D405

R404

D406

100PF

R402 150R %1

R403 150R %1

10K
39KR406

R408
10K

C407

470PF

L400

C408

470PF

C409
180PF

C400

D403

GRUNDIG Service Chassis CN

ss

V

OUT

CE

Chassisplatte / Chassis Board – USB, Service

L800

3.3uH

C808
NC

33PF

R813

12K

BRI_ADJUST

C804

C805

10UF

R814

TP76

0R

R808
10k*4

USB0_D_P
USB0_D_N

USB1_D_P
USB1_D_N

USB_REXT

USB0_PWEN
USB1_PWEN

R822

0R

USB0_FLAG

AMP_RSTn

BS0
BS1
BS2

HPh_DETECT

PNL_EE_WP

USB1_FLAG

IC800

XC8107AC10MR-GW

5

VOUT

VIN

4

FLG

CE

VSS

10UF

2

TP83

VCC3.3V VCC3.3V

IC100G NT72453-BA

A22

USB0_D+

B22

USB0_D-

B23

USB1_D+

C23

USB1_D-

A23

USB_REXT

R7

UGPE12

USB0_PWEN/CI_HA10/Tensilica_TCK/GPE_12

R6

UGPE13

USB1_PWEN/CI_HA11/Tensilica_TMS/GPE_13

R5

LED_PWM0/CI_HA12/Tensilica_TDO/GPE_14

T6

LED_PWM1/CI_HA13/Tensilica_TDI/GPE_15

T5

LED_PWM2/YDIO/CI_HA14/Tensilica_TRST/GPE_16

U5

LED_PWM3/CI_HAD0/I2S_OUT_B_MCLK/GPE_17

U6

LED_PWM4/CI_HAD1/I2S_OUT_B_BCLK/GPE_18

V5

LED_PWM5/CI_HAD2/I2S_OUT_B_WS/GPE_19

V2

LED_PWM6/CI_HAD3/I2S_OUT_B_DATA/GPE_20

U3

UGPE21

LED_PWM7/CI_HAD4/I2S_OUT_C_MCLK/GPE_21

U1

GPE_22/3D_IR/3D_BT/3D_Active/CI_HAD5/I2S_OUT_C_BCLK

U2

UGPE23

GPE_23/LR0_DELAY/CI_HAD6/I2S_OUT_C_WS

V1

GPE_24/LR1_DELAY/CI_HAD7/I2S_OUT_C_DATA

A2

GPC_12/INT_7(BS0)

B1

GPC_13/INT_8(BS1)

B2

GPC_14/INT_9(BS2)

L2

GPD_26/BT_SHOP_VS_IN/BT_SHOP_LR_IN/CI_CE#

R2

GPE_4/CI_HA2

T3

GPE_5/CI_HA3

T2

GPE_6/FRC_Dimming1/DSU_BRE/CI_HA4

T1

GPE_7/FRC_Dimming2/DSU_ACT/CI_HA5

N5

GPE_8/DSU_TX/CI_HA6

N6

GPE_9/DSU_RX/CI_HA7

P7

GPE_10/DSU_EN/CI_HA8

P6

UGPE11

GPE_11/FR_PWM/LED_VS_OUT/CI_HA9

N7

RMII_MDIO/PTSOUT_D7/PTSIN2_D7/DEMODOUT_D7/GPD_23

M5

RMII_MDC/PTSOUT_D6/PTSIN2_D6/DEMODOUT_D6/GPD_22

K5

RMII_RX_D1/PTSOUT_D1/PTSIN2_D1/DEMODOUT_D1/GPD_17

K4

RMII_RX_D0/PTSOUT_D0/PTSIN2_D0/DEMODOUT_D0/GPD_16

G2

RMII_CRS/CI_RST/GPD_24

L1

RMII_RXERR/CI_CD_0#/GPD_25

M7

RMII_TX_D1/PTSOUT_D4/PTSIN2_D4/DEMODOUT_D4/GPD_20

L6

RMII_TX_D0/PTSOUT_D3/PTSIN2_D3/DEMODOUT_D3/GPD_19

M6

RMII_TX_EN/PTSOUT_D5/PTSIN2_D5/DEMODOUT_D5/GPD_21

L7

RMII_CLK/PTSOUT_D2/PTSIN2_D2/DEMODOUT_D2/GPD_18

1

3

R807
1K

TP74

R803

4.7K

C806
100NF

USB1_FLAG

C800
10UF

D801
132
4

NC

S800

U250FS004M1517WR

1

VBUS

2

D-

3

D+

4

GND

SHLD

SHLD

TP77

8

7

TP80

USB1_D_P
USB1_D_N

USBx2

L801

VCC5VVCC5V

3.3uH

C802

SHLD5SHLD

USB0_PWENUSB1_PWEN

6

TP82

NT72453

USB/GPIO

EtherNET

UART/I2C

UARTD_RX/I2C_MF_SDA/CI_HA0/CI_ALE0/GPE_2

I2CMA_SDA/PTSIN1_ERROR/STSIN0_ERROR/GPD_0

I2CMB_SDA/PTSIN1_VALID/STSIN1_VALID/GPD_2

I2CMB_SCL/PTSIN1_START/STSIN1_START/GPD_3

10UF

R815

0R

UARTA_TX/CI_IOWR#/GPD_29

UARTC_RX/CI_REG#/GPE_0

UARTD_TX/I2C_MF_SCL/CI_HWAIT#/GPE_1

I2CMA_SCL/PTSIN1_CLK/STSIN1_CLK/GPD_1

I2CMC_SDA/PTSIN1_D0/GPD_4
I2CMC_SCL/PTSIN1_D1/GPD_5

MIPS UART/I2C/ICE

MIPS GPIO

Ethernet

UART1_TX/STBC_GPG21/UARTB_TX

UART1_RX/STBC_GPG22/UARTB_RX
UART0_TX/I2CM0_SDA/I2C_S_SDA/STBC_GPG19
UART0_RX/I2CM0_SCL/I2C_S_SCL/STBC_GPG20

STBC UART/I2C

5

4

C803

10UF

R809
10k

UARTA_RX/CI_OE#/GPD_30

UARTB_TX/INT_5/GPC_4

UARTB_RX/INT_6/GPC_5

UARTC_TX/CI_WE#/GPD_31

MIPS-INT/INT_0/GPC_6

I2CM0_SDA/STBC_GPG31

I2CM0_SCL/STBC_GPH0

I2CM1_SDA/STBC_GPG23

I2CM1_SCL/STBC_GPG24

IC801

XC8107AC05MR-GW

1

VOUT

VIN

3

FLG

CE

VSS

2

I2CMD_SDA/GPC_16
I2CMD_SCL/GPC_15

I2CME_SDA/GPC_18
I2CME_SCL/GPC_17

I2CMF_SDA/GPC_20
I2CMF_SCL/GPC_19

MIPS-TRST/GPC_11

MIPS-TCK/GPC_7
MIPS-TMS/GPC_8
MIPS-TDI/GPC_10
MIPS-TDO/GPC_9

GPC_21
GPC_22
GPC_23
GPC_24

TP75

R802

4.7K

R805
1K

C807

100NF

USB0_FLAG

N3

N2
F3
E2

N1
P3
P1
P2

F2
G3
G1
H3

H1
H2
D3
C2

D1
D2

E1
E3

C3
E5
F4
D4
E4

F5

G5
G4
H6
H5

T22
T21
U21
U20

U19
U18
U23
U22

C801
10uF 10V

D802
4
132

NC

MIPS_UARTB_TX
MIPS_UARTB_RX
LNB_EN
FAULT

UGPD0

R816 22R

UGPD1

R817 22R

R821 22R

UGPD4

UGPD5

R823 22R

JTAG_TRST
JTAG_TCK
JTAG_TMS
JTAG_TDI
JTAG_TDO

STBC_TX1
STBC_RX1

Side USB BlockBACK USB BLOCK

S801

U250FS004M1517WR

1

VBUS

2

D-

3

D+

4

GND

TP78

TP79

8

TP81

USB0_D_P
USB0_D_N

TUN_SDA
TUN_SCL

AMP_SDA
AMP_SCL
MAIN_SDA
MAIN_SCL

PNL_SDA
PNL_SCL

MIPS JTAG

R801
47K

JTAG_TRST
JTAG_TDI
JTAG_TDO
JTAG_TMS

SHLD6SHLD7SHLD

SHLD

JTAG_TCK

5

MIPS UART

VCC3.3V

R811
10K*4

MIPS_UARTB_TX
MIPS_UARTB_RX

D804

D803

1 2

1 2

VCC3V3-ST

R812

10K*4

STBC_RX1
STBC_TX1

I2C

VCC3.3V

Pull Ups

R818
10k*4

AMP_SDA
AMP_SCL

PNL_SDA
PNL_SCL

TUN_SDA
TUN_SCL

MAIN_SDA
MAIN_SCL
AMP_SDA
AMP_SCL
FAULT
AMP_RSTn

BRI_ADJUST

PNL_EE_WP
HPh_DETECT

BS0
BS1
BS2

LNB_EN

R819

4.7k*4

MAIN_SDA
MAIN_SCL

PNL_SDA

PNL_SCL

TUN_SDA
TUN_SCL

MAIN_SDA

MAIN_SCL

AMP_SDA
AMP_SCL

FAULT

AMP_RSTn

BRI_ADJUST

PNL_EE_WP

HPh_DETECT

BS0
BS1
BS2

LNB_EN

JTAG_VCC

R800

4.7K*4

TP86

VCC3.3V

0RR825
0RR826

TPRx
TPTx

TP84

TP85

BD800

VCC3.3V

SERVICE SOCKET

S802

LEFT

RIGHT

GND

CKX-3.5-31(3P)

STBC UART

VCC3.3V

R820
10k*4

PNL_SDA
PNL_SCL

Chassisplatte / Chassis Board – PCMCIA-Interface

IC100F NT72453-BA

G11

SOC_CI_A0

SOC_CI_A1

SOC_CI_A2

SOC_CI_A3
SOC_CI_A4
SOC_CI_A5
SOC_CI_A6

SOC_CI_A7

SOC_CI_A8

SOC_CI_A9
SOC_CI_A10

SOC_CI_A11
SOC_CI_A12

SOC_CI_A13

SOC_CI_A14

SOC_CI_D0
SOC_CI_D1
SOC_CI_D2
SOC_CI_D3
SOC_CI_D4
SOC_CI_D5
SOC_CI_D6
SOC_CI_D7

SOC_CI_RSTn
SOC_CI_CD1n
SOC_CI_CEn
SOC_CI_IRQn
SOC_CI_OEn
SOC_CI_WEn
SOC_CI_REGn
SOC_CI_WAITn
SOC_CI_IORDn
SOC_CI_IOWRn

CI PULL UPS

SOC_CI_WAITn

VCC3.3V

CI_CD1n

CI_CD2n

R705

10K*4

CI_VCC

R711

10K*4

CI_MDI_7
CI_MDI_6
CI_MDI_5
CI_MDI_4
CI_MDI_3
CI_MDI_2
CI_MDI_1
CI_MDI_0
CI_MISTART
CI_MIVAL
CI_MICLK

CI_HA0/CI_ALE0/MIPS_UART_ D_RX/I2C_MF_SDA/GPB_2

F15

CI_HA1/CI_ALE8/I2S_IN_BCLK/GPB_3

G10

CI_HA2/GPB_4

D14

CI_HA3/GPB_5

D13

CI_HA4/FRC_Dimming1/DSU_BRE/GPB_6

G9

CI_HA5/FRC_Dimming2/DSU_ACT/GPB_7

E6

CI_HA6/DSU_TX/GPB_8

E7

CI_HA7/DSU_RX/GPB_9

F10

CI_HA8/DSU_EN/GPB_10

F9

CI_HA9/FR_PWM/LED_VS_OUT/GPB_11

F7

CI_HA10/Tensilica_TC K/USB0_PWEN/GPB_12

F13

CI_HA11/Tensilica_TMS/USB1_PWEN/GPB_13

D6

CI_HA12/Tensilica_TDO/LED_PWM_0/GPB_14

F6

CI_HA13/Tensilica_TDI/LED_PWM_1/GPB_15

D5

CI_HA14/Tensilica_TRST/LED_PWM_2/YDIO/GPB_16

G15

CI_HAD0/I2S_OUT_B_MCLK/LED_PWM_3/GPB_17

F14

CI_HAD1/I2S_OUT_B_BCLK/LED_PWM_4/GPB_18

G14

CI_HAD2/I2S_OUT_B_WS/LED_PWM_5/GPB_19

G13

CI_HAD3/I2S_OUT_B_DATA/LED_PWM_6/GPB_20

D9

CI_HAD4/I2S_OUT_C_MCLK/LED_PWM_7/GPB_21

G8

CI_HAD5/I2S_OUT_C_BCLK/3D_I R/3D_BT/3D_Active/GPB_22

D8

CI_HAD6/I2S_OUT_C_WS/LR0_DELAY/GPB23

F8

CI_HAD7/I2S_OUT_C_DATA/LR1_DELAY/GPB_24

C20

CI_RST/RMII_CRS/GPA_24

C16

CI_CD_0#/RMII_RXERR/GPA_25

B16

CI_CE#/BT_SHOP_VS_IN/BT_SHOP_LR_IN/GPA_26

C15

CI_IREQ#/SPDIF_IN/MPLL_TEST/GPA_27

E16

CI_OE#/MIPS_UART_A_RX/INT9/GPA_30

D16

CI_WE#/MIPS_UART_C_TX/INT1/GPA_31

D11

CI_REG#/MIPS_UART_C_RX/INT2/GPB_0

F11

CI_HWAIT#/MIPS_UART_D_TX/I2C_MF_SCL/GPB_1

B15

CI_IORD#/SPDIF_OUT/GPA_28

A15

CI_IOWR#/MIPS_UART_A_TX/INT8/GPA_29

R706

CI_CD1n
CI_CD2n

CI_CD1n
CI_CD2n

CI_MOCLK

CI_MOSTART
CI_MOVAL

CI_MDO_3
CI_MDO_2
CI_MDO_1
CI_MDO_0
CI_MDO_7
CI_MDO_6
CI_MDO_5
CI_MDO_4

CI CD LOGIC

1
2

IC701

5

VCC

43

GND

TP73

NC7SZ08P5X

22

R708

R714

SOC_CI_CD1n

CI_MDI_7
CI_MDI_6
CI_MDI_5
CI_MDI_4
CI_MDI_3
CI_MDI_2
CI_MDI_1
CI_MDI_0

CI_MISTART

CI_MIVAL
CI_MICLK

R703
10K*4

SOC_CI_OEn
SOC_CI_IORDn
SOC_CI_IOWRn
SOC_CI_WEn
SOC_CI_IRQn
SOC_CI_RSTn
SOC_CI_REGn

STSIN0_CLK/CI_CD_1#/INT_1/GPC_0

NT72453 GPIO

PTSIN1_ERROR/STSIN0_ERROR/I2C_MA_SDA/GPA_0

PTSIN1_CLK/STSIN1_CLK/I2C_MA_SCL/GPA_1

PTSIN1_VALID/STSIN1_VALID/I2C_MB_SDA/GPA_2

PTSIN1_START/STSIN1_START/I2C_MB_SCL/GPA_3

PTSIN1_D0/STSIN1_DATA/I2C_MC_SDA/GPA_4

PTSIN1_D4/I2S_IN_MCLK/DEMOD_Debug_LED/GPA_8

PTSIN2_ERROR/DEMODOUT_ERROR/I2S_OUT_A_MCLK/CI_CD1#/GPA_12

PTSOUT_VALID/PTSIN2_VALID/DEMODOUT_VAL ID/VIF_IF_AGC/DEMOD_IF_AGC/GPA_14

PTSOUT_START/PTSIN2_START/DEMODOUT_START/DEMOD_Emergency/GPA_15

NC C702

SOC_PTSIN1_CLK

22R*4

22R*4

22R*4R722

VCC3.3V

C705

100NF

10PF

SOC_PTSIN1_START
SOC_PTSIN1_VALID

SOC_PTSIN1_D3
SOC_PTSIN1_D2
SOC_PTSIN1_D1
SOC_PTSIN1_D0
SOC_PTSIN1_D7
SOC_PTSIN1_D6
SOC_PTSIN1_D5
SOC_PTSIN1_D4

PTSOUT_CLK/PTSIN2_CLK/DEMODOUT_CLK/GPA_13

PTSOUT_D0/PTSIN2_D0/DEMODOUT_D0/RMII_RX_D0/GPA_16
PTSOUT_D1/PTSIN2_D1/DEMODOUT_D1/RMII_RX_D1/GPA_17

PTSOUT_D2/PTSIN2_D2/DEMODOUT_D2/RMII_REF_CLK/GPA_18

PTSOUT_D3/PTSIN2_D3/DEMODOUT_D3/RMII_TX_D0/GPA_19
PTSOUT_D4/PTSIN2_D4/DEMODOUT_D4/RMII_TX_D1/GPA_20
PTSOUT_D5/PTSIN2_D5/DEMODOUT_D5/RMII_TX_EN/GPA_21

PTSOUT_D6/PTSIN2_D6/DEMODOUT_D6/RMII_MDC/GPA_22

PTSOUT_D7/PTSIN2_D7/DEMODOUT_D7/RMII_MDIO/GPA_23

SOC_PTSOUT_CLK

SOC_PTSOUT_START
SOC_PTSOUT_VALID

SOC_PTSOUT_D4
SOC_PTSOUT_D5
SOC_PTSOUT_D6
SOC_PTSOUT_D7
SOC_PTSOUT_D0
SOC_PTSOUT_D1
SOC_PTSOUT_D2
SOC_PTSOUT_D3

STSIN0_VALID/INT_2/GPC_1

STSIN0_START/INT_3/GPC_2

STSIN0_DATA/INT_4/GPC_3

PTSIN1_D1/I2C_MC_SCL/GPA_5

PTSIN1_D2/I2S_IN_DATA/GPA_6

PTSIN1_D3/I2S_IN_WS/GPA_7

PTSIN1_D5/I2S_OUT_A_DATA/GPA_9

PTSIN1_D6/I2S_OUT_A_WS/GPA_10

PTSIN1_D7/I2S_OUT_A_BCLK/GPA_11

NC C703

CI_MICLK

R707
22

R709

R715

R723

22R*4

22R*4

22R*4

10PF

CI_MISTART
CI_MIVAL

CI_MDI_4
CI_MDI_5
CI_MDI_6
CI_MDI_7
CI_MDI_0
CI_MDI_1
CI_MDI_2
CI_MDI_3

2 - 8

B4

PCM_PWR_EN1

C4

CI_OCP

B3
A3

B21

A21

SOC_PTSIN1_CLK

A20

SOC_PTSIN1_VALID

B20

SOC_PTSIN1_START

C19

SOC_PTSIN1_D0

B19

SOC_PTSIN1_D1

C18

SOC_PTSIN1_D2

B18

SOC_PTSIN1_D3

A18

SOC_PTSIN1_D4

C17

SOC_PTSIN1_D5

A17

SOC_PTSIN1_D6

B17

SOC_PTSIN1_D7

E20

F20

SOC_PTSOUT_CLK

D20

SOC_PTSOUT_VALID

F19

SOC_PTSOUT_START

D19

SOC_PTSOUT_D0

E19

SOC_PTSOUT_D1

F18

SOC_PTSOUT_D2

E18

SOC_PTSOUT_D3

F17

SOC_PTSOUT_D4

E17

SOC_PTSOUT_D5

D17

SOC_PTSOUT_D6

F16

SOC_PTSOUT_D7

453 CI_CMD -> CI CMD

R704

SOC_CI_D0
SOC_CI_D1
SOC_CI_D2
SOC_CI_D3

R710

SOC_CI_D4
SOC_CI_D5
SOC_CI_D6
SOC_CI_D7

22R*4

22R*4

CI SOCKET

CI_CD1n
CI_MDO_3
CI_MDO_4
CI_MDO_5
CI_MDO_6
CI_MDO_7

SOC_CI_IORDn
SOC_CI_IOWRn
CI_MISTART
CI_MDI_0
CI_MDI_1
CI_MDI_2
CI_MDI_3

CI_VCC CI_VCC

CI_MDI_4
CI_MDI_5
CI_MDI_6
CI_MDI_7
CI_MOCLK
SOC_CI_RSTn
SOC_CI_WAITn

SOC_CI_REGn
CI_MOVAL
CI_MOSTART
CI_MDO_0
CI_MDO_1
CI_MDO_2
CI_CD2n

CI_VCC- 100ms for rise and fall time
CI_MICLK - 5..20 ns for rise and fall time
CI_MOCLK - 5..20 ns for rise and fall time
CI_MOCLK -capacitive load shall be between 10pF and 50pF

CI POWER453 TS_OUT -> CI TS_INCI TS_OUT -> 453 TS_IN

CI_D0
CI_D1

+5V2_ST

CI_D2
CI_D3
CI_D4
CI_D5

LOW: OFF

CI_D6

HIGH: ON

CI_D7

PCM_PWR_EN1

S700 KON PCMCIA SINGLE KISA

35

GND

36

CD1#

37

MDO3

38

MDO4

39

MDO5

40

MDO6

41

MDO7

42

CE2#

43

VS1#

44

IORD#

45

IOWR#

46

MISTRT

47

MDI0

48

MDI1

49

MDI2

50

MDI3

51

VCC

52

VPP2

53

MDI4

54

MDI5

55

MDI6

56

MDI7

57

MOCLK

58

RESET

59

WAIT#

60

INPACK

61

REG#

62

MOVAL

63

MOSTART

64

MDO0

65

MDO1

66

MDO2

67

CD2#

68

GND GND

GND

72

IC700

L700

XC8107AC05MR-GW

5

VIN

TP70 TP71

4

C700

10UF

CE

R701

TP72

47R

R702

4.7K

XC8107

IN

UVLO Control Current Lim.

ON/OFF Control

each

Thermal Shutdown

circuit

1

GND

2

CI_D3

D3

3

CI_D4

D4

4

CI_D5

D5

5

CI_D6

D6

6

CI_D7

D7

7

SOC_CI_CEn

CE1#

8

SOC_CI_A10

A10

9

SOC_CI_OEn

OE#

10

SOC_CI_A11

A11

11

SOC_CI_A9

A9

12

SOC_CI_A8

A8

13

SOC_CI_A13

A13

14

SOC_CI_A14

A14

15

SOC_CI_WEn

WE#

16

SOC_CI_IRQn

READY

17

VCC

18

VPP1

19

CI_MIVAL

MIVAL

20

CI_MICLK

MICLK

21

SOC_CI_A12

A12

22

SOC_CI_A7

A7

23

SOC_CI_A6

A6

24

SOC_CI_A5

A5

25

SOC_CI_A4

A4

26

SOC_CI_A3

A3

27

SOC_CI_A2

A2

28

SOC_CI_A1

A1

29

SOC_CI_A0

A0

30

CI_D0

D0

31

CI_D1

D1

32

CI_D2

D2

33

WP

34

GND

SHIELD

SHIELD

SHIELD71SHIELD

70

VOUT

2

GND

VSS

69

FLG

CI_MICLK

1

3

R728

47K

C706

C701

10UF

R729 100R

Reverse Current Prevention

Current Sense

V

GNDGND

NC

GND

CI_VCC

R700
10K

VCC3.3V

CI_OCP

C704

100NF

V

7.5ms Delay4ms Delay
FLG

GRUNDIG Service Chassis CN

Vc

T

MR

6

∞

§

≥

Chassisplatte / Chassis Board – IR/LED, Keyboard, Flash

6

S601

P4

GND

P3
P2
P1

GND

5

KEY_ADC
HDMI_A_HP
SCART_0_DET
HDMI_B_HP
AMP_PDn

LED_PWM

PANEL_ON

STBC_RSTn
STBC_PW_EN

STBC_RSTout

4
3
2
1

+5V2_ST

TP61

D600

R620

22R

R610

L600

D601

BS6
BS7
BS8
BS9

BS11
BS12
BS13
BS14

GPG13
GPG14
GPG15
GPG16
GPG17
GPG18

0RR824BL_EN

GPG28

BS18

STBC_IR

BS10

10K*4

STBC_IR
LED

R605

D602

AB18

AA19

AC18

AA18

AB19
AB20

AA20

AB21

AA21

C600

47pF

Y19

Y20

Y21

Y22

W22
W20

V20
V19

T19
T18

W21

Y18

W18

V18

U17

1K

R608

2.2K

IC100D NT72453-BA

STBC_GPF_11(BS6)

STBC_GPF_12(BS7)

STBC_GPF_13(BS8)

STBC_GPF_14/TEST_MODE_0(BS_9)

STBC_GPG_9(BS11)
STBC_GPG_10(BS12)
STBC_GPG_11(BS13)
STBC_GPG_12(BS14)

SAR_ADC0/STBC_GPG13

SAR_ADC1/STBC_GPG14/SD_CD#
SAR_ADC2/STBC_GPG15/SD_WP

SAR_ADC3/STBC_GPG16/SD_PWEN#
SAR_ADC4/STBC_GPG17/SD_CLK
SAR_ADC5/STBC_GPG18/SD_CMD

SAR_ADC6/STBC_GPG27
SAR_ADC7/STBC_GPG28

SAR_ADC8/STBC_GPG29(BS18)

VGA_SDA
VGA_SCL

/STBC_GPG25

/STBC_GPG26

STBC_IR/STBC_GPF16
STBC_RSTn
PW_EN

STBC_GPF17/STBC_RSTout(BS10)

TEST_EN

VCC3V3-ST

R601

32

1

10K*4
T600
BC847B

SPI_HOLD(DIO3)/STBC_GPF24(BS5)

IR + LED

TP for Reset
TP87 STBC_RSTn

LED_PWM

NAND_D0/SD_DAT0/STBC_GPF25
NAND_D1/SD_DAT1/STBC_GPF26

NAND_D2/SD_DAT2/STBC_GPF27
NAND_D3/SD_DAT3/STBC_GPF28

NAND_D4/STBC_GPF29
NAND_D5/STBC_GPF30
NAND_D6/STBC_GPF31

NAND_D7/STBC_GPG0

NAND_RE#/STBC_GPG6

NAND_WE#/STBC_GPG3

NAND_ALE/STBC_GPG4(BS3)

NAND_CLE/STBC_GPG2(BS15)

NAND_CE0#/STBC_GPG7

NAND_CE1#/STBC_GPG8(BS17)

NAND_WP#/STBC_GPG5

NAND_RB#/STBC_GPG1

SPI_DO(DIO0)/STBC_GPF22(BS4)

SPI_DI(DIO1)/STBC_GPF21

SPI_CLK/STBC_GPF20
SPI_CS0/STBC_GPF18

SPI_CS1/STBC_GPF19

SPI_WP#(DIO2)/STBC_GPF23

NT72453

STBC

Flash

XTAL_OUT

XTAL_IN

AUX_RST

R606

NC

C601

100nF

IC600

3

MR

VCC4GND

APX811-29UG-7

R613
R614

V8

NAND_D0

W8

NAND_D1

Y8

NAND_D2

V9

NAND_D3

Y9

NAND_D4

W9

NAND_D5

V10

NAND_D6

W10

NAND_D7

W12

NAND_REn

Y11

NAND_WEn

V12

NAND_ALE_BS3

W11

NAND_CLE_BS15

V13

NAND_CE0n

W13

NAND_CE1n_BS17

Y12

NAND_WPn

V11

NAND_R/Bn

AC22

BS4

AB23

ADAPTOR_DETECT

AC21
AA23

AA22

AB22

BS5

Y23

V22
V23

R622

100R

R623

C609

12PF

RST

1M

X600 12MHz

2

4

NCR611
10KR612

15.4K
1K

R621

100R

C610

12PF

R600
1K

R603
470R

R604

R607

1K

270R

TP67

C603

C605

47pF

100nF

NAND FLASH 8BIT

I/O0

I/O1

I/O2

I/O3

I/O4

I/O5

I/O6

I/O7

NC1
NC2
NC3
NC4
NC5

NC6

NC10
NC11
NC14
NC15
NC20
NC21
NC22
NC23
NC24

NC25
NC26
NC27
NC28

NC33

NC34

1 2

3

1 2

3

1 2

3

1 2

3

29

NAND_D0

30

NAND_D1

31

NAND_D2

32

NAND_D3

41

NAND_D4

42

NAND_D5

43

NAND_D6

44

NAND_D7

1
2
3
4
5

6

10
11
14
15
20
21
22
23
24

25
26
27
28

33

34

S600

4

(+)

S602
V/P

4

S603

4

(-)

S604

ST-BY

4

Power on (trigger: VCC)

NAND_ALE_BS3

BS4
BS5
BS6
BS7
BS8

BS9
BS10
BS11
BS12
BS13
BS14

NAND_CLE_BS15

NAND_CE1n_BS17

BS18

STBC_PW_EN

STBC_RSTn

PANEL_ON

AUX_RST
AMP_PDn

SCART_0_DET

HDMI_A_HP
HDMI_B_HP

ADAPTOR_DETECT

BL_EN

NAND_ALE_BS3
BS4
BS5
BS6
BS7
BS8
BS9
BS10
BS11
BS12
BS13

BS14
NAND_CLE_BS15
NAND_CE1n_BS17

BS18

STBC_PW_EN

STBC_RSTn

PANEL_ON

AUX_RST

AMP_PDn

SCART_0_DET

HDMI_A_HP

HDMI_B_HP

ADAPTOR_DETECT

BL_EN

6

Driver
Delay
Circuit

APX811/812

BD601

BD602

NC

NAND_WPn

NAND_ALE_BS3

NAND_CE0n

NAND_WEn

NAND_REn

NAND_CLE_BS15

NAND_R/Bn

R617

0R

C607

C606

100nF

100nF1UF

KEYPAD

KEY_ADC

RESE

NAND_3V3

TP68

VCC3V3-ST

R609 100R

IC601

NAND FLASH

19

WP

17

ALE

9

CE

18

WE

8

RE

16

CLE

7

R/B

38

NC

12

VCC

37

VCC

13

VSS

36

VSS

45

NC45

46

NC46

47

NC47

48

NC48

40

NC40

39

NC39

35

DNU

MX30LF1G08AA-TI

STBC RESET

R602

2

TP63

TP64

100R

1

VCC3V3-ST
+5V2_ST

c

Vref

VCC3V3-ST

VCC3.3V

NAND_3V3

R616

4.7K*4

NAND_3V3

C608

13

Chassisplatte / Chassis Board – LVDS

LVDS for FHD Cells (32",43",50",55")

8/10 bit DUAL LVDS PANEL

PNL_SCL
PNL_EE_WP PNL_EE_WP
PNL_SDA

LVO_0_N
LVO_0_P
LVO_1_N
LVO_1_P
LVO_2_N
LVO_2_P
LVO_CLK_N
LVO_CLK_P

LVO_3_N
LVO_3_P
LVO_4_N
LVO_4_P

LVE_0_N
LVE_0_P
LVE_1_N
LVE_1_P
LVE_2_N
LVE_2_P
LVE_CLK_N
LVE_CLK_P

LVE_3_N
LVE_3_P
LVE_4_N
LVE_4_P

R302
100R*4

R303
0R*4

R304
0R*4

R305
0R*4

R308
0R*4

R309
0R*4

R310
0R*4

TP13
TP14
TP15
TP16
TP17
TP18
TP19
TP20

TP21
TP22

TP25
TP26
TP27
TP28
TP29
TP30
TP31
TP32

TP33
TP34

TP9
TP10
TP11

TP12

RXO0_N
RXO0_P
RXO1_N
RXO1_P
RXO2_N
RXO2_P
RXOC_N
RXOC_P

RXO3_N
RXO3_P

0RR306

RXO4_N

0RR307

RXO4_P

RXE0_N
RXE0_P
RXE1_N
RXE1_P
RXE2_N
RXE2_P
RXEC_N
RXEC_P

RXE3_N
RXE3_P

0RR311

RXE4_N

0RR312

RXE4_P

PANEL_PWR

VESA

R313
0R

TP23
TP24

TP35
TP36

TP37

S300

51

P51

50

P50

49

P49

48

P48

47

P47

46

P46

45

P45

44

P44

43

P43

42

P42

41

P41

40

P40

39

P39

38

P38

37

P37

36

P36

35

P35

34

P34

33

P33

32

P32

31

P31

30

P30

29

P29

28

P28

27

P27

26

P26

25

P25

24

P24

23

P23

22

P22

21

P21

20

P20

19

P19

18

P18

17

P17

16

P16

15

P15

14

P14

13

P13

12

P12

11

P11

10

P10

9

P9

8

P8

7

P7

6

P6

5

P5

4

P4

3

P3

2

P2

1

P1

LVDS for HD Cells (28" and 32")

52

8 bit SINGLE LVDS PANEL

GND

25

26

27

GND

53

RXE3_P
RXE3_N

RXEC_P
RXEC_N

RXE2_P
RXE2_N

RXE1_P
RXE1_N

RXE0_P
RXE0_N

VESA

PANEL_PWR

LVO_0_N
LVO_0_P
LVO_1_N
LVO_1_P
LVO_2_N
LVO_2_P
LVO_CLK_N
LVO_CLK_P
LVO_3_N
LVO_3_P
LVO_4_N
LVO_4_P

B5
A5
C5
A6
B6
C6
B7
C7
B8
A8

C8
A9

B9
C9

10

11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

1
2
3
4
5
6
7
8
9

IC100B

S301

P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11

P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
P23
P24
P25
P26
P27
P28
P29
P30

LVO_0­LVO_0+
LVO_1­LVO_1+
LVO_2­LVO_2+
LVO_CLK­LVO_CLK+
LVO_3-

LVO_3+
LVO_4­LVO_4+

NC
NC

PNL_SDA

NT72453

LVDS

PNL_SCL

VESA

31

P31

32

P32

PNL_SDA
PNL_SCL

PNL_EE_WP

R300 4.7K

0RR301

NT72453MBG-BA-B

LVE_0-

LVE_0+

LVE_1-

LVE_1+

LVE_2-

LVE_2+

LVE_CLK-

LVE_CLK+

LVE_3-

LVE_3+

LVE_4-

LVE_4+

REXT_LVDS

VCC3.3V

C10
B11
A11
C11
A12
B12
C12
B13
C13
B14
A14
C14

B10

LVE_0_N
LVE_0_P
LVE_1_N
LVE_1_P
LVE_2_N
LVE_2_P
LVE_CLK_N
LVE_CLK_P
LVE_3_N
LVE_3_P
LVE_4_N
LVE_4_P

2 - 9

GRUNDIG Service Chassis CN

LRCLK

T

HPR_INHPL_IN

8

9

0

!

•

ª

º

⁄ 32‹ › fi

Chassisplatte – Verstärker / Chassis Board – Amplifier

EAR_OUT_L

28
29
30
31

11
10

9

8

32

C513

3.3NF

AUDIO POWER

FAULT

I2S_A_LRCLK
I2S_A_BCLK
I2S_A_BCLK
I2S_A_DATA
AMP_PDn

AMP_SDA
AMP_SCL

VCC3.3V

AMP_RSTn

AUX_RST

EAR_OUT_R

EAR_OUT_L

SC_LIN
SC_RIN

R525
1k

C502

C514

3.3NF

2.2UFC544

100NFC545

R508

0R

R512 1k

R515

100R*4

R517

10K

D504

1

2

BAT54CW-7-F

10UF

10UF

C503

R-CLow Pass Filter:
Fc=1/2*3.14*(R+Rint)*C
Fc = 45kHz
Rint=600Ohm

470RR502
470RR503EAR_OUT_R

AUD_VRM

AUD_VRP

AUD_VCM

100NFC547

2.2UFC546

VCC3.3V

I2C ADDRESS: 46

R509
100R*4

C540

C541

C542

33PF

33PF

33PF

3

T500

BC847BW

1UFC570

1UFC575

IC100E NT72453-BA

E21

BD500

C543

33PF

2

0R

3
3

2

ADIN_L0

F23

ADIN_R0

F22

ADIN_L1

F21

ADIN_R1

G22

ADIN_L2

G21

ADIN_R2

NT72453

AUDIO/IF

VIF_IF_AGC/DEMOD_IF_AGC/PTSOUT_VALID/PTSIN2_VALID/DEMODOUT_VALID/GPD_14

C22
C21
D22
D21

E22
E23

G18

R506
15K

1

R513
100K

D503
BAT54CW-7-F

1

DEMOD_Emerg/PTSOUT_START/PTSIN2_START/DEMODOUT_START/GPD_15

DACOUT_L0
DACOUT_R0
DACOUT_L1
DACOUT_R1

AUD_VRM
AUD_VRP

AUD_VCM

4.7NFC504

47NFC507

R500
470R

4.7NFC509
R501

47NFC515 470R

IC500

12

TAS5739MD

C519

C521

100NF

10UF

C522
10UF

R514

4.7K

BAT54CW-7-F

R535 10K*4

C532
100NF

RES_AUD

VCC3.3V

VCC3V3-ST

D500

C564

4.7UF

1

13
14
15
16
17
18
19
20
21
22
23
24

C555

100NF

3

2

3

AVDD
A0/FAULT
MCLK
NC
DVSS
VR_DIG
/PDN
LRCLK
SCLK
SDIN
SDA
SCL

VCC_AUDIO

2

R528
NC

R530

1K

1
IC502

AP432SRG-7

VR_ANA

/RESET

25

R531

6.2K

R537

6.2K

I2S_OUT_A_DATA/PTSIN1_D5/GPD_9

I2S_OUT_A_WS/PTSIN1_D6/GPD_10

I2S_OUT_A_BCLK/PTSIN1_D7/GPD_11

I2S_OUT_A_MCLK/PTSIN2_ERROR/GPD_12

I2SIN_DATA/PTSIN1_D2/GPD_6

I2SIN_WS/PTSIN1_D3/GPD_7

I2SIN_BCLK/CI_HA1/CI_ALE8/GPE_3

I2SIN_MCLK/PTSIN1_D4/GPD_8

SPDIF_IN/CI_IREQ#/GPD_27

PTSOUT_CLK/PTSIN2_CLK/DEMODOUT_CLK/GPD_13

11

10

9

PLL_FLTP

PLL_FLTM

DVDD27DVSS

STEST

28

26

R524

84.5K

R518

2.7K

SPDIF_OUT/CI_IORD#/GPD_28

C505
1UF

2.2NF

C508

C510

C517

100NF

8

AVSS

29

100nF

6

3

4

5

7

2

1

GND

VREG

AGND

BST_A

PVDD_A

PGND_AB

SSTIMER

GVDD_OUT

PVDD_B

PVDD_C

PGND_CD

PVDD_D

HPVSS

HPR_IN

CPN35CPP

HPL_IN30HP_GND31HPR_OUT32HPL_OUT

36

33

34

C556
10UF

R516

VCC_AUDIO = 12V R524: 30.9K %1
VCC_AUDIO = 24V R524: 84.5K %1

EPAD

OUT_A

OUT_B

BST_B
BST_C

OUT_C

OUT_D

BST_D

HPVDD

22R*4

C550
1UF

AMP_RSTn
FAULT

R519 100R

L506

TP50

C511
220NF

C520
220NF

TP51

TP52

C529
220NF

C537
220NF

TP53

AMP_PDn
AMP_SDA
AMP_SCL

HPh_DETECT
AUX_RST

SC_RIN
SC_LIN

SOC_IFAGC
D_IF_SoC_P
D_IF_SoC_N

DEMOD_RST

TP60

C560

100nF

K2

I2S_A_DATA

K1

I2S_A_LRCLK

L3

I2S_A_BCLK

J5

I2S_A_MCLK

TP48

J3
J2
R3
K3

DEMOD_RST

M3

M2

J6
J4
K6

J22

SIF+

J23

SIF-

H23

DEMOD+

H22

DEMOD-

J18

IF_2+

J19

IF_2-

V15

NC

W15

CLK_OUT

33NFC506

49

48
47
46

C523

45

100nF
44
43

C527

42

100nF

41
40
39

C533
38

100nF
37

C538

VCC3.3V

1UF

C552

C551

10uF

10uF

35V

35V

C559

C558

10nF

10nF

SPDIF_OUT

GPD14

34

C524

33NF

C530

33NF

C535

33NF

VCC_AUDIO

C553
10uF
35V

HPR
HPL

C548
NC

TP55

C554
10uF
35V

TP56

TP57

D501 D502

TP49SPDIF_IN

100RR504

SOC_IFAGC

D_IF_SoC_P

0RR510

0RR511

C528
330PF

C518
330PF

34

L504
30R

4A

33

R529
10K

R533
100R

RP502
100R*4

RP504
100R*4

TP58

RP501
100R*4

TP54

C549
NC

D_IF_SoC_N

RP503
100R*4

VCC24V

S501

3
2

4
1

PHONE_JACK_PJ-3600

VCC3.3V

HPh_DETECT

L500

NR 6045T 220M

C516
330PF

L501

NR 6045T 220M

L502

NR 6045T 220M

C534
330PF

L503

NR 6045T 220M

C512
220NF

SPDIF_OUT

VCC3.3V

C531
220NF

TP59

R505

C561

10k

10pF

SP_LEFT+
SP_LEFT­SP_RIGHT­SP_RIGHT+

MOLEX_5025850470

AMP_RSTn

FAULT

AMP_PDn

AMP_SDA

AMP_SCL

HPh_DETECT

AUX_RST

SC_RIN
SC_LIN

SOC_IFAGC
D_IF_SoC_P

D_IF_SoC_N

DEMOD_RST

SPDIF OUT

S502

1

Vin

2

Vcc

3

GND

OPT-111

5

S500

1

P1

2

P2

3

P3

4

P4

6

GND

GND

SHIELD

4

35

SHIELD

5

Serial
Audio

SDIN

Port

Sample Rage

MCLK

Autodetect

SCLK

and PLL

SDA

Serial

SCL

Control

Terminal Control

Power on (trigger: VCC)

L

R

7 BQ

7 BQ

DAP

Microcontroller

Based
System
Control

VOLUME

DRC

Click and Pop

th

4
Order
Noise

SRC

Shaper

and

PWM

Control

TAS5739

Power on (trigger: VCC)

2HB

FETOut

2HB

FETOut

Protection

Logic

OUT_A
OUT_B

OUT_C
OUT_D

HPL_OUT

HPR_OU

2 - 10

GRUNDIG Service Chassis CN

10

20

30

40

50

Y

0102030405060708090 100 110 120 130 140

X

10

20

30

40

50

Y

0102030405060708090100110120130140

X

VLED

VIN

33K+2.2K Rlower=3.3K==>3.3K+0R

VLE

330NF

C2012

D2011

D2012

1

2

3

LED-Konverter / Converter ZNL193-05 Ansicht von der Bestückungsseite / View of Component Side

POS. X Y

C2000 T 132 14
C2001 T 56 12
C2002 B 37 25
C2003 T 132 14
C2004 B 42 49

C2005 B 47 45
C2006 B 45 35
C2007 B 49 49
C2008 T 99 53
C2009 B 34 25

C2010 B 34 21
C2011 T 118 22
C2012 T 18 29
C2013 T 56 12
C2014 T 103 49

C2015 B 46 29
C2016 T 91 49
C2017 T 104 40
C2018 T 62 24
C2019 T 12 32

D2000 T 75 16
D2001 T 97 57
D2002 T 109 50
D2003 T 28 32
D2004 T 95 42

D2005 T 75 12
D2006 B 66 38
D2007 T 99 42

Ansicht von der Lötseite / View of Solder Side

D2009 T 97 58
D2010 T 109 50

D2011 T 75 16
D2012 T 75 12
D2013 T 95 42
D2014 T 99 42

0

MH1

1

S2001

C2019

VLED=144V ILED=330mA

VLED=208V ILED=270mA

VLED=270V ILED=310mA

43

49

55

C2012

POZA1

C2001

MH2

L2005

3

L2009

L2006

R2029

L2008

L2007

J2005

J2004

J2006

D2003

RTV

AREA

C2013

RTV

J2009

AREA

TRANSPORT LINE

FID3

ER2000 T 82 16
IC2000 B 35 33
J2001 T 62 35

J2002 T 49 24
J2003 T 57 43
J2004 T 47 45
J2005 T 36 47

J2006 T 40 29
J2007 T 87 43
J2009 T 49 26
J2012 T 127 12

L2001 T 86 16
L2002 T 101 20
L2003 T 85 54
L2004 T 81 50
L2005 T 19 45

L2006 T 27 40
L2007 T 33 49
L2008 T 29 49
L2009 T 25 49
L2010 T 62 19

R2000 B 22 49
R2001 B 26 49
R2002 B 29 47
R2003 B 34 48
R2004 B 65 32

R2005 B 29 21
R2006 B 26 25
R2007 B 30 25
R2008 B 32 25
R2009 B 32 21

R2010 B 63 12

POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y

R2011 B 52 49
R2012 B 52 45
R2013 T 123 41
R2014 B 42 45
R2015 B 45 45

R2016 T 118 41
R2017 B 62 37
R2018 B 69 37
R2019 B 32 47
R2020 B 60 11

GND

12V

D

3

L2006

FID2

R2021 T 113 41
R2022 B 39 25
R2023 B 42 53
R2024 B 43 37
R2027 B 45 49

R2028 B 47 35
R2029 T 24 27
R2031 B 49 45

S2000 T 68 54
S2001 T 13 43

PSU

TP4

1 2
3 4

TP3

5 6

TP8

7 8
9 10

DIM2

12

11
13 14
15 16

1
2
3
4

Panel

P1
P2
P3
P4

S2001

EN

DIM1

TP28

DIM0

DIM1

DIM0

TP24

J2004

JUMPER

R2024

TP35

R2028

BL

TP10

TP12

S2000

TP36

L2005

TP22

TP42

C2019 (ZNL-193-05): C-PEM 22NF J 100V R:5 AP

C2019 (ZNL-193-05): C-PEM 22NF J 250V R:5 AP

GND

BL

R2023

TP34

R2027

GND GND

LED_Winding_2
LED_Winding_1

LED_Winding_3

L2009

TP5

TP9
TP11

PWM1

L2008

PWM1

L2007

LED_Cur_Return

PWM1

PWM

BARCODE

T2000 B 74 32
T2001 T 69 22

TP1 B 127 48
TP2 B 74 13
TP3 B 74 51
TP4 B 79 56
TP5 B 31 44

TP6 B 78 21
TP7 B 24 51
TP8 B 71 49

PWM1

GND

BARCODE

J2002

R2005

D2003

R2011

PSU

DIM2

DIM1

DIM0

BL

12V

J2003

J2001

C2018

+

L2010

55''

55''

TP9 B 30 56
TP10 B 45 54
TP11 B 35 56
TP12 B 50 29
TP13 B 100 44

TP15 B 50 13
TP16 B 27 46
TP17 B 28 49
TP18 B 116 17
TP20 B 59 30

TP1

C2008

D2009

L2003

L2004

C2015

C2006

C2009

C2010

D2001

TP29

C2016

D2013

TP38

J2007

GND

1UF 50V

R2006

R2007

TP43

1NF50V

50V

1UF

R2009

1UF 50V

TP55

3.3K

1UF 50VC2020

Current Level
43"= 340mA ==> Rupper=35,2K ==>

S2000
LED W2

GND

T2001

1

L2004

LED W1

LED W3

14/15

1

D2011

ER2000

D2000

D2005

D2012

R2023

R2011

R2027

C2007

C2004

D2006

R2018

R2012

R2014

R2031

R2015

C2005

J2012 J2000

C2014

D2010
D2002

+

TP30

C2000
47UF

TP13

160V

C2003
+

C2017

450V

D2014
D2007D2004

47UF

TP41

TP23

12V

TP44

TP49

JUMPER

J2006

TP56

IC2000
1
3
7

16

5

15

FAN73402MX

J2003

R2012

JUMPER

0R

82K82K
82K

PWM

2.2KR2008
33K

55''

L2003

D2001

C2016

J2007

D2013

2

31

L2001

6

2

R2017

R2004

R2010

R2020

TP21 B 40 47
TP22 B 16 47
TP23 B 65 47
TP24 B 31 38
TP25 B 68 39

TP26 B 67 31
TP27 B 56 29
TP28 B 27 56
TP29 B 87 54
TP30 B 91 43

TP18

9

R2016

R2013

R2021

C2011

330NF
450V

1

DRAIN
DRAIN

SENSE

FAULT

DRV

CS

OVP

CMP

ENA

VCC
GND
RT

BDIM

REF

ADIM

D2009

C2008

D2004

D2014

D2007

R2024

C2006

R2028

C2015

6

L2002

2

T2000

FDPF5N50NZF

23

23

T2001

FQN1N50C

J2001

1

1

R2004

TP20

TP37

R2010

TP26

TP27

J2009

2

JUMPER

4

TP31

C2002

13

OVP

C2005

R2031

14

TP39

12

EN

9
10

LED_Cur_Return

8

C2019 (ZNL-193-07):

6

C-PEM 22NF J 100V R:5 AP
C-PEM 22NF J 250V R:5 AP

55''

D2002

D2010

R2021

C2014

55''

C2017

L2002

10

9

8

R2001

R2003

R2019

IC2000

1

TP31 B 37 27
TP34 B 40 50
TP35 B 41 36
TP36 B 19 32
TP37 B 71 36

TP38 B 125 10
TP39 B 37 39
TP40 B 49 47
TP41 B 52 9
TP42 B 19 43

ER2000

TP2

D2005

L2001

TP6

C2018

R2002

J2002

R2019

R2003

ISENSE

TP21

R2014

R2020

R2018

TP25

D2006

1

3

2

BAT54C

R2017

470PF50V

TP48

1NF 50V

C2007

TP40

J2005

C2004

JUMPER

TP54

ZNL193-05

C2003

R2016

R2013

55''

55''

C2011

CEM1

J2012

R2000

R2002

R2008

R2022

C2009

C2002

C2010

R2009

L2010

D2000

R2000

TP7

R2001

TP17TP16

OVP

R2015

OVP Level = Vomax * 1,3
Pin OVP Level =3V

43"= 155*1,3=201,5V ==> 6,8K//68KK ==> 197V
49"= 227*1,3=295V ==> 4,7K//33K ==> 296V
55"= 290*1,3=377V ==> 3,3K//NC==> 367V

ISENSE

330RR2022

4.7NF 50V

1NF 50V

R2029

C2021

MH4
POZA2

RTV

AREA

C2000

RTV

AREA

+

+

MH3

FID4

R2006

R2007

FID1

R2005

TP43 B 28 23
TP44 B 26 27
TP48 B 64 51
TP49 B 34 27
TP50 B 32 23

TP54 B 24 22
TP55 B 52 47
TP56 B 37 19

TP15

C2001

C2013

+

+

450V

250V

47UF

47UF

GND

0

450V

2 - 11

100

110

120

130

140

150

0

X

Netzteil / Power Supply ZNV194-03 Ansicht von der Bestückungsseite / View of Component Side

GRUNDIG Service Chassis CN

POS. X Y POS. X Y

C2000 T 44 44
C2001 T 25 44
C2002 T 71 82
C2003 B 137 75
C2004 B 143 71

C2005 T 182 139
C2006 T 177 129
C2007 B 167 139
C2008 T 209 110
C2009 B 210 84

C2010 T 42 67
C2011 B 46 101
C2012 B 57 102
C2013 B 52 92
C2014 T 91 13

C2015 T 81 13
C2016 T 41 102
C2017 T 93 32
C2018 B 80 138
C2019 B 78 126

C2020 T 59 116
C2021 T 127 32
C2022 T 117 13
C2023 T 110 13
C2024 B 139 71

C2025 T 174 115
C2026 B 88 127

2 - 12

C2027 T 171 139
C2500 B 187 35
C2501 B 190 37

C2502 B 187 40
C2503 T 187 42
C2504 T 187 53
C2505 B 194 97
C2506 B 188 82

C2507 T 171 41
C2508 T 177 32
C2509 T 171 52
C2510 B 193 37
C2511 B 196 36

C2512 B 193 77
C2513 B 198 99
C2514 B 196 87
C2515 B 194 87
C2516 B 178 104

C2517 B 188 105
C2518 B 185 82
C2520 B 190 101
C2521 B 195 90

D2000 T 166 119
D2001 B 35 84
D2002 T 166 99
D2003 T 68 61
D2004 B 37 93

D2005 T 34 55
D2006 T 52 97
D2007 B 45 27
D2008 B 40 29
D2009 B 84 124
D2010 B 96 129

D2011 B 66 136
D2012 T 166 79
D2013 T 170 107
D2500 T 182 26
D2501 T 182 23

D2502 B 185 29
D2503 B 180 29
D2505 B 198 79
D2506 T 185 69
D2507 T 175 76

D2508 B 183 28
D2509 B 187 109

DB2000 T 57 29

EL2000 T 129 98
EL2001 T 166 99
EL2002 T 166 79
EL2003 T 166 119
EL2004 T 39 74

EL2005 T 129 74
EL2007 T 50 76
EL2008 T 50 56
EL2009 T 58 61
EL2010 T 58 81

EL2011 T 65 66
EL2012 T 65 86
EL2013 T 74 74
FS2000 T 142 51
FS2001 T 194 145

FS2002 T 193 140

HS2000 T 145 99
HS2001 T 19 84

IC2000 B 52 100
IC2001 B 68 111
IC2002 B 83 137
IC2003 T 82 130
IC2500 B 187 89

J2000 T 52 93
J2001 T 99 44
J2002 T 178 123
J2003 T 88 31
J2004 T 36 111

J2005 T 34 20
J2006 T 64 125
J2007 T 180 121
J2008 T 199 101
J2009 T 197 123

J2010 T 195 125
J2011 T 193 120
J2012 T 157 71
J2500 T 165 92
J2501 T 183 89

J2502 T 197 69
J2503 T 165 89
J2504 T 204 81
J2505 T 202 86
J2506 T 203 113
J2507 T 195 55
J2508 T 193 61

90

80

70

60

50

40

30

20

10

0

Y

0102030405060708090 100 110 120 130 140 150 160 170 180 190 200 210 22

POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y

J2509 T 190 61
J2510 T 209 65
J2511 T 205 63
J2512 T 202 63
L2000 T 189 128
L2001 B 44 99
L2002 T 73 31

POZA1

MH4

MH7

HS2001

DANGER!

LIVE PART

MH1

L2003 T 43 116
L2004 T 68 122
L2005 T 110 31
L2006 T 73 31
L2007 T 73 31
L2008 T 110 31
L2009 T 110 31

RTV

AREA

RTV
AREA

MH8

15

T1

J2004

L2003

C2016

+

1

EL2004

C2010

D2005

L2013

CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH SAME TYPE AND RATING OF FUSE

+

J2005

AREA

T2000

RTV

AREA

RTV

T5

T4T2

T3

C2020

D2006

J2000

EL2010

EL2007

R2009

R2008

YYY=12.5mm

YYY=12.5mm

EL2009

EL2008

+

0002C1002C

DB2000

CEM1

HI-POT

J2006

L2004

3

EL2012

C2002

R2010

YYY=12.5mm

L2016

EL2011

YYY=

D2003

L2007

+

-

L2002

IC2003

OK

DANGER!

LIVE PART

TR2000

21

4

7

EL2013

2

m

5m

12.

R2002

R2011

RTV

AREA

PRIMARY

J2003

J2001

L2006

C2015

C2017

C2014

MH5

SECONDARY

ZNV194-03

L2009

L2008

L2005

C2023

MH6

C2022

AC INPUT

C2021

EL2000

EL2005

12

1011

9

8

AC IN

SG2001

220V-240V

1A,50-60Hz

R2005

R2001

FUSE T 2A L 250V

L2017

L2014

L2019

S2003

N

L2015

HS2000

FS2000

S2002

L2018

L

SG2000

TRANSPORT LINE

L2003

E

D2000

EL

D2002

EL2002

D2012

+

+

J2012

2001

+

+

D2013

C2027

+

C2006

J2500

J2503

C2508

D2501

D2507

L2500

+

L2505

L2506

+

C2509

C2507

L2507

J2002

J2007

R2526

C2005

C2025

C2503

J2501

C2504

D2500

FUSE T 10A 250V

FS2002

L2000

D2506

J2509

L2504

J2508

POZA2

DC INPUT

12V 4.5A

J2010

J2009

J2011

J2506

J2008

J2505

J2502

J2512

+

J2507

L2501

C2008

J2504

J2511

L2503

S2001

1

DC IN

+

1

MH9

L2012

MH3

S2000

DC OUTPUT

12.5V 4A

J2510

POWER

BL

DIM

AD

12.5V

GND

GND

GND

12.5V

12.5V

12.5V

GND

4

+

5

6

43

LED+

LED-

1

R2519R2500
YYY=5mmYYY=5mm

MH2

S2500

5

80V 330mA

LED

32''

LED DRIVER OUTPUT

POS. X Y POS. X Y POS. X Y POS. X Y

L2012 T 205 133
L2013 T 28 55
L2014 T 136 32
L2015 T 156 142
L2016 T 64 70
L2017 T 139 37
L2018 T 139 27

L2019 T 136 32
L2500 T 176 59
L2501 T 206 39
L2502 B 174 28
L2503 T 206 56
L2504 T 179 19
L2505 T 179 14

L2506 T 179 14
L2507 T 179 9
R2000 B 40 57
R2001 T 139 84
R2002 T 82 60
R2003 B 37 99
R2004 B 62 129

R2005 T 134 84
R2006 B 191 109
R2007 B 88 122
R2008 T 50 66
R2009 T 58 71
R2010 T 65 76
R2011 T 99 44

R2012 B 39 83
R2013 B 31 85
R2014 B 59 104
R2015 B 50 92
R2016 B 99 136
R2017 B 55 92
R2018 B 64 129

R2019 B 92 129
R2020 B 81 118
R2021 B 81 126
R2022 B 52 27
R2023 B 48 27
R2024 B 49 110
R2025 B 51 108

R2026 B 77 138
R2027 B 51 31
R2028 B 48 31
R2029 B 70 135
R2030 B 62 134
R2031 B 90 129
R2032 B 87 133

R2033 B 76 38
R2034 B 76 31
R2035 B 76 23
R2036 B 73 38
R2037 B 71 31
R2038 B 73 23
R2039 B 58 134

100

110

120

130

140

150

22

X

Netzteil / Power Supply ZNV194-03 Ansicht von der Lötseite / View of Solder Side

POS. X Y POS. X Y

R2040 B 212 84
R2041 B 32 75
R2042 B 60 134
R2043 B 81 122
R2500 T 190 25

R2501 B 178 98
R2502 B 190 82
R2503 B 181 104
R2504 B 202 86
R2505 B 196 96

R2506 B 202 80
R2507 B 186 105
R2508 B 184 105
R2509 B 193 83
R2510 B 195 77

R2511 B 186 100
R2512 B 187 97
R2513 B 195 83
R2514 B 193 72
R2515 B 184 109

R2516 B 192 101
R2517 B 189 97
R2518 B 188 101
R2519 T 195 25
R2520 B 186 78

R2521 B 188 72
R2522 B 183 82

2 - 13

R2523 B 192 105
R2524 B 193 90
R2525 B 184 69

R2526 T 180 67
R2527 B 191 97
R2528 B 188 78
R2529 B 190 78
R2530 B 182 109

R2531 B 179 109

S2000 T 208 88
S2001 T 204 126
S2002 T 150 35
S2003 T 145 19
S2500 T 207 19

SG2000 T 157 13
SG2001 T 134 13

T2000 T 39 74
T2001 B 67 130
T2500 B 199 94
T2501 B 197 67
T2503 B 197 105

TP1 B 137 77
TP2 B 139 73
TP3 B 50 37
TP4 B 70 87
TP5 B 159 121

TP6 B 65 98
TP7 B 141 70
TP8 B 54 19
TP9 B 65 60
TP10 B 165 63
TP11 B 100 133

TP12 B 42 75
TP13 B 72 72
TP14 B 46 98
TP15 B 48 96
TP16 B 39 86

TP17 B 32 82
TP18 B 63 35
TP19 B 63 27
TP20 B 61 103
TP21 B 48 99

TP22 B 52 95
TP23 B 50 90
TP24 B 55 96
TP25 B 35 95
TP26 B 86 8

TP27 B 85 120
TP28 B 31 101
TP29 B 66 118
TP30 B 74 32
TP31 B 74 29

TP32 B 81 124
TP33 B 47 111
TP34 B 53 106
TP35 B 50 28
TP36 B 47 24

TP37 B 47 109
TP38 B 86 39
TP39 B 86 26
TP40 B 37 27
TP41 B 50 30

TP42 B 38 31
TP43 B 61 106
TP44 B 76 126
TP45 B 69 118
TP46 B 76 130

TP47 B 90 132
TP48 B 102 41
TP49 B 51 116
TP50 B 60 122
TP51 B 62 132

TP52 B 71 131
TP53 B 121 22
TP54 B 67 139
TP55 B 88 124
TP56 B 121 39

TP57 B 112 7
TP58 B 199 141
TP59 B 102 138
TP60 B 148 39
TP61 B 158 18

TP62 B 134 18
TP63 B 176 52
TP64 B 205 116
TP65 B 92 140
TP66 B 210 80

TP67 B 202 102
TP68 B 205 103
TP69 B 188 36
TP70 B 194 31
TP71 B 188 20

FID3

HPG1

R2531

R2530

R2515

R2006

D2509

T2503

1

R2521

C2500

R2503

IC2500

R2506

D2505

R2525

C2502

D2503

D2508

D2502

BL

DIM

AD

R2040

C2009

12.5V

GND

GND

GND

12.5V

12.5V

12.5V

GND

0

FID2

R2504

R2514

T2501

C2510

C2501

C2511

LED+

LED-

R2501

R2513

R2510

C2516

R2509

C2512

C2514

R2502

R2529

C2521

C2515

L2502

C2007

R2508

R2523

C2520

R2516

R2518

R2511

C2513

R2512R2507

C2505

R2517C2517

R2527

R2505

T2500

R2524

R2522

C2518

C2506

R2520

R2528

HPL

L

C2003

C2004

C2024

HPN

N

POS. X Y POS. X Y POS. X Y POS. X Y

TP72 B 187 55
TP73 B 158 61
TP74 B 211 54
TP75 B 199 27
TP76 B 200 74
TP77 B 179 101
TP78 B 199 84

TP79 B 202 66
TP80 B 152 85
TP81 B 197 98
TP82 B 196 94
TP83 B 199 76
TP84 B 190 105
TP85 B 190 76

TP86 B 197 82
TP87 B 205 70
TP88 B 185 97
TP89 B 189 94
TP90 B 188 84
TP91 B 191 73
TP92 B 183 84

TP93 B 192 94
TP94 B 180 78
TP95 B 172 22
TP96 B 187 12
TP97 B 171 15
TP98 B 195 9
TR2000 T 102 87

HPG2

T: Bestückungsseite /
Component Side
B: Lötseite /
Solder Side

R2016

BARCODE

D2010

R2019

R2026

C2018

R2020

R2043

R2033

R2035R2034

C2019

R2029

T2001

IC2001

R2036

R2038

R2037

D2011

R2030

R2039

R2042

R2004

R2018

1

R2024

R2025

C2011

L2001

1

IC2000

R2014

C2012

C2013

R2017

R2015

R2027

R2022

R2003

D2004

R2013

D2001

R2012

R2041

R2000

R2028

D2008

D2007

R2023

IC2002

R2032

R2031

R2021

C2026

R2007

D2009

FID4

FID1

GRUNDIG Service Chassis CN

90

80

70

60

50

40

30

20

10

0

Y

0102030405060708090100110120130140150160170180190200210

VBUS

GND_PRI

TR2000

1

2

3

VDD

SENSE

GND

HV

NC

Netzteil / Power Supply ZNV194-03

DB2000
GBL408

- +

L2002

L2006
L2007

TP26

GND

C2017

220NF
305VAC

L2005

L2008
L2009

220NF
305VAC

TP57

GND

GND

2

P11P2

S2003

HEATSINK

1

234

HV1HV2

~

3

4

4

TP19

4

3

3

C2015

220PF
400VAC

R2035

1M

1

4

4

3

3

21

2

L2018L2017

34

3

L2015

2 - 14

275V,

1.1A@140Vac

J2003

FUSE

FS2000

T2AL/250V

TP61

HPL

HS2001

HEATSINK

1

234

~

GND_PRI

2

1

1

TP18

1

2

2

C2014

220PF
400VAC

R2033

R2034

1M

1M

R2036

R20371MR2038

1M

1M

TP30 TP31

TP38

R2011

0.7R

J2001

8A

1 2

1

1

TP48

342

2

2

C2021

C2023

TP56

220PF
400VAC

1

4

TP60

L2019

S2002

L2013

L2014

SG2000 SG2001

HS2000

GND_PRI

TP39

TP53

C2022

220PF
400VAC

GND

TP62

HPN

GRUNDIG Service Chassis CN

100R

12

EL2000

8

EL2005

R2004
270R

TP29

TP45

32

1

T2001

R2029

2N7002LT1G

150K

S2001

KON DC PWR JACK

S2000

P1
P2
P3
P4
P5
P6
P7
P8

P9
P10
P11
P12
P13
P14

SMAW200-14

PWR

GND

R2001

TP5

1

3

1

3

1

3

R2018

R2007

SNS

1

TP63

2
3
4
5
6
7
8
9
10
11
12
13
14

D2000

D2002

D2012

12.5V_FL

47K

TP64

TP65
TP66

TP67
TP68

TP58

1
3

2

J2008

12.5V

12.5V

GND

FB

NC

SENSE

HV4RT

4

FAN6756

DD-OVP

1,05V

I

RT

0,7V

GATE

VDD

TP42

16,5V/9V

VBUS

R2002

RMF

0.22R
1W

8

TP15

VCC

7

C2011

6

5

GND_PRI

D2007

600V

D2008 J2005

600V

Line Sensing/

AX-CAP®

UVLO

Max. Duty

Debounce

t

D-OTP1

Counter

t

D-OTP2

Counter

R2012

10R

100NF

50V

TP24

R2017
22K

J2004

R2024

TP33

TP40

OLP for ML

Brownout Protection

V

Internal
BIAS

1

VDDOVP

OTP

Limit

OSC

Green
Mode

OVP

1

TP4

C2002

3.3NF
630V

2

3

TP16

GND_PRI

GND_PRI

82K

GND_PRI

Adjustment

OTP

OLP

D2001
BAT54C
30V

R2013

390R

R2015

TP22

330

C2013
1NF
50V

R2025

TP37

Latch

Protection

Soft-start

Comparator

Current Limit

Comparator

Comparator

OLP

Delay

EL2007

R2008
47K

EL2008

FQPF7N65C

TP17

D2005

BZX55C5V1

75K

TP49

Protection

Q

S
R

SSCP

PWM

OLP

Comparator

EL2010

R2009
47K

EL2009

1

T2000

R2041

47K

C2020

470PF

Re-start

t

TP9

1

HV

TP34

D-SSCP

Soft-start

EL2012

R2010
47K

EL2011

23

TP23

TP28

GND_PRI

TP50

V

Limit

Slope Comp.

R

2

TP12

EL2004

R2000

0.13R

L2004L2003

SSCP

OLP for MR

Soft

Driver

VSCP-H/L

Blanking

Circuit

Impedance

Modulator

3R

4,6V

L2016

C2016
47UF

3

C2010
100PF
1KV

GND_PRI

5V

VCC

ADPT_DET

TP3

+

+

C2000

C2001

68UF

68UF

450V

450V

TP8

IC2000

C2012

1NF

GND_PRI

1

2

TP20

3

FAN6756

HV

R2023

82K

TP35 TP36

R2028

82K

TP41

7

V

5

RT

L2012

GND_PRI

R2014

FB

100R

R2022

HV1

82K

R2027

HV2

82K

HPG1HPG2

3

D2003
MUR460

TP13

TP14

TP21

+

8GATE

6

2FB

132

GND_PRI

1

TP6

D2006
UF4007F

2

J2000

GND_PRI

4

7

EL2013

L2001
10UH

R2003
PTC 032A 30V

TP25

D2004
BZX84C22-7-F

FB
TP43

GND_PRI

R2042

100R

E-40-0043C

IC2001

4

3

VO617A-4X007T

12.5V

3

TP54

R2030

D2011

BAT54C
30V

R2016

56K

1

2

TP51

1

2

0R

100RR2005

2

EL2001

30A
150V

2

EL2002

30A
150V

2

30A

EL2003

150V

1K

2

1

3

D2009
100V

TP55

FUSE

FS2001

R2039

ADPT_DET

TP59

ADPT_DETECT

DIM

BL

TP1

J2006

TP44

C2026
1UF
50V

J2012

C2005
+

470UF
25V

12.5V_FL

2 3

T10A 250V

56K

C2003

2.2NF
50V

TP7

TP27
R2020
470R
F

R2043
100R
F

TP32

R2021
470R

C2018

C2019

100NF

1

12.5V_FL

J2011

TP2

C2024

2.2NF
50V

C2004

2.2NF
50V

TP10

C2006

+

470UF
25V

IC2002

IC2003

TP46

R2006

100R

12.5V_FL

J2002

J2007

C2025
+

470UF
25V

100NF

50V

R2026

22K

ADPT_DETECT
ADPT: OPEN DRAIN
No ADPT: LOW
MainBoard: 10k Pull up 3.3V

C2027

+

470UF
25V

J2010

TP47

R2031

8.2K

TP52

ADPT_DETECT

L2000

3.3UH

C2007

1UF

50V

R2019

18K

3

R2032
10K
F

TP11

C2008

470UF
25V

J2009

D2010

+

100V

12.5V_FL

R2040

6.8K

2

1

D2013
UF4007F

12.5V

12.5V

C2009

1UF
50V

GRUNDIG Service Chassis CN

)

C2510

C2511

10NFC2

6

5

4

5

20µs Delay

ADIM

BDIM

T

Netzteil / Power Supply ZNV194-03

12.5V

2

1

VREF_1

T2503

1

R2523

150K

R2530

75K

R2531

56K

R2516

J2506

J2501

32

B_EN

VREF_1

R2511

100K

DIM

C2516
22NF
50V

100NF

TP85

0R

C2518

1UF
50V

R2517

R2518

R2522

R2510

C2513

TP88

C2520

C2521

R2527

10K

50V

R2512

100K

J2505

TP81

1NF
50V

100PF
50V

2

1

27K

18K

150K

100KR2524

10K

TP76

C2505
10NF

R2505

15K

C2512

22UF 10V

TP89

TP92

TP93

D2509

3

BL

BAT54C

ADPT_DETECT

R2515

1K
F

2N7002LT1G

T2500
2N7002LT1G

3

B_EN

OVP

TP82

14

12

13

15

16

VREF_1

5

6

7

CMP

REF

FAULT

ENA

OVP

ADIM

RT

BDIM

TP80

10

C2501

2.2NF
50V

C2500

2.2NF
50V

12.5V_FL

L2500

+

C2503

TP78

C2514
1UF
50V

2

4

3

8

PTC 0,32A 30V

C2515
1UF
50V

47R

R2509

TP86

TP94

R2526

1.2R

470UF
25V

R2504

47R

R2513

LED-

J2503

1

VCC

DRAIN9DRAIN

DRV

CS

GND

SENSE

FAN73402MXIC2500

1

TP90

D2507
15V

J2504

TP83

3

+

12.5V

2

C2506
100NF
50V

C2504
470UF
25V

R2506

0R

D2505
BAT54C

R2502

0R

J2502

TP72

R2528

30K
F

VREF_1

L2501 (a) L2501 (b)

LC-20-0013

C2502
1UF
50V

1

TP87

R2514

47K

R2520

1K
F

R2529

22K
F

4

43 1 6

TP74

L2503

TP79

J2507
J2508
J2509
J2510
J2511
J2512

T2501
FDD86102LZ

3 4

TP91

R2525

R2521

0.13R

0.04R

1W

F

2.2NF
50V

TP69

D2500
100V

D2501
100V

D2502

B2100-13-F

D2503

TP75

D2508

1

3

MBRD10200CT-13
200V

D2506
15V

OVP

CMP

GND

VCC

ENA

REF

2.2NF
50V

100V

B2100-13-F
100V

2

3V

Current
Sense

0.5V

1.22V

5V, max. 3mA

TP70

R2500

R2519

100R

100R

ILED: 328mA (ADIM: Rtop: 200k, Rbot: 18k, RSENSE:1.2R)
ILED: 203mA (ADIM: Rtop: 200k, Rbot: 18k//27k, RSENSE: 1.2R

OVP: 85V (Rtop: 136k, Rbot: 10k//10k)

TP71

UVLO: (ON: 10.4V, OFF: 9.8V, RTOP: 75k, RBOT: 10k)
CS: Offset: 365mV, Sense: 135mV (Rsense:0.13R//0.04R)

L2502

TP77

TP84

­OVP

+

100mV

ADIM*4

1.4~4V

640µs/200kHz
Auto-Restart

0.3~3V

100mV

-

+

4V

CMP:
16 Steps
Int. Soft-Start

UVLO 9V

-

+

Hys. 70mV

R2501

68K

R2503

68K

R2507

10K

LED+

1µs
Delay

+

OCP

–

POR

-

gm

+

PWM

Burst

Operation

3msat 200kHz

Voltage Ref.

& Int. Bias

OVP

LED-

Hys. 1.0V

-

+

TP73

R2508

10K

TSD

+

C2507
47UF
100V

TP95

1

L2505

2

TP97

CLK+LEB

BDIM

OLPi

40.96ms
at 200kHz
Debounce

1

2

S
R

1/4

OLP

Time

C2517
1NF
50V

Q

45µA

L2504

L2507

-

+

5k

OLPi

J2500

+

Dim off

C2508
47UF
100V

R

S

L2506

TP96

4

4

3

3

TP98

Q

Switch Off

LED+

+

C2509
47UF
100V

3
2
1

5

OLP

FAN73402

Dim off

Slope

PWM

Comp.

+

-

0.5V

PWM

Current

Sense

0.2V

+

­PWM
End of Soft-Start

S2500

Gate
Driver

P3
P2
P1

FAUL

DRV

CS

RTOscillator

Drain

SEN

IR-/LED-Platte / Board ZGY192-01

Ansicht von der Bestückungsseite / View of Component Side

GND

GND

CN1

1

VCC

P1

2

IR_OUT

P2

LED_B

3

P3

GND

4

P4

150R

R1
R2

D1

150R

10UF

4

OUT

3

VS

2

GND/NC

1

C1

GND

IR1
TSOP36438

2 - 15

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 1

7 / 2016 32 GFB 5622

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551847100 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ *1*2 CABINET MIDDLEPART BLACK *1*2

003.000 759551862600 GEH.-MITTELTEIL SCHWARZ *3 CABINET MIDDLEPART BLACK *3

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.400 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.000

020.001

020.001

020.002

020.100

020.100

020.101

020.102

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PHF000 * 32 GFB 5622 32 GFB 5622

S 057D32-B24 * LCD BMS 056D32-A96 CN-G7/DM-DS *1 LCD BMS 056D32-A96 CN-G7/DM-DS *1
S 057D32B24P * LCD BMS 056D32A96P CN-G7 *2*3 LCD BMS 056D32A96P CN-G7 *2*3
S 052D32LP2 * LCD LC320EUJ-FFE2 F50 *1 LCD LC320EUJ-FFE2 F50 *1
S 052D32LP2P * LCD LC320EUJ-FFE2 FHD 50HZ *2*3 LCD LC320EUJ-FFE2 FHD 50HZ *2*3
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551819000 T-CON MODUL (XMG) *1 T-CON BOARD (XMG) *1
S 759551839300 T-CON MODUL (XMG) *2*3 T-CON BOARD (XMG) *2*3
S 759551847600 FLACHBANDKABEL 50P 81MM *1*2 CAB.FFC 50PIN 0.5MM L=81MM *1*2
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991247800 X CHASSISMODUL CN (PHF) *1 CHASSIS BOARD CN (PHF) *1
S 275991247700 X CHASSISMODUL CN (K5U) *2 CHASSIS BOARD CN (K5U) *2
S 275991256600 X CHASSISMODUL CN (L3L) *3 CHASSIS BOARD CN (L3L) *3

Bezeichnung

d

PRODUKTCODE PHF PRODUCT CODE PHF

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PHF000 (PHF)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

3 / 2016 32 GFB 5623

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551847100 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551852200 STANDFUSS SCHWARZ STANDFOOT BLACK

005.100 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.200 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.000 759551852300 STANDFUSS ZWISCHENSTUECK STANDFOOT MIDDLEPART

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.001

020.002

020.100

020.101

020.102

022.000

022.100

022.200 759551853400 KABEL CHASSIS-NETZEIL 23CM CABLE CHASSIS-POWER 23CM

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PHG000 * 32 GFB 5623 32 GFB 5623

S 057D32-B24 * LCD BMS 056D32-A96 CN-G7/DM-DS LCD BMS 056D32-A96 CN-G7/DM-DS
S 052D32LP2 * LCD LC320EUJ-FFE2 F50 LCD LC320EUJ-FFE2 F50
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551819000 T-CON MODUL (XMG) T-CON BOARD (XMG)
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM CAB.FFC 50PIN 0.5MM L=81MM
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991247800 X CHASSISMODUL CN (PHF) CHASSIS BOARD CN (PHF)

Bezeichnung

d

PRODUKTCODE PHG PRODUCT CODE PHG

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PHG000 (PHG)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 2

3 / 2016 32 GFB 5624

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551847100 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551852200 STANDFUSS SCHWARZ STANDFOOT BLACK

005.100 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.200 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.000 759551852300 STANDFUSS ZWISCHENSTUECK STANDFOOT MIDDLEPART

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.000

020.001

020.001

020.002

020.100

020.100

020.101

020.102

022.000

022.100

022.200 759551853400 KABEL CHASSIS-NETZEIL 23CM CABLE CHASSIS-POWER 23CM

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PHH000 * 32 GFB 5624 32 GFB 5624

S 057D32B24P * LCD BMS 056D32A96P CN-G7/DM-DS *1 LCD BMS 056D32A96P CN-G7/DM-DS *1
S 057D32-B24 * LCD BMS 056D32-A96 CN-G7/DM-DS *2 LCD BMS 056D32-A96 CN-G7/DM-DS *2
S 052D32LP2P * LCD LC320EUJ-FFE2 FHD 50HZ *1 LCD LC320EUJ-FFE2 FHD 50HZ *1
S 052D32LP2 * LCD LC320EUJ-FFE2 F50 *2 LCD LC320EUJ-FFE2 F50 *2
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551839300 T-CON MODUL (XMG) *1 T-CON BOARD (XMG) *1
S 759551819000 T-CON MODUL (XMG) *2 T-CON BOARD (XMG) *2
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM CAB.FFC 50PIN 0.5MM L=81MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991247700 X CHASSISMODUL CN (K5U) *1 CHASSIS BOARD CN (K5U) *1
S 275991247800 X CHASSISMODUL CN (PHF) *2 CHASSIS BOARD CN (PHF) *2

Bezeichnung

d

PRODUKTCODE PHH PRODUCT CODE PHH

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PHH000 (PHH)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

7 / 2016 32 GFB 5625

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551847100 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ *1*2 CABINET MIDDLEPART BLACK *1*2

003.000 759551862600 GEH.-MITTELTEIL SCHWARZ *3 CABINET MIDDLEPART BLACK *3

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.400 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.000

020.001

020.001

020.002

020.100

020.100

020.101

020.102

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PHJ000 * 32 GFB 5625 32 GFB 5625

S 057D32B24P * LCD BMS 056D32A96P CN-G7 *1*3 LCD BMS 056D32A96P CN-G7 *1*3
S 057D32-B24 * LCD BMS 056D32-A96 CN-G7/DM-DS *2 LCD BMS 056D32-A96 CN-G7/DM-DS *2
S 052D32LP2P * LCD LC320EUJ-FFE2 FHD 50HZ *1*3 LCD LC320EUJ-FFE2 FHD 50HZ *1*3
S 052D32LP2 * LCD LC320EUJ-FFE2 F50 *2 LCD LC320EUJ-FFE2 F50 *2
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551839300 T-CON MODUL (XMG) *1*3 T-CON BOARD (XMG) *1*3
S 759551819000 T-CON MODUL (XMG) *2 T-CON BOARD (XMG) *2
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM *1 CAB.FFC 50PIN 0.5MM L=81MM *1
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991247700 X CHASSISMODUL CN (K5U) *1 CHASSIS BOARD CN (K5U) *1
S 275991247800 X CHASSISMODUL CN (PHF) *2 CHASSIS BOARD CN (PHF) *2
S 275991256600 X CHASSISMODUL CN (L3L) *3 CHASSIS BOARD CN (L3L) *3

Bezeichnung

d

PRODUKTCODE PHJ PRODUCT CODE PHJ

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PHJ000 (PHJ)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 3

5 / 2016 32 GFB 5626

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551847100 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ *1 CABINET MIDDLEPART BLACK *1

003.000 759551862600 GEH.-MITTELTEIL SCHWARZ *2 CABINET MIDDLEPART BLACK *2

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.200 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.000

020.001

020.001

020.002

020.100

020.100

020.101

020.101

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PHK000 * 32 GFB 5626 32 GFB 5626

S 057D32-B24 * LCD BMS 056D32-A96 CN-G7/DM-DS *1 LCD BMS 056D32-A96 CN-G7/DM-DS *1
S 057D32B24P * LCD BMS 056D32A96P CN-G7/DM-DS *2 LCD BMS 056D32A96P CN-G7/DM-DS *2
S 052D32LP2 * LCD LC320EUJ-FFE2 F50 *1 LCD LC320EUJ-FFE2 F50 *1
S 052D32LP2P * LCD LC320EUJ-FFE2 FHD 50HZ *2 LCD LC320EUJ-FFE2 FHD 50HZ *2
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551819000 T-CON MODUL (XMG) *1 T-CON BOARD (XMG) *1
S 759551839300 T-CON MODUL (XMG) *2 T-CON BOARD (XMG) *2
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM *1 CAB.FFC 50PIN 0.5MM L=81MM *1
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM *2 CABLE FFC 50P 0.5MM 68MM *2
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991247800 X CHASSISMODUL CN (PHF) *1 CHASSIS BOARD CN (PHF) *1
S 275991247700 X CHASSISMODUL CN (K5U) *2 CHASSIS BOARD CN (K5U) *2

Bezeichnung

d

PRODUKTCODE PHK PRODUCT CODE PHK

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PHK000 (PHK)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

7 / 2016 32 GFB 5627

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551847100 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ *1*2 CABINET MIDDLEPART BLACK *1*2

003.000 759551862600 GEH.-MITTELTEIL SCHWARZ *3 CABINET MIDDLEPART BLACK *3

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.400 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.000

020.001

020.001

020.002

020.100

020.100

020.101

020.101

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PHL000 * 32 GFB 5627 32 GFB 5627

S 057D32B24P * LCD BMS 056D32A96P CN-G7 *1*3 LCD BMS 056D32A96P CN-G7 *1*3
S 057D32-B24 * LCD BMS 056D32-A96 CN-G7/DM-DS *2 LCD BMS 056D32-A96 CN-G7/DM-DS *2
S 052D32LP2P * LCD LC320EUJ-FFE2 FHD 50HZ *1*3 LCD LC320EUJ-FFE2 FHD 50HZ *1*3
S 052D32LP2 * LCD LC320EUJ-FFE2 F50 *2 LCD LC320EUJ-FFE2 F50 *2
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551839300 T-CON MODUL (XMG) *1*3 T-CON BOARD (XMG) *1*3
S 759551819000 T-CON MODUL (XMG) *2 T-CON BOARD (XMG) *2
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM *1 CAB.FFC 50PIN 0.5MM L=81MM *1
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM *2 CABLE FFC 50P 0.5MM 68MM *2
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991247700 X CHASSISMODUL CN (K5U) *1 CHASSIS BOARD CN (K5U) *1
S 275991247800 X CHASSISMODUL CN (PHF) *2 CHASSIS BOARD CN (PHF) *2
S 275991256600 X CHASSISMODUL CN (L3L) *3 CHASSIS BOARD CN (L3L) *3

Bezeichnung

d

PRODUKTCODE PHL PRODUCT CODE PHL

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PHL000 (PHL)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 4

2 / 2016 32 GHB 5602

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551853000 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551852200 STANDFUSS SCHWARZ STANDFOOT BLACK

005.100 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

005.200 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

006.000 759551852300 STANDFUSS ZWISCHENSTUECK STANDFOOT MIDDLEPART

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

018.000 759551853200 KABEL LVDS 30P 1MM 400MM CABLE LVDS 30P 1MM 400MM

019.000 759551853300 KABEL LVDS 30P 1MM 350MM CABLE LVDS 30P 1MM 350MM

020.000

020.001

020.002

020.100

020.101

020.102

022.000

022.100

022.200 759551853400 KABEL CHASSIS-NETZEIL 23CM CABLE CHASSIS-POWER 23CM

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PGX000 * 32 GHB 5602 32 GHB 5602

S 057E32B22P * LCD BMS 056E32A92P CN-G7/DM-DS LCD BMS 056E32A92P CN-G7/DM-DS
S 052E32LP1P * LCD LC320DXJ-SFE1 HD50 LCD LC320DXJ-SFE1 HD50
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551818900 T-CON MODUL (ZME) T-CON BOARD (ZME)
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM CAB.FFC 50PIN 0.5MM L=81MM
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991247500 X CHASSISMODUL CN (PGY) CHASSIS BOARD CN (PGY)

Bezeichnung

d

PRODUKTCODE PGX PRODUCT CODE PGX

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PGX000 (PGX)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

2 / 2016 32 GHB 5603

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551853000 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551852200 STANDFUSS SCHWARZ STANDFOOT BLACK

005.100 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

005.200 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

006.000 759551852300 STANDFUSS ZWISCHENSTUECK STANDFOOT MIDDLEPART

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

018.000 759551853200 KABEL LVDS 30P 1MM 400MM CABLE LVDS 30P 1MM 400MM

019.000 759551853300 KABEL LVDS 30P 1MM 350MM CABLE LVDS 30P 1MM 350MM

020.000

020.001

020.002

020.100

020.101

020.102

022.000

022.100

022.200 759551853400 KABEL CHASSIS-NETZEIL 23CM CABLE CHASSIS-POWER 23CM

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PGY000 * 32 GHB 5603 32 GHB 5603

S 057E32B22P * LCD BMS 056E32A92P CN-G7/DM-DS LCD BMS 056E32A92P CN-G7/DM-DS
S 052E32LP1P * LCD LC320DXJ-SFE1 HD50 LCD LC320DXJ-SFE1 HD50
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551818900 T-CON MODUL (ZME) T-CON BOARD (ZME)
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM CAB.FFC 50PIN 0.5MM L=81MM
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991247500 X CHASSISMODUL CN (PGY) CHASSIS BOARD CN (PGY)

Bezeichnung

d

PRODUKTCODE PGY PRODUCT CODE PGY

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PGY000 (PGY)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 5

7 / 2016 32 GHB 5604

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551853000 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551862600 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.400 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551853300 KABEL LVDS 30P 1MM 350MM CABLE LVDS 30P 1MM 350MM

020.000

020.001

020.002

020.100

020.101

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PGZ000 * 32 GHB 5604 32 GHB 5604

S 057E32B22P * LCD BMS 056E32A92P CN-G7/DM-DS LCD BMS 056E32A92P CN-G7/DM-DS
S 052E32LP1P * LCD LC320DXJ-SFE1 HD50 LCD LC320DXJ-SFE1 HD50
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551818900 T-CON MODUL (ZME) T-CON BOARD (ZME)
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991247500 X CHASSISMODUL CN (PGY) *1 CHASSIS BOARD CN (PGY) *1
S 275991256500 X CHASSISMODUL CN (L48) *2 CHASSIS BOARD CN (L48) *2

Bezeichnung

d

PRODUKTCODE PGZ PRODUCT CODE PGZ

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PGZ000 (PGZ)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

2 / 2016 32 GHB 5605

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551853000 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551852200 STANDFUSS SCHWARZ STANDFOOT BLACK

005.100 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

005.200 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

006.000 759551852300 STANDFUSS ZWISCHENSTUECK STANDFOOT MIDDLEPART

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

018.000 759551853200 KABEL LVDS 30P 1MM 400MM CABLE LVDS 30P 1MM 400MM

019.000 759551853300 KABEL LVDS 30P 1MM 350MM CABLE LVDS 30P 1MM 350MM

020.000

020.001

020.002

020.100

020.101

020.102

022.000

022.100

022.200 759551853400 KABEL CHASSIS-NETZEIL 23CM CABLE CHASSIS-POWER 23CM

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PHA000 * 32 GHB 5605 32 GHB 5605

S 057E32B22P * LCD BMS 056E32A92P CN-G7/DM-DS LCD BMS 056E32A92P CN-G7/DM-DS
S 052E32LP1P * LCD LC320DXJ-SFE1 HD50 LCD LC320DXJ-SFE1 HD50
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551818900 T-CON MODUL (ZME) T-CON BOARD (ZME)
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM CAB.FFC 50PIN 0.5MM L=81MM
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991247500 X CHASSISMODUL CN (PGY) CHASSIS BOARD CN (PGY)

Bezeichnung

d

PRODUKTCODE PHA PRODUCT CODE PHA

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PHA000 (PHA)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 6

9 / 2016 32 GHB 5606

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551853000 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ *1 CABINET MIDDLEPART BLACK *1

003.000 759551862600 GEH.-MITTELTEIL SCHWARZ *2*3*4 CABINET MIDDLEPART BLACK *2*3*4

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.400 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551853300 KABEL LVDS 30P 1MM 350MM CABLE LVDS 30P 1MM 350MM

020.000

020.000

020.001

020.001

020.002

020.100

020.100

020.101

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PHB000 * 32 GHB 5606 32 GHB 5606

S 057E32-B22 * LCD BMS 056E32-A92 CN-G7 *1*4 LCD BMS 056E32-A92 CN-G7 *1*4
S 057E32B22P * LCD BMS 056E32A92P CN-G7 *2*3 LCD BMS 056E32A92P CN-G7 *2*3
S 052E32LP1 * LCD LC320DXJ-SFE1 HD50 *1*4 LCD LC320DXJ-SFE1 HD50 *1*4
S 052E32LP1P * LCD LC320DXJ-SFE1 HD50 *2*3 LCD LC320DXJ-SFE1 HD50 *2*3
S 759551882300 LED BAR 32 (ZPZ) LED BAR 32 (ZPZ)
S 759551859600 T-CON MODUL (XMF) *1*4 T-CON BOARD (XMF) *1*4
S 759551818900 T-CON MODUL (ZME) *2*3 T-CON BOARD (ZME) *2*3
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991248400 X CHASSISMODUL CN (PHB) *1 CHASSIS BOARD CN (PHB) *1
S 275991247500 X CHASSISMODUL CN (PGY) *2 CHASSIS BOARD CN (PGY) *2
S 275991256500 X CHASSISMODUL CN (L48) *3 CHASSIS BOARD CN (L48) *3
S 275991259100 X CHASSISMODUL CN (L49) *4 CHASSIS BOARD CN (L49) *4

Bezeichnung

d

PRODUKTCODE PHB PRODUCT CODE PHB

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:

BESTELL-NR. / ORDER NO.: PHB000 (PHB)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

7 / 2016 32 GHB 5607

Pos. Fig. Material-Nr. Ref.

001.000 759551852400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551853000 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ *1*2 CABINET MIDDLEPART BLACK *1*2

003.000 759551862600 GEH.-MITTELTEIL SCHWARZ *3 CABINET MIDDLEPART BLACK *3

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.400 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551853300 KABEL LVDS 30P 1MM 350MM CABLE LVDS 30P 1MM 350MM

020.000

020.000

020.001

020.001

020.002

020.100

020.100

020.101

020.101

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PHC000 * 32 GHB 5607 32 GHB 5607

S 057E32B22P * LCD BMS 056E32A92P CN-G7 *1*3 LCD BMS 056E32A92P CN-G7 *1*3
S 057E32-B22 * LCD BMS 056E32-A92 CN-G7/DM-DS *2 LCD BMS 056E32-A92 CN-G7/DM-DS *2
S 052E32LP1P * LCD LC320DXJ-SFE1 HD50 *1*3 LCD LC320DXJ-SFE1 HD50 *1*3
S 052E32LP1 * LCD LC320DXJ-SFE1 HD50 *2 LCD LC320DXJ-SFE1 HD50 *2
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551818900 T-CON MODUL (ZME) *1*3 T-CON BOARD (ZME) *1*3
S 759551859600 T-CON MODUL (XMF) *2 T-CON BOARD (XMF) *2
S 759551847600 FLACHBANDKABEL 50P 81MM *1*2 CAB.FFC 50PIN 0.5MM L=81MM *1*2
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM *3 CABLE FFC 50P 0.5MM 68MM *3
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991247500 X CHASSISMODUL CN (PGY) *1 CHASSIS BOARD CN (PGY) *1
S 275991248400 X CHASSISMODUL CN (PHB) *2 CHASSIS BOARD CN (PHB) *2
S 275991256500 X CHASSISMODUL CN (L48) *3 CHASSIS BOARD CN (L48) *3

Bezeichnung

d

PRODUKTCODE PHC PRODUCT CODE PHC

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PHC000 (PHC)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 7

7 / 2016 32 VLE 4503 BF

Pos. Fig. Material-Nr. Ref.

001.000 759551852900 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551853000 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551853100 GEH.-MITTELTEIL SCHWARZ *1 CABINET MIDDLEPART BLACK *1

003.000 759551876000 GEH.-MITTELTEIL SCHWARZ *2 CABINET MIDDLEPART BLACK *2

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.400 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551853300 KABEL LVDS 30P 1MM 350MM CABLE LVDS 30P 1MM 350MM

020.000

020.001

020.002

020.100

020.101

020.101

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PBV000 * 32 VLE 4503 BF 32 VLE 4503 BF

S 057E32B07P * LCD BMS 056E32A92P LEDB CN-G7/DH LCD BMS 056E32A92P LEDB CN-G7/DH
S 052E32LP1P * LCD LC320DXJ-SFE1 HD50 LCD LC320DXJ-SFE1 HD50
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551818900 T-CON MODUL (ZME) T-CON BOARD (ZME)
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM *1 CAB.FFC 50PIN 0.5MM L=81MM *1
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM *2 CABLE FFC 50P 0.5MM 68MM *2
S 275990325900 X NETZTEIL (ZNV) POWER SUPPLY (ZNV)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991246000 X CHASSISMODUL CN (PBV) *1 CHASSIS BOARD CN (PBV) *1
S 275991256200 X CHASSISMODUL CN (L41) *2 CHASSIS BOARD CN (L41) *2

Bezeichnung

d

PRODUKTCODE PBV PRODUCT CODE PBV

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PBV000 (PBV)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

4 / 2016 32 VLE 5501 BG

Pos. Fig. Material-Nr. Ref.

001.000 759551852900 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551853000 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.100 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.400 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RECHTS SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.100 759551853200 KABEL LVDS 30P 1MM 400MM CABLE LVDS 30P 1MM 400MM

019.200 759551853300 KABEL LVDS 30P 1MM 350MM CABLE LVDS 30P 1MM 350MM

020.000

020.001

020.002

020.100

020.101

020.102

021.100 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

022.000

023.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PBG000 * 32 VLE 5501 BG 32 VLE 5501 BG

S 057E32B07P * LCD BMS 056E32A92P LEDB CN-G7/DH LCD BMS 056E32A92P LEDB CN-G7/DH
S 052E32LP1P * LCD LC320DXJ-SFE1 HD50 LCD LC320DXJ-SFE1 HD50
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551818900 T-CON MODUL (ZME) T-CON BOARD (ZME)
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM CAB.FFC 50PIN 0.5MM L=81MM
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM

S 759551847300 NETZKABEL 180 POWER CORD 180
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 275991245600 X CHASSISMODUL CN (PBG) CHASSIS BOARD CN (PBG)

Bezeichnung

d

PRODUKTCODE PBG PRODUCT CODE PBG

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PBG000 (PBG)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 8

9 / 2016 32 VLE 5503 BG

Pos. Fig. Material-Nr. Ref.

001.000 759551854300 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551853000 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551862600 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

005.400 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551853300 KABEL LVDS 30P 1MM 350MM CABLE LVDS 30P 1MM 350MM

020.000

020.001

020.002

020.100

020.101

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PCA000 * 32 VLE 5503 BG 32 VLE 5503 BG

S 057E32B14P * LCD BMS 056E32A92P CN-G7/DI-DK LCD BMS 056E32A92P CN-G7/DI-DK
S 052E32LP1P * LCD LC320DXJ-SFE1 HD50 LCD LC320DXJ-SFE1 HD50
S 759551882300 LED BAR 32 (ZPZ) LED BAR 32 (ZPZ)
S 759551818900 T-CON MODUL (ZME) T-CON BOARD (ZME)
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991258200 X CHASSISMODUL CN (PCA) *1 CHASSIS BOARD CN (PCA) *1
S 275991258300 X CHASSISMODUL CN (L44) *2 CHASSIS BOARD CN (L44) *2

Bezeichnung

d

PRODUKTCODE PCA PRODUCT CODE PCA

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PCA000 (PCA)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

5 / 2016 32 VLE 5503 BN

Pos. Fig. Material-Nr. Ref.

001.000 759551854300 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551853000 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551862600 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.200 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551853300 KABEL LVDS 30P 1MM 350MM CABLE LVDS 30P 1MM 350MM

020.000

020.001

020.002

020.100

020.101

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PHD000 * 32 VLE 5503 BN 32 VLE 5503 BN

S 057E32B14P * LCD BMS 056E32A92P CN-G7/DI-DK LCD BMS 056E32A92P CN-G7/DI-DK
S 052E32LP1P * LCD LC320DXJ-SFE1 HD50 LCD LC320DXJ-SFE1 HD50
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551818900 T-CON MODUL (ZME) T-CON BOARD (ZME)
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991252600 X CHASSISMODUL CN (PHD) CHASSIS BOARD CN (PHD)

Bezeichnung

d

PRODUKTCODE PHD PRODUCT CODE PHD

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PHD000 (PHD)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 9

2 / 2016 32 VLE 5521 BG

Pos. Fig. Material-Nr. Ref.

001.000 759551854300 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551847100 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551854400 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551852200 STANDFUSS SCHWARZ STANDFOOT BLACK

005.100 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.200 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.000 759551852300 STANDFUSS ZWISCHENSTUECK STANDFOOT MIDDLEPART

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.000

020.001

020.001

020.002

020.100

020.100

020.101

020.102

022.000

022.100

022.200 759551853400 KABEL CHASSIS-NETZEIL 23CM CABLE CHASSIS-POWER 23CM

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PBH000 * 32 VLE 5521 BG 32 VLE 5521 BG

S 057D32-B13 * LCD BMS 056D32-A96 LEDB CN-G7 *1 LCD BMS 056D32-A96 LEDB CN-G7 *1
S 057D32B13P * LCD BMS 056D32A96P LEDB CN-G7 *2 LCD BMS 056D32A96P LEDB CN-G7 *2
S 052D32LP2 * LCD LC320EUJ-FFE2 F50 *1 LCD LC320EUJ-FFE2 F50 *1
S 052D32LP2P * LCD LC320EUJ-FFE2 FHD 50HZ *2 LCD LC320EUJ-FFE2 FHD 50HZ *2
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551819000 T-CON MODUL (XMG) *1 T-CON BOARD (XMG) *1
S 759551839300 T-CON MODUL (XMG) *2 T-CON BOARD (XMG) *2
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM CAB.FFC 50PIN 0.5MM L=81MM
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991245700 X CHASSISMODUL CN (K2F) *1 CHASSIS BOARD CN (K2F) *1
S 275991247000 X CHASSISMODUL CN (PBH) *2 CHASSIS BOARD CN (PBH) *2

Bezeichnung

d

PRODUKTCODE PBH PRODUCT CODE PBH

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PBH000 (PBH)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

7 / 2016 32 VLE 5523 BG

Pos. Fig. Material-Nr. Ref.

001.000 759551854300 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551847100 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551862600 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.400 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.500 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.000

020.001

020.001

020.002

020.100

020.100

020.101

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PCB000 * 32 VLE 5523 BG 32 VLE 5523 BG

S 057D32-B13 * LCD BMS 056D32-A96 LEDB CN-G7 *1 LCD BMS 056D32-A96 LEDB CN-G7 *1
S 057D32B13P * LCD BMS 056D32A96P LEDB CN-G7*2*3 LCD BMS 056D32A96P LEDB CN-G7*2*3
S 052D32LP2 * LCD LC320EUJ-FFE2 F50 *1 LCD LC320EUJ-FFE2 F50 *1
S 052D32LP2P * LCD LC320EUJ-FFE2 FHD 50HZ *2*3 LCD LC320EUJ-FFE2 FHD 50HZ *2*3
S ZPZ60600-AA * LED BAR 32 HD LEDART LG (B) LED BAR 32 HD LEDART LG (B)
S 759551819000 T-CON MODUL (XMG) *1 T-CON BOARD (XMG) *1
S 759551839300 T-CON MODUL (XMG) *2*3 T-CON BOARD (XMG) *2*3
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991256100 X CHASSISMODUL CN (K2K) *1 CHASSIS BOARD CN (K2K) *1
S 275991255900 X CHASSISMODUL CN (PCB) *2 CHASSIS BOARD CN (PCB) *2
S 275991256000 X CHASSISMODUL CN (L45) *3 CHASSIS BOARD CN (L45) *3

Bezeichnung

d

PRODUKTCODE PCB PRODUCT CODE PCB

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PCB000 (PCB)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 10

9 / 2016 32 VLE 5523 BN

Pos. Fig. Material-Nr. Ref.

001.000 759551854300 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551847100 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551862600 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

005.400 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.001

020.002

020.100

020.101

022.000

022.100

022.200 759551853400 KABEL NETZTEIL-CHASSIS 23CM CABLE POWER-CHASSIS 23CM

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551847400 KARTON 32 CARTON 32

091.000 759551847500 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PFC000 * 32 VLE 5523 BN 32 VLE 5523 BN

S 057D32B13P * LCD BMS 056D32A96P LEDB CN-G7/DI LCD BMS 056D32A96P LEDB CN-G7/DI
S 052D32LP2P * LCD LC320EUJ-FFE2 FHD 50HZ LCD LC320EUJ-FFE2 FHD 50HZ
S 759551882300 LED BAR 32 (ZPZ) LED BAR 32 (ZPZ)
S 759551839300 T-CON MODUL (XMG) T-CON BOARD (XMG)
S 759551847700 FLACHBANDKABEL 50P 0,5MM 68MM CABLE FFC 50P 0.5MM 68MM
S 275990325500 X NETZTEIL (ZQA) POWER SUPPLY (ZQA)
S 759551847300 NETZKABEL 180 POWER CORD 180

S 275991258600 X CHASSISMODUL CN (L47) CHASSIS BOARD CN (L47)

Bezeichnung

d

PRODUKTCODE PFC PRODUCT CODE PFC

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PFC000 (PFC)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

2 / 2016 43 VLE 5521 BG

Pos. Fig. Material-Nr. Ref.

001.000 759551851900 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551852000 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551852100 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551852200 STANDFUSS SCHWARZ STANDFOOT BLACK

005.100 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.200 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.000 759551852300 STANDFUSS ZWISCHENSTUECK STANDFOOT MIDDLEPART

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.000

020.000

020.001

020.001

020.002

020.002

020.003

020.003

020.100

020.100

020.101

021.000

022.000

022.100

022.200 759551854500 KABEL CHASSIS-NETZEIL 45CM CABLE CHASSIS-POWER 45CM

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551841800 KARTON 43 CARTON 43

091.000 759551841900 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PBJ000 * 43 VLE 5521 BG 43 VLE 5521 BG

S 057D43A25P * LCD BMS 056D43A09P CN-G7/DI-DK *1 LCD BMS 056D43A09P CN-G7/DI-DK *1
S 057D43-A25 * LCD BMS 056D43-A09 CN-G7/DI-DK *2 LCD BMS 056D43-A09 CN-G7/DI-DK *2
S 057D43-A36 * LCD BMS 056D43-A01 LEDB CN-G7 *3 LCD BMS 056D43-A01 LEDB CN-G7 *3
S 052D43LG1P * LCD LC430DUY-SHA1 FHD 50HZ *1 LCD LC430DUY-SHA1 FHD 50HZ *1
S 052D43LG1 * LCD LC430DUY-SHA1 FHD BMS *2*3 LCD LC430DUY-SHA1 FHD BMS *2*3
S ZLD60600-AB * LED BAR LINKS 43 (B) LG *1*2 LED BAR LINKS 43 (B) LG *1*2
S ZNK60601-AB * LED BAR LINKS 43 SYMMETRIC LG *3 LED BAR LINKS 43 SYMMETRIC LG *3
S ZLE60600-AB * LED BAR RECHTS 43 (B) LG *1*2 LED BAR RECHTS 43 (B) LG *1*2
S ZLS60601-AB * LED BAR RECHTS 43 SYMMETRIC LG *3 LED BAR RIGHT 43 SYMMETRIC LG *3
S 759551844900 T-CON MODUL 43 PL 6871L-3806B *1 T-CON BOARD 43 PL 6871L-3806B *1
S 759551839400 T-CON MODUL (XMK) *2*3 T-CON BOARD (XMK) *2*3
S 759551847600 FLACHBANDKABEL 50P 0,5MM 81MM CAB.FFC 50PIN 0.5MM L=81MM
S 759551852700 LED-CONVERTER (ZPR) LED CONVERTER (ZPR)
S 275990325600 NETZTEIL (ZNS) POWER SUPPLY (ZNS)
S 759551672300 NETZKABEL 160CM POWER CABLE 160CM

S 275991245200 X CHASSISMODUL CN (K1N) *1 CHASSIS BOARD CN (K1N) *1
S 275991245800 X CHASSISMODUL CN (PBJ) *2 CHASSIS BOARD CN (PBJ) *2
S 275991247100 X CHASSISMODUL CN (K4K) *3 CHASSIS BOARD CN (K4K) *3

Bezeichnung

d

PRODUKTCODE PBJ PRODUCT CODE PBJ

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PBJ000 (PBJ)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 11

9 / 2016 43 VLE 5523 BG

Pos. Fig. Material-Nr. Ref.

001.000 759551851900 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551852000 RUECKWAND SCHWARZ *1*2*3*5 BACK COVER BLACK *1*2*3*5

002.000 759551887600 RUECKWAND SCHWARZ *4 BACK COVER BLACK *4

003.000 759551852100 GEH.-MITTELTEIL SCHWARZ *1 CABINET MIDDLEPART BLACK *1

003.000 759551860700 GEH.-MITTELTEIL SCHWARZ *2*3*4*5 CABINET MIDDLEPART BLACK *2*3*4*5

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

005.400 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.000

020.000

020.001

020.001

020.002

020.002

020.002

020.003

020.003

020.003

020.100

020.100

020.101

021.000

022.000

022.000

022.100

022.100

022.200 759551854500 KABEL NETZTEIL-CHASSIS 45CM CABLE POWER-CHASSIS 45CM

025.000

025.000

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551841800 KARTON 43 CARTON 43

091.000 759551841900 POLSTER 4-TEILIG CUSHION 4 PARTS

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

Part No.

PCC000 * 43 VLE 5523 BG 43 VLE 5523 BG

S 057D43A36P * LCD BMS 056D43A01P CN-G7 *1*3 LCD BMS 056D43A01P CN-G7 *1*3
S 057D43A25P * LCD BMS 056D43A09P CN-G7 *2*5 LCD BMS 056D43A09P CN-G7 *2*5
S 057D43-A76 * LCD BMS 056D43-A03 LEDB CN-G7 *4 LCD BMS 056D43-A03 LEDB CN-G7 *4
S 052D43LG1P * LCD LC430DUY-SHA1 FHD50 *1*2*3*5 LCD LC430DUY-SHA1 FHD50 *1*2*3*5
S 052D43AU2 * LCD T430HVN01.2 FHD 2D50 BMS *4 LCD T430HVN01.2 FHD 2D50 BMS *4
S 759551880200 LED BAR LINKS 43 (ZNK) *1*3 LED BAR LEFT 43 (ZNK) *1*3
S 759551880000 LED BAR LINKS 43 (ZLD) *2*5 LED BAR LEFT 43 (ZLD) *2*5
S 759551886900 LED BAR LINKS 43 (ZPK) *4 LED BAR LEFT 43 (ZPK) *4
S 759551880300 LED BAR RECHTS 43 (ZLS) *1*3 LED BAR RIGHT 43 (ZLS) *1*3
S 759551880100 LED BAR RECHTS 43 (ZLE) *2*5 LED BAR RIGHT 43 (ZLE) *2*5
S 759551887000 LED BAR RECHTS 43 (ZLX) *4 LED BAR RIGHT 43 (ZLX) *4
S 759551844900 T-CON MODUL 43 *1*2*3*5 T-CON BOARD 43 *1*2*3*5
S 759551887100 T-CON MODUL (XMS) *4 T-CON BOARD (XMS) *4
S 759551847600 FLACHBANDKABEL 50P 81MM *1*2*3*5 CAB.FFC 50PIN 81MM *1*2*3*5
S 759551852700 LED-CONVERTER (ZPR) LED CONVERTER (ZPR)
S 275990325600 NETZTEIL (ZNS) *1*2*3*4 POWER SUPPLY (ZNS) *1*2*3*4
S 275990327100 NETZTEIL (ZQR) *5 POWER SUPPLY (ZQR) *5
S 759551672300 NETZKABEL 160CM *1 POWER CABLE 160CM *1
S 759551841600 NETZKABEL *2*3*4*5 POWER CORD *2*3*4*5

S 275991247600 X CHASSISMODUL CN (K62) *1 CHASSIS BOARD CN (K62) *1
S 275991248500 X CHASSISMODUL CN (K1L) *2 CHASSIS BOARD CN (K1L) *2
S 275991254900 X CHASSISMODUL CN (KI9) *3 CHASSIS BOARD CN (KI9) *3
S 275991256900 X CHASSISMODUL CN (L5H) *4 CHASSIS BOARD CN (L5H) *4
S 275991258400 X CHASSISMODUL CN (KJ5) *5 CHASSIS BOARD CN (KJ5) *5

Bezeichnung

d

PRODUKTCODE PCC PRODUCT CODE PCC

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

BESTELL-NR. / ORDER NO.: PCC000 (PCC)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

10 / 2016 43 VLE 5523 BN

Pos. Fig. Material-Nr. Ref.

001.000 759551851900 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551852000 RUECKWAND SCHWARZ *1*3*4 BACK COVER BLACK *1*3*4

002.000 759551887600 RUECKWAND SCHWARZ *2 BACK COVER BLACK *2

003.000 759551860700 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551862500 STANDFUSS BLACK STANDFOOT BLACK

005.100 759551864700 STANDFUSS RECHTS SCHWARZ STANDFOOT RIGHT BLACK

005.200 759551864800 STANDFUSS LINKS SCHWARZ STANDFOOT LEFT BLACK

005.300 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

005.400 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.000

020.001

020.001

020.002

020.002

020.003

020.003

020.100

020.100

020.101

021.000

022.000

022.000

022.100

022.200 759551854500 KABEL NETZTEIL-CHASSIS 45CM CABLE POWER-CHASSIS 45CM

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551841800 KARTON 43 CARTON 43

091.000 759551841900 POLSTER 4-TEILIG CUSHION 4 PARTS

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

Part No.

PFD000 * 43 VLE 5523 BN 43 VLE 5523 BN

S 057D43A25P * LCD BMS 056D43A09P CN-G7 *1*3*4 LCD BMS 056D43A09P CN-G7 *1*3*4
S 057D43-A76 * LCD BMS 056D43-A03 LEDB CN-G7 *2 LCD BMS 056D43-A03 LEDB CN-G7 *2
S 052D43LG1P * LCD LC430DUY-SHA1 FHD 50HZ *1*3*4 LCD LC430DUY-SHA1 FHD 50HZ *1*3*4
S 052D43AU2 * LCD T430HVN01.2 FHD 2D50 BMS *2 LCD T430HVN01.2 FHD 2D50 BMS *2
S 759551880000 LED BAR LINKS 43 (ZLD) *1*3*4 LED BAR LEFT 43 (ZLD) *1*3*4
S 759551886900 LED BAR LINKS 43 (ZPK) *2 LED BAR LEFT 43 (ZPK) *2
S 759551880100 LED BAR RECHTS 43 (ZLE) *1*3*4 LED BAR RIGHT 43 (ZLE) *1*3*4
S 759551887000 LED BAR RECHTS 43 (ZLX) *2 LED BAR RIGHT 43 (ZLX) *2
S 759551844900 T-CON MODUL 43 PL *1*3*4 T-CON BOARD 43 PL *1*3*4
S 759551887100 T-CON MODUL (XMS) *2 T-CON BOARD (XMS) *2
S 759551847600 FLACHBANDKABEL 50P 81MM *1*3*4 CAB.FFC 50PIN 0.5MM L=81MM *1*3*4
S 759551852700 LED-CONVERTER (ZPR) LED CONVERTER (ZPR)
S 275990325600 NETZTEIL (ZNS) *1*2*4 POWER SUPPLY (ZNS) *1*2*4
S 275990327100 NETZTEIL (ZQR) *3 POWER SUPPLY (ZQR) *3
S 759551841600 NETZKABEL POWER CORD

S 275991250000 X CHASSISMODUL CN (K1P) *1 CHASSIS BOARD CN (K1P) *1
S 275991257000 X CHASSISMODUL CN (LF6) *2 CHASSIS BOARD CN (LF6) *2
S 275991258700 X CHASSISMODUL CN (L2M) *3*4 CHASSIS BOARD CN (L2M) *3*4

Bezeichnung

d

PRODUKTCODE PFD PRODUCT CODE PFD

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

BESTELL-NR. / ORDER NO.: PFD000 (PFD)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 12

9 / 2016 43 VLE 5523 WG

Pos. Fig. Material-Nr. Ref.

001.000 759551859700 GEH.-VORDERTEIL WEISS FRONT CABINET WHITE

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551859800 RUECKWAND WEISS *1*2*3*5 BACK COVER WHITE *1*2*3*5

002.000 759551890500 RUECKWAND WEISS *4 BACK COVER WHITE *4

003.000 759551859900 GEH.-MITTELTEIL WEISS CABINET MIDDLEPART WHITE

005.000 759551860000 STANDFUSS WEISS STANDFOOT WHITE

005.100 759551808000 STANDFUSSSCHRAUBE 40X10 STANDFOOTSCREW 40X10

005.200 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551856700 STANDFUSSHALTER LINKS WEISS STANDFOOTHOLDER LEFT WHITE

006.200 759551862200 STANDFUSSHALTER RECHTS WEISS STANDFOOTHOLDER RIGHT WHITE

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551626200 KABEL LVDS 51P 300MM CABLE LVDS 51P 300MM

020.000

020.000

020.000

020.000

020.001

020.001

020.001

020.002

020.002

020.002

020.003

020.003

020.003

020.100

020.100

020.100

020.101

021.000

022.000

022.100

022.200 759551854500 KABEL NETZTEIL-CHASSIS 45CM CABLE POWER-CHASSIS 45CM

025.000

025.000

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145400 FERNBEDIENUNG TP EASY WEISS REMOTE CONTROL TP EASY WHITE

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551841800 KARTON 43 CARTON 43

091.000 759551841900 POLSTER 4-TEILIG CUSHION 4 PARTS

Part No.

PFA000 * 43 VLE 5523 WG 43 VLE 5523 WG

S 057D43A44P * LCD BMS 056D43A01P CN-G7 *1*3 LCD BMS 056D43A01P CN-G7 *1*3
S 057D43A42P * LCD BMS 056D43A09P LEDB CN-G7 *2 LCD BMS 056D43A09P LEDB CN-G7 *2
S 057D43-A79 * LCD BMS 056D43-A03 LEDB CN-G7 *4 LCD BMS 056D43-A03 LEDB CN-G7 *4
S 057D43-A42 * LCD BMS 056D43-A09 LEDB CN-G7 *5 LCD BMS 056D43-A09 LEDB CN-G7 *5
S 052D43LG1P * LCD LC430DUY-SHA1 FHD 50HZ *1*2*3 LCD LC430DUY-SHA1 FHD 50HZ *1*2*3
S 052D43AU2 * LCD T430HVN01.2 FHD 2D50 BMS *4 LCD T430HVN01.2 FHD 2D50 BMS *4
S 052D43LG1 * LCD LC430DUY-SHA1 FHD BMS *5 LCD LC430DUY-SHA1 FHD BMS *5
S 759551880200 LED BAR LINKS 43 (ZNK) *1*3 LED BAR LEFT 43 (ZNK) *1*3
S 759551880000 LED BAR LINKS 43 (ZLD) *2*5 LED BAR LEFT 43 (ZLD) *2*5
S 759551886900 LED BAR LINKS 43 (ZPK) *4 LED BAR LEFT 43 (ZPK) *4
S 759551880300 LED BAR RECHTS 43 (ZLS) *1*3 LED BAR RIGHT 43 (ZLS) *1*3
S 759551880100 LED BAR RECHTS 43 (ZLE) *2*5 LED BAR RIGHT 43 (ZLE) *2*5
S 759551887000 LED BAR RECHTS 43 (ZLX) *4 LED BAR RIGHT 43 (ZLX) *4
S 759551844900 T-CON MODUL 43 PL *1*2*3 T-CON BOARD 43 PL *1*2*3
S 759551887100 T-CON MODUL (XMS) *4 T-CON BOARD (XMS) *4
S 759551839400 T-CON MODUL (XMK) *5 T-CON BOARD (XMK) *5
S 759551847600 FLACHBANDKABEL 50P 81MM *1*2*3*5 CAB.FFC 50PIN 81MM *1*2*3*5
S 759551852700 LED-CONVERTER (ZPR) LED CONVERTER (ZPR)
S 275990325600 NETZTEIL (ZNS) POWER SUPPLY (ZNS)
S 759551841600 NETZKABEL POWER CORD

S 275991247600 X CHASSISMODUL CN (K62) *1 CHASSIS BOARD CN (K62) *1
S 275991248500 X CHASSISMODUL CN (K1L) *2 CHASSIS BOARD CN (K1L) *2
S 275991254900 X CHASSISMODUL CN (KI9) *3 CHASSIS BOARD CN (KI9) *3
S 275991256900 X CHASSISMODUL CN (L5H) *4 CHASSIS BOARD CN (L5H) *4
S 275991258500 X CHASSISMODUL CN (KJ4) *5 CHASSIS BOARD CN (KJ4) *5

Bezeichnung

d

PRODUKTCODE PFA PRODUCT CODE PFA

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PFA000 (PFA)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

9 / 2016 49 VLE 4523 BF

Pos. Fig. Material-Nr. Ref.

001.000 759551890400 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551846100 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551865100 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551851600 STANDFUSS SCHWARZ STANDFOOT BLACK

005.100 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.200 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551600400 KABEL DISPLAY-LVDS 500MM CABLE DISPLAY-LVDS 500MM

020.000

020.001

020.002

020.003

020.100

020.101

021.000

022.000

022.100

022.200 759551861500 KABEL NETZTEIL-CHASSIS 650MM CABLE POWER-CHASSIS 650MM

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551846300 KARTON 49 CARTON 49

091.000 759551846400 POLSTER 4-TEILIG CUSHION 4-PARTS

Part No.

PBY000 * 49 VLE 4523 BF 49 VLE 4523 BF

S 057D49-A58 * LCD BMS 056D49-A29 LEDB CN-G7 LCD BMS 056D49-A29 LEDB CN-G7
S 052D49LG3 * LCD LG LC490DUY-SHA1 FHD LCD LG LC490DUY-SHA1 FHD
S 759551880400 LED BAR LINKS 49 (ZLF) LED BAR LEFT 49 (ZLF)
S 759551880500 LED BAR RECHTS 49 (ZLG) LED BAR RIGHT 49 (ZLG)
S 759551825800 T-CON MODUL (XMJ) T-CON BOARD (XMJ)
S 759551852600 FLACHBANDKABEL 50P P=0,5MM 88MM CABLE FFC 50P P=0,5MM 88MM
S 759551852500 LED-CONVERTER (ZPS) LED CONVERTER (ZPS)
S 275990325600 NETZTEIL (ZNS) POWER SUPPLY (ZNS)
S 759551841600 NETZKABEL POWER CORD

S 275991258000 X CHASSISMODUL CN (PBY) CHASSIS BOARD CN (PBY)

Bezeichnung

d

PRODUKTCODE PBY PRODUCT CODE PBY

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PBY000 (PBY)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 13

12 / 2015 49 VLE 5521 BG

Pos. Fig. Material-Nr. Ref.

001.000 759551851500 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551846100 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551851800 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551851600 STANDFUSS SCHWARZ STANDFOOT BLACK

005.100 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551600400 KABEL DISPLAY-LVDS 500 MM CABLE DISPLAY-LVDS 500 MM

020.000

020.001

020.002

020.003

020.100

021.000 759551852500 CONVERTER (ZPS) CONVERTER (ZPS)

021.100 759551852600 FLACHBANDKABEL 50P P=0,5MM 88MM CABLE FFC 50P P=0,5MM 88MM

022.000

023.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

032.000 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

033.000 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

034.000 759551851700 FLACHBANDKABEL 4P P=1MM 450MM CABLE FFC 4PIN P=1MM 450MM

090.000 759551846300 KARTON 49 CARTON 49

091.000 759551846400 POLSTER 4-TEILIG CUSHION 4-PARTS

Part No.

PBK000 * 49 VLE 5521 BG 49 VLE 5521 BG

S 057D49-A43 * LCD BMS 056D49-A29 CN-G7/DI-DK LCD BMS 056D49-A29 CN-G7/DI-DK
S 052D49LG3 * LCD LG LC490DUY-SHA1 FHD LCD LG LC490DUY-SHA1 FHD
S ZLF60600-AC * LED BAR LEFT 49 LEDART (B) LED BAR LEFT 49 LEDART (B)
S ZLG60600-AC * LED BAR RIGHT 49 LEDART (B) LED BAR RIGHT 49 LEDART (B)
S 759551825800 T-CON MODUL (XMJ) T-CON BOARD (XMJ)

S 759551841600 NETZKABEL POWER CORD
S 275990325600 NETZTEIL (ZNS) POWER SUPPLY (ZNS)
S 275991245100 X CHASSISMODUL CN (PBK) CHASSIS BOARD CN (PBK)

Bezeichnung

d

PRODUKTCODE PBK PRODUCT CODE PBK

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PBK000 (PBK)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

10 / 2016 49 VLE 5523 BN

Pos. Fig. Material-Nr. Ref.

001.000 759551851500 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551887300 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551865100 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551851600 STANDFUSS SCHWARZ STANDFOOT BLACK

005.100 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

005.200 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551600400 KABEL DISPLAY-LVDS 500MM CABLE DISPLAY-LVDS 500MM

020.000

020.000

020.001

020.001

020.002

020.002

020.003

020.003

020.100

020.101

021.000

022.000

022.000

022.100

022.200 759551861500 KABEL NETZTEIL-CHASSIS 650MM CABLE POWER-CHASSIS 650MM

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551846300 KARTON 49 CARTON 49

091.000 759551846400 POLSTER 4-TEILIG CUSHION 4-PARTS

Part No.

PFE000 * 49 VLE 5523 BN 49 VLE 5523 BN

S 057D49A43C * LCD BMS 056D49A29C LEDB CN-G7 *1 LCD BMS 056D49A29C LEDB CN-G7 *1
S 057D49-B54 * LCD BMS 056D49-B20 LEDA CN-G7 *2 LCD BMS 056D49-B20 LEDA CN-G7 *2
S 052D49LG3C * LCD LC490DUY-SHA1 FHD 50HZ CN *1 LCD LC490DUY-SHA1 FHD 50HZ CN *1
S 052D49LG7 * LCD LC490DUY-SHA1 FHD50 *2 LCD LC490DUY-SHA1 FHD50 *2
S 759551880400 LED BAR LINKS 49 (ZLF) *1 LED BAR LEFT 49 (ZLF) *1
S 759551880800 LED BAR LINKS 49 (ZNL) *2 LED BAR LEFT 49 (ZNL) *2
S 759551880500 LED BAR RECHTS 49 (ZLG) *1 LED BAR RIGHT 49 (ZLG) *1
S 759551880900 LED BAR RECHTS 49 (ZLP) *2 LED BAR RIGHT 49 (ZLP) *2
S 759551870600 T-CON MODUL (XMJ) T-CON BOARD (XMJ)
S 759551852600 FLACHBANDKABEL 50P P=0,5MM 88MM CABLE FFC 50P P=0,5MM 88MM
S 759551852500 LED-CONVERTER (ZPS) LED CONVERTER (ZPS)
S 275990325600 NETZTEIL (ZNS) *1 POWER SUPPLY (ZNS) *1
S 275990327100 NETZTEIL (ZQR) *2 POWER SUPPLY (ZQR) *2
S 759551841600 NETZKABEL POWER CORD

S 275991258800 X CHASSISMODUL CN (M2K) *1 CHASSIS BOARD CN (M2K) *1
S 275991260000 X CHASSISMODUL CN (M4J) *2 CHASSIS BOARD CN (M4J) *2

Bezeichnung

d

PRODUKTCODE PFE PRODUCT CODE PFE

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:

BESTELL-NR. / ORDER NO.: PFE000 (PFE)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 14

9 / 2016 49 VLE 5523 WG

Pos. Fig. Material-Nr. Ref.

001.000 759551865800 GEH.-VORDERTEIL WEISS FRONT CABINET WHITE

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551862900 RUECKWAND WEISS *1*2*3*4 BACK COVER WHITE *1*2*3*4

002.000 759551888400 RUECKWAND WEISS *5*6 BACK COVER WHITE *5*6

003.000 759551863000 GEH.-MITTELTEIL WEISS CABINET MIDDLEPART WHITE

005.000 759551865900 STANDFUSS WEISS STANDFOOT WHITE

005.100 759551808000 STANDFUSSSCHRAUBE 40X10 STANDFOOTSCREW 40X10

005.200 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.100 759551856700 STANDFUSSHALTER LINKS WEISS STANDFOOTHOLDER LEFT WHITE

006.200 759551862200 STANDFUSSHALTER RECHTS WEISS STANDFOOTHOLDER RIGHT WHITE

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551600400 KABEL DISPLAY-LVDS 500MM CABLE DISPLAY-LVDS 500MM

020.000

020.000

020.000

020.000

020.001

020.001

020.001

020.002

020.002

020.003

020.003

020.100

020.100

020.100

020.101

021.000

022.000

022.000

022.100

022.200 759551861500 KABEL NETZTEIL-CHASSIS 650MM CABLE POWER-CHASSIS 650MM

025.000

025.000

025.000

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145400 FERNBEDIENUNG TP EASY WEISS REMOTE CONTROL TP EASY WHITE

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551846300 KARTON 49 CARTON 49

091.000 759551846400 POLSTER 4-TEILIG CUSHION 4-PARTS

Part No.

PMP000 * 49 VLE 5523 WG 49 VLE 5523 WG

S 057D49-A90 * LCD BMS 056D49-A29 CN-G7/DN-DR *1 LCD BMS 056D49-A29 CN-G7/DN-DR *1
S 057D49B03P * LCD BMS 056D49A27P CN-G7/DN-DR *2 LCD BMS 056D49A27P CN-G7/DN-DR *2
S 057D49A90P * LCD BMS 056D49A29P CN-G7 *3*5 LCD BMS 056D49A29P CN-G7 *3*5
S 057D49B03C * LCD BMS 056D49A27C LEDA CN-G7*4*6 LCD BMS 056D49A27C LEDA CN-G7*4*6
S 052D49LG3 * LCD LG LC490DUY-SHA1 FHD *1 LCD LG LC490DUY-SHA1 FHD *1
S 052D49LG3P * LCD LC490DUY-SHA1 FHD 2D *2*3*5 LCD LC490DUY-SHA1 FHD 2D *2*3*5
S 052D49LG3C * LCD LC490DUY-SHA1 FHD50 CN *4*6 LCD LC490DUY-SHA1 FHD50 CN *4*6
S 759551880400 LED BAR LINKS 49 (ZLF) *1*3*5 LED BAR LEFT 49 (ZLF) *1*3*5
S 759551880800 LED BAR LINKS 49 (ZNL) *2*4*6 LED BAR LEFT 49 (ZNL) *2*4*6
S 759551880500 LED BAR RECHTS 49 (ZLG) *1*3*5 LED BAR RIGHT 49 (ZLG) *1*3*5
S 759551880900 LED BAR RECHTS 49 (ZLP) *2*4*6 LED BAR RIGHT 49 (ZLP) *2*4*6
S 759551825800 T-CON MODUL (XMJ) *1 T-CON BOARD (XMJ) *1
S 759551865300 T-CON MODUL (XMJ) *2*3*5 T-CON BOARD (XMJ) *2*3*5
S 759551870600 T-CON MODUL (XMJ) *4*6 T-CON BOARD (XMJ) *4*6
S 759551852600 FLACHBANDKABEL 50P P=0,5MM 88MM CABLE FFC 50P P=0,5MM 88MM
S 759551852500 LED-CONVERTER (ZPS) LED CONVERTER (ZPS)
S 275990325600 NETZTEIL (ZNS) *1*2*3*4 POWER SUPPLY (ZNS) *1*2*3*4
S 275990327100 NETZTEIL (ZQR) *5*6 POWER SUPPLY (ZQR) *5*6
S 759551841600 NETZKABEL POWER CORD

S 275991252700 X CHASSISMODUL CN (PCD) *1 CHASSIS BOARD CN (PCD) *1
S 275991252800 X CHASSISMODUL CN (PMP) *2 CHASSIS BOARD CN (PMP) *2
S 275991252900 X CHASSISMODUL CN (KY7) *3 CHASSIS BOARD CN (KY7) *3
S 275991255200 X CHASSISMODUL CN (PDD) *4 CHASSIS BOARD CN (PDD) *4
S 275991259200 X CHASSISMODUL CN (L5V) *5 CHASSIS BOARD CN (L5V) *5
S 275991259300 X CHASSISMODUL CN (L6N) *6 CHASSIS BOARD CN (L6N) *6

Bezeichnung

d

PRODUKTCODE PMP PRODUCT CODE PMP

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PMP000 (PMP)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

3 / 2016 55 VLE 5523 BG

Pos. Fig. Material-Nr. Ref.

001.000 759551860100 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551846600 RUECKWAND SCHWARZ BACK COVER BLACK

003.000 759551860200 GEH.-MITTELTEIL SCHWARZ *1 CABINET MIDDLEPART BLACK *1

003.000 759551860600 GEH.-MITTELTEIL SCHWARZ *2 CABINET MIDDLEPART BLACK *2

005.000 759551852200 STANDFUSS SCHWARZ *1 STANDFOOT BLACK *1

005.000 759551851600 STANDFUSS SCHWARZ *2 STANDFOOT BLACK *2

005.100 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

005.200 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

006.000 759551852300 STANDFUSS ZWISCHENSTUECK STANDFOOT MIDDLEPART

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551622500 KABEL LVDS 51P 600MM CABLE LVDS 51P 600MM

020.000

020.000

020.001

020.001

020.002

020.100

020.100

020.101

022.000

022.100

022.100

022.200 759551860300 KABEL CHASSIS-NETZEIL 750MM CABLE CHASSIS-POWER 750MM

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551860400 KARTON 55 CARTON 55

091.000 759551860500 POLSTER 6-TEILIG CUSHION 6 PARTS

Part No.

PCE000 * 55 VLE 5523 BG 55 VLE 5523 BG

S 057D55A62C * LCD BMS 056D55A20C CN-G7/DI *1 LCD BMS 056D55A20C CN-G7/DI *1
S 057D55-A62 * LCD BMS 056D55-A20 CN-G7/DI-DK *2 LCD BMS 056D55-A20 CN-G7/DI-DK *2
S 052D55LG1C * LCD LC550DUY-SHA1 FHD 50HZ CN *1 LCD LC550DUY-SHA1 FHD 50HZ CN *1
S 052D55LG1 * LCD LC550DUY-SHA1 FHD BMS *2 LCD LC550DUY-SHA1 FHD BMS *2
S ZLH60600-AC * LED BAR 55 LEDART (B) LG LED BAR 55 LEDART (B) LG
S 759551859500 T-CON MODUL (XML) *1 T-CON BOARD (XML) *1
S 759551844800 T-CON MODUL 55 6871L-3831A *2 T-CON BOARD 55 6871L-3831A *2
S 759551852600 FLACHBANDKABEL 50P P=0,5MM 88MM CABLE FFC 50P P=0,5MM 88MM
S 275990326300 NETZTEIL (ZNK) POWER SUPPLY (ZNK)
S 759551672300 NETZKABEL 160CM *1 POWER CABLE 160CM *1
S 759551841600 NETZKABEL *2 POWER CORD *2

S 275991248200 X CHASSISMODUL CN (K19) *1 CHASSIS BOARD CN (K19) *1
S 275991248300 X CHASSISMODUL CN (PCE) *2 CHASSIS BOARD CN (PCE) *2

Bezeichnung

d

PRODUKTCODE PCE PRODUCT CODE PCE

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PCE000 (PCE)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

ǵ

TV

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 15

9 / 2016 55 VLE 5523 BN

Pos. Fig. Material-Nr. Ref.

001.000 759551860100 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK

001.100 759551729100 LED-LINSE LED-LENSE

002.000 759551846600 RUECKWAND SCHWARZ *1*3*4 BACK COVER BLACK *1*3*4

002.000 759551866100 RUECKWAND SCHWARZ *2*5 BACK COVER BLACK *2*5

003.000 759551860600 GEH.-MITTELTEIL SCHWARZ CABINET MIDDLEPART BLACK

005.000 759551851600 STANDFUSS SCHWARZ STANDFOOT BLACK

005.100 759551703500 STANDFUSS SCHRAUBE SCHWARZ M4X12 STANDFOOT SCREW BLACK M4X12

005.200 759551696100 STANDFUSS SCHRAUBE SCHWARZ M4X10 STANDFOOTSCREW BLACK M4X10

006.100 759551852200 STANDFUSSHALTER RIGHT SCHWARZ STANDFOOTHOLDER RIGHT BLACK

006.200 759551852300 STANDFUSSHALTER LINKS SCHWARZ STANDFOOTHOLDER LEFT BLACK

015.000 759551841700 LAUTSPRECHER 8R 10/15W 192x32MM SPEAKER 8R 10/15W 192x32MM

019.000 759551622500 KABEL LVDS 51P 600MM CABLE LVDS 51P 600MM

020.000

020.000

020.000

020.000

020.001

020.001

020.001

020.001

020.002

020.002

020.002

020.100

020.100

020.100

020.101

020.101

021.000

022.000

022.100

022.200 759551860300 KABEL NETZTEIL-CHASSIS 750MM CABLE POWER-CHASSIS 750MM

025.000

025.000

025.000

025.000

025.000

027.000 759551767800 FERNBEDIENUNG TP6 VER. 3 REMOTE CONTROL TP6 VER. 3

028.000 720117145300 FERNBEDIENUNG TP EASY SCHWARZ REMOTE CONTROL TP EASY BLACK

031.000 759551793400 IR/LED MODUL (ZGP) IR/LED BOARD (ZGP)

031.100 759551786600 IR-EMPFAENGER TSOP36438TT IR-RECEIVER TSOP36438TT

031.200 759551549100 LED-SMD 1206 BLAU 250MCD 3.3V LED-SMD 1206 BLUE 250MCD 3.3V

031.300 759551851700 FLACHBANDKABEL 4P 1MM 450MM CABLE FFC 4PIN 1MM 450MM

090.000 759551860400 KARTON 55 CARTON 55

091.000 759551860500 POLSTER 6-TEILIG CUSHION 6 PARTS

Part No.

PFF000 * 55 VLE 5523 BN 55 VLE 5523 BN

S 057D55A62C * LCD BMS 056D55A20C CN-G7/DI *1*4 LCD BMS 056D55A20C CN-G7/DI *1*4
S 057D55-B11 * LCD BMS 056D55-A22 LEDB CN-G7 *2 LCD BMS 056D55-A22 LEDB CN-G7 *2
S 057D55-B24 * LCD BMS 056D55-A18 LEDA CN-G7 *3 LCD BMS 056D55-A18 LEDA CN-G7 *3
S 057D55B11C * LCD BMS 056D55A22C LEDB CN-G7 *5 LCD BMS 056D55A22C LEDB CN-G7 *5
S 052D55LG1C * LCD LC550DUY-SHA1 FHD50 CN *1*4 LCD LC550DUY-SHA1 FHD50 CN *1*4
S 052D55AU1 * LCD T550HVN06.5 FHD 2D 50Hz *2 LCD T550HVN06.5 FHD 2D 50Hz *2
S 052D55LG1 * LCD LC550DUY-SHA1 FHD BMS *3 LCD LC550DUY-SHA1 FHD BMS *3
S 052D55AU1C * LCD T550HVN06.5 FHD 2D50 *5 LCD T550HVN06.5 FHD 2D50 *5
S 759551880600 LED BAR 55 (ZLH) *1*4 LED BAR 55 (ZLH) *1*4
S 759551881200 LED BAR 55 (ZNP) *2*5 LED BAR 55 (ZNP) *2*5
S 759551880700 LED BAR 55 (ZNM) *3 LED BAR 55 (ZNM) *3
S 759551859500 T-CON MODUL (XML) *1*4 T-CON BOARD (XML) *1*4
S 759551865500 T-CON MODUL (XLM) *2*5 T-CON BOARD (XLM) *2*5
S 759551844800 T-CON MODUL 55 6871L-3831A *3 T-CON BOARD 55 6871L-3831A *3
S 759551852600 FLACHBANDKABEL 50P 88MM *1*3*4 CABLE FFC 50P P=0,5MM 88MM *1*3*4
S 759551866200 FLACHBANDKABEL 60P 88MM *2*5 CABLE FFC 60P 0.5MM 88MM *2*5
S 759551887500 LED-KONVERTER (ZPT) *4*5 LED CONVERTER (ZPT) *4*5
S 275990326300 NETZTEIL (ZNK) POWER SUPPLY (ZNK)
S 759551841600 NETZKABEL POWER CORD

S 275991250100 X CHASSISMODUL CN (PFF) *1 CHASSIS BOARD CN (PFF) *1
S 275991256300 X CHASSISMODUL CN (KK7) *2 CHASSIS BOARD CN (KK7) *2
S 275991256400 X CHASSISMODUL CN (L4X) *3 CHASSIS BOARD CN (L4X) *3
S 275991258900 X CHASSISMODUL CN (L8T) *4 CHASSIS BOARD CN (L8T) *4
S 275991259000 X CHASSISMODUL CN (LB1) *5 CHASSIS BOARD CN (LB1) *5

Bezeichnung

d

PRODUKTCODE PFF PRODUCT CODE PFF

Hinweis:

Sollte in dieser Ersatzteilliste Ihr "Product Code"
oder Ihre Display-Variante nicht aufgeführt sein,
finden Sie eine aktualisierte Version auf dem
Service-Portal "http://service.grundig.de".

* KEIN ERSATZTEIL * NO SPARE PART
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

DIE BEDIENUNGSANLEITUNG IST THE INSTRUCTION MANUAL CAN BE
UEBER FOLGENDER ADRESSE ABRUFBAR: DOWNLOAD FROM ADRESS:
WWW.GRUNDIG.DE/SERVICE/DOWNLOADS WWW.GRUNDIG.DE/SERVICE/DOWNLOADS

BESTELL-NR. / ORDER NO.: PFF000 (PFF)

Description

©

Note:

If your "Product Code" or display variant is not
mentioned in the spare parts list, please look
for a current version at the service portal
"http://service.grundig.de".

1 / 2016 NETZTEILMODUL / POWER SUPPLY (ZQA)

Pos. Fig. Material-Nr. Ref.

POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION

D2000 759551818400 DIO STKY 2x15A 150V ITO220
D2002 759551818400 DIO STKY 2x15A 150V ITO220
D2003 759551395100 DIODE MUR460 4A 600V
D2004 759551613000 DIODE ZEN BZX84C22-7-F
D2005 759550923500 DIODE ZPD5.1
D2006 759551395300 DIODE UF4007F R:12.5
D2007 759551818500 DIO-SMD U.FAST 1A 600V SMA
D2008 759551818500 DIO-SMD U.FAST 1A 600V SMA
D2012 759551818400 DIO STKY 2x15A 150V ITO220
D2506 830970755500 Z DIODE ZPD 15 ITT/BZX 55 C15
D2507 830970755500 Z DIODE ZPD 15 ITT/BZX 55 C15
D2508 759551853700 DIODE-SMD STKY 10A 200V

DB2000 759551738900 DIO BRD GBL408 4A 800V

FS2000

IC2000 759551818300 IC-SMD FAN6756MRMY SOIC8
IC2001
IC2003 759551815500 IC AS431BZTR-G1 TO92
IC2500 759551853900 IC-SMD FAN73402MX SOIC

L2000 759551739300 BOB 3.3UH 6.3A 9.3*7.8MM R:5
L2001 759551562600 SMD SPULE 10UH 200MA
L2002
L2005
L2501
L2505 759551818700 LINE FILT 2x1MH 2.5A 250V

R2002 759551121600 SICH.WIDERST. 0.22OHM J 1W
R2003
R2011
R2504
R2511 759551167200 RC-CHIP 100K %1 1/10W /0805
R2512 759551167200 RC-CHIP 100K %1 1/10W /0805
R2524 759551167200 RC-CHIP 100K %1 1/10W /0805

T2000 759551817900 TRN FQPF7N65C 650V 7A 1.4R
TO220
T2500 759551833900 TRN-CHIP 2N7002P SOT23
T2501 759551854100 TRN-SMD FDD390N15 26A150V

TR2000 S 759551854200 TRF SMT SHEKOU JEWEL

Part No.

275990325500

S 759551198500 SICHERUNG 2AT/255V

S 759551853800 IC OPTOCOUPLER VO617A-4X

S 759551817800 LINE FILT 2x30MH JLB1895
S 759551817800 LINE FILT 2x30MH JLB1895
S 759551854000 BOB 47UH 4.5A LC-20-0013

S 759551837200 FUSE-SMD PTC 0.32A 30V
S 759551308900 NTC SCK150R78AMSY 0R78A
S 759551837200 FUSE-SMD PTC 0.32A 30V

Bezeichnung

d

S NETZTEIL (ZQA) POWER SUPPLY (ZQA)

POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION

MATERIAL-NR. / PART NO.: 275990325500

Description

©

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste
Spare Parts List

NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY

GRUNDIG Service Chassis CN

ǵ

TV

3 - 16

1 / 2016 NETZTEILMODUL / POWER SUPPLY (ZQA)

Pos. Fig. Material-Nr. Ref.

POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION

D2000 759551818400 DIO STKY 2x15A 150V ITO220
D2002 759551818400 DIO STKY 2x15A 150V ITO220
D2003 759551395100 DIODE MUR460 4A 600V
D2004 759551613000 DIODE ZEN BZX84C22-7-F
D2005 759550923500 DIODE ZPD5.1
D2006 759551395300 DIODE UF4007F R:12.5
D2007 759551818500 DIO-SMD U.FAST 1A 600V SMA
D2008 759551818500 DIO-SMD U.FAST 1A 600V SMA
D2012 759551818400 DIO STKY 2x15A 150V ITO220
D2013 759551395300 DIODE UF4007F R:12.5
D2506 830970755500 Z DIODE ZPD 15 ITT/BZX 55 C15
D2507 830970755500 Z DIODE ZPD 15 ITT/BZX 55 C15
D2508 759551853700 DIODE-SMD STKY 10A 200V

DB2000 759551738900 DIO BRD GBL408 4A 800V

FS2000

IC2000 759551818300 IC-SMD FAN6756MRMY SOIC8
IC2001
IC2003 759551815500 IC AS431BZTR-G1 TO92
IC2500 759551853900 IC-SMD FAN73402MX SOIC

L2000 759551739300 BOB 3.3UH 6.3A 9.3*7.8MM R:5
L2001 759551562600 SMD SPULE 10UH 200MA
L2002
L2005
L2501
L2505 759551818700 LINE FILT 2x1MH 2.5A 250V

R2002 759551121600 SICH.WIDERST. 0.22OHM J 1W
R2003
R2011
R2504
R2511 759551167200 RC-CHIP 100K %1 1/10W /0805
R2512 759551167200 RC-CHIP 100K %1 1/10W /0805
R2524 759551167200 RC-CHIP 100K %1 1/10W /0805

S2001 S 759551806300 DC-ANSCHLUSS 6A 3PIN

T2000 759551817900 TRN FQPF7N65C 650V 7A 1.4R
TO220
T2500 759551833900 TRN-CHIP 2N7002P SOT23
T2501 759551854100 TRN-SMD FDD390N15 26A

TR2000

Part No.

275990325900

S 759551198500 SICHERUNG 2AT/255V

S 759551853800 IC OPTOCOUPLER VO617A-4X

S 759551817800 LINE FILT 2x30MH JLB1895
S 759551817800 LINE FILT 2x30MH JLB1895
S 759551854000 BOB 47UH 4.5A LC-20-0013

S 759551837200 FUSE-SMD PTC 0.32A 30V
S 759551308900 NTC SCK150R78AMSY 0R78A
S 759551837200 FUSE-SMD PTC 0.32A 30V

S 759551854200 TRF SMT SHEKOU JEWEL

Bezeichnung

d

S NETZTEIL (ZNV) POWER SUPPLY (ZNV)

POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION

MATERIAL-NR. / PART NO.: 275990325500

Description

©

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Ser­vice Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätz­lich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the

S

"Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.

( ! )

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteilliste / Spare Parts List

TV

10 / 2016 CHASSISMODUL / CHASSIS BOARD CN

Chassis SUGRUNDIG Service

3 - 17

NUR FÜR INTERNEN GEBRAUCH / FOR INTERNAL USE ONLY

Chassis CNGRUNDIG Service

3 - 17

275991245100

275991245200

275991245600

275991245700

275991245800

275991246000

275991247000

275991247100

275991247500

275991247600

275991247700

275991247800

275991248200

275991248300

275991248400

275991248500

275991250000

275991250100

275991252600

275991252700

275991252800

275991252900

275991254900

275991255200

275991255900

275991256000

275991256100

275991256200

275991256300

275991256400

275991256500

275991256600

275991256900

275991257000

275991258000

275991258100

275991258200

275991258300

275991258400

275991258500

275991258600

275991258700

275991258800

275991258900

275991259000

275991259100

275991259200

275991259300

275991260000

Pos.
D1000

Part Number

759551497600

Description

DIODE STKY-SMD PMEG2020EH 2A 20V

PCB

Code

D1001
D1100
D1102
D1103

759551497600

759551262400

DIODE STKY-SMD PMEG2020EH 2A 20V

DIODE PMEG4010EH SOD123

759551262400

759551262400

DIODE PMEG4010EH SOD123

DIODE PMEG4010EH SOD123
D1104
IC100
IC500
IC502

759551262400

759551849200

DIODE PMEG4010EH SOD123

IC-SMD NT72453MBG-CA/B HS-TFBGA

759551771800

759551605900

IC-SMD TAS5739MDPHPR QFP

IC-SMD AP432SRG-7 SOT23R
IC600
IC601
IC700
IC701

759551849300

759551849400

IC-SMD APX811-31UG-7 SOT143

IC-SMD MX30LF1G18AC-TI 48TSOP

759551729600

759551498600

IC-SMD TPS2530DBVR SOT23-5

IC-SMD NC7SZ08P5X SOT353

IC800

IC801

IC1000

759551502800

759551853500

IC-SMD AP2171WG-7 SOT23-5

IC-SMD AP2171WG-7-2111 SOT23-5

759551729600

759551771700

IC-SMD TPS2530DBVR SOT23-5

IC-SMD SN74LVC1G126DCKR SOT353

IC1002

IC1003

IC1004

IC1005

759551817500

759551781600

IC-SMD TPS54335ADRCR QFN

IC-SMD TPS562200DDCR SOT23-6

759551701300

759551781600

IC-SMD XC6602A121ER-G

IC-SMD TPS562200DDCR SOT23-6

IC1006

IC1007

IC1100
759551849500

759551781600

IC-SMD XC6221A332GR-G USP-4

IC-SMD TPS562200DDCR SOT23-6

759551849600

759551862100

IC-SMD SI2166-C55-GMR 48QFN

IC-SMD SI2169-C55-GMR 48QFN
IC1101
IC1102

IC1103

IC1104

759551849700

759551849800

IC-SMD Si2151-A10-GMR QFN

IC-SMD XC8101AA01GR-G USP-4

759551849900

759551822500

IC-SMD MP8124GD-Z QFN14

IC-SMD AV2018-S85QFG QFN16
L400
L500
L501
L502

759551850000

759551562500

BOB-SMD 330NH %10 35MA 0.85R 0603

SMD SPULE 22UH 1.9A

759551562500

759551562500

SMD SPULE 22UH 1.9A

SMD SPULE 22UH 1.9A
L503
L800
L801
L1003

759551562500

759551606800

SMD SPULE 22UH 1.9A

BOB-SMD 3.3UH %20 1.2A 0.09R 1008

759551606800

759551730600

BOB-SMD 3.3UH %20 1.2A 0.09R 1008

FUSE-SMD 4A 63V 0603 FAST ACT
L1005

L1007

L1011

759551781300

759551561300

BOB-SMD 6.3UH 3.6A 0.036R 6*6*4.5

SMD SPULE 3.3UH 2A

759551876100

759551561300

COIL-SMD 3.3UH M 2A 4*4*1.8

SMD SPULE 3.3UH 2A

L1011

L1102

759551876100

759551561300

COIL-SMD 3.3UH M 2A 4*4*1.8

SMD SPULE 3.3UH 2A

759551876100

759551730300

COIL-SMD 3.3UH M 2A 4*4*1.8

BOB-SMD 270NH 0.1A 0402
L1104
L1105
L1106
L1109

759551832800

759551730400

BOB-SMD 270NH %5 420MA 0.52R 0402

BOB-SMD 180NH 0.1A 0402

759551730300

759551606800

BOB-SMD 270NH 0.1A 0402

BOB-SMD 3.3UH %20 1.2A 0.09R 1008

L1111
L1113
L1115
L1116

759551770700

759551699700

BOB-SMD 10UH 2.1A 4.9*4.9*4.1

BOB-SMD 27NH J 0.59A 0603

759551730300

759551730300

BOB-SMD 270NH 0.1A 0402

BOB-SMD 270NH 0.1A 0402
S200
S201
S300

S400

759551850100

759551850100

CONN.HDMI HORIZONTAL 1.2MM

CONN.HDMI HORIZONTAL 1.2MM

759551850200

759551850300

CON-SMD FFC LVDS 51P 0.5MM H.LOCK

CON SCART 1.2MM CN SASI 2.5MM

S500

S501

759551870800

759551833300

CON SCART RG091-F21T3BY-A VERT.

CON-SMD 4PIN 1.5MM FEMALE HOR.

759551770400

759551870900

KOPFHOERERBU. STEREO 3.5MM H=7MM

CON PHONEJACK PJ713-F04L3HE HOR.

S502

S600

759551850400

759551871000

SOCKET SPDIF 1.2MM

SOCKET SPDIF PT111 BOX

759551753100

759551853600

TASTSCHALTER

TASTSCHALTER

S601

S602

759551871100

759551834100

TASTSCHALTER 6MM H=8.35MM

CON-SMD 4PIN 1MM H=6MM YTK KLTL

759551753100

759551853600

TASTSCHALTER

TASTSCHALTER

S603

759551871100

759551753100

TASTSCHALTER 6MM H=8.35MM

TASTSCHALTER

759551853600

759551871100

TASTSCHALTER

TASTSCHALTER 6MM H=8.35MM

S604

S700

759551753100

759551853600

TASTSCHALTER

TASTSCHALTER

759551871100

759551770300

TASTSCHALTER 6MM H=8.35MM

PCMCIA VERBINDER H=10.25MM

S800
S801

759551850500

759551871200

CON CI H=10.25MM BOX 1.2MM

CON CI PC007-A68M1BY-B

759551832500

759551832500

CON-SMD USB HOR 13.8MM

CON-SMD USB HOR 13.8MM

S802

S1000

S1100

759551850600

759551871300

CON PHONEJACK EJ328-3 3.5MM 1.2MM

CON PHONEJACK PJ712-F03A3HR-A

759551850700

759551850800

CON-SMD 14PIN 2MM 20037WR

SOCKET TUN.ANT. H=10MM 1.2MM

S1101

T1000

759551871400

759551850900

SOCKET TUN.ANT. AJ052 HOR.

SOCKET F-TYPE 1.2MM

759551871500

759551098300

SOCKET F-TYPE FG036 HOR.

TRANS BC847BDW1T1
T1001
T1002
X600
X1100

759551388500

759551098300

TRANS-CHIP PMV65XP P-CH

TRANS BC847BDW1T1

759551851000

759551851100

CRS-SMD 12MHZ 12PF-30/30PPM

CRS-SMD 24MHZ 8.5PF-30PPM 2.0x1.6

X1101

759551851200

CRS-SMD 27MHZ 6.0PF-30PPM 2.0x1.6

Chassis CN

PBK

X

K1N

X

PBG

X

X

X

X

X

XXX

X

XXX

X

X

X

X

X

XXX

X

XXX

X

X

X

X

X

XXX

X

XXX

X

X

X

X

X

X

XXX

X

X

X

X

X

XXX

X

XXX

X

X

X

X

XXX

X

X

X

X

X

X

X

XXX

X

XXX

X

X

X

X

X

XXX

X

XXX

X

X

X

X

X

XXX

X

XXX

X

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

XXX

X

XXX

X

X

X

X

X

XXX

X

XXX

X

X

X

X

X

XXX

X

X

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

X

X

X

XXX

X

XXX

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

K2FXPBJ

X

PBV

X

PBH

X

XXX

X

XXX

X

XXX

X

X

X

K4K

X

PGY

X

K62

X

K5U

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

X

X

X

X

X

XXX

X

X

X

X

XXX

X

XXX

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

XXX

X

XXX

XXXXX

X

X

X

X

X

X

X

X

X

X

XXX

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXXXXXX

X

X

X

XXX

X

X

X

XXX

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXXXX

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXXXXXX

PHF

X

K19

X

PCEXPHB

X

XXX

X

XXX

X

XXX

X

XXX

X

K1L

X

K1P

X

PFF

X

PHD

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

PCD

X

PMP

X

KY7

X

KI9

X

XXX

X

XXX

X

XXX

X

XXX

X

PDD

X

PCB

X

L45

X

K2K

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXXXX

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

X

X

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

X

X

X

X

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

X

XXX

X

X

XXX

X

XXX

X

XXX

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

X

X

X

X

XXXXX

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

X

X

XXXXX

X

X

X

X

XXX

X

X

X

X

X

X

X

X

XXX

X

XXX

X

X

X

X

X

X

XXX

X

X

XXXXXXX

X

X

X

XXX

X

X

X

XXX

X

X

XXX

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXXXX

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

XXX

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

X

XXX

XXX

X

XXX

X

XXX

X

XXXXX

X

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXXXXXXXXXXXXXX

X

L41

X

KK7

X

L4X

X

L48

X

XXX

X

X

X

XXX

X

XXX

X

L3L

X

L5H

X

LF6

X

PBY

X

XXX

X

XXX

X

XXX

X

X

X

XXX

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

M1AXPCA

X

L44

X

KJ5

X

XXX

X

X

X

XXX

X

XXX

X

KJ4

X

L47

X

L2M

X

M2K

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

X

XXX

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

XXX

X

XXX

X

XXX

X

X

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

L8T

X

LB1

X

L49

X

L5V

X

XXX

X

XXX

X

XXX

X

XXX

X

L6N

X

M4J

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

XXX

X

X

XXX

X

X

X

XXX

X

X

X

X

XXX

X

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

X

XXX

X

X

X

X

XXXXX

X

XXX

X

X

XXXXX

X

X

X

X

X

XXX

X

XXX

X

X

X

X

XXX

X

X

XXX

X

X

X

X

X

X

X

X

X

XXX

X

XXX

X

XXXXXXX

X

X

X

X

X

X

X

X

X

XXX

X

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

XXX

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

XXX

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

XXXXXXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

XXX

X

X

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

X

X

X

X

X

X

X

X

X

X

XXX

X

X

X

X

X

X

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXX

X

XXX

X

X

X

XXX

X

XXX

X

XXX

X

XXXXXXXXXXXXXXXXXXX
