Page 1
TV Service Manual
Service
Manual
Chassis LB (LX prime)
Vision 4
32-4820 GBH0632
37-4820 GBH0637
42-4820 GBH0642
Vision 6
32-6821 GBG8300
37-6820 GBG6400
42-6820 GBG6300
Zusätzlich erforderliche Unterlagen für den Komplettservice
Additionally required Service Documents for the Complete Service
Sicherheit
Safety
Materialnr./Part No.
720108000001
Materialnummer / Part Number 720100534000
Änderungen vorbehalten / Subject to alteration
TCC 0908 MP • Prepared in Germany
http://www.grundig.com
Page 2
GRUNDIG Service Chassis LB (LX prime)
Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Service Manual "Sicherheit", Materialnummer
720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
Inhaltsverzeichnis
Seite
Allgemeiner Teil .................................. 1-2…1-16
Allgemeine Hinweise .....................................................................1-2
Geräte- und Display-Varianten ......................................................1-3
Technische Daten ..........................................................................1-4
Bedienhinweise .............................................................................1-7
Service- und Sonderfunktionen ...................................................1-13
Platinenabbildungen
und Schaltpläne .................................. 2-1…2-42

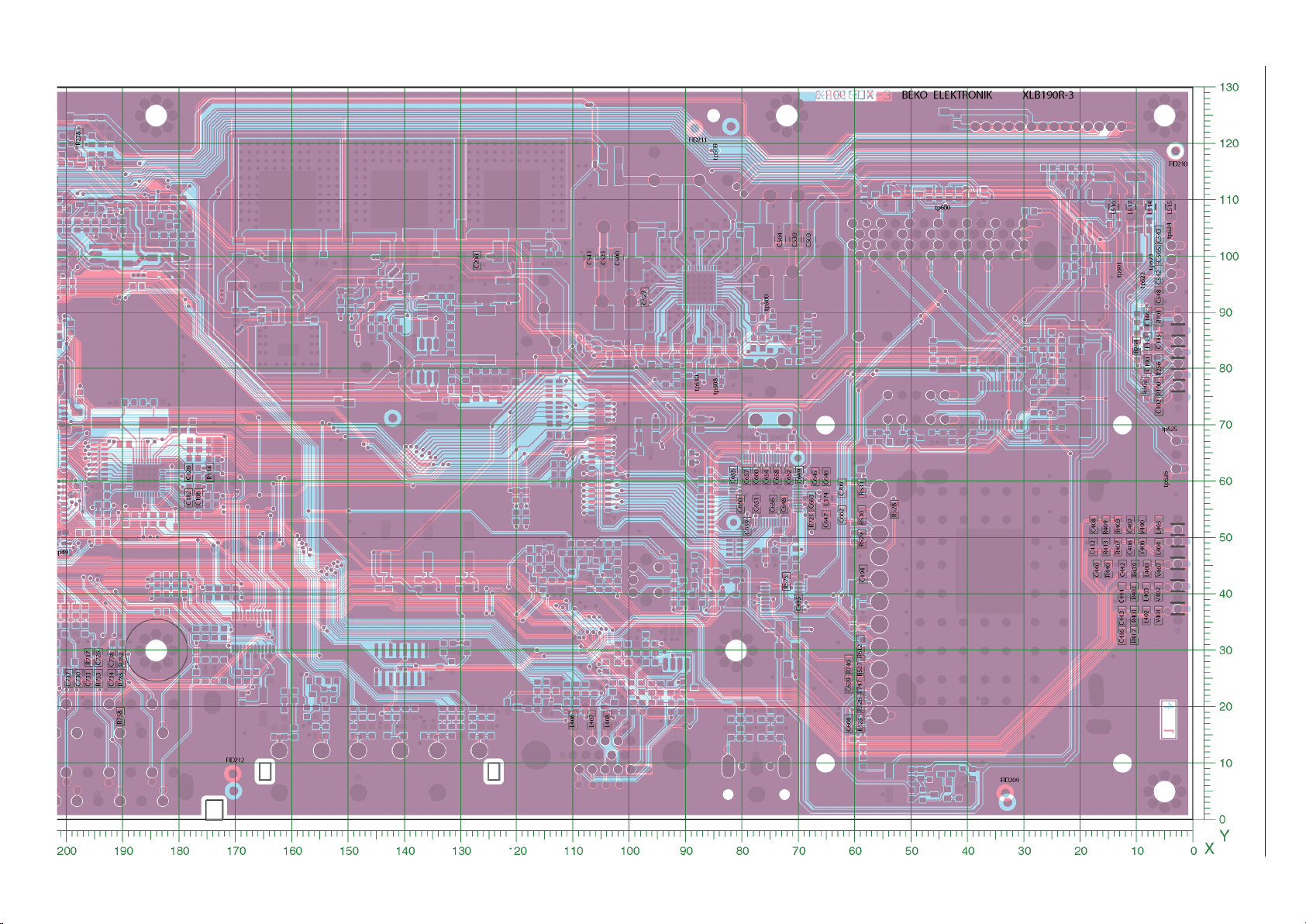

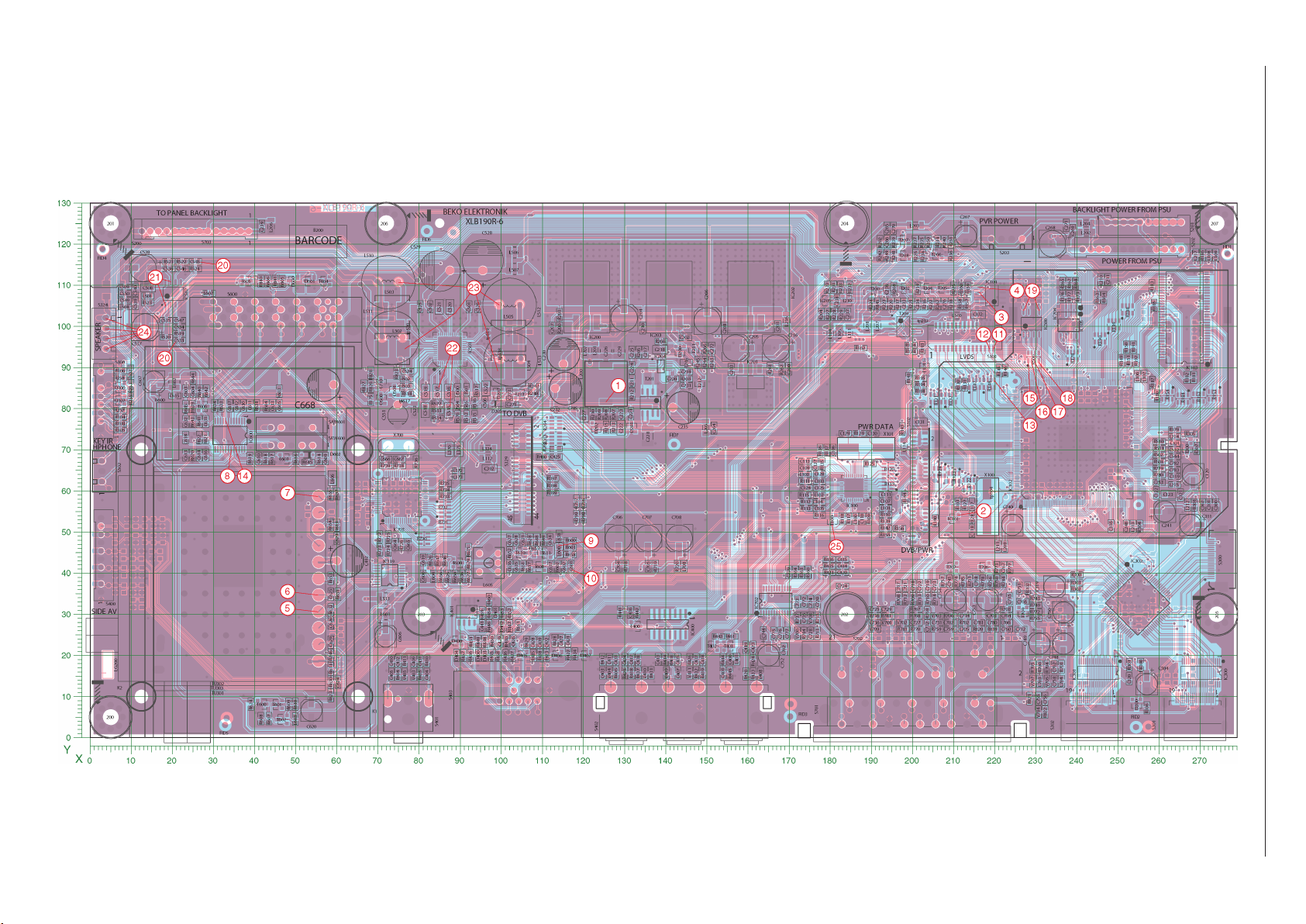

Hauptplatte XLB190R-3.................................................................2-1

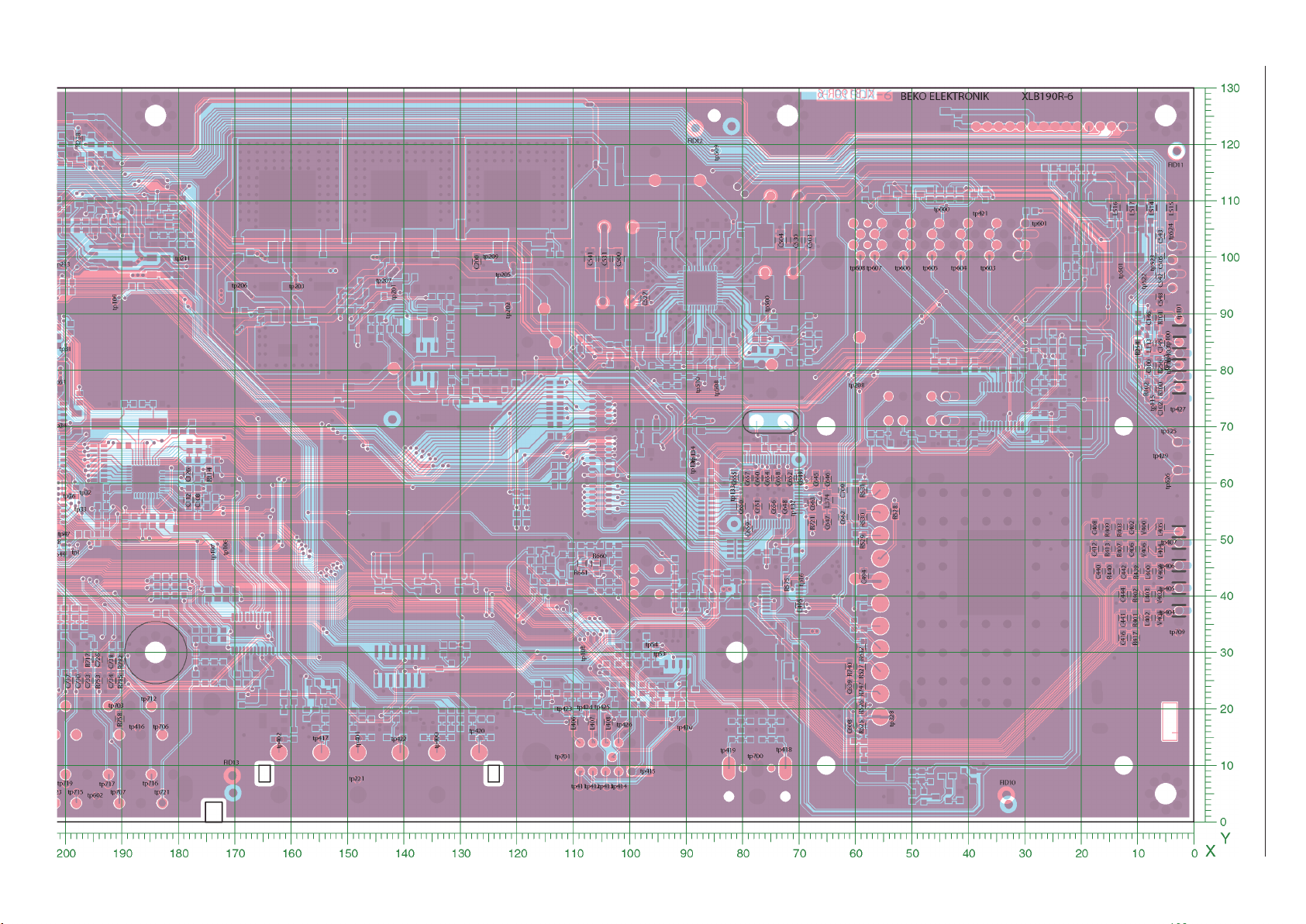

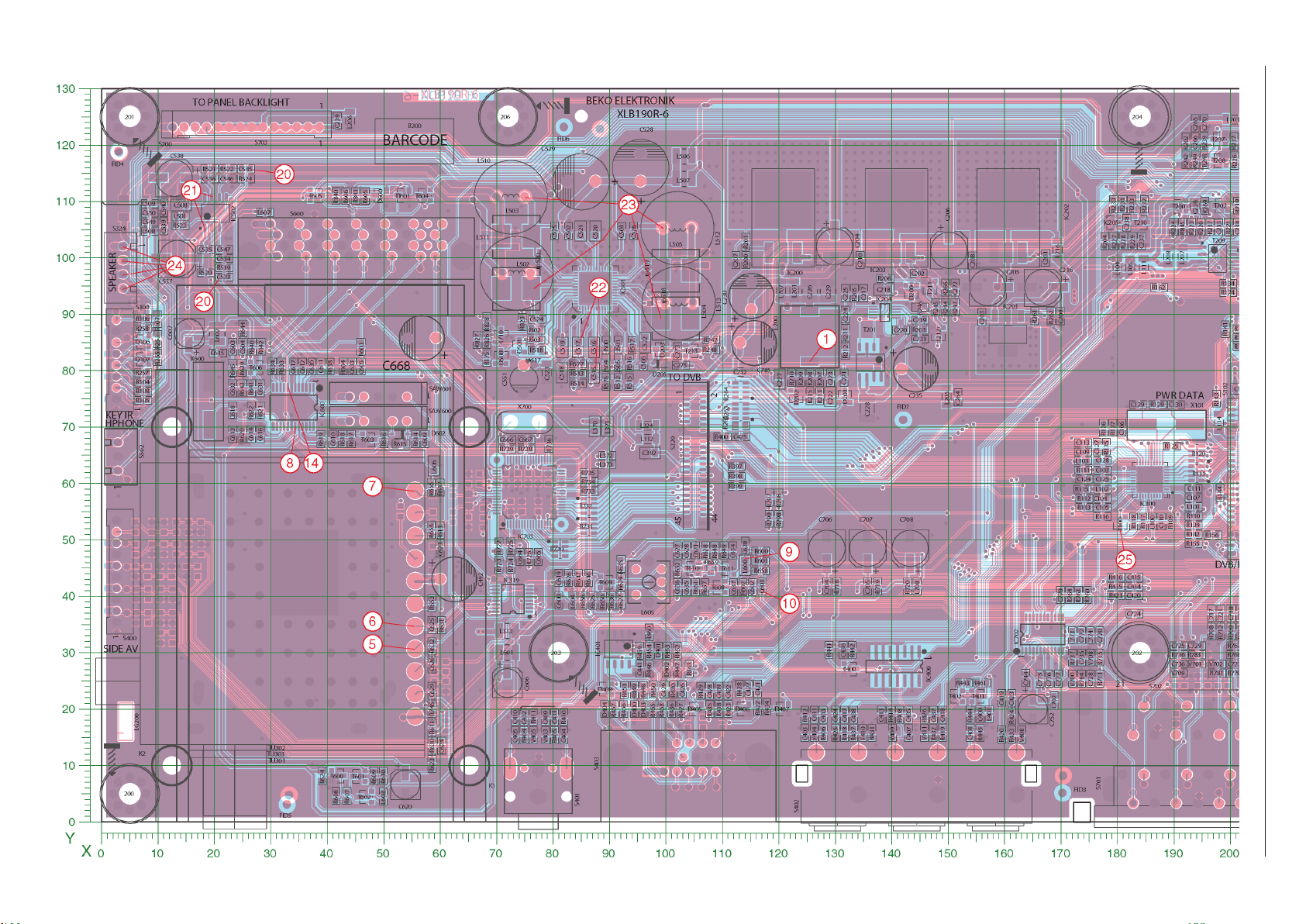

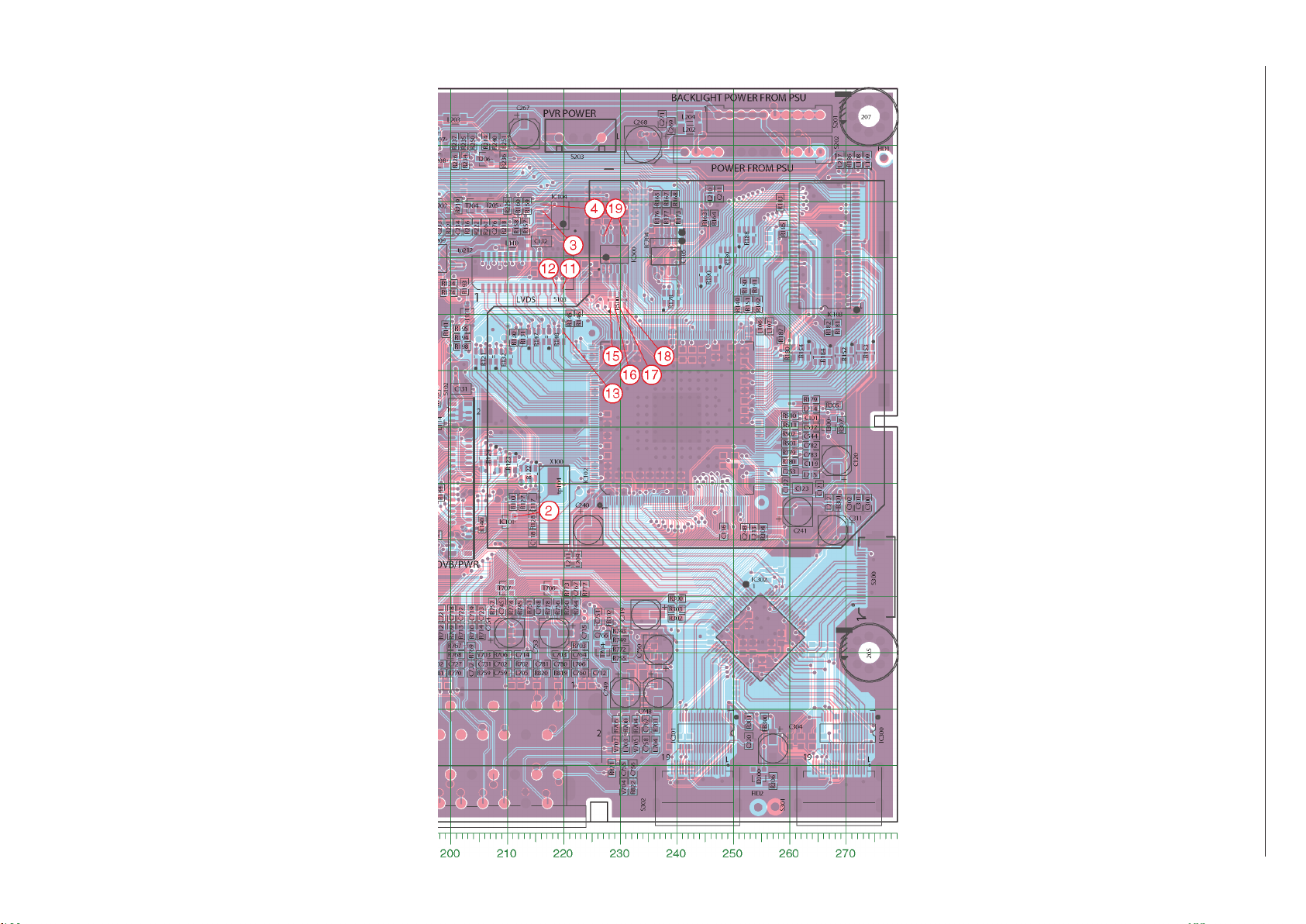

– Version XLB190R-6 ...................................................................2-9

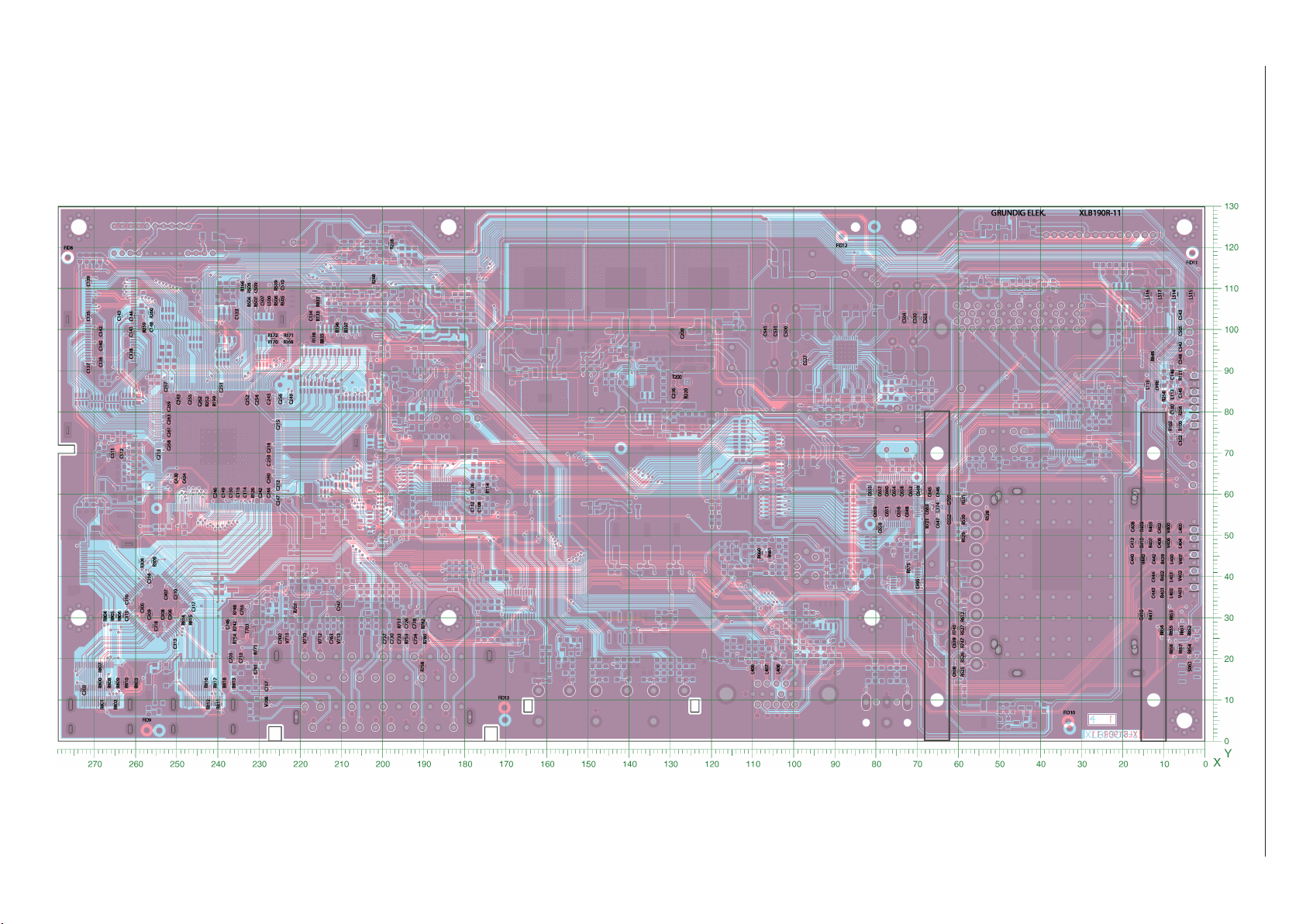

– Version XLB190R-11 ...............................................................2-17
– Netzteil ....................................................................................2-25
– VGA-Buchse ............................................................................2-27
– HDMI-Buchsen ........................................................................2-28

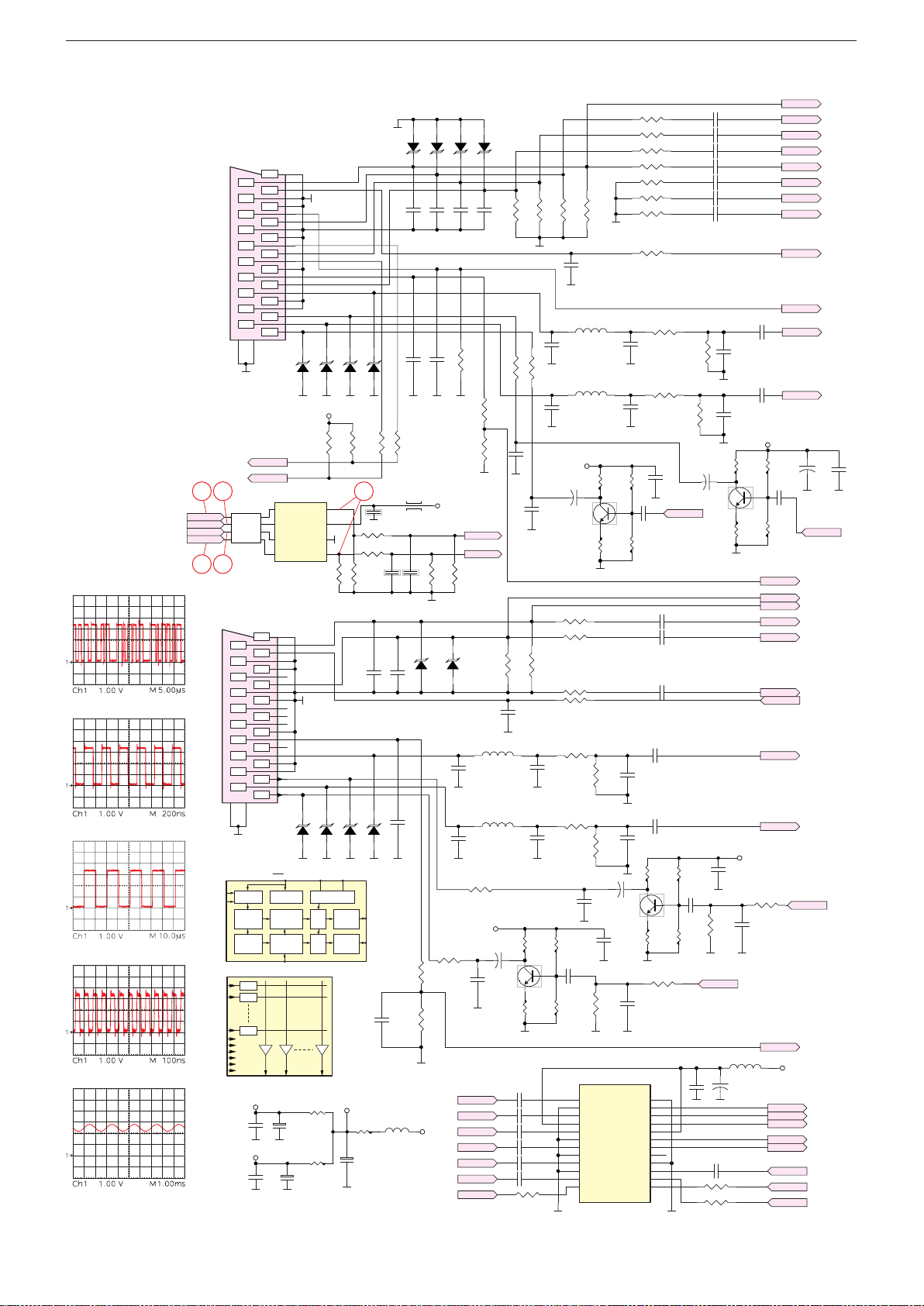

– AV-Buchsen .............................................................................2-29

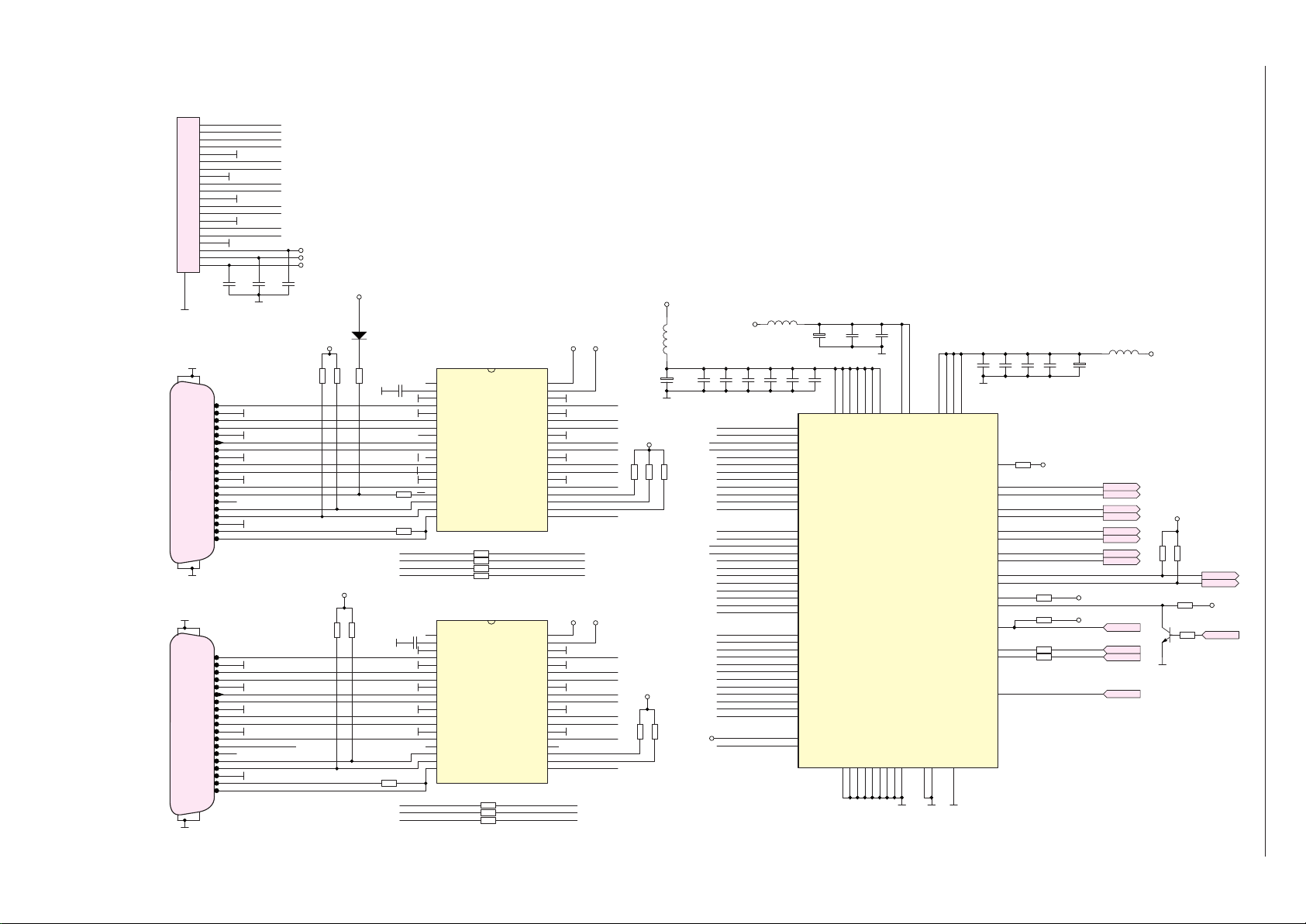

– Scart-Buchsen .........................................................................2-30
– Tuner ........................................................................................2-31
– COFDM Demodulator ..............................................................2-32
– Verstärker .................................................................................2-33
– Scaler.......................................................................................2-34
Übersicht .....................................................................................2-37
Netzteil-Platte XLA194 ................................................................2-38
Keyboard XGA191, XGE191, XGJ191 ........................................2-41

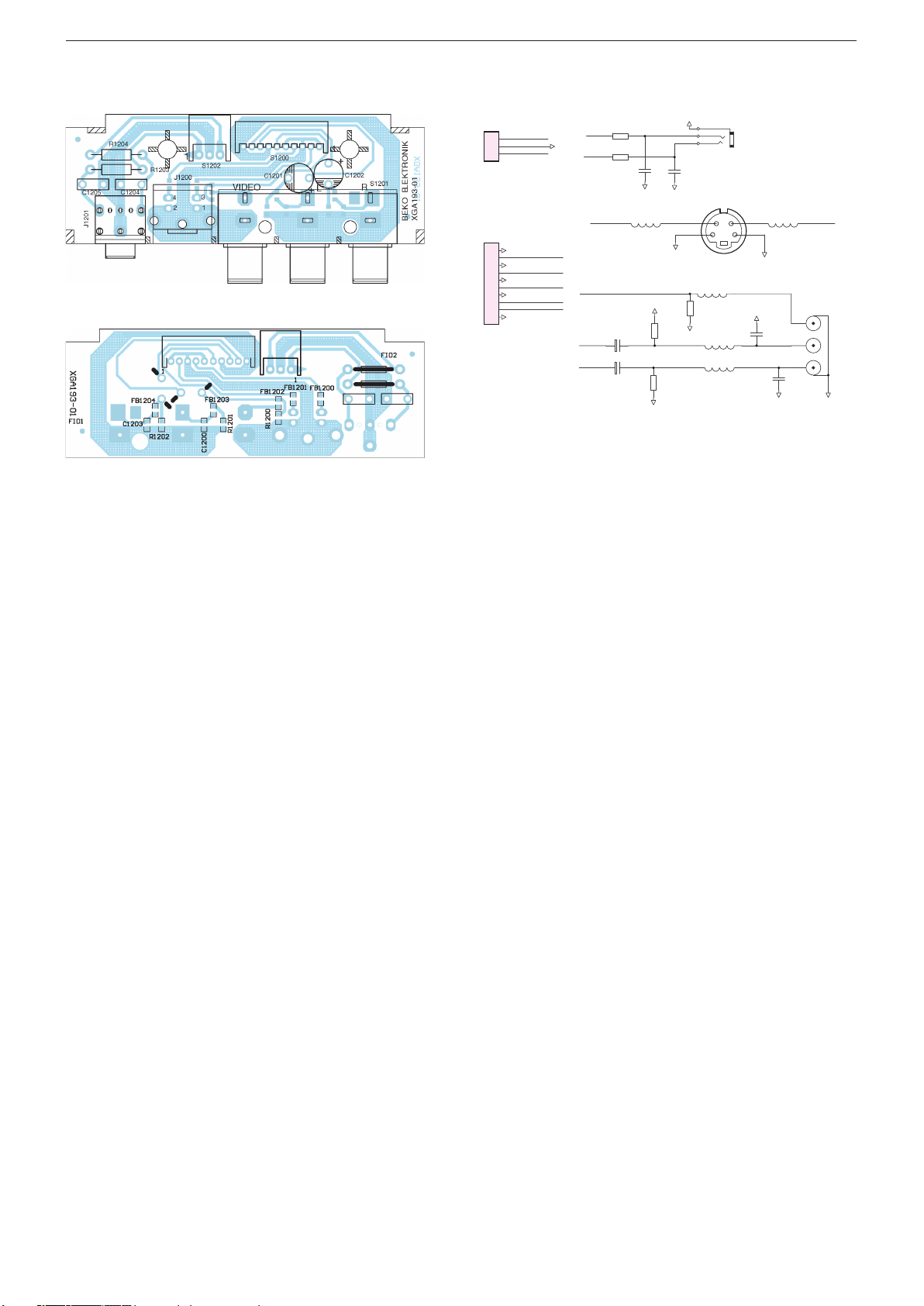

Buchsen-Platte XGA193..............................................................2-42
The regulations and safety instructions shall be valid
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
national deviations.
Table of Contents
Page
General Section .................................. 1-2…1-16
General Notes ...............................................................................1-2
Product and Display Variants .........................................................1-3
Technical Data ...............................................................................1-4
Operating Hints ............................................................................1-10
Service and Special Functions ....................................................1-13

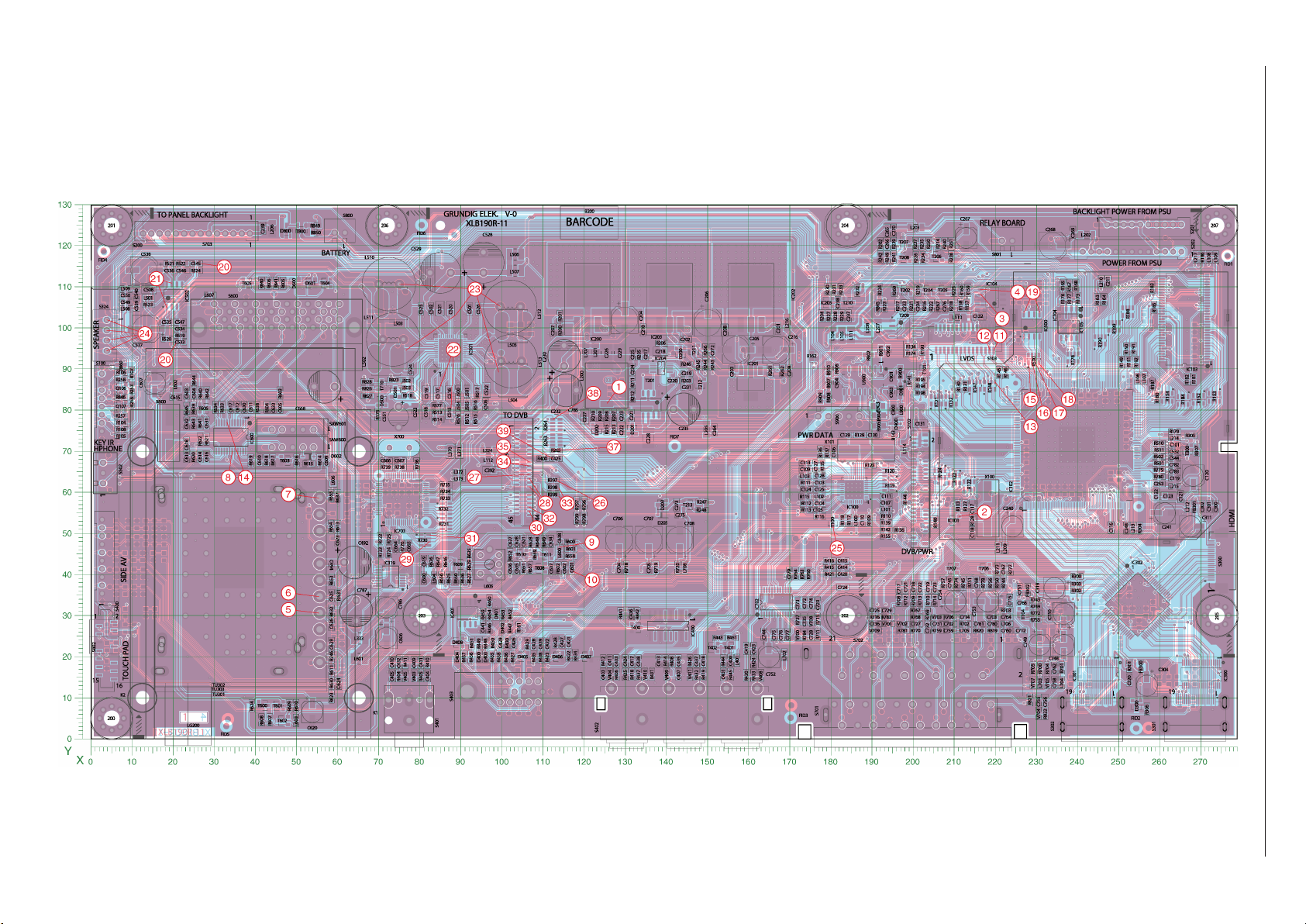

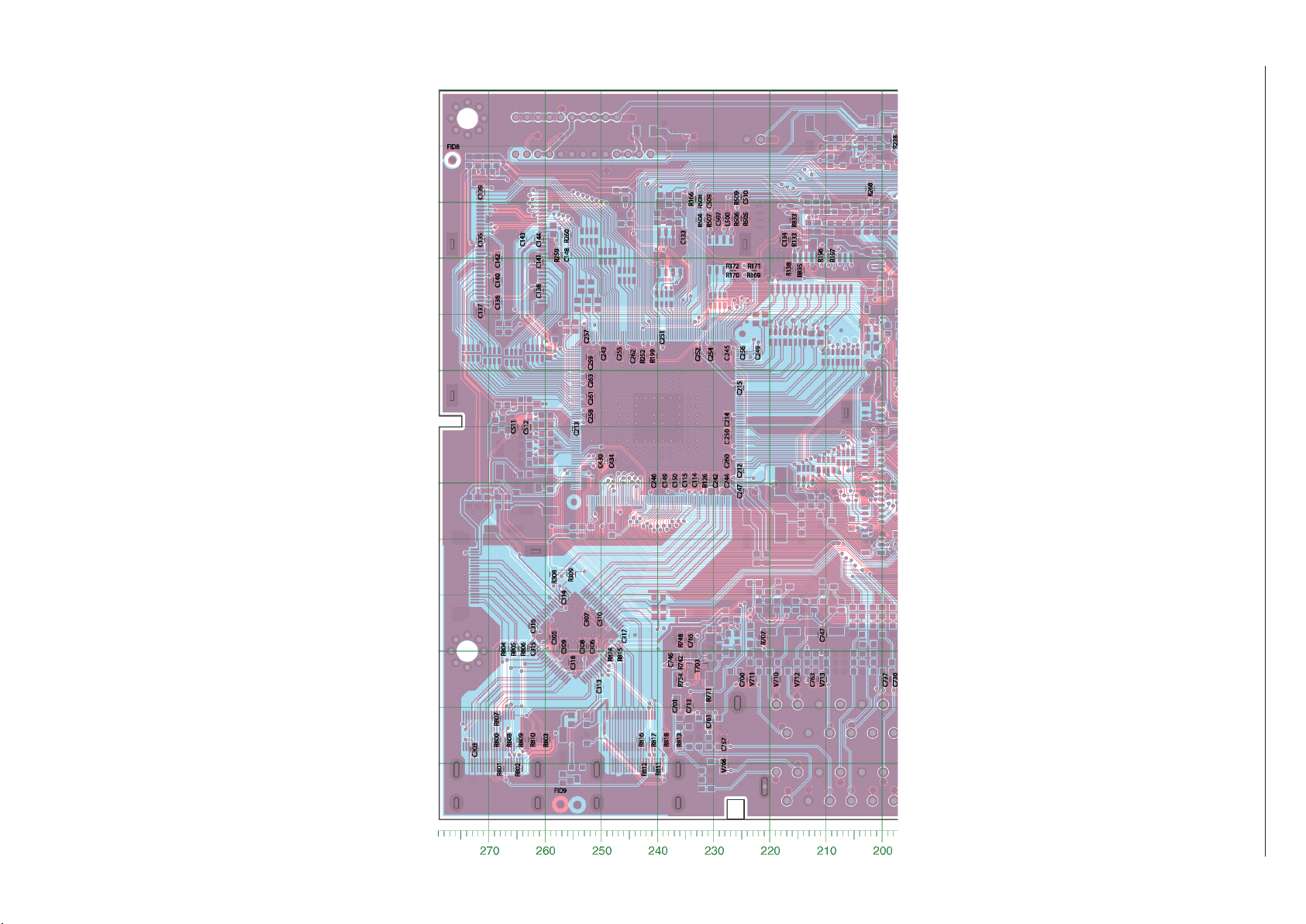

Layout of the PCBs
and Circuit Diagrams ......................... 2-1…2-42

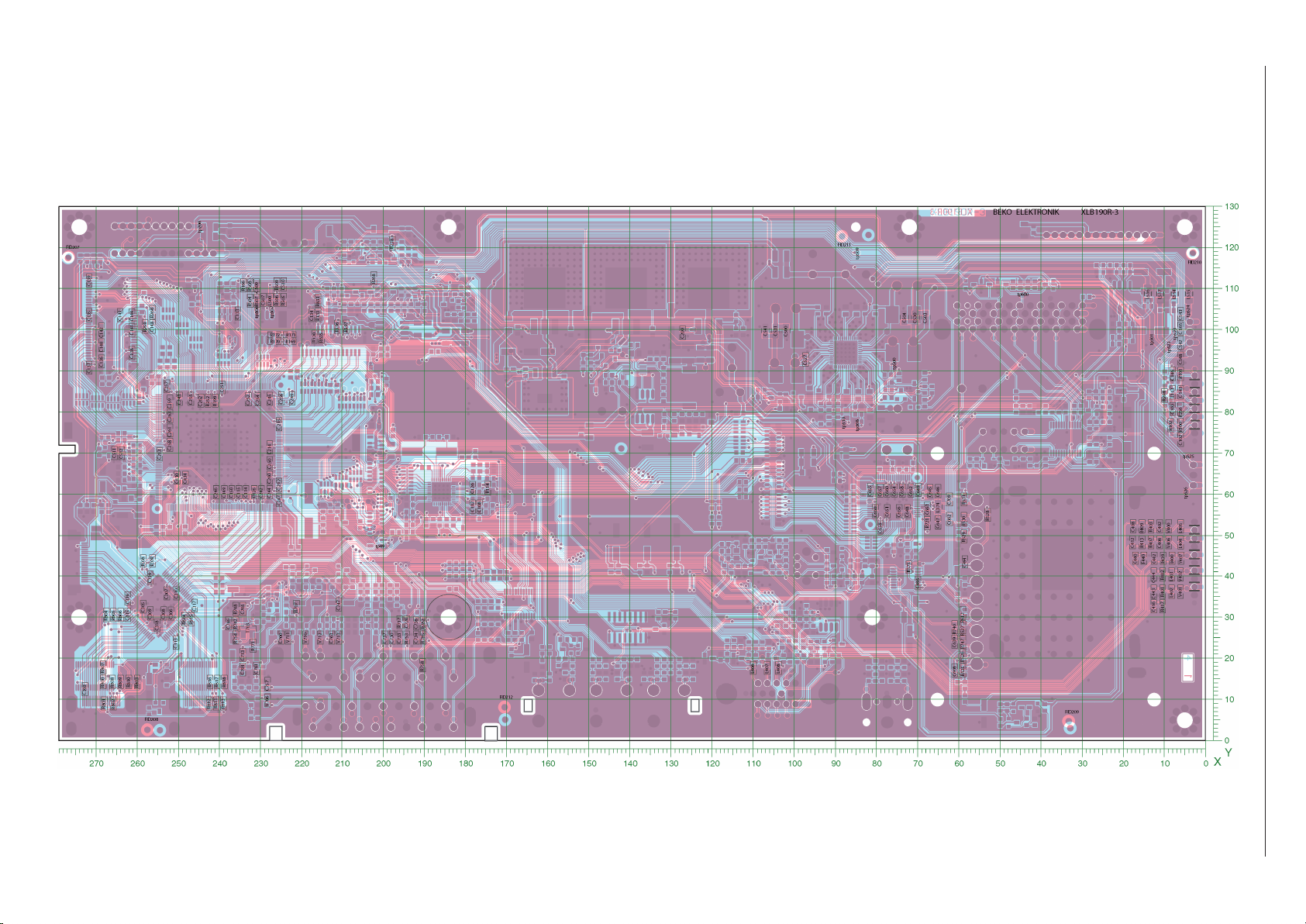

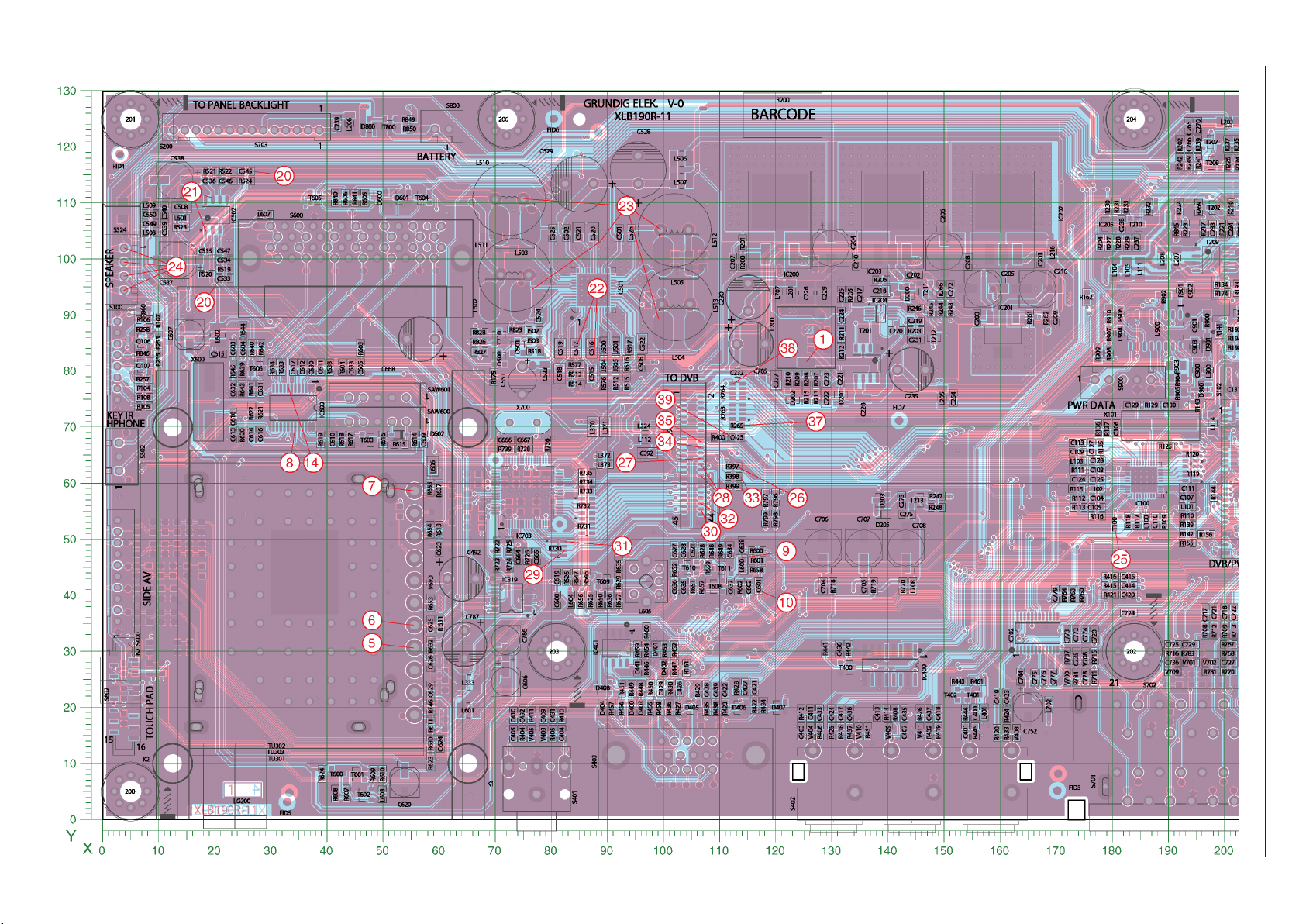

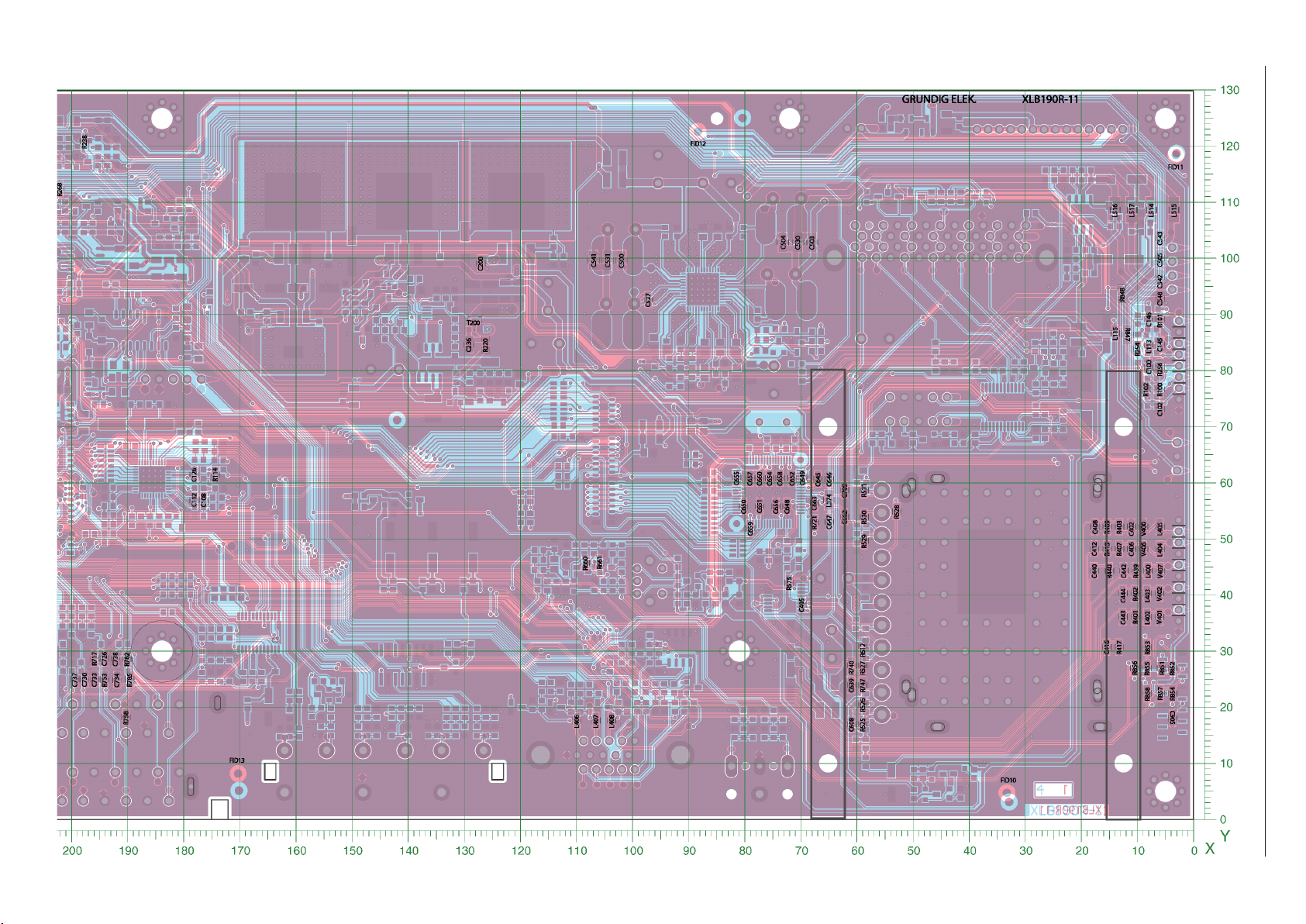

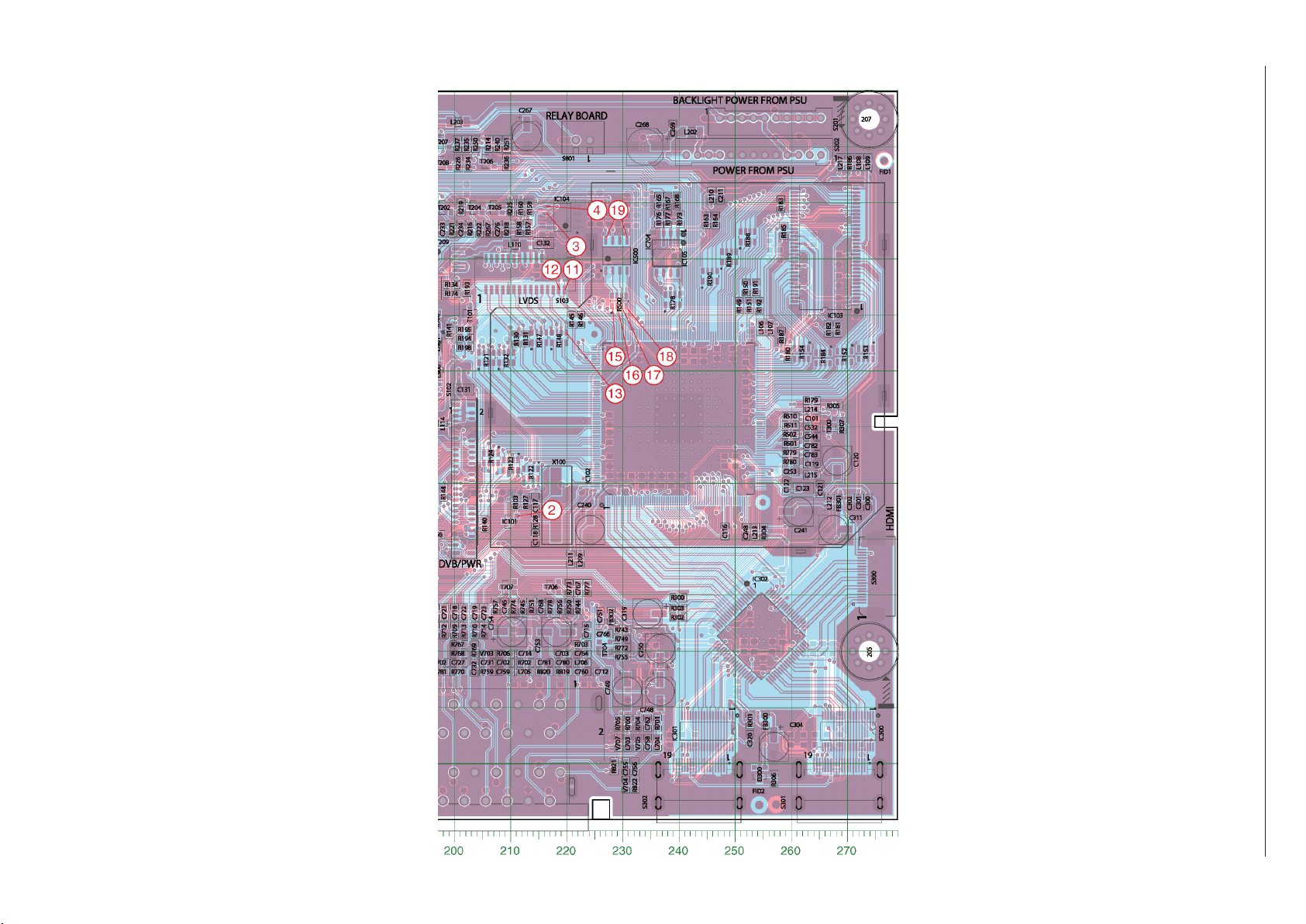

Main Board XLB190R-3XLB190R-3.................................................................2-1
– Version XLB190R-6 ...................................................................2-9
– Version XLB190R-11 ...............................................................2-17

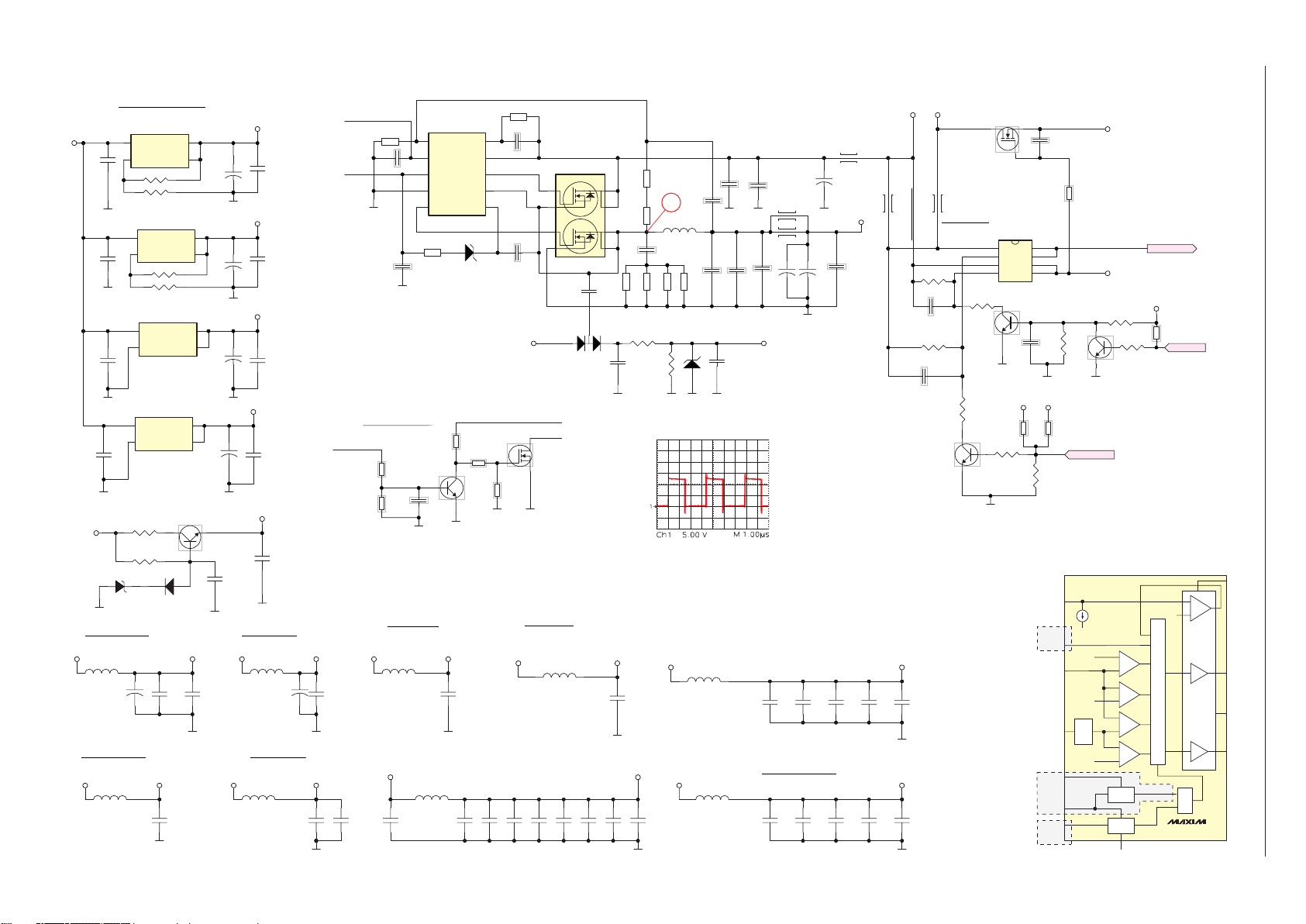

– Power Supply ..........................................................................2-25

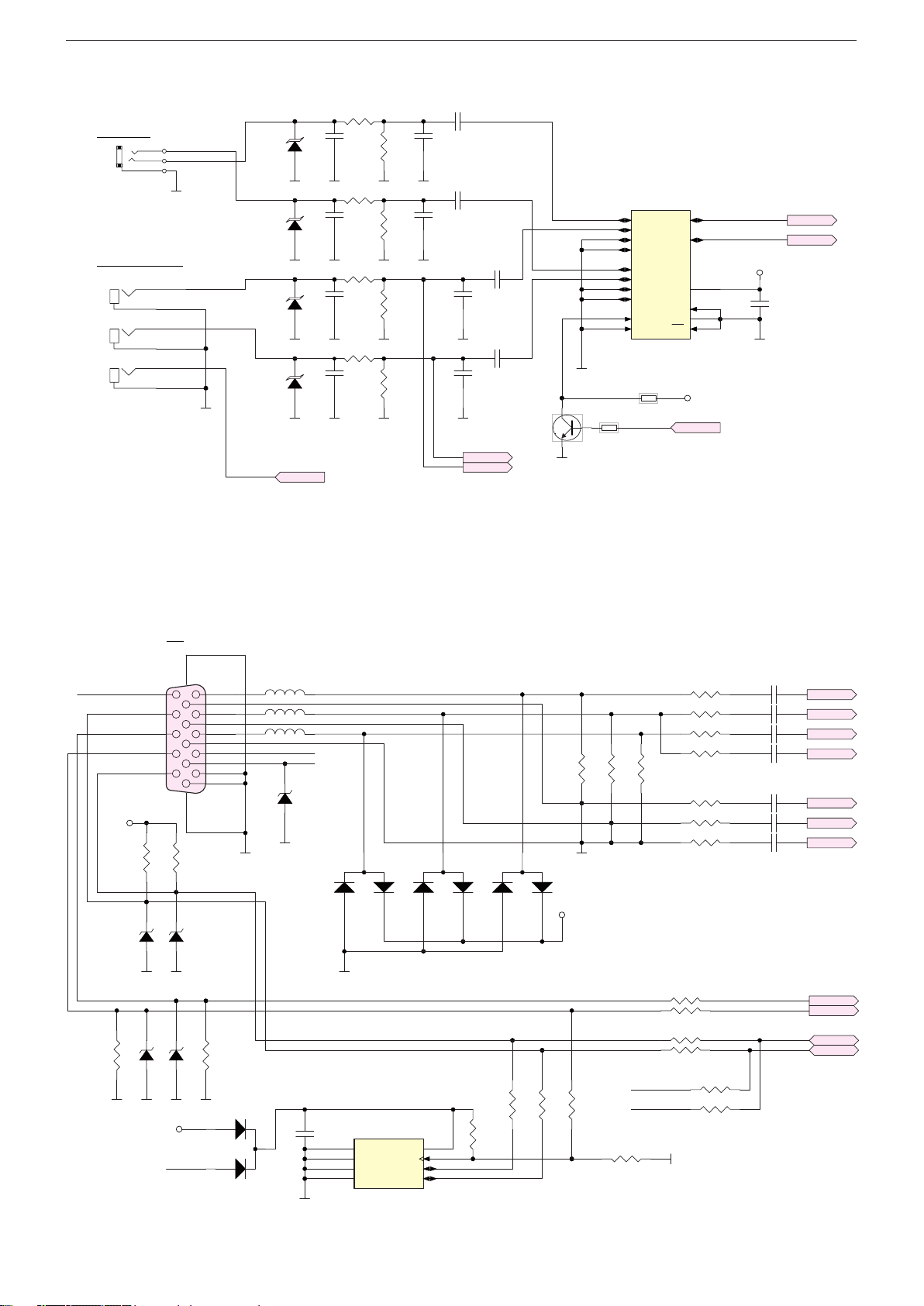

– VGA Socket ..............................................................................2-27
– HDMI Sockets ..........................................................................2-28

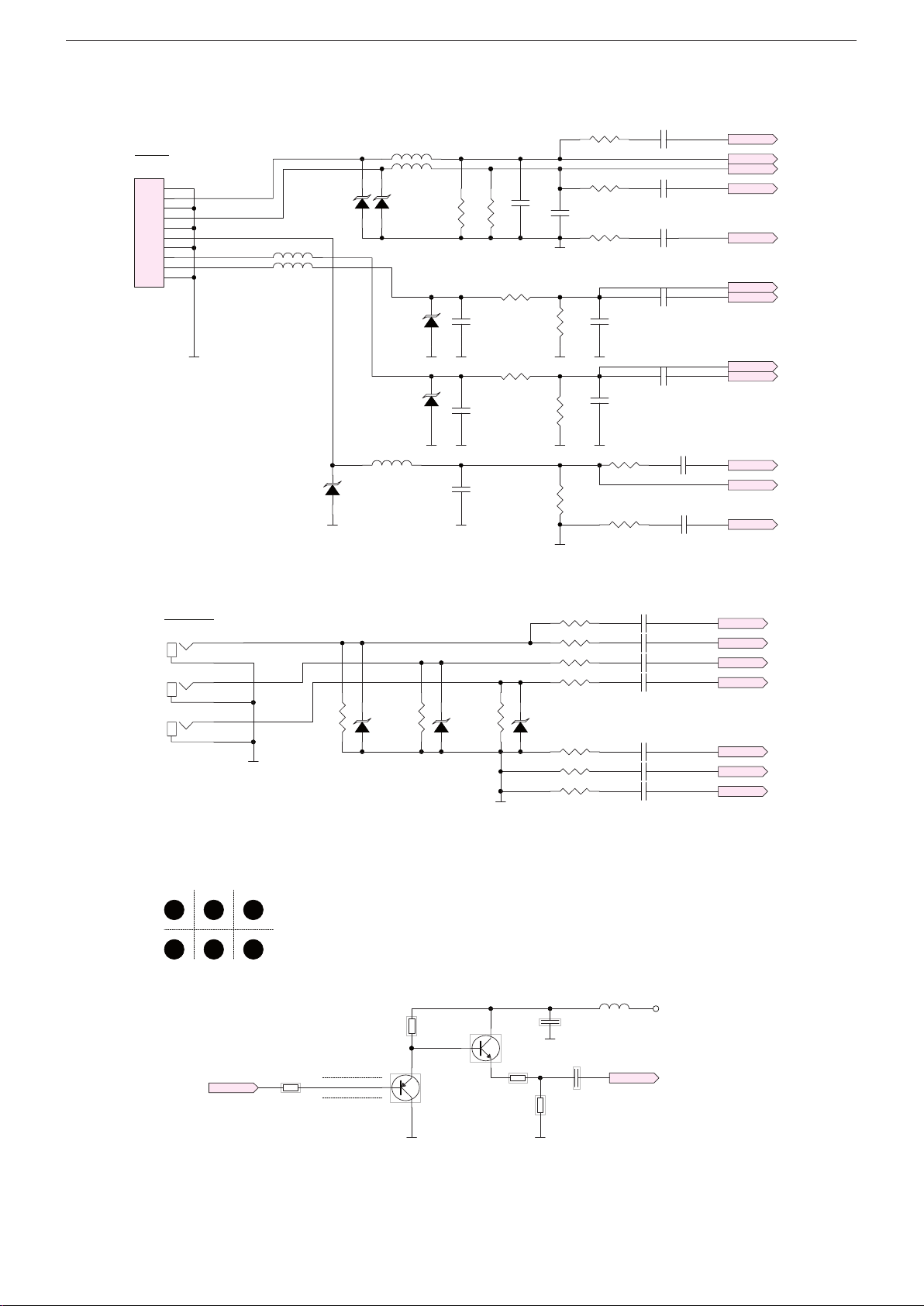

– AV Sockets...............................................................................2-29
– Scart Sockets...........................................................................2-30
– Tuner ........................................................................................2-31
– COFDM Demodulator ..............................................................2-32
– Amplifier ...................................................................................2-33

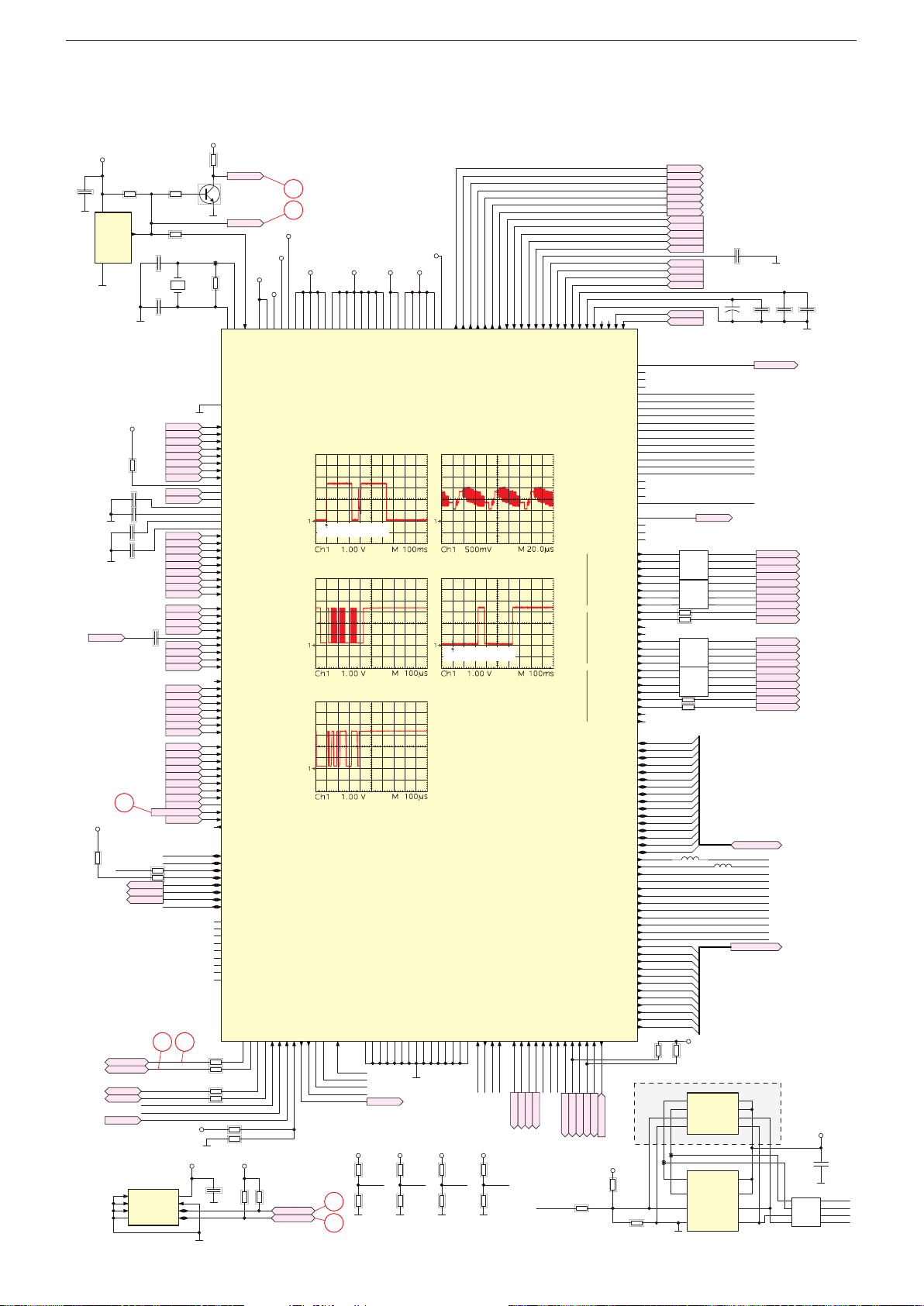

– Scaler.......................................................................................2-34
Overview ......................................................................................2-37

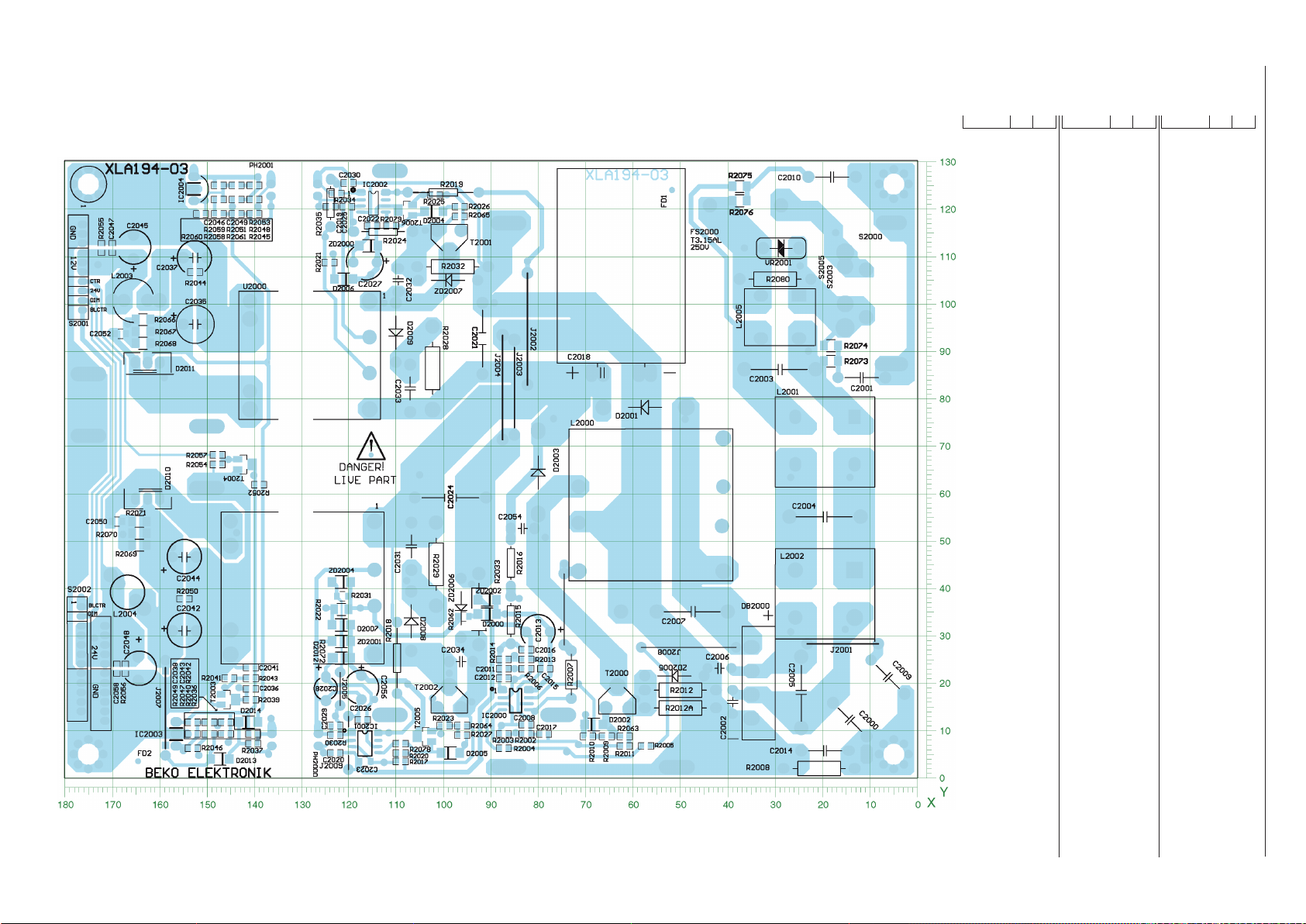

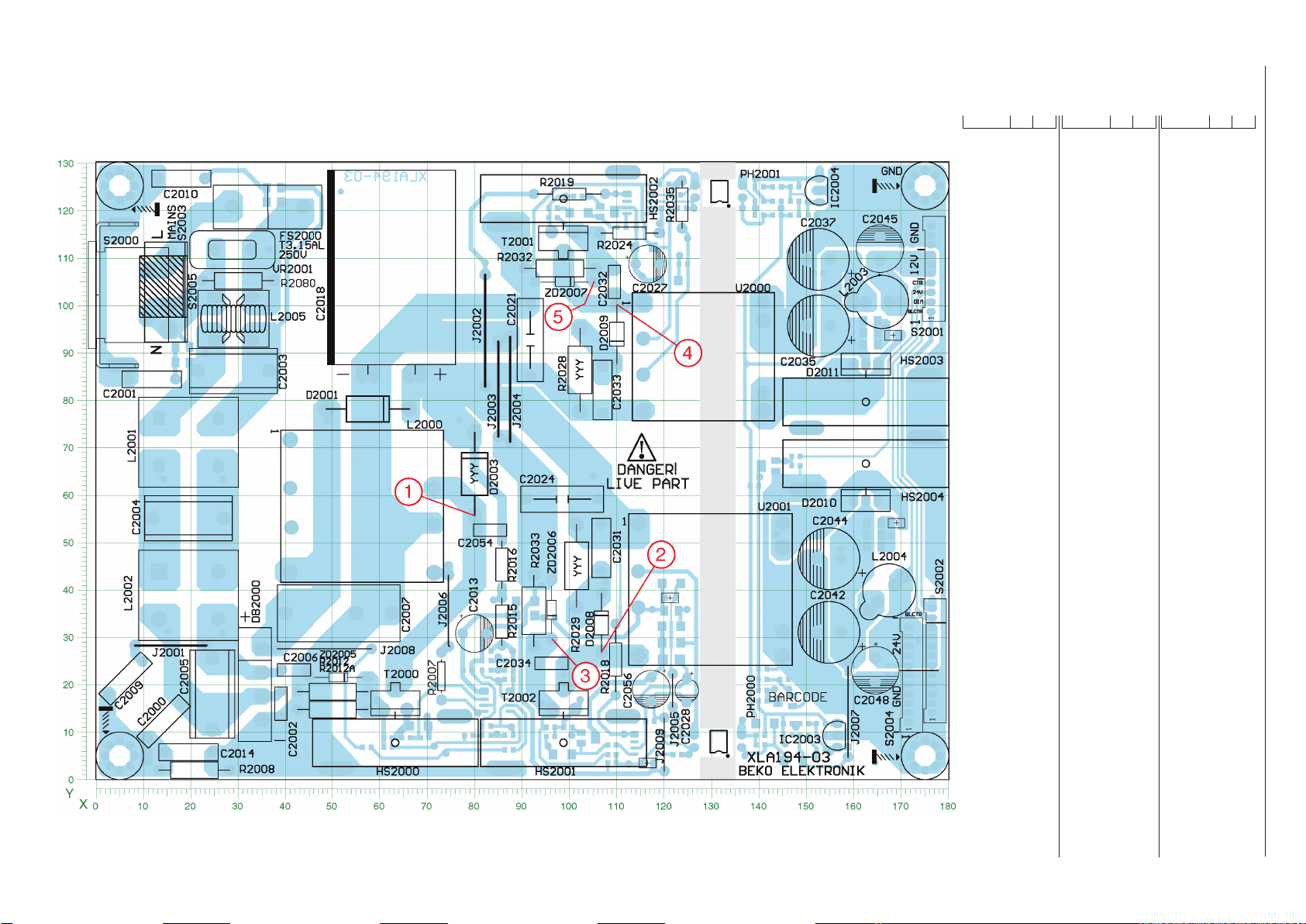

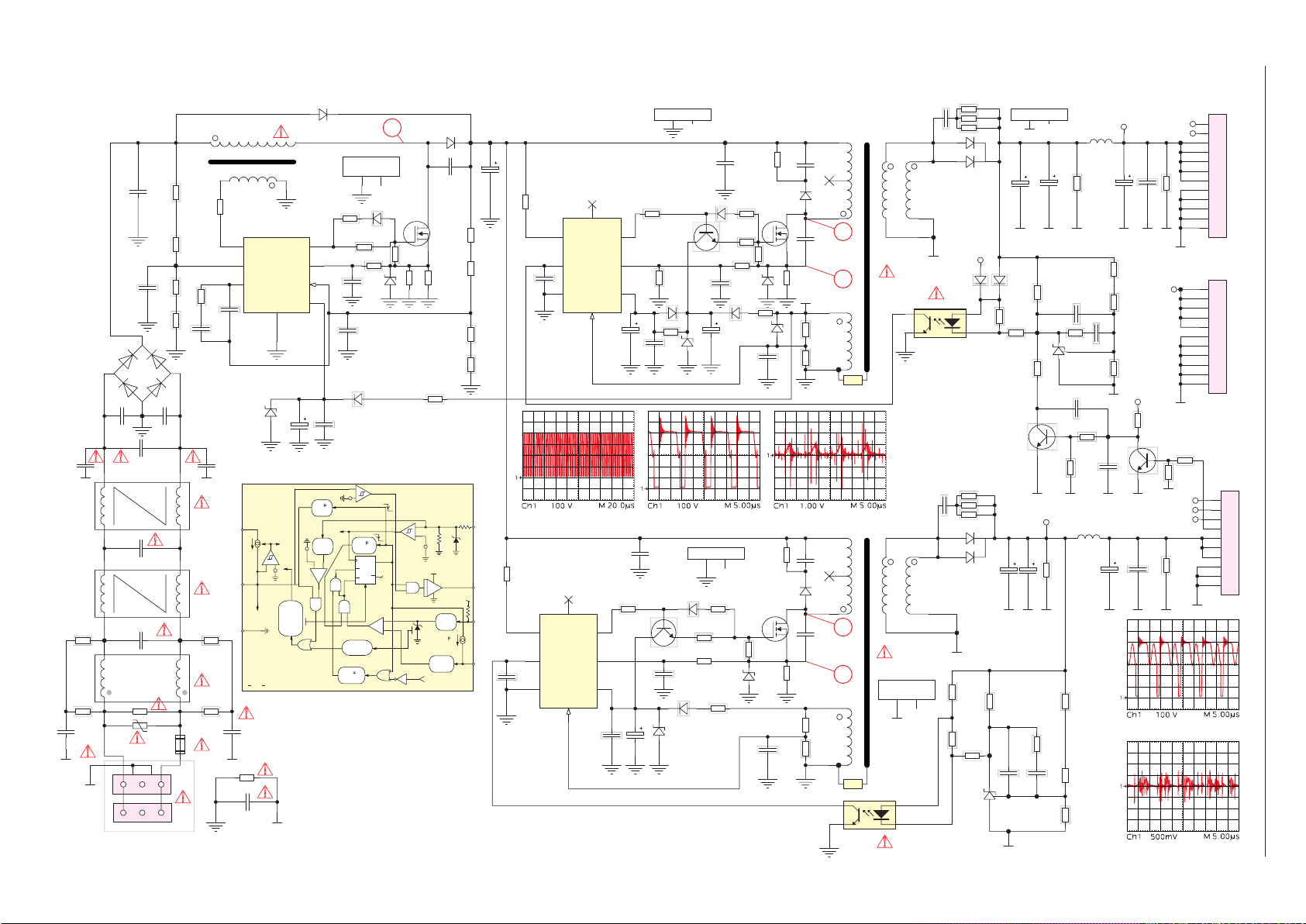

Power Supply Board XLA194 ......................................................2-38

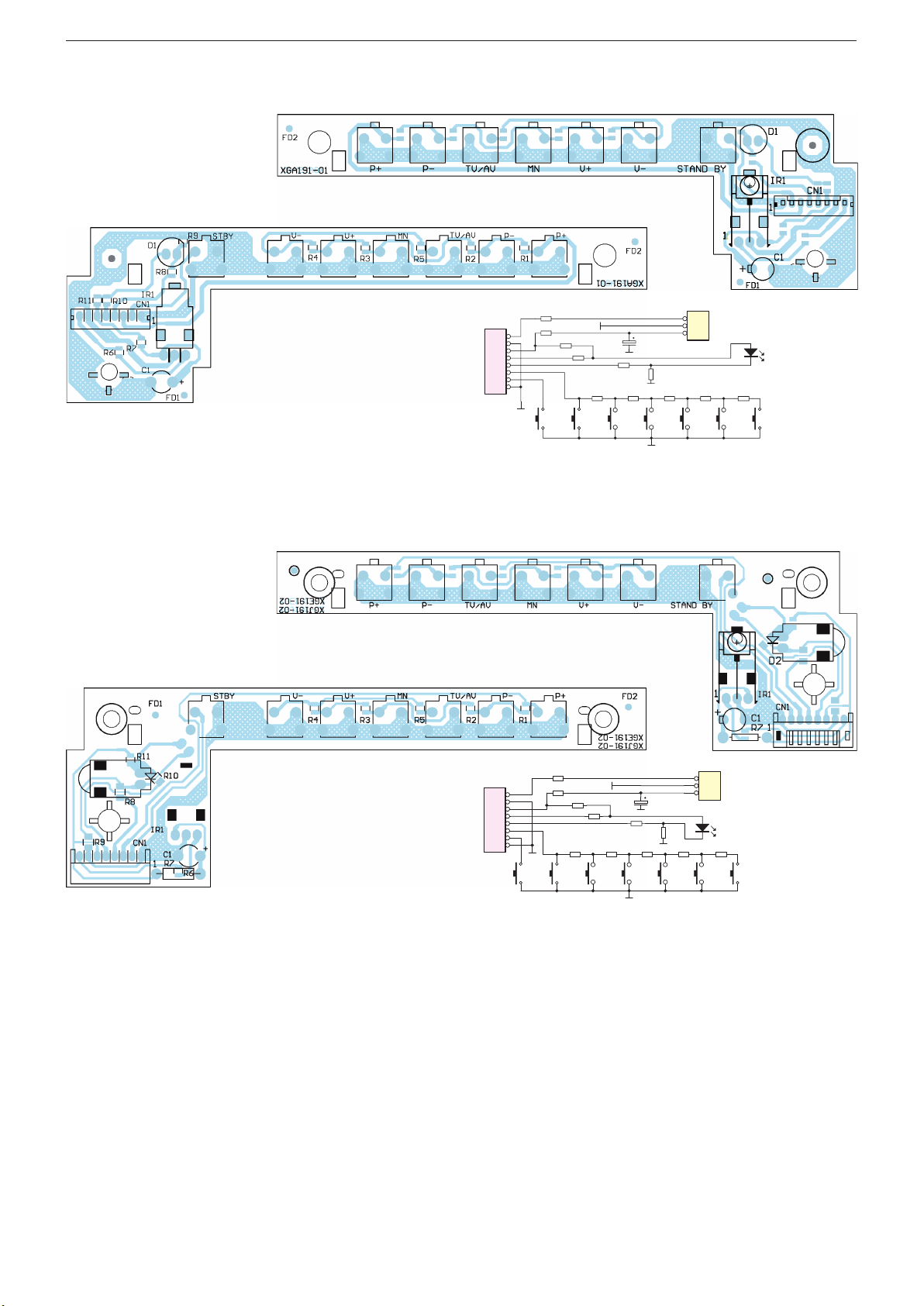

Keyboard XGA191, XGE191, XGJ191 ........................................2-41
Socket Board XGA193 ................................................................2-42
Ersatzteillisten .................................... 3-1…3-10
Allgemeiner Teil
Allgemeine Hinweise
Vor dem Öffnen des Gehäuses den Netzstecker ziehen!
Achtung: ESD-Vorschriften beachten
Leitungsverlegung
Bevor Sie die Leitungen und insbesondere die Masseleitungen lösen,
muss die Leitungsverlegung zu den einzelnen Baugruppen beachtet
werden.
Nach erfolgter Reparatur ist es notwendig, die Leitungsführung wieder
in den werkseitigen Zustand zu versetzen um evtl. spätere Ausfälle
oder Störungen zu vermeiden.
Durchführen von Messungen
Bei Messungen mit dem Oszilloskop an Halbleitern sollten Sie nur
Tastköpfe mit 10:1 - Teiler verwenden. Außerdem ist zu beachten, dass
nach vorheriger Messung mit AC-Kopplung der Koppelkondensator
des Oszilloskops aufgeladen sein kann. Durch die Entladung über das
Messobjekt können Bauteile beschädigt werden.
Messwerte und Oszillogramme
Bei den in den Schaltplänen und Oszillogrammen angegebenen
Messwerten handelt es sich um Näherungswerte!
Austausch der Chassisplatte
Nach Austausch der Chassisplatte müssen alle Einstellungen im Service
Mode nach Tabelle "Grundeinstellwerte" (Punkt 1 im Kapitel "Serviceund Sonderfunktionen" auf Seite 1-13) eingestellt werden.
Spare Parts Lists ................................ 3-1…3-10
General Section
General Notes
Before opening the cabinet disconnect the mains plug!
Attention: Observe the ESD safety regulations
Wiring
Before disconnecting any leads and especially the earth connecting
leads observe the way they are routed to the individual assemblies.
On completion of the repairs the leads must be laid out as originally
fitted at the factory to avoid later failures or disturbances.
Carrying out Measurements
When making measurements on semi-conductors with an oscilloscope,
ensure that the test probe is set to 10:1 dividing factor. If the previous
measurement was made on AC input, please note that the coupling
capacitor in the oscilloscope will be charged. Discharge via the item
being checked can damage the components.
Measured Values and Oscillograms
The measured values given in the circuit diagrams and oscillograms
are approximates!
Change of the Chassis Board
After changing the chassis board all settings in the service mode must
be done according to the table "Basic Settings" (point 1 in chapter
"Service and Special Functions" on page 1-13).
1 - 2
Page 3
GRUNDIG Service Chassis LB (LX prime)
Geräte- und Display-Varianten
Display- und Product Code
Je nach Verfügbarkeit werden
Displays verschiedener Hersteller
eingebaut. Dies führt zu unterschiedlichen Chassis-Bestückungen, sowie zu Änderungen in der
Software. Bei Ersatzteilbestellungen und Software-Updates achten Sie bitte auf das eingebaute
Display, sowie auf den "Product
Code". Angaben dazu finden
Sie auf der Geräterückseite.
Sollte in der Ersatzteilliste des
Service Manuals Ihr "Product
Code" oder Ihre Display-Variante
nicht aufgeführt sein, können Sie
eine aktualisierte Version auf
dem GRUNDIG Service-Portal
"http://service.grundig.de" finden.
Überprüfen Sie vor Austausch der
Hauptplatte, ob die Aufkleber der
Platinen identisch sind.
Product and Display Variants
Display- und Product Code
Depending on availability displays
of different manufacturer are built
in. This results in different chassis
mountings as well as a different
software. On spare parts orders
as well as software updates take
care of the fitted display as well as
of the "Product Code". Therefore
you can find information on the
labels on the rear side. If your
"Product Code" or display variant is not mentioned in the spare
parts list of the service manual,
please look for a current version
at the GRUNDIG service portal
"http://service.grundig.de"..
Before changing the main board
please check whether the labels
on the boards are identical.
1 - 3
Page 4
Technische Daten / Technical Data
Order No.
Product Code
Destination
Approbations
IM-Languages
Remote control
EAN
Color
DISPLAY
Panel
Display-Manufacturer
Wide-screen format
Response time
Brightness
Contrast ratio (Panel)
Dynamic contrast plus
Viewing angle vertikal / horizontal (ca.)
Physical display resolution max. pixel
Motion Compensation
Motion Adaptive Deinterlacing
Natural view HD Reference
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Transition Improv. (DLTI)
Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
Blackline detection
PIP
Multifold Tuner scan (Mosaic Picture)
PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICTURE + PICTURE)
P2AT: Double Window + TXT
POP: PICTURE on PICTURE
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
CHASSIS
TV-Chassis
Progressive
Tuner
µ-Processor
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Easy Dialog
Megalogic
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Intelligent Programme Switch
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Childlock
Menue languages OSD
OSD-style
Service mode
Hotel mode
TUNING
Autom. Tuning System with country selection
Frequency Based Auto Search
Automatic Micro-search
Automatic Programming
Manual fine tuning
Direct channel selection
Direct frequency selection
TV-Norm
NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Virtual Dolby
Magic Fidelity Sound System
Soundprojector
Matched Sound Delay (Lip synchronous)
Subwoofer
Dynamic Bass
DSP (Digital Sound Processor)
Balance Adjustment
AVL (Audio Volume Level)
PIP listening via Headphone.jack
Equalizer
Space Sound Effect
Audio mode
Audio amplifier
D,GB,F,I,NL,DK,N,S,FIN,CIS,PL,CZ,H,SI,HR
Simple hotel mode possible via service adjustment[Simple hotel mode possible via service adjustment
Vision 4 32-4820 Vision 4 37-4820 Vision 4 42-4820
G.BH 06-32
D, CH, NL, Nordic, PL, CZ, H
CE,ME67
TP 170 C (black)
40 13833-61454 8
glossy black
32" / 81cm Active Matrix TFT-LC-Display 37" / 94cm Active Matrix TFT-LC-Display
Samsung
ca. 6ms
ca. 500cd/m2
ca. 2.000:1
ca. 5.000:1
178° / 178°
WXGA 1366 x 768
3D DeInterlacer
user, natural, rich, soft
AV-PIP
via AV
LB (LX prime) LB (LX prime)
PLL frequency synthesizer tuning
MSTAR
MST66889BLD
blue LED
100 / 8
[
10 pages
Grundig-style Grundig-style
full automatic sorting full automatic sorting
PAL/SECAM/BG/DK/I/L'/L
[
2 wide band at the front side
5 Band
cinema, music, sport, speech, user
2 x 8/16W nominal/music power
FNJ
D,GB,F,I,NL,DK,N,S,FIN,CIS,PL,CZ,H,SI,HR
[
\\
\
\
[
[
3D
[
[
\
\
[
\
\
[
\
[
[
[
\
Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Cinema Zoom / Sky Top
6 keys: menue, ± for programme, ± for volume, source
\
\
\
[
[
[
[
[
\
/ [ /
\
[
G.BH 06-37
FNT
D, CH, NL, Nordic, PL, CZ, H
CE,ME67
TP 170 C (black)
40 13833-61455 5
glossy black
AUO
[
ca. 8ms
ca. 500cd/m2
ca. 800:1
ca. 5.000:1
178° / 178°
WXGA 1366 x 768
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft
\
AV-PIP
\
[
via AV
\
\
[
\
[
[
[
PLL frequency synthesizer tuning
\
MSTAR
MST66889BLD
blue LED
\
\
\
[
[
[
[
[
\
100 / 8
[
/ [ /
\
10 pages
[
D, CH, NL, Nordic, PL, CZ, H
D,GB,F,I,NL,DK,N,S,FIN,CIS,PL,CZ,H,SI,HR
TP 170 C (black)
40 13833-61456 2
42" / 107cm Active Matrix TFT-LC-Display
WXGA 1366 x 768
user, natural, rich, soft
PLL frequency synthesizer tuning
23 Languages: D, GB, F,I,E,P,NL,GR,TR,DK,FIN,N,S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER (Version A)
[
[
[
\
[
[
\
[
[[
/ [ /
[
[
\
\
\
\
\
\
\
\
[
[
\
[
2 wide band at the front side
cinema, music, sport, speech, user
2 x 10 / 20W (nominal/music)
[
[
\
[
[
\
PAL/SECAM/BG/DK/I/L'/L
[
[
/ [ /
[
[
\
\
\
\
\
\
\
\
[
[
\
5 Band
[
Simple hotel mode possible via service adjustment
full automatic sorting
PAL/SECAM/BG/DK/I/L'/L
2 wide band at the front side
cinema, music, sport, speech, user
2 x 10 / 20W (nominal/music)
Chassis LB (LX prime)GRUNDIG Service
G.BH 06-42
FNV
CE,ME67
glossy black
AUO
[
ca. 8ms
ca. 500cd/m2
ca. 1.500:1
ca. 5.000:1
178° / 178°
\
3D DeInterlacer
\
\
[
[
3D
[
[
\
AV-PIP
\
[
via AV
\
\
[
\
[
[
[
LB (LX prime)
\
MSTAR
MST66889BLD
blue LED
\
\
\
[
[
[
[
[
\
100 / 8
[
/ [ /
\
10 pages
[
Grundig-style
[
[
[
\
[
[
\
[
[
/ [ /
[
[
[
\
\
\
\
\
\
\
\
[
[
\
5 Band
[
1 - 4
Page 5
Chassis LB (LX prime)GRUNDIG Service
DVB reception
DVB-T/S/C
POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Plug-in AC adaptor
Power consumption
Cabinet (WxHxD, cm) / Weight
FRONT PANEL CONNECTIONS
HDMI
Headphones
Cinch-AV socket
S-Video
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
Euro-AV Socket AV2
Euro-AV Socket AV3
S-Video
Camera-AV
Wireless
YUV input / progressive
PC-input
PC-Audio in
DVI
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out coaxial (SPDIF)
Video out
Audio out
Antenna for terrestrial reception
DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Remote control (incl. battery)
Power cord
Cables
Instruction manual
Circuit diagram
Wall fixture
Warning sticker in rear panel
Stand
Warranty info
Vision 4 32-4820 Vision 4 37-4820 Vision 4 42-4820
Retrofitting possible via Scart socket (Grundig Micro Receiver)
230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65
80.0 x 59.4 x 11.0cm (20.0cm with stand) / ca. 11.4kg
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
Prepared for VESA standard adaptor 100 x 100 + 100[Prepared for VESA standard adaptor 200 x 200
140V - 265V
Tact switch, side close to keyboard
in accordance to IEC 62087-2002
CVBS in-/output, RGB input
[
\
145W. standby <2.5W
\\
\
\
\\
CVBS in-/output, S-VHS
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
2x
via HDMI
\
3.5mm jack
[
\
\
\
[
TP 170 C black TP 170 C black
[
(non grounded)
\
[
\
[
[
Tact switch, side close to keyboard
in accordance to IEC 62087-2002
93.0 x 67.1 x 11.2cm (25.2 with stand) / ca. 18.5kg
CVBS in-/output, RGB input
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
1 x Coaxial-socket for TV-tuner-in, according to DIN 45325
140V - 265V
[
\
180W. standby <2.5W
\
\
CVBS in-/output, S-VHS
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
2x
via HDMI
\
3.5mm jack
[
\
\
\
[
[
(non grounded)
\
[
\
[
[
[
140V - 265V
Tact switch, side close to keyboard
in accordance to IEC 62087-2002
104.3 x 73.7 x 11.4cm (31.6cm with stand)/ca. 23.2kg
CVBS in-/output, RGB input
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
Prepared for VESA standard adaptor 200 x 200
[
\
240W. standby <2.5W
\
\
\
\
CVBS in-/output, S-VHS
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
2x
via HDMI
\
3.5mm jack
[
\
\
\
[
TP 170 C black
[
(non grounded)
\
[
\
[
[
[
Order No.
Product Code
Destination
Approbations
IM-Languages
Remote control
EAN
Color
DISPLAY
Panel
Display-Manufacturer
Wide-screen format
Response time
Brightness
Contrast ratio (Panel)
Dynamic contrast plus
Viewing angle vertikal / horizontal (ca.)
Physical display resolution max. pixel
Motion Compensation
Motion Adaptive Deinterlacing
Natural view HD Reference
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Transition Improv. (DLTI)
Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
Blackline detection
PIP
Multifold Tuner scan (Mosaic Picture)
PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICTURE + PICTURE)
P2AT: Double Window + TXT
POP: PICTURE on PICTURE
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
CHASSIS
TV-Chassis
Progressive
Tuner
µ-Processor
Scaler
Keyboard
Vision 6 32-6821 Vision 6 37-6820 Vision 6 42-6820
G.BG 83-00
D, CH, P, NL, Nordic, PL, H, CZ
D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,CZ,H
32" / 81cm Active Matrix TFT-LC-Display
PLL frequency synthesizer tuning
FEP
CE
TP 170 C (black)
40 13833-61358 9
glossy black/silver
Samsung LTA320 WT-05
[
ca. 6ms
ca. 500cd/m2
ca. 2.000:1
ca. 10.000:1
178° / 178°
WXGA 1366 x 768
\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft
\
AV-PIP
\
[
via AV
\
\
[
\
[
[
[
LB (LX prime)
\
MSTAR
MST66889BLD
D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,CZ,H
37" / 94cm Active Matrix TFT-LC-Display 42" / 107cm Active Matrix TFT-LC-Display
Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Cinema Zoom / Sky Top
6 keys: menue, ± for programme, ± for volume, source
G.BG 64-00
T5Y
All NSOs
CE
TP 170 C (black)
40 13833-61306 0
glossy black/silver
LG Philips LC370WX1
[
ca. 8ms
ca. 500cd/m2
ca. 800:1
ca. 10.000:1
178° / 178°
WXGA 1366 x 768
\\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft user, natural, rich, soft
\
AV-PIP
\
[
via AV
\
\
[
\
[
[
[
LB (LX prime) LB (LX prime)
PLL frequency synthesizer tuning
\
MSTAR
MST66889BLD
D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,CZ,H
PLL frequency synthesizer tuning
G.BG 63-00
T2K
All NSOs
CE
TP 170 C (black)
40 13833-61305 3
glossy black/silver
AUO T420XW01 V5
[
ca. 8ms
ca. 500cd/m2
ca. 1.500:1
ca. 10.000:1
178° / 178°
WXGA 1366 x 768
3D DeInterlacer
\
\
[
[
3D
[
[
\
AV-PIP
\
[
via AV
\
\
[
\
[
[
[
\
MSTAR
MST66889BLD
1 - 5
Page 6
Chassis LB (LX prime)GRUNDIG Service
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Easy Dialog
Megalogic
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Intelligent Programme Switch
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Childlock
Menue languages OSD
OSD-style
Service mode
Hotel mode
TUNING
Autom. Tuning System with country selection
Frequency Based Auto Search
Automatic Micro-search
Automatic Programming
Manual fine tuning
Direct channel selection
Direct frequency selection
TV-Norm
NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Virtual Dolby
Magic Fidelity Sound System
Soundprojector
Matched Sound Delay (Lip synchronous)
Subwoofer
Dynamic Bass
DSP (Digital Sound Processor)
Balance Adjustment
AVL (Audio Volume Level)
PIP listening via Headphone.jack
Equalizer
Space Sound Effect
Audio mode
Audio amplifier
DVB reception
DVB-T/S/C
POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Plug-in AC adaptor
Power consumption
Cabinet (WxHxD, cm) / Weight
FRONT PANEL CONNECTIONS
HDMI
Headphones
Cinch-AV socket
S-Video
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
Euro-AV Socket AV2
Euro-AV Socket AV3
S-Video
Camera-AV
Wireless
YUV input / progressive
PC-input
PC-Audio in
DVI
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out coaxial (SPDIF)
Video out
Audio out
Antenna for terrestrial reception
DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Remote control (incl. battery)
Power cord
Cables
Instruction manual
Circuit diagram
Wall fixture
Warning sticker in rear panel
Stand
Warranty info
Vision 6 32-6821 Vision 6 37-6820 Vision 6 42-6820
blue LED
\
\
\
[
[
[
[
[
\
100 / 8
[
/ [ /
[
250 pages
23 Languages: D, GB, F,I,E,P,NL,GR,TR,DK,FIN,N,
S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER (Version A)
Simple hotel mode possible via service adjustment
2 wide band at the front side
cinema, music, sport, speech, user
2 x 8/16W nominal/music power (R/L)
[
Grundig-style
[
full automatic sorting
[
[
\
[
[
\
PAL/SECAM/BG/DK/I/L'/L
[
[
/ [ /
[
[
[
[
\
\
\
\
\
[
\
[
[
\
5 Band
[
26 Languages: D, GB, F,I,E,P,NL,GR,TR,DK,FIN,N,S,SI,PL,H,RUS,RO,HR,CZ,SK,AL,BG,MK,SER,HEB
Simple hotel mode possible via service adjustment[Simple hotel mode possible via service adjustment
2 x 10/20W nominal/music power (R/L)
blue LED
\
\
\
[
[
[
[
[
\
100 / 8
[
/ [ /
[
250 pages
[
Grundig-style Grundig-style
[
full automatic sorting full automatic sorting
[
[
\
[
[
\
PAL/SECAM/BG/DK/I/L'/L
[
[[
[
/ [ /
[
2 wide band at the front side
cinema, music, sport, speech, user
[
[
\
\
\
\
\
[
\
[
[
\
5 Band
[
(Version A)
cinema, music, sport, speech, user
2 x 10/20W nominal/music power (R/L)
blue LED
[
250 pages
PAL/SECAM/BG/DK/I/L'/L
[
2 wide band at the front side
\
\
\
[
[
[
[
[
\
100 / 8
/ [ /
[
[
[
\
[
[
\
[
/ [ /
[
[
\
\
\
\
\
[
\
[
[
\
5 Band
[
[
[
Retrofitting possible via Scart socket (Grundig Micro Receiver)
230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65 230V, 50Hz; in accordance to IEC 65
140V - 265V
Tact switch, side close to keyboard
in accordance to IEC 62087-2002
80.0 x 59.2 x 10.8cm (20.0cm with stand) / ca. 11.8kg
CVBS in-/output, RGB input
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
Prepared for VESA standard adaptor 100 x 100 + 100
[
\
145W. standby <2.5W
\
\
\
\
CVBS in-/output, S-VHS
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
2x
via HDMI
\
3.5mm jack
[
\
\
\
[
TP 170 C black
[
(non grounded)
\
[
\
[
[
[
1 x Coaxial-socket for TV-tuner-in, according to DIN 45325
93.0 x 67.1 x 11.2cm (25.2 with stand) / ca. 18.5kg
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
Prepared for VESA standard adaptor 200 x 200[Prepared for VESA standard adaptor 200 x 200
140V - 265V
Tact switch, side close to keyboard
in accordance to IEC 62087-2002
CVBS in-/output, RGB input
[
\
180W. standby <2.5W
\\
\
\
\\
CVBS in-/output, S-VHS
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
2x
via HDMI
\
3.5mm jack
[
\
\\
\
[
TP 170 C black TP 170 C black
[
(non grounded)
\
[
\
[
[
Tact switch, side close to keyboard
in accordance to IEC 62087-2002
104.2 x 73.5 x 11.1cm (31.7cm with stand)/ca. 23.2kg
CVBS in-/output, RGB input
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
140V - 265V
[
\
240W. standby <2.5W
\
\
CVBS in-/output, S-VHS
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
2x
via HDMI
\
3.5mm jack
[
\
\
[
[
(non grounded)
\
[
\
[
[
[
1 - 6
Page 7
Bedienhinweise Dieses Kapitel enthält Auszüge aus der Bedienungsanleitung.
Weitergehende Informationen entnehmen Sie bitte der gerätespezifischen Bedienungsanleitung, deren Materialnummer Sie in der entsprechenden Ersatzteilliste finden.
1 - 7
Chassis LB (LX prime)GRUNDIG Service
Page 8
1 - 8
Chassis LB (LX prime)GRUNDIG Service
Page 9
1 - 9
Chassis LB (LX prime)GRUNDIG Service
Page 10
Operating Hints This chapter contains excerpts from the operating instructions.
For further particulars please refer to the appropriate user instructions the part number of which is indicated in the relevant spare parts list.
1 - 10
Chassis LB (LX prime)GRUNDIG Service
Page 11
1 - 11
Chassis LB (LX prime)GRUNDIG Service
Page 12
1 - 12
Chassis LB (LX prime)GRUNDIG Service
Page 13
Chassis LB (LX prime)GRUNDIG Service
Service- und Sonderfunktionen
Tastenfunktionen
i
P+/P–
ǸǸ
ǸǸ
TXT
Service-Mode aktivieren
– Taste "
– Zahlenfolge "8500" eingeben.
Service-Mode beenden
– Taste "
1. Grundeinstellwerte
Die Grundeinstellwerte im Service Mode sind in der Tabelle enthalten.
Aufrufen des Dialog Centers / Menü verlassen
Menü-Zeile (Menüpunkt) wählen
/ Ƿ Aufrufen der Menüs / Wert ändern
Beenden des Service Mode
i
" (INFO) drücken.
TXT
" drücken.
Menü
Menu
P+ / P–
Ǹ
/
Ƿ
OPTIONS 0OPTIONS 1
Menüpunkt
Point of Menu
P+ / P–
Ǹ
/
Ƿ
STANDBY
TEXT
TEXT TBL
LANGUAGE
PANEL
PIP
PLUG PLAY
TUNER
2D/3D DEINTERLACE
GAMMA
HDCP VERIFY
BLUEBACK
DLC
DNR
PROTECTION
PANORAMA
REMOTE CONTROL
KEYPAD
PAT
HOTEL
HOTEL VOL
TTX PAGE SIZE
Einstellung
Adjustment
Ǹ
/
CUSTOMER
FACTORY
FAST TOP
FAST
NONE
AUTO
WEST
EAST
CYRL
ARAB
FARS
HEBR
GREE
A XXXXXX
B
ON
OFF
ON
OFF
2DDi
3DDi
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
AVAIL
NAVAIL
5 BUTTON
6 BUTTON
5 BUTTON WSTD
6 BUTTON WSTD
5 BUTTON+1STD
6 BUTTON+1STD
AVAIL
NAVAIL
AVAIL
NAVAIL
0…63
10/250/1000
Ƿ
Vision 4 32-4820
Vision 4 37-4820
XXXXXXNetz-Ein –> Standby / Power on –> standby
XX
XX
Eingebautes Display wählen
Select used display
XXXX
XX
Eingebauten Tuner wählen
Select used tuner
XX
ON ON
ONONON
ONONON
XX
Fernbedienung wählen
Select used remote control
XX
XX
XX
101010
X
XX
ATS Reset
XX
XX
ON ON
ONONON
ON
ONONON
ON
XX
XX
XX
XX
101010
10
Service and Special Functions
Functions of the buttons
i
P+/P–
ǸǸ
ǸǸ
TXT
Calling up the Service Mode
– Press button "
– Enter the code number "8500".
Exit the Service Mode
– Press button "
1. Basic Settings
The table shows all basic specific settings in the service mode.
Vision 4 42-4820
Vision 6 32-6821
X
ON
OFF
250
Call up the Dialog Center / close down the Menu
Call up the dialogue line (point of menu)
/ Ƿ Call up the Menus / Changing the settings
Exit the Service Mode
i
" (INFO).
TXT
".
Hinweis
Hint
Vision 6 37-6820
Vision 6 42-6820
XX
XX
XX
XX
XX
ON ON Gamma-Korrektur / Gamma Correction
ONONON
ONONON
XX
XX
XX
XX
10
25010250
Netz-Ein –> Programm 1 / Power on –> Programme 1
Netz ein –> Automatischer Sendersuchlauf
Power on –> automatic programme search
prüft HDCP im EEPROM / verifies the HDCP in EEPROM
Digitale Helligkeitsregelung / Digital Luminance Control
ON
Digitale Rauschunterdrückung / Digital Noise Reduction
Schutzschaltung / Protection
ON
Bild & Text
Picture & Text
Hotel-Mode
Maximale Lautstärke im Hotel-Mode
Hotel mode – volume maximum
1 - 13
Page 14
Chassis LB (LX prime)GRUNDIG Service
Menü
Menu
P+ / P–
Ǹ
/
Ƿ
VGA
HDMI 1
HDMI 2
TV
AV
OPTIONS 2SOUND OPTIONS
SV
SCART1
SCART2
YPBPR
BG
DK
I
LL
SRS
HEADPHONE
CARRI MUTE
ATS
AGC VHF
AGV UHF
IF
SET-
TINGS
AGC LPRIME
DIMMING
DCR
IBC
ICC
IHC
ADJUSTMENTSADJUSTMENTSEEPROM EDIT
ADJUST
SCART-1 RGB ADC
AUTO COLOR
TEST PATTERN EN. ON / OFF
TEST PATTERN
Mpeg NR ON / OFF
ADRESS
DATA
EEPROM RESET
Menüpunkt
Point of Menu
P+ / P–
Ǹ
/
Ƿ
Einstellung
Adjustment
Ǹ
/
Ƿ
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
EUROPE
NEW
AUS
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
MICRO
MSP
AVAIL
NAVAIL
0…31
0…31
0…31
CHIP SIDE
PANEL SIDE
OFF
R, G, B, C, M, Y, F
IBC
R, G, B, C, M, Y, F
ICC
R, G, B, C, M, Y, F
IHC
R, G, B GAIN
R, G, B OFFSET
SUB CONTRAST
SUB BRIGHTNESS
SUB SATURATION
R GAIN
G GAIN
B GAIN
R OFFSET
G OFFSET
B OFFSET
RESET TO VGA
Hinweis
Hint
Vision 4 32-4820
Vision 4 37-4820
Vision 4 42-4820
Vision 6 32-6821
Vision 6 37-6820
Vision 6 42-6820
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XXXX
XX
XX
XX
XX
XX
XX
XXXX
Alle Einstellungen sind in Abhängigkeit
des Displays und der Geräte-Eingänge
OFF OFF
gewünschtes Testbild wählen / select test pattern
ON ON
Achtung: Nach dem EEPROM Reset sind alle gerätespezifischen Einstellwerte einzustellen!
Attention: After EEPROM Reset adjust all set specific values!
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
X
XX
XX
XX
11
11
12
einzustellen,
siehe Punkt 1.1.
All settings depend on panel
and input selection,
see point 1.1.
78
77
78
128
129
127
OFF OFF
ON ON
X
OFF OFF
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
ON ON
Audio/Video-Eingang / Input
S-Video-Eingang / Input
Kopfhörer / Headphone
Automatische Programmsortierung bei Programmsuchlauf
Automatical programme sorting at autoprogram operation
Helligkeits-Einstell-Menü
Independent Brightness Control submenu
Kontrast-Einstell-Menü
Independent Contrast Control submenu
Helligkeits-Einstell-Menü
Independent Brightness Control submenu
Einstell-Menü
Adjustment menu
1 - 14
Page 15
Chassis LB (LX prime)GRUNDIG Service
1.1 Panel-Grundeinstellwerte
Die Panel-Grundeinstellwerte sind für jede Eingangsquelle separat
einzustellen.
Menü
Menüpunkt
Menu
Panel
32”
37”
40”
42”
* Mittelwert (Weiß- und Schwarzwert je Eingangs-Signal separat nach Testbild einstellen)
* Average value (adjust white and black value for all input signals separately according to test pattern)
Point of Menu
P+ / P–
Ǹ
/
Ƿ
IBC
ICC
IHC
ADJUST
ADJUSTMENTS
IBC
ICC
IHC
ADJUST
ADJUSTMENTS
IBC
ICC
IHC
ADJUST
ADJUSTMENTS
IBC
ICC
IHC
ADJUST
ADJUSTMENTS
P+ / P–
Ǹ
/
Ƿ
Einstellung
Adjustment
Ǹ
/
Ƿ
IBC – R, G, B, C, M, Y, F –––
IBC
ICC – R, G, B, C, M, Y, F
ICC
IHC – R, G, B, C, M, Y, FON–
ICH
R, G, B GAIN
R, G, B OFFSET
SUB CONTRAST
SUB BRIGHTNESS
SUB SATURATION
IBC – R, G, B, C, M, Y, F
IBC
ICC – R, G, B, C, M, Y, F
ICC
IHC – R, G, B, C, M, Y, F
ICH
R, G, B GAIN
R, G, B OFFSET
SUB CONTRAST
SUB BRIGHTNESS
SUB SATURATION
IBC – R, G, B, C, M, Y, F63–
IBC
ICC – R, G, B, C, M, Y, F
ICC
IHC – R, G, B, C, M, Y, FON–
ICH
R, G, B GAIN
R, G, B OFFSET
SUB CONTRAST
SUB BRIGHTNESS
SUB SATURATION
IBC – R, G, B, C, M, Y, F
IBC
ICC – R, G, B, C, M, Y, F
ICC
IHC – R, G, B, C, M, Y, F
ICH
R, G, B GAIN
R, G, B OFFSET
SUB CONTRAST
SUB BRIGHTNESS
SUB SATURATION 63
CVBS
(Pal)
OFF
15
OFF
127*
127*
42
24
63
–
OFF
15
ON
–
OFF
127*
127*
42
24
OFF
15
OFF
127*
127*
42
21
63
–
OFF
15
ON
–
OFF
127*
127*
46
21
1.1 Basic Panel Settings
The panel specific basic settings must been adjusted for all separate input signals.
Eingangs-Signal / Input Signal
RGB
CVBS
(Pal)
(NTSC)
(NTSC)RF(Pal)
OFF15OFF
ON–ON
OFF
127*
127*46127*
OFF–OFF
ON15ON
OFF–OFF
127*
127*
OFF15OFF
ON–ON
OFF
127*
127*46127*
OFF–OFF
ON15ON
OFF–OFF
127*
127*
OFF
127*
16
38
–
15
–
127*
127*
46
16
38
–
OFF
127*
16
42
–
15
–
127*
127*
46
16
42 63
15
–
54
18
63
54
18
63
–
15
–
50
22
63
50
22
RGB
––––
OFF15OFF
OFF
127*
127*50127*
OFF–OFF
OFF–OFF
127*
127*
OFF15OFF
OFF
127*
127*50127*
OFF–OFF
OFF–OFF
127*
127*
15
ON–ON
104624
15ON15
501052
46–63
ON–ON
462463
15ON15
52052
46 63
–
OFF
127*
52
63
–
ON
–
127*
127*
24
–
15
–
OFF
127*
52
0
–
ON
–
127*
127*
24
CompSDComp
PC
OFF15OFF
OFF
127*
127*50127*
OFF–OFF
OFF–OFF
127*
127*
OFF15OFF
OFF
127*
127*50127*
OFF–OFF
OFF–OFF
127*
127*
15
ON–ON
OFF
127*
46
14
14
–
44
–
15
ON15ON
–
127*
127*
50
46
14
14
–
44
–
15
ON–ON
OFF
127*
46
14
10
–
44
–
15
ON15ON
–
127*
127*
50
38
14
20
– 48
–
–
–
HDMI
HD
––
OFF15OFF
OFF
127*
127*46127*
OFF–OFF
OFF–OFF
127*
127*
OFF15OFF
OFF
127*
127*46127*
OFF–OFF
OFF–OFF
127*
127*
15
ON–ON
OFF
127*
44
14
12
44
63
–
15
ON15ON
–
127*
127*
46
44
14
12
44
63
–
15
ON–ON
OFF
127*
44
14
12
44
38
–
15
ON15ON
–
127*
127*
50
50
14
14
46 40
–
–
–
2. Austausch der Hauptplatte oder des IC104
Nach dem Austausch der Hauptplatte oder des IC104 sind die
Grundeinstellwerte im Service Mode entsprechend der Tabelle einzustellen.
3. Software-Versionsnummer
Die Software-Versionsnummer wird unten im Service-Menü angezeigt, z.B.:
SBL 1024G 01 T00 v1.16
31/01/08 14:51:14
4. Programmsuchlauf
i
– Taste "
– "Programm-Installation" mit den Tasten
" (INFO) drücken.
P+ / P–
anwählen und mit
der Taste "OK" bestätigen.
– "Programmsuchlauf" mit den Tasten
P+ / P–
anwählen und mit der
Taste "OK" bestätigen.
P+ / P–
– Gewünschtes Land mit den Tasten
, Ǹ / Ƿ auswählen und
mit der Taste "OK" bestätigen.
Das automatische Sendersuchsystem stoppt bei jedem empfangswürdigen Sender (AFC und Koinzidenz) und speichert automatisch die entsprechenden Senderdaten mit dem jeweiligen
Standard. Danach wird der Suchlauf fortgesetzt.
i
Zum Abbrechen des Suchlaufes die Taste "
" drücken.
2. Change of the Main Board or IC104
After changing the Main Board or IC104 all basic settings in the service mode must be done according to the table.
3. Software Version Number
The software version number is shown on the lower part of the service menu, e.g.:
SBL 1024G 01 T00 v1.16
31/01/08 14:51:14
4. Programme Search
i
OK
".
" (MAIN MENU).
P+ / P–
P+ / P–
and confirm with
and confirm with
– Press button "
– Select "Channel setup" with the buttons
button "
– Select "Autoprogram" with the buttons
button "OK".
P+ / P–
– Select the required Country with the buttons
, Ǹ / Ƿ and
confirm with button "OK".
The auto programme system stops at every station of acceptable
reception quality (AFC and coincidence) and stores the station
data and the respective standard automatically. The system then
continues searching.
i
Pressing the "
" button stops the programme search.
1 - 15
Page 16
Chassis LB (LX prime)GRUNDIG Service
5. EEPROM Edit
Diese Funktion ist ausschließlich für die Entwicklung und darf nur
nach besonderer Aufforderung verwendet werden. Bei falschen Eingaben sind die Gerätefunktionen nicht mehr gewährleistet.
6. Hotel-Mode
Bei aktivierter Funktion ist die maximale Lautstärke begrenzt und
die Programmtabelle und Installation sind im MAIN MENU nicht
mehr anwählbar.
i " –> "
8500
Aufruf: "
TEL" –> Ǹ / Ƿ "AVAIL".
Maximale Lautstärke: "
–>
P+ / P–
"HOTEL VOLUME" –> Ǹ / Ƿ Wert 0…63.
6.1 Sonderfunktion bei aktiviertem Hotel-Mode
Bei dieser Sonderfunktion ist im Menü Ton die maximale Lautstärke
"Maxvol" zusätzlich einstellbar. Des weiteren sind die Menüs Programmtabelle und Sonderfunktionen bis zum nächsten Ausschalten
(Standby) des Gerätes verfügbar.
Aufruf: "
7. Display
Sollte kein Bild sichtbar sein weil ein falsches Panel eingestellt ist,
dann ist die Umstellung des Panels nur mit Blind-Bedienung möglich. Folgende Bedienschritte sind so lange auszuführen bis ein Bild
sichtbar ist.
Aufruf: "
–> Gerät aus- und wieder einschalten. Wenn ein Bild sichtbar ist,
dann sind diese Bedienschritte nochmals auszuführen um das richtige Panel (gemäß Display-Typenschild) einzustellen.
i " –> "Ton" –> "
i " –> "
" –> P+ /
8500
i " –> "
OK
" –> "
" –> Ƿ –>
P–
"OPTION 1" –> Ƿ –>
8500
" –> P+ /
4658
" P–
" 4 mal drücken –> Ƿ –> "TXT"
P–
"OPTION 1" –> Ƿ
"
P+ / P–
"HO-
5. EEPROM Edit
This function is only for development and is only allowed to use by
special demand. Any incorrect settings may cause a defectiv set.
6. Hotel Mode
Maximum volume is limited and there is no access to "Preset List"
and "Setup" at activated hotel mode.
i " –> "
8500
i " –> "
8500
" –> P+ /
" –> Ƿ –>
Call up: "
"HOTEL" –> Ǹ / Ƿ "AVAIL".
Maximum volume: "
P+ / P–
"HOTEL VOLUME" –> Ǹ / Ƿ Value 0…63.
6.1 Special Functions at activated Hotel Mode
The maximum volume can be adjusted in the additionally menu item
"Maxvol" in the sound menu.
In addition there is access to the menus "Preset List" and "Channel
Settings" until the set is switched off (standby).
Call up: "
7. Display
If no picture is visible because of a wrong panel is adjusted, you
can change the setting by "blind" adjust.
The following sequence of operating steps must be repeated until
the picture is shown on the panel.
Call up: "
switch set off and on.
If the picture is visible, then repeat the sequence once again and
thereby adjust the correct type of panel (according to display label).
i " –> "Sound" –> "
i " –> "
8500
OK
P–
"OPTION 1" –> Ƿ –>
" –> P+ /
" –> "
P–
"OPTION 1" –> Ƿ –>
4658
"
" P–
" 4 times –> Ƿ –> "TXT" –>
P+ / P–
1 - 16
Page 17
GRUNDIG Service Chassis LB (LX prime)

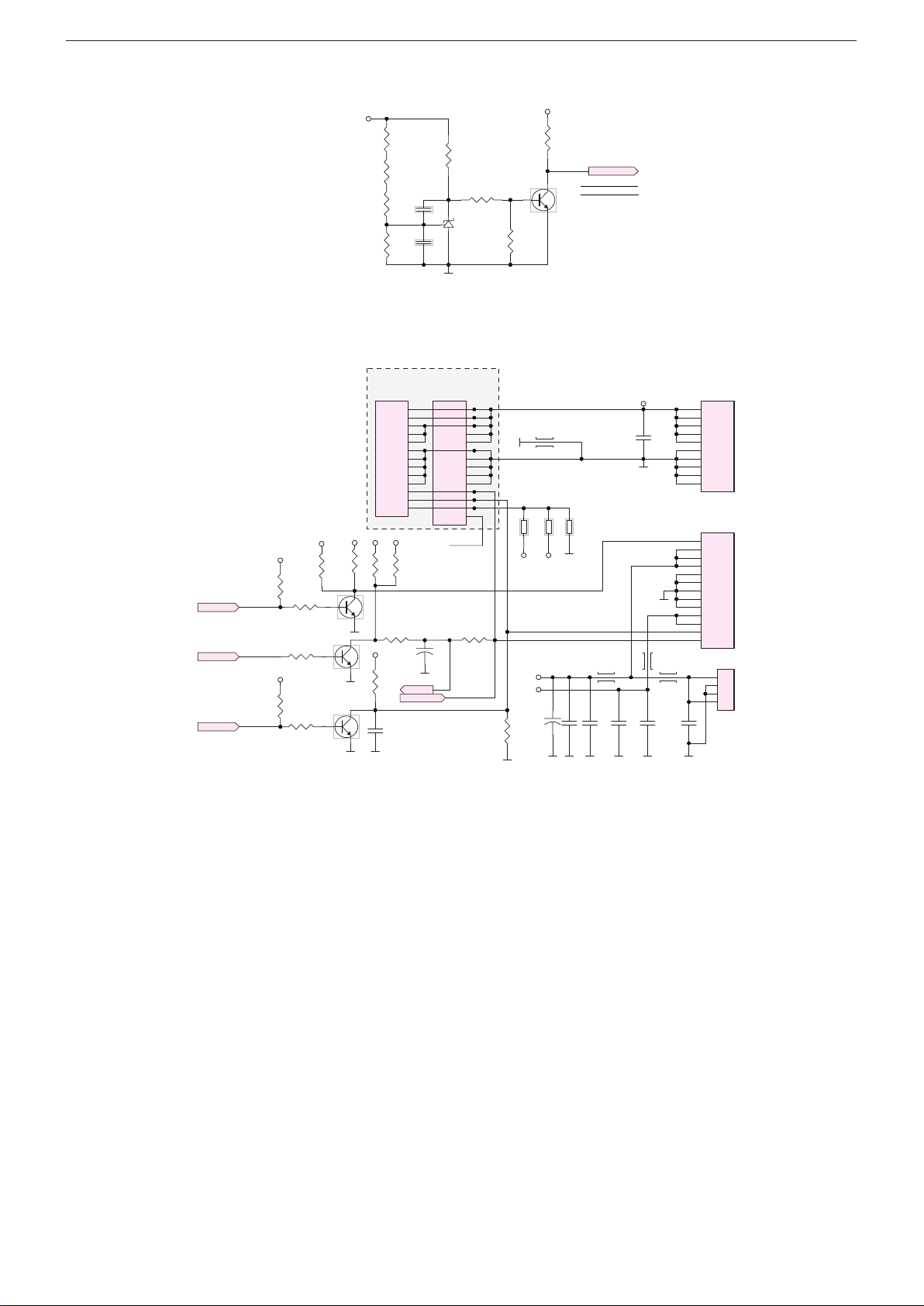

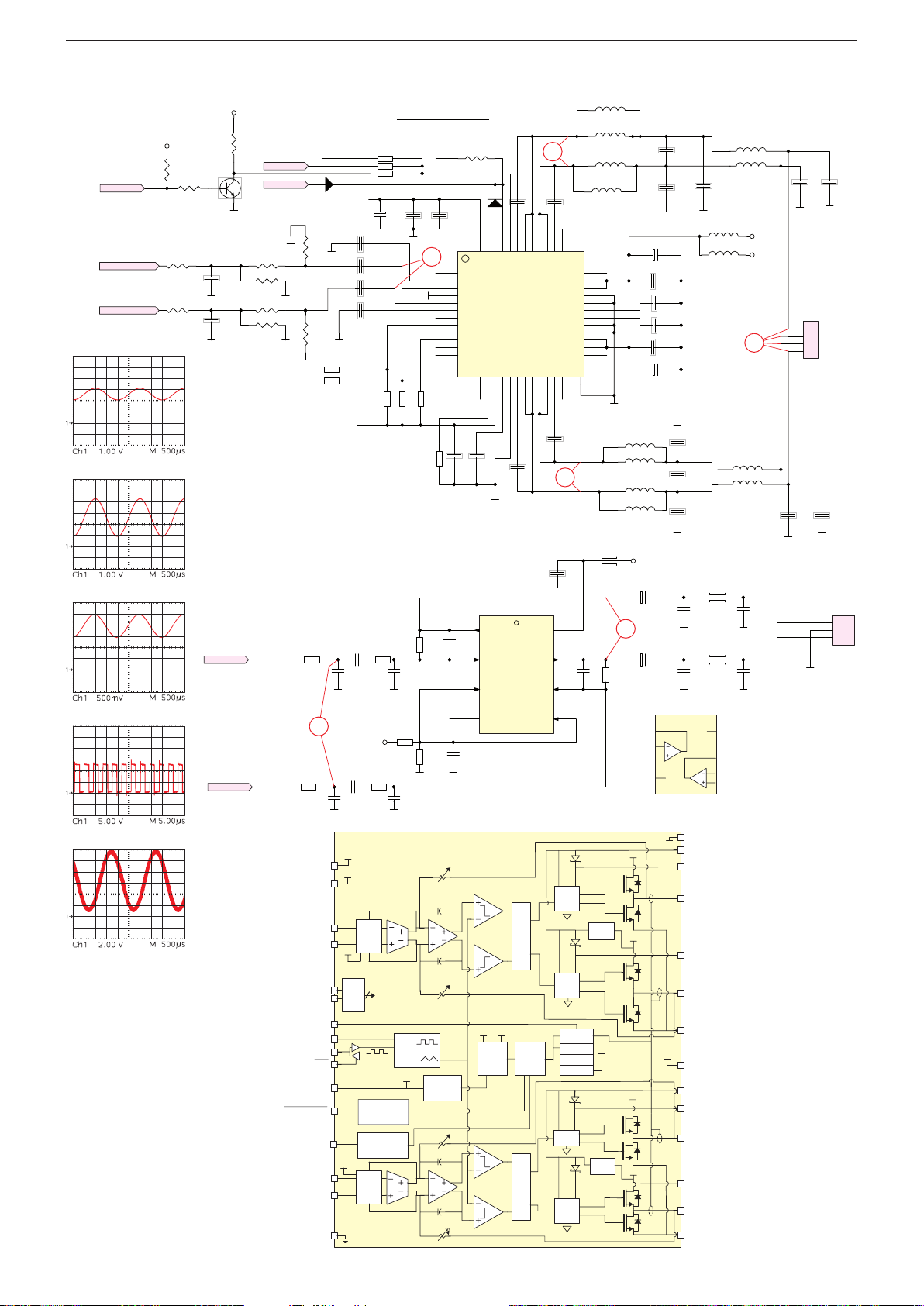

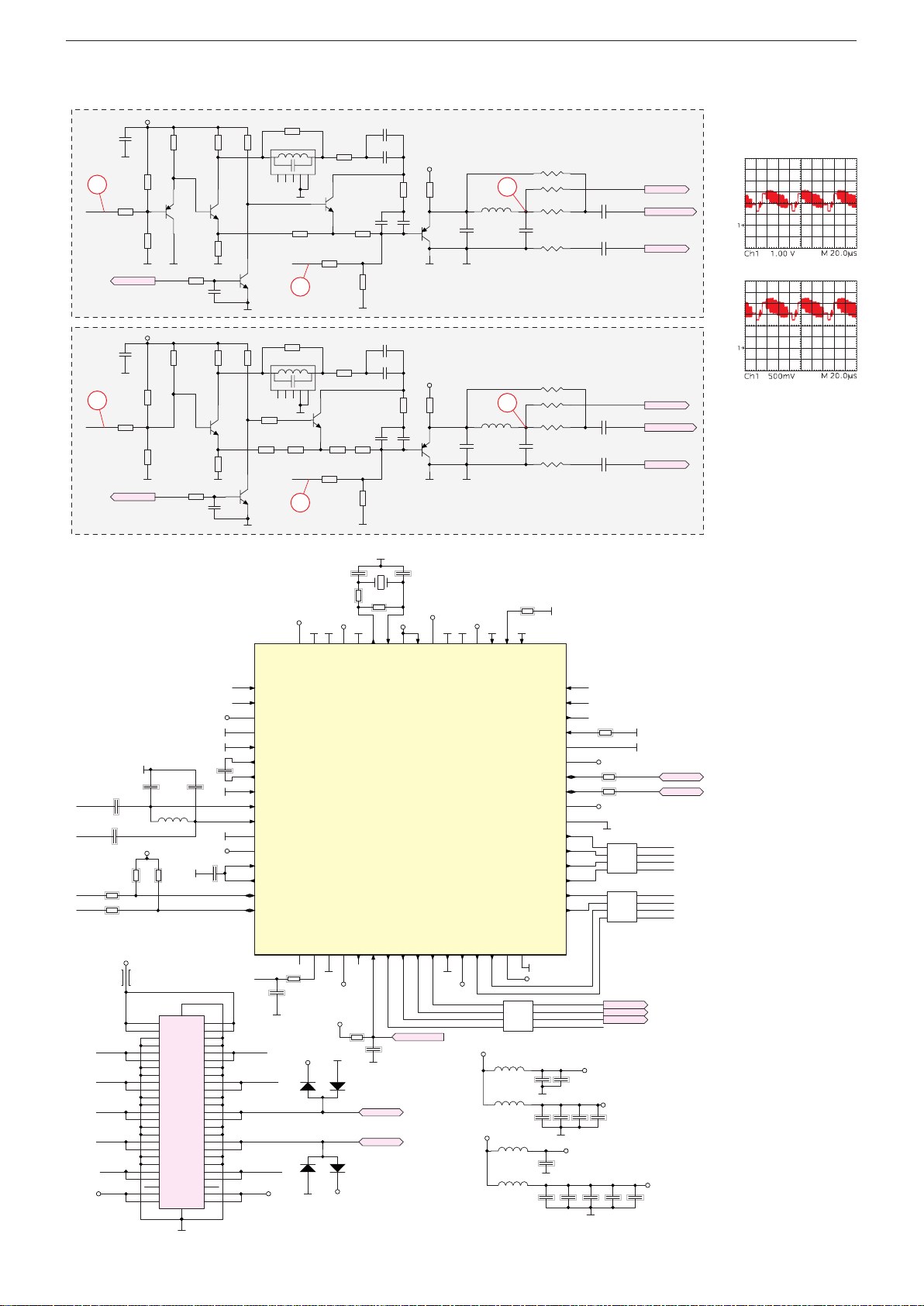

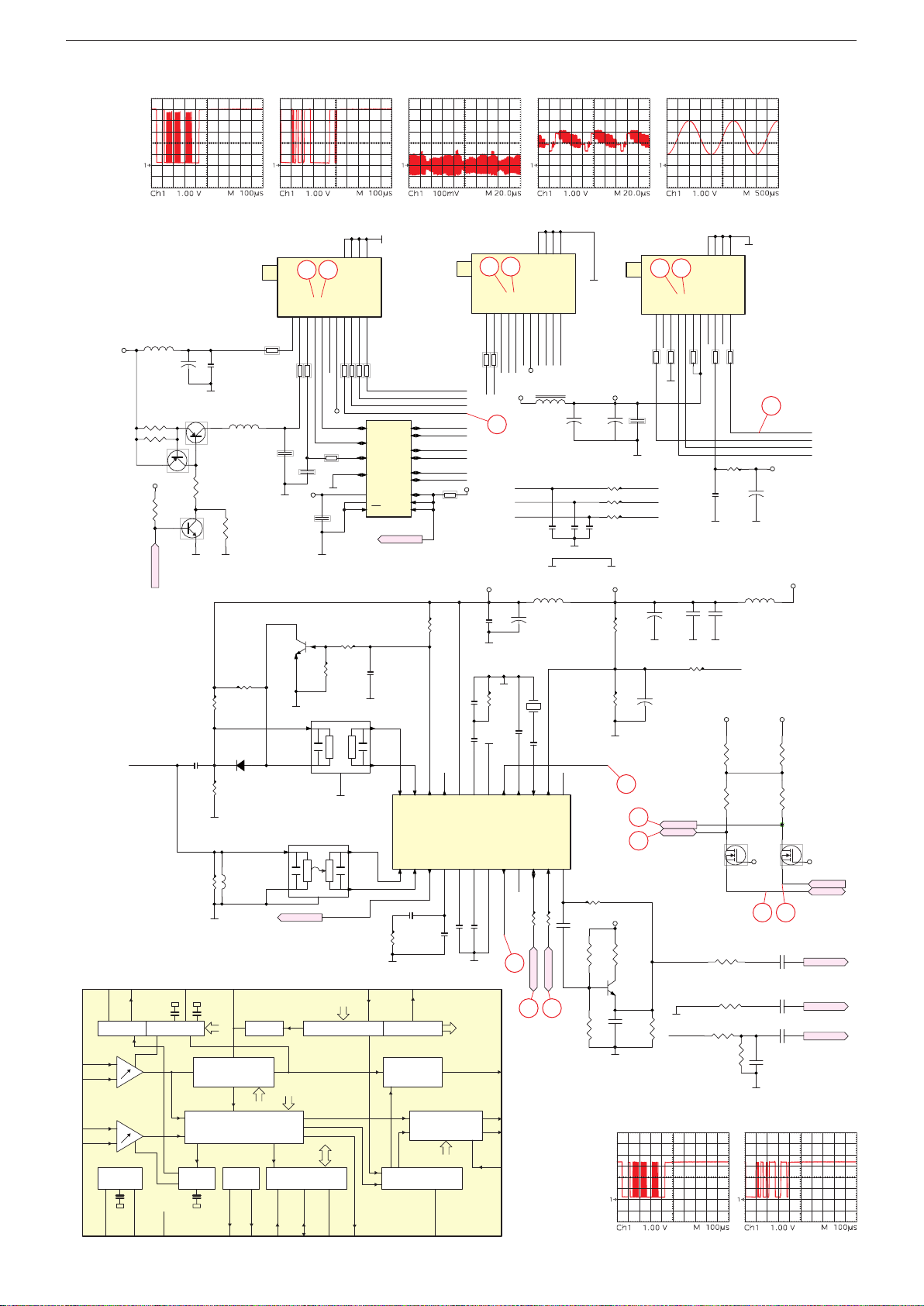

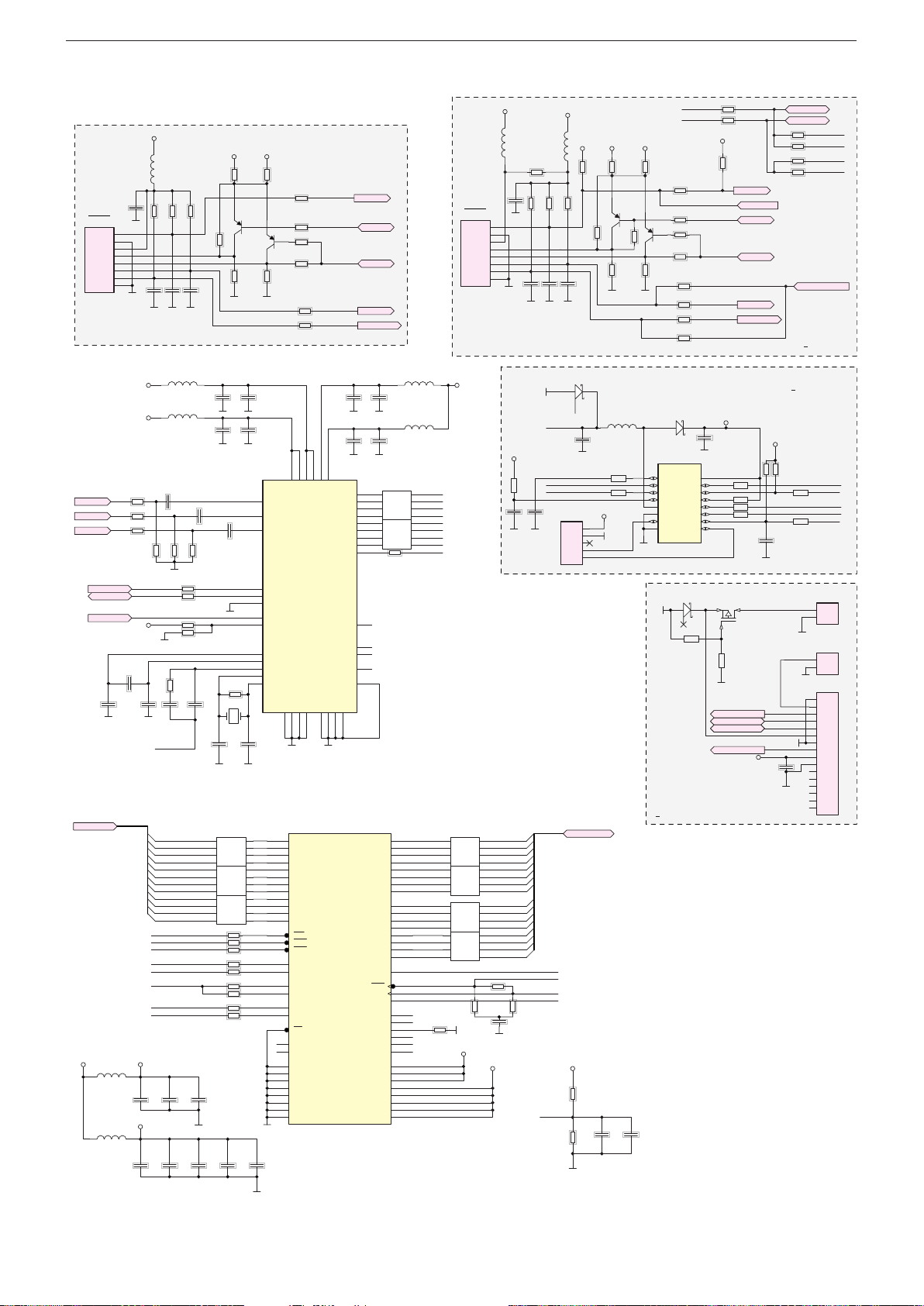

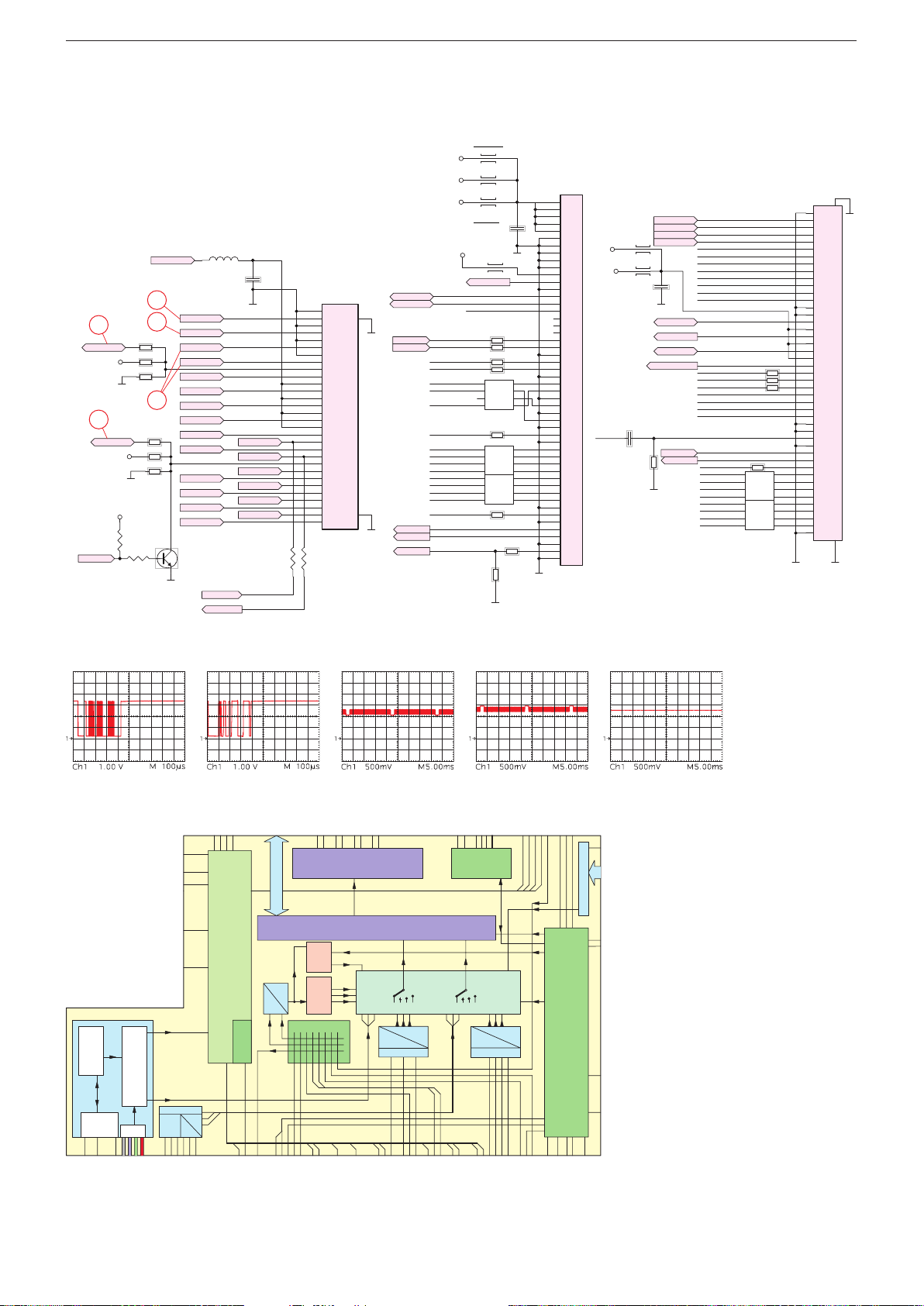

Platinenabbildungen und Schaltpläne / Layout of PCBs and Circuit Diagrams

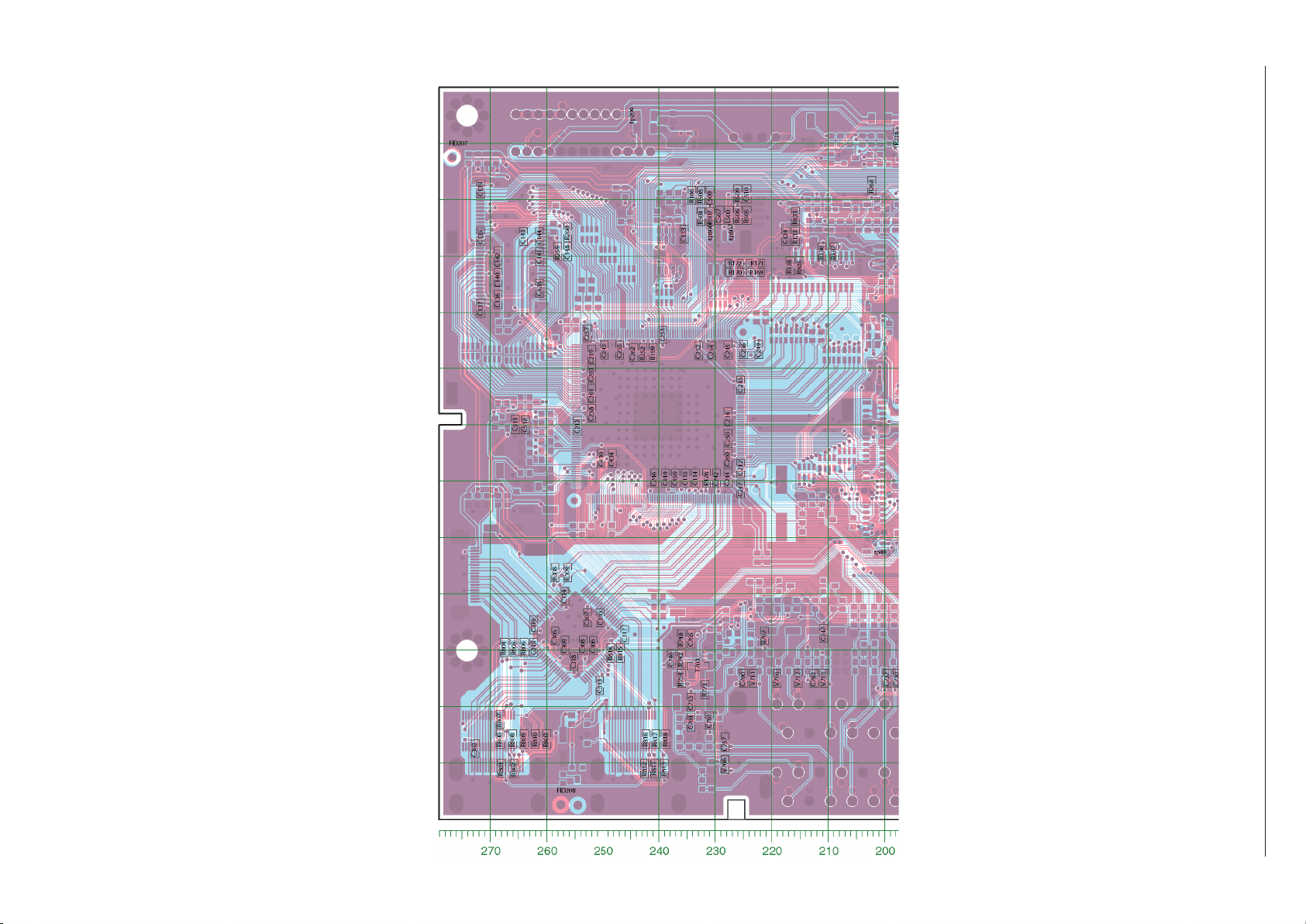

Hauptplatte / Main Board XLB190R-3
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
C100 B 8 81
C101 T 264 72
C102 B 6 73
C103 T 177 62
C104 T 177 57
C105 T 177 56
C106 T 181 70
C107 T 194 58
C108 B 177 57
C109 T 174 66
C110 T 188 53
C111 T 194 59
C112 B 178 57
C113 T 174 67
C114 B 234 61
C115 B 235 61
C116 T 248 51
C117 T 215 57
C118 T 215 50
C119 T 264 64
C120 T 268 64
C121 T 265 59
C122 T 259 60
C123 T 262 59
C124 T 174 61
C125 T 177 61
C126 B 178 62
C127 T 176 67
C128 T 177 64
C129 T 184 74
C130 T 190 74
C131 T 202 77
C132 T 216 103
C133 B 236 104
C134 B 218 104
C135 B 272 104
C136 B 269 92
C137 B 272 91
C138 B 261 94
C139 B 272 112
C140 B 269 96
C141 B 261 100
C142 B 269 100
C143 B 264 104
C144 B 261 104
C145 B 6 85
C146 B 8 89
C148 B 256 101
C149 B 239 61
C150 B 237 61
C200 B 127 99
C201 T 167 100
C202 T 145 97
C203 T 156 90
C204 T 130 102
C205 T 157 95
C206 T 150 101
C207 T 112 100
C208 T 154 100
C209 T 170 90
C210 T 134 100
C211 T 248 111
C212 B 226 62
C213 B 255 70
C214 B 228 71
C215 B 226 77
C216 T 167 95
C217 T 135 94
C218 T 139 94
C219 T 145 89
C220 T 142 87
C221 T 132 79
C222 T 129 75
C223 T 129 79
C224 T 132 90
C225 T 132 94
C226 T 126 94
C227 T 120 79
C228 T 136 73
C229 T 129 94
C230 T 115 93
C231 T 145 86
C232 T 113 80
C233 T 198 106
C234 T 201 106
C235 T 144 80
C236 T 194 109
C237 T 184 103
C238 T 182 106
C239 T 42 124
C240 T 224 52
C241 T 261 55
C242 B 230 61
C243 B 250 83
C244 B 228 61
C245 B 228 83
C246 B 241 61
C247 B 226 59
C248 T 252 51
C249 B 222 83
C250 B 228 68
C251 B 239 86
C252 B 233 83
C253 T 260 62
C254 B 231 83
C255 B 247 83
C256 B 225 83
C257 B 253 86
C258 B 252 72
C259 B 252 83
C260 B 228 64
C261 B 252 76
C262 B 245 83
C263 B 252 79
C264 T 152 75
C265 T 194 124
C266 T 194 121
C267 T 213 122
C268 T 234 120
C269 T 239 123
C270 T 195 124
C271 T 237 125
C272 T 151 95
C273 T 102 84
C275 T 103 81
C276 T 208 106
C300 T 274 57
C301 T 272 57
C302 T 271 57
C303 B 273 13
C304 T 257 13
C305 B 259 33
C306 B 252 31
C307 B 253 36
C308 B 254 31
C309 B 257 31
C310 B 250 36
C311 T 268 52
C313 B 251 24
C314 B 257 40
C315 B 262 31
C316 B 262 35
C317 B 246 33
C318 B 255 28
C319 T 235 37
C320 T 253 14
C392 T 97 65
C400 T 156 19
C401 T 154 16
C402 B 11 52
C403 T 125 16
C404 T 82 15
C405 T 73 15
C406 B 11 48
C407 T 143 16
C408 B 18 52
C409 T 79 19
C410 T 73 19
C411 T 126 19
C412 B 18 48
C413 T 138 19
C414 T 183 42
C415 T 183 43
C416 B 13 33
C417 T 132 19
C418 T 149 19
C419 T 160 22
C420 T 183 40
C421 T 116 24
C422 T 111 23
C423 T 161 22
C424 T 130 19
C425 T 113 68
C426 T 103 24
C427 T 115 24
C428 T 108 23
C429 T 100 24
C430 B 250 64
C431 T 80 19
C432 T 75 19
C433 T 128 19
C434 B 248 64
C435 T 143 19
C436 T 131 31
C437 T 147 19
C438 T 133 19
C439 T 109 23
C440 B 17 44
C441 T 95 27
C442 B 12 44
C443 B 13 36
C444 B 13 40
C492 T 60 43
C494 B 59 44
C495 B 70 38
C500 B 102 100
C501 T 92 105
C502 T 83 105
C503 B 68 103
C504 B 73 103
C505 B 6 100
C506 T 96 82
C507 B 229 107
C508 T 14 109
C509 B 231 111
C510 B 224 111
C511 B 266 70
C512 B 264 70
C515 T 87 80
C516 T 87 84
C517 T 84 84
C518 T 82 80
C519 T 82 84
C520 T 88 105
C521 T 85 105
C522 T 96 85
C523 T 79 80
C524 T 77 89
C525 T 80 105
C526 T 94 105
C527 B 97 93
C528 T 96 116
C529 T 85 114
C530 B 71 103
C531 B 105 100
C532 T 264 70
C533 T 22 97
C534 T 22 100
C535 T 19 102
C536 T 19 114
C537 T 13 100
C538 T 13 114
C539 T 11 106
C540 T 11 109
C541 B 107 100
C542 B 6 97
C543 B 6 104
C544 T 264 68
C545 T 26 116
C546 T 22 114
C547 T 22 102
C548 B 6 93
C549 T 9 106
C550 T 9 108
C551 T 75 78
C600 T 81 39
C601 T 117 42
C602 T 115 42
C603 T 23 84
C604 T 25 84
C605 T 46 81
C606 T 72 25
C607 T 16 87
C608 B 61 17
C609 T 57 68
C610 T 41 68
C611 T 39 81
C612 T 36 81
C613 T 23 69
C614 T 27 69
C615 T 21 83
C616 T 28 69
C617 T 34 81
C618 T 23 73
C619 T 81 43
C620 T 54 7
C621 T 105 48
C623 T 60 49
C624 T 60 14
C625 T 59 35
C626 T 59 28
C627 T 102 48
C628 T 104 48
C629 T 59 23
C630 T 37 81
C631 T 28 77
C632 T 23 77
C633 T 44 81
C634 T 112 48
C635 T 104 42
C636 T 102 42
C637 T 112 42
C638 T 114 49
C639 B 61 24
C645 B 67 61
C646 B 65 61
C647 B 65 53
C648 B 73 56
C649 B 70 61
C650 B 80 56
C651 B 77 56
C652 B 72 61
C654 B 76 61
C655 B 82 61
C656 B 75 56
C657 B 79 61
C658 B 74 61
C659 B 79 52
C660 B 77 61
C662 B 62 54
C663 B 68 57
C664 T 74 47
C665 T 77 47
C666 T 72 68
C667 T 75 68
C668 T 57 86
C700 B 225 25
C701 B 234 17
C702 T 209 28
C703 T 219 30
C704 T 129 42
C705 T 136 42
C706 T 129 49
C707 T 136 49
C708 T 143 49
C709 B 62 59
C712 T 226 26
C713 B 234 21
C714 T 213 30
C715 T 224 34
C717 T 197 37
C718 T 200 37
C719 T 204 37
C720 T 177 33
C721 T 198 37
C722 T 202 37
C723 T 205 37
C724 T 183 37
C725 T 191 31
C726 B 194 29
C727 T 201 28
C728 T 175 25
C729 T 194 31
C730 B 198 25
C731 T 206 28
C732 T 204 27
C733 B 196 25
C734 B 192 25
C735 T 174 29
C736 T 191 28
C737 B 200 25
C738 B 192 29
C744 T 164 26
C745 T 209 38
C746 B 238 29
C747 B 211 33
C748 T 237 23
C749 T 231 23
C750 T 237 31
C751 T 226 36
C752 T 165 20
C753 T 218 34
C754 T 210 34
C755 T 231 10
C756 T 232 10
C757 B 228 14
C758 T 235 14
C759 T 209 26
C760 T 223 26
C761 B 231 18
C762 T 235 17
C763 B 213 25
C764 T 223 30
C765 B 234 32
C766 T 227 33
C767 T 222 41
C768 T 216 38
C772 T 174 33
C773 T 172 33
C774 T 175 33
C775 T 166 25
C776 T 168 25
C777 T 170 25
C779 T 170 40
C780 T 220 28
C781 T 216 28
C782 T 264 67
C783 T 264 65
C785 T 116 85
D200 T 144 94
D201 T 132 75
D202 T 123 75
D203 T 99 84
D205 T 99 81
D300 T 255 8
D400 T 94 20
D401 T 99 30
D402 T 100 27
D403 T 96 20
D404 T 89 20
D405 T 105 20
D406 T 114 20
D407 T 121 20
D408 T 89 24
D500 T 71 82
D501 T 74 84
D600 T 50 111
D601 T 54 111
D602 T 53 69
FB300 T 256 18
FB301 T 269 57
FB302 T 228 36
IC100 T 186 61
IC101 T 210 53
IC102 T 240 72
IC103 T 266 102
IC104 T 219 108
IC105 T 238 100
IC200 T 121 106
IC201 T 161 87
IC202 T 161 106
IC203 T 141 106
IC204 T 139 90
IC205 T 179 106
IC300 T 270 16
IC301 T 245 16
IC302 T 255 33
IC319 T 73 40
IC400 T 141 28
IC401 T 92 31
IC500 T 229 101
IC501 T 88 95
IC502 T 20 108
IC600 T 34 74
IC702 T 167 33
IC703 T 76 58
IC704 T 238 101
J500 T 89 85
J501 T 92 85
J502 T 77 87
J503 T 77 86
J504 T 89 81
J505 T 92 81
K1 T 65 40
K2 T 12 40
L100 T 186 53
L101 T 194 56
L102 T 177 59
L103 T 174 64
L104 T 180 98
L105 T 182 98
L106 T 255 88
L107 T 256 88
L108 T 272 117
L109 T 274 117
L110 T 211 103
L111 T 185 98
L112 T 97 68
L113 B 8 85
L114 T 198 71
L200 T 126 86
L201 T 123 94
L202 T 242 123
L203 T 201 125
L204 T 242 125
L205 T 150 75
L206 T 44 124
L207 T 192 100
L208 T 189 100
L209 T 223 47
L210 T 246 111
L211 T 221 47
L212 T 267 57
L213 T 254 51
L214 T 264 73
L215 T 264 62
L216 T 169 101
L217 T 269 117
L324 T 97 70
L333 T 72 34
L370 T 87 70
L371 T 90 70
L372 T 90 65
L373 T 90 63
L374 B 65 57
L400 B 8 44
L401 T 157 19
L402 B 8 36
L403 B 8 40
L404 B 6 48
L405 B 6 52
L406 B 110 18
L407 B 107 18
L408 B 104 18
L500 B 228 107
L501 T 14 107
L502 T 74 95
L503 T 74 104
L504 T 102 89
L505 T 102 98
L506 T 103 118
L507 T 103 114
L508 T 9 105
L509 T 9 110
L510 T 73 111
L511 T 74 97
L512 T 102 105
L513 T 102 92
L514 B 8 109
L515 B 4 109
L516 B 14 109
L517 B 11 109
L600 T 114 46
L601 T 72 30
L602 T 21 87
L603 T 50 5
L604 T 84 39
L605 T 97 43
L606 T 59 63
L607 T 29 108
L702 T 169 22
L703 T 231 14
L704 T 236 14
L705 T 213 26
L706 T 223 28
L707 T 120 94
L708 T 145 42
Q106 T 7 85
Q107 T 7 82
R100 B 6 77
R101 B 6 89
R102 B 9 77
R103 T 211 57
R104 T 7 78
R105 T 7 75
R106 T 7 89
R107 T 10 89
R108 T 7 76
R109 T 189 53
R110 T 194 54
R111 T 174 62
R112 T 174 57
R113 T 174 56
R114 B 175 62
R115 T 174 59
R116 T 177 54
R117 T 185 53
R118 T 183 53
R119 T 194 62
R120 T 194 65
R121 T 206 83
R122 T 214 62
R123 T 210 63
R124 T 207 65
R125 T 190 67
R126 B 232 61
R127 T 213 57
R128 T 215 54
R129 T 187 74
R130 T 211 86
R131 T 213 86
R132 T 209 83
R133 B 216 104
R134 T 200 96
R135 T 178 67
R136 T 178 70
R137 T 179 70
R138 B 217 98
R139 T 194 53
R140 T 206 53
R141 T 199 87
R142 T 194 51
R143 T 198 75
R144 T 198 58
R145 T 221 89
R146 T 223 89
R147 T 215 86
R148 T 219 86
R149 T 251 92
R150 T 252 95
R151 T 253 92
R152 T 270 83
R153 T 273 83
R154 T 262 83
R155 T 194 49
R156 T 197 51
R157 T 213 106
R158 T 212 106
R159 T 214 109
R160 T 212 109
R161 T 104 27
R162 T 187 95
R163 T 245 107
R164 T 247 107
R165 T 237 111
R166 B 234 111
R167 T 238 111
R168 T 240 111
R169 B 223 97
R170 B 227 97
R171 B 223 99
R172 B 227 99
R173 T 240 107
R174 T 200 94
R175 T 68 82
R176 T 237 107
R177 T 238 107
R178 T 239 93
R179 T 264 75
R180 T 260 83
R181 T 268 88
R182 T 267 88
R183 T 258 110
R184 T 266 82
R185 T 259 105
R186 T 271 117
R187 T 258 86
R188 T 252 104
R189 T 249 100
R190 T 246 97
R191 T 254 95
R192 T 254 92
R193 T 202 95
R194 T 202 86
R195 T 202 88
R196 B 211 101
R197 B 209 101
R198 T 202 84
R199 B 241 83
R200 T 114 100
R201 T 114 103
R202 T 192 121
R203 T 145 87
R204 T 178 103
R205 T 133 94
R206 T 139 96
R207 T 127 79
R208 T 126 79
R209 T 124 79
R210 T 122 79
R211 T 132 87
R212 T 132 84
R213 T 127 76
R214 T 206 121
R215 T 126 76
R216 T 203 106
R217 T 196 106
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
2 - 1
Page 18
GRUNDIG Service Chassis LB (LX prime)
Hauptplatte / Main Board XLB190R-3
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
R218 T 209 106
R219 T 201 109
R220 T 195 106
R221 T 200 106
R222 T 205 106
R223 T 193 106
R224 T 190 106
R225 T 210 109
R226 T 201 117
R227 T 179 103
R228 T 181 103
R229 T 183 103
R230 T 179 110
R231 T 181 110
R232 T 185 110
R233 T 183 110
R234 T 203 117
R235 T 202 121
R236 T 209 117
R237 T 201 121
R238 B 198 121
R239 T 195 121
R240 T 208 121
R241 T 195 117
R242 T 192 117
R243 T 151 91
R244 T 150 91
R245 T 148 91
R246 T 145 91
R247 T 108 86
R248 T 108 84
R249 T 194 117
R250 T 204 121
R251 T 209 121
R252 B 243 83
R253 T 10 86
R254 B 10 84
R255 T 10 82
R256 B 6 81
R257 T 7 80
R258 T 7 88
R259 B 258 101
R260 B 256 104
R261 T 165 90
R262 T 168 90
R263 T 113 73
R264 T 113 77
R265 T 113 70
R266 T 150 95
R267 T 206 106
R268 B 202 113
R269 T 196 109
R300 T 240 40
R301 T 253 18
R302 T 240 36
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
R303 T 240 38
R304 T 255 51
R305 T 268 74
R306 T 257 7
R307 T 269 70
R308 B 259 44
R309 B 256 44
R397 T 113 63
R398 T 113 61
R399 T 113 60
R400 T 110 68
R401 B 10 36
R402 B 10 40
R403 B 13 52
R404 T 75 15
R405 T 80 15
R406 T 128 16
R407 B 13 48
R408 T 141 19
R409 B 15 52
R410 T 82 19
R411 T 77 19
R412 T 125 19
R413 B 15 48
R414 T 140 19
R415 T 180 42
R416 T 180 43
R417 B 10 33
R418 T 132 16
R419 T 149 16
R420 T 160 16
R421 T 180 40
R422 T 116 20
R423 T 111 20
R424 T 161 19
R425 T 130 16
R426 T 146 19
R427 T 103 20
R428 T 113 24
R429 T 106 23
R430 T 101 24
R431 T 137 16
R432 T 147 16
R433 T 161 16
R434 T 118 20
R435 T 108 20
R436 T 101 20
R437 T 133 16
R438 T 109 20
R439 B 10 44
R440 B 15 44
R441 T 129 31
R442 T 133 31
R443 T 153 25
R444 T 154 19
R445 T 156 16
R446 T 97 27
R447 T 102 27
R448 T 96 23
R449 T 94 23
R450 T 98 24
R451 T 93 23
R452 T 102 30
R453 T 100 30
R454 T 97 30
R455 T 98 20
R456 T 93 20
R457 T 91 20
R458 T 99 20
R459 T 95 30
R460 T 97 34
R461 T 156 25
R500 T 230 93
R501 T 260 67
R502 T 260 69
R504 B 233 107
R505 B 224 107
R506 B 226 107
R507 B 231 107
R508 B 233 111
R509 B 226 111
R510 T 260 72
R511 T 260 70
R512 T 92 78
R513 T 84 80
R514 T 84 78
R515 T 94 78
R516 T 94 81
R517 T 94 85
R518 T 77 84
R519 T 22 98
R520 T 19 97
R521 T 19 116
R522 T 22 116
R523 T 14 106
R524 T 26 114
R525 B 59 17
R526 B 59 21
R527 B 59 28
R528 B 53 55
R529 B 59 50
R530 B 59 54
R531 B 59 59
R575 B 72 42
R576 T 89 78
R577 T 84 81
R600 T 117 48
R601 T 117 46
R602 T 114 42
R603 T 46 84
R604 T 43 81
R605 T 47 111
R606 T 43 111
R607 T 44 5
R608 T 42 5
R609 T 48 8
R610 T 50 8
R611 T 59 17
R612 B 59 31
R613 T 60 52
R614 T 56 68
R615 T 53 67
R616 T 50 68
R617 T 44 68
R618 T 43 68
R619 T 39 68
R620 T 25 69
R621 T 28 73
R622 T 27 73
R623 T 59 10
R624 T 39 8
R625 T 87 39
R626 T 83 43
R627 T 92 39
R628 T 107 48
R629 T 92 43
R630 T 59 14
R631 T 60 35
R632 T 59 31
R633 T 32 81
R634 T 30 81
R635 T 92 46
R636 T 90 39
R637 T 60 59
R638 T 41 81
R639 T 25 81
R640 T 27 84
R641 T 27 77
R642 T 28 84
R643 T 25 77
R644 T 25 88
R645 T 23 81
R646 T 86 43
R647 T 85 43
R648 T 109 48
R649 T 110 48
R650 T 89 39
R651 T 105 42
R652 T 102 45
R653 T 59 39
R654 T 58 52
R655 T 58 59
R656 T 85 39
R657 T 107 42
R658 T 117 45
R700 T 231 17
R701 T 236 17
R702 T 213 28
R703 T 223 31
R704 T 233 17
R705 T 229 17
R706 T 209 30
R707 B 221 33
R708 T 197 34
R709 T 200 34
R710 T 204 34
R711 T 177 25
R712 T 198 34
R713 T 202 34
R714 T 205 34
R715 T 177 29
R716 T 191 30
R717 B 196 29
R718 T 130 42
R719 T 138 42
R720 T 143 42
R721 B 68 53
R722 T 70 49
R723 T 70 46
R724 T 73 46
R725 T 73 49
R726 T 76 47
R730 T 81 48
R731 T 86 52
R732 T 86 56
R733 T 86 59
R734 T 86 60
R735 T 86 62
R736 T 79 67
R737 T 172 29
R738 T 75 66
R739 T 72 66
R740 B 61 28
R742 B 236 29
R743 T 230 34
R744 T 222 38
R745 T 212 38
R746 T 59 20
R747 B 59 24
R748 B 236 32
R749 T 230 32
R750 T 221 38
R751 T 214 38
R753 B 194 25
R754 B 236 25
R755 T 230 29
R756 T 219 38
R757 T 207 38
R758 B 190 18
R759 T 206 26
R760 T 175 40
R763 T 173 40
R764 T 172 40
R767 T 201 31
R768 T 201 30
R769 T 204 30
R770 T 201 26
R771 B 232 23
R772 T 230 31
R773 T 221 41
R774 T 211 38
R777 T 224 41
R778 T 217 38
R779 T 260 66
R780 T 260 64
R781 T 198 26
R782 B 190 29
R783 T 194 30
R784 T 174 25
R785 B 190 25
R796 T 120 58
R797 T 118 58
R798 T 120 54
R799 T 118 54
R800 B 268 14
R801 B 268 9
R802 B 266 9
R803 B 260 14
R804 B 268 31
R805 B 266 31
R806 B 264 31
R807 B 268 18
R808 B 266 14
R809 B 264 14
R810 B 262 14
R811 B 241 9
R812 B 243 9
R813 B 239 9
R814 B 249 30
R815 B 247 30
R816 B 242 14
R817 B 241 14
R818 B 239 14
R819 T 220 26
R820 T 216 26
R821 T 229 10
R822 T 232 6
R823 T 75 89
R826 T 68 86
R827 T 67 86
R828 T 68 89
R833 B 216 107
R835 B 215 98
R840 T 42 111
R841 T 45 111
R845 T 192 106
S100 T 3 82
S102 T 202 61
S103 T 213 97
S200 T 26 123
S201 T 256 125
S202 T 253 119
S203 T 223 121
S300 T 274 43
S301 T 269 6
S302 T 244 6
S324 T 4 98
S329 T 105 65
S400 T 3 44
S401 T 77 7
S402 T 144 9
S403 T 104 12
S502 T 3 65
S600 T 45 103
S701 T 200 6
S702 T 200 18
S703 T 27 123
SAW600 T 49 71
SAW601 T 49 75
T100 T 181 53
T101 T 203 90
T200 T 191 109
T201 T 136 81
T202 T 199 109
T204 T 204 109
T205 T 208 109
T206 T 206 118
T207 T 198 121
T208 T 198 117
T209 T 198 100
T210 T 184 106
T211 T 147 95
T212 T 148 87
T213 T 105 84
T300 T 267 71
T400 T 133 27
T401 T 155 22
T402 T 152 22
T600 T 42 8
T601 T 46 8
T602 T 47 4
T603 T 47 68
T604 T 57 111
T605 T 38 111
T606 T 27 81
T607 T 89 46
T608 T 110 42
T609 T 89 43
T610 T 105 45
T611 T 109 45
T703 B 233 28
T704 T 227 31
T706 T 218 42
T707 T 210 42
T710 T 71 86
TU301 T 36 39
TU302 T 36 39
TU303 T 36 39
V400 B 9 52
V401 B 6 36
V402 B 6 40
V403 T 79 15
V404 T 126 16
V405 T 77 15
V406 B 9 48
V407 B 6 44
V408 T 163 16
V409 T 140 16
V410 T 135 16
V411 T 146 16
V700 T 172 25
V701 T 194 28
V702 T 198 28
V703 T 206 30
V704 T 231 6
V705 T 233 14
V706 B 228 10
V707 T 229 14
V708 T 175 29
V709 T 191 26
V710 B 219 25
V711 B 223 25
V712 B 215 25
V713 B 211 25
X100 T 218 56
X101 T 189 70
X600 T 19 75
X700 T 75 71
2 - 2
Page 19
Hauptplatte / Main Board XLB190R-3
Ansicht von der Bestückungsseite / View of Component Side
2 - 3
GRUNDIG Service Chassis LB (LX prime)
Page 20
Hauptplatte / Main Board XLB190R-3 Ansicht von der Bestückungsseite / View of Component Side
2 - 4
GRUNDIG Service Chassis LB (LX prime)
Page 21
Hauptplatte / Main Board XLB190R-3
Ansicht von der Bestückungsseite / View of Component Side
2 - 5
GRUNDIG Service Chassis LB (LX prime)
Page 22
Hauptplatte / Main Board XLB190R-3
Ansicht von der Lötseite / View of Solder Side
2 - 6
GRUNDIG Service Chassis LB (LX prime)
Page 23
Hauptplatte / Main Board XLB190R-3 Ansicht von der Lötseite / View of Solder Side
2 - 7
GRUNDIG Service Chassis LB (LX prime)
Page 24
Hauptplatte / Main Board XLB190R-3
Ansicht von der Lötseite / View of Solder Side
2 - 8
GRUNDIG Service Chassis LB (LX prime)
Page 25
GRUNDIG Service Chassis LB (LX prime)
Hauptplatte / Main Board XLB190R-6
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
C100 B 8 81
C101 T 264 72
C102 B 6 73
C103 T 177 62
C104 T 177 57
C105 T 177 56
C106 T 181 70
C107 T 194 58
C108 B 177 57
C109 T 174 66
C110 T 188 53
C111 T 194 59
C112 B 178 57
C113 T 174 67
C114 B 234 61
C115 B 235 61
C116 T 248 51
C117 T 215 57
C118 T 215 50
C119 T 264 64
C120 T 268 64
C121 T 265 59
C122 T 259 60
C123 T 262 59
C124 T 174 61
C125 T 177 61
C126 B 178 62
C127 T 176 67
C128 T 177 64
C129 T 184 74
C130 T 190 74
C131 T 202 77
C132 T 216 103
C133 B 236 104
C134 B 218 104
C135 B 272 104
C136 B 269 92
C137 B 272 91
C138 B 261 94
C139 B 272 112
C140 B 269 96
C141 B 261 100
C142 B 269 100
C143 B 264 104
C144 B 261 104
C145 B 6 85
C146 B 8 89
C148 B 256 101
C149 B 239 61
C150 B 237 61
C200 B 127 99
C201 T 167 100
C202 T 145 97
C203 T 156 90
C204 T 130 102
C205 T 157 95
C206 T 150 101
C207 T 112 100
C208 T 154 100
C209 T 170 90
C210 T 134 100
C211 T 248 111
C212 B 226 62
C213 B 255 70
C214 B 228 71
C215 B 226 77
C216 T 167 95
C217 T 135 94
C218 T 139 94
C219 T 145 89
C220 T 142 87
C221 T 132 79
C222 T 129 75
C223 T 129 79
C224 T 132 90
C225 T 132 94
C226 T 126 94
C227 T 120 79
C228 T 136 73
C229 T 129 94
C230 T 115 93
C231 T 145 86
C232 T 113 80
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
C233 T 198 106
C234 T 201 106
C235 T 144 80
C236 T 194 109
C237 T 184 103
C238 T 182 106
C239 T 42 124
C240 T 224 52
C241 T 261 55
C242 B 230 61
C243 B 250 83
C244 B 228 61
C245 B 228 83
C246 B 241 61
C247 B 226 59
C248 T 252 51
C249 B 222 83
C250 B 228 68
C251 B 239 86
C252 B 233 83
C253 T 260 62
C254 B 231 83
C255 B 247 83
C256 B 225 83
C257 B 253 86
C258 B 252 72
C259 B 252 83
C260 B 228 64
C261 B 252 76
C262 B 245 83
C263 B 252 79
C264 T 152 75
C265 T 194 124
C266 T 194 121
C267 T 213 122
C268 T 234 120
C269 T 239 123
C270 T 195 124
C271 T 237 125
C272 T 151 95
C273 T 102 84
C275 T 103 81
C276 T 208 106
C300 T 274 57
C301 T 272 57
C302 T 271 57
C303 B 273 13
C304 T 257 13
C305 B 259 33
C306 B 252 31
C307 B 253 36
C308 B 254 31
C309 B 257 31
C310 B 250 36
C311 T 268 52
C313 B 251 24
C314 B 257 40
C315 B 262 31
C316 B 262 35
C317 B 246 33
C318 B 255 28
C319 T 235 37
C320 T 253 14
C392 T 97 65
C400 T 156 19
C401 T 154 16
C402 B 11 52
C403 T 125 16
C404 T 82 15
C405 T 73 15
C406 B 11 48
C407 T 143 16
C408 B 18 52
C409 T 79 19
C410 T 73 19
C411 T 126 19
C412 B 18 48
C413 T 138 19
C414 T 183 42
C415 T 183 43
C416 B 13 33
C417 T 132 19
C418 T 149 19
C419 T 160 22
C420 T 183 40
C421 T 116 24
C422 T 111 23
C423 T 161 22
C424 T 130 19
C425 T 113 68
C426 T 103 24
C427 T 115 24
C428 T 108 23
C429 T 100 24
C430 B 250 64
C431 T 80 19
C432 T 75 19
C433 T 128 19
C434 B 248 64
C435 T 143 19
C436 T 131 31
C437 T 147 19
C438 T 133 19
C439 T 109 23
C440 B 17 44
C441 T 95 27
C442 B 12 44
C443 B 13 36
C444 B 13 40
C492 T 63 43
C494 B 59 44
C495 B 70 38
C500 B 102 100
C501 T 92 105
C502 T 83 105
C503 B 68 103
C504 B 73 103
C505 B 6 100
C506 T 96 82
C507 B 229 107
C508 T 14 109
C509 B 231 111
C510 B 224 111
C511 B 266 70
C512 B 264 70
C515 T 87 80
C516 T 87 84
C517 T 84 84
C518 T 82 80
C519 T 82 84
C520 T 88 105
C521 T 85 105
C522 T 96 85
C523 T 79 80
C524 T 77 89
C525 T 80 105
C526 T 94 105
C527 B 97 93
C528 T 96 116
C529 T 85 114
C530 B 71 103
C531 B 105 100
C532 T 264 70
C533 T 22 97
C534 T 22 100
C535 T 19 102
C536 T 19 114
C537 T 13 100
C538 T 13 114
C539 T 11 106
C540 T 11 109
C541 B 107 100
C542 B 6 97
C543 B 6 104
C544 T 264 68
C545 T 26 116
C546 T 22 114
C547 T 22 102
C548 B 6 93
C549 T 9 106
C550 T 9 108
C551 T 75 78
C600 T 81 39
C601 T 117 42
C602 T 115 42
C603 T 23 84
C604 T 25 84
C605 T 46 81
C606 T 72 25
C607 T 16 87
C608 B 61 17
C609 T 57 68
C610 T 41 68
C611 T 39 81
C612 T 36 81
C613 T 23 69
C614 T 27 69
C615 T 21 83
C616 T 28 69
C617 T 34 81
C618 T 23 73
C619 T 81 43
C620 T 54 7
C621 T 105 48
C623 T 60 49
C624 T 60 14
C625 T 59 35
C626 T 59 28
C627 T 102 48
C628 T 104 48
C629 T 59 23
C630 T 37 81
C631 T 28 77
C632 T 23 77
C633 T 44 81
C634 T 112 48
C635 T 104 42
C636 T 102 42
C637 T 112 42
C638 T 114 49
C639 B 61 24
C645 B 67 61
C646 B 65 61
C647 B 65 53
C648 B 73 56
C649 B 70 61
C650 B 80 56
C651 B 77 56
C652 B 72 61
C654 B 76 61
C655 B 82 61
C656 B 75 56
C657 B 79 61
C658 B 74 61
C659 B 79 52
C660 B 77 61
C662 B 62 54
C663 B 68 57
C664 T 74 47
C665 T 77 47
C666 T 72 68
C667 T 75 68
C668 T 57 86
C700 B 225 25
C701 B 234 17
C702 T 209 28
C703 T 219 30
C704 T 129 42
C705 T 136 42
C706 T 129 49
C707 T 136 49
C708 T 143 49
C709 B 62 59
C712 T 226 26
C713 B 234 21
C714 T 213 30
C715 T 224 34
C717 T 197 37
C718 T 200 37
C719 T 204 37
C720 T 177 33
C721 T 198 37
C722 T 202 37
C723 T 205 37
C724 T 183 37
C725 T 191 31
C726 B 194 29
C727 T 201 28
C728 T 175 25
C729 T 194 31
C730 B 198 25
C731 T 206 28
C732 T 204 27
C733 B 196 25
C734 B 192 25
C735 T 174 29
C736 T 191 28
C737 B 200 25
C738 B 192 29
C744 T 164 26
C745 T 209 38
C746 B 238 29
C747 B 211 33
C748 T 237 23
C749 T 231 23
C750 T 237 31
C751 T 226 36
C752 T 165 20
C753 T 218 34
C754 T 210 34
C755 T 231 10
C756 T 232 10
C757 B 228 14
C758 T 235 14
C759 T 209 26
C760 T 223 26
C761 B 231 18
C762 T 235 17
C763 B 213 25
C764 T 223 30
C765 B 234 32
C766 T 227 33
C767 T 222 41
C768 T 216 38
C772 T 174 33
C773 T 172 33
C774 T 175 33
C775 T 166 25
C776 T 168 25
C777 T 170 25
C779 T 170 40
C780 T 220 28
C781 T 216 28
C782 T 264 67
C783 T 264 65
C785 T 116 85
D200 T 144 94
D201 T 132 75
D202 T 123 75
D203 T 99 84
D205 T 99 81
D300 T 255 8
D400 T 94 20
D401 T 99 30
D402 T 100 27
D403 T 96 20
D404 T 89 20
D405 T 105 20
D406 T 114 20
D407 T 121 20
D408 T 89 24
D500 T 71 82
D501 T 74 84
D600 T 50 111
D601 T 54 111
D602 T 53 69
FB300 T 256 18
FB301 T 269 57
FB302 T 228 36
IC100 T 186 61
IC101 T 210 53
IC102 T 240 72
IC103 T 266 102
IC104 T 219 108
IC105 T 238 100
IC200 T 121 106
IC201 T 161 87
IC202 T 161 106
IC203 T 141 106
IC204 T 139 90
IC205 T 179 106
2 - 9
IC300 T 270 16
IC301 T 245 16
IC302 T 255 33
IC319 T 73 40
IC400 T 141 28
IC401 T 92 31
IC500 T 229 101
IC501 T 88 95
IC502 T 20 108
IC600 T 34 74
IC702 T 167 33
IC703 T 76 58
IC704 T 238 101
J500 T 89 85
J501 T 92 85
J502 T 77 87
J503 T 77 86
J504 T 89 81
J505 T 92 81
K1 T 65 40
K2 T 12 40
L100 T 186 53
L101 T 194 56
L102 T 177 59
L103 T 174 64
L104 T 180 98
L105 T 182 98
L106 T 255 88
L107 T 256 88
L108 T 272 117
L109 T 274 117
L110 T 211 103
L111 T 185 98
L112 T 97 68
L113 B 8 85
L114 T 198 71
L200 T 126 86
L201 T 123 94
L202 T 242 123
L203 T 201 125
L204 T 242 125
L205 T 150 75
L206 T 44 124
L207 T 192 100
L208 T 189 100
L209 T 223 47
L210 T 246 111
L211 T 221 47
L212 T 267 57
L213 T 254 51
L214 T 264 73
L215 T 264 62
L216 T 169 101
L217 T 269 117
L324 T 97 70
L333 T 72 34
L370 T 87 70
L371 T 90 70
L372 T 90 65
L373 T 90 63
L374 B 65 57
L400 B 8 44
L401 T 157 19
L402 B 8 36
L403 B 8 40
L404 B 6 48
L405 B 6 52
L406 B 110 18
L407 B 107 18
L408 B 104 18
L500 B 228 107
L501 T 14 107
L502 T 74 95
L503 T 74 104
L504 T 102 89
L505 T 102 98
L506 T 103 118
L507 T 103 114
L508 T 9 105
L509 T 9 110
L510 T 73 111
L511 T 74 97
L512 T 102 105
L513 T 102 92
L514 B 8 109
L515 B 4 109
L516 B 14 109
L517 B 11 109
L600 T 114 46
L601 T 72 30
L602 T 21 87
L603 T 50 5
L604 T 84 39
L605 T 97 43
L606 T 59 63
L607 T 29 108
L702 T 169 22
L703 T 231 14
L704 T 236 14
L705 T 213 26
L706 T 223 28
L707 T 120 94
L708 T 145 42
Q106 T 7 85
Q107 T 7 82
R100 B 6 77
R101 B 6 89
R102 B 9 77
R103 T 211 57
R104 T 7 78
R105 T 7 75
R106 T 7 89
R107 T 10 89
R108 T 7 76
R109 T 189 53
R110 T 194 54
R111 T 174 62
R112 T 174 57
R113 T 174 56
R114 B 175 62
R115 T 174 59
R116 T 177 54
R117 T 185 53
R118 T 183 53
R119 T 194 62
R120 T 194 65
R121 T 206 83
R122 T 214 62
R123 T 210 63
R124 T 207 65
R125 T 190 67
R126 B 232 61
R127 T 213 57
R128 T 215 54
R129 T 187 74
R130 T 211 86
R131 T 213 86
R132 T 209 83
R133 B 216 104
R134 T 200 96
R135 T 178 67
R136 T 178 70
R137 T 179 70
R138 B 217 98
R139 T 194 53
R140 T 206 53
R141 T 199 87
R142 T 194 51
R143 T 198 75
R144 T 198 58
R145 T 221 89
R146 T 223 89
R147 T 215 86
R148 T 219 86
R149 T 251 92
R150 T 252 95
R151 T 253 92
R152 T 270 83
R153 T 273 83
R154 T 262 83
R155 T 194 49
R156 T 197 51
R157 T 213 106
R158 T 212 106
R159 T 214 109
R160 T 212 109
R161 T 104 27
R162 T 187 95
R163 T 245 107
R164 T 247 107
R165 T 237 111
R166 B 234 111
R167 T 238 111
R168 T 240 111
R169 B 223 97
R170 B 227 97
R171 B 223 99
R172 B 227 99
R173 T 240 107
R174 T 200 94
R175 T 68 82
R176 T 237 107
R177 T 238 107
R178 T 239 93
R179 T 264 75
R180 T 260 83
R181 T 268 88
R182 T 267 88
R183 T 258 110
R184 T 266 82
R185 T 259 105
R186 T 271 117
R187 T 258 86
R188 T 252 104
R189 T 249 100
R190 T 246 97
R191 T 254 95
R192 T 254 92
R193 T 202 95
R194 T 202 86
R195 T 202 88
R196 B 211 101
R197 B 209 101
R198 T 202 84
R199 B 241 83
R200 T 114 100
R201 T 114 103
R202 T 192 121
R203 T 145 87
R204 T 178 103
R205 T 133 94
R206 T 139 96
R207 T 127 79
R208 T 126 79
R209 T 124 79
R210 T 122 79
R211 T 132 87
R212 T 132 84
R213 T 127 76
R214 T 206 121
R215 T 126 76
R216 T 203 106
R217 T 196 106
R218 T 209 106
R219 T 201 109
R220 T 195 106
R221 T 200 106
R222 T 205 106
R223 T 193 106
R224 T 190 106
R225 T 210 109
R226 T 201 117
R227 T 179 103
R228 T 181 103
R229 T 183 103
R230 T 179 110
R231 T 181 110
R232 T 185 110
R233 T 183 110
R234 T 203 117
R235 T 202 121
R236 T 209 117
R237 T 201 121
R238 B 198 121
R239 T 195 121
R240 T 208 121
R241 T 195 117
R242 T 192 117
Page 26
GRUNDIG Service Chassis LB (LX prime)
Hauptplatte / Main Board XLB190R-6
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
R243 T 151 91
R244 T 150 91
R245 T 148 91
R246 T 145 91
R247 T 108 86
R248 T 108 84
R249 T 194 117
R250 T 204 121
R251 T 209 121
R252 B 243 83
R253 T 10 86
R254 B 10 84
R255 T 10 82
R256 B 6 81
R257 T 7 80
R258 T 7 88
R259 B 258 101
R260 B 256 104
R261 T 165 90
R262 T 168 90
R263 T 113 73
R264 T 113 77
R265 T 113 70
R266 T 150 95
R267 T 206 106
R268 B 202 113
R269 T 196 109
R300 T 240 40
R301 T 253 18
R302 T 240 36
R303 T 240 38
R304 T 255 51
R305 T 268 74
R306 T 257 7
R307 T 269 70
R308 B 259 44
R309 B 256 44
R397 T 113 63
R398 T 113 61
R399 T 113 60
R400 T 110 68
R401 B 10 36
R402 B 10 40
R403 B 13 52
R404 T 75 15
R405 T 80 15
R406 T 128 16
R407 B 13 48
R408 T 141 19
R409 B 15 52
R410 T 82 19
R411 T 77 19
R412 T 125 19
R413 B 15 48
R414 T 140 19
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
R415 T 180 42
R416 T 180 43
R417 B 10 33
R418 T 132 16
R419 T 149 16
R420 T 160 16
R421 T 180 40
R422 T 116 20
R423 T 111 20
R424 T 161 19
R425 T 130 16
R426 T 146 19
R427 T 103 20
R428 T 113 24
R429 T 106 23
R430 T 101 24
R431 T 137 16
R432 T 147 16
R433 T 161 16
R434 T 118 20
R435 T 108 20
R436 T 101 20
R437 T 133 16
R438 T 109 20
R439 B 10 44
R440 B 15 44
R441 T 129 31
R442 T 133 31
R443 T 153 25
R444 T 154 19
R445 T 156 16
R446 T 97 27
R447 T 102 27
R448 T 96 23
R449 T 94 23
R450 T 98 24
R451 T 93 23
R452 T 102 30
R453 T 100 30
R454 T 97 30
R455 T 98 20
R456 T 93 20
R457 T 91 20
R458 T 99 20
R459 T 95 30
R460 T 97 34
R461 T 156 25
R500 T 230 93
R501 T 260 67
R502 T 260 69
R504 B 233 107
R505 B 224 107
R506 B 226 107
R507 B 231 107
R508 B 233 111
R509 B 226 111
R510 T 260 72
R511 T 260 70
R512 T 92 78
R513 T 84 80
R514 T 84 78
R515 T 94 78
R516 T 94 81
R517 T 94 85
R518 T 77 84
R519 T 22 98
R520 T 19 97
R521 T 19 116
R522 T 22 116
R523 T 14 106
R524 T 26 114
R525 B 59 17
R526 B 59 21
R527 B 59 28
R528 B 53 55
R529 B 59 50
R530 B 59 54
R531 B 59 59
R575 B 72 42
R576 T 89 78
R577 T 84 81
R600 T 117 48
R601 T 117 46
R602 T 114 42
R603 T 46 84
R604 T 43 81
R605 T 47 111
R606 T 43 111
R607 T 44 5
R608 T 42 5
R609 T 48 8
R610 T 50 8
R611 T 59 17
R612 B 59 31
R613 T 60 52
R614 T 56 68
R615 T 53 67
R616 T 50 68
R617 T 44 68
R618 T 43 68
R619 T 39 68
R620 T 25 69
R621 T 28 73
R622 T 27 73
R623 T 59 10
R624 T 39 8
R625 T 87 39
R626 T 83 43
R627 T 92 39
R628 T 107 48
R629 T 92 43
R630 T 59 14
R631 T 60 35
R632 T 59 31
R633 T 32 81
R634 T 30 81
R635 T 92 46
R636 T 90 39
R637 T 60 59
R638 T 41 81
R639 T 25 81
R640 T 27 84
R641 T 27 77
R642 T 28 84
R643 T 25 77
R644 T 25 88
R645 T 23 81
R646 T 86 43
R647 T 85 43
R648 T 109 48
R649 T 110 48
R650 T 89 39
R651 T 105 42
R652 T 102 45
R653 T 59 39
R654 T 58 52
R655 T 58 59
R656 T 85 39
R657 T 107 42
R658 T 117 45
R659 T 108 45
R660 B 109 46
R661 B 106 46
R700 T 231 17
R701 T 236 17
R702 T 213 28
R703 T 223 31
R704 T 233 17
R705 T 229 17
R706 T 209 30
R707 B 221 33
R708 T 197 34
R709 T 200 34
R710 T 204 34
R711 T 177 25
R712 T 198 34
R713 T 202 34
R714 T 205 34
R715 T 177 29
R716 T 191 30
R717 B 196 29
R718 T 130 42
R719 T 138 42
R720 T 143 42
R721 B 68 53
R722 T 70 49
R723 T 70 46
R724 T 73 46
R725 T 73 49
R726 T 76 47
R730 T 81 48
R731 T 86 52
R732 T 86 56
R733 T 86 59
R734 T 86 60
R735 T 86 62
R736 T 79 67
R737 T 172 29
R738 T 75 66
R739 T 72 66
R740 B 61 28
R742 B 236 29
R743 T 230 34
R744 T 222 38
R745 T 212 38
R746 T 59 20
R747 B 59 24
R748 B 236 32
R749 T 230 32
R750 T 221 38
R751 T 214 38
R753 B 194 25
R754 B 236 25
R755 T 230 29
R756 T 219 38
R757 T 207 38
R758 B 190 18
R759 T 206 26
R760 T 175 40
R763 T 173 40
R764 T 172 40
R767 T 201 31
R768 T 201 30
R769 T 204 30
R770 T 201 26
R771 B 232 23
R772 T 230 31
R773 T 221 41
R774 T 211 38
R777 T 224 41
R778 T 217 38
R779 T 260 66
R780 T 260 64
R781 T 198 26
R782 B 190 29
R783 T 194 30
R784 T 174 25
R785 B 190 25
R796 T 120 58
R797 T 118 58
R798 T 120 54
R799 T 118 54
R800 B 268 14
R801 B 268 9
R802 B 266 9
R803 B 260 14
R804 B 268 31
R805 B 266 31
R806 B 264 31
R807 B 268 18
R808 B 266 14
R809 B 264 14
R810 B 262 14
R811 B 241 9
R812 B 243 9
R813 B 239 9
R814 B 249 30
R815 B 247 30
R816 B 242 14
R817 B 241 14
R818 B 239 14
R819 T 220 26
R820 T 216 26
R821 T 229 10
R822 T 232 6
R823 T 75 89
R826 T 68 86
R827 T 67 86
R828 T 68 89
R833 B 216 107
R835 B 215 98
R840 T 42 111
R841 T 45 111
R845 T 192 106
S100 T 3 82
S102 T 202 61
S103 T 213 97
S200 T 26 123
S201 T 256 125
S202 T 253 119
S203 T 223 121
S300 T 274 43
S301 T 269 6
S302 T 244 6
S324 T 4 98
S329 T 105 65
S400 T 3 44
S401 T 77 7
S402 T 144 9
S403 T 104 12
S502 T 3 65
S600 T 45 103
S701 T 200 6
S702 T 200 18
S703 T 27 123
SAW600 T 49 71
SAW601 T 49 75
T100 T 181 53
T101 T 203 90
T200 T 191 109
T201 T 136 81
T202 T 199 109
T204 T 204 109
T205 T 208 109
T206 T 206 118
T207 T 198 121
T208 T 198 117
T209 T 198 100
T210 T 184 106
T211 T 147 95
T212 T 148 87
T213 T 105 84
T300 T 267 71
T400 T 133 27
T401 T 155 22
T402 T 152 22
T600 T 42 8
T601 T 46 8
T602 T 47 4
T603 T 47 68
T604 T 57 111
T605 T 38 111
T606 T 27 81
T608 T 110 42
T609 T 89 43
T610 T 105 45
T611 T 111 45
T703 B 233 28
T704 T 227 31
T706 T 218 42
T707 T 210 42
T710 T 71 86
TU301 T 36 39
TU302 T 36 39
TU303 T 36 39
V400 B 9 52
V401 B 6 36
V402 B 6 40
V403 T 79 15
V404 T 126 16
V405 T 77 15
V406 B 9 48
V407 B 6 44
V408 T 163 16
V409 T 140 16
V410 T 135 16
V411 T 146 16
V700 T 172 25
V701 T 194 28
V702 T 198 28
V703 T 206 30
V704 T 231 6
V705 T 233 14
V706 B 228 10
V707 T 229 14
V708 T 175 29
V709 T 191 26
V710 B 219 25
V711 B 223 25
V712 B 215 25
V713 B 211 25
X100 T 218 56
X101 T 189 70
X600 T 19 75
X700 T 75 71
2 - 10
Page 27
Hauptplatte / Main Board XLB190R-6
Ansicht von der Bestückungsseite / View of Component Side
2 - 11
GRUNDIG Service Chassis LB (LX prime)
Page 28
Hauptplatte / Main Board XLB190R-6 Ansicht von der Bestückungsseite / View of Component Side
2 - 12
GRUNDIG Service Chassis LB (LX prime)
Page 29
Hauptplatte / Main Board XLB190R-6
Ansicht von der Bestückungsseite / View of Component Side
2 - 13
GRUNDIG Service Chassis LB (LX prime)
Page 30
Hauptplatte / Main Board XLB190R-6
Ansicht von der Lötseite / View of Solder Side
2 - 14
GRUNDIG Service Chassis LB (LX prime)
Page 31
Hauptplatte / Main Board XLB190R-6 Ansicht von der Lötseite / View of Solder Side
2 - 15
GRUNDIG Service Chassis LB (LX prime)
Page 32
Hauptplatte / Main Board XLB190R-6
Ansicht von der Lötseite / View of Solder Side
2 - 16
GRUNDIG Service Chassis LB (LX prime)
Page 33
GRUNDIG Service Chassis LB (LX prime)
Hauptplatte / Main Board XLB190R-11
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
C100 B 8 81
C101 T 264 72
C102 B 6 73
C103 T 177 62
C104 T 177 57
C105 T 177 56
C106 T 181 70
C107 T 194 58
C108 B 177 57
C109 T 174 66
C110 T 188 53
C111 T 194 59
C112 B 178 57
C113 T 174 67
C114 B 234 61
C115 B 235 61
C116 T 248 51
C117 T 215 57
C118 T 215 50
C119 T 264 64
C120 T 268 64
C121 T 265 59
C122 T 259 60
C123 T 262 59
C124 T 174 61
C125 T 177 61
C126 B 178 62
C127 T 176 67
C128 T 177 64
C129 T 184 74
C130 T 190 74
C131 T 202 77
C132 T 216 103
C133 B 236 104
C134 B 218 104
C135 B 272 104
C136 B 269 92
C137 B 272 91
C138 B 261 94
C139 B 272 112
C140 B 269 96
C141 B 261 100
C142 B 269 100
C143 B 264 104
C144 B 261 104
C145 B 6 85
C146 B 8 89
C148 B 256 101
C149 B 239 61
C150 B 237 61
C200 B 127 99
C201 T 167 100
C202 T 145 97
C203 T 156 90
C204 T 130 102
C205 T 157 95
C206 T 150 101
C207 T 112 100
C208 T 154 100
C209 T 170 90
C210 T 134 100
C211 T 248 111
C212 B 226 62
C213 B 255 70
C214 B 228 71
C215 B 226 77
C216 T 167 95
C217 T 135 94
C218 T 139 94
C219 T 145 89
C220 T 142 87
C221 T 132 79
C222 T 129 75
C223 T 129 79
C224 T 132 90
C225 T 132 94
C226 T 126 94
C227 T 120 79
C228 T 136 73
C229 T 129 94
C230 T 115 93
C231 T 145 86
C232 T 113 80
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
C233 T 198 106
C234 T 201 106
C235 T 144 80
C236 B 129 85
C237 T 184 103
C238 T 182 106
C239 T 42 124
C240 T 224 52
C241 T 261 55
C242 B 230 61
C243 B 250 83
C244 B 228 61
C245 B 228 83
C246 B 241 61
C247 B 226 59
C248 T 252 51
C249 B 222 83
C250 B 228 68
C251 B 239 86
C252 B 233 83
C253 T 260 62
C254 B 231 83
C255 B 247 83
C256 B 225 83
C257 B 253 86
C258 B 252 72
C259 B 252 83
C260 B 228 64
C261 B 252 76
C262 B 245 83
C263 B 252 79
C264 T 152 75
C265 T 194 124
C266 T 194 121
C267 T 213 122
C268 T 234 120
C269 T 239 123
C270 T 195 124
C272 T 151 95
C273 T 143 57
C275 T 144 55
C276 T 208 106
C300 T 274 57
C301 T 272 57
C302 T 271 57
C303 B 273 13
C304 T 257 13
C305 B 259 33
C306 B 252 31
C307 B 253 36
C308 B 254 31
C309 B 257 31
C310 B 250 36
C311 T 268 52
C313 B 251 24
C314 B 257 40
C315 B 262 31
C316 B 262 35
C317 B 246 33
C318 B 255 28
C319 T 235 37
C320 T 253 14
C392 T 97 65
C400 T 156 19
C401 T 154 16
C402 B 11 52
C403 T 125 16
C404 T 82 15
C405 T 73 15
C406 B 11 48
C407 T 143 16
C408 B 18 52
C409 T 79 19
C410 T 73 19
C411 T 126 19
C412 B 18 48
C413 T 138 19
C414 T 183 42
C415 T 183 43
C416 B 16 31
C417 T 132 19
C418 T 149 19
C419 T 160 22
C420 T 183 40
C421 T 116 24
C422 T 111 23
C423 T 161 22
C424 T 130 19
C425 T 113 68
C426 T 103 24
C427 T 115 24
C428 T 108 23
C429 T 100 24
C430 B 250 64
C431 T 80 19
C432 T 75 19
C433 T 128 19
C434 B 248 64
C435 T 143 19
C436 T 131 31
C437 T 147 19
C438 T 133 19
C439 T 109 23
C440 B 18 44
C441 T 95 27
C442 B 12 44
C443 B 13 36
C444 B 13 40
C492 T 64 43
C494 T 59 42
C495 B 70 38
C500 B 102 100
C501 T 92 105
C502 T 83 105
C503 B 68 103
C504 B 73 103
C505 B 6 100
C506 T 96 82
C507 B 229 107
C508 T 14 109
C509 B 231 111
C510 B 224 111
C511 B 266 70
C512 B 264 70
C515 T 87 80
C516 T 87 84
C517 T 84 84
C518 T 82 80
C519 T 82 84
C520 T 88 105
C521 T 85 105
C522 T 96 85
C523 T 79 80
C524 T 78 90
C525 T 80 105
C526 T 94 105
C527 B 97 93
C528 T 96 116
C529 T 85 114
C530 B 71 103
C531 B 105 100
C532 T 264 70
C533 T 22 97
C534 T 22 100
C535 T 19 102
C536 T 19 114
C537 T 13 100
C538 T 13 114
C539 T 11 106
C540 T 11 109
C541 B 107 100
C542 B 6 97
C543 B 6 104
C544 T 264 68
C545 T 26 116
C546 T 22 114
C547 T 22 102
C548 B 6 93
C549 T 9 106
C550 T 9 108
C551 T 75 78
C600 T 81 39
C601 T 117 42
C602 T 115 42
C603 T 23 84
C604 T 25 84
C605 T 46 81
C606 T 72 25
C607 T 16 87
C608 B 61 17
C609 T 57 68
C610 T 41 68
C611 T 39 81
C612 T 36 81
C613 T 23 69
C614 T 27 69
C615 T 21 83
C616 T 28 69
C617 T 34 81
C618 T 23 72
C619 T 81 43
C620 T 54 7
C621 T 105 48
C623 T 60 49
C624 T 60 14
C625 T 59 35
C626 T 59 28
C627 T 102 48
C628 T 104 48
C629 T 59 23
C630 T 37 81
C631 T 28 77
C632 T 23 77
C633 T 44 81
C634 T 112 48
C635 T 104 42
C636 T 102 42
C637 T 112 42
C638 T 114 49
C639 B 61 24
C645 B 67 61
C646 B 65 61
C647 B 65 53
C648 B 73 56
C649 B 70 61
C650 B 80 56
C651 B 77 56
C652 B 72 61
C654 B 76 61
C655 B 82 61
C656 B 75 56
C657 B 79 61
C658 B 74 61
C659 B 79 52
C660 B 77 61
C662 B 62 54
C663 B 68 57
C664 T 74 47
C665 T 77 47
C666 T 72 68
C667 T 75 68
C668 T 57 86
C700 B 225 25
C701 B 237 20
C702 T 209 28
C703 T 219 30
C704 T 129 42
C705 T 136 42
C706 T 129 49
C707 T 136 49
C708 T 143 49
C709 B 62 59
C712 T 226 26
C713 B 235 20
C714 T 213 30
C715 T 224 34
C717 T 197 37
C718 T 200 37
C719 T 204 37
C720 T 177 33
C721 T 198 37
C722 T 202 37
C723 T 205 37
C724 T 183 37
C725 T 191 31
C726 B 194 29
C727 T 201 28
C728 T 175 25
C729 T 194 31
C730 B 198 25
C731 T 206 28
C732 T 204 27
C733 B 196 25
C734 B 192 25
C735 T 174 29
C736 T 191 28
C737 B 200 25
C738 B 192 29
C744 T 164 26
C745 T 209 38
C746 B 238 29
C747 B 211 33
C748 T 237 23
C749 T 231 23
C750 T 237 31
C751 T 226 36
C752 T 165 20
C753 T 218 34
C754 T 210 34
C755 T 231 10
C756 T 232 10
C757 B 228 14
C758 T 235 14
C759 T 209 26
C760 T 223 26
C761 B 231 18
C762 T 235 17
C763 B 213 25
C764 T 223 30
C765 B 234 32
C766 T 227 33
C767 T 222 41
C768 T 216 38
C772 T 174 33
C773 T 172 33
C774 T 175 33
C775 T 166 25
C776 T 168 25
C777 T 170 25
C779 T 170 40
C780 T 220 28
C781 T 216 28
C782 T 264 67
C783 T 264 65
C785 T 116 85
C786 T 72 32
C787 T 65 31
C900 T 195 80
C901 T 195 88
C902 T 194 95
C903 T 195 85
C904 T 182 87
C905 B 4 18
D200 T 144 94
D201 T 132 75
D202 T 123 75
D203 T 139 57
D205 T 139 55
D300 T 255 8
D400 T 94 20
D401 T 99 30
D402 T 100 27
D403 T 96 20
D404 T 89 20
D405 T 105 20
D406 T 114 20
D407 T 121 20
D408 T 89 24
D500 T 71 82
D501 T 74 84
D600 T 50 111
D601 T 54 111
D602 T 53 69
D800 T 48 124
D900 T 196 77
D901 T 197 85
FB300 T 256 18
FB301 T 269 57
FB302 T 228 36
IC100 T 186 61
IC101 T 210 53
2 - 17
IC102 T 240 72
IC103 T 266 102
IC104 T 219 108
IC105 T 238 100
IC200 T 121 106
IC201 T 161 87
IC202 T 161 106
IC203 T 141 106
IC204 T 139 90
IC205 T 179 106
IC300 T 270 16
IC301 T 245 16
IC302 T 255 33
IC319 T 73 40
IC400 T 141 28
IC401 T 92 31
IC500 T 229 101
IC501 T 88 95
IC502 T 20 108
IC600 T 34 74
IC702 T 167 33
IC703 T 76 58
IC704 T 238 101
J500 T 89 85
J501 T 92 85
J502 T 77 87
J503 T 77 86
J504 T 89 81
J505 T 92 81
K1 T 65 40
K2 T 12 40
L100 T 186 53
L101 T 194 56
L102 T 177 59
L103 T 174 64
L104 T 181 98
L105 T 183 98
L106 T 255 88
L107 T 256 88
L108 T 272 117
L109 T 274 117
L110 T 211 103
L111 T 185 98
L112 T 97 68
L113 B 8 85
L114 T 198 71
L115 B 14 87
L200 T 126 86
L201 T 123 94
L202 T 242 123
L203 T 201 125
L205 T 150 75
L206 T 44 124
L207 T 192 100
L208 T 189 100
L209 T 223 47
L210 T 246 111
L211 T 221 47
L212 T 267 57
L213 T 254 51
L214 T 264 73
L215 T 264 62
L216 T 169 101
L217 T 269 117
L324 T 97 70
L333 T 65 25
L370 T 87 70
L371 T 90 70
L372 T 90 65
L373 T 90 63
L374 B 65 57
L400 B 8 44
L401 T 157 19
L402 B 8 36
L403 B 8 40
L404 B 6 48
L405 B 6 52
L406 B 110 18
L407 B 107 18
L408 B 104 18
L500 B 228 107
L501 T 14 107
L502 T 72 93
L503 T 74 106
L504 T 103 87
L505 T 103 101
L506 T 103 118
L507 T 103 114
L508 T 9 105
L509 T 9 110
L510 T 73 111
L511 T 74 97
L512 T 102 105
L513 T 102 92
L514 B 8 109
L515 B 4 109
L516 B 14 109
L517 B 11 109
L600 T 114 46
L601 T 65 20
L602 T 21 87
L603 T 50 5
L604 T 84 39
L605 T 97 43
L606 T 59 63
L607 T 29 108
L702 T 169 21
L703 T 231 14
L704 T 236 14
L705 T 213 26
L706 T 223 28
L707 T 120 94
L708 T 145 42
L900 T 197 80
Q106 T 7 85
Q107 T 7 81
R100 B 6 77
R101 B 6 89
R102 B 9 77
R103 T 211 57
R104 T 7 77
R105 T 7 74
R106 T 7 89
R107 T 10 89
R108 T 7 75
R109 T 189 53
R110 T 194 54
R111 T 174 62
R112 T 174 57
R113 T 174 56
R114 B 175 62
R115 T 174 59
R116 T 177 54
R117 T 185 53
R118 T 183 53
R119 T 194 62
R120 T 194 65
R121 T 206 83
R122 T 214 62
R123 T 210 63
R124 T 207 65
R125 T 190 67
R126 B 232 61
R127 T 213 57
R128 T 215 54
R129 T 187 74
R130 T 211 86
R131 T 213 86
R132 T 209 83
R133 B 216 104
R134 T 200 96
R135 T 178 67
R136 T 178 70
R137 T 179 70
R138 B 217 98
R139 T 194 53
R140 T 206 53
R141 T 199 87
R142 T 194 51
R143 T 195 74
R144 T 198 58
R145 T 221 89
R146 T 223 89
R147 T 215 86
R148 T 219 86
R149 T 251 92
R150 T 252 95
R151 T 253 92
R152 T 270 83
R153 T 273 83
R154 T 262 83
R155 T 194 49
R156 T 197 51
R157 T 213 106
R158 T 212 106
R159 T 214 109
R160 T 212 109
R161 T 104 27
R162 T 176 93
R163 T 245 107
R164 T 247 107
R165 T 237 111
R166 B 234 111
R167 T 238 111
R168 T 240 111
R169 B 223 97
R170 B 227 97
R171 B 223 99
R172 B 227 99
R173 T 240 107
R174 T 200 94
R175 T 70 79
R176 T 237 107
R177 T 238 107
R178 T 239 93
R179 T 264 75
R180 T 260 83
R181 T 268 88
R182 T 267 88
R183 T 258 110
R184 T 266 82
R185 T 259 105
R186 T 271 117
R187 T 258 86
R188 T 252 104
R189 T 249 100
R190 T 246 97
R191 T 254 95
R192 T 254 92
R193 T 202 95
R194 T 202 86
R195 T 202 88
R196 B 211 101
R197 B 209 101
R198 T 202 84
R199 B 241 83
R200 T 114 100
R201 T 114 103
R202 T 192 121
R203 T 145 87
R204 T 178 103
R205 T 133 94
R206 T 139 96
R207 T 127 79
R208 T 126 79
R209 T 124 79
R210 T 122 79
R211 T 132 87
R212 T 132 84
R213 T 127 76
R214 T 206 121
R215 T 126 76
R216 T 203 106
R217 T 196 106
R218 T 209 106
R219 T 201 109
R220 B 126 85
R221 T 200 106
R222 T 205 106
R223 T 193 106
R224 T 192 109
R225 T 210 109
R226 T 201 117
R227 T 180 103
R228 T 181 103
R229 T 183 103
R230 T 179 110
Page 34
GRUNDIG Service Chassis LB (LX prime)
Hauptplatte / Main Board XLB190R-11
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
R231 T 181 110
R232 T 187 109
R233 T 183 110
R234 T 203 117
R235 T 202 121
R236 T 209 117
R237 T 201 121
R238 B 198 121
R239 T 195 121
R240 T 208 121
R241 T 195 117
R242 T 192 117
R243 T 151 91
R244 T 150 91
R245 T 148 91
R246 T 145 91
R247 T 149 58
R248 T 149 56
R249 T 194 117
R250 T 204 121
R251 T 209 121
R252 B 243 83
R253 T 10 86
R254 B 10 84
R255 T 10 82
R256 B 6 81
R257 T 7 79
R258 T 7 88
R259 B 258 101
R260 B 256 104
R261 T 165 90
R262 T 168 90
R263 T 113 73
R264 T 113 77
R265 T 113 70
R266 T 150 95
R267 T 206 106
R268 B 202 113
R269 T 196 109
R300 T 240 40
R301 T 253 18
R302 T 240 36
R303 T 240 38
R304 T 255 51
R305 T 268 74
R306 T 257 7
R307 T 269 70
R308 B 259 44
R309 B 256 44
R397 T 113 63
R398 T 113 61
R399 T 113 60
R400 T 110 68
R401 B 10 36
R402 B 10 40
R403 B 13 52
R404 T 75 15
R405 T 80 15
R406 T 128 16
R407 B 13 48
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
R408 T 141 19
R409 B 15 52
R410 T 82 19
R411 T 77 19
R412 T 125 19
R413 B 15 48
R414 T 140 19
R415 T 180 42
R416 T 180 43
R417 B 13 31
R418 T 132 16
R419 T 149 16
R420 T 160 16
R421 T 180 40
R422 T 116 20
R423 T 111 20
R424 T 161 19
R425 T 130 16
R426 T 146 19
R427 T 103 20
R428 T 113 24
R429 T 106 23
R430 T 101 24
R431 T 137 16
R432 T 147 16
R433 T 161 16
R434 T 118 20
R435 T 108 20
R436 T 101 20
R437 T 133 16
R438 T 109 20
R439 B 10 44
R440 B 15 44
R441 T 129 31
R442 T 133 31
R443 T 153 25
R444 T 154 19
R445 T 156 16
R446 T 97 27
R447 T 102 27
R448 T 96 23
R449 T 94 23
R450 T 98 24
R451 T 93 23
R452 T 102 30
R453 T 100 30
R454 T 97 30
R455 T 98 20
R456 T 93 20
R457 T 91 20
R458 T 99 20
R459 T 95 30
R460 T 97 34
R461 T 156 25
R500 T 230 93
R501 T 260 67
R502 T 260 69
R504 B 233 107
R505 B 224 107
R506 B 226 107
R507 B 231 107
R508 B 233 111
R509 B 226 111
R510 T 260 72
R511 T 260 70
R512 T 92 78
R513 T 84 80
R514 T 84 78
R515 T 94 78
R516 T 94 81
R517 T 94 85
R518 T 77 84
R519 T 22 98
R520 T 19 97
R521 T 19 116
R522 T 22 116
R523 T 14 106
R524 T 26 114
R525 B 59 17
R526 B 59 21
R527 B 59 28
R528 B 53 55
R529 B 59 50
R530 B 59 54
R531 B 59 59
R575 B 72 42
R576 T 89 78
R577 T 84 81
R600 T 117 48
R601 T 117 46
R602 T 114 42
R603 T 46 84
R604 T 43 81
R605 T 47 111
R606 T 43 111
R607 T 44 5
R608 T 42 5
R609 T 48 8
R610 T 50 8
R611 T 59 17
R612 B 59 31
R613 T 60 52
R614 T 56 68
R615 T 53 67
R616 T 50 68
R617 T 44 68
R618 T 43 68
R619 T 39 68
R620 T 25 69
R621 T 28 73
R622 T 27 73
R623 T 59 10
R624 T 39 8
R625 T 87 39
R626 T 83 43
R627 T 92 39
R628 T 107 48
R629 T 92 43
R630 T 59 14
R631 T 60 35
R632 T 59 31
R633 T 32 81
R634 T 30 81
R635 T 92 46
R636 T 90 39
R637 T 60 59
R638 T 41 81
R639 T 25 81
R640 T 27 84
R641 T 27 77
R642 T 28 84
R643 T 25 77
R644 T 25 88
R645 T 23 81
R646 T 86 43
R647 T 85 43
R648 T 109 48
R649 T 110 48
R650 T 89 39
R651 T 105 42
R652 T 102 45
R653 T 59 39
R654 T 58 52
R655 T 58 59
R656 T 85 39
R657 T 107 42
R658 T 117 45
R659 T 108 45
R660 B 109 46
R661 B 106 46
R700 T 231 17
R701 T 236 17
R702 T 213 28
R703 T 223 31
R704 T 233 17
R705 T 229 17
R706 T 209 30
R707 B 221 33
R708 T 197 34
R709 T 200 34
R710 T 204 34
R711 T 177 25
R712 T 198 34
R713 T 202 34
R714 T 205 34
R715 T 177 29
R716 T 191 30
R717 B 196 29
R718 T 130 42
R719 T 138 42
R720 T 143 42
R721 B 68 53
R722 T 70 49
R723 T 70 46
R724 T 73 46
R725 T 73 49
R726 T 76 47
R730 T 81 48
R731 T 86 52
R732 T 86 56
R733 T 86 59
R734 T 86 60
R735 T 86 62
R736 T 79 67
R737 T 172 29
R738 T 75 66
R739 T 72 66
R740 B 61 28
R742 B 236 29
R743 T 230 34
R744 T 222 38
R745 T 212 38
R746 T 59 20
R747 B 59 24
R748 B 236 32
R749 T 230 32
R750 T 221 38
R751 T 214 38
R753 B 194 25
R754 B 236 25
R755 T 230 29
R756 T 219 38
R757 T 207 38
R758 B 190 18
R759 T 206 26
R760 T 175 40
R763 T 173 40
R764 T 172 40
R767 T 201 31
R768 T 201 30
R769 T 204 30
R770 T 201 26
R771 B 231 22
R772 T 230 31
R773 T 221 41
R774 T 211 38
R777 T 224 41
R778 T 217 38
R779 T 260 66
R780 T 260 64
R781 T 198 26
R782 B 190 29
R783 T 194 30
R784 T 174 25
R785 B 190 25
R796 T 120 58
R797 T 118 58
R798 T 120 54
R799 T 118 54
R800 B 269 14
R801 B 268 9
R802 B 265 9
R803 B 260 14
R804 B 268 31
R805 B 266 31
R806 B 264 31
R807 B 269 18
R808 B 267 14
R809 B 264 14
R810 B 262 14
R811 B 240 9
R812 B 243 9
R813 B 236 14
R814 B 249 30
R815 B 247 30
R816 B 243 14
R817 B 241 14
R818 B 239 14
R819 T 220 26
R820 T 216 26
R821 T 229 10
R822 T 232 6
R823 T 74 88
R826 T 67 85
R827 T 67 84
R828 T 67 87
R833 B 216 107
R835 B 215 98
R840 T 42 111
R841 T 45 111
R845 T 192 106
R846 T 7 83
R847 B 12 87
R848 B 13 94
R849 T 55 125
R850 T 55 123
R851 B 6 27
R852 B 4 27
R853 B 8 31
R854 B 4 23
R855 B 8 27
R856 B 11 27
R857 B 6 23
R858 B 8 23
R860 T 7 91
R900 T 197 89
R901 T 192 95
R902 T 189 94
R903 T 192 81
R904 T 192 79
R905 T 192 76
R906 T 182 90
R907 T 180 87
R908 T 180 83
R909 T 178 83
R910 T 180 90
S100 T 3 82
S102 T 202 61
S103 T 213 97
S200 T 26 123
S201 T 256 125
S202 T 253 119
S300 T 274 43
S301 T 269 6
S302 T 244 6
S324 T 4 98
S329 T 105 65
S400 T 3 44
S401 T 77 7
S402 T 144 9
S403 T 104 12
S502 T 3 65
S600 T 45 103
S701 T 200 6
S702 T 200 18
S703 T 27 123
S800 T 61 123
S801 T 223 121
S802 T 4 22
S900 T 182 79
SAW600 T 49 71
SAW601 T 49 75
T100 T 181 53
T101 T 203 90
T200 B 128 89
T201 T 136 81
T202 T 199 109
T204 T 204 109
T205 T 208 109
T206 T 206 118
T207 T 198 121
T208 T 198 117
T209 T 198 100
T210 T 184 106
T211 T 147 95
T212 T 148 87
T213 T 145 57
T300 T 267 71
T400 T 133 27
T401 T 155 22
T402 T 152 22
T600 T 42 8
T601 T 46 8
T602 T 47 4
T603 T 47 68
T604 T 57 111
T605 T 38 111
T606 T 27 81
T608 T 110 42
T609 T 89 43
T610 T 105 45
T611 T 111 45
T703 B 233 28
T704 T 227 31
T706 T 218 42
T707 T 210 42
T710 T 71 86
T800 T 51 124
TU301 T 36 39
TU302 T 36 39
TU303 T 36 39
U900 T 188 87
V400 B 9 52
V401 B 6 36
V402 B 6 40
V403 T 79 15
V404 T 126 16
V405 T 77 15
V406 B 9 48
V407 B 6 44
V408 T 163 16
V409 T 140 16
V410 T 135 16
V411 T 146 16
V700 T 172 25
V701 T 194 28
V702 T 198 28
V703 T 206 30
V704 T 231 6
V705 T 233 14
V706 B 228 10
V707 T 229 14
V708 T 175 29
V709 T 191 26
V710 B 219 25
V711 B 223 25
V712 B 215 25
V713 B 211 25
X100 T 218 56
X101 T 189 70
X600 T 19 75
X700 T 75 71
2 - 18
Page 35
Hauptplatte / Main Board XLB190R-11
Ansicht von der Bestückungsseite / View of Component Side
2 - 19
GRUNDIG Service Chassis LB (LX prime)
Page 36
Hauptplatte / Main Board XLB190R-11 Ansicht von der Bestückungsseite / View of Component Side
2 - 20
GRUNDIG Service Chassis LB (LX prime)
Page 37
Hauptplatte / Main Board XLB190R-11
Ansicht von der Bestückungsseite / View of Component Side
2 - 21
GRUNDIG Service Chassis LB (LX prime)
Page 38
Hauptplatte / Main Board XLB190R-11
Ansicht von der Lötseite / View of Solder Side
2 - 22
GRUNDIG Service Chassis LB (LX prime)
Page 39
Hauptplatte / Main Board XLB190R-11 Ansicht von der Lötseite / View of Solder Side
2 - 23
GRUNDIG Service Chassis LB (LX prime)
Page 40
Hauptplatte / Main Board XLB190R-11
Ansicht von der Lötseite / View of Solder Side
2 - 24
GRUNDIG Service Chassis LB (LX prime)
Page 41
1 2
C243
0.1uF
1 2
C263
0.1uF
+
C216
100uF/16V
C209
0.1uF
1 2
L212
600RBead0603
1 2
C251
0.1uF
C202
1uF
C203
1uF
1 2
L211
600RBead0603
1 2
C245
0.1uF
+
C206
100uF/16V
C215
0.1uF
1 2
C244
0.1uF
1 2
L213
600R
Bead 0603
12
C240
10uF/25V
1 2
C257
0.1uF
C211
0.1uF
1 2
L216
120R/100MHZ
C214
0.1uF
1 2
C242
0.1uF
1 2
C255
0.1uF
1 2
C247
0.1uF
C210
0.1uF
1 2
C261
0.1uF
1 2
C249
0.1uF
12
C241
10uF/25V
1 2
L217
600OHMB ead0603
C213
0.1uF
1 2
C260
0.1uF
1 2
C262
0.1uF
1 2
C246
0.1uF
1 2
L210
600RBead0603
1 2
L215
600RBead0603
1 2
C254
0.1uF
ADJ
1
VOUT
2
VIN
3
TAB
4
IC203
NCP1117ST18T3G DPAK
ADJ
1
VOUT
2
VIN
3
TAB
4
IC201
NCP1117STAT3GSOT-223
1 2
C248
0.1uF
1 2
L214
600RBead0603
1 2
C259
0.1uF
1 2
C250
0.1uF
1 2
C258
0.1uF
1 2
C253
0.1uF
1 2
C252
0.1uF
1 2
C256
0.1uF
1 2
L209
600RBead0603
C212
0.1uF
VDDC+1.2V
AVDD_MPLL
GND
AVDD_DVI
+3.3V
+3.3V
GND GND
+3.3V
GND
AVDD_AU
GND
+3.3V
AVDD_MemPLL
GND
+3.3V
AVDDA+3.3V
GND
+3.3V
+1.8V
AVDD_SIF
GND
GND
+2.5V
GND
+5V
GND
GND
VDDM
VDDP
+3.3AVDD for AVDD_DVI
+3.3V for AVDD_MPLL
+3.3V for AVDD_AU
Pin6 ,1 2
Pin70
Pin194, 256
+3.3V for AVDD_MemPLL
Pin133
+3.3V for AVDD_SIF
Pin97, 162, 180, 196, 209, 223, 237, 252
Pin36
+3.3AVDD for AVDDA
Pin 99, 146, 182, 195, 242
Pin63
+2.5MVDD (DDR) for VDDM
Pin 106, 112, 117, 132, 144
L205
120R/100MHz
C231
100N
GND
+
C235
220U/25VLESR
GND
+
C230
470uF/10 V
C232
100n
LOWE SR
L201
120R/100MHZ
+5V
GND
1 2
R213
1K D202
C222
220N50V
GNDGND
1 2
R215
100K
C227
220nF50V
C221
22nF
21
3
D201
BAV99LT1
ON_PANEL
VPANEL
GND
R217
47k
R221
15k
C233
100n
R219
47k
GND
S1
1
G1
2
S2
3
G24D2
5
D2
6
D1
7
D1
8
T209
FDS9933A
T204
BC847B
R216
47k
R222
15k
C234
100n
ST.BY
R218
47k
+12V_SW
+12V
L207
120R/100M Hz3A
+5V
L208
120R/100MHz3A
GND
T202
BC847B
T205
BC847B
GND
12
R225
47K
3,5mA8 mA
85mA
27mA
6.5mA200mA
370mA
35mA
VPANEL
+33V
H-PanelON
+
C204
100uF/16V
C207
0.1uF
ADJ
1
VOUT
2
VIN
3
TAB
4
IC200
NCP1117DT33RKGTO-252
C200
1uF
GND
+3.3V
Vcc3.3 for analog and digital
C228
22uFX7R
GND
C219
10n
R203
6K8
R212
39K 1%
R2055,36k1%
C224
27nX7R
C220
100n
295476R
C218
4.7u
R206
4R7
C217
10n
GND
GND
L200
B82464–G4472–M
3
2
1
4
8
7
6
5
T201
STS5DNF20V
R208
10
C223
1n
C225
1u
C226
22u
X7R
R211
1k81%
C229
22u X7R
R20910R210
10
R207
10
+24V
for5 V panels
for 12V pa nels
R224
10k
R220
2k2
C236
10n
T200
PMV60EN
+5V_SW
R223
10k
+2.5V
L-PowerON
H-ST.BY
L-PanelOFF
12
R200
0R
12
R201
*
GND
C201
1uF
+
C205
100uF/16V
C208
0.1uF
ADJ
1
VOUT
2
VIN
3
TAB
4
IC202
NCP1117DTARK TO-252
+1.2V
GND GND
FB
1
SS
2
VL
3
GND
4
DL5BST
6
LX
7
DH
8
IN
9
OCSET
10
IC204
MAX8576
GND
GND
D200
BAS40-00-V
GND
T211
BC847B
T212
2N7002
R243
47k
R244
10k
R245
100
R246
*
GND GND
VL
SS
SS
VL
C272
*
GND
S.C. Protection Circuit
C275
0.1uF
C273
1uF
+9V
12
R247
390
12
R248
10
GND
+12V_SW
T213
BC817B
D205
BZX384-C8V2
GND
GND
D203
BAV99LT1
FDS6984AS
+5V_SW
+3.3V
12
R262 100R%1
12
R261 100R
%1
+
C785
470uF/10 V
L707
120R/100MHZ
C276
2.2uF
R267
10K
GND
R266
3K9
R268
22K
R845
10k
+3.3V
SDCOV_12V_IN
SDCOV_12V_IN
BZX84C33
1
Hauptplatte – Netzteil / Main Board – Power Supply
0.3
0.75V
0.05V
OVP
LX
FAULT
SS
V
CC
VL
REFOK
VLOK
GND
IN
FB
OCSET
MAX8578
MAX8579
EN
SS
RAMP
LOGIC
DRIVERS
GND
VL REG
POK
REF
DHI
DLI
MAX8576–MAX8579
BST
DH
LX
DL
MAX8578
MAX8579
MAX8576
MAX8577
1
GRUNDIG Service Chassis LB (LX prime)
2 - 25
Page 42
GRUNDIG Service Chassis LB (LX prime)
T210
BC847
R204
1K %1
R230
10K
R228
33K %1
R227
10K %1
R231
10K
R233
3.3K
R229
2.7K %1
C237
10n
GND
+24V_PANEL
IC205
TLV 431/SOT23
24VS ENSE
C238
47P
If +24V>21V-> Hi
If +24V<21V-> Lo
R232
10K
+3.3V
24V SENSE
INV_ON/OFF
PWM0
ON_PBACK
SMPSON/OFF
R239
1K
T207
BC847B
R238
10K
R237
10K
T206
BC847B
R214
1K
C266
0.1uF
R236
10K
R226
47k
C267
10uF/25V
R240
1K
T208
BC847B
ON_PBACK
PWM0
ST.BY
GND
GND
GND
+5V
GND
+12V
GND
H-24V ON L-24V OFF
GND
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
S202
COND13P_2mm
+24V
+12V
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
S2002mm +24V_PANEL
GND_BL
C239
100nF
TO PANEL
R249
10K
R242
*
GND
L206
120R/100MHZ
GND
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
S201
COND10P_2mm
From SMPS (BACKLIGHT)From SMPS
ABNORMAL
DIMMING
R202
*
GND
L202
120R/100MHZ
L203
120R/100MHZ
R234
10K
+3.3V
R235
10K
+3.3V
C264
0.1uF
C265
0.1uF
C268
100uF/25V
GNDGND GND
L-PowerON
H-ST.BY
1
1
2
2
3
3
4
4
S203
CON4
ForPVR
L204
055622R
10P
C270
1nF
GND
C269
1nF
GND
C271
0.1uF
GND
+5V
R241
10k
R250
1K
+3.3V
BR_IN
BR_OUT
BR_IN
BR_OUT
+5V
R251
100R
+3.3V
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
S703
COND13P _2mm
OPTIONAL
R269
10K /N C
+5V_SW
Hauptplatte – Netzteil / Main Board – Power Supply
2 - 26
Page 43
GRUNDIG Service Chassis LB (LX prime)
VGA5V
VS_RGB
HSI
R
DDC_SDA
HS_RGB
G
DDC_SCL
VGA5V
VGA_RX
VGA_TX
VGA_TX
VGA_RX
RXD
TXD
B
VSI
D401
MLL5232B 5.6V
R449
4.7K
R447
2.2K
R438 470R
1
6
2
7
3
8
4
9
5
11
12
13
14
15
10
1617
S403
DSUB-15
D400
MLL5232B5.6V
R422 47R
R423 47R
R451
100R
3
1
2
D406
BAV99
R454
NC
D408
BAV70LT1
R435
75R
R459
10K
C441
0.1uF
R456
100R
C422 47nF
3
1
2
D407
BAV99
D402
MLL5232B 5.6V
C426 47nF
D403
MLL5232B5.6V
R446
2.2K
NC
D404
MLL5232B
5.6V
R429 47R
C427 47nF
3
1
2
D405
BAV99
C421 47nF
R436
75R
R434
75R
C429 47nF
R458 NC
R450
100R
R428 47R
R430 47R
R452
100R
NC
1
NC
2
NC
3
GND4SDA
5
SCL
6
VCLK
7
VCC
8
IC401
24C21A
R448
4.7K
R455
100R
R427 47R
C428 47nF
NC
R460
10K/NC
C439 1nF
R453
100R
R457 NC
GIN+
GIN-
BIN+
BIN-
VS_RGB
HS_RGB
SOG
RIN+
RIN-
TXD
RXD
+5V
+5V
GND
GND
GND
GND
GNDGND
GND GND
GND
GNDGND
GND
+5V
AU_SWA
R408
10K
C409
560pF
R410
18K
R404
10K
C403
22pF
R414
18K
R405
10K
C413
560pF
C407
22pF
C436
0.1uF
R411
18K
C404
22pF
C411
560pF
R406
10K
C410
560pF
R412
18K
C405
22pF
AU_SWA
+9V_A
GND
GNDGND
GND
GND
GND GND
GND
GND
GND
GND
GND GND
C431
2.2uF
C433
2.2uF
C435
2.2uF
C432
2.2uF
AUR0
AUL0
RCA AudioInput/SPDIF
GND
PC AudioInput
X0
12
X1
14
X2
15
X3
11
Y0
1
Y1
5
Y2
2
Y3
4
EN
6
A
10
B
9
X
13
Y
3
VDD
16
VEE
7
VSS
8
IC400
HEF4052B
SPDIF
1
2
3
S401
PCAudio
GND
453535R
GND
V403
EZJZ1V800AA
V405
EZJZ1V800AA
V404
EZJZ1V800AA
V409
EZJZ1V 800AA
GND
GND
GND
GND
BP1
2
BG1
1
BP2
3
BG2
1
BP3
4
BG3
1
S402A
EMBASE_PHONO_3X2
(White)Left
(Red)Right
(Black)SPDIF
VGA
R442 47K
COMP_L
COMP_R
T400
BC847B
GND
R441 10K
+9V_A
1
1 2
L406 68R
1 2
L407 68R
1 2
L408 68R
Hauptplatte – VGA-Buchse / Main Board – VGA Socket
2 - 27
Page 44
1st HDMI
RX2+
1
GND2
2
RX2-
3
RX1+
4
GND1
5
RX1-
6
RX0+
7
GND0
8
RX0-
9
CLK+
10
GND_CLK
11
CLK-
12
CEC
13
N.C.
14
SCL
15
SDA
16
CEC_GND
17
5V
18
HP_DETECT
19
20
21
22
23
S302
GND
GND
GND
GND
GND
GND
GND
GND
5V
1
3V
2
GND
3
D2+
4
TMDS_GND
5
NC
6
D1+
7
TMDS_GND
8
NC
9
D0+
10
TMDS_GND
11
NC
12
CK+
13
TMDS_GND
14
NC
15
CEC_IN
16
DDC_CLK_IN
17
DDC_DAT_IN
18
HOTPLUG_IN
19
HOTPLUG_OUT
20
DDC_DAT_OUT
21
DDC_CLK_OUT
22
CEC_OUT
23
CK-
24
TMDS_GND
25
NC
26
D0-
27
TMDS_GND
28
NC
29
D1-
30
TMDS_GND
31
NC
32
D2-
33
TMDS_GND
34
NC
35
GND
36
TMDS_BYP
37
NC
38
IC301
*/CM2021
C320
100N
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
1ST_HDMI_RX2+
1ST_HDMI_RX2-
1ST_HDMI_RX11ST_HDMI_RX0+
1ST_HDMI_RX1+
1ST_HDMI_RX01ST_HDMI_CLK+
1ST_HDMI_CLK-
1ST_HDMI_SDA
1ST_HDMI_SCL
1ST_HDMI_RX2+
1ST_HDMI_RX2-
1ST_HDMI_RX11ST_HDMI_RX0+
1ST_HDMI_RX1+
1ST_HDMI_RX01ST_HDMI_CLK+
1ST_HDMI_CLK-
1ST_HDMI_SDA_OUT
1ST_HDMI_SCL_OUT
+3.3V+5V
GND
GND
5V
1
3V
2
GND
3
D2+
4
TMDS_GND
5
NC
6
D1+
7
TMDS_GND
8
NC
9
D0+
10
TMDS_GND
11
NC
12
CK+
13
TMDS_GND
14
NC
15
CEC_IN
16
DDC_CLK_IN
17
DDC_DAT_IN
18
HOTPLUG_IN
19
HOTPLUG_OUT
20
DDC_DAT_OUT
21
DDC_CLK_OUT
22
CEC_OUT
23
CK-
24
TMDS_GND
25
NC
26
D0-
27
TMDS_GND
28
NC
29
D1-
30
TMDS_GND
31
NC
32
D2-
33
TMDS_GND
34
NC
35
GND
36
TMDS_BYP
37
NC
38
IC300
*/CM2021
C303 100N
GND
2nd HDMI
RX2+
1
GND2
2
RX2-
3
RX1+
4
GND1
5
RX1-
6
RX0+
7
GND0
8
RX0-
9
CLK+
10
GND_CLK
11
CLK-
12
CEC
13
N.C.
14
SCL
15
SDA
16
CEC_GND
17
5V
18
HP_DETECT
19
20
21
22
23
S301
GND
GND
GND
GND
GND
GND
GND
2ND_HDMI_SDA
2ND_HDMI_SCL 2ND_HDMI_SDA_OUT
2ND_HDMI_SCL_OUT
GND
GND
GND
GND
GND
GND
GND
GND
2ND_HDMI_CLK-
2ND_HDMI_CLK+
2ND_HDMI_RX0-
2ND_HDMI_RX0+
2ND_HDMI_RX1-
2ND_HDMI_RX1+
2ND_HDMI_RX2-
2ND_HDMI_RX2+
2ND_HDMI_CLK-
2ND_HDMI_CLK+
2ND_HDMI_RX0-
2ND_HDMI_RX0+
2ND_HDMI_RX1-
2ND_HDMI_RX1+
2ND_HDMI_RX2-
2ND_HDMI_RX2+
+3.3V+5V
R302
100R
R303 100R
HDMI_CEC
Tx2+
1
Tx2-
2
AGND
3
Tx1+
4
Tx1-
5
AVCC18
6
Tx0+
7
Tx0-
8
AGND
9
TxC+
10
TxC-
11
EXTSWING
12
RESET#
13
LSDA/EPSEL[0]
14
LSCL/EPSEL[1]
15
HPD0
16
AVCC18
17
R0XC-
18
R0XC+
19
AGND
20
R0X0-
21
R0X0+
22
AVCC33
23
R0X1-
24
R0X1+
25
AGND
26
R0X2-
27
R0X2+
28
AVCC18
29
DSDA0
30
DSCL0
31
RPWR0
32
DVDD18
33
DGND
34
I2CSEL/INT
35
HPD1
36
AVCC18
37
R1XC-
38
R1XC+
39
AGND
40
R1X0-
41
R1X0+
42
AVCC33
43
R1X1-
44
R1X1+
45
AGND
46
R1X2-
47
R1X2+
48
AVCC18
49
DSDA1
50
DSCL1
51
RPWR1
52
CEC_D
53
CEC_A
54
AVCC33
55
HPD2
56
AVCC18
57
RXC2-
58
RXC2+
59
AGND
60
R2X0-
61
R2X0+
62
AVCC33
63
R2X1-
64
R2X1+
65
AGND
66
R2X2-
67
R2X2+
68
AVCC18
69
DSDA2
70
DSCL2
71
RPWR2
72
DVDD18
73
DGND74TEST
75
HPDIN
76
TSDA
77
TSCL
78
TPWR/I2CADDR
79
AGND
80
SIL 9185
IC302
SIL9185
GND GND GND
C319
10UF/25V
C311
10UF/25V
C304
10UF/25V
C313
100N
C314
100N
C315
100N
C316
100N
C317
100N
C318
100NC305
100N
C306
100N
C307
100N
C308
100N
C309
100N
C310
100N GND
GND
GND
+1.8V
+1.8V
470R%1
R300
+1.8V
3RD_HDMI_DET
3RD_HDMI_CLK3RD_HDMI_CLK+
3RD_HDMI_RX03RD_HDMI_RX0+
3RD_HDMI_RX13RD_HDMI_RX1+
3RD_HDMI_RX23RD_HDMI_RX2+
3RD_HDMI_SDA
3RD_HDMI_SCL
3RD_HDMI_5V
1ST_HDMI_RX2+
1ST_HDMI_RX2-
1ST_HDMI_RX1-
1ST_HDMI_RX0+
1ST_HDMI_RX1+
1ST_HDMI_RX0-
1ST_HDMI_CLK+
1ST_HDMI_CLK-
2ND_HDMI_CLK2ND_HDMI_CLK+
2ND_HDMI_RX02ND_HDMI_RX0+
2ND_HDMI_RX12ND_HDMI_RX1+
2ND_HDMI_RX22ND_HDMI_RX2+
2ND_HDMI_DET_OUT
2ND_HDMI_SDA_OUT
2ND_HDMI_SCL_OUT
2ND_HDMI_5V
1ST_HDMI_DET_OUT
1ST_HDMI_SDA_OUT
1ST_HDMI_SCL_OUT
1ST_HDMI_5V
HDMI_CEC
+3.3V
FB301
BK1608HM601
FB300
MBK1608H601
FB302
BK1608HM601
I2C_SCL
I2C_SDA
#RESET
I2C_SDA
I2C_SCL
TX2-
TXCLK+
TX0+
TX1-
TX2+
TX0-
TX1+
TXCLK-
SDA_HD
SCL_HD
HDMI_INT
PHY- D4
EDID -E 4
CEC- C4
R304
10k
R301
10k
+3.3V
R305
4.7K
HPDCTRL
GND
T300
BC847B
+3.3V
#RESET
3rd HDMI
3RD_HDMI_CLK-
3RD_HDMI_RX0-
3RD_HDMI_RX1-
3RD_HDMI_RX2-
GND
CEC_A
3RD_HDMI_DET
3RD_HDMI_CLK+
3RD_HDMI_RX0+
3RD_HDMI_RX1+
3RD_HDMI_RX2+
3RD_HDMI_SDA
3RD_HDMI_SCL
+3.3V
+5V
+1.8V
GND
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
0
S300
GND
GND
C300
100N
C301
100N
C302
100N
GND
D300
*/BAT54
*/80k2R306
+3.3V
Optional
R307
10k
+3.3V
+3.3V
R309
4.7K
R308
4.7K
R800
*/0R
+3.3V
R804 4K 7
R805 4K 7
R806 4K 7
R802
4K7
R801 4K 7
+5V
+3.3V
R814 4K 7
R815 4K 7
R811 4K 7
R812 4K7
+5V
R807 0R
R808 0R
R809 0R
R810 0R
2ND_HDMI_SDA
2ND_HDMI_SCL
2ND_HDMI_SDA_OUT
2ND_HDMI_SCL_OUT
R803 */1K
R816 0R
R817 0R
R818 0R
1ST_HDMI_SDA
1ST_HDMI_SCL
1ST_HDMI_SDA_OUT
1ST_HDMI_SCL_OUT
R813 */1K
2ND_HDMI_5V
1ST_HDMI_5V
GND
2ND_HDMI_DET
CEC_A
CEC_AC EC_A_OUT
2ND_HDMI_DET2 ND_HDMI_DET_OUT
CEC_A
CEC_A_OUT
CEC_A_OUT
2ND_HDMI_DET_OUT
1ST_HDMI_DET_OUT
1ST_HDMI_DET_OUT1ST_HDMI_DET
1ST_HDMI_DET
Hauptplatte – HDMI-Buchsen / Main Board – HDMI Sockets
2 - 28
GRUNDIG Service Chassis LB (LX prime)
Page 45
GRUNDIG Service Chassis LB (LX prime)
VGA_TX
D400
MLL5232B5.6V
R446
2.2K
+5V
SOY
PB-
PB+
Y+
PR-
PR+
Y-
C423 47nF
C417 47nF
C419 47nF
R418 47R
R419 47R
R431
75R
R426 47R
C438 1nF
R420 47R
R433
75R
C424 47nF
C418 47nF
R424 47R
C437 47nF
R437 470R
R432
75R
R425 47R
PB-
PR+
SOY
PB+
Y-
Y+
PR-
GND
SV_Y0
SV_C0
VCOM2
R417
47R
C414 47nF
R416
47R
C415 47nF
R415
47R
C416 47nF
SV_C0
SV_Y0
VCOM2
GND
VCOM1
L400
68R
R421
47R
R439
75
R440 47R
C420 47nF
C440
47nF
VCOM1
CVBS1
GND
C406
22pF
C430
2.2uF
R413
18K
C412
560pF
C434
2.2uF
C408
560pF
R407
10K
C402
22pF
R409
18K
R403
10K
AUR2
AUL2
GND
GND GND
GND
GND
GND
RCA AudioInput/SPDIF
PC AudioInput
L401
600R FB0603
R445
220
R461
10K
C401
10n
C400
100n
R443
47
R444
75
SPDIF_OUT
GND
+3.3V
GND
T402
BC858B
T401
BC847B
GND
SPDIF
V410
EZJZ1V800AA
V411
EZJZ1V800AA
V408
EZJZ1V800AA
S401
PCAudio
SVHS_Y
SVHS_C
FAV_L
FAV_R
FAV_CVBS
SVHS_Y
SVHS_C
FAV_CVBS
R401
75R
R402
75R
GND
COMP_Y
COMP_PB
COMP_PR
GND
SVHSC
SVHSY
COMP Input
FAV_L
FAV_R
FAV
V406
EZJZ1V800AA
V400
EZJZ1V800AA
V407
EZJZ1V800AA
V401
EZJZ1V800AA
V402
EZJZ1V800AA
GND
GND
GND
S402A
EMBASE_PHONO_3X2
BP1
5
BG1
1
BP2
6
BG2
1
BP3
7
BG3
1
S402B
EMBASE_PHONO_3X2
Pr
Pb
Y
(White)Left
(Red)Right
(Black)SPDIF
YP bP r
SPDIFLINR IN
SIDE AV
C442
22pF
GND
C443
22pF
C444
22pF
L402
68R
L403
68R
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
S400
CON10
1 2
L404 68R
1 2
L405 68R
Hauptplatte – AV-Buchsen / Main Board – AV Sockets
2 - 29
Page 46
GRUNDIG Service Chassis LB (LX prime)
SC1_MODE
SCART_ARin1
SC1_FSW
SC_CVBS2
SC2_MODE
SCART_ALin1
SC_CVBS1
SCR+
SCG+
SCB+
SCB-
SCR-
SCG-
SC_Chroma
VCOM1
AUDIO_OUT_L2
AUDIO_OUT_R2
C713
2.2uF
C735
47pF
R715 47R
R753
75R
C763
4n7
R709 47R
C729
47pF
C723 47nF
L705
1K/0603
C701
560pF
C758
100pF/NC
C731
47pF
R778
22K
C734
47pF
R767
3,3K
L704
0R/0603
L706
1K/0603
C737
47pF
L703
0R/0603
C782
10nF
R711 47R
R770
10K
R707
18K
R704
18K
2
4
6
8
10
12
14
16
18
20
1
3
5
7
9
11
13
15
17
19
21
22
23
S702
SCART2
C720 47nF
C725 47nF
C730
47pF
C762
100pF/NC
R702
10K
C733
47pF
R712 47R
R701 10K
C715 2.2uF
C757
100pF/NC
R758 75R
C703
560pF
R708 47R
2
R780 100R
C780
1nF
R716 47R
C702
560pF
C719 47nF
C736
47pF
R779
100R
R710 47R
C700
560pF
C718 47nF
C728
47pF
C714 2.2uF
R782 75R
R717 47R
C761
100pF/NC
C760
NC
C759
NC
C721 47nF
C724 47nF
C712
2.2uF
R705
18K
R703
10K
C722 47nF
R706
18K
R785 75R
R777
22K
C732
47pF
C717 47nF
C781
1nF
R768
3,3K
2
4
6
8
10
12
14
16
18
20
1
3
5
7
9
11
13
15
17
19
21
22
23
S701
SCART1
C726 47nF
C783
10nF
R700 10K
R769
20k
C755
220pF
R714 47R
C756
220pF
C738
47pF
C764
4n7
R713 47R
SC1_FSW
SC1_MODE
SC2_MODE
AUR1
AUL1
AUL3
AUR3
SCG+
SCR+
SCB+
SC_CVBS1
SCG-
SCB-
SCR-
AUOutL2
AUOutR2
SC_Chroma
VCOM1
SC_CVBS2
AUOutR3
AUOutL3
GND
GND
GND GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
T707
BC847B
R757
470R
R774
220R
R745
47K
GND
+9V_A_SCART2
R751
8.2K
T706
BC847B
R756
470R
R773
220R
R744
47K
GND
+9V
R750
8.2K
L708
600R/100MHZ
+9V_A_SCART2
GND
C768
2u2
C767
2u2
+
C753
10uF/25V
+
C750
10uF/16V
+
C754
10uF/25V
+5V_SW
T704
BC847B
R755
470R
R772
220R
R743
47K
GND
+9V_A_SCART1
R749
8.2K
T703
BC847B
R754
470R
R771
220R
R742
47K
GND
R748
8.2K
+9V_A_SCART1
C766
2u2
C765
2u2
+
C748
10uF/25V
+
C749
10uF/16V
V708
EZJZ1V 800AA
V709
EZJZ1V 800AA
V700
V702
EZJZ1V 800AA
EZJZ1V 800AA
EZJZ1V 800AA
V701
V703
EZJZ1V 800AA
SC2_CVBS
GND
SC2_CVBS
R759
75R
R781
75R
R783
75R
R784
75R
GND
R737 75R
V705
EZJZ1V 800AA
V706
EZJZ1V 800AA
V707
EZJZ1V 800AA
V704
EZJZ1V 800AA
GNDGNDGNDGND
V711
V712
V713
V710
EZJZ1V 800AA
EZJZ1V 800AA
EZJZ1V 800AA
EZJZ1V 800AA
GNDGNDGNDGND
IN1
1
GND
2
IN2
3
VDD
4
IN3
5
GND
6
IN4
7
ADDR1
8
IN5
9
ADDR0
10
IN6
11
SCL
12
IN7
13
SDA
14
IN8
15
GND
16
OUT6
17
OUT5
18
OUT4
19
VDD
20
OUT3
21
OUT2
22
OUT1
23
GND
24
IC702
FMS6502
WRITEi s0X06
SC1_OUT
SC2_OUT
SC1_OUT
SC2_OUT
PIP_C
PIP_Y
SC2_CVBS
C772 100n
C773 100n
C774 100n
C775 100n
C776 100n
C777 100n
SC1_CVBS
SC2_Chroma
SC2_Chroma
SC2_Chroma
SC1_CVBS
SVHS_Y
SVHS_C
FAV_CVBS
DVB_CVBS
TUN_CVBS
C779 1uF
GNDGND
R763
100
R764 100
I2C_SDA
I2C_SCL
PIP_CVBS
C744
100n
GND
+
C752
10uF/25V
GND
L702
600R/100MHZ
C745
100n
GND
C747
100n
GND
C751
100nF/25V
GND
C746
100n
GND
TX_Scart2
RX_Scart2
RX_Scart2
TX_Scart2
R799
100R
R798
100R
R796
4.7K
R797
4.7K
+5V
R820
360R
R819
360R
R822
0R
R821
0R
GND
GND
C707
100U16V
C706
100U16V
C708
100U16V
R718
10R
R719
10R
C705
100n
C704
100n
GND GND
GND GND
GND
+9V_A_SCART1
+9V_A_SCART2
R720
10R
+9V_A
R760 0R
GND
SDATA
1
SCLK
2
LRCK
3
MCLK4OUTR
5
GND
6
VCC
7
OUTL
8
IC500
CS4335
R508
10K
GND
R507
1k
C510
1n
R504
270K
+5V_SW
R505
270K
GND
R509
10K
R506
1k
C509
1n
C507
1uF
L500
FB
453933R
AUOutR3
AUOutL3
1
3
5
7 8
6
4
2
R500
100R
AUSD0
AUSCK
AUWS
AUMCK
15 16 19
18 17
IN1
C / B
IN2
C / B
IN8
C / B
OUT1 OUT2 OUT6
SDA
SCL
VCC (2)
GND (4)
ADDR0
ADDR1
FMS6502
LRCK
3
SDATA
1
DEM/SCLK
2
MCLK
4
VA+
AOUTL
8
AOUTR
5
Serial Input
Interface
Interpolator
Interpolator
De-emphasis
Modulator
ΔΣ
Modulator
DAC
DAC
Voltage Reference
Analog
Low-Pass
Filter
Analog
Low-Pass
Filter
7
AGND
6
ΔΣ
CS4334/5/6/7/8/9
% Mode: Analog TV
^ Mode: Analog TV
& Mode: Analog TV
* Mode: Analog TV
( Mode: Analog TV
Hauptplatte – Scart-Buchsen / Main Board – Scart Sockets
2 - 30
Page 47
GRUNDIG Service Chassis LB (LX prime)
SCL5V
SDA5V
SDA5V
IF_TV
SCL5V
RF-AGC
CVBS
MONO
SIFOUT
R634
100R
L602
10uH/160mA
R613
1K
R641
+
C607
10uF/25V
R639
1k
R644 0R
C610
10nF
R631 100R
R620
330R
C632
NC
C618 22pF
SAW
ING
2
OUT1
4
GND
3
OUT2
5
IN
1
SAW600
K9656M
C614
220nF
C631
10nF
DGND7TOP
9
VIF11VIF2
2
REF
15
NC(5)/VAGC (6)
16
DEEM
5
SCL
11
OUT1
3
NC
13
AUD_OUT8SDA
10
FMPLL
4
TAGC
14
AFD
6
SIOMAD
12
CVBS
17
AGND
18
VPLL
19
VPP
20
AFC
21
OUT2
22
SIF123SIF2
24
IC600
TDA9886TS/V3
R642
10R
R637
51R
C623
100nF/50V
R619
22K
R614
6.8K
R643
820R
R622
100K
1 2
C633
100pF
+
C620
47uF/16V
C613 1.5nF
R645 0R
L601
4u7H/160mA
R615
2,2K
D602
BA591
C604 0.1uF
R616
1K
C603
0.1uF
T606
BC848B
L606
1.0uH/NC
R621
12K
C630
390pF
C615
0.1uF
R617
680K
C609
10nF
C611
10nF
R632 100R
C617
470nF
R638
5.6K
R604
10K
C608
0.1uF
C612
10nF
C616 470nF
R623
1K
C626
47pF
SAW
ING2OUT1
4
GND
3
OUT2
5
IN
1
SAW601
K3958D
C605 0.1uF
R640
1k
T603
BC847B
R618
220K
C625
47pF
+
C606
10uF/16V
R603
10K
R
633
100R
SCL5V
SDA5V
SIFP0
SIFM0
AUMONO
5V-IF
5V-IF
5V-IF
5V-OUT
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
+33V
GND
5V-IF
GND
5V-Tuner
RFAGC
I2CSDA_5V
I2CSCL_5V
R630 100R
RF-AGCRFAGC
C624
47pF
TUNERGNDCUTOUT
140mVrms
MONO
R646
1K
R626
4k7
R647
1k5
GND
C621
100N
GND
CVBS
GND
DELAY
IF_TV
5V-IF
T602
BC807-40
R609
15R
T601
BC858B
R610
15R
T600
BC847B
R607
1K
GND
L603
FB0603
R624
10K
ANTPOWER
R608
*
GND
R605
4K7
R606
4K7
T604
2N7002
T605
2N7002
SCL5V
SDA5V
I2C_SCL
I2C_SDA
+3.3V+3.3V
+5V
A/D
5V-IF
L607
68R
Analog Tuner
R653
0R
R611
0R
R654
0R
R612 0R
1
3
6
9
R655
0R
1128
10
AGC1NC12AS3SCL4SDA55V(4 MHz)65V7NC2833V9NC310IFout
11
GND12GND13GND14GND
15
TU301
UV1316/ADH4
Hybrid Tuner
R525
0R
R531 0R
R529 0R
R527
0R
R530 0R
R526
0R
R528 0R
C629
1uF
GND
X0
12
X1
13
Y1
1
Y0
2
A
11
Z0
5
Z1
3
Z
4
EN
6
B
10
C
9
X
14
Y
15
VDD
16
VEE
7
VSS
8
IC319
M74HC4053_TSSOP16
C495
0.1uF
GND
SDA5V
SCL5V
I2CSDA_5V
I2CSCL_5V
A/D
R575
10K
5V-IF
C494
0.1uF
+
C492
220uF/16V
GND
RFAGC
C639
1nF
IFAGC
IFD2
IFD1
GND_T GND
SDAT
SCLT
RFMON
IF_TV
5V-Tuner
123
8910
11
6
GND
AGC1NC12AS3SCL4SDA55V(4 MHz)65V7NC2833V9NC310IFout
11
GND12GND13GND14GND
15
TU302
ENV57DD3H6F
GND
R740 1K
APW1RAG2CAS3SCL4SDA533V(4 MHz)65V7IFA8IAG9IF210IF1
11
GND12GND13GND14GND
15
TU303
THOMSONDTT75407
8910
11
6
I2CSCL_5V
I2CSDA_5V
5V-Tuner
R747 0R
R746 0R
GND
3
1
2
12
13
12
13
FROMMPEG DECODEREMM2LL
GND
R721
4K7
R724
100R
R723
100R
C662
1N
C709
1N
C646
SDAT
SCLT
IFD1
IFD2
5V-IF
GND
I2CSDA_5V
I2CSCL_5V
X600
4MHz
R840
0R
R841
10K
+5V_SW
+5V
+
C668
47U/50V
GND
5V-IF
R646
1K
R626
NC
R647
1k8
GND
C621
100N
GND
CVBS
DELAY
C619
10nF
L604
600R Bead 0603
C600
0.1uF
+5V_SW
GNDGND
5V-IF
1 2
L333
4.7uH/160mA
C
470uF/16V
+
+
C787
470uF/16V
C786
10uF/16V
GND
Only for
PCB index XLB190R-8
Only for PCB index
XLB190R-8
14
6 5
4 3
5
8
6
5 6
5 6
5 6
7
7
8
8
>
–
8
5
6
7
$
DIGITAL VCO CONTROL
AFC DETECTOR
RC VCO
VIF-PLL
VIF-AGC
TUNER AGC
SUPPLY
SIF-AGC
AUDIO PROCESSING
AND SWITCHES
NARROW-BAND
FM-PLL DEMODULATOR
SINGLE REFERENCE QSS MIXER
INTERCARRIER MIXER
AND AM DEMODULATOR
SOUND CARRIER
TRAPS
4.5 to 6.5 MHz
TAGC
C
AGC(neg)
C
BL
VAGC
(1)
TOP
14 (15)
VPLL
19 (21)
)32( 12)61( 51
)7
1(
61
)
8(
9
4 (2)10 (9)
11 (10)
12 (11)18 (20)20 (22)
2 (31)
1 (30)
(18) 17
(7) 8
(3) 5
(4) 6
REF AFC
AUD
CVBS
SIOMAD
SDA DGNDSCL
MAD
V
P
C
AGC
(6, 12, 13, 14, 17,
19, 25, 28, 29, 32)
13
n.c.
AGND
7 (5)
OUTPUT
PORTS
I2C-BUS TRANSCEIVER
22 (24)
3 (1)
LLPMF2PO1PO
DEEM
AFD
VIF2
VIF1
24 (27)
23 (26)
SIF2
SIF1
TDA9885
TDA9886
(1) Not connected for TDA9885.
3
4
Hauptplatte / Main Board – Tuner
2 - 31
Page 48
GRUNDIG Service Chassis LB (LX prime)
TUNER-CVBS
VCOM0
TUN_CVBS
R601 47R
R602
47R
C601
47nF
C602
47nF
R600 47R
TUNER_CVBS
VCOM0
TUN_CVBS
5V-IF
T608
BC858B
T609
BC847B
R646
1K
R626
4k7
R647
1k5
R650
270R
R627
560R
R625
4k7
R636
120R
R651
180R
C636
100pF
C635
100pF
R652
180R
T610
BC847B
R628
10k
R635
120R
C628
82pF
C627
150pF
R648
1K5
GND
GND
GND
5V-IF
R629
0R
DELAY
C621
100N
GND
CVBS
24600
11
3
3
L605
814111136000
T607
BC858B
T611
BC848B
GND
R649
47K
C634
10N
GND
TV-CVBS
C638
330pF/NC
L600
0R/0805
C637
330pF/NC
GND
DELAY
5V-IF
GND
SCL5V
SDA5V
SCL5V
SDA5V
CVBS
SIFOUT
MONO
+33V
3
1
2
D601
BAV99
3
1
2
D600
BAV99
GND
GND+5V_SW
+5V_SW
CVBS
SIFOUT
MONO
L607
68R
GND
3V3A_DIG_FE
GND
3V3D_DIG_FE
GND
1V2D_DIG_FE
C648
100N
C649
100N
C651
100N
C650
100N
C652
100N
C655
100N
C657
100N
C654
100N
C656
100N
C658
100N
L371
1uH
L372
FB
1uH
L370
L373
FB
1V2A_DIG_FE
GND
C660
100N
C659
100N
+3.3V
FROMMPEG DECODEREMM2LL
GND
CXD1976
GND
COFDM Demodulator
R725
1K
R721
4K7
R722
4K7
R724
100R
R723
100R
C662
1N
C709
1N
C665
*
C664
470N
RF_IFAGC_Q1IFAGC_I2CVSS3CVDD4INTRPTN5RESETN6TSERR7TSSYNC8TSVALID9TSCLK10DVSS11DVDD12TSDATA013TSDATA114CVDD15CVSS
16
TSDATA2
17
TSDATA3
18
TSDATA4
19
TSDATA5
20
TSDATA6
21
TSDATA7
22
DVSS
23
DVDD
24
SCL
25
SDA
26
CVDD
27
CVSS
28
TCLK
29
TDO
30
TDI
31
TMS
32
TESTMODE
33
TRSTN
34A035
DVDD
36
DVSS
37
CVSS
38
CVDD
39
OSCN
40
XVDD
41
XTALI
42
XTALO
43
XVSS
44
DIVDD
45
DIVSS
46
PADVSS
47
PADVDD
48
AINP_Q
49
AINM_Q
50
AVDD
51
AVSS
52
GUARD_Q
53
DAREFP
54
DAREFM
55
GUARD_I
56
AINM_I
57
AIN_I
58
AVSS
59
AVDD
60
REFIN
61
REFOUT
62
TUNERDAT
63
TUNERCLK
64
IC703
CXD1968
SCL_MD
SDA_MD
R733 100R
R734 100R
X700
20.48MHz
GND
R739
100R
R738
2M2
C666
33p
C667
33p
GNDGND GND GNDGND GND
GND
GND
GND
GND
GND
R736
10k
R735
10k
GND
GND
GND
GND
C663
100N
C645
100N
GND
GND
GND
GND
GND
1V2A_DIG_FE
1V2D_DIG_FE
1V2D_DIG_FE
1V2D_DIG_FE
1V2D_DIG_FE
1V2D_DIG_FE
3V3D_DIG_FE
3V3D_DIG_FE
3V3D_DIG_FE
3V3A_DIG_FE
3V3A_DIG_FE
3V3D_DIG_FE
3V3A_DIG_FE
R726
*
C647
82p
C646
82p
1UH
L374
TS_ERROR
TS_CLK
TS_CLK
TS_VALID
TS_VALID
TS_START
TS_START
RESET_COFDM
IFAGC
SDA_COFDM
SCL_COFDM
SDAT
SCLT
IFD1
IFD2
1
3
5
7 8
6
4
2
R732
47R
1
3
5
7 8
6
4
2
R731
47R
1
3
5
7 8
6
4
2
R730
47R
5V-IF
+1.2V
R656
470R
R657
470R
GND
CVBS
TS_DATA0
TS_DATA1
TS_DATA2
TS_DATA3
TS_DATA4
TS_DATA5
TS_DATA6
TS_DATA7
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
31
P32
32
P33
33
P34
34
P35
35
P36
36
P37
37
P38
38
P39
39
P40
40
P41
41
P42
42
P43
43
P44
44
P45
45
P46
46
P47
47
P48
48
P49
49
P50
50
P51
51
P52
52
S600
CON2X25
+33V
SCL5V
SDA5V
GND
R658 47R
TUNER-CVBS
VCOM0
TUN_CVBS
R601 47R
R602
47R
C601
47nF
C602
47nF
R600 47R
TUNER_CVBS
VCOM0
TUN_CVBS
5V-IF
T608
BC858B
T609
BC847B
R646
1K
R626
NC
R647
1k8
R650
270R
R627
390R
R625
3k6
R661
33R
R660
330R
R659
2k2
R636
330R
R651
15R
C636
100pF
C635
220pF
R652
100R
T610
BC847B
R628
2k2
R635
56R
C628
100pF
C627
180pF
R648
1K
GND
GND
GND
5V-IF
R629
NC
DELAY
C621
100N
GND
CVBS
24600
11
3
3
L605
814111136000
T611
BC848B
GND
R649
47K
C634
10N
TV-CVBS
C638
330pF/NC
L600
0R/0805
C637
330pF/NC
GND
DELAY
R656
470R
R657
470R
GND
CVBS
GND
R658 47R
Only for PCB index < XLB190R-3
Only for PCB index XLB190R-3
8
8
9
8
8
9
<
–
8
9
Hauptplatte / Main Board – COFDM Demodulator
2 - 32
Page 49
GRUNDIG Service Chassis LB (LX prime)
L507
120R/100MHZ
+24V
10W Audio Amp
ST.BY
C521
1U
GND
GND
C523
4,7u
C519
1u
C520
1U
GND
GND
L505
33uH
L504
33uH
C531
1uF/50V
C526
220N
C527
220N
C522
1U
C500 100n/50V
C505
10n/50V
GND
GND
C530
1uF/50V
C504
100n/50V
C503
100n/50V
GND
GND
C506
10N
C524 220N
C525
220N
R517
100k
R516
100K
L502 33uH
L503 33uH
C502
100N
C501
100N
+
C529
220U
C528
220U
GND
C518
1uF/25V
C517
1uF/25V
C515
1uF/25V
C516
1uF/25V
GND
GND
J505
100K
J500 0R
J504
100K
J501 0R
GND
GND
AUOutR
AUOutL
R512
1K2
R513 1K2
C511
2n2F
GND
C512
2n2F
GND
MUTE_S
R518
*
GND
NC
1
RINN
2
RINP
3
AGND
4
LINP
5
LINN
6
NC
7
GAIN0
8
GAIN1
9
MSTR/#SLV
10
SYNC
11
NC
12
NC13ROSC14VREG15VBYP16AGND17BSLP18LOUTP19LOUTP20LOUTN21LOUTN22BSLN23NC
24
NC
25
PVCCL
26
PVCCL
27
PGNDL
28
PGNDL
29
VCLAMPL
30
VCLAMPR
31
PGNDR
32
PGNDR
33
PVCCR
34
PVCCR
35
NC
36
NC
37
BSRN
38
ROUTN39ROUTN
40
ROUTP41ROUTP
42
BSRP
43
#SHUTDOW N
44
MUTE
45
FAULT
46NC47
AVCC
48
GND
49
IC501
TPA3101D2
+12V
AUVDD
Vreg
Vreg
GND
R511
100
R510
100
R515
22k
R514 22k
GND
GND
D501
IMBD4148
D500
IMBD4148
C534
2N2/ NC
GND
R522
4K7
C546
2N2/ NC
C544
2N2
C545
220N
GNDGND
C537
100U16V
C538
100U16V
C539
1N
C540
1N
GND
GND
AUOutL1
GND
OUTA
1
INA(NEG)
2
INA(POS)
3
VSS4INB(POS)
5
INB(NEG)
6
OUTB
7
VDD
8
IC502
TDA1308T
GND
C547
100nF/25V
R523
10K
R524
10K
GND
C535
1N5
R520
15K
C536
1N5
R521
15K
R519
4K7
C532
2N2
C533
220N
GND
AUOutR1
+5V_SW
GND
+5V_SW
C508
1uF
L501
FB
24V SENSE
J503
*
J502 0R
HPL
HPR
B82473–A1333–K
B82473–A1333–K
B82473–A1333–K
B82473–A1333–K
R+
R-
L-
L+
L506
*
AUOutL1
AUOutR1
R502
100
R501
100
C548
10n/50V
C542
10n/50V
C543
10n/50V
C541
100n/50V
GND
GND
GND
GND
L508
FB
L509
FB
C549
100p
C550
100p
GND
GND
1
2
3
S502
HPhone
GND
1
2
3
4
S324
MOLCON4
L+
L-
R-
R+
L512
055626R120R 3A
L513
055626R 120R 3A
AUVDD
+
C551
10uF/35
L514
055626R
120R
3A
L515
055626R120R 3A
L516
055626R120R 3A
L517
055626R120R 3A
R823
*
SMPSON/OFF
1 2
R828
10K
12
R826
47k
T710
BC847B
GND
1 2
R827
10K
+3.3V
+3.3V 1 2
L511
A7502BY-330M
1 2
L510
A7502BY-330M
R577
3.3K
R576
3.3K
20
21
23
22
23
24
Biases
and
References
Startup
Protection
Logic
VREGok
RINP
RINN
Ramp
Generator
ROSC
VCCok
AVCC
VREG
PWM
Logic
Gain
Control
Gain
Control
LINP
LINN
SHUTDOWN
VBYP
VBYP
MSTR/SLV
PWM
Logic
SYNC
AVCC
AVCC
AVCC
Gain
Control
GAIN0
GAIN1
8
To Gain Adj.
Blocks and
Startup Logic
MUTE
FAULT
VREG
AGND
VBYP
VBYP
VREG
VBYP
VClamp
Gen
PVCCR
Gate
Drive
Gate
Drive
VClamp
Gen
Gate
Drive
Thermal
SC
Detect
PVCCR
Gate
Drive
BSLN
VCLAMPL
PVCCL
PVCCL
BSLP
LOUTN
BSRN
VCLAMPR
PVCCR
PVCCR
ROUTN
BSRP
ROUTP
PGNDR
PVCCL
PVCCL
PGNDL
LOUTP
Gain
Gain
Gain
Gain
TLL Input
Buffer
TLL
(VCC Compliant)
(VCC Compliant)
4V Reg
Input
Buffer
TPA3101D2
2
1
3
4
8
7
6
5
INA(neg)
TDA1308(A)
OUTA
V
SS
V
DD
INA(pos)
INB(neg)
INB(pos)
OUTB
)
¡
™
£
≤
Hauptplatte – Verstärker / Main Board – Amplifier
2 - 33
Page 50
GRUNDIG Service Chassis LB (LX prime)
AUOutS
AUL0
AUOutR2
AUOutR
SPI_DI
SPI_DO
SPI_CK
SPI_CZ
KEY_AD2/OPT
KEY_AD1
PWM3
Reset_DV B
RX_DVB
TX_DVB
AUMONO
AUOutL2
PWM0
PWM1PWM1
PWM2
PWM2PWM2
IR_SYNC
AUR0
AUVRADP
AUCOM
MUTE_S
AUSD0
AUSCK
SPDIF_OUT
AUWS
AUMCK
MDATA3
MDATA14
MDATA0
MDATA8
MDATA13
MDATA11
MDATA5
MDATA6
MDATA12
MDATA2
MDATA1
MDATA15
MDATA4
MDATA10
MDATA9
MDATA7
RASZ
MCLK
CASZ
WEZ
CKE
BA0
DQM
MADR9
MADR3
MADR2
MADR0
MADR7
MADR6
MADR1
MADR10
MADR5
MADR4
MADR8
MADR[0..11]
MDATA[0..15]
SPI_DO
SPI_CZ
SPI_CK
SPI_DI
SPI-/WP
RXO0-/RA7
RXE1-/GA1
RXE1+/GA0
RXE0-/GA3
RXE2-/BA7
RXE0+/GA2
RXE2+/BA6
RXOC+/RA0
RXO1+/RA4
RXO2-/RA3
RXO3-/GA7
RXO3+/GA6
RXO2+/RA2
RXEC-/BA5
RXOC-/RA1
RXEC+/BA4
RXO0+/RA6
RXO1-/RA5
RXE3-/BA3
RXE3+/BA2
AUOutL
AUR3
AUR2
AUL3
AUL2
AUR1
AUL1
SIFP0
SIFM0
SC2_MODE
AUVREF
PWM3
PWM1
BA1
MADR11
MCLKZ
MVREF
DQS0
DQS1
C116
1nF
C115
0.1uF
R158
4K7
R174
4K7
C122
1uF
R162 22R
R159 22R
C114 0.1uF
R160 22R
R172
10K/NC
R126
390R
C121
0.1uF
R170
10K
R177
NC
R173 100
R128
1M
R127
100R
C133
0.1uF
12
X100
14.318MHZ
R169
10K/NC
R168
10K
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC104
M24C32
C117
20pf
R161 22R
CE#
1
SO
2
WP#
3
VSS4SI
5
SCK
6
HOLD#
7
VDD
8
IC105
M25P40
R171
10K
C118
20pf
C123
4.7uF
C119
0.1uF
C120
10uF/25V
12
C134
0.1uF
R167
10K/NC
R176
10K
DVIRX0N
4
DVIRX0P
5
GND
3
DVIRX1N
7
DVIRX1P
8
AVDD_DVI
6
DVIRX2N
10
DVIRX2P
11
GND
9
DVI_CKN
1
DVI_CKP
2
AVDD_DVI
12
REXT
13
DDCD_SDA
14
DDCD_SCL
15
HSYNC1/FSSW1
16
VSYNC1/FBLK1
17
REFP
20
REFM
21
BIN1P
22
BIN1M
23
SOGIN1
24
GIN1P
25
GIN1M
26
RIN1P
27
RIN1M
28
BIN0M
29
BIN0P
30
GIN0M
31
GIN0P
32
SOGIN0
33
RIN0M
34
RIN0P
35
AVDD
36
GND
37
HSYNC0/FSSW0
38
VSYNC0/FBLK0
39
VSYNC2/FBLK2
40
BIN2P
41
BIN2M
42
SOGIN2/FSSW2
43
GIN2P
44
GIN2M
45
RIN2P
46
RIN2M
47
C1/CVBS7
48
Y1/CVBS5
49
C0/CVBS6
50
Y0/CVBS4
51
VCOM2
52
CVBS3
53
CVBS2
54
CVBS1
55
VCOM1
56
CVBS0
57
VCOM0
58
CVBSO
59
SIF0M
61
SIF0P
62
GND
60
AVDD_SIF
63
GND
66
AUVRADN
67
AUVRADP
68
AUVREF
69
AVDD_AU
70
AUL0
71
AUR0
72
AUCOM
75
AUMONO
80
AUOR3
82
FLSHWEZ/VDO0
88
FLSHOEZ/VDO1
89
FLSHA0/VDO2
90
FLSHA1/VDO3
91
FLSHA2/VDO4
92
FLSHA3/VDO5
93
FLSHA4/VDO6
94
FLSHA5/VDO7
95
FLSHA6/VDCLK
96
VDDP
252
GND
98
VDDC
242
DQS1
100
MD15
101
MD14
102
GND
103
MD13
104
MD12
105
MD11
107
MD10
108
MD9
109
MD8
110
GND
131
VDDM
132
MD7
113
MD6
114
MD5
115
MD4
116
VDDM
117
MD3
118
MD2
119
MD1
120
MD0
121
DQS0
122
DQM
123
MVREF
124
MCLKE
125
MCLKZ
126
MCLK
127
GND
111
VDDM
112
BADR1
128
BADR0
129
RASZ
130
AVDD_MPLL
256
CASZ
134
WEZ
135
MA0
136
MA1
137
MA2
138
MA3
139
MA4
140
MA5
141
MA6
142
MA7
143
VDDM
106
GND
224
VDDC
195
MA8
147
MA9
148
MA10
149
MA11
150
AD0/GPIOC0
151
AD1/GPIOC1
152
AD2/GPIOC2
153
AD3/GPIOC3
154
AD4/GPIOC4
155
AD5/GPIOC5
156
AD6/GPIOC6
157
AD7/GPIOC7
158
WRZ/GPIO C8
159
RDZ/GPIOC9
160
ALE/GPIOC1 0
161
VDDP
237
VDDP
196
SPI_DI/GPI OD15
165
SPI_DO/GPI OD17
167
SPI_CK/GPI OD14
164
SPI_CZ/GPI O16
166
SAR0/GPIOD 0
168
SAR1/GPIOD 1
169
SAR2/GPIOD 2
170
SAR3/GPIOD 3
171
PWM0/MCU CFG0/GPIOD4
172
PWM1/MCU CFG1/GPIOD5
173
DDCR_DA
174
DDCR_CK
175
DDCA_DA
176
DDCA_CK
177
INTGPIOD12
178
PAD_IRIN/G PIOD13
179
GND
145
VDDC
99
DIGO0/AUMC KO
183
DIGO1/AUWS
184
DIGO2/AUSC K
185
DIGO3/AUSD O
186
DIGO4/UART 1_RX
187
DIGO5/UART 1_TX
188
DIGO6
189
DIGO7
190
PWM2/MCU CFG2/GPIOD6
192
PWM3/MCU CFG3/GPIOD7
193
AVDD_MPLL
194
VDDP
180
NC/BA0
197
NC/BA1
198
LA3P/BA2
199
LA3M/BA3
200
LACKP/BA4
201
LACKM/BA5
202
LA2P/BA6
203
LA2M/BA7
204
LA1P/GA0
205
LA1M/GA1
206
LA0P/GA2
207
LA0M/GA3
208
VDDC
146
VDDP
223
GND
181
NC/GA4
211
NC/GA5
212
LB3P/GA6
213
LB3M/GA7
214
LBCKP/RA0
215
LBCKM/RA1
216
LB2P/RA2
217
LB2M/RA3
218
LB1P/RA4
219
LB1M/RA5
220
LB0P/RA6
221
LB0M/RA7
222
GND
163
ICLK/UARX0
229
IDE/UATX0
230
IHSYNC/UARX1
231
IVSYNC/UATX1
232
DI00/SPDIFO/GPIOA0
233
DI01/AUMCKO/GPIOA1
234
DI02/AUMUTE/GPIOA2
235
DI03/AUWS/GPIOA3
236
VDDP
97
DI04/AUSCK/GPIOA4
238
DI05/AUSD0/GPIOA5
239
DI06/GPIOA6
240
DIO7/GPIOA7
241
VDDC
182
GND
243
DI08/SPDIF_IN/GPIOA8
244
DI09/AIWS/GPIOA9
245
DI10/AISCK/GPIOA10
246
DI11/AISD/GPIOA11
247
DI12/AISD1/GPIOA12
248
DI13/AISD2/GPIOA13
249
DI14/AISD3/GPIOA14
250
DI15/GPIOA15
251
VDDP
209
HWRESET
253
XOUT
254
XIN
255
AUOL
85
AUOS
87
VCLP
19
RMID
18
AUOL3
81
VDDM
144
GND
210
AVDD_MemPLL
133
VDDP
162
SIF1P
64
SIF1M
65
AUR1
74
AUL1
73
AUR2
77
AUL2
76
AUR3
79
AUL3
78
AUOR
86
NC/AUOL2
83
NC/AUOR2
84
DIGO8
191
GPIOE[3]/LCK
225
GPIOE[2]/LDE
226
GPIOE[1]/LHSYNC
227
GPIOE[0]/LVSYNC
228
EXTP AD GND
266
R157
4K7
SDA_HD
TX2-
TXCLK+
TX0+
TX1-
TX2+
SCL_HD
TX0-
TX1+
TXCLK-
SOG
BIN+
RIN+
GIN-
HS_RGB
BIN-
RIN-
VS_RGB
GIN+
SCG-
SCB-
SC_CVBS1
SCB+
SCG+
SCR-
SCR+
SV_Y0
TUNER_CVBS
SV_C0
DVB_CVBS
VCOM2
CVBS1
VCOM1
SC1_FSW
SC1_MODE
Y-
Y+
PR+
PB-
SOY
PR-
PB+
VCOM0
TXD
PWM0
AUR0
AUL0
AUOutS
AUOutR
AUOutR2
AUMONO
AUOutL2
ON_PANEL
HPDCTRL
MUTE_S
ON_PBACK
RXD
MDATA[0..15]
MADR[0..11]
RXO0-/RA7
RXO0+/RA6
RXO1-/RA5
RXO1+/RA4
RXO2-/RA3
RXO2+/RA2
RXOC-/RA1
RXOC+/RA0
RXO3-/GA7
RXO3+/GA6
RXE0-/GA3
RXE0+/GA2
RXE1-/GA1
RXE1+/GA0
RXE2-/BA7
RXE2+/BA6
RXEC-/BA5
RXEC+/BA4
RXE3-/BA3
RXE3+/BA2
AUOutL
AUR1
AUL1
AUR2
AUL2
SIFP0
SIFM0
AUR3
AUL3
SC2_MODE
SC_Chroma
SC_CVBS2
AU_SWA
ST.BY
AVDD_DVI
GND
GND GND
+3.3V +3.3V
GND
+3.3V
AVDD_DVI
GND
GND
GND
GND
GND
+3.3V +3.3V
GND
GND
+3.3V
GND
+3.3V
AVDDA
AVDD_SIF
VDDM VDDP AVDD_MPLL VDDC
AVDD_MemPLL
+3.3V
HDMI INPU T
VGAI NP UT
VIDEOI NPUT
Memory INTERFACE
Y,Pb,PrI NPUT
Mode Selection
C101
0.1uF
GND
VDDP
Vcc
3
GND_1
1
RESET
2
IC101
MAX810S
GND
GPIOC0
GPIOC1
AU_SWA
ST.BY
ON_PANEL
ON_PBACK
HPDCTRL
GPIOC5
GPIOC5
SPDIF_OUT
AISCK
AIWS
AISD
PANELI NTERFACE
DELAY
R163 4K7*
R164 4K7*
GND
+3.3V
PWM0
R166
10K /NC
R165
10K
GND
+3.3V
SPDIF_IN
1
3
5786
4
2
R178 100R
AVDD_AU
I2C_SDA
I2C_SCL
I2C_SDA
I2C_SCL
SC_CVBS1
TXD
RXD
GND
AUOutR1
AUOutL1
#RESET
R109
47K
RESET
ITU656_0
ITU656_1
ITU656_2
ITU656_3
ITU656_4
ITU656_5
ITU656_6
ITU656_7
ITU_CLK
1
3
5
7 8
6
4
2
R121
47R
1
3
5
7 8
6
4
2
R147
68R
1
3
5
7 8
6
4
2
R148
68R
R146 68R
R145 22R
R131
47R
R130
47R
1
3
5
7 8
6
4
2
R132 47R
T100
BC847B
R110
10K
L106 22R
L107 22R
AUOutL1
AUOutR1
DELAY
24V SENSE
24V SENSE
RTC_INT
R175
4K7
SC_CVBS1
GND
R103
*
AUSD0
AUSCK
AUWS
AUMCK
+3.3V
DCR_ON
ABNORMAL
R198
470R
C150
0.1uF
C149
0.1uF
GND
CE#
1
SO
2
WP#
3
VSS4SI
5
SCK
6
HOLD#
7
VDD
8
IC704
M25P40
OPTIONAL
R252 470R
R199
4K7
+3.3V
DVB_COMMPORT
SCART INPUT
IC102
MST66889BLD
2
25
10
43
3
4
2
power on (trigger: +3.3V)
3
4
0
∞
power on (trigger: +3.3V)
Hauptplatte / Main Board – Scaler
2 - 34
Page 51
GRUNDIG Service Chassis LB (LX prime)
+3.3V
DCR_ON
DCRONL OW_OFFHIGH
I2C_SDA
I2C_SCL
<
XLB190R-8
MVREF
R187
1K
C144
0.1uF
R186
1K
R104 270
C143
1nF
+2.5V
GND
KeyPad
R108 100
R106 100
C100
100pF
C102
100pF
+3.3V
GND
IR_SYNC
GPIOC1
KEY_AD1
GPIOC0
R100
1K
LED_G
IR_SYNC
LED_R
KEY_AD1
R101
10k
R105 100
KEY_AD2/OPT
KEY_AD2/OPT
Key_AD1FullS cale-m ax1.8V(3.3Vt ol.)6bit!!!
C137
0.1uF
C139
0.1uF
C141
0.1uF
C142
0.1uF
C1
4
0
0.1uF
C136
0.1uF
C138
0.1uF
C135
0.1uF
DMC
GND
DMQ
GND
8x16X2-2.5V
8x16-2.5V
8x16-2.5V
HYNIXHY5DU281622ET-5-200MHz
EtronTechEM6A9160TS-5G-200MHz
MIRAP2S28D40DCTP-G5-200MHz
8x16X2-2.5V
NANYANT5DS8M16FS-5T-200MHz
DQS0
BA0
MVREF
DQS1
DATA11
DATA10
DATA9
DATA8
DATA15
DATA14
DATA13
DATA12
DATA2
DATA1
DATA0
DATA7
DATA6
2M X 16bit X4 BK DDR
DATA4
MADR11
MADR7
MADR1
MADR10
MADR5
MADR6
MADR3
MADR0
MADR4
MADR8
MADR2
MADR9
MADR[0..11]
GND
CASZ
GND
DMQ
DMC
WEZ
+2.5V
RASZ
MADR[0..11]
BA1
256M
MDATA[0..15]
R149 22
R180 100R
R181 100R
MDATA3
R151 22
MDATA15
R150 22
MDATA4
MDATA0
1 2
L108
600R Bead0603
A0
29
A1
30
A2
31
A3
32
A4
35
A5
36
A6
37
A7
38
A8
39
A9
40
A10/AP
28
A11
41
DQ0
2
DQ1
4
DQ2
5
DQ3
7
DQ4
8
DQ5
10
DQ6
11
DQ7
13
DQ8
54
DQ9
56
DQ10
57
DQ11
59
DQ12
60
DQ13
62
DQ14
63
DQ15
65
BA0
26
BA1
27
CS
24
RAS
23
CAS
22
WE
21
LDM
20
UDM
47
LDQS
16
UDQS
51
CKE
44
CLK
45
CLK
46
MVDD
1
MVDD
18
MVDD
33
VDDQ
3
VDDQ
9
VDDQ
15
VDDQ
55
VDDQ
61
VSS
34
VSS
48
VSS
66
VSSQ
6
VSSQ
12
VSSQ
58
VSSQ
64
VREF
49
VSSQ
52
NC
14
NC
17
NC
19
NC
25
NC
43
NC
53
NC
50
NC
42
IC103
DDR_128Mb_TSOP66
MDATA12
MDATA8
MDATA2
R182 100R
MDATA10
R179 100R
R183
22R/NC
MDATA6
1 2
L109
600R Bead0603
R185
150R
MDATA[0..15]
MDATA13
MDATA11
MDATA1
DQMS
DQM
MDATA5
MDATA14
MDATA9
DATA3
MDATA7
DATA5
GPIOC0
GPIOC1
1
3
5
7 8
6
4
2
R152
100R
1
3
5
7 8
6
4
2
R153 100R
1
3
5
7 8
6
4
2
R154
100R
1
3
5
7 8
6
4
2
R184
100R
R102
1k
R125
22
C126
100n
R118
100
C125
100n
R117 100
C124
100n
I2C_SDA
I2C_SCL
GND
+1.8V +1.8V
ITu656_0
ITU656_1
ITU656_2
ITU656_3
ITU656_4
ITU656_5
ITU656_6
ITU656_7
I2C_SCL
I2C_SDA
ITU_CLK
PIP_Y
PIP_CVBS
PIP_C
GND
+3.3V
1
3
5786
4
2
R119
47R
1
3
5786
4
2
R120
47R
C111
10n
L101
600R/100MHZ
GND
C110
10n
L100
600R/100MHZ
GND
C107
100n
C106
100n
GND
GND
C109
100n
GND
C108
100n
GND
C113
10n
C112
10n
GND
GND
L103
600R/100MHZ
L102
600R/100MHZ
C128
10n
C127
82n
R135
1,8k
GND GND
R129
1M
12
X101
28.63636M
C130
47p
C129
47p
GND GND
GND
#RESET
#INTRQ
38
HS
39
DGND
3
DVDDIO
1
SFL
2
DGND
15
DVDDIO
4
P7
5
P6
6
P5
7
P4
8
P3
9
P2
10
LLC
11
XTAL1
12
XTAL
13
DVDD
36
DGND
35
P1
16
P0
17
#PWRDOWN
18
ELPF
19
PVDD
20
AGND28TEST_0
22
AIN1
23
AIN2
29
AGND
21
VREFP
25
VREFN
26
AVDD
27
AGND
24
AIN3
30
#RESET
31
ALSB
32
SDATA
33
SCLK
34
DGND
40
DVDD
14
VS/FIELD
37
TAB/GND
41
IC100
* ADV7180
R137 10k
R136 10k
+5V_SW
GND
C103
100n
C104
100n
C105
100n
R111 75
R112 75
R113 75
R114
75
R115
75
R116
75
GND
MCLKZ
MCLK
CKE
1
3
5
7 8
6
4
2
R188
100R
1
3
5
7 8
6
4
2
R189
100R
1
3
5
7 8
6
4
2
R190
100R
R191 100R
R192 100R
C146
100pF
C145
100n
GND
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
S100
2mm
3
1
2
Q106
BC858B
Q107
*BC858B
R107 4.7K
R256
470
GND
R257 *4.7K
+3.3V
R253
0R
+5V
R255
0R
R254
*470
GND
GNDGND GND
5V OPTION
*T WO LEDO PTION
BLINK&STBY
LED
ON/OFF
R258
0R
R259*RR260
*R
C148
*
GND
1 2
L113
600R Bead0603
ADV_PVDD
ADV_PVDD
4
3
R104 270
Key Pad
R108 100
R106 100
C100
100pF
C102
100pF
+3.3V
GND
IR_SYNC
GPIOC1
KEY_AD1
GPIOC0
R100
1K
LED_G
IR_SYNC
LED_R
KEY_AD1
R101
10k
R105 100
KEY_AD2/OPT
KEY_AD2/OPT
Key_AD1 Full Scale - max 1.8V (3.3V tol.) 6bit!!!
GPIOC0
GPIOC1
R102
1k
C146
100pF
C145
100n
GND
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
S100
2mm
3
1
2
Q106
BC858B
3
1
2
Q107
*BC858B
R107 4.7K
R256
470
GND
R257 *4.7K
+3.3V
R253
0R
+5V
R255
0R
R254
*470
GND
GND
GND GND
5V OPTION
* TWO LED OPTION
>
XLB190R-8
BLINK&STBY
LED ON/OFF
R258
0R
1 2
L113
600R Bead 0603
R846
0R
1 2
L115
600R Bead 0603
R847
0R
+5V
R848
0R
SDA_Z-Touch
SCL_Z-Touch
LED_R
LED_G
R855 100R*
R858 100R*
I2C_SCL
I2C_SDA
KEY_IN_Z-Touch
IR_Z-Touch
SDA5V
SCL5V
R856 100R*
R857 100R*
R853 0R
R854 0R
ZERO_STBY
R851 0R
R852 0R
R860
10k
+3.3V
VDD_Z
IR_CYPRESS_IN
P07
1
P05
2
P04
14
P02
13
P00
12
P14
11
P12
10
SDA
9
P01
4
SMP
5
VSS
8
VDD
16
P03
3
VSS
6
SCL
7
P06
15
U900
CY8C21223
P1
1
P2
2
P3
3
P4
4
P5
5
S900
CON5
R909
1K
R900
47K
R902 100R
VDD_Z
GND
1 2
L900
10uH
D901
R904 1K
R903 0R
VDD_Z
Optomosfet
R906 1.5K
R905 1K
C903
10uF
C900
100nF
IR_CYPRESS_IN
R901 100R
VDD_Z
LED_G
GPIOC1
GND
GND
GND
SCL2
SDA2
KEY_AD2/OPT
1 3
2
D900
BAT54
Battery+
+5V
R907
1k
+3.3V
C904
100pF
GND
C901
100pF
GND
R908
1k
R910
1K
IR_SYNC
LED_R
ZERO_STBY
C902
100pF
GND
Vdd_Z-Touch
Zero Power
>
XLB190R-11
Zero Touch
>
XLB190R-11
GND
SCL2
SDA2
KEY_IN
IR_IN
Optomosfet
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
S802
TOUCH
To "0" power board
GND
P1
1
P2
2
S801
CON2
P1
1
P2
2
S800
CON2
GND
1
32
T800
PMV65XP
R850
100K
GND
+5V
1 3
2
D800
BAT54
To battery
boar
d
IR_Z-Touch
SDA_Z-Touch
SCL_Z-Touch
KEY_IN_Z-Touch
Vdd_Z-Touch
To
Z-Touch boar
d
R849
10K
Battery+
+5V
GND
C905
100n
Hauptplatte / Main Board – Scaler
2 - 35
Page 52
GRUNDIG Service Chassis LB (LX prime)
3
4
!
@
#
+12V
L105
3A
C131
1uF
GND
ST.BY
RX_DVB
TX_DVB
ITU656_0
ITU_CLK
AISCK
AIWS
AISD
DVB_CVBS
GND
IDTV\Combo Interface
#RESET
LVDS I/F
RXE0-/GA3
RXE0+/GA2
RXE1-/GA1
RXE1+/GA0
RXE2-/BA7
RXE2+/BA6
RXEC-/BA5
RXEC+/BA4
RXE3-/BA3
RXE3+/BA2
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
33
P32
34
S103
*
C132
1uF/25V
GND
GND
GND
RXO0-/RA7
RXO0+/RA6
RXO1-/RA5
RXO1+/RA4
RXO2-/RA3
RXO2+/RA2
RXOC-/RA1
RXOC+/RA0
RXO3-/GA7
RXO3+/GA6
R134 1K
R142 22
R144 47r
R139 22
+3.3V
R156
47R
R155
*
GND
TX_Scart2
RX_Scart2
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
S102
FFCCONNECTOR_50PIN
ITU656_1
ITU656_2
ITU656_3
ITU656_4
ITU656_5
ITU656_6
ITU656_7
SPDIF_IN
#RESET
RX_Scart2
TX_Scart2
+5V_SW
L104
3A
ForI DTV
1
3
5
7 8
6
4
2
R122
R141 22
R143 22
1
3
5
7 8
6
4
2
R123
47R
1
3
5
7 8
6
4
2
R124 47R
R140 22
VPANEL
1 2
L110
120R/100MHZ
+5V
L111
3A
ForC ombo
ST.BY
DVB_CVBS
ANTPOWER
L324
3A
C392
1uF
GND
TS_DATA0
TS_DATA1
TS_DATA2
TS_DATA3
TS_DATA4
TS_DATA5
TS_DATA6
TS_DATA7
SDA_COFDM
SCL_COFDM
RESET_COFDM
RX_DVB
TX_DVB
ITU656_0
ITU_CLK
AISCK
AIWS
AISD
DVB_CVBS
GND
IDTV Interface
TS_CLK
TS_START
TS_VALID
Reset_DVB
ANTPOWER
R398 22
R397 22
R399 22
C425
47nF
R400
*
GND
TX_Scart2
RX_Scart2
GND
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
GND
0
GND
0
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
31
P32
32
P33
33
P34
34
P35
35
P36
36
P37
37
P38
38
P39
39
P40
40
P41
41
P42
42
P43
43
P44
44
P45
45
S329
FFCCONNECTOR_45PIN
GND
ITU656_1
ITU656_2
ITU656_3
ITU656_4
ITU656_5
ITU656_6
ITU656_7
SPDIF_IN
R133 10K*
R138 0R
R193 0R*
+3.3V
GND
GND
T101
BC847B
R195
10K
DCR_ON
GND
R194
10K
+3.3V
1 2
R196
100R
1 2
R197
100R
BR_IN
BR_OUT
BR_IN
BR_OUT
DCRONL OW_OFFHIGH
L112
3A
+5V
+5V_SW
I2C_SDA
I2C_SCL
ST.BY
R265 47R
1
3
5
7 8
6
4
2
R264 47R
1
3
5
7 8
6
4
2
R263 47R
RTC_INT
DVB_COMMPORT
+3.3V
L114
3A
R833 0R/N C
I2C_SDA
I2C_SCL
R835 0R/N C
11
13
12
4
3
A
D
SYNC
A
D
A
D
A
D
Color-
decoder
Audioprocess
MST66889
TEXT-
Decoder
Scaler
LVDS Driver
RGB Driver
Microcontroller
Stereodecoder
ITU656
255
254
253
248
249
57
169
39
62
80
59
4849797881
82
2517677414655445150
1617242725
22
1415157
33
38353230737484
85
1,2
4,5
7,8
10,11
244
245
246
24754189
187
188
229
241
233
175
174
191
190
71
72
159
LVDS
HDMI-Controller
Video
Audio
Encrypt Engine
40 Keys
a´54 Bit
HDMI
VGA
Y, Pb, Pr
Y/C, CVBS
RGB
Microcontroller Port
84
83
183
184
185
186
Hauptplatte / Main Board – Scaler
2 - 36
Page 53
GRUNDIG Service Chassis LB (LX prime)
MADR[0..11]
RXE0-/GA3
RXE0+/GA2
RXE1-/GA1
RXE1+/GA0
RXE2-/BA7
RXE2+/BA6
RXEC-/BA5
RXEC+/BA4
RXE3-/BA3
RXE3+/BA2
VPANEL
RXO0-/RA7
RXO0+/RA6
RXO1-/RA5
RXO1+/RA4
RXO2-/RA3
RXO2+/RA2
RXOC-/RA1
RXOC+/RA0
RXO3-/GA7
RXO3+/GA6
Scaler P. 2-34
ON_PBACK
ON_PANEL
ST.BY
ST.BY
24VSENSE
24VSENSE
VPANEL
Power P. 2-25
GIN+
GIN-
BIN+
BIN-
VS_RGB
HS_RGB
SOG
RIN+
RIN-
TXD
RXD
AU_SWA
AUR0
AUL0
COMPR
SPDIF
VGA Socket P. 2-27
I2C_SCL
I2C_SDA
SIFP0
SIFM0
AUMONO
TUN_CVBS
VCOM0
ANTPOWER
TS_DATA[0..7]
TS_CLK
TS_VALID
TS_START
RESET_COFDM
SDA_COFDM
SCL_COFDM
Tuner / COFDM Demodulator P. 2-31
MUTE_S
LOUD_OUT_R
LOUD_OUT_L
HP_OUT_R
HP_OUT_L
ST.BY
AUOut_R1
AUOut_L1
+3.3V
Amplifier P. 2-33
MDATA[0..15]
ON_PBACK
ON_PANEL
PWM0
PWM0
BR_IN
BR_OUT
BR_IN
BR_OUT
GIN+
GINBIN+
BINVS_RGB
HS_RGB
SOG
RIN+
RIN-
AUR0
AUL0
COMPL
TXCLK-
TXCLK+
TX0-
TX0-+
TX1-
TX1+
TX2-
TX2+
HPDCTRL
I2C_SCL
I2C_SDA
HDMI_INT
HDMI Sockets P. 2-28
TXCLKTXCLK+
TX0TX0-+
TX1TX1+
TX2TX2+
HPDCTRL
#RESET
RESET
#RESET
SCL_HD
SDA_HD
SIFP0
SIFM0
PIP_Y
PIP_C
PIP_CVBS
DCR_ON
RTC_INT
RX_Scart 2
TX_Scart 2
TUNER_CVBS
DELAY
A/D
SCL5V
SDA5V
SC1_CVBS
SC1_OUT
TUN_CVBS
SC1_FSW
AUL1
AUR1
AUOutL3
AUOutR3
SCG+
SCR+
SCB+
SC_CVBS1
SCGSCBSCR-
AUOutL2
AUOutR2
SC1_Mode
VCOM1
SC2_CVBS
PIP_CVBS
SCART Sockets P. 2-30
AUWS
AUSD0
AUSCK
AUMCK
DVB_CVBS
SVHS_Y
SVHS_C
FAV_CVBS
I2C_SCL
SC2_OUT
AUL3
AUR3
AUOutL2
AUOutR2
SC1_FSW
SCG+
SCR+
SCB+
SC_CVBS1
SCGSCBSCR-
SC2_Mode
TXD
RXD
I2C_SCL
I2C_SDA
SC2_Mode
SC2_Chroma
SC_Chroma
SC_CVBS2
SC_CVBS1
DVB_CVBS
SC_Chroma
SC_CVBS2
PIP_Y
PIP_C
AUWS
AUSD0
AUSCK
AUMCK
SV_Y0
SV_C0
SPDIF_OUT
SVHS_Y
SVHS_C
VCOM2
FAV_L
FAV_R
FAV_CVBS
VCOM1
AUL2
AUR2
CVBS1
SOY
Y+
PB+
PR+
YPBPR-
AV Sockets P. 2-29
SPDIF_OUT
SV_Y0
SV_C0
VCOM2
VCOM1
AUL1
AUR1
AUL2
AUR2
CVBS1
SPDIF
MUTE_S
ST.BY
AUOut_R
AUOut_L
+3.3V
+5V_SW
+12V
+24V
KEY_IN_Z-Touch (KEY_IN)
IR_Z-Touch (IR_IN)
SDA_Z-Touch (SDA2)
SCL_Z-Touch (SCL2)
+5V
+3.3V
+2.5V
+1.8V
+1.2V
+5V_SW
+9V
+9V_A
+5V
+9V_A_SCART2
+9V_A_SCART1
+9V_A
+9V
+5V_SW
+5V
+5V
+3.3V
+1.8V
+12V
+12V_SW
+24V
+33V
AVDD_DVI (3.3V)
AVDDA (3.3V)
AVDD_SIF (3.3V)
AVDD_AU (3.3V)
AVDD_MemPLL (3.3V)
AVDD_MPLL (3.3V)
VDDP (3.3V)
VDDC (1.2V)
VDDM (2.5V)
+24V_PANEL
+3.3V
+DMQ (+2.5V)
+DMC (+2.5V)
+2.5V
+1.8V
+5V
+5V_SW
+12V
AVDD_DVI (3.3V)
AVDDA (3.3V)
AVDD_SIF (3.3V)
AVDD_AU (3.3V)
AVDD_MemPLL (3.3V)
AVDD_MPLL (3.3V)
VDDP (3.3V)
VDDC (1.2V)
VDDM (2.5V)
I2C_SDA
+3V3A_DIG_FE
+3.3V
+1V2D_DIG_FE
+1V2A_DIG_FE
+1.2V
+3V3D_DIG_FE
+5V
+5V-IF
+5V_OUT
+5V_SW
SCL_HD
SDA_HD
SOY
Y+
PB+
PR+
YPBPR-
VCOM0
TUNER_CVBS
TS_DATA[0..7]
TS_CLK
TS_VALID
TS_START
ANTPOWER
RESET_COFDM
SDA_COFDM
SCL_COFDM
ITU…
Hauptplatte – Übersicht / Main Board – Overview
2 - 37
Page 54
Netzteil-Platte / Power Supply Board XLA194
Ansicht von der Bestückungsseite / View of Component Side
2 - 38
T: Koordinaten für die Bauteile der Bestückungsseite
Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite
Coordinates of the Components on the solder side
POS. X Y POS. X Y POS. X Y
C2000 T 14 12
C2001 T 12 84
C2002 T 39 16
C2003 T 29 86
C2004 T 20 55
C2005 T 25 18
C2006 T 42 23
C2007 T 51 35
C2008 B 83 11
C2009 T 6 21
C2010 T 18 126
C2011 B 87 23
C2012 B 87 21
C2013 T 80 31
C2014 T 20 6
C2015 B 79 23
C2016 B 83 27
C2017 B 79 9
C2018 T 63 85
C2019 B 124 120
C2020 B 123 5
C2021 T 92 92
C2022 B 115 116
C2023 B 117 3
C2024 T 99 59
C2025 B 120 120
C2026 B 117 12
C2027 T 117 108
C2028 T 125 19
C2029 B 123 11
C2030 B 120 125
C2031 T 107 49
C2032 T 110 105
C2033 T 107 82
C2034 T 96 24
C2035 T 153 95
C2036 B 141 19
C2037 T 153 109
C2038 B 153 12
C2041 B 141 23
C2042 T 155 31
C2043 B 150 12
C2044 T 155 46
C2045 T 166 112
C2046 B 148 125
C2047 B 170 112
C2048 T 165 23
C2049 B 144 125
C2050 B 169 54
C2052 B 168 93
C2054 T 83 52
C2056 T 117 19
C2058 B 169 23
D2000 B 91 34
D2001 T 58 78
D2002 B 68 11
D2003 T 80 64
D2004 B 102 119
D2005 B 99 5
D2006 B 121 105
D2007 B 122 32
D2008 T 107 33
D2009 T 110 94
D2010 T 163 59
D2011 T 163 87
D2012 B 122 25
D2013 B 147 4
D2014 B 141 12
DB2000 T 35 27
FS2000 T 36 120
H2001 T 5 125
H2002 T 5 5
H2003 T 175 125
H2004 T 175 5
IC2000 B 85 16
IC2001 B 117 7
IC2002 B 115 121
IC2003 T 157 9
IC2004 T 153 124
J2001 T 16 28
J2002 T 82 94
J2003 T 85 82
J2004 T 88 82
J2005 T 122 19
J2006 T 75 35
J2007 T 159 15
J2008 T 38 27
J2009 T 120 7
L2000 T 56 57
L2001 T 20 71
L2002 T 20 39
L2003 T 160 100
L2004 T 163 36
L2005 T 29 97
PH2000 T 131 8
PH2001 T 132 124
R2002 B 83 9
R2003 B 87 9
R2004 B 87 6
R2005 B 57 7
R2006 B 83 23
R2007 B 73 22
R2008 T 21 2
R2009 B 66 9
R2010 B 70 9
R2011 B 62 7
R2012 T 50 18
R2012A T 50 15
R2013 B 83 25
R2014 B 87 25
R2015 T 86 33
R2016 T 86 45
R2017 B 109 3
R2018 T 110 25
R2019 T 100 123
R2020 B 109 5
R2021 B 124 108
R2022 B 122 35
R2023 B 100 11
R2024 T 113 115
R2025 B 102 123
R2026 B 97 120
R2027 B 96 9
R2028 T 102 86
R2029 T 102 45
R2030 B 123 9
R2031 B 121 38
R2032 T 98 108
R2033 T 93 35
R2034 B 123 123
R2035 T 124 121
R2036 B 140 9
R2037 B 140 7
R2039 B 141 16
R2040 B 146 9
R2041 B 145 21
R2042 B 146 12
R2043 B 141 21
R2044 B 153 106
R2045 B 140 119
R2046 B 153 6
R2047 B 150 9
R2048 B 140 122
R2049 B 153 9
R2050 B 155 38
R2051 B 144 122
R2052 B 139 62
R2053 B 140 125
R2054 B 148 66
R2055 B 172 112
R2056 B 167 23
R2057 B 148 68
R2058 B 148 119
R2059 B 148 122
R2060 B 151 119
R2061 B 144 119
R2062 B 96 34
R2063 B 62 9
R2064 B 96 11
R2065 B 97 118
R2066 B 164 96
R2067 B 164 94
R2068 B 164 91
R2069 B 164 49
R2070 B 164 51
R2071 B 164 54
R2072 B 122 25
R2073 B 18 88
R2074 B 18 91
R2075 B 38 124
R2076 B 38 121
R2078 B 109 7
R2079 B 111 116
R2080 T 30 105
S2000 T 0 102
S2001 T 176 107
S2002 T 177 14
S2003 T 15 111
S2004 T 172 12
S2005 T 15 108
T2000 T 63 19
T2001 T 99 111
T2002 T 99 19
T2003 B 146 16
T2004 B 142 66
T2005 B 104 9
T2006 B 108 119
U2000 T 128 89
U2001 T 130 40
VR2001 T 29 111
ZD2000 B 116 112
ZD2001 B 122 29
ZD2002 B 91 37
ZD2004 B 122 41
ZD2005 T 51 21
ZD2006 T 96 36
ZD2007 T 99 105
GRUNDIG Service Chassis LB (LX prime)
Page 55
Netzteil-Platte / Power Supply Board XLA194
Ansicht von der Lötseite / View of Solder Side
2 - 39
T: Koordinaten für die Bauteile der Bestückungsseite
Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite
Coordinates of the Components on the solder side
POS. X Y POS. X Y POS. X Y
C2000 T 14 12
C2001 T 12 84
C2002 T 39 16
C2003 T 29 86
C2004 T 20 55
C2005 T 25 18
C2006 T 42 23
C2007 T 51 35
C2008 B 83 11
C2009 T 6 21
C2010 T 18 126
C2011 B 87 23
C2012 B 87 21
C2013 T 80 31
C2014 T 20 6
C2015 B 79 23
C2016 B 83 27
C2017 B 79 9
C2018 T 63 85
C2019 B 124 120
C2020 B 123 5
C2021 T 92 92
C2022 B 115 116
C2023 B 117 3
C2024 T 99 59
C2025 B 120 120
C2026 B 117 12
C2027 T 117 108
C2028 T 125 19
C2029 B 123 11
C2030 B 120 125
C2031 T 107 49
C2032 T 110 105
C2033 T 107 82
C2034 T 96 24
C2035 T 153 95
C2036 B 141 19
C2037 T 153 109
C2038 B 153 12
C2041 B 141 23
C2042 T 155 31
C2043 B 150 12
C2044 T 155 46
C2045 T 166 112
C2046 B 148 125
C2047 B 170 112
C2048 T 165 23
C2049 B 144 125
C2050 B 169 54
C2052 B 168 93
C2054 T 83 52
C2056 T 117 19
C2058 B 169 23
D2000 B 91 34
D2001 T 58 78
D2002 B 68 11
D2003 T 80 64
D2004 B 102 119
D2005 B 99 5
D2006 B 121 105
D2007 B 122 32
D2008 T 107 33
D2009 T 110 94
D2010 T 163 59
D2011 T 163 87
D2012 B 122 25
D2013 B 147 4
D2014 B 141 12
DB2000 T 35 27
FS2000 T 36 120
H2001 T 5 125
H2002 T 5 5
H2003 T 175 125
H2004 T 175 5
IC2000 B 85 16
IC2001 B 117 7
IC2002 B 115 121
IC2003 T 157 9
IC2004 T 153 124
J2001 T 16 28
J2002 T 82 94
J2003 T 85 82
J2004 T 88 82
J2005 T 122 19
J2006 T 75 35
J2007 T 159 15
J2008 T 38 27
J2009 T 120 7
L2000 T 56 57
L2001 T 20 71
L2002 T 20 39
L2003 T 160 100
L2004 T 163 36
L2005 T 29 97
PH2000 T 131 8
PH2001 T 132 124
R2002 B 83 9
R2003 B 87 9
R2004 B 87 6
R2005 B 57 7
R2006 B 83 23
R2007 B 73 22
R2008 T 21 2
R2009 B 66 9
R2010 B 70 9
R2011 B 62 7
R2012 T 50 18
R2012A T 50 15
R2013 B 83 25
R2014 B 87 25
R2015 T 86 33
R2016 T 86 45
R2017 B 109 3
R2018 T 110 25
R2019 T 100 123
R2020 B 109 5
R2021 B 124 108
R2022 B 122 35
R2023 B 100 11
R2024 T 113 115
R2025 B 102 123
R2026 B 97 120
R2027 B 96 9
R2028 T 102 86
R2029 T 102 45
R2030 B 123 9
R2031 B 121 38
R2032 T 98 108
R2033 T 93 35
R2034 B 123 123
R2035 T 124 121
R2036 B 140 9
R2037 B 140 7
R2039 B 141 16
R2040 B 146 9
R2041 B 145 21
R2042 B 146 12
R2043 B 141 21
R2044 B 153 106
R2045 B 140 119
R2046 B 153 6
R2047 B 150 9
R2048 B 140 122
R2049 B 153 9
R2050 B 155 38
R2051 B 144 122
R2052 B 139 62
R2053 B 140 125
R2054 B 148 66
R2055 B 172 112
R2056 B 167 23
R2057 B 148 68
R2058 B 148 119
R2059 B 148 122
R2060 B 151 119
R2061 B 144 119
R2062 B 96 34
R2063 B 62 9
R2064 B 96 11
R2065 B 97 118
R2066 B 164 96
R2067 B 164 94
R2068 B 164 91
R2069 B 164 49
R2070 B 164 51
R2071 B 164 54
R2072 B 122 25
R2073 B 18 88
R2074 B 18 91
R2075 B 38 124
R2076 B 38 121
R2078 B 109 7
R2079 B 111 116
R2080 T 30 105
S2000 T 0 102
S2001 T 176 107
S2002 T 177 14
S2003 T 15 111
S2004 T 172 12
S2005 T 15 108
T2000 T 63 19
T2001 T 99 111
T2002 T 99 19
T2003 B 146 16
T2004 B 142 66
T2005 B 104 9
T2006 B 108 119
U2000 T 128 89
U2001 T 130 40
VR2001 T 29 111
ZD2000 B 116 112
ZD2001 B 122 29
ZD2002 B 91 37
ZD2004 B 122 41
ZD2005 T 51 21
ZD2006 T 96 36
ZD2007 T 99 105
GRUNDIG Service Chassis LB (LX prime)
Page 56
F
S
20
0
0
FUSE 3A15
C2003
470nF 305V
L2001
2x18mH
C2004
470nF 305V
2
1
3
4
PH2000
TCET1100
C2044
680uF 35V
L2004
4.7uH
C2048
680uF 35V
I
C2
0
03
TL431CLP
R2
0
46
22k
24V
R20
4
1
47k
R2043
22k
R
2049
2k7
VR2001
S14K385
C2043
47nF
C2038
56pF
C2009
220pF 250Vac
C200
0
220pF
250Vac
T2003
BC848
R2042
39k
C2041
10nF
C201
8
150u/450V
R2029
68k
C2031
10nF 1.5kV
D2008
UF208G
C2034
470pF 2kV
R2023
56R
R2022
100R
D2007
1N4148
C202
8
47uF 63V
C2
0
26
100nF
R2020
22k
R
2
0
3
0
330k
C2029
56pF
R201
8
33k
C2020
1nF
R2008
4M7
C2014
1nF 250Vac
C2023
NC
DMG
1
FB
2
CS
3
GND
4
DRV
5
VCC
6
N
C
7
HV
8
IC2001
NCP1207A
R2036
1k2
R2037
820R
C2024
100nF 275V
R2027
0R
D2005
1N4148
1
2
HS2004
T2002
SPA08N80C3
R
2050
47k
C2036
47nF
7
1
6
11
4
3
12
8
U2001
SMPS_LX (24V)
2
1
3
4
PH2001
TCET1100
L2003
4.7uH
C2045
1000uF 25V
IC2004
TL431CLP
R
20
5
9
10k
12V
R2060
2k7
C
2
04
9
4
7nF
C2046
56pF
R
2053
3
9
k
R2
0
28
68k
C2033
10nF 1.5kV
D2009
UF4007
C2032
470pF 2kV
R2025
56R
C2027
47uF 63V
R20
3
5
33k
R
20
3
4
NC
C2030
56pF
R
2019
33k
C2019
1nF
C2
0
22
100nF
D
M
G
1
FB2CS
3
GND
4
DRV
5
VCC
6
N
C
7
HV
8
IC2002
NCP1207A
R2048
1k2
R
2045
820R
D2006
1N4148
R2026
0R
D2004
1N4148
1
2
HS2002
T2001
SPA04N80C3
R
2044
47k
R2021
27R
7
1
6
11
4
3
12
8
U2000
SMPS_LX (12V)
2
1
3
D2010
MBRP3010N
2
1
3
D2011
MBRP3010N
C2042
680uF 35V
C2
0
35
1000uF 25V
C
20
3
7
1000uF 25V
1
2
HS2003
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
S2002
2.5mm
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
S2001
2.5mm
1-Enable
C2047
100nF
SGND
R20
4
7
1k2
6
7
9
10
200uH
L2000
PFC COIL
L2002
2x18mH
C2005
470nF 305V
R
2054
47k
T2004
BC848
R2057
22k %1
R
2
05
2
10k
R
2039
0R
ZD2000
18V
ZD2002
18V
R2
05
5
47k
R2
0
56
4
7k
1
2
3
4
S2000
MAINS
R2058
470R
1
2
HS2000
1
2
HS2001
R2017
ONSemi önerisi baklacak!!!
~~
-
+
DB2000
KBU6J
R2040
NC
R
20
5
1
NC
C200
7
1uF 400V
R
2012
0R33
C2
0
01
2.2nF
2kV
C2010
2.2nF 2kV
T2000
2SK3568
D2003
MUR460
D2001
1N5406
VO_S
1
COMP
2
MULT3CS
4
ZCD
5
G
N
D
6
DRV
7
VCC
8
IC2000
NCP1606
R2005
22k
R2004
22k
R
2
003
N
C
R
2
0
0
2
NC
R2011
0R
R2009
56R
R2010
0R
D2002
1N4148
R
2
0
16
820k
R2
0
15
820k
R
2
0
14
5k11
R2
01
3
5k36
C2017
NC
C2021
100nF 275V
R2007
68k
R2
0
06
11k
C2
0
11
1uF
C2
01
2
100nF
C2016
10nF
C2
0
08
680pF
C2015
100nF
C2
0
13
47uF
63V
VCC_IC
EE
R
2032
0.47R 1/2W
R2024
680R
C2025
NC
E
R20
33
0R33 1W
R
2
0
3
1
33k
12V
D2000
1N4148
R2061
820R
SGND
SGND SGND SGND SGND SGND
SGND
SGND SGND SGND SGND SGND SGND
SGND
SGND SGND SGND SGND
SGND
SGND
SGND
SGND
SGND
R20
6
3
10k
R2064
10k
R
2
0
65
10k
R2068
100R
R2067
100R
R2066
100R
R2071
100R
R2070
100R
R2069
100R
C2050
1nF
C2052
1nF
24V
L2005
2*4MH 4.5A
C2002
220pF 250Vac
C2006
220pF 250Vac
C2054
220pF 250Vac
R2062
100R
D2012
1N4148
ZD2001
18V
C
2
05
6
47uF 63V
T2005
MMBT2222ALT1
R2078
10R
T2006
MMBT2222ALT1
D2013
1N4148
R2079
10R
C
20
5
8
100nF
SGND
R2080
68k
D2014
1N4148
12V
1
2
S2003
AC IN
ZD2004
18V
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
S2004
2.5mm
SGND
24V
DIM
BL CTRL
DIM
BL CTRL
E1E1
E1
R2074
0R
R2073
0R
R2075
0R
R2076
0R
R2072
0R
R20
12
A
0R33
ZD
20
0
5
18V
ZD2006
18V
Z
D
2
007
1
8
V
NP2
NP1
Aux.
24V( 1
)
24V
(
2)
Sh
ield
NP2
NP1
Aux.
1
2V
(
1)
12
V
(
2)
S
hiel d
1
2
3
4
5
Netzteil-Platte / Power Supply Board XLA194
4
5
NCP1207A, NCP1207B
+
-
V
CC
HV
8
1
5
2
3
6
4
GND
Drv
Demag
-
+
Fault
Mngt.
+-
7.0
mA
To Internal
Supply
+
12 V, 10 V,
5.3 V (fault)
PON
4.5 s
Delay
+
+
5.0 V
OVP
/1.44
8.0 s
Blanking
-
+
5.0 s
Timeout
Demag
Demag
Overload?
Timeout
Reset
S
R
S*
Q
R*
Q
380 ns
L.E.B.
/3
1.0 V
10 V
50 mV
CS
FB
200 A
when Drv
is OFF
Driver: src = 20
sink = 10
*S and R are level triggered whereas S is edge triggered. Rhas priority over the other inputs.
V
CC
R
esd
R
int
4.2 V
Soft-Start = 1 ms
-
+
+
VUVLO
1
2
3
GRUNDIG Service Chassis LB (LX prime)
2 - 40
Page 57
GRUNDIG Service Chassis LB (LX prime)
GND
GND
GND
OUT
GND
Vs
GND
P+S2P-S3MNS4V+S5V-
S6
R1
180RR2330RR3470RR41K
R7
150R
R6 150R
1
2
3
4
5
6
7
8
CN1
CON8_Y8
C1
10uF/16V
TV/AV
S7
STAND BY
S1
R5
3K9
OUT
OUT
GND
GND
VS
VS
IR1
TSOP38238T
D2
LED/WHITE
R8
270R
R9
470R
GND
R11
0R
R10
0R
GND
GND
GND
OUT
GND
Vs
GND
P+S2P-
S3
MNS4V+S5V-
S6
R1
180R
R2
330RR3470RR41K
R7
150R
R6 150R
1
2
3
4
5
6
7
8
CN1
CON8_Y8
C1
10uF/16V
TV/AV
S7
STAND BY
S1
R5
3K9
OUT
OUT
GND
GND
VS
VS
IR1
TSOP38238T
D1
LED/WHITE
R8
270R
R9
470R
GND
R11
0R
R10
0R
Keyboard XGA191
Ansicht von der Bestückungsseite / View of Component Side
Ansicht von der Lötseite / View of Solder Side
Keyboard XGE191 / XGJ191
Ansicht von der Bestückungsseite / View of Component Side
Ansicht von der Lötseite / View of Solder Side
2 - 41
Page 58
GRUNDIG Service Chassis LB (LX prime)
1
4
2
3
3 Channel RCA
S1201A
A
1
B
2
C
3
J1201
PHONEJACK3-PC
C1203
1N
BK1608HM601 / 0603
FB1204
R1202
47K
C1202
10U25V
C1200
1N
BK1608HM601 / 0603
FB1203
R1201
47K
C1201
10U25V
BK1608HM601 / 0603
FB1202
R1200
75R
63V
C1204
47N
63V
C1205
47N
CVBS_IN
AUDIO_L
AUDIO_R
HP_L
HP_R
HP_R
A_GND
A_GND
A_GND
A_GND
V_GND
A_GND
H_GND
H_GND
H_GND
H_GND
R1204
330R
R1203
330R
HP_L
1
2
3
S1202
MOLCON3
AUDIO_L
AUDIO_R
CVBS_IN
SVHS_C
SVHS_Y
A_GND
V_GND
1
2
3
4
5
6
7
8
9
10
S1200
MOLCON10
A_GND
V_GND
V_GND
2
3 4
1
J1200
CONN-DIN4
BK1608HM601 / 0603
FB1201
BK1608HM601 / 0603
FB1200 SVHS_CSVHS_Y
V_GND
V_GND
BOTTOM VIEW
Buchsen-Platte / Socket Board XGA193
Ansicht von der Bestückungsseite / View of Component Side
Ansicht von der Lötseite / View of Solder Side
2 - 42
Page 59
ǵ
GRUNDIG Service Chassis LB (LX prime)
ǵ
3 - 1
Ersatzteilliste
Spare Parts List
5 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
GBH0632 VISION 4 32-4820 VISION 4 32-4820
0001.000 759551424100 GEH.-VORDERTEIL SILBER FRONT CABINET SILVER
0002.000 759551423900 RUECKWAND SCHWARZ BACK COVER BLACK
0010.000
S 759551379900 LCD-DISPLAY AU T315XW02 VC01 LCD-DISPLAY AU T315XW02 VC01
S 759551361300 LCD-DISPLAY LTA320WT-LO5 UTR* LCD-DISPLAY LTA320WT-LO5 UTR*
0010.000
0010.000
S 759551407600 LCD-DISPLAY HIT AX080E002B-D** LCD-DISPLAY HIT AX080E002B-D**
0010.000
S 759551420900 LCD-DISPLAY SH LK315T3LZ94*** LCD-DISPLAY SH LK315T3LZ94***
0015.000
S 759551350200 NETZKABEL 150 CM POWER CABLE 150 CM
0018.000 759551424900 KNOB PROG./VOL./STD-BY SILBER KNOB PROG./VOL./STD-BY SILVER
0019.000 759551424800 FUSS SCHWARZ FOOT BLACK
0021.000 759551373200 KABEL DISPLAY-LVDS CABLE DISPLAY-LVDS
0021.000 759551386600 KABEL DISPLAY-LVDS** CABLE DISPLAY-LVDS**
0021.000 759551386900 KABEL DISPLAY-LVDS*** CABLE DISPLAY-LVDS***
0025.000
S 275991033800 X LP-CHASSISMODUL LB CHASSISBOARD LB
S 275991033900 X LP-CHASSISMODUL LB* CHASSISBOARD LB*
0025.000
0025.000
S 275991034100 X LP-CHASSISMODUL LB** CHASSISBOARD LB**
0025.000
S 275991034200 X LP-CHASSISMODUL LB*** CHASSISBOARD LB***
0027.000 720117139100 FERNBEDIENUNG TP 170C SCHWARZ REMOTE CONTROL TP 170C BLACK
0030.000 275990226400 LP-IR/LED MODUL 37LBLU2 IR/LED BOARD 37LBLU2
0050.000 275990223100 LP-AV/KOPFHOERERMODUL AV/HEADPHONEBOARD
S 275990304300 LP-NETZTEILM. SPI 24/6 12/5 FS POWER SUPPLY B SPI 24/6 12/5 FS
0070.000
0090.000 759551424200 POLSTER OBEN LINKS CUSHION TOP LEFT
0091.000 759551424300 POLSTER OBEN RECHTS CUSHION TOP RIGHT
0092.000 759551424400 POLSTER BODEN LINKS CUSHION BOTTOM LEFT
0093.000 759551424500 POLSTER BODEN RECHTS CUSHION BOTTOM RIGHT
0094.000 759551424600 KARTON CARTON
720100534000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
VISION 4 32-4820
BESTELL-NR. / ORDER NO.: GBH0632 (FNJ)
d©
PRODUKTCODE FNJ PRODUCT CODE FNJ
KEIN E-TEIL NO SPARE PART
Hinweis:
Sollte in dieser Ersatzteilliste Ihr "Product
Code" oder Ihre Display-Variante nicht
aufgeführt sein, finden Sie eine aktualisierte Version auf dem GRUNDIG Service-Portal "http://service.grundig.de".
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.DE MENU: DOWNLOADS
Note:
If your "Product Code" or display variant is
not mentioned in the spare parts list, please
look for a current version at the GRUNDIG
service portal "http://service.grundig.de".
TV
Ersatzteilliste
Spare Parts List
5 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
GBH0637 VISION 4 37-4820 VISION 4 37-4820
0001.000 759551425300 GEH.-VORDERTEIL SILBER FRONT CABINET SILVER
0002.000 759551425000 RUECKWAND SILBER BACK COVER SILVER
0007.000 759551399000 LAUTSPRECHER 10/15W 16 OHM 40MM LOUDSPEAKER 10/15W 16 OHM 40MM
S 759551401600 LCD-DISPLAY AU T370XW02 V5 LCD-DISPLAY AU T370XW02 V5
0010.000
0010.000
S 759551425500 LCD-DISPLAY LG LC370WXN SAB1* LCD-DISPLAY LG LC370WXN SAB1*
0018.000 759551424900 KNOPF PROG./VOL./STD-BY SILBER KNOB PROG./VOL.STD-BY SILVER
0019.000 759551425400 FUSS SCHWARZ FOOT BLACK
0021.000 759551398900 KABEL DISPLAY-LVDS CABLE DISPLAY-LVDS
S 275991034300 X LP-CHASSISMODUL LB LP-CHASSISBOARD LB
0025.000
0025.000
S 275991034400 X LP-CHASSISMODUL LB* LP-CHASSISBOARD LB*
0027.000 720117139100 FERNBEDIENUNG TP 170C SCHWARZ REMOTE CONTROL TP 170C BLACK
0030.000 275990226400 LP-IR/LED MODUL 37LBLU2 IR/LED BOARD 37LBLU2
0050.000 275990223100 LP-AV/KOPFHOERERMODUL AV/HEADPHONEBOARD
S 275990304000 LP-NETZTEILM. SPI 24 24/11 12/4 POWER SUPPLY SPI 24 24/11 12/4
0070.000
0090.000 759551399200 POLSTER OBEN LINKS/RECHTS CUSHION TOP LEFT/RIGHT
0091.000 759551399300 POLSTER BODEN LINKS/RECHTS CUSHION BOTTOM LEFT/RIGHT
0092.000 759551425100 POLSTER BODEN MITTE CUSHION BOTTOM CENTER
0093.000 759551425200 KARTON CARTON
720100534000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
VISION 4 37-4820
BESTELL-NR. / ORDER NO.: GBH0637 (FNT)
d©
PRODUKTCODE FNT PRODUCT CODE FNT
KEIN E-TEIL NO SPARE PART
Hinweis:
Sollte in dieser Ersatzteilliste Ihr "Product
Code" oder Ihre Display-Variante nicht
aufgeführt sein, finden Sie eine aktualisierte Version auf dem GRUNDIG Service-Portal "http://service.grundig.de".
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.DE MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
Note:
If your "Product Code" or display variant is
not mentioned in the spare parts list, please
look for a current version at the GRUNDIG
service portal "http://service.grundig.de".
TV
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 60
ǵ
GRUNDIG Service Chassis LB (LX prime)
ǵ
3 - 2
Ersatzteilliste
Spare Parts List
6 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
GBH0642 VISION 4 42-4820 VISION 4 42-4820
0001.000 759551427500 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK
0002.000 759551427600 RUECKWAND SCHWARZ BACK COVER BLACK
0007.000 759551399000 LAUTSPRECHER 10/15W 16 OHM 40M LOUDSPEAKER 10/15W 16 OHM 40MM
0008.000 759550975700 HOCHTONLAUTSPRECHER 10OHM/10W TWEETER 10 OHM/10 W
S 759551427400 LCD-DISPLAY T420XW01 V502 LCD-DISPLAY T420XW01 V502
0010.000
0016.000 759551424900 KNOPF PROG./VOL./STD-BY SILBER KNOB PROG./VOL.STD-BY SILVER
0019.000 759551427700 FUSS SCHWARZ FOOT BLACK
0021.000 759551398900 KABEL DISPLAY-LVDS CABLE DISPLAY-LVDS
S 275991035800 X LP-CHASSISMODUL LB CHASSISBOARD LB
0025.000
0027.000 720117139100 FERNBEDIENUNG TP 170C SCHWARZ REMOTE CONTROL TP 170C BLACK
0030.000 275990226400 LP-IR/LED MODUL 37LBLU2 IR/LED BOARD 37LBLU2
0050.000 275990223100 LP-AV/KOPFHOERERMODUL AV/HEADPHONEBOARD
0070.000
S 275990304000 LP-NETZTEILM. SPI 24 24/11 12/ POWER SUPPLY SPI 24 24/11 12/4
0090.000 759551398200 POLSTER OBEN LINKS/RECHTS CUSHION TOP LEFT/RIGHT
0091.000 759551398300 POLSTER BODEN LINKS/RECHTS CUSHION BOTTOM LEFT/RIGHT
0092.000 759551403600 POLSTER BODEN MITTE CUSHION BOTTOM CENTER
0093.000 759551427800 KARTON CARTON
720100534000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
VISION 4 42-4820
BESTELL-NR. / ORDER NO.: GBH0642 (FNV)
d©
PRODUKTCODE FNV PRODUCT CODE FNV
KEIN E-TEIL NO SPARE PART
Hinweis:
Sollte in dieser Ersatzteilliste Ihr "Product
Code" oder Ihre Display-Variante nicht
aufgeführt sein, finden Sie eine aktualisierte Version auf dem GRUNDIG Service-Portal "http://service.grundig.de".
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.DE MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
Note:
If your "Product Code" or display variant is
not mentioned in the spare parts list, please
look for a current version at the GRUNDIG
service portal "http://service.grundig.de".
TV
Ersatzteilliste
Spare Parts List
5 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
GBG8300 VISION 6 32-6821 VISION 6 32-6821
0001.000 759551379700 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK
0002.000 759551423300 RUECKWAND SCHWARZ BACK COVER BLACK
0007.000 759551401200 LAUTSPRECHER 10/15W 8 OHM 150X LOUDSPEAKER 10/15W 8 OHM 150X4
S 759551407600 LCD DISPLAY AX080E002B LCD DISPLAY AX080E002B
0010.000
0010.000
S 759551361300 LCD DISPLAY LTA320WT-L05 UTR* LCD DISPLAY LTA320WT-L05 UTR*
0015.000
S 759551350200 NETZKABEL 150 CM POWER CABLE 150 CM
0018.000 759551423400 KNOPF PROG./VOL./STD-BY KNOB PROG./VOL./STD-BY
0019.000 759551401800 FUSS SCHWARZ FOOT BLACK
0021.000 759551386600 KABEL DISPLAY-LVDS CABLE DISPLAY-LVDS
0021.000 759551373200 KABEL DISPLAY-LVDS* CABLE DISPLAY-LVDS*
0025.000 S 275991033700 X LP-CHASSISMODUL LB CHASSISBOARD LB
0025.000
S 275991032700 X LP-CHASSISMODUL LB* CHASSISBOARD LB*
0030.000 275990225300 LP-IR/LED MODUL 37LBLV2 IR/LED BOARD 37LBLV2
0050.000 275990223100 LP-AV/KOPFHOERERMODUL AV/HEADPHONEBOARD
S 275990304300 LP-NETZTEILMODUL SPI FSP204-2F02 POWER SUPPLY BOARD SPI FSP204-2F02
0070.000
0090.000 759551423100 POLSTER OBEN LINKS/RECHTS CUSHION TOP LEFT/RIGHT
0091.000 759551423200 POLSTER BODEN LINKS/RECHTS CUSHION BOTTOM LEFT/RIGHT
0092.000 759551423500 KARTON CARTON
720100534000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
VISION 6 32-6821
BESTELL-NR. / ORDER NO.: GBG8300 (FEB)
d©
PRODUKTCODE FEB PRODUCT CODE FEB
KEIN E-TEIL NO SPARE PART
Hinweis:
Sollte in dieser Ersatzteilliste Ihr "Product
Code" oder Ihre Display-Variante nicht
aufgeführt sein, finden Sie eine aktualisierte Version auf dem GRUNDIG Service-Portal "http://service.grundig.de".
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.DE MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
Note:
If your "Product Code" or display variant is
not mentioned in the spare parts list, please
look for a current version at the GRUNDIG
service portal "http://service.grundig.de".
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 61
ǵ
GRUNDIG Service Chassis LB (LX prime)
ǵ
3 - 3
Ersatzteilliste
Spare Parts List
1 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
GBG6400 VISION 6 37-6820 (GLOSSY BLACK) VISION 6 37-6820 (GLOSSY BLACK)
0001.000 759551403100 GEH.-VORDERTEIL SCHWARZ/SILBER FRONT CABINET BLACK/SILVER
0007.000 759551399000 LAUTSPRECHER 10/15W 16 OHM 40M LOUDSPEAKER 10/15W 16 OHM 40MM
0008.000 759550975700 HOCHTONLAUTSPRECHER 10OHM/10W TWEETER 10 OHM / 10 W
S 759551357600 LCD-DISPLAY AUO T370XW01 V1 LCD-DISPLAY AUO T370XW01 V1
0010.000
0010.000
S 759551403500 LCD-DISPLAY LC370WX4-SLA1* LCD-DISPLAY LC370WX4-SLA1*
0010.000
S 759551401600 LCD-DISPLAY AUO T370XW02 V5** LCD-DISPLAY AUO T370XW02 V5**
0013.000
S 759551403300 NETZSTECKER POWER PLUG
0018.000 759551398000 KNOPF PROG./VOL./STD-BY SCHWAR KNOB PROG./VOL.STD-BY BLACK
0021.000 759551398900 KABEL DISPLAY-LVDS CABLE DISPLAY-LVDS
0022.000 759551401700 FUSS SCHWARZ FOOT BLACK
S 275991029900 X LP-CHASSISMODUL LB CHASSISBOARD LB
0025.000
0025.000
S 275991030100 X LP-CHASSISMODUL LB* CHASSISBOARD LB*
0025.000
S 275991030200 X LP-CHASSISMODUL LB** CHASSISBOARD LB**
0027.000 720117139100 FERNBEDIENUNG TP 170C SCHWARZ REMOTE CONTROL TP 170C BLACK
0028.000 720117142700 FERNBEDIENUNG TP2 SILBER REMOTE CONTROL SILVER
S 275990223100 LP-AV/KOPFHOERERMODUL AV/HEADPHONEBOARD
0050.000
0070.000
S 275990304000 LP-NETZTEILM. SPI 24 24/11 12/4 POWER SUPPLY SPI 24 24/11 12/4
0090.000 759551402700 POLSTER BODEN MITTE CUSHION BOTTOM CENTER
0091.000 759551402800 RUECKWAND SCHWARZ BACK COVER BLACK
0092.000 759551402900 POLSTER OBEN LINKS/RECHTS CUSHION TOP LEFT/RIGHT
0093.000 759551403000 POLSTER BODEN LINKS/RECHTS CUSHION BOTTOM LEFT/RIGHT
0094.000 759551403200 KARTON CARTON
720100532000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
VISION 6 37-6820
BESTELL-NR. / ORDER NO.: GBG6400 (T5Y)
d©
PRODUKTCODE T5Y PRODUCT CODE T5Y
KEIN E-TEIL NO SPARE PART
Hinweis:
Sollte in dieser Ersatzteilliste Ihr "Product
Code" oder Ihre Display-Variante nicht
aufgeführt sein, finden Sie eine aktualisierte Version auf dem GRUNDIG Service-Portal "http://service.grundig.de".
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.DE MENU: DOWNLOADS
Note:
If your "Product Code" or display variant is
not mentioned in the spare parts list, please
look for a current version at the GRUNDIG
service portal "http://service.grundig.de".
TV
Ersatzteilliste
Spare Parts List
1 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
GBG6300 VISION 6 42-6820 (GLOSSY BLACK) VISION 6 42-6820 (GLOSSY BLACK)
0001.000 759551398400 GEH.-VORDERTEIL SCHWARZ/SILBER FRONT CABINET BLACK/SILVER
0002.000 759551398100 RUECKWAND SCHWARZ BACK COVER BLACK
0007.000 759551399000 LAUTSPRECHER 10/15W 16 OHM 40M LOUDSPEAKER 10/15W 16 OHM 40MM
0008.000 759550975700 HOCHTONLAUTSPRECHER 10OHM/10W TWEETER 10 OHM/10 W
S 759551398600 LCD AUO T420XW01 V5 LCD AUO T420XW01 V5
0010.000
0016.000 759551398000 KNOPF PROG./VOL./STD-BY SCHWARZ KNOB PROG./VOL.STD-BY BLACK
0019.000 759551398700 FUSS SCHWARZ FOOT BLACK
0021.000 759551398900 KABEL DISPLAY-LVDS CABLE DISPLAY-LVDS
S 275991030300 X LP-CHASSISMODUL LB CHASSISBOARD LB
0025.000
0027.000 720117139100 FERNBEDIENUNG TP 170C SCHWARZ REMOTE CONTROL TP 170C BLACK
0028.000 720117142700 FERNBEDIENUNG TP2 SILBER REMOTE CONTROL SILVER
0030.000 275990225300 LP-IR/LED MODUL 37LBLV2 IR/LED BOARD 37LBLV2
0050.000 275990223100 LP-AV/KOPFHOERERMODUL AV/HEADPHONEBOARD
0070.000 S 275990304000 LP-NETZTEILM. SPI 24 24/11 12/4 POWER SUPPLY SPI 24 24/11 12/4
0090.000 759551403600 POLSTER BODEN MITTE CUSHION BOTTOM CENTER
0091.000 759551398200 POLSTER OBEN LINKS/RECHTS CUSHION TOP LEFT/RIGHT
0092.000 759551398300 POLSTER BODEN LINKS/RECHTS CUSHION BOTTOM LEFT/RIGHT
0093.000 759551403700 KARTON CARTON
720100532000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
VISION 6 42-6820
BESTELL-NR. / ORDER NO.: GBG6300 (T2K)
d©
PRODUKTCODE T2K PRODUCT CODE T2K
KEIN E-TEIL NO SPARE PART
Hinweis:
Sollte in dieser Ersatzteilliste Ihr "Product
Code" oder Ihre Display-Variante nicht
aufgeführt sein, finden Sie eine aktualisierte Version auf dem GRUNDIG Service-Portal "http://service.grundig.de".
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.DE MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
Note:
If your "Product Code" or display variant is
not mentioned in the spare parts list, please
look for a current version at the GRUNDIG
service portal "http://service.grundig.de".
TV
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 62
ǵ
GRUNDIG Service Chassis LB (LX prime)
ǵ
3 - 4
Ersatzteilliste
Spare Parts List
8 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991029900 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 720086723900 SW/IC SLB1024G_00_V1.12
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
R 520 759551154900 WIDERST.15KOHM 1/16W 0603
R 521 759551154900 WIDERST.15KOHM 1/16W 0603
R 605 759550987600 WIDERST. 4.7 K 1/16W
R 606 759550987600 WIDERST. 4.7 K 1/16W
R 621 759551022100 WIDERST. 12 KOHM 1/16 W
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
SAW 600 759550921100 FILTER OFW K9656M
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991029900
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
SAW 601 759550458000 FILTER OFW K3958M
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Ersatzteilliste
Spare Parts List
8 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991030100 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 see http://service.grundig.de
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOT
IC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
R 520 759551154900 WIDERST.15KOHM 1/16W 0603
R 521 759551154900 WIDERST.15KOHM 1/16W 0603
R 605 759550987600 WIDERST. 4.7 K 1/16W
R 606 759550987600 WIDERST. 4.7 K 1/16W
R 621 759551022100 WIDERST. 12 KOHM 1/16 W
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991030100
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V(D
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 63
ǵ
GRUNDIG Service Chassis LB (LX prime)
ǵ
3 - 5
Ersatzteilliste
Spare Parts List
8 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991030200 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 see http://service.grundig.de
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
R 520 759551154900 WIDERST.15KOHM 1/16W 0603
R 521 759551154900 WIDERST.15KOHM 1/16W 0603
R 605 759550987600 WIDERST. 4.7 K 1/16W
R 606 759550987600 WIDERST. 4.7 K 1/16W
R 621 759551022100 WIDERST. 12 KOHM 1/16 W
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991030200
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V(D
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Ersatzteilliste
Spare Parts List
2 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991030300 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 see http://service.grundig.de
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 502 759551114300 IC TDA 1308T/N2 SO-G8 (T&R)
IC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V(D
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991030300
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 402 830100685700 SMD-TRANS.BC 857 C
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 759551098700 TRANS BC848BLT1G
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 64
ǵ
GRUNDIG Service Chassis LB (LX prime)
ǵ
3 - 6
Ersatzteilliste
Spare Parts List
8 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991032700 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 720086725200 SW/IC SLB1024G_03_T00_V1.14
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
S 201 759551220800 STECKER 10P 2MM 89400-1010
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISBOARD LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991032700
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Ersatzteilliste
Spare Parts List
8 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991033700 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 720086725300 SW/IC SLB.1024G_02_T01_V1.1
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 502 759551114300 IC TDA 1308T/N2 SO-G8 (T&R)
IC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
S 201 759551220800 STECKER 10P 2MM 89400-1010
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISBOARD LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991033700
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 65
ǵ
GRUNDIG Service Chassis LB (LX prime)
ǵ
3 - 7
Ersatzteilliste
Spare Parts List
5 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991033800 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 see http://service.grundig.de
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 502 759551114300 IC TDA 1308T/N2 SO-G8 (T&R)
IC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
S 201 759551220800 STECKER 10P 2MM 89400-1010
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991033800
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V(D
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 402 830100685700 SMD-TRANS.BC 857 C
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Ersatzteilliste
Spare Parts List
5 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991033900 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 720086725200 SW/IC SLB1024G_03_T00_V1.14
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 502 759551114300 IC TDA 1308T/N2 SO-G8 (T&R)
IC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
S 201 759551220800 STECKER 10P 2MM 89400-1010
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991033900
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V(D
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 402 830100685700 SMD-TRANS.BC 857 C
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 66
ǵ
GRUNDIG Service Chassis LB (LX prime)
ǵ
3 - 8
Ersatzteilliste
Spare Parts List
5 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991034100 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 720086725300 SW/IC SLB.1024G_02_T01_V1.1
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 502 759551114300 IC TDA 1308T/N2 SO-G8 (T&R)
IC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
S 201 759551220800 STECKER 10P 2MM 89400-1010
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991034100
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V(D
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 402 830100685700 SMD-TRANS.BC 857 C
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Ersatzteilliste
Spare Parts List
5 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991034200 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 720086725400 SW/IC SLB1024G_09_T00_V1.14
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 502 759551114300 IC TDA 1308T/N2 SO-G8 (T&R)
IC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
S 201 759551220800 STECKER 10P 2MM 89400-1010
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991034200
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V(D
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 402 830100685700 SMD-TRANS.BC 857 C
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 67
ǵ
GRUNDIG Service Chassis LB (LX prime)
ǵ
3 - 9
Ersatzteilliste
Spare Parts List
5 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991034300 LP-CHASSISMODUL LB LP-CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 720086725300 SW/IC SLB.1024G_02_T01_V1.1
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 502 759551114300 IC TDA 1308T/N2 SO-G8 (T&R)
IC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V(D
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991034300
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 402 830100685700 SMD-TRANS.BC 857 C
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Ersatzteilliste
Spare Parts List
5 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991034400 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 see http://service.grundig.de
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 502 759551114300 IC TDA 1308T/N2 SO-G8 (T&R)
IC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V(D
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991034400
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 402 830100685700 SMD-TRANS.BC 857 C
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 68
ǵ
GRUNDIG Service Chassis LB (LX prime)
3 - 10
Ersatzteilliste
Spare Parts List
5 / 2008
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
275991035800 LP-CHASSISMODUL LB CHASSISBOARD LB
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
D 200 832521004000 SMD DIODE BAS40-05
D 201 759530510400 DIODE BAV 99
D 203 759530510400 DIODE BAV 99
D 205 759551168600 DIODE-CHIP BZX384-C8V2 300M
D 405 759530510400 DIODE BAV 99
D 406 759530510400 DIODE BAV 99
D 407 759530510400 DIODE BAV 99
D 500 759551241900 DIODE CHIP IMBD4148
D 501 759551241900 DIODE CHIP IMBD4148
IC 100 759551411800 IC-SMD ADV7180BCPZ-REEL LFC
IC 101 759551268200 IC-CHIP MAX810STRG SOT23 RE
IC 102 759551410800 IC-SMD MST66889BLD-LF-S1 LQ
IC 103 759551410900 IC-SMD HY5DU281622FTP-5 TSO
IC 104 720086725600 SW/IC SLB1024G_08_T00_V1.14
IC 200 759551050800 IC NCP 1117 DT 33 RK
IC 201 759551411000 IC-CHIP NCP1117STAT3G SOTIC 202 759551060700 IC NCP1117DTARK (DPAK)
IC 203 759551114600 IC NCP1117DT18RK
IC 204 759551406000 IC-SMD MAX8576EUB+T UMAX10
IC 302 759551411100 IC-CHIP SIL9185 TQFP80
IC 400 759551268500 IC-CHIP 74HC4052D SO16
IC 401 759550542200 SMD IC M24C08N SC2.7
IC 500 759551411200 IC-CHIP CS4335-KSZ SO8 T&R
IC 501 759551327300 TPA3101D2 QFN-N48_(RGZ) ICIC 502 759551114300 IC TDA 1308T/N2 SO-G8 (T&R)
IC 600 759551375700 IC-CHIP TDA9886TS/V4 (SSOP
IC 702 759551411300 IC-SMD FMS6502MTC24X TSSOP2
IC 704 759551411400 IC-CHIP EN25F80-100HCP (FLA
L 606 759550541900 SMD SPULE 1UH K0805
S 400 759551220800 STECKER 10P 2MM 89400-1010
S 401 759551411500 KOPFHOERERBUCHSE
S 403 759551313000 BUCHSE VGA B10B
S 701 759551360600 SCART BUCHSE DOPPELT SLIM 3
SAW 600 759550921100 FILTER OFW K9656M
SAW 601 759550458000 FILTER OFW K3958M
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL LB
CHASSISBOARD LB
MATERIAL-NR. / PART NO.: 275991035800
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 200 759551283600 TRANS. PMV60EN N-CHAN.30V(D
T 201 759551407800 TRANS-CHIP STS5DNF20V-TR SO
T 209 759550968600 TRANS FDS9933A
T 402 830100685700 SMD-TRANS.BC 857 C
T 604 759550973400 TRANS 2N002
T 605 759550973400 TRANS 2N002
T 606 830100484800 SMD TRANS BC848B/ BC847B P
TU 301 759551411600 TUNER PHILIPS UV1316/ADH-4
X 100 759880544700 QUARZ 14.31818 MHZ
X 101 759551411700 QUARZ Q 28.636363-SMU4-20-3
X 600 759551376200 QUARZ-CHIP 4MHZ SMXA120E HC
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Loading...
