32 VLE 6910 BP
EN
Page 2
TABLE OF CONTENTS
---------------------------------------------------------------------------------
5 SET-UP AND SAFETY
7 GENERAL INFORMATION
7 Special features of your television set
8 Receiving digital stations
8 GRUNDIG SCR System
8 Important notes on environmental protec-
tion
8 Notes on still images
9 PACKING CONTENTS
9 Standart accessory
9 Optional accessory
10 CONNECTION/PREPARA-
TION
10 Connecting the antenna and power cord
11 Setting up or hanging
12 Inserting batteries in the remote control
13 OVERVIEW
13 Connections on the television set
14 Control elements
15 Remote control - main functions
16 Remote control - all functions
17 INITIAL SET-UP
17 Settings for connecting to the home net-
work
17 Tuning channels
18 Initial set-up – overview
19 Arrange Initial set-up
23 Changing the Channel Editor for the
digital channels
27 PICTURE /SOUND SETTINGS
27 Picture settings
28 Restore default settings
28 Concluding the settings
29 Sound settings
30 Restore default settings
30 Concluding the settings
31 TV OPERATION –
BASIC FUNCTIONS
31 Switching on and off
31 Selecting the operating mode
31 Selecting channels
31 Selecting stations from lists
31 Selecting AV channels
31 Adjusting the volume
31 Muting
31 Displaying information
32 Audio language
32 Subtitles
32 Zap function
33 TV OPERATION – ADDITIONAL
FUNCTIONS
33 Sleep timer
33 Zoom function
33 Changing the picture format
34 Audio settings
34 Picture settings
35 ELECTRONIC TV GUIDE
35 Changing the font size of the channel
guide
36 HBBTV MODE
36 What is HbbTV?
37 Using HbbTV
37 Additional functions for video indexes
37 Deactivate and activate HbbTV
37 Deactivate and activate digital teletext
38 TELETEXT MODE
38 TOP text or FLOF text mode
38 Normal text mode
38 Additional functions
39 USB RECORDING
39 Information on recording and playing
television programmes
39 Possible limitations when using an exter-
nal data medium
40 Connecting external data media
41 USB recording settings
42 Time shift – ″ Pausing” programmes
2
ENGLISH
Page 3
TABLE OF CONTENTS
---------------------------------------------------------------------------------
43 Recording programmes
43 One-touch programme recording
43 Recording a programme from the channel
list
44 Programme setting for recording
45 Editing the timer
45 Deleting a timer
46 Playback
46 Deleting programmes from the recorded
files menu
47 USB OPERATION
47 File formats for USB operating
48 Connecting external data media
48 Removing the external data
media
49 The file browser
49 Settings in the USB setup menu
51 Playback basic functions
52 Additional playback functions
53 Playing the video, music and image files
with home network connection
53 Selecting the digital media server
54 Playback
54 Other playback options
55 APLICATION CENTER
55 Agreements of Terms & Conditions and
Confidentiality
55 First run and operations
55 Displaying the Terms & Conditions and
Confidentiality content accepted by the
user and removing the acceptance
56 SMART inter@ctive TV internet applica-
tions
56 USB keyboard and mouse
56 Getting Started with Smart Inter@ctive TV
58 Navigation on the application portal
main screen
58 Application Portal Main Screen
59 WEB BROWSER
59 Web browser menu
59 Web browser applications
60 LANGUAGE SETTINGS
60 Changing the menu language
60 Changing the audio language
60 Changing the subtitle language
60 Changing the keyboard
language
61 ACCESSIBLE FUNCTIONS
61 Subtitle Mode
61 Audio description (audio subtitles)
62 ADVANCED SETTINGS
62 Auto sleep
62 Store logo view
62 Power LED brightness
62 Power save mode
63 Switching on/off weather information
63 Switching on/off help information
64 TIMER FUNCTIONS
64 Sleep timer
64 On timer (Auto On)
65 Off timer (Auto Off)
66 PARENTAL SETTINGS
66 Parental Guidance
66 Locking the menus
67 Blocking the multifunction switch
67 Changing the PIN code
67 Blocking a television channel
68 Watching a blocked television channel
68 Resetting PIN code
69 DATE AND TIME SETTINGS
69 Auto tuning
69 Manual tuning
70 SOFTWARE OF THE DEVICE
70 Product information
70 Software update (OAD)
70 Software update (Internet)
70 Software update (USB)
71 ACCESSORIES
ENGLISH
3
Page 4
TABLE OF CONTENTS
---------------------------------------------------------------------------------
72 RESET FUNCTIONS
72 Resetting the television to its original state
72 Deleting channel history
72 Settings recovery
73 USING EXTERNAL DEVICES
73 DIGI LINK
73 The Digi Link functions of the television
74 Device Control
74 Switching the device to standby
75 High definition
75 Connection options
76 Connecting an external device
77 Using a DVD recorder, DVD player, video
recorder or set-top box
77 Hi-fi system
79 Wireless screen share (Liveshare)
79 What is LIVESHARE?
79 Screen share with Liveshare connection
80 OPERATION WITH COMMON
INTERFACE
80 What is common interface?
80 Inserting the CA module
80 Access control for CA module and smart
cards
81 NETWORK SETUP
81 Network connection
81 Wired network
82 Wired network settings
84 Wireless network
84 Wireless network settings
88 Change TV Name
89 Connecting the TV to a “hidden” network
90 SETTING FURTHER CHANNELS
90 Searching for all digital channels from a
satellite automatically
91 Searching for digital channels from a
satellite manually on a transponder
92 Antenna settings and searching for digital
channels from a satellite automatically
93 Antenna settings, SCR system and search-
ing for digital channels from a satellite
automatically
94 Antenna settings for DiSEqC 1.0/1.1 and
searching digital channels from a satellite
automatically
96 Motor antenna setup (DiSEqC 1.2)
97 Searching for digital channels from the
cable provider automatically
98 Searching for digital channels from the
cable provider manually
98 Searching for digital terrestrial TV chan-
nels automatically
99 Searching for digital terrestrial TV chan-
nels manually
100 Automatic service update
100 Tuning analogue television
channels
102 Changing stored analogue
channels
103 Displaying signal information
104 Service information for dealers
104 Notes for WLAN reception
105 Network interfaces
105 Disposing of the packaging
105 Environmental note
105 Explanation of the symbols which may be
present on back side of the television set
106 Troubleshooting
4
ENGLISH
108 GLOSSARY
113 INDEX
Page 5
SET-UP AND SAFETY
-----------------------------------------------------------------------------------
About your TV set
7
With your TV set, you can receive and watch
digital TV programmes over DVB-S, DVB-T
and DVB-C, along with analogue TV.
7
Many features of the TV set require an Inter-
net connection. The TV set is equipped with
WLAN and a LAN port.
7
The TV set can record programmes. For this
feature you need a USB storage device, such
as an external hard drive (not included). Recorded programmes can only be played on
the same TV set. After the TV st is repaired, it
is possible that recorded programmes may no
longer be able to be played back.
Intended use
7
The TV set is designed for use in dry rooms.
7
Use the TV set with the supplied stand or
a suitable VESA bracket.
7
The TV set is primarily intended for the play-
back of TV programmes, streaming content
and audio/video material from external devices. Any other use is strictly prohibited.
It is not intended as an information display or
for predominant use as a computer monitor. If
a still image or a non-full-format image is displayed for an extended period, visible traces
may remain on the screen for some time.
This is not a defect that can be used as the
basis for a warranty claim.
Safety
WARNING
Risk of electrical accident
7
Do not open the TV set. Safety risk may arise
and also the guarantee of the product can be
void if the television set is opened.
7
The TV set can only be operated with the
power cable or the AC/DC adapter supplied
with the product.
7
Do not operate the TV set with a damaged
power cord/AC/DC adaptor (if supplied).
7
If the plug on the TV set has an earthing con-
tact, only insert the plug into a socket with an
earthing contact.
7
Plug the TV set into the mains socket only after
you have connected the external devices and
the antenna.
7
Protect the TV set from moisture. Do not place
any vessels filled with water (such as vases)
on the TV.
Fire hazard
7
7
Do not cover the ventilation slots on the TV
set.
7
Always unplug the power plug and antenna
plug during a thunderstorm.
7
Keep candles or other open flames away
from the TV set.
7
Do not expose the batteries to extreme heat
such as sunshine, fire or the like.
7
Only use batteries of the same type (brand,
size, properties). Do not use used and new
batteries together.
To prevent the spread of fire,
keep candles or other open
flames away from this product at
all times.
ENGLISH
5
Page 6
SET-UP AND SAFETY
-----------------------------------------------------------------------------------
WARNING
Injuries caused by falling TV set
Never place the TV set on an unstable surface.
The TV set may fall, causing serious injury, possibly leading to death in isolated cases.
Observe the following precautions:
7
Only use the manufacturer’s recommended
cabinets or stands.
7
Only use furniture that can safely support the
TV set.
7
Make sure that the TV set does not protrude
beyond the dimensions of the furniture on
which it is resting.
7
Do not place the TV set on tall furniture (such
as kitchen cabinets, bookshelves) without
securely anchoring the furniture and TV set.
7
Do not place the TV set on fabric or other
materials located between the TV set and
furniture.
7
Instruct children that there is danger associ-
ated with climbing on furniture when the TV
set is to be reached.
NOTICE
Shortened service life due to high
operating temperature
7
Do not place the TV set next to heating units
or in direct sunlight.
7
To ensure adequate ventilation, maintain
clearance of at least 10 cm around the TV set.
Discolouration of furniture due to
rubber feet
7
Some furniture surfaces may discolour when
they come in contact with rubber. To protect
furniture, you can place a sheet made of glass
or plastic under the stand. Do not use textile
underlays or mats such as doilies.
Environmental information
7
Do not dispose of batteries in
stores or public collection points. You help to
protect the environment in this way.
7
Be sure to dispose of packaging materials
for your product separately according to the
guidelines of local authorities so that they
can be recycled in an environmentally safe
manner.
7
If you are not using your TV set for a while,
turn it to standby mode. In standby mode, the
TV set uses very little energy (≤ 0.5 W).
If you do not use the TV set for an extended
period, turn it off with the power switch or
unplug the power cord from the socket. If you
turn off the device or disconnect it from the
power supply, the switch-on timer and programmed recordings will not work.
7
Select a location for the TV set so that no
direct sunlight falls on the screen. This allows
a lower backlight to be selected, which saves
energy.
7
for electrical and electronic equipment.
the household waste. Used batteries must be returned to retail
Do not dispose of the product
along with normal household
waste at the end of its service
life. Take it to a recycling centre
6
ENGLISH
Page 7
GENERAL INFORMATION
Special features of your
television set
7
Your television set enables you to receive and
watch digital stations (via DVB-S, DVB-T and
DVB-C), including the High Definition (HD)
ones. At present, reception for these digital
television stations in High Definition is only
possible in some countries in Europe.
7
Although this television meets the current DVBS, DVB-T and DVB-C standards as of August
2012, its compatibility with future DVB-S
digital satellite broadcasts, DVB-T digital terrestrial broadcasts and DVB-C digital cable
broadcasts is not guaranteed.
7
This television can receive and process all
analogue and all unencrypted digital stations.
This television set has an integrated digital
and analogue receiver. The digital receiver
unit converts the signals from digital stations to
provide outstanding audio and picture quality.
7
The TV guide (only for digital stations) tells
you of any schedule changes at short notice,
and provides an overview of all the stations’
schedules for the next few days.
7
You can connect various data media, for
example, an external hard drive, a USB
memory stick or a digital camera to the USB
sockets. Using the file browser, you can then
select and play the file formats you want (for
example, MP4, MP3 or JPEG data).
7
With the Time Shift function, you can easily stop and resume a programme with the
remote control in a fast and simple way.
Programme is recorded to the external data
medium.
-------------------------------------------------------------------
7
You can record any digital TV channel you
have chosen, if no limitation has been im-
posed by the broadcaster.
TV channel is transformed by your television
and saved to a USB external data medium.
You can recall and play saved programs from
the archive.
While a recording is in progress, you can
select and watch another recording from the
archive.
For detailed information about saving and
playing TV programs, please see page 39.
7
SMART inter@ctive TV provides your TV with
Internet applications when your TV is con-
nected to Internet.
7
Wireless USB keyboard and mouse support in
the Web browsing of your television facilitates
surfing through the internet pages for the user.
7
DLNA feature allows you to use a wired or
wireless (with wireless USN network device)
local network to access your content that
were recorded with DLNA compatible devices
we use at our daily lives such as a PC, mobile
phone or NAS (Network Attached Storage)
which are operated as DMS (Digital Medial
Server). While watching TV, you can play any
content you like at any time by using DMC
applications on your mobile device or PC
without starting DLNA application.
7
A DLNA compatible device such as a PC,
mobile phone, NAS or a NAS-like (Network
attached storage) device which operates as
a DMS (Digital Media Server) is required in
order to use home network.
ENGLISH
7
Page 8
GENERAL INFORMATION
-------------------------------------------------------------------
Receiving digital stations
7
To receive digital satellite stations (DVB-S) you
need a satellite antenna.
7
To receive digital stations (DVB-T) you need
a digital rooftop or indoor antenna (passive
or active indoor antenna with its own power
supply).
7
The antenna cable of the cable TV network
that broadcast in DVB-C must be plugged into
TV in order to receive the DVB-C broadcasts.
7
Unlike analogue broadcasting, not every
station has its own transmission frequency.
Instead, several stations are grouped into
what are known as bouquets on a regional or
national level.
7
You can find the current transmission information on teletext from various broadcasters, or
look in a TV guide or on the Internet.
7
Various digital television stations from private
broadcasters are encrypted (DVB-S, DVB-T
and DVB-C). Watching these stations and the
recording and playback functions are only
possible with the appropriate CI module and
a SmartCard. Ask your specialist dealer.
GRUNDIG SCR System
Your TV supports SCR system (Single Channel
Router). With SCR satellite system, several users can individually receive all signals from the
satellite simultaneously.
Important notes on environmental protection
Those items mentioned below will help you
reduce the consumption of natural resources as
well as save your money by reducing electricity
bills.
7
If you will not be using the TV set for several
days, it should be disconnected from the
mains for environmental and safety reasons.
TV will not consume energy in this condition.
7
If the TV set has main switch, it will be enough
to turn the TV off via main switch. TV will
reduce energy consumption almost to Zero
Watt.
7
TV consumes less energy on stand by mode.
However, some TV sets may have features
such as on timer, that require the TV set to be
left in standby to work correctly.
7
TV consumes less energy when brightness is
reduced.
Notes on still images
Watching the same image for a long time on the
screen may cause a still image remain feebly on
the background. Feeble image(s) on the background is originated from LCD/LED technology
and does not require any action under guarantee. To avoid such cases and/or minimize the
impact, you may observe the tips below.
7
Do not allow the same TV channel to stay on
the screen for a very long time. Channel logos
may cause this situation.
7
Do not allow the images, which are not full
screen, to constantly stay on the screen; if not
streamed in full screen format by the broad-
caster, you can convert the images to full
screen by changing picture formats.
7
Higher brightness and/or contrast values will
lead this impact to appear faster; therefore,
you are recommended to watch your TV in
the lowest brightness and contrast levels.
8
ENGLISH
Page 9

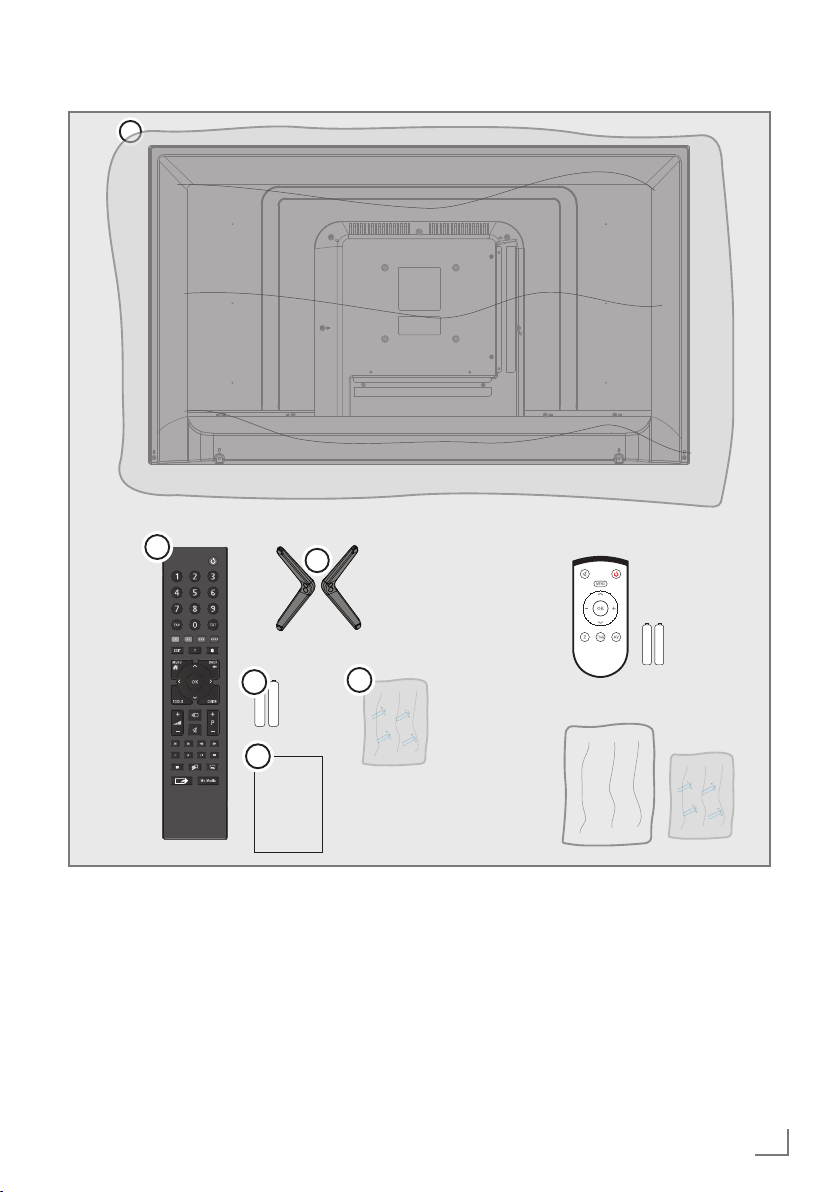

PACKING CONTENTS
1
4
5
6
Manual
2
3
-------------------------------------------------------------------------------
Standart accessory
1 TV
2 Stand
3 Remote control
4 Batteries for remote controls
5 Screws and mounting instructions for stand
6 Brief Instruction
Optional accessory
Easy-Use Remote Control
Batteries for Easy-Use remote controls
Cleaning cloth
Screws for VESA bracket
ENGLISH
9
Page 10
CONNECTION/PREPARATION

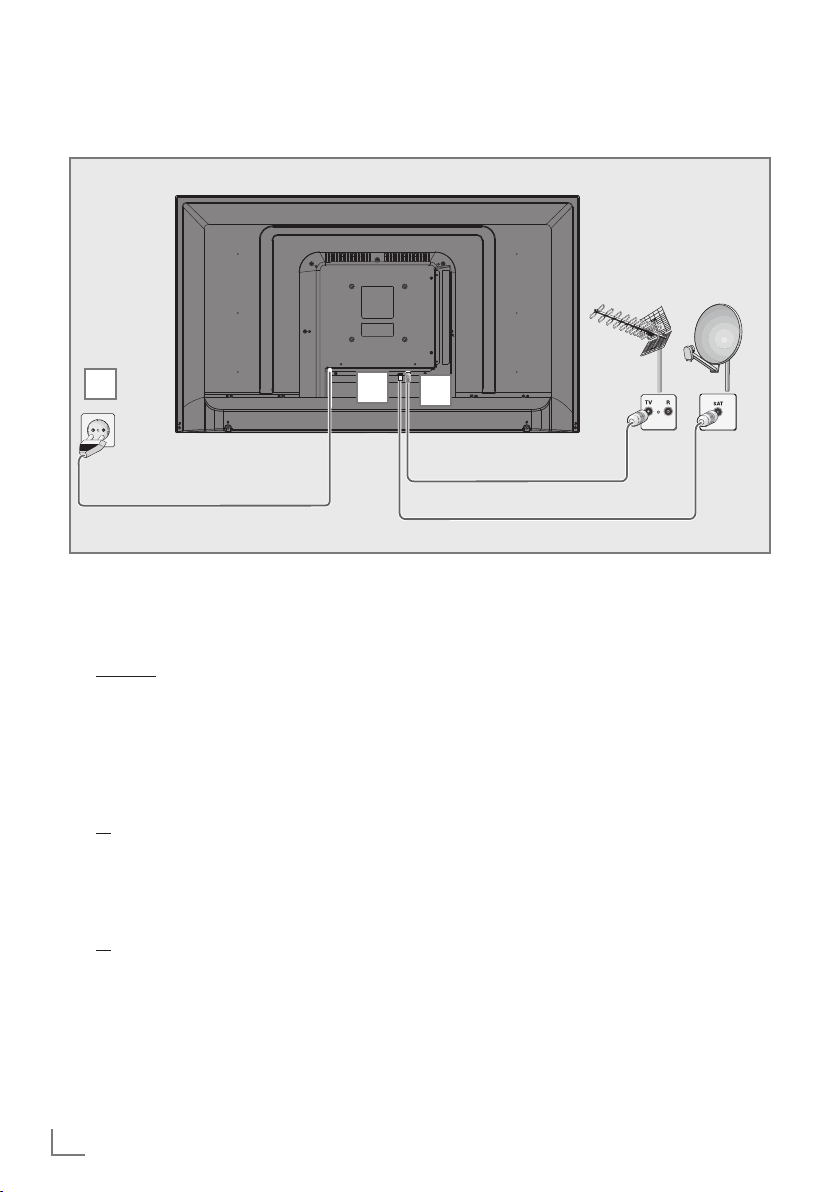

Connecting the antenna and power cord
-----------------------------------------------------
3
1 To receive digital satellite channels (DVB-S),
connect the satellite antenna cable to the
antenna socket SATELLITE on the television
set;
and / or
2a To receive terrestrial digital broadcasters
(DVB-T) connect the cable for the rooftop
or indoor antenna (passive or active indoor
antenna with its own power supply) to the
antenna socket ANT IN on the television
set;
or
2b To receive digital cable channels (DVB-C)
connect the cable for the rooftop antenna
to the antenna socket ANT IN on the television set;
or
2c To receive analogue TV channels, connect
the cable for the rooftop antenna to the
antenna socket ANT IN on the television
set.
1
2
Note:
7
When connecting an indoor antenna you
may have to try it out at different positions
until you get the best reception.
3 Plug the power cord into the wall socket.
Note:
7
Only plug the device into the mains socket
after you have connected the external
devices and the antenna.
7
Do not use an adapter plug or extension
cable which does not meet the applicable
safety standards. Do not make changes on
the power cord.
10
ENGLISH
Page 11
CONNECTION/PREPARATION
Setting up or hanging
7
Select a location so that no direct sunlight falls
on the screen.
Setting up with stand
7
To mount the stand, refer to the installation
instructions included.
7
Place the television set on a hard, level surface.

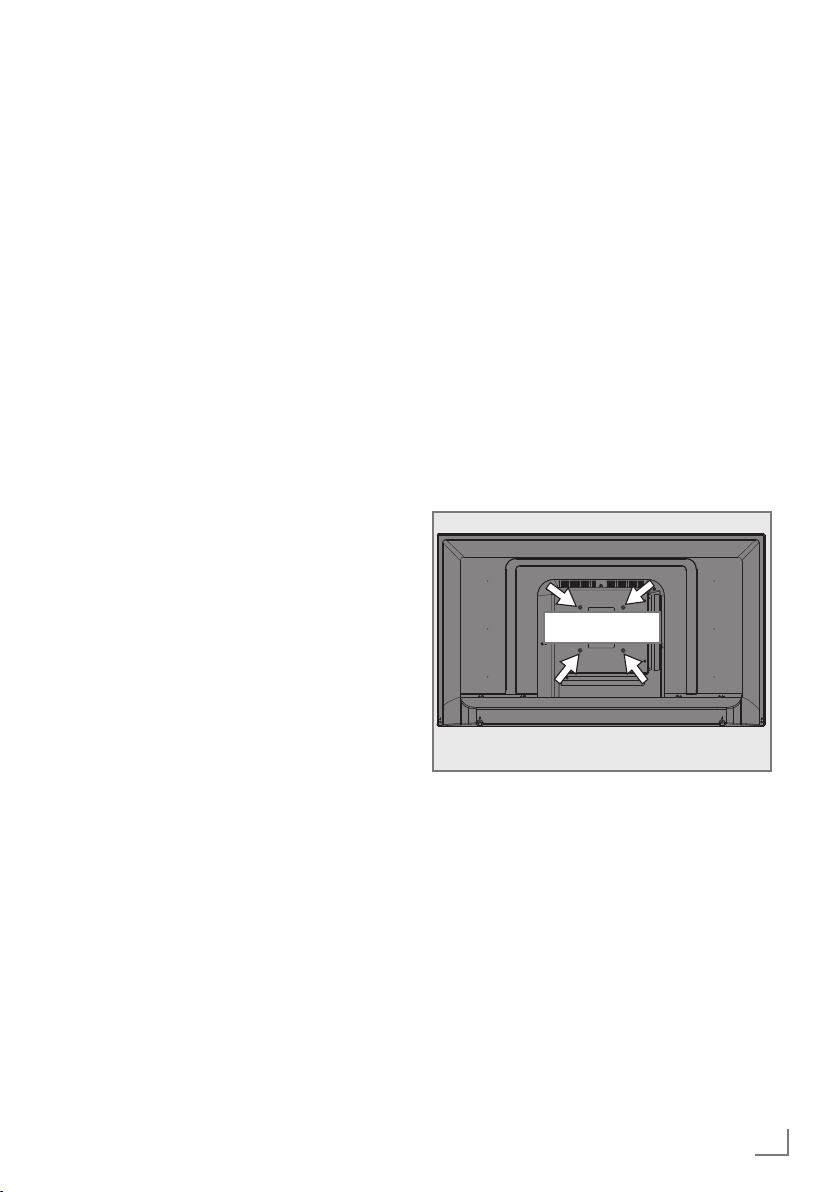

Preparing for mounting on the VESA
bracket
You will need:
7
A pair of scissors,
7
A crosstip screwdriver.
Follow the installation instructions for the VESA
bracket.Place the television set in the film on a
smooth surface with the screen facing down.
1 Cut open the film on the back side using the
scissors.
2 Connect the required cables to the connec-
tors on the television set. See the “Connection/Preparation” section in this manual.
3 Tie the cables so they do not hang down
onto the floor.
4 Screw the VESA bracket onto the television
set and mount it according to its installation
instructions.
-----------------------------------------------------
VESA
ENGLISH
11
Page 12
CONNECTION/PREPARATION
-----------------------------------------------------

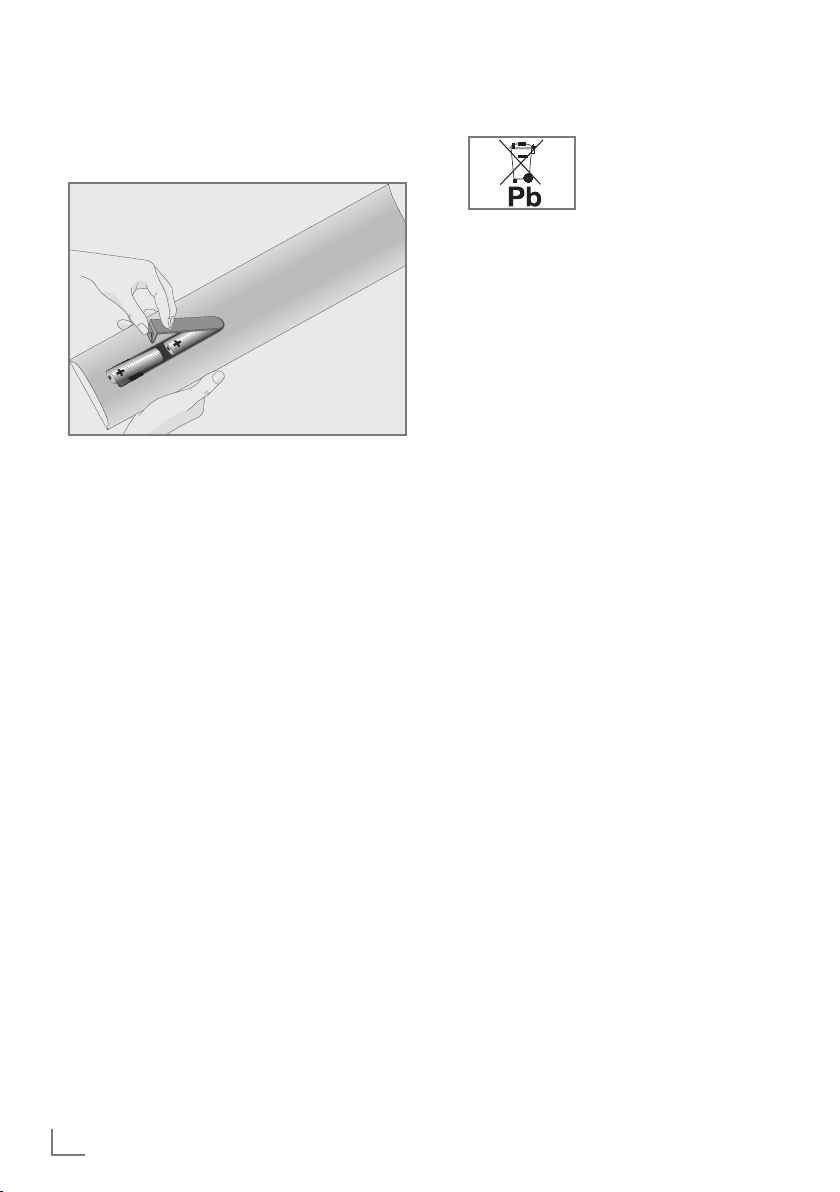

Inserting batteries in the remote
control
1 Open the battery compartment by removing
the lid.
2 Insert the batteries (2 x 1.5 V micro; for
example R03 or AAA). Observe the polarity
(marked on the base of the battery compartment).
3 Close the battery compartment.
Note:
7
If the television set no longer reacts
properly to remote control commands, the
batteries may be flat. Be sure to remove
the exhausted batteries from the battery
compartment.
7
The manufacturer accepts no liability for
damage resulting from used batteries.
Environmental note
7
shall not be treated as household waste. On
certain batteries this symbol might be used
in combination with a chemical symbol. The
chemical symbols for mercury (Hg) or lead
(Pb) are added if the battery contains more
than 0.0005% mercury or 0.004% lead.
Batteries, including those which contain no
heavy metal, may not be disposed of with
household waste. Please dispose of used
batteries in an environmentally sound manner.
Find out about the legal regulations which
apply in your area.
This symbol on the battery
or on the packaging
indicates that the battery
provided with this product
12
ENGLISH
Page 13
OVERVIEW
VGA IN
--------------------------------------------------------------------------------------------------------------

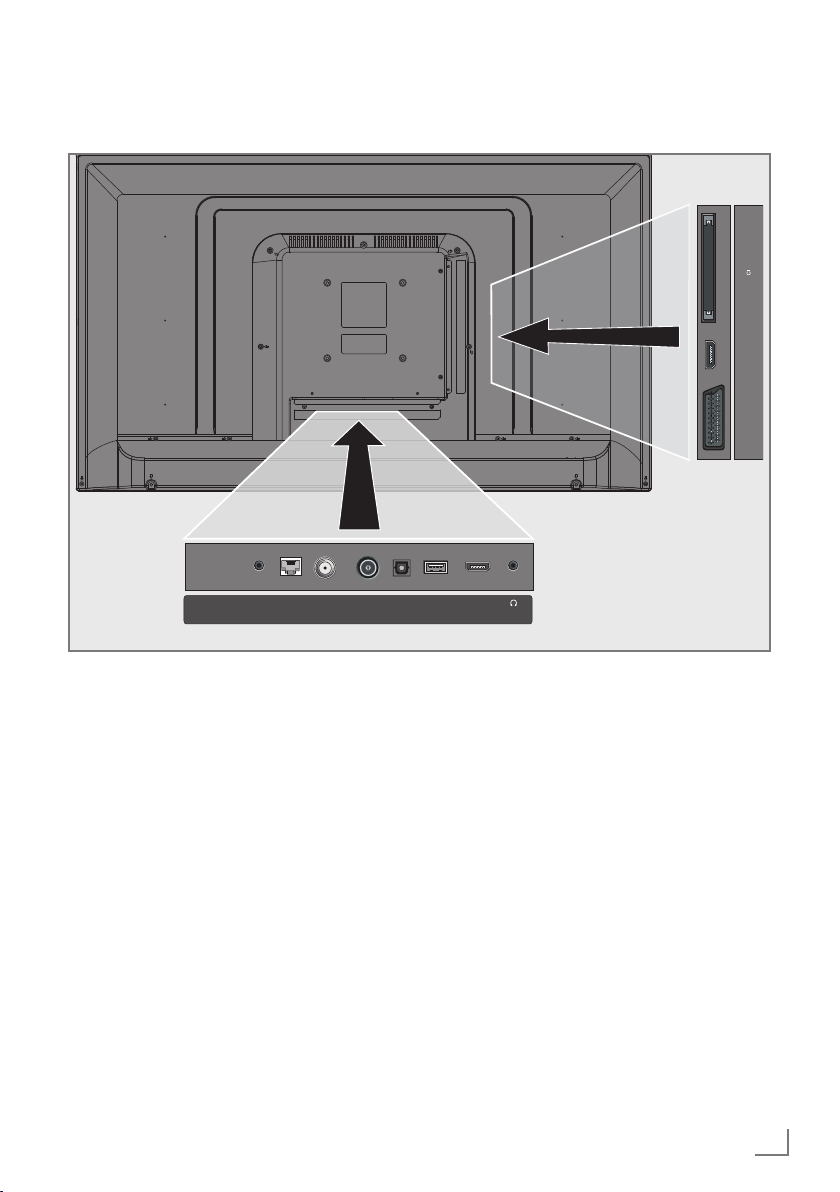

Connections on the television set
SATELLITE
ANT-IN
13/18V
SERVICE LAN Optic Out USB (HDD) HDMI2 EARPHONE
max. 25 0 mA
5V
max. 50 mA
SCART HDMI 1 (ARC)
7
SERVICE: Service only.
7
LAN: Network connection
7
SATELLITE: for satellite antenna.
Suitable for single-cable GSCR system.
7
ANT IN: for antenna cable (terrestrial
antenna or cable connection).
7
Optic Out: optical audio output
7
USB(HDD): connect data media for re-
cording programmes, such as an external
hard disk.
7
HDMI2: Input for digital audio and im-
age data.
7
U: Headphone jack or line output via
adapter.
7
SCART / S-VHS / COMPONENT:
SCART socket, audio/video input and
output
S-VHS socket, audio/video input for
S-Video camera using a SCART-S-VHS
adapter cable.
Component socket, audio/video input
(YUV signal) using a SCART-YPbPr
adapter cable.
7
HDMI1 (ARC): Input for digital audio
and video data with audio return channel.
7
CI: for CA modules for receiving en-
crypted stations.
ENGLISH
13
Page 14
OVERVIEW
--------------------------------------------------------------------------------------------------------------

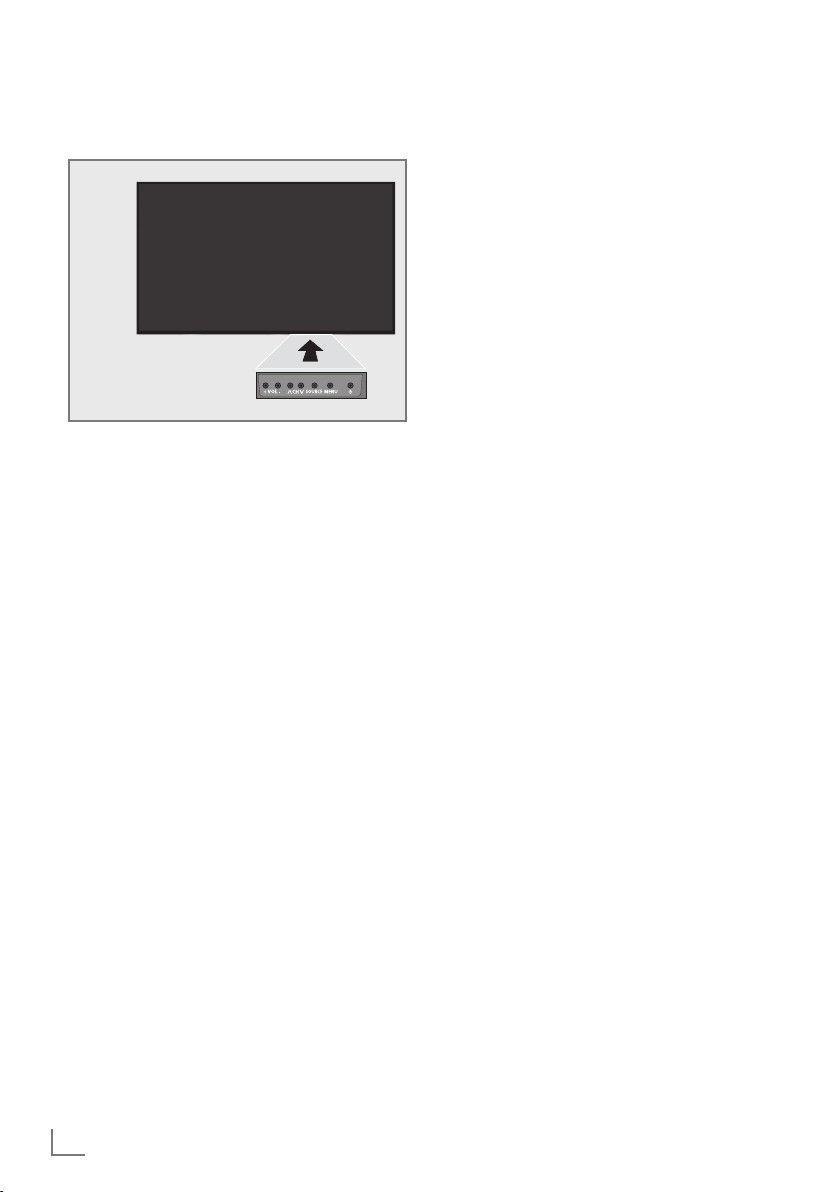

Control elements
7
+ VOL: Volume up.
7
VOL-: Volume down.
7
+ CH: Channel up.
7
CH -: Channel down.
7
SOURCE: Source menu.
7
MENU: Opens the main menu.
7
8: Turns on the television in the stand-
by mode and switches it to the stand-by
mode.
14
ENGLISH
Page 15
OVERVIEW
--------------------------------------------------------------------------------------------------------------

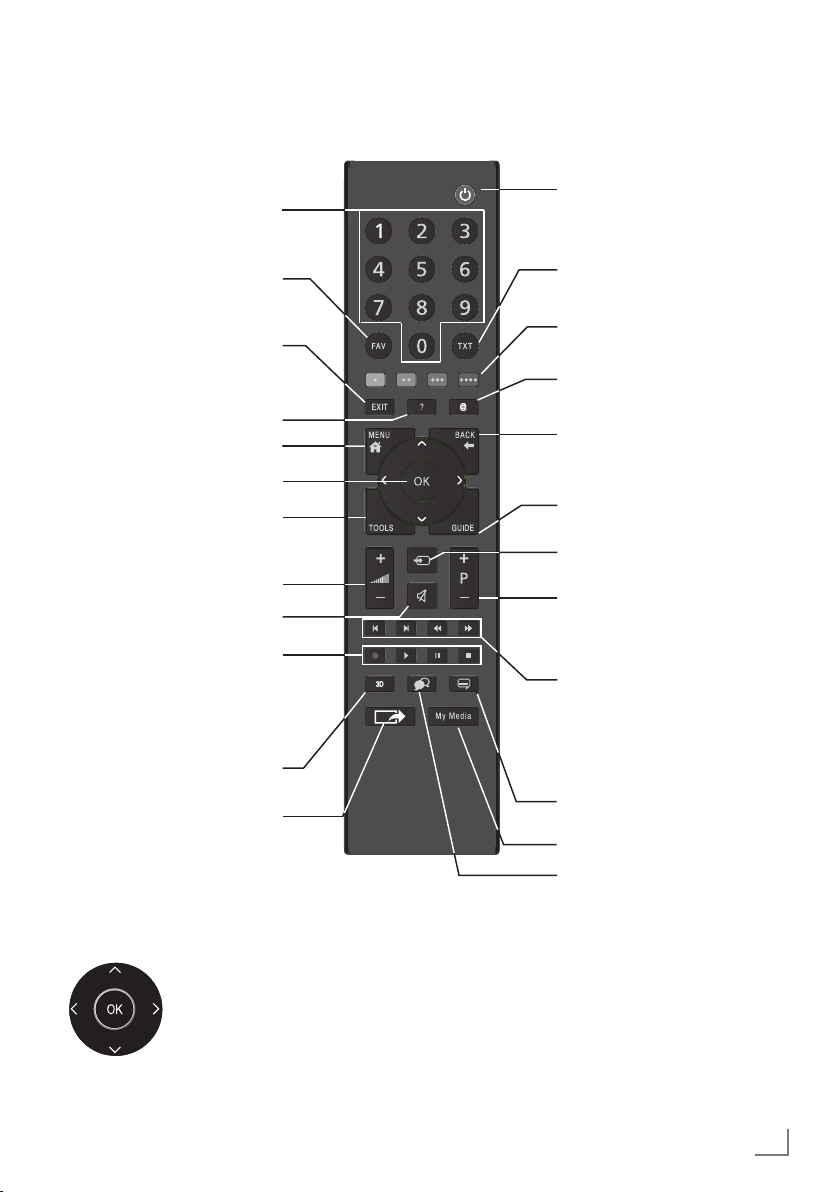

Remote control - main functions
Switches on from standby
mode;
selects channels directly
Selects the channel list
(»ALL«, »FAV 1« to
»FAV 4«)
Exits menu and applica-
tions
Displays information
Opens the menu
Opens the channel list
Opens the Tools menu
Adjusts the volume
Turns volume on/off (mute)
Record, playback, pause
or stop (only digital televi-
sion channels);
teletext on half screen
No function
Turns on and off the
television set (stand-by)
Switches between teletext
and TV modes
Functions according to
the screen help, HbbTV
Opens Application portal
menu.
Zapping function;
switches the menus back
one menu level
Opens the electronic TV
guide
Signal source
Switches on from standby;
selects stations step by step
Next/previous image/
chapter, next/previous
track
Opens Screen share.
Cursor Control
Moves the cursor up and
down in the menus.
Moves the cursor left/right in
menus.
Opens channel list;
activates various functions.
Select subtitle
Opens Media Player menu
Select audio channel
ENGLISH
15
Page 16
OVERVIEW
--------------------------------------------------------------------------------------------------------------
Remote control - all functions
(red) Selects a page in teletext mode;
(green) selects/activates various functions
(yellow) in menus.
(blue)
5 Switches to double character size
6 Updates a page in teletext mode;
3
Page hold in teletext mode;
4
Show answers in teletext mode;
Starts recording (in digital TV op-
8 Starts playback in the external
in teletext mode;
selects the previous track/previous
picture in the Media Player.
selects the next track/next picture
in the Media Player.
starts the reverse picture search in
the Media Player.
starts the forward picture search in
the Media Player.
eration, recording only via external
data media).
data media;
Starts playback in the DLNA menu.
! Time shift during live signal (in digi-
tal TV operation, only via external
data media);
pauses the file executed on the
external data media;
pauses the file executed on the
DLNA menu.
7 Selects the split screen function in
teletext mode;
ends playback in the file browser;
ends recording or playback in the
PVR mode;
stops the file executed on the
DLNA menu.
Selects different audio language
(in digital TV operation).
Selects different subtitles (in digital
TV operation).
Note:
7
Your TV supports remote control feature for
Apple iPhones, Windows mobile phones
and Android phones.
Depending on the features of your TV, you
may control your TV by your phone after
downloading the free »GRUNDIG TV
Remote« application from Apple App. Store
or Google Play (Android Market).
16
ENGLISH
Page 17
INITIAL SET-UP
---------------------------------------------------------------------------------------------------
The television set is fitted with an “installation assistant”, which guides you step by step through
the basic settings.
Using the screen dialogue, the user guide
enables supposedly complex settings and data
entries to be presented simply and clearly for
everybody.
Pages and dialogue items appear on the screen,
which identify the subsequent and likely operating steps.
To support this, you will also see the required
button symbols of the remote control.
The basic settings in detail:
– language selection
– country selection;
– choice of user mode;
– location selection;
– accessories selection;
– network settings (if desired);
– Station settings (DVB-S, DVB-T, DVB-C and
analogue channels).
The detailed settings can be found on pages 19
and 22.
Settings for connecting to the
home network
Depending on the connection to the home network, you connect your television to the home
network:
– via a LAN connection or
– without cable via WLAN
There are two options with the LAN-connection:
Automatic connection
all data regarding connection settings (»IP Ad-
dress«, »Netmask«, »Gateway« and »DNS«)
are obtained from modem automatically.
Manual connection
all data regarding connection settings (»IP Ad-
dress«, »Netmask«, »Gateway« and »DNS«)
must be configured manually.
There are various options when using WLAN:
Automatic connection
all data regarding connection settings (»IP Ad-
dress«, »Netmask«, »Gateway« and »DNS«)
are obtained from modem automatically.
Depending on the router, you can use the fol-
lowing options:
– Option “WPS-PBC” (Push Button Configura-
tion);
– Connecting with a WPS PIN;
– Connecting by entering the network pass-
word.
Manual connection
all data regarding connection settings (»IP Ad-
dress«, »Netmask«, »Gateway« and »DNS«)
must be configured manually.
Tuning channels
Depending on the type of antenna connected,
you can decide which channels you would like
the television to search for.
DVB-S – Tunes digital channels from the
satellite, from page 21.
You have two options for this search:
–
the basic installation which presets a stan-
dard selection, e.g. the satellite Astra 19.2°
East; you need only start the search;
–
the professional installation, which allows
you to make all required settings and set
parameters for your receiver system.
DVB-C – For setting up digital cable channels
see page 21.
DVB-T – For setting up digital terrestrial
channels see page 22.
Searching for Analog television channels,
see "Setting further channels" section on page
100 .
Note:
7
See “Setting further channels”" section starting from page 90 for more information on
digital television channel settings.
ENGLISH
17
Page 18
INITIAL SET-UP
---------------------------------------------------------------------------------------------------
Initial set-up – overview
Select language (page 19, step 3)
Select country (page 19, step 5)
Select location and accessories (page 19, step 7 - 10)
Network setup (page 20, step 12)
Select mode (page 19, step 6)
Wired
(page 20, step 12)
Auto
(page 20,
step 12)
DVB-T
(page 22, step 34)
Auto
(page 22,
step 34)
Manually
(chapter
page 83)
Setting TV channels (page 21 , step 26)
Manually
(chapter
page 99)
Channel Editor (page 23)
Wireless
(page 20, step 17)
Auto
(page 20,
step 17)
DVB-C
(page 21, step 29)
Auto
(page 21,
step 29)
Manually
(Chapter
page 87)
Manually
(chapter
page 98)
Wireless WPS
(chapter page 85)
Button
(Chapter
page 85)
DVB-S
(page 21, step 25)
Auto
(page 22
step 25)
PIN
(Chapter
page 85)
Manually
(chapter
page 91)
18
ENGLISH
Page 19
INITIAL SET-UP
---------------------------------------------------------------------------------------------------
Arrange Initial set-up
1 Switch on the television set from standby
with »
– Menu Language menu appears when the
2 Select the menu language with »
– »Welcome« menu appears.
3 Step-by-step installation will be made to be
4 Select the country in which the television
– »User Mode« menu appears, the option
5 Confirm the option »Home Mode« with
or
select the option »Enhanced« with »
– »Home Mode« contains preconfigured
– »Enhanced« – if you will use the television
8«, »1…0«, »P+« or »P–«.
device is switched on for the first time.
Smart Inter@ctive 4.0
Please select your desired language
Menu Language
Česky Dansk Deutsch English Espanol
Hrvatski Italiano Magyar Nederlands Norsk Polski Português
Pyccкий Româneşte Slovenščina Eesti Suomi Svenska Бългaрски
Slovenčina Lietuviu Türkçe
Navigation Between Items
English
Select
Help:
7
If the »Menu Language« menu does not
appear on the screen, make the setting by
following the instructions on returning the
television to its factory settings on page 72.
»
V
« or »Λ« and press »OK« to confirm.
able to use the television. Press »OK« to
start the installation.
set is operated with »
and press »OK« to confirm.
»Home Mode« is selected.
»OK«;
»
Λ
« and press »OK« to confirm.
TV settings that provide energy savings
conforming EUP.
for a demo presentation, increased image
and volume settings are used in this mode.
Increased mode consumes more energy.
Eλληvıκά
Français
«, »>«,
<
«, »>«, »V« or »Λ«
<
V
« or
6 Select the required option »Stand« or »Wall-
mounted« with »
V
« or »Λ«.
Note:
7
The information how to place the television
set is important for the automatic audio
settings.
7 Confirm setting with »OK«.
– The »Summary« menu will be displayed.
8 Select the next operating step with »
«
(blue).
– The »Accessories« menu will be dis-
played.
9 If an accessory is used for the television and
it has already been connected, carry out the
required settings in this menu.
Select accessory with »
select setting with »
10 Select the next operating step with »
V
« or »>«.
<
« or »Λ« and
«
(blue).
Note:
7
If you want to connect your television to the
home network,
– continue at point 12 for an automatic
LAN connection, or
– continue at point 17 for an automatic
WLAN connection.
Note:
7
If connecting to a home network is not nec-
essary, skip the setting using »
« (blue).
Continue settings at point. 25, 29 or 34.
ENGLISH
19
Page 20
INITIAL SET-UP
---------------------------------------------------------------------------------------------------
Connecting to a home network with a
LAN cable
11 Confirm »Change Connection Type« with
»OK«.
V
12 Select the option »Wired« with »
« or »Λ«
and press »OK« to confirm.
Note:
7
The settings for a manual LAN connection
are on page 83.
13 Press »« (red) to select »Connect« option to
establish modem connection.
– »Connecting ... Please wait« message
will be displayed, and if the connection
is established »Connection To Gateway:
Success« messages will be displayed.
14 Press »« (green) to check the performed
settings and also if the local network and
internet connection has been established.
– »Testing ... Please wait« message will
be displayed, and if the connection is
established »Connection To Gateway:
Success«, »Internet Connection: Success«
messages will be displayed.
15 To switch to »Source« menu press »
«
(blue).
Note:
7
Continue searching for TV channels with:
– point 25 for DVB-S reception;
– point 29 for DVB-C reception;
– point 34 for DVB-T reception.
Connecting automatically by entering
the network password
16 Confirm »Change Connection Type« with
»OK«.
V
17 Select the option »Wireless« with »
»
Λ
« and press »OK« to confirm.
« or
18 Confirm the message »Do you want to turn
on Wi-Fi?« select »Yes« with »
press »OK« to confirm.
« or »>« and
<
19 Select the line »Select Access Point« with
»
V
« or »Λ« and press »OK« to confirm.
– »Select Access Point« menu appears and
available wireless networks are scanned
and displayed in the menu.
20 Select the network that you want to con-
V
nect with »
« or »Λ« and press »OK« to
confirm.
– Wireless connection password screen is
displayed.
V
21 Select the required character with »
»
Λ
«, »<« or »>« and move to the next
«,
character with »OK«.
– Using »Shift« ➡ »OK«, you can switch
between uppercase letters / numbers and
lowercase letters / special characters.
– Select »Del« to delete the character
entered and press »OK« to confirm.
22 Confirm the password with »« (green).
– »Connecting ... Please wait« message
will be displayed, and if the connection
is established »Connection To Gateway:
Success« messages will be displayed.
23 Press »« (green) to check the performed
settings and also if the local network and
internet connection has been established.
– »Testing ... Please wait« message will
be displayed, and if the connection is
established »Connection To Gateway:
Success«, »Internet Connection: Success«
messages will be displayed.
24 To switch to »Source Setup« menu press
»
« (blue).
Note:
7
Continue searching for TV channels with:
– point 25 for DVB-S reception;
– point 29 for DVB-C reception;
– point 34 for DVB-T reception.
20
ENGLISH
Page 21
INITIAL SET-UP
---------------------------------------------------------------------------------------------------
Searching television channels with satellite signal (DVB-S)
25 Select the option »Satellite (DVB-S/S2)«
with »
V
« or »Λ« and press »OK« to
confirm.
– The satellite Astra 19.2° East is preset.
26 Confirm the push button »Continue« with
»
« (blue).
Notes:
7
Select the Channel Type.
Press »
V
« or »Λ« to select whether you
want to search for only digital channels
(Digital) or only radio channels (Radio) or
both (Digital + Radio) and press »OK« to
select and mark or unmark the »Digital«
and/or »Radio« items.
7
Select Scan Mode.
To select whether you want to search for
only free digital television channels (Free),
only scrambled digital television channels
(Scrambled) or both (Free + Scrambled),
press »
V
« or »Λ« and press »OK« to
select and mark or unmark the »Free« and/
or »Scrambled« items.
27 Press »« (red) to start searching.
– »Digital Searching« menu appears and
the scan for TV channels begins.
– The scan is complete as soon as the mes-
sage »Search is completed!« appears.
28 Select the »Channel Editor« with »OK«.
Tuning cable digital television channels
(DVB-C)
29 Select the option »Cable (DVB-C)« with
»
V
« or »Λ« and press »OK« to confirm.
V
30 Select the line »Scan Type« with »
»
Λ
«.
Select the option »Quick« or »Full« with »
or »
«.
>
– »Quick« scanning function sets the chan-
« or
<
nels according to the cable operator
information in the broadcasting signal.
– »Full« scan function scans the entire fre-
quency range selected. With this search
option, search can take a long time. This
search type is recommended. Some cable
providers do not support »Quick« scan.
Note:
7
You can speed up the search. To do this,
frequency and network ID information are
required. You may get this data from your
cable operator or find it in the Internet
forums.
31 Confirm the push button »Continue« with
»
« (blue).
Note:
7
Perform Channel Type selection. Press
»
V
« or »Λ« to select whether you want to
search for only digital channels (Digital),
only Analog channels (Analog) or both
(Digital + Analog) and press »OK« to select and mark or unmark the »Digital« and
»Analog« items.
32 Press »« (red) to start searching.
– The »Digital or Analog Searching« menu
appears, and the search for TV channels
begins.
– The scan is complete as soon as the
»Search is completed!« appears.
33 Select the »Channel Editor« with »OK«.
«
ENGLISH
21
Page 22
INITIAL SET-UP
---------------------------------------------------------------------------------------------------
Tuning terrestrial digital television
channels (DVB-T)
34 Select the option »Air (DVB-T/T2)« with
»
V
« or »Λ« and press »OK« to confirm.
Important:
7
The antenna power supply (5V ) may
only be switched on if the antenna is an
active indoor antenna with a signal
amplifier and it is not already supplied with
a voltage via a mains plug (or similar
supply). Otherwise you may cause a short
circuit and irreparably damage your
antenna.
35 Select the line »Active Antenna Power« with
»
V
« or »Λ«.
Switch on the antenna power supply for the
antenna with »
36 Select the line »Next Page« with »
»
Λ
« and press »OK« to confirm.
Note:
7
Perform Channel Type selection. Press
»
V
« or »Λ« to select whether you want to
search for only digital channels (Digital),
only Analog channels (Analog) or both
(Digital + Analog) and press »OK« to select and mark or unmark the »Digital« and
»Analog« items.
37 Press »« (red) to start searching.
– The »Digital or Analog Searching« menu
appears, and the search for TV channels
begins.
– The scan is complete as soon as the
»Search is completed!« appears.
38 Select the »Channel Editor« with »OK«.
« or »>« (»On«).
<
V
« or
22
ENGLISH
Page 23
INITIAL SET-UP
---------------------------------------------------------------------------------------------------
Changing the Channel Editor for
the digital channels
Channels found at the end of the search are
stored in the »Channel Editor«.
You can delete channels which are not required
from the programe table, you can change the
order of channels within the programe table and
lock individual channels (Parental control).
You can also add channels to the favourites list;
in addition, you can change the order of channels within the favourites list.
In Channel Editor, press »P+« to switch the
channel list to the next page, press »P–« to
switch it back to the previous page.
To perform searching in the Channel Editor
menu by Channel names, press »« (red).
To use filters and tools in the Channel Editor
menu, press »
« (yellow).
Opening the Programme Table
1 Open the menu with »MENU«.
V
2 Select the »Settings« menu with »
»
« or »>« and press »OK« to confirm.
<
3 Select the option »Source« with »
and press »
V
« to confirm.
«, »Λ«,
« or »<«
>
4 Select the line »Channel Editor« with »
and press »OK« to confirm.
– »Channel Editor« menu is displayed.
Important:
7
Programme table and favourite lists are
stored separately for all sources (satellite,
cable and air).
7
Programme table of the current source will
be displayed when you select programme
table.
Notes:
7
A Cl module and smart card is required to
watch the channel if there is a »
« sign
next to the channel name in Programme
Table.
7
As the recorded data channels are not
displayed in the channel list, number of
channels displayed in the Channel list may
be less than 6000

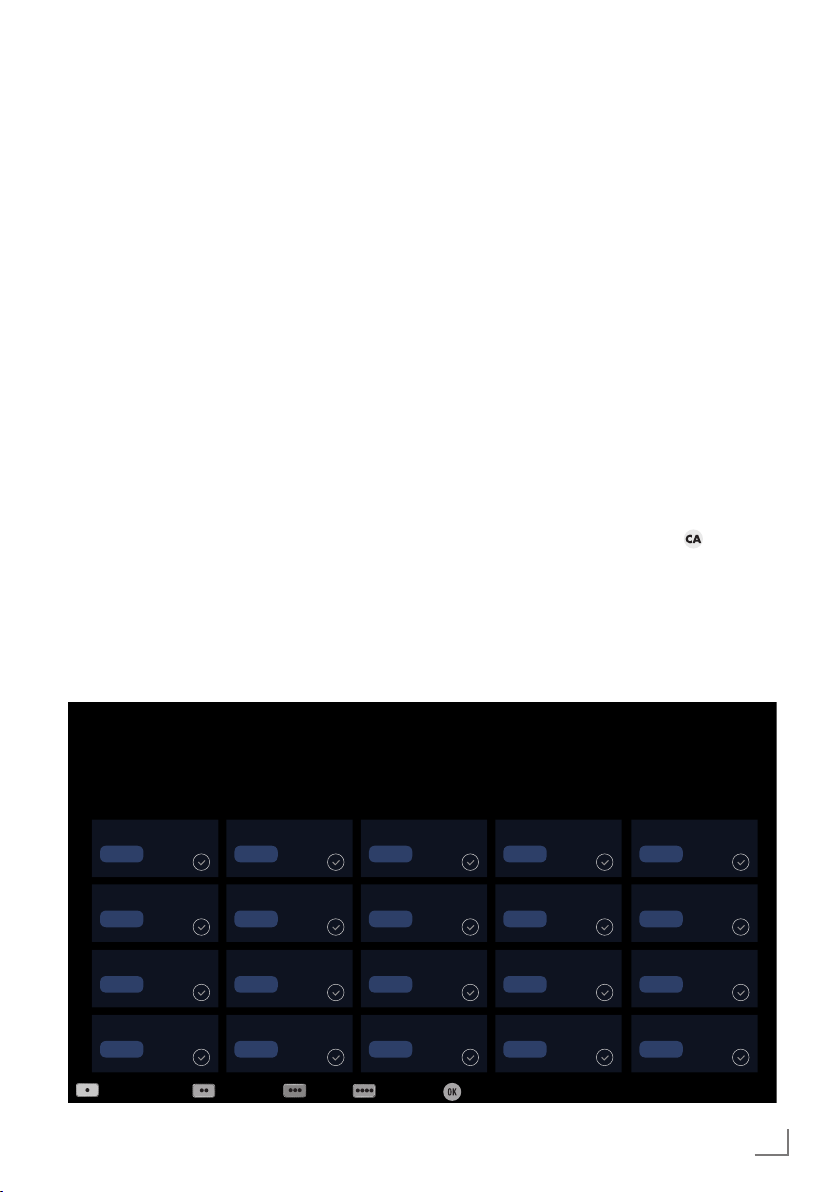

V
«

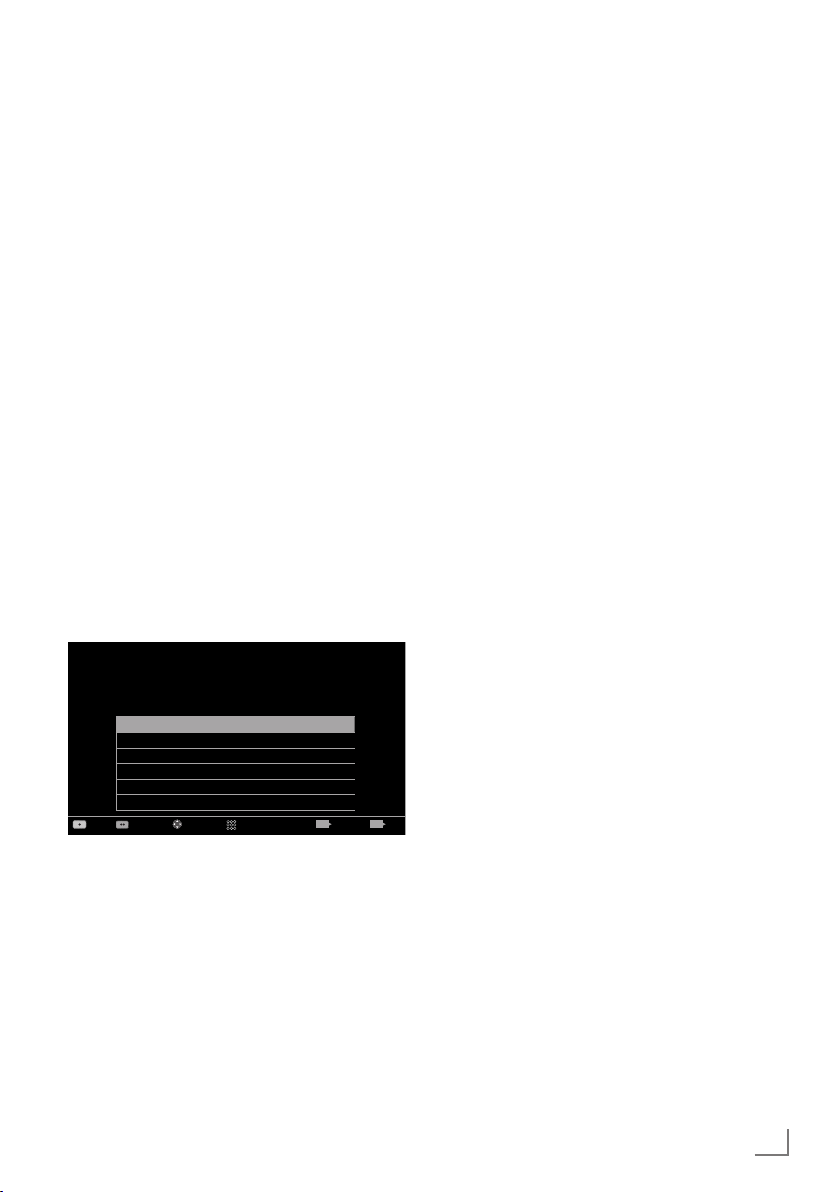

1 Das Erste
Channel Editor
1 Das Erste
DTV
6 24
DTV
11 HD1
DTV
16 TV Sport
DTV
Search for Channels Antenna Type Tools Tune Channel Select
2 ZDF
DTV
7 HD Sports
DTV
12 Life
DTV
17 SAT8
DTV
3 SAT1
DTV
8 HD Test
DTV
13 Film
DTV
18 SKY
DTV
4 N24
DTV
8 SAT
DTV
12 Promo
DTV
19 TV6
DTV
Tuesday
xx xxx xxxx
Satellite All
5 SAT3
DTV
10 RTL
DTV
15 Sport1
DTV
20 TV5
DTV
ENGLISH
23
Page 24
INITIAL SET-UP
---------------------------------------------------------------------------------------------------
Searching channels by name in the
Channel Editor
While arranging the channels in the Channel
Editor, you can search and select the channel
name by the first three characters.
1 In the »Channel Editor« menu, select the
search mode by pressing »« (red).
2 Select the first character of the channel
name you want to search with »
»
« or »>« and press »OK« to confirm.
<
Repeat the entry for the next characters.
– Channels found will be listed on the right
side of the screen.
3 With »
Note:
7
4 To return to the previous menu, press
5 To exit the »Channel Editor« menu, press
« switch to result section, select the
>
channel you are searching with »
»
Λ
«, and highlight this with »OK«.
To change the place of, delete or add the
channels to favorites lists, continue reading
the relevant section.
»BACK <«.
»EXIT«.
V
«, »Λ«,
V
« or
Deleting channels in the Channel
Editor
1 In the »Channel Editor« menu, select the
channel(s) you want to delete with »
»
Λ
«, »<« or »>«, and highlight the channel
by pressing »OK«.
– Channel is marked with »✔«.
2 Press »
– »Tools« menu is displayed.
3 Select the line »Delete« with »
and press »OK« to confirm.
4 To confirm deletion process, select the op-
tion »OK« with »
or
to cancel deletion process, select the option
»No« with »
confirm.
5 To exit the »Channel Editor« menu, press
»EXIT«.
« (yellow).
« or »>«;
<
« or »>« and press »OK« to
<
V
V
« or »Λ«
«,
Moving the channels in the channel organizer to different channel positions
1 In the »Channel Editor« menu, select the
channel(s) you want to move with »
»
Λ
«, »<« or »>«, and highlight the televi-
sion channel by pressing »OK«.
– Channel is marked with »✔«.
2 Press »« (green).
Notes:
7
In case of changing the order of the channels, channel numbers sent by the broadcaster will be changed.
7
If more than one channel is selected for
moving, channels will be moved one after
the other according to the selection order of
channels.
3 Select the new place of the channel with
»
V
«, »Λ«, »<« or »>« and press »OK« to
confirm.
4 To exit the »Channel Editor« menu, press
»EXIT«.
V
«,
Displaying channels in the Channel
Editor by antenna type
If you have more than one antenna type, you
can display channels in the Channel Editor by
antenna type.
1 To display the channels in the »Channel
Editor« menu by antenna type, press »
(yellow).
2 Confirm »Antenna Type« with »OK«.
3 Select »Air«, »Cable« or »Satellite« with
V
« or »Λ« and press »OK«.
»
– Television will switch to the antenna sys-
tem you have selected and channels will
be displayed.
4 To exit the »Channel Editor« menu, press
»EXIT«.
«
24
ENGLISH
Page 25
INITIAL SET-UP
---------------------------------------------------------------------------------------------------
Sequencing channels in the Channel
Editor
You can sequence the channels in the Channel
Editor according to different criteria such as TV,
radio or scrambled / unscrambled.
1 To sequence the channels according to dif-
ferent criteria in the »Channel Editor« menu,
press »
« (yellow).
2 Select the sequencing criteria you want with
»
V
« or »Λ« and press »OK« to confirm.
– Channels will be displayed in the »Chan-
nel Editor« menu by the criteria you have
selected.
3 To exit the »Channel Editor« menu, press
»EXIT«.
Creating a list of favourites
You can select your favourite channels and save
them in up to four lists (FAV1 to FAV4).
Note:
7
Favourite lists must be created separately
for all sources (satellite, cable and air).
7
After created the favourite list, press »FAV«
to select the favorite list.
1 In the »Channel Editor« menu, select the
channel(s) you want to add in the favor-
ites list with »
V
«, »Λ«, »<« or »>«, and
highlight the television channel by pressing
»OK«.
– Channel is marked with »✔«.
2 Press »
« (yellow).
– »Tools« menu is displayed.
V
3 Select the line »Add to Fav.« with »
»
Λ
« and press »OK« to confirm.
« or
–»Add to Fav.« menu is displayed.
4 Select the favorite list you want to add the
V
selected channels with »
« or »Λ« and
store with »OK«.
– The channels are marked in the Channel
Editor with »❶«, »❷«, »❸« or »❹«.
– You can add the same channel in more
than one favourites list.
– Each favourite list can contain maximum
255 channels.
Notes:
7
You can delete channels from the favourites
list.
Press »
list the channel is in with »
« (yellow), select the favorites
V
« or »Λ« and
press »OK« to confirm.
Select the channel(s) you want to delete
with »
V
«, »Λ«, »<« or »>«, and highlight
the channel by pressing »OK«.
Press »
»Remove from Fav.« with »
« (yellow) and select the line
V
«, »Λ« and
confirm with »OK«.
7
When a channel stored in the favourite
channel list is deleted channel order in the
favourite list is updated.
5 To exit the »Channel Editor« menu, press
»EXIT«.
Sorting channels in the favorites list
You can change the channel sorting in the
favorites list.
1 To select favorites list in the »Channel Edi-
tor« press »
« (yellow).
2 Select the favorites list you want to sort with
V
« or »Λ« and press »OK« to confirm.
»
3 Select the channel(s) you want to move with
V
«, »Λ«, »<« or »>«, and highlight the
»
television channel by pressing »OK«.
– Channel is marked with »✔«.
4 Press »« (green).
Note:
7
If more than one channel is selected for
moving, channels will be moved one after
the other according to the selection order of
channels.
5 Select the new place of the channel with
»
V
«, »Λ«, »<« or »>« and press »OK« to
confirm.
6 To exit the »Channel Editor« menu, press
»EXIT«.
ENGLISH
25
Page 26
INITIAL SET-UP
---------------------------------------------------------------------------------------------------
Enter own names for the favourites lists
(max. 6 characters)
You can rename all favorites lists.
1 To recall favorites list menu when no menu is
opened on the screen, press »FAV«.
2 Select the favorites list you want to rename
– Virtual keyboard will be displayed.
3 To delete the current name step by step,
4 Select the required character/number with
Repeat the same process for all characters/
5 To save the new name with »« (green).
6 Press »EXIT« to end the setting.
V
« or »Λ« and press »
with »
button.
press »« (red).
V
«, »Λ«, »<« or »>« and move to the
»
next character with »OK«.
numbers.
Note:
7
Using »Shift« ➡ »OK«, you can switch
between uppercase letters / numbers and
lowercase letters / special characters.
« (blue)
Renaming AV channels
You can rename AV channels according to the
device you have connected. For example, for a
PC which you have connected to HDMI1 source
of TV with HDMI cable, you can name the
source as PC.
1 Open »Input Source« menu with »
2 Select the AV source you will rename with
« or »>« and press »
»
<
– Rename menu is displayed.
3 Press »OK« and delete the “old” name step
by step with »« (red).
4 Select the required character/number with
V
«, »Λ«, »<« or »>« and move to the
»
next character with »OK«.
Repeat the same process for all characters/
numbers.
Note:
7
Using »Shift« ➡ »OK«, you can switch
between uppercase letters / numbers and
lowercase letters / special characters.
5 To save the new name with »« (green).
6 Select the icon appropriate for the device
type with »
confirm
7 To save the setting, press »
– Source name and icon will change.
8 Press »EXIT« to end the setting.
« or »>« and press »OK« to
<
« (blue).
«.
« (blue).
26
ENGLISH
Page 27
PICTURE /SOUND SETTINGS
-----------------------------------------------------------
Picture settings
1 Open the menu with »MENU«.
V
« or »>«
<
Tuesday
xx xxx xxxx
BACK EXIT
V
« or »>«
<
«, »Λ«,
V
« or
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select menu item »Picture« with »
and press »
V
« to confirm.
– »Picture Settings« menu is active.
Settings > Picture
Picture Format 16:9
Picture Mode Natural
Backlight Ec0
Advanced
Restore default display settings
Change Area Select ExitBack
Source TimerSound NetworkTV Parental
4 Select the required line »Picture Format«,
»Picture Mode« or »Backlight« with »
»
Λ
« and press »OK« to confirm.
Select the option with »
Press »BACK <« to return to »Picture«
« or »>«.
<
menu.
Note:
7
Other settings are available under »Advanced«.
5 Select the line »Advanced« with »
»
Λ
« and press »OK« to confirm.
6 Select the required line/function with »
or »
Λ
« and press »OK« to confirm.
Select the value/option with »
and press »OK« to confirm.
Press »BACK <« to return to »Picture«
menu.
7 Press »EXIT« to end the setting.
« or
«
Advanced picture settings
The “advanced picture settings” are in principal
digital image improvements which, however,
should be only used when necessary when picture quality and transmission is excellent. They
may well improve the display with poor material, but may adversely affect the display where
transmission and picture quality are excellent.
7
»Backlight« – Manual setting for back lighting (only active if dynamic back lighting is
switched to “OFF”). This setting also directly
impacts power consumption.
7
»Vibrant Colour« – Increases the colour
contrast and the contrast adjustment. This
setting is mostly too strong for use with normal pictures and should only be used where
necessary (low or off) otherwise nuances in
the image can be suppressed.
7
»Gamma« – This setting establishes which
brightness value should be displayed for
which digital transmission value. Most
recordings are transmitted with a gamma
value of 2.2 (all Windows PCs and newer
PCs with a MAC operating system work
with this, older MAC systems and transmissions without colour profile mostly operate
with a gamma value of 1.8).
7
»Dynamic Contrast« – The function dynamically and optimally adjusts the contrast for
the respective picture content by analysing
images and then altering this depending in
a change in contrast. This increase the contract, however may also reduce the visible
brightness levels in the picture.
7
»Film mode« detects and processes feature
films automatically for all channel sources.
This means you will always receive an
optimal picture.
This functions in the modi 480i, 576i and
1080i in TV playback and for other channel sources.
If the »Film mode« is switched on for
programmes without a feature film signal,
minor problems such as picture freeze,
defective subtitles or fine lines in the picture
could occur.
ENGLISH
27
Page 28
PICTURE /SOUND SETTINGS
7
»Perfect Clear« – Improves the general image by means of a gentle blue hue (giving
the appearance of greater sharpness) and
improves the black level by setting this entirely to black from specific shade of back.
This reduces the visible grey values in the
dark areas of the picture.
7
»Nois Reduction« – Reduces the visible
snow by displaying the picture a little less
sharply and creating a slight blurring.
Should therefore be used minimally with
good picture material.
7
»Block Noise Reduction« – This function
can only be selected with digital reception
sources and AV presets. It reduces any interference from artefacts (pixel blocks) from
digital programmes due to MPEG compression (such as from DVB-T receivers and
lower transmission rates or DVD players).
Restore default settings
1 In the menu »Picture« select the line »Restore
default display settings« with »
and press »OK« to confirm.
2 Select push button »Yes« with »
confirm the security query;
or
select push button »No« with »
to cancel the function.
3 Press »EXIT« to end the setting.
Concluding the settings
1 Press »EXIT« to end the setting.
-----------------------------------------------------------
V
« or »Λ«
« or »>« to
<
« or »>« to
<
28
ENGLISH
Page 29
PICTURE /SOUND SETTINGS
-----------------------------------------------------------
Sound settings
1 Open the menu with »MENU«.
V
<
xx xxx xxxx
BACK EXIT
V
« or »>«.
<
«, »Λ«,
« or »>«
Tuesday
« or »Λ«.
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select menu item »Sound« with »
and press »
V
« to confirm.
– »Sound« menu is active.
Settings > Sound
Sound Mode User
Advanced
Restore Default Sound Settings
Change Area ExitBack
Source TimerSound NetworkTV Parental
Note:
7
Additional operations are explained in the
following sections.
Sound Mode
1 Select the line »Sound Mode« with »V« or
»
Λ
«.
2 Press »
« or »>« to select the desired op-
<
tion.
Magic Fidelity
Magic Fidelity is a patented audio technology
which is integrated into the television set and
only requires the built-in speakers to generate a
Surround Sound effect.
1 Select the line »Sound Mode« with »
2 Select the option »Movie«, »Natural«,
»Speech« or »Music« with »
Location selection
The function how to place the television set is
important for the automatic audio settings.
1 Select the line »Advanced« from the Sound
V
menu with »
« or »Λ« and press »OK« to
confirm.
V
2 Select the line »TV Location« with »
»
Λ
«.
« or
3 Select the required option »Stand« or »Wall-
mounted« with »
« or »>«.
<
Stereo/dual channel
If the device receives two channel programmes,
e.g. a film with the original sound on sound
channel B (display: »Dual II«) and the dubbed
version on sound channel A (display: »Dual I«),
you can select the desired sound channel.
1 Select the line »Advanced« from the Sound
menu with »
V
« or »Λ« and press »OK« to
confirm.
V
2 Select the line »Sound Type« with »
»
Λ
« and adjust the setting with »<« or »>«.
« or
Equalizer
Equalizer offers a sound setting that you can
create.
Equaliser is active in the menu when »Sound
Mode« is selected as »User«.
1 Select the line »Advanced« from the Sound
V
menu with »
« or »Λ« and press »OK« to
confirm.
V
2 Select the line »Equalizer« with »
»
Λ
« and press »OK« to confirm.
« or
– »Equalizer« menu opens.
3 It is active in »120Hz« frequency band.
Adjust the preferred value by using »
»
«.
>
4 Select the next frequency band with »
»
Λ
« to repeat the adjustment procedure.
<
« or
V
« or
5 To save adjustment, press »BACK <«.
ENGLISH
29
Page 30
PICTURE /SOUND SETTINGS
Automatic volume
The television channels broadcast at different
volumes. The automatic volume limiting (AVL)
function means the volume is kept the same
when you switch between channels.
1 Select the line »Advanced« from the Sound
menu with »
confirm.
2 Select the line »AVL« with »
then select »On« with »
Note:
7
AVL item is active in the menu when »Sound
Mode« is selected as »User« or »Standard
Mode«.
Restore default settings
1 In the menu »Sound« select the line »Restore
Default Sound Settings« with »
and press »OK« to confirm.
2 Select push button »Yes« with »
confirm the security query;
or
select push button »No« with »
to cancel the function.
3 Press »EXIT« to end the setting.
V
« or »Λ« and press »OK« to
V
« or »Λ« and
« or »>«.
<
V
« or »Λ«
« or »>« to
<
« or »>« to
<
-----------------------------------------------------------
Concluding the settings
1 Press »EXIT« to end the setting.
30
ENGLISH
Page 31
TV OPERATION – BASIC FUNCTIONS
---------------------------------
Switching on and off
1 Press »8«, »1…0« or »P+« or »P-« to
switch on the television from standby mode.
2 Press »
8« to switch the television to standby.
Selecting the operating mode
You can select the menu operating mode of
your television. »Advanced Mode« contains all
setting whereas »Simple Mode« is an abridged
version that allows you to make quick settings.
1 Press »MENU« button.
2 Press »
operating mode.
« (blue) button to change the
Selecting channels
1 Use »1…0« to select channels directly.
2 Select channels step by step with »P+« or
»P-«.
3 Open the channel list by pressing »OK«,
select the channel list by pressing »
»
« and confirm with »OK«, then close the
>
channel list with »EXIT«.
Notes:
7
Programme information for the following
days an be called up with »
7
Switch to radio channels by calling up
the channel list with »OK«, press »
(blue), use »
»Radio«. Select radio channels with »
»
« and confirm with »OK«.
>
7
Switch back to TV channel lists by calling
up the channel lists again with »OK« , press
»
the option »Digital« and confirm with »OK«.
7
To save energy, you can turn off the screen
in “Radio mode” (see “ADVANCED SETTINGS” on page 67).
V
« or »Λ« to select the option
« (blue), using »
V
« or »Λ« to select
« or
<
Λ
«.
«
« or
<
Selecting stations from lists
You can select stations from various lists, (e.g.
ALL, FAV1 - FAV4).
1 Press »FAV« to recall the favorite list menu.
– »Favorite« menu is displayed.
V
2 Select the favorite list with »
open it with »OK«
3 Select the channel with »
press »OK« to confirm.
4 Press »EXIT« to exit the channel list.
« or »Λ« and
« or »>« and
<
Selecting AV channels
1 Open »Input Source« menu with » «.
2 Select the desired AV channel position with
« or »>« and confirm with »OK«.
»
<
3 Use »1…0« to switch back to the television
channel.
Note:
7
The AV preset descriptions can be changed.
See “Settings” section on page 26.
Adjusting the volume
1 Adjust the volume with »– o +«.
Muting
1 Use »p« to switch the sound off (mute) and
to switch it on again.
Displaying information
Information about each television program is
shown automatically at every change of channel.
1 Display information, press »?« repeatedly.
– The display disappears automatically
after a short while.
ENGLISH
31
Page 32
TV OPERATION – BASIC FUNCTIONS
Audio language
You can select various languages when watching digital channels. This depends on the programme being broadcast.
1 Press »
2 Select the language with »
press »OK« to confirm.
3 Press »EXIT« to end the settings.
Subtitles
You can select various subtitles when watching digital channels. This depends on the programme being broadcast.
1 Press »
2 Select the language with »
press »OK« to confirm.
3 Press »EXIT« to end the settings.
Zap function
This function allows you to save the television
channel which you are currently watching and
switch to other channels (zapping).
1 Select the channel you want to save in the
zap memory with »1…0« or »P+«, »P-« (for
example, channel 1, BBC 1) and save with
»BACK <«.
2 Change channels with »1…0« or »
»
V
3 You can now use »BACK <« to switch
between the saved channel (in the example,
BBC1) and the channel you were watching
before.
4 Press »EXIT« to quit the zap function.
« to open the selection menu.
« to open the selection menu.
«.
V
« or »Λ« and
V
« or »Λ« and
Λ
«
---------------------------------
32
ENGLISH
Page 33
TV OPERATION – ADDITIONAL FUNCTIONS
------------
You can find the following settings in the »Tools«
menu.
Sleep timer
In the »Sleep Timer« menu you can enter a time
for the television to switch off. After this time
has elapsed, the television switches to standby
mode.
1 Open the Tools menu with »TOOLS«.
V
« or »>«.
<
« or
2 Select the line »Sleep Timer« with »
»
Λ
«.
3 Select the switch-off time with »
Note:
7
Set the function to »Off« with »<« or »>« to
switch it off.
4 Press »EXIT« to end the settings.
Zoom function
With this function, you can enlarge the picture
on the television.
1 Open the Tools menu with »TOOLS«.
V
2 Select the line »Zoom« with »
3 Select zoom setting with »
press »OK« to confirm.
– Image is enlarged as center-focused.
4 To navigate in the enlarged picture, press
»« (red) and move the screen with »
»
«, »V« or »Λ«.
>
5 To return to the zoom menu, press »BACK
«.
<
6 Press »EXIT« to end the settings.
« or »Λ«.
« or »>« and
<
«,
<
Changing the picture format
The television automatically switches to the 16:9
format if this format is detected via the Euro-AV
socket.
1 Open the Tools menu with »TOOLS«.
V
2 Select the line »Picture Format« with »
or »
Λ
«.
3 Select the picture format with »
and press »OK« to confirm.
4 Press »EXIT« to end the settings.
Note:
7
You can choose between the following
picture formats.
»Auto« format
The picture format is automatically switched to
»16:9« for 16:9 programmes.
The picture format is automatically switched to
»4:3« for 4:3 programmes.
»16:9« and »14:9« formats
During programmes in 4:3 format, the picture
is stretched horizontally if »16:9« or »14:9« is
selected.
The picture geometry is stretched horizontally.
With actual 16:9 signal sources (from a set-top
box on the Euro-AV socket) the picture fills
the screen completely and with the correct
geometry.
»4:3« format
The picture is shown in 4:3 format.
»LetterBox« format
The letterbox setting is especially suitable for
programmes in 16:9.
The black borders which are usually at the top
and bottom of the screen are eliminated, 4:3
pictures fill the screen.
The transmitted pictures are enlarged, but are
slightly cropped at the top and bottom. The
picture geometry remains unchanged.
<
«
« or »>«
ENGLISH
33
Page 34
TV OPERATION – ADDITIONAL FUNCTIONS
------------
»Subtitle« format
If you cannot read the subtitles which appear on
the bottom of the screen, then select »Subtitle«.
»Panorama« format
This setting is suited to films with a large width/
height ratio.
During programmes in 4:3 format the picture is
stretched horizontally if the »Panorama« function
is selected. The picture geometry is stretched
horizontally.
»Overscan« format
When this mode is selected, high defined
picture from HDMI and Component inputs is not
cropped and it is displayed in its original size.
This is only active in HDMI mode and for resolutions at or above 720p.
Audio settings
1 Open the Tools menu with »TOOLS«.
V
<
« or
« or
2 Select the line »Sound Preset« with »
»
Λ
«.
3 Select the audio setting by pressing »
»
«.
>
– You can change the »User« audio setting;
see “Equalizer” on page 29.
4 Press »EXIT« to end the settings.
Picture settings
1 Open the Tools menu with »TOOLS«.
V
<
« or
«
2 Select the line »Picture Mode« with »
»
Λ
«.
3 Select the picture setting by pressing »
or »
«.
>
4 Press »EXIT« to end the settings.
34
ENGLISH
Page 35
ELECTRONIC TV GUIDE
---------------------------------------------------------------------------
The electronic programme guide offers an overview of all programmes that will be broadcast in
the next week (for digital stations only).
1 Press »GUIDE« to start Electronic TV guide.
– A message is displayed.
Notes:
7
Not all channels provide a detailed TV
guide.
7
Many broadcasters supply the daily programme but no detailed descriptions.
7
There are broadcasters which do not provide any information at all.
2 Select the push button »Continue« with »
V
and press »OK« to confirm.
– The programmes of the first 5 channels
(in the order of the Channel Editor) are
displayed.
V
3 Select the channel with »
« or »Λ«.
– Information about the actuel programme is
displayed in the selected television channel.
Note:
7
Press »P+« or »P-« to switch between the
channels in increments of 5n.
4 Switch to the information about the current
programme using »OK«.
Notes:
7
The programme selected can be recorded
(if an external data medium is connected).
To do this push »OK« select »Record«.
Confirm the display with »OK«.
7
To add the programme selected to the
reminder timer push »OK« select the »Set
Reminder«. Confirm the display with »OK«.
5 Return to the programme overview with
»BACK <«.
6 Press »
« to select information on the next
>
programme and »
mation for the current programme.
« to return to the infor-
<
Note:
7
For additional options, refer to the user
guide on the screen.
7 Press »EXIT« to close the channel guide.
Changing the font size of the
channel guide
1 To switch to the overview, press »<«, then
press »
V
with »OK«.
2 Select »Profiles« with »
confirm with »OK«.
3 Select »Accessibility« with »
press »OK« to confirm.
4 Select the required size with »
and press »OK« to confirm.
5 Exit the setting by pressing »BACK <«
«
twice.
6 Return to the “programme overview“ by
pressing »
press »OK« to confirm.
« to select »Settings« and confirm
V
« or »Λ« and
V
Λ
« to select »TV Listings« and
« or »Λ« and
V
« or »Λ«
ENGLISH
35
Page 36
HBBTV MODE
------------------------------------------------------------------------------------------------------

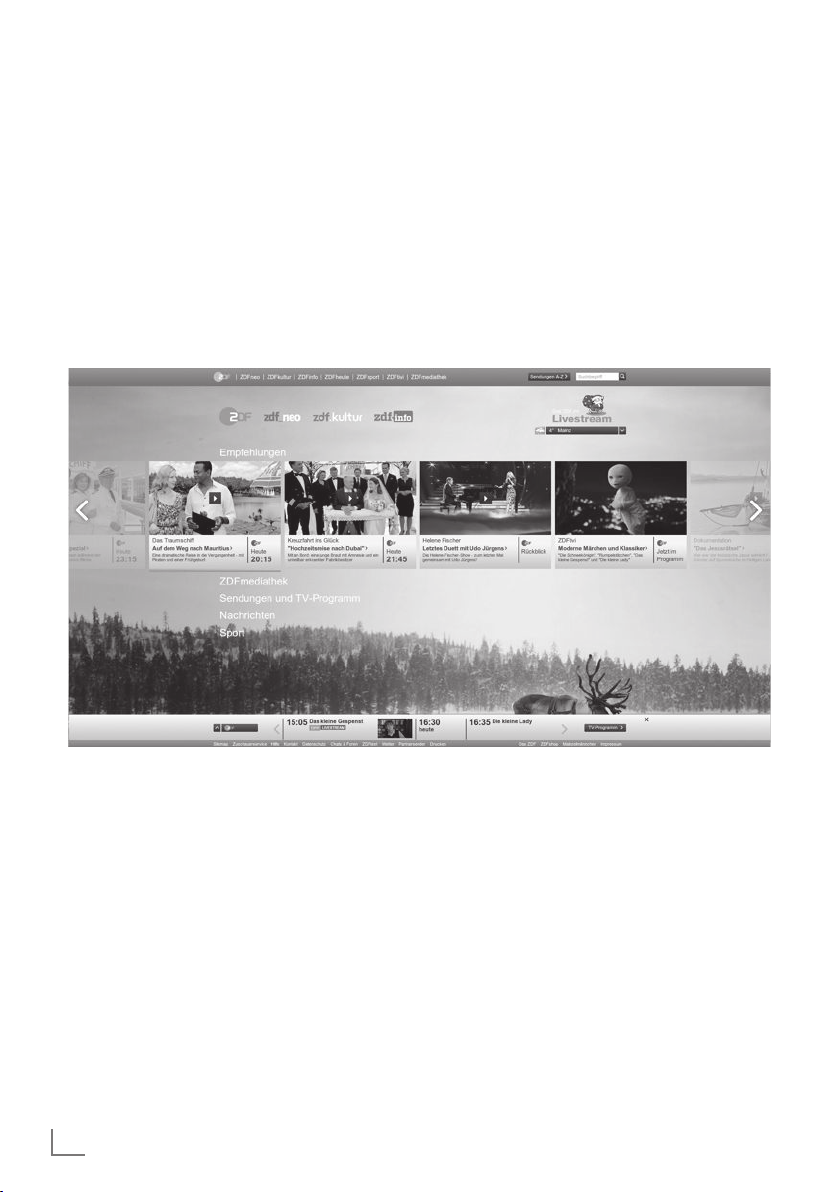

What is HbbTV?
HbbTV provides next generation interactive teletext broadcast with its modern structure, content
and high definition (HD) image and videos.
To receive HbbTV broadcast, your television
must be connected to the Internet.
This feature is only available in countries where
the service is provided.
After you switch to a TV station that offers
HbbTV, a corresponding message appears.
36
ENGLISH
Page 37
HBBTV MODE
------------------------------------------------------------------------------------------------------
Using HbbTV
When you switch to a TV program that supports
HbbTV, an info message will appear stating that
HbbTV broadcast is available.
1 Press »« (red) to open HbbTV.
– Information regarding the services will ap-
pear on the screen. Additionally, colored
buttons necessary for browsing the menus
will also appear.
Notes:
7
The range of subjects and selection of individual subjects depend on the programme
provider.
7
Numeric buttons »1« through »0« are used
for additional functions.
2 Press »« (green), »
(blue) or »
confirm with »OK« to select the desired
topic field.
3 Select the option you want with »
»
<
confirm with »OK«.
4 Press »« (red) to close HbbTV.
Note:
7
If the navigation in HbbTV mode does not
work, you can exit the function by pressing
»EXIT«.
V
«, »Λ«, »<« or »>« and
« or »>« in the selected topic field and
« (yellow) or »
V
«, »Λ«,
Additional functions for video
indexes
1 Start playback with »8«.
2 Pause playback with »
3 Resume playback with »
4 Rewind by »
5 Stop playback with »
3
!«.
8«.
« forward by »4«.
7«.
Deactivate and activate HbbTV
This option allows turning off Hbb TV feature,
thus warnings shall not be displayed on channels with Hbb TV feature.
1 Open the menu with »MENU«.
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Advanced« with »
»
Λ
« and press »OK« to confirm.
5 Select the line »Hbb TV« with »
6 Select the option »Off« with »
«
Note:
7
To activate HbbTV again, select in step. 6
the option »On«.
7 Press »EXIT« to end the setting.
<
Deactivate and activate digital
teletext
If you deactivate digital video text, only normal
video text can be selected, however the other
functions of the interactive service HbbTV are
still available.
1 Open the menu with »MENU«.
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Advanced« with »
»
Λ
« and press »OK« to confirm.
5 Select the line »Digital Teletext« with »
or »
Λ
«.
6 Select the option »Off« with »
Note:
7
To reactivate digital teletext, select »On« in
step 6.
7 Press »EXIT« to end the setting.
<
V
«, »Λ«,
>
V
« or
V
« or »Λ«.
« or »>«.
V
«, »Λ«,
>
V
« or
« or »>«.
« or
« or
V
«
ENGLISH
37
Page 38
TELETEXT MODE
------------------------------------------------------------------------------------------------
TOP text or FLOF text mode
Note:
7
If you only want to use this “normal” video
text, disable the digital video text, see page
37.
1 Press »TXT« to switch to the Teletext mode.
2 You can select teletext pages directly with
V
»1...0« or step by step with »
« or »Λ«.
To return to page 100, press »?«.
Note:
7
At the bottom of the screen, you will see an
information line consisting of a red, green
and, depending on the channel, yellow and
blue text field. Your remote control has buttons with the corresponding colours.
3 Press »« (red) to scroll one page back.
4 Press »« (green) to scroll one page
forward.
5 Press »
6 Press »
« (yellow) to select section.
« (blue) to select topic.
7 Press »TXT« to exit the Teletext mode.
Normal text mode
1 Press »TXT« to switch to the Teletext mode.
2 You can select teletext pages directly with
»1...0«.
To return to page 100, press »?«.
3 Press »P-« to scroll one page back.
4 Press »P+« to scroll one page forward.
5 Press »TXT« to exit the Teletext mode.
Additional functions
Skipping the waiting time
While a page is being searched for, you can
switch to the television channel.
1 Enter the teletext page number with »1…0«
and then press »
– As soon as the page is found, the page
number is displayed.
2 Press »
6« to switch to the teletext page.
Increasing character size
1 To enlarge the character size of a teletext
page, press »
Page stop
A multiple page may contain several sub-pages,
which are automatically scrolled by the transmitting station.
1 Stop the sub-pages with »
2 Press »
3
Calling up a sub-page directly
If the selected teletext page contains further
pages, the number of the current sub-page as
well as the total number of pages is displayed.
1 Call up the sub-page with »
2 Press »« (red) or »« (green) to select a
sub-page.
3 Press »
Reveal answer
Certain teletext pages contain ”hidden answers”
or information which can be called up.
1 Display information with »
2 Conceal the information with »
Splitting the screen (Split Screen)
With this function you can see the television
channel on the left and the teletext page on the
right.
1 To activate the split screen function, press
7«.
»
– Television channel and teletext page ap-
pear side by side on the screen.
2 To deactivate the function, press »
6«.
5« repeatedly.
3
« to quit the function.
« to quit the function.
4
«.
«.
«.
4
«.
7«.
38
ENGLISH
Page 39
USB RECORDING
-------------------------------------------------------------------------------------------
Information on recording and
playing television programmes
7
Recording and reproducing programmes,
this can only be done with digital television
stations (DVB-S, DVB-T and DVB-C).
7
The digital television stations (DVB-S, DVB-T
and DVB-C) you are able to record and
playback also depend on the broadcasting
station.
7
Recording and reproducing programmes,
as well as the Time Shift function can only
be carried out using an external data
medium (hard drive or USB stick).
7
Recordings can be made with most data
mediums on the market. However, we cannot guarantee operation for all data media.
7
If you record a programme on an external
data medium, you can only watch it on your
television.
You cannot watch this programme on any
other device.
7
If you send your television to be repaired
and hardware components need to be
replaced, you might not be able to play the
recordings again on the repaired television.
7
Grundig isn't responsible for any loss of
data stored on any external storage device.
7
It is recommended to play the files saved
on DTV by PVR player. Some recorded
files may not play correctly on USB Media
Player.
Possible limitations when using
an external data medium
Depending on the broadcasting station, you
may experience various restrictions on some
functions from some television stations.
GRUNDIG has no influence on these
restrictions.
7
Recording a programme on the external
data medium can be disabled by the
broadcaster.
If »URI* protected! PVR function blocked«
is displayed, then recording or time shift
is restricted (one recording possible) or
disabled (recording not possible) by the
broadcaster.
*URI = user rights information.
7
If you record and save a programme on
the archive of an external data medium,
playback can be restricted.
The broadcaster can allow you to see this
programme one or more times but could
also just make it available for a certain
period of time.
7
Stations from which children are protected,
immediately require a PIN number before
recording starts. If this authorisation is not
given, the recording may not start.
7
Copying a programme from a digital televi-
sion station onto a video or DVD recorder
using the SCART/S-VHS/COMPONENT
socket (analog audio/video signal) can
also be restricted by the broadcaster. In
order to do this, your device must support
the copying function.
ENGLISH
39
Page 40
USB RECORDING
-------------------------------------------------------------------------------------------

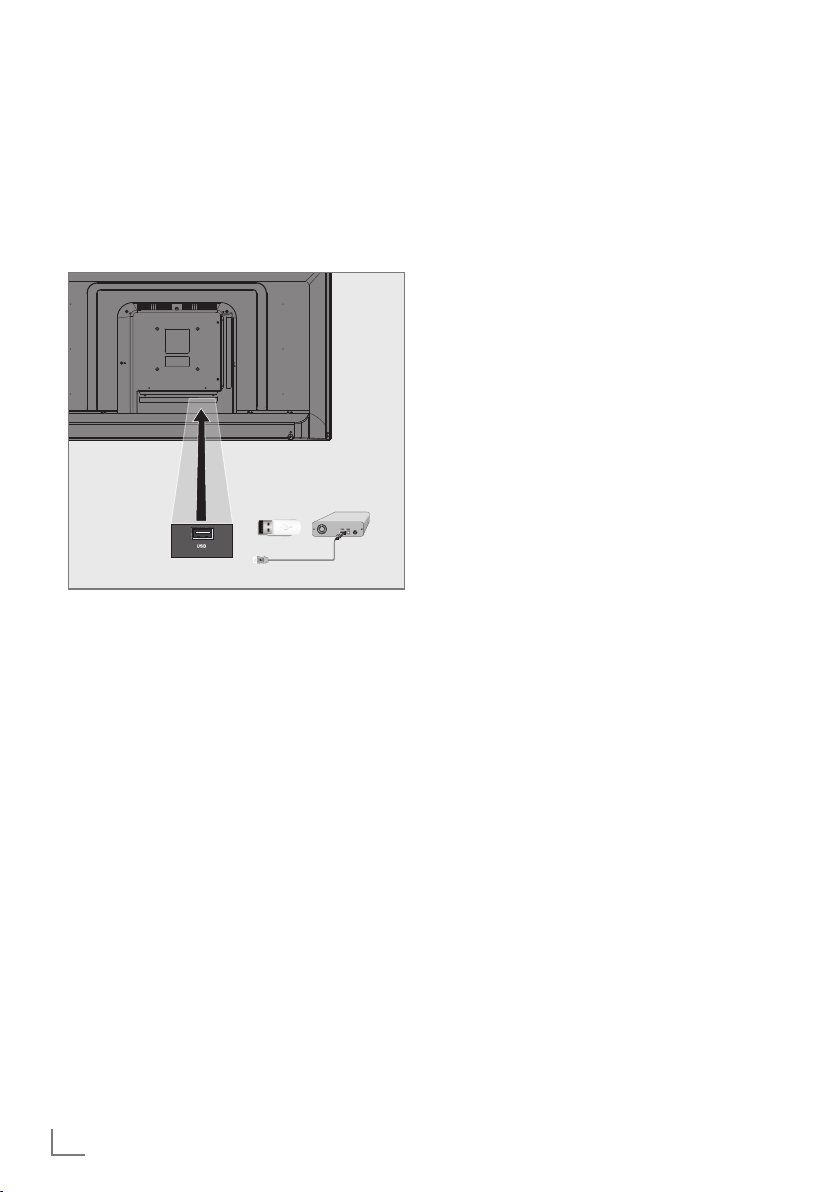

Connecting external data media
Notes:
7
It is advised to put the television on stand-by
mode before connecting the Skype camera.
7
Before disconnecting the external data medium, the television must first be switched to
standby, otherwise files can be damaged.
1 Plug the external hard disk to the
USB(HDD) USB interface of the television;
Notes:
7
If you are using a power cable for the
external hard disk that you have connected
to the USB(HDD) USB interface, then the
power cable of the external hard disk must
also be unplugged when the TV is turned
off.
7
You must not disconnect the USB Device
from the TV while a file on the USB Device
is being read by the TV.
40
ENGLISH
Page 41
USB RECORDING
-------------------------------------------------------------------------------------------
USB recording settings
Selecting the menu
1 Open the menu with »MENU«.
V
xx xxx xxxx
«,
Tuesday
Back
BACK
V
« or
2 Select the menu item »Records« with »
»
Λ
«, »<« or »>« and press »OK« to
confirm.
– »Media Player« menu is displayed.
V
3 Select the line »PVR« with »
« or »Λ« and
press »OK« to confirm.
– The content is displayed.
4 Open the Media Options menu with press
»TOOLS«.
Media Player > PVR
Channel_1_201548_154649.ts
Media Options
View Mode Auto Fit
Auto Preview On
Slide Show Interval 5
Disk Management
5 Select the line »Disk Management« with
»
V
« or »Λ« and press »OK« to confirm.
Note:
7
Additional operations are explained in the
following sections.
Disconnecting external data media
1 In the »Disk Management« menu select
the line »Safely Remove Disk« with »
»
Λ
« and press »OK« to confirm.
Note:
7
Disk can be safely removed from the socket
now.
Selecting external data media
If there are more than one external data media
connected to the television, then select one of
them.
1 In the »Disk Management« menu select the
V
line »Disk« with »
« or »Λ« and press
»OK« to confirm.
V
2 Select the external data media with »
or »
Λ
«.
«
3 Switch back with »BACK <« or press
»EXIT« to end the setting.
Selecting a partition on the external
media
If there are more than one partitions on the
external data media, select one of them.
1 In the »Disk Management« menu select the
V
line »Partition« with »
« or »Λ« and press
»OK« to confirm.
V
2 Select the desired partition with »
»
Λ
«.
« or
3 Switch back with »BACK <« or press
»EXIT« to end the setting.
Testing external data media
You can test the external data media to see if it
is suitable for the required functions.
1 In the »Disk Management« menu select the
V
line »Disk« with »
« or »Λ«. If there are
more then one external data media, select
the desired data media with »
2 Select the line »Partition« with »
V
« or »Λ«.
V
« or »Λ«.
If there are more then one partitions, select
the desired partition with »
3 Select the line »Check Disk« with »
»
Λ
« and press »OK« to confirm
V
« or »Λ«.
V
« or
– Disk information is displayed.
4 Switch back with »BACK <« or press
»EXIT« to end the setting.
ENGLISH
41
Page 42
USB RECORDING
-------------------------------------------------------------------------------------------
Formatting the partition
1 In the »Disk Management« menu select the
line »Format Partition« with »
V
« or »Λ«
and press »OK« to confirm.
2 Select push button »Yes« with »
confirm the security query;
« or »>« to
<
or
select push button »No« with »
to cancel the function.
« or »>« to
<
3 Switch back with »BACK <« press »EXIT«
to end the setting.
Time shift – ″ Pausing”
programmes
You can pause any program you are watching. This is a useful function. For instance, if the
phone rings when you are watching a movie,
you can pause the movie and resume it after the
call without missing nothing.
The last scene that was frozen is displayed and
time shift is recorded into the external data
media.
In Time Shift mode, you can only record as
much as the free memory space on the external
data media.
You can record current broadcast for approximately 60 minutes.
Note:
7
For undisturbed “Permanent Timeshift” use
an external USB hard disk.
1 Press »
– Television picture is paused and delay
2 To resume the broadcast, press »
– The system continues recording the broad-
Note:
7
–
–
–
3 Press »
– The message »Live Broadcast« appears.
– The scenes in the “time shift memory” are
!« during the broadcast.
time is displayed.
8«.
cast while you are watching it.
Following functions can be used in time shift
mode.
Fast rewind, press »3« several times for
the desired speed;
Fast forward, press »4« several times for
the desired speed;
To pause press »!«.
7« to exit the Time Shift function.
deleted.
42
ENGLISH
Page 43
USB RECORDING
-------------------------------------------------------------------------------------------
Recording programmes
You can record the programmes. Programmes
are recorded onto the external data media and
the archive is managed via television.
A memory of 44 MB up to 110 MB is required
for a 1 minute record.
Other recordings in the archive can be watched
while a programme is being recorded.
It is possible to shift channels during recording
between unscrambled channels on the same
frequency (DVB-T/C) or on the same transponder (DVB-S).
When switched to channels other than (Terrestrial, Cable, Satellite and USB) during recording, the recording process is stopped.
One-touch programme recording
1 Select the channel with »1…0« or »P+«,
»P–« and press »
ing.
– Recording information is displayed:
Recording symbol, channel name, programme time and recording time.
– This information will disappear shortly.
2 To end the recording, press »
3 Select push button »Yes« with »
confirm the security query;
or
select push button »No« with »
to continue the recording.
Notes:
7
When recording is complete, it will automatically be stored on the external data
media.
7
If you remove the external data media
during recording, then the recording is
cancelled automatically and no data is
recorded onto the external data media.
« to start the record-
7«.
« or »>« to
<
« or »>« to
<
Recording a programme from
the channel list
1 Press »OK« to open the channel list.
2 Select a channel with »
»OK« to confirm.
3 Press »EXIT« to exit from the channel list.
4 Press »
– Recording information is displayed:
Recording symbol, channel name, programme time and recording time.
– These information will disappear after a
short while. Recording symbol and recording time will appear on the lower right
corner of the screen.
5 To end the recording, press »
6 Select push button »Yes« with »
confirm the security query;
or
select push button »No« with »
continue the recording.
« to start recording.
« or »>« and press
<
7«.
« or »>« to
<
« or »>« to
<
ENGLISH
43
Page 44
USB RECORDING
-------------------------------------------------------------------------------------------
Programme setting for recording
... with electronic programme guide
Electronic programme guide data can be used
for recording.
25 EPG reminder and/or recorder can be set
in total.
1 Press »GUIDE« to open the electronic
programme guide.
V
2 Select the preferred TV program with »
or »
Λ
– Information about the actual TV program
3 Press »
4 To add broadcasts to the timer press »OK«.
– Information for the TV program to be
5 Select the line »Record« with »
– Recording data range appears.
6 Press »OK« to confirm.
7 Press »EXIT« to end the menu.
«.
is displayed.
« or »>« to select the TV program
<
you want to record.
recorded will be displayed.
« and press
»OK« to confirm.
Note:
7
If the data for the recording is to be
changed, open menu with »MENU«. Select
the menu item »Schedule List« with »
»
Λ
«, »<« or »>« and confirm with »OK«.
Press »« (green), change the data and
and save it with »
Notes:
7
A warning is displayed before the timer
recording starts and counts down for 10 seconds to allow you to switch to the channel.
At the end of 10 seconds, the channel to be
recorded appears automatically.
7
If the timer recording starts during play-
back, playback stops. If you do not select
»Yes« in the warning prompt, recording
will start automatically at the end of the
countdown.
>
« (blue).
«
V
«,
7
Only for UPC customers Note: Parts of
previous or next files can be included into
the record while the programme is being
recorded resulting from possible Programme
Guide errors. In such cases, keep in mind
that the highest family protection level will
apply for the whole recording if one or more
of those programmes have any level of family protection.
Set the lead/follow-up time
With this function you can change the recording
time set by the electronic TV guide.
If you think that a program will start a few minutes earlier or will end several minutes later, you
can „add“ up to 60 minutes to this time
1 Open the menu with »MENU«.
2 Select the menu item »Schedule List« with
»
V
«, »Λ«, »<« or »>« and press »OK« to
confirm.
3 Activade the »Padding Time« menu with
»
« (blue).
4 Change the start time with »
V
5 Use »
6 Select push button »Save« with »
7 Press »EXIT« to end the menu.
« to switch to the line »End« and
change the end time with »
press »OK« to confirm.
« or »>«.
<
« or »>«.
<
V
« and
44
ENGLISH
Page 45
USB RECORDING
-------------------------------------------------------------------------------------------
... by entering the information manually
25 TV programmes can be preset for the timer
recording or as a reminder.
1 Press »GUIDE« to open the electronic
programme guide.
2 Press »
– »TV Listing« option is marked.
3 Select the line »Set Recording« with »
– »Set Recording« menu is displayed,
Note:
7
4 Press »OK«, select the channel you want to
5 Press »OK«, select the date you want to
6 Press »OK«, enter starting time with »
7 Press »OK«, enter starting time with »
8 Press »OK«, select »Mode« (»Once«, »Ev-
9 Select »Save Recording« with »
– Recording time range appears.
10 Press »OK« to confirm.
– Recording timer is programmed.
11 Press »EXIT« to end the menu.
« to display the top menu.
<
V
«.
V
«.
«.
>
V
«.
V
« or »Λ«
V
« and
V
V
V
»
Λ
« and press »OK« to confirm.
»Channel« is marked.
If you want to use the reminder function,
select the line »Set Reminder«.
record with »
to confirm.
To pass to the next item press »
record with »
to confirm.
To pass to the next item press »
»
Λ
« and press »OK« to confirm.
To pass to the next item press »
»
Λ
« and press »OK« to confirm.
To pass to the next item press »
ery Day« or »Weekly«) with »
and press »OK« to confirm.
confirm with »OK«.
V
« or »Λ« and press »OK«
V
« or »Λ« and press »OK«
« or
« or
« or
Notes:
7
A warning is displayed before the timer
recording starts and counts down for 10 seconds to allow you to switch to the channel.
At the end of 10 seconds, the channel to be
recorded appears automatically.
7
If the timer recording starts during playback, playback stops. If you do not select
»Yes« in the warning prompt, recording
will start automatically at the end of the
countdown.
Editing the timer
1 Open the menu with »MENU«.
2 Select the menu item »Schedule List« with
V
«, »Λ«, »<« or »>« and press »OK« to
»
confirm.
3 Select the title of the programme to be
changed with »
(green) to edit the title.
4 With »
5 To save the modification, press »
– Timer is changed.
6 Press »EXIT« to end the setting.
V
to edit and modify them with »1…0« and
»
« or »>«.
<
(blue).
V
« or »Λ« and press »«
« or »Λ« select the items you want
«
Deleting a timer
1 Open the menu with »MENU«.
2 Select the menu item »Schedule List« with
V
«, »Λ«, »<« or »>« and press »OK« to
»
confirm.
3 Select the title of the programme to be
deleted with »
the timer with »
4 Select push button »Yes« with »
confirm the security query;
or
select push button »Cancel« with »
»
« to cancel deletion process.
>
5 Press »EXIT« to end the setting.
V
« or »Λ« and and delete
« (yellow).
« or »>« to
<
<
« or
ENGLISH
45
Page 46
USB RECORDING
-------------------------------------------------------------------------------------------
Playback
Either started manually or with the timer function, the recorded programmes are all stored in
the external data media. You can display an archive on an external data media from »Records«
– »Media Player« menu.
Selecting a broadcast from the
recorded files list
1 Open the menu with »MENU«.
V
2 Select the menu item »Records« with »
»
Λ
«, »<« or »>« and press »OK« to
confirm.
– »Media Player« menu is displayed.
3 Select the option »PVR« with »
and press »OK« to confirm.
– Recorded files are displayed.
4 Select the broadcast you want to play with
V
« or »Λ« and start playback with »8«.
»
5 Press »
– TV returns to media player menu.
Forward/reverse picture search
1 Press »4« repeatedly to select the playback
or
press »
Playback during a recording
You can either watch the current programme
that is being recorded or a previously recorded
programme while recording takes place.
1 Select the channel with »1…0« or »P+«,
2 To display PVR content press »« (red)
3 Select the programme you want to watch
4 Press »
5 Press »
7« to end playback.
speed (2x, 4x, 8x, 16x or 32x);
3
back speed (2x, 4x, 8x, 16x or 32x).
»P–« and press »
ing.
button.
with »
»
« repeatedly to select the play-
V
« or »Λ« and start playback with
8«.
7« to stop playback.
7« to stop recording.
V
« to start the record-
«,
« or »Λ«
6 Select push button »OK« with »<« or »>« to
confirm the security query;
or
select push button »Cancel« with »
»
« to cancel deletion process.
>
<
« or
Deleting programmes from the
recorded files menu
You can delete recorded programmes from the
Recorded Files list.
1 Open the menu with »MENU«.
V
2 Select the menu item »Records« with »
»
Λ
«, »<« or »>« and press »OK« to
confirm.
– »Media Player« menu is displayed.
3 Select the option »PVR« with »
and press »OK« to confirm.
– Recorded files are displayed.
4 Select the broadcasts to be deleted with
« or »>«.
»
<
5 »To delete the broadcast, press »« (red).
6 Select push button »OK« with »
confirm the security query;
or
select push button »Cancel« with »
»
« to cancel deletion process.
>
Note:
7
Files that are being recorded or played
back can not be deleted from the »Recorded Files« menu.
7 Press »EXIT« to end the menu.
V
<
«,
« or »Λ«
« or »>« to
« or
<
46
ENGLISH
Page 47
USB OPERATION
--------------------------------------------------------------------------------------------
File formats for USB operating
Your television can be operated via the USB
input with the following file formats:
Video data
Special codecs for video compression and
decompression provide more memory space
without compromising the picture quality excessively.
Your television plays video files in the formats
XVID, H.264/MPEG-4 AVC (L4.1, 4 reference
pictures), MPEG-4, MPEG-2, MPEG-1, MJPEG
and MOV.
The following file name extensions are also
supported: “.avi”, “mkv”, “.mp4”, “.ts”, “.mov”,
“.mpg”, “.dat”, “.vob”,”.divx”. In addition to
video data, these files also contain audio data
compressed and "packaged" by using MP3,
AAC or Dolby Digital.
Format (codec) information is embedded within
the file content and may differ depending on the
file extension. “.avi”, “.mkv” or “.divx” files containing divx codec within are not playbacked.
Image data
Your television can display picture data in JPEG,
PNG and BMP formats.
JPEG stands for Joint Picture Experts Group. This
process is intended to compress picture files.
PNG and BMP standards are intended to compress picture data without loss.
Picture files can be saved in a data storage
medium together with other file types.
Such files can be organized as folders and
subfolders.
Audio data
Your television can play audio data coded with
MP3, AAC standards.
MP3 stands for MPEG-1 Volume Level 3 and is
based on the MPEG-1 standard developed by
MPEG (Motion Picture Expert Group).
AAC indicates the Advanced Audio Coding and
is developed by MPEG. AAC provides higher
audio quality with the same data rate (bit rate).
WMA (Windows Media Audio) is a compression standard developed by Microsoft for audio
data.
These formats enable audio files to be saved on
storage devices with a sound quality similar to
that of a CD.
File extensions supported by your device:
“.mp3”, “.mp2”, “.wma”, “.m4a”, “.aac”,
".wav"
MP3 files can be organised into folders and
subfolders similar to the files on a computer.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited.
DTS, the Symbol, & DTS and the Symbol together are
registered trademarks, and DTS 2.0+Digital Out is a
trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
ENGLISH
47
Page 48
USB OPERATION
--------------------------------------------------------------------------------------------

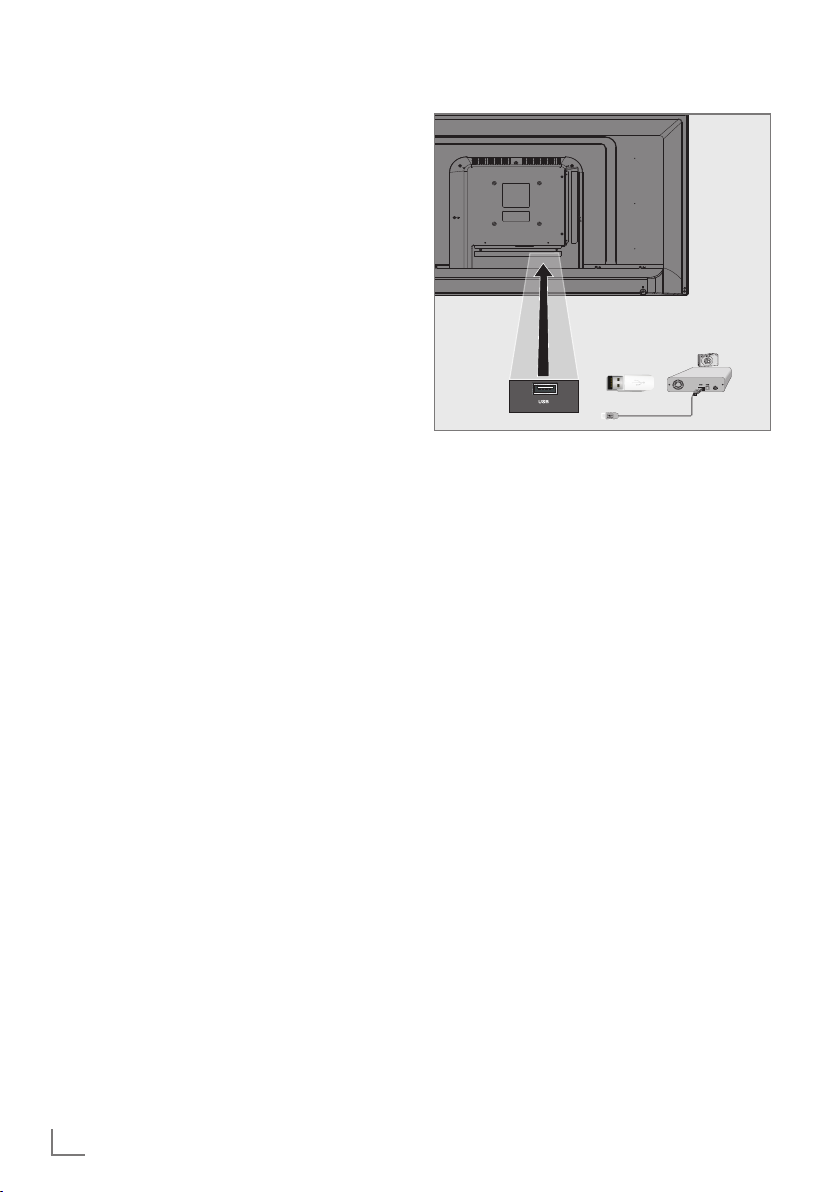

Connecting external data media
It is advised to put the television on stand-by
mode with »
data medium. Connect the device and then
switch the television on again.
Before disconnecting the data medium, the
television must first be switched to standby,
otherwise files can be damaged.
Notes:
7
7
7
8« before connecting the external
You must not disconnect the USB Device
from the TV while a file on the USB Device
is being read by the TV.
A bi-directional data transfer as defined for
ITE (Information Technology Equipment)
devices in EN 55022/EN 55024 is not
possible.
USB transfer is not an operating mode in
itself. It is only an additional function.
1 Connect the USB(HDD) USB interface on
the television and the related data output
on the external device (external hard disk,
digital camera, card reader or MP3 player)
with a USB cable;
Removing the external data
media
Before removing the external data medium, log
off the data medium.
1 Open the menu with »MENU«.
2 Select the menu item »Media Center« with
V
«, »Λ«, »<« or »>« and press »OK« to
»
confirm.
– »Media Player« menu is displayed.
3 Select the name of the data medium with
V
« or »Λ« and press »OK« to confirm.
»
4 Select the »Media Options« with »TOOLS«.
5 Select the line »Disk Management« with
V
« or »Λ« and press »OK« to confirm.
»
6 Select the line »Safely Remove Disk« with
V
« or »Λ« and press »OK« to confirm.
»
7 Remove the data medium from the socket.
8 Press »EXIT« to end the setting.
48
ENGLISH
Page 49
USB OPERATION
--------------------------------------------------------------------------------------------
The file browser
The file browser displays the video, audio and
picture data that the external data medium
provides.
If a data medium contains different file formats,
you can deactivate data (Video file, Audio file,
Picture file) you do not need for the playback
using a filter function.
The main menu of the file browser
3
2
Media Player > DISK1
All Movie Music Photo
Moive
Music
Moive.avi
Movie.str
Music.mp3
TOOLS
Select All Media Options
4
1 Preview.
2 Data type.
3 Name of the data medium.
4 Folders on the data medium.
5 Menu navigation.
Play
Navigation Between Items
Filter Type
5
xx xxx xxxx
1
Tuesday
BACK
Settings in the USB setup menu
Selecting the menu
1 Open the menu with »MENU«.
2 Select the menu item »Media Center« with
V
«, »Λ«, »<« or »>« and press »OK« to
»
confirm.
3 Select the name of the data medium with
V
« or »Λ« and press »OK« to confirm.
»
4 Select the »Media Options« with »TOOLS«.
Note:
7
Additional operations are explained in the
following sections.
Selecting the display mode
1 Select the line »View Mode« with »V« or
»
Λ
«.
2 Press »
3 Press »EXIT« to end the setting.
Back
Switching to automatic preview
If the automatic preview is switched on, you can
see the selected file in the main menu of the file
browser.
1 Select the line »Auto Preview« with »
2 Press »
3 Press »EXIT« to end the setting.
« or »>« to select the function.
<
»
Λ
«.
« or »>« to switch the function
<
»On«.
V
« or
ENGLISH
49
Page 50
USB OPERATION
Selecting the display duration of the
slide show
1 Select the line »Slide Show Interval« with
»
V
« or »Λ«.
2 Select the time (3, 5, 10 seconds) with »
or »
«.
>
3 Press »EXIT« to end the setting.
Subtitle settings
If the film has subtitles, you can turn on and off
this subtitle, change its size or colour.
1 Use »
2 Adjust with »
3 Press »EXIT« to end the setting.
V
« or »Λ« to select »Subtitle Auto Se-
lection«, »Subtitle Size« or »Subtitle Color«.
« or »>«.
<
Note:
7
These adjustments can only be made for
external subtitle files. These adjustments
cannot be made in subtitles combined with
the movie.
--------------------------------------------------------------------------------------------
<
«
50
ENGLISH
Page 51
USB OPERATION
--------------------------------------------------------------------------------------------
Playback basic functions
1 Open the menu with »MENU«.
2 Select the menu item »Media Center« with
V
«, »Λ«, »<« or »>« and press »OK« to
»
confirm.
– »Media Player« menu is displayed.
Note:
7
If the content of the external data medium
is not displayed, press »
refresh.
3 Select the name of the data medium »
»
Λ
« and press »OK« to confirm.
– Media Player menu of the selected exter-
nal data medium is displayed.
4 Select the desired type (All, Movie, Music
or Photo) with »
to confirm.
« or »>« and press »OK«
<
5 Select the folder with »
press »OK« to open it.
– A list of sub-directories appears.
Note:
7
Go back to the previous folder with
»BACK <«.
6 Select the track or picture with »
and press »
8« to start playing.
Notes:
7
When playing picture data, press »?« to
view information about the resolution and
the size.
7
For playing MP3 or WMA data, information on the album, track and singer is
displayed at the left of the menu.
7
When playing picture data, press »?« to
switch on a control panel.
7 Press »
!« to pause playback.
8 To resume playback press »
9 Press »
7« to end playback.
– The file browser appears.
« (yellow) to
V
« or »Λ« and
V
8«.
V
« or
« or »Λ«,
Notes:
7
Use »BACK <« when you would like to
return to the last folder.
7
It is possible that some files that are supported in USB mode do not operate due to
some problems that may arise depending
on how such files are created (compression)
although they contain the supported file
extension.
7
If there are more then one audio sources
(audio stream) in the video files that are
being played, then you can switch between
the audio sources with the »
« while the
file is played in full screen mode.
7
Movies you will be watching from the movie
file only supports subtitles with .srt, .sub,
.ass, .ssa, .smi format. Names of the subtitle
and movie files must be the same. Otherwise, subtitle can not be displayed.
ENGLISH
51
Page 52
USB OPERATION
--------------------------------------------------------------------------------------------
Additional playback functions
Depending on the file formats used, the following additional functions are possible.
Selecting partition on HD files
(only supported video files)
1 During playback, select the next chapter
with »
«.
>
2 During playback, select the previous chap-
ter with »
Selecting titles on HD files
(only supported video files)
1 During playback, select the next title with
»
Λ
2 During playback, select the previous title
with »
Playing selected tracks
Only play the marked tracks.
1 Select the track you want with »
and highlight with »
2 Select the track you want with »
and highlight with »
3 Start playback with »
4 Press »
Note:
7
To remove the highlighting, select the track
with »
with »
Selecting a track or picture in steps
(SKIP)
1 During playback, select the next track/pic-
ture you want with »
2 Select the previous track/picture with »
– Playback begins with the track or picture
you selected.
«.
<
«.
V
«.
« (yellow).
« (yellow).
8«.
7« to end playback.
V
« or »Λ« and remove the marking
« (yellow).
6«.
V
« or »Λ«
V
« or »Λ«
5«.
Move to desired time
(only video files)
1 Press »OK« during playback.
2 Enter the time that you want to move to with
»1...0« and confirm with »OK«.
Searching forward
(only video and audio files)
You can select different speeds (2-fold, 4-fold,
8-fold, 16-fold and 32-fold forwards and backwards).
1 During playback you can select playback
speed by pressing »
2 To resume playback press »
3
« or »4«.
8«.
Turn the picture display
(only picture files)
The pictures can be rotated by 90°.
1 During playback, switch on the control
panel with »OK«.
2 Use »
– The picture rotates 90° clockwise.
« or »>« to select » « and press
<
»OK«.
Repeat functions
Options:
– »One«, the selected track is repeated
once;
– »Sequence«, selected tracks are repeated
consecutively;
– »Random«, selected tracks are repeated
in a mixed order;
– »None«, repetition off.
1 Press »
2 During playback, switch on the control
3 Select »
– The repeat function will change.
8« to start playback.
panel with »OK«.
« with »<« or »>« and press
»OK« repeatedly.
52
ENGLISH
Page 53
MULTIMEDIA SERVER MODE
-----------------------------------------------------------
Playing the video, music and
image files with home network
connection
With DLNA menu of your television, you can
easily access Video, music and photo files on
server; and thanks to DMR feature, you can
automatically start and stop media playing on
devices with DMC feature.
Notes:
7
You can share your video, music and image
files through devices such as PC, mobile
phone or NAS (Network Attached Storage)
that function as DMS (Digital Media Server)
compatible with DLNA.
7
If the DMS device and the TV are connected to the wireless network at the same time,
there may be lags and freezings during
video playback.
7
TV can also operate with DMS software
that can be installed on a computer but,
it is not guaranteed that it will run in full
compatibility with software without a DMS
certificate.
7
Perform the following steps for a sample
DMS setup.
Open Windows Media Player11 on a PC
with Windows operating system installed.
In »Library« tab, select »Media Sharing«,
tick on the »Share my media« box on
the window that appears and then select
»OK«. The new window displays the IP
numbers of connected devices. To enable
the TV to detect the computer, you need to
select the television's IP number. If IP is not
listed in the window; from »Media Sharing«
menu's »Settings« option, you can select the
option »Allow new devices and computers
automatically« in the pop-up menu. After
completing these processes, the television
can only view the supported file formats in
the Library.
In order not to encounter any problems with
media sharing, check the Firewall settings of
your modem and computer.
Selecting the digital media
server
1 Open the menu with »MENU«.
2 Select the menu item »Media Center« with
« or »<« and press »OK« to confirm.
»
>
– »Media Player« menu is displayed.
Note:
7
If no DMS device appears, check the network connection. See page 81 or 84.
3 Select any DMS device with »
and press »OK« to confirm.
– DMS device content is displayed.
Media Player > PC1
All Movie Music Photo
Moive
Music
Select All + Playlist Media Options
TOOLS
Play
Navigation Between Items
Notes:
7
File and folder structure of the DMS device
in menu may vary depending on the Digital
Media Server software in use.
7
Subtitles are not supported on video files
that are played through the DMS device.
7
Video files played through DMS device support following formats that have obtained
DLNA certificate: »MPEG_PS_NTSC«,
»MPEG_PS_PAL«, »MPEG_TS_SD_EU«
and »MPEG_TS_EU_ISO«.
7
In videos with high bit rate, lag problem
might be seen.
7
Folders that appear as unknown in DLNA
application cannot be played by the TV.
Installing the codec to your computer can
solve this problem.
V
« or »Λ«
Tuesday
xx xxx xxxx
Filter Type
BACK
Back
ENGLISH
53
Page 54
MULTIMEDIA SERVER MODE
7
Audio files played through DMS device support following formats that have obtained
DLNA certificate: »AAC_ADTS_320«,
»LPCM«, »MP3«, »WMABASE« and
»WMAFULL«.
7
Image files played through DMS device
support following formats that have
obtained DLNA certificate: »JPEG_LRG«,
»JPEG_MED« and »JPEG_SM«.
Playback
1 Select the content folder on DMS device
with »
– All titles are displayed. to confirm.
2 Select the desired title with »
3 Press »
Other playback options
1 Press »!« to pause playback.
2 To resume playback press »
3 Press »
desired file.
4 Press »
5 Switch back to the content with
»BACK <«.
6 To exit DLNA feature press »EXIT«.
7 Select push button »Yes« with »
confirm the security query;
or
select push button »No« with »
cancel deletion process.
Note:
7
– »
– »
– »
– »
– »
– »
– »
– »
-----------------------------------------------------------
V
« or »Λ« and press »OK«.
V
« or »Λ«.
8« to start playback.
8«.
5« or »6« until you reach the
7« to stop playback.
« or »>« to
<
« or »>« to
<
Also, you can select following playing functions from the menu:
« select repeat functions;
5« select previous title;
3
« picture searche previous;
8« starts playing;
!« pauses playing;
7« stops playing;
4
« picture searche next;
6« select next title.
54
ENGLISH
Page 55
APLICATION CENTER
---------------------------------------------------------------------------------
Terms & Conditions and
Confidentiality
Agreements of Terms & Conditions and Confidentiality
Agreements of Terms & Conditions and Confidentiality are agreements you must accept to
use all functions of Smart Inter@ctive.
If Agreements of Terms & Conditions and Confidentiality are accepted, all functions of Smart
Inter@ctive can be used and the necessary data
about the use of TV are collected.
If Agreements of Terms & Conditions and Confidentiality are not accepted, Application Portal,
Software Update via Internet, Applications and
Web Browser of Smart Inter@ctive cannot be
accessed; no data about the use of TV are collected; DLNA and LiveShare functions can be
used.
First run and operations
After you have turned the TV on, “Information”
page will be displayed when the TV has connected to the internet for the first time. On this
page, you will be informed that you need to
read and accept the Terms & Conditions and
Confidentiality content to use Smart Inter@active
functions. Here, you must select “Next”.
7
If you exit this page (with the Exit button on
the remote controller of by turning the TV off)
without selecting “Next”, the “Information
Page” will be displayed again when the TV
is turned on and connected to the internet the
next time. The reason is that the Agreements
of Terms & Conditions and Confidentiality
have not been read and accepted.
7
If you select Next, you will be directed to a
page where you can read the Terms & Conditions and Confidentiality content.
7
The user can see the content of Terms &
Conditions and Confidentiality. There are
two options for both contents: “Accept” and
“Decline”. You cannot accept or decline individually.
7
If you select “Accept” you can continue to
use the TV.
7
If you select “Decline”:
7
The “Information Page” will be displayed
again when the TV is turned on and connected to the internet the next time and
the same steps will apply.
If the content of the Terms & Conditions and
Confidentiality has been updated, the “Information” page will be displayed when the TV has
been turned on and connected to the internet for
the first time after this update. On this page, you
will be informed that the content of the Terms
& Conditions and Confidentiality has been
updated. Additionally, you will be expected to
read and accept the content of the new Terms &
Conditions and Confidentiality. Here, you need
to select Next, and the next steps will be as mentioned above.
Displaying the Terms & Conditions and Confidentiality content
accepted by the user and removing the acceptance
You can reread the Terms & Conditions and
Confidentiality content you have already accepted and you can even remove your acceptance. To do this:
7
Go to the Settings page of the Application
Portal or to the Settings of the TV menu to access the Terms & Conditions and Confidentiality agreements you have accepted.
7
Here, the most recent accepted versions of the
Terms & Conditions and Confidentiality are
displayed.
7
You can read the latest version of the Terms
& Conditions and Confidentiality content
you have accepted and see “Remove Acceptance” option. If you select “Remove Acceptance”:
7
The “Information Page” will be displayed
again when the TV is turned on and connected to the internet the next time and the
same steps will apply.
ENGLISH
55
Page 56
APLICATION CENTER
---------------------------------------------------------------------------------
SMART inter@ctive TV internet
applications
SMART Inter@ctive TV interactive applications
provide your television with Internet services
and pages.
These applications are designed according to
your television.
With SMART inter@ctive TV, you can run many
local and global internet applications. These applications include various types such as video,
picture, music, game, social networking applications, news and sports applications, weather
forecast applications.
Notes:
7
Availability of SMART inter@ctive TV inter@
ctive applications may vary depending on
the country.
7
SMART inter@ctive TV cannot download or
save files permanently, cannot upload files
to a website or cannot install add-ins except
Login pages of some applications.
7
Grundig is not responsible for the content
and the quality of content offered by content providers.
7
Local and global internet applications provided through your SMART Inter@ctive TV
come with your TV within the framework of
special limited duration agreements entered
into with the application owners. Application owners may update, modify, restrict
or entirely remove those applications with
their own decision. Grundig cannot be held
responsible for such changes.
7
Grundig reserves the right to make all
changes such as modifications, restrictions, extensions, transfers and removals on
internet applications provided through your
SMART inter@ctive TV.
7
In Login process of some applications, it
may be required to connect to the web
page of the related application. Subject
web pages may contain links not related
to Login process. When connecting those
links, TV may access open web and view
contents that are not supported by your TV.
As you are on open web, your TV cannot
control those unsupported contents or cannot be held responsible for them.
USB keyboard and mouse
You may connect a keyboard or mouse to both
sockets USB(HDD) to use in the Web browser.
Keyboards and mice requiring special drive are
not supported
Getting Started with Smart Inter@ctive TV
1 Open the menu with »MENU«.
2 Select menu item »Applications Center« with
« or »>« and press »OK« to confirm.
»
<
– »Application Portal« menu will be dis-
played.
Notes:
7
If you press »@« when no menu is open,
you can access »Application Portal« menu.
7
If you attempt to start Inter@ctive applica-
tions without a cable or wireless adapter
connected, the related warning is displayed
on the screen. If your cable or wireless
adapter is connected but you cannot
receive IP or internet is not connected, the
Inter@ctive applications cannot be started.
In this case, check Network connection settings. See page 87 or 90.
56
ENGLISH
Page 57
APLICATION CENTER
---------------------------------------------------------------------------------
Selecting internet applications
1 Select »Application Store« from the menu or
press »@«.
– Application Portal will be displayed.

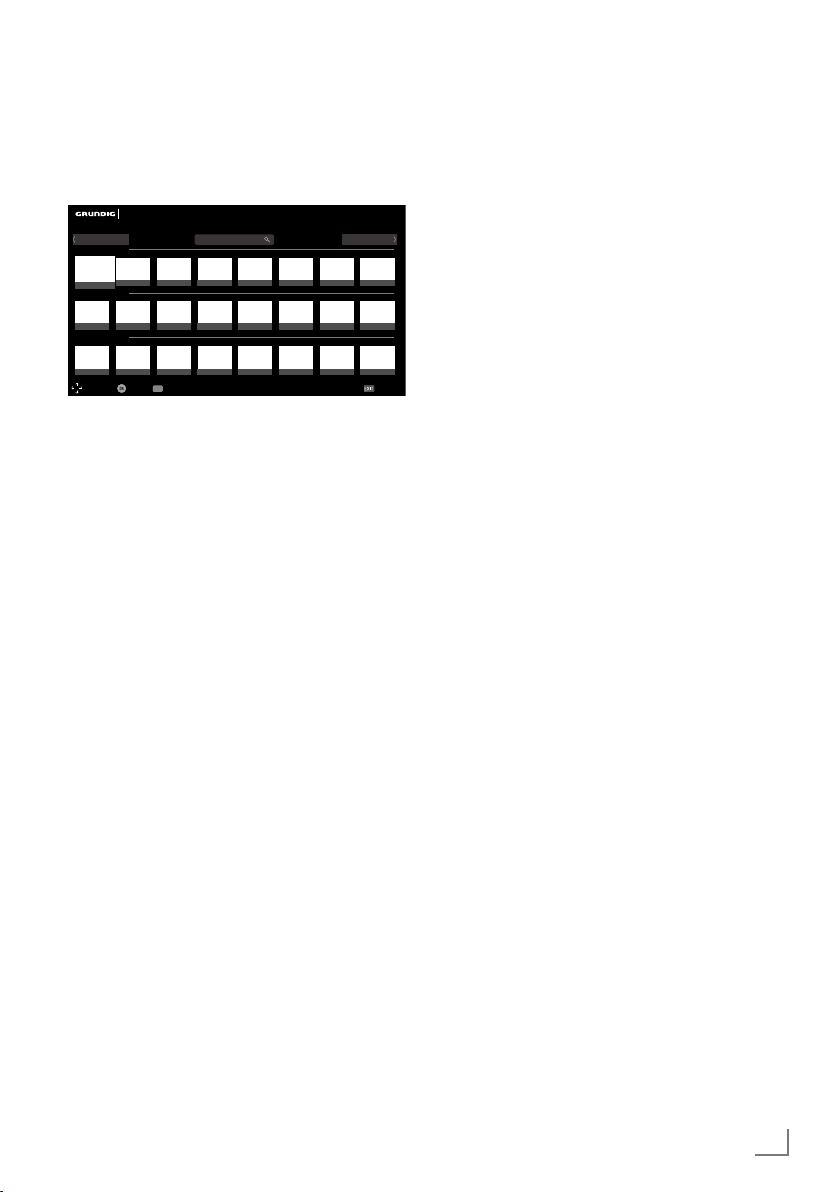

Smart Inter@ctive TV
Featured
abc...
Most Popular
abc...
New Applications
abc...
Navigation Select
Enter search key
abc...
abc...
abc...
abc...
abc...
abc...
abc...
abc...
abc...
abc...
abc...
Settings
abc...
All ApplicationsFavorites
abc...
abc...
abc...
abc...
abc...
abc...
abc...
abc...
abc...
Exit
2 Select the required application with »V«,
»
Λ
«, »<« and »>« and press »OK« to
confirm.
– Main menu of the application will be
displayed after a short while.
Notes:
7
When you attempt to start any application
without a cable or wireless network connection, the related warning is displayed on the
screen.
7
Applications will not start if you do not have
internet access or cannot obtain IP even if
your cable is connected to TV or you are
connected to a wireless network. In this
case, check Network connection settings.
See page 87 or 90.
Displaying all applications
Applications displayed on SMART inter@ctive
TV home page are just a few of the application
that can run on the television. You can display
and select other applications in »All Applications«.
1 Select »Application Store« from the menu or
press »@«.
– Application Portal will be displayed.
2 Select »All Applications« with »
»
« or »>« and press »OK« to confirm.
<
– »All Applications« menu will be displayed.
V
«, »Λ«,
Adding applications to favorites
You can add frequently used applications to
your favorites and collect these under »Favorites«.
1 Use »
V
«, »Λ«, »<« or »>« to select the application you want to add to your favorites
and press »FAV«.
– The application you have selected will be
added to your favorites.
Note:
7
To remove an application from favorites,
press »FAV«.
ENGLISH
57
Page 58
APLICATION CENTER

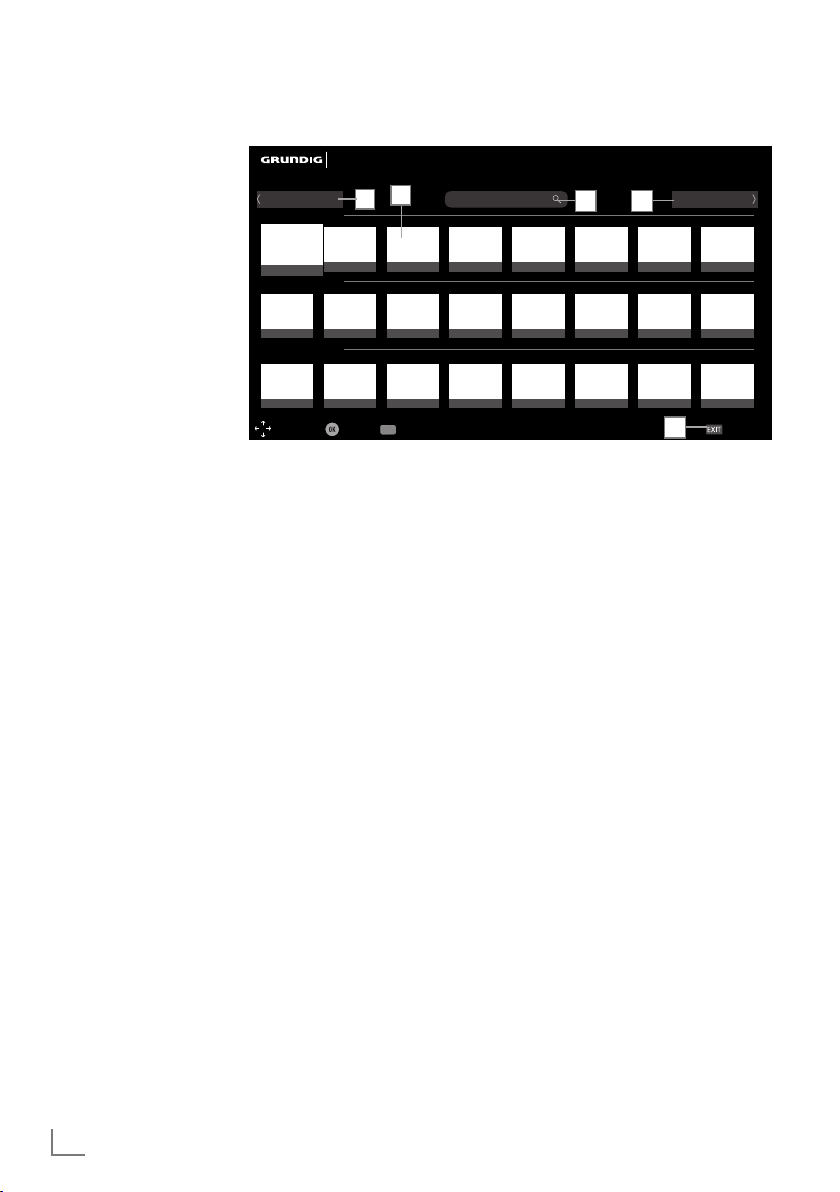

Application Portal Main Screen
1 Applications.
2 All Applications.
3 Favorites
4 Search bar.
5 Exit.
Featured
Most Popular
Smart Inter@ctive TV
3
abc...
abc...
---------------------------------------------------------------------------------
Enter search key
1
abc...
abc...
4
abc...
abc...
All ApplicationsFavorites
2
abc...
abc...
abc...
New Applications
abc...
Navigation Select
abc...
abc...
Navigation on the application
portal main screen
1 On the application portal’s home page,
select the required application with »
»
Λ
«, »<« and »>« and press »OK« to
confirm.
– Main menu of the application will be
displayed after a short while.
2 Usage of application mostly depends on
application’s own structure. Follow the notes
on the screen.
Note:
7
On the Settings menu, you can change the
country of the application portal and make
the applications of the selected country appear on »All Applications« page
V
«,
Settings
abc...
abc...
abc...
abc...
abc...
abc...
abc...
abc...
abc...
abc...
abc...
abc...
Exit
5
58
ENGLISH
Page 59
WEB BROWSER
-------------------------------------------------------------------------------------------------

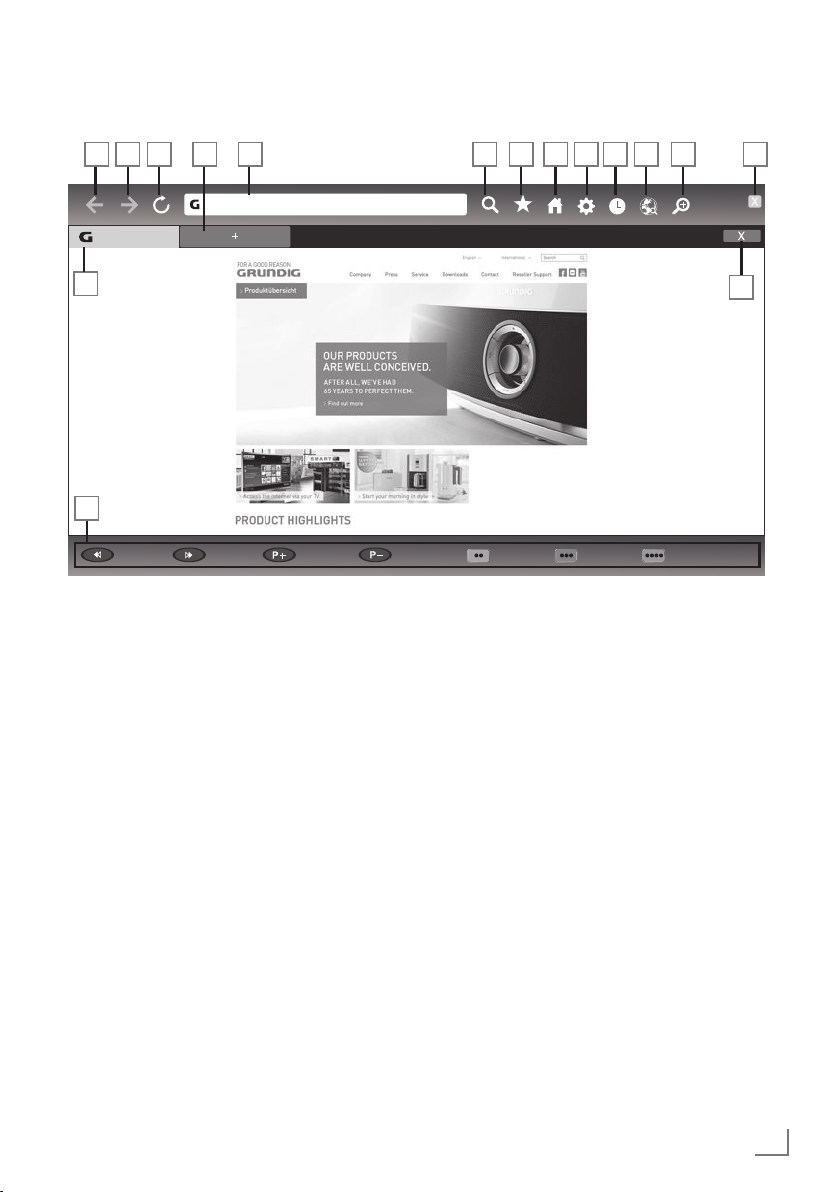

Web browser menu
3 4 5 7 8 9
grundig.
6
http://www.grundig.de
10 11 12 13 14 15
2
1
Zoom Out Zoom In Page Up Page Down Navigation Process Menu Tool Bar
1 Menu controls.
2 Active tab.
3 Previous page.
4 Next page.
5 Refresh.
6 New tab.
7 Address bar.
8 Search in site.
9 Favorites.
10 Home page
11 Settings
12 History.
13 Search in Web.
14 Zoom.
15 Close Web browser.
16 Close tab.
Web browser applications
Web browser allows you to navigate in the
Internet.
1 Open the menu with »MENU«.
2 Select the menu item »Web Browser« with
V
«, »Λ«, »<« or »>« and press »OK« to
»
confirm.
– Web Browser is displayed.
3 Select URL entry area with »
and press »OK« to confirm.
– Virtual keyboard will be displayed.
4 Enter the address and confirm with »OK«.
Notes:
7
Other functions are explained on the
screen.
7
You may connect a keyboard or mouse
to
sockets USB(HDD) to use in the Web
browser. Keyboards requiring special driver
are not supported.
Λ
« or »V«
16
ENGLISH
59
Page 60
LANGUAGE SETTINGS
-----------------------------------------------------------------------------
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select menu item »TV« with »
press »
V
« to confirm.
«, »Λ«,
« or »>« and
<
– »TV« menu is active.
Settings > TV
Language & Keyboard
Accesibility Settings
Accessories
Advanced
About
Change Area Select ExitBack
Source TimerSound NetworkTV Parental
Tuesday
xx xxx xxxx
BACK EXIT
Note:
7
Additional operations are explained in the
following sections.
Changing the menu language
1 Select the line »Language & Keyboard« with
»
V
« or »Λ« and press »OK« to confirm.
2 Select the line »Menu Language« with »
or »
Λ
« and press »OK« to confirm.
3 Select menu language with »
V
V
« or »Λ«
and press »OK« to confirm.
4 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
Changing the audio language
(only for digital television channels)
You can define a primary and a secondary
audio language.
1 Select the line »Language & Keyboard« with
V
« or »Λ« and press »OK« to confirm.
»
2 Select the line »Audio Language« with »
or »
Λ
« and press »OK« to confirm.
3 Select the audio language with »
»
Λ
« and press »« (red) to set it as the
primary audio language or »« (green) to
set it as the secondary audio language.
– Primary and secondary languages ap-
pear on the upper of the menu.
4 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
60
ENGLISH
V
V
« or
Changing the subtitle language
(only for digital television channels)
You can disable subtitles, select subtitle
language and assign a secondary subtitle
language.
1 Select the line »Language & Keyboard« with
V
« or »Λ« and press »OK« to confirm.
»
2 Select the line »Subtitle Language« with
V
« or »Λ« and press »OK« to confirm.
»
3 Select the subtitle language with »
»
Λ
« and press »« (red) to set it as the
primary subtitle language or »« (green) to
set it as the secondary subtitle language.
– Primary and secondary languages ap-
pear on the upper of the menu.
4 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
Changing the keyboard
language
You can select the language of the keyboard
connected to television.
«
1 Select the line »Language & Keyboard« with
V
« or »Λ« and press »OK« to confirm.
»
2 Select the line »Keyboard Language« with
V
« or »Λ« and press »OK« to confirm.
»
3 Select the keyboard language with »
»
Λ
« and press »OK« to confirm.
4 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
«
V
« or
V
« or
Page 61
ACCESSIBLE FUNCTIONS
----------------------------------------------------------------------
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select menu item »TV« with »
press »
V
« to confirm.
«, »Λ«,
« or »>« and
<
– »TV« menu is active.
4 Select the line »Accessibility Settings« with
V
« or »Λ« and press »OK« to confirm.
»
Settings > TV > Accessibility Settings
Subtitle Mode Off
Audio Description Mixed
Audio Description Volume 20
Change Area Select ExitBack
Source TimerSound NetworkTV Parental
Per
19 Mar 2015
BACK EXIT
Note:
7
Additional operations are explained in the
following sections.
Subtitle Mode
(only for digital television channels)
Subtitles for the deaf and hard of hearing can
be switched on and off.
1 From the »Accessibility Settings« menu use
V
« or »Λ« to select the line »Subtitle
»
Mode«.
2 Set the preferred option »Off«, »Hard of
Hearing« or »Basic« with »
3 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
« or »>«.
<
Audio description (audio subtitles)
Audio description is an additional audio channel for people who are visually handicapped.
The activities, surroundings, scene changes or
the appearance, the gestures and facial expressions of the actors are described.
This sound is transmitted at the same time as the
normal sound with digital television stations. This
depends on the programme being broadcast.
1 From the »Accessibility Settings« menu
use »
V
« or »Λ« to select the line »Audio
Description«.
2 Select »Mixed« or »Headphone« with »
or »
«.
>
3 Select the line »Audio Description Volume«
V
« or »Λ« and use »<« or »>« to
with »
adjust volume.
4 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
«
<
ENGLISH
61
Page 62
ADVANCED SETTINGS
------------------------------------------------------------------------------
1 Open menu with »MENU« button.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select menu item »TV« with »
press »
V
« to confirm.
«, »Λ«,
« or »>« and
<
– »TV« menu is active.
V
4 Select the line »Advanced« with »
»
Λ
« and press »OK« to confirm.
Settings > TV > Advanced
Auto Sleep 4 Hours
Show Logo Display No
Power LED Backlight Medium
Power Saving Mode Off
Permanent Timeshift Off
Change Area ExitBack
Source TimerSound NetworkTV Parental
Change Mode
« or
Tuesday
xx xxx xxxx
BACK EXIT
Note:
7
Additional operations are explained in the
following sections.
Auto sleep
This function will turn the television to stand-by
mode in 4 hours depending on your setup, unless the television receives any signal, or keys or,
according to European regulations, the remote
remains untouched for 5 minutes.
1 From the »Advanced« menu use »
»
Λ
« to select the line »Auto Sleep«.
2 Select the switch-off time with »
Note:
7
Set the function to »Off« with »<« or »>« to
switch off.
3 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
V
« or »>«.
<
« or
Store logo view
This function is intended for feature introduction
at stores. When »On« is selected, feature logos
are displayed.
1 From the »Advanced« menu use »
»
Λ
« to select the line »Shop Logo Display«.
2 Select »Yes« with »
« or »>«.
<
V
« or
Note:
7
Set the function to »No« with »<« or »>« to
switch off.
3 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
Power LED brightness
You can adjust power (stand-by) LED brightness
in operation mode of television.
1 From the »Advanced« menu use »
»
Λ
« to select the line »Power LED Bright-
V
« or
ness«.
2 Use »
« or »>« to set the brightness to
<
»High«, »Medium« or »Low«.
3 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
Power save mode
It ensures automatic shut off of screen in Antenna, Cable, Satellite and radio channels and
USB mode when playing audio files.
1 From the »Advanced« menu use »
or »
Λ
« to select the line »Power Saving
Mode«.
2 Press »
« or »>« to set shut off time of
<
display as »10 Seconds«, »30 Seconds«,
»60 Seconds«.
3 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
Note:
7
If the screen closes while listening to music
in USB mode, press »MENU« and select
»Off« with »
« or »>« to close the feature.
<
V
«
62
ENGLISH
Page 63
ADVANCED SETTINGS
Switching on/off weather information
If this function is activated, a weather logo and
the local temperature is displayed.
V
1 From the »Advanced« menu use »
»
Λ
« to select the line »Weather Widget«.
2 Press »
3 Press »EXIT« to end the setting.
« or »>« to turn to »On« position.
<
Switching on/off help information
Help information about the relevant feature will
be displayed if you select one of the options in
the menu and wait for a while. This notification
can be enabled or disabled.
1 Select »Help« in »Advanced« menu with
»
V
« or »Λ«.
2 Press »
3 Press »EXIT« to end the setting.
« or »>« to turn to »On« position.
<
« or
------------------------------------------------------------------------------
ENGLISH
63
Page 64
TIMER FUNCTIONS
---------------------------------------------------------------------------------------
1 Open menu with »MENU« button.
V
« or »>«
<
«, »Λ«,
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select menu item »Timer« with »
and press »
V
« to confirm.
– »Timer« menu is active.
Settings > Timer
Sleep Timer Off
Auto On
Auto Off
Advenced
Change Area ExitBack
Source TimerSound NetworkTV Parental
Change Mode
Tuesday
xx xxx xxxx
BACK EXIT
Note:
7
Additional operations are explained in the
following sections.
Sleep timer
In the »Sleep Timer« menu you can enter a time
for the television to switch off. After this time
has elapsed, the television switches to standby
mode.
V
« or »>«.
<
« or
1 Select the line »Sleep Timer« with »
»
Λ
«.
2 Select the switch-off time with »
Note:
7
To switch off the function, use »<« or »>« to
set the switch-off time to »Off«.
3 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
On timer (Auto On)
In the On Timer menu, you can enter a switch-on
time for the television.
The television switches on with the preset volume
and the desired channel after the set time in
stand-by mode has elapsed.
V
V
« or »Λ«
V
V
« or »Λ«
V
« or »Λ«
V
« or
V
«
« or »Λ«
« or »Λ«
1 Select the line »Auto On« with »
and press »OK« to confirm.
2 Select the line »Mode« with »
and use »
television should switch on.
« or »>« to select when the
<
3 Select the line »Input Source« with »
»
Λ
« and use »<« or »>« to select the input
source.
4 Select the line »Service Type« with »
or »
Λ
« and use »<« or »>« to select the
preferred option (ATV, DTV or Radio).
5 Select the line »Channel« with »
and use »
channel.
« or »>« to select the preferred
<
Note:
7
The line »Channel« is only active when the
input signal currently in use has been set. If
no entry has been made, then the first channel of the selected input source will be used.
6 Select the line »Volume« with »
and use »
« or »>« to set the volume.
<
7 Select the line »Set Hour« with »
and enter the time with »1…0«.
8 Press »
« (blue) to save the setting.
9 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
64
ENGLISH
Page 65
TIMER FUNCTIONS
---------------------------------------------------------------------------------------
Off timer (Auto Off)
In the »Auto Off« menu, you can enter a switchoff time for the television. The television switches
to stand-by after the entered time has elapsed.
V
1 Select the line »Auto Off« with »
and press »OK« to confirm.
2 Select the line »Mode« with »
and use »
television should switch off.
3 Select the line »Set Hour« with »
and enter the time with »1…0«.
4 Press »
5 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
« or »>« to select when the
<
« (blue) to save the setting.
« or »Λ«
V
« or »Λ«
V
« or »Λ«
ENGLISH
65
Page 66
PARENTAL SETTINGS
---------------------------------------------------------------------------------
1 Open menu with »MENU« button.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Parental« with »
»
« and press »OK« to confirm.
<
– »Parental« menu is displayed.
Settings > Parental
Parental Guidance Off
Menu Lock Off
Keypad Lock Off
Change PIN
Change Area Change Mode ExitBack
Source TimerSoiund NetworkTV Parental
«, »Λ«,
Tuesday
xx xxx xxxx
BACK EXIT
>
« or
Note:
7
Additional operations are explained in the
following sections.
Parental Guidance
There are movies with content or scenes which
are not suitable for children.
Certain programmes contain information which
identifies such content or scenes and have been
given an access level from 4 to 18. You can select one of the access levels and thus authorise
the playback.
1 From the »Parental« menu use »
to select the line »Parental Guidance« and
press »
« or »>« to confirm.
<
2 Enter the PIN code »1234« with »1...0« in
the password prompt.
3 Select the access level with »
4 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
V
« or »>«.
<
« or »Λ«
Note:
7
When the TV is in review buffer mode, the
parental rating of the program in the live
broadcast is applied on the content being
watched (rather than the actual parental
rating of the content being watched). As
a result, a parental rated content being
watched in the review buffer mode will not
necessarily show as parental rated and
vice versa. This means that if parental rated
program starts in live broadcast the PIN-pop
up message will appear in review buffer, or
the PIN-pop up message will be dismissed in
review buffer as soon as a program without
parental rating starts in live broadcast.”
Locking the menus
By using this function, you can lock »Automatic
Channel Search«, »Manual Channel Search«
and »Channel Editor« menus as to be accessed
only when the PIN code is entered.
V
1 From the »Parental« menu use »
to select the line »Menu Lock« and press
»
« or »>« to confirm.
<
2 Enter the PIN code »1234« with »1...0« in
the password prompt.
3 Activate the lock with »
« or »>« (»On«).
<
Note:
7
To switch off the menu lock, use »<« or »>«
to select the setting (»Off«).
4 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
« or »Λ«
66
ENGLISH
Page 67
PARENTAL SETTINGS
---------------------------------------------------------------------------------
Blocking the multifunction
switch
When the key lock is activated, the multi function
switch on the television does not function.
V
1 From the »Parental« menu use »
to select the line »Keypad Lock« and press
»
« or »>« to confirm.
<
2 Enter the PIN code »1234« with »1...0« in
the password prompt.
3 Activate (On) or deactivate (Off) the panel
lock with »
4 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
« or »>«.
<
« or »Λ«
Changing the PIN code
Instead of the default code »1234«, you can
enter a personal code.
Please take note of your personal code.
1 From the »Parental« menu use »
to select the line »Change PIN« and press
»OK« to confirm.
2 Enter the current PIN code »1234« with
»1...0«.
3 Enter your new four-digit personal PIN code
with »1...0«.
4 Reenter your personal PIN code with
»1...0«.
5 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
V
« or »Λ«
Blocking a television channel
You can block individual television channels
which are not suitable for children using a
personal PIN code.
1 Open menu with »MENU« button.
V
«.
« (yellow),
«, »Λ«,
« or
>
V
«
V
« (yel-
V
« or
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »OK« to confirm.
<
4 Select the line »Channel Editor« with »
or »
Λ
« and press »OK« to confirm.
5 Select the channel to be blocked with »
»
Λ
«, »<« or »>« and highlight with »OK«.
–Channel is marked with »✔«.
6 Activade the »Tools« menu with »
low).
7 Select the line »Channel Lock« with »
»
Λ
« and press »OK« to confirm.
8 Enter the PIN code »1234« with »1...0« in
the password prompt.
9 Confirm the entry with »OK«.
–Channel is marked with »
Note:
7
To remove the lock, select the channel
again with »
vade the »Tools« menu with »
select the line »Unlock Channel« with »
or »
10 Press »EXIT« to end the setting.
V
«, »Λ«, »<« or »>«, acti-
Λ
« and press »OK« to confirm
«,
«
ENGLISH
67
Page 68
PARENTAL SETTINGS
---------------------------------------------------------------------------------
Watching a blocked television
channel
You can watch a TV channel blocked with PIN
code by selecting the TV channel and entering
the PIN code.
1 Select the blocked channel with »1…0« or
»P+«, »P–«.
2 Enter the PIN code »1234« with »1...0« in
the password prompt.
– Blocked channel can be viewed.
Note:
7
Channel will be blocked again when you
change the channel.
Resetting PIN code
Use this function if you forget the PIN code.
V
1 From the »Parental« menu use »
to select the line »Change PIN« and press
»OK« to confirm.
2 Enter the PIN code »2 3 5 6« with »1...0«.
3 Enter your new four-digit personal PIN code
with »1...0«.
4 Reenter your personal PIN code with
»1...0«.
5 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
« or »Λ«
68
ENGLISH
Page 69
DATE AND TIME SETTINGS
-----------------------------------------------------------------
1 Open menu with »MENU« button.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Timer« with »
»
« and press »OK« to confirm.
<
– »Timer« menu is displayed.
4 Select the line »Advanced« with »
»
Λ
« and press »OK« to confirm.
Settings > Timer
Sleep Timer Off
Auto On
Auto Off
Date & Time
Date & Time Set.
Time Adjustment AUTO
Change Area Select ExitBack
Source TimerSound NetworkTV Parental
«, »Λ«,
« or
>
V
« or
Tuesday
xx xxx xxxx
BACK EXIT
Note:
7
Additional operations are explained in the
following sections.
Auto tuning
The television automatically detects the local difference to Greenwich Mean Time (the selected
channel provides a time signal).
V
V
« and then
« or »>«.
<
« or
1 From the »Advanced« menu use »
»
Λ
« to select the line »Date & Time Set.«
and press »OK« to confirm.
2 Select the line »Mode« with »
select the option »AUTO« with »
– Date and time are automatically updated;
3 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
Manual tuning
You can set the local time difference yourself
if the time is not detected or is not the same as
your local time.
V
1 From the »Advanced« menu use »
»
Λ
« to select the line »Time Adjustment«.
2 Select the option »Manual« with »
»
«.
>
– »Time Zone« and »Daylight Saving« are
active.
3 Select the line »Time Zone« with »
»
Λ
« and press »OK« to confirm.
– The Time zone selection menu is dis-
played.
4 Adjust the time zone with »
V
press »OK« to confirm.
5 Select the line »Daylight Saving« with »
or »
Λ
« and then select the option »AUTO«,
»Off« or »On« with »
« or »>«.
<
6 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
Note:
7
If the option »AUTO« is selected in the line
»Time Adjustment«, the television set auto-
matically adapts the time to the time signal
from the respective broadcaster. However,
different channels may also use time bases
which are different to those of your country
e.g. foreign broadcasters. In these cases,
reminders and planned recordings may be
annulled due to the time difference.
« or
« or
<
V
« or
« or »Λ« and
V
«
ENGLISH
69
Page 70
SOFTWARE OF THE DEVICE
---------------------------------------------------------------
1 Open menu with »MENU« button.
V
>
V
« or »Λ«
«, »Λ«,
« or »<«
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »TV « with »
and press »OK« to confirm.
4 Select the line »About« with »
and press »OK« to confirm.
Settings > TV > Advanced
Product Info
TV Name Smart Inter@ctive 4...
Software Updates
Restore Factory Defaults
Reset Chanel History
Country Other
Change Area Select ExitBack
Source TimerSound NetworkTV Parental
Tuesday
xx xxx xxxx
BACK EXIT
Note:
7
Additional operations are explained in the
following sections.
Product information
1 From the »About« menu use »V« or »Λ«
to select the line »Product Info« and press
»OK« to confirm.
– Software version information of the pro-
duct is displayed.
2 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
Software update (OAD)
(only for digital television channels)
V
1 From the »About« menu use »
to select the line »Software Updates« and
press »OK« to confirm.
2 Select the option »OAD« with »
and press »OK« to confirm.
– The search for new software is being car-
ried out.
Note:
7
If no new software is available the menu
automatically switches off.
3 If new software is available, press »«
(green) to install the software.
– The new software will be loaded.
« or »Λ«
V
« or »Λ«
Warning:
7
Television will restart after update. Do
not turn your television’s power off during
updates.
Note:
7
For automatic checking of software update,
select from »Source« menu ➡ »Advanced«
the line »OAD« with »
or »
« to select »On«.
>
V
« or »Λ«. Use »<«
Software update (Internet)
(only for digital television channels)
V
1 From the »About« menu use »
« or »Λ«
to select the line »Software Updates« and
press »OK« to confirm.
V
2 Select the option »Internet« with »
»
Λ
« and press »OK« to confirm.
« or
– The search for new software is being car-
ried out.
Note:
7
If no new software is available the menu
automatically switches off.
3 If new software is available, press »«
(green) to install the software.
– The new software will be loaded.
Warning:
7
Television will restart after update. Do
not turn your television’s power off during
updates.
Software update (USB)
1 Plug the memory stick in the USB sockets at
the side of the television.
V
2 From the »About« menu use »
to select the line »Software Updates« and
press »OK« to confirm.
3 Select the option »USB« with »
and press »OK« to confirm.
– The software on the USB memory stick is
installed.
« or »Λ«
V
« or »Λ«
70
ENGLISH
Page 71
ACCESSORIES
You can connect various accessories to your
television to use with video talk, volume control,
motion control or a keyboard and mouse to use
in your web browser. Display the status of the
connected accessory from this menu to perform
various adjustments.
1 Open menu with »MENU« button.
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »TV « with »
and press »
4 Select the line »Accessories« with »
»
Λ
5 Select the needful line with »
and press »OK« to confirm.
Select the needful function with »
6 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
Notes:
7
Accessories are sold individually. They
are not provided with your TV. Please
contact your dealer from where you have
purchased your TV in order to obtain more
information about purchasing.
7
The displays for the status and the settings
depend on the accessories used.
V
« to confirm.
« and press »OK« to confirm.
------------------------------------------------------------------------------------------------------
V
«, »Λ«,
« or »<«
>
V
« or
V
« or »Λ«
« or »>«.
<
ENGLISH
71
Page 72
RESET FUNCTIONS
----------------------------------------------------------------------------------------
1 Open menu with »MENU« button.
V
« or »<«
>
V
« or »Λ«
«, »Λ«,
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »TV« with »
and press »OK« to confirm.
4 Select the line »About« with »
and press »OK« to confirm.
Settings > TV > About
Product Info
TV Name Smart Inter@ctive 4...
Software Updates
Restore Factory Defaults
Reset Chanel History
Country Other
Change Area Select ExitBack
Source TimerSound NetworkTV Parental
Tuesday
xx xxx xxxx
BACK EXIT
Note:
7
Additional operations are explained in the
following sections.
Resetting the television to its
original state
This function enables you to delete the station
lists and all custom settings.
V
1 From the »About« menu use »
to select the line »Restore Factory Defaults«
and press »OK« to confirm.
– Warning screen will be displayed.
Note:
7
If the loaded applications are also to be
deleted, select the line »Save installed
applications« by pressing »
the small tick with »OK«.
2 Select push button »Yes« with »
confirm the security query;
or
select push button »No« with »
cancel deletion process.
– In a short while »Installation Guide« is
displayed.
3 Continue the settings as described in the
chapter on first installation and searching
for channels on page 20.
« or »Λ«
Λ
« and remove
« or »>« to
<
« or »>« to
<
Deleting channel history
This function allows you to delete channel history stored in the Main menu.
V
1 From the »About« menu use »
« or »Λ« to
select the line »Reset Channel History« and
press »OK« to confirm.
– Warning screen will be displayed.
2 Select push button »Yes« with »
confirm the security query;
« or »>« to
<
or
select push button »No« with »
to cancel the function.
« or »>« to
<
3 Press »BACK <« to go back one menu
level or press »EXIT« to end the setting.
Settings recovery
This function allows you to back up all of your
settings and then recover them using the backup.
1 Under the »About« menu, use »
to select »Settings Recovery« and confirm
with »OK«.
2 Confirm »Create a restore point« using
»OK«.
3 Select »Yes« to confirm the security question;
or
select »No« and press »OK« to cancel.
4 Press »BACK <« to return to the previous
menu or press »EXIT« to end the setting.
V
« or »Λ«
72
ENGLISH
Page 73
USING EXTERNAL DEVICES
---------------------------------------------------------------
DIGI LINK
Your television is equipped with
DIGI LINK feature. This feature
utilizes CEC (Consumer Electronics Control) protocol. CEC
allows you to make an HDMI
connection on sockets HDMI between your TV
and DVD player, STB or video recorder and
control such equipments with the remote control
of the television.
This feature must also be supported by the
device you will connect.
You television supports the following functions.
For detailed information about this function,
read user manual of the external device.
The Digi Link functions of the
television
Turning on external device from
standby mode
When you switch on your external device (e.g.
DVD player) from standby mode, your television
will be turned on from standby mode as well
and it will switch to the HDMI source that the
external device is connected to.
Depending on the features of the external
device (e.g. AV receiver) can start and your
television can stay on stand-by mode.
Selecting the HDMI source from the
television
When you switch on your external device (e.g.
DVD player), your television will switch to the
HDMI source that the external device is connected to your TV should be open.
Selecting the menu language
When you select menu language on your TV,
menu language of the external device will
change as well (if your DVD player supports).
Switching off the external device from
standby mode
After switching your television to standby, your
external device (e.g. DVD player) will also
switch to standby if it is switched on.
DIGI LINK is always active on your television.
Refer to the user manual of your external device
to learn how to activate this feature on it.
Searching and selecting the active external device
You can connect up to 11 devices that support
DIGILINK to this television.
1 Open the Tools menu with »TOOLS«.
V
« or »Λ«
« (blue).
2 Select the line »Digilink« with »
and press »OK« to confirm.
– Connected devices are searched and the
ones that are found are displayed on the
»Device List« menu.
3 Start device search with »
– The devices found are shown in the menu.
4 Select the device that you want to control
– If the selected device is connected to a
V
« or »Λ« and mark it with »OK«.
with »
different source than the current one, you
will automatically switch to the source to
which the device is connected.
ENGLISH
73
Page 74
USING EXTERNAL DEVICES
---------------------------------------------------------------
Device Control
You can determine how the remote control of
your television will control the external device.
1 Press »
either one from »HDMI1« to »HDMI2« and
press »OK« to confirm.
2 Open the menu with »MENU«.
3 Select menu item »Settings« with »
»
<
4 Select the menu item »Source« with »
»
<
Settings > Source
Change Area Select Back
5 Select the line »Remote Behavior« with »V«
or »
6 Select control type (»Pass-Through«, »Deck«
or »Zap«) with »
Notes:
7
»Pass-Through« is included in the menu as
an option that can be selected in every
device type. »Deck Control« and »Tuner
Control« options change depending on the
external device connected.
7
Apply trial and error method to determine
the functions of the remote control buttons
for the selected control type.
7
Refer to the user manual of the DIGILINK
compatible device for its functions.
7 Press »EXIT« to end the setting.
« and use »<« or »>« to select
V
«, »Λ«,
« or »>« and press »OK« to confirm.
>
« and press »OK« to confirm.
Tuesday
xx xxx xxxx
Device - - - -
Remote Behavior None
Put device into standby
Λ
Source TimerSound NetworkTV
«.
« or »>«.
<
« or
BACK
Switching the device to standby
This option switches the connected external
device to standby.
1 Press »
either one from »HDMI1« to »HDMI2« and
press »OK« to confirm.
2 Open the menu with »MENU«.
3 Select menu item »Settings« with »
»
<
4 Select the menu item »Source« with »
»
<
5 Select the line »Put device into standby«
with »
confirm.
– The connected external device is switched
off.
« and use »<« or »>« to select
V
«, »Λ«,
« or »>« and press »OK« to confirm.
>
« and press »OK« to confirm.
V
« or »Λ« and press »OK« to
« or
74
ENGLISH
Page 75
USING EXTERNAL DEVICES
VGA IN

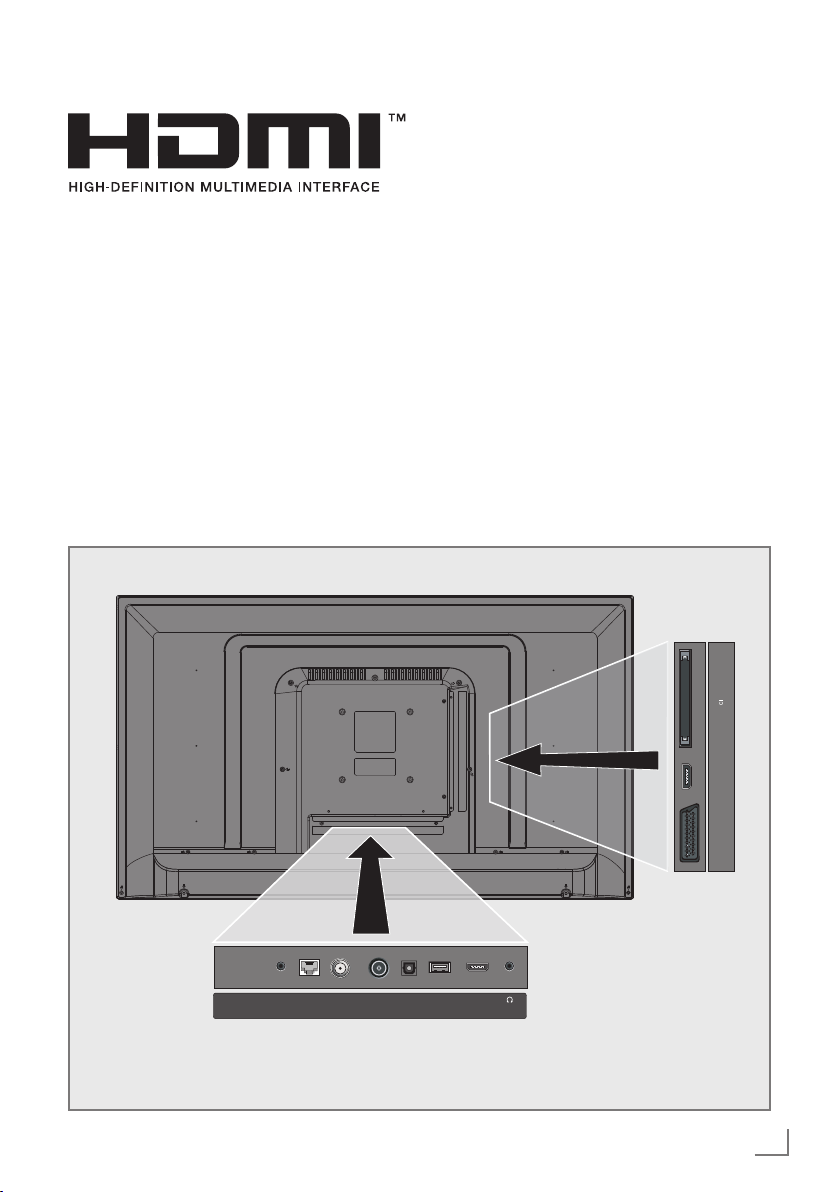

Connection options
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
High definition
Your television can playback high-definition
television signals (HDTV).
You can connect the input sources (HDTV settop box or High Definition DVD player) to the
HDMI socket (digital HDTV signal).
This ensures that you can view digital HDTV
programmes, even if they are copy-protected
(HDCP High Bandwidth Digital Content Protection).
---------------------------------------------------------------
7
Which television socket(s) you connect your
external devices to depends on the sockets
the external device is equipped with and
the signals which are available.
7
Note that with many external devices
the resolution of the video signal must be
adapted to the input sockets on the television (check the external device’s instruction
manual). You can find out which values you
need to set by referring to the guidelines in
the section about connection options.
7
Do not connect any other equipment while
the device is switched on. Switch off the
other equipment as well before connecting
it.
7
Only plug the device into the mains socket
after you have connected the external
device.
SATELLITE
ANT-IN
13/18V
max. 25 0 mA
5V
max. 50 mA
SERVICE LAN Optic Out USB (HDD) HDMI2 EARPHONE
ENGLISH
SCART HDMI 1 (ARC)
75
Page 76
USING EXTERNAL DEVICES
---------------------------------------------------------------
Connecting an external device
With a digital audio/video signal
7
Suitable devices: Digital satellite receiver,
game console, BluRay player, DVD player/
recorder, set-top box, notebook, PC.
7
Video signal: digital image; definition: standard 576p; HDTV 720p, 1080i, 1080p.
7
Audio signal: digital sound (stereo, multichannel compression, uncompressed).
7
Channel position »HDMI1«, »HDMI2«
1 Connect the HDMI1or HDMI2 socket
on the television and the corresponding
HDMI socket on the external device using
a standard HDMI cable (digital video and
audio signal).
With an analogue video signal (progressive)
7
Suitable devices: DVD player/recorder, game
console.
7
Video signal: YUV; definition: standard 576p;
HDTV 720p, 1080i, 1080p.
7
Audio signal: stereo, analog.
7
Channel position »SCART«.
1 Connect the SCART sockets on the televi-
sion and the corresponding sockets on the
external device using Scart-YUV converter
(video and audio signal).
Using the Euro/AV socket
7
Suitable devices: Digital satellite receiver,
DVD player/recorder, set-top box, game
console, video recorder, decoder.
7
Video signal: CVBS/RGB.
7
Audio signal: stereo, analog.
7
Channel position »SCART«.
1 Connect the SCART input on the television
to the corresponding socket on the external
device using EURO/AV cable (video and
audio signal).
Selecting Scart volume adjustment
1 Open the menu with »MENU«.
V
V
« or
V
«, »Λ«,
« or
>
« or
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Sound« with »
»
« and press »V« to confirm.
<
4 Select the line »Advanced« with »
»
Λ
« and press »OK« to confirm.
5 Select the line »Scart Output« with »
»
Λ
«.
6 Select the option »Fixed« or »Adjustable«
« or »>«.
with »
<
Note:
7
»Scart Volume« becomes active when »Adjustable« is selected in the menu.
7 Select the line »Scart Volume« with »
»
Λ
« and adjust the volume by using »<«
or »
«.
>
V
« or
8 Press »EXIT« to end the setting.
With S-Video signal
7
Suitable devices: DVD player/recorder, video
recorder, camera recorder, notebook, PCs.
7
Video signal: Y/C.
7
Audio signal: stereo, analog.
7
Channel position »SCART«.
1 Connect the SCART socket on the television
to the corresponding socket on the external
device using EURO/AV cable (video and
audio signal).
76
ENGLISH
Page 77
USING EXTERNAL DEVICES
---------------------------------------------------------------
Using a DVD recorder, DVD
player, video recorder or set-top
box
1 Switch on the video recorder, DVD player
or set-top box and select the function you
wish to use.
2 Press »
put signal (»SCART«, »HDMI1«, »HDMI2«)
and press »OK« to confirm.
« and use »<« or »>« to select in-
Hi-fi system
Connecting digital multi-channel amplifier/AV receiver
1 Connect the HDMI1 (ARC) (HDMI 1.4
Audio Return Channel) socket to the relevant
socket on the HDMI ARC compliant Digital
multichannel amplifier / AV receiver with a
standard HDMI cable (digital audio signal);
or
2 Connect the Optic Out socket on the televi-
sion to the corresponding socket on the AV
receiver using a standard optic digital cable
(digital audio signal).
Important:
7
Do not use a HDMI cable longer than 5 m
for HDMI ARC connection.
Apply the device with HDMI ARC function and activate HDMI ARC
1 Switch on the the multi-channel amplifier or
the AV receiver. If a Blu-ray Player is connected on the AV receiver, the player must
be switched on, too.
2 Open the tools menu with »TOOLS«.
V
3 Select the line »Digilink« with »
and press »OK« to confirm.
– Audio device connected to the HDMI1
(ARC) source in the »Device List« menu
shall be displayed in the list.
4 Start device search with »
– Audio device connected to the HDMI1
(ARC) source shall be displayed in the
list.
5 Select the device with »
press »OK« to confirm.
V
« or »Λ«
« (blue).
« or »Λ« and
ENGLISH
77
Page 78
USING EXTERNAL DEVICES
Notes:
7
If the audio system also has a playing function (e.g. Home theater system including
DVD player function), two devices will be
listed on the HDMI CEC list. The first one is
the player, and the second one is the audio
playback.
7
If a Blu-ray Player is connected to the AV
receiver, please remove the Disc from the
Player during the registration.
6 Open the menu with »MENU«.
V
V
« or »Λ«.
V
« or
«, »Λ«,
« or
>
7 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
8 Select the menu item »Sound« with »
»
« and press »V« to confirm.
<
9 Select the line »Advanced« with »
»
Λ
« and press »OK« to confirm.
10 Select the line »ARC« with »
11 Press »
« or »>« to select »On«.
<
Notes:
7
The internal speakers of the television are
switching off automaticaly.
7
The volume of the AV receiver you can adjust with the remote control of the television.
7
For switching off the HDMI ARC function
select »Off« with »
7
The ARC function will be deactivated while
« or »>«.
<
switching off the television and the internal
speakers are active again.
12 Press »EXIT« to end the setting.
---------------------------------------------------------------
78
Dolby, Dolby Audio, and the double-D symbol are
trademarks of Dolby Laboratories.
ENGLISH
Page 79
USING EXTERNAL DEVICES

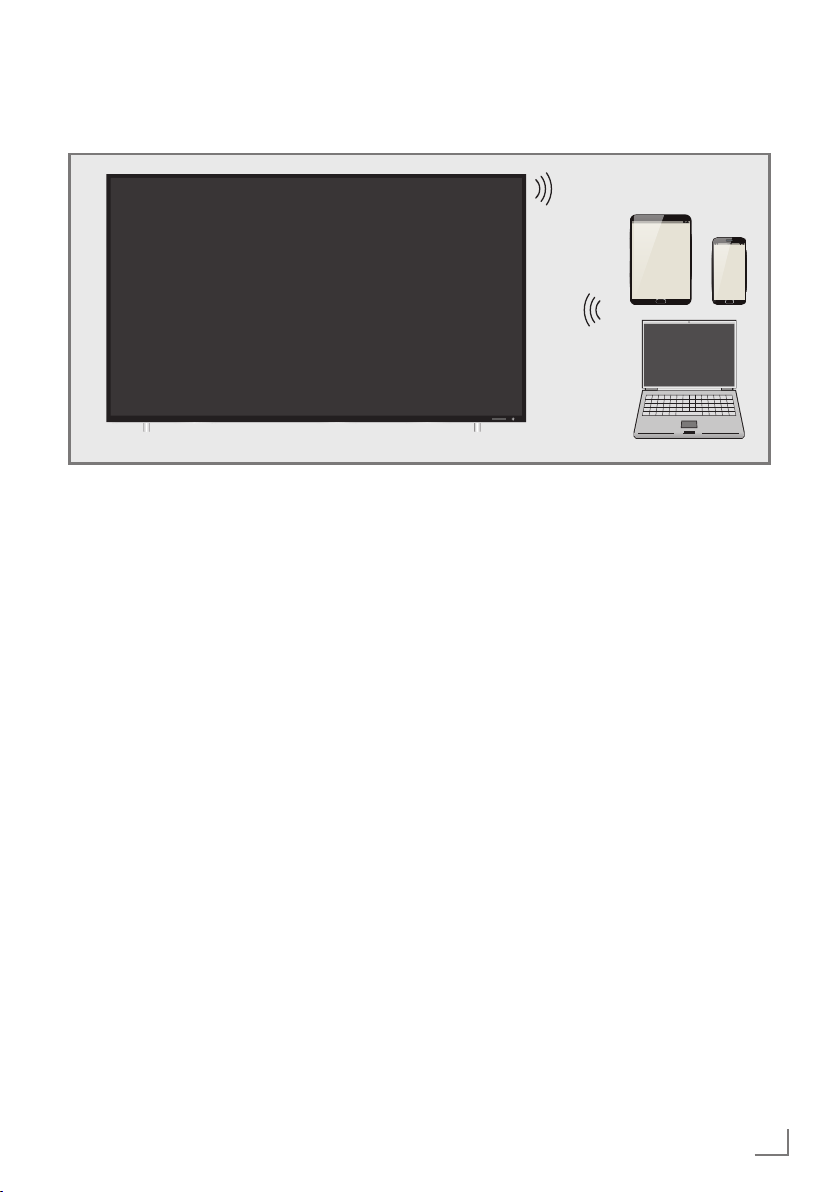

Wireless screen share (Liveshare)
What is LIVESHARE?
7
Miracast is a wireless technology that allows
Android devices share images with each
other. This technology is supported by your TV
under the name Liveshare.
Screen share with Liveshare connection
1 Open the menu with »MENU«.
V
2 Use »
– »Miracast« menu will be displayed.
3 Using your laptop or mobile device, launch
– Miracast will start soon and the screen im-
4 Press »EXIT« to end the Liveshare applica-
Note:
7
«, »Λ«, »<« or »>« to select
»Screen Share« and press »OK« to confirm.
the Miracast application and select your TV.
age of your laptop or mobile device will
be displayed on the TV.
tion.
Please visit the website of the manufacturer
of your laptop/mobile device to see if it
supports Miracast.
---------------------------------------------------------------
ENGLISH
79
Page 80
OPERATION WITH COMMON INTERFACE
---------------------
What is common interface?
7
Common Interface (CI) is an interface for DVB
receivers.
7
Encrypted channels can only be viewed with
a CA module suitable for the encryption
system and the corresponding smart card.
7
The television set is equipped with a Common
Interface slot into which CA modules from
various providers can be inserted.
7
You can insert the provider’s smart card
into the CA module in order to enable the
encrypted channels you want to see.

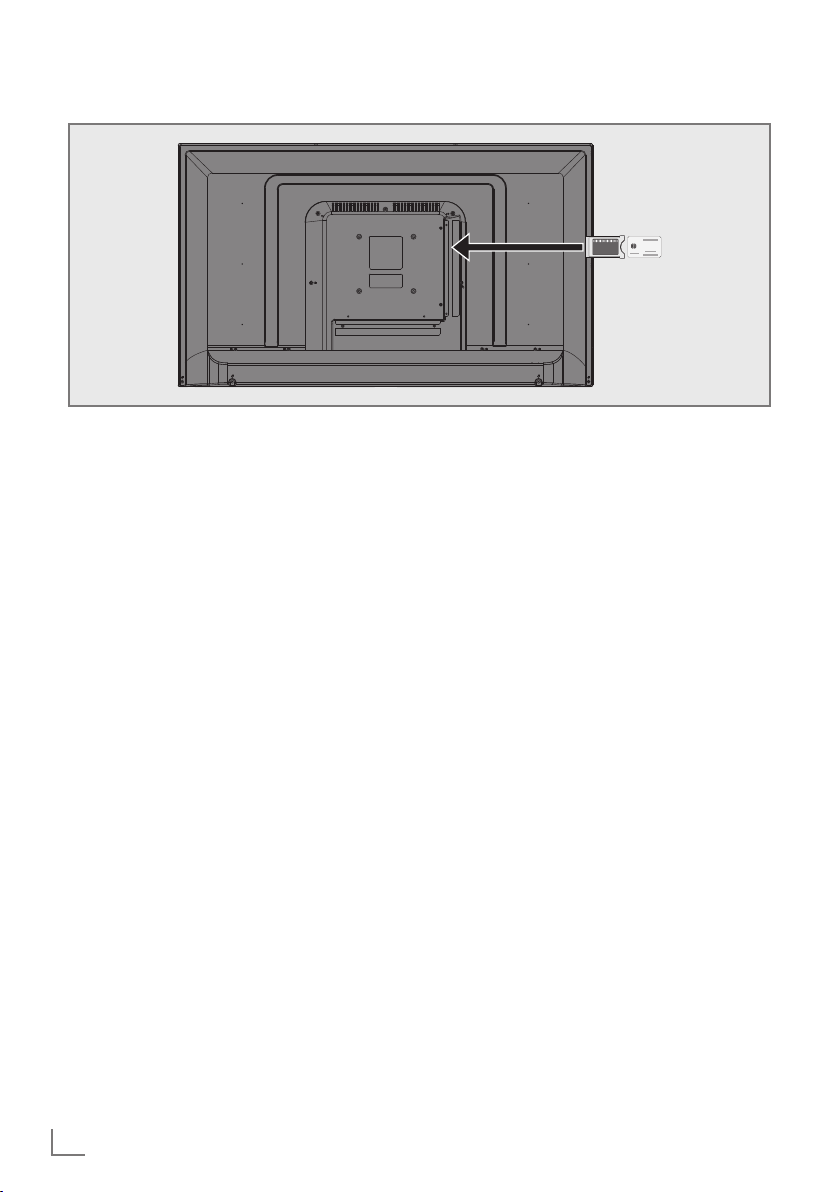

Inserting the CA module
Note:
7
Switch off the device before inserting the
CA module in the CI slot.
1 Insert the smart card into the CA module.
2 Insert the CA module with the smart card
into the CI slot on the television.
Notes:
7
To see which CA module is in the Common
Interface slot, go to the »CA - Module«
submenu.
7
When you insert a CA module into the CI
slot on the television for the first time, wait
a few moments until the television has registered the CA module.
Access control for CA module
and smart cards
1 Open the menu with »MENU«.
V
V
« or
V
«, »Λ«,
>
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
4 Select the line »Advanced« with »
»
Λ
« and press »OK« to confirm.
5 Select the line »CA–Module« with »
»
Λ
« and press »OK« to confirm.
Notes:
7
This menu provides operating instructions
and – after you enter your PIN code – access to channels of the PAY-TV provider.
7
The remaining settings are described in the
manuals for your CA module and smart
card.
7
The CA modul is not supported in some
countries and regions. Please consult your
authorised dealer.
6 Press »EXIT« to end the setting.
« or
« or
80
ENGLISH
Page 81
NETWORK SETUP
-------------------------------------------------------------------------------------------
To use the functions of SMART inter@ctive, you
must connect the TV to your home network with
internet access and log in.
You can launch various applications on Grundig
My Apps Portal. These applications include various types such as video, picture, music, game,
social networking applications, news and sports
applications, weather forecast applications.
Your TV supports remote control feature for
Apple iPhones and Android based phones.
Depending on the features of your phone,
you may control your TV by your phone after
downloading the free »GRUNDIG TV Remote«
application from Apple App Store or Google
Play (Android Market).
Network connection
You can establish a wired or wireless connection
between your television and the local network.
If you want to use a wired network connection,
please start with the instructions here:
If you use a wireless network connection, please
follow the instructions in the "Wireless network
connection" section on page 84.
Note:
7
The following section describes connecting
to the home network if you did not carry this
out during the “initial set-up”.
Wired network

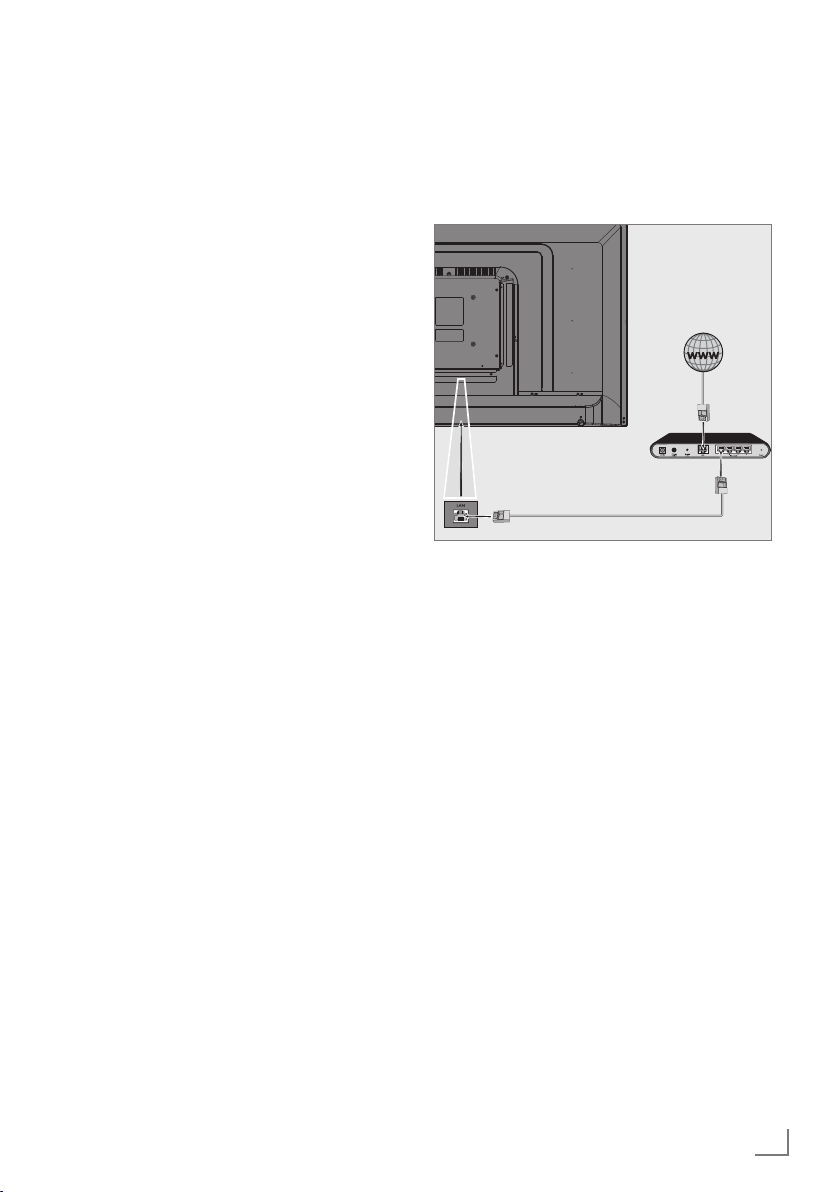

Wired network connection
1 Connect the output of external modem to
LAN socket with Cat 5 cable.
Note:
7
Connection cables are not supplied.
ENGLISH
81
Page 82
NETWORK SETUP
-------------------------------------------------------------------------------------------
Wired network settings
There are two ways of making the wired network settings.
A Automatic connection,
All data regarding connection settings (»IP
Address«, »Netmask«, »Gateway« and
»DNS«) are obtained from modem automatically.
B Manual connection,
all data regarding connection settings (»IP
Address«, »Netmask«, »Gateway« and
»DNS«) must be configured manually.
Automatic connection
Most of the home networks are Dynamic. If
you have a dynamic network, you must use a
DSL modem that supports DHCP. Modems and
IP sharers that support DHCP obtain the »IP
Address«, »Netmask«, »Gateway« and »DNS«
values required for internet access automatically, and thus you are not required to enter those
values manually.
1 Open the menu with »MENU«.
V
xx xxx xxxx
Tuesday
«, »Λ«,
« or
>
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Network« with »
»
« and press »V« to confirm.
<
– »Network« menu is active.
Settings > Network
6 Select the line »Network Configuration«
with »
V
« or »Λ« and use »<« or »>« to
select »AUTO«.
7 With »« (red) select »Connect« to establish
modem connection.
– »Connecting ... Please wait« message
will be displayed, and if the connection
is established »Connection To Gateway:
Success« message will be displayed.
8 Press »« (green) to check the performed
settings and also if the local network and
internet connection has been established.
– »Testing ... Please wait« message will
be displayed, and if the connection is
established »Connection To Gateway:
Success«, »Internet Connection: Success«
message will be displayed.
9 Press »EXIT« to end the settings.
Note:
7
If you do not have a dynamic network,
follow the instructions in manual connection
section.
Change Connection Type Wired
Network Configuration AUTO
Wake-on-LAN Off
Advanced
Source TimerSound NetworkTV Parental
Change AreaConnect Test Connection Select Zurück
4 Select the line »Change Connection Type«
»
V
« or »Λ« and press »OK« to confirm.
V
5 Select the option »Wired« with »
« or »Λ«
and press »OK« to confirm.
82
ENGLISH
BACK
Page 83
NETWORK SETUP
-------------------------------------------------------------------------------------------
Manual connection
Certain networks require Static IP address. If
your network requires a Static IP address, you
must enter the »IP Address«, »Netmask«, »Gateway« and »DNS« values manually. You can
get »IP Adress«, »Netmask«, »Gateway« and
»DNS« values (IPS) from your Internet Service
Provider.
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Network« with »
»
« and press »V« to confirm.
<
– »Network« menu is active.
«, »Λ«,
« or
>
4 Select the line »Change Connection Type«
V
« or »Λ« and press »OK« to confirm.
»
V
5 Select the option »Wired« with »
« or »Λ«
and press »OK« to confirm.
6 Select the line »Network Configuration«
V
« or »Λ« sand use »<« or »>« to
with »
select »Manual«.
– »IP Address«, »DNS«, »Netmask« and
»Gateway« options are active.
Settings > Network
xx xxx xxxx
Tuesday
11 With »« (red) select »Connect« option to
establish modem connection.
– »Connecting... Please wait« message will
be displayed, and if the connection is
successful, Connection to Gateway: Successful« message will be displayed.
12 Press »« (green) to check the performed
settings and also if the local network and
internet connection has been established.
– »Testing ... Please wait« message will
be displayed, and if the connection is
established »Connection To Gateway:
Success«, »Internet Connection: Successful« message will be displayed.
13 Press »EXIT« to end the settings.
Change Connection Type Wired
Network Configuration Manual
Wake-on-LAN Off
IP Address 192 . 168 . 000 . 200
DNS 192 . 168 . 000 . 254
Netmask 255 . 255 . 255 . 200
Source TimerSound NetworkTV
Change AreaConnect Test Connection
Input Mode
7 Select the line »IP Address« with »V«.
Enter IP address with »1…0«.
V
8 Select the line »DNS« with »
«.
Enter IP address with »1…0«.
V
9 Select the line »Netmask« with »
«
Enter Netmask address with »1…0«.
V
10 Select the line »Gateway« with »
«.
Enter Gateway address with »1…0«.
ExitBack
EXITBACK
ENGLISH
83
Page 84
NETWORK SETUP
-------------------------------------------------------------------------------------------
Wireless network

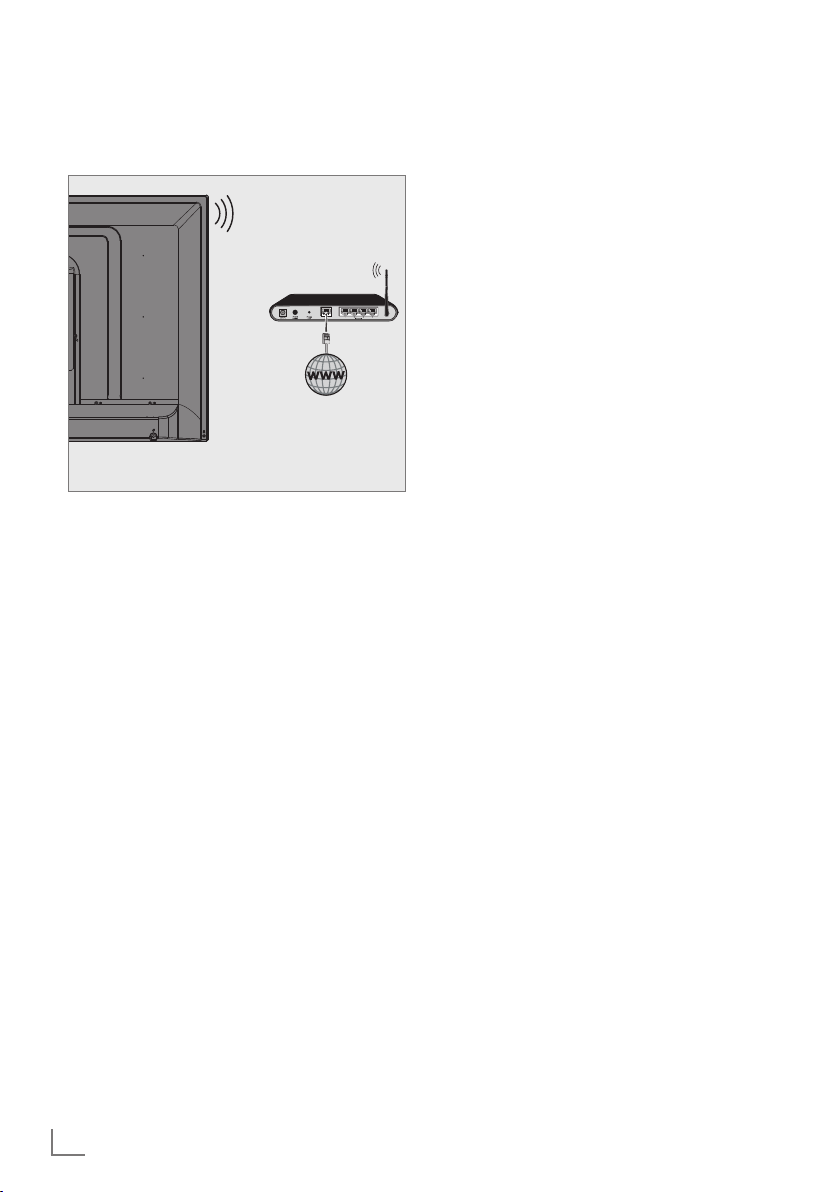

Wireless network connection
1 Television includes a built-in Wireless WiFi
Adapter to connect it to wireless network.
Notes:
7
Wireless LAN adapter supports IEEE
802.11B/G and N communication
protocols. We recommend you to use IEEE
802.11N protocol to obtain the best performance in wireless HD video playback.
7
If you use a modem that supports IEEE
802.11B/G, video playback performance may
be poor when compared to a modem that supports IEEE 802.11N since the data transfer rate
of IEEE 802.11B/G protocol is lower.
7
Please note that video playback performance in a DLNA application on a wireless
local network and in a SMART inter@ctive
TV application on a network with internet
connection depends on the number of users
on the network as it is the case in every
wireless network.
7
It is recommended to switch off the equipment that are not in use in home network in
order to avoid unnecessary network traffic.
7
Placing the modem or wireless network
sharer on an elevated location will increase
the wireless connection reception strength.
7
Wireless connection reception strength may vary
depending on the type of the modem and the
distance between the modem and television.
84
ENGLISH
Wireless network settings
You have several ways to connect your TV to
your home network.
A Automatic connection,
all data regarding connection settings (»IP
Address«, »Netmask«, »Gateway« and
»DNS«) are obtained from modem automatically.
Depending on the router, you can use the
following options:
– Option “WPS-PBC” (Push Button Configu-
ration);
– Connecting with a WPS PIN;
– Connecting by entering the network pass-
word.
B Manual connection,
all data regarding connection settings (»IP
Address«, »Netmask«, »Gateway« and
»DNS«) must be configured manually.
Page 85
NETWORK SETUP
-------------------------------------------------------------------------------------------
Technical requirements
Most of the home networks are Dynamic. If
you have a dynamic network, you must use a
DSL modem that supports DHCP. Modems and
IP sharers that support DHCP obtain the »IP
Address«, »Netmask«, »Gateway« and »DNS«
values required for internet access automatically, and thus you are not required to enter those
values manually.
Wireless WPS network connection
through by pressing a button
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Network« with »
»
« and press »V« to confirm.
<
– »Network« menu is active.
«, »Λ«,
« or
>
4 Select the line »Change Connection Type«
V
« or »Λ« and press »OK« to
with »
confirm.
5 Select the option »Wireless WPS« with »
or »
Λ
« and press »OK« to confirm.
V
– WiFi warning message will be displayed.
6 Confirm the message »Do you want to turn
on Wi-Fi?« select »Yes« with »
press »OK« to confirm.
7 Select the line »WPS Type« with »
»
Λ
« and select the option »Push Button«
with »
« or »>«.
<
Settings > Network
Çhange Connection Type Wireless WPS
WiFi On
WPS Type Push Button
Select Access Point N/A
Network Configuration Auto
Wake-on-LAN Off
Source TimerSound NetworkTV Parental
Change AreaConnect Test Connection
Input Mode
« or »>« and
<
V
« or
Tuesday
xx xxx xxxx
ExitBack
EXITBACK
8 With »« (red) select »Connect« to establish
modem connection.
– »Push the WPS button on your Access
Point« message is displayed.
9 Press the WPS button on the router.
10 To continue after pressing the WPS button
on the access point, select the option »Continue« with »
confirm.
« or »> «and press »OK« to
<
– The “Connection to Gateway: Success”
message will be displayed.
11 Press »« (green) to make sure that the
network connection is established with the
current settings.
– »Testing ... Please wait« message will
be displayed, and if the connection is
established »Connection To Gateway:
Success«, »Internet Connection: Success«
messages will be displayed.
12 Press »EXIT« to end the setting.
Wireless WPS network connection with
PIN
1 Open the menu with »MENU«.
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Network« with »
«
»
« and press »V« to confirm.
<
– »Network« menu is active.
4 Select the line »Change Connection Type«
V
« or »Λ« and press »OK« to
with »
confirm.
5 Select the option »Wireless WPS« with »
or »
« and press »OK« to confirm.
>
– WiFi warning screen will be displayed.
6 Confirm the message »Do you want to turn
on Wi-Fi?« select »Yes« with »
press »OK« to confirm.
<
7 Select the line »WPS Type« with »
»
Λ
« and select the option »PIN« with »<«
or »
«.
>
Settings > Network
Çhange Connection Type Wireless WPS
WiFi On
WPS Type PIN
Select Access Point N/A
Network Configuration Auto
Wake-on-LAN Off
Change Area
Source TimerSound NetworkTV Parental
Change Mode
V
«, »Λ«,
« or
>
«
<
« or »>« and
V
« or
Tuesday
xx xxx xxxx
ExitBack
EXITBACK
ENGLISH
85
Page 86
NETWORK SETUP
-------------------------------------------------------------------------------------------
8 Select the line »Select Access Point« with
»
V
« or »Λ« and press »OK« to confirm.
– Present WPS-supported wireless networks
are scanned to display in the »Select Access Point« menu.
9 Select the network that you want to connect
V
« or, »Λ« and press »OK« to
with »
confirm.
– 8-digit pin code is displayed in the wire-
less WPS menu.
Note:
7
Refer to the manual of your router to find
out how the PIN is entered via a PC.
10 Use a PC to enter the pin on the router (e.g.
AVM FRITZ!Box: menu item WLAN Settings... WPS) and save.
Note:
7
The 8-digit PIN code must be entered in the
modem interface in 2 minutes; otherwise,
connection of television with the modem is
cut.
11 Press »« (green) to confirm the registra-
tion.
– The message “Connection to Gateway:
Success” appears.
12 Press »« (green) to check the performed
settings and also if the local network and
internet connection has been established.
– »Testing ... Please wait« message will
be displayed, and if the connection is
established »Connection To Gateway:
Successfull«, »Internet Connection: Successfull« messages and MAC address will
be displayed.
13 Press »EXIT« to end the setting.
Connecting automatically by entering
the network password
Use this method for establishing a connection
if your router does not support “WPS-PBC” or
WPS PIN entry.
1 Open the menu with »MENU«.
V
Tuesday
xx xxx xxxx
«, »Λ«,
« or
>
BACK
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Network« with »
»
« and press »V« to confirm.
<
– »Network« menu is active.
Settings > Network
Change Connection Type Wired
Network Configuration AUTO
Wake-on-LAN Off
Advanced
Source TimerSound NetworkTV Parental
Change AreaConnec Test Connection Select Back
4 Select the line »Change Connection Type«
with »
V
« or »Λ« and press »OK« to
confirm.
V
5 Select the option »Wireless« with »
»
Λ
« and press »OK« to confirm.
« or
– WiFi warning message will be displayed.
6 Confirm the message »Do you want to turn
on Wi-Fi?« select »Yes« with »
press »OK« to confirm.
« or »>« and
<
7 Select the line »Network Configuration«
V
« or »Λ« and select the option
with »
»AUTO« with »
« or »>«.
<
8 Select the line »Select Access Point« with
V
« or »Λ« and press »OK« to confirm.
»
– »Select Access Point« menu is displayed
by scanning available wireless networks.
9 Select the network that you want to con-
V
nect with »
« or »Λ« and press »OK« to
confirm.
– Wireless connection password screen is
displayed.
86
ENGLISH
Page 87
NETWORK SETUP
-------------------------------------------------------------------------------------------
Note:
7
For device to discover the wireless modem
on the network, the network name should
support ASCII characters.
V
10 Select the required character with »
»
Λ
«, »<« or »>« and move to the next
«,
character with »OK«.
– Using »Shift« ➡ »OK«, you can switch
between uppercase letters / numbers and
lowercase letters / special characters.
– Select »Del« to delete the character
entered and press »OK« to confirm.
11 Confirm the password with »« (green).
– »Connecting ... Please wait« message
will be displayed, and if the connection
is established »Connection To Gateway:
Success« messages will be displayed.
12 Press »« (green) to check the performed
settings and also if the local network and
internet connection has been established.
– »Testing ... Please wait« message will
be displayed, and if the connection is
established »Connection To Gateway:
Success«, »Internet Connection: Success«
messages will be displayed.
13 Press »EXIT« to end the setting.
Note:
7
If you do not have a dynamic network,
follow the instructions in manual connection
section.
Manual connection
Certain networks require Static IP address. If
your network requires a Static IP address, you
must enter the »IP Address«, »Netmask«, »Gateway« and »DNS« values manually. You can
get »IP Address«, »Netmask«, »Gateway« and
»DNS« values (IPS) from your Internet Service
Provider.
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Network« with »
»
« and press »V« to confirm.
<
– »Network« menu is active.
«, »Λ«,
« or
>
4 Select the line »Change Connection Type«
V
« or »Λ« and press »OK« to
with »
confirm.
5 Select the option »Wireless« with »
»
« and press »OK« to confirm.
>
– WiFi warning screen will be displayed.
<
« or
6 Confirm the message »Do you want to turn
on Wi-Fi?« select »Yes« with »
press »OK« to confirm.
« or »>« and
<
7 Select the line »Network Configuration«
V
« or »Λ« and select the option
with »
»Manual« with »
– »IP Address«, »DNS«, »Netmask« and
« or »>«.
<
»Gateway« options are active.
Settings > Network
Tuesday
xx xxx xxxx
Change Connection Type Wired
WiFi On
Select Access Point N/A
Network Configuration Manual
Wake-on-LAN Off
IP Address 192 . 168 . 000 . 200
Source TimerSound NetworkTV
Change AreaConnect Test Connection
Input Mode
8 Select the line »IP Address« with »V«.
Enter IP address with »1…0«.
V
9 Select the line »DNS« with »
«.
Enter DNS address with »1…0«.
V
10 Select the line »Netmask« with »
«.
Enter Netmask address with »1…0«.
ENGLISH
ExitBack
EXITBACK
87
Page 88
NETWORK SETUP
-------------------------------------------------------------------------------------------
11 Select the line »Gateway« with »V«.
Enter Gateway address with »1…0«.
12 Select the line »Select Access Point« with
Λ
« or »V« and press »OK« to confirm.
»
– »Select Access Point« menu is displayed
by scanning available wireless networks.
13 Select the network that you want to connect
– Wireless connection password screen is
14 Select the required character with »
– Using »Shift« ➡ »OK«, you can switch
– Select »Del« to delete the character
15 Confirm the password with »« (green).
– »Connecting ... Please wait« message
16 Press »« (green) to check the performed
– »Testing ... Please wait« message will
17 Press »EXIT« to end the setting.
V
« or »Λ« and confirm with »OK«.
with »
displayed.
Note:
7
For device to discover the wireless modem
on the network, the network name should
support ASCII characters.
»
Λ
«, »<« or »>« and move to the next
character with »OK«.
between uppercase letters / numbers and
lowercase letters / special characters.
entered and press »OK« to confirm.
will be displayed, and if the connection
is established »Connection To Gateway:
Success« messages will be displayed.
settings and also if the local network and
internet connection has been established.
be displayed, and if the connection is
established »Connection To Gateway:
Success«, »Internet Connection: Success«
messages will be displayed.
V
«,
Change TV Name
To make it possible to identify your TV in the
network, the name “Inter@ctive TV” is assigned
at the factory. You can change the name.
1 Open the menu with »MENU«.
V
V
V
« or »Λ«
V
«, »Λ«,
« or »Λ«
« or
V
«,
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »TV« with »
and press »
– »TV« menu is active.
4 Select the line »About« with »
and press »OK« to confirm.
5 Select the line »TV Name« with »
»
Λ
6 Delete the current name step-by-step with
»« (red).
7 Select the required character with »
»
Λ
character with »OK«.
– Using »Shift« ➡ »OK«, you can switch
between uppercase letters / numbers and
lowercase letters / special characters.
– Select »Del« to delete the character
entered and press »OK« to confirm.
8 Confirm the new name by pressing »«
(green).
9 Press »EXIT« to end the setting.
V
« to confirm.
« and press »OK« to confirm
«, »<« or »>« and move to the next
88
ENGLISH
Page 89
NETWORK SETUP
-------------------------------------------------------------------------------------------
Connecting the TV to a “hidden”
network
Even if the SSID (Service Set Identifier) of the
router is not visible, you can connect your TV to
this network.
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confrim.
<
3 Select the menu item »Network« with »
»
« and press »V« to confirm.
<
– »Network« menu is active.
4 Select the line »Select Access Point« with
V
« or »Λ« and press »OK« to confirm.
»
– »Select Access Point« menu appears and
available wireless networks are scanned
and displayed in the menu.
5 Press »« (red).
– »Add Network« menu appears.
6 Select the line »Access Point Name« with
V
« or »Λ« and press »OK« to confirm.
»
– A menu for entering the SSID will be
displayed.
Note:
7
For device to discover the wireless modem
on the network, the network name should
support ASCII characters.
7 Select the required character with »
»
Λ
«, »<« or »>« and move to the next
character with »OK«.
– Using »Shift« ➡ »OK«, you can switch
between uppercase letters / numbers and
lowercase letters / special characters.
– Select »Del« to delete the character
entered and press »OK« to confirm.
8 Confirm the SSID by pressing »« (green).
9 Select the line »Security Type« with »
»
Λ
« and select the required option (WPA2)
with »
« or »>«.
<
10 Confirm the setting with »« (red).
– The network is now in the »Select Access
Point« menu.
«, »Λ«,
« or
>
V
«,
V
« or
V
11 Select the network with »
press »OK« to confirm.
– Wireless connection password screen is
displayed.
12 Select the required character with »
»
Λ
«, »<« or »>« and move to the next
character with »OK«.
– Using »Shift« ➡ »OK«, you can switch
between uppercase letters / numbers and
lowercase letters / special characters.
– Select »Del« to delete the character
entered and press »OK« to confirm.
13 Confirm the password by pressing »«
(green).
– »Connecting ... Please wait« message will
be displayed.
14 Press »« (green) to make sure that the
network connection is established with the
current settings.
– »Testing ... Please wait« message will
be displayed, and if the connection is
established »Connection To Gateway:
Success«, »Internet Connection: Success«
messages and MAC address will be
displayed.
15 Press »EXIT« to end the setting.
« or »Λ« and
V
«,
ENGLISH
89
Page 90
SETTING FURTHER CHANNELS
-----------------------------------------------------
Searching for all digital channels
from a satellite automatically
New satellite channels are added or satellite
data is changed frequently. Therefore, we recommend you to run auto search function from
time to time.
All transponders are scanned for new channels.
1 Open the menu with »MENU«.
V
xx xxx xxxx
Tuesday
«, »Λ«,
« or
>
ExitBack
EXITBACK
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
Settings > Source
Change Area
Automatic Channel Search
Manual Channel Search
Channel Editor
Advanced
Source TimerSound NetworkTV Parental
Select
4 Select the line »Automatic Channel Search«
with »
V
« or »Λ« and press »OK« to
confirm.
– Menu is displayed.
5 Select the option »Satellite (DVB-S/S2)«
V
« or »Λ« and press »OK« to
with »
confirm.
6 Confirm the push button »Continue« with
»
« (blue).
7 Select the Channel Type.
V
Press »
« or »Λ« to select whether you
want to search for only digital channels
(Digital) or only radio channels (Radio) or
both (Digital + Radio) and press »OK« to
select and mark or unmark the »Digital«
and/or »Radio« items.
8 Select Scan Mode.
To select whether you want to search for
only free digital television channels (Free),
only scrambled digital television channels
(Scrambled) or both (Free + Scrambled),
press »
V
« or »Λ« and press OK« to select
and mark or unmark the »Free« and/or
»Scrambled« items.
9 Press »« (red) to start searching.
Notes:
7
When updating via the same satellites a
security query is displayed at the start of a
search.
7
If the previously stored channels should
be retained in the channel list and the new
channels found be added to it, then press
»« (green).
7
If »« (red) is pressed, the saved channels
will be deleted from the current channel list.
– The »Digital Searching« menu appears,
and the scan for TV channels begins.
– The search is complete as soon as the
message »Search is completed!« appears.
Note:
7
The search can be aborted with »EXIT«.
10 Switch to the Channel Editor with »
«
(yellow);
or
press »EXIT« to end the setting.
90
ENGLISH
Page 91
SETTING FURTHER CHANNELS
-----------------------------------------------------
Searching for digital channels from a satellite manually
on a transponder
If a certain channel cannot be found with
automatic search, you can search it manually
by manual search function. You must enter all
parameters of the channel correctly. You can
obtain the current transponder information from
teletext page, satellite TV magazines or internet.
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Manual Channel Search«
5 Select the option »Satellite (DVB-S/S2)«
6 Select the required option for manually
Service Type
Scan Type
Transponder
Symbol Rate
Polarization
V
« or »Λ« and press »OK« to
with »
confirm.
V
« or »Λ« and press »OK« to
with »
confirm.
V
adjusting with »
Press »
« or »>« to select whether you
<
want to search for only television channels
(DTV), only radio channels (Radio) or both
(Radio+TV).
Press »<« or »>« to select whether you
want to search for only free digital television
channels (Free), only scrambled digital
television channels (Scrambled) or both
(Free + Scrambled).
Enter the transponder frequency with
»1...0« in five digits.
Enter the transponder symbol rate
with »1...0« in five digits.
Set the polarisation for the transponder to
»Horizontal« or »Vertical« using »
« or »Λ«:
«, »Λ«,
>
« or »>«.
<
« or
Network Search
Select the network search with »
as »On« or »Off«.
7 Press »« (red) to start searching.
– The »Digital Searching« menu appears,
and the scan for TV channels begins.
– All channels found on the transponder are
shown. The new channels will be added
to the bottom of the channel table.
Note:
7
The search can be aborted with »EXIT«.
8 Press »EXIT« to end the setting.
« or »>«
<
ENGLISH
91
Page 92
SETTING FURTHER CHANNELS
-----------------------------------------------------
Antenna settings and searching
for digital channels from a satellite automatically
Note:
7
The following description about the LNB settings premise a substantial expertise about
the satellite systems. Ask your specialist
dealer.
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Automatic Channel Search«
5 Select the option »Satellite (DVB-S/S2)«
6 Select the line »Antenna Settings« with »
– The »Antenna Settings« menu is dis-
7 Select and set the required option for the
Satellite
LNB Type
LNB Power
V
« or »Λ« and press »OK« to
with »
confirm.
V
« or »Λ« and press »OK« to
with »
confirm.
or »
Λ
« and press »OK« to confirm.
played.
V
antenna settings with »
Press »OK« then select the required satellite with »
confirm.
Press »OK« then select the required LNB
Type with »
data and confirm with »« (green).
Set the LNB power to »Off«, »13/18V« or
»14/19V« depending on the LNB type by
using »<« or »>«.
LNB selection
Only necessary for »DiSEqC 1.0« or
»DiSEqC 1.1«, see chapter “Searching for
antenna settings for DiSEqC 1.0/1.1 and
digital channels from a satellite automatically”.
V
« or »Λ« and press »OK« to
« or »>«, enter the required
<
« or »Λ«:
«, »Λ«,
« or
>
V
8 Exit the antenna settings with »
9 Select the Channel Type.
Press »
10 Select Scan Mode.
To select whether you want to search for
11 Press »« (red) to start searching.
Notes:
7
7
«
7
– The »Digital Searching« menu appears,
– The search is complete as soon as the
Note:
7
12 Switch to the Channel Editor with »
or
press »EXIT« to end the setting.
V
want to search for only digital channels
(Digital) or only radio channels (Radio) or
both (Digital + Radio) and press »OK« to
select and mark or unmark the »Digital«
and/or »Radio« items.
only free digital television channels (Free),
only scrambled digital television channels
(Scrambled) or both (Free + Scrambled),
press »
and mark or unmark the »Free« and/or
»Scrambled« items.
When updating via the same satellites a
security query is displayed at the start of a
search.
If the previously stored channels should
be retained in the channel list and the new
channels found be added to it, then press
»« (green).
If »« (red) is pressed, the saved channels
will be deleted from the current channel list.
The search can be aborted with »EXIT«.
(yellow);
« or »Λ« to select whether you
V
« or »Λ« and press OK« to select
and the scan for TV channels begins.
message »Search is completed!« appears.
« (blue).
«
92
ENGLISH
Page 93
SETTING FURTHER CHANNELS
-----------------------------------------------------
Antenna settings, SCR system
and searching for digital channels from a satellite automatically
Notes:
7
Your TV supports SCR system (Single Channel Router – EN 50494).
7
The following description about the LNB settings premise a substantial expertise about
the satellite systems. Ask your specialist
dealer.
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Automatic Channel Search«
5 Select the option »Satellite (DVB-S/S2)«
6 Select the line »Antenna Settings« with »
– The »Antenna Settings« menu is dis-
7 Select and set the required option for the
V
« or »Λ« and press »OK« to
with »
confirm.
V
« or »Λ« and press »OK« to
with »
confirm.
or »
Λ
« and press »OK« to confirm.
played.
V
antenna settings with »
Satellite
Press »OK« then select the required satellite with »
confirm.
LNB type
If your antenna system is equipped with a
single-cable system multiswitch, use the option »Grundig SCR«. Press »OK« and select
the »Grundig SCR« option with »
Select the »LNB-Frequency High« line with
»
in five digits.
V
« or »Λ« and press »OK« to
V
« and enter the frequency with »1...0«
« or »Λ«:
«, »Λ«,
« or
>
« or »>«.
<
V
Select the »LNB-Frequency Low« line with
V
« and enter the frequency with »1...0«
»
in five digits.
Confirm the settings with »« (green).
LNB selection
Depending on the number of LNBs, select
the option with »
»1/2« if only 1 LNB is used; if two LNBs
are used, select the required LNB
(»1/2« or »2/2«).
User band
Select the number of the antenna socket
used with »
UB frequency (MHz)
Enter the required frequency for the selected
antenna socket with »1...0«.
Notes:
7
Use installation equipment supported / suggested by your SCR Switch.
7
Other users / receivers connected to the
system may be affected if the specified user
band number and frequency is changed
during installation.
7
User band and user band frequency is
specified on the SCR switch used; and each
«
user / receiver must select a specified user
band and user band frequency.
7
With SCR satellite system, auto search by
several users / receivers at the same time
may cause problems.
8 Exit the antenna settings with »
9 Select the Channel Type.
Press »
10 Select Scan Mode.
To select whether you want to search for
V
want to search for only digital channels
(Digital) or only radio channels (Radio) or
both (Digital + Radio) and press »OK« to
select and mark or unmark the »Digital«
and/or »Radio« items.
only free digital television channels (Free),
only scrambled digital television channels
(Scrambled) or both (Free + Scrambled),
press »
and mark or unmark the »Free« and/or
»Scrambled« items.
« or »Λ« to select whether you
V
« or »Λ« and press OK« to select
« or »>«.
<
« or »>«.
<
« (blue).
ENGLISH
93
Page 94
SETTING FURTHER CHANNELS
-----------------------------------------------------
11 Press »« (red) to start searching.
Notes:
7
When updating via the same satellites a
security query is displayed at the start of a
search.
7
If the previously stored channels should
be retained in the channel list and the new
channels found be added to it, then press
»« (green).
7
If »« (red) is pressed, the saved channels
will be deleted from the current channel list.
– The »Digital Searching« menu appears,
and the scan for TV channels begins.
– The search is complete as soon as the
message »Search is completed!« appears.
Note:
7
The search can be aborted with »EXIT«.
12 Switch to the Channel Editor with »
(yellow);
or
press »EXIT« to end the setting.
Antenna settings for DiSEqC
1.0/1.1 and searching digital
channels from a satellite automatically
Note:
7
The following description about the LNB settings premise a substantial expertise about
the satellite systems. Ask your specialist
dealer.
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
«
4 Select the line »Automatic Channel Search«
5 Select the option »Satellite (DVB-S/S2)«
6 Select the line »Antenna Settings« with »
– The »Antenna Settings« menu is dis-
7 Select and set the required option for the
Satellite
LNB Type
LNB Power
V
« or »Λ« and press »OK« to
with »
confirm.
V
« or »Λ« and press »OK« to
with »
confirm.
or »
Λ
« and press »OK« to confirm.
played.
V
antenna settings with »
Press »OK« then select the required satellite with »
confirm.
Press »OK« then select the required LNB
Type with »
data and confirm with »« (green).
Set the LNB power to »Off«, »13/18V« or
»14/19V« depending on the LNB type by
using »
LNB selection
See DISEqC mode.
V
« or »Λ« and press »OK« to
« or »>«, enter the required
<
« or »>«.
<
« or »Λ«:
«, »Λ«,
« or
>
V
«
94
ENGLISH
Page 95
SETTING FURTHER CHANNELS
7
DISEqC Mode
Based on the number of current satellite system, select the option »Off« »DiSEqC 1.0«
or »DiSEqC 1.1« with »
– »Off«: For satellite systems with single
antenna.
– » DiSEqC 1.0« switch allows for receiving
from maximum four satellites at the same
time.
From »LNB Selection« use »
to make the »1/4«, »2/4«, »3/4« or
»4/4« selection for the satellite that
corresponds to relevant DiSEqC posi-
– » DiSEqC 1.1« switch allows for receiving
8 Exit the antenna settings with »
9 Select the Channel Type.
Press »
10 Select Scan Mode.
To select whether you want to search for
11 Press »« (red) to start searching.
tions.
from maximum sixteen satellites at the
same time.
From »LNB selection« use »
»
« to make the selections between
>
»1/16« and »16/16« for the satellite
that corresponds to relevant DiSEqC
positions.
V
want to search for only digital channels
(Digital) or only radio channels (Radio) or
both (Digital + Radio) and press »OK« to
select and mark or unmark the »Digital«
and/or »Radio« items.
only free digital television channels (Free),
only scrambled digital television channels
(Scrambled) or both (Free + Scrambled),
press »
and mark or unmark the »Free« and/or
»Scrambled« items.
Notes:
7
When updating via the same satellites a
security query is displayed at the start of a
search.
7
If the previously stored channels should
be retained in the channel list and the new
channels found be added to it, then press
»« (green).
« or »Λ« to select whether you
V
« or »Λ« and press OK« to select
« or »>«.
<
« or »>
<
« or
<
« (blue).
If »« (red) is pressed, the saved channels
will be deleted from the current channel list.
– The »Digital Searching« menu appears,
and the scan for TV channels begins.
– The search is complete as soon as the
message »Search is completed!« appears.
Note:
7
The search can be aborted with »EXIT«.
12 Switch to the Channel Editor with »
(yellow);
or
press »EXIT« to end the setting.
Note:
7
Repeat the procedure from point 1 for the
settings of the second satellite or any others.
These channels will be added to the bottom
of the channel table.
-----------------------------------------------------
«
ENGLISH
95
Page 96
SETTING FURTHER CHANNELS
-----------------------------------------------------
Motor antenna setup (DiSEqC 1.2)
Note:
7
The following description about the LNB settings premise a substantial expertise about
the satellite systems. Ask your specialist
dealer.
Your television supports DiSEqC 1.2 motorized
satellite systems. This feature allows to control
the satellite through your television.
Adjust the satellite antenna position according
to each satellite. These settings can be stored
and the antenna can be moved to a preset
position.
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Manual Channel Search«
5 Select the option »Satellite (DVB-S/S2)«
6 Activate the option »Antenna Settings« with
– The »Antenna Settings« menu is dis-
7 Select the line »DiSEqC Mode« with »
– The line »DiSEqC 1.2 SETTINGS« is ac-
8 Select the line »DiSEqC 1.2 SETTINGS«
– »DiSEqC 1.2 SETTINGS« menu is dis-
V
« or »Λ« and press »OK« to
with »
confirm.
V
« or »Λ« and press »OK« to
with »
confirm.
»
« (blue).
played.
or »
Λ
« and select »DiSEqC1.2« with »<«
or »
«.
>
tive.
V
« or »Λ« and press »OK« to
with »
confirm.
played.
«, »Λ«,
« or
>
V
«
9 Use »
Moving Mode
Set the Moving Mode with »
– »Discrete«: Moves the antenna to west or
– »Continuous«: Moves the antenna to west
Step Size
With »
Move Motor
Adjusts the antenna for the selected satellite.
– »Go To Stored Position«: Moves the
– »Store Position«: Stores antenna's current
Limit Position
– Sets the limit position which the antenna
Reset DiSEqC 1.2 Limit
– Resets the limit positions set for the an-
10 Press »EXIT« to end the setting.
V
« or »Λ« to select necessary items.
« or »>« to
»Discrete« or »Continuous«.
east for the determined step size.
or east continuously.
« or »>« select the number of steps
<
the antenna has to rotate. »Step Size« is
active when »Moving Mode« is selected as
»Discrete«.
Set the antenna to »West« with »
»East« with »
antenna to the preset satellite position.
Maximum 50 positions can be saved.
Select the setting with »« (green) button,
select predefined position with »
»
« and confirm with »« (green) button.
>
Antenna will mode to saved position.
position. Select setting with »« (red) button, select recording position with »
»
« and confirm with »« (green) button.
>
will be able to move and allows the
antenna to move within the determined
limits. With »
»West« direction and with »
limit position in »East« direction.
tenna.
«.
>
« specify a limit position in
<
<
« and to
<
<
« specify a
>
« or
<
« or
96
ENGLISH
Page 97
SETTING FURTHER CHANNELS
-----------------------------------------------------
Searching for digital channels
from the cable provider automatically
1 Open the menu with »MENU«.
V
xx xxx xxxx
Tuesday
«, »Λ«,
« or
>
EXITBACK
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Automatic Channel Search«
V
« or »Λ« and press »OK« to
with »
confirm.
5 Select the option »Cable (DVB-C)« with
V
« or »Λ« and press »OK« to confirm.
»
– »Automatic Channel Search« menu is
displayed.
Settings > Source > Automatic Channel Search
Scan Type Quick
Frequency AUTO
Network ID AUTO
Continue ExitBack
Source TimerSound NetworkTV Parental
Change Mode
6 Select the line »Scan Type« with »Λ« or
»
V
« and select the option »Quick« or »Full«
scan type with »
– »Quick« scanning function sets the chan-
« or »>«.
<
nels according to the cable operator
information in the broadcasting signal.
Network ID« performs the installation that
is suitable to your network. If you know
the Network ID, please enter it. If you do
not know the Network ID, please select
»Auto« for »Frequency« and »Network
ID«.
– If scanning cannot be performed with
»Quick« option, select »Full«. All current
channels are tuned and stored in »Full«
scanning. This scanning process can take
a long time. This option is recommended
if your cable operator does not support
quick scanning function.
Note:
7
You can speed up the search. To do this,
frequency and network ID information are
required. You may get this data from your
cable operator or find it in the Internet
forums.
7 Confirm the »Continue« with »
« (blue).
Note:
7
Select whether to search for digital or
analogue TV channels. To do this press
»
V
« or »Λ« to select the option »Digital«
or »Analog« and press »OK« to remove or
apply the “small tick”.
8 Press »« (red) to start searching.
Notes:
7
When updating via the same satellites a
security query is displayed at the start of a
search.
7
If the previously stored channels should
be retained in the channel list and the new
channels found be added to it, then press
»« (green).
7
If »« (red) is pressed, the saved channels
will be deleted from the current channel list.
– The »Digital Searching« menu appears,
and the scan for TV channels begins.
– The search is complete as soon as the
message »Search is completed!« appears.
Note:
7
The search can be aborted with »EXIT«.
9 Switch to the Channel Editor with »
(yellow) ;
or
press »EXIT« to end the setting.
«
ENGLISH
97
Page 98
SETTING FURTHER CHANNELS
-----------------------------------------------------
Searching for digital channels
from the cable provider manually
1 Open the menu with »MENU«.
V
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Manual Channel Search«
5 Select the option »Cable (DVB-C)« with
6 Select whether to search for digital or ana-
To to this press »
7 With »
– The search is finished when the channels
8 Press »EXIT« to end the setting.
V
« or »Λ« and press »OK« to
with »
confirm.
V
« or »Λ« and press »OK« to confirm.
»
logue TV channels.
option »Digital« or »Analogue« and confirm
with »OK«.
V
and enter frequency (4-digit) directly with
»1...0«; search will start.
found appear in the list.
V
« or »Λ« to select the
« select »Frequency (MHz)«
«, »Λ«,
« or
>
Searching for digital terrestrial
TV channels automatically
1 Open the menu with »MENU«.
V
V
« or
«, »Λ«,
« or
>
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Advanced« with »
»
Λ
« and press »OK« to confirm.
5 Select the line »Active Antenna Power« with
V
« or »Λ«.
»
Switch on the antenna power supply for the
antenna with »
Important:
7
The antenna power supply (5V ) may only
be switched on if the antenna is an active
indoor antenna with a signal amplifier and
it is not already supplied with a voltage via
a mains plug (or similar supply). Otherwise
you may cause a short circuit and irreparably damage your antenna.
6 Press »BACK <« to go back one menu
level.
7 Select the line »Automatic Channel Search«
8 Select the option »Air (DVB-T/T2)« with
9 Select whether to search for digital or ana-
To to this press »
10 Press »« (red) to start searching.
Λ
with »
confirm.
Λ
« or »V« and press »OK« to confirm.
»
logue TV channels.
option »Digital« or »Analogue« and confirm
with »OK«.
Notes:
7
When updating via the same satellites a
security query is displayed at the start of a
search.
7
If the previously stored channels should
be retained in the channel list and the new
channels found be added to it, then press
»« (green).
« or »>« (»On«).
<
« or »V« and press »OK« to
Λ
« oder »V« to select the
98
ENGLISH
Page 99
SETTING FURTHER CHANNELS
7
If »« (red) is pressed, the saved channels
will be deleted from the current channel list.
– The »Digital Searching« menu appears,
and the scan for TV channels begins.
– The search is complete as soon as the
message »Search is completed!« appears.
Note:
7
The search can be aborted with »EXIT«.
11 Switch to the Channel Editor with »
(yellow) ;
or
press »EXIT« to end the setting.
«
Searching for digital terrestrial
TV channels manually
1 Open the menu with »MENU«.
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Advanced« with »
»
Λ
« and press »OK« to confirm.
5 Select the line »Active Antenna Power« with
V
« or »Λ«.
»
Switch on the antenna power supply for the
antenna with »
Important:
7
The antenna power supply (5V ) may only
be switched on if the antenna is an active
indoor antenna with a signal amplifier and
it is not already supplied with a voltage via
a mains plug (or similar supply). Otherwise
you may cause a short circuit and irreparably damage your antenna.
6 Press »BACK <« to go back one menu
level.
7 Select the line »Manual Channel Search«
with »
confirm.
8 Select the option »Air« with »
and press »OK« to confirm
– »Manual Channel Search« menu is dis-
played.
9 Select whether to search for digital or ana-
logue TV channels.
To to this press »
option »Digital« or »Analogue« and confirm
with »OK«.
10 Enter frequency (3-digit) directly with
»1...0«.
– Search will start.
– The search is finished when the channels
found appear in the list.
11 Press »EXIT« to end the setting.
-----------------------------------------------------
V
«, »Λ«,
« or
>
V
« or
« or »>« (»On«)
<
Λ
« or »V« and press »OK« to
Λ
« or »V«
Λ
« or »V« to select the
ENGLISH
99
Page 100
SETTING FURTHER CHANNELS
-----------------------------------------------------
Automatic service update
If this function is activated, possible changes of
network operators are updated automatically.
The unit must be located in stand-by mode.
This updating affects all types of reception - ter-
restrial, cable and satellite.
1 Open the menu with »MENU«.
V
V
« or
«, »Λ«,
« or
>
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Advanced« with »
»
Λ
« and press »OK« to confirm.
5 Select the line »Automatic Service Update«
6 Press »EXIT« to end the setting.
V
« or »Λ« and select the automatic
with »
update with »
« or »>« (»On«).
<
Tuning analogue television
channels
This setting is only necessary if you cannot
receive any digital channels and you have not
carried out an analogue search during initial
setup.
The television channel can be set directly or
using the search.
Setting all analogue television channels
The analogue television stations are listed in the
channel list after the digital television stations.
Note:
7
Plug the rooftop antenna cable (for analogue television stations) into the ANT IN
socket on the television.
1 Open the menu with »MENU«.
V
V
«, »Λ«,
« or
>
« or
2 Select menu item »Settings« with »
»
« or »>« and press »OK« to confirm.
<
3 Select the menu item »Source« with »
»
« and press »V« to confirm.
<
– »Source« menu is active.
4 Select the line »Automatic Channel Search«
5 Select the option »Air (DVB-T/T2)« or
6 Select the option »Digital« with »
7 Press »« (red) to start searching.
V
« or »Λ« and press »OK« to
with »
confirm.
V
»Cable (DVB-C)« with »
confirm the source you are receiving analog
broadcast from by pressing »OK«.
»
Λ
« and press »OK« to remove the small
tick.
« or »Λ« and
100
ENGLISH
Loading...
