TV Service Manual
Service
Manual
Chassis TD
32 GLX 6052 GBI6432
32 GLX 6951 GBH8136
37 GLX 6052 GBI6037
37 GLX 6951 GBH8138
42 GLX 6052 GBI6142
Vision 6
32-6950 GBH8532
37-6950 GBH8537
42-6950 GBH8542
Chassis TE
Zusätzlich erforderliche Unterlagen für den Komplettservice
Additionally required Service Documents for the Complete Service
Sicherheit
Safety
26 GLX 4000 GBI2126
32 GLX 2600 GBJ2832
32 GLX 4000 GBI2132
Materialnr./Part No.
720108000001
Materialnummer / Part Number 720100551000
Änderungen vorbehalten / Subject to alteration
TCC 1010 0112 MP • Prepared in Germany
http://www.grundig.com
Page 2
GRUNDIG Service Chassis TD / TE
Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Service Manual "Sicherheit", Materialnummer
720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
Inhaltsverzeichnis
Allgemeiner Teil
Allgemeine Hinweise .....................................................................1-2
Geräte- und Display-Varianten
Technische Daten
Bedienhinweise
Service- und Sonderfunktionen
.................................. 1-2…1-18
......................................................1-3
..........................................................................1-4
...........................................................................1-10
...................................................1-17
Seite
Platinenabbildungen
und Schaltpläne

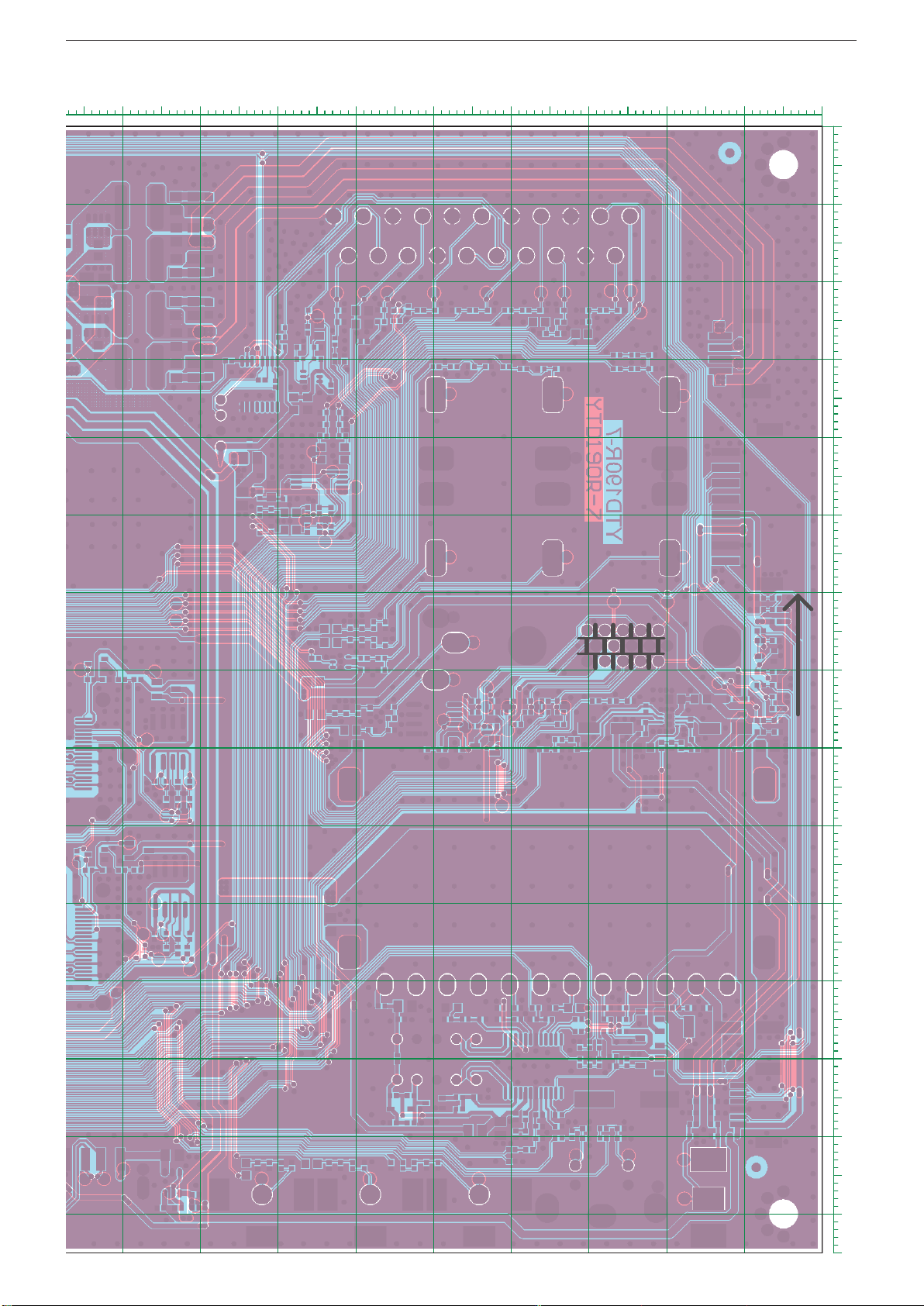

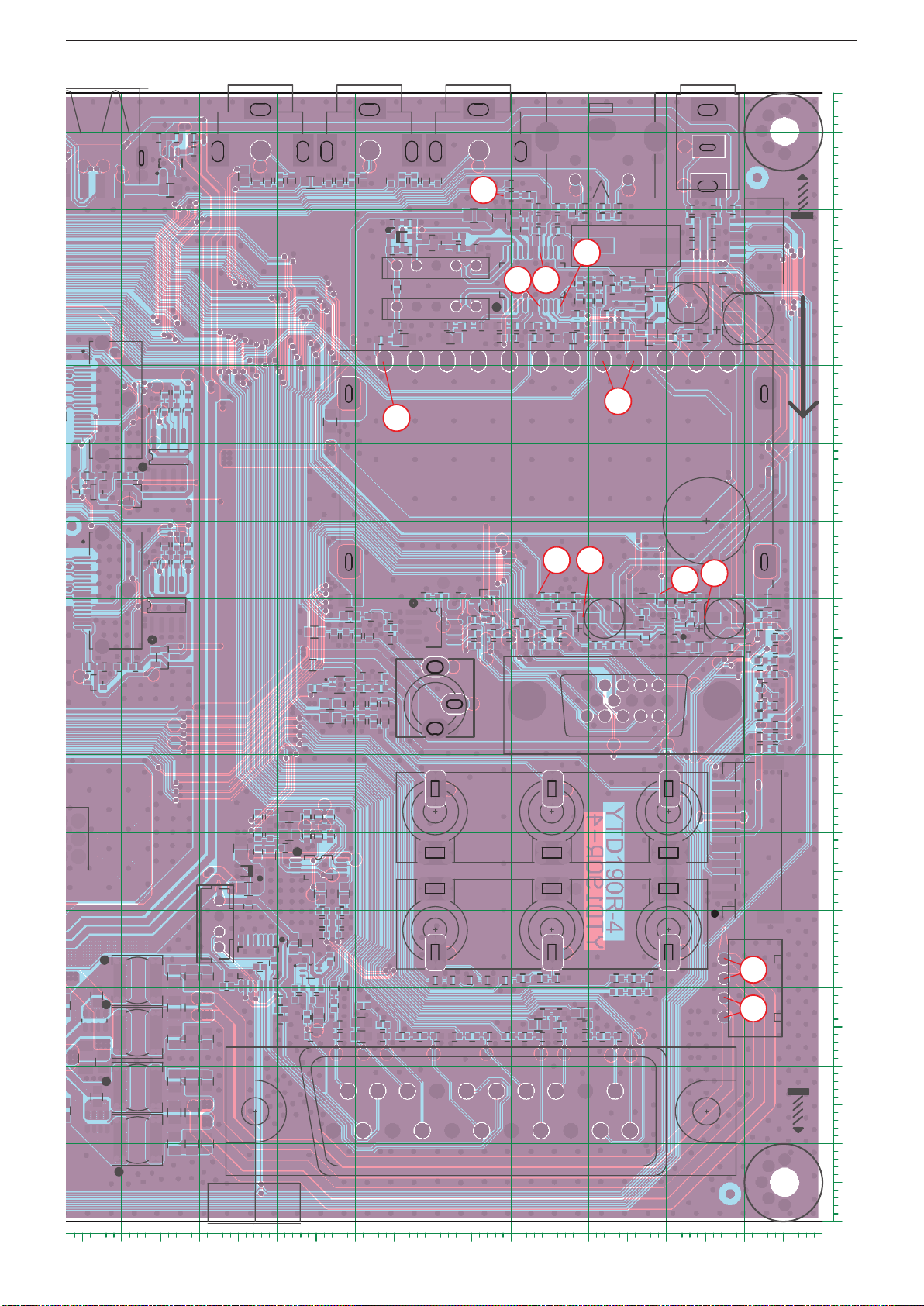

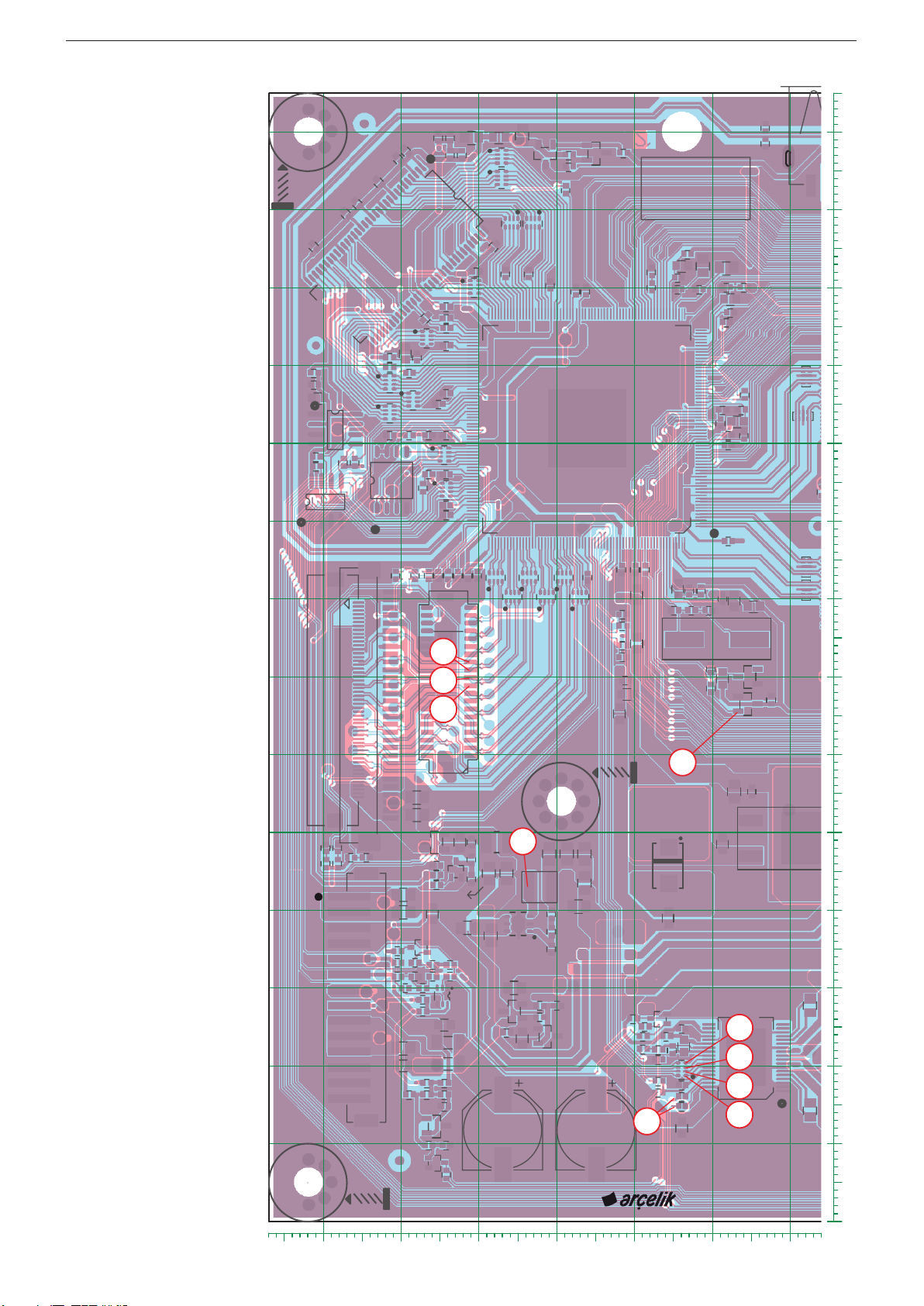

Chassisplatte YTD190R-2, YTD190R-4, YTD190R-7 ....................2-1

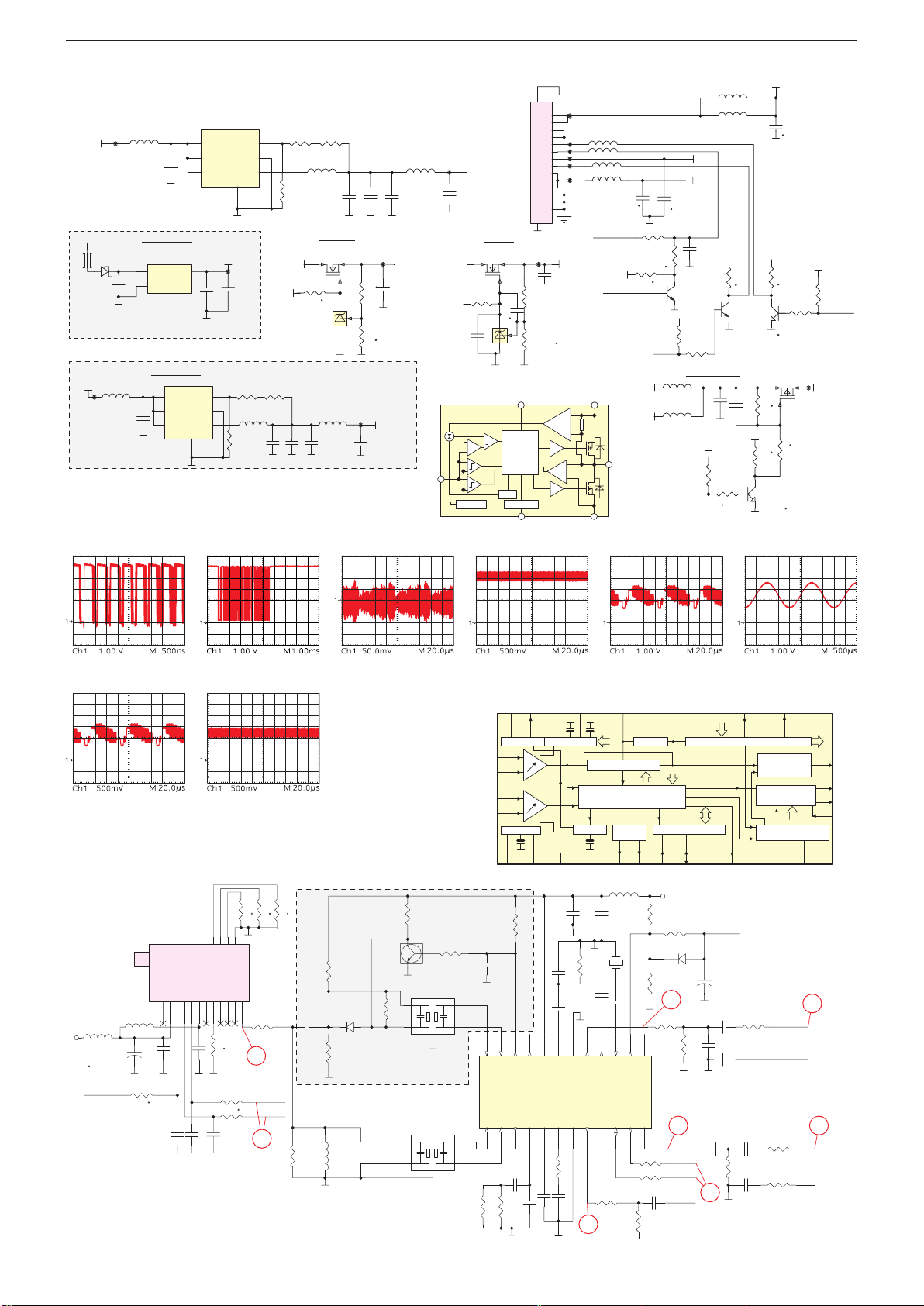

– Netzteil .................................................................................... 2-22
– Tuner ........................................................................................ 2-22
– SCART .....................................................................................2-23

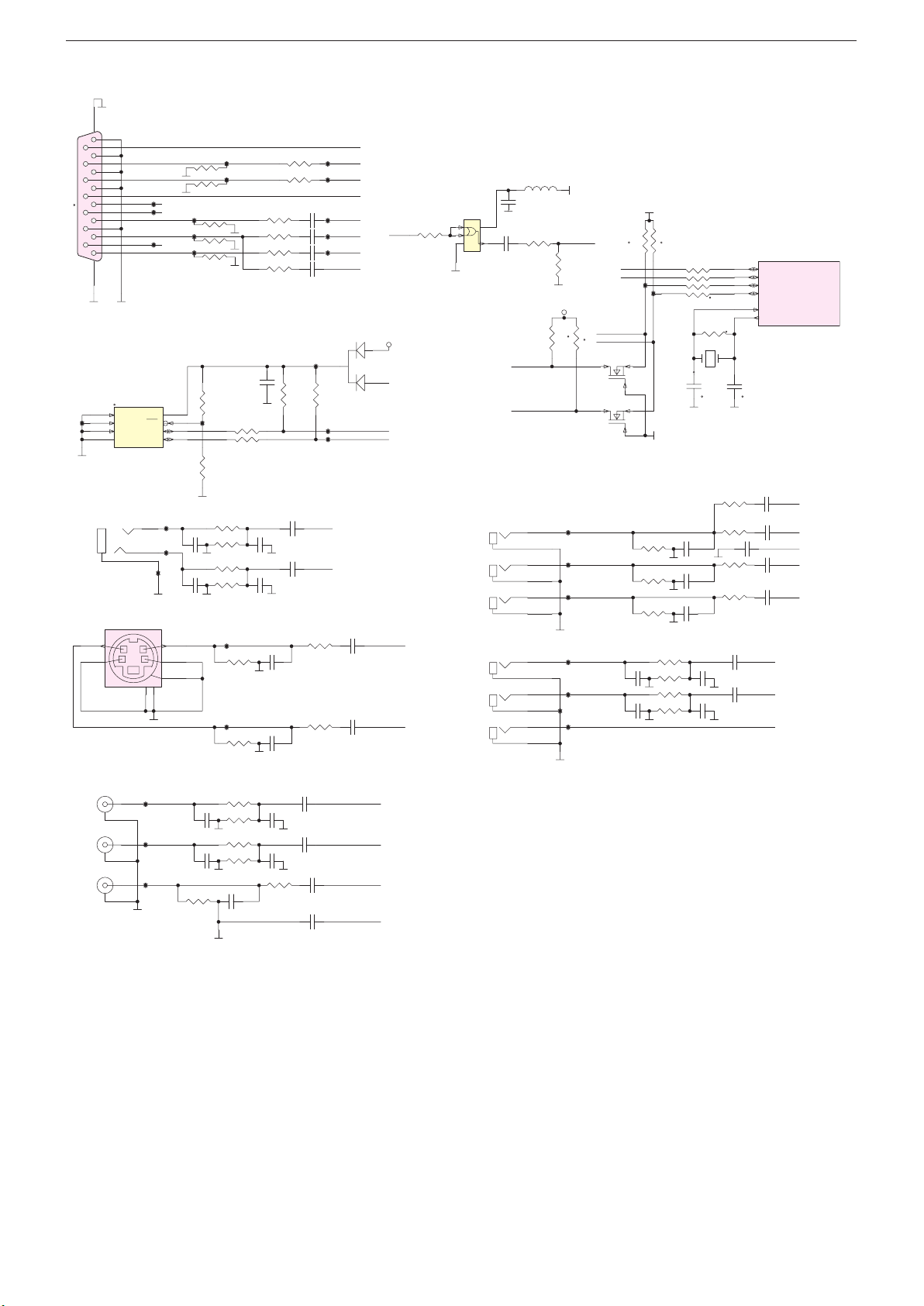

– VGA, AV, USB ..........................................................................2-24

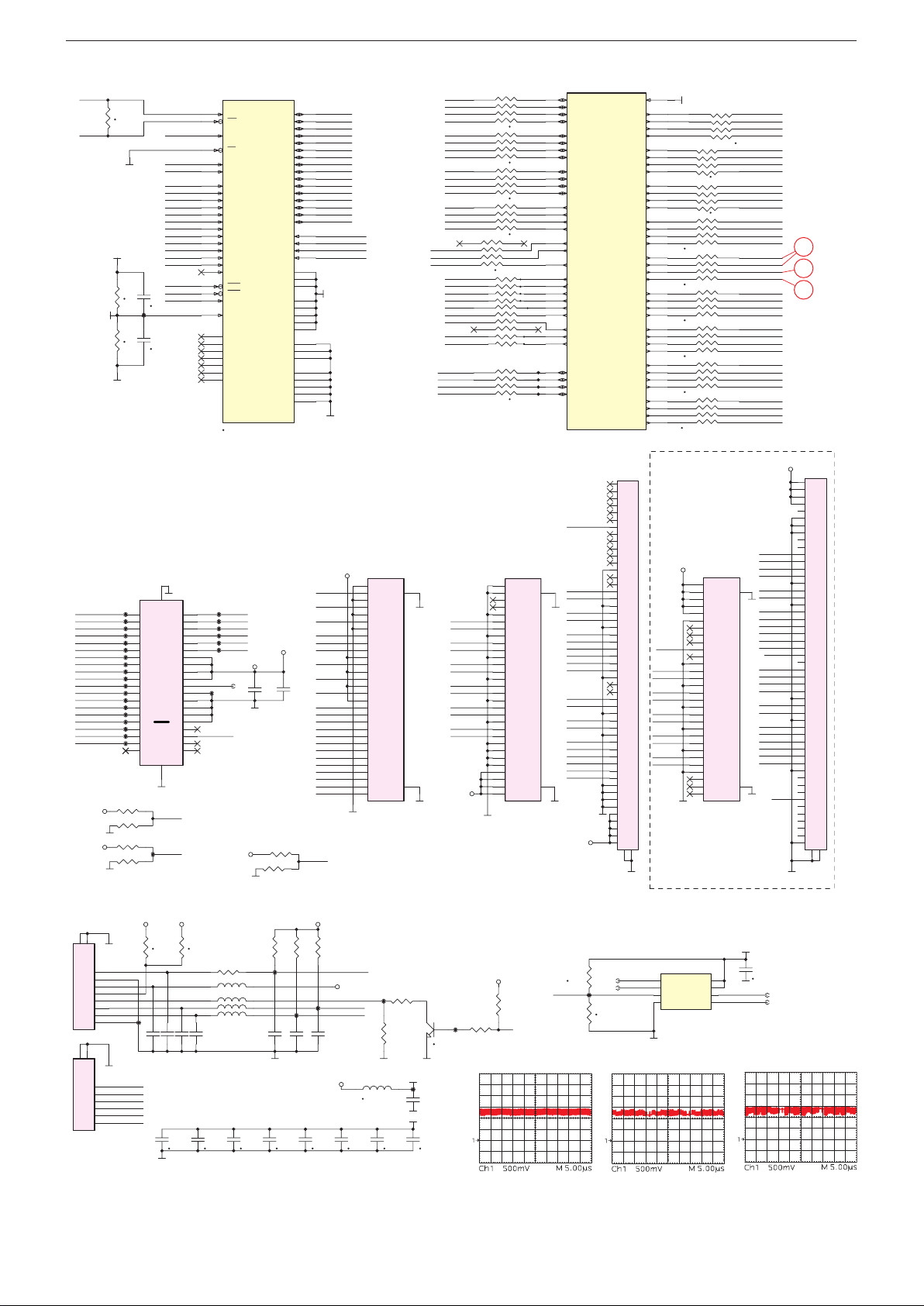

– HDMI........................................................................................2-25
– Scaler.......................................................................................2-26

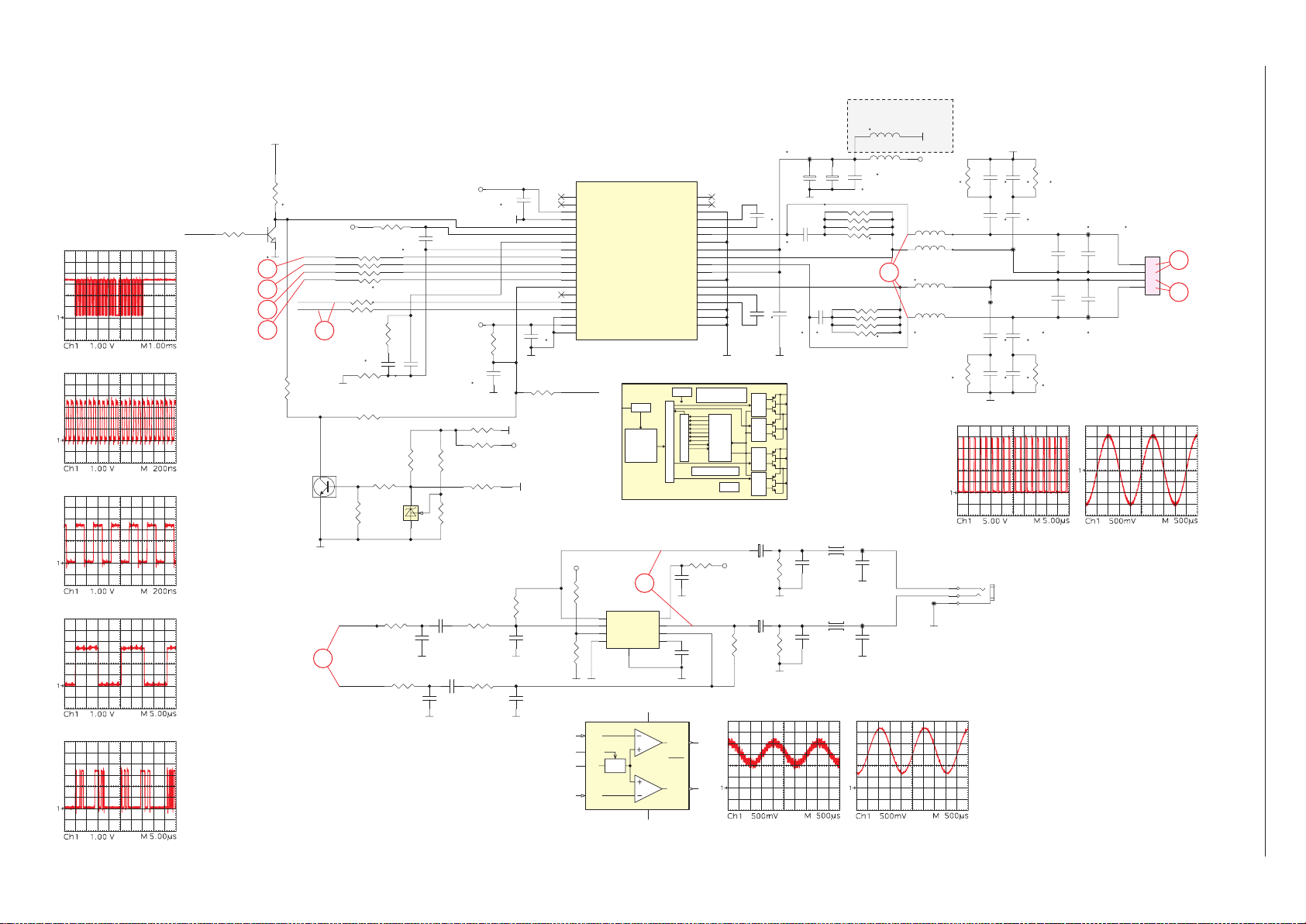

– Verstärker .................................................................................2-28
Netzteil FSP115-3F01
Netzteil FSP115-3F02
Netzteil FSP223-3F01
IR-Empfänger
Keyboards....................................................................................2-37
..............................................................................2-37
.................................. 2-1…2-38
.................................................................2-29
.................................................................2-31
.................................................................2-34
The regulations and safety instructions shall be valid
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
national deviations.
Table of Contents
General Section
General Notes ...............................................................................1-2
Product and Display Variants
Technical Data
Operating Hints
Service and Special Functions
...............................................................................1-4
.................................. 1-2…1-18
.........................................................1-3
............................................................................1-13
....................................................1-17
Page
Layout of the PCBs
and Circuit Diagrams
Chassis Board YTD190R-2, YTD190R-4, YTD190R-7 ..................2-1
– Power Supply ..........................................................................2-22
– Tuner ........................................................................................ 2-22
– SCART .....................................................................................2-23
– VGA, AV, USB ..........................................................................2-24
– HDMI........................................................................................2-25
– Scaler.......................................................................................2-26
– Amplifier ...................................................................................2-28
Power Supply FSP115-3F01
Power Supply FSP115-3F02
Power Supply FSP223-3F01
IR Receiver
Keyboards....................................................................................2-37
..................................................................................2-37
......................... 2-1…2-38
.......................................................2-29
.......................................................2-31
.......................................................2-34
Ersatzteillisten ...................................... 3-1…3-7
Allgemeiner Teil
Allgemeine Hinweise
Vor dem Öffnen des Gehäuses den Netzstecker ziehen!
Achtung: ESD-Vorschriften beachten
Leitungsverlegung
Bevor Sie die Leitungen und insbesondere die Masseleitungen lösen, ist
die Leitungs ver legung zu den einzelnen Baugruppen zu beachten.
Nach erfolgter Reparatur ist es notwendig, die Leitungsführung wieder
in den werkseitigen Zustand zu versetzen um evtl. spätere Ausfälle
oder Störungen zu vermeiden.
Durchführen von Messungen
Bei Messungen mit dem Oszilloskop an Halb leitern sollten Sie nur
Tast köpfe mit 10:1 - Tei ler verwen den. Außerdem ist zu beachten, dass
nach vorheriger Messung mit AC-Kopp lung der Koppelkondensator
des Oszillo skops auf geladen sein kann. Durch die Ent ladung über das
Messobjekt können Bau teile beschä digt werden.
Messwerte und Oszillogramme
Bei den in den Schaltplänen und Oszillogrammen angegebenen
Messwerten handelt es sich um Näherungswerte!
Austausch der Chassisplatte
Nach Austausch der Chassisplatte müssen alle Einstellungen im
Service Mode nach Tabelle "Grundeinstellwerte" (Punkt 1 im Kapitel
"Service- und Sonderfunktionen" auf Seite 1-17) eingestellt werden.
Spare Parts Lists .................................. 3-1…3-7
General Section
General Notes
Before opening the cabinet disconnect the mains plug!
Attention: Observe the ESD safety regulations
Wiring
Before disconnecting any leads and especially the earth connecting
leads observe the way they are routed to the individual assemblies.
On completion of the repairs the leads must be laid out as originally
fitted at the factory to avoid later failures or disturbances.
Carrying out Measurements
When making measurements on semi-con duc tors with an oscillo scope,
ensure that the test probe is set to 10:1 dividing factor. If the previous
measurement was made on AC input, please note that the coupling
capacitor in the oscilloscope will be charged. Discharge via the item
being checked can damage the components.
Measured Values and Oscillograms
The measured values given in the circuit diagrams and oscillograms
are approximates!
Change of the Chassis Board
After changing the chassis board all settings in the service mode must
be done according to the table "Basic Settings" (point 1 in chapter
"Service and Special Functions" on page 1-17).
1 - 2
Page 3
GRUNDIG Service Chassis TD / TE
Hotel-Mode
Bei aktivierter Funktion ist die maximale Lautstärke begrenzt sowie
die Programmtabelle und Installation sind im MAIN MENU nicht mehr
anwählbar.
Aufruf: i (M) –> 8500 –> 34 (89) "OPTION 1" –> + ( :) –> 34 (89)
"HOTEL" –> – + (; :) "AVAIL".
Maximale Lautstärke: i ( M)–> 8500 –> 34 ( 89) "OPTION 1" –> + ( :)
–> 34 (89) "HOTEL VOLUME" –> – + (; :) Wert 0…99.
Sonderfunktion bei aktiviertem Hotel-Mode
Bei dieser Sonderfunktion ist im Menü Ton die maximale Lautstärke
"Maxvol" zusätzlich einstellbar. Des weiteren sind die Menüs Programmtabelle und Sonderfunktionen bis zum nächsten Ausschalten
(Standby) des Gerätes verfügbar.
Aufruf: i (M) –> "Ton" –> "OK" –> 4658
Geräte- und Display-Varianten
Display- und Product Code
Je nach Verfügbarkeit werden
Displays verschiedener Hersteller
eingebaut. Dies führt zu unterschiedlichen Chassis-Bestückungen, sowie zu Änderungen
in der Software. Bei Ersatzteilbestellungen und SoftwareUpdates achten Sie bitte auf das
eingebaute Display, sowie auf den
"Product Code". Angaben dazu
finden Sie auf der Geräterückseite. Sollte in der Ersatzteilliste
des Service Manuals Ihr "Product
Code" oder Ihre Display-Variante
nicht aufgeführt sein, können Sie
eine aktualisierte Version auf
dem GRUNDIG Service-Portal
"http://service.grundig.de" finden.
Überprüfen Sie vor PlatinenTausch, ob die Aufkleber der
Platinen identisch sind (z.B. PCB
Code).
Product Code
Display Type
Display Code
Hotel Mode
Maximum volume is limited and there is no access to "Program table"
and "Channel setup" at activated hotel mode.
Call up: i (M) –> 8500 –> 34 (89) "OPTION 1" –> + ( :) –> 34 ( 89)
"HOTEL" –> – + (; :) "AVAIL".
Maximum volume: i (M)–> 8500 –> 34 (89) "OPTION 1" –> + ( :)
–> 34 (89) "HOTEL VOLUME" –> – + (; :) Value 0…99.
Special Functions at activated Hotel Mode
The maximum volume can be adjusted in the additionally menu item
"Maxvol" in the sound menu.
In addition there is access to the menus "Program table" and "Channel
setup" until the set is switched off (standby).
Call up: i (M) –> "Sound" –> "OK" –> 4658
Product and Display Variants
Display- und Product Code
Depending on availability displays
Serialnummer / Serial Number
Chassis
PCB Code
of different manufacturer are built
in. This results in different chassis
mountings as well as a different
software. On spare parts orders
as well as software updates take
care of the fitted display as well as
of the "Product Code". Therefore
you can find information on the
labels on the rear side. If your
"Product Code" or display variant is not mentioned in the spare
parts list of the service manual,
please look for a current version
at the GRUNDIG service portal
"http://service.grundig.de".
Before changing any board please
check whether the labels on the
boards are identical (eg. PCB
Code).
1 - 3
Page 4
Technische Daten / Technical Data
26 GLX 4000 32 GLX 2600 32 GLX 4000 32 GLX 6951
Order No.
Approbations
Destination
IM-Languages
Remote control
Color
DISPLAY
Panel
Wide-screen format
Response time
Brightness
Contrast ratio (Panel)
Dynamic contrast plus
Viewing angle vertical/horizontal, ca. °
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Natural view HD Reference
Full HD
24p
HD ready 1080p
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Transition Improv. (DLTI)
Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
Blackline detection
PIP
Multifold Tuner scan (Mosaic Picture)
PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICTURE + PICTURE)
P²AT: Double Window + TXT
POP: PICTURE on PICTURE
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
CHASSIS
TV-Chassis
Progressive
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Easy Dialog
Megalogic
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Intelligent Programme Switch
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Childlock
Menue languages OSD
OSD-style
Service mode
Game mode
Hotel mode
TUNING
Autom. Tuning System with country selection
Frequency Based Auto Search
Automatic Micro-search
Automatic Programming
Manual fine tuning
Direct channel selection
Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L
NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
GBI2126
CE,I
GBJ2832
CE,I
GBI2132
CE,I
GBH8136
CE
D,A
D,G B
D,A
D,GB
RC 23 RC 23
D,A
D,GB
D, A
D,G B
RC 23 TP 2
Black glossy black
26" / 66cm
32" / 81cm
8
500
8
500
3.000:1
20.000:1
3.000:1
20.000:1
Black glossy black
32" / 81cm
32" / 81cm
8
500
8
470
3.000:1
20.000:1
1.400:1
20.000:1
89/89 89/89
WXGA 1366 x 768
89/89 89/89
WXGA 1366 x 768
3D DeInterlacer
3D DeInterlacer
89/89 89/89
WXGA 1366 x 768
178 / 178
WUXGA 1920 x 1080 (full HD)
3D DeInterlacer
3D DeInterlacer
3D
3D
user, natural, rich, soft
Auto (WSS), 4:3 / 14:9 / 16:9 /
Panorama / Cinema Zoom / Sky Top
user, natural, rich, soft
Auto (WSS), 4:3 / 14:9 / 16:9 /
Panorama / Cinema Zoom / Sky Top
3D
3D
user, natural, rich, soft
Auto (WSS), 4:3 / 14:9 / 16:9 /
Panorama / Cinema Zoom / Sky Top
user, natural, rich, soft
Auto (WSS), 4:3 / 16:9 / 14:9 /
LetterBox / Subtitle / Panorama
TE TE
PLL frequency synthesizer tuningPLL frequency synthesizer tuning
TE TD
PLL frequency synthesizer tuningPLL frequency synthesizer tuning
MStar
1 Key, On/Off
MStar
1 Key, On/Off
18 18
MStar
1 Key, On/Off
MStar
6 keys: menue, ± for programme,
± for volume, AV/TV
18 blue LED
100 / AV
/ / for Germany
100 / AV
/ / for Germany
100 / AV
/ / for Germany
100 / 7
/ /
250 pages
250 pages
22 languages, D, GB, F, I, E, P, NL, DK,
S, FIN, N, TR, GR, PL, CZ, SK, SLO, H,
RUS, RO, BG, SER
OEM-style
22 languages, D, GB, F, I, E, P, NL, DK,
S, FIN, N, TR, GR, PL, CZ, SK, SLO, H,
RUS, RO, BG, SER
OEM-style
Simple hotel mode possible
via service adjustment
Simple hotel mode possible
via service adjustment
250 pages
100 pages
22 languages, D, GB, F, I, E, P, NL, DK,
S, FIN, N, TR, GR, PL, CZ, SK, SLO, H,
RUS, RO, BG, SER
OEM-style
26 Languages: D, GB,
F,I,E,P,NL,GR,TR,DK,FIN,N,S,SI,PL,H,
RUS,RO,HR,CZ,SK,AL,BG,MK,S
ER,HEB (Version A)
Grundig-style
Simple hotel mode possible
via service adjustment
Simple hotel mode possible
via service adjustment
full automatic sorting
full automatic sorting
full automatic sorting
full automatic sorting
Chassis T5GRUNDIG Service
1 - 4
Chassis TD / TEGRUNDIG Service
1 - 4
Page 5
26 GLX 4000 32 GLX 2600 32 GLX 4000 32 GLX 6951
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Virtual Dolby
Magic Fidelity Sound System
Sound Projector
Matched Sound Delay (Lip synchronous)
Subwoofer
Dynamic Bass
DSP (Digital Sound Processor)
Balance Adjustment
AVL (Audio Volume Level)
PIP listening via Headphone.jack
Equalizer
Space Sound Effect
Audio mode
Audio amplifier
DVB reception
DVB-T/S/C
POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Plug-in AC adaptor
Power consumption
Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight
FRONT PANEL CONNECTIONS
HDMI
Headphones
Cinch-AV socket
S-Video
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
Euro-AV Socket AV2
Euro-AV Socket AV3
S-Video
Camera-AV
Wireless
YUV input / progressive
PC-input
PC-Audio in
DVI
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out coaxial (SPDIF)
Video out
Audio out
USB
Antenna for terrestrial reception
DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Remote control (incl. battery)
Power cord
Cables
Instruction manual
Circuit diagram
Wall fixture
Warning sticker in rear panel
Stand
Warranty info
Cleaning tissue
/ /
/ /
2 wide band at the front side
2 wide band at the front side
/ /
/ /
2 wide band at the front side
2 wide band at the front side
5 Band
5 Band
cinema, music, sport, speech, usercinema, music, sport, speech, user
2 x 5/10W nominal/music power (R/L) 2 x 5/10W nominal/music power (R/L)
5 Band
5 Band
cinema, music, sport, speech, usercinema, music, sport, speech, user
2 x 5/10W nominal/music power (R/L) 2 x 10 / 20W (nominal/music)
230V, 50Hz; in accordance to IEC 65
220V - 240V
230V, 50Hz; in accordance to IEC 65
220V - 240V
Tact switch
Tact switch
80 W, standby 0,80W in accordance to
IEC 62087-2002
100 W, standby 0,80W in accordance to
IEC 62087-2002
65,9x43,7x7,9cm
65,9x48,4x20,6cm
ca.8,4kg
78,9x51,8x8,1cm
78,9x56,4x20,6cm
ca.11,0kg
230V, 50Hz; in accordance to IEC 65
220V - 240V
230V, 50Hz; in accordance to IEC 65
220V - 240V
Tact switch
Tact switch
100 W, standby 0,80W in accordance to
IEC 62087-2002
130 W, standby 1,1W in accordance to
IEC 62087-2002
78,9x51,8x8,1cm
78,9x56,4x20,6cm
ca.11,0kg
80,0x55,2x11,0cm
80,0x59,4x20,0cm
ca.11,6kg
Full wired Full wired
Full wired CVBS in-/output, RGB input
1x
1x
Hosiden
3x Cinch socket in
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
WXGA
1x
2x
via HDMI
via HDMI
1 x Coaxial-socket for TV-tuner-in,
according to DIN 45325
1 x Coaxial-socket for TV-tuner-in,
according to DIN 45325
via HDMI
via HDMI
3.5mm jack
1 x Coaxial-socket for TV-tuner-in,
according to DIN 45325
1 x Coaxial-socket for TV-tuner-in,
according to DIN 45325
RC 23 RC 23
non grounded
non grounded
RC 23 TP 2
non grounded
non grounded
Prepared for VESA standard adaptor
100 x 100
Prepared for VESA standard adaptor
200 x 200
Prepared for VESA standard adaptor
200 x 200
Prepared for VESA standard adaptor
200 x 200
Chassis T5GRUNDIG Service
1 - 5
Chassis TD / TEGRUNDIG Service
1 - 5
Page 6
32 GLX 6052 37 GLX 6052 37 GLX 6951 42 GLX 6052
Order No.
Approbations
Destination
IM-Languages
Remote control
Color
DISPLAY
Panel
Wide-screen format
Response time
Brightness
Contrast ratio (Panel)
Dynamic contrast plus
Viewing angle vertical/horizontal, ca. °
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Natural view HD Reference
Full HD
24p
HD ready 1080p
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Transition Improv. (DLTI)
Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
Blackline detection
PIP
Multifold Tuner scan (Mosaic Picture)
PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICTURE + PICTURE)
P²AT: Double Window + TXT
POP: PICTURE on PICTURE
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
CHASSIS
TV-Chassis
Progressive
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Easy Dialog
Megalogic
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Intelligent Programme Switch
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Childlock
Menue languages OSD
OSD-style
Service mode
Game mode
Hotel mode
TUNING
Autom. Tuning System with country selection
Frequency Based Auto Search
Automatic Micro-search
Automatic Programming
Manual fine tuning
Direct channel selection
Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L
NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
GBI6432
CE
GBI6037
CE
GBH8138
CE
GBI6142
CE
D, A
D,G B
D, A
D,GB
TP 2 TP 2
D, A
D,GB
D, A
D,G B
TP 2 TP 2
Black Black
32" / 81cm
37" / 94cm
8
470
5
500
1.400:1
30.000:1
1.400:1
30.000:1
Glossy Black Black
37" / 94cm
42" / 107cm
6
500
5
500
1.400:1
20.000:1
1.400:1
30.000:1
178 / 178
WUXGA 1920 x 1080 (full HD)
176 / 176
WUXGA 1920 x 1080 (full HD)
3D DeInterlacer
3D DeInterlacer
3D
3D
user, natural, rich, soft
Auto (WSS), 4:3 / 16:9 / 14:9 /
LetterBox / Subtitle / Panorama
user, natural, rich, soft
Auto (WSS), 4:3 / 14:9 / 16:9 /
Panorama / Cinema Zoom / Sky Top
176 / 176
WUXGA 1920 x 1080 (full HD)
176 / 176
WUXGA 1920 x 1080 (full HD)
3D DeInterlacer
3D DeInterlacer
3D
3D
user, natural, rich, soft
Auto (WSS), 4:3 / 14:9 / 16:9 /
Panorama / Cinema Zoom / Sky Top
user, natural, rich, soft
Auto (WSS), 4:3 / 14:9 / 16:9 /
Panorama / Cinema Zoom / Sky Top
TD TD
PLL frequency synthesizer tuningPLL frequency synthesizer tuning
TD TD
PLL frequency synthesizer tuningPLL frequency synthesizer tuning
MStar
6 keys: menue, ± for programme,
± for volume, AV/TV
MStar
6 keys: menue, ± for programme,
± for volume, source
blue LED blue LED
100 / 7
/ /
100 / AV
/ /
MStar
6 keys: menue, ± for programme,
± for volume, source
MStar
6 keys: menue, ± for programme,
± for volume, source
blue LED blue LED
100 / AV
/ /
100 / AV
/ /
100 pages
250 pages
26 Languages: D, GB,
F,I,E,P,NL,GR,TR,DK,FIN,N,S,SI,PL,H,
RUS,RO,HR,CZ,SK,AL,BG,MK,S
ER,HEB (Version A)
Grundig-style
26 Languages: D, GB,
F,I,E,P,NL,GR,TR,DK,FIN,N,S,SI,PL,H,
RUS,RO,HR,CZ,SK,AL,BG,MK,S
ER,HEB (Version A)
OEM-style
Simple hotel mode possible
via service adjustment
Simple hotel mode possible
via service adjustment
full automatic sorting
full automatic sorting
250 pages
250 pages
26 Languages: D, GB,
F,I,E,P,NL,GR,TR,DK,FIN,N,S,SI,PL,H,
RUS,RO,HR,CZ,SK,AL,BG,MK,S
ER,HEB (Version A)
OEM-style
26 Languages: D, GB,
F,I,E,P,NL,GR,TR,DK,FIN,N,S,SI,PL,H,
RUS,RO,HR,CZ,SK,AL,BG,MK,S
ER,HEB (Version A)
OEM-style
presets (user changeable) for sound and picture
in HDMI-, Component- and PC-mode
Simple hotel mode possible
via service adjustment
Simple hotel mode possible
via service adjustment
full automatic sorting
full automatic sorting
Chassis T5GRUNDIG Service
1 - 6
Chassis SZGRUNDIG Service
1 - 6
Chassis TD / TEGRUNDIG Service
1 - 6
Page 7
32 GLX 6052 37 GLX 6052 37 GLX 6951 42 GLX 6052
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Virtual Dolby
Magic Fidelity Sound System
Sound Projector
Matched Sound Delay (Lip synchronous)
Subwoofer
Dynamic Bass
DSP (Digital Sound Processor)
Balance Adjustment
AVL (Audio Volume Level)
PIP listening via Headphone.jack
Equalizer
Space Sound Effect
Audio mode
Audio amplifier
DVB reception
DVB-T/S/C
POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Plug-in AC adaptor
Power consumption
Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight
FRONT PANEL CONNECTIONS
HDMI
Headphones
Cinch-AV socket
S-Video
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
Euro-AV Socket AV2
Euro-AV Socket AV3
S-Video
Camera-AV
Wireless
YUV input / progressive
PC-input
PC-Audio in
DVI
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out coaxial (SPDIF)
Video out
Audio out
USB
Antenna for terrestrial reception
DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Remote control (incl. battery)
Power cord
Cables
Instruction manual
Circuit diagram
Wall fixture
Warning sticker in rear panel
Stand
Warranty info
Cleaning tissue
/ /
/ /
2 wide band at the front side
2 wide band and 2 tweeter
at the front side
/ /
/ /
2 wide band and 2 tweeter
at the front side
2 wide band and 2 tweeter
at the front side
5 Band
5 Band
cinema, music, sport, speech, usercinema, music, sport, speech, user
2 x 10 / 20W (nominal/music) 2 x 10/20W nominal/music power (R/L)
230V, 50Hz; in accordance to IEC 65
220V - 240V
230V, 50Hz; in accordance to IEC 65
220V - 240V
Tact switch
Tact switch
130 W, standby 1,1W in accordance to
IEC 62087-2002
170 W, standby <1W in accordance to
IEC 62087-2002
80,0x55,2x11,0cm
80,0x59,4x20,0cm
ca.11,6kg
93,0 x 62,5 x 11,2cm
93,0 x 67,1 x 25,2cm
ca. 18,5kg
5 Band
5 Band
cinema, music, sport, speech, usercinema, music, sport, speech, user
2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)
220V - 240V 220V - 240V
Tact switch
Tact switch
170 W, standby <1W in accordance to
IEC 62087-2002
200 W, standby <1W in accordance to
IEC 62087-2002
93,0x62,5x11,2cm
93,0x67,1x25,2cm
ca.18,5kg
116,8x69,5x11,1cm
116,8x73,7x31,7cm
ca.34,5kg
CVBS in-/output, RGB input CVBS in-/output, Audio in-/output
Hosiden
3x Cinch socket in
Hosiden
3x Cinch socket in
Video-in: 3 x Cinch, Audio-in: 2 x CinchVideo-in: 3 x Cinch, Audio-in: 2 x Cinch
WXGA
WXGA
2x
2x
CVBS in-/output, Audio in-/output CVBS in-/output, Audio in-/output
Hosiden
3x Cinch socket in
Hosiden
3x Cinch socket in
Video-in: 3 x Cinch, Audio-in: 2 x CinchVideo-in: 3 x Cinch, Audio-in: 2 x Cinch
WXGA
WXGA
2x
2x
via HDMI
via HDMI
3.5mm jack
3.5mm jack
1 x Coaxial-socket for TV-tuner-in,
according to DIN 45325
1 x Coaxial-socket for TV-tuner-in,
according to DIN 45325
TP 2 TP 2
non grounded
grounded
via HDMI
via HDMI
3.5mm jack
3.5mm jack
1 x Coaxial-socket for TV-tuner-in,
according to DIN 45325
1 x Coaxial-socket for TV-tuner-in,
according to DIN 45325
TP 2 TP 2
grounded
grounded
Prepared for VESA standard adaptor
200 x 200
Prepared for VESA standard adaptor
200 x 200
Prepared for VESA standard adaptor
200 x 200
Prepared for VESA standard adaptor
200 x 200
Chassis T5GRUNDIG Service
1 - 7
Chassis SZGRUNDIG Service
1 - 7
Chassis TD / TEGRUNDIG Service
1 - 7
Page 8
Vision 6 32-6950 Vision 6 37-6950 Vision 6 42-6950
Order No.
Approbations
Destination
IM-Languages
Remote control
Color
DISPLAY
Panel
Wide-screen format
Response time
Brightness
Contrast ratio (Panel)
Dynamic contrast plus
Viewing angle vertical/horizontal, ca. °
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Natural view HD Reference
Full HD
24p
HD ready 1080p
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Transition Improv. (DLTI)
Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
Blackline detection
PIP
Multifold Tuner scan (Mosaic Picture)
PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICTURE + PICTURE)
P²AT: Double Window + TXT
POP: PICTURE on PICTURE
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
CHASSIS
TV-Chassis
Progressive
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Easy Dialog
Megalogic
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Intelligent Programme Switch
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Childlock
Menue languages OSD
OSD-style
Service mode
Game mode
Hotel mode
TUNING
Autom. Tuning System with country selection
Frequency Based Auto Search
Automatic Micro-search
Automatic Programming
Manual fine tuning
Direct channel selection
Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L
NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
GBH8532
CE
GBH8537
CE
GBH8542
CE
Region 4
GB,P,GR,AR,RO
Region 4
GB,P,GR,AR,RO
RUS, SLO
TP 2
RUS, SLO
TP 2
Region 4
GB,P,GR,AR,RO
RUS, SLO
TP 2
glossy black/silver glossy black/silver
32" / 81cm
37" / 94cm
t.b.d.
t.b.d.
8
500
t.b.d.
t.b.d.
1.000:1
12.000:1
glossy black/silver
42" / 107cm
8
500
1.000:1
15.000:1
89/89 89/89
WUXGA 1920 x 1080 (full HD)
178 / 178
WUXGA 1920 x 1080 (full HD)
3D DeInterlacer
3D DeInterlacer
178 / 178
WUXGA 1920 x 1080 (full HD)
3D DeInterlacer
3D
3D
user, natural, rich, soft
Auto (WSS), 4:3 / 14:9 / 16:9 /
Panorama / Cinema Zoom / Sky Top
user, natural, rich, soft
Auto (WSS), 4:3 / 14:9 / 16:9 /
Panorama / Cinema Zoom / Sky Top
3D
user, natural, rich, soft
Auto (WSS), 4:3 / 14:9 / 16:9 /
Panorama / Cinema Zoom / Sky Top
TD TD
PLL frequency synthesizer tuning
PLL frequency synthesizer tuning
TD
PLL frequency synthesizer tuning
MStar
6 keys: menue, ± for programme,
± for volume, source
MStar
6 keys: menue, ± for programme,
± for volume, source
blue LED blue LED
MStar
6 keys: menue, ± for programme,
± for volume, source
blue LED
100 / 9
/ /
100 / 9
/ /
100 / 9
/ /
250 pages
250 pages
min. 17 Languages: D, GB,
F,I,E,NL,TR,DK,FIN,N,S,SI,PL,H,HR,CZ,SK
OEM-style
min. 17 Languages: D, GB,
F,I,E,NL,TR,DK,FIN,N,S,SI,PL,H,HR,CZ,SK
OEM-style
presets (user changeable) for sound and picture in HDMI-, Component- and PC-mode
Simple hotel mode possible
via service adjustment
Simple hotel mode possible
via service adjustment
250 pages
min. 17 Languages: D, GB,
F,I,E,NL,TR,DK,FIN,N,S,SI,PL,H,HR,CZ,SK
OEM-style
Simple hotel mode possible
via service adjustment
full automatic sorting
full automatic sorting
full automatic sorting
Chassis T5GRUNDIG Service
1 - 8
Chassis SZGRUNDIG Service
1 - 8
Chassis TD / TEGRUNDIG Service
1 - 8
Chassis TD / TEGRUNDIG Service
1 - 8
Page 9
Vision 6 32-6950 Vision 6 37-6950 Vision 6 42-6950
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Virtual Dolby
Magic Fidelity Sound System
Sound Projector
Matched Sound Delay (Lip synchronous)
Subwoofer
Dynamic Bass
DSP (Digital Sound Processor)
Balance Adjustment
AVL (Audio Volume Level)
PIP listening via Headphone.jack
Equalizer
Space Sound Effect
Audio mode
Audio amplifier
DVB reception
DVB-T/S/C
POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Plug-in AC adaptor
Power consumption
Cabinet (WxHxD)
Cabinet with stand (WxHxD)
Weight
FRONT PANEL CONNECTIONS
HDMI
Headphones
Cinch-AV socket
S-Video
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
Euro-AV Socket AV2
Euro-AV Socket AV3
S-Video
Camera-AV
Wireless
YUV input / progressive
PC-input
PC-Audio in
DVI
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out coaxial (SPDIF)
Video out
Audio out
USB
Antenna for terrestrial reception
DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Remote control (incl. battery)
Power cord
Cables
Instruction manual
Circuit diagram
Wall fixture
Warning sticker in rear panel
Stand
Warranty info
Cleaning tissue
/ /
/ /
2 wide band at the front side
2 wide band and 2 tweeter
at the front side
/ /
2 wide band and 2 tweeter
at the front side
5 Band
5 Band
cinema, music, sport, speech, user
cinema, music, sport, speech, user
2 x 10/20W nominal/music power (R/L) 2 x 10/20W nominal/music power (R/L)
5 Band
cinema, music, sport, speech, user
2 x 10/20W nominal/music power (R/L)
220V - 240V 220V - 240V
Tact switch
Tact switch
140 W, standby <1,2W in accordance to
IEC 62087-2002
170 W, standby <1,2W in accordance to
IEC 62087-2002
80,0x55,2x11,0cm
80,0x59,4x20,0cm
ca.11,8kg
93,0x62,5x11,5cm
93,0x67,1x25,1cm
ca.18,5kg
220V - 240V
Tact switch
210 W, standby <1,2W in accordance to
IEC 62087-2002
104,3x69,5x11,4cm
104,3x73,7x31,6cm
ca.23,2kg
Full wired Full wired
Full wired
Hosiden
3x Cinch socket in
Hosiden
3x Cinch socket in
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
WXGA
WXGA
3x
3x
Hosiden
3x Cinch socket in
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
WXGA
3x
via HDMI
via HDMI
3.5mm jack
3.5mm jack
1 x Coaxial-socket for TV-tuner-in,
according to DIN 45325
1 x Coaxial-socket for TV-tuner-in,
according to DIN 45325
via HDMI
3.5mm jack
1 x Coaxial-socket for TV-tuner-in,
according to DIN 45325
TP 2 TP 2
non grounded
non grounded
TP 2
grounded
Prepared for VESA standard adaptor 200 x 200
Prepared for VESA standard adaptor 200 x 200
swivel type
Prepared for VESA standard adaptor 200 x 200
swivel type
230V, 50Hz; in accordance to IEC 65
Chassis T5GRUNDIG Service
1 - 9
Chassis SZGRUNDIG Service
1 - 9
Chassis TD / TEGRUNDIG Service
1 - 9
Chassis TD / TEGRUNDIG Service
1 - 9
Page 10
Chassis TD / TEGRUNDIG Service
1 - 10
Bedienhinweise Dieses Kapitel enthält Auszüge aus der Bedienungsanleitung.
Weitergehende Informationen entnehmen Sie bitte der gerätespezifischen Bedienungsanleitung, die Sie unter www.grundig.de herunterladen können.
Page 11
Chassis TD / TEGRUNDIG Service
1 - 11
Page 12
Chassis TD / TEGRUNDIG Service
1 - 12
Page 13
Chassis TD / TEGRUNDIG Service
1 - 13

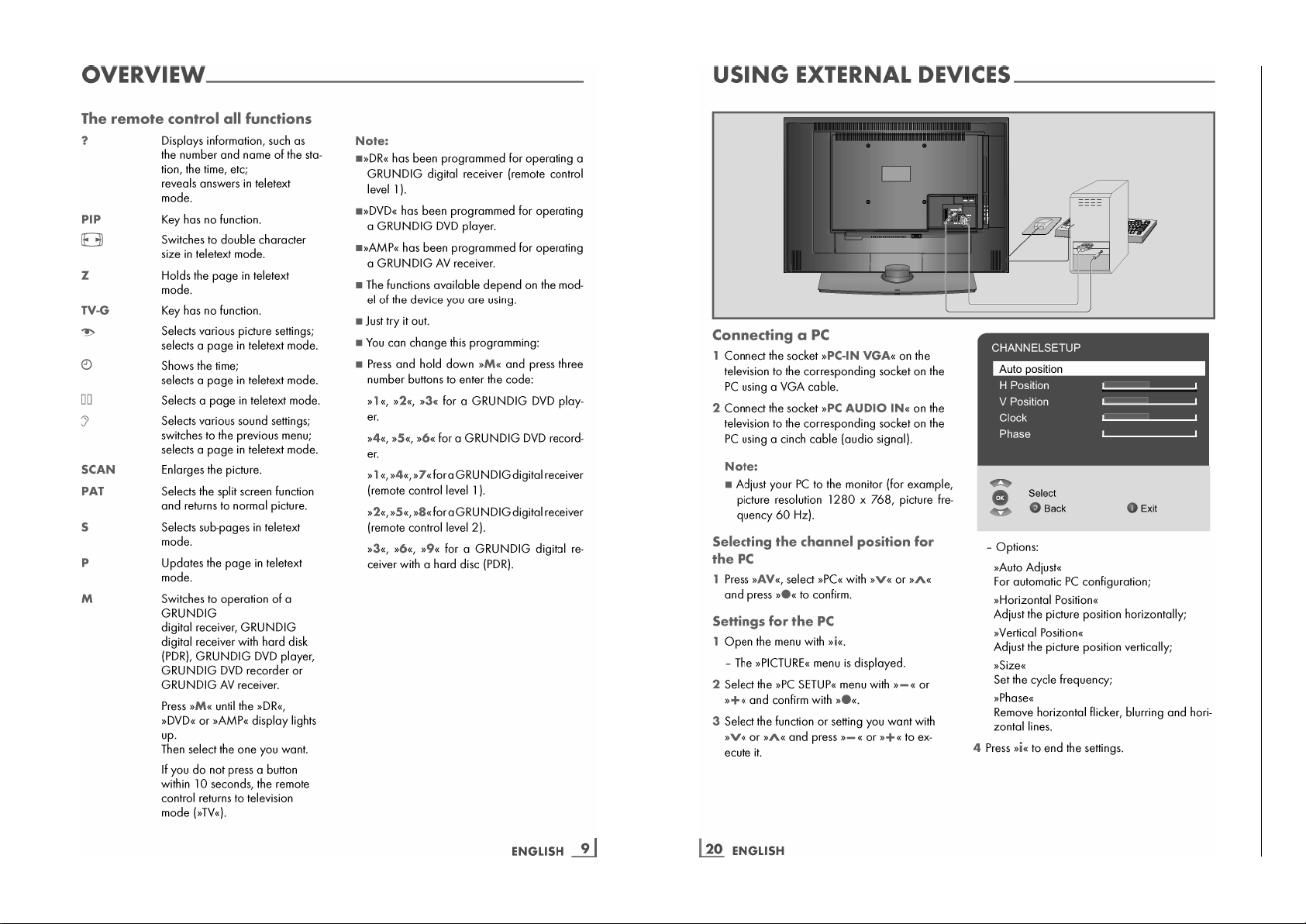

Operating Hints This chapter contains excerpts from the operating instructions. For further particulars
please refer to the appropriate user instructions which can be downloaded from
Page 14
Chassis SZGRUNDIG Service
1 - 14
Chassis TD / TEGRUNDIG Service
1 - 14
Page 15
Chassis TD / TEGRUNDIG Service
1 - 15
Page 16
Chassis TD / TEGRUNDIG Service
1 - 16
Page 17
Chassis TD / TEGRUNDIG Service
1 - 17
Service- und Sonderfunktionen
Tastenfunktionen TP2 oder RC23 ( )
i (M)
Aufrufen des Dialog Centers
Untermenü: Zurück zum Hauptmenü
3333 4444(
8888 9999)
Menü-Zeile (Menüpunkt) wählen
+ – (////
----)
Aufrufen der Menüs / Wert ändern
TXT
Beenden des Service Mode
Service-Mode aktivieren
–Taste
i (M
) drücken.
– Zahlenfolge 8500 eingeben.
Service-Mode beenden
–Taste
TXT
drücken.
1. Grundeinstellwerte
Service and Special Functions
Functions of the buttons TP2 or RC23 ( )
i (M)
Call up/exit the Dialog Center
Submenu: Back to the main menu
3333 4444 (
8888 9999)
Call up the dialogue line (point of menu)
+ – (////
----)
Call up the Menus / Changing the settings
TXT
Exit the Service Mode
Calling up the Service Mode
– Press button
i (M
).
– Enter the code number 8500.
Exit the Service Mode
– Press button
TXT
.
1. Basic Settings
Menüpunkt
Point of Menu
3333 4444 – +
(
88889999////
----)
Einstellung
Adjustment
– +
(////
----)
26 GLX 4000
32 GLX 2600
32 GLX 4000
32 GLX 6951
32 GLX 6052
37 GLX 6052
37 GLX 6951
42 GLX 6052
Vision 6 32-6950
Vision 6 37-6950
Vision 6 42-6950
OPTIONS 0OPTIONS 1OPTIONS 2
Menü
Menu
3333 4444 – +
(
88889999////
----)
STANDBY
CUSTOMER
FACTORY
XXXXXXXXXXX
TEXT
TOP
FAST
FAST_TOP
NONE
XXXX
XXXX
XXX
TEXT TBL
LANGUAGE
AUTO/WEST/
EAST/CYRL/ARAB/
FARS/HEBR/GREE
A / B
PC AUTO ADJUST
PIP
ON/OFF
ON/OFF
PLUG PLAY
ON
OFF
TUNER
2D/3D DEINTERLACE 2DDi/3DDi
AUTOAAUTO
A
OFF
OFF
OFF
OFF
AUTOAAUTO
A
OFF
OFF
OFF
OFF
ATS RESET: Netz ein –> Automatischer Sendersuchlauf / Power on –> automatic programme search
OFF OFF
eingebauten Tuner einstellen / select used tuner
3DDi 3DDi
OFF OFF
3DDi 3DDi
AUTOAAUTO
A
OFF
OFF
OFF
OFF
AUTOAAUTO
A
OFF
OFF
OFF
OFF
OFF OFF
3DDi 3DDi
OFF OFF
3DDi 3DDi
AUTOAAUTO
A
OFF
OFF
OFF
OFF
AUTO
A
OFF
OFF
OFF OFF
3DDi 3DDi
OFF
3DDi
HDCP VERIFY
BLUE BACK ON/OFF
DLC
DNR
ON/OFF
ON/OFF
PROTECTION
PANORAMA
ON/OFF
AVAIL/NAVAIL
REMOTE CONTROL
KEYPAD
1 STD BUTTON
prüft HDCP im EEPROM / verifies HDCP in EEPROM
ON ON
ON
ON
ON
ON
ON ON
ON
ON
ON
ON
ON
AVAILONAVAIL
Fernbedienung wählen / select used remote control
XX
ON
AVAILONAVAIL
X
5 BUTTON
6 BUTTON
5 BUTTON WSTD
6 BUTTON WSTD
5 BUTTON+1STD
6 BUTTON+1STD
TOUCH BUTTON
JOYSTICK
X
ON ON
ON
ON
ON
ON
ON ON
ON
ON
ON
ON
ON
AVAILONAVAILONAVAILONAVAIL
ON ON
ON
ON
ON
ON
ON
ON
ON
ON
AVAILONAVAILONAVAIL
XXXXXXX
PAT
HOTEL
AVAIL/NAVAIL
AVAIL/NAVAIL
HOTEL VOLUME
TTX PAGE SIZE
0…99
10/250
VGA
HDMI1
AVAIL/NAVAIL
AVAIL/NAVAIL
HDMI2
TV
AVAIL/NAVAIL
AVAIL/NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
32
250
32
250
AVAIL
NAVAIL
AVAIL
NAVAIL
32
25032250
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
AVAIL
AVAIL
AVAIL
AV
SV
AVAIL/NAVAIL
AVAIL/NAVAIL
SCART1
SCART2
AVAIL/NAVAIL
AVAIL/NAVAIL
YPdPr AVAIL/NAVAIL
NAVAIL
NAVAIL
NAVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
NAVAIL
NAVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
NAVAIL
NAVAIL NAVAIL AVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
32
25032250
AVAIL
NAVAIL
AVAIL
NAVAIL
32
250
32
250
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
32
25032250
AVAIL
NAVAIL
32
250
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL AVAIL AVAIL AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
AVAIL AVAIL AVAIL
Page 18
Chassis TD / TEGRUNDIG Service
1 - 18
Menüpunkt
Point of Menu
3333 4444 – +
(
888899
99
//
//
----)
Einstellung
Adjustment
– +
(////
----)
26 GLX 4000
32 GLX 2600
32 GLX 4000
32 GLX 6951
32 GLX 6052
37 GLX 6052
37 GLX 6951
42 GLX 6052
Vision 6 32-6950
Vision 6 37-6950
Vision 6 42-6950
SOUND OPTIONS
IF
SET-
TINGS
DIMMING
ADC
ADJUSTMENTS
Menü
Menu
3333 4444 – +
(
88889999////
----)
BG
EUROPE/NEW/
AUS/NAVAIL
DK
I
AVAIL/NAVAIL
AVAIL/NAVAIL
EUROPE EUROPE
AVAIL
AVAIL
AVAIL
AVAIL
EUROPE EUROPE
AVAIL
AVAIL
AVAIL
AVAIL
EUROPE EUROPE
AVAIL
AVAIL
AVAIL
AVAIL
EUROPE EUROPE
AVAIL
AVAIL
AVAIL
AVAIL
EUROPE EUROPE
AVAIL
AVAIL
AVAIL
AVAIL
EUROPE
AVAIL
AVAIL
LL
SRS
AVAIL/NAVAIL
AVAIL/NAVAIL
HEADPHONE
HI-DEV
AVAIL/NAVAIL
AVAIL/NAVAIL
ATS
ACTIVE ANTENNA
AVAIL/NAVAIL
AVAIL/NAVAIL
AGC VHF
AGV UHF
0…31
0…31
AVAIL
NAVAIL
AVAIL
NAVAIL
NAVAIL
NAVAIL
NAVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
AVAIL
NAVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
9
11
9
11
AVAIL
NAVAIL
AVAIL
NAVAIL
9
11
9
11
AGC LPRIME
DCR
0…31
CHIP SIDE
PANEL SIDE
OFF
ZERO POWER
SCART-1 RGB ADC
YES/NO
AUTO COLOR
TEST PATTERN EN. ON/OFF
12 12
XX
12 12
X
X
NO NO
OFF OFF
NO NO
OFF OFF
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
9
11
9
11
AVAIL
NAVAIL
AVAIL
NAVAIL
9
11
9
11
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
9
11
9
11
AVAIL
NAVAIL
9
11
12
X
12
X
12
X
12
X
NO
NO
OFF OFF
NO NO
OFF OFF
12
X
12
X
12
X
NO NO
OFF OFFNOOFF
TEST PATTERN
Mpeg NR ON/OFF ON ON ON ON ON ON ON ON ON ON ON
2. Software-Versionsnummer
Die Software-Versionsnummer wird unten im Service-Menü angezeigt, z.B.: TDGRAG.-.TV.F.F1M.R16M.V01.008.00
3. Programmsuchlauf
–Taste
i (M)
drücken.
– "Programm-Installation" mit den Tasten
44443333 (
88889999)
anwählen und
mit der Taste (OK) bestätigen.
– "Programmsuchlauf" mit den Tasten
44443333 (
88889999)
anwählen und mit
der Taste (OK) bestätigen.
– Gewünschtes Land mit den Tasten
44443333 – + (
88889999////
----)
auswählen.
– "Programmsuchlauf" mit der Taster (OK) starten.
Das automatische Sendersuchsystem stoppt bei jedem empfangswürdigen Sender (AFC und Koinzidenz) und speichert automatisch die entsprechenden Senderdaten mit dem jeweiligen
Standard. Danach wird der Suchlauf fortgesetzt.
Zum Abbrechen des Suchlaufes die Taste
i (M)
drücken.
2. Software Version Number
The software version number is shown on the lower part of the service menu, e.g.: TDGRAG.-.TV.F.F1M.R16M.V01.008.00
3. Channel Search
– Press button
i (M)
.
– Select "Channel setup" with the buttons
44443333 (
88889999)
and confirm
with button (OK).
– Select "Autoprogram" with the buttons
44443333 (
88889999)
and confirm with
button (OK).
– Select the required Country with the buttons
44443333 – + (
88889999////
----)
.
– Start "Autoprogramming" with the button (
OK
).
The auto programme system stops at every station of acceptable
reception quality (AFC and coincidence) and stores the station
data and the respective standard automatically. The system then
continues searching.
Pressing the
i (M)
button stops the programme search.
Alle weiteren Menüs werden über die Gerätesoftware programmiert und dürfen nicht verstellt werden.
All other menus are programmed by the software of the set and must not be adjusted.
Page 19
GRUNDIG Service Chassis TD / TE
Platinenabbildungen und Schaltpläne / Layout of PCBs and Circuit Diagrams

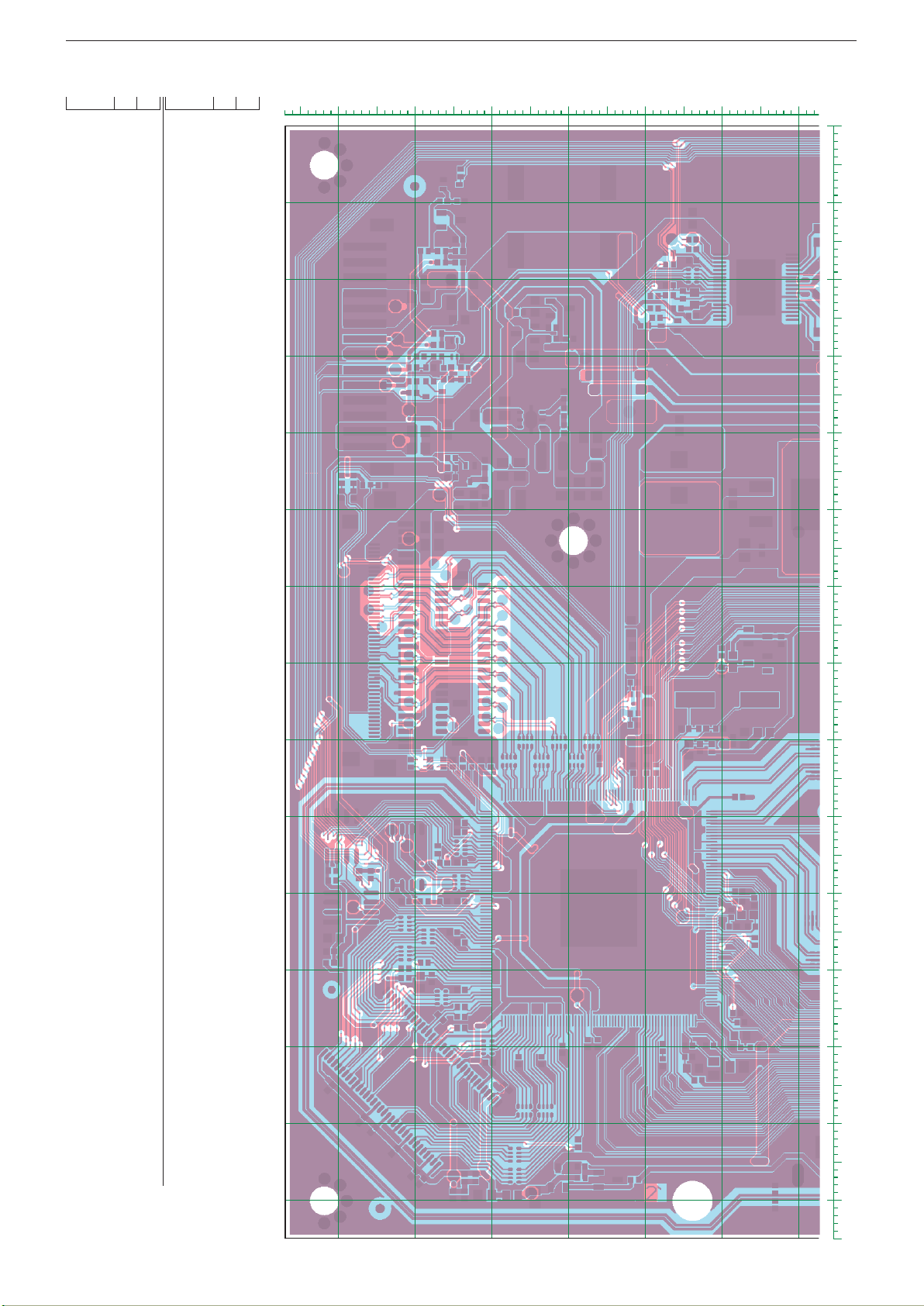

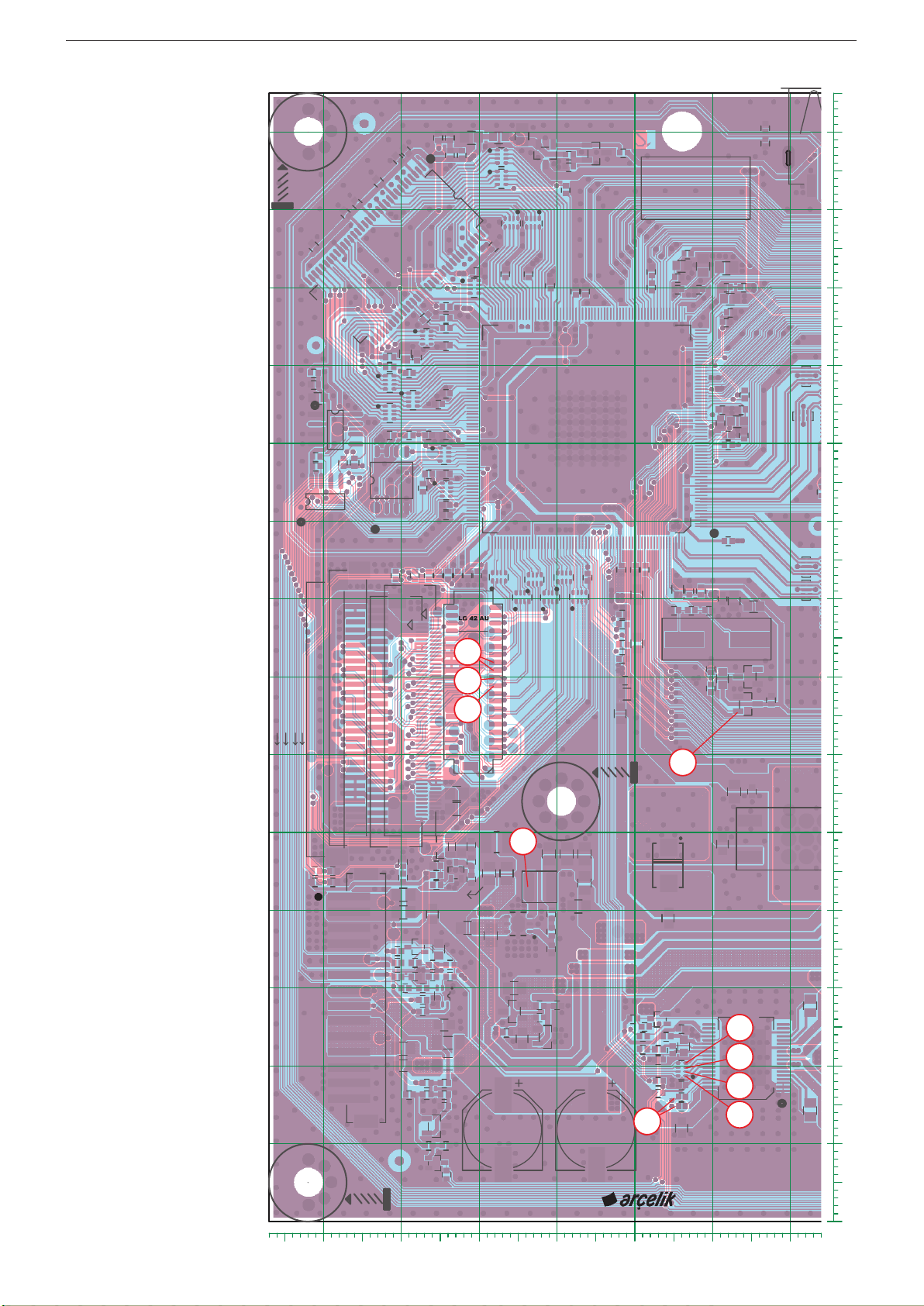

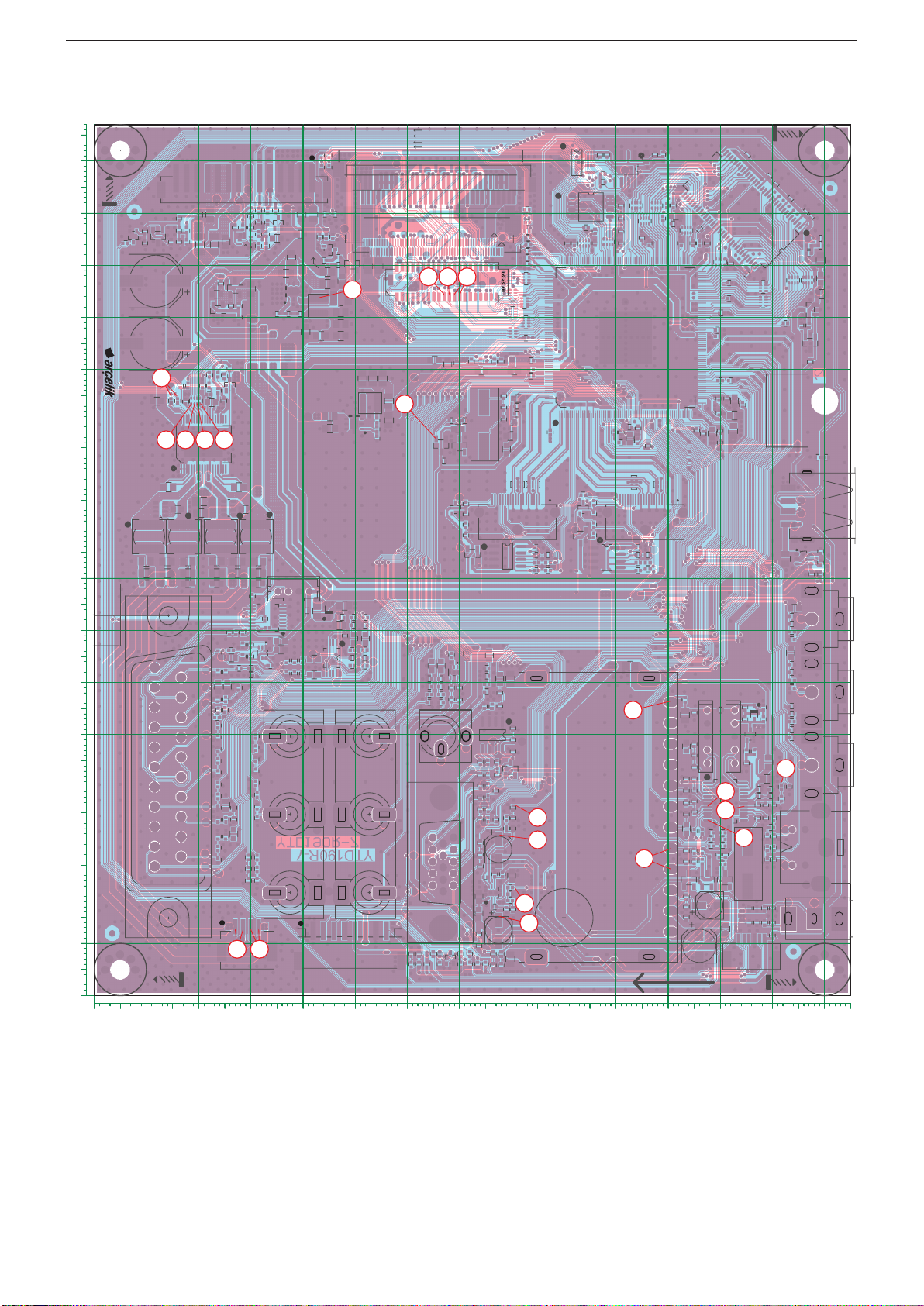

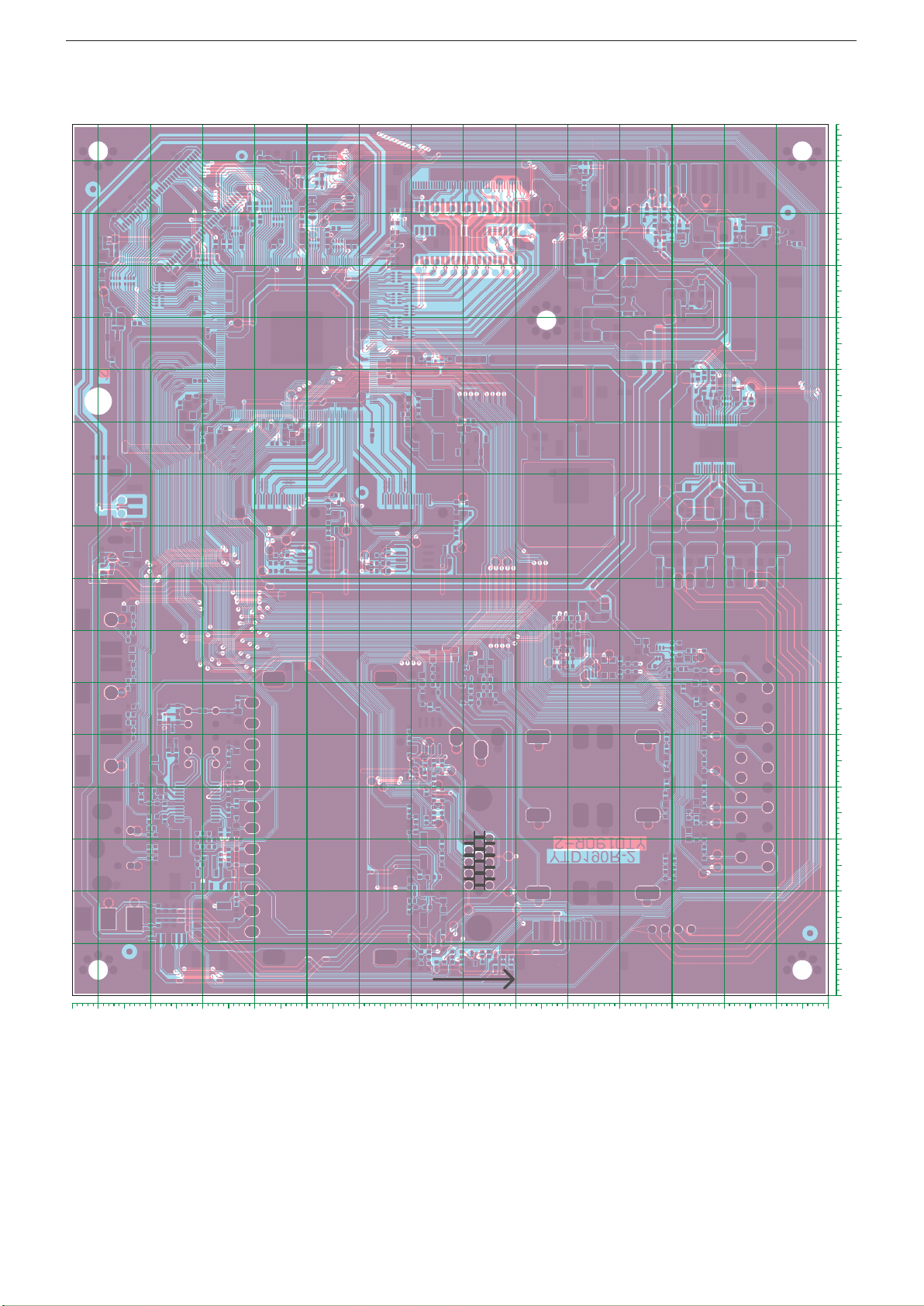

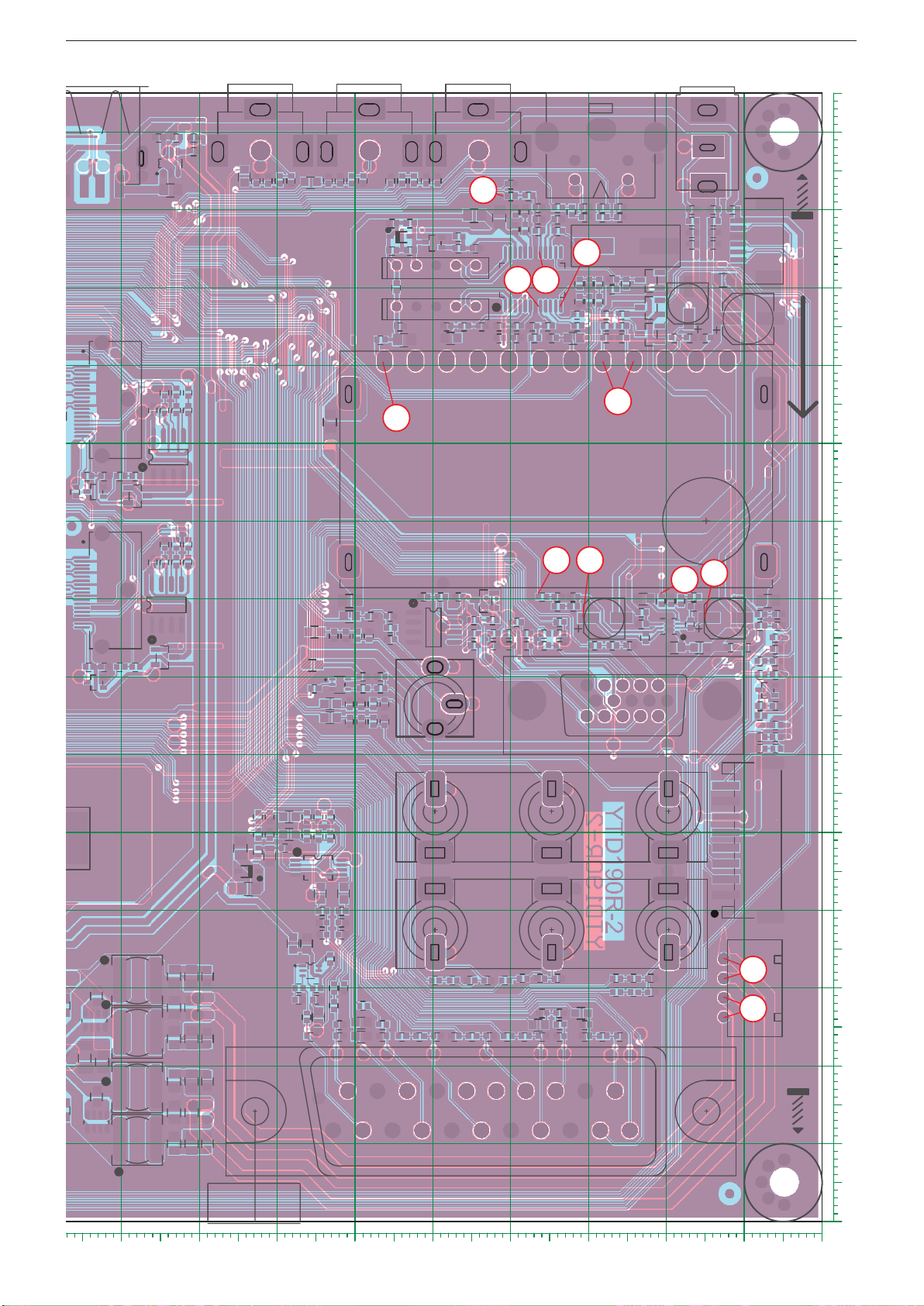

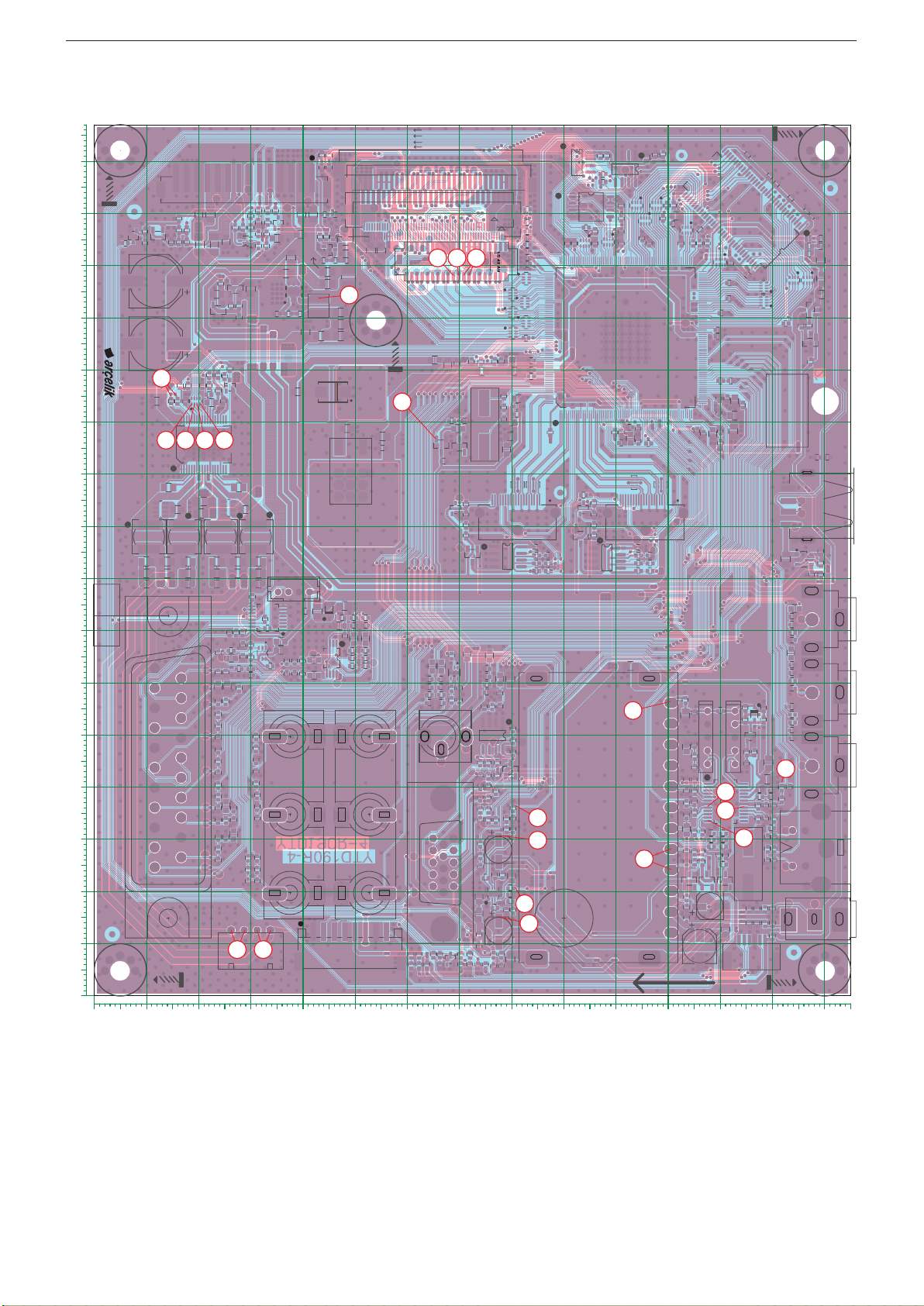

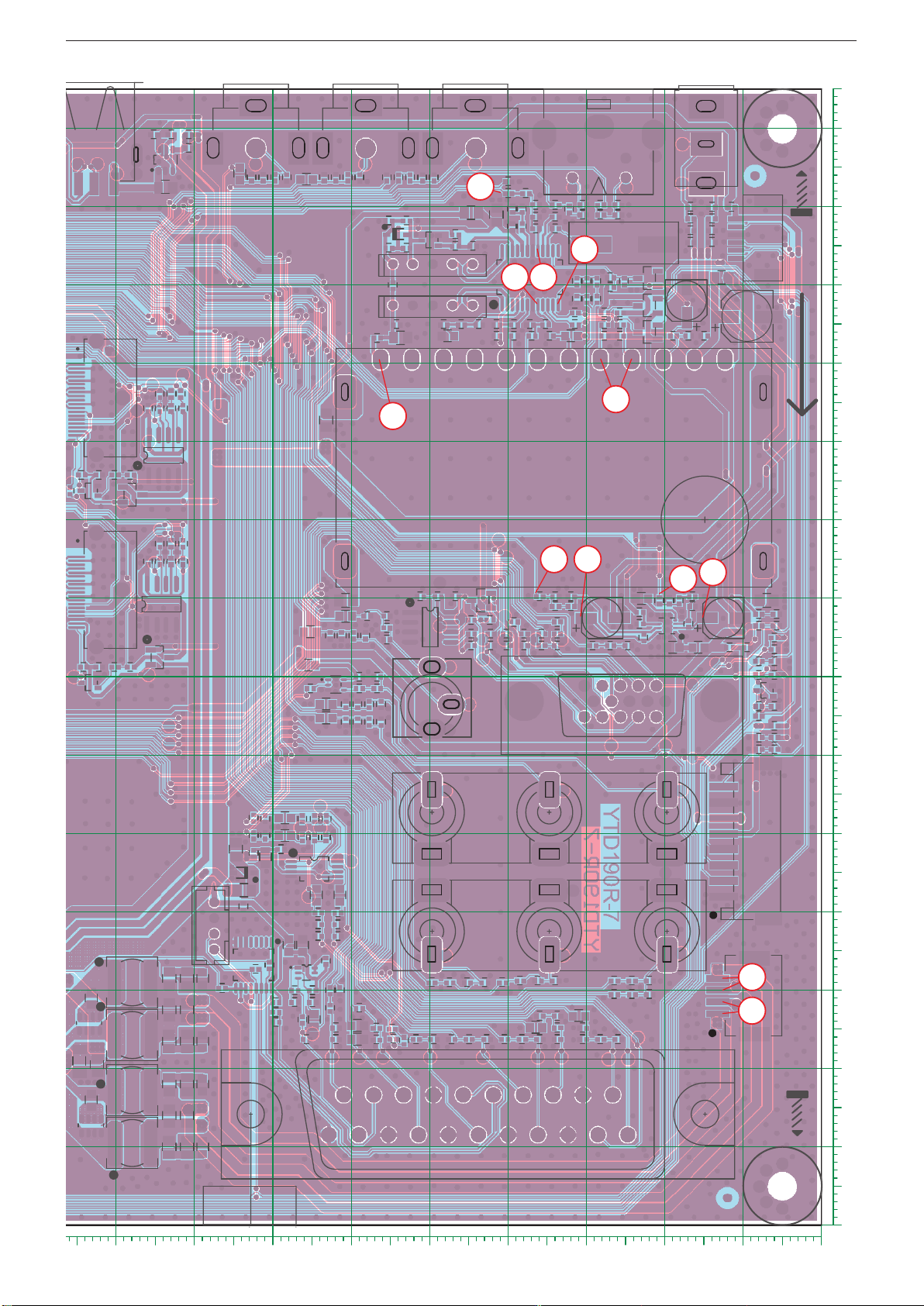

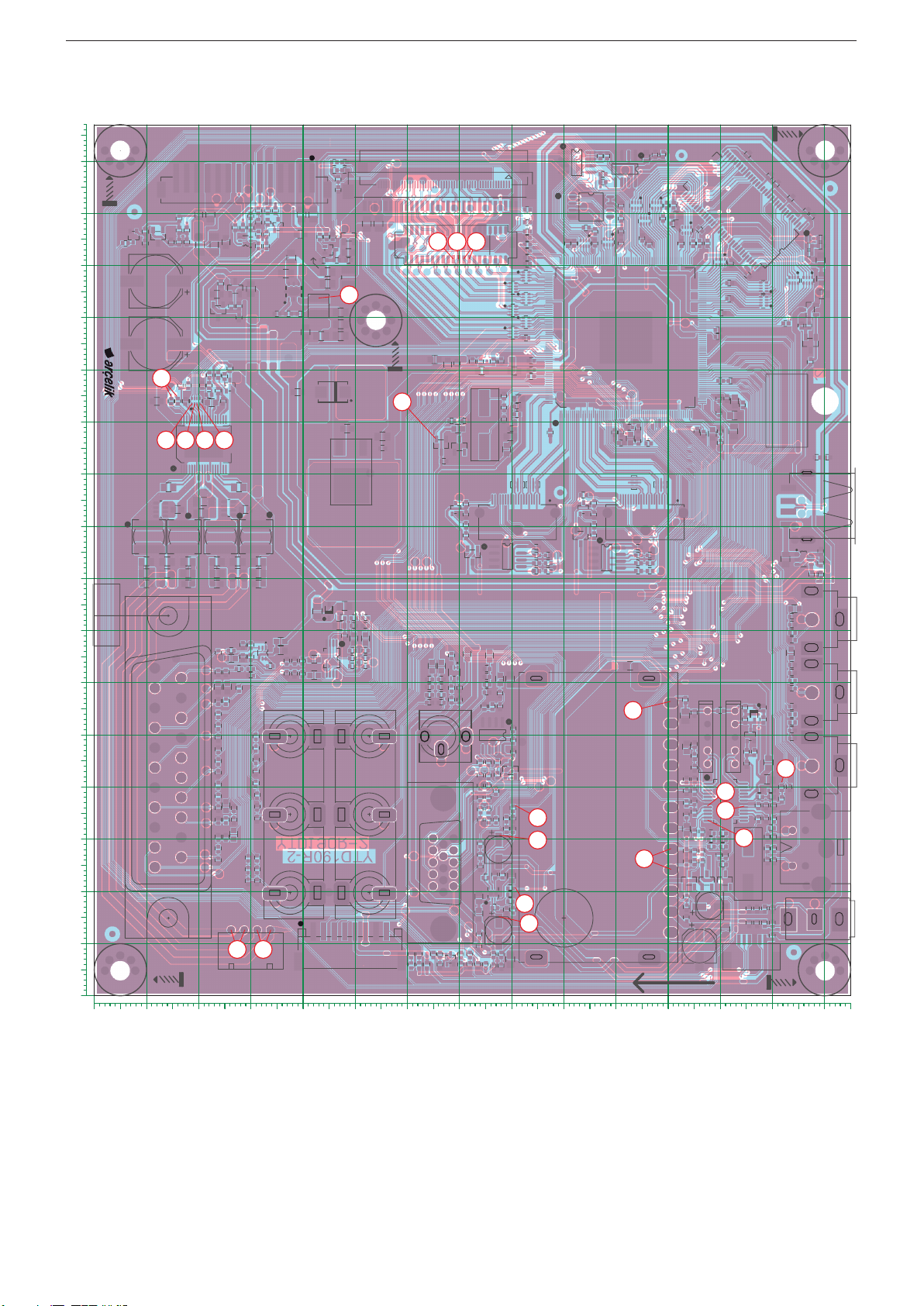

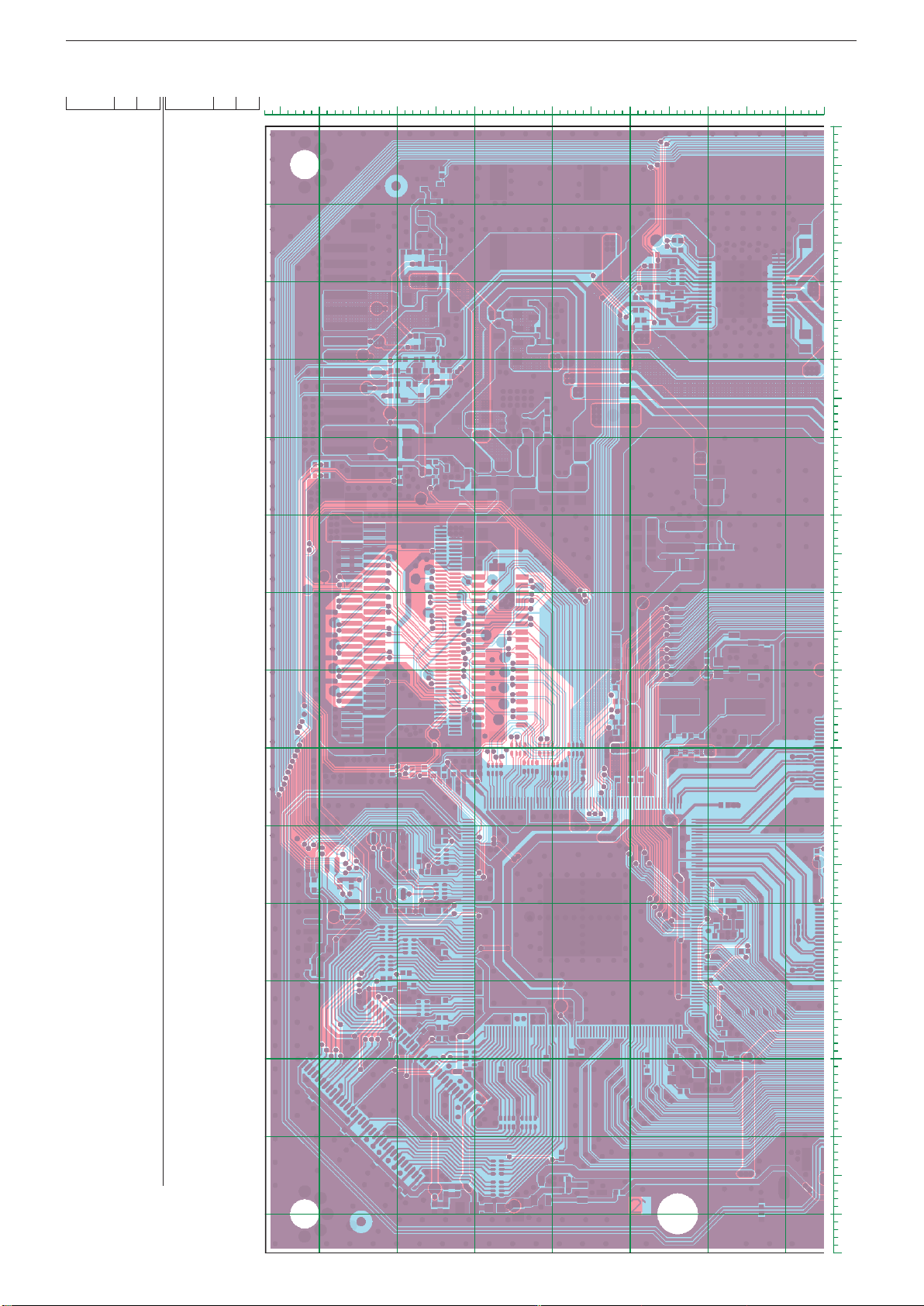

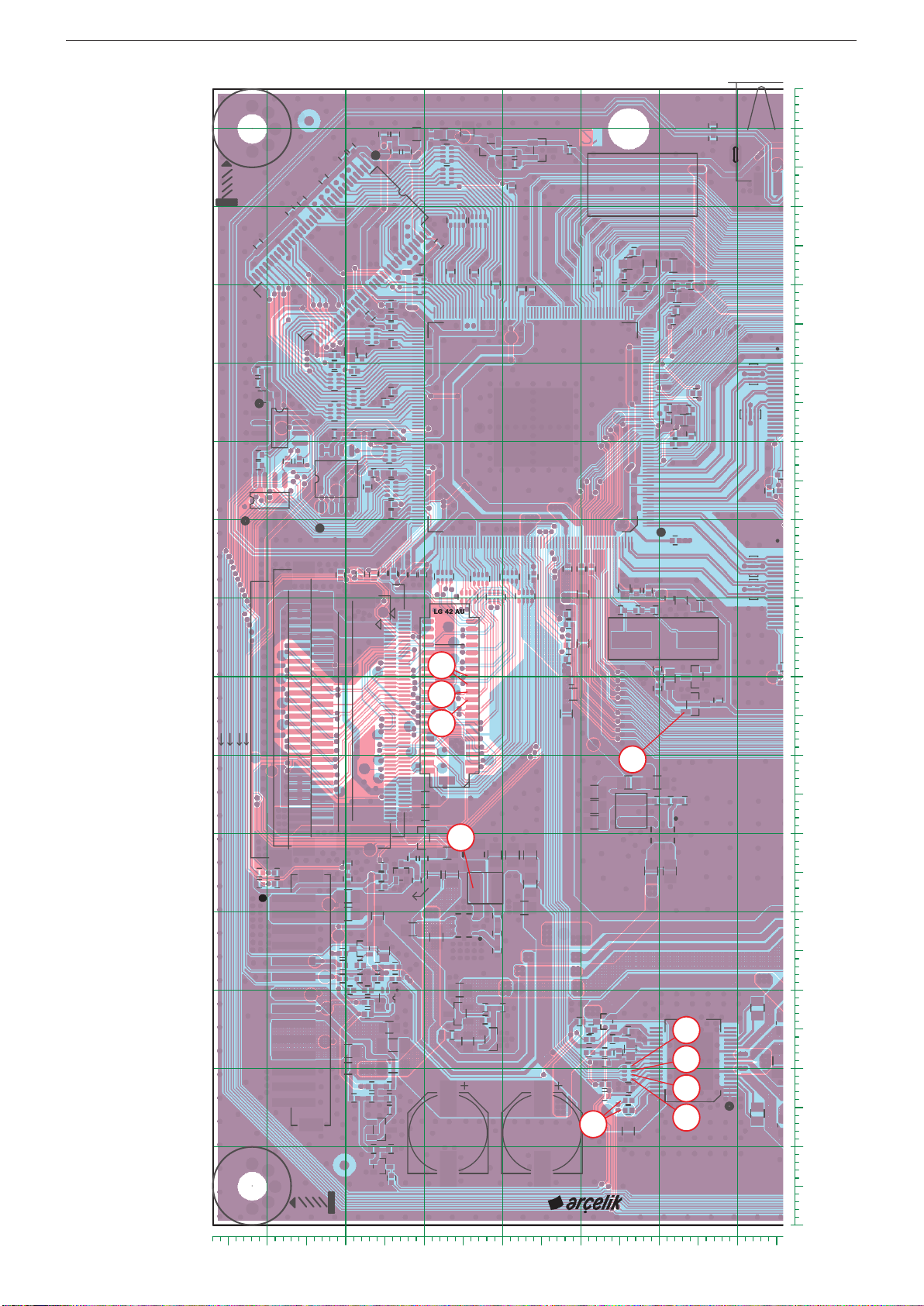

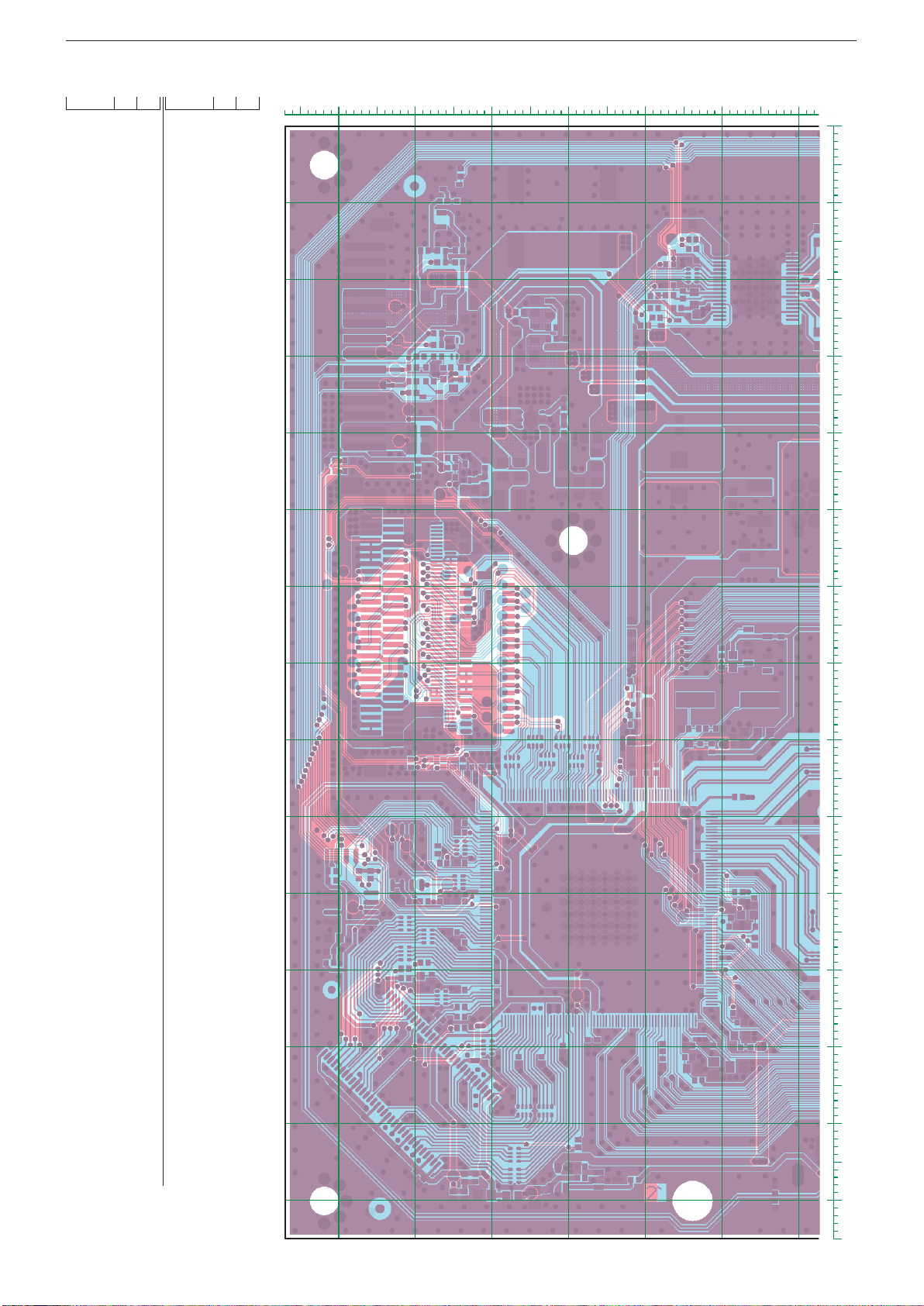

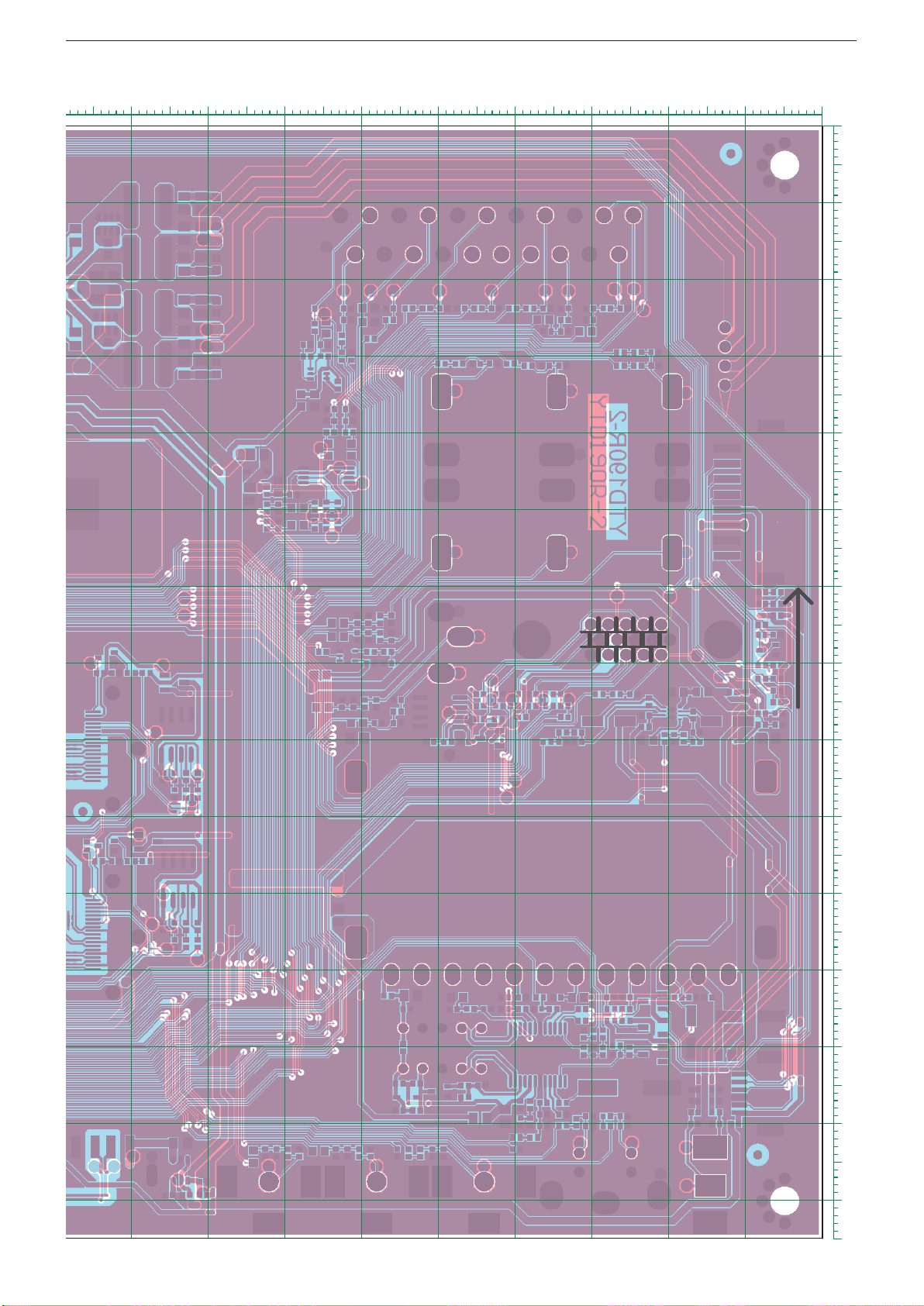

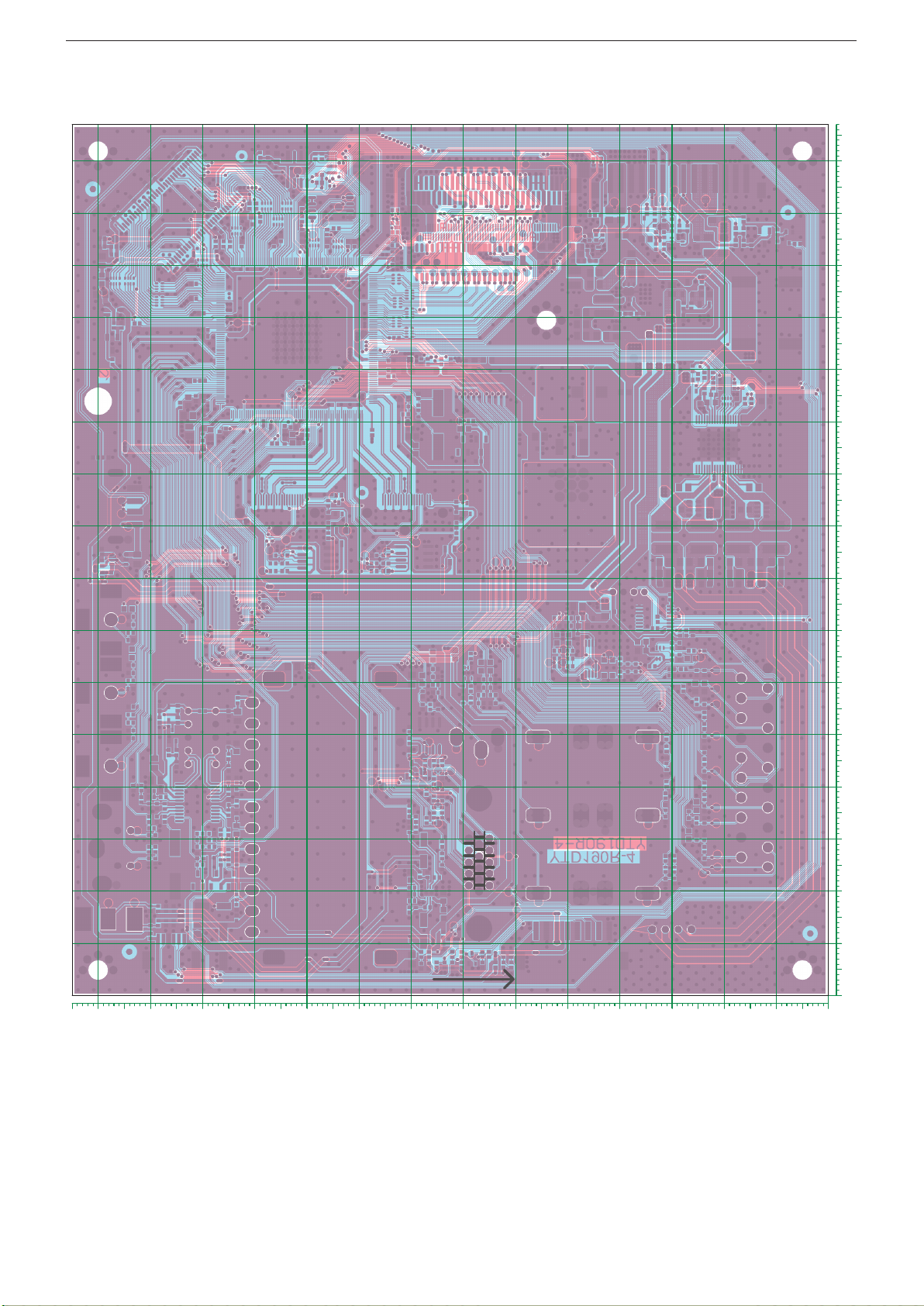

Chassisplatte / Chassis Board YTD190R-2
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
C2 T 79 111
C4 T 79 115
C100 T 106 161
C101 T 123 111
C102 T 120 115
C103 T 123 108
C104 T 137 142
C105 T 120 112
C106 T 103 109
C107 T 120 55
C108 T 139 144
C109 T 108 161
C110 T 120 118
C111 T 68 121
C112 T 81 120
C113 T 80 107
C114 T 106 106
C115 T 100 108
C116 T 101 106
C117 T 101 108
C118 T 104 106
C119 T 117 108
C120 T 87 108
C121 T 80 109
C122 T 120 128
C123 T 105 145
C124 T 84 120
C125 T 91 144
C126 T 83 142
C127 T 81 115
C128 T 81 113
C129 T 119 108
C130 T 120 108
C131 T 70 121
C132 T 84 122
C133 T 120 126
C134 T 83 126
C135 T 101 144
C136 T 83 140
C137 T 92 144
C138 T 123 114
C139 T 121 115
C140 T 120 131
C141 T 122 134
C142 T 122 137
C143 T 113 144
C144 T 106 144
C145 T 112 150
C146 T 111 148
C147 T 70 109
C148 T 67 103
C149 T 116 108
C200 T 85 86
C201 T 104 86
C300 T 101 152
C301 T 139 141
C302 T 137 150
C303 T 131 156
C304 T 130 157
C305 T 134 153
C306 T 125 161
C307 T 125 138
C308 T 138 149
C309 T 122 140
C310 T 74 10
C311 T 61 8
C312 T 72 6
C313 T 77 6
C314 T 62 8
C315 T 78 6
C316 T 74 6
C317 T 55 148
C318 T 52 148
C322 T 118 31
C400 T 130 14
C401 T 126 14
C402 T 74 19
C403 T 78 13
C404 T 79 34
C405 T 80 32
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
C406 T 130 17
C407 T 127 17
C408 T 80 34
C409 T 80 23
C410 T 80 18
C411 T 79 17
C412 T 80 20
C500 T 129 42
C501 T 128 40
C502 T 125 45
C503 T 130 38
C504 T 129 34
C505 T 118 17
C506 T 128 38
C507 T 127 34
C508 T 132 38
C509 T 114 35
C510 T 130 37
C511 T 114 15
C512 T 133 40
C513 T 116 10
C514 T 114 17
C515 T 114 28
C516 T 114 26
C517 T 121 31
C518 T 121 29
C519 T 115 46
C520 T 114 42
C521 T 114 37
C522 T 115 44
C523 T 115 42
C600 T 70 59
C601 T 69 59
C602 T 77 39
C603 T 76 36
C604 T 74 29
C605 T 77 34
C606 T 80 47
C607 T 31 27
C608 T 30 27
C609 T 31 22
C610 T 31 41
C611 T 31 36
C612 T 31 50
C613 T 31 43
C614 T 78 61
C615 T 75 56
C616 T 78 58
C617 T 65 63
C618 T 76 65
C619 T 64 56
C620 T 64 59
C621 T 75 58
C622 T 75 61
C623 T 67 63
C624 T 67 56
C625 T 67 61
C626 T 130 34
C627 T 129 31
C628 T 130 28
C629 T 130 26
C630 T 134 74
C631 T 134 68
C632 T 134 71
C633 T 134 66
C634 T 134 59
C635 T 134 62
C636 T 134 54
C637 T 134 50
C638 T 134 56
C639 T 104 109
C700 T 30 63
C701 T 25 62
C702 T 36 66
C703 T 30 62
C704 T 133 84
C705 T 24 43
C706 T 27 31
C707 T 25 37
C708 T 25 31
C709 T 27 36
C710 T 24 34
C711 T 24 26
C712 T 26 65
C713 T 139 85
C714 T 24 66
C715 T 138 81
C716 T 50 65
C717 T 25 57
C718 T 48 75
C719 T 50 69
C720 T 42 65
C721 T 50 71
C722 T 37 64
C723 T 52 65
C724 T 47 71
C725 T 52 69
C726 T 42 62
C727 T 52 71
C728 T 38 62
C760 T 24 52
C761 T 24 38
C800 T 21 93
C801 T 12 125
C802 T 12 137
C803 T 14 81
C804 T 18 114
C805 T 28 98
C806 T 12 114
C807 T 23 114
C809 T 14 98
C810 T 22 119
C811 T 28 81
C812 T 21 95
C813 T 22 115
C814 T 16 93
C815 T 25 114
C821 T 32 81
C825 T 24 81
C827 T 78 28
C833 T 32 83
C834 T 24 83
C835 T 29 93
C836 T 10 83
C837 T 18 83
C838 T 10 81
C839 T 18 81
C840 T 28 83
C841 T 14 83
C900 T 49 138
C901 T 37 139
C902 T 47 129
C903 T 47 127
C904 T 47 131
C905 T 41 127
C906 T 32 148
C907 T 55 107
C908 T 30 136
C909 T 24 135
C910 T 40 146
C911 T 20 150
C912 T 25 145
C913 T 26 132
C915 T 49 109
C917 T 140 135
C918 T 55 105
C920 T 49 143
D100 T 121 22
D101 T 127 54
D102 T 70 106
D200 T 73 85
D201 T 93 88
D202 T 81 98
D203 T 84 98
D204 T 104 98
D205 T 109 98
D500 T 46 116
D600 T 80 44
D700 T 45 74
D732 T 139 103
D733 T 141 103
IC100 T 67 106
IC101 T 93 160
IC102 T 102 159
IC200 T 79 84
IC201 T 98 84
IC300 T 95 151
IC301 T 124 151
IC400 T 77 20
IC500 T 121 37
IC600 T 69 62
IC700 T 136 84
IC701 T 46 65
IC800 T 21 106
IC801 T 12 146
IC900 T 38 135
IC901 T 49 102
IC902 T 137 125
IC903 T 24 131
L100 T 129 45
L101 T 65 122
L102 T 74 120
L103 T 114 32
L104 T 113 54
L105 T 79 105
L106 T 81 112
L107 T 120 106
L108 T 124 113
L109 T 111 152
L300 T 139 138
L301 T 74 12
L302 T 65 8
L303 T 72 8
L304 T 77 8
L400 T 129 14
L401 T 129 17
L500 T 121 13
L600 T 72 66
L700 T 36 68
L800 T 23 144
L801 T 31 88
L802 T 24 88
L805 T 11 88
L806 T 20 144
L807 T 17 88
L900 T 42 150
L901 T 40 150
L902 T 33 151
L903 T 32 151
L904 T 38 142
L905 T 29 147
L906 T 44 127
L907 T 43 132
L908 T 22 150
L909 T 39 116
L910 T 45 139
L911 T 45 137
R1 T 79 113
R61 T 109 149
R62 T 110 152
R63 T 115 144
R64 T 116 144
R68 T 133 129
R72 T 118 144
R100 T 109 161
R101 T 137 144
R102 T 97 161
R103 T 98 161
R104 T 139 145
R105 T 84 119
R106 T 71 110
R107 T 122 118
R108 T 96 147
R109 T 83 144
R110 T 69 110
R111 T 94 147
R112 T 83 145
R113 T 96 144
R114 T 83 147
R115 T 83 148
R116 T 103 107
R117 T 74 122
R118 T 83 143
R119 T 46 146
R120 T 77 122
R121 T 83 151
R122 T 73 122
R123 T 78 122
R200 T 85 85
R201 T 85 83
R202 T 85 82
R203 T 104 85
R204 T 104 83
R205 T 104 82
R206 T 87 83
R207 T 107 83
R208 T 87 82
R209 T 107 82
R210 T 87 85
R211 T 107 85
R212 T 71 88
R213 T 71 90
R214 T 71 94
R215 T 71 92
R216 T 94 96
R222 T 96 88
R223 T 96 90
R224 T 96 95
R225 T 96 92
R300 T 101 149
R301 T 101 147
R302 T 116 147
R303 T 64 6
R304 T 130 12
R305 T 62 6
R306 T 78 8
R307 T 75 6
R308 T 61 6
R309 T 70 6
R310 T 66 8
R311 T 66 6
R312 T 70 8
R313 T 46 160
R314 T 48 160
R315 T 46 158
R316 T 48 158
R317 T 47 157
R318 T 47 155
R400 T 74 16
R401 T 127 14
R402 T 78 23
R403 T 75 23
R404 T 80 36
R405 T 79 32
R406 T 77 17
R407 T 77 23
R408 T 126 17
R409 T 80 21
R410 T 80 17
R500 T 125 53
R501 T 120 27
R502 T 127 47
R503 T 121 25
R504 T 125 47
R505 T 125 55
R506 T 130 40
R507 T 121 27
R508 T 128 53
R509 T 127 37
R510 T 132 40
R511 T 129 37
R512 T 114 39
R513 T 128 55
R515 T 114 19
R516 T 115 28
R517 T 115 26
R518 T 118 29
R519 T 115 54
R520 T 115 39
2 - 1
R521 T 117 32
R522 T 121 30
R523 T 115 32
R524 T 118 30
R525 T 115 48
R526 T 115 35
R527 T 115 37
R528 T 103 63
R529 T 80 7
R530 T 80 61
R531 T 113 57
R532 T 114 48
R600 T 98 156
R601 T 98 158
R602 T 76 42
R603 T 74 42
R604 T 76 40
R605 T 74 40
R606 T 69 65
R607 T 69 57
R608 T 76 38
R609 T 74 38
R610 T 70 57
R611 T 74 36
R612 T 74 34
R613 T 74 27
R614 T 74 25
R615 T 76 34
R616 T 77 42
R617 T 74 45
R618 T 80 49
R619 T 31 24
R620 T 77 45
R621 T 30 24
R622 T 76 45
R623 T 30 22
R624 T 80 51
R625 T 31 39
R626 T 31 34
R627 T 31 48
R628 T 31 45
R629 T 76 56
R630 T 78 56
R631 T 64 58
R632 T 75 60
R633 T 64 61
R634 T 75 63
R635 T 67 58
R636 T 67 59
R637 T 130 32
R638 T 130 31
R639 T 129 28
R640 T 129 26
R641 T 134 70
R642 T 134 73
R643 T 134 61
R644 T 134 64
R645 T 134 53
R646 T 134 51
R648 T 117 28
R649 T 117 26
R700 T 28 63
R701 T 24 62
R703 T 139 83
R704 T 24 45
R705 T 24 47
R706 T 24 36
R707 T 24 50
R708 T 24 57
R709 T 34 63
R710 T 30 65
R711 T 29 65
R712 T 30 67
R713 T 24 28
R714 T 26 66
R715 T 25 34
R716 T 29 67
R717 T 139 81
R718 T 27 34
R719 T 24 31
R720 T 43 74
R721 T 50 63
R722 T 50 73
R723 T 50 66
R724 T 40 64
R725 T 38 64
R726 T 28 59
R727 T 48 73
R728 T 24 54
R729 T 48 69
R730 T 24 41
R731 T 52 63
R732 T 26 59
R733 T 24 59
R734 T 52 73
R735 T 52 66
R736 T 40 62
R737 T 37 62
R800 T 13 93
R801 T 24 116
R802 T 16 114
R803 T 26 120
R804 T 22 117
R805 T 24 119
R806 T 21 117
R807 T 17 117
R808 T 18 117
R809 T 18 147
R810 T 18 79
R811 T 16 147
R812 T 18 145
R813 T 10 79
R814 T 16 145
R815 T 10 147
R816 T 24 79
R817 T 32 79
R818 T 16 149
R819 T 15 145
R820 T 10 144
R832 T 15 114
R834 T 26 94
R835 T 25 119
R836 T 6 144
R900 T 37 131
R901 T 35 131
R902 T 27 147
R903 T 32 146
R904 T 30 147
R905 T 137 122
R906 T 30 150
R907 T 35 151
R908 T 33 146
R909 T 33 148
R910 T 33 144
R911 T 32 144
R912 T 24 137
R913 T 40 131
R914 T 49 141
R915 T 28 132
R916 T 47 141
R917 T 44 141
R918 T 45 146
R919 T 43 146
R920 T 28 130
R928 T 137 129
R930 T 136 129
RN1 T 104 152
RN2 T 106 149
RN3 T 108 152
RN4 T 137 137
RN5 T 134 137
RN6 T 128 133
RN7 T 128 136
RN8 T 80 127
RN9 T 80 131
RN10 T 83 134
RN11 T 83 129
RN12 T 80 136
RN13 T 83 138
RN15 T 114 147
RN16 T 120 141
RN300 T 99 145
RN600 T 94 144
RN800 T 20 114
S100 T 29 155
S200 T 106 91
S300 T 67 26
S301 T 66 156
S302 T 69 144
S303 T 67 157
S304 T 67 144
S400 T 49 8
S402 T 126 8
S500 T 143 15
S600 T 81 91
S601 T 71 50
S602 T 145 28
S603 T 138 72
S604 T 138 58
S605 T 138 44
S700 T 14 44
S701 T 140 94
S710 T 52 35
S711 T 39 35
S800 T 30 13
S901 T 140 5
S902 T 140 162
S903 T 5 162
S904 T 5 5
S905 T 54 130
SAW100 T 118 55
SAW101 T 123 55
T103 T 126 50
T200 T 69 94
T202 T 94 94
T300 T 68 7
T600 T 114 22
T601 T 117 22
T700 T 32 66
T800 T 26 117
T801 T 8 146
T900 T 35 148
T901 T 137 132
T902 T 29 145
T903 T 49 146
T904 T 27 136
T905 T 45 143
TU301 T 111 12
U1 T 102 126
U600 T 76 50
X101 T 125 25
Y1 T 75 110
Page 20
GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
X
IC902
S905
L908
12V
GND
C911
GND
R809 R812
R818 R811
GND
14
POWER
R819
R814
L806
S903
FID904
R815
IC801
R820
T801
C802
R836
YTD190R-2
S303
R314
R316
51
R317R318
2
C317
C318
30
T903
R313
R315
5V
1
R918
R119
L900
R919
5V
1
1
C920
R914
C900
C904
C902
C903
T905
R916
L910
R917
L911
L906
L907
12V
C905
5V
GND
GND
L901
R907
L902
L903
T900
PANEL
C910
R909
R908 R910
R911C906
24V
12V
S100
12V
R906 R904
R903
L905
R902
C912
L800
L904
C901
1
C908
1
R913 R90 0
IC900
R901
T902
T904
R912
C909
R915 R920
C913
IC903
C109
RN3
C100
1
R103
IC102
RN1
C300
R601
R102
R600
IC101
IC300
RN2
R300
C123
C144
R301 C135
R111
RN300
R108 R113
RN600
C137
1
1
C125
1
1
R121
R115
LVDS
S301
40
S302
R114
R112
S304
192
R109
R118
C126
C136
C134
RN13 RN10 RN11
39
RN12 RN9 RN8
S902
FID907
C308
R104
C302
1
C303
C305
C108
C301 L300
C917
T901 R928
RN4
R101
C104
IC301
RN5
R930
R68
C304
C306
R64
R72
R302
RN15
R63
L109
R62
R100
C143
C145
R61
C146
C307
C309
RN7 RN6
RN16
128
C141
C142
C140
C133
C122
C512
R510
R520
R512
C602
R604
R605
C501R506
L101
C617
C620
R631
C619
R633
L302
R625
R730
COMPONENT
1
R703
R207
R211
R209
R905
D733D732
L108
BARCODE
USB
C713
S701
1
C704
R107
C139
C101
C138
C103
U1
C110
C102 C105
64
L107C130
C129
C119
C149
HDMI1
1
D205
S200
C106
C639
C115
C117
C114
C118
1
D204
R116
C116
C132
1
C124
R105
R216
C120
1
D203
19
R224 R225 R223 R222
C201
R203
R204
T202
D201
1
S600
R210
R206
C200
R200
R201
C112
C127
R123
C4
C128
L106
C121
R1
C2
R120
R117
L102
R122
C131
C111
R106 R110
C147
C113
1
D202
L105
Y1
1
1
19
HDMI2
D200
D102
IC100
C148
R214R215 R212
T200
R213
R205
IC201
R208 R 202
R528
TU301
IC200
C618
R634
C622
R530
C614
R632
C621
C616
R624
1
C606R618
D600
R630
R629
R620 R616
L600
1
IC600
C600
R606
C623
C601
C625
R636
C615
U600
R602R622
R617 R60 3
R635
C624
R610
PC AUDIO
R607
S601
S603
R717
C715
S604
IC700
C630
R641
R642
C632
SIDE-L
C631
R644
C635
C633
SIDE-R
R643
C634
S605
SIDE-V
C636
C638
C637
R645
R646
L100
C500
R513
D101
1
R508
T103
R505 R500
C107
1
R531
SAW101
R519
L104
R502
R504 C5 02
SAW100
C519
R525
R532
C522
1
C520
C523
C807
C810
R804
C813
L909
C907
C915
C918
IC901
D500
C833
R803 T800
R835
R805
C815
R801
IC800
C835
L801
C805
R834
L802
C840 C834
R806
RN800
R808
C804
R807
C812
C800
1
C814
C837
L807
C801
R802
R832
C806
LABEL2
V-0
C809
C841
R800
C836
L805
C839
R810
C838C803
R813
R734
C727
R722
C721
C725
R735
C719
R723
C718
D700
R727
R720
C724
R729
IC701
1
C723
C716
R731 R721
PC-IN
S300
S710
C720
C726
R724
R725
R736
C728
L700
1
C702
C821
R817
R712
C722
R709
R710
T700
C811 C825
R816
R716
R714
R711
C700
C712
R700
C714 R701
R737
S711
C703
R726
C612 R627 R628 C613 C610
R732
C701 C717
R733 R708 R728 R707C760 R705 R704 C705
S700
R305
R303
C314
C311R308
8
1
KEYBOARD
S400
C611
C709
R626
R718 C 706
C707
C761 R706
R715 C708
C710 R719
C607 R619
C608 R621
SPEAKER
R623
C609
R713
S800
1
C711
AV-1
FID906
S904
S602
C508
C510 C626 R638 C628 C629
C503 C506
R511
IC500
R509
R637
C627 R6 39 R640
C507
C504
HEADPHONE
S500
S-VIDEO
C406 C400
S901
R304
FID905
X101
L401
C407
L400
R401
KEYBOARD
C517
R522
C322
R524
C518
R507
R518
R501
R649
R526R527
C509C521
R521 R648
R523 R516
L103 C515
R517
D100
R503
T601
R408 C401
C505
S402
L500
T600
C516 R515
C513
C514 C511
R404C408 C405
C827
R409
C409
C404R405
C605
R402
R407
IC400
C412
C410
R410
C4
11
C403
R529
R406
R306 C315
TRANSPORT LINE
L304 C313
R608 C6 03R615
1
R609 R611R612 C604 R613 R614
R403
C402 R400 L301 C310
R307
C316
L303 C312
R312
R310
R309
T300
R311
19 19
20
21
20
21
4
5
7
6
9
8
17 16 15 14
3
1
2
13 12 11
Chassisplatte / Chassis Board YTD190R-2
Ansicht von der Bestückungsseite
View of Component Side
2 - 2
Page 21
50
60
70
80
90
IC902
S905
L908
12V
GND
C911
GND
R809 R812
R818 R811
GND
14
POWER
R819
R814
L806
S903
FID904
R815
IC801
R820
T801
C802
R836
YTD190R-2
S303
R314
R316
51
R317 R318
2
C317
C318
30
T903
R313
R315
5V
1
R918
R119
L900
R919
5V
1
1
C920
R914
C900
C904
C902
C903
T905
R916
L910
R917
L911
L906
L907
12V
C905
5V
GND
GND
L901
R907
L902
L903
T900
PANEL
C910
R909
R908 R910
R911C906
24V
12V
S100
12V
R906 R904
R903
L905
R902
C912
L800
L904
C901
1
C908
1
R913 R 900
IC900
R901
T902
T904
R912
C909
R915 R920
C913
IC903
C109
RN3
C100
1
R103
IC102
RN1
C300
R601
R102
R600
IC101
IC300
RN2
R300
C123
C144
R301 C135
R111
RN300
R108 R113
RN600
C137
1
1
C125
1
1
R121
R115
LVDS
S301
40
S302
R114
R112
S304
192
R109
R118
C126
C136
C134
RN13 RN10 RN11
39
RN12 RN9 RN8
S902
FID907
C308
R104
C302
1
C303
C305
C108
C301 L300
C917
T901 R928
RN4
R101
C104
IC301
RN5
R930
R68
C304
C306
R64
R72
R302
RN15
R63
L109
R62
R100
C143
C145
R61
C146
C307
C309
RN7 RN6
RN16
128
C141
C142
C140
C133
C122
L101
C617
C620
R631
C619
R633
1
R703
R207
R211
R209
R905
D733 D732
L108
BARCODE
USB
C713
S701
1
C704
R107
C139
C101
C138
C103
U1
C110
C102 C105
64
L107C130
C129
C119
C149
HDMI1
1
D205
S200
C106
C639
C115
C117
C114
C118
1
D204
R116
C116
C132
1
C124
R105
R216
C120
1
D203
19
R224 R225 R223 R222
C201
R203
R204
T202
D201
1
S600
R210
R206
C200
R200
R201
C112
C127
R123
C4
C128
L106
C121
R1
C2
R120
R117
L102
R122
C131
C111
R106 R110
C147
C113
1
D202
L105
Y1
1
1
19
HDMI2
D200
D102
IC100
C148
R214 R215 R212
T200
R213
R205
IC201
R208 R202
R528
TU301
IC200
C618
R634
C622
R530
C614
R632
C621
C616
R624
1
R630
R629
L600
1
IC600
C600
R606
C623
C601
C625
R636
C615
U600
R635
C624
R610
R607
S603
R717
C715
S604
IC700
C630
R641
R642
C632
SIDE-L
C631
R644
C635
C633
SIDE-R
R643
C634
S605
C636
C638
C637
R645
R646
R513
D101
1
R508
T103
R505 R500
C107
1
R531
SAW101
R519
L104
R525
R532
C807
C810
R804
C813
L909
C907
C915
C918
IC901
D500
C833
R803 T800
R835
R805
C815
R801
IC800
C835
L801
C805
R834
L802
C840 C834
R806
RN800
R808
C804
R807
C812
C800
1
C814
C837
L807
C801
R802
R832
C806
LABEL2
V-0
C809
C841
R800
C836
L805
C839
R810
C838C803
R813
R734
C727
R722
C721
C725
R735
C719
R723
C718
D700
R727
R720
C724
R729
IC701
1
C723
C716
R731 R721
S710
C720
C726
R724
R725
R736
C728
L700
1
C702
C821
R817
R712
C722
R709
R710
T700
C811 C82 5
R816
R716
R714
R711
C700
C712
R700
C714 R701
R737
S711
C703
R726
C612 R627 R628 C613 C610
R732
C701 C717
R733 R708 R72 8 R707C760 R705 R704 C705
5
17 16 15 14
3
1
2
13 12 11
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
X
GRUNDIG Service Chassis TD / TE

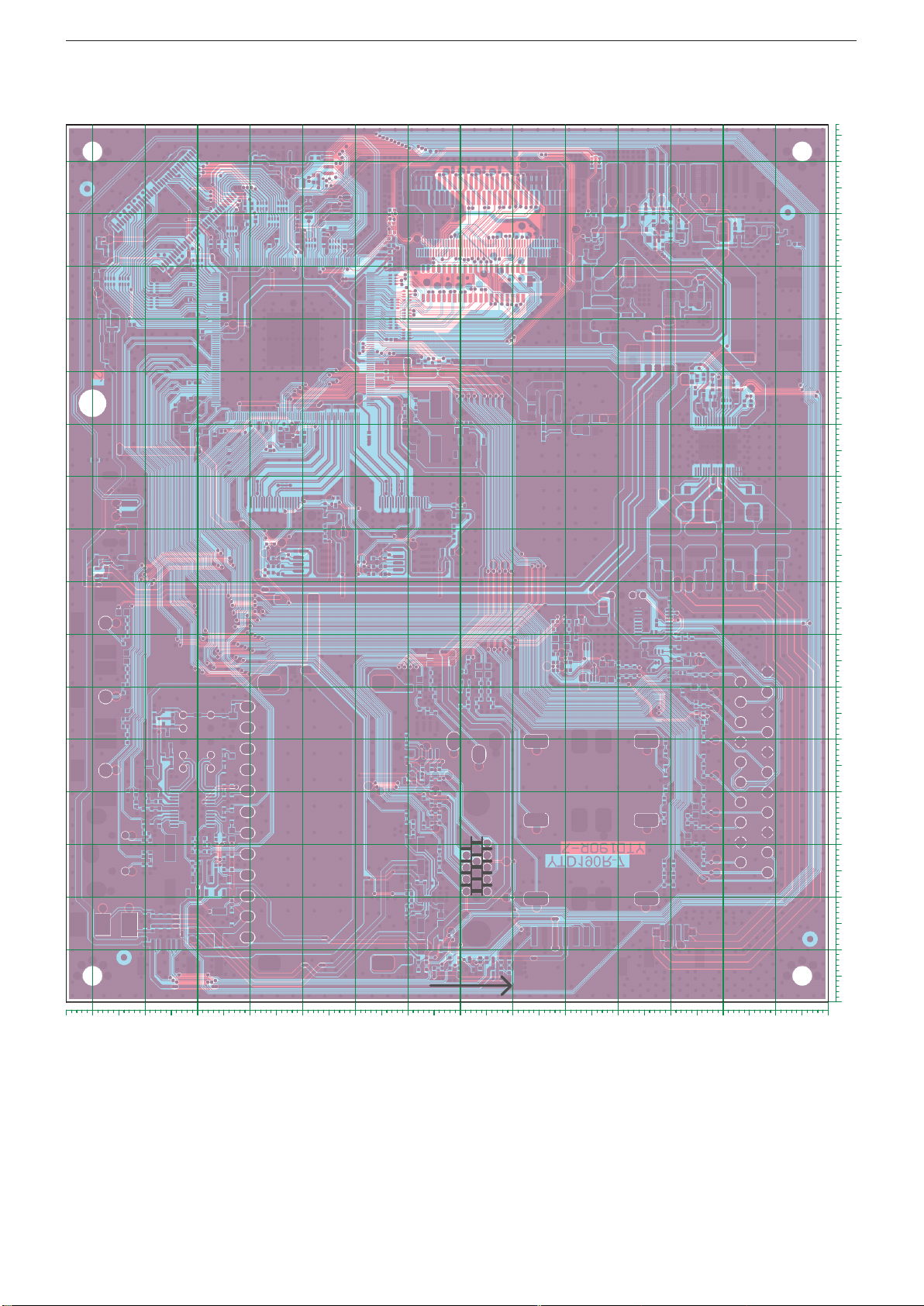

Chassisplatte / Chassis Board YTD190R-2 Ansicht von der Bestückungsseite / View of Component Side
2 - 3
Page 22

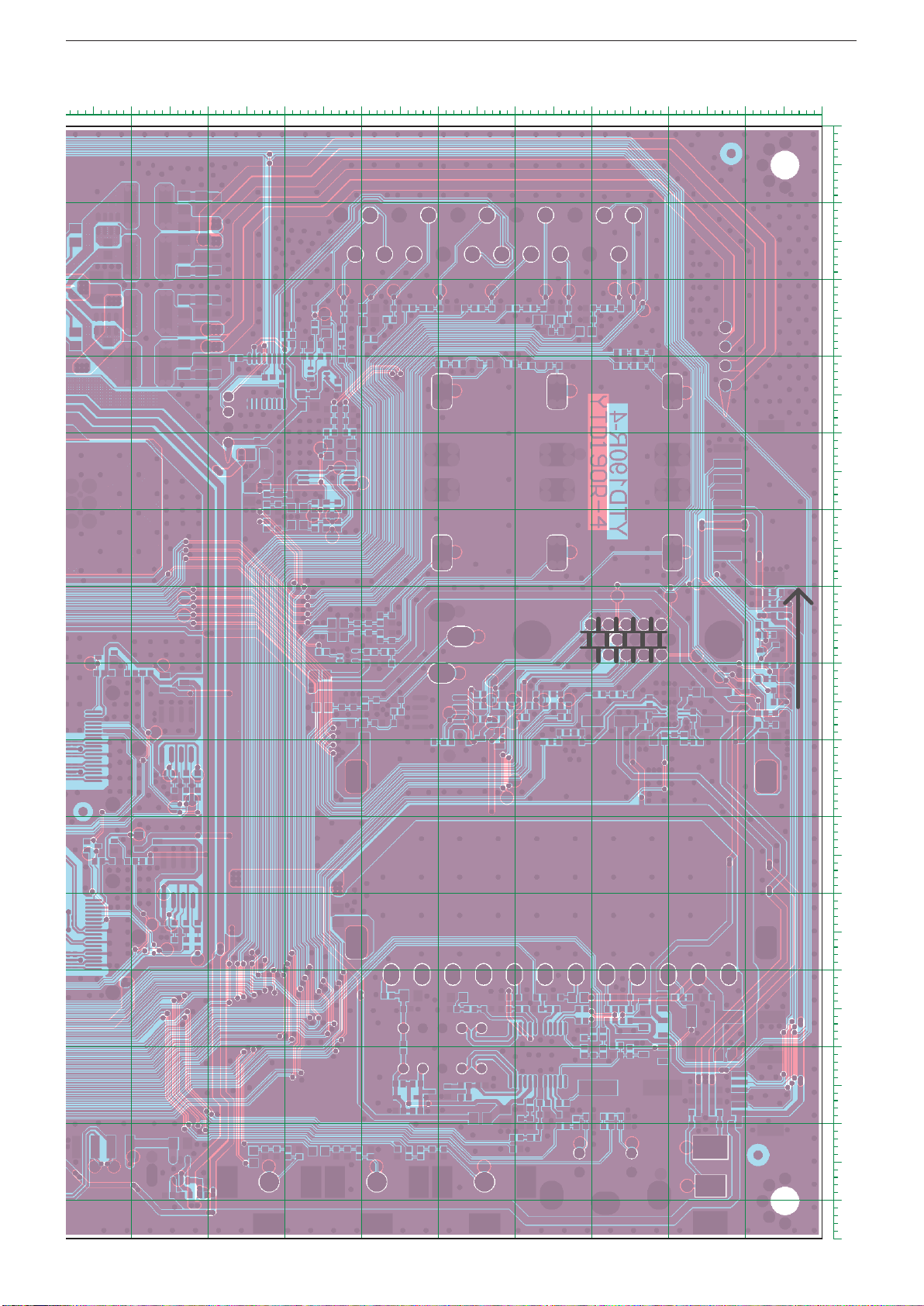

GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
X
C512
R510
R520
R512
C602
R604
R605
C501R506
C617
C620
R631
C619
R633
L302
R625
R730
COMPONENT
1
R703
R207
R211
R209
USB
C713
S701
1
C704
HDMI1
1
S200
1
R216
1
19
R224 R225 R223 R222
C201
R203
R204
T202
D201
1
S600
R210
R206
C200
R200
R201
1
1
19
HDMI2
D200
R214 R215 R212
T200
R213
R205
IC201
R208 R202
R528
TU301
IC200
C618
R634
C622
R530
C614
R632
C621
C616
R624
1
C606R618
D600
R630
R629
R620 R616
L600
1
IC600
C600
R606
C623
C601
C625
R636
C615
U600
R602R622
R617 R603
R635
C624
R610
PC AUDIO
R607
S601
S603
R717
C715
S604
IC700
C630
R641
R642
C632
SIDE-L
C631
R644
C635
C633
SIDE-R
R643
C634
S605
SIDE-V
C636
C638
C637
R645
R646
L100
C500
R513
D101
1
R508
T103
R505 R500
C107
1
R531
SAW101
R519
L104
R502
R504 C502
SAW100
C519
R525
R532
C522
1
C520
C523
IC901
C833
C835
L801
R834
L802
C840 C834
C812
C800
C814
C837
L807
C841
R800
C836
L805
C839
R810
C838C803
R813
R734
C727
R722
C721
C725
R735
C719
R723
C718
D700
R727
R720
C724
R729
IC701
1
C723
C716
R731 R721
PC-IN
S300
S710
C720
C726
R724
R725
R736
C728
L700
1
C702
C821
R817
R712
C722
R709
R710
T700
C811 C82 5
R816
R716
R714
R711
C700
C712
R700
C714 R701
R737
S711
C703
R726
C612 R627 R628 C613 C610
R732
C701 C717
R733 R708 R72 8 R707C760 R705 R704 C705
S700
R305
R303
C314
C311R308
8
1
KEYBOARD
S400
C611
C709
R626
R718 C706
C707
C761 R706
R715 C708
C710 R719
C607 R619
C608 R621
SPEAKER
R623
C609
R713
S800
1
C711
AV-1
FID906
S904
S602
C508
C510 C626 R638 C628 C629
C503 C506
R511
IC500
R509
R637
C627 R639 R640
C507
C504
HEADPHONE
S500
S-VIDEO
C406 C400
S901
R304
FID905
X101
L401
C407
L400
R401
KEYBOARD
C517
R522
C322
R524
C518
R507
R518
R501
R649
R526R527
C509C521
R521 R648
R523 R516
L103 C515
R517
D100
R503
T601
R408 C401
C505
S402
L500
T600
C516 R515
C513
C514 C511
R404 C408C405
C827
R409
C409
C404 R405
C605
R402
R407
IC400
C412
C410
R410
C4
11
C403
R529
R406
R306 C315
TRANSPORT LINE
L304 C313
R608 C603 R615
1
R609 R611R61 2 C604 R613 R61 4
R403
C402 R400 L301 C310
R307
C316
L303 C31 2
R312
R310
R309
T300
R311
19 19
20
21
20
21
4
5
7
6
9
8
Chassisplatte / Chassis Board YTD190R-2 Ansicht von der Bestückungsseite / View of Component Side
2 - 4
Page 23
GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
Y
0102030405060708090100110120130140
X
YTD190R-2
TP91
V-0
tp14
tp19
tp20
TP13
tp15
tp23
tp22
tp21
TP16
tp17
tp12
tp117
tp115
TP116
POWER
TP118
TP119
tp122
TP84
tp114
TP39
TP123
TP85
TP129
TP4
TP131
TP130
TP30
TP128
tp10
TP1
TP42
TP40
TP34
TP31
TP38
TP36
tp18
tp27
tp25
TP37
TP33
TP35
tp26
tp24
TP29
TP32
TP121
TP127
TP5
TP2
TP43
TP55
TP141
TP47
TP51
TP46
TP44
TP92
TP87
TP90
TP86 TP 88
TP53
TP136
TP137
TP135 T P49
TP45
TP3
TP113
TP134
TP133
TP50
TP48
TP132
TP62
TP60
TP41
TP63
TP61
TP65
TP67
TP64
TP142
TP89
TP78
TP77 TP79
TP54
TP52
TP28
tp120
TP59 TP58
TP124
TP99TP96 TP105TP100 TP104
TP111
TP83
TP107
tp103
TP94
TP68
TP101
TP72
TP125
TP95
TP126
TP102
TP93
TP97
TP70
TP56 TP57
tp6
TRANSPORT LINE
TP73
TP98
TP69
TP74
TP76
tp108
TP66
TP106
tp112
tp109tp110
TP80
TP82
TP71
TP81
TP75
TP140 TP139
tp8
tp9
TP138
tp11
tp7
Chassisplatte / Chassis Board YTD190R-2
Ansicht von der Lötseite / View of Solder Side
2 - 5
Page 24
GRUNDIG Service Chassis TD / TE
50
60
70
80
90
100
110
120
130
140
150
160
YTD190R-2
TP91
V-0
tp14
tp19
tp20
TP13
tp15
tp23
tp22
tp21
TP16
tp17
tp12
tp117
tp115
TP116
POWER
TP118
TP119
tp122
TP84
tp114
TP39
TP123
TP85
TP129
TP4
TP131
TP130
TP30
TP128
tp10
TP1
TP42
TP40
TP34
TP31
TP38
TP36
tp18
tp27
tp25
TP37
TP33
TP35
tp26
tp24
TP29
TP32
TP121
TP127
TP5
TP2
TP47
TP51
TP46
TP44
TP92
TP87
TP90
TP86 TP88
TP53
TP136
TP137
TP135 T P49
TP45
TP3
TP113
TP134
TP133
TP50
TP48
TP132
TP62
TP60
TP61
TP65
TP89
TP78
TP77 TP79
TP54
TP52
TP28
tp120
TP59 TP58
TP124
TP99TP96 TP105TP100 TP104
TP111
TP83
TP107
tp103
TP94
TP68
TP101
TP72
TP125
TP95
TP126
TP102
TP93
TP97
TP70
Y
0102030405060708090100110120130140
X
Chassisplatte / Chassis Board YTD190R-2 Ansicht von der Lötseite / View of Solder Side
POS. X Y POS. X Y
TP1 B 89 127
TP2 B 113 129
TP3 B 81 115
TP4 B 97 148
TP5 B 136 141
tp6 B 60 17
tp7 B 66 8
tp8 B 72 9
tp9 B 72 14
tp10 B 102 133
tp11 B 69 8
tp12 B 60 139
TP13 B 57 148
tp14 B 63 156
tp15 B 59 146
TP16 B 62 139
tp17 B 61 143
tp18 B 65 155
tp19 B 61 156
tp20 B 58 160
tp21 B 63 143
tp22 B 64 139
tp23 B 64 145
tp24 B 66 139
tp25 B 66 151
tp26 B 68 139
tp27 B 69 151
TP28 B 37 122
TP29 B 70 139
TP30 B 78 151
TP31 B 72 151
TP32 B 142 156
TP33 B 72 139
TP34 B 75 151
TP35 B 74 139
TP36 B 75 141
TP37 B 76 139
TP38 B 77 141
TP39 B 37 151
TP40 B 79 139
TP41 B 88 41
TP42 B 78 145
TP43 B 85 40
TP44 B 85 82
TP45 B 100 86
TP46 B 88 82
TP47 B 107 86
TP48 B 85 85
TP49 B 104 85
TP50 B 89 85
TP51 B 109 82
TP52 B 62 83
TP53 B 103 115
TP54 B 64 83
TP55 B 78 41
TP56 B 61 27
TP57 B 61 20
TP58 B 15 114
TP59 B 15 117
TP60 B 77 46
TP61 B 77 49
TP62 B 82 49
TP63 B 78 43
TP64 B 75 43
TP65 B 71 48
TP66 B 35 18
TP67 B 67 45
TP68 B 63 48
TP69 B 35 33
TP70 B 35 48
TP71 B 133 32
TP72 B 56 48
TP73 B 56 33
TP74 B 45 20
TP75 B 133 25
TP76 B 56 18
TP77 B 136 72
TP78 B 136 58
TP79 B 136 44
TP80 B 137 21
TP81 B 133 18
TP82 B 138 18
TP83 B 13 79
TP84 B 48 147
TP85 B 102 158
TP86 B 134 90
TP87 B 137 84
TP88 B 134 88
TP89 B 139 81
TP90 B 136 93
TP91 B 20 146
TP92 B 136 95
TP93 B 47 60
TP94 B 51 67
TP95 B 42 66
TP96 B 22 63
TP97 B 45 63
TP98 B 43 32
TP99 B 22 59
TP100 B 22 56
TP101 B 51 64
TP102 B 25 65
tp103 B 54 64
TP104 B 22 50
TP105 B 22 43
TP106 B 22 36
TP107 B 16 65
tp108 B 24 24
tp109 B 21 25
tp110 B 21 27
TP111 B 15 81
tp112 B 22 33
TP113 B 71 110
tp114 B 41 152
tp115 B 34 154
TP116 B 32 153
tp117 B 30 155
TP118 B 28 153
TP119 B 24 153
tp120 B 53 100
TP121 B 139 135
tp122 B 54 151
TP123 B 30 128
TP124 B 22 98
TP125 B 29 80
TP126 B 27 80
TP127 B 137 145
TP128 B 99 146
TP129 B 99 150
TP130 B 92 153
TP131 B 94 151
TP132 B 70 86
TP133 B 79 87
TP134 B 70 96
TP135 B 104 88
TP136 B 95 96
TP137 B 92 89
TP138 B 69 17
TP139 B 75 33
TP140 B 75 37
TP141 B 75 41
TP142 B 72 43
2 - 6
Page 25
GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
Y
0102030405060708090100110120130140
X
TP43
TP55
TP141
TP47
TP51
TP46
TP44
TP92
TP87
TP90
TP86 TP88
TP136
TP137
TP135 T P49
TP45
TP134
TP133
TP50
TP48
TP132
TP62
TP60
TP41
TP63
TP61
TP65
TP67
TP64
TP142
TP89
TP78
TP77 TP79
TP54
TP52
TP99TP96 TP105TP100 TP104
TP111
TP83
TP107
tp103
TP94
TP68
TP101
TP72
TP125
TP95
TP126
TP102
TP93
TP97
TP70
TP56 TP57
tp6
TRANSPORT LINE
TP73
TP98
TP69
TP74
TP76
tp108
TP66
TP106
tp112
tp109tp110
TP80
TP82
TP71
TP81
TP75
TP140 TP139
tp8
tp9
TP138
tp11
tp7
Chassisplatte / Chassis Board YTD190R-2 Ansicht von der Lötseite / View of Solder Side
2 - 7
Page 26
GRUNDIG Service Chassis TD / TE
Chassisplatte / Chassis Board YTD190R-4
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
C2 T 79 111
C4 T 79 115
C100 T 106 161
C101 T 123 111
C102 T 120 115
C103 T 123 108
C104 T 137 142
C105 T 120 112
C106 T 103 109
C107 T 120 55
C108 T 139 144
C109 T 108 161
C110 T 120 118
C111 T 68 121
C112 T 81 120
C113 T 80 107
C114 T 106 106
C115 T 100 108
C116 T 101 106
C117 T 101 108
C118 T 104 106
C119 T 117 108
C120 T 87 108
C121 T 80 109
C122 T 120 128
C123 T 105 145
C124 T 84 120
C125 T 91 144
C126 T 83 142
C127 T 81 115
C128 T 81 113
C129 T 119 108
C130 T 120 108
C131 T 70 121
C132 T 84 122
C133 T 120 126
C134 T 83 126
C135 T 101 144
C136 T 83 140
C137 T 92 144
C138 T 123 114
C139 T 121 115
C140 T 120 131
C141 T 122 134
C142 T 122 137
C143 T 113 144
C144 T 106 144
C145 T 112 150
C146 T 111 148
C147 T 70 109
C148 T 67 103
C149 T 116 108
C200 T 85 86
C201 T 104 86
C300 T 101 152
C301 T 139 141
C302 T 137 150
C303 T 131 156
C304 T 130 157
C305 T 134 153
C306 T 125 161
C307 T 125 138
C308 T 138 149
C309 T 122 140
C310 T 74 10
C311 T 61 8
C312 T 72 6
C313 T 77 6
C314 T 62 8
C315 T 78 6
C316 T 74 6
C317 T 55 143
C318 T 53 143
C322 T 118 31
C400 T 130 14
C401 T 126 14
C402 T 74 19
C403 T 78 13
C404 T 79 34
C405 T 80 32
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
C406 T 130 17
C407 T 127 17
C408 T 80 34
C409 T 80 23
C410 T 80 18
C411 T 79 17
C412 T 80 20
C500 T 129 42
C501 T 128 40
C502 T 125 45
C503 T 130 38
C504 T 129 34
C505 T 118 17
C506 T 128 38
C507 T 127 34
C508 T 132 38
C509 T 114 35
C510 T 130 37
C511 T 114 15
C512 T 133 40
C513 T 116 10
C514 T 114 17
C515 T 114 28
C516 T 114 26
C517 T 121 31
C518 T 121 29
C519 T 115 46
C520 T 114 42
C521 T 114 37
C522 T 115 44
C523 T 115 42
C600 T 70 59
C601 T 69 59
C602 T 77 39
C603 T 76 36
C604 T 74 29
C605 T 77 34
C606 T 80 47
C607 T 31 27
C608 T 30 27
C609 T 31 22
C610 T 31 41
C611 T 31 36
C612 T 31 50
C613 T 31 43
C614 T 78 61
C615 T 75 56
C616 T 78 58
C617 T 65 63
C618 T 76 65
C619 T 64 56
C620 T 64 59
C621 T 75 58
C622 T 75 61
C623 T 67 63
C624 T 67 56
C625 T 67 61
C626 T 130 34
C627 T 129 31
C628 T 130 28
C629 T 130 26
C630 T 134 74
C631 T 134 68
C632 T 134 71
C633 T 134 66
C634 T 134 59
C635 T 134 62
C636 T 134 54
C637 T 134 50
C638 T 134 56
C639 T 104 109
C700 T 30 63
C701 T 25 62
C702 T 36 66
C703 T 30 62
C704 T 133 84
C705 T 24 43
C706 T 27 31
C707 T 25 37
C708 T 25 31
C709 T 27 36
C710 T 24 34
C711 T 24 26
C712 T 26 65
C713 T 139 85
C714 T 24 66
C715 T 138 81
C716 T 50 65
C717 T 25 57
C718 T 48 75
C719 T 50 69
C720 T 42 65
C721 T 50 71
C722 T 37 64
C723 T 52 65
C724 T 47 71
C725 T 52 69
C726 T 42 62
C727 T 52 71
C728 T 38 62
C760 T 24 52
C761 T 24 38
C762 T 41 74
C800 T 21 93
C801 T 12 125
C802 T 12 137
C803 T 14 81
C804 T 18 114
C805 T 28 98
C806 T 12 114
C807 T 23 114
C809 T 14 98
C810 T 22 119
C811 T 28 81
C812 T 21 95
C813 T 22 115
C814 T 16 93
C815 T 25 114
C821 T 32 81
C825 T 24 81
C827 T 78 28
C833 T 32 83
C834 T 24 83
C835 T 29 93
C836 T 10 83
C837 T 18 83
C838 T 10 81
C839 T 18 81
C840 T 28 83
C841 T 14 83
C900 T 49 138
C901 T 37 139
C902 T 47 129
C903 T 47 127
C904 T 47 131
C905 T 41 127
C906 T 32 148
C907 T 55 107
C908 T 30 136
C909 T 24 135
C910 T 40 146
C911 T 20 150
C912 T 25 145
C913 T 26 132
C915 T 49 109
C917 T 140 135
C918 T 55 105
C920 T 48 142
D100 T 121 22
D101 T 127 54
D102 T 70 106
D200 T 73 85
D201 T 93 88
D202 T 81 98
D203 T 84 98
D204 T 104 98
D205 T 109 98
D500 T 46 116
D600 T 80 44
D700 T 45 74
D732 T 139 103
D733 T 141 103
IC100 T 67 106
IC101 T 93 160
IC102 T 102 159
IC200 T 79 84
IC201 T 98 84
IC300 T 95 151
IC301 T 124 151
IC400 T 77 20
IC500 T 121 37
IC600 T 69 62
IC700 T 136 84
IC701 T 46 65
IC702 T 33 73
IC800 T 21 106
IC801 T 12 146
IC900 T 38 135
IC901 T 49 101
IC902 T 137 125
IC903 T 24 131
L100 T 129 45
L101 T 65 122
L102 T 74 120
L103 T 114 32
L104 T 113 54
L105 T 79 105
L106 T 81 112
L107 T 120 106
L108 T 124 113
L109 T 111 152
L300 T 139 138
L301 T 74 12
L302 T 65 8
L303 T 72 8
L304 T 77 8
L400 T 129 14
L401 T 129 17
L500 T 121 13
L600 T 72 66
L700 T 36 68
L800 T 23 144
L801 T 31 88
L802 T 24 88
L805 T 11 88
L806 T 20 144
L807 T 17 88
L900 T 42 150
L901 T 40 150
L902 T 33 151
L903 T 32 151
L904 T 38 142
L905 T 29 147
L906 T 44 127
L907 T 43 132
L908 T 22 150
L909 T 39 116
L910 T 45 139
L911 T 45 137
R1 T 79 113
R61 T 109 149
R62 T 110 152
R63 T 115 144
R64 T 116 144
R68 T 133 129
R72 T 118 144
R100 T 109 161
R101 T 137 144
R102 T 97 161
R103 T 98 161
R104 T 139 145
R105 T 84 119
R106 T 71 110
R107 T 122 118
R108 T 96 147
R109 T 83 144
R110 T 69 110
R111 T 94 147
R112 T 83 145
R113 T 96 144
R114 T 83 147
R115 T 83 148
R116 T 103 107
R117 T 74 122
R118 T 83 143
R119 T 46 146
R120 T 77 122
R121 T 83 151
R122 T 72 122
R123 T 78 122
R200 T 85 85
R201 T 85 83
R202 T 85 82
R203 T 104 85
R204 T 104 83
R205 T 104 82
R206 T 87 83
R207 T 107 83
R208 T 87 82
R209 T 107 82
R210 T 87 85
R211 T 107 85
R212 T 71 88
R213 T 71 90
R214 T 71 94
R215 T 71 92
R216 T 94 96
R222 T 96 88
R223 T 96 90
R224 T 96 95
R225 T 96 92
R300 T 101 149
R301 T 101 147
R302 T 116 147
R303 T 64 6
R304 T 130 12
R305 T 62 6
R306 T 78 8
R307 T 75 6
R308 T 61 6
R309 T 70 6
R310 T 66 8
R311 T 66 6
R312 T 70 8
R313 T 45 161
R314 T 45 159
R315 T 44 161
R316 T 44 159
R317 T 44 150
R318 T 46 150
R400 T 74 16
R401 T 127 14
R402 T 78 23
R403 T 75 23
R404 T 80 36
R405 T 79 32
R406 T 77 17
R407 T 77 23
R408 T 126 17
R409 T 80 21
R410 T 80 17
R500 T 125 53
R501 T 120 27
R502 T 127 47
R503 T 121 25
R504 T 125 47
R505 T 125 55
R506 T 130 40
R507 T 121 27
R508 T 128 53
R509 T 127 37
R510 T 132 40
R511 T 129 37
R512 T 114 39
R513 T 128 55
R515 T 114 19
R516 T 115 28
R517 T 115 26
R518 T 118 29
R519 T 115 54
R520 T 115 39
R521 T 117 32
R522 T 121 30
R523 T 115 32
R524 T 118 30
R525 T 115 48
R526 T 115 35
R527 T 115 37
R528 T 103 63
R529 T 80 7
R530 T 80 61
R531 T 113 57
R532 T 114 48
R600 T 98 156
R601 T 98 158
R602 T 76 42
R603 T 74 42
R604 T 76 40
R605 T 74 40
R606 T 69 65
R607 T 69 57
R608 T 76 38
R609 T 74 38
R610 T 70 57
R611 T 74 36
R612 T 74 34
R613 T 74 27
R614 T 74 25
R615 T 76 34
R616 T 77 42
R617 T 74 45
R618 T 80 49
R619 T 31 24
R620 T 77 45
R621 T 30 24
R622 T 76 45
R623 T 30 22
R624 T 80 51
R625 T 31 39
R626 T 31 34
R627 T 31 48
R628 T 31 45
R629 T 76 56
R630 T 78 56
R631 T 64 58
R632 T 75 60
R633 T 64 61
R634 T 75 63
R635 T 67 58
R636 T 67 59
R637 T 130 32
R638 T 130 31
R639 T 129 28
R640 T 129 26
R641 T 134 70
R642 T 134 73
R643 T 134 61
R644 T 134 64
R645 T 134 53
R646 T 134 51
R648 T 117 28
R649 T 117 26
R700 T 28 63
R701 T 24 62
R703 T 139 83
R704 T 24 45
R705 T 24 47
R706 T 24 36
R707 T 24 50
R708 T 24 57
R709 T 34 63
R710 T 30 65
R711 T 29 65
R712 T 30 67
R713 T 24 28
R714 T 26 66
R715 T 25 34
R716 T 29 67
R717 T 139 81
R718 T 27 34
R719 T 24 31
R720 T 43 74
R721 T 50 63
R722 T 50 73
R723 T 50 66
R724 T 40 64
R725 T 38 64
R726 T 28 59
R727 T 48 73
R728 T 24 54
R729 T 48 69
R730 T 24 41
R731 T 52 63
R732 T 26 59
R733 T 24 59
R734 T 52 73
R735 T 52 66
R736 T 40 62
R737 T 37 62
R738 T 33 70
R739 T 28 70
R740 T 27 70
R741 T 30 77
R742 T 26 70
R743 T 33 72
R800 T 13 93
R801 T 24 116
R802 T 16 114
R803 T 26 120
R804 T 22 117
R805 T 24 119
R806 T 21 117
R807 T 17 117
R808 T 18 117
R809 T 18 147
R810 T 18 79
R811 T 16 147
R812 T 18 145
R813 T 10 79
R814 T 16 145
R815 T 10 147
R816 T 24 79
R817 T 32 79
R818 T 16 149
R819 T 15 145
R820 T 10 144
R832 T 15 114
R834 T 26 94
R835 T 25 119
R836 T 6 144
R900 T 37 131
R901 T 35 131
R902 T 27 147
R903 T 32 146
R904 T 30 147
R905 T 137 122
R906 T 30 150
R907 T 35 151
R908 T 33 146
R909 T 33 148
R910 T 33 144
R911 T 32 144
R912 T 24 137
R913 T 40 131
R914 T 48 141
R915 T 28 132
R916 T 46 141
R917 T 44 141
R918 T 45 146
R919 T 43 146
R920 T 28 130
R928 T 137 129
R930 T 136 129
R931 T 35 145
RN1 T 104 152
RN2 T 106 149
RN3 T 108 152
RN4 T 137 137
RN5 T 134 137
RN6 T 128 133
RN7 T 128 136
RN8 T 80 127
RN9 T 80 131
RN10 T 83 133
RN11 T 83 129
RN12 T 80 134
RN13 T 83 138
RN15 T 114 147
RN16 T 120 141
RN300 T 99 145
RN600 T 94 144
RN800 T 20 114
S100 T 29 156
S200 T 106 92
S300 T 67 26
S301 T 65 157
S302 T 69 141
S303 T 66 147
S304 T 67 141
S305 T 64 149
S306 T 66 154
S400 T 49 10
S402 T 126 9
S500 T 138 15
S600 T 81 92
S601 T 67 49
S602 T 137 28
S603 T 140 72
S604 T 140 58
S605 T 140 44
S700 T 14 44
S701 T 135 94
S702 T 38 78
S710 T 52 35
S711 T 39 35
S800 T 30 13
S901 T 140 5
S902 T 140 162
S903 T 5 162
S904 T 5 5
S905 T 54 130
SAW100 T 118 50
SAW101 T 123 50
T103 T 126 50
T200 T 69 94
T202 T 94 94
T300 T 68 7
T600 T 114 22
T601 T 117 22
T700 T 32 66
T800 T 26 117
T801 T 8 146
T900 T 35 148
T901 T 137 132
T902 T 29 145
T903 T 48 145
T904 T 27 136
T905 T 45 143
TU301 T 98 34
U1 T 102 129
U600 T 76 50
X101 T 125 25
Y1 T 75 110
2 - 8
Page 27
GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
X
RN7
RN3
1
RN1
1
1
1
R1
1
1
1
1
L301
1
8
1
1
1
R931
1
R911
1
C302
1
RN4
R928
RN5
R930
R68
C510 R638 C628
R304C400C406
RN6
R513 R508
R511
R639C627
L400L401
R502
R401C407
L108
R500R505
C502R504
C103
C138
1
RN16 C130
C105
L107
R501
D100
R518
R64
1
R648R521
R63
R531
T600
C143
R62
C109
C100
RN2
C144
C639
R103
RN300
R108 R113
R224 R225 R222
RN600
T202R2 16
1
C137
1
1
192
RN10
1
RN12
RN8
R530 D600
C606 504C404R816R
214C
904R
R410
R529
R123
C614
R620
C602
R402
C315R306
C618
R622 C603R608R604
R307
R117
R617 R611R605 R609 C604 R613 R614
C402 R400
C316
R214R215 R212
IC600
L600
L303 C312
C131
D102
T200
R610
C111
L302
R303
113C 803R
C317
C318
C900
227R 127C
617C 127R
1
R729
C724
R727
R313
R314
T905
R918
R119
R316
R315
R919
1
C905
C728R725
1
R737C722
R907
L902
R910R908
IC900
R743
R711
L903
1
R903
L801
R712
R628R627
C611
C610
R625 C609R619
R739
T904
R740
C712
C709 C706
C912
R912
C815
L802
C701 C7 17 C707 C708
1
L908
L800
L806
R806
R818 R814R811
R807
L807
R819 R832
IC801
R800
LABEL2
T901
C704
FID905
C303
C626 C629
C504
R640
D101
C309
C505
C102
SAW101
C129
C119
R649
HDMI1
C115
R223
C120
RN9
R624 C408
C410
C605
R616
R615R602
R612R603
C310
R213
C600
S302
R723
C718
COMPONENT
R710
T900
R909
C906
IC800
C613C612
R626 C607
L905
C913
R902
R714
R718
R715
R104
C108 R101
C104
D732
1
C630
R642
C632
C631
C635
R643
C634
C636
R645
C503 C506
R637
C141
C122
U1
R107C110
C101
C107
R524R522
C145
C146
1
S200
C519
R116
1
R211 R203
R207 R204
R601
R600
R111
19 1
R210
R206 R201
1
39
C112
C4
C128
L106
C121
C113
1
D202
C616
L102
C147
19
S301
L101
R633
C619
PC-IN
S905
C907
C918
R318
C920
C904
C915
D700
C910
L909
SW
C835
C833
C821
R817
R738
R804
C813
C807
C812
C800
C834
C825
R816
C711
14
C809
C814
C841
C803
R836
C305
C308
C301
C917
L300
IC902 R905
C713
C715
R717
R641
R644
R646
C638
C637
C512
C306
C304
L100
IC500
C508
C500
C501R506
R509
R510
X101
C401R408
R72
C142
C140
C133
SAW100
C518
C322
R507
C517
R503
T601
L500
S402
R100
L109
R61
64
1
L104
R519
R532
C522 625R525R
C521
R520
R512
R527 R523
C515
R516
115C515R301L
C300 R300 R301 C135
C123
C116
C114
C118
D204
C201
R205R209
R528
R102
D201
C125
S600
R208
40
RN13
RN11
R120
C2
C127
L105
IC200
R630
R405
R407
C409
C403
R406
C411
L304 C313
R122
R106 R110
D200
R606 R607
1
T300
R312R309
S306
S303
IC100 C623
C620
C617
R631
S300
R311
R305C3 14
R310
2
1
R734C727 C7 23R731
30
51
T903
R916R914
L911
C903
C902
C725
5V
5V
L901
L900
5V
L904
12V
C901
R900R913
S702
C762
L700
R724 R7 36
C726
24V
S100
R906 C908
R920
R741
T700
R716
R709
R700
007C 307C
S711
C714
R621 R623
12V
12V
12V
GND
C911
C909
T800
R805
R803
C810
R835
R742
R701 C760R708 R728 R705 R7 04 C 761 R706R730 R713R719
GND
GND
R812R809
R808
C804
R802
C806
FID904
T801
R820R815
C802
C801
L805
FID906
FID907
C633
R703
SIDE-V
SIDE-L
T103
C507
C139
RN15
C523
C520 C509 C514C516
R517
C117
S304
C404
C827
LVDS
HDMI2
C601
U600
S305
R735
30
C719
GND
GND
PANEL
IC702
R720
C702
R915
R904
R726
C608
IC903
RN800
R801 R733
R732
C705 C710R 707
SIDE-R
IC701
C307
D733
S701
S603
S604
IC102
D205
C513
LG_AU42
R115
R112
R109
C126
C136
C134
C132
C124
D203
R200
R634
C625
C621
C624
PC AUDIO
IC400
R317
C805
R834
C840
C811
C720
C837 C836
C839
C838
R813R810
S700
S904
S902
USB
IC700
S602
S-VIDEO
HEADPHONE
S500
S901
IC300
128
R302
C106
C149
IC201
TU301
Samsung
R121
R118
R114
R105
Y1
C148
C200
R202
R636
R632
C622
R635
R629C615
S601
R403
51
T902
R917
L910
R901
L907
L906
D500
IC901
S710
SPEAKER
S400
S800
POWER
I
C30
1
BARCODE
S605
IC101
S903
V-0
AV-1
YTD190R-4
LG ve AU
Samsung/AU_32/37
KEYBOA RD
KEYBOARD
TRANSPORT LINE
19 19
20
21
20
21
4
5
7
6
9
8
17 16 15 14
3
1
2
13 12 11
Chassisplatte / Chassis Board YTD190R-4
Ansicht von der Bestückungsseite
View of Component Side
2 - 9
Page 28
GRUNDIG Service Chassis TD / TE
50
60
70
80
90
100
110
120
130
140
150
160
RN7
RN3
1
RN1
1
1
1
R1
1
1
1
1
1
1
1
R931
1
R911
1
C302
1
RN4
R928
RN5
R930
R68
RN6
R513 R508
L108
R500R505
C103
C138
1
RN16 C130
C105
L107
R64
R63
R531
C143
R62
C109
C100
RN2
C144
C639
R103
RN300
R108 R113
R224 R225 R222
RN600
T202R2 16
1
C137
1
1
192
RN10
1
RN12
RN8
R530 D600
R123
C614
C618
R117
R214 R 215 R212
IC600
L600
C131
D102
T200
R610
C111
C317
C318
C900
227R 127C
617C 127R
1
R729
C724
R727
R313
R314
T905
R918
R119
R316
R315
R919
1
C905
C728R725
1
R737C722
R907
L902
R910R908
IC900
R743
R711
L903
1
R903
L801
R712
R739
T904
R740
C712
C912
R912
C815
L802
C701 C717 C707 C7 08
L908
L800
L806
R806
R818 R814R811
R807
L807
R819 R832
IC801
R800
LABEL2
T901
C704
C303
D101
C309
C102
SAW101
C129
C119
HDMI1
C115
R223
C120
RN9
R624 C408
R213
C600
S302
R723
C718
R710
T900
R909
C906
IC800
L905
C913
R902
R714
R104
C108 R101
C104
D732
1
C630
R642
C632
C631
C635
R643
C634
C636
R645
C141
C122
U1
R107 C110
C101
C107
C145
C146
1
S200
R116
1
R211 R203
R207 R204
R601
R600
R111
19 1
R210
R206 R201
1
39
C112
C4
C128
L106
C121
C113
1
D202
C616
L102
C147
19
S301
L101
R633
C619
S905
C907
C918
R318
C920
C904
C915
D700
C910
L909
SW
C835
C833
C821
R817
R738
R804
C813
C807
C812
C800
C834
C825
R816
14
C809
C814
C841
C803
R836
C305
C308
C301
C917
L300
IC902 R9 05
C713
C715
R717
R641
R644
R646
C638
C637
C306
C304
R72
C142
C140
C133
R100
L109
R61
64
1
L104
R519
R532
C300 R300 R301 C135
C123
C116
C114
C118
D204
C201
R205R209
R528
R102
D201
C125
S600
R208
40
RN13
RN11
R120
C2
C127
L105
IC200
R630
R122
R106 R110
D200
R606 R607
S306
S303
IC100 C623
C620
C617
R631
2
1
R734C727 C72 3R7 31
30
51
T903
R916R914
L911
C903
C902
C725
5V
5V
L901
L900
5V
L904
12V
C901
R900R913
S702
C762
L700
R724 R736
C726
24V
S100
R906 C908
R920
R741
T700
R716
R709
R700
007C 307C
S711
C714
12V
12V
12V
GND
C911
C909
T800
R805
R803
C810
R835
R742
R701 C760R708 R72 8 R705 R704 C761 R 706R7 30 R713R719
GND
GND
R812R809
R808
C804
R802
C806
FID904
T801
R820R81 5
C802
C801
L805
FID907
C633
R703
SIDE-L
T103
C139
RN15
C117
S304
LVDS
HDMI2
C601
U600
S305
R735
30
C719
GND
GND
PANEL
IC702
R720
C702
R915
R904
R726
IC903
RN800
R801 R733
R732
SIDE-R
IC701
C307
D733
S701
S603
S604
IC102
D205
LG_AU42
R115
R112
R109
C126
C136
C134
C132
C124
D203
R200
R634
C625
C621
C624
R317
C805
R834
C840
C811
C720
C837 C836
C839
C838
R813R810
S902
USB
IC700
IC300
128
R302
C106
C149
IC201
TU301
Samsung
R121
R118
R114
R105
Y1
C148
C200
R202
R636
R632
C622
R635
R629C615
51
T902
R917
L910
R901
L907
L906
D500
IC901
S710
POWER
I
C30
1
BARCODE
S605
IC101
S903
V-0
YTD190R-4
LG ve AU
Samsung/AU_32/37
5
17 16 15 14
3
1
2
13 12 11
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
X
Chassisplatte / Chassis Board YTD190R-4 Ansicht von der Bestückungsseite / View of Component Side
2 - 10
Page 29
GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
X
1
1
1
L301
1
8
1
1
C510 R638 C628
R304C400C406
R513 R508
R511
R639C627
L400L401
R502
R401C407
R500R505
C502R504
1
R501
D100
R518
1
R648R521
R531
T600
R224 R225 R222
T202R2 16
1
R530 D600
C606 504C404R816R
214C
904R
R410
R529
C614
R620
C602
R402
C315R306
C618
R622 C603R608R604
R307
R617 R611R605 R6 09 C604 R613 R614
C402 R400
C316
R214 R 215 R212
IC600
L600
L303 C312
T200
R610
L302
R303
113C 803R
227R 127C
617C 127R
1
R729
C724
R727
1
C728R725
1
R737C722
R743
R711
L801
R712
R628R627
C611
C610
R625 C609R619
R739
R740
C712
C709 C706
L802
C701 C717 C707 C7 08
1
L807
R800
C704
FID905
C626 C629
C504
R640
D101
C505
SAW101
R649
HDMI1
R223
R624 C408
C410
C605
R616
R615R602
R612R603
C310
R213
C600
R723
C718
COMPONENT
R710
C613C612
R626 C607
R714
R718
R715
1
C630
R642
C632
C631
C635
R643
C634
C636
R645
C503 C506
R637
C107
R524R522
1
S200
C519
1
R211 R203
R207 R204
19 1
R210
R206 R201
1
C616
19
R633
C619
PC-IN
D700
SW
C835
C833
C821
R817
R738
C812
C800
C834
C825
R816
C711
C814
C841
C803
C713
C715
R717
R641
R644
R646
C638
C637
C512
L100
IC500
C508
C500
C501R506
R509
R510
X101
C401R408
SAW100
C518
C322
R507
C517
R503
T601
L500
S402
1
L104
R519
R532
C522 625R525R
C521
R520
R512
R527 R5 23
C515
R516
115C515R301L
C201
R205R209
R528
D201
S600
R208
IC200
R630
R405
R407
C409
C403
R406
C411
L304 C 313
D200
R606 R607
1
T300
R312 R309
C620
C617
R631
S300
R311
R305C3 14
R310
R734C727 C72 3R7 31
C725
S702
C762
L700
R724 R736
C726
R741
T700
R716
R709
R700
007C 307C
S711
C714
R621 R623
R742
R701 C760R708 R72 8 R705 R704 C761 R 706R7 30 R713R719
L805
FID906
C633
R703
SIDE-V
SIDE-L
T103
C507
C523
C520 C5 09 C514C516
R517
C404
C827
HDMI2
C601
U600
R735
C719
IC702
R720
C702
R726
C608
R732
C705 C710R707
SIDE-R
IC701
S701
S603
S604
C513
R200
R634
C625
C621
C624
PC AUDIO
IC400
R834
C840
C811
C720
C837 C836
C839
C838
R813R810
S700
S904
USB
IC700
S602
S-VIDEO
HEADPHONE
S500
S901
IC201
TU301
C200
R202
R636
R632
C622
R635
R629C615
S601
R403
IC901
S710
SPEAKER
S400
S800
S605
AV-1
KEYBOARD
KEYBOARD
TRANSPORT LINE
19 19
20
21
20
21
4
5
7
6
9
8
Chassisplatte / Chassis Board YTD190R-4 Ansicht von der Bestückungsseite / View of Component Side
2 - 11
Page 30
GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
Y
0102030405060708090100110120130140
X
tp9
TP121
TP89
TP127
TP80
TP88
TP71
TP51
TP135 T P49
TP85
tp10
TP45
TP131
TP130
TP137
TP41
TP43
TP62
TP42
TP60
TP55
TP65
TP31
TP134
TP138
tp25
tp21
TP68
TP57
TP30 tp12
tp6
tp19
TP72 TP73
tp122
tp103
TP101
TP97
TP74
TP98
tp114
TP39
TP28
TP70 TP69
TP125
TP126
TP102
tp110
TP59 TP58 TP111
TP83
TP82
TP86
TP75
TP81
TP4
TP46
TP38
TP63
TP36
TP37
TP35
TP33
TP29
tp26
tp24
tp22
TP54
TP16
TP52
TP56
TP76
tp120
TP94
TP66
tp109
TP3
tp18
tp14
TP5 TP90TP92
TP87
TP77
TP78
TP79
TP2
TP47
TP129 TP128
TP136
TP1
TP48
TP50
TP44
TP133
TP61
TP34
TP113
TP132
TP64 TP141 TP140
tp11
tp8
tp27
tp23
tp17
TP67
tp7
tp20
tp15
TP13
TP93
TP95
tp117
tp115
TP116
TP118
TP123
TP119
TP91
TP124
TP96 TP100 TP106
tp108
TP107
TP32
TP53
TP40
TP142
TP139
TP84
tp112
TP99 TP104 TP10 5
V-0
POWER
YTD190R-4
TRANSPORT LINE
Chassisplatte / Chassis Board YTD190R-4
Ansicht von der Lötseite / View of Solder Side
2 - 12
Page 31
GRUNDIG Service Chassis TD / TE
50
60
70
80
90
100
110
120
130
140
150
160
TP121
TP89
TP127
TP88
TP51
TP135 TP 49
TP85
tp10
TP45
TP131
TP130
TP137
TP62
TP42
TP60
TP65
TP31
TP134
tp25
tp21
TP68
TP30 tp12
tp19
TP72 TP73
tp122
tp103
TP101
TP97
tp114
TP39
TP28
TP70 TP69
TP125
TP126
TP102
TP59 TP58 TP111
TP83
TP86
TP4
TP46
TP38
TP36
TP37
TP35
TP33
TP29
tp26
tp24
tp22
TP54
TP16
TP52
tp120
TP94
TP3
tp18
tp14
TP5 TP90TP92
TP87
TP77
TP78
TP2
TP47
TP129 TP128
TP136
TP1
TP48
TP50
TP44
TP133
TP61
TP34
TP113
TP132
tp27
tp23
tp17
tp20
tp15
TP13
TP93
TP95
tp117
tp115
TP116
TP118
TP123
TP119
TP91
TP124
TP96 TP100 TP106
TP107
TP32
TP53
TP40
TP84
TP99 TP104 TP105
V-0
POWER
YTD190R-4
Y
0102030405060708090100110120130140
X
Chassisplatte / Chassis Board YTD190R-4 Ansicht von der Lötseite / View of Solder Side
POS. X Y POS. X Y
tp6 B 60 17
tp7 B 66 8
tp8 B 72 9
tp9 B 72 14
tp10 B 102 133
tp11 B 69 8
tp12 B 60 139
tp14 B 61 136
tp15 B 59 146
tp17 B 61 143
tp18 B 63 136
tp19 B 58 139
tp20 B 58 160
tp21 B 63 143
tp22 B 64 139
tp23 B 64 145
tp24 B 66 139
tp25 B 64 158
tp26 B 68 139
tp27 B 67 158
tp103 B 54 64
tp108 B 24 24
tp109 B 21 25
tp110 B 21 27
tp112 B 22 33
tp114 B 41 152
tp115 B 34 154
tp117 B 30 155
tp120 B 53 100
tp122 B 54 151
TP1 B 89 127
TP2 B 113 129
TP3 B 81 115
TP4 B 97 148
TP5 B 136 141
TP13 B 58 143
TP16 B 62 139
TP28 B 37 122
TP29 B 70 139
TP30 B 60 162
TP31 B 70 158
TP32 B 142 156
TP33 B 72 139
TP34 B 73 158
TP35 B 74 139
TP36 B 75 141
TP37 B 76 139
TP38 B 77 141
TP39 B 37 151
TP40 B 79 139
TP41 B 88 41
TP42 B 78 145
TP43 B 85 40
TP44 B 85 82
TP45 B 100 86
TP46 B 88 82
TP47 B 107 86
TP48 B 85 85
TP49 B 104 85
TP50 B 89 85
TP51 B 109 82
TP52 B 62 83
TP53 B 103 115
TP54 B 64 83
TP55 B 78 41
TP56 B 61 27
TP57 B 61 20
TP58 B 15 114
TP59 B 15 117
TP60 B 77 46
TP61 B 77 49
TP62 B 82 49
TP63 B 78 43
TP64 B 75 43
TP65 B 71 48
TP66 B 35 18
TP67 B 67 45
TP68 B 63 48
TP69 B 35 33
TP70 B 35 48
TP71 B 133 32
TP72 B 56 48
TP73 B 56 33
TP74 B 45 20
TP75 B 133 25
TP76 B 56 18
TP77 B 136 72
TP78 B 136 58
TP79 B 136 44
TP80 B 137 21
TP81 B 133 18
TP82 B 138 18
TP83 B 13 79
TP84 B 48 147
TP85 B 102 158
TP86 B 134 90
TP87 B 137 84
TP88 B 134 88
TP89 B 139 81
TP90 B 136 93
TP91 B 20 146
TP92 B 136 95
TP93 B 47 60
TP94 B 51 67
TP95 B 42 66
TP96 B 22 63
TP97 B 45 63
TP98 B 43 32
TP99 B 22 59
TP100 B 22 56
TP101 B 51 64
TP102 B 25 65
TP104 B 22 50
TP105 B 22 43
TP106 B 22 36
TP107 B 16 65
TP111 B 15 81
TP113 B 71 110
TP116 B 32 153
TP118 B 28 153
TP119 B 24 153
TP121 B 139 135
TP123 B 30 128
TP124 B 22 98
TP125 B 29 80
TP126 B 27 80
TP127 B 137 145
TP128 B 99 146
TP129 B 99 150
TP130 B 92 153
TP131 B 94 151
TP132 B 70 86
TP133 B 79 87
TP134 B 70 96
TP135 B 104 88
TP136 B 95 96
TP137 B 92 89
TP138 B 69 17
TP139 B 75 33
TP140 B 75 37
TP141 B 75 41
TP142 B 72 43
2 - 13
Page 32
GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
Y
0102030405060708090100110120130140
X
tp9
TP89
TP80
TP88
TP71
TP51
TP135 TP 49
TP45
TP137
TP41
TP43
TP62
TP60
TP55
TP65
TP134
TP138
TP68
TP57
tp6
TP72 TP73
tp103
TP101
TP97
TP74
TP98
TP70 TP69
TP125
TP126
TP102
tp110
TP83
TP82
TP86
TP75
TP81
TP46
TP63
TP54
TP52
TP56
TP76
TP94
TP66
tp109
TP87
TP77
TP78
TP79
TP47
TP136
TP48
TP50
TP44
TP133
TP61
TP132
TP64 TP141 T P140
tp11
tp8
TP67
tp7
TP93
TP95
TP96 TP100 TP106
tp108
TP107
TP142
TP139
tp112
TP99 TP104 TP105
TRANSPORT LINE
Chassisplatte / Chassis Board YTD190R-4 Ansicht von der Lötseite / View of Solder Side
2 - 14
Page 33
GRUNDIG Service Chassis TD / TE
Chassisplatte / Chassis Board YTD190R-7
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
C2 T 79 111
C4 T 79 115
C100 T 106 161
C101 T 123 111
C102 T 120 115
C103 T 123 108
C104 T 137 142
C105 T 120 112
C106 T 103 109
C107 T 120 55
C108 T 139 144
C109 T 108 161
C110 T 120 118
C111 T 68 121
C112 T 81 120
C113 T 80 107
C114 T 106 105
C115 T 100 108
C116 T 101 106
C117 T 101 108
C118 T 104 106
C119 T 117 108
C120 T 87 108
C121 T 80 109
C122 T 120 128
C123 T 105 145
C124 T 84 120
C125 T 91 144
C126 T 83 142
C127 T 81 115
C128 T 81 113
C129 T 119 108
C130 T 120 108
C131 T 70 121
C132 T 84 122
C133 T 120 126
C134 T 83 126
C135 T 101 144
C136 T 83 140
C137 T 92 144
C138 T 123 114
C139 T 121 115
C140 T 120 131
C141 T 122 134
C142 T 122 137
C143 T 113 144
C144 T 106 144
C145 T 112 150
C146 T 111 148
C147 T 70 109
C148 T 67 103
C149 T 116 108
C200 T 85 86
C201 T 104 86
C300 T 101 152
C301 T 139 141
C302 T 137 150
C303 T 131 156
C304 T 130 157
C305 T 134 153
C306 T 125 161
C307 T 125 138
C308 T 138 149
C309 T 122 140
C310 T 74 10
C311 T 61 8
C312 T 72 6
C313 T 77 6
C314 T 62 8
C315 T 78 6
C316 T 74 6
C317 T 55 140
C318 T 53 140
C322 T 118 31
C400 T 130 14
C401 T 126 14
C402 T 74 19
C403 T 78 13
C404 T 79 34
C405 T 80 32
C406 T 130 17
C407 T 127 17
C408 T 80 34
C409 T 80 23
C410 T 80 18
C411 T 79 17
C412 T 80 20
C500 T 129 42
C501 T 128 40
C502 T 125 45
C503 T 130 38
C504 T 129 34
C505 T 118 17
C506 T 128 38
C507 T 127 34
C508 T 132 38
C509 T 114 35
C510 T 130 37
C511 T 114 15
C512 T 133 40
C513 T 116 10
C514 T 114 17
C515 T 114 28
C516 T 114 26
C517 T 121 31
C518 T 121 29
C519 T 115 46
C520 T 114 42
C521 T 114 37
C522 T 115 44
C523 T 115 42
C600 T 70 59
C601 T 69 59
C602 T 77 39
C603 T 76 36
C604 T 74 29
C605 T 77 34
C606 T 80 47
C607 T 31 27
C608 T 30 27
C609 T 31 22
C610 T 31 41
C611 T 31 36
C612 T 31 50
C613 T 31 43
C614 T 78 61
C615 T 75 56
C616 T 78 58
C617 T 65 63
C618 T 76 65
C619 T 64 56
C620 T 64 59
C621 T 75 58
C622 T 75 61
C623 T 67 63
C624 T 67 56
C625 T 67 61
C626 T 130 34
C627 T 129 31
C628 T 130 28
C629 T 130 26
C630 T 134 74
C631 T 134 68
C632 T 134 71
C633 T 134 66
C634 T 134 59
C635 T 134 62
C636 T 134 54
C637 T 134 50
C638 T 134 56
C639 T 104 109
C700 T 30 63
C701 T 25 62
C702 T 36 66
C703 T 30 62
C704 T 133 84
C705 T 24 43
C706 T 27 31
C707 T 25 37
C708 T 25 31
C709 T 27 36
C710 T 24 34
C711 T 24 26
C712 T 26 65
C713 T 139 85
C714 T 24 66
C715 T 138 81
C716 T 50 65
C717 T 25 57
C718 T 48 75
C719 T 50 69
C720 T 42 65
C721 T 50 71
C722 T 37 64
C723 T 52 65
C724 T 47 71
C725 T 52 69
C726 T 42 62
C727 T 52 71
C728 T 38 62
C760 T 24 52
C761 T 24 38
C762 T 41 74
C763 T 24 53
C800 T 21 93
C801 T 12 125
C802 T 12 137
C803 T 14 81
C804 T 18 114
C805 T 28 98
C806 T 12 114
C807 T 23 114
C809 T 14 98
C810 T 22 119
C811 T 28 81
C812 T 21 95
C813 T 22 115
C814 T 16 93
C815 T 25 114
C821 T 32 81
C825 T 24 81
C827 T 78 28
C833 T 32 83
C834 T 24 83
C835 T 29 93
C836 T 10 83
C837 T 18 83
C838 T 10 81
C839 T 18 81
C840 T 28 83
C841 T 14 83
C900 T 47 134
C901 T 37 139
C902 T 47 129
C903 T 47 127
C904 T 47 131
C905 T 41 127
C906 T 32 148
C908 T 30 136
C909 T 24 135
C910 T 40 146
C911 T 20 150
C912 T 25 145
C913 T 26 132
C917 T 140 135
C920 T 48 137
C921 T 45 109
C922 T 51 118
C923 T 53 118
C924 T 55 118
C925 T 57 110
D100 T 121 22
D101 T 127 54
D102 T 70 106
D200 T 73 85
D201 T 93 88
D202 T 81 98
D203 T 84 98
D204 T 104 98
D205 T 109 98
D600 T 80 44
D700 T 45 74
D732 T 139 103
D733 T 140 103
IC100 T 67 106
IC101 T 93 160
IC102 T 102 159
IC200 T 79 84
IC201 T 98 84
IC300 T 95 151
IC301 T 124 151
IC400 T 77 20
IC500 T 121 37
IC600 T 69 62
IC700 T 136 84
IC701 T 46 65
IC702 T 33 73
IC800 T 21 106
IC801 T 12 146
IC900 T 38 135
IC902 T 137 125
IC903 T 24 131
IC904 T 50 110
L100 T 129 45
L101 T 65 122
L102 T 74 120
L103 T 114 32
L104 T 113 54
L105 T 79 105
L106 T 81 112
L107 T 120 106
L108 T 124 113
L109 T 111 152
L300 T 139 138
L301 T 74 12
L302 T 65 8
L303 T 72 8
L304 T 77 8
L400 T 129 14
L401 T 129 17
L500 T 121 13
L600 T 72 66
L700 T 36 68
L800 T 23 144
L801 T 31 88
L802 T 24 88
L805 T 11 88
L806 T 20 144
L807 T 17 88
L900 T 42 150
L901 T 40 150
L902 T 33 151
L903 T 32 151
L904 T 38 142
L905 T 29 147
L906 T 44 127
L907 T 43 132
L908 T 22 150
L910 T 45 139
L911 T 45 137
L912 T 45 111
L913 T 57 114
L914 T 53 114
R1 T 79 113
R61 T 109 149
R62 T 110 152
R63 T 115 144
R64 T 116 144
R68 T 133 129
R72 T 118 144
R100 T 109 161
R101 T 137 144
R102 T 97 161
R103 T 98 161
R104 T 139 145
R105 T 84 119
R106 T 71 110
R107 T 122 118
R108 T 96 147
R109 T 83 144
R110 T 69 110
R111 T 94 147
R112 T 83 145
R113 T 96 144
R114 T 83 147
R115 T 83 148
R116 T 103 107
R117 T 74 122
R118 T 83 143
R119 T 46 146
R120 T 77 122
R121 T 83 151
R122 T 72 122
R123 T 78 122
R200 T 85 85
R201 T 85 83
R202 T 85 82
R203 T 104 85
R204 T 104 83
R205 T 104 82
R206 T 87 83
R207 T 106 83
R208 T 87 82
R209 T 106 82
R210 T 87 85
R211 T 106 85
R212 T 71 88
R213 T 71 90
R214 T 71 94
R215 T 71 92
R216 T 94 96
R222 T 96 88
R223 T 96 90
R224 T 96 95
R225 T 96 92
R300 T 101 149
R301 T 101 147
R302 T 116 147
R303 T 64 6
R304 T 130 12
R305 T 62 6
R306 T 78 8
R307 T 75 6
R308 T 61 6
R309 T 70 6
R310 T 66 8
R311 T 66 6
R312 T 70 8
R313 T 45 161
R314 T 45 159
R315 T 44 161
R316 T 44 159
R317 T 44 150
R318 T 46 150
R400 T 74 16
R401 T 127 14
R402 T 78 23
R403 T 75 23
R404 T 80 36
R405 T 79 32
R406 T 77 17
R407 T 77 23
R408 T 126 17
R409 T 80 21
R410 T 80 17
R500 T 125 53
R501 T 120 27
R502 T 127 47
R503 T 121 25
R504 T 125 47
R505 T 125 55
R506 T 130 40
R507 T 121 27
R508 T 128 53
R509 T 127 37
R510 T 132 40
R511 T 129 37
R512 T 114 39
R513 T 128 55
R515 T 114 19
R516 T 115 28
R517 T 115 26
R518 T 118 29
R519 T 115 54
R520 T 115 39
R521 T 117 32
R522 T 121 30
R523 T 115 32
R524 T 118 30
R525 T 115 48
R526 T 115 35
R527 T 115 37
R528 T 103 63
R529 T 80 7
R530 T 80 61
R531 T 113 57
R532 T 114 48
R600 T 98 156
R601 T 98 158
R602 T 76 42
R603 T 74 42
R604 T 76 40
R605 T 74 40
R606 T 69 65
R607 T 69 57
R608 T 76 38
R609 T 74 38
R610 T 70 57
R611 T 74 36
R612 T 74 34
R613 T 74 27
R614 T 74 25
R615 T 76 34
R616 T 77 42
R617 T 74 45
R618 T 80 49
R619 T 31 24
R620 T 77 45
R621 T 30 24
R622 T 76 45
R623 T 30 22
R624 T 80 51
R625 T 31 39
R626 T 31 34
R627 T 31 48
R628 T 31 45
R629 T 76 56
R630 T 78 56
R631 T 64 58
R632 T 75 60
R633 T 64 61
R634 T 75 63
R635 T 67 58
R636 T 67 59
R637 T 130 32
R638 T 130 31
R639 T 129 28
R640 T 129 26
R641 T 134 70
R642 T 134 73
R643 T 134 61
R644 T 134 64
R645 T 134 53
R646 T 134 51
R648 T 117 28
R649 T 117 26
R700 T 28 63
R701 T 24 62
R703 T 139 83
R704 T 24 45
R705 T 24 47
R706 T 24 36
R707 T 24 50
R708 T 24 57
R709 T 34 63
R710 T 30 65
R711 T 29 65
R712 T 30 67
R713 T 24 28
R714 T 26 66
R715 T 25 34
R716 T 29 67
R717 T 139 81
R718 T 27 34
R719 T 24 31
R720 T 43 74
R721 T 50 63
R722 T 50 73
R723 T 50 66
R724 T 40 64
R725 T 38 64
R726 T 28 59
R727 T 48 73
R728 T 25 55
R729 T 48 69
R730 T 24 41
R731 T 52 63
R732 T 26 59
R733 T 24 59
R734 T 52 73
R735 T 52 66
R736 T 40 62
R737 T 37 62
R738 T 33 70
R739 T 28 70
R740 T 27 70
R741 T 30 77
R742 T 26 70
R743 T 33 72
R744 T 24 55
R800 T 13 93
R801 T 24 116
R802 T 16 114
R803 T 26 120
R804 T 22 117
R805 T 24 119
R806 T 21 117
R807 T 17 117
R808 T 18 117
R809 T 18 147
R810 T 18 79
R811 T 16 147
R812 T 18 145
R813 T 10 79
R814 T 16 145
R815 T 10 147
R816 T 24 79
R817 T 32 79
R818 T 16 149
R819 T 15 145
R820 T 10 144
R832 T 15 114
R834 T 26 94
R835 T 25 119
R836 T 6 144
R900 T 37 131
R901 T 35 131
R902 T 27 147
R903 T 32 146
R904 T 30 147
R905 T 137 122
R906 T 30 150
R907 T 35 151
R908 T 33 146
R909 T 33 148
R910 T 33 144
R911 T 32 144
R912 T 24 137
R913 T 40 131
R914 T 47 140
R915 T 28 132
R916 T 47 142
R917 T 44 141
R918 T 45 146
R919 T 43 146
R920 T 28 130
R928 T 137 129
R930 T 136 129
R931 T 35 145
R932 T 54 107
R933 T 54 109
R934 T 54 110
RN1 T 104 152
RN2 T 106 149
RN3 T 108 152
RN4 T 137 137
RN5 T 134 137
RN6 T 128 133
RN7 T 128 136
RN8 T 80 127
RN9 T 80 131
RN10 T 83 133
RN11 T 83 129
RN12 T 80 134
RN13 T 83 138
RN15 T 114 147
RN16 T 120 141
RN300 T 99 145
RN600 T 94 144
RN800 T 20 114
S100 T 29 155
S200 T 106 91
S300 T 67 26
S301 T 65 160
S302 T 68 137
S303 T 66 144
S304 T 65 137
S305 T 64 146
S306 T 66 157
S400 T 49 8
S402 T 126 8
S500 T 143 15
S600 T 81 91
S601 T 71 50
S602 T 145 28
S603 T 138 72
S604 T 138 58
S605 T 138 44
S700 T 14 44
S701 T 140 94
S702 T 41 78
S710 T 52 35
S711 T 39 35
S800 T 29 9
S901 T 140 5
S902 T 140 162
S903 T 5 162
S904 T 5 5
SAW100 T 118 55
SAW101 T 123 55
T103 T 126 50
T200 T 69 94
T202 T 94 94
T300 T 68 7
T600 T 114 22
T601 T 117 22
T700 T 32 66
T800 T 26 117
T801 T 8 146
T900 T 35 148
T901 T 137 132
T902 T 29 145
T903 T 49 140
T904 T 27 136
T905 T 45 143
TU301 T 111 12
U1 T 102 126
U600 T 76 50
X101 T 125 25
Y1 T 75 110
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
2 - 15
Page 34
GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
X
RN7
RN3
R211
1
RN1
1
1
1
1
R1
1
1
1
1
L301
1
8
C921
1
1
1
R931
1
4
R911
1
C302
1
RN4
R928
RN5
R930
R68
C510 R638 C628
R304C400C406
RN6 R513 R508
R511
R639C627
L400L401
R502
R401C407
L108
R500R505
C502R504
C103
C138
1
RN16 C130
C105
L107
R501
D100
R518
R64
1
R648R521
R63
R531
T600
C143
R62
C109
C100
RN2
C144
C639
C118
R103
RN300
R108 R113
R224 R225 R222
RN600
T202R2 16
1
C137
1
1
192
RN10
1
RN12
RN8
R530 D600
C606 504C404R816R
C412
R409
R410
R529
R123
C614
R620
C602
R402
C315R306
C618
R622 C 603R608R604
R307
R117
R617 R611R605 R609 C604 R613 R6 14
C402 R400
C316
R214R215 R212
IC600
L600
L303 C312
C131
D102
T200
R610
C111
L302
R303
R308C311
C924
C923
1
L914
C922
IC904
C721R722
R721C716
C900
1
R729
C724
R727
R313
R314
T905
R918
R119
R316
R315
R919
1
C905
C728R725
1
R737C722
R907
L902
R910R908
IC900
R743
R711
L903
1
R903
L801
R712
R628R627
C611
C610
R625 C609R619
R739
T904
R740
C712
C709 C706
C912
R912
R835
C815
L802
C701
R728
C717
C707 C7 08
L908
L800
L806
R806
R818 R814R811
R807
L807
R819 R832
IC801
R800
T901
C704
FID905
C303
C626 C629
C504
R640
D101
C309
C505
C102
SAW101
C129
C119
R649
HDMI1
C115
R223
C120
RN9
R624 C408
C410
C605
R616
R615R602
R612R603
C310
R213
C600
1
T903
R723
C718
COMPONENT
R710
T900
R909
C906
IC800
C613C612
R626 C607
L905
C913
R902
R714
R718
R715
R104
C108 R101
C104
D732
1
C630
R642
C632
C631
C635
R643
C634
C636
R645
C503 C506
R637
C141
C122
U1
R107C110
C101
C107
R524R522
C145
C146
1
S200
C519
R116
C114
1
R203
R207R204
R601
R600
R111
19 1
R210
R206 R201
39
C112
C4
C128
L106
C121
C113
1
D202
C616
L102
C147
19
S301
S305
L101
R633
C619
PC-IN
R318
51
R916
R914
C920
C904
L912
D700
C910
SW
C835
C833
C821
R817
R738
C700
C813
C807
C812
C800
C834
C825
R816
C711
1
S800
14
C809
C814
C841
C803
R836
C305
C308
C301
C917
L300
IC902 R905
C713
C715
R717
R641
R644
R646
C638
C637
C512
C306
C304
L100
IC500
C508
C500
C501R506
R509
R510
X101
C401R408
R72
C142
C140
C133
SAW100
C518
C322
R507
C517
R503
T601
L500
S402
R100
L109
R61
64
1
L104
R519
R532
C522 625R525R
C521
R520
R512
R527 R523
C515
R516
115C515R301L
C300 R300 R301 C135
C123
C116
D204
C201
R205
R209
R528
R102
D201
C125
S600
R208
RN13
RN11
R120
C2
C127
L105
IC200
R630
R405
R407
C409
C403
R406
C411
L304 C313
S304
R122
R106 R110
D200
R606 R607
1
T300
R312R309
S306
S303
IC100 C623
C620
C617
R631
S300
R311
R305C3 14
R310
2
S302
R933
L913 C925
R934
R734
C727 C723R731
30
C903
C902
C725
5V
5V
L901
L900
5V
L904
12V
C901
R900R913
S702
C762
R724 R7 36
C726
24V
S100
809C609R
R920
R741
T700
R716
R709
R700
C703
S711
C714
R621 R623
12V
12V
12V
GND
C911
C909
T800
R805
R803
C810
R804
RN800
R742
R701
C763
C760
R708
R744
R705 R7 04 C7 61 R706 317R037R R719
GND
GND
R812R809
R808
C804
R802
C806
FID904
T801
R820R815
C802
C801
L805
FID906
FID907
C633
R703
SIDE-V
SIDE-L
T103
C507
C139
RN15
C523
C520 C509 C514C516
R517
C117
40
C404
C827
LVDS
HDMI2
C601
U600
C318
C317
R932
R735
30
C719
GND
GND
PANEL
IC702
R720
R915
R904
R726
C608
IC903 R801 R733
R732
C705 C710R 707
S700
SIDE-R
IC701
C307
D733
S701
S603
S604
IC102
D205
C513
R115
R112
R109
C126
C136
C134
C132
C124
D203
R200
R634
C625
C621
C624
PC AUDIO
IC400
R317
51
C805
R834
C840
C811
C702
C720
C837 C836
C839 C838
R813R810
S904
S902
USB
IC700
S602
S-VIDEO
HEADPHONE
S500
S901
IC300
128
R302
C106
C149
IC201
TU301
Samsung
R121
R118
R114
R105
Y1
C148
C200
R202
R636
R632
C622
R635
R629C615
S601
R403
T902
R917
L911
L910
R901
L907
L906
L700
S710
S400
POWER
I
C30
1
BARCODE
S605
IC101
LG_AU42
S903
V-0
AV-1
YTD190R-7
LG ve AU
SPEAKER
Samsung/AU_32/37
KEYBOA RD
KEYBOARD
TRANSPORT LINE
19 19
20
21
20
21
4
5
7
6
9
8
17 16 15 14
3
1
2
13 12 11
Chassisplatte / Chassis Board YTD190R-7
Ansicht von der Bestückungsseite
View of Component Side
2 - 16
Page 35
GRUNDIG Service Chassis TD / TE
50
60
70
80
90
RN7
RN3
R211
1
RN1
1
1
1
1
R1
1
1
1
1
1
C921
1
1
R931
1
R911
1
C302
1
RN4
R928
RN5
R930
R68
RN6 R513 R508
L108
R500R505
C103
C138
1
RN16 C130
C105
L107
R64
R63
R531
C143
R62
C109
C100
RN2
C144
C639
C118
R103
RN300
R108 R113
R224 R225 R2 22
RN600
T202R2 16
1
C137
1
1
192
RN10
1
RN12
RN8
R530 D600
R123
C614
C618
R117
R214 R215 R212
IC600
L600
C131
D102
T200
R610
C111
C924
C923
1
L914
C922
IC904
C721R 722
R721C716
C900
1
R729
C724
R727
R313
R314
T905
R918
R119
R316
R315
R919
1
C905
C728R725
1
R737C722
R907
L902
R910R908
IC900
R743
R711
L903
1
R903
L801
R712
R739
T904
R740
C712
C912
R912
R835
C815
L802
C701
R728
C717
L908
L800
L806
R806
R818 R814R811
R807
L807
R819 R832
IC801
R800
T901
C704
C303
D101
C309
C102
SAW101
C129
C119
HDMI1
C115
R223
C120
RN9
R624 C408
R213
C600
1
T903
R723
C718
R710
T900
R909
C906
IC800
L905
C913
R902
R714
R104
C108 R101
C104
D732
1
C630
R642
C632
C631
C635
R643
C634
C636
R645
C141
C122
U1
R107 C110
C101
C107
C145
C146
1
S200
R116
C114
1
R203
R207R204
R601
R600
R111
19 1
R210
R206 R201
39
C112
C4
C128
L106
C121
C113
1
D202
C616
L102
C147
19
S301
S305
L101
R633
C619
R318
51
R916
R914
C920
C904
L912
D700
C910
SW
C835
C833
C821
R817
R738
C700
C813
C807
C812
C800
C834
C825
R816
14
C809
C814
C841
C803
R836
C305
C308
C301
C917
L300
IC902 R905
C713
C715
R717
R641
R644
R646
C638
C637
C306
C304
R72
C142
C140
C133
R100
L109
R61
64
1
L104
R519
C300 R300 R301 C135
C123
C116
D204
C201
R205
R209
R528
R102
D201
C125
S600
R208
RN13
RN11
R120
C2
C127
L105
IC200
R630
S304
R122
R106 R110
D200
R606 R607
S306
S303
IC100 C623
C620
C617
R631
2
S302
R933
L913 C925
R934
R734
C727 C7 23R7 31
30
C903
C902
C725
5V
5V
L901
L900
5V
L904
12V
C901
R900R913
S702
C762
R724 R736
C726
24V
S100
809C609R
R920
R741
T700
R716
R709
R700
C703
S711
C714
12V
12V
12V
GND
C911
C909
T800
R805
R803
C810
R804
RN800
R742
R701
C763
C760
R708
R744
GND
GND
R812R809
R808
C804
R802
C806
FID904
T801
R820R815
C802
C801
L805
FID907
C633
R703
SIDE-L
T103
C139
RN15
C117
40
LVDS
HDMI2
C601
U600
C318
C317
R932
R735
30
C719
GND
GND
PANEL
IC702
R720
R915
R904
R726
IC903 R801 R733
R732
SIDE-R
IC701
C307
D733
S701
S603
S604
IC102
D205
R115
R112
R109
C126
C136
C134
C132
C124
D203
R200
R634
C625
C621
C624
R317
51
C805
R834
C840
C811
C702
C720
C837 C836
C839 C838
R813R810
S902
USB
IC700
IC300
128
R302
C106
C149
IC201
TU301
Samsung
R121
R118
R114
R105
Y1
C148
C200
R202
R636
R632
C622
R635
R629C615
T902
R917
L911
L910
R901
L907
L906
L700
S710
POWER
I
C30
1
BARCODE
S605
IC101
LG_AU42
S903
V-0
YTD190R-7
LG ve AU
Samsung/AU_32/37
5
17 16 15 14
3
1
2
13 12 11
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
X
Chassisplatte / Chassis Board YTD190R-7 Ansicht von der Bestückungsseite / View of Component Side
2 - 17
Page 36
GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
X
R211
1
1
L301
1
8
1
1
4
C510 R638 C628
R304C400C406
R511
R639C627
L400L401
R502
R401C4 07
R500R505
C502R504
1
R501
D100
R518
1
R648R521
R531
T600
R224 R225 R2 22
T202R2 16
1
R530 D600
C606 504C404R816R
C412
R409
R410
R529
C614
R620
C602
R402
C315R306
C618
R622 C603R608R604
R307
R617 R611R605 R6 09 C604 R613 R614
C402 R400
C316
R214 R215 R212
IC600
L600
L303 C312
T200
R610
L302
R303
R308C 311
C721R 722
R721C716
1
R729
C724
R727
1
C728R725
1
R737C722
R743
R711
L801
R712
R628R627
C611
C610
R625 C609R619
R739
R740
C712
C709 C706
L802
C701
R728
C717
C707 C7 08
L807
R800
C704
FID905
C626 C629
C504
R640
D101
C505
SAW101
R649
HDMI1
R223
R624 C408
C410
C605
R616
R615R602
R612R603
C310
R213
C600
R723
C718
COMPONENT
R710
C613C612
R626 C60 7
R714
R718
R715
1
C630
R642
C632
C631
C635
R643
C634
C636
R645
C503 C506
R637
C107
R524R522
1
S200
C519
R203
R207R204
19 1
R210
R206 R201
C616
19
R633
C619
PC-IN
D700
SW
C835
C833
C821
R817
R738
C700
C812
C800
C834
C825
R816
C711
1
S800
C814
C841
C803
C713
C715
R717
R641
R644
R646
C638
C637
C512
L100
IC500
C508
C500
C501R506
R509
R510
X101
C401R4 08
SAW100
C518
C322
R507
C517
R503
T601
L500
S402
1
L104
R519
R532
C522 625R525R
C521
R520
R512
R527 R523
C515
R516
115C515R301L
C201
R205
R209
R528
D201
S600
R208
IC200
R630
R405
R407
C409
C403
R406
C411
L304 C 313
D200
R606 R607
1
T300
R312 R309
C620
C617
R631
S300
R311
R305C314
R310
R734
C727 C7 23R7 31
C725
S702
C762
R724 R736
C726
R741
T700
R716
R709
R700
C703
S711
C714
R621 R623
R742
R701
C763
C760
R708
R744
R705 R7 04 C761 R706 317R037R R719
L805
FID906
C633
R703
SIDE-V
SIDE-L
T103
C507
C523
C520 C509 C514C516
R517
C404
C827
HDMI2
C601
U600
R735
C719
IC702
R720
R726
C608
R732
C705 C710R707
S700
SIDE-R
IC701
S701
S603
S604
C513
R200
R634
C625
C621
C624
PC AUDIO
IC400
R834
C840
C811
C702
C720
C837 C836
C839 C838
R813R810
S904
USB
IC700
S602
S-VIDEO
HEADPHONE
S500
S901
IC201
TU301
C200
R202
R636
R632
C622
R635
R629C615
S601
R403
L700
S710
S400
S605
AV-1
SPEAKER
KEYBOARD
KEYBOARD
TRANSPORT LINE
19 19
20
21
20
21
4
5
7
6
9
8
Chassisplatte / Chassis Board YTD190R-7 Ansicht von der Bestückungsseite / View of Component Side
2 - 18
Page 37
GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
Y
0102030405060708090100110120130140
X
tp9
TP121
TP89
TP127
TP80
TP88
TP71
TP51
TP135 TP49
TP85
tp10
TP45
TP131
TP130
TP137
TP41
TP43
TP62
TP42
TP60
TP55
TP65
TP31
TP134
TP138
tp24
tp25
tp18
TP68
TP57
TP30
tp23
tp6
TP13
tp22
TP72 TP73
tp103
TP101
TP97
TP74
TP98
tp114
TP39
TP28
TP70 TP69
TP125
TP126
TP102
tp110
TP59 TP58 TP111
TP83
TP82
TP86
TP75
TP81
TP4
TP46
TP63
TP54
TP52
TP56
tp14
TP76
TP94
TP66
tp109
TP3
tp21
TP5 TP90TP92
TP87
TP77
TP78
TP79
TP2
TP47
TP129 TP128
TP136
TP1
TP48
TP50
TP44
TP40
TP133
TP61
TP34
TP36
TP29
TP33
TP35
TP37
TP113
TP132
TP64 TP141 TP140
tp11
tp8
tp27
tp12
TP38
tp26
TP67
tp7
tp20
tp15
tp122
tp17
TP93
TP95
tp117
tp115
TP116
TP118
TP123
TP119
TP91
TP124
TP96 TP100 TP1 06
tp108
TP107
TP32
TP53
TP142
TP139
TP16
tp19
TP84
tp112
TP99 TP104 TP105
V-0
POWER
TP144
TP143
YTD190R-7
TRANSPORT LINE
Chassisplatte / Chassis Board YTD190R-7
Ansicht von der Lötseite / View of Solder Side
2 - 19
Page 38
GRUNDIG Service Chassis TD / TE
50
60
70
80
90
100
110
120
130
140
150
160
TP121
TP89
TP127
TP88
TP51
TP135 T P49
TP85
tp10
TP45
TP131
TP130
TP137
TP62
TP42
TP65
TP31
TP134
tp24
tp25
tp18
TP68
TP30
tp23
TP13
tp22
TP72 TP73
tp103
TP101
TP97
tp114
TP39
TP28
TP70 TP69
TP125
TP126
TP102
TP59 TP58 TP111
TP83
TP86
TP4
TP46
TP54
TP52
tp14
TP94
TP3
tp21
TP5 TP90TP92
TP87
TP77
TP78
TP2
TP47
TP129 TP128
TP136
TP1
TP48
TP50
TP44
TP40
TP133
TP61
TP34
TP36
TP29
TP33
TP35
TP37
TP113
TP132
tp27
tp12
TP38
tp26
tp20
tp15
tp122
tp17
TP93
TP95
tp117
tp115
TP116
TP118
TP123
TP119
TP91
TP124
TP96 TP100 TP106
TP107
TP32
TP53
TP16
tp19
TP84
TP99 TP104 TP105
V-0
POWER
TP144
TP143
YTD190R-7
Y
0102030405060708090100110120130140
X
Chassisplatte / Chassis Board YTD190R-7 Ansicht von der Lötseite / View of Solder Side
POS. X Y POS. X Y
TP1 B 89 127
TP2 B 113 129
TP3 B 81 115
TP4 B 97 148
TP5 B 136 141
tp6 B 60 17
tp7 B 66 8
tp8 B 72 9
tp9 B 72 14
tp10 B 102 133
tp11 B 69 8
tp12 B 60 142
TP13 B 57 146
tp14 B 59 132
tp15 B 59 141
TP16 B 62 139
tp17 B 58 138
tp18 B 64 142
tp19 B 58 148
tp20 B 58 160
tp21 B 60 138
tp22 B 55 151
tp23 B 59 146
tp24 B 66 139
tp25 B 64 158
tp26 B 66 137
tp27 B 67 158
TP28 B 37 122
TP29 B 68 136
TP30 B 60 162
TP31 B 70 158
TP32 B 142 156
TP33 B 70 136
TP34 B 73 158
TP35 B 72 136
TP36 B 71 146
TP37 B 74 136
TP38 B 63 146
TP39 B 37 151
TP40 B 76 137
TP41 B 88 41
TP42 B 78 145
TP43 B 85 40
TP44 B 85 82
TP45 B 100 86
TP46 B 88 82
TP47 B 107 86
TP48 B 85 85
TP49 B 104 85
TP50 B 89 85
TP51 B 109 82
TP52 B 62 83
TP53 B 103 115
TP54 B 64 83
TP55 B 78 41
TP56 B 61 27
TP57 B 61 20
TP58 B 15 114
TP59 B 15 117
TP60 B 77 46
TP61 B 77 49
TP62 B 82 49
TP63 B 78 43
TP64 B 75 43
TP65 B 71 48
TP66 B 35 18
TP67 B 67 45
TP68 B 63 48
TP69 B 35 33
TP70 B 35 48
TP71 B 133 32
TP72 B 56 48
TP73 B 56 33
TP74 B 45 20
TP75 B 133 25
TP76 B 56 18
TP77 B 136 72
TP78 B 136 58
TP79 B 136 44
TP80 B 137 21
TP81 B 133 18
TP82 B 138 18
TP83 B 13 79
TP84 B 48 147
TP85 B 102 158
TP86 B 134 90
TP87 B 137 84
TP88 B 134 88
TP89 B 139 81
TP90 B 136 93
TP91 B 20 146
TP92 B 136 95
TP93 B 47 60
TP94 B 51 67
TP95 B 42 66
TP96 B 22 63
TP97 B 45 63
TP98 B 43 32
TP99 B 22 59
TP100 B 22 56
TP101 B 51 64
TP102 B 25 65
tp103 B 54 64
TP104 B 22 50
TP105 B 22 43
TP106 B 22 36
TP107 B 16 65
tp108 B 24 24
tp109 B 21 25
tp110 B 21 27
TP111 B 15 81
tp112 B 22 33
TP113 B 71 110
tp114 B 41 152
tp115 B 34 154
TP116 B 32 153
tp117 B 30 155
TP118 B 28 153
TP119 B 24 153
TP121 B 139 135
tp122 B 52 144
TP123 B 30 128
TP124 B 22 98
TP125 B 29 80
TP126 B 27 80
TP127 B 137 145
TP128 B 99 146
TP129 B 99 150
TP130 B 92 153
TP131 B 94 151
TP132 B 70 86
TP133 B 79 87
TP134 B 70 96
TP135 B 104 88
TP136 B 95 96
TP137 B 92 89
TP138 B 69 17
TP139 B 75 33
TP140 B 75 37
TP141 B 75 41
TP142 B 72 43
TP143 B 61 119
TP144 B 41 111
2 - 20
Page 39
GRUNDIG Service Chassis TD / TE
0
10
20
30
40
50
60
70
80
90
Y
0102030405060708090100110120130140
X
tp9
TP89
TP80
TP88
TP71
TP51
TP135 T P49
TP45
TP137
TP41
TP43
TP62
TP60
TP55
TP65
TP134
TP138
TP68
TP57
tp6
TP72 TP73
tp103
TP101
TP97
TP74
TP98
TP70 TP69
TP125
TP126
TP102
tp110
TP83
TP82
TP86
TP75
TP81
TP46
TP63
TP54
TP52
TP56
TP76
TP94
TP66
tp109
TP87
TP77
TP78
TP79
TP47
TP136
TP48
TP50
TP44
TP133
TP61
TP132
TP64 TP141 TP140
tp11
tp8
TP67
tp7
TP93
TP95
TP96 TP100 TP106
tp108
TP107
TP142
TP139
tp112
TP99 TP104 TP105
TRANSPORT LINE
Chassisplatte / Chassis Board YTD190R-7 Ansicht von der Lötseite / View of Solder Side
2 - 21
Page 40
GRUNDIG Service Chassis TD / TE
(1)
Chassisplatte – Netzteil / Chassis Board – Power Supply
S100
+5V2_STBY
+3.3V_STBY
+5V2_STBY
L909
FB
D500
S2A
L912
120R/100MHz
TP144
10uF / 10V
L904
120R/100MHz
TP39
10uF / 10V
VCC1.2V-ST
3
C915
1
1uF
Pd=0.6W
Thermal pad required
C921
C901
IC901
VOUT
VIN
ADJ
NCP1117DTARK
VCC1.2V-ST
IC904
6
EN
5
VINA
4
VINB
ST1S06PUR
VCC3.3V-ST
IC
900
6
EN
5
VINA
4
VINB
ST1S06PUR
450mA
+1.2V_STBY
2
C918
100nF
1
FB
2
GND
3
SW
GND
7
R900
84.5K 1%
R901
26.2K %1
R913
0R
L907
3u3
NR4018T3R3M
1
FB
2
GND
3
SW
GND
7
VCC2.5V
T901
DMN3150L
VCC5V
ZTL431AFFTA
Pd=0.6W
R905
3 2
100R
IC902
+3.3V_STBY VCC2.5V
TP120
C907
10uF 6.3V
X5R
OPTION FOR 0.5W
R933
R934
2K
3u3
R932
2K
2K
L914
C922 C923 C924
3x 10uF 6.3V X5R
L913
120R/100MHz
C902 C903 C904
3x 10uF 6.3V X5R
R928
1
100R
2
3 1
R930
NC
TP143
C925
10uF 6.3V X5R
TP121
C917
10uF 6.3V X5R
+1.2V_STBY
L906
120R/100MHz
VO/FB
TP28
C905
10uF 6.3V X5R
Pd=0.6W
+12V
1u 16V
ST1S06
REF
max 1200mA
+3.3V_STBY
C909
ZTL431AFFTA
Soft Start
VCC5V
T904
DMN3150L-7
3 2
R912
5.6K
POWER
1
C913
IC903
3 1
MOSEFET
OSC
Shut Down
1n
2
V
IN_A
Control
Logic
INH
SHLDSHLD
TP123
R915
5.36K 1%
R920
5.36K 1%
1
2
3
4
5
6
7
8
9
10
11
12
13
14
VCC5V+5V2_STBY
C908
10uF X7R
+
I_SEN
–
+
–
TP114
TP115
TP116
TP117
TP118
TP119
4x 120R/100MHz
EXT_DIM_OUT
+3.3V_STBY
V
IN_SW
R-sense
GND
L908
EXT_DIM_OUT
L902
L903
L905
C911
100nF 50V
+5V2_STBY
SW
R903
+12V
R906
4.7K
100nF 50V
R9
7
4K
04
1K
5
4 3
+3.3V_STBY
STBY
L910
120R/100MHz
L911
120R/100MHz
PANEL_ON
+24V
+12V
C912
C906
100nF
+5V2_STBY
R910
10K
R911
10K
Panel Power
C900
10uF
16V
+3.3V_STBY
R918
47K
L900
120R/100MHz
L901
120R/100MHz
R902
4K7
2
1 6
T902
BC847BDW1T1
C920
1uF
+5V2_STBY
1
R919
47K
+5V2_STBY
+5V2_STBY
R907
2 3
R914
22K
R917
4.7K
T905
BC848BLT1G
2 3
C910
100nF
4K7
T900
R909
1
10K
BC847BWT
T903
DMP2215
1
R916
10K
+3.3V_STBY
R908
10K
32
PANEL-VCC
TP122
BCKL_ON
1
4 5 6 7 8
9 0
Chassisplatte / Chassis Board – Tuner
R528
R529
R530
0R*
0R*
0R*
VCC5V
L500
10uH
100UF/16V
RF_AGC_A
C513
L103
60R/100Mhz
12
+
-
100n
R515
LG-TDTC-G4XXD
C511
TU301
Ant_PWR1B12RF_AGC3SCL4SDA5B26Vtu_TP7NC8NC9NC10IF211IF1
1K
C514
1nF
C515
33pF
C509
100n
R512
0R
R516
R517
C516
33pF
13
GND14GND15GND16GND
100R
100R
12
GND
R531
0R
5
SDA_5V
SCL_5V
4
IF_TV
R519
NC
C107
10nF
R505
6.8K
R513
2.2K
L104
1uH
D101
BA591
R500
2.2K
T103
BC847BWT
SAW101
K9656M
R508
0R
2
SECAM L ONLY
SAW100
K2982M/K3958M
2
VIF-PLL
10uH
C500
10uF/6.3V
X101
4MHz
15
NC(5)/VAGC(6)
10
VPLL
19 (21) )32( 12)61( 51)71( 61)8( 9
OUTPUT
PORTS
L100
C507
22pF
14
REF
11
R523
R527
10K
TAGC
SCL
R521
(1)Not connected for TDA9885.
RC VCO
22 (24)3 (1)
DIGITAL VCO CONTROL AFC DETECTOR
MAD
2
C-BUS TRANSCEIVER
I
11 (10)
VCC5V
R501
12K
R503
1K
D100
IMBD4148
R507
100K
7
R509
1K
R511
1K
13
NC
IC500
TDA9885(6)TS/V3
SIOMAD
6
12
SCL_5V
100R
SDA_5V
100R
C521
AUMONO
100nF
14 (15)
C
AGC(neg)
AFC
FMPLL
C520
10nF
20
VPP
DEEM
5
VAGC
C
BL
VIF-AGCTUNER AGC
SINGLE REFERENCE QSS MIXER
INTERCARRIER MIXER
AND AM DEMODULATOR
SIF-AGC
C
AGC
13 (6, 12, 13, 14, 17,
19, 25, 28, 29, 32)
n.c.AGND
C501
100nF
R506
C503
330R
1.5nF
C504
C506
470nF
220nF
19
18
16
17
VPLL
CVBS
AGND
DGND7TOP
AUD_OUT8SDA
AFD
9
6
R520
10K
C523
470nF
R526
10K
8
TOP
TAGC
2 (31)
VIF2
1 (30)
VIF1
24 (27)
SIF2
23 (26)
SIF1
SUPPLY
V
P
R502
47K
R504
10K
3
3
51
4
51
4
R532
NC
C502
10nF
24
VIF11VIF2
22
21
SIF123SIF2
OUT2
OUT1
2
3
4
C519
10nF
R525
9.1K
C522
390pF
TDA9885
TDA9886
7 (5)
RF_AGC_A
C505
47uF/16V
C508
100nF
C510
NC
C512
100nF
C517
100nF
R522
2.2K
4
REFAFC
12 (11)18 (20)20 (22)
SIOMADSDADGNDSCL
R510
47R
C518
100nF
C322
100nF
SOUND CARRIER
AUDIO PROCESSING
FM-PLL DEMODULATOR
TRAPS
4.5 to 6.5 MHz
AND SWITCHES
NARROW-BAND
4 (2)10 (9)
(18) 17
LLPMF2PO1PO
9
TUNER_CVBS
VCOM0
10
R518
SIF_P
47R
R524
SIF_M
47R
(7) 8
(3) 5
(4) 6
CVBS
AUD
DEEM
AFD
2 - 22
Page 41

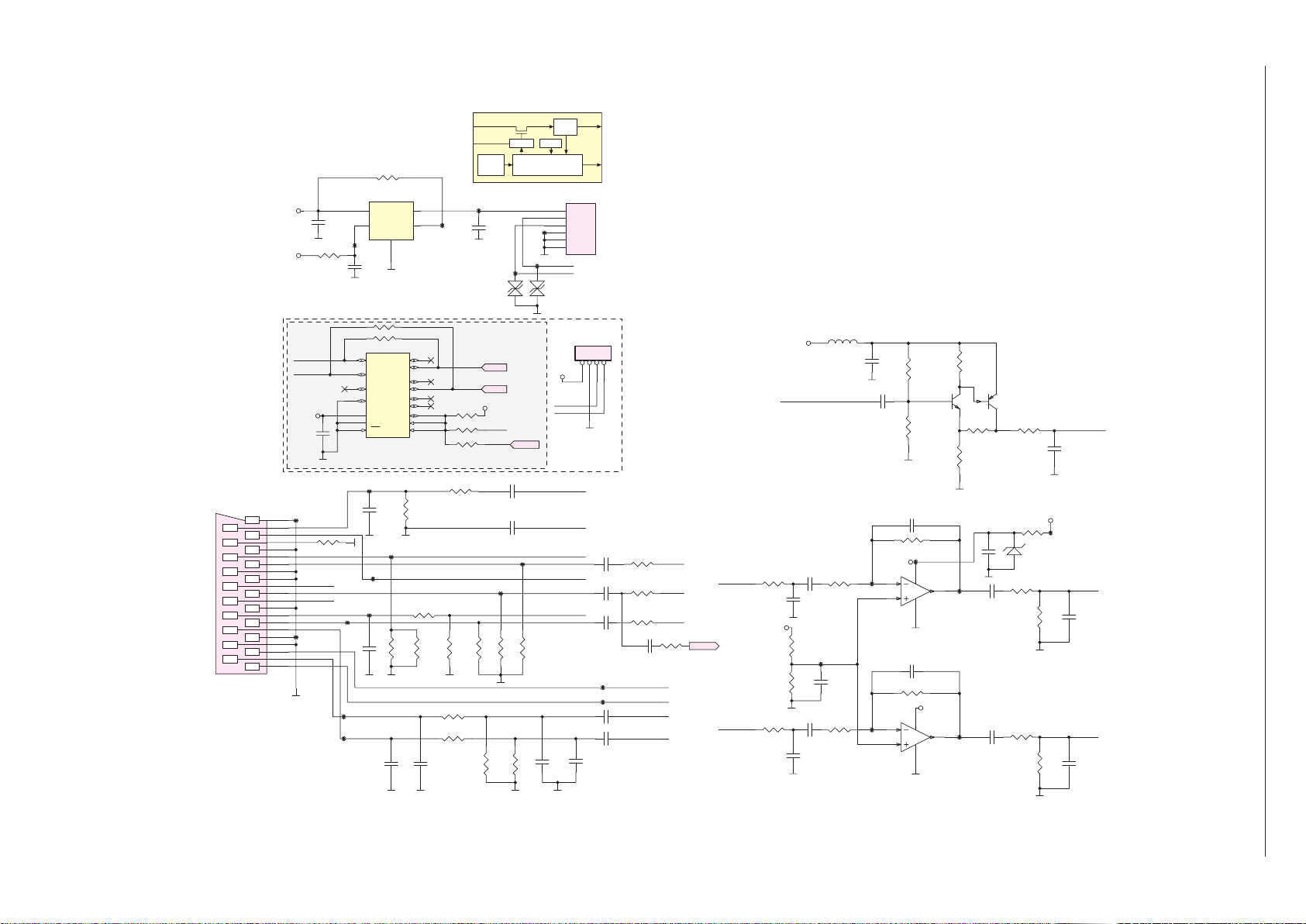

Chassisplatte / Chassis Board – SCART
SCART1_BLUE
SCART1_RED
SCART1_GREEN
SCART1-Rout
SCART1-Lout
SCART1-Lin
SCART1-CVBS_IN
SCART1_CVBSO
SCART1-Rin
SC1_CVBSO
SCART1-Rin
SCART1-Lin
C705
nc
R707
75R %1
R704 10K
C760
100nF
C710
330pF
C700
47nF
R713
10K
R715
10K
R705
2.7K
C703
47nF
R719
12K
2
4
6
8
10
12
14
16
20
1
3
5
7
9
11
13
15
17
19
21
S700
SCART
C701
NC/330p
C717
100nF
R718
12K
R701
75R %1
R700
47R
C706 2.2u F
C761
100nF
C708
560pF
R708
75R %1
C709
560pF
C707 2.2u F
R732
150R
C711
330pF
R726
47R
R706
75R %1
Full SCART
TP96
TP99
TP100
TP104
TP105
TP106
TP98
TP107
SC1_CVBS
SC1_CVBSO
R711
39K
R709
470R
C714
NC
C702
1u/10V
R716
75R
R712
270R
L700
300R/100MHz
R710
100k
R714
75R %1
VCC5V
2
61
5
43
T700
BC847BPDW1T1
C7122u2
SC_RIN
C763
47nF
R744
0R
R728
47R
SC_GIN
SC1_SLOWBLANK
SC_BIN
R730
47R
SC1_L_IN
SC1_R_IN
SC_LOUT
SC_ROUT
USB_DM
USB_DP
VBUS
C704
10uF 10V
R703
100K
C713
100nF
Vin
5
EN
4
GND
2
Fault
3
Vout
1
IC700
STMPS2171STR
VBUS
VCC
D-
D-
D+
D+
GND
GND
SHELL
5
SHELL
6
S701
TP87
TP90
TP92
R717
10K
C715
100nF
TP89
TP88
VCC5V
+5V2_STBY
USB option
TP86
SC_CVBS_OUT_SCALER
VCOM3
SC1_FASTBLANK
R734
1K
C721
1nF
R722
1K
C727
1nF
R 727
100k
R721
33K
+12V_A
R723
8.2K
C725
2.2uF
C724
4.7uF/10V
C728
4.7nF
R736
470R
R737
33K
C720
4u7 10V
R729
100k
R731
33K
+12V_A
R735
8.2K
C719
2.2uF
C716
220p
C722
4.7nF
R724
470R
R725
33K
C726
4u7 10V
8
1
4
3
2
1
IC701A
TL082
84
7
5
6
2
IC701B
TL082
C723
220p
+12V_A
R720
270R
TP97
TP101
TP94
TP95
TP93
TP103
TP91
C718
1uF 25V
SC1_LOUT
SC1_ROUT
SC_LOUT
SC_ROUT
+12V
TP108
TP109
TP110
TP112
TP102
R733
150R
D700
BZX384 C8V2 SOD323
D733
(AVLC18S02003)
D732
(AVLC18S02003)
18
X0
12
X1
13
Y1
1
Y0
2
A
11
Z0
5
Z1
3
Z
4
EN
6
B
10
C
9
X
14
Y
15
VDD
16
VEE
7
VSS
8
IC702
MC14053BDTR2
GND ISP: L- Normal mode, H- ISP mode
C762
100nF
TX SCART
RX SCART
TX SCART
RX SCART
R743 0R
R738 0R
R73910k
R7400R
VCC5V
VCC5V
ISP On
R7410R
ISP En
ISP En
RXD
TXD
SOGIN2
R742 0R
ISP On
RXD
TXD
RXD
TXD
123
4
SIP4
S702
From YTD190R-4
SW
VCC5V
STMPS2171
Driver
UVLO
Fault
Fault blanking/reporting
driver control unit
Thermal
sense
Current
sense
V
OUT
V
IN
EN
GRUNDIG Service Chassis TD / TE
2 - 23
Page 42
GRUNDIG Service Chassis TD / TE
5V_VGA
SDA_VGA
SCL_VGA
5V_VGA
RCA_R_IN
RXD
TXD
C4
20PF
R1 1M
R601
4.7K
XOUT
249
XIN
250
DDCA_DA / GPIOD8
177
DDCR_CK / GPIOD9
178
DDCA_DA / GPIOD10
179
DDCA_CK / GPIO
180
U1G
Y1
14.318MHz
C2
20PF
8
15
7
14
6
13
5
12
4
11
3
10
2
9
1
1617
VGA INPUT
R600
4.7K
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
U600
AT24C08
RIN_VGA
GIN_VGA
BIN_VGA
SOG
PB_IN
PC_L_IN
PC_R_IN
SAV_C
SAV_Y
SCL_MAIN
SDA_MAIN
VCOM1
VS_VGA
Y_IN
HS_VGA
R606
330R
R607
220R
R610
120R
C601
100n
C600
100n
L600
600R/100MHz
VCC
GND
1
2
43
5
IC600
NC7SZ32
SPDIF
RXD
TXD
TP58
TP59
1
3
5
7
2
4
6
8
RN600
4*22R
Pr-IN
Pb-IN
Y-IN
2
1
3
5
4
6
S711
CON_CHINCH
Pr (Red)
Pb (Blue)
Y (Green)
R623
75R
R626
75R
R628
75R
C609
10p
C611
10p
C613
10p
R621
47R
C608
100nF
C610
100nF
R625
47R
R627
47R
C612
100nF
PR_IN
C607
1nF
R619
470R
SOY
RCA_L_IN
COMP_LIN
COMP_RIN
2
1
3
5
4
6
S710
CON_CHINCH
Left(White)
Right(Red)
SPDIF(Black)
R631
10K
C617
2.2uF
R633
24K
C619
10p
R635
10K
R636
24K
C624
10p
C623
2.2uF
C620
560pF
C625
560pF
SPDIF_OUT
SPDIF_OUT
TP74
TP72
TP73
TP76
TP66
TP69
TP70
R603
2.2K
R605
2.2K
R602
100R
R604
100R
R608
47R
C602
100nF
R611
47R
C603
100nF
R613
47R
C604
100nF
R615
470R
C605
1nF
R60975R
R61275R
R61475R
SCL_VGA
SDA_VGA
R620100R
R622
100R
R616
4.7K
R617
4.7K
TP62
TP63
TP64
R624
10K
R618
10K
TP61
C606
100nF
TP60
3
1
2
D600
BAT54C
VCC5V
R629
10K
C614
2.2uF
R630
12K
C615
10p
R632
10K
R63412K
C621
10p
C618
2.2uF
C616
560pF
C622
560pF
TP65
TP67
GND
SIDE_L
SIDE_R
SIDE_V
1
2
S605
RCA_V
1
2
S603
RCA_L
1
2
S604
RCA_R
RED
WHITE
SIDE_C SIDE_Y
34
2 1
5
6
7
S602
S-VIDEO-Jack
R646
75R
C637
10p
R645
47R
C636
100nF
C638
100nF
SAV_CVBS_IN
R641
10K
C630
2.2uF
R642
24K
C631
10p
R643
10K
R644
24K
C634
10p
C633
2.2uF
C632
560pF
C635
560pF
SAV_R_IN
SAV_L_IN
TP68
TP78
TP79
TP77
R638
75R
C627
10p
R637
47R
C626
100nF
R640
75R
C629
10p
R639
47R
C628
100nF
.
TP71
TP75
RIGHT
GND
LEFT
S601
CON_EARPHONE_JACK
1
3 2
T600
2N7002
1
3 2
T601
2N7002
+3.3V_STBY
+3.3V_STBY
+3.3V_STBY
SCL_5V
SDA_5V
R648
4.7K
R649
4.7K
VCC5V
TP41
TP43
TP52
TP53
TP54TP55
TP56
TP57
VCOM2
C639
100nF
TP138
TP139
TP140
TP141
TP142
S300
Chassisplatte / Chassis Board – VGA, AV, USB
2 - 24
Page 43

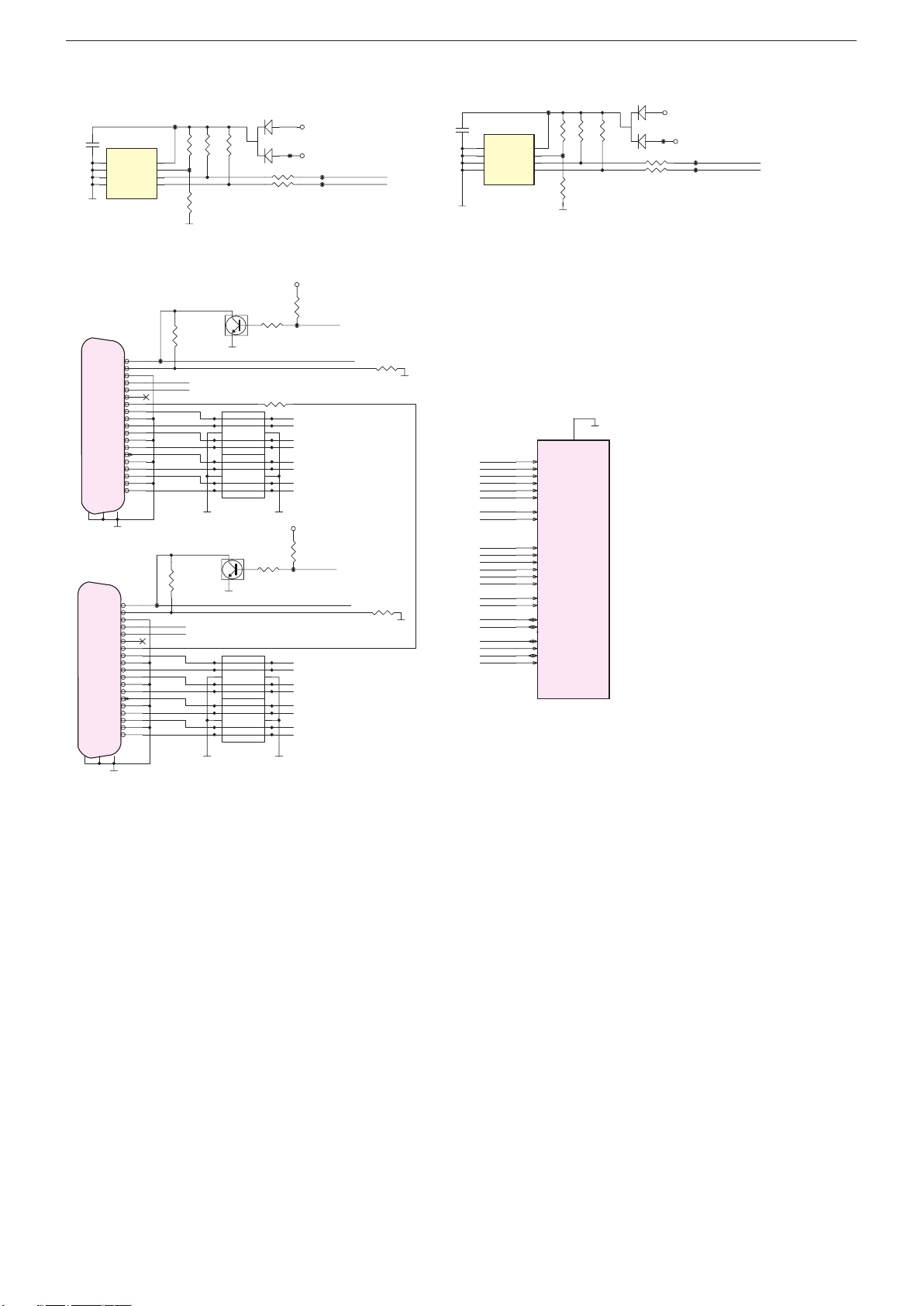

GRUNDIG Service Chassis TD / TE
HDMI-RXB0N
HDMI-RXB0P
HDMI-RXB1N
HDMI-RXB1P
HDMI-RXB2N
HDMI-RXB2P
HDMIB-CLKN
HDMIB-CLKP
HPD_CTRL_B
HDMIB-SDA
HDMIB-SCL
RXB1N
1
RXB1P
2
RXB2N
4
RXB2P
5
RXACLKN
9
RXACLKP
10
RXA0N
12
RXA0P
13
RXA1N
15
RXA1P
16
RXA2N
18
RXA2P
19
RXBCLKN
252
RXBCLKP
253
RXB0N
255
RXB0P
256
HPLUGB
6
HPLUGA
20
DDCDB_DA
7
DDCDB_CK
8
DDCDA_DA
22
DDCDA_CK
23
GND
257
U1B
MST69981DLD-LF-S1
RX2+
1
GND2
2
RX2-
3
RX1+
4
GND1
5
RX1-
6
RX0+
7
GND0
8
RX0-
9
CLK+
10
GND_CLK
11
CLK-
12
CEC
13
N.C.
14
SCL
15
SDA
16
CEC_GND
17
5V
18
HP_DETECT
19
202122
S600
RX2+
1
GND2
2
RX2-
3
RX1+
4
GND1
5
RX1-
6
RX0+
7
GND0
8
RX0-
9
CLK+
10
GND_CLK
11
CLK-
12
CEC
13
N.C.
14
SCL
15
SDA
16
CEC_GND
17
5V
18
HP_DETECT
19
202122
S200
HDMIA_5V
R224
1k
HPD_DET_A
T202
BC847BWT
R222
22k
R223
10k
R225
100k
HDMIB_5V
R214
1k
HPD_DET_B
T200
BC847BWT
R212
22K
R213
10k
R215
100k
+3.3V_STBY
+3.3V_STBY
HDMI-RXB0N
HDMI-RXB0P
HDMI-RXB1N
HDMI-RXB1P
HDMI-RXB2N
HDMI-RXB2P
HDMIB-CLKN
HDMIB-CLKP
HDMI-RXA0N
HDMI-RXA0P
HDMI-RXA1N
HDMI-RXA1P
HDMI-RXA2N
HDMI-RXA2P
HDMIA-CLKN
HDMIA-CLKP
HPD_CTRL_A
HDMI-RXA0N
HDMI-RXA0P
HDMI-RXA1N
HDMI-RXA1P
HDMI-RXA2N
HDMI-RXA2P
HDMIA-CLKN
HDMIA-CLKP
HPD_CTRL_B
HPD_CTRL_A
HDMIA-SDA
HDMIA-SCL
HDMIA-SDA
HDMIA-SCL
HDMIB-SDA
HDMIB-SCL
R202
2.7K
NC1
1
NC2
2
NC3
3
GND4SDA
5
SCL
6
VCLK
7
VCC
8
IC200
24C02
C200
100nF
R200
4.7K
R210
NC
3
1
2
D200
BAT54C
R201
2.7K
HDMIB_5V
VCC5V
TP48
TP50
TP46
TP44
R206
100R
R208
100R
R205
2.7K
NC1
1
NC2
2
NC3
3
GND4SDA
5
SCL
6
VCLK
7
VCC
8
IC201
24C02
C201
100nF
R203
4.7K
R211
NC
3
1
2
D201
BAT5 4C
R204
2.7K
HDMIA_5V
VCC5V
TP49
TP51
TP47
TP45
R207
100R
R209
100R
HDMIB-SCL
HDMIB-SDA
HDMIA-SDA
HDMIA-SCL
R216
0R
IN1
1
IN2
2
GND
3
IN3
4
IN45OUT4
6
OUT3
7
GND
3
OUT2
9
OUT1
10
D202 (Rclamp0524P)
IN1
1
IN2
2
GND
3
IN3
4
IN45OUT4
6
OUT3
7
GND
3
OUT2
9
OUT1
10
D203 (Rclamp0524P)
IN1
1
IN2
2
GND
3
IN3
4
IN45OUT4
6
OUT3
7
GND
3
OUT2
9
OUT1
10
D204 (Rclamp0524P)
IN1
1
IN2
2
GND
3
IN3
4
IN45OUT4
6
OUT3
7
GND
3
OUT2
9
OUT1
10
D205 (Rclamp0524P)
TP132
TP133
TP134
TP135
TP136
TP137
Chassisplatte / Chassis Board – HDMI
2 - 25
Page 44
Chassisplatte / Chassis Board – Scaler
PWM0
PWM2
PWM3
PWM1
R108
10K
C100
1uF
C110
100nF
C102
1UF
C105
100nF
L101
600R/100MHZ
R119
10k
C114
1NF
C127
1UF
R105 47R
C128
100nF
C117
100nF
C101
4.7UF
REXT
21
HSYNC1 / FSSW0
24
VSYNC1 / FBLK1
25
VCLAMP
26
REFP
27
REFM
28
BIN1
29
SOGIN1
30
GIN1
31
RIN1
32
BIN0
34
GIN0
36
SOGIN0
37
RIN0
38
HSYNC0 / FSSW0
41
VSYNC0 / FBLK0
42
VSYNC2 / FBLK2
43
BIN2
44
SOGIN2 / FSSW2
45
GIN2
46
RIN2
47
HW_RST
248
AD0
154
AD1
155
AD2
156
AD3
157
AD4
158
AD6
160
WRZ
162
ALE
164
INT
181
AD7
161
RDZ
163
AD5
159
U1H
MST69981DLD-LF-S1
C115
100nF
DI[0]
231
DI[1]
232
DI[2]
233
DI[3]
234
DI[4]
236
DI[5]
237
DI[6]
238
DI[7]
239
SPDIFI
242
AIWS
243
AISCK
244
AISD
245
AUSD1
246
AUSD2
247
VDI0
89
VDI1
90
VDI2
91
VDI3
92
VDI4
93
VDI5
94
VDI6
95
VDI7
96
VDICLK
97
GPIOF
98
SAR0 / GPIOD0
171
SAR1 / GPIOD1
172
SAR2 / GPIOD2
173
SAR3 / GPIOD3
174
PWM0 / CONFIG0
175
PWM1 / CONFIG1
176
IR_IN
182
GPIO_B6
186
PWM2 / CONFIG2
191
PWM3 / CONFIG3
192
UART0RX / ICLK
227
UART0TX / IDE
228
IHSYNC / GPIO
229
IVSYNC / GPIO
230
U1E
MST69981DLD-LF-S1
L105
600R 100MHz
L102
600R/100MHZ
VCOM3
33
VCOM2
35
C1/CVBS7
48
Y1/CVBS6
49
C0/CVBS5
50
Y0/CVBS4
51
CVBS3
52
CVBS2
53
CVBS1
54
VCOM1
55
CVBS0
56
VCOM0
57
SIF0P
62
SIF1P
64
SIFM
65
AUVRADN
67
AUVRADP
68
AUVREF
69
AUL0
71
AUR0
72
AUL1
73
AUR1
74
AUCOM
75
AUL2
76
AUR2
77
AUL3
78
AUR3
79
AUMONO
80
CVBSOUT1
59
CVBSOUT0
60
AUOUTL3
81
AUOUTR3
82
AUOUTL2
83
AUOUTR2
84
AUOUTL1
85
AUOUTR1
86
AUOUTL0
87
AUOUTR0
88
U1C
MST69981DLD-LF-S1
USB_VBUS
187
USB_DM
188
USB_DP
189
USB_CID
190
GPIO_E3
223
GPIO_E2
224
GPIO_E1
225
GPIO_E0
226
U1D
MST69981DLD-LF-S1
L108
600R/100MHZ
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC101
M24C32
C116
100nF
L107
600R/100MHZ
R107 0R
3V3_AVDD_0
14
3V3_AVDD_1
39
3V3_AVDD_2
58
3V3_SIF
63
3V3_AU
70
3V3_IO
99
2V5_MEM
108
2V5_MEM
114
2V5_MEM
119
2V5_MEM
135
3V3_MPLL
136
2V5_MEM
147
3V3_IO
165
3V3_IO
183
3V3_IO
194
3V3_IO
207
3V3_IO
221
3V3_IO
235
3V3_PLL
251
3V3_AVDD_3
254
GND_0
3
GND_1
11
GND_2
17
GND_3
40
GND_4
61
GND_5
66
GND_6
100
1V2_VDD
101
GND_7
105
GND_8
113
GND_9
134
GND_10
148
1V2_VDD
149
GND_11
166
GND_12
184
1V2_VDD
185
1V2_VDD
193
GND_13
208
GND_14
222
1V2_VDD
240
GND_15
241
U1A
MST69981DLD-LF-S1
L109
600R/100MHZ
L106
600R/100MHZ
R116 390R
R111
10K
3V3_AN
3V3_DIG
3V3_AN
3V3_AN
3V3_DIG
1V2_MVDD
1V2_MVDD
2V5_MDDR
KEY2(OPT)
KEY1
IR_IN
SPDIF
RIN_VGA
SOG
GIN_VGA
BIN_VGA
HS_VGA
VS_VGA
SOY
Y_IN
PB_IN
PR_IN
SC1_CVBS
SC_GIN
SC_RIN
SC_BIN
SC1_SLOWBLANK
SC1_FASTBLANK
LED
STBY
BCKL_ON
FLASH_WP
MRST
PANEL_ON
SC1_ROUT
SC1_LOUT
HP_LEFT
HP_RIGHT
SCL_MAIN
SDA_MAIN
SIF_M
SIF_P
PC_L_IN
PC_R_IN
SAV_Y
SAV_C
SAV_CVBS_IN
VCOM1
TUNER_CVBS
VCOM0
SC1_CVBS
SC1_R_IN
SC1_L_IN
AUMONO
+3.3V_STBY
+3.3V_STBY
+3.3V_STBY
+3.3V_STBY
+3.3V_STBY +1.2V_STBY
C103
10uF / 6.3V
C129
1UF
C138
1UF
C145
1UF
C111
1UF
C113
1UF
C112
1UF
SYS_WP
C109
100nF
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC102
M24C32
SCL_MAIN
SDA_MAIN
R100
FB
EEPROM (Panel data)
EEPROM (Channel data)
PNL_WP
R102
4.7K
R103
4.7K
TP1
TP3
TP2
C130
100nF
C139
100nF
C131
100nF
C132
100nF
C133
100nF
C134
100nF
C135
100nF
C136
100nF
C137
100nF
C118
100nF
C119
100nF
C120
100nF
C121
100nF
C140
100nF
C141
100nF
C142
100nF
C143
100nF
C144
100nF
C146
100nF
C122
100nF
C123
100nF
C124
100nF
C125
100nF
C126
100nF
3V3_DIG
R113
10k
R112
10k
R109
10K
USB_DM
USB_DP
SC_CVBS_OUT_SCALER
VCOM3
VCOM2
RCA_R_IN
RCA_L_IN
SAV_R_IN
SAV_L_IN
EXT_DIM_OUT
R118
10k
C148
100n
R110
100R
Vcc
3
GND_1
1
RESET
2
IC100
STM810SWX6F
TP113
MRST
R106
(100K)
+3.3V_STBY
C147
(100n)
AUWS
AUMCKO
AUSCK
AUSD0
SYS_WP
PNL_WP
+3.3V_STBY
D102
(IMBD4148)
TP84
TP85
R123
10k
R120
10k
R122
10k
R117
10k
3V3_DIG
HW version resistors
BIT_SEL
VESA
R115
100R
R121
100R
DCR
R114
100R
Audio Reset
C106
100nF
C149
100nF
SOGIN2
10
9
2
STM809/810/811/812
COMPARE
V
RST
V
CC
DEBOUNCE
t
rec
Generator
MR
(1)
RST
(2)
2
power on (trigger: +5V2_STBY)
9
0
2 - 26
GRUNDIG Service Chassis TD / TE
Page 45

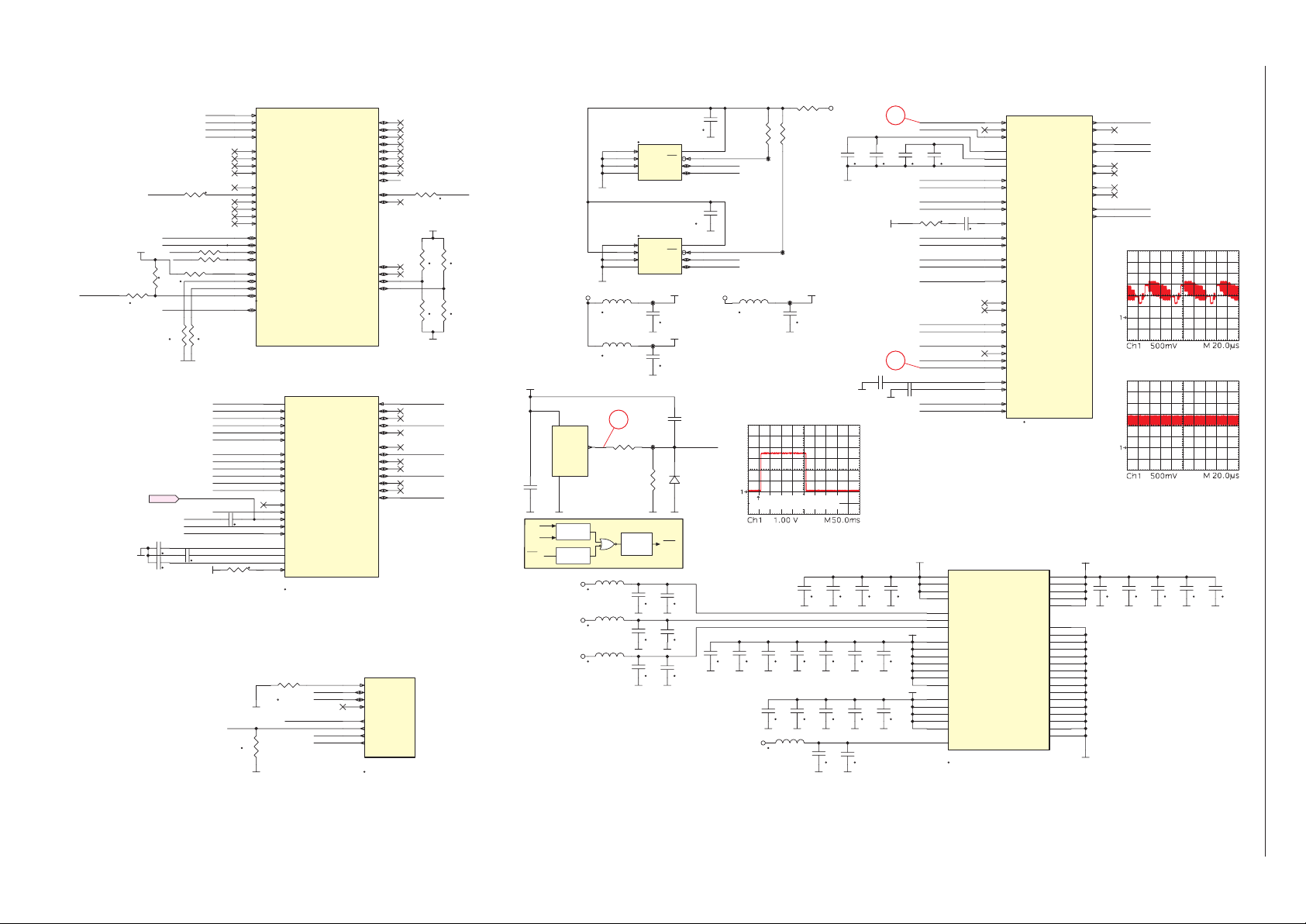

GRUNDIG Service Chassis TD / TE
DDR_D15
DDR_D14
DDR_D13
DDR_D12
DDR_D11
DDR_D10
DDR_D9
DDR_D8
DDR_D7
DDR_D6
DDR_D5
DDR_D4
DDR_D3
DDR_D2
DDR_D1
DDR_D0
DDR_A0
DDR_A1
DDR_A2
DDR_A3
DDR_A4
DDR_A5
DDR_A6
DDR_A7
DDR_A8
DDR_A9
DDR_A10
DDR_A11
DDR_BA0
DDR_BA1
DDR_RAS
DDR_CAS
DDR_WE
DDR_UDQM
DDR_CKE
DDR_LDQM
DDR_DQS1
DDR_DQS0
DDR_CLK+
DDR_CLK-
LVDSO_0-
LVDSO_0+
LVDSO_1-
LVDSO_1+
LVDSO_2-
LVDSO_2+
LVDSO_CLK-
LVDSO_CLK+
LVDSO_3-
LVDSO_3+
LVDSE_0-
LVDSE_0+
LVDSE_1-
LVDSE_1+
LVDSE_2-
LVDSE_2+
LVDSE_CLK-
LVDSE_CLK+
LVDSO_4+
LVDSE_4-
LVDSE_3+
LVDSE_3-
LVDSE_4+
LVDSO_4-
FLASH_CSA
FLASH_SDO
FLASH_SDI
FLASH_CLK
DDR_D15
DDR_D14
DDR_D13
DDR_D12
DDR_D11
DDR_D10
DDR_D9
DDR_D8
DDR_D7
DDR_D6
DDR_D5
DDR_D4
DDR_D3
DDR_D2
DDR_D1
DDR_D0
DDR_DQS0
DDR_LDQM
DDR_UDQM
DDR_DQS1
DDR_CKE
DDR_CLK-
DDR_CLK+
DDR_BA1
DDR_BA0
DDR_RAS
DDR_CAS
DDR_WE
DDR_A11
DDR_A10
DDR_A9
DDR_A8
DDR_A7
DDR_A6
DDR_A5
DDR_A4
DDR_A3
DDR_A2
DDR_A1
DDR_A0
LVDSE_4+
LVDSE_4-
LVDSE_3+
LVDSE_3-
LVDSE_CLK+
LVDSE_CLK-
LVDSE_2+
LVDSE_2-
LVDSE_1+
LVDSE_1-
LVDSE_0+
LVDSE_0-
LVDSO_4+
LVDSO_4-
LVDSO_3+
LVDSO_3-
LVDSO_CLK+
LVDSO_CLK-
LVDSO_2+
LVDSO_2-
LVDSO_1+
LVDSO_1-
LVDSO_0+
LVDSO_0-
FLASH_CLK
FLASH_SDI
FLASH_CSA
FLASH_SDO
1
3
5
7
2
4
6
8
RN15 4*47R
1
3
5
7
2
4
6
8
RN44*47R
1
3
5
7
2
4
6
8
RN64*47R
C300
100nF
C104
100nF
R101
4.7k
R302
150R
R61 47R
R6847R
1
3
5
7
2
4
6
8
RN104*47 R
VDD0
1
DQ0
2
VDDQ0
3
DQ1
4
DQ2
5
VSSQ0
6
DQ3
7
DQ4
8
VDDQ1
9
DQ5
10
DQ6
11
VSSQ1
12
DQ7
13
NC0
14
VDDQ2
15
LDQS
16
NC1
17
VDD1
18
NC2
19
LDM
20
WE
21
CAS
22
RAS
23
CS
24
NC3
25
BA0
26
BA1
27
A10(AP)
28
A0
29
A1
30
A2
31
A3
32
VDD2
33
VSS1
66
DQ15
65
VSSQ2
64
DQ14
63
DQ13
62
VDDQ3
61
DQ12
60
DQ11
59
VSSQ3
58
DQ10
57
DQ9
56
VDDQ4
55
DQ8
54
NC4
53
VSSQ4
52
UDQS
51
NC5
50
VREF
49
VSS0
48
UDM
47
CK
46
CK
45
CKE
44
NC6
43
A12
42
A11
41
A9
40
A8
39
A7
38
A6
37
A5
36
A4
35
VSS2
34
IC301
HY5DU281622F(L)TP-4
R301
22k
1
3
5
7
2
4
6
8
RN114*47 R
1
3
5
7
2
4
6
8
RN74*47R
1
3
5
7
2
4
6
8
RN3 4*47R
1
3
5
7
2
4
6
8
RN16 4*47R
1
3
5
7
2
4
6
8
RN124*47 R
R300
NC/22K
DDR_D03
120
DDR_D02
121
DDR_D01
122
DDR_D00
123
DDR_D15
103
DDR_D14
104
DDR_D13
106
DDR_D12
107
DDR_D11
109
DDR_D10
110
DDR_D09
111
DDR_D08
112
DDR_D07
115
DDR_D06
116
DDR_D05
117
DDR_D04
118
DQS1
102
DQS0
124
LDQM
125
UDQM
126
VREF
127
DDR_CKE
128
DDR_CK-
129
DDR_CK+
130
BA1
131
BA0
132
RAS
133
CAS
137
WE
138
DDR_A00
139
DDR_A01
140
DDR_A02
141
DDR_A03
142
DDR_A04
143
DDR_A05
144
DDR_A06
145
DDR_A07
146
DDR_A08
150
DDR_A09
151
DDR_A10
152
DDR_A11
153
LVA4+
195
LVA4-
196
LVA3+
197
LVA3-
198
LVACLK+
199
LVACLK-
200
LVA2+
201
LVA2-
202
LVA1+
203
LVA1-
204
LVA0+
205
LVA0-
206
LVB4+
209
LVB4-
210
LVB3+
211
LVB3-
212
LVBCLK+
213
LVBCLK-
214
LVB2+
215
LVB2-
216
LVB1+
217
LVB1-
218
LVB0+
219
LVB0-
220
SCK
167
SDI
168
CSZ
169
SDO
170
U1F
MST69981DLD-LF-S1
R7247R
R62 47R
R630R
R640R
1
3
5
7
2
4
6
8
RN134*47 R
1
3
5
7
2
4
6
8
RN2 4*47R
1
3
5
7
2
4
6
8
RN94*47R
1
3
5
7
2
4
6
8
RN84*47 R
L300
120R/100MHZ
1
3
5
7
2
4
6
8
RN14*47R
1
3
5
7
2
4
6
8
RN54*47R
R104
4.7k
C302
100nF
C108
100nF
2V5_MDDR
2V5_MDDR
2V5_MDDR
VREF_MDDR
2V5_MDDR
3V3_DIG
VREF_MDDR
FLASH_WP
VCC2.5V
1
3
5
7
2
4
6
8
RN300 4*47R
SAR0
SAR1
R311
470R
R308 100R
R307
1K
R305
10K
1
2
3
4
5
6
7
8
SHLD
SHLD
S400
Keyboard
R306
4K7
R309
47k
R3101K
TP11
TP9
TP8
TP7
TP6
R312 10K
L304 FB600
L303 FB600
L302 FB600
L301 FB600
C310
47p
TP10
R304
0R
R303
0R
+3.3V_STBY +3.3V_STBY+5V2_STBY
+3.3V_STBY
+3.3V_STBY
LED
TP4
C301
10uF/6.3V
TP5
C303
100nF
C304
100nF
C305
100nF
C306
100nF
C307
100nF
C308
100nF
C309
100nF
C311
47p
C312
47p
C313
47p
C314
47p
C315
47p
C316
47p
8/10 bit LVDS PANEL
LVDS I/F
C317
1uF
R315
1K
R317
1K *
R318
0R
R316
*
BIT_SEL
VESA
JEIDA
41
41
42
42
112
2
334
4
556
6
778
8
9910
10
111112
12
131314
14
151516
16
171718
18
191920
20
212122
22
232324
24
252526
26
272728
28
292930
30
313132
32
333334
34
353536
36
373738
38
393940
40
S302
40PLVDS
DCR
VESA
BIT_SEL
R313
1K
R314
0R *
DCR
BIT_SEL: H-10bit
BIT_SEL: L-8bit VESA: L-VESA
VESA: H-JEIDA
DCR: L-OFF
DCR: H-ON
30P - 8bit LVDS
40p - 10bit LVDS or 8bit with DCR
VCC_Panel
TP13
TP15
TP17
TP19
TP21
TP23
TP12
TP14
TP16
TP18
TP20
TP22
TP24
TP25
TP26
TP27
TP29
TP31
TP33
TP34
TP35
TP36
TP37
TP38
TP40
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
31
P32
32
S301
MOLEX_2*15
LG ve AU
LVDSE_0-
LVDSE_0+
LVDSE_1-
LVDSE_1+
LVDSE_2-
LVDSE_2+
LVDSE_CLK-
LVDSE_CLK+
LVDSE_3+
LVDSE_3-
DCR
VESA
+3.3V_STBY
PANEL-VCC
VCC_Panel
+3.3V_STBY
TP30
TP32
+3.3V_STBY
TP42
IR_IN
KEY1
KEY2(OPT)
1
2 3
T300
BC847BWT
C318
1uF
VCC_Panel
LVDSO_CLK-
LVDSO_CLK+
LVDSO_3-
LVDSO_3+
LVDSE_0-
LVDSE_0+
LVDSE_1-
LVDSE_1+
LVDSE_2-
LVDSE_2+
LVDSE_CLK-
LVDSE_CLK+
LVDSE_3+
LVDSE_3-
LVDSO_0-
LVDSO_0+
LVDSO_1-
LVDSO_1+
LVDSO_2-
LVDSO_2+
VESA
DO
2
WP#
3
CS#
1
VSS4DI
5
CLK
6
HOLD#
7
VCC
8
IC300
EN25F80
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
SHLD7SHLD
8
S402
YY-1654-06SR-NH
P5_IR
GND
P2_SAR1
P3_LED
P4_VCC
P6_SAR0
GND
P2_SAR1
P6_SAR0
P3_LED
P4_VCC
P5_IR
LVDS I/F
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
31
P32
32
S304
MOLEX_2*15
LVDSE_3+
LVDSE_3-
LVDSE_0+
LVDSE_1-
LVDSE_1+
LVDSE_2-
LVDSE_2+
LVDSE_CLK-
LVDSE_CLK+
LVDSE_0-
LVDSO_2-
DCR
LVDSO_1+
LVDSO_3+
LVDSO_1-
LVDSO_3-
LVDSO_0+
LVDSO_CLK+
LVDSO_0-
LVDSO_CLK-
PANEL-VCC
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
31
P32
32
P33
33
P34
34
P35
35
P36
36
P37
37
P38
38
P39
39
P40
40
P41
41
P42
42
P43
43
P44
44
P45
45
P46
46
P47
47
P48
48
P49
49
P50
50
P51
51
52
53
S303
P-TWO_196182-51041
LVDSO_2+
VESA
TP127
TP128
TP129
TP130
TP131
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
31
P32
32
P33
33
P34
34
P35
35
P36
36
P37
37
P38
38
P39
39
P40
40
P41
41
P42
42
P43
43
P44
44
P45
45
P46
46
P47
47
P48
48
P49
49
P50
50
P51
51
52
53
S305
LG_AU42
VESA
VCC_Panel
BIT_SEL
LVDSO_CLK-
LVDSO_3-
LVDSO_3+
LVDSE_0-
LVDSE_0+
LVDSE_1-
LVDSE_1+
LVDSE_2-
LVDSE_2+
LVDSE_CLK-
LVDSE_CLK+
LVDSE_3+
LVDSE_3-
LVDSO_0-
LVDSO_0+
LVDSO_1-
LVDSO_1+
LVDSO_2-
LVDSO_2+
LVDSO_CLK+
LVDSO_4+
LVDSE_4-
LVDSE_4+
LVDSO_4-
LVDSE_0-
LVDSE_0+
LVDSE_1-
LVDSE_1+
LVDSE_2-
LVDSE_2+
LVDSE_CLK-
LVDSE_CLK+
LVDSE_3+
LVDSE_3-
VCC_Panel
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
31
P32
32
S306
Samsung
VESA
From YTD190R-4
Samsung/AU_32/37
From YTD190R-4
11
12
13
!
@
#
Chassisplatte / Chassis Board – Scaler
2 - 27
Page 46
TP111
TP125
TP124
TP126
R810
6R2
C804
1n
R813
6R2
GND
GND
TO SPEAKER
R816
6R2
C800
220n 50V X7R
C807
100n
C806
1uF
R817
6R2
C813
680
p
C805
100n
SP_RIGHT+
C809
100n
SP_LEFT+
GND
C810
4n7
L800
120R/100MHz/3A
C801
220/35
C814
330p
GND
1
2
3
4
S800
SPEAKER
GND
R802 100
C812
1u/35V
C815
100n
C802
220/35
R832 100
R804
2k2
R806
0
GND
GND_SUB
1
SA
2
TEST MODE
3
VSS_REG
4
VCC_REG
5
OUT2B
6
GND2
7
VCC2
8
OUT2A
9
OUT1B
10
VCC1
11
GND1
12
OUT1A
13
GND_REG
14
VDD_REG
15
CONFIG
16
OUT3B/DDX3B
17
OUT3A/DDX3A
18
EAPD/OUT4B
19
TWARN/OUT4A
20
VDD_DIG
21
GND_DIG
22
PWRDN
23
VDD_PLL
24
FILTER_PLL
25
PLL_GND
26
XTI
27
BICKI
28
LRCKI
29
SDI
30
RESET
31
INT_LINE
32
SDA
33
SCL
34
GND_DIG
35
VDD_DIG
36
GND_EXP
37
IC800
STA335BW
GND
AUWS
AUMCKO
AUSCK
AUSD0
GND
C835
330p
C837
100n
C836
100n
C833
100n
C821
100n
C839
100n
C838
100n
C834
100n
C825
100n
C803
220n 50V X7R
C811
220n 50V X7R
L806
120R/100MHz/3A
for SLIPS
C840
220n 50V X7R
C841
220n 50V X7R
TP83
R801
2R2
For 12V :
C801,802 -470uF/25V
L801
NR6045T220M
L802
NR6045T220M
L805
NR6045T220M
L807
NR6045T220M
R807
10k
R835
0R/NC
SP_LEFT-
SP_RIGHT-
+3.3V_STBY
GND
STBY
+3.3V_STBY
+3.3V_STBY
+12V
+24V
HP_LEFT
HP_RIGHT
C405
2.2nF
R410
10k
C411
2.2nF
C412
3.3nF
C410
1uF
C827
100uF/6.3V
C403
100uF/6.3V
C401
1nF
C407
1nF
C409
1uF
R402
33K
R407
10K
R403
22K
R406
22K
R405
10k
C408
3.3nF
C404
1uF
C402
4u7 10V
TP81
TP82
R404
470R
R409
470R
L400
SBY100505T-102Y
L401
SBY100505T- 102Y
C400
220pF
C406
220pF
RIGHT
LEFT
GND
Right
Left
GND
S500
Headphone
R400
0R
R401
1K
R408
1K
HPL
HPR
VCC
1
OUT1
2
VIN1
3
BP
4
GND
5
/SD
6
VIN2
7
OUT2
8
EXP
9
IC400
TS488IQT
TP80
VCC5V
+3.3V_STBY
1
2 3
T800
BC847BWT
R805
10K
R803
22K
+3.3V_STBY
SCL_MAIN
SDA_MAIN
1
3
5
7
2
4
6
8
RN800
4x100R
R808
NC 100R
R836
0R
FROM YTD190R-2
FROM
YTD190R-2
Audio Reset
1
3
5
7
2
4
6
8
R800
4x100R
R819
2K 1%
2
3 1
IC801
ZTL431AFFTA
T801
BC847B
R820
4.7k
R815
22K
R811
*
R814
1.2k %1
R809
330R %1
R818
10K
DE-POP
R812
10K
+5V2_STBY
+12V
+24V
DE-POP
1
3
5
7
2
4
6
8
R834
4x100R
20
21
19
19
18
14
15
16
17
3
CH
1A
CH
1B
LOGIC
POWERCONT
REGULATORS
PROTECTION
Current/Thermal
BIAS
I2C
I2S
DSP
Equalizer
Tones
Volumes
Bass
DDX
CH
2A
CH
1B
STA335BW
VIN1
2
VIN2
6
GND
VOUT2
7
VOUT1
1
BIAS
BPS
3
Vcc
85/9
STDB
5
TS488 = STDB
TS489 = STDB
3
$
%
^
&
*
(
)
¡
Chassisplatte – Verstärker / Chassis Board – Amplifier
2 - 28
GRUNDIG Service Chassis TD / TE
Page 47
GRUNDIG Service Chassis TD / TE

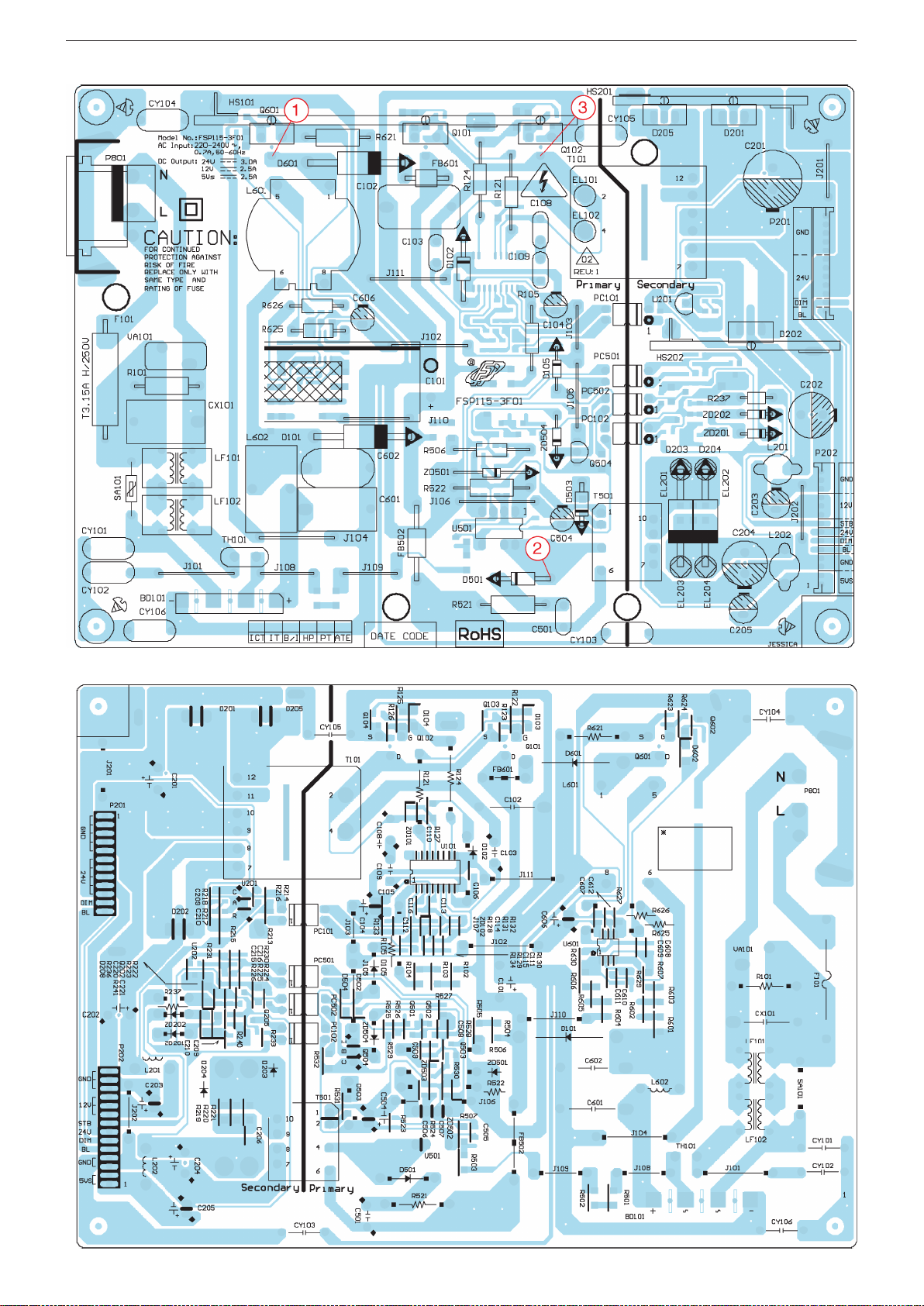

Netzteil / Power Supply FSP115-3F01 Ansicht von der Bestückungsseite / View of Component Side
Ansicht von der Lötseite / View of Solder Side
2 - 29
Loading...
