Page 1
TV Service Manual
Service
Manual
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
Chassis D6
19-2010 T DVD GBI0019
Vision 2
19-2930 T DVD GBH4719
22-2930 T DVD GBH4722
Zusätzlich erforderliche Unterlagen für den Komplettservice
Additionally required Service Documents for the Complete Service
Sicherheit
Safety
Materialnr./Part No.
720108000001
Materialnummer / Part Number 720100552000
Änderungen vorbehalten / Subject to alteration
TCC 0710 MP • Prepared in Germany
http://www.grundig.com
Page 2
GRUNDIG Service Chassis D6
Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Service Manual "Sicherheit", Materialnummer
720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
Inhaltsverzeichnis
Seite
Allgemeiner Teil .................................. 1-2…1-20
Allgemeine Hinweise .....................................................................1-2
Ausbauhinweise ............................................................................1-3
Geräte- und Display-Varianten ......................................................1-4
Technische Daten ..........................................................................1-5
Bedienhinweise .............................................................................1-7
Service- und Sonderfunktionen ...................................................1-19
Platinenabbildungen
und Schaltpläne .................................. 2-1…2-44
Chassisplatte YVL190R-3 ..............................................................2-1
– Netzteil ......................................................................................2-8
– Tuner ..........................................................................................2-8
– COFDM Demodulator ................................................................2-9

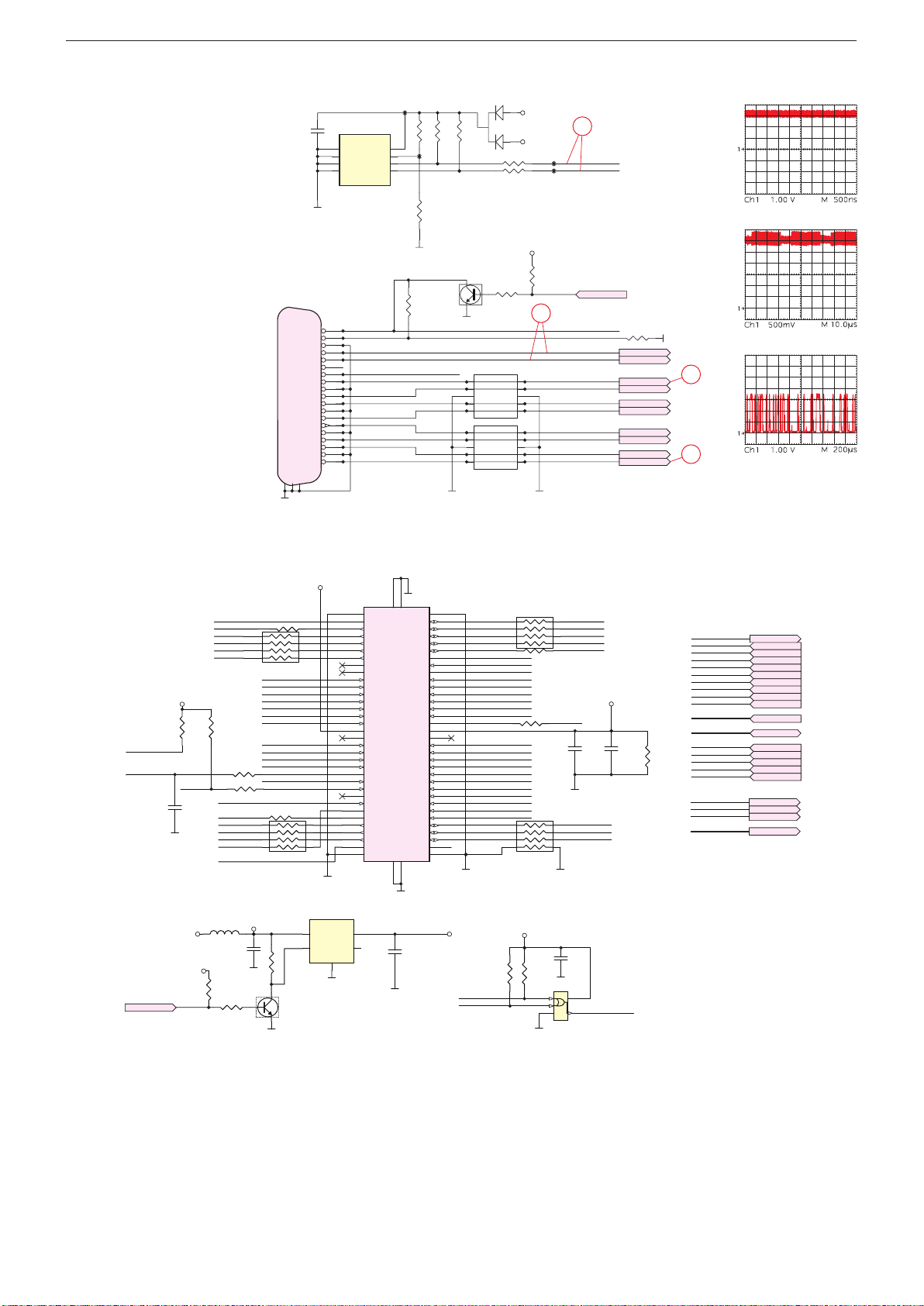

– Interface DVD, DMP, AV, USB ....................................................2-9
– SCART, VGA ............................................................................2-10
– HDMI........................................................................................2-11
– Common Interface ...................................................................2-11
– Scaler.......................................................................................2-12
– Verstärker .................................................................................2-15
Chassisplatte YVL190R-6 ............................................................2-16
– Netzteil ....................................................................................2-23
– Tuner ........................................................................................2-23
– COFDM Demodulator ..............................................................2-24

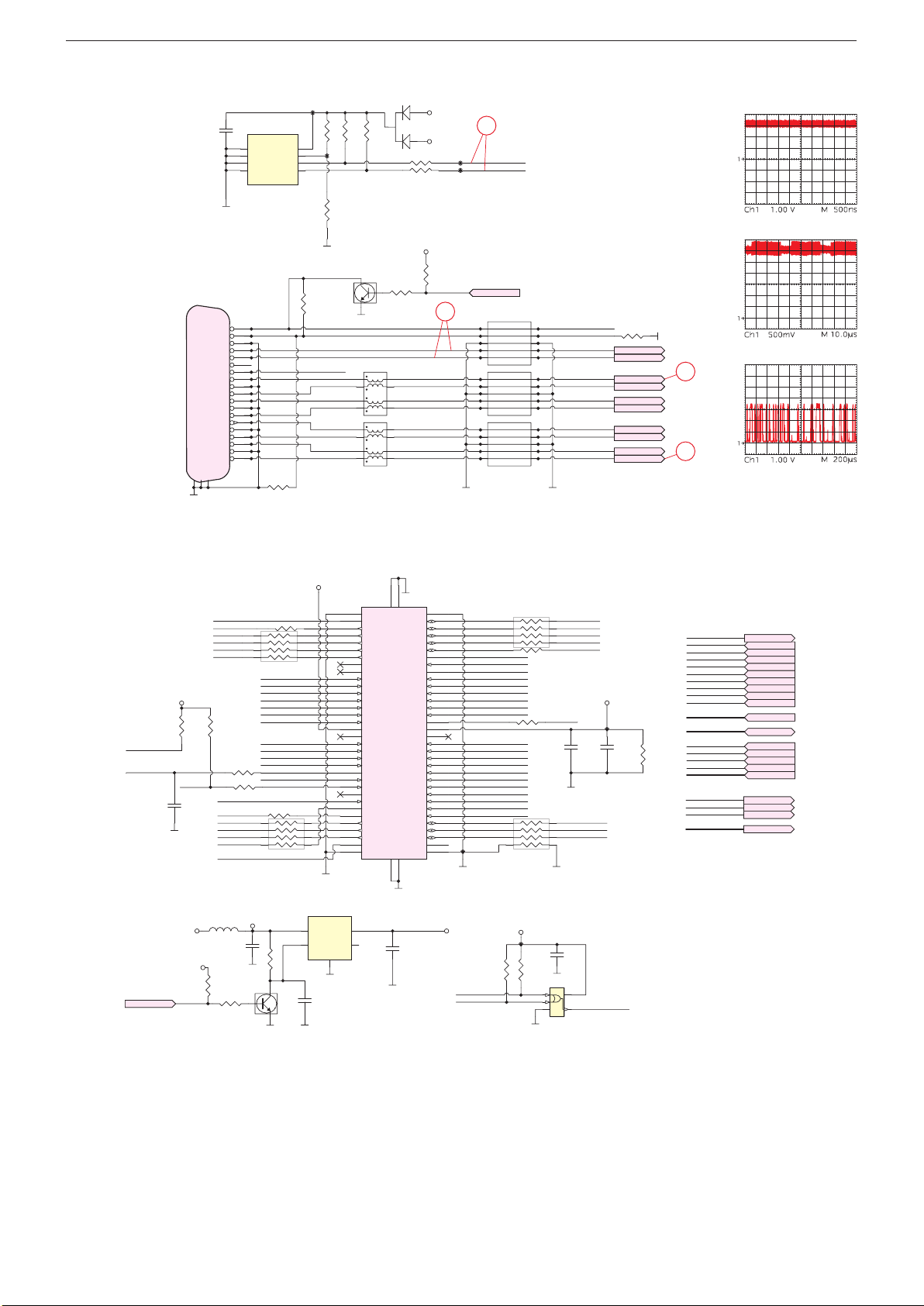

– Interface DVD, DMP, AV, USB ..................................................2-24
– SCART, VGA ............................................................................2-25
– HDMI........................................................................................2-26
– Common Interface ...................................................................2-26
– Scaler.......................................................................................2-27
– Verstärker .................................................................................2-30
DVD .............................................................................................2-31
– Power .......................................................................................2-31
– MPEG/Prozessor .....................................................................2-31
– USB .........................................................................................2-32
– Memory / Servo .......................................................................2-33
– Audio / Video ............................................................................2-34
Netzteil - Inverter VFT194............................................................2-35
Netzteil - Inverter YVL193 ............................................................2-39
Keyboards YSU192, YSW192 ......................................................2-44
The regulations and safety instructions shall be valid
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
national deviations.
Table of Contents
Page
General Section .................................. 1-2…1-20
General Notes ...............................................................................1-2
Disassembling Hints ......................................................................1-3
Product and Display Variants .........................................................1-4
Technical Data ...............................................................................1-5
Operating Hints ............................................................................1-13
Service and Special Functions ....................................................1-19
Layout of the PCBs
and Circuit Diagrams ......................... 2-1…2-44

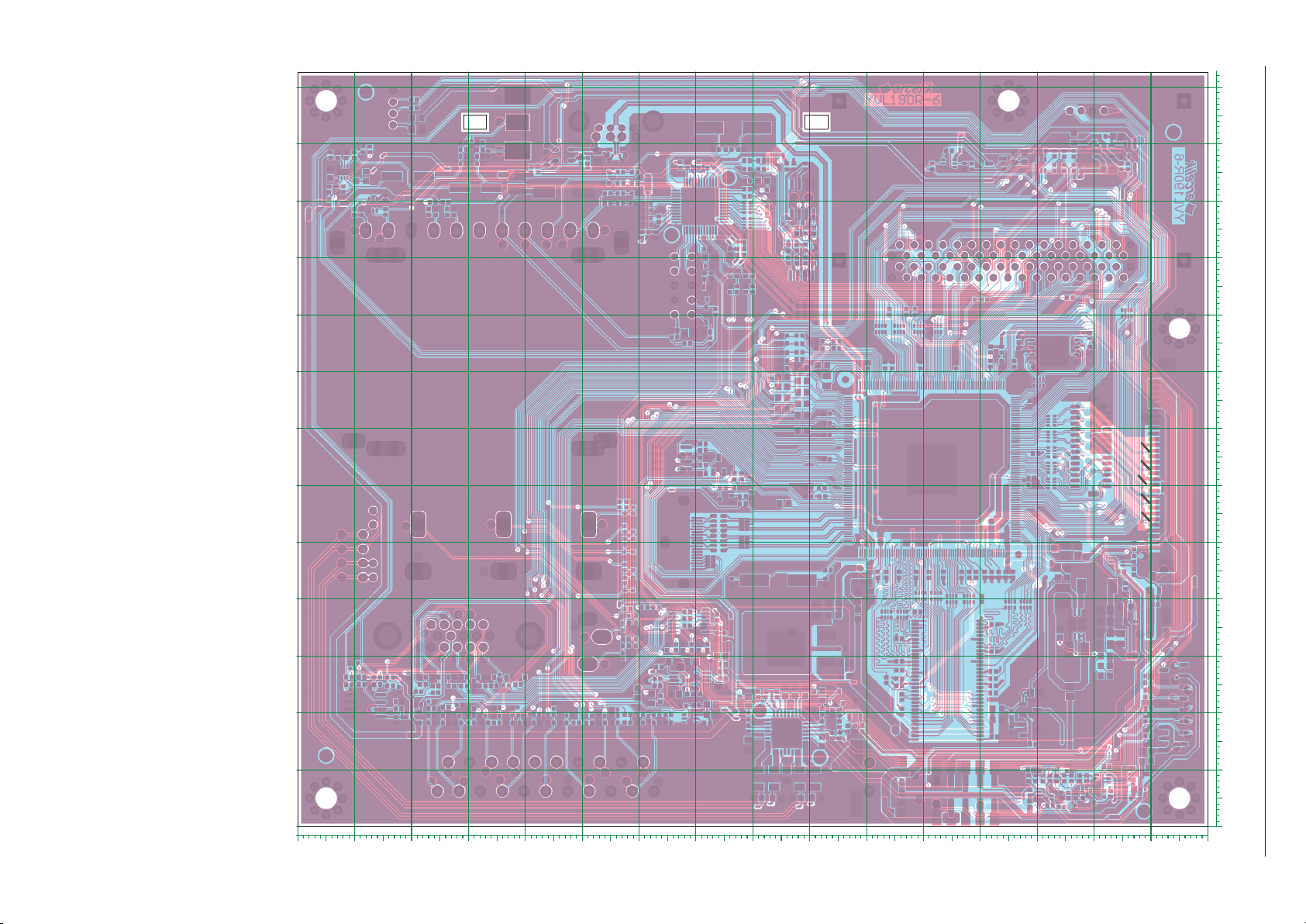

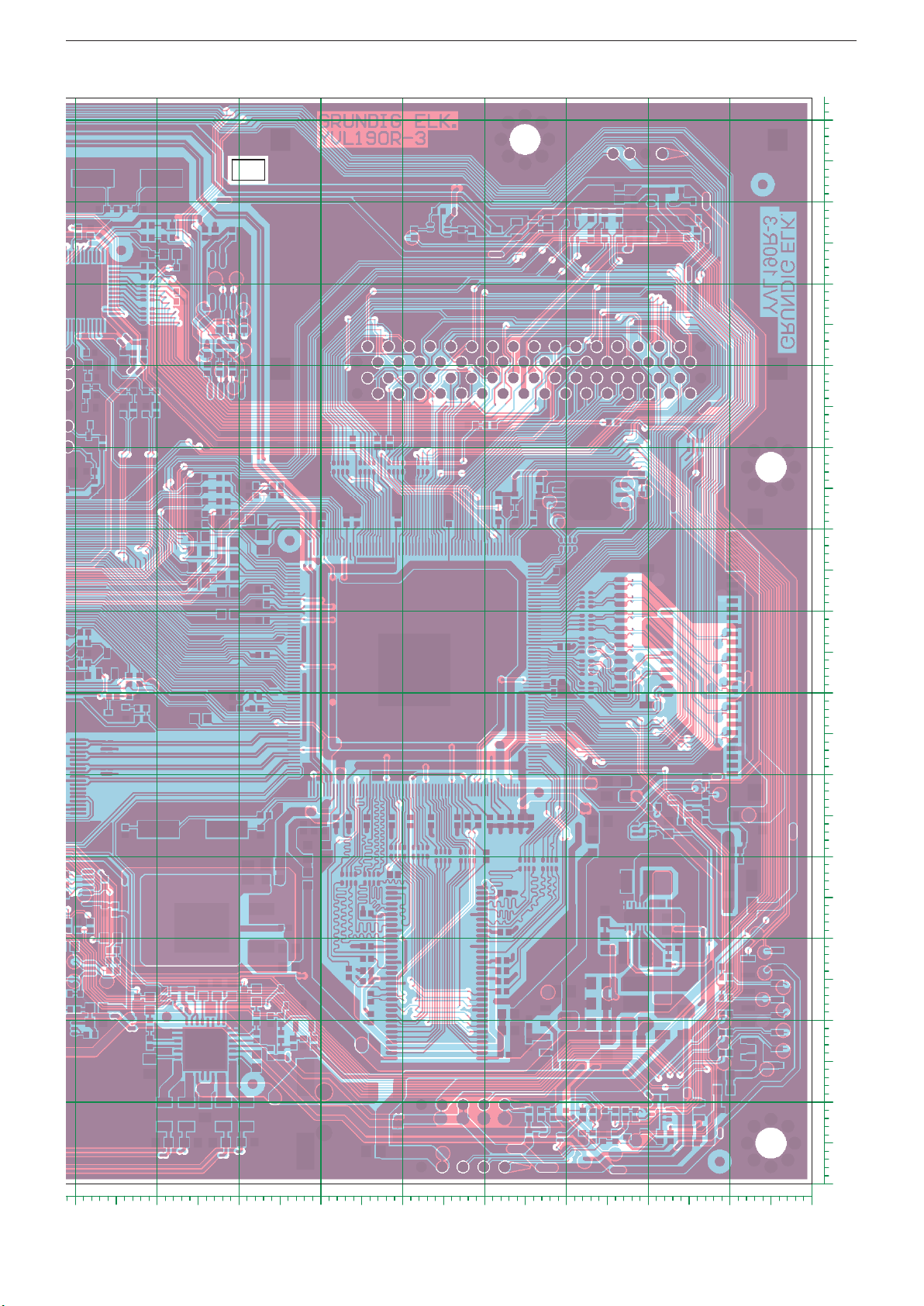

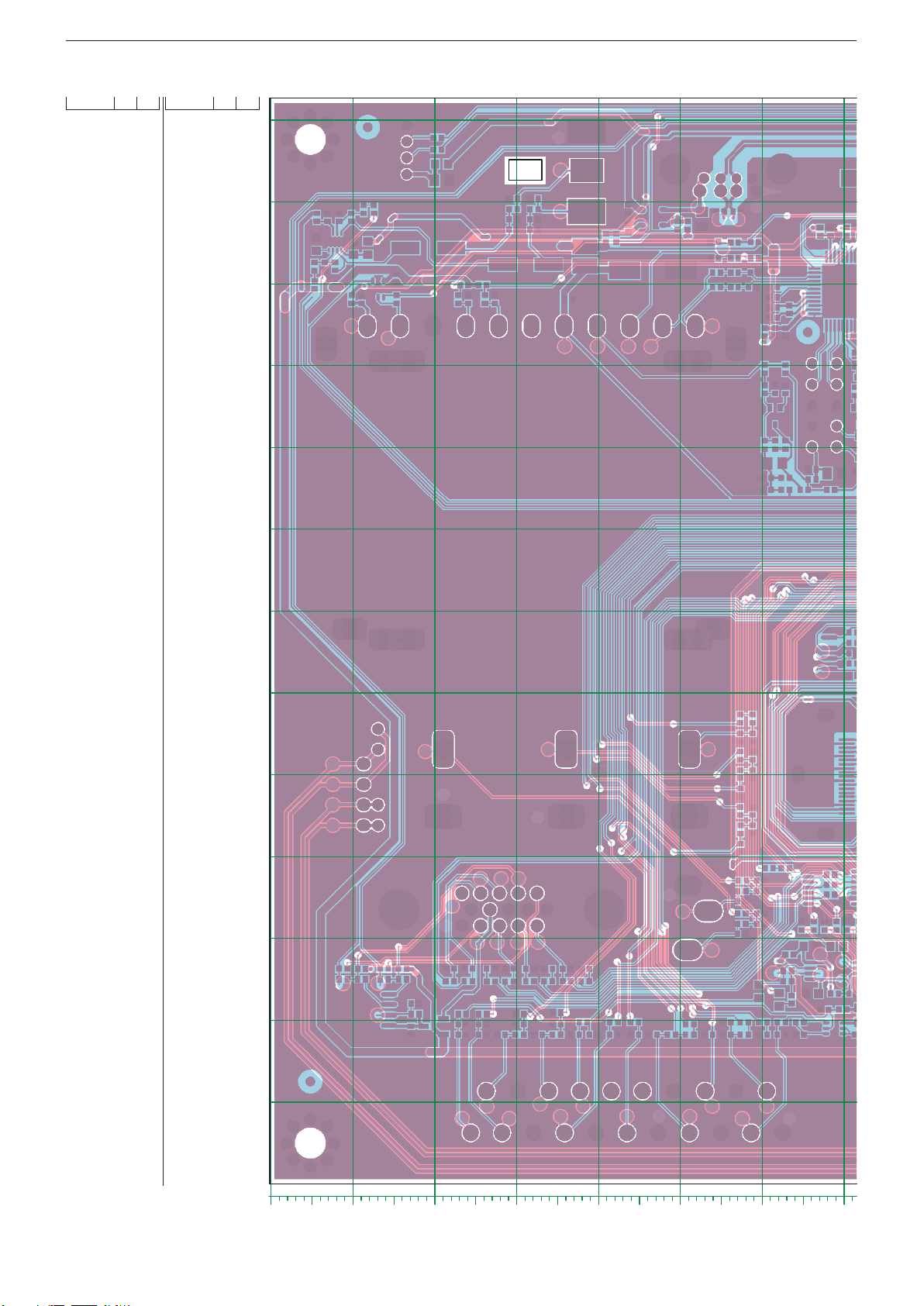

Chassis Board YVL190R-3 ............................................................2-1
– Power Supply ............................................................................2-8
– Tuner ..........................................................................................2-8
– COFDM Demodulator ................................................................2-9
– Interface DVD, DMP, AV, USB ....................................................2-9
– SCART, VGA ............................................................................2-10
– HDMI........................................................................................2-11
– Common Interface ...................................................................2-11
– Scaler.......................................................................................2-12

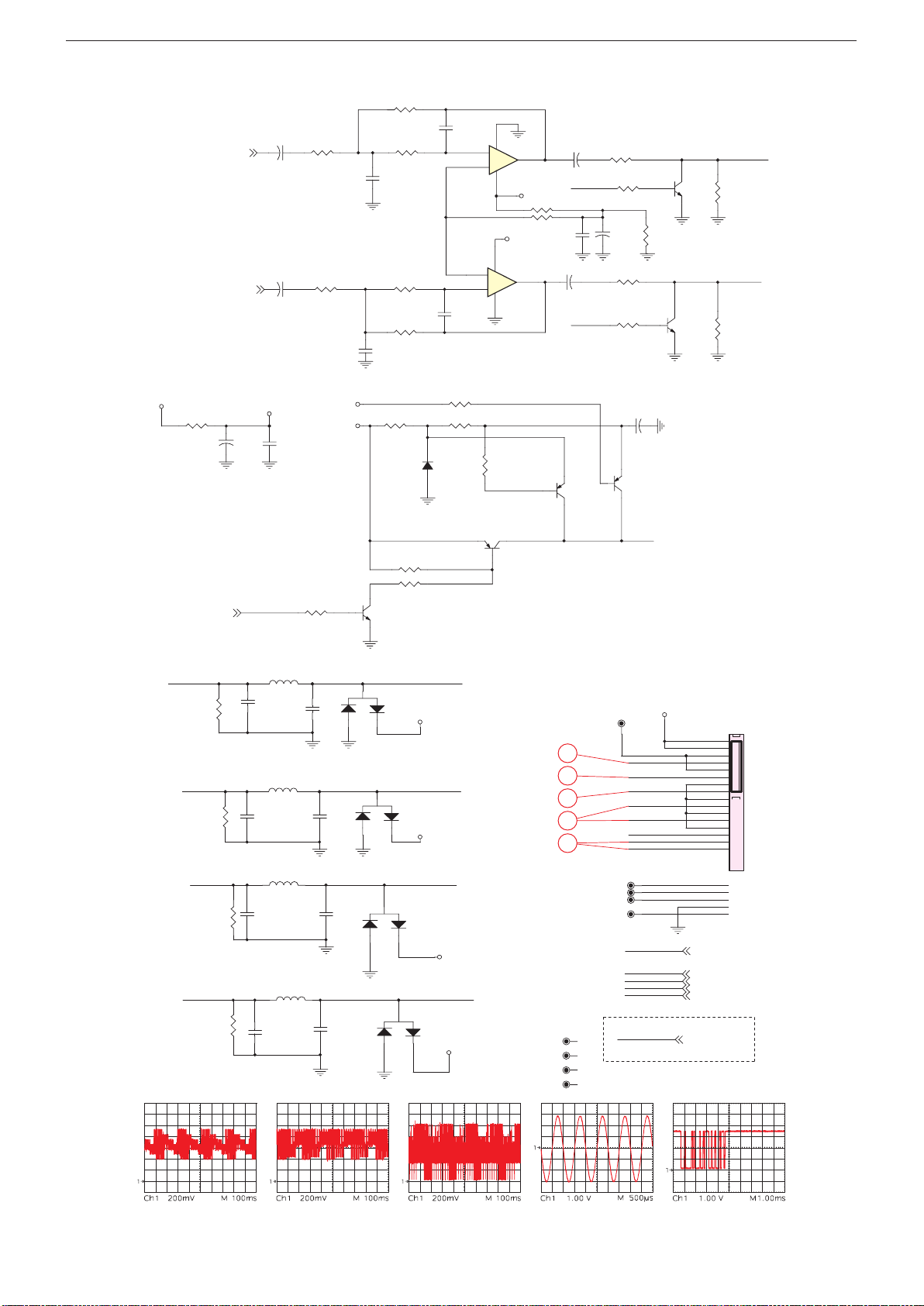

– Amplifier ...................................................................................2-15
Chassis Board YVL190R-6 ..........................................................2-16
– Power Supply ..........................................................................2-23
– Tuner ........................................................................................2-23
– COFDM Demodulator ..............................................................2-24
– Interface DVD, DMP, AV, USB ..................................................2-24
– SCART, VGA ............................................................................2-25
– HDMI........................................................................................2-26
– Common Interface ...................................................................2-26
– Scaler.......................................................................................2-27
– Amplifier ...................................................................................2-30
DVD .............................................................................................2-31
– Power .......................................................................................2-31
– MPEG/Processor .....................................................................2-31
– USB .........................................................................................2-32
– Memory / Servo .......................................................................2-33
– Audio / Video ............................................................................2-34

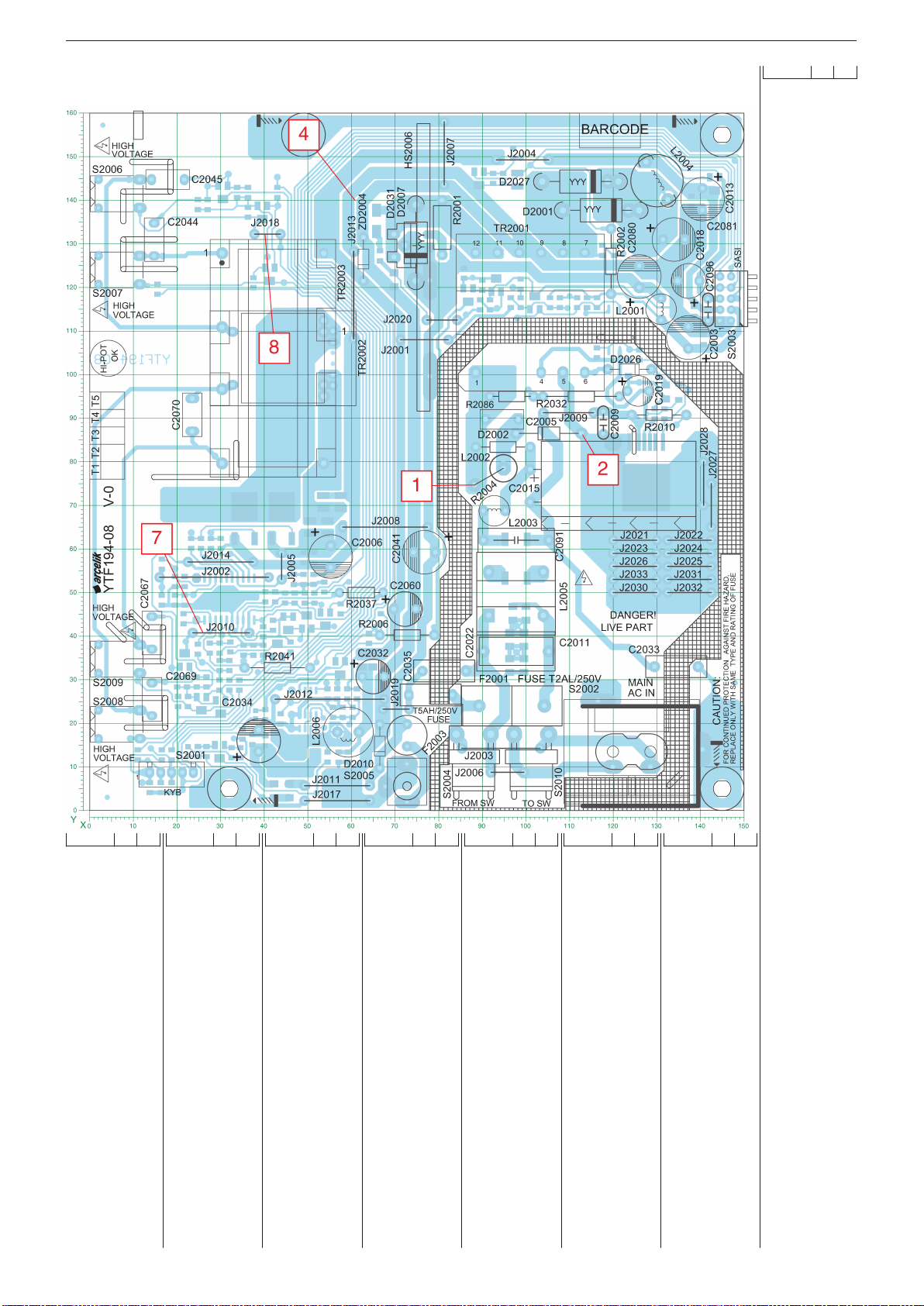

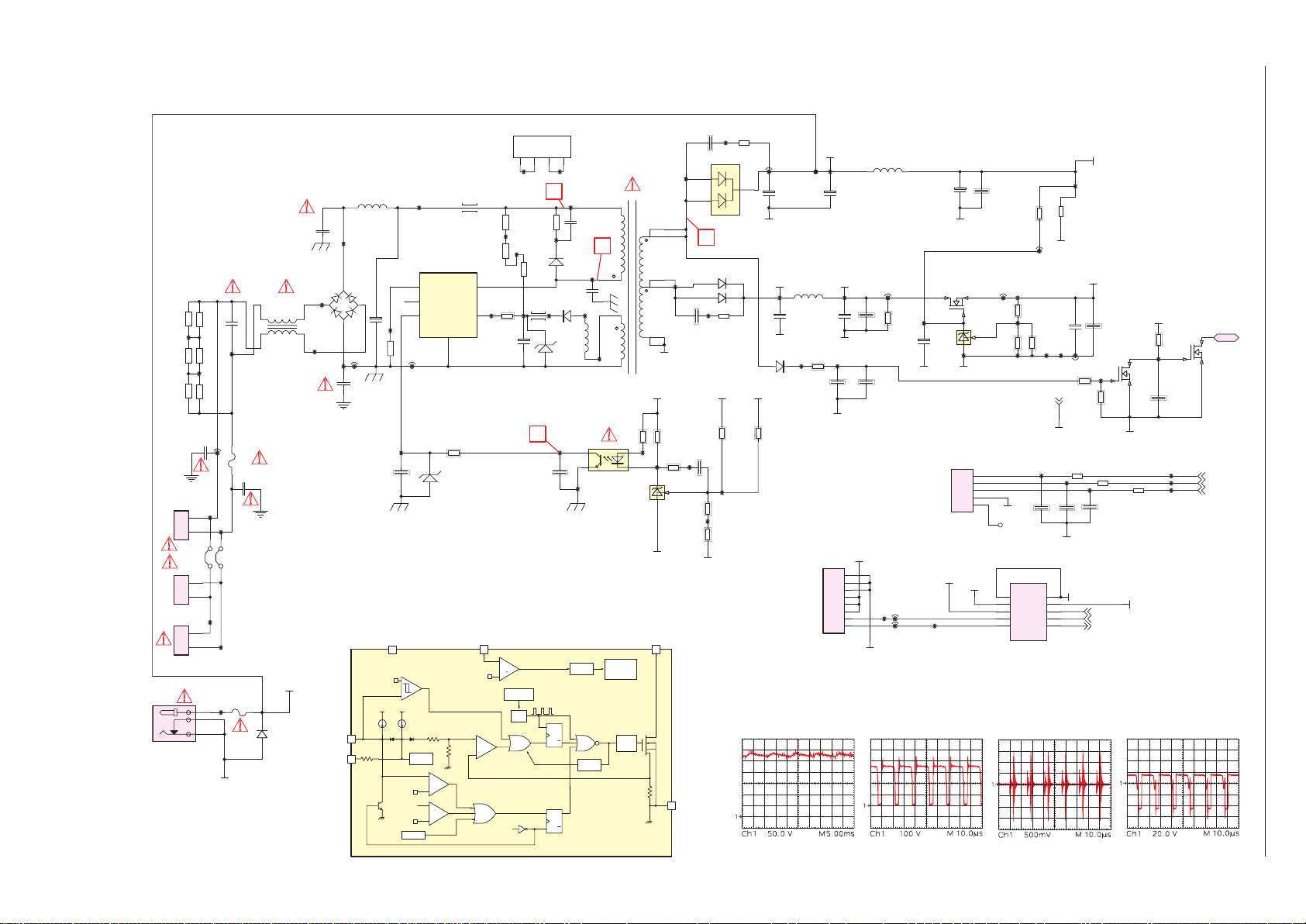

Power Supply - Inverter VFT194 ..................................................2-35

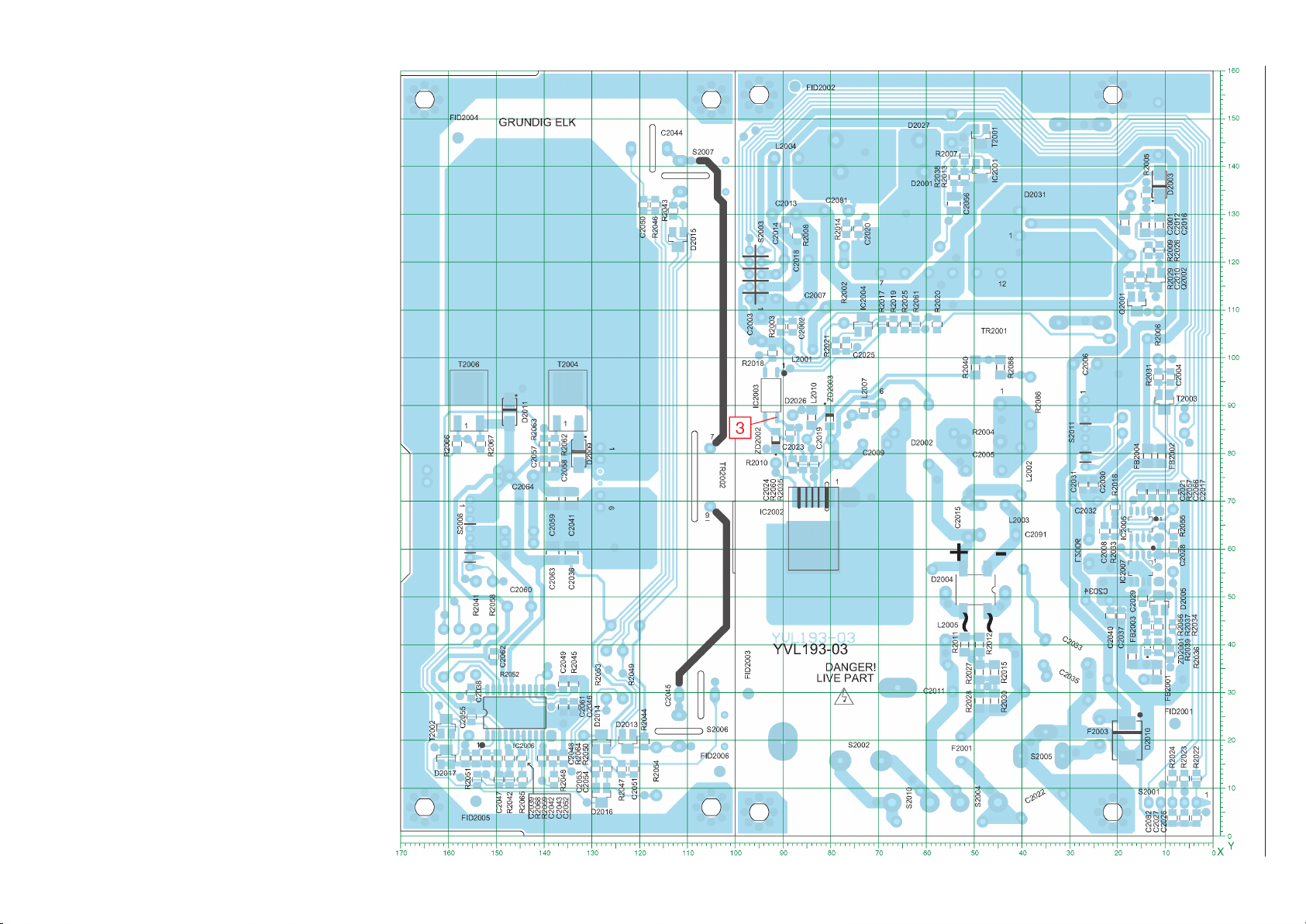

Power Supply - Inverter YVL193 ..................................................2-39

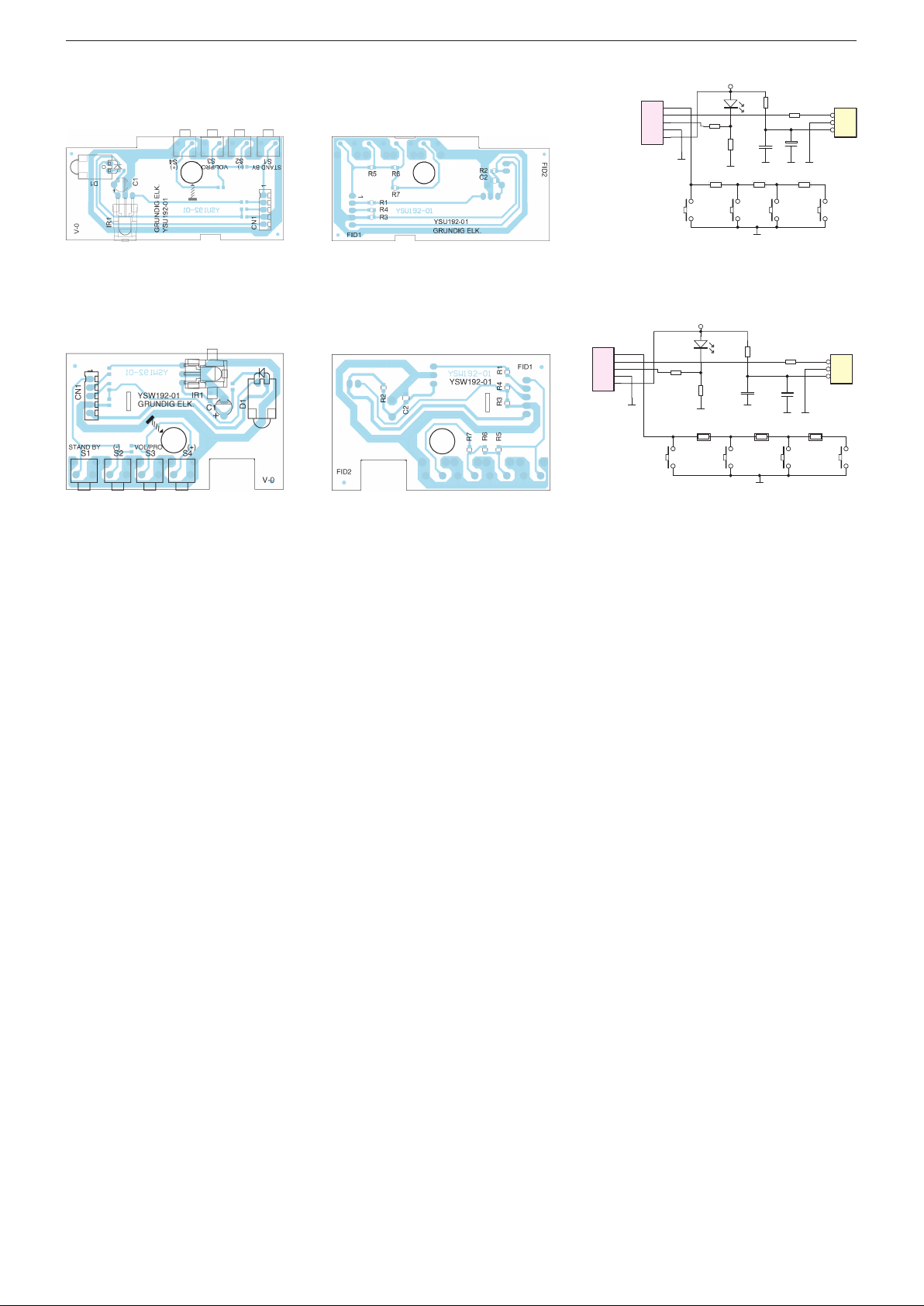

Keyboard YSU192, YSW192 .......................................................2-44
Ersatzteillisten .................................... 3-1…3-11
Allgemeiner Teil
Allgemeine Hinweise
Vor dem Öffnen des Gehäuses den Netzstecker ziehen!
Achtung: ESD-Vorschriften beachten
Leitungsverlegung
Bevor Sie die Leitungen und insbesondere die Masseleitungen lösen,
muss die Leitungs ver legung zu den einzelnen Baugruppen beachtet
werden.
Nach erfolgter Reparatur ist es notwendig, die Leitungsführung wieder
in den werkseitigen Zustand zu versetzen um evtl. spätere Ausfälle
oder Störungen zu vermeiden.
Durchführen von Messungen
Bei Messungen mit dem Oszilloskop an Halb leitern sollten Sie nur
Tast köpfe mit 10:1 - Tei ler verwen den. Außerdem ist zu beachten, dass
nach vorheriger Messung mit AC-Kopp lung der Koppelkondensator
des Oszillo skops auf geladen sein kann. Durch die Ent ladung über das
Messobjekt können Bau teile beschä digt werden.
Spare Parts Lists ................................ 3-1…3-11
General Section
General Notes
Before opening the cabinet disconnect the mains plug!
Attention: Observe the ESD safety regulations
Wiring
Before disconnecting any leads and especially the earth connecting
leads observe the way they are routed to the individual assemblies.
On completion of the repairs the leads must be laid out as originally
fitted at the factory to avoid later failures or disturbances.
Carrying out Measurements
When making measurements on semi-con duc tors with an oscillo scope,
ensure that the test probe is set to 10:1 dividing factor. If the previous
measurement was made on AC input, please note that the coupling
capacitor in the oscilloscope will be charged. Discharge via the item
being checked can damage the components.
1 - 2
Page 3
GRUNDIG Service Chassis D6
Messwerte und Oszillogramme
Bei den in den Schaltplänen und Oszillogrammen angegebenen
Messwerten handelt es sich um Näherungswerte!
Kindersicherung
Mit folgenden Master-Kennwörtern bekommen Sie Zugriff zum Ändern
verlorener Kennwörter:
Kindersicherung-TV: 2356
DVD-Passwort: 1369
Hotel-Mode
Bei aktivierter Funktion ist die maximale Lautstärke begrenzt und das
Menü "INSTALLATION" ist nicht mehr anwählbar.
Aufruf: MENU –> 8500 –> 3 / 4 "OPTION 1" –> OK –> 3 / 4 "HOTEL"
–> 1 / 2 "AVAIL".
Maximale Lautstärke: MENU –> 8500 –> 3 / 4 "OPTION 1" –> OK
–> 3 / 4 "HOTEL VOLUME" –> 1 / 2 Wert 0…100.
Aktivierten Hotel-Mode kurzzeitig ausschalten
Bei dieser Funktion ist der Hotel-Mode bis zum nächsten Ausschalten
(Standby) des Gerätes deaktiviert.
Aufruf: MENU –> 4658 –> MENU
Ausbauhinweise
Rückwand abnehmen
– 2 Schrauben A im Gerätefuß (Fig. 1) herausschrauben und Fuß
abnehmen.
– 4 Schrauben B / C (Fig. 2) herausschrauben.
– Rückwand nach oben klappen und abnehmen (dabei lösen sich die
Rastnasen).
Measured Values and Oscillograms
The measured values given in the circuit diagrams and oscillograms
are approximates!
Parental Control
Following Matser Passwords will gett access to change a lost password:
Parental Control TV: 2356
DVD password: 1369
Hotel Mode
Maximum volume is limited and there is no access to Menu "CHANNEL Setup" at activated hotel mode.
Call up: MENU –> 8500 –> 3 / 4 "OPTION 1" –> OK –> 3 / 4 "HO-
TEL" –> 1 / 2 "AVAIL".
Maximum volume: MENU –> 8500 –> 3 / 4 "OPTION 1" –> OK –>
3 / 4 "HOTEL VOLUME" –> 1 / 2 Value 0…100.
Switching off the activated Hotel Mode temporarily
At this function the activated hotel mode is deactivated until the set
is switched off (standby).
Call up: MENU –> 4658 –> MENU
Disassembling Hints
Removing the Rear Cabinet
– Undo 2 screws A fitted in the stand (Fig. 1) and remove the
stand.
– Undo 4 screws B / C (Fig. 2).
– Fold up and remove the rear panel (thereby disengage the lat-
ches).
A
C
Fig. 1 Fig. 2
CD/DVD aus Laufwerk entfernen (Fig. 3)
- 2 Schrauben D herausschrauben, Halter E und Zahnrad F entfernen. Zahnstange G wird auf Grundstellung zurückgezogen.
- Hebel H so in Mittelstellung halten, dass die DVD nicht blockiert
wird.
- CD/DVD vorsichtig entfernen.
B
C
Removing a CD/DVD from the Drive mechanism (Fig. 3)
- Undo 2 screws D and remove holder E and gear wheel F. Gear
rack G will be pulled backwards to its home position.
- Position lever H to center position so that the DVD is no longer
blocked.
- Carefully remove the CD/DVD.
C
D
F
E
Fig. 3
H G
1 - 3
Page 4
GRUNDIG Service Chassis D6
Geräte- und Display-Varianten
Display- und Product Code
Je nach Verfügbarkeit werden
Displays verschiedener Hersteller
eingebaut. Dies führt zu unterschiedlichen Chassis-Bestückungen, sowie zu Änderungen
in der Software. Bei Ersatzteilbestellungen und SoftwareUpdates achten Sie bitte auf das
eingebaute Display, sowie auf den
"Product Code". Angaben dazu
finden Sie auf der Geräterückseite. Sollte in der Ersatzteilliste
des Service Manuals Ihr "Product
Code" oder Ihre Display-Variante
nicht aufgeführt sein, können Sie
eine aktualisierte Version auf
dem GRUNDIG Service-Portal
"http://service.grundig.de" finden.
Überprüfen Sie vor PlatinenTausch, ob die Aufkleber der
Platinen identisch sind (z.B. PCB
Code).
Product Code
Display Type
Display Code
Product and Display Variants
Serialnummer / Serial Number
Chassis
PCB Code
Display- und Product Code
Depending on availability displays
of different manufacturer are built
in. This results in different chassis
mountings as well as a different
software. On spare parts orders
as well as software updates take
care of the fitted display as well as
of the "Product Code". Therefore
you can find information on the
labels on the rear side. If your
"Product Code" or display variant is not mentioned in the spare
parts list of the service manual,
please look for a current version
at the GRUNDIG service portal
"http://service.grundig.de".
Before changing any board please
check whether the labels on the
boards are identical (eg. PCB
Code).
1 - 4
Page 5
Technische Daten / Technical Data
19-2010 T DVD Vision 2 19-2930 T DVD Vision 2 22-2930 T DVD
Order No.
Approbations
IM-Languages
Remote control
EAN
Color
DISPLAY
Panel
Wide-screen format
Response time
Brightness
Contrast ratio (Panel)
Dynamic contrast plus
Viewing angle approx. °
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Natural view HD Reference
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Transition Improv. (DLTI)
Picture Noise Reduction
Preset picture modes
Aspect ratios (Format switching)
Blackline detection
PIP
Multifold Tuner scan (Mosaic Picture)
PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICTURE + PICTURE)
P²AT: Double Window + TXT
POP: PICTURE on PICTURE
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
CHASSIS
TV-Chassis
Progressive
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Easy Dialog
Megalogic
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Intelligent Programme Switch
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Childlock
Menue languages OSD
OSD-style
Service mode
Game mode
Hotel mode
TUNING
Autom. Tuning System with country selection
Frequency Based Auto Search
Automatic Micro-search
Automatic Programming
Manual fine tuning
Direct channel selection
Direct frequency selection
PAL/SECAM/BG/DK/I/L'/L
NTSC-Playback via Scart (3.58/4.43)
Cable TV / Hyperband (S1-S41)
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Virtual Dolby
Magic Fidelity Sound System
Soundprojector
Matched Sound Delay (Lip synchronous)
Subwoofer
Dynamic Bass
DSP (Digital Sound Processor)
Balance Adjustment
AVL (Audio Volume Level)
PIP listening via Headphone.jack
Equalizer
Space Sound Effect
Audio mode
Audio amplifier
USB part
Screen saver
File browser
Supported files
DVD
DVD -R/+R/-RW/+RW
CD -R/+R/-RW/+RW
SVCD
Supported files
Supported subtitles
Dolby Digital
GBI0019
GBH4719
GBH4722
CE
D,G B
CE
D,G B
South West: GB, F, I, E, CZ, HR;
Nordic: F, DK, N, S, HR, EE, LT
CE
For BG: D,GB; For BG4: GB,CRO,CZ,IT,D,FR,EL,NL,
RC 22
40 13833-62157 7
RC 22
40 13833-61860 7
glossy black glossy black
18,5" / 47cm Active Matrix TFT-LC-Display
18,5" / 47cm Active Matrix TFT-LC-Display
ca. 5ms
ca. 5ms
RC 22
40 13833-61861 4
glossy black
21.6" / 55cm Active Matrix TFT-LC-Display
ca. 5ms
ca. 300cd/m²
ca. 1.000:1
ca. 250cd/m²
ca. 1.000:1
ca. 2.000:1
80/80 80/80
t.b.d.
80/80 80/80
WXGA 1366 x 768 WXGA 1366 x 768
3D DeInterlacer
3D DeInterlacer
ca. 350cd/m²
ca. 1.000:1
2.000:1
170/155
WXGA 1366 x 768
3D DeInterlacer
3D
3D
user, vivid, natural, movie, sports
user, vivid, natural, movie, sports
3D
user, vivid, natural, movie, sports
Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Cinema Zoom / Sky Top
D6
D6
D6
PLL frequency synthesizer tuning
Sapphire
PLL frequency synthesizer tuning
Sapphire
4 Volume/Programm, ± keys, stand-by 4 Volume/Programm, ± keys, stand-by
blue LED
7 days via DVB-T
blue LED
7 days via DVB-T
PLL frequency synthesizer tuning
Sapphire
4 Volume/Programm, ± keys, stand-by
blue LED
7 days via DVB-T
99 Analog / 400 Digital / AV
/ /
99 Analog / 400 Digital / AV
/ /
99 Analog / 400 Digital / AV
/ /
1000 pages
1000 pages
22 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR, PL, CZ, SK, SLO, H, RUS, RO, BG, SER
OEM-style with Grundig look OEM-style with Grundig look
presets (user changeable) for sound and picture in HDMI-, Component- and PC-mode
Simple hotel mode possible via service adjustment Simple hotel mode possible via service adjustment
1000 pages
OEM-style with Grundig look
Simple hotel mode possible via service adjustment
full automatic sorting
full automatic sorting
full automatic sorting
/ /
/ /
2 wide band at the front side
2 wide band at the front side
/ /
2 wide band at the front side
5 Band
5 Band
cinema, music, sport, speech, user
cinema, music, sport, speech, user
2x 3W (RMS) 2x 3W (RMS)
5 Band
cinema, music, sport, speech, user
2x 3W (RMS)
MP3, JPG, BMP, MOV, MPG, MP4, AVI MP3, JPG, BMP, MOV, MPG, MP4, AVI
MP3, JPG, MPG, AVI
MP3, JPG, MPG, AVI
Micro DVD (.sub, .txt), SUbRip (.srt), SAMi .smi, .sami), Sub-Station-Alpha (.ssa), Advanced Sub-Station-Alpha (.ass)
MP3, JPG, BMP, MOV, MPG, MP4, AVI
MP3, JPG, MPG, AVI
Chassis D6GRUNDIG Service
1 - 5
Page 6
19-2010 T DVD Vision 2 19-2930 T DVD Vision 2 22-2930 T DVD
DVB reception
/ - ATS type sorting & LCN type sorting
/ - ATS type sorting & LCN type sorting
/ - ATS type sorting & LCN type sorting
, or decoding
, or decoding
, or decoding
177 - 862 VHF & UHF /
177 - 862 VHF & UHF /
177 - 862 VHF & UHF /
Chassis D6GRUNDIG Service
1 - 6
Fully compliant to
Autmatic/manual channel search
EPG (SI based)
7 Day Electronic Programme Guide
now/next
scheduled
Exdended Event Info
Short Event Info
TV/Radio programmes
OSD languages
Parental control
Teletext VBI insertion
VPS - VBI insertion
Programme table
Factory station list
DVB-T Front end
Tuner inputs (Hyperband)
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC
Hierarchical modulation
Activ antenna support
Embedded Conditional Access
Common Interface
Smart Card Reader
Video Decoder
MPEG profiles
Data rate
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Decoding
AC 3 Output
Modes
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
API
Last station memory
Favourite mode
Timer / Sleep timer
Clock
Volume
Mute function
Swap function
POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Plug-in AC adaptor
Power consumption
Cabinet (WxHxD, cm) / Weight
FRONT PANEL CONNECTIONS
HDMI
Headphones
Cinch-AV socket
S-Video
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
Euro-AV Socket AV2
Euro-AV Socket AV3
S-Video
Camera-AV
Wireless
YUV input / progressive
PC-input
PC-Audio in
DVI
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out coaxial (SPDIF)
Video out
Audio out
USB
Antenna for terrestrial reception
DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Remote control (incl. battery)
Power cord
Cables
Instruction manual
Circuit diagram
Wall fixture
Stand
Warranty info
Cleaning tissue
EN 300 744 & revided NorDig II spec (regarding DVB-T front end performance)
If broadcasted
If broadcasted
If broadcasted
400
Same as analogue languages
-80,0dBm to -20dBm (at 16 QAM 2/3) / 75
COFDM 2/8 QPSK 16/64 QAM
4:3, 16:9, pan scan, letter box 4:3, 16:9, pan scan, letter box
Mono, Dual Mono, Stereo, Joint Stereo
230V, 50Hz; in accordance to IEC 65
35W, standby <1W in accordance to IEC 62087-200235W, standby <1W in accordance to IEC 62087-2002
45.8x31.5x6.5cm / 45.8x34.3x16.5cm with stand / ca. 3.5kg 45.8x31.5x6.5cm / 45.8x34.3x16.5cm with stand / ca. 3.5kg
1 x Coaxial-socket for TV-tuner-in, according to DIN 45325
12V DC (11 - 14.5V, current consumption ca. 4A)
RC 22 incl. 2x Battery AAA size RC 22 incl. 2x Battery AAA size
Prepared for VESA standard adaptor 100 x 100
PDC based
full automatic sorting
11
Ω
1/2, 2/3, 3/4, 5/6, 7/8
MP@ML
Up to 15Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II
Dynamic PMT Dynamic PMT
DVB enhanced profile
via menu
from stand-by, as TV
4x free
140V - 265V
Full wired Full wired
via Scart
3x Cinch socket in
via VGA
WXGA
1x
via HDMI
1 slot
3.5mm jack
USB 2.0
non grounded
except German version
1 x Coaxial-socket for TV-tuner-in, according to DIN 45325
Same as analogue languages
-80,0dBm to -20dBm (at 16 QAM 2/3) / 75
COFDM 2/8 QPSK 16/64 QAM
Mono, Dual Mono, Stereo, Joint Stereo
230V, 50Hz; in accordance to IEC 65
12V DC (11 - 14.5V, current consumption ca. 4A)
Prepared for VESA standard adaptor 100 x 100
If broadcasted
If broadcasted
If broadcasted
400
PDC based
full automatic sorting
1/2, 2/3, 3/4, 5/6, 7/8
MP@ML
Up to 15Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II
DVB enhanced profile
via menu
from stand-by, as TV
4x free
140V - 265V
via Scart
3x Cinch socket in
via VGA
WXGA
1x
via HDMI
1 slot
3.5mm jack
USB 2.0
non grounded
except German version
Ω
If broadcasted
If broadcasted
If broadcasted
400
Same as analogue languages
-80,0dBm to -20dBm (at 16 QAM 2/3) / 75
COFDM 2/8 QPSK 16/64 QAM
4:3, 16:9, pan scan, letter box
Mono, Dual Mono, Stereo, Joint Stereo
230V, 50Hz; in accordance to IEC 65
50W, standby <1W in accordance to IEC 62087-2002
52.3x35.6x6.9cm / 52.3x38.0x16.0 with stand cm / ca. 5kg
1 x Coaxial-socket for TV-tuner-in, according to DIN 45325
RC 22 incl. 2x Battery AAA size
Prepared for VESA standard adaptor 100 x 100
PDC based
full automatic sorting
1
1/2, 2/3, 3/4, 5/6, 7/8
MP@ML
Up to 15Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II
Dynamic PMT
DVB enhanced profile
via menu
from stand-by, as TV
4x free
140V - 265V
Full wired
via Scart
3x Cinch socket in
via VGA
WXGA
1x
via HDMI
1 slot
3.5mm jack
USB 2.0
-
non grounded
except German version
tilting function
Ω
Page 7
Bedienhinweise Dieses Kapitel enthält Auszüge aus der Bedienungsanleitung. Weitergehende Informationen entnehmen Sie bitte der gerätespezifischen Bedienungsanleitung, die Sie unter
www.grundig.de, Menüpunkt Downloads/Bedienungsanleitungen herunterladen können.
Chassis D6GRUNDIG Service
1 - 7
Page 8
Chassis D6GRUNDIG Service
1 - 8
Page 9
Chassis T5GRUNDIG Service
1 - 9
Chassis D6GRUNDIG Service
1 - 9
Page 10
Chassis T5GRUNDIG Service
1 - 10
Chassis D6GRUNDIG Service
1 - 10
Hinweis – Kindersicherung: Mit dem PIN-Code 2356 können Sie die Einstellungen ändern.
Page 11
Chassis T5GRUNDIG Service
1 - 11
Chassis D6GRUNDIG Service
1 - 11
Page 12
Chassis T5GRUNDIG Service
1 - 12
Chassis D6GRUNDIG Service
1 - 12
Hinweis – Kennwort: Mit dem PIN-Code 1369 können Sie die Einstellungen ändern.
Page 13
Operating Hints This chapter contains excerpts from the operating instructions.
For further particulars please refer to the appropriate user instructions which can be downloaded by www.grundig.com, submenu Downloads/Manuals.
Chassis D6GRUNDIG Service
1 - 13
Page 14
Chassis T5GRUNDIG Service
1 - 14
Chassis D6GRUNDIG Service
1 - 14
Page 15
Chassis T5GRUNDIG Service
1 - 15
Chassis D6GRUNDIG Service
1 - 15
Page 16
Chassis T5GRUNDIG Service
1 - 16
Chassis D6GRUNDIG Service
1 - 16
Note – Parental control:
Instead of the PIN Code 2356, you can enter a new personal code.
Page 17
Chassis T5GRUNDIG Service
1 - 17
Chassis D6GRUNDIG Service
1 - 17
Page 18
Chassis D6GRUNDIG Service
1 - 18
Note – Password:
Instead of the PIN Code 1369, you can enter a new password.
Page 19
Service- und Sonderfunktionen
Tastenfunktionen
MENU
Aufrufen/Beenden des Dialog Centers /
Beenden des Service Mode
8888 9999Menü-Zeile (Menüpunkt) wählen
OK
Aufrufen der Menüs
////
----Wert ändern
@@
@@
Untermenü: Zurück zum Hauptmenü
Hauptmenü: Beenden des Service Mode
Service-Mode aktivieren
– Taste
MENU
(TV-Menü) drücken.
– Zahlenfolge
8500
eingeben.
Service-Mode beenden
– Taste
MENU
drücken.
1. Grundeinstellwerte
Die Grundeinstellwerte im Service Mode sind in der Tabelle enthalten.
Service and Special Functions
Functions of the buttons
MENU
Call up/exit the Dialog Center /
exit the Service Mode
8888
9999Call up the dialogue line (point of menu)
OK
Call up the Menus
////
---- Changing the settings
@@
@@
Submenu: Back to main menu
Main menu: Exit the Service Mode
Calling up the Service Mode
– Press button
MENU
(TV Menu).
– Enter the code number
8500
.
Exit the Service Mode
– Press button
MENU
.
1. Basic Settings
The table shows all basic specific settings in the service mode.
19-2010 T DVD
Vision 2
19-2930 T DVD
Vision 2
22-2930 T DVD
Hinweis
Hint
OPTIONS 0
STANDBY
CUSTOMER
FACTORY
TEXT
TEXT PAGE
* TUNER
PLUG PLAY
FAST TOP/
FAST/TOP/NONE
10/250/1000
ON
HDCP VERIFY
Aktivantenne
Startup Logo
OPTIONS 1
* 0.1 WATT
CUSTOMER
Blue Back
Panorama
OFF
AVAIL/NAVAIL
Grundig/Aus
Ein/Aus
0-2
ON/OFF
AVAIL/NAVAIL
Kino-Panorama
* Remote
Keypad
Hotel
Hotel Volume
AVAIL/NAVAIL
SEVEN KEYS
FOUR KEYS
ONE KEY
AVAIL/NAVAIL
0…100
OPTIONS 2
7 Segment Disp.
Eco TV
WSS
PC
HDMI 1
AV
S-Video
Scart
AVAIL/NAVAIL
ON/OFF
AVAIL/NAVAIL
AVAIL/NAVAIL
AVAIL/NAVAIL
AVAIL/NAVAIL
AVAIL/NAVAIL
AVAIL/NAVAIL
SOUND OPTIONS
YPBPR
DVD
* USB
L
Headphone
* ATS
* SRS TruSurround XT
HIDEV MONO
AVAIL/NAVAIL
AVAIL/NAVAIL
AVAIL/NAVAIL
AVAIL/NAVAIL
AVAIL/NAVAIL
AVAIL/NAVAIL
AVAIL/NAVAIL
AVAIL/NAVAIL
IF
SET-
TINGS
DOLBY DECODING
AGC VHF
AGV UHF
AGC LPRIME
AVAIL/NAVAIL
0…31
0…31
0…31
Menü
Menu
8888 /
99
99
Menüpunkt
Point of Menu
OK
Einstellung Ad-
justment
//// /
--
--
XXX
Netz-Ein / Power on –> Standby
Netz-Ein / Power on –> Programm 1
FAST
1000
Eingebauten Tuner wählen Select used tuner
ATS Reset: Netz ein –> Automatischer Sendersuchlauf Power on –> automatic programme search
FAST
1000
FAST
1000
X
prüft HDCP im EEPROM / verifies HDCP in EEPROM
AVAIL
Grundig
XX
AVAIL
Grundig
AVAIL
Grundig
Aus
0
ON
AVAIL
Aus
0
Aus
0
ON
AVAIL
ON
AVAIL
AVAIL
Fernbedienung wählen / Select used remote control
X
AVAIL AVAIL
XX
NAVAIL
65
NAVAIL NAVAIL
65
65
NAVAIL
OFF
AVAIL
AVAIL
NAVAIL
OFF
NAVAIL
OFF
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
Hotel-Mode
Max. Lautstärke im Hotel-Mode
Hotel mode – volume maximum
Audio/Video-Eingang
Audio/Video Input
S-Video-Eingang
S-Video Input
AVAIL
AVAIL
NAVAIL
AVAIL
AVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
NAVAIL
AVAIL
AVAIL
AVAIL
AVAIL
NAVAIL
NAVAIL
NAVAIL
NAVAIL
AVAIL
6
0
8
AVAIL
6
AVAIL
6
0
8
0
8
Kopfhörer / Headphone
Autom. Programmsortierung nach Suchlauf
Autom. programme sorting at autoprogram operation
Chassis D6GRUNDIG Service
1 - 19
* Abhängig von der Software / dependend of software
Alle weiteren Menüs werden über die Gerätesoftware programmiert und dürfen nicht verstellt werden.
All other menus are programmed by the software of the set and must not be adjusted.
Page 20
2. Software-Versionsnummer
Die Software-Versionsnummer wird unten im Menü Sonderfunktionen und im Service Menü angezeigt, z.B.:
ST6GMW.F8M.R64M.V00.T15
3. Programmsuchlauf
– Taste
MENU
(TV-Menü) drücken.
– "INSTALLATION" mit den Tasten
////
----
anwählen und mit der
Taste OK bestätigen.
– "Programmsuchlauf" mit den Tasten
88889999 anwählen und mit der
Taste
---- bestätigen.
– Gewünschtes Land mit den Tasten
////
---- auswählen.
– "Suchtyp" mit den Tasten
88889999
anwählen und mit den Tasten
////
--
--
einstellen.
– "Zeitzone" mit den Tasten
88889999
anwählen und mit den Tasten
////
--
--
einstellen.
– "Programmsuchlauf" mit der Taster
OK
starten.
Das automatische Sendersuchsystem stoppt bei jedem empfangswürdigen Sender (AFC und Koinzidenz) und speichert automatisch die entsprechenden Senderdaten mit dem jeweiligen
Standard. Danach wird der Suchlauf fortgesetzt.
Zum Abbrechen des Suchlaufes die Taste
MENU
drücken.
2. Software Version Number
The software version number is shown on the lower part of the options menu and the service menu, e.g.:
ST6GMW.F8M.R64M.V00.T15
3. Channel Search
– Press button
MENU
(TV Menu).
– Select "CHANNEL SETUP" with the buttons
//
//
--
--
and confirm
with button OK.
– Select "Auto Tuning" with the buttons
88889999
and confirm with button
----.
– Select the required Country with the buttons
////
----.
– Select "Scan Type" with the buttons
88889999
and adjust with buttons
////
----.
– Select "Time Zone" with the buttons
88889999
and adjust with buttons
////
----.
– Start "Channel setup" with the button
OK
.
The auto programme system stops at every station of acceptable
reception quality (AFC and coincidence) and stores the station
data and the respective standard automatically. The system then
continues searching.
Pressing the
MENU
button stops the programme search.
Chassis D6GRUNDIG Service
1 - 20
Page 21
GRUNDIG Service Chassis D6

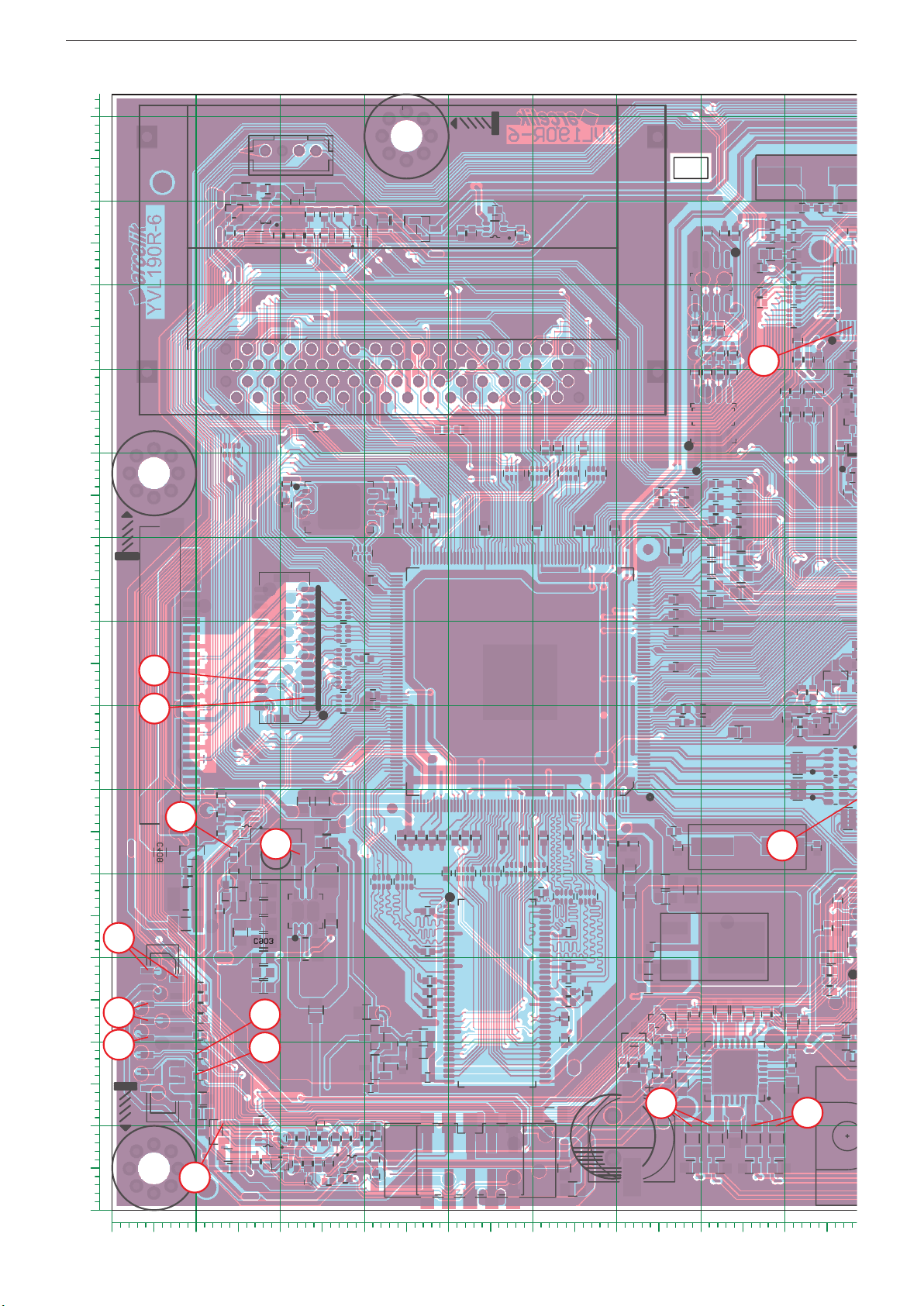

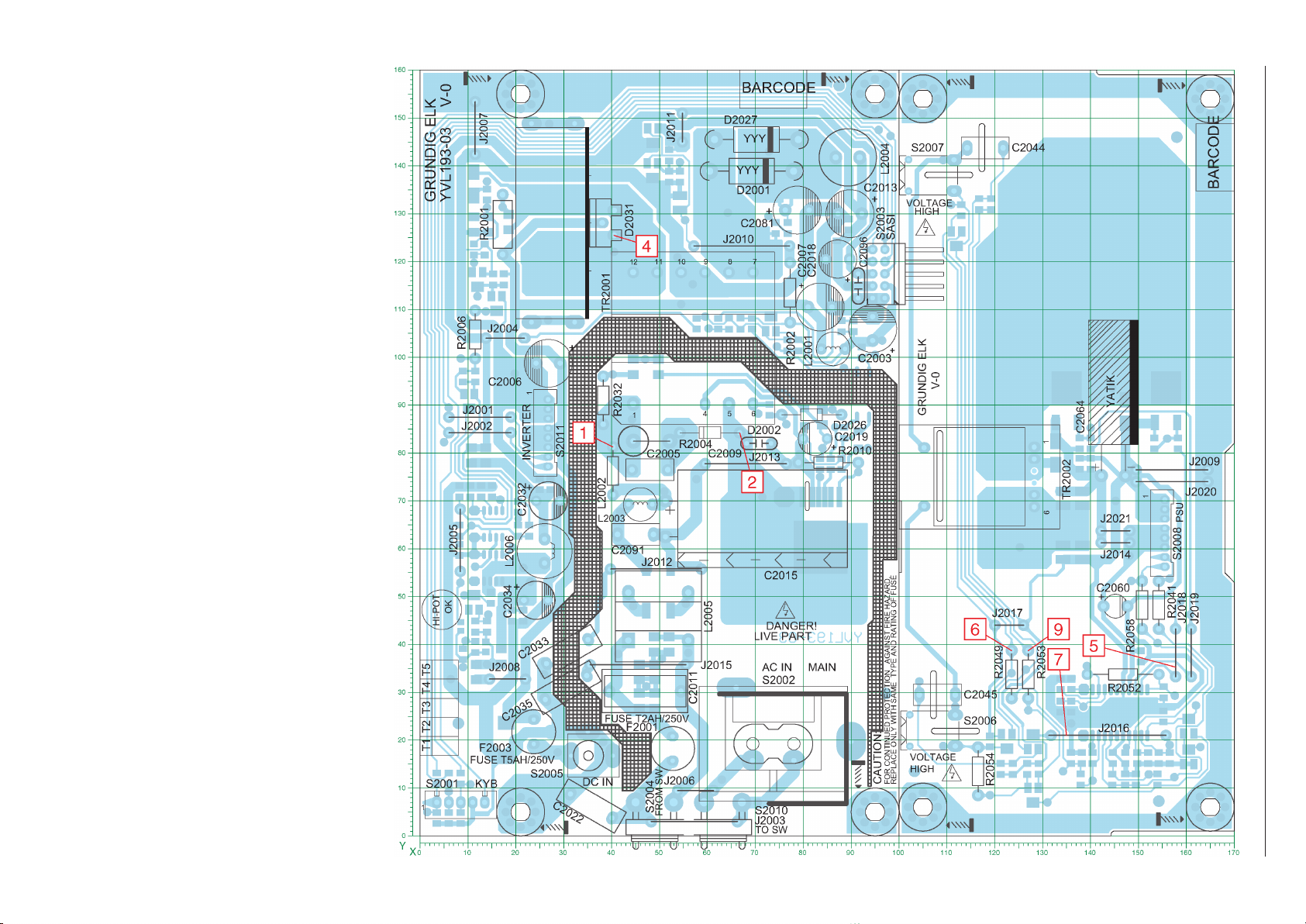

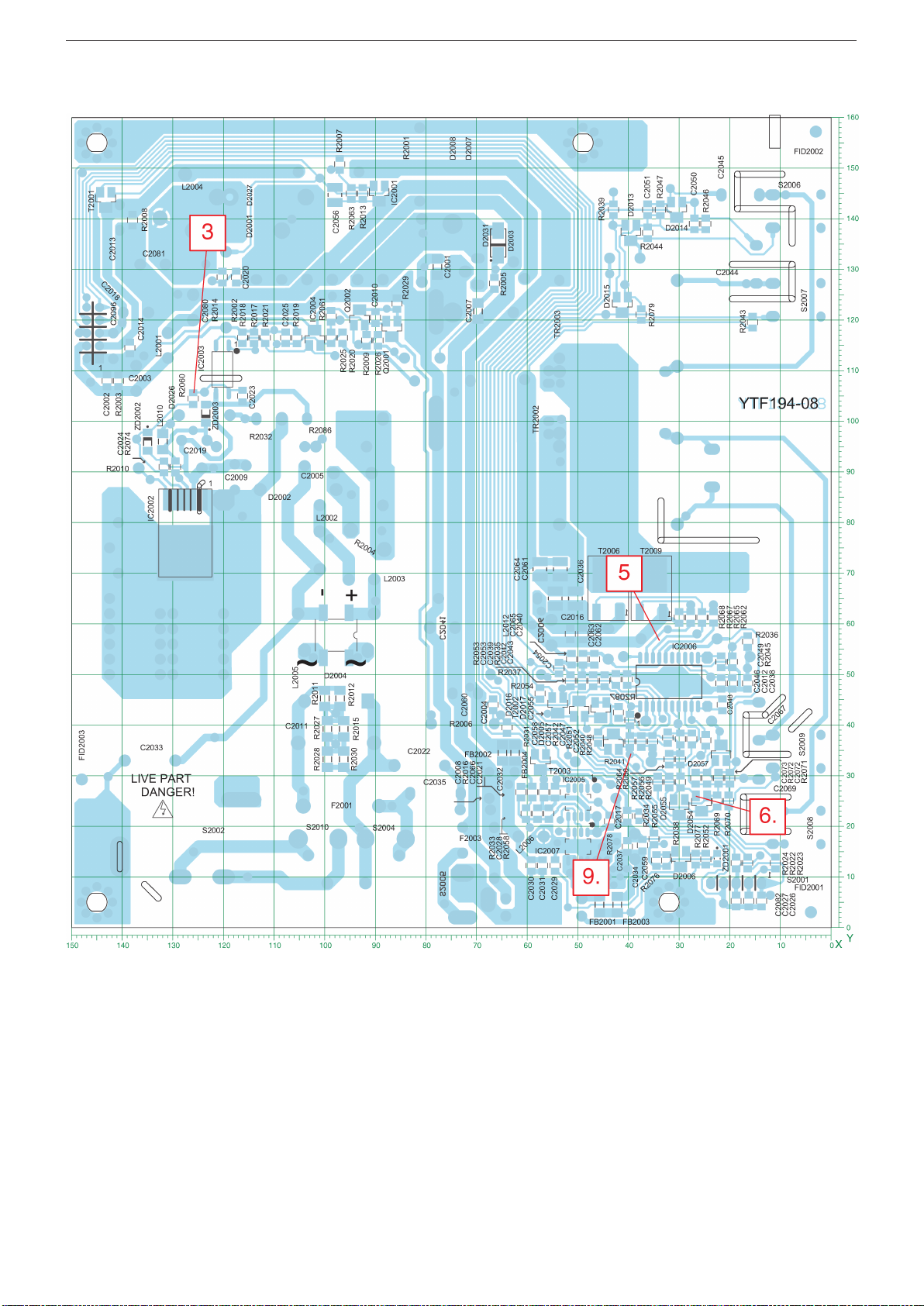

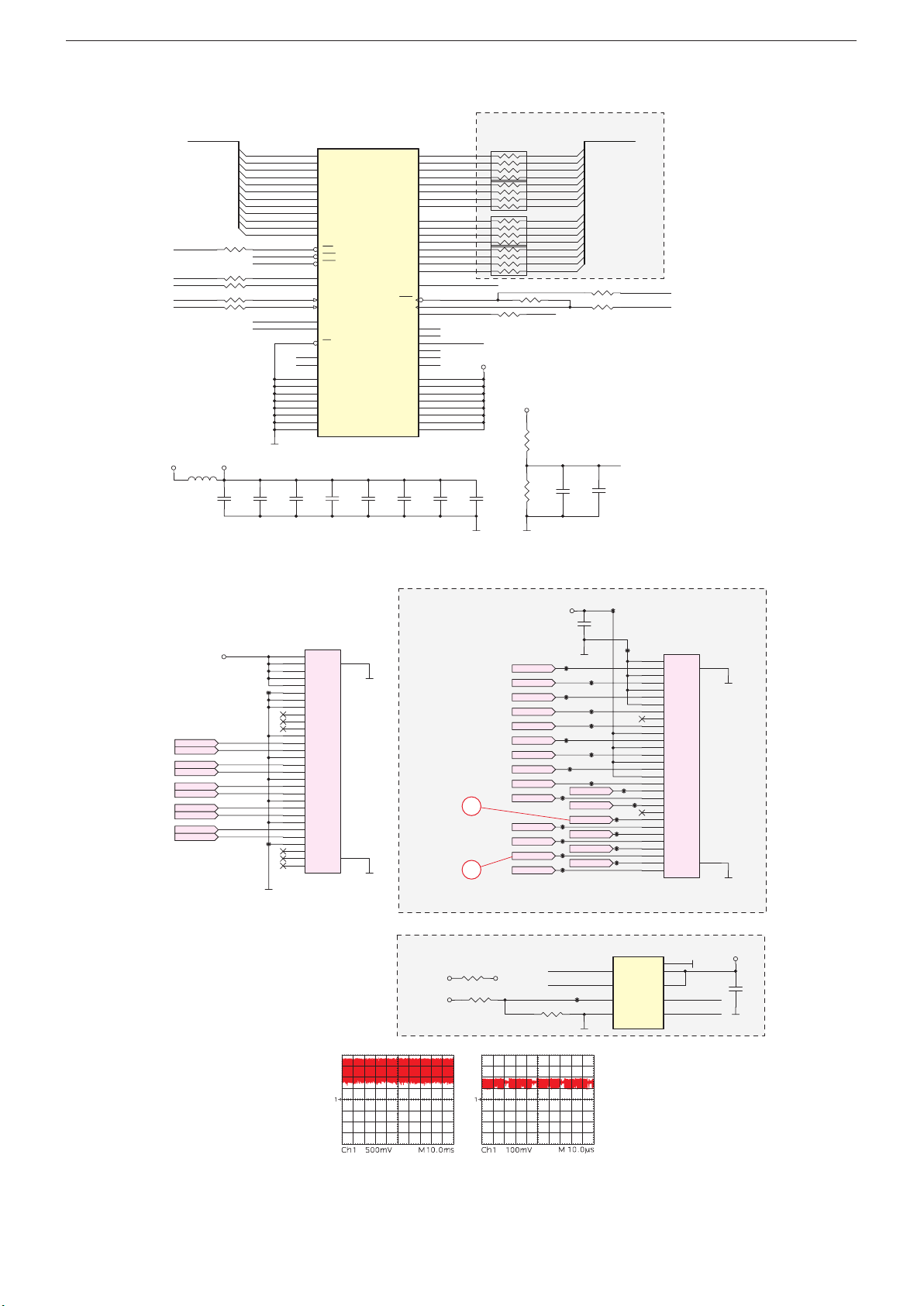

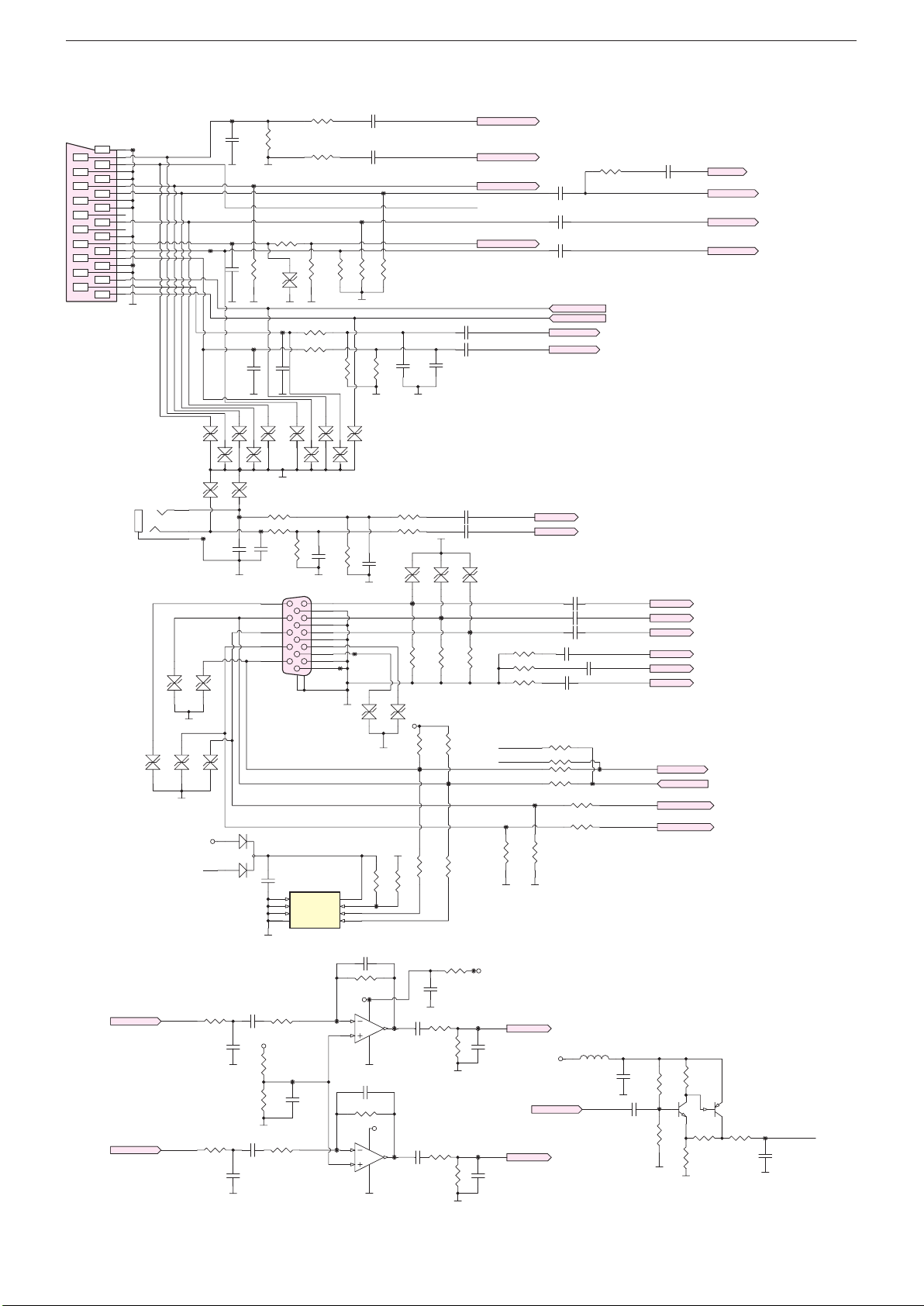

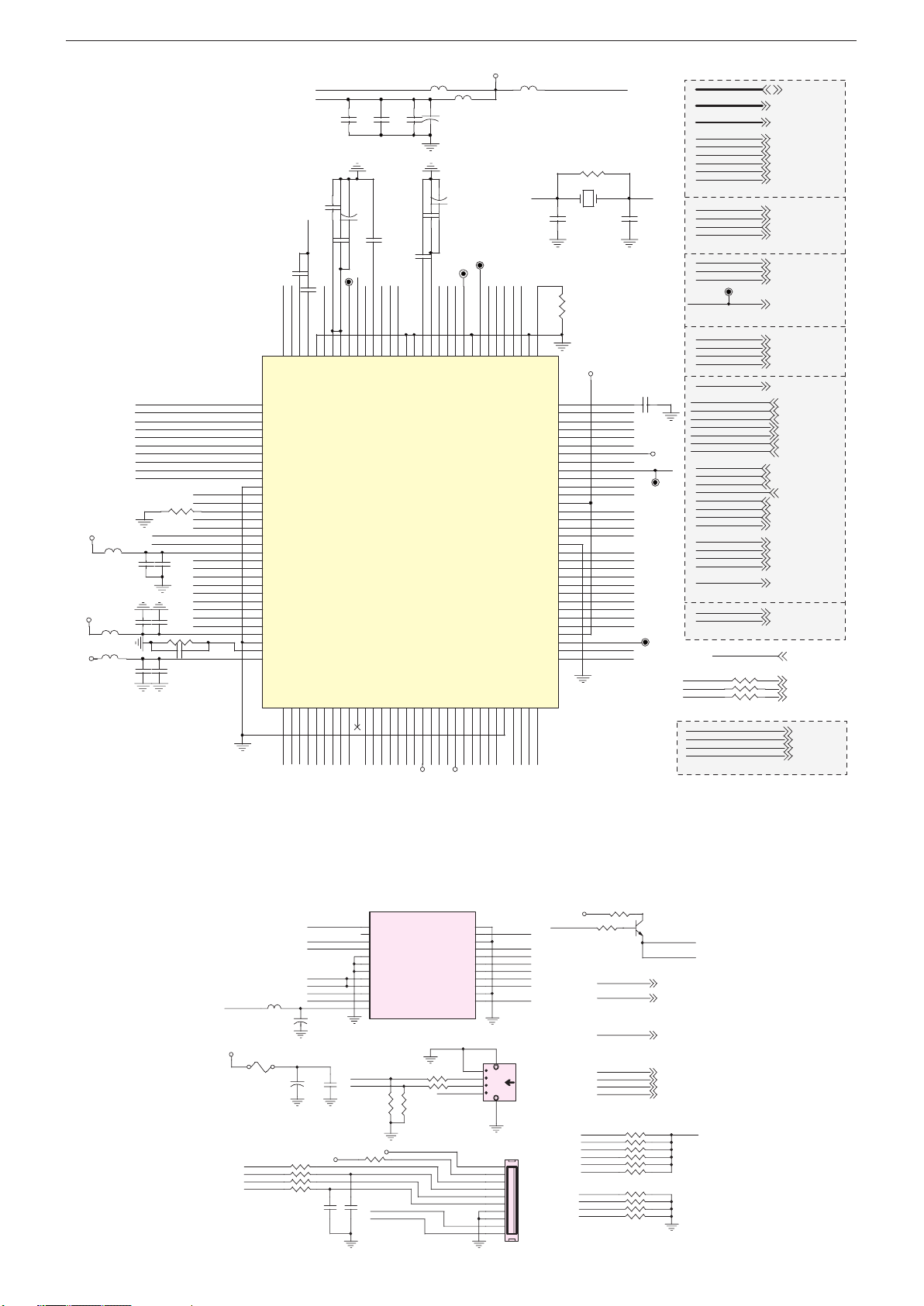

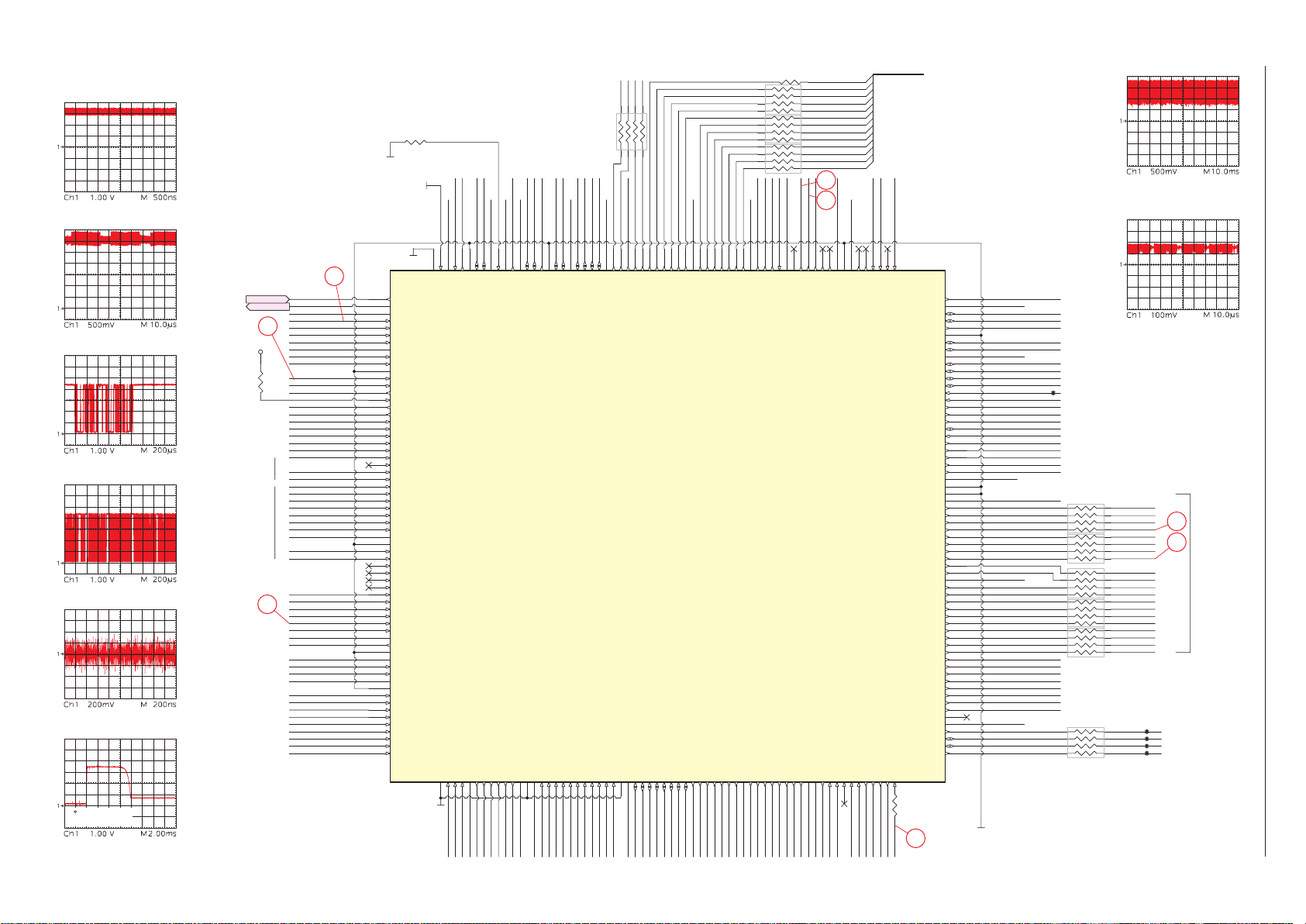

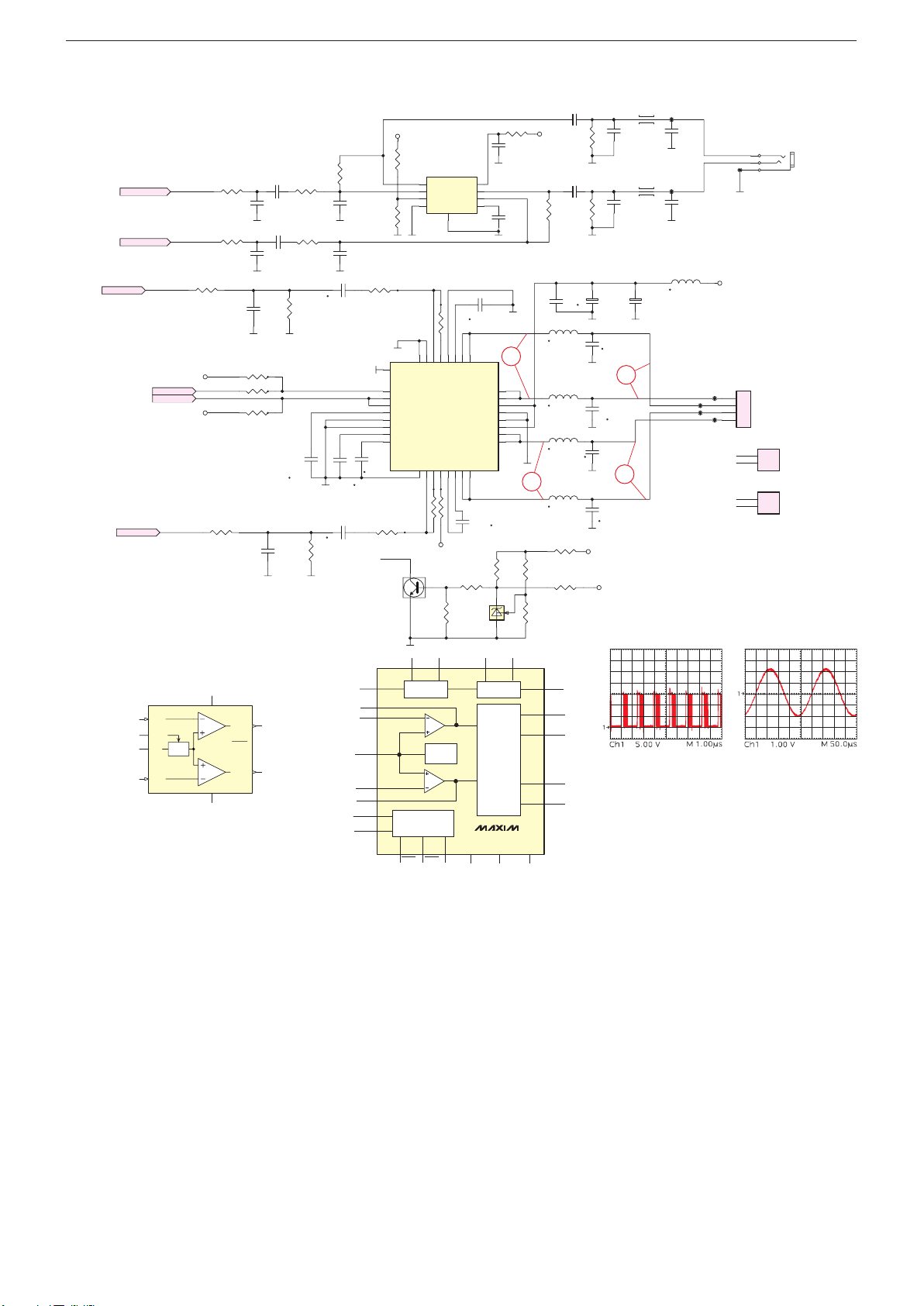

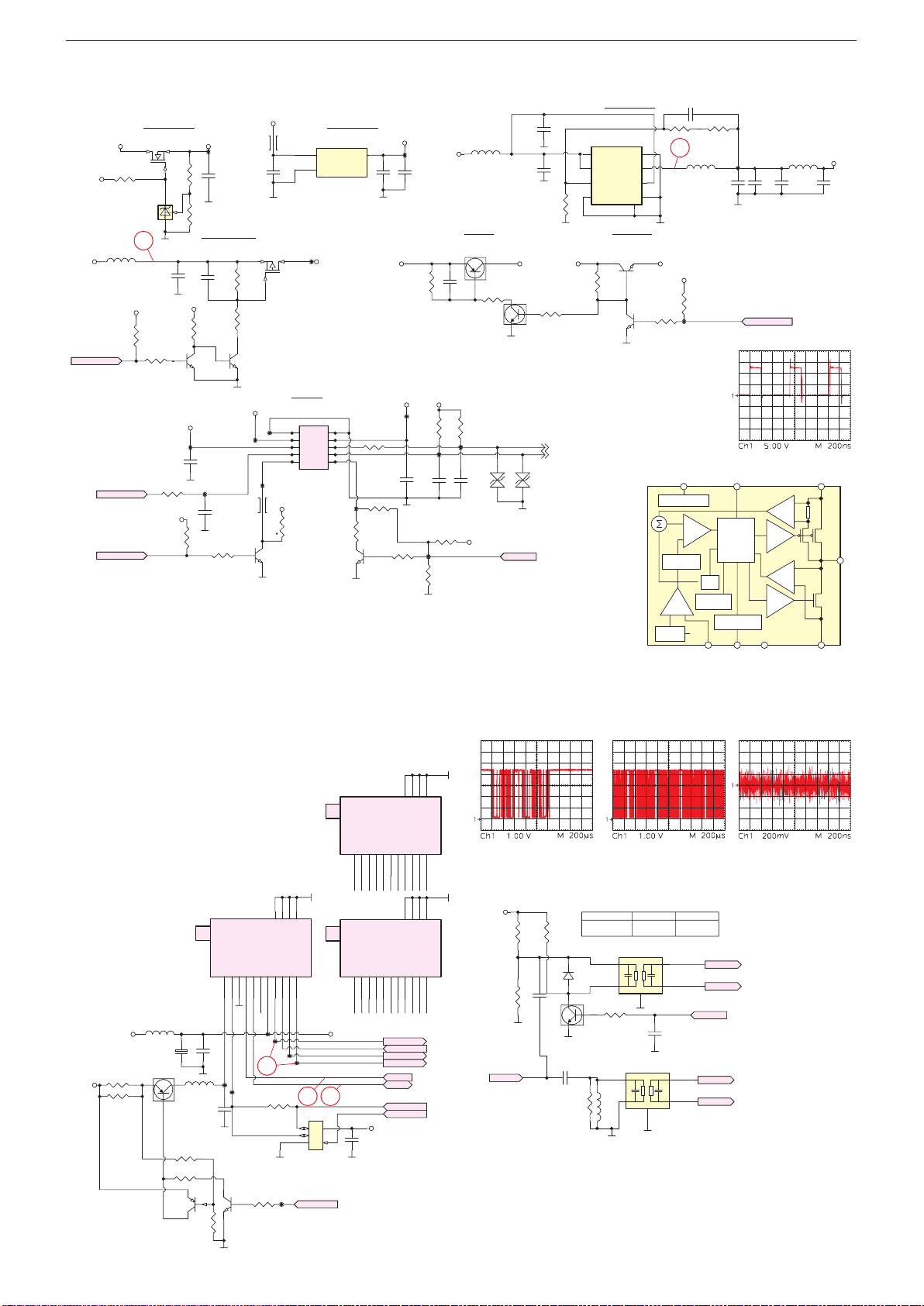

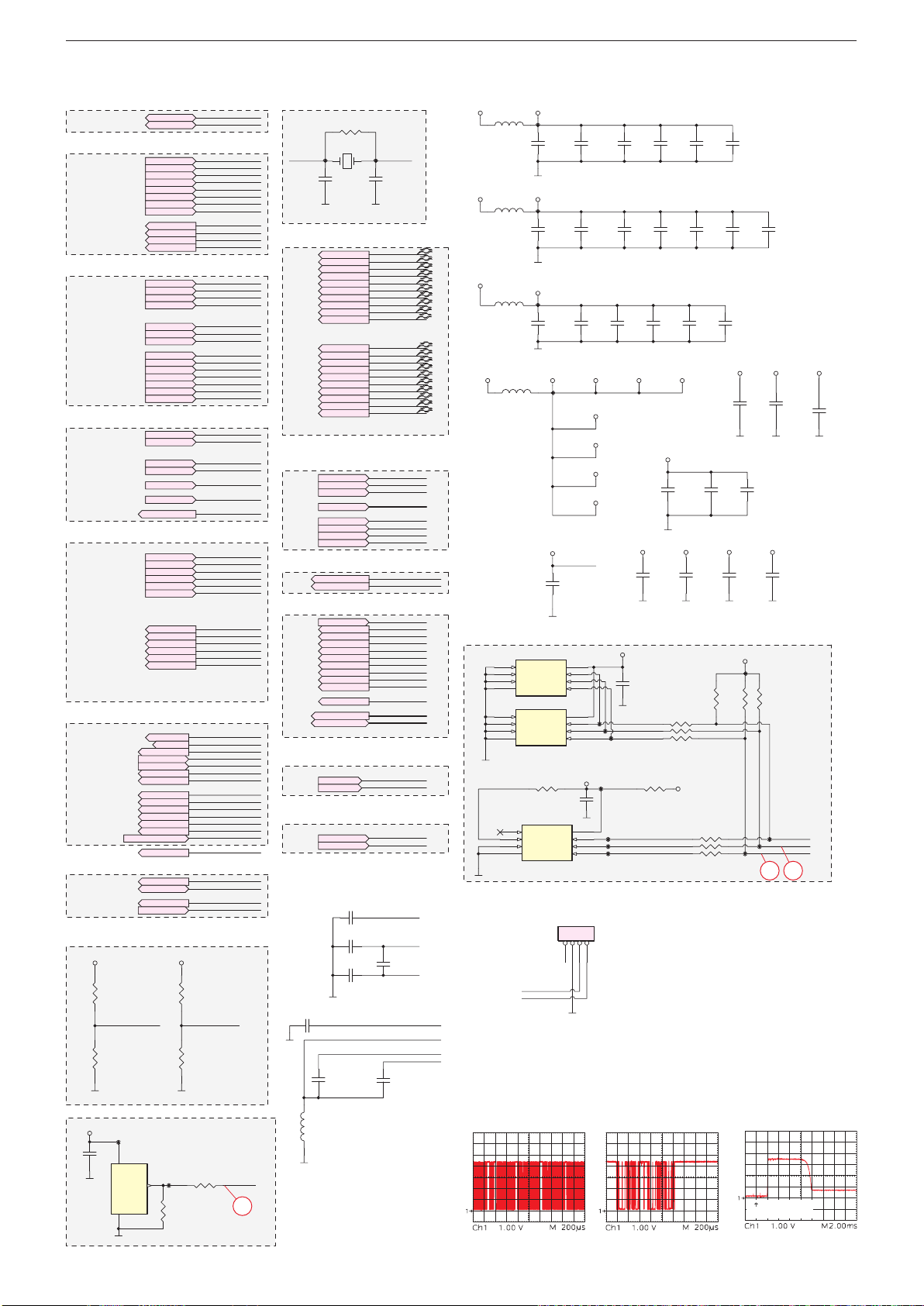

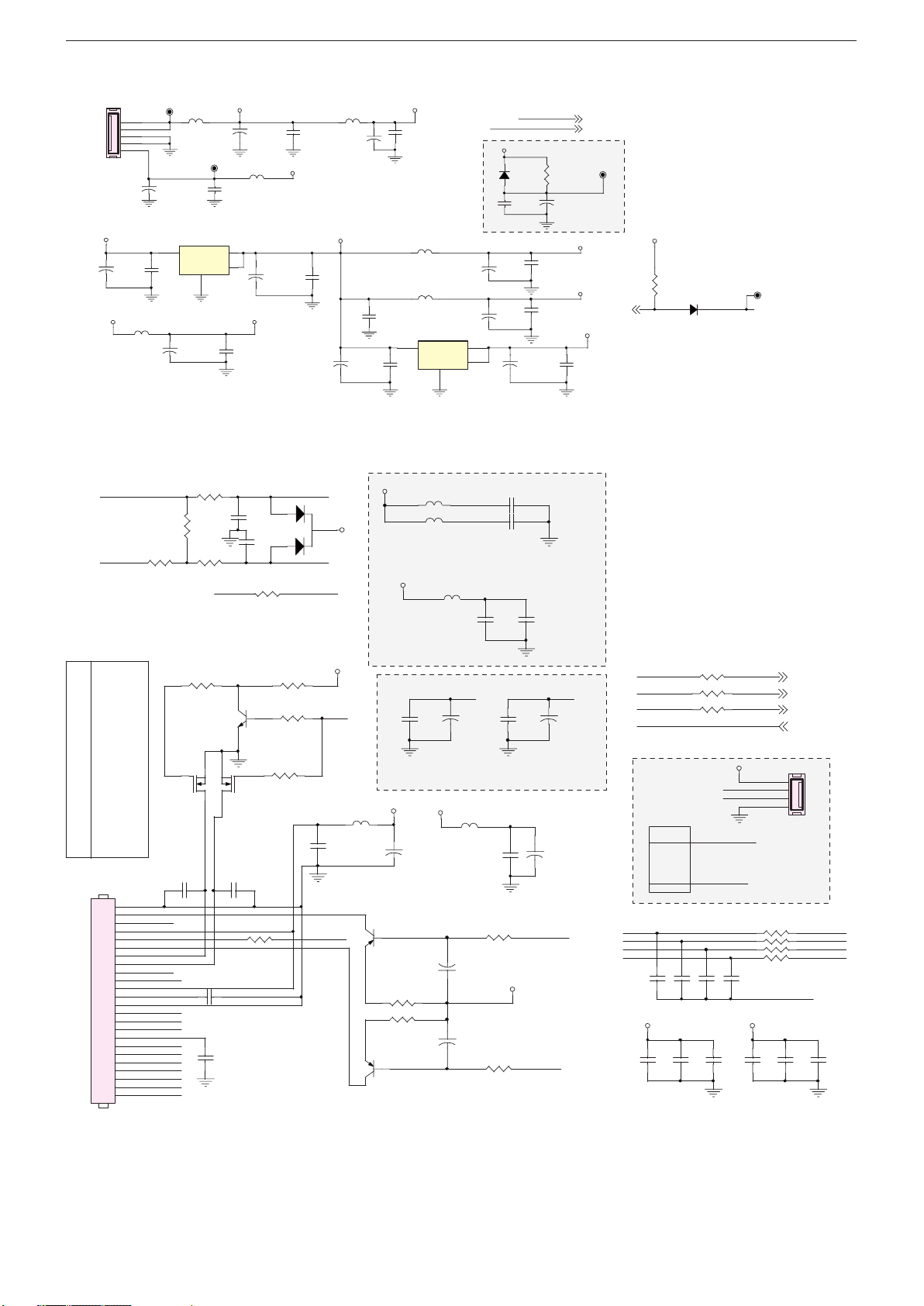

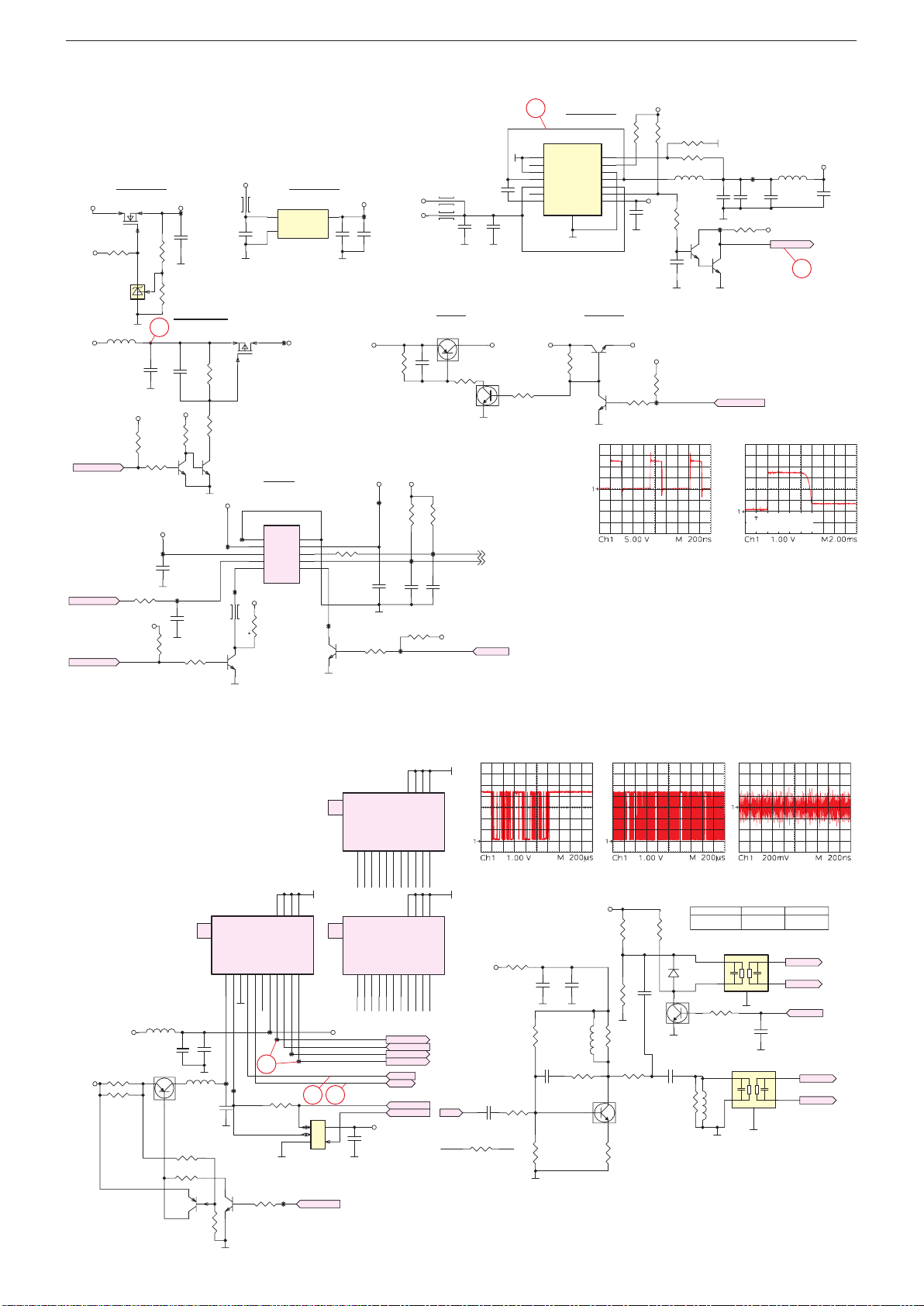

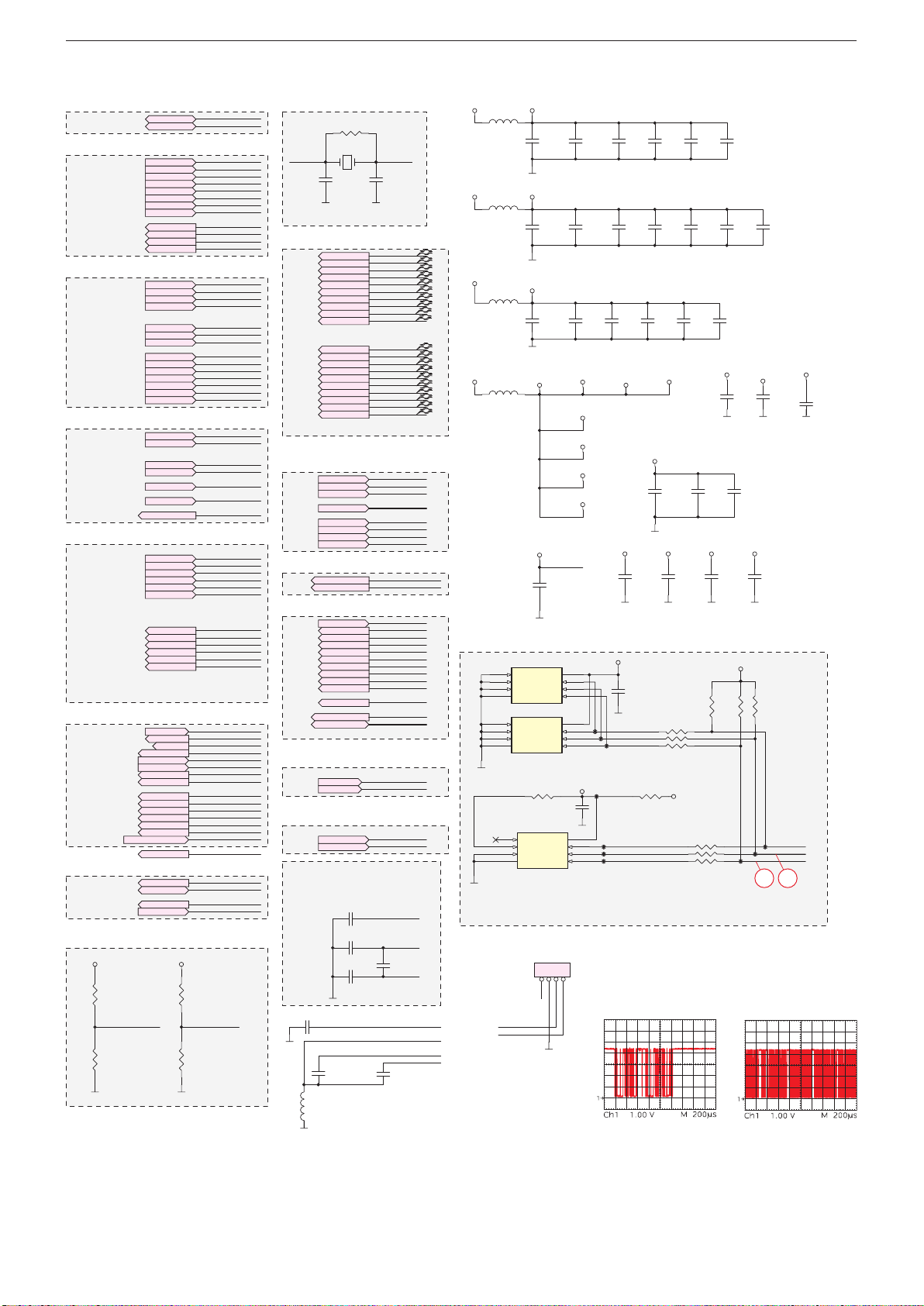

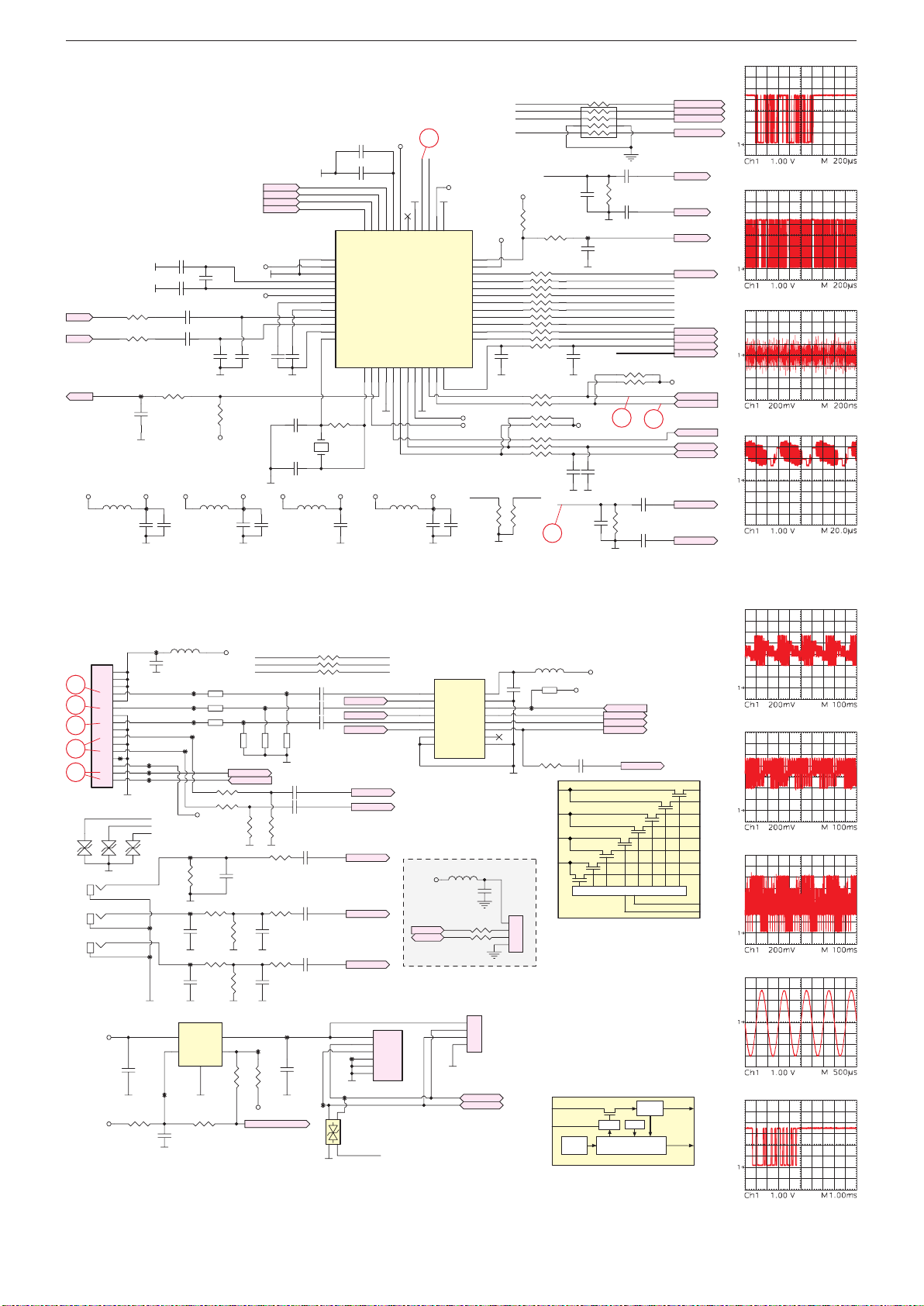

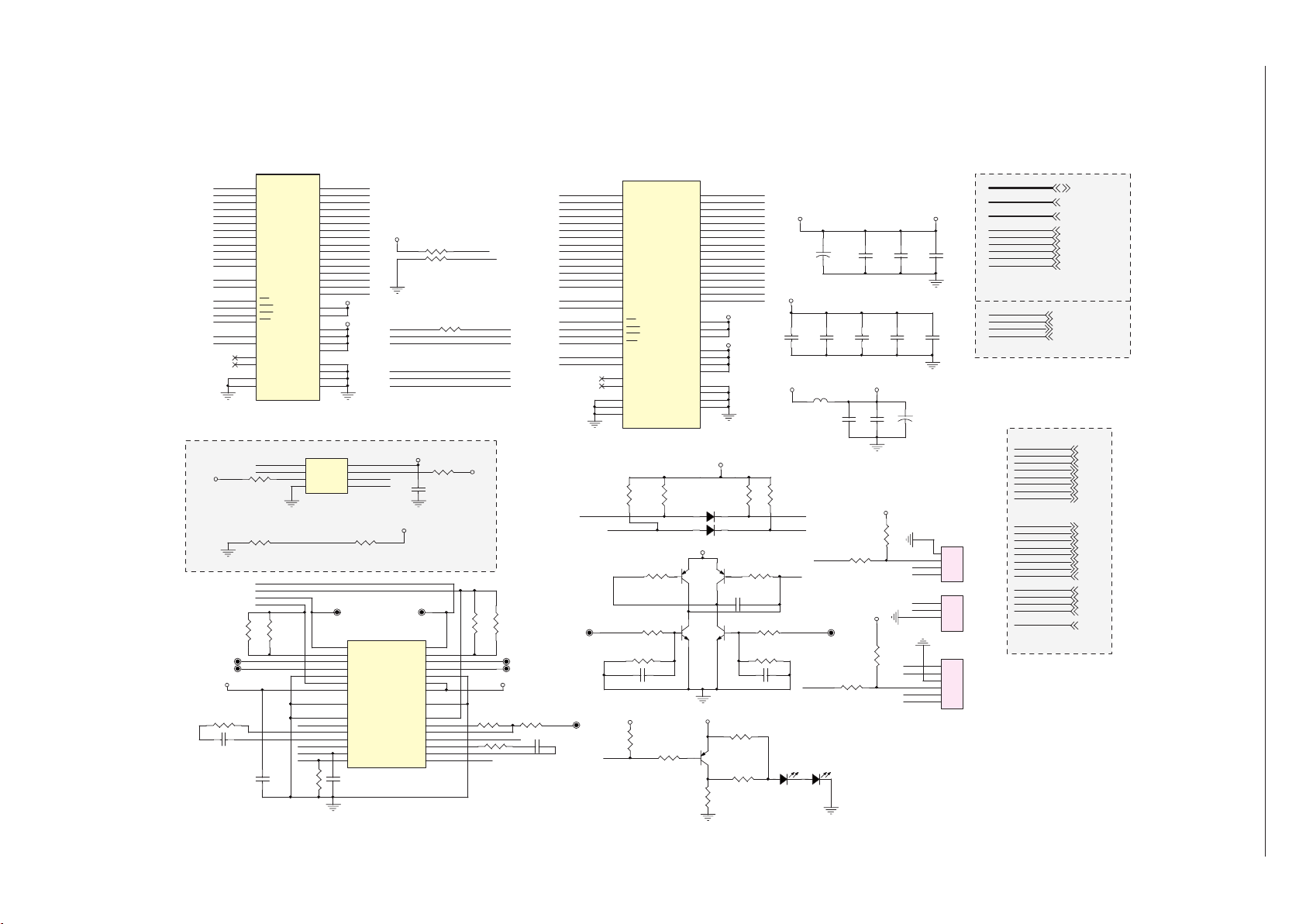

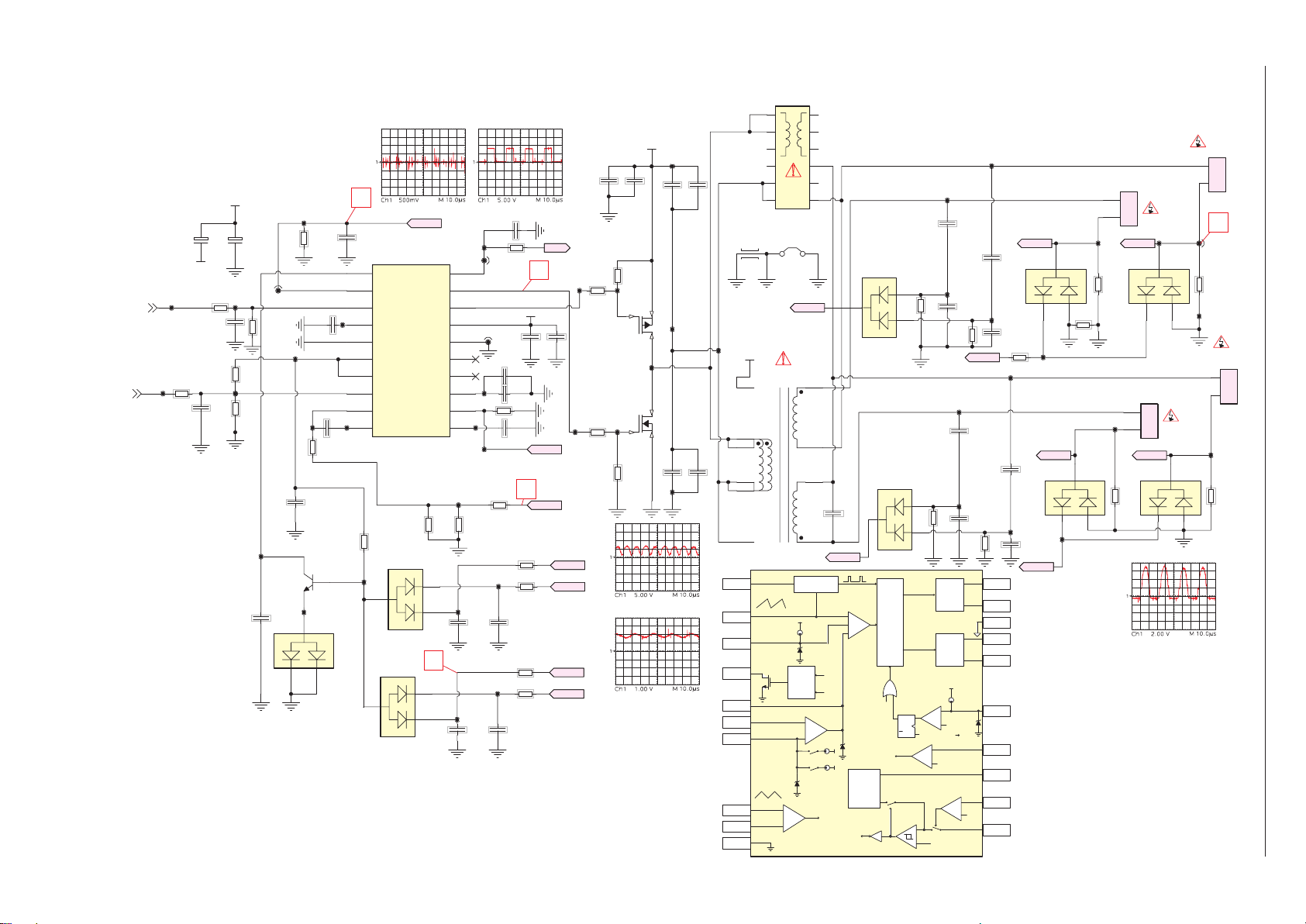

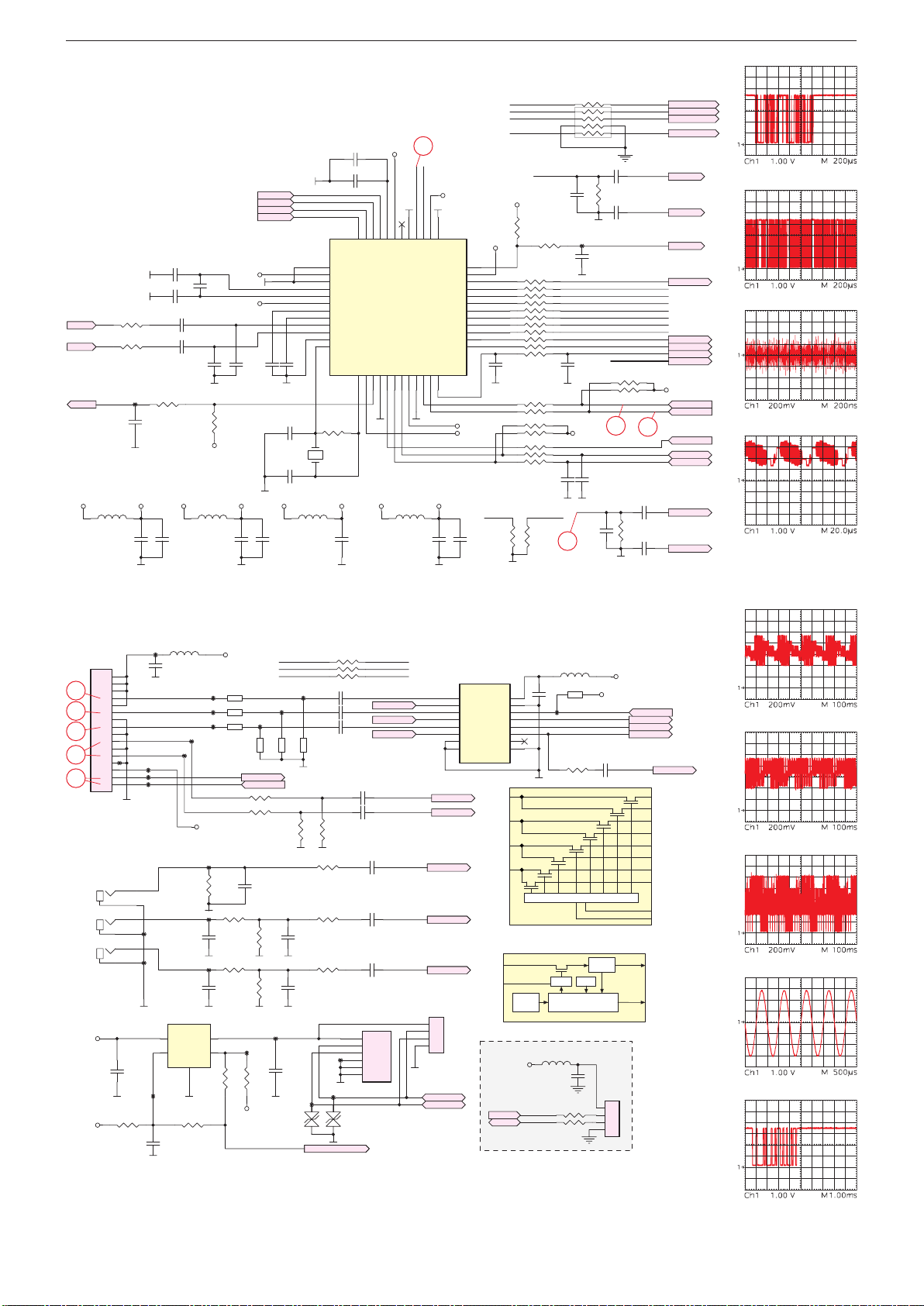

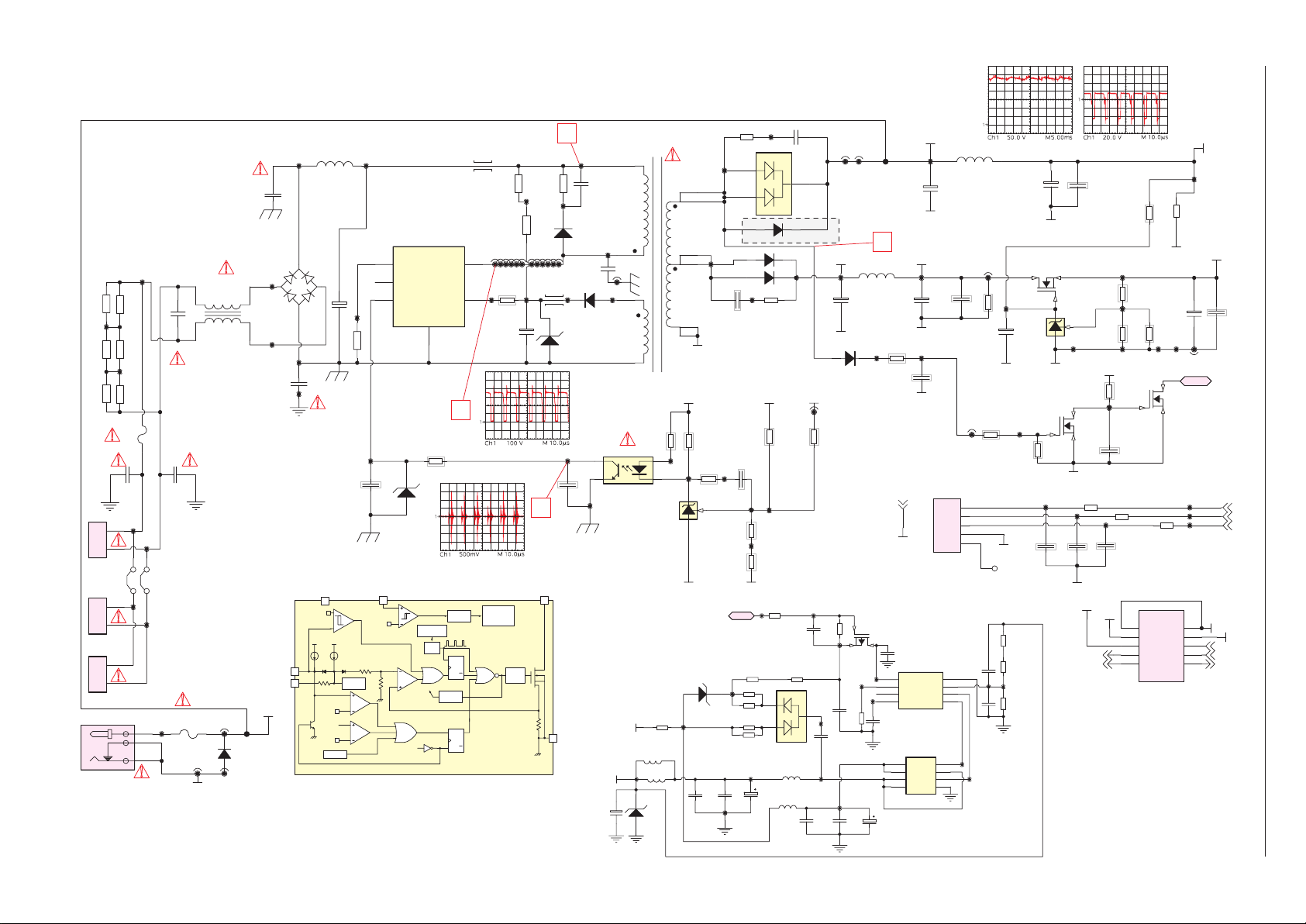

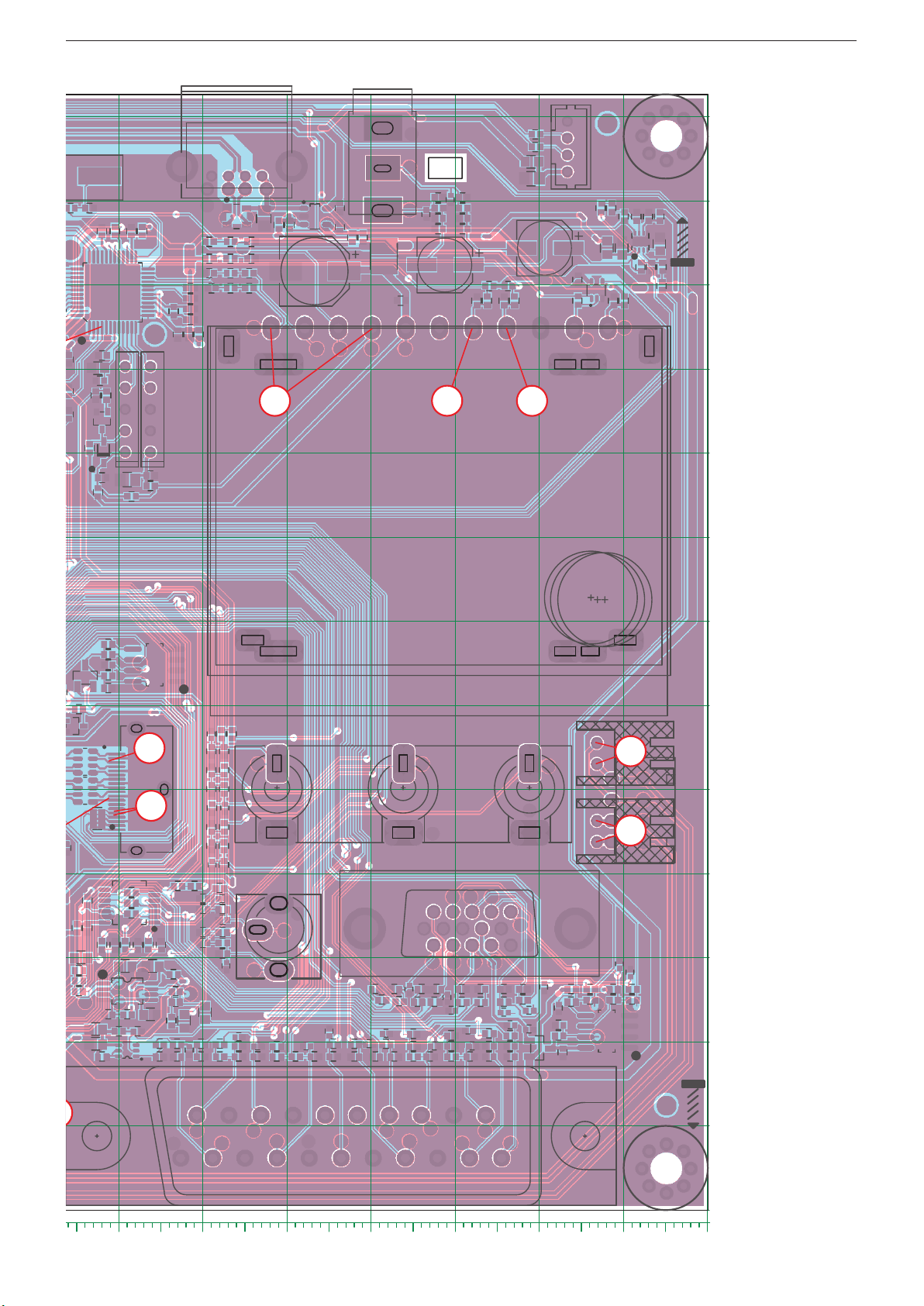

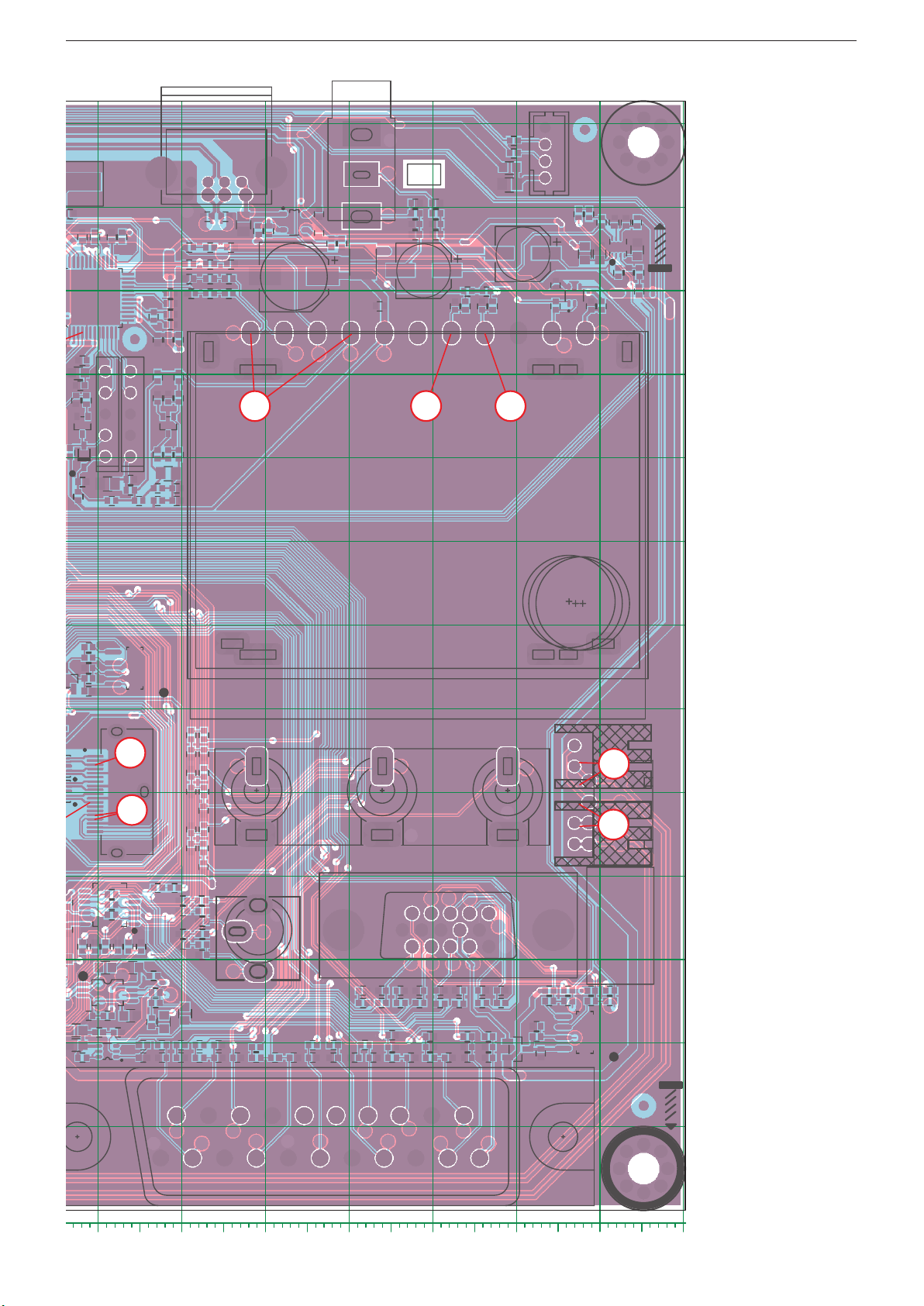

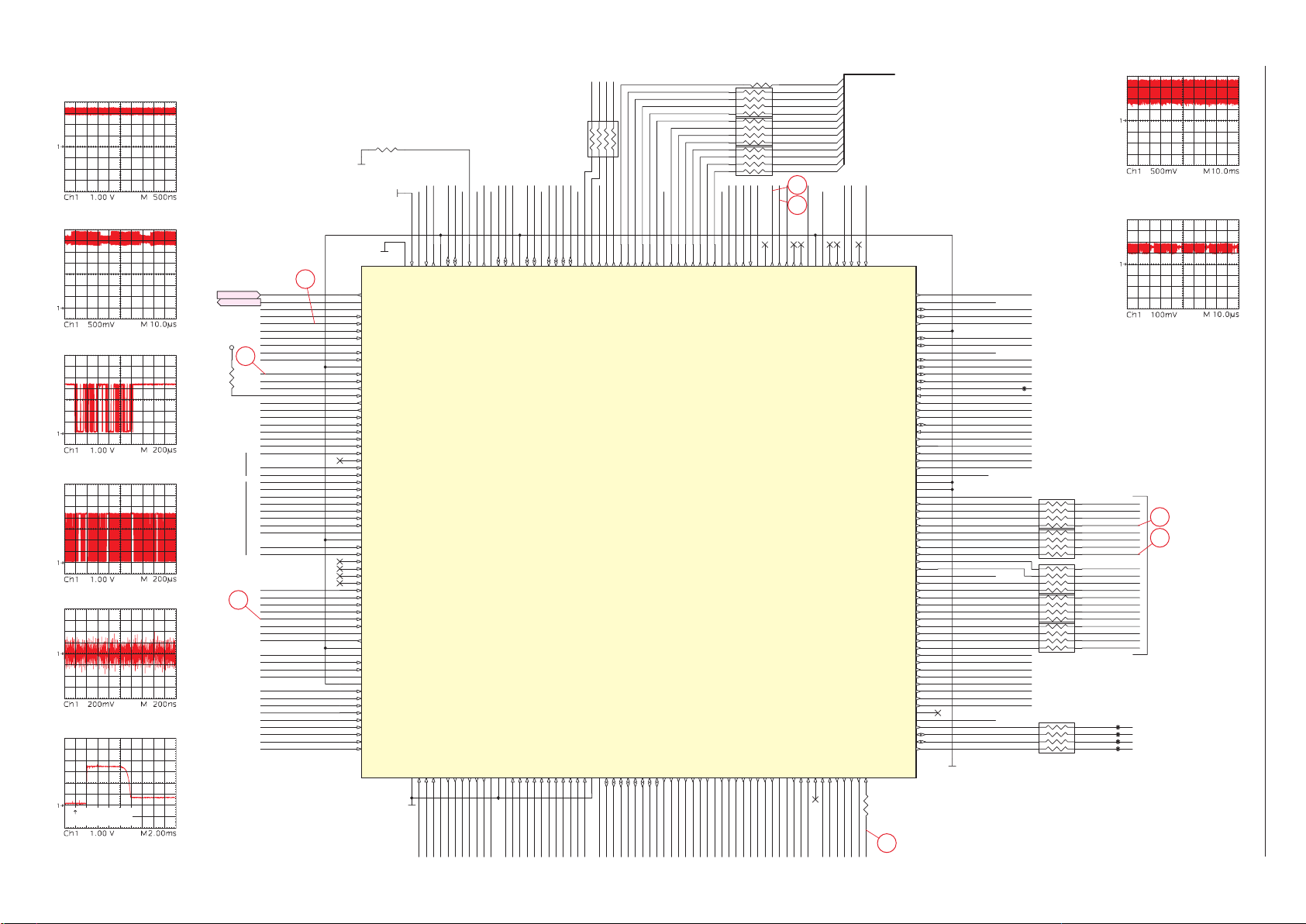

Platinenabbildungen und Schaltpläne / Layout of PCBs and Circuit Diagrams

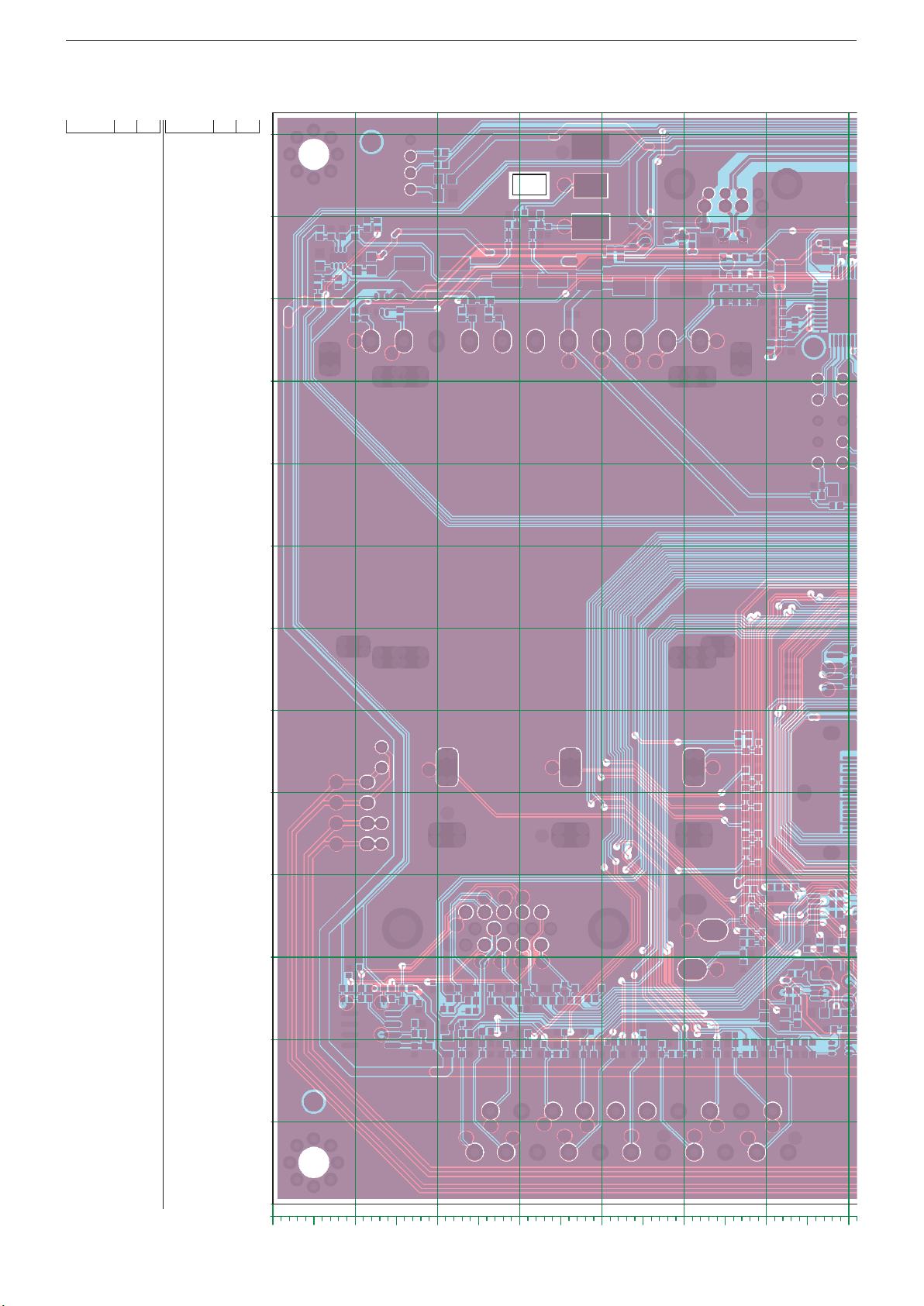

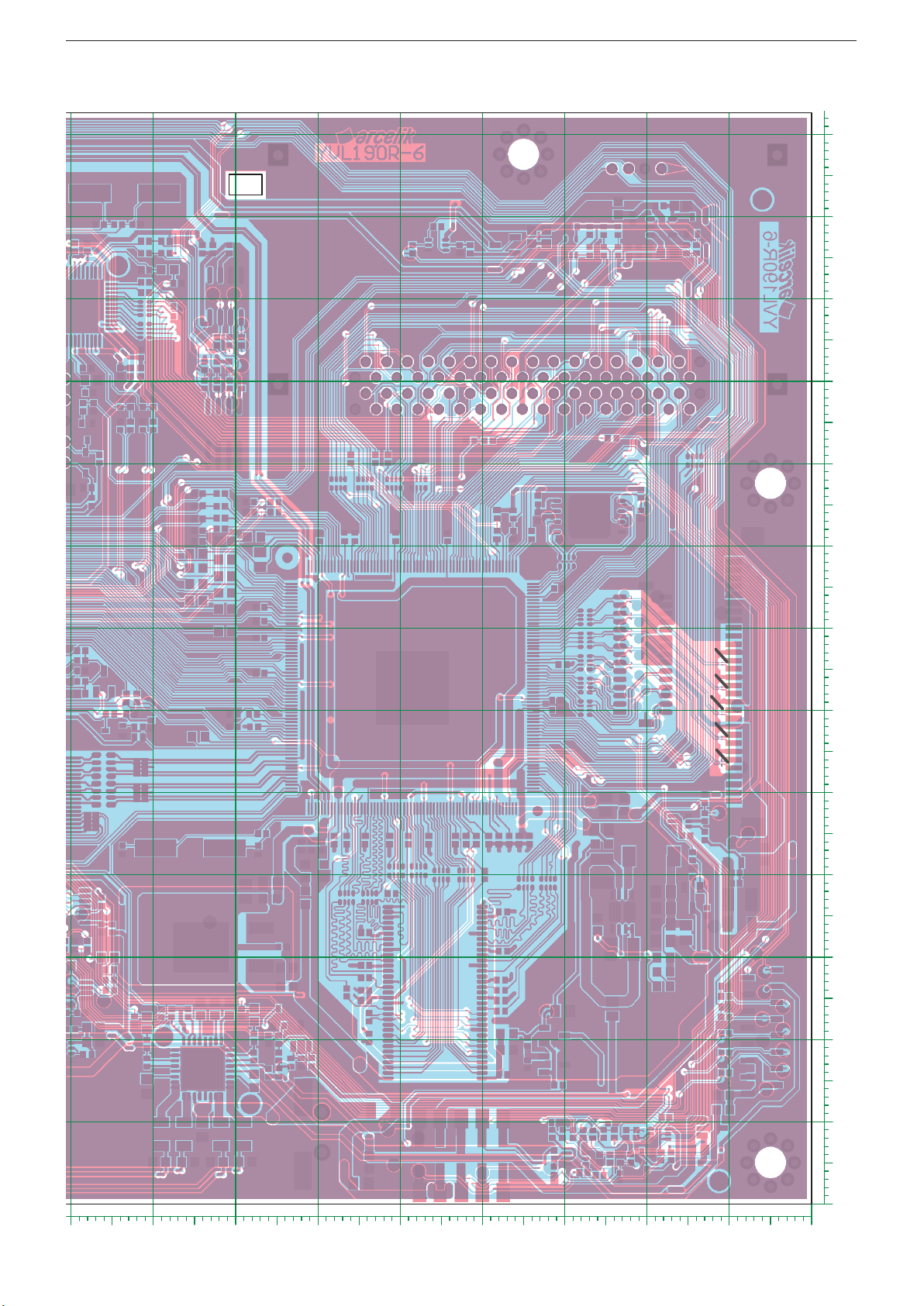

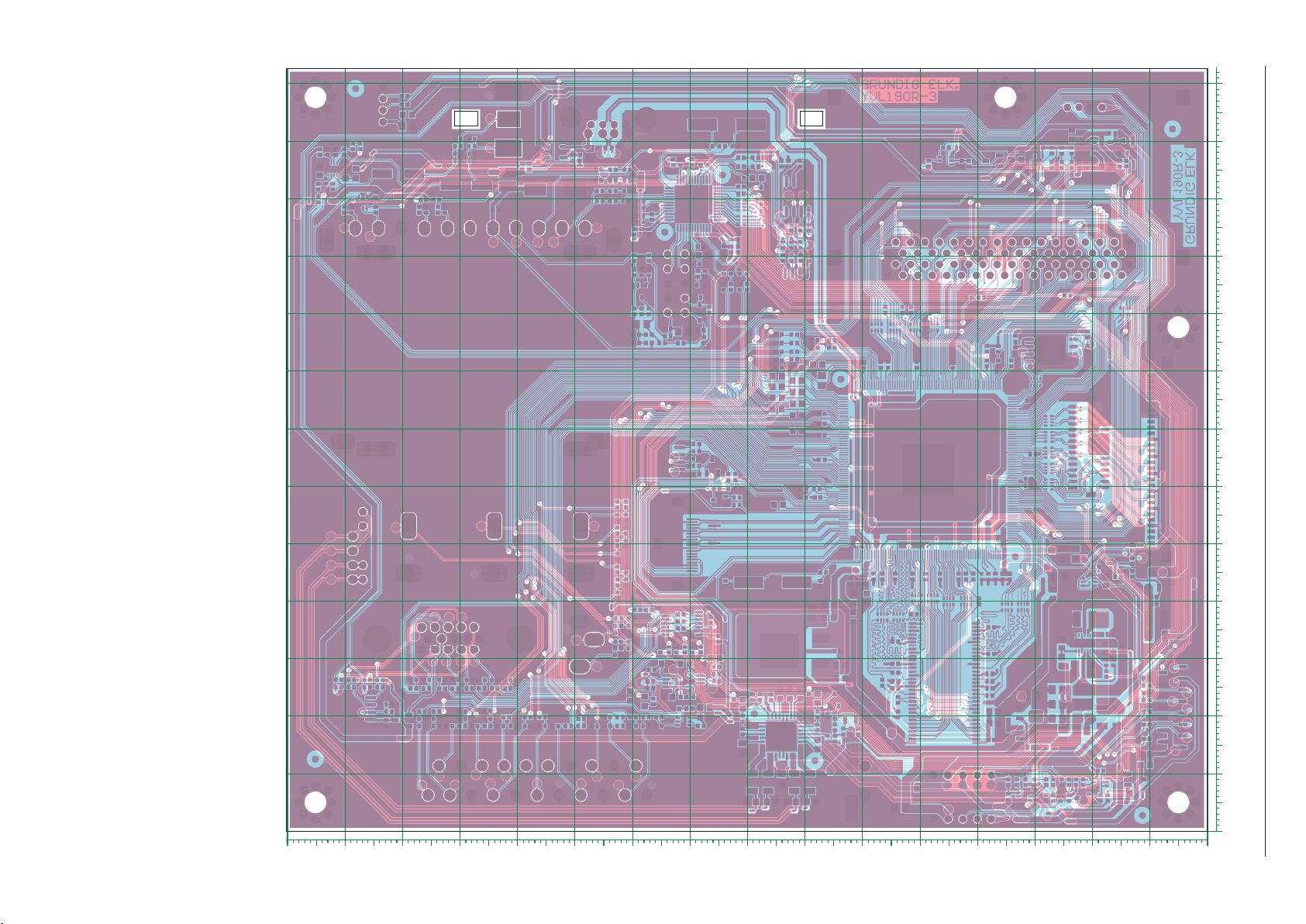

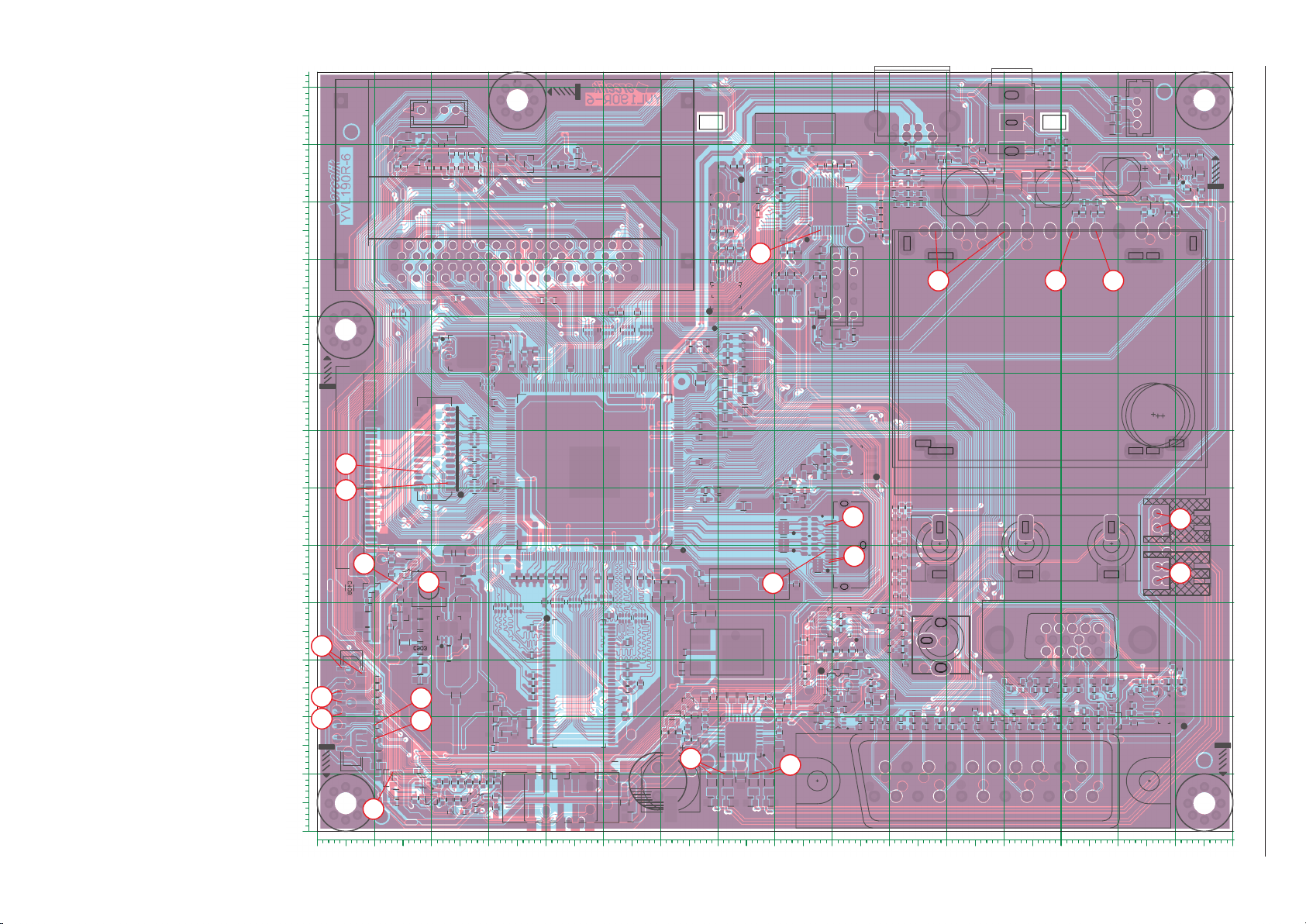

Chassisplatte / Chassis Board YVL190R-3
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
C1 T 14 7
C200 T 103 110
C201 T 101 110
C202 T 101 111
C203 T 103 111
C204 T 106 113
C206 T 136 108
C207 T 133 108
C208 T 87 119
C209 T 82 119
C214 T 97 104
C215 T 98 104
C221 T 84 101
C222 T 88 102
C227 T 88 116
C228 T 92 116
C229 T 82 103
C237 T 77 112
C239 T 81 114
C301 T 106 115
C302 T 80 95
C303 T 92 85
C304 T 88 100
C305 T 84 95
C306 T 88 99
C308 T 87 97
C309 T 94 86
C310 T 98 90
C311 T 99 86
C312 T 99 106
C313 T 99 108
C315 T 99 110
C317 T 97 107
C318 T 83 95
C319 T 124 108
C320 T 113 112
C321 T 100 100
C322 T 149 108
C323 T 99 85
C325 T 99 107
C326 T 80 97
C327 T 145 111
C328 T 81 95
C399 T 83 97
C400 T 84 43
C401 T 67 43
C402 T 89 62
C403 T 54 25
C404 T 37 19
C405 T 38 31
C408 T 6 44
C409 T 39 44
C410 T 26 6
C411 T 54 29
C412 T 38 16
C413 T 38 36
C414 T 38 25
C415 T 54 33
C416 T 38 27
C417 T 68 58
C418 T 70 58
C419 T 68 60
C420 T 70 60
C421 T 43 44
C422 T 57 81
C423 T 31 75
C424 T 44 81
C425 T 37 44
C426 T 30 66
C428 T 67 71
C430 T 31 61
C431 T 25 48
C432 T 75 81
C433 T 60 81
C434 T 67 69
C435 T 60 44
C436 T 61 44
C437 T 62 44
C438 T 67 65
C439 T 51 44
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
C440 T 58 44
C441 T 38 44
C442 T 51 81
C443 T 56 81
C444 T 67 73
C445 T 62 41
C446 T 66 39
C447 T 67 78
C450 T 68 81
C451 T 33 84
C452 T 31 60
C453 T 57 44
C454 T 47 44
C455 T 36 44
C456 T 34 44
C457 T 54 44
C459 T 26 44
C460 T 69 100
C462 T 73 116
C500 T 42 93
C501 T 18 116
C502 T 22 116
C503 T 21 116
C504 T 29 119
C505 T 22 120
C700 T 102 20
C701 T 104 20
C702 T 99 39
C703 T 100 20
C704 T 109 20
C705 T 123 18
C706 T 75 73
C707 T 71 72
C708 T 130 21
C709 T 125 20
C710 T 127 18
C711 T 132 18
C712 T 124 25
C713 T 94 23
C714 T 100 24
C715 T 97 25
C716 T 137 18
C717 T 111 18
C718 T 98 23
C719 T 85 27
C720 T 75 83
C721 T 75 82
C722 T 91 29
C723 T 134 18
C724 T 86 30
C725 T 128 25
C726 T 131 25
C727 T 94 29
C728 T 11 13
C729 T 86 34
C730 T 88 32
C731 T 91 32
C732 T 126 25
C733 T 94 32
C734 T 71 76
C735 T 75 77
C736 T 116 117
C737 T 133 25
C741 T 122 25
C742 T 116 119
C743 T 103 57
C744 T 103 55
C745 T 139 123
C746 T 87 20
C752 T 71 70
C753 T 71 74
C754 T 101 52
C755 T 102 48
C756 T 75 75
C757 T 101 46
C758 T 102 41
C759 T 98 18
C760 T 116 20
C761 T 118 20
C762 T 107 118
C763 T 71 78
C764 T 75 79
C765 T 102 31
C766 T 102 35
C767 T 100 37
C768 T 100 33
C800 T 60 9
C801 T 79 5
C802 T 71 24
C803 T 74 24
C804 T 74 9
C805 T 68 15
C806 T 76 5
C807 T 81 14
C808 T 62 9
C810 T 72 5
C811 T 69 5
C813 T 81 22
C814 T 68 23
C817 T 73 24
C820 T 150 114
C824 T 68 84
C826 T 68 85
C827 T 129 112
C830 T 128 118
C831 T 128 120
C833 T 147 119
C834 T 141 114
C835 T 152 118
C836 T 75 86
C837 T 130 117
C838 T 130 120
C839 T 154 115
C840 T 155 110
C841 T 153 112
C842 T 75 85
C900 T 9 37
C901 T 18 44
C902 T 18 34
C903 T 26 25
C905 T 26 22
C906 T 26 20
C907 T 22 17
C908 T 51 7
C909 T 21 37
C910 T 54 4
C911 T 18 32
C912 T 22 28
C915 T 64 29
C916 T 69 38
C917 T 30 24
C918 T 64 31
C920 T 9 40
C925 T 28 6
CB702 T 143 19
CB902 T 25 9
D300 T 88 90
D404 T 86 64
D405 T 86 50
D406 T 86 53
D720 T 140 19
D732 T 105 119
D733 T 103 119
F300 T 91 95
F301 T 94 95
IC300 T 89 109
IC301 T 147 109
IC400 T 94 65
IC401 T 46 26
IC402 T 49 63
IC403 T 27 84
IC404 T 71 94
IC406 T 71 110
IC408 T 71 93
IC500 T 29 116
IC501 T 18 119
IC700 T 91 26
IC701 T 113 118
IC702 T 91 37
IC703 T 148 21
IC800 T 73 16
IC802 T 152 115
IC803 T 62 21
IC900 T 21 33
IC901 T 72 31
IC902 T 31 17
L200 T 100 104
L201 T 83 101
L202 T 82 101
L203 T 93 116
L301 T 98 88
L302 T 91 87
L303 T 122 113
L305 T 150 108
L400 T 37 21
L401 T 71 81
L402 T 23 48
L403 T 62 37
L404 T 66 37
L405 T 9 34
L406 T 27 41
L407 T 25 17
L500 T 24 121
L701 T 87 22
L702 T 11 12
L703 T 85 34
L706 T 139 125
L800 T 52 11
L801 T 76 9
L802 T 72 9
L803 T 128 119
L804 T 130 119
L805 T 79 9
L806 T 69 9
L901 T 22 23
L902 T 16 20
L903 T 18 20
L908 T 35 9
L911 T 64 27
Q900 T 16 47
R200 T 77 109
R201 T 106 110
R203 T 106 111
R204 T 78 114
R209 T 103 113
R212 T 81 111
R215 T 81 112
R218 T 134 110
R219 T 136 110
R220 T 103 115
R221 T 77 108
R222 T 137 108
R223 T 134 108
R224 T 81 117
R225 T 81 116
R226 T 79 116
R227 T 79 117
R228 T 84 119
R229 T 90 116
R231 T 101 113
R301 T 145 108
R302 T 88 85
R303 T 87 91
R304 T 101 115
R305 T 24 93
R306 T 14 90
R307 T 100 97
R308 T 88 87
R309 T 97 90
R310 T 97 86
R311 T 89 97
R312 T 95 85
R313 T 97 100
R314 T 97 97
R317 T 94 87
R318 T 97 85
R319 T 100 90
R320 T 98 97
R323 T 32 118
R326 T 34 118
R327 T 42 116
R328 T 43 116
R332 T 46 119
R335 T 81 97
R339 T 49 116
R399 T 84 97
R400 T 49 44
R401 T 67 45
R402 T 59 41
R403 T 89 64
R404 T 89 66
R405 T 74 116
R406 T 89 67
R407 T 38 26
R408 T 54 28
R409 T 41 44
R410 T 38 24
R411 T 54 23
R412 T 57 26
R413 T 42 44
R414 T 40 40
R415 T 89 65
R417 T 54 20
R418 T 75 57
R419 T 54 26
R422 T 51 38
R423 T 71 100
R424 T 72 105
R425 T 69 105
R427 T 21 86
R429 T 21 84
R430 T 38 84
R431 T 36 84
R433 T 71 102
R434 T 74 102
R435 T 72 102
R438 T 72 100
R439 T 74 100
R440 T 38 81
R441 T 36 81
R444 T 71 116
R448 T 71 105
R449 T 82 62
R450 T 83 61
R459 T 34 81
R460 T 27 9
R462 T 24 6
R465 T 27 6
R471 T 33 86
R500 T 25 116
R501 T 20 116
R502 T 24 116
R503 T 39 93
R504 T 27 116
R505 T 27 118
R506 T 15 116
R507 T 14 116
R508 T 17 121
R509 T 56 91
R511 T 53 91
R514 T 52 91
R521 T 152 112
R522 T 25 118
R523 T 24 118
R600 T 82 57
R601 T 82 58
R602 T 83 60
R616 T 85 60
R700 T 102 18
R701 T 104 18
R702 T 100 18
R703 T 109 18
R704 T 122 20
R705 T 121 18
R706 T 118 18
R707 T 116 18
2 - 1
R708 T 113 18
R709 T 107 18
R710 T 88 18
R711 T 90 21
R712 T 102 32
R713 T 130 18
R714 T 98 20
R715 T 125 18
R716 T 95 20
R717 T 92 21
R718 T 125 21
R719 T 130 20
R720 T 95 18
R721 T 92 35
R722 T 92 37
R723 T 92 38
R724 T 97 39
R725 T 86 37
R726 T 95 32
R727 T 124 26
R728 T 128 26
R729 T 131 26
R730 T 97 28
R731 T 92 32
R732 T 85 26
R733 T 91 23
R734 T 138 25
R735 T 137 21
R736 T 136 25
R737 T 137 20
R738 T 138 26
R739 T 136 26
R740 T 85 29
R741 T 90 32
R742 T 11 23
R743 T 149 26
R744 T 144 26
R745 T 72 82
R746 T 72 83
R747 T 151 25
R748 T 146 25
R749 T 102 33
R750 T 102 36
R751 T 97 26
R752 T 89 23
R753 T 149 25
R754 T 144 25
R755 T 146 26
R756 T 134 21
R757 T 151 26
R758 T 102 37
R759 T 142 21
R760 T 134 20
R761 T 142 22
R762 T 100 36
R763 T 96 23
R764 T 11 25
R765 T 11 27
R766 T 11 24
R767 T 110 117
R768 T 119 116
R769 T 118 116
R770 T 11 16
R771 T 11 19
R772 T 11 21
R774 T 126 26
R778 T 133 26
R782 T 109 117
R783 T 122 26
R786 T 101 57
R787 T 101 55
R788 T 100 32
R791 T 140 126
R792 T 140 128
R795 T 103 50
R796 T 103 52
R797 T 101 50
R798 T 102 43
R799 T 103 46
R800 T 68 20
R801 T 68 18
R802 T 81 20
R803 T 66 16
R804 T 81 17
R805 T 76 23
R810 T 148 114
R811 T 65 84
R813 T 82 22
R814 T 150 118
R815 T 72 86
R816 T 65 85
R818 T 149 119
R819 T 69 23
R822 T 154 118
R823 T 153 118
R824 T 101 43
R825 T 72 85
R826 T 155 112
R832 T 66 20
R833 T 65 20
R834 T 65 18
R835 T 63 17
R836 T 62 17
R839 T 65 16
R844 T 61 17
R845 T 79 23
R846 T 78 23
R847 T 130 118
R848 T 128 117
R901 T 16 29
R902 T 25 33
R903 T 25 29
R905 T 31 15
R906 T 19 11
R908 T 23 9
R909 T 18 27
R910 T 32 9
R911 T 33 9
R912 T 19 46
R914 T 9 41
R916 T 13 45
R917 T 16 44
R918 T 13 49
R919 T 13 47
R920 T 35 6
R921 T 30 9
R922 T 28 9
R923 T 24 9
R924 T 22 9
R925 T 15 5
R926 T 17 6
R927 T 19 6
R928 T 35 20
R929 T 18 29
R930 T 35 17
RA401 T 35 39
RA402 T 32 39
RA403 T 56 37
RA404 T 48 41
RA405 T 54 37
RA406 T 45 40
RA407 T 51 41
RA408 T 42 40
RA409 T 28 60
RA410 T 28 63
RA411 T 28 66
RA412 T 28 69
RA413 T 28 71
RA414 T 30 78
RA501 T 51 88
RA502 T 54 88
RA503 T 58 88
RA504 T 48 88
RP201 T 81 109
RP202 T 81 106
S1 T 147 45
S2 T 147 54
S302 T 43 6
S400 T 21 67
S401 T 8 65
S402 T 21 126
S500 T 121 124
S501 T 35 112
S602 T 92 50
S700 T 116 9
S701 T 132 33
S702 T 104 123
S703 T 108 33
S704 T 6 21
S705 T 104 123
S706 T 143 126
S707 T 124 49
S800 T 149 48
S900 T 155 5
S901 T 155 128
S902 T 5 5
S903 T 5 88
S904 T 35 128
T1 T 98 94
T300 T 37 117
T303 T 88 94
T601 T 85 58
T700 T 91 19
T800 T 65 23
T801 T 15 119
T900 T 32 6
T901 T 31 21
T903 T 9 44
T904 T 46 117
T905 T 19 9
T906 T 21 43
T907 T 13 9
T908 T 22 6
TU300 T 128 86
TU301 T 128 86
TU302 T 128 86
X200 T 84 123
Y400 T 76 43
Page 22
Chassisplatte / Chassis Board
0
10
20
30
40
50
60
70
80
90
100
110
120
130
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
X
4x2.5 mm
R905
IC902
R427
C430
C452
C423
IC500
T901
R910
192
R471
R816 C826
R302
YVL190R-3
S902
16
L702
FID4
T907
C1
15
C728
R770
R771
R925
R926
R927
1
T908
R462
C410
T905
R906
R924
L902
C907
L903
R908
R923
CB902
L407
C906
DVD
R772
R766
R742
2
1
R765
R764
R901
S704
C900
L405
C920
R914
R909 R929
IC900
L901
C905
C903
C912
R903
C911
C902
C909
R902
1
R465 R460
R922
T900
C925
1
R921
C917
L406
J4
T903
R916
R917
C901
R919
Q900
1
S401
30
LVDS
R918
S400
1
R912
1
T906
L402
1
C459
C431
RA409
LVDS
R429
RA411
RA410
RA413
RA412
C426
RA414
S701
TU302
1
S800
R706 R705 C7 05 R715
C761 R704
C709
R718
C710 C711R713 C723 C716
R719 R760
R756C708
R737
R735
C741 C7 12 C732
R783 R727
LEFT
R774
C726C725 C737 R736
R728 R729
VGA
R778 R739
D720
CB702
R759
R761
S900
SCART
FID1
1
IC703
R734
R754
R744
R738
RIGHT
S1
R753
R748
R755
R743
R747
R757
BARCODE
B1
1
AV
S707
S2
1
SPEAKER GRUNDIG ELK.
C435
C401
C436
C437
C720
C842
C804
C803
R824
R798
R418
C432
C721
C706
C756
C735
C764
R911
10
L908R920
9
R930 R928
2
1
C908
C404
L400
C412
R410
C414
R407
PWR
S302
RA402
C405
C413
C416
IC401
RA401
1
RA408
R414
RA406
RA404
R422
RA407
C800
C910
L800
C808
+
R844
R836
R417
R835
IC803
R833
C811
L806
24
L802
C810
25
R839
R803
R834
R832
C805
R801
R800
17
R411
C403
R408
R419
C411
R412
RA405
C415
RA403
L403 C445
R402
T800
C814
R819
16
C802
L911
C915
C918
C817
L404
C446
C916
C806
L801
32
L805
C801
IC800
1
R805
9
8
R846
R845
C807 R804 R802 C813
S700
R710
C746
R813
L701
R711 R717
R752 C713
IC901
IC700
R740
R732
C719
C724
Y400
L703
C729
C730
R725
R733
R741
C722
C731
R721
R722
R723
IC702
R731
1
R720 C759
T700
R716
R763
C715
C718
R714 C703
C714
R700R702 R701 R709 C717R703 R707R708
C700 C701
C704
C760
C727
R751
R730
C733
R726
1
S602
R724 C702
R788
C765
R712
C768
C766
R749
S703
R762
C767
R750
R758
C758
PC AUDIO
VIDEO
R600
R601
T601
R602
R449
R450
D405
C400
R616
D406
D404
C402
R403
R404
R406
R415
19
C757
HDMI
R797
C754
R787
R799
C755
R795
R796
C744
1
IC400
C303 R312 R318
1
C323
R786
C743
TU301TU300
C456
C425
C455
C441
R409
C409
R413
C439
C454
C421
R400
C457
C440
C453
129
193
128
R459
C451
R441
R440
R431
C424
C442
R430
C443
C422
256
IC402
1
R401
C417 C418
C419 C4 20
C434
C428
C438
C752
C707
64
65
C444
C447
C433
R811
C450
C824
C753
C734
C763
L401
R745
R746
R825
H PHONE
C742
C320
R439
C836
R405
USB
S702
RA504
RA501
R503 C500
R514
RA502
RA503
R511
R509
1
S501
T300
R327
R323
R326
S904
1
R328
R332
R339
T904
1
C460
R423 R433
R815
R438 R435
R434
IC406
R425
444R844R
R424
1
C462
IC404
C302
C328
C318
C305
IC408
C326
R335
L202
C399
R399
L201
C221
D300
R308
R303
L302
1
T303
C308
C306
C304
R311
R221
R200
C237 R215
R204
R226
R227
RP202
C229
48
R212
R225
C239
RP201
37
C222
1
F300
36
R224
C209R228C208
C227
R229
C228
X200
C309
R317
R310
1
R309
12
F301
13
C317
R314
R313
R320
C214
C215
C310
C311
L301
T1
R319
R307
C312
C325
C313
C321
L200
R201
C315 C201
C202
24
C200
C203
IC300
L203
25
R231
R304
S705
R209R220
D733
R203
C301
C204
C762
R782
R767
D732
1
1
C736
IC701
S500
R791
C319
C827
R769
R768
L303
C207
R223
R222
C206
R218
R219
R848
C830
L803
C831
C837
L804
R847
C838
C834
C745
L706
R301
1
C322
L305
C327
R810
IC301
1
C820
C840
V-0
R521
C841
R826
IC802
R814
C835
1
HOTEL
S706
C833
R818
FID2
C839
R823
R822
S901
R792
S903
R306
R507
R506
C501
R501
C503
1
T801
FID3
1
R508
IC501
1
C502
R502
R305
IC403
1
R500
R504
R523
C505
R522
L500
R505
C504
S402
SERVICE
1
9
12
10
7
3
4
8 6
5
14
13
27
27
28
28
40
39
38
37
36
YVL190R-3
Ansicht von der Bestückungsseite
View of Component Side
GRUNDIG Service Chassis D6
2 - 2
Page 23
GRUNDIG Service Chassis D6
0
10
20
30
40
50
60
70
80
90
100
110
120
130
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
X
R905
IC902
R427
C430
C452
C423
IC500
T901
R910
192
R471
R816 C826
R302
S902
16
L702
FID4
T907
C1
15
C728
R770
R771
R925
R926
R927
1
T908
R462
C410
T905
R906
R924
L902
C907
L903
R908
R923
CB902
L407
C906
DVD
R772
R766
R742
2
1
R765
R764
R901
S704
C900
L405
C920
R914
R909 R929
IC900
L901
C905
C903
C912
R903
C911
C902
C909
R902
1
R465 R460
R922
T900
C925
1
R921
C917
L406
J4
T903
R916
R917
C901
R919
Q900
1
S401
30
LVDS
R918
S400
1
R912
1
T906
L402
1
C459
C431
RA409
LVDS
R429
RA411
RA410
RA413
RA412
C426
RA414
C435
C401
C436
C437
C720
C842
C804
C803
R824
R798
R418
C432
C721
C706
C756
C735
C764
R911
10
L908R9 20
9
R930 R928
2
1
C908
C404
L400
C412
R410
C414
R407
PWR
S302
RA402
C405
C413
C416
IC401
RA401
1
RA408
R414
RA406
RA404
R422
RA407
C800
C910
L800
C808
+
R844
R836
R417
R835
IC803
R833
C811
L806
24
L802
C810
25
R839
R803
R834
R832
C805
R801
R800
17
R411
C403
R408
R419
C411
R412
RA405
C415
RA403
L403 C445
R402
T800
C814
R819
16
C802
L911
C915
C918
C817
L404
C446
C916
C806
L801
32
L805
C801
IC800
1
R805
9
8
R846
R845
C807 R804 R802 C8 13
S700
R710
C746
R813
L701
R711 R7 17
R752 C713
IC901
IC700
R740
R732
C719
C724
Y400
L703
C729
C730
R725
R733
R741
C722
C731
R721
R722
R723
IC702
R731
1
R720 C759
T700
R716
R763
C715
C718
R714 C703
C714
R700R702 R701 R709 C717R703 R707R708
C700 C701
C727
R751
R730
C733
R726
1
S602
R724 C702
R788
C765
R712
C768
C766
R749
R762
C767
R750
R758
C758
PC AUDIO
R600
R601
T601
R602
R449
R450
D405
C400
R616
D406
D404
C402
R403
R404
R406
R415
19
C757
HDMI
R797
C754
R787
R799
C755
R795
R796
C744
1
IC400
C303 R312 R318
1
C323
R786
C743
C456
C425
C455
C441
R409
C409
R413
C439
C454
C421
R400
C457
C440
C453
129
193
128
R459
C451
R441
R440
R431
C424
C442
R430
C443
C422
256
IC402
1
R401
C417 C418
C419 C420
C434
C428
C438
C752
C707
64
65
C444
C447
C433
R811
C450
C824
C753
C734
C763
L401
R745
R746
R825
R439
C836
R405
USB
S702
RA504
RA501
R503 C500
R514
RA502
RA503
R511
R509
1
S501
T300
R327
R323
R326
S904
1
R328
R332
R339
T904
1
C460
R423 R4 33
R815
R438 R4 35
R434
IC406
R425
444R844R
R424
1
C462
IC404
C302
C328
C318
C305
IC408
C326
R335
L202
C399
R399
L201
C221
D300
R308
R303
L302
1
T303
C308
C306
C304
R311
R221
R200
C237 R215
R204
R226
R227
RP202
C229
48
R212
R225
C239
RP201
37
C222
1
F300
36
R224
C209R228C208
C227
R229
C228
X200
C309
R317
R310
1
R309
12
F301
13
C317
R314
R313
R320
C214
C215
C310
C311
L301
T1
R319
R307
C312
C325
C313
C321
L200
C315 C201
C202
24
C200
C203
IC300
L203
25
R231
R304
S705
R209 R220
D733
R203
D732
S903
R306
R507
R506
C501
R501
C503
1
T801
FID3
1
R508
IC501
1
C502
R502
R305
IC403
1
R500
R504
R523
C505
R522
L500
R505
C504
S402
SERVICE
1
9
12
10
7
3
4
14
13
27
27
40
39
38
37
36
Chassisplatte / Chassis Board YVL190R-3 Ansicht von der Bestückungsseite / View of Component Side
2 - 3
Page 24
GRUNDIG Service Chassis D6
4x2.5 mm
R302
YVL190R-3
S701
TU302
1
S800
R706 R705 C705 R715
C761 R704
C709
R718
C710 C711R713 C723 C716
R719 R760
R756C708
R737
R735
C741 C712 C732
R783 R727
LEFT
R774
C726C725 C737 R736
R728 R729
VGA
R778 R739
D720
CB702
R759
R761
S900
SCART
FID1
1
IC703
R734
R754
R744
R738
RIGHT
S1
R753
R748
R755
R743
R747
R757
BARCODE
B1
1
AV
S707
S2
1
SPEAKER GRUNDIG ELK.
R824
R798
R710
C746
L701
R711 R7 17
R752 C713
C729
C730
R725
R733
R741
C722
C731
R721
R722
R723
IC702
R731
1
R720 C759
T700
R716
R763
C715
C718
R714 C703
C714
R700R702 R701 R709 C717R703 R707R708
C700 C701
C704
C760
C727
R751
R730
C733
R726
1
S602
R724 C702
R788
C765
R712
C768
C766
R749
S703
R762
C767
R750
R758
C758
PC AUDIO
VIDEO
C402
R403
R404
R406
R415
19
C757
HDMI
R797
C754
R787
R799
C755
R795
R796
C744
1
IC400
C303 R312 R318
1
C323
R786
C743
TU301TU300
H PHONE
C742
C320
USB
S702
D300
R308
R303
L302
1
T303
C308
C306
C304
R311
C222
1
F300
36
C227
R229
C228
X200
C309
R317
R310
1
R309
12
F301
13
C317
R314
R313
R320
C214
C215
C310
C311
L301
T1
R319
R307
C312
C325
C313
C321
L200
R201
C315 C201
C202
24
C200
C203
IC300
L203
25
R231
R304
S705
R209 R220
D733
R203
C301
C204
C762
R782
R767
D732
1
1
C736
IC701
S500
R791
C319
C827
R769
R768
L303
C207
R223
R222
C206
R218
R219
R848
C830
L803
C831
C837
L804
R847
C838
C834
C745
L706
R301
1
C322
L305
C327
R810
IC301
1
C820
C840
V-0
R521
C841
R826
IC802
R814
C835
1
HOTEL
S706
C833
R818
FID2
C839
R823
R822
S901
R792
7
4
8 6
5
28
28
Chassisplatte / Chassis Board YVL190R-3 Ansicht von der Bestückungsseite / View of Component Side
2 - 4
Page 25
Chassisplatte / Chassis Board
0
10
20
30
40
50
60
70
80
90
100
110
120
130
Y
0102030405060708090100110120130140150160
X
TP62
TP46
YVL190R-3
TP64
TP65
tp802
tp803
tp800
tp700
TP111
TP101
TP100
tp805
tp807
tp806
TP70
TP904
TP67
TP16
TP906
tp705
tp704
TP68
tp706
TP901
TP58
TP109
tp21
TP69
tp15
tp20
tp6
tp22
tp11
tp19
tp14
tp18
tp12
TP110
tp17
TP900
tp26
tp25
tp24
tp23
tp28
tp27
TP108
TP63
tp10
tp9
tp7
tp8
TP32
1
TP33
TP98
1
TP35
TP56
TP59
11
TP82
TP60TP61
TP71
TP57
TP34
2
5
1
TP80
TP66
TP83
TP99
TP84
TP95
15
TP81
TP102
TP103
TP38
TP37
5
1
TP42
TP48
4
TP49
TP41
GRUNDIG ELK.
TP47
10
TP907 TP903TP905
9
TP97
2
TP902
TP105
1
TP53TP50
21
TP92
20
TP52
TP73
TP51
TP54
TP55
TP36
TP13
TP31
TP30
TP39
TP93
TP40
TP104
tp403
tp402
tp400
tp401
2
1
TP91
TP5
TP76
TP29
1
36
TP2
TP4
TP72
TP79
TP74
TP75
TP3
TP78TP77
TP1
tp702
TP87
TP106
tp701
tp804
TP86
tp703
TP96
TP89
TP85
TP43
TP44
TP90
1
TP88
TP107
TP45
33
68
1
YVL190R-3
Ansicht von der Lötseite
View of Solder Side
GRUNDIG Service Chassis D6
2 - 5
Page 26
GRUNDIG Service Chassis D6
YVL190R-3
TP32
1
TP33
TP98
1
TP35
TP56
TP59
11
TP82
TP60TP61
TP71
TP57
TP34
2
5
1
TP80
TP66
TP83
TP99
TP84
TP95
15
TP81
TP102
TP103
TP38
TP37
5
1
TP42
TP48
4
TP49
TP41
GRUNDIG ELK.
TP47
TP105
TP53TP50
21
TP92
20
TP52
TP73
TP51
TP54
TP55
TP36
TP13
TP31
TP30
TP39
TP93
TP40
TP104
tp403
tp402
tp400
tp401
2
1
TP91
TP5
TP76
TP29
1
36
TP2
TP4
TP79
TP74
TP75
TP3
TP78TP77
TP1
tp702
TP87
TP106
tp701
tp804
TP86
tp703
TP96
TP89
TP85
TP43
TP44
TP90
1
TP88
TP107
Chassisplatte / Chassis Board YVL190R-3 Ansicht von der Lötseite / View of Solder Side
POS. X Y POS. X Y
TP1 B 105 114
tp10 B 27 63
TP100 B 6 23
TP101 B 4 24
TP102 B 127 45
TP103 B 139 48
TP104 B 111 35
TP105 B 48 8
TP106 B 101 119
TP107 B 125 128
TP108 B 19 74
TP109 B 9 53
tp11 B 10 67
TP110 B 11 72
TP111 B 6 20
tp12 B 10 64
TP13 B 99 10
tp14 B 12 61
tp15 B 11 57
TP16 B 27 9
tp17 B 11 66
tp18 B 12 63
tp19 B 11 61
TP2 B 69 102
tp20 B 10 58
tp21 B 10 55
tp22 B 9 61
tp23 B 22 62
tp24 B 21 60
tp25 B 19 60
tp26 B 19 58
tp27 B 21 64
tp28 B 20 62
TP29 B 74 107
TP3 B 72 104
TP30 B 106 10
TP31 B 109 8
TP32 B 116 8
TP33 B 122 10
TP34 B 134 10
TP35 B 127 10
TP36 B 102 8
TP37 B 126 53
TP38 B 141 53
TP39 B 106 29
TP4 B 69 104
TP40 B 110 33
tp400 B 93 63
tp401 B 93 65
tp402 B 81 61
tp403 B 83 60
TP41 B 152 51
TP42 B 152 44
TP43 B 125 119
TP44 B 125 124
TP45 B 20 85
TP46 B 32 23
TP47 B 73 34
TP48 B 152 46
TP49 B 152 49
TP5 B 116 102
TP50 B 90 25
TP51 B 93 26
TP52 B 90 27
TP53 B 86 25
TP54 B 93 28
TP55 B 99 26
TP56 B 131 8
TP57 B 137 8
TP58 B 8 45
TP59 B 127 30
tp6 B 11 54
TP60 B 130 30
TP61 B 132 30
TP62 B 23 86
TP63 B 23 83
TP64 B 31 81
TP65 B 32 83
TP66 B 147 25
TP67 B 28 3
TP68 B 21 9
TP69 B 11 48
tp7 B 25 65
TP70 B 24 4
tp700 B 4 21
tp701 B 105 118
tp702 B 103 118
tp703 B 115 117
tp704 B 11 15
tp705 B 11 17
tp706 B 11 20
TP71 B 132 37
TP72 B 49 116
TP73 B 89 35
TP74 B 71 97
TP75 B 72 99
TP76 B 74 101
TP77 B 73 111
TP78 B 70 111
TP79 B 69 107
tp8 B 27 65
TP80 B 147 21
tp800 B 6 14
tp802 B 4 16
tp803 B 4 19
tp804 B 110 117
tp805 B 6 26
tp806 B 7 31
tp807 B 6 28
TP81 B 138 34
TP82 B 130 37
TP83 B 151 24
TP84 B 134 37
TP85 B 124 102
TP86 B 114 102
TP87 B 106 105
TP88 B 150 105
TP89 B 120 102
tp9 B 25 64
TP90 B 146 103
TP900 B 14 49
TP901 B 25 23
TP902 B 45 8
TP903 B 43 8
TP904 B 22 5
TP905 B 40 8
TP906 B 30 4
TP907 B 38 8
TP91 B 107 53
TP92 B 97 8
TP93 B 113 8
TP95 B 139 32
TP96 B 108 119
TP97 B 45 4
TP98 B 125 8
TP99 B 135 30
2 - 6
Page 27
GRUNDIG Service Chassis D6
0
10
20
30
40
50
60
70
80
90
100
110
120
130
Y
0102030405060708090100110120130140150160
X
TP62
TP46
TP64
TP65
tp802
tp803
tp800
tp700
TP111
TP101
TP100
tp805
tp807
tp806
TP70
TP904
TP67
TP16
TP906
tp705
tp704
TP68
tp706
TP901
TP58
TP109
tp21
TP69
tp15
tp20
tp6
tp22
tp11
tp19
tp14
tp18
tp12
TP110
tp17
TP900
tp26
tp25
tp24
tp23
tp28
tp27
TP108
TP63
tp10
tp9
tp7
tp8
TP47
10
TP907 TP903TP905
9
TP97
2
TP902
TP105
1
TP53TP50
TP52
TP73
tp403
tp402
TP76
TP29
1
36
TP2
TP4
TP72
TP79
TP74
TP75
TP3
TP78TP77
TP45
33
68
1
Chassisplatte / Chassis Board YVL190R-3 Ansicht von der Lötseite / View of Solder Side
2 - 7
Page 28
GRUNDIG Service Chassis D6
R918
4.7K
C900
10uF
R917
4.7K
5
4 321 6
Q900
BC847BDW1T1
C920
1uF
R916
10K
R914
22K
R919
4.7K
Panel_ON_OFF
PANEL- VCC
+5V2_ST
VCC3.3V-ST
Panel Power
Hi : Off
Lo: On
VCC2.5V-ST
VCC2.5V- ST
VCC3.3V-ST
TP46
C917
10uF X7R
1
3 2
T901
PMV56XN
Pd=0.6W
2
3 1
IC 902
ZTL431AFFTA
C915
1uF
VCC1.2V-ST
VCC1.2V-ST
450mA
C916
10uF 6.3V
X5R
C918
100nF
TP47
Pd=0.6W
Thermal pad required
1
32
T903
PMV65XP
CB902
100nF
R920
4.7K
R922
4.7K
R921
4.7K
R923
1K
BRI_ADJ-PWM2
VBLC TRL
+5V_ST
Power
Hi : Off
Lo: On
+5V_ST
+12V
L9 08
300R/ 100MHz
VCC5 V
R905
100R
VCC5V
L911
FB
VCC3.3V-ST
C908
1uF X7R 16V
C910
1uF/16V
112
2
334
4
556
6
778
8
9910
10
S302
POWER
KEYPA D&POWER
LED
IRIN
SAR0
VCC3.3V-ST
R465
100R
R462
1K
R460
10K
C410
100pF 100pF
C925
R911
4.7K
R910
4.7K
VCC3.3V-ST
SAR0
IRIN
+5V2_ST
+5V2_ST
Power-ON/OFF
Power-ON/OFF
LED
Hi : Off
Lo: On
+12V +12V_SW
R906
4K7
2
1 6
T905B
BC847BDW1T1
5
43
T905A
BC847BDW1T1
R908
10K
R924
47K
VCC3.3V-ST
TP58
TP68
TP70
2
1 6
T900B
BC847BDW1T1_A
5
4 3
T900A
BC847BDW1T1_A
TP16
L903
120R/100MHz
C909
10uF
X7R 25V
VCC3.3V-ST
C912
10uF
X7R 25V
R903
39K %1
R902 12k %1
C902
10n
NR3015T1RON
L901 1uH
C903
10u/6V310u/6V310u/6V3
C905
TP901
+12V
VCC3. 3V-ST
+5V2_ST
R909
4.7K
AGND
1
N/C
2
PGND
3
SW
4
IN
5
N/C
6
BS7VCC
8
POK
9
IN
10
SW
11
PGND
12
EN/SYNC
13
FB
14
GND
15
IC900
MP2205
C906
C911
1u/10V X5 R
C901
1uF X7 R
R929
100k
max 1200mA
+5V_ST
L902
NC/ 120R/100MHz
R912
10k 1%
2
1 6
5
4 3
T906
BC847BDW1T1_A
Syst em-R ST
System-RST
VCC3.3V-ST
+5V_ST
VCC3.3V-ST
R901
10K
+5V_ST VCC5V
R925
100K
R927
100K
R926
1K
T908
BC848B
T907
BC807-40
DVD :T907- PMV56X N
NO DVD :T907- BC807
TP904
TP903
TP905
TP907
TP906
TP902
TP900
+12V_SW
TP97
R928
0R
R930
NC
1K1 %1
L405
120R/100MHz
ADJ
1
VOUT
2
VI N
3
IC901
NCP1117DTARK
C907
10u/6v3
L407
120R/100MHz
C1
10uF
TP105
10
1
12
SIF_SW
VIFM
VIFP
Q1-01
F6-0 2
F6-0 1
AIFP
C308
10nF
D300
BA591
2
3
4
51
F300
K9656M
R311
4.7K
R308
2.2K
2
3
4
51
F301
K3958M
T303
BC848B
C303 10 nF
R3 03
2.2K
R302
6.8K
AIFP
VCC-Tuner
APW1RAG2CAS3SCL4SDA533V( 4MHz)65V7IFA8IAG9IF210IF1
11
GND12GND13GND14GND
15
TU300
VA1Y1ED2008
RF_AGC
T300
BC807- 40
R323
10R
R326
10R
R332
1K
L305
SBY1005
C319
100n/10V
C320
470uF/ 16V
ANTPOWER: L- OFF, H- ON
R327
3. 3K
R328
39K
L303
1uH
C322
100n
AIFP
R317
NC
L302
1uH
AIFP
IFAGC
D_IFD_IF+
ANTPOWER
RF_AGC
APW1RAG2CAS3SCL4SDA533V( 4MHz)65V7IFA8IAG9IF210IF1
11
GND12GND13GND14GND
15
TU301
DTT75407
1
2
GND
4
5
VCC-Tuner
AI FP
12GND45
AI FP
IF AGC
IF -
IF +
SCLK
SDAT
IFAGC
IF -
IF +
SCLK
SDAT
VCC-TunerVCC5V
VCC-Tuner
R339
51K
2
61
5
43
T904
BC847BPDW1T1
+5V2_ST
TP72
VIFP
VIFM
VIF
SIFP
SIFM
SIF_SW
D_IF+
D_IF-
IFAGC
F300 F301
K9656M K3958M
-K2977 M
System
Multysistem
No Secam L
TP88
TP90
TP89
TP87
TP86
TP85
APW1RAG2CAS3SCL4SDA533V( 4MHz)65V7IFA8IAG9IF210IF1
11
GND12GND13GND14GND
15
TU302
TDAG4-D01A
12GND45
AI FP
IFAGC
IF -
IF +
VCC-Tuner
VCC
GND
1
2
43
5
IC301
74LVC1G66GW
C327
100n F
A/D
VCC5V
R301
(0R)
A/ D
DUMMY_NET
DUMMY_NET
DUMMY_NET
T1
BF799W
R312
39R
R310
680R
C309
10nF
L301
1uH
C310
10nF
R309
1K
C321
10nF
R307
56R
R319
6.8K
R314
20R
R320
1K
R318
100R
C323
10nF
C311
100p F
VCC-Tuner
R313
100R
AIFP ANIF
ANIF
6 5
8
1
0
Trigger @ (+5V_ST)
Mains switch on
5
6
8
Chassisplatte – Netzteil / Chassis Board – Power Supply YVL190R-3
Chassisplatte / Chassis Board – Tuner YVL190R-3
2 - 8
Page 29
GRUNDIG Service Chassis D6
IFAGC
TUN_RESET
TS_MDI1
TS_MDI2
TS_MDI3
TS_MDI4
TS_MDI5
TS_MDI6
TS_MDI7
D_IF+
D_IF-
SDAT
SCLK
TS_MDI0
TS_MDI[7..1]
I2C-SCL
I2C-SDA
IFind
#IFind
TS_MIVALID
TS_MISYNC
TS_MICLK
C204
22nF
R226
10K
C228
1uF
C206
22p
R227
10K
R224 100R
R220
10k
R204 33
R222 100R
C227
1uF
C202
22pF
C222
1uF
R228
NC/10k
R219 4.7K
R201 100R
R215 33
L200
SBY100505T-102Y
L203
SBY100505T-102Y
R209 10K
R225 100R
R221
10K
C208 33pF
X200
28.8MHZ
R218 4.7K
L201
SBY100505T-102Y
R229 100R
GND
1
AVDD_33
2
SSIF O
3
CVBSOUT
4
GND
5
CLKO
6
AVDD_33
7
VR27
8
SIFIP
9
SIFIM
10
VIFIM
11
VIFIP
12
GND
13
AVDD_33
14
GND
15
VREFM
16
VREFP
17
AVDD_33
18
ZIF_QM
19
ZIF_QP
20
ZIF_IM
21
ZIF_IP
22
GND
23
XIN
24
XOUT25AVDD_3326IF_AGC27GND28EXTRSTN29I2CM_SCL30I2CM_SDA31VDDC32GND33I2CS__SCL34I2CS__SCL35TS_CLK
36
TS_SYN C
37
TS_VALID
38
TS_DATA7
39
TS_DATA6
40
TS_DATA5
41
TS_DATA4
42
TS_DATA3
43
TS_DATA2
44
TS_DATA1
45
TS_DATA0
46
VDDC
47
RF_AGC
48
IC300
MSB1210
C237
NC/10p
7 5 3 1
8 6 4 2
R200
10K/NC
C209 33pF
C207
22p
R203 100R
R223 100R
C203 100nF
C214
1uF
C200 100nF
C201
22pF
R212 33
L202
SBY100505T-102Y
C215
1uF
TUN_RESET
SC LK
IFAGC
I2C-SDA
I2C-SCL
TS_MICLK
TS_MISYNC
TS_MIVALID
TS_MDI[7..1]
TS_MDI0
SDAT
D_IF-
D_IF+
DVDD
Vcore
AVDD
AVDD
VCC3.3V-ST AVDD
VCC3.3 V-ST
PLLVDD VcoreVCC3.3V- ST VCC1.2V-ST
DVDD
DVDDVCC3.3V-ST
C221
1uF
C229
1uF
7 5 3 1
8 6 4 2
RP202 33X4
RP201 33X4
R231
1k
VCC3.3V-ST
Vcore
PLLVDD
C302
100n F
C326
NC/1nF
C328
100nF
R335
330R
GND
SIF_IN+
SIF_IN-
SIF_IN+
SIF_IN-
R399
1k
TV_CVBS+
C318100n
VIFM
VIFP
VIFP
VIFM
VI F
SIFP
SIFM
C304 2u2
CVBSOUT
SSIFO
SSIFO
CVBSOUT
VCC5V
RF_AGC
RF_A GC
XIN
XOUT
C313
100n
C315
100n
C317
100n
C312
100n
C325
100n
TS_MDI7TS_MDI6
C399
NC/100p
C301
22nF
R304
6k8
VCC5V
7531
8642
R3064*33R
TS1_D0
TS1_VALID
TS1_CLK
TS1_SYNC
TS1_SYNC
TS1_D0
TS1_CLK
TS1_VALID
TS_MDI0
TS_MICLK
TS_MISYNC
TS_MIVALID
R305 33R
TV_CVBS-
C305 100nF
TP5
TP1
C239
NC/10p
C306
1nF
5
6
9
9
USB_DM
USB_DP
VBUS
USB_OCD_N-GPIO3
C762
10uF 10V
R782
100K
USB_DM
USB_DP
USB_OCD_N-GPIO3
+5V2_ST
C742
100nF
VCC5V
SI DE_L
SI DE_R
R796
0R
R795
10K
C756
2.2uF
C755
330pF
C757
560pF
R799
0R
R824
12K
R798
10K
R797
12K
C754
560pF
C753
2.2uF
C758
330pF
SIDE_ARIN
SIDE_ALIN
TP37
TP38
SI DE_V CVBS2
C744
(10p F)
R786
47R
R787
75R %1
C743
47nF
CVBS2
CVBS
SI DE_ALIN
SI DE_ARIN
D733
(AVLC18S02003)
D732
(AVLC18S02003)
Vin
5
EN
4
GND
2
Fault
3
Vout
1
IC701
STMPS2171STR
VCC3.3V-ST
2
1
3
5
4
6
RS-302A1-18
S707
CON_CHINCH
L
R
VBUS
VCC
D-
D-
D+
D+
GND
GND
SHELL
5
SHELL
6
6-1734038-1
Tyco
S702
+5V2_ST
1B
1
1C
2
2B
3
2C
4
3B
5
3C
6
4B
7
4C8GND
9
4A
10
3A
11
2A
12
1A
13
S
14
OE_N
15
VCC
16
IC702
STMAV340
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
032953R
S704
CON16
DMP_Pb
DMP_Pr
DVD_ALIN
DVD_ARIN
VCC5V
DVD_SEL: L- DVD, H- TV
1
C729
100n
GND
GND
C728
1uF
GND
RX_DVD
TX_DVD
tp800
tp805
tp806
tp807
tp802
tp80 3
tp804
DMP_Y
R731
75
R72675R741
75
L703
60R/100Mhz
+12V_SW
DVD 15mA
R725
10K
VCC3.3V- ST
DVD900mA
L702
60R/100Mhz
DVD_ALIN
DVD_ARIN
C735 2.2uF
C734 2.2uF
R766
12K
R765
12K
R742 10 K
R764 10 K
C730 100nF
C731 100nF
C733 100nF
L706 60R/100Mh
z
RGB1_Y+
RGB1_Y+
RGB1_PB+
RGB1_PB+
RGB1_PR+
RGB1_PR+
RGB1-Y+
RGB1-PB+
RGB1-PR+
RGB1-Y+
RGB1-PB+
RGB1-PR+
DVD_SEL
DVD_SEL
HOTEL TV
R723 0R
R722 0R
R721 0R
RGB1-Y +
RGB1-PB+
RGB1-PR+
RGB1_Y+
RGB1_PB+
RGB1_PR+
No DVD
TX_DVD
RX_DVD
VCC5V
TP73
tp70 0
tp701
tp702
TP91
TP96
TP100
TP101
1
2
3
4
S706
HTV 7SEG
R791
100R
R792
100R
I2C-SCL
I2C-SDA
I2 C-SCL
I2 C-SDA
C745
10uF 10V
R724
47R
C702
10nF
RGB1_SOG
RGB1_SOG
1
2
3
4
S705
NC/Side USB
R768
10K
R769
100R
C736
10 0nF
R767
100R
tp703
TP103
TP102
TP106
TP111
R770
0R
R771
0R
R772
0R
tp706
tp705
tp704
38
40
39
37
36
5
6
8
9
STMPS2141, STMPS2151, STMPS2161, STMPS2171
Driver
UVLO
Current
sense
V
OUT
V
5
4
3
1
2
IN
EN
Fault
GND
Fault blanking/reporting
driver control unit
Thermal
sense
STMAV340
Flow Control
1A
2A
3A
4A
1B
1C
2B
2C
3B
3C
4B
4C
OE_N
Flow Control
1A
2A
3A
4A
1B
1C
2B
2C
3B
3C
4B
4C
N
S
fl
‡
°
·
‚
Chassisplatte / Chassis Board – COFDM Demodulator YVL190R-3
Chassisplatte / Chassis Board – Interface DVD, DMP, AV, USB YVL190R-3
2 - 9
Page 30

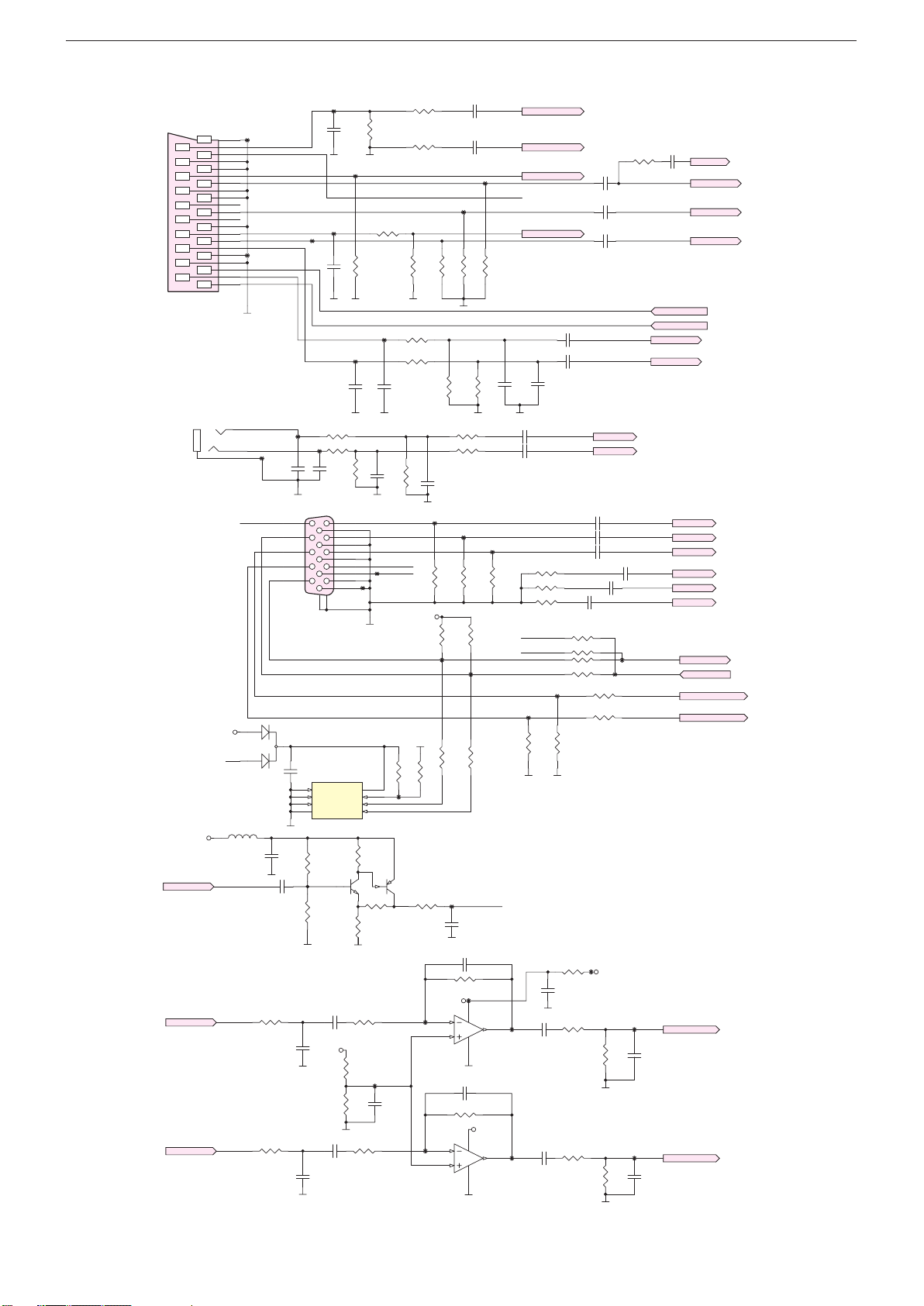

GRUNDIG Service Chassis D6
SCART1_BLUE
SCART1_RED
SCART1_GREEN
SCART1-Rout
SCART1-Lou t
SCART1-L in
SCART1-CVBS_IN
SCART1_CVBSO
SC1-VSYNC
SCART1-Rin
SC1_CVBS+
SC1-HSYNC
SC1_CVBSO
SC1_CVBS_OUT
SC1_CVBSO
SCART1-Rin
SCART1-Li n SC1-Lin
SC1-Rin
SC1_CVBS-
C705
c
R707
R717
39K
R704 10K
C760
100nF
C710
330pF
R710
470R
C700
47nF
R713
10K
R702
47R
C759
NC
R715
10K
R705
2. 7K
C703
47nF
R719
12K
2
4
6
8
10
12
14
16
18
20
1
3
5
7
9
11
13
15
17
19
21
S700
SCART
C746
1u/10V
C701
NC/3 30p
R720
75R
C717
100nF
R718
12K
R701
75R %1
R716
270R
R700
47R
C706 2.2u F
L701
300R/100MHz
C761
100nF
C708
560pF
R708
R711
100k
C709
560pF
R714
75R %1
C707 2.2u F
R709
C711
330pF
R703
47R
R706
75R %175R %175R
%1
75R
%1
C704
47nF
SC1_Lout
SC1_Rout
SC1_CVBS+
SC1-VSYNC
SC1-HSYNC
SC1_CVBS_OUT
SC1-Rin
SC1-Lin
SC1_CVBS-
SC1-C
VCC5V
Full SCART
2
61
5
43
T700
BC847BPDW1T1
DDC_SCL_D
R
VGA5V
B
VGA5V
DDC_SDA_D
G
VGA_VSYNC1
VGA_HSYNC1
UART-R X
UART-T X
VGA_VSYNC
VGA_HSYNC
VGA-TX
VGA-RX
VGA-TX
VGA- RX
CB702
100n F
R736
510R
R738
(2.4K)
R759
NC
1
6
2
7
3
8
4
9
5
11
12
13
14
15
10
17
16
S701
DSUB-15
R729
D720
BAT54C
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC 703
24C02
R739
(10K)
R747
NC
R757
0R
C712 100n F
C725 100n F
R728
R734
510R
R753
100R
R754
100R
R755
0R
R748
NC
C726 100n F
R744
4.7K
R743
4.7K
R727
75R %175R %175R
%1
R761
10K
VGA_HSYNC1
VGA_VSYNC1
UART-RX
UART-TX
VCC5V
VCC5V
RGB0_RIN+
RGB0_GIN+
RGB0_BIN+
RGB0_RIN+
RGB0_GIN+
RGB0_BIN +
SC1_Lout
SC1_Rout
SC1_Lout
SC1_Rou t
R746
1K
C721
1nF
R745
1K
C720
1nF
R733
100k
R732
33K
+12V_A
R740
8.2K
C718
2.2u F
C713
4.7uF/10V
C716
4. 7nF
R735
470R
R737
33K
C722
4u7
10V
R752
100k
R751
33K
+12V_A
R763
8.2K
C724
2.2u F
C719
220p
C723
4. 7nF
R756
470R
R760
33K
C752
2u2F
AU_DACO_SR
AU_DACO_SL
AU_DACO_SR
AU_DACO_SL
C714
4u7 10V
C764 2. 2uF
C767
560pF
R758 0R
R762
12K
R750
10K
C765
330pF
VGA_ARIN
VGA_ALIN
TP40
VGA_ALIN
VGA_ARIN
C763 2. 2uF
R749 0R
R712
10K
TP39
C768
560pF
R788
12K
C766
330pF
RGB1_Y-
C732 47nF
R774
47R
47R
47R
RGB1_Y-
RGB1_PB-
C737 47n F
R778
RGB1_PB-
RGB1_PR-
R783
C741 47n F
RGB1_PR-
RGB1_Y+
RGB1_Y+
RGB1_PB+
RGB1_PB+
RGB1_PR+
RGB1_PR+
8
1
4
3
2
1
IC700A
TL082
84
7
5
6
2
IC700B
TL082
C715
220p
+12V_A
R730
10R
+12V_SW
TP50
TP51
TP52
TP53
TP54
TP55
TP56
TP57
TP67
TP80
TP81
TP82
TP83
RIGHT
GND
LEFT
S703
CON_EARPHONE_JACK_ZUANBAO
C727
100n 25 V
TP13
TP36
TP30
TP31
TP32
TP33
TP35
TP34
TP59
TP60
TP61
TP71
TP84
TP66
TP98
TP99
TP92
TP93
TP95
TP104
Chassisplatte / Chassis Board – SCART, VGA YVL190R-3
2 - 10
Page 31
GRUNDIG Service Chassis D6
PCM_A10
PCM_A11
PCM_A9
PCM_A8
PCM_A13
PCM_A14
PCM_A12
PCM_A7
PCM_A6
PCM_A5
PCM_A4
PCM_A3
PCM_A2
PCM_A1
PCM_A0
PCM_D0
PCM_D1
PCM_D2
PCM_D7
PCM_D4
PCM_D5
PCM_D6
PCM_D3
PCM_CE_N
PCM_WE_N
PCM_IRQA_N
PCM_REG_N
PCM_WAIT_N
PCM_RESET
PCM_IORD_N
PCM_IOWR_N
PCM_CD1_N
TS_MIS YNC
TS_MICLK
TS_MDI0
TS_MDI1
TS_MDI2
TS_MDI3
TS_MDI4
TS_MDI5
TS_MDI6
TS_MDI7
TS_MIVALID
TS_MDO3
TS_MDO4
TS_MDO5
TS_MDO6
TS_MDO7
TS_MDO2
TS_MOVAL
TS_MOSTART
TS_MDO0
TS_MDO1
PCM_A[14 ..0]
PCM_D[7..0 ]
TS_MICLK
TS_MIVALID
TS_MISYNC
TS_MOCLK
TS_MOVAL
TS_MOSTART
TS_MDO[7.. 0]
PCM_IORD_N
PCM_IOWR_N
PCM_WAIT _N
PCM_RESET
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_CD_N
PCM_CE_N
PCM_IRQA_N
TS_MDI0
PCM_CD2_ N
PCM_CD2_N
PCM_CD1_N
PCM_CD_N
MOCLK
TS_MOCLK
PCM_OE_N
TS_MDI[1..7]
R501
10 0K
R500 1k
C502
1uF 6V3
C500
10 pF
R504
4.7K
R503
33R
R505
4.7K
VCC
GND
1
2
43
5
IC 500
NC7SZ0 8
C504
100nF
C503
10 0nF
R502
1K
PCM_A[14..0]
PCM_D[7..0]
TS_MICLK
TS_MISYNC
TS_MIV ALID
PCM_RESET
PCM_WAIT_ N
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_IORD_N
PCM_IOWR_N
PCM_CD_N
TS_MOCLK
TS_MOSTART
TS_MOVAL
TS_MDO[7..0]
PCM_CE_N
PCM_IRQA_N
TS_MDI0
TS_MDI[1..7]
VCC-PCMCIA
VCC3.3V-ST
VCC-PCMCIA
R509 33 R
7 5 3 1
8 6 4 2
RA5024*33R
R511
33 R
7 5 3 1
8 6 4 2
RA503 4*33R
7 5 3 1
8 6 4 2
RA5044*1 K
7 5 3 1
8 6 4 2
RA5014*1 K
R514 1K
VCC3.3V-ST
CI _PCM_WAIT_N
PCM_IRQA_N
CI _PCM_IRQA_N
R522
4.7K
R523
4.7K
GND
1
D3
2
D4
3
D5
4
D6
5
D7
6
CE1#
7
A10
8
OE#
9
A11
10
A9
11
A8
12
A13
13
A14
14
WE#
15
READY
16
VCC
17
VPP1
18
MI VAL
19
MI CLK
20
A12
21
A7
22
A6
23
A5
24
A4
25
A3
26
A2
27
A1
28
A0
29
D0
30
D1
31
D2
32
WP
33
GND
34
GND
35
CD1#
36
MDO3
37
MDO4
38
MDO5
39
MDO6
40
MDO7
41
CE2#
42
VS1#
43
IORD#
44
IOWR#
45
MI STRT
46
MDI0
47
MDI1
48
MDI2
49
MDI3
50
VCC
51
VPP2
52
MDI4
53
MDI5
54
MDI6
55
MDI7
56
MOCL K
57
RESET
58
WAIT #
59
INPACK
60
REG#
61
MOVA L
62
MOSTART
63
MDO0
64
MDO1
65
MDO2
66
CD2#
67
GND
68
SHIELD69SHIELD
70
SHIELD71SHIELD
72
S501
PCMCIA CONN
L500
300R/100MHz
C505
10 0nF 10V
PCMCIA_ON
PCMCIA _VCCIN
+5V2_ST VCC-PCMCIA
Hi: Of f
Lo: On
D
R507
47K
R508
10 K
R506
10 K
PCMCIA_V CCIN
C501
1uF
Vi n
5
EN
4
GND
2
Fault
3
Vout
1
IC501
STMPS2151
T801
BC847B
HDMI-CLKP
HDMI-RX0P
HDMI-CLKN
HDMI-RX0N
HDMI-RX2P
HDMI-RX1N
HDMI-RX2N
HDMI-RX1P
HPD_CTRL
HDMI-RX0P
HDMI-RX0N
HDMI-RX1P
HDMI-RX1N
HDMI-RX2P
HDMI-RX2N
HDMI-CLK P
HDMI-CLK N
HDMI-SDA
HDMI-SCL
HDMI Input Socket
HDMI_5V
HDMI-SDA
HDMI-SCL
R616
1k
HPD_CTRL
R406
2. 2K
NC1
1
NC2
2
NC3
3
GND4SDA
5
SCL
6
VCLK
7
VCC
8
IC400
24C02
C402
100nF
R403
4. 7K
R415
NC
3
1
2
D404
BAT54C
R404
2. 2K
HDMI_5V
VCC5V
tp40 1
tp 403
tp 402
tp 400
R449
100R
R450
100R
HDMI-SCL
HDMI-SDA
HPD_DET
T601
BC847B
HDMI_CEC
IN1
1
IN2
2
GND
3
IN3
4
IN45OUT4
6
OUT3
7
GND
3
OUT2
9
OUT1
10
D405 (Rclamp0524P)
IN1
1
IN2
2
GND
3
IN3
4
IN45OUT4
6
OUT3
7
GND
3
OUT2
9
OUT1
10
D406 (Rclamp0524P)
R600
10k
VCC3.3V- ST
R601
10k
R602
100k
RX2+
1
GND2
2
RX2-
3
RX1+
4
GND1
5
RX1-
6
RX0+
7
GND0
8
RX0-
9
CLK+
10
GND_CLK
11
CLK-
12
CEC
13
N.C.
14
SC L
15
SDA
16
CEC_GND
17
5V
18
HP_DETECT
19
202122
S602
3
4
7
7
3
4
7
Chassisplatte / Chassis Board – HDMI YVL190R-3
Chassisplatte / Chassis Board – Common Interface YVL190R-3
2 - 11
Page 32
GRUNDIG Service Chassis D6
HDMI-CLKN
HDMI-CLKP
HDMI-RX0P
HDMI-RX0N
HDMI-RX2P
HDMI-RX1N
HDMI-RX2N
HDMI-RX1P
HPD_CTRL
HDMI-SDA
HDMI-SCL
SC1-VSYNC
SC1-HSYNC
RGB0_BIN+
RGB0_GIN+
RGB0_RIN+
VGA_VSYNC1
VGA_HSYNC1
RGB1-Y+
RGB1_Y-
RGB1-PB+
RGB1_PB-
RGB1-PR+
RGB1_PR-
SI F_IN-
SI F_IN+
SC1-Ri n
SC1-Li n
Syst em-RST
I2 C-SDA
I2 C-SCL
UART -TX
UART -RX
USB_DP
USB_DM
RGB1_SOG
REFM
REFP
VCLP
Audi o-ON/OFFA/ D
USB_OCD_N- GPIO 3
HDMI-CEC
UART-RX
UART-T X
VDDC
I2 C-SDA
I2 C-SCL
EEPROM_WPN
AUVRM
AUCOM
AUVRP
AUVAG
PCM_CE_N
PCM_IR QA_N
PCM_CD_N
PCM_A[14 ..0 ]
PCM_IO RD_N
PCM_IOWR_N
PCM_WAIT_N
PCM_RESET
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_D[7 ..0 ]
BRI_ADJ-PWM2
ADJ_Volumn-PWM0
TS1_D0
TS1_VALID
TS1_CLK
TS1_SYNC
TS_M DO[7 ..0 ]
MUTE_S
Panel_ ON_OFF
VBLCTRL
RXE3_P
RXE3_N
RXOC_N
RXO2_P
RXO2_N
RXE1_N
RXE1_P
RXE0_N
RXE0_P
RXOC_P
RXO0_N
RXO0_P
RXEC_P
RXEC_N
RXE2_P
RXE2_N
RXO1_N
RXO1_P
RXO3_N
RXO3_P
CVBS1+
CVBS_OUT
Power- ON/O FF
TV_CVBS+
TV_CVBS-
A/ D
PCMCIA_ON
CVBS1-
CVBS2
SC1-C
R439
100R
R438 100R
C421
100nF
R444
4. 7K
C452
100n F
C423
100nF
C450
4. 7u F
C422
100nF
C457
100nF
R434
4. 7K
123
4
S402
2.0mm/Male_wafer
L403
300R/ 100MHz
C431
10uF /6 .3 V
C442
100nF
C445
1uF
C447
10uF
C438
100n F
L402
300R/ 100MH z
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC 406 24C32
R440
1K
C446
10uF/6.3V
C437
100n F
C432
100nF
C443
100n F
R433
4.7K
C454
100nF
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC 404 24C512K
R441
NC
L401
300R/ 100MHz
C453
100nF
C436
100n F
C417
100nF
C428
100n F
C459
10uF /6 .3 V
C444
100n F
R425 100R
R430
NC
C434
100n F
C455
100nF
C435
100n F
C426
100nF
C418
100nF
R448 100R
R431
1K
C433
100nF
C439
100n F
C462
1uF
C440
100nF
C425
100nF
C419
(100nF)
C456
100nF
C424
100nF
C420
100nF
C430
100n F
C460
100nF
C441
100nF
R435
4. 7K
L404
300R/ 100MH z
HDMI-CLKP
HDMI-CLKN
HDMI-RX 0P
HDMI-RX0N
HDMI-RX 1P
HDMI-RX1N
HDMI-RX 2P
HDMI-RX2N
HPD_CTRL
HDMI-SDA
HDMI-SCL
SC1- HSYNC
SC1- VSYNC
RGB0_BIN +
RGB0_GIN+
RGB0_RIN+
RGB1-PB+
RGB1_PB-
VGA_HSYNC1
VGA_VSYNC1
RGB1-Y+
RGB1_Y-
RGB1-PR+
RGB1_PR-
SIF_IN+
SIF_IN-
SC1-Li n
SC1-Rin
I2C-SCL
I2C-SDA
UART-TX
UART-RX
USB_DP
USB_DM
RGB1_SOG
AU_DACO_L
AU_DACO_R
HDMI-CEC
USB_OCD_N-GPIO3
PCM_RESET
PCM_A[ 14..0]
PCM_WAIT_N
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_IORD_N
PCM_IOWR_N
PCM_CE_N
PCM_IRQA_N
PCM_D[7..0]
BRI_ADJ-PWM2
ADJ_Volumn-P WM 0
TS1_SYNC
TS_MDO[7..0]
TS1_D0
TS1_CLK
TS1_VALID
PCM_CD_N
Panel_ON_OFF
VBLCTRL
MUTE_S
G7_RXO3_N
G6_RXO3_P
R0_RXOC_P
R3_RXO2_N
R2_RXO2_P
R1_RXOC_N
R4_RXO1_P
R7_RXO0_N
R6_RXO0_P
R5_RXO1_N
G0_RXE1_P
G3_RXE0_N
G2_RXE0_P
G1_RXE1_N
B2_RXE3_P
B5_RXEC_N
B4_RXEC_P
B3_RXE3_N
B7_RXE2_N
B6_RXE2_P
SC1_CVBS_OUT
SC1_CVBS+
Power-ON/OFF
TV_CVBS+
TV_CVBS-
PCMCIA_ON
SAR0
SC1_CVBS-
CVBS2
SC1-C
VCC3.3V- ST VCC3.3V-ST
AVDD_LPLL
AVDD_MEMPLL
AVDD_OTG AV DD_MPLLAVDD_SIFAVDD_AU
VCC3.3V- ST AVDD_MEMPLL
AVDD_LPLL
VCC3.3V-ST VDDP
AVDD_ADC
AVDD_DVI
AVDDL _DVI
VDDCVCC1.2V-ST
AVDD_DDR
VCC2.5V-ST
Vcc_mem
Vcc_mem
AVDD_AU
AVDD_SIF
AVDD_MPLL
AVDD_OTG
AVDD_ADC
AVDD_DVI
HDMI Block
RGB Block
Audio Block
Jupiter Reset
I2C / UART
USB Block
Close to IC
as clos e
as poss ib le
with wi dt h trace
GPIO
IC Configuration Selection
EEPROM
PCMCIA
PWM
Transport Stream
LVDS Block
CVBS Block
PWM0 PWM1
SIDE_ARIN
SIDE_ALIN
SIDE_AV
SIDE_ALI N
SIDE_ARI N
RESET
AU_DACO_ML
AU_DACO_MR
AU_DACO_HL
AU_DACO_HR
AU_DACO_SL
AU_DACO_SR
AU_DACO_HL
AU_DACO_HR
AU_DACO_SL
AU_DACO_SR
VGA_ARIN
VGA_ALIN
VGA_ALIN
VGA_ARIN
A/D
ANTPOWER
ANTPOWER
Audi o- ON/OFF
Audio-ON/OFF
TS_MOCLK
TS_MOVAL
TS_MOSTART
TS_MOCLK
TS_MOSTART
TS_MOVAL
L406
300R/ 100MHz
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC 408 24C512K
R424
100R
R423
100R
RESET
IRIN
IRIN
LED
SAR0
LED
TP74
TP75
TP76
TP77
TP78
TP79
DVD_SEL
DVD_SEL
DVD_ALIN
DVD_ARIN
DVD- Audio
DVD_ALIN
DVD_ARIN
Vcc_mem
R405
FB
VCC3.3V-ST
TP4
TP3
TP2
TP29
System-RST
SIF_SW
SI F_SW
TUN_RESET
TUN_RESET
XTALO
XTALI
R401
1M
C401
20pF
C400
20pF
Y400
12MH z
System XTAL
CL=20pF ; C0max=5pF
DUMMY
5 6
5
6
Chassisplatte / Chassis Board – Scaler YVL190R-3
2 - 12
Page 33
Chassisplatte / Chassis Board – Scaler YVL190R-3
HDMI-CLKP
HDMI-CLKN
HPD_CTRL
HDMI-RX1P
HDMI-RX1N
HDMI-RX0P
HDMI-RX0N
AVDD_DVI
HDMI-RX2N
HDMI-RX2P
AUCOM
SC1-Ri n
SC1-Li n
AUVRP
AUVAG
TESTPI N
VDDC
VDDP
AVDD_AU
AU_DACO_ML
AU_DACO_MR
HDMI-SCL
HDMI-SDA
HDMI-REXT
RGB0_BIN+
RGB0_GI N+
RGB0_RIN +
VCLP
REFP
REFM
AV DD_ADC
RGB1_PR-
RGB1-P B+
RGB1_Y-
CVBS_OUT
AVDD_ADC
CVBS1+
SIF_IN -
SIF_IN +
VDDC
AVDD_SIF
System-R ST
VDDC
I2 C-SCL
I2 C-SDA
FLASH2_WPN-GPI O45
SPDI F_OUT
VDDP
FLASH1_WPN-GPI O44
SPDI F_IN
Power-ON /O FF
TS_MDO0
TS_MDO1
TS_MDO2
TS_MDO3
TS_MDO4
TS_MDO5
TS_MDO6
TS_MDO7
VDDP
PCM_D7
PCM_D6
PCM_D5
PCM_D4
PCM_D3
PCM_D2
PCM_D1
PCM_D0
PCM_A14
PCM_A13
PCM_A12
PCM_A11
PCM_A10
PCM_A9
PCM_A8
PCM_A7
PCM_A6
PCM_A5
PCM_A4
PCM_A3
VDDC
PCM_A2
PCM_A1
PCM_A0
UART-TX
UART-RX
SAR0
FLASH_WPN-SAR3
A/ D
TUN_RESET
LED
BRI_AD J-P WM2
AVDD_MPLL
USB_DM
USB_DP
AVDD_OTG
OTG_REXT
AVDD_DDR
MDATA1
DQM0
DQS0
MDATA0
WEZ
BA0
BA1
CASZ
RASZ
MDATA5
MDATA6
MDATA7
MDATA4
AVDD_DDR
MDATA2
MDATA3
VDDC
AVDD_DDR
AVDD_MEMPLL
MCLK+
CKE
MCLK-
MVREF- 1
USB_OCD_N-GPIO3
MADR 0
M_ADR10
M_ADR11
M_ADR7
M_ADR12
M_ADR8
M_ADR9
M_ADR5
M_ADR0
M_ADR1
M_ADR6
M_ADR2
M_ADR3
M_ADR4
MADR12
MADR11
MADR10
MADR 9
MADR 8
MADR 7
MADR 6
MADR 5
MADR 4
MADR 3
MADR 2
MADR 1
VGA_HSYNC1
VGA_VSYNC1
SC1-VS YNC
SC1-HSYNC
AVDDL_DVI
AUVRM
MDATA12
MDATA15
DQS1
MDATA9
MUTE_S
AVDD_DDR
MDATA11
MDATA14
DQM1
Panel_ ON_OFF
VDDC
MDATA8
MDATA10
AVDD_DDR
TS1_VAL ID
MDATA13
IR IN
SPI-SDI
SPI_ CSN0
SPI-SCK
SP_SDO
SPI_ SDI
SPI_ SCK
SPI-CS0N
VDDP
SPI-SDO
PCM_RESET
PCM_CD_N
SPI-CS1N
PCM_CE_N
PCM_IORD_N
PCM_IOWR_N
PCM_WAIT_N
PCM_REG_N
PCM_IRQA_N
PCM_OE_N
PCM_WE_N
TV_CVBS+
TV_CVBS-
EEPROM_WPN
TS1_CLK
TS1_D0
TS1_SYNC
CVBS1-
VDDP
AVDD_LPLL
PCMCIA _ON
VBLCTRL
CVBS2
SC1-C
R418
39 0R %1
7 5 3 1
8 6 4 2
RA408
4*33R
RX1P
10
AVS S_DVI
11
RX2N
12
RX2P
13
HOTPLUGA
14
REXT
15
DDCDA_DA
16
DDCDA_CK
17
HSYN C1
18
VSYN C1
19
VCLP
20
REFP
21
REFM
22
BIN1P
23
SOGIN1
24
GIN1P
25
RIN1P
26
BIN0M
27
BIN0P
28
GIN0M
29
GIN0P
30
SOGIN0
31
RIN0M
32
AVD D_AD C2
34
AVS S_ADC2
35
HSYN C0
36
VSYN C0
37
CVBS3P
42
CVBS2P
43
CVBS1P
44
VCOM 1
45
CVBS0P
46
VCOM 0
47
AVD D_AD C
48
CVBS_OUT
49
AVS S_CVBSO
50
AVD D_SIF
51
SIF_IN1P
52
SIF_IN1M
53
VDDC
54
LI NE_IN_0L
56
LI NE_IN_0R
57
LI NE_IN_1L
58
LI NE_IN_1R
59
LI NE_IN_2L
60
LI NE_IN_2R
61
LI NE_IN_3L
62
LI NE_IN_3R
63
VI M0
64
AVSS_AU65AVDD_AUSDM69AUVR M66AUVR P67AUVAG68LINE_OUT_1L72VDDP
76
Jupiter GPIO2/CEC
134
I2C_SDA(DD CR_DA)
205
I2C_SCL(DDCR_CK)
206
SAR0
120
SAR1
121
SAR2
122
SAR3
123
PWM0
124
PWM1
125
PWM2
126
PWM3
127
HWRESET
128
SPI_CK
129
SPI_DI
130
SPI_DO
131
SPI_CZ
132
VDDP
133
AVD D_DDR
191
SDR_DQ15
180
SDR_DQ14
181
SDR_DQ13
182
SDR_DQ12
183
DDR_DQS1
192
SDR_DQ11
185
SDR_DQ10
186
SDR_DQM1
188
SDR_DQ9
189
SDR_DQ8
190
SDR_BA0
229
SDR_WE_N
230
SDR_RAS_N
231
SDR_CAS_N
232
SDR_DQ7
234
SDR_DQ6
235
SDR_DQ5
236
SDR_DQ4
237
SDR_DQ3
239
SDR_DQ2
240
GNDM
241
SDR_DQM0
242
SDR_DQ1
243
SDR_DQ0
244
AV DDL_DVI
247
XTAL I
254
TESTPIN
256
RXCP
5
RX0N
6
RX1N
9
RX0P
7
AVD D_DVI
8
RXCN
4
RIN0P
33
AV DD_DDR
245
GNDC90VDDC
91
DDR_DQS0
246
AV DD_DDR
238
XTAL O
253
LINE_OUT_2L70LINE_OUT_2R
71
GNDP77VDDC
78
UART_TX( DDCA_DAT )
118
UART_RX( DDCA_CLK)
119
B2_RXE3+
143
B3_RXE3-
144
B4_RXEC+
145
B5_RXEC-
146
B6_RXE2+
147
B7_RXE2-
148
G0_RXE1+
149
G1_RXE1-
150
G2_RXE0+
151
G3_RXE0-
152
VDDP
153
GNDC
166
G6_RXO3+
154
G7_RXO3-
155
R0_RXOC+
156
R1_RXOC-
157
R2_RXO2+
158
R3_RXO2-
159
R4_RXO1+
160
R5_RXO1-
161
R6_RXO0+
162
R7_RXO0-
163
AVD D_LPLL
164
AVS S_LPLL
165
VDDC
167
LCK/ Jupiter GPIO
168
LD E/Jupiter GPIO
169
LH SYNC/Jupit er GPIO
170
LV SYNC/Jupiter GPIO
171
PCM_D7/CI_D792PCM_D6/CI_D693PCM_D5/CI_D594PCM_D4/CI_D495PCM_D3/CI_D396PCM_D2/CI_D297PCM_D1/CI_D198PCM_D0/CI_D099PCM_A14/CI_A14
100
PCM_A13/CI_A13
101
PCM_A12/CI_A12
102
PCM_A11/CI_A11
103
PCM_A10/CI_A10
104
PCM_A9/CI_A9
105
PCM_A8/CI_A8
106
VDDP
107
PCM_A7/CI_A7
108
PCM_A6/CI_A6
109
PCM_A5/CI_A5
110
PCM_A4/CI_A4
111
PCM_A3/CI_A3
112
PCM_A2/CI_A2
113
PCM_A1/CI_A1
114
PCM_A0/CI_A0
115
Jupiter_GPIO0
116
Jupiter_GPIO1
117
PCM_IORD_N/C I_RD
135
PCM_IO WR_N/CI_ WR
136
PCM_OE_N
137
PCM_WE_N
138
PCM_REG_N/CI_CLK
139
PCM_CE_N/CI_CS
140
PCM_IR QA_N/CI_IN T
141
PCM_WA IT_N/CI_ WACK
142
CI_RESET
172
CI_CD
173
TS1_D0/FDSP_IMS
174
TS1_VLD/ FDSP_ICLK
175
TS1_SYNC/FDSP_IDI
176
TS1_CLK/ FDSP_IDO
177
IRIN
178
IN T
179
AVD D_DDR
184
GNDM
187
I2S_IN_W S
193
I2S_IN_BCK
194
I2S_IN_SD
195
SPDIF_IN
196
I2S_OUT_MC K
197
I2S_OUT_WS
198
VDD P
199
GNDC
200
VDDC
201
I2S_OUT_BCK
202
I2S_OUT_SD
203
SPDIF_OUT
204
I2S_OUT_MU TE
207
Jupiter GPIO3/UART_T X1/CEC
208
MV REF
209
DDR_CKO_N
210
DDR_CK O
211
SDR_CKE
212
AVDD _MEMPL L
213
SDR_AD0
214
SDR_AD1
215
SDR_AD2
216
SDR_AD3
217
SDR_AD4
218
SDR_AD5
219
SDR_AD6
220
AV DD_DDR
221
SDR_AD7
222
SDR_AD8
223
SDR_AD9
224
SDR_AD10
225
SDR_AD11
226
SDR_AD12
227
SDR_BA1
228
OTG_REXT
248
AVD D_OTG
249
USB_DM
250
USB_DP
251
AV SS_OT G
252
AV DD_MPLL
255
CEC/UART _RX1
1
GPIO1/UA RT_TX1
2
GPIO2
3
C1(CVB S7P)
38
Y1(CVB S5P)
39
C0(CVB S6P)
40
Y0(CVB S4P)
41
VDDC
233
LINE_OUT_1R(DACO_S)73LINE_OUT_0L(DACO_L)74LINE_OUT_0R(DACO_R)
75
GNDC
55
TS_D0/BT656_D0/FDSP_IM S79TS_D1/BT656_D1/DSP_ICLK80TS_D2/BT656_D2/FDSP_IDI81TS_D3/BT656_D3/FDSP_IDO82TS_D4/BT656_D483TS_D5/BT656_D584TS_D6/BT656_D685TS_D7/BT656_D786TS_VLD87TS_SYNC88TS_CLK/B T656_CLK
89
COOLER
266
IC402
MSD2338AL
R400 56R
7 5 3 1
8 6 4 2
RA404 4*33R
7 5 3 1
8 6 4 2
RA41 44*33R
R402
910R %1
7 5 3 1
8 6 4 2
RA406
4*33R
AV DD_DVI
8 bit/10 bit different area
MADR[12..0 ]
SI DE_ALI N
SI DE_ARI N
7 5 3 1
8 6 4 2
RA413
7 5 3 1
8 6 4 2
RA 412
4*33R
4*33R
7 5 3 1
8 6 4 2
RA411
4*33R
4*33R
7 5 3 1
8 6 4 2
RA410
7 5 3 1
8 6 4 2
RA409
4*33R
R459
100R
AU_DACO_HL
AU_DACO_HR
AU_DACO_SL
AU_DACO_SR
VGA_ALIN
VGA_ARIN
ANTPOWER
Audi o- ON/OFF
TS_MOCLK
TS_MOVAL
TS_MOSTART
7531
8642
RA407
4*33R
RASZM0
CASZM0
MBA0
MBA1
RXE3_P
RXE3_N
RXOC_N
RXO2_P
RXO2_N
RXE1_N
RXE1_P
RXE0_N
RXE0_P
RXOC_P
RXO0_N
RXO0_P
RXEC_P
RXEC_N
RXE2_P
RXE2_N
RXO1_N
RXO1_P
RXO3_N
RXO3_P
RGB1_S OG
PC&COMP Scart
TP62
TP63
TP64
TP65
TP69
RX_D VD
TX _DVD
RGB1-Y +
RGB1_PB-
RGB1-P R+
DVD_SEL
DVD_A LI N
DVD_A RIN
TX _DVD
RX_DVD
SI F_SW
XTALO
XTALI
6
5
3
4
9
13
14
10
3
4
5
6
8
0
Trigger @ (+5V_ST)
Mains switch on
#
$
GRUNDIG Service Chassis D6
2 - 13
Page 34
GRUNDIG Service Chassis D6
SPI_CSN0
SP_SDO
SPI_SCK
SPI_SDI
FLASH_WPN-SAR3
R427
4. 7K
R429
NC
C451
100n F
VCC3.3V-Flas h
VCC3.3V-ST
*100MHz, No any VI A hole!
Boot Loader SPI Flash
R6_RXO0_P
R7_RXO0_N
R4_RXO1_P
R5_RXO1_N
R2_RXO2_P
R3_RXO2_N
B3_RXE3_N
B2_RXE3_P
B5_RXEC_N
B4_RXEC_P
B7_RXE2_N
B6_RXE2_P
R0_RXOC_P
R1_RXO C_N
G6_RXO3_P
G7_RXO3_N
G2_RXE0_P
G3_RXE0_N
G0_RXE1_P
G1_RXE1_N
PANEL-VCC
DQS0 MVREF-1
DQS1
MVREF-1
MADR7
MADR1MADR1
MADR5
MADR6
MADR3
MADR4
MADR8
MADR2
MADR9
MADR[12..0]
WEZ
RASZM0
MADR12
LDQS
DQM1
MDATA[15..0]
MCLK-
MCLK+
WEZM0
UDM0
CASZM0
MADR0
MADR11
MADR10
UDQS
LDM0
DQM0 CLK0
CLKN0
CKE
MCKE
MBA0
MBA1
MDATA4
MDATA0
MDATA7
MDATA2
MDATA1
MDATA3
MDATA6
MDATA5
MDATA10
MDATA13
MDATA9
MDATA11
MDATA14
MDATA15
MDATA12
MDATA8
DATA11
DATA10
DATA9
DATA8
DATA15
DATA14
DATA13
DATA12
DATA0
DATA4
DATA7
DATA6
DATA5
DATA1
DATA3
DATA2
C412
100n F
7531
8642
RA4034*33R
R410
22R
R414 56 R
C415
100n F
C403
100n F
R408 56 R
C404
1uF X7 R
R407 56 R
R417
1K
R411
150R %1
7531
8642
RA4024*33R
C411
100n F
C409
100nF
A0
29
A1
30
A2
31
A3
32
A4
35
A5
36
A6
37
A7
38
A8
39
A9
40
A10/AP
28
A11
41
DQ0
2
DQ1
4
DQ2
5
DQ3
7
DQ4
8
DQ5
10
DQ6
11
DQ7
13
DQ8
54
DQ9
56
DQ10
57
DQ11
59
DQ12
60
DQ13
62
DQ14
63
DQ15
65
BA0
26
BA1
27
CS
24
RAS
23
CAS
22
WE
21
LDM
20
UDM
47
LDQS
16
UDQS
51
CKE
44
CLK
45
CLK
46
MVDD
1
MVDD
18
MVDD
33
VDDQ
3
VDDQ
9
VDDQ
15
VDDQ
55
VDDQ
61
VSS
34
VSS
48
VSS
66
VSSQ
6
VSSQ
12
VSSQ
58
VSSQ
64
VREF
49
VSSQ
52
NC
14
NC
17
NC
19
NC
25
NC
43
NC
53
NC
50
NC
42
IC40 1
M13S2561616A-5TG_128Mb_TSOP66
R409
22R
7531
8642
RA4054*33R
R422
56R
C405
100nF
R413
22R
R419
1K
C416
100n F
R412 22R
C414
100n F
7531
8642
RA4014*33R
C413
100n F
VCC2.5V-ST
DMQC0
DMQC0
DMQC0
4M X 16bit X 4BK
DDR-SDRAM DATA[15: 0]
Cl ose to DDR-SDRAM
390mA
L400
300R/100MHz
LVDS I/F
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
31
P32
32
S400
MOLEX_2* 15
C408
4u7 10V
tp 22
tp 11
tp 17
tp 12
tp 18
tp 19
tp 14
tp 20
tp 15
tp 21
tp 6
tp 27
tp 28
tp 7
tp 23
tp 24
tp 8
tp 25
tp 9
tp 10
tp 26
To Ke ypad Bo ard
VCC3.3V-ST
R471
FB
VCC3.3V- Flash
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
31
P32
32
S401
MOLEX_2*15
B3_RXE3_N
B2_RXE3_P
B5_RXEC_N
B4_RXEC_P
B7_RXE2_N
B6_RXE2_P
G2_RXE 0_P
G3_RXE0_N
G0_RXE 1_P
G1_RXE1_N
tp 45
PANEL- VCC
CE#
1
SO
2
WP#
3
VSS4SI
5
SCK
6
HOLD#
7
VDD
8
9
IC 403
M25P32
TP108
TP109
TP110
13
14
#
$

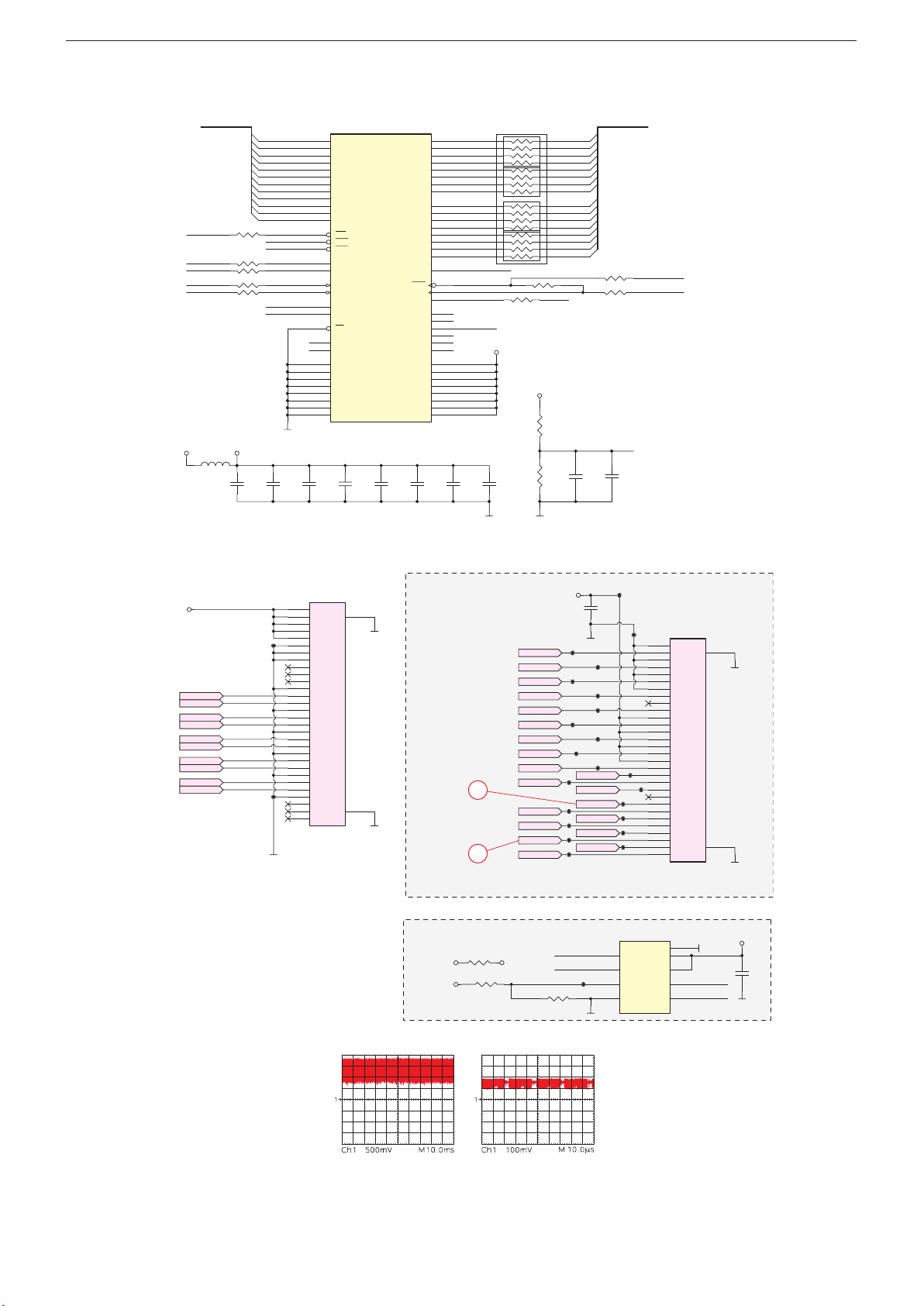

Chassisplatte / Chassis Board – Scaler YVL190R-3
2 - 14
Page 35
GRUNDIG Service Chassis D6

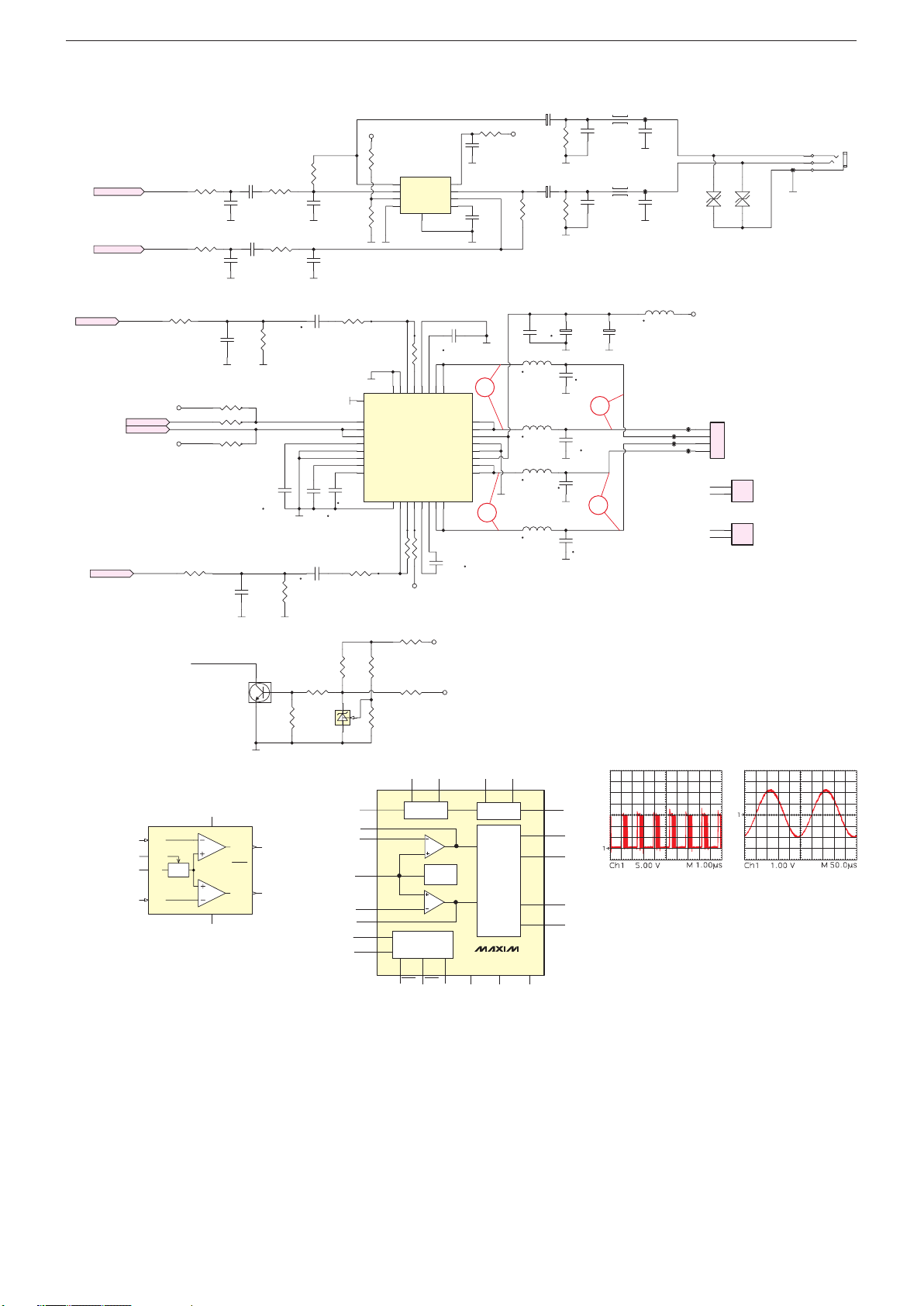

AU_DACO_L
AU_DACO_R
R813
47K
R816
470R
C826
3.3nF
R819
47K
C824
3.3nF
R811
470R
R801 47K
C811
470pF
R803 1K
R800
10K
TO SPE AKE R
R804 47k
C817
1uF 10V
C814
1uF
C813
1uF
R802 10k
L801
120R\100MHz
L802
120R\100MHz
C807
1uF/50V X7R
C806
470pF
C805
100nF 25V
C803
1uF 10V
L800
22R/100MHz
+12V
C810
470pF
1
2
3
4
S800
SPEAKER
TP41
TP42
AU_OP_L
AU_OP_R
AU_DACO_ L
AU_DACO_ R
OUTL-1OUTL-
2
BOOT
3
MONO
4
PRE_L
5
IN_L
6
NC7NC
8
/MUT E
9
/SHDN
10
REGEN
11
COM
12
AGND
13
AGND
14
REG
15
VS
16
NC17IN_R18PRE_R19MOD20C1-21C1+22OUTR-23OUTR-
24
OUT_R+
25
OUT_R+
26
PVDD
27
PGND
28
PGND
29
PVDD
30
OUTL+
31
OUTL+
32
EXP
33
IC800
MAX9736B
MUTE_S
R805 NC
Audi o-ON/O FF
Audio-ON/OFF
MUTE_S
C801
470pF
C802
1uF 10V
L806
120R\100MHz
L805
120R\100MHz
+5V_ST
VCC5V
C804
1uF/25V
R836
2K 1%
2
3 1
IC803
ZTL431AFFTA
T800
BC847B
R832
4.7k
R833
22K
R834
*
R835
1.2k %1
R839
+5V_ST
R844
10K
+12V
R845 100R
R846 4.7K
VCC5V
DE-POP
DE-POP
C835
2.2nF
R826
10k
C841
2.2nF
C842
3.3nF
C840
1uF
C827
100uF/16V
C834
100uF/16V
C830
1nF
C837
1nF
AU_DACO_HL
C839
1u F
R822
33K
R823
10K
R814
22K
R521
22K
R818
10k
C836
3.3nF
C833
1u F
AU_DACO_HR
C820
4u7 10V
TP43
TP44
AU_DACO_HL
AU_DAC O_HR
R815
470R
R825
470R
L803
SBY100505T-102Y
L804
SBY100505T-102Y
C831
220pF
C838
220pF
RIGHT
LEFT
GND
Right
Left
GND
S500
Headphone
R810
0R
R848
1K
R847
1K
VCC5V
HPL
HPR
VCC
1
OUT1
2
VI N1
3
BP
4
GND
5
/SD
6
VI N2
7
OUT2
8
EXP
9
IC802
TS488IQT
VCC3.3V-ST
TP48
TP49
R+
L+
RL-
C800
470uF/25V
C808
(470uF/25V)
TP107
L+
L-
R+
R-
P1
1
P2
2
S1
R_SPK
P1
1
P2
2
S2
L_SPK
330R %1
28
28
27
27
≥
•
MAX9736
CHARGE
PUMP
POWER
STAGE
REGULATOR
BIAS
MOD
MONO
SHDN
MUTE REGEN
AGND
PGND
N.C.
20
FBR19
INR18
COM 12
INL6
FBL5
REG
VS
PVDD
C1N
C1P
15
16
1203 ,7222
3BOOT
31, 32 OUTL+
25, 26 OUTR+
23, 24 OUTR-
1, 2 OUTL-
4
10 911
13, 14
7, 8, 17
28, 29
CONTROL
VIN1
2
VIN2
6
GND
VOUT2
7
VOUT1
1
BIAS
BPS
3
Vcc
85/9
STDB
5
TS488 = STDB
TS489 = STDB
Chassisplatte – Verstärker / Chassis Board – Amplifier YVL190R-3
2 - 15
Page 36
GRUNDIG Service Chassis D6
Chassisplatte / Chassis Board YVL190R-6
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
C1 T 14 7
C200 T 103 110
C201 T 101 110
C202 T 101 111
C203 T 103 111
C204 T 106 113
C206 T 136 108
C207 T 133 108
C208 T 87 119
C209 T 82 119
C214 T 97 104
C215 T 98 104
C221 T 84 101
C222 T 88 102
C227 T 88 116
C228 T 92 116
C229 T 82 103
C237 T 77 112
C239 T 81 114
C301 T 106 115
C302 T 80 95
C303 T 92 85
C304 T 88 100
C305 T 84 95
C306 T 88 99
C308 T 87 97
C309 T 94 86
C312 T 99 106
C313 T 99 108
C315 T 99 110
C317 T 97 107
C318 T 83 95
C319 T 124 108
C320 T 113 112
C322 T 149 108
C325 T 99 107
C326 T 80 97
C327 T 145 111
C328 T 81 95
C399 T 83 97
C400 T 84 43
C401 T 67 43
C402 T 89 62
C403 T 54 25
C404 T 37 19
C405 T 38 31
C406 T 15 40
C408 T 6 43
C409 T 39 44
C410 T 23 6
C411 T 54 29
C412 T 38 16
C413 T 38 36
C414 T 38 25
C415 T 54 33
C416 T 38 27
C417 T 68 58
C418 T 70 58
C419 T 68 60
C420 T 70 60
C421 T 43 44
C422 T 57 81
C423 T 31 75
C424 T 44 81
C425 T 37 44
C426 T 30 66
C428 T 67 71
C430 T 31 61
C431 T 25 49
C432 T 75 81
C433 T 60 81
C434 T 67 69
C435 T 60 44
C436 T 61 44
C437 T 62 44
C438 T 67 65
C439 T 51 44
C440 T 58 44
C441 T 38 44
C442 T 51 81
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
C443 T 56 81
C444 T 67 73
C445 T 62 41
C446 T 66 39
C447 T 67 78
C450 T 68 81
C451 T 33 84
C452 T 31 60
C453 T 57 44
C454 T 47 44
C455 T 36 44
C456 T 34 44
C457 T 54 44
C459 T 26 46
C460 T 69 100
C462 T 73 116
C500 T 42 93
C501 T 18 116
C502 T 22 116
C503 T 21 116
C504 T 29 119
C505 T 22 120
C506 T 16 121
C700 T 102 20
C701 T 104 20
C702 T 99 39
C703 T 100 20
C704 T 109 20
C705 T 123 18
C706 T 75 73
C707 T 71 72
C708 T 130 21
C709 T 125 20
C710 T 127 18
C711 T 132 18
C712 T 123 25
C713 T 94 23
C714 T 100 24
C715 T 97 25
C716 T 137 18
C717 T 111 18
C718 T 98 23
C719 T 85 27
C720 T 75 83
C721 T 75 82
C722 T 91 29
C723 T 134 18
C724 T 86 30
C725 T 128 25
C726 T 131 25
C727 T 94 29
C728 T 11 13
C729 T 86 34
C730 T 88 32
C731 T 91 32
C732 T 126 25
C733 T 94 32
C734 T 71 76
C735 T 75 77
C736 T 116 117
C737 T 133 25
C741 T 121 25
C742 T 116 119
C743 T 103 57
C744 T 103 55
C745 T 139 123
C746 T 87 20
C752 T 71 70
C753 T 71 74
C754 T 101 52
C755 T 101 48
C756 T 75 75
C757 T 101 46
C758 T 102 41
C759 T 97 18
C760 T 116 20
C761 T 118 20
C762 T 107 118
C763 T 71 78
C764 T 75 79
C765 T 102 31
C766 T 102 35
C767 T 100 37
C768 T 100 33
C800 T 60 9
C801 T 79 5
C802 T 71 24
C803 T 74 24
C804 T 74 9
C805 T 68 15
C806 T 76 5
C807 T 81 14
C808 T 62 9
C810 T 72 5
C811 T 69 5
C813 T 81 22
C814 T 68 23
C817 T 73 24
C820 T 150 114
C824 T 68 84
C826 T 68 85
C827 T 129 112
C830 T 128 118
C831 T 128 120
C833 T 147 119
C834 T 141 114
C835 T 152 118
C836 T 75 86
C837 T 131 117
C838 T 131 120
C839 T 154 115
C840 T 155 110
C841 T 153 112
C842 T 75 85
C900 T 9 37
C901 T 18 30
C903 T 18 34
C905 T 18 36
C906 T 18 38
C907 T 18 32
C908 T 54 5
C909 T 26 41
C910 T 55 3
C912 T 23 31
C915 T 64 29
C916 T 69 38
C917 T 30 24
C918 T 64 31
C920 T 9 39
C925 T 26 6
CB702 T 143 19
CB902 T 25 9
D300 T 88 90
D404 T 86 64
D405 T 82 50
D406 T 82 53
D608 T 87 47
D701 T 122 21
D702 T 98 19
D703 T 107 20
D704 T 115 21
D705 T 120 20
D706 T 132 21
D707 T 137 22
D708 T 104 21
D709 T 112 20
D710 T 128 20
D711 T 132 20
D712 T 102 37
D713 T 103 29
D714 T 130 24
D715 T 129 25
D716 T 125 26
D717 T 139 22
D718 T 151 28
D719 T 142 24
D720 T 140 19
D721 T 150 29
D722 T 141 27
D723 T 136 24
D724 T 139 24
D725 T 101 57
D726 T 103 48
D727 T 101 41
D732 T 104 118
D801 T 127 118
D802 T 129 120
D903 T 25 10
D904 T 23 3
F300 T 91 95
F301 T 94 95
IC300 T 89 109
IC301 T 147 109
IC400 T 94 65
IC401 T 46 26
IC402 T 49 63
IC403 T 27 84
IC404 T 71 94
IC405 T 15 37
IC406 T 71 110
IC408 T 71 93
IC500 T 29 116
IC501 T 18 119
IC700 T 91 26
IC701 T 113 118
IC702 T 91 37
IC703 T 148 21
IC800 T 73 16
IC802 T 152 115
IC803 T 62 21
IC900 T 23 36
IC901 T 72 31
IC902 T 31 17
L200 T 100 104
L201 T 83 101
L202 T 82 101
L203 T 93 116
L302 T 91 87
L303 T 122 113
L305 T 150 108
L400 T 37 21
L401 T 71 81
L402 T 23 49
L403 T 62 37
L404 T 66 37
L405 T 9 34
L406 T 26 44
L407 T 15 33
L500 T 24 121
L601 T 86 50
L602 T 86 53
L701 T 87 22
L702 T 11 12
L703 T 85 34
L706 T 139 125
L800 T 52 11
L801 T 76 9
L802 T 72 9
L803 T 128 119
L804 T 131 119
L805 T 79 9
L806 T 69 9
L901 T 20 42
L902 T 24 24
L908 T 31 6
L911 T 64 27
Q900 T 16 47
R200 T 77 109
R201 T 106 110
R203 T 106 111
R204 T 78 114
R209 T 103 113
R212 T 81 111
R215 T 81 112
R218 T 134 110
R219 T 136 110
R220 T 103 115
R221 T 77 108
R222 T 137 108
R223 T 134 108
R224 T 81 117
R225 T 81 116
R226 T 79 116
R227 T 79 117
R228 T 84 119
R229 T 90 116
R231 T 101 113
R301 T 145 108
R302 T 88 85
R303 T 87 91
R304 T 101 115
R305 T 24 93
R306 T 14 90
R308 T 88 87
R311 T 89 97
R317 T 94 87
R323 T 32 118
R326 T 34 118
R327 T 42 116
R328 T 43 116
R332 T 46 119
R335 T 81 97
R339 T 49 116
R399 T 84 97
R400 T 49 44
R401 T 67 45
R402 T 59 41
R403 T 89 64
R404 T 89 66
R405 T 74 116
R406 T 89 67
R407 T 38 26
R408 T 54 28
R409 T 41 44
R410 T 38 24
R411 T 54 23
R412 T 57 26
R413 T 42 44
R414 T 40 40
R415 T 89 65
R416 T 15 42
R417 T 54 20
R418 T 75 57
R419 T 54 26
R420 T 13 36
R422 T 51 38
R423 T 71 100
R424 T 72 105
R425 T 69 105
R427 T 21 86
R429 T 21 84
R430 T 38 84
R431 T 36 84
R433 T 71 102
R434 T 74 102
R435 T 72 102
R438 T 72 100
R439 T 74 100
R440 T 38 81
R441 T 36 81
R444 T 71 116
R448 T 71 105
R449 T 82 62
R450 T 83 61
R459 T 34 81
R460 T 27 9
R462 T 22 6
R465 T 25 6
R471 T 33 86
R500 T 25 116
R501 T 20 116
R502 T 24 116
R503 T 39 93
R504 T 27 116
R505 T 27 118
R506 T 15 116
R507 T 14 116
R508 T 19 121
R509 T 56 91
R511 T 53 91
R514 T 52 91
R521 T 152 112
R522 T 25 118
R523 T 24 118
R600 T 82 57
R601 T 82 58
R602 T 83 60
R616 T 85 60
R619 T 80 58
R700 T 102 18
R701 T 104 18
R702 T 100 18
R703 T 109 18
R704 T 122 20
R705 T 121 18
R706 T 118 18
R707 T 116 18
R708 T 113 18
R709 T 107 18
R710 T 88 18
R711 T 90 21
R712 T 102 32
R713 T 130 18
R714 T 97 20
R715 T 125 18
R716 T 95 20
R717 T 92 21
R718 T 125 21
R719 T 130 20
R720 T 95 18
R721 T 92 35
R722 T 92 37
R723 T 92 38
R724 T 97 39
R725 T 86 37
R726 T 95 32
R727 T 123 26
R728 T 128 26
R729 T 131 26
R730 T 97 28
R731 T 92 32
R732 T 85 26
R733 T 91 23
R734 T 138 25
R735 T 137 21
R736 T 136 25
R737 T 137 20
R738 T 138 26
R739 T 136 26
R740 T 85 29
R741 T 90 32
R742 T 11 23
R743 T 149 26
R744 T 144 26
R745 T 72 82
R746 T 72 83
R747 T 151 25
R748 T 146 25
R749 T 102 33
R750 T 102 36
R751 T 97 26
R752 T 89 23
R753 T 149 25
R754 T 144 25
R755 T 146 26
R756 T 134 21
R757 T 151 26
R758 T 102 38
R759 T 142 21
R760 T 134 20
R761 T 142 22
R762 T 100 36
R763 T 96 23
R764 T 11 25
R765 T 11 27
R766 T 11 24
R767 T 110 117
R768 T 119 116
R769 T 118 116
R770 T 11 16
R771 T 11 19
R772 T 11 21
R774 T 126 26
R778 T 133 26
R782 T 109 117
R783 T 121 26
R786 T 102 57
R787 T 101 55
R788 T 100 32
R791 T 140 126
R792 T 140 128
R795 T 103 50
R796 T 103 52
R797 T 101 50
R798 T 102 43
R799 T 103 46
R800 T 68 20
R801 T 68 18
R802 T 81 20
R803 T 66 16
R804 T 81 17
R805 T 76 23
R810 T 148 114
R811 T 65 84
R813 T 82 22
R814 T 150 118
R815 T 72 86
R816 T 65 85
R818 T 149 119
R819 T 69 23
R822 T 154 118
R823 T 153 118
R824 T 101 43
R825 T 72 85
R826 T 155 112
R832 T 66 20
R833 T 65 20
R834 T 65 18
R835 T 63 17
R836 T 62 17
R839 T 65 16
R844 T 61 17
R845 T 79 23
R846 T 78 23
R847 T 131 118
R848 T 128 117
R900 T 28 4
R901 T 18 28
R902 T 26 34
R903 T 18 27
R904 T 26 4
R905 T 31 15
R906 T 18 11
R907 T 31 10
R908 T 23 9
R910 T 30 9
R911 T 32 9
R914 T 9 40
R916 T 13 45
R917 T 15 45
R918 T 13 49
R919 T 13 47
R920 T 31 4
R921 T 29 9
R922 T 28 9
R923 T 24 9
R924 T 21 9
R925 T 14 5
R926 T 17 6
R927 T 18 6
R928 T 35 20
R930 T 35 17
RA401 T 35 39
RA402 T 32 39
RA403 T 56 37
RA404 T 48 41
RA405 T 54 37
RA406 T 45 40
RA407 T 51 41
RA408 T 42 40
RA409 T 28 60
RA410 T 28 63
RA411 T 28 66
RA412 T 28 69
RA413 T 28 71
RA414 T 30 78
RA501 T 51 88
RA502 T 54 88
RA503 T 58 88
RA504 T 48 88
RP201 T 81 109
RP202 T 81 106
S1 T 147 45
S2 T 147 54
S301 T 43 6
S400 T 21 67
S401 T 8 64
S402 T 21 126
S500 T 121 124
S501 T 35 112
S602 T 92 50
S700 T 116 9
S701 T 132 33
S702 T 104 123
S703 T 108 33
S704 T 6 21
S705 T 104 123
S706 T 143 126
S707 T 124 49
S800 T 149 48
S900 T 155 5
S901 T 155 128
S902 T 5 5
S903 T 5 88
S904 T 35 128
S907 T 43 6
T300 T 37 117
T303 T 88 94
T601 T 85 58
T700 T 91 19
T800 T 65 23
T801 T 15 119
T900 T 29 6
T901 T 31 21
T903 T 10 43
T904 T 46 117
T905 T 19 9
T907 T 12 9
T908 T 20 5
TU300 T 128 86
TU301 T 128 86
TU302 T 128 86
X200 T 84 123
Y400 T 76 43
2 - 16
Page 37
Chassisplatte / Chassis Board
0
10
20
30
40
50
60
70
80
90
100
110
120
130
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
X
R905
R427
C423
R920L908
R911
C430
C452
T901
R907
IC902
192
YVL190R-6
R471
R816
IC500
R323
C826
R302
R416
T903
S902
16
15
R770 R771
FID4
C1
R925
R926
T905
R927
L702
T907
R906
C728
DVD
R772
1
2
S704
L405
C900
C920
R914
R742
R766
R764
R765 R903
C901
C907
R420
IC405
L407
C905
C406
T908
D904
C410
1
R924
R462
R923
R908
R904
R465
C925
S907
R900
1
R460
T900
CB902 R921
R922
R910
R901
C912
C906
1
IC900
D903
R930
L902
R902
C909
C917
R916
30
R918
R917
R919
Q900
LVDS
S401
S400
1
1
L901
L402
1
L406
C431
C459
RA409
LVDS
R429
RA410
RA412
C426
RA411
RA413
RA414
10
R707
C760
TU302
S701
RIGHT
1
S800
R706 R705C705R715
R704C761
D705
D701
C709
R718
C710 C711R713
D710R719D711
C723 C716
R760R737
C708
D706
R756
R735
C712
C741
C732
D716
R783R727
LEFT
R774
D714
C725 C726
D707
D723
C737R736
D715
R729R728
VGA
R739R778
CB702
D720
D717
D724
R761
R759
S900
FID1
IC703
SCART
1
R734
R738
D719
R754
D722
R744
S1
R748 R753
R747
R757
R755 R743
D718
D721
1
AV
S707
1
S2
SPEAKER ARCELIK ELK.
C804
C803
C435
C401
R798
R418
C432
C721
C764
C706
C756
C720
C842
109
9
IC401
R928
C412
C404
L400
2
2
C910
S301
1
C908
C800
PWR
1
L800
R417
R410
C414
C416
C405
R407
RA401
RA402
C413
R414
1
RA408
R411
C403
R419
R408
C411
RA406
RA404
R422
RA407
RA405
C415
+
R844 R835
R836
IC803
R839
R834
C808
C811
L806
C810
25
L802
R803 R832
24
R801
C805
17
R412
C915
L911
RA403
R402
L403
C918
C445
R833
R800
T800
16
C814
C802
L404
C446
R819
C916
C817
C806
32
L801
C801
1
L805
IC800
C807
9
8
R805R846
R845
R804
R802
C813
S700
R710
C746
1
R711
L701
R813
R752
R717
R733
C713
IC700
IC901
R732
C719
R740
C72
4
Y400
L703
R725
C729
C730
R741
C722
C731
C727
R731
C733
R721
IC702
R722
R723
R720C759
D702
R702
R716R714
T700
R763
C718
C703C700
R700
R709R703R701
C704
C717R708
C701D703
D708
D709
D704
R730
R726
C714
C715
R751
R788
1
S602
R724C702
C768
C767
R762
D713
C765
R712
R749
C766
S703
R750
D712
D727
R758
C758
PC AUDIO
VIDEO
D406
R600
D405
1
1
R601
R619
R602
C400
L601
D608
1
T601
L602
R449
C735
R616
R450
D404
C402
R403
R415
R404
R406
19
R824C757
HDMI
R797C754
C755
R799
D726
R795
R796
1
IC400
R787
C744
1
D725
R786
C743
TU301TU300
R409
C456
C455
C425
C441
C409 R413
C421
C454
R400
C439
C440
C457
C453
129
193
128
R459R441
C451
R431
C424
R440
R430
C443
C442 C433
C422
C436
C437
R401
256
IC402
1
C417
C419
C418
C420
C438
C434
C428
C752
64
65
C444
C447
C734
R811
C450
C824
C707
C753
C763
L401
R745
R746
C742
R825
H PHONE
C320
C736
R439
C836
R434
R405
USB
S702
RA504
RA501
R503
R514
C500
RA502
RA503
R511
R509
1
T300
R327
R326
S904
R328
1
R332
R339
T904
S501
1
C460
R815
R423
R433
R438
R448
R425
IC406
R444
R435
R424
C462
1
IC404
C328
C302
C318
C326
IC408
R335
L202
L201
C399
R399
D300
R303
C305
T303
R308
C304
C221
C306
C308
R311
C222
R221
R200
RP202RP201
C237
R204
R226
R227
R215
R224
C229
R212
C239
R225
1
F300
48
37
C209
R228
36
C227
C208
L302
C303
1
R317
C309
1
12
C214
13
C317
F301
C215
C325
C312
C313
L200
C315 C201
R201
C200
24
C202
IC300
R231
25
R304
R209
C228
R229
X200
L203
R220
S705
D732
1
C203R203
C204
C301
R782
C762
1
R767
1
IC701
S500
R791
C319
C827
L303
C207
R223
C206
R222
R218 R219
R848
R768
R769
C830
D801
C831
L803
D802
C837
R847
L804
C838
C834
C745
L706
1
R301 L305
C322
C327
IC301
R810
1
C841
C840
R826
R521
V-0
C839
IC802
C820
1
C833
R818
HOTEL
FID2
R814 R823
C835R822
S901
S706
R792
S903
Label103
R306
R507
R506
C501
C503
R501
1
T801
C506
FID3
1
R508
1
R305
C502
IC403
1
R500
R502 R504
IC501
R523
C505
L500
R522
R505
C504
S402
SERVICE
1
40
39
38
37
36
9
12
7
3
4
8 6
5
14
13
27
27
28
28
10
YVL190R-6
Ansicht von der Bestückungsseite
View of Component Side
2 - 17
GRUNDIG Service Chassis D6
Page 38
GRUNDIG Service Chassis D6
0
10
20
30
40
50
60
70
80
90
100
110
120
130
Y
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
X
R905
R427
C423
R920L908
R911
C430
C452
T901
R907
IC902
192
R471
R816
IC500
R323
C826
R302
R416
T903
S902
16
15
R770 R771
FID4
C1
R925
R926
T905
R927
L702
T907
R906
C728
DVD
R772
1
2
S704
L405
C900
C920
R914
R742
R766
R764
R765 R903
C901
C907
R420
IC405
L407
C905
C406
T908
D904
C410
1
R924
R462
R923
R908
R904
R465
C925
S907
R900
1
R460
T900
CB902 R921
R922
R910
R901
C912
C906
1
IC900
D903
R930
L902
R902
C909
C917
R916
30
R918
R917
R919
Q900
LVDS
S401
S400
1
1
L901
L402
1
L406
C431
C459
RA409
LVDS
R429
RA410
RA412
C426
RA411
RA413
RA414
10
C804
C803
C435
C401
R798
R418
C432
C721
C764
C706
C756
C720
C842
109
9
IC401
R928
C412
C404
L400
2
2
C910
S301
1
C908
C800
PWR
1
L800
R417
R410
C414
C416
C405
R407
RA401
RA402
C413
R414
1
RA408
R411
C403
R419
R408
C411
RA406
RA404
R422
RA407
RA405
C415
+
R844 R835
R836
IC803
R839
R834
C808
C811
L806
C810
25
L802
R803 R832
24
R801
C805
17
R412
C915
L911
RA403
R402
L403
C918
C445
R833
R800
T800
16
C814
C802
L404
C446
R819
C916
C817
C806
32
L801
C801
1
L805
IC800
C807
9
8
R805R846
R845
R804
R802
C813
S700
R710
C746
1
R711
L701
R813
R752
R717
R733
C713
IC700
IC901
R732
C719
R740
C72
4
Y400
L703
R725
C729
C730
R741
C722
C731
C727
R731
C733
R721
IC702
R722
R723
R720C759
D702
R702
R716R714
T700
R763
C718
C703C700
R700
C701D703
D708
R730
R726
C714
C715
R751
R788
1
S602
R724C702
C768
C767
R762
D713
C765
R712
R749
C766
R750
D712
D727
R758
C758
PC AUDIO
D406
R600
D405
1
1
R601
R619
R602
C400
L601
D608
1
T601
L602
R449
C735
R616
R450
D404
C402
R403
R415
R404
R406
19
R824C757
HDMI
R797C754
C755
R799
D726
R795
R796
1
IC400
R787
C744
1
D725
R786
C743
R409
C456
C455
C425
C441
C409 R413
C421
C454
R400
C439
C440
C457
C453
129
193
128
R459 R441
C451
R431
C424
R440
R430
C443
C442 C433
C422
C436
C437
R401
256
IC402
1
C417
C419
C418
C420
C438
C434
C428
C752
64
65
C444
C447
C734
R811
C450
C824
C707
C753
C763
L401
R745
R746
R825
R439
C836
R434
R405
USB
S702
RA504
RA501
R503
R514
C500
RA502
RA503
R511
R509
1
T300
R327
R326
S904
R328
1
R332
R339
T904
S501
1
C460
R815
R423
R433
R438
R448
R425
IC406
R444
R435
R424
C462
1
IC404
C328
C302
C318
C326
IC408
R335
L202
L201
C399
R399
D300
R303
C305
T303
R308
C304
C221
C306
C308
R311
C222
R221
R200
RP202RP201
C237
R204
R226
R227
R215
R224
C229
R212
C239
R225
1
F300
48
37
C209
R228
36
C227
C208
L302
C303
1
R317
C309
1
12
C214
13
C317
F301
C215
C325
C312
C313
L200
C315 C201
C200
24
C202
IC300
R231
25
R304
R209
C228
R229
X200
L203
R220
S705
D732
1
C203R203
S903
Label103
R306
R507
R506
C501
C503
R501
1
T801
C506
FID3
1
R508
1
R305
C502
IC403
1
R500
R502 R504
IC501
R523
C505
L500
R522
R505
C504
S402
SERVICE
1
40
39
38
37
36
9
12
7
3
4
14
13
27
27
10
Chassisplatte / Chassis Board YVL190R-6 Ansicht von der Bestückungsseite / View of Component Side
2 - 18
Page 39
GRUNDIG Service Chassis D6
YVL190R-6
R302
R707
C760
TU302
S701
RIGHT
1
S800
R706 R705C705 R715
R704C761
D705
D701
C709
R718
C710 C711R713
D710R719 D711
C723 C716
R760 R737
C708
D706
R756
R735
C712
C741
C732
D716
R783R727
LEFT
R774
D714
C725 C726
D707
D723
C737 R736
D715
R729R728
VGA
R739R778
CB702
D720
D717
D724
R761
R759
S900
FID1
IC703
SCART
1
R734
R738
D719
R754
D722
R744
S1
R748 R753
R747
R757
R755 R743
D718
D721
1
AV
S707
1
S2
SPEAKER ARCELIK ELK.
R798
R710
C746
1
R711
L701
R752
R717
R733
C713
IC700
R732
C719
R740
C72
4
L703
R725
C729
C730
R741
C722
C731
C727
R731
C733
R721
IC702
R722
R723
R720C759
D702
R702
R716R714
T700
R763
C718
C703C700
R700
R709R703R701
C704
C717R708
C701D703
D708
D709
D704
R730
R726
C714
C715
R751
R788
1
S602
R724C702
C768
C767
R762
D713
C765
R712
R749
C766
S703
R750
D712
D727
R758
C758
PC AUDIO
VIDEO
C400
L601
D608
1
T601
L602
R616
D404
C402
R403
R415
R404
R406
19
R824C757
HDMI
R797C754
C755
R799
D726
R795
R796
1
IC400
R787
C744
1
D725
R786
C743
TU301TU300
C742
H PHONE
C320
C736
USB
S702
R399
D300
R303
T303
R308
C304
C221
C306
C308
R311
C222
1
F300
48
R228
36
C227
C208
L302
C303
1
R317
C309
1
12
C214
13
C317
F301
C215
C325
C312
C313
L200
C315 C201
R201
C200
24
C202
IC300
R231
25
R304
R209
C228
R229
X200
L203
R220
S705
D732
1
C203R203
C204
C301
R782
C762
1
R767
1
IC701
S500
R791
C319
C827
L303
C207
R223
C206
R222
R218 R219
R848
R768
R769
C830
D801
C831
L803
D802
C837
R847
L804
C838
C834
C745
L706
1
R301 L305
C322
C327
IC301
R810
1
C841
C840
R826
R521
V-0
C839
IC802
C820
1
C833
R818
HOTEL
FID2
R814 R823
C835 R822
S901
S706
R792
7
4
8 6
5
28
28
Chassisplatte / Chassis Board YVL190R-6 Ansicht von der Bestückungsseite / View of Component Side
2 - 19
Page 40
Chassisplatte / Chassis Board
0
10
20
30
40
50
60
70
80
90
100
110
120
130
Y
0102030405060708090100110120130140150160
X
TP62
TP907
TP46
YVL190R-6
TP64
TP65
tp802
tp800
tp803
tp700
TP111
TP101
TP100
tp805
tp807
tp806
TP68
tp704
TP70
TP904
TP16
tp706
tp705
TP404
TP405
TP58
TP109
TP69
tp26
tp25
tp22
TP110
tp6
tp28
tp27
tp18
TP108
tp15
tp14
tp24
tp23
tp21
tp9
tp10
tp7
tp8
tp17
tp20
tp19
tp12
TP63
tp11
TP32
1
TP33
TP98
1
TP35
TP56
TP61 TP59
11
TP60
TP82
TP71
TP34
TP57
2
5
1
TP80
TP66
TP83
TP99
TP84
TP95
TP81
15
TP102
TP103
TP37
TP38
5
1
TP42
TP48
4
TP49
TP41
ARCELIK ELK.
TP47
TP905
TP906
TP105
TP67
TP97
TP903
TP53TP50
21
TP92
20
TP52
TP73
TP51
TP54
TP55
TP36
TP13
TP31
TP30
TP39
TP93
TP40
TP104
tp403
tp402
tp400
tp401
2
1
TP91
TP5
TP76
TP29
1
36
TP2
TP72
TP4
TP79
TP74
TP75
TP78
TP3
TP77
TP1
TP87
TP106
tp702tp701
TP86
tp804
tp703
TP96
Label104
TP89
TP85
TP43
TP44
TP90
1
TP88
TP107
33
68
TP902
TP45
1
YVL190R-6
Ansicht von der Lötseite
View of Solder Side
GRUNDIG Service Chassis D6
2 - 20
Page 41
GRUNDIG Service Chassis D6
YVL190R-6
TP32
1
TP33
TP98
1
TP35
TP56
TP61 TP59
11
TP60
TP82
TP71
TP34
TP57
2
5
1
TP80
TP66
TP83
TP99
TP84
TP95
TP81
15
TP102
TP103
TP37
TP38
5
1
TP42
TP48
4
TP49
TP41
ARCELIK ELK.
TP47
TP67
TP97
TP903
TP53TP50
21
TP92
20
TP52
TP73
TP51
TP54
TP55
TP36
TP13
TP31
TP30
TP39
TP93
TP40
TP104
tp403
tp402
tp400
tp401
2
1
TP91
TP5
TP76
TP29
1
36
TP2
TP4
TP79
TP74
TP75
TP78
TP3
TP77
TP1
TP87
TP106
tp702 tp701
TP86
tp804
tp703
TP96
Label104
TP89
TP85
TP43
TP44
TP90
1
TP88
TP107
Chassisplatte / Chassis Board YVL190R-6 Ansicht von der Lötseite / View of Solder Side
POS. X Y POS. X Y
TP1 B 105 114
tp10 B 27 63
TP100 B 6 23
TP101 B 4 24
TP102 B 127 45
TP103 B 139 48
TP104 B 111 35
TP105 B 48 8
TP106 B 101 119
TP107 B 125 128
TP108 B 19 74
TP109 B 9 53
tp11 B 23 74
TP110 B 11 72
TP111 B 6 20
tp12 B 23 72
TP13 B 99 10
tp14 B 21 69
tp15 B 21 67
TP16 B 27 9
tp17 B 21 73
tp18 B 21 71
tp19 B 23 70
TP2 B 69 102
tp20 B 23 68
tp21 B 23 66
tp22 B 9 61
tp23 B 22 62
tp24 B 21 60
tp25 B 19 60
tp26 B 19 58
tp27 B 21 64
tp28 B 20 62
TP29 B 74 107
TP3 B 72 104
TP30 B 106 10
TP31 B 109 8
TP32 B 116 8
TP33 B 122 10
TP34 B 134 10
TP35 B 127 10
TP36 B 102 8
TP37 B 126 53
TP38 B 141 53
TP39 B 106 29
TP4 B 69 104
TP40 B 110 33
tp400 B 93 63
tp401 B 93 65
tp402 B 81 61
tp403 B 83 60
TP404 B 12 34
TP405 B 14 39
TP41 B 152 51
TP42 B 152 44
TP43 B 125 119
TP44 B 125 124
TP45 B 20 85
TP46 B 32 23
TP47 B 73 34
TP48 B 152 46
TP49 B 152 49
TP5 B 116 102
TP50 B 90 25
TP51 B 93 26
TP52 B 90 27
TP53 B 86 25
TP54 B 93 28
TP55 B 99 26
TP56 B 131 8
TP57 B 137 8
TP58 B 8 45
TP59 B 127 30
tp6 B 18 62
TP60 B 130 30
TP61 B 132 30
TP62 B 23 86
TP63 B 23 83
TP64 B 31 81
TP65 B 32 83
TP66 B 147 25
TP67 B 51 5
TP68 B 21 9
TP69 B 11 48
tp7 B 25 65
TP70 B 24 4
tp700 B 4 21
tp701 B 105 118
tp702 B 103 118
tp703 B 115 117
tp704 B 11 15
tp705 B 11 17
tp706 B 11 20
TP71 B 132 37
TP72 B 49 116
TP73 B 89 35
TP74 B 71 97
TP75 B 72 99
TP76 B 74 101
TP77 B 73 111
TP78 B 70 111
TP79 B 69 107
tp8 B 27 65
TP80 B 147 21
tp800 B 6 14
tp802 B 4 16
tp803 B 4 19
tp804 B 110 117
tp805 B 6 26
tp806 B 7 31
tp807 B 6 28
TP81 B 138 34
TP82 B 130 37
TP83 B 151 24
TP84 B 134 37
TP85 B 124 102
TP86 B 114 102
TP87 B 106 105
TP88 B 150 105
TP89 B 120 102
tp9 B 25 64
TP90 B 146 103
TP902 B 12 121
TP903 B 64 17
TP904 B 22 5
TP905 B 40 4
TP906 B 48 4
TP907 B 32 4
TP91 B 107 53
TP92 B 97 8
TP93 B 113 8
TP95 B 139 32
TP96 B 108 119
TP97 B 52 9
TP98 B 125 8
TP99 B 135 30
2 - 21
Page 42
GRUNDIG Service Chassis D6
0
10
20
30
40
50
60
70
80
90
100
110
120
130
Y
0102030405060708090100110120130140150160
X
TP62
TP907
TP46
TP64
TP65
tp802
tp800
tp803
tp700
TP111
TP101
TP100
tp805
tp807
tp806
TP68
tp704
TP70
TP904
TP16
tp706
tp705
TP404
TP405
TP58
TP109
TP69
tp26
tp25
tp22
TP110
tp6
tp28
tp27
tp18
TP108
tp15
tp14
tp24
tp23
tp21
tp9
tp10
tp7
tp8
tp17
tp20
tp19
tp12
TP63
tp11
TP47
TP905
TP906
TP105
TP67
TP97
TP903
TP53TP50
TP73
tp403
tp402
TP76
TP29
1
36
TP2
TP72
TP4
TP79
TP74
TP75
TP78
TP3
TP77
Label104
33
68
TP902
TP45
1
Chassisplatte / Chassis Board YVL190R-6 Ansicht von der Lötseite / View of Solder Side
2 - 22
Page 43
GRUNDIG Service Chassis D6
SIF_SW
VIFM
VIFP
Q1-01
F6-02
F6-01
AIFP
C308
10nF
D300
BA591
2
3
4
5
1
F300
K9656M
R311
4.7K
R308
2.2K
2
3
4
5
1
F301
K3958M
T303
BC848B
C303 10nF
R303
2.2K
R302
6.8K
AIFP
VCC-Tuner
APW1RAG2CAS3SCL4SDA533V( 4MHz)65V7IFA8IAG9IF210IF1
11
GND12GND13GND14GND
15
TU300
VA1Y1ED2008
RF_AGC
T300
BC807-40
R323
10R
R326
10R
R332
1K
L305
SBY1005
C319
100n/10V
C320
470uF/16V
ANTPOWER: L- OFF, H- ON
R327
3.3K
R328
39K
L303
1uH
C322
100n
AIFP
R317
NC
L302
1uH
AIFP
IFAGC
D_IFD_IF+
ANTPOWER
RF_AGC
APW1RAG2CAS3SCL4SDA533V( 4MHz)65V7IFA8IAG9IF210IF1
11
GND12GND13GND14GND
15
TU301
DTT75407
1
2
GND
4
5
VCC-Tuner
AIFP
12GND45
AIFP
IFAGC
IF-
IF+
SCLK
SDAT
IFAGC
IF-
IF+
SCLK
SDAT
VCC-Tuner
VCC5V
VCC-Tuner
R339
51K
2
61
5
43
T904
BC847BPDW1T1
+5V2_ST
TP72
VIFP
VIFM
VIF
SIFP
SIFM
SIF_SW
D_IF+
D_IF-
IFAGC
F300 F301
K9656M K3958M
-K2977M
System
Multisystem
No Secam L
TP88
TP90
TP89
TP87
TP86
TP85
APW1RAG2CAS3SCL4SDA533V( 4MHz)65V7IFA8IAG9IF210IF1
11
GND12GND13GND14GND
15
TU302
TDAG4-D01A
12GND45
AIFP
IFAGC
IF-
IF+
VCC-Tuner
VCC
GND
1
2
43
5
IC301
74LVC1G66GW
C327
100nF
A/D
VCC5V
R301
(0R)
A/D
DUMMY_NET
DUMMY_NET
DUMMY_NET
C309
10nF
ANIF
6 5
8
R918
4.7K
C900
10uF
R917
4.7K
5
4 3
2
1 6
Q900
BC847BDW1T1
C920
1uF
R916
10K
R914
22K
R919
4.7K
Panel_ON_OFF
PANEL-VCC
+5V2_ST
VCC3.3V-ST
Panel Power
Hi: Off
Lo: On
VCC2.5V-ST
VCC2.5V-ST
VCC3.3V-ST
TP46
C917
10uF X7R
1
3
2
T901
PMV56XN
Pd=0.6W
2
3 1
IC902
ZTL431AFFTA
C915
1uF
VCC1.2V-ST
VCC1.2V-ST
450mA
C916
10uF 6.3V X5R
C918
100nF
TP47
1
3
2
T903
PMV65XP
CB902
100nF
R920
4.7K
R922
4.7K
R921
4.7K
R923
1K
BRI_ADJ-PWM2
VBLCTRL
+5V_ST
Power
Hi: Off
Lo: On
+5V_ST
+12V
L908
300R/100MHz
VCC5V
R905
100R
VCC5V
L911
FB
VCC3.3V-ST
C908
1uF X7R 16V
C910
1uF/16V
KEYPAD&POWER
LED
IRIN
SAR0
VCC3.3V-ST
R465
100R
R462
1K
R460
10K
C410
100pF
C925
100pF
R911
4.7K
R910
4.7K
VCC3.3V-ST
SAR0
IRIN
+5V2_ST
+5V2_ST
Power-ON/OFF
Power-ON/OFF
LED
Hi: Off
Lo: On
+12V
+12V_SW
R906
4K7
2
1 6
T905B
BC847BDW1T1
5
43
T905A
BC847BDW1T1
R908
10K
R924
47K
VCC3.3V-ST
TP58
TP68
TP70
2
1 6
T900B
BC847BDW1T1_A
5
4 3
T900A
BC847BDW1T1_A
TP16
C909
10u
X7R 25V
VCC3.3V-ST
+12V
VCC3.3V-ST
max 1200mA
VCC3.3V-ST
+5V_ST VCC5V
R925
100K
R927
100K
R926
1K
T908
BC848B
T907
BC807-40
DVD :T907- PMV56XN
NO DVD :T907- BC807
TP904
TP903
TP905
TP907
TP906
TP902
+12V_SW
TP97
R928
0R
R930
NC
1K1 %1
L405
120R/100MHz
ADJ
1
VOUT
2
VIN
3
IC901
NCP1117DTARK
C1
10uF
TP105
R903
15K %1
R902
5K36 %1
C901
4n7
B82462G4-472M
L901
4u7
R901
2K7 %1
VIN_A
1
INH (EN)
2
VFB
3
AGND
4
SYNC
5
VIN_SW
6
SW
7
PGND
8
9
IC900
ST1S10
C912
10uF X7R 25V
C903
10u/6V3
C905
10u/6v3
C906
10u/6v3
C907
10u/6v3
L407
120R/100MHz
L902
120R/100MHz
10
10
8
8
6
6
4
4
2
2
9
9
7
7
5
5
3
3
1
1
S301
CON2x5 RA SMD
10
10
8
8
6
6
4
4
2
2
9
9
7
7
5
5
3
3
1
1
S907
CON2x5 VRT SMD
D903
PESD5V0S1BL
D904
PESD5V0S1BL
GND
R904
NC/0R
R900
0R
R907
NC/0R
1
12
5
6
8
1
ST1S10
MOSEFET
Control
Logic
I_SEN
+
+–
–
+
–
OSC
Soft Start
Burst Control
Thermal
Shut Down
Shut Down
Driver
Driver
PMOS
NMOS
SW
SYNC
VFB INHAGNDPGND
REF
V
IN_A
V
IN_SW
Comp
R-sense
Sync Block
Chassisplatte – Netzteil / Chassis Board – Power Supply YVL190R-6
Chassisplatte / Chassis Board – Tuner YVL190R-6
2 - 23
Page 44
GRUNDIG Service Chassis D6
IFAGC
TUN_RESET
TS_MDI1
TS_MDI2
TS_MDI3
TS_MDI4
TS_MDI5
TS_MDI6
TS_MDI7
D_IF+
D_IF-
SDAT
SCLK
TS_MDI0
TS_MDI[7..1]
I2C-SCL
I2C-SDA
IFind
#IFind
TS_MIVALID
TS_MISYNC
TS_MICLK
C204
22nF
R226
10K
C228
1uF
C206
22p
R227
10K
R224 100R
R220
10k
R204 33
R222 100R
C227
1uF
C202
22pF
C222
1uF
R228
NC/10k
R219 4.7K
R201 100R
R215 33
L200
SBY100505T-102Y
L203
SBY100505T-102Y
R209 10K
R225 100R
R221
10K
C208 33pF
X200
28.8MHZ
R218 4.7K
L201
SBY100505T-102Y
R229 100R
GND
1
AVDD_33
2
SSIFO
3
CVBSOUT
4
GND
5
CLKO
6
AVDD_33
7
VR27
8
SIFIP
9
SIFIM
10
VIFIM
11
VIFIP
12
GND
13
AVDD_33
14
GND
15
VREFM
16
VREFP
17
AVDD_33
18
ZIF_QM
19
ZIF_QP
20
ZIF_IM
21
ZIF_IP
22
GND
23
XIN
24
XOUT25AVDD_3326IF_AGC27GND28EXTRSTN29I2CM_SCL30I2CM_SDA31VDDC32GND33I2CS__SCL34I2CS__SCL35TS_CLK
36
TS_SYNC
37
TS_VALID
38
TS_DATA7
39
TS_DATA6
40
TS_DATA5
41
TS_DATA4
42
TS_DATA3
43
TS_DATA2
44
TS_DATA1
45
TS_DATA0
46
VDDC
47
RF_AGC
48
IC300
MSB1210
C237
NC/10p
7 5 3 1
8 6 4 2
RP20133X4
R200
10K/NC
C209 33pF
C207
22p
R203 100R
R223 100R
C203 100nF
C214
1uF
C200 100nF
C201
22pF
R212 33
L202
SBY100505T-102Y
C215
1uF
TUN_RESET
SCLK
IFAGC
I2C-SDA
I2C-SCL
TS_MICLK
TS_MISYNC
TS_MIVALID
TS_MDI[7..1]
TS_MDI0
SDAT
D_IF-
D_IF+
DVDD
Vcore
AVDD
AVDD
VCC3.3V-ST AVDD
VCC3.3V-ST
PLLVDD VcoreVCC3.3V-ST
VCC1.2V-ST
DVDD
DVDDVCC3.3V-ST
C221
1uF
C229
1uF
7 5 3 1
8 6 4 2
RP20233X4
R231
1k
VCC3.3V-ST
Vcore
PLLVDD
C302
100nF
C326
NC/1nF
C328
100nF
R335
330R
GND
SIF_IN+
SIF_IN-
SIF_IN+
SIF_IN-
R399
1k
TV_CVBS+
C318 100n
VIFM
VIFP
VIFP
VIFM
VIF
SIFP
SIFM
C304 2u2
CVBSOUT
SSIFO
SSIFO
CVBSOUT
VCC5V
RF_AGC
RF_AGC
XIN
XOUT
C313
100n
C315
100n
C317
100n
C312
100n
C325
100n
TS_MDI7TS_MDI6
C399
NC/100p
C301
22nF
R304
6k8
VCC5V
7531
8642
R306 4*33R
TS1_D0
TS1_VALID
TS1_CLK
TS1_SYNC
TS1_SYNC
TS1_D0
TS1_CLK
TS1_VALID
TS_MDI0
TS_MICLK
TS_MISYNC
TS_MIVALID
R305 33R
TV_CVBS-
C305 100nF
TP5
TP1
C239
NC/10p
C306
1nF
5
6
9
9
USB_DM
USB_DP
VBUS
C762
10uF 10V
R782
100K
USB_DM
USB_DP
USB_OCD_N-GPIO3
+5V2_ST
C742
100nF
VCC5V
SIDE_L
SIDE_R
R796
0R
R795
10K
C756
2.2uF
C755
330pF
C757
560pF
R799
0R
R824
12K
R798
10K
R797
12K
C754
560pF
C753
2.2uF
C758
330pF
SIDE_ARIN
SIDE_ALIN
TP37
TP38
SIDE_V CVBS2
C744
(10pF)
R786
47R
R787
75R %1
C743
47nF
CVBS2
CVBS
SIDE_ALIN
SIDE_ARIN
Vin
5
EN
4
GND
2
Fault
3
Vout
1
IC701
STMPS2171STR
VCC3.3V-ST
2
1
3
5
4
6
RS-302A1-18
S707
CON_CHINCH
L
R
VBUS
VCC
D-
D-
D+
D+
GND
GND
SHELL
5
SHELL
6
6-1734038-1
Tyco
S702
+5V2_ST
1B
1
1C
2
2B
3
2C
4
3B
5
3C
6
4B
7
4C8GND
9
4A
10
3A
11
2A
12
1A
13
S
14
OE_N
15
VCC
16
IC702
STMAV340
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
S704
CON16
DMP_Pb
DMP_Pr
DVD_ALIN
DVD_ARIN
VCC5V
DVD_SEL: L- DVD, H- TV
C729
100n
GND
GND
C728
1uF
GND
RX_DVD
TX_DVD
tp800
tp805
tp806
tp807
tp802
tp803
tp804
DMP_Y
R731
75
R72675R741
75
L703 60R/100Mhz
+12V_SW
DVD 15mA
R725
10K
VCC3.3V-ST
DVD900mA
L702
60R/100Mhz
DVD_ALIN
DVD_ARIN
C735 2.2uF
C734 2.2uF
R766
12K
R765
12K
R742 10K
R764 10K
C730 100nF
C731 100nF
C733 100nF
L70660R/100Mhz
RGB1_Y+
RGB1_Y+
RGB1_PB+
RGB1_PB+
RGB1_PR+
RGB1_PR+
RGB1-Y+
RGB1-PB+
RGB1-PR+
RGB1-Y+
RGB1-PB+
RGB1-PR+
DVD_SEL
DVD_SEL
HOTEL TV
R723 0R
R722 0R
R721 0R
RGB1-Y+
RGB1-PB+
RGB1-PR+
RGB1_Y+
RGB1_PB+
RGB1_PR+
No DVD
TX_DVD
RX_DVD
VCC5V
TP73
tp700
tp701
tp702
TP91
TP96
TP100
TP101
1
2
3
4
S706
HTV 7SEG
R791
100R
R792
100R
I2C-SCL
I2C-SDA
I2C-SCL
I2C-SDA
C745
10uF 10V
R724
47R
C702
10nF
RGB1_SOG
RGB1_SOG
1
2
3
4
S705
NC/Side USB
R768
10K
R769
100R
C736
100nF
R767
100R
tp703
TP103
TP102
TP106
TP111
R770
0R
R771
0R
R772
0R
tp706
tp705
tp704
D725
3 x PESD5V0S1BL
GND
D726
D727
SIDE_V
SIDE_L
SIDE_R
GND
1
3
2
4
D732
PRTR5V0U2X
VBUS
38
40
39
37
36
STMPS2141, STMPS2151, STMPS2161, STMPS2171
Driver
UVLO
Current
sense
V
OUT
V
5
4
3
1
2
IN
EN
Fault
GND
Fault blanking/reporting
driver control unit
Thermal
sense
STMAV340
Flow Control
1A
2A
3A
4A
1B
1C
2B
2C
3B
3C
4B
4C
OE_N
Flow Control
1A
2A
3A
4A
1B
1C
2B
2C
3B
3C
4B
4C
N
S
5
6
8
9
fl
‡
°
·
‚
Chassisplatte / Chassis Board – COFDM Demodulator YVL190R-6
Chassisplatte / Chassis Board – Interface DVD, DMP, AV, USB YVL190R-6
2 - 24
Page 45
GRUNDIG Service Chassis D6
BLUE
RED
GREEN
Rout
Lout
Lin
CVBS_IN
CVBSO
SC1-VSYNC
Rin
SC1_CVBS+
SC1-HSYNC
SC1_CVBSO
SC1_CVBS_OUT
SC1_CVBSO
SCART1-Rin
SCART1-Lin
SC1-Lin
SC1-Rin
SC1_CVBS-
C705
c
R707
75R %1
R717
39K
R704 10K
C760
100nF
C710
330pF
R710
470R
C700
47nF
R713
10K
R702
47R
C759
NC
R715
10K
R705
2.7K
C703
47nF
R719
12K
2
4
6
8
10
12
14
16
18
20
1
3
5
7
9
11
13
15
17
19
21
S700
SCART
C746
1u/10V
C701
NC/330p
R720
75R
C717
100nF
R718
12K
R701
75R %1
R716
270R
R700
47R
C706 2.2uF
L701
300R/100MHz
C761
100nF
C708
560pF
R708
75R %1
R711
100k
C709
560pF
R714
75R %1
C707 2.2uF
R709
75R
%1
C711
330pF
R703
47R
R706
75R %1
C704
47nF
SC1_Lout
SC1_Rout
SC1_CVBS+
SC1-VSYNC
SC1-HSYNC
SC1_CVBS_OUT
SC1-Rin
SC1-Lin
SC1_CVBS-
SC1-C
VCC5V
Full SCART
2
61
5
43
T700
BC847BPDW1T1
DDC_SCL_D
R
VGA5V
B
VGA5V
DDC_SDA_D
G
VGA_VSYNC1
VGA_HSYNC1
UART-RX
UART-TX
VGA_VSYNC
VGA_HSYNC
VGA-TX
VGA-RX
VGA-TX
VGA-RX
CB702
100nF
R736
510R
R738
(2.4K)
R759
NC
1
6
2
7
3
8
4
9
5
11
12
13
14
15
10
17
16
S701
DSUB-15
R729
75R %1
D720
BAT54C
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC70324C02
R739
(10K)
R747 NC
R757 0R
C712 100nF
C725 100nF
R728
75R %1
R734
510R
R753
100R
R754
100R
R755
0R
R748
NC
C726 100nF
R744
4.7K
R743
4.7K
R727
75R %1
R761
10K
VGA_HSYNC1
VGA_VSYNC1
UART-RX
UART-TX
VCC5V
VCC5V
RGB0_RIN+
RGB0_GIN+
RGB0_BIN+
RGB0_RIN+
RGB0_GIN+
RGB0_BIN+
SC1_Lout
SC1_Rout
SC1_Lout
SC1_Rout
R746
1K
C721
1nF
R745
1K
C720
1nF
R733
100k
R732
33K
+12V_A
R740
8.2K
C718
2.2uF
C713
4.7uF/10V
C716
4.7nF
R735
470R
R737
33K
C722
4u7 10V
R752
100k
R751
33K
+12V_A
R763
8.2K
C724
2.2uF
C719
220p
C723
4.7nF
R756
470R
R760
33K
C752 2u2F
AU_DACO_SR
AU_DACO_SL
AU_DACO_SR
AU_DACO_SL
C714
4u7 10V
C764 2.2uF
C767
560pF
R758 0R
R762
12K
R750
10K
C765
330pF
VGA_ARIN
VGA_ALIN
TP40
VGA_ALIN
VGA_ARIN
C763 2.2uF
R749 0R
R712
10K
TP39
C768
560pF
R788
12K
C766
330pF
RGB1_Y-C732 47nF
R774
47R
RGB1_Y-
RGB1_PB-C737 47nF
R778
47R
RGB1_PB-
RGB1_PR-
R783
47R
C741 47nF
RGB1_PR-
RGB1_Y+
RGB1_Y+
RGB1_PB+
RGB1_PB+
RGB1_PR+
RGB1_PR+
8
1
4
3
2
1
IC700A
TL082
84
7
5
6
2
IC700B
TL082
C715
220p
+12V_A
R730
10R
+12V_SW
TP50
TP51
TP52
TP53
TP54
TP55
TP56
TP57
TP67
TP80
TP81
TP82
TP83
RIGHT
GND
LEFT
S703
CON_EARPHONE_JACK_ZUANBAO
C727
100n 25V
TP13
TP36
TP30
TP31
TP32
TP33
TP35
TP34
TP59
TP60
TP61
TP71
TP84
TP66
TP98
TP99
TP92
TP93
TP95
TP104
GND
D702
D703
D704
D705
D706
D707
D708
D709
12 x PESD5V0S1BL
D710
D711
D712
D713
D701
PESD5V0S1BL
D714D715D7 16
3 x PESD5V0S1BL
D717
PESD5V0S1BL
D718
PESD5V0S1BL
GND
D719
PESD5V0S1BL
D721
PESD5V0S1BL
GND
D722
PESD5V0S1BL
D723
PESD5V0S1BL
D724
PESD5V0S1BL
Chassisplatte / Chassis Board – SCART, VGA YVL190R-6
2 - 25
Page 46
GRUNDIG Service Chassis D6
3
4
7
PCM_A10
PCM_A11
PCM_A9
PCM_A8
PCM_A13
PCM_A14
PCM_A12
PCM_A7
PCM_A6
PCM_A5
PCM_A4
PCM_A3
PCM_A2
PCM_A1
PCM_A0
PCM_D0
PCM_D1
PCM_D2
PCM_D7
PCM_D4
PCM_D5
PCM_D6
PCM_D3
PCM_CE_N
PCM_WE_N
PCM_IRQA_N
PCM_REG_N
PCM_WAIT_N
PCM_RESET
PCM_IORD_N
PCM_IOWR_N
PCM_CD1_N
TS_MISYNC
TS_MICLK
TS_MDI0
TS_MDI1
TS_MDI2
TS_MDI3
TS_MDI4
TS_MDI5
TS_MDI6
TS_MDI7
TS_MIVALID
TS_MDO3
TS_MDO4
TS_MDO5
TS_MDO6
TS_MDO7
TS_MDO2
TS_MOVAL
TS_MOSTART
TS_MDO0
TS_MDO1
PCM_A[14..0]
PCM_D[7..0]
TS_MICLK
TS_MIVALID
TS_MISYNC
TS_MOCLK
TS_MOVAL
TS_MOSTART
TS_MDO[7..0]
PCM_IORD_N
PCM_IOWR_N
PCM_WAIT_N
PCM_RESET
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_CD_N
PCM_CE_N
PCM_IRQA_N
TS_MDI0
PCM_CD2_N
PCM_CD2_N
PCM_CD1_N
PCM_CD_N
MOCLK
TS_MOCLK
PCM_OE_N
TS_MDI[1..7]
R501
100K
R500 1k
C502
1uF 6V3
C500
10pF
R504
4.7K
R503
33R
R505
4.7K
VCC
GND
1
2
43
5
IC500
NC7SZ08
C504
100nF
C503
100nF
R502
1K
PCM_A[14..0]
PCM_D[7..0]
TS_MICLK
TS_MISYNC
TS_MIVALID
PCM_RESET
PCM_WAIT_N
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_IORD_N
PCM_IOWR_N
PCM_CD_N
TS_MOCLK
TS_MOSTART
TS_MOVAL
TS_MDO[7..0]
PCM_CE_N
PCM_IRQA_N
TS_MDI0
TS_MDI[1..7]
VCC-PCMCIA
VCC3.3V-ST
VCC-PCMCIA
R509 33R
7 5 3 1
8 6 4 2
RA5024*33R
R511
33R
7 5 3 1
8 6 4 2
RA5034*33R
7 5 3 1
8 6 4 2
RA5044*1K
7 5 3 1
8 6 4 2
RA5014*1K
R514 1K
VCC3.3V-ST
CI_PCM_WAIT_N
PCM_IRQA_N
CI_PCM_IRQA_N
R522
4.7K
R523
4.7K
GND
1
D3
2
D4
3
D5
4
D6
5
D7
6
CE1#
7
A10
8
OE#
9
A11
10
A9
11
A8
12
A13
13
A14
14
WE#
15
READY
16
VCC
17
VPP1
18
MIVAL
19
MICLK
20
A12
21
A7
22
A6
23
A5
24
A4
25
A3
26
A2
27
A1
28
A0
29
D0
30
D1
31
D2
32
WP
33
GND
34
GND
35
CD1#
36
MDO3
37
MDO4
38
MDO5
39
MDO6
40
MDO7
41
CE2#
42
VS1#
43
IORD#
44
IOWR#
45
MISTRT
46
MDI0
47
MDI1
48
MDI2
49
MDI3
50
VCC
51
VPP2
52
MDI4
53
MDI5
54
MDI6
55
MDI7
56
MOCLK
57
RESET
58
WAIT#
59
INPACK
60
REG#
61
MOVAL
62
MOSTART
63
MDO0
64
MDO1
65
MDO2
66
CD2#
67
GND
68
SHIELD69SHIELD
70
SHIELD71SHIELD
72
S501
PCMCIA CONN
L500
300R/100MHz
C505
100nF 10V
PCMCIA_ON
PCMCIA_VCCIN
+5V2_ST VCC-PCMCIA
Hi: Off
Lo: On
D
R507
47K
R508
10K
R506
10K
PCMCIA_VCCIN
C501
1uF
Vin
5
EN
4
GND
2
Fault
3
Vout
1
IC501
STMPS2151
T801
BC847B
C506
1uF
HDMI-CLKP
HDMI-RX0P
HDMI-CLKN
HDMI-RX0N
HDMI-RX2P
HDMI-RX1N
HDMI-RX2N
HDMI-RX1P
HPD_CTRL
HDMI-RX0P
HDMI-RX0N
HDMI-RX1P
HDMI-RX1N
HDMI-RX2P
HDMI-RX2N
HDMI-CLKP
HDMI-CLKN
HDMI-SDA
HDMI-SCL
HDMI Input Socket
HDMI_5V
HDMI-SDA
HDMI-SCL
R616
1k
HPD_CTRL
R406
2.2K
NC1
1
NC2
2
NC3
3
GND4SDA
5
SCL
6
VCLK
7
VCC
8
IC400
24C02
C402
100nF
R403
4.7K
R415
NC
3
1
2
D404
BAT54C
R404
2.2K
HDMI_5V
VCC5V
tp401
tp403
tp402
tp400
R449
100R
R450
100R
HDMI-SCL
HDMI-SDA
HPD_DET
T601
BC847B
HDMI_CEC
R600
10k
VCC3.3V-ST
R601
10k
R602
100k
RX2+
1
GND2
2
RX2-
3
RX1+
4
GND1
5
RX1-
6
RX0+
7
GND0
8
RX0-
9
CLK+
10
GND_CLK
11
CLK-
12
CEC
13
N.C.
14
SCL
15
SDA
16
CEC_GND
17
5V
18
HP_DETECT
19
202122
S602
IN1
1
IN2
2
GND
3
IN3
4
IN45OUT4
6
OUT3
7
GND
8
OUT2
9
OUT1
10
D608 (Rclamp0524P)
1
2
3
4
5
6
7
8
L601Dual Common mode Ch oke
1
2
3
4
5
6
7
8
L602Dual Common mode Choke
R619
100k
IN1
1
IN2
2
GND
3
IN3
4
IN45OUT4
6
OUT3
7
GND
8
OUT2
9
OUT1
10
D405 (Rclamp0524P)
IN1
1
IN2
2
GND
3
IN3
4
IN45OUT4
6
OUT3
7
GND
8
OUT2
9
OUT1
10
D406 (Rclamp0524P)
3
4
7
7
Chassisplatte / Chassis Board – HDMI YVL190R-6
Chassisplatte / Chassis Board – Common Interface YVL190R-6
2 - 26
Page 47
GRUNDIG Service Chassis D6
HDMI-CLKN
HDMI-CLKP
HDMI-RX0P
HDMI-RX0N
HDMI-RX2P
HDMI-RX1N
HDMI-RX2N
HDMI-RX1P
HPD_CTRL
HDMI-SDA
HDMI-SCL
SC1-VSYNC
SC1-HSYNC
RGB0_BIN+
RGB0_GIN+
RGB0_RIN+
VGA_VSYNC1
VGA_HSYNC1
RGB1-Y+
RGB1_YRGB1-PB+
RGB1_PBRGB1-PR+
RGB1_PR-
SIF_IN-
SIF_IN+
SC1-Rin
SC1-Lin
I2C-SDA
I2C-SCL
UART-TX
UART-RX
USB_DP
USB_DM
RGB1_SOG
REFM
REFP
VCLP
Audio-ON/OFFA/D
USB_OCD_N-GP IO3
HDMI-CEC
UART-RX
UART-TX
VDDC
I2C-SDA
I2C-SCL
EEPROM_WPN
AUVRM
AUCOM
AUVRP
AUVAG
PCM_CE_N
PCM_IRQA_N
PCM_CD_N
PCM_A[14..0]
PCM_IORD_N
PCM_IOWR_N
PCM_WAIT_N
PCM_RESET
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_D[7..0]
BRI_ADJ-PWM2
ADJ_Volumn-PWM0
TS1_D0
TS1_VALID
TS1_CLK
TS1_SYNC
TS_MDO[7..0]
MUTE_S
Panel_ON_OFF
VBLCTRL
RXE3_P
RXE3_N
RXOC_N
RXO2_P
RXO2_N
RXE1_N
RXE1_P
RXE0_N
RXE0_P
RXOC_P
RXO0_N
RXO0_P
RXEC_P
RXEC_N
RXE2_P
RXE2_N
RXO1_N
RXO1_P
RXO3_N
RXO3_P
CVBS1+
CVBS_OUT
Power-ON/OFF
TV_CVBS+
TV_CVBS-
A/D
PCMCIA_ON
CVBS1-
CVBS2
SC1-C
R439 100R
R438 100R
C421
100nF
R444
4.7K
C452
100nF
C423
100nF
C450
4.7uF
C422
100nF
C457
100nF
R434
4.7K
123
4
S402
2.0mm/Male_wafer
L403
300R/100MHz
C431
10uF/6.3V
C442
100nF
C445
1uF
C447
10uF
C438
100nF
L402
300R/100MHz
A0
1
A1
2
A2
3
GND
4
SDA
5
SCL
6
WP
7
VCC
8
IC406 24C32
R440
1K
C446
10uF/6.3V
C437
100nF
C432
100nF
C443
100nF
R433
4.7K
C454
100nF
A0
1
A1
2
A2
3
GND
4
SDA
5
SCL
6
WP
7
VCC
8
IC404 24C512K
R441
NC
L401
300R/100MHz
C453
100nF
C436
100nF
C417
100nF
C428
100nF
C459
10uF/6.3V
C444
100nF
R425 100R
R430
NC
C434
100nF
C455
100nF
C435
100nF
C426
100nF
C418
100nF
R448 100R
R431
1K
C433
100nF
C439
100nF
C462
1uF
C440
100nF
C425
100nF
C419
(100nF)
C456
100nF
C424
100nF
C420
100nF
C430
100nF
C460
100nF
C441
100nF
R435
4.7K
L404
300R/100MHz
HDMI-CLKP
HDMI-CLKN
HDMI-RX0P
HDMI-RX0N
HDMI-RX1P
HDMI-RX1N
HDMI-RX2P
HDMI-RX2N
HPD_CTRL
HDMI-SDA
HDMI-SCL
SC1-HSYNC
SC1-VSYNC
RGB0_BIN+
RGB0_GIN+
RGB0_RIN+
RGB1-PB+
RGB1_PB-
VGA_HSYNC1
VGA_VSYNC1
RGB1-Y+
RGB1_Y-
RGB1-PR+
RGB1_PR-
SIF_IN+
SIF_INSC1-Lin
SC1-Rin
I2C-SCL
I2C-SDA
UART-TX
UART-RX
USB_DP
USB_DM
RGB1_SOG
AU_DACO_L
AU_DACO_R
HDMI-CEC
USB_OCD_N-GPIO3
PCM_RESET
PCM_A[14..0]
PCM_WAIT_N
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_IORD_N
PCM_IOWR_N
PCM_CE_N
PCM_IRQA_N
PCM_D[7..0]
BRI_ADJ-PWM2
ADJ_Volumn-PWM0
TS1_SYNC
TS_MDO[7..0]
TS1_D0
TS1_CLK
TS1_VALID
PCM_CD_N
Panel_ON_OFF
VBLCTRL
MUTE_S
G7_RXO3_N
G6_RXO3_P
R0_RXOC_P
R3_RXO2_N
R2_RXO2_P
R1_RXOC_N
R4_RXO1_P
R7_RXO0_N
R6_RXO0_P
R5_RXO1_N
G0_RXE1_P
G3_RXE0_N
G2_RXE0_P
G1_RXE1_N
B2_RXE3_P
B5_RXEC_N
B4_RXEC_P
B3_RXE3_N
B7_RXE2_N
B6_RXE2_P
SC1_CVBS_OUT
SC1_CVBS+
Power-ON/OFF
TV_CVBS+
TV_CVBS-
PCMCIA_ON
SAR0
SC1_CVBS-
CVBS2
SC1-C
VCC3.3V-ST
VCC3.3V-ST
AVDD_LPLL
AVDD_MEMPLL
AVDD_OTG AVDD_MPLLAVDD_SIFAVDD_AU
VCC3.3V-ST
AVDD_MEMPLLAVDD_LPLL
VCC3.3V-ST
VDDP
AVDD_ADC
AVDD_DVI
AVDDL_DVI
VDDC
VCC1.2V-ST
AVDD_DDR
VCC2.5V-ST
Vcc_mem
Vcc_mem
AVDD_AU
AVDD_SIF
AVDD_MPLLAVDD_OTG
AVDD_ADC
AVDD_DVI
HDMI Block
RGB Block
Audio Block
Jupiter Reset
I2C / UART
USB Block
GPIO
IC Configuration Selection
Using power plane
EEPROM
PCMCIA
PWM
Transport Stream
LVDS Block
CVBS Block
PWM0 PWM1
SIDE_ARIN
SIDE_ALIN
SIDE_AV
SIDE_ALIN
SIDE_ARIN
RESET
AU_DACO_ML
AU_DACO_MR
AU_DACO_HL
AU_DACO_HR
AU_DACO_SL
AU_DACO_SR
AU_DACO_HL
AU_DACO_HR
AU_DACO_SL
AU_DACO_SR
VGA_ARIN
VGA_ALIN
VGA_ALIN
VGA_ARIN
A/D
ANTPOWER
ANTPOWER
Audio-ON/OFF
Audio-ON/OFF
TS_MOCLK
TS_MOVAL
TS_MOSTART
TS_MOCLK
TS_MOSTART
TS_MOVAL
L406
300R/100MHz
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC408 24C512K
R424
100R
R423
100R
RESET
IRIN
IRIN
LED
SAR0
LED
TP74
TP75
TP76
TP77
TP78
TP79
DVD_SEL
DVD_SEL
DVD_ALIN
DVD_ARIN
DVD- Audio
DVD_ALIN
DVD_ARIN
Vcc_mem
R405
FB
VCC3.3V-ST
TP4
TP3
TP2
TP29
SIF_SW
SIF_SW
TUN_RESET
TUN_RESET
XTALOXTALI
R401
1M
C401
20pF
C400
20pF
Y400
12MHz
System XTAL
CL=20pF ; C0max=5pF
DUMMY
C406
100n
GND
GND
R420
NC
R416
100R
Vcc
3
GND_1
1
RESET
2
IC405
STM810SWX6F
RESET IC
STM810SWX6F
STM809SWX6F
Active-High RESET
Active-Low RESET
TP405
TP404
System-RST
VCC3.3V-ST
5 6
10
5
6
0
Trigger @ (+5V_ST)
Mains switch on
Chassisplatte / Chassis Board – Scaler YVL190R-6
2 - 27
Page 48
Chassisplatte / Chassis Board – Scaler YVL190R-6
HDMI-CLKP
HDMI-CLKN
HPD_CTRL
HDMI-RX1P
HDMI-RX1N
HDMI-RX0P
HDMI-RX0N
AVDD_DVI
HDMI-RX2N
HDMI-RX2P
AUCOM
SC1-Rin
SC1-Lin
AUVRP
AUVAG
TESTPIN
VDDC
VDDP
AVDD_AU
AU_DACO_ML
AU_DACO_MR
HDMI-SCL
HDMI-SDA
HDMI-REXT
RGB0_BIN+
RGB0_GIN+
RGB0_RIN+
VCLP
REFP
REFM
AVDD_ADC
RGB1_PR-
RGB1-PB+
RGB1_Y-
CVBS_OUT
AVDD_ADC
CVBS1+
SIF_IN-
SIF_IN+
VDDC
AVDD_SIF
System-RST
VDDC
I2C-SCL
I2C-SDA
FLASH2_WPN-GPIO45
SPDIF_OUT
VDDP
FLASH1_WPN-GPIO44
SPDIF_IN
Power-ON/OFF
TS_MDO0
TS_MDO1
TS_MDO2
TS_MDO3
TS_MDO4
TS_MDO5
TS_MDO6
TS_MDO7
VDDP
PCM_D7
PCM_D6
PCM_D5
PCM_D4
PCM_D3
PCM_D2
PCM_D1
PCM_D0
PCM_A14
PCM_A13
PCM_A12
PCM_A11
PCM_A10
PCM_A9
PCM_A8
PCM_A7
PCM_A6
PCM_A5
PCM_A4
PCM_A3
VDDC
PCM_A2
PCM_A1
PCM_A0
UART-TX
UART-RX
SAR0
FLASH_WPN-SAR3
A/D
TUN_RESET
LED
BRI_ADJ-PWM2
AVDD_MPLL
USB_DM
USB_DP
AVDD_OTG
OTG_REXT
AVDD_DDR
MDATA1
DQM0
DQS0
MDATA0
WEZ
BA0
BA1
CASZ
RASZ
MDATA5
MDATA6
MDATA7
MDATA4
AVDD_DDR
MDATA2
MDATA3
VDDC
AVDD_DDR
AVDD_MEMPLL
MCLK+
CKE
MCLK-
MVREF-1
USB_OCD_N-GPIO3
MADR0
M_ADR10
M_ADR11
M_ADR7
M_ADR12
M_ADR8
M_ADR9
M_ADR5
M_ADR0
M_ADR1
M_ADR6
M_ADR2
M_ADR3
M_ADR4
MADR12
MADR11
MADR10
MADR9
MADR8
MADR7
MADR6
MADR5
MADR4
MADR3
MADR2
MADR1
VGA_HSYNC1
VGA_VSYNC1
SC1-VSYNC
SC1-HSYNC
AVDDL_DVI
AUVRM
MDATA12
MDATA15
DQS1
MDATA9
MUTE_S
AVDD_DDR
MDATA11
MDATA14
DQM1
Panel_ON_OFF
VDDC
MDATA8
MDATA10
AVDD_DDR
TS1_VALID
MDATA13
IRIN
SPI-SDI
SPI_CSN0
SPI-SCK
SP_SDO
SPI_SDI
SPI_SCK
SPI-CS0N
VDDP
SPI-SDO
PCM_RESET
PCM_CD_N
SPI-CS1N
PCM_CE_N
PCM_IORD_N
PCM_IOWR_N
PCM_WAIT_N
PCM_REG_N
PCM_IRQA_N
PCM_OE_N
PCM_WE_N
TV_CVBS+
TV_CVBS-
EEPROM_WPN
TS1_CLK
TS1_D0
TS1_SYNC
CVBS1-
VDDP
AVDD_LPLL
PCMCIA_ON
VBLCTRL
CVBS2
SC1-C
R418
390R %1
7 5 3 1
8 6 4 2
RX1P
10
AVSS_DVI
11
RX2N
12
RX2P
13
HOTPLUGA
14
REXT
15
DDCDA_DA
16
DDCDA_CK
17
HSYNC1
18
VSYNC1
19
VCLP
20
REFP
21
REFM
22
BIN1P
23
SOGIN1
24
GIN1P
25
RIN1P
26
BIN0M
27
BIN0P
28
GIN0M
29
GIN0P
30
SOGIN0
31
RIN0M
32
AVDD_ADC2
34
AVSS_ADC2
35
HSYNC0
36
VSYNC0
37
CVBS3P
42
CVBS2P
43
CVBS1P
44
VCOM1
45
CVBS0P
46
VCOM0
47
AVDD_ADC
48
CVBS_OUT
49
AVSS_CVBSO
50
AVDD_SIF
51
SIF_IN1P
52
SIF_IN1M
53
VDDC
54
LINE_IN_0L
56
LINE_IN_0R
57
LINE_IN_1L
58
LINE_IN_1R
59
LINE_IN_2L
60
LINE_IN_2R
61
LINE_IN_3L
62
LINE_IN_3R
63
VIM0
64
AVSS_AU65AVDD_AUSDM69AUVRM66AUVRP67AUVAG68LINE_OUT_1L72VDDP
76
Jupiter GPIO2/CEC
134
I2C_SDA(DDCR_DA)
205
I2C_SCL(DDCR_CK)
206
SAR0
120
SAR1
121
SAR2
122
SAR3
123
PWM0
124
PWM1
125
PWM2
126
PWM3
127
HWRESET
128
SPI_CK
129
SPI_DI
130
SPI_DO
131
SPI_CZ
132
VDDP
133
AVDD_DDR
191
SDR_DQ15
180
SDR_DQ14
181
SDR_DQ13
182
SDR_DQ12
183
DDR_DQS1
192
SDR_DQ11
185
SDR_DQ10
186
SDR_DQM1
188
SDR_DQ9
189
SDR_DQ8
190
SDR_BA0
229
SDR_WE_N
230
SDR_RAS_N
231
SDR_CAS_N
232
SDR_DQ7
234
SDR_DQ6
235
SDR_DQ5
236
SDR_DQ4
237
SDR_DQ3
239
SDR_DQ2
240
GNDM
241
SDR_DQM0
242
SDR_DQ1
243
SDR_DQ0
244
AVDDL_DVI
247
XTALI
254
TESTPIN
256
RXCP
5
RX0N
6
RX1N
9
RX0P
7
AVDD_DVI
8
RXCN
4
RIN0P
33
AVDD_DDR
245
GNDC90VDDC
91
DDR_DQS0
246
AVDD_DDR
238
XTALO
253
LINE_OUT_2L70LINE_OUT_2R
71
GNDP77VDDC
78
UART_TX(DDCA_DAT)
118
UART_RX(DDCA_CLK)
119
B2_RXE3+
143
B3_RXE3-
144
B4_RXEC+
145
B5_RXEC-
146
B6_RXE2+
147
B7_RXE2-
148
G0_RXE1+
149
G1_RXE1-
150
G2_RXE0+
151
G3_RXE0-
152
VDDP
153
GNDC
166
G6_RXO3+
154
G7_RXO3-
155
R0_RXOC+
156
R1_RXOC-
157
R2_RXO2+
158
R3_RXO2-
159
R4_RXO1+
160
R5_RXO1-
161
R6_RXO0+
162
R7_RXO0-
163
AVDD_LPLL
164
AVSS_LPLL
165
VDDC
167
LCK/Jupiter GPIO
168
LDE/Jupiter GPIO
169
LHSYNC/Jupiter GPIO
170
LVSYNC/Jupiter GPIO
171
PCM_D7/CI_D7
92
PCM_D6/CI_D6
93
PCM_D5/CI_D5
94
PCM_D4/CI_D4
95
PCM_D3/CI_D3
96
PCM_D2/CI_D2
97
PCM_D1/CI_D1
98
PCM_D0/CI_D0
99
PCM_A14/CI_A14
100
PCM_A13/CI_A13
101
PCM_A12/CI_A12
102
PCM_A11/CI_A11
103
PCM_A10/CI_A10
104
PCM_A9/CI_A9
105
PCM_A8/CI_A8
106
VDDP
107
PCM_A7/CI_A7
108
PCM_A6/CI_A6
109
PCM_A5/CI_A5
110
PCM_A4/CI_A4
111
PCM_A3/CI_A3
112
PCM_A2/CI_A2
113
PCM_A1/CI_A1
114
PCM_A0/CI_A0
115
Jupiter_GPIO0
116
Jupiter_GPIO1
117
PCM_IORD_N/CI_RD
135
PCM_IOWR_N/CI_WR
136
PCM_OE_N
137
PCM_WE_N
138
PCM_REG_N/CI_CLK
139
PCM_CE_N/CI_CS
140
PCM_IRQA_N/CI_INT
141
PCM_WAIT_N/CI_WACK
142
CI_RESET
172
CI_CD
173
TS1_D0/FDSP_IMS
174
TS1_VLD/FDSP_ICLK
175
TS1_SYNC/FDSP_IDI
176
TS1_CLK/FDSP_IDO
177
IRIN
178
INT
179
AVDD_DDR
184
GNDM
187
I2S_IN_WS
193
I2S_IN_BCK
194
I2S_IN_SD
195
SPDIF_IN
196
I2S_OUT_MCK
197
I2S_OUT_WS
198
VDDP
199
GNDC
200
VDDC
201
I2S_OUT_BCK
202
I2S_OUT_SD
203
SPDIF_OUT
204
I2S_OUT_MUTE
207
Jupiter GPIO3/UART_TX1/CEC
208
MVREF
209
DDR_CKO_N
210
DDR_CKO
211
SDR_CKE
212
AVDD_MEMPLL
213
SDR_AD0
214
SDR_AD1
215
SDR_AD2
216
SDR_AD3
217
SDR_AD4
218
SDR_AD5
219
SDR_AD6
220
AVDD_DDR
221
SDR_AD7
222
SDR_AD8
223
SDR_AD9
224
SDR_AD10
225
SDR_AD11
226
SDR_AD12
227
SDR_BA1
228
OTG_REXT
248
AVDD_OTG
249
USB_DM
250
USB_DP
251
AVSS_OTG
252
AVDD_MPLL
255
CEC/UART_RX1
1
GPIO1/UART_TX1
2
GPIO2
3
C1(CVBS7P)
38
Y1(CVBS5P)
39
C0(CVBS6P)
40
Y0(CVBS4P)
41
VDDC
233
LINE_OUT_1R(DACO_S)73LINE_OUT_0L(DACO_L)74LINE_OUT_0R(DACO_R)
75
GNDC
55
TS_D0/BT656_D0/FDSP_IMS
79
TS_D1/BT656_D1/DSP_ICLK80TS_D2/BT656_D2/FDSP_IDI81TS_D3/BT656_D3/FDSP_IDO82TS_D4/BT656_D483TS_D5/BT656_D584TS_D6/BT656_D685TS_D7/BT656_D786TS_VLD87TS_SYNC88TS_CLK/BT656_CLK
89
COOLER
266
IC402
MSD2338AL
5R6R400
RA406
RA408
7 5 3 1
8 6 4 2
4*33R
4*33R
4*33R
7 5 3 1
8 6 4 2
RA4144*33R
R402
910R %1
7 5 3 1
8 6 4 2
AVDD_DVI
8 bit/10 bit different area
MADR[12..0]
SIDE_ALIN
SIDE_ARIN
7 5 3 1
8 6 4 2
RA413
4*33R
7 5 3 1
8 6 4 2
RA412
4*33R
7 5 3 1
8 6 4 2
RA411
4*33R
7 5 3 1
8 6 4 2
RA4104*33R
7 5 3 1
8 6 4 2
RA4094*33R
R459
100R
AU_DACO_HL
AU_DACO_HR
AU_DACO_SL
AU_DACO_SR
VGA_ALIN
VGA_ARIN
ANTPOWER
Audio-ON/OFF
TS_MOCLK
TS_MOVAL
TS_MOSTART
7531
8642
RA407
4*33R
RASZM0
CASZM0
MBA0
MBA1
RXE3_P
RXE3_N
RXOC_N
RXO2_P
RXO2_N
RXE1_N
RXE1_P
RXE0_N
RXE0_P
RXOC_P
RXO0_N
RXO0_P
RXEC_P
RXEC_N
RXE2_P
RXE2_N
RXO1_N
RXO1_P
RXO3_N
RXO3_P
RGB1_SOG
PC&COMP Scart
TP62
TP63
TP64
TP65
TP69
RX_DVD
TX_DVD
RGB1-Y+
RGB1_PB-
RGB1-PR+
DVD_SEL
DVD_ALIN
DVD_ARIN
TX_DVD
RX_DVD
SIF_SW
XTALO
XTALI
6
5
3
4
9
13
14
10
3
4
5
6
8
0
Trigger @ (+5V_ST)
Mains switch on
#
$
GRUNDIG Service Chassis D6
2 - 28
Page 49
GRUNDIG Service Chassis D6
SPI_CSN0
SP_SDO
SPI_SCK
SPI_SDI
FLASH_WPN-SAR3
R427
4.7K
R429
NC
C451
100nF
VCC3.3V-Flash
VCC3.3V-ST
*100MHz, No any VIA hole!
Boot Loader SPI Flash
R6_RXO0_P
R7_RXO0_N
R4_RXO1_P
R5_RXO1_N
R2_RXO2_P
R3_RXO2_N
B3_RXE3_N
B2_RXE3_P
B5_RXEC_N
B4_RXEC_P
B7_RXE2_N
B6_RXE2_P
R0_RXOC_P
R1_RXOC_N
G6_RXO3_P
G7_RXO3_N
G2_RXE0_P
G3_RXE0_N
G0_RXE1_P
G1_RXE1_N
PANEL-VCC
DQS0
MVREF-1
DQS1
MVREF-1
MADR7
1RDAM1RDAM
MADR5
MADR6
MADR3
MADR4
MADR8
MADR2
MADR9
MADR[12..0]
WEZ
RASZM0
MADR12
LDQS
DQM1
MDATA[15..0]
MCLK-
MCLK+
WEZM0
UDM0
CASZM0
MADR0
MADR11
MADR10
UDQS
LDM0
DQM0 CLK0
CLKN0
CKE
MCKE
MBA0
MBA1
MDATA4
MDATA0
MDATA7
MDATA2
MDATA1
MDATA3
MDATA6
MDATA5
MDATA10
MDATA13
MDATA9
MDATA11
MDATA14
MDATA15
MDATA12
MDATA8
DATA11
DATA10
DATA9
DATA8
DATA15
DATA14
DATA13
DATA12
DATA0
DATA4
DATA7
DATA6
DATA5
DATA1
DATA3
DATA2
C412
100nF
7531
8642
RA4034*33R
R410
22R
R414 56R
C415
100nF
C403
100nF
R408 56R
C404
1uF X7R
R407 56 R
R417
1K
R411
150R %1
7531
8642
RA4024*33R
C411
100nF
C409
100nF
A0
29
A1
30
A2
31
A3
32
A4
35
A5
36
A6
37
A7
38
A8
39
A9
40
A10/AP
28
A11
41
DQ0
2
DQ1
4
DQ2
5
DQ3
7
DQ4
8
DQ5
10
DQ6
11
DQ7
13
DQ8
54
DQ9
56
DQ10
57
DQ11
59
DQ12
60
DQ13
62
DQ14
63
DQ15
65
BA0
26
BA1
27
CS
24
RAS
23
CAS
22
WE
21
LDM
20
UDM
47
LDQS
16
UDQS
51
CKE
44
CLK
45
CLK
46
MVDD
1
MVDD
18
MVDD
33
VDDQ
3
VDDQ
9
VDDQ
15
VDDQ
55
VDDQ
61
VSS
34
VSS
48
VSS
66
VSSQ
6
VSSQ
12
VSSQ
58
VSSQ
64
VREF
49
VSSQ
52
NC
14
NC
17
NC
19
NC
25
NC
43
NC
53
NC
50
NC
42
IC401
M13S2561616A-5TG_128Mb_TSOP66
R409
22R
7531
8642
RA4054*33R
R422
56R
C405
100nF
R413
22R
R419
1K
C416
100nF
R412 22 R
C414
100nF
7531
8642
RA4014*33R
C413
100nF
VCC2.5V-ST
DMQC0
DMQC0
DMQC0
4M X 16bit X 4BK
DDR-SDRAM DATA[15:0]
390mA
L400
300R/100MHz
LVDS I/F
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
31
P32
32
S400
MOLEX_2* 15
C408
4u7 10V
tp22
tp11
tp17
tp12
tp18
tp19
tp14
tp20
tp15
tp21
tp6
tp27
tp28
tp7
tp23
tp24
tp8
tp25
tp9
tp10
tp26
To Keypad Board
VCC3.3V-ST
R471
FB
VCC3.3V-Flash
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
P15
15
P16
16
P17
17
P18
18
P19
19
P20
20
P21
21
P22
22
P23
23
P24
24
P25
25
P26
26
P27
27
P28
28
P29
29
P30
30
P31
31
P32
32
S401
MOLEX_2*15
B3_RXE3_N
B2_RXE3_P
B5_RXEC_N
B4_RXEC_P
B7_RXE2_N
B6_RXE2_P
G2_RXE0_P
G3_RXE0_N
G0_RXE1_P
G1_RXE1_N
tp45
PANEL-VCC
CE#
1
SO
2
WP#
3
VSS4SI
5
SCK
6
HOLD#
7
VDD
8
9
IC403
M25P32
TP108
TP109
TP110
13
14
#
$
Chassisplatte / Chassis Board – Scaler YVL190R-6
2 - 29
Page 50
GRUNDIG Service Chassis D6

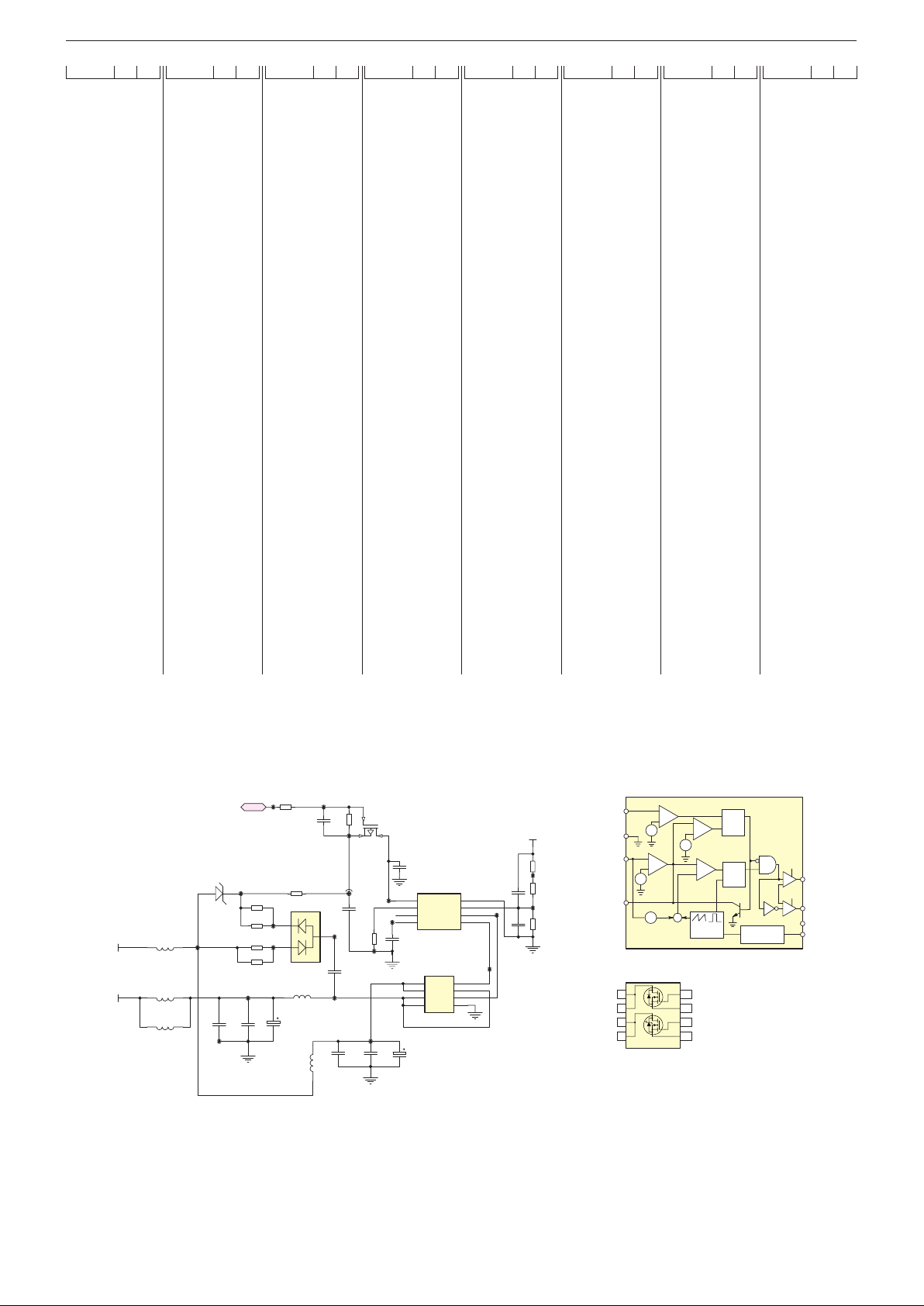

AU_DACO_L
AU_DACO_R
R813
47K
R816
470R
C826
3.3nF
R819
47K
C824
3.3nF
R811
470R
R801 47K
C811
470pF
R803 1K
R800
10K
TO SPEAKER
R804 47k
C817
1uF 10V
C814
1uF
C813
1uF
R802 10k
L801
120R\100MHz
L802
120R\100MHz
C807
1uF/50V X7R
C806
470pF
C805
100nF 25V
C803
1uF 10V
L800
22R/100MHz
+12V
C810
470pF
1
2
3
4
S800
SPEAKER
TP41
TP42
AU_OP_L
AU_OP_R
AU_DACO_L
AU_DACO_R
OUTL-1OUTL-
2
BOOT
3
MONO
4
PRE_L
5
IN_L
6
NC7NC
8
/MUTE
9
/SHDN
10
REGEN
11
COM
12
AGND
13
AGND
14
REG
15
VS
16
NC17IN_R18PRE_R19MOD20C1-21C1+22OUTR-23OUTR-
24
OUT_R+
25
OUT_R+
26
PVDD
27
PGND
28
PGND
29
PVDD
30
OUTL+
31
OUTL+
32
EXP
33
IC800
MAX9736B
MUTE_S
R805 NC
Audio-ON/OFF
Audio-ON/OFF
MUTE_S
C801
470pF
C802
1uF 10V
L806
120R\100MHz
L805
120R\100MHz
+5V_ST
VCC5V
C804
1uF/25V
R836
2K 1%
2
3 1
IC803
ZTL431AFFTA
T800
BC847B
R832
4.7k
R833
22K
R834
*
R835
1.2k %1
R839
330R %1
+5V_ST
R844
10K
+12V
R845 100R
R846 4.7K
VCC5V
DE-POP
DE-POP
C835
2.2nF
R826
10k
C841
2.2nF
C842
3.3nF
C840
1uF
C827
100uF/16V
C834
100uF/16V
C830
1nF
C837
1nF
AU_DACO_HL
C839
1uF
R822
33K
R823
10K
R814
22K
R521
22K
R818
10k
C836
3.3nF
C833
1uF
AU_DACO_HR
C820
4u7 10V
TP43
TP44
AU_DACO_HL
AU_DACO_HR
R815
470R
R825
470R
L803
SBY100505T-102Y
L804
SBY100505T-102Y
C831
220pF
C838
220pF
RIGHT
LEFT
GND
Right
Left
GND
S500
Headphone
R810
0R
R848
1K
R847
1K
VCC5V
HPL
HPR
VCC
1
OUT1
2
VIN1
3
BP
4
GND
5
/SD
6
VIN2
7
OUT2
8
EXP
9
IC802
TS488IQT
VCC3.3V-ST
TP48
TP49
R+
L+
RL-
C800
470uF/25V
C808
(470uF/25V)
TP107
L+
L-
R+
R-
P1
1
P2
2
S1
R_SPK
P1
1
P2
2
S2
L_SPK
D801
PESD5V0S1BL
D802
PESD5V0S1BL
28
28
27
27
≥
•
MAX9736
CHARGE
PUMP
POWER
STAGE
REGULATOR
BIAS
MOD
MONO
SHDN
MUTE REGEN
AGND
PGND
N.C.
20
FBR19
INR18
COM 12
INL6
FBL5
REG
VS
PVDD
C1N
C1P
15
16
1203 ,7222
3BOOT
31, 32 OUTL+
25, 26 OUTR+
23, 24 OUTR-
1, 2 OUTL-
4
10 911
13, 14
7, 8, 17
28, 29
CONTROL
VIN1
2
VIN2
6
GND
VOUT2
7
VOUT1
1
BIAS
BPS
3
Vcc
85/9
STDB
5
TS488 = STDB
TS489 = STDB
Chassisplatte – Verstärker / Chassis Board – Amplifier YVL190R-6
2 - 30
Page 51
GRUNDIG Service Chassis D6
1
5
A/a
F
14
16
7
D/d
F-
22
Vcc
Chip Decap.
13
CD/DVD SW
CD-LD
Default
VR-CD
4
RF
23
C/c
NC
T+
6
15
2
SANYO HD6x
21
E
12
Vc(Vref)
RS-232
F+
GND-PD
24
17
MD
B/b
HFM
10
T-
RF Reference
GND-LD
18 VR-DVD
8
NC
DVD-LD
SERVO RF DeCAP.
19
3
11
20
9
C
FOO
OPO
TRO
VSCK
ALF
GPIO10 TXD
F+
RX DVD
FMSO
SP_A
SP-
1389_OP+
TRSO
AVCC1
E
V1P4
UP1_7
V20
D
LDO2
TX DVD
LDO1
RXDGPIO9
MDI2
FOSO
IOA
MDI1
B
VSDA
89L_3V3
AVCC1
T+
LD-DVD
A
DMSO
RFV18-2
RFV18-1
F-
F
UP1_6
OPO
IOA
DMO
T-
FMO
RFO
V20
V18
V18
RFVDD3
OP-
AADVDD
V1P4
VSDA
IRIN
VSCK
VSTB
VCC
89L_3V3
V18
RFV33
RFV33
DV33
89L_3V3
V18
VCC
DV33
R43 100k
R580
L16
FB
R520
R260
C18
0.1uF
Q3
2SK3018
CB25
0.1uF
Q5
8550
R560
C20NC
D4
BAT54C
C5
0.1uF
CB32
0.1uF
CB24
0.1uF
R554.7
C8
6800pF
C11
0.1uF
TOP
HA1
HEADER 24 SMD0.5 BOT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
C21NC
C26
330pF
R290
Q4
8550
C9
0.1uF
C25
NC
Q1
2N3904
CB30 0.1uF
R2210k
+
CE14
220uF/10v
R6018k
R570
C29
0.015uF
C28
0.1uF
R41 100k
R320
CB19 0.1uF
CB36
0.1uF
CB34
0.1uF
R3410k
+
CE12
47uF/16v
L14FB
R6210k
CB33
0.1uF
R500
CB20 0.1uF
R2710k
+
CE19
47uF/16v
R3610k
R5920k
L11FB
R6115k
+
CE13
47uF/16v
C27
330pF
R544.7
L15FB
CB35
0.1uF
L12
FB
J3
4x1W/HOUSING
1
2
3
4
Q2
2SK3018
+
CE18
47uF/16v
C4
1uF
CB31
0.1uF
R23
1
+
CE17
100uF/16v
URST#
RESETCircuit
IR
URST#
URST#
V33
V33
IRIN
IRIN
URST#
V33
DV33
VCC
V33
DV33
RFV33
89L_3V3
DV33
V18
+12V
VCCVCC_5V
DV33
CB11
0.1uF
CB49
0.1uF
+
CE5
47uF/16v
CB58
0.1uF
+
CE25
100uF/10v
+
CE27
10uF/16v
CB50
0.1uF
CB16
0.1uF
TP41
CB14
0.1uF
+
EC3
220uF/10V
U13
AZ1117
SOT-223
1
23
4
GND
OUTIN
OUT
+
CE1
47uF/16v
DC5
L1 22uH
C3
1uF
L29
FB
+
CE6
47uF/16v
CB13
0.1uF
D2
1N4148
L5
FB
J11
1
2
3
4
5
L8 NC
L7
FB
+
EC1
100uF/16V
+
CE28
100uF/16v
CB15
0.1uF
+
CE3
220uF/10v
CB59
0.1uF
CB2
0.1uF
CB1
0.1uF
R183
1k
TP1
+
CE24
10uF/16v
VCC_12V
TP7
R8
10k
L26 NC
D16 1N4148
+
EC2
100uF/16V
U33
AZ1117
SOT-223
1
23
4
GND
OUTIN
OUT
DVD – Power
DVD – MPEG/Processor
2 - 31
Page 52
GRUNDIG Service Chassis D6
VIDEO I/F
AUDIO I/F
S-FLASH
DRAM I/F
MEMORY CARD
SERVO I/F
USB I/F
GPIO12
STBY
AR
FOSO
V_G
SL-
SF_DI
F-
MA[0..11]
GPIO21
CAS#
ADACVDD
FG
SDD0GPIO10
TRSO
USB_DM
SL+
SF_CK
ALS
URST#
XI
DQM[0..1]
BA1
V1P4
V_R
SD_CMDGPIO9
F+
SF_DO
GPIO3
BA0
APLLVDD3
T+
ARS
DMSO
RAS#
CVBS_OUT
GPIO7
GPIO4
V_B
T-
DQ[0..15]
SD_CLKGPIO8
GPIO20
ARF
FMSO
SP_A
USB_DP
GPIO13
AL
WE#
SF_CS
SP-
DCLK
GPIO6
GPIO11
ALS
V_R
OP-
MA7
MA6
SF_C S
DAC VDD3
RFV1 8-1
MA2
UP1 _6
DAC VDD3
AADV DD
MDI1
RFVDD3
ARF
ADAC VDD
GPI O19
APLL VDD3
MA3
V1P4
DQ8
DQ5
E
MA5
IRIN
GPI O4
XI
ALF
AR
D
GPIO11
GPIO13
MA11
DQ1 2
TRO
LDO2
MA0
DQ2
DQ1
F
FS
BA1
MA1
DQ1 0
UP1 _7
FOO
MDI2
MA8
SF_D I
MA4
RAS#
GPI O6
GPIO8
GPIO10
MA9
DQM1
DQ9
SF_C K
USB_DP
GPI O21
AVCM
C
WE#
BA0
GPIO9
DQ1 1
DMO
LDO1
RFO
V_B
A
MA10
DQ0
USB_V18
IOA
FMO
DACVDD3DACVDD3
V_G
GPI O20
DQ1 4
GPI O3
AL
B
GPIO12
DQ1 3
DQ1 5
DQ4
XO
XO
ARS
DCLK
DQ7
DQ3
USB_DM
V20
RFV18-2
GPIO7
CVBS
_O UT
CAS#
DQ6
URS T#
STBY
DACVDD3
VREF
138 9_O P+
DQM 0
SF_D O
FG
USB_V33
AVDD33
DQ[0..15]
DCLK
CAS#
CVBS_OUT
WE#
F-
T-
SF_CS
RAS#
SF_DO
SF_DI
URST#
FMSO
V1P4
FOSO
SL+
V_B
F+
T+
TROUT
SF_CK
AR
STBY
DMSO
USB_DM
V_G
BA1
TRSO
SP-
SL-
A_MUTE
SD_CMD
TROPEN
USB_DP
AL
TRIN
ASPDIF
V_R
KEY_IN2
SP_A
MS_CLK
KEY_IN1
DISCDET
SDD0
SD_CLK
MA[0..11]
TRCLOSE
KEY_IN3
DQM[0..1]
BA0
LIMIT
SW3
89L_3V3
89L_3V3
89L_3V3
V18
89L_3V3
89L_3V3
V18
V18
L19
FB
R530
+
CE1 6 100 uF/16v
R192 0
C10 0 .1uF
+
CE11
10uF/16v
1206
CB28
0.1uF
L9 FB
C22
10uF/16v
C16
220pF
C13 10u F/16v
C19
4.7uF
R30
560
C7
22pF
CB27
0.1uF
C15
1uF
R21100k
C12 0 .1uF
C6
22pF
TP30
R495.1k
MT1389L/K
LQFP 128
V1.0
Desktop
U4
MT1389L/K/SMD
LQFP128-0.4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
3334363738394041424344
45
464748
49
51
52
53
50
5556575458596162636064
65
66
67
69
70
94
90
93
92
91
89
88
8413
35
86
79
85
83
82
81
80
78
77
76
75
74
68
73
72
71
4
3
2
1
128
127
126
125
124
123
118
117
116
111
110
109
108
107
106
105
104
103
102
101
1009998
97
96
95
87
112
113
122
121
120
119
115
114
RFE
RFF
AVDD18
AVDD33
XTALI
XTALO
AGND
V20
REXT
MDI1
MDI2
LDO1
LDO2
AVDD33
DMO
FMO
TRAY_OPEN
TRAY_CLOSE
TRO
FOO
FG / GPIO2
USB_DP
USB_DM
USB_V33
USB_GND
PAD_VRT
USB_V18
GPI O3 / INT#
GPI O4
SF_C S_
SF_D O
SF_D I
SF_C K
UP1 _6 / S CL
UP1 _7 / S DA
ICE
PRST#IRRD0
RD1
RD2
RD3
RD4
RD5
RD6
RD7
DVD D33
DQM 0
RD1 5
RD1 4
DVD D18
RD1 3
RD1 2
RD1 1
RD1 0
RD9
DVSS 33
RD8
DQM1
RCLK
RA11
RA9
RA8
GPIO13
DVDD18
SPDIF / GPIO12
GPIO11
GPIO10
GPIO9
GPIO8
DVDD33V14
GPI O6
RA3
DVSS18
RA2
RA1
RA0
RA10
BA1
BA0
RAS#
CAS#
RWE#
RA4
DVDD33
RA5
RA6
RA7
RFD
RFC
RFB
RFA
RFH / OPINN
RFG / OPINP
RFIN / O POUT
RFIP
AGN D18
AVDD 18
AL / GPI O1
AVCM
AR / GPI O0
APLL CAP
APLL VDD
AADV DD
AKIN 1 / GP IO21 / Aud io_Mu te
ADVC M / GPI O20
AKIN 2 / GP IO19 / Aud io_Mu te
AADV SS
R
B
G
DAC VDDA
DAC VDDB
CVBS
DAC VSSC
FS
VREF
DACVDDC
GPIO7 / CKE
ADAC VSS2
ADAC VSS1
ADAC VDD2
ADAC VDD1
ALF / GPI O
ALS / GP I
O
ARS / GP IO
ARF / GPI O
L10FB
L17
FB
C24
10uF/16v
CB22
0.1uF
C14 1 500p F
C17
0.1uF
TP11
+
CE1 522 0uF/1 0v
L18
FB
TP9
CB21
0.1uF
TP8
CB23
0.1uF
R44 15k
TP18
Y1
27MHz
CB29
0.1uF
CB2 6 0 .1uF
R193 0
TP15
L13FB
C23NC
SD AND MMCMS
MEMORY CARD
USB
SDD0
CARD33
SDD0
MS_D0
SDD3
MS_D2
INS
USBVCC
INS
CARD33
MS_D1
SDD1
MS_D0
SDD1
CARD33
MS_D0
MS_D1
SDD3
SD_CD
INS
SD_CD
SD_CLK
USBVCC
MS_CLK
SDD2
USB_DP
MS_D2
MS_D3
MS_D3
V33
SD_CMD
SDD2
USB_DP
SD_CLK
USB_DM
SD_CMD
SDD0
MS_CLK
SD_CLK
SDD0
SD_CMD
BS
USB_DP
USB_DM
SD_CMD
MS_CLK
MS33
USB_DP
USB_DM
USB_DM
V33
SD_CLK
USB_DP
SDD0
USB_DM
SD_CMD
MS_CLK
V33
CARD33
VCC
VCC
DV33
R247 10K
Q26
2N3904
R251 NC/10K
F1
1A
R225 0
R248 NC/10K
J1
1
2
3
4
5
6
7
8
9
10
R240 10K
R259
15K
R226 0
R161 10
+
EC19
220uF/10V
C81
NC
R258
15K
R228 0
4:GND
3:D+
2:D1:VCC
1
3
3
4
P1
USBTYPEA
3
2
1
4
5
6
R243 10K
R227 0
R252 33
L28 FB
CON1
3IN1_CARD
1
2
3
4
5
6
23
22
21
20
19
18
7
8
9
10
11
12
17
16
15
14
13
CD_SD
WP-SD
DAT1-SD
DAT0_SD
WP GND-SD
VSS_SD
CD/GND-SD
DAT2-SD
VSS
CD/DAT3-SD
VCC
SCLK
VSS
BS
CLK-SD
DATA1
SDIO/DATA0
VDD-SD
CMD-SD
DATA3
INS
VSS-SD
DATA2
R241 68
R249 NC/10K
R253 33
C79
NC
R244 10K
R245 10K
R242 10K
R246 10K
+
EC20
47uF/16v
R250 NC/10K
CB57
0.1uF
DVD – MPEG/Processor
DVD – USB
2 - 32
Page 53
S-FLASH
4M/8M bit
S-FLASH
DRAMI/F
SDRAM
512Kx16BITx2Banks
SERVOI/F
DQ3
SDCKE
DQ[0..15]
MA4
DQ15
SP-
MA0
BA0
DQM1
DCLK
DQ5
MA8
WE# DWE#
SP_A
MA6
SF_CS
TRIN
BA1DBA1
DQ5
MA8
MA10
DQM0
SDCKE
DQ1
DQ4
TROPEN
DQ7
V1P4
DBA1
DQM[0..1]
MA0
DWE#
DQ12
DQM1
TROUT
DQ10
SF_CK
SL+
SF_CK
T-
DQ14
DRAS#RAS#
SF_DO
FOSO
DQ2
DQ15
DQ13
SDCLK
DCLK SDCLK
TRSO
DQ13
DQ6
DQ8
MA[0..11]
DCS#
DCS#
DQM0
DQ4
DQ11
SL-
DQ3
MA6
DRAS#
SF_CS
WE#
DBA0
STBY
SF_CS
MA3
DQ7
MA11
DCAS#
DQ0
DWE#
DMSO
DCAS#
DQ14
SF_DO
DCS#
MA2MA3
DISCDET
DQ8
DQ11
CAS#
DQ6
F-
FMSO
DQ12
DBA0BA0
MA7
DRAS#
DQ10
SDCKE
MA5
BA1
F+
MA1
MA9
DCAS#CAS#
MA2
MA5
SF_DI
DQ0
SF_DI
MA7
DQ1
T+
RAS#
DQ9
DQ9
TRCLOSE
DQ2
DBA0
SD33
SDCLK
MA1
MA9
MA10
MA4
V1P4
SP+
F+
F-
SP-SL+
T+
FOSOSTBY
SL-
DMSO
TRSO
FMSO
V1P4
T-
LIMIT
SW3
SLSL+
LIMIT
LED2
LED1
LD-
LD+
SP+
SP_A
LD+
TROPEN
SW3
LED2
LED1DISCDET
TROUT
TRIN
TRCLOSE
LD-
SP-
TRIN
DISCDET
SF_DI
STBY
SLSL+
T-
TRCLOSE
FMSO
BA1
T+
DMSO
DQM[0..1]
RAS#
BA0
MA[0..11]
CAS#
SF_CK
DCLK
F-
TROUT
SF_CS
SF_DO
WE#
DQ[0..15]
SP_A
TRSO
TROPEN
FOSO
V1P4
F+
LIMIT
SW3
MO_VCC
SD33
DV33
SD33
SD33
SD33
SD33
DV33
DV33
DV33
VCC
DV33
SD33
SD33
MO_VCCMO_VCC
MO_VCC
DV33
DV33
DV33
DV33
DV33
CB47
0.1uF
R210
10k
D21
C71
150P
L20 FB
R20122
R238 47
C35
0.1uF
TP57
C68 0.1uF
C70 390pF
R2371K
CB52
0.1uF
CB44
0.1uF
R231
4.7K
R73
4K7
R203 75
R207
10k
U14
CD5954
1
9
10
12
3
2
15
7
14
13
21
19
20
24
27
6
4
5
28
8
11
17
18
16
23
22
25
26
2930
VINFC
PVCC1
PGND
VOSL+
CF2
CF1
VOTK+
VNFFC
VOFC+
VOFC-
PVCC2
PGND
VNFTK
CTK2
BIAS
VOSL
VINSL+
VINSL-
STBY
VCC
VOSL-
VOLD+
VOLD-
VOTK-
VINLD
PREGND
CTK1
VINTK
G1G2
J12
CON12
1
2
3
4
R91 10k
+
CE23
220uF/10v
Q23
8050
R235
4.7k
R198
1
R232
4.7K
+
CE20
220uF/10v
CB41
0.1uF
TP60
R205 1k
TP32
CB46
0.1uF
R89 10k
TP55
Q24
8050
U6
ESMT M12L16161A-7
1
2
3
4
5
6
7
8
9
10
11
12
1314
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
VCC
DQ0
DQ1
VSSQ
DQ2
DQ3
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
VCCQDQML
WE
CAS
RAS
CS
BA/A11
A10
A0
A1
A2
A3
VCC
VSS
A4
A5
A6
A7
A8
A9
NC
CKE
CLK
DQMHNCVCCQ
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
VSSQ
DQ14
DQ15
VSS
R86 10k
D20
R72
4K7
D18
1N4148
R20920k
R197
1
R196
1
TP31
R224 150
R76 150
CB43
0.1uF
U12
ESMT M12L64164A/N.C
1
2
4
12
5
7
9
8
10
46
11
13
15
16
17
18
19
35
22
23
24
25
26
14
41
29
30
31
32
33
34
36
37
38
39
40
43
42
44
52
45
47
49
48
50
51
53
54
20
21
3
6
27
28
VCC
DQ0
DQ1
VSSQ
DQ2
DQ3
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
DQML
WE
CAS
RAS
CS
A11
A10/AP
A0
A1
A2
A3
VCC
VSS
A4
A5
A6
A7
A8
A9
NC
CKE
CLK
DQMHNCVCCQ
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
DQ14
DQ15
VSS
BA0/A13
BA1/A12
VCCQ
VSSQ
VCC
VSS
R2041k
Q21
2N8550
CB48
0.1uF
C69 390pF
R236
NC
TP61
D19 1N4148
R20620k
R199
1
R234
30K
R18510k
Q22
2N8550
Q25
T3906
TP58
CB45
0.1uF
TP59
U7
AT25FS040/EN25F80
1
2
3
4 5
6
7
8
CE#
SO
WP#
VSSSI
SCK
HOLD#
VDD
CB38
0.1uF
R90 10k
R92 NC/10K
C72
150P
CB37
0.1uF
J5
1
2
3
4
5
6
CB51
0.1uF
R233
30K
TP56
R239
100K
R87 33
J13
CON12
1
2
3
R20275
CB42
0.1uF
R20022
R208
20k
DVD – Memory / Servo
GRUNDIG Service Chassis D6
2 - 33
Page 54
GRUNDIG Service Chassis D6
AUDIO_L
AUDIO_R
MUTE
MUTE
MUTE
A+12V
AL
A_MUTE
AR
+12V
A+12V
VCC
A+12V
A+12V
+12V
+
EC6
10uF/16V
+
-
U10B
4558-SOP8
5
6
7
84
Q16
T3906
C39
0.01uF
R9730K
R107
10K
C36
150P
R108 1K
R113 30K
R104 10K
C41
150P
Q15
T3906
+
EC7
10uF/16V
+
EC8
47uF/16V
Q19
T3904
R111 10K
D7
5V1
C37
2000P
+
EC9
10uF/16V
R105 10
R146 4K7
R103
NC/22K
R128 22K
R141 10K
C42
2000P
R114
NC/22K
+
EC15
100uF/16V
R9910K R101 1K
+
EC10
10uF/16V
R143 1K
R127 1K
R110 10K
Q17
T3906
R106 100K
Q11
KTC8050
R100 10K
CP2
0.1uF
R133
10K
R102 1K
R112 1K
R126 10K
+
CP1
47uF/16V
Q12
KTC8050
+
-
U10A
4558-SOP8
3
2
1
8 4
AUDIO I/F
VIDEO I/F
CVBS_OUT
R/V_OUT
V_G
ASPDIF
V_R
B/U_OUT
V_B
CVBSO
V_R
CVBSO
V_B
V_G
CVBS_OUT
G/Y_OUT
COAXIAL
G/Y_OUT
B/U_OUT
R/V_OUT
AUDIO_L
AUDIO_R
IR
TXDVD
RX DVD
CVBS_OUT
ASPDIF
V_G
V_R
V_B
COAXIAL
DV33
DV33
DV33
DV33
VCC_5V
C64
100pF
D10
BAV99
R165
75 1%
D11
BAV99
C65
100pF
C59
100pF
C66
100pF
TP49
L22
1.8uH
C60
100pF
L25
1.8uH
VCC_12V
TP50
R160
75 1%
J8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
D9
BAV99
j10
D8
BAV99
TP51
j9
C57
100pF
L24
1.8uH
TP48
j7
R175
75
C58
100pF
j6
R172
75 1%
L23
1.8uH
C67
100pF
38
36
37
39
40
fl
‡
°
·
‚
DVD – Audio/Video
2 - 34
Page 55
GRUNDIG Service Chassis D6
Netzteil - Inverter / Power Supply - Inverter YTF194
T: Bestückungsseite / Component Side
B: Lötseite / Solder Side
Ansicht von der Bestückungsseite / View of Component Side
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
C2001 B 78 131
C2002 B 143 108
C2003 T 137 109
C2004 B 67 44
C2005 T 95 90
C2006 T 55 58
C2007 B 70 122
C2008 B 61 27
C2009 T 118 89
C2010 B 90 121
C2011 T 98 37
C2012 B 20 48
C2013 T 141 140
C2014 B 139 115
C2015 T 101 75
C2016 B 55 65
C2017 B 40 22
C2018 T 137 122
C2019 T 126 96
C2020 B 118 129
C2021 B 55 27
C2022 T 81 32
C2023 B 116 105
C2024 B 132 91
C2025 B 108 117
C2026 B 14 5
C2027 B 16 5
C2028 B 58 23
C2029 B 55 12
C2030 B 59 12
C2031 B 57 12
C2032 T 65 31
C2033 T 134 33
C2034 T 39 16
C2035 T 78 26
C2036 B 51 65
C2037 B 40 16
C2038 B 17 48
C2039 B 47 49
C2040 B 47 53
C2041 T 77 59
C2042 B 43 49
C2043 B 40 49
C2044 T 15 131
C2045 T 18 145
C2046 B 22 48
C2047 B 35 37
C2048 B 22 44
C2049 B 22 53
C2050 B 27 139
C2051 B 36 142
C2052 B 30 37
C2053 B 49 49
C2054 B 54 51
C2055 B 40 41
C2056 B 98 145
C2057 B 40 37
C2058 B 46 38
C2059 B 37 16
C2060 T 72 46
C2061 B 54 71
C2062 B 49 58
C2063 B 52 58
C2064 B 58 71
C2065 B 49 53
C2066 B 57 27
C2067 T 14 41
C2069 T 14 26
C2070 T 24 91
C2072 B 22 30
C2073 B 27 30
C2080 T 126 123
C2081 T 134 131
C2082 B 19 5
C2091 T 98 62
C2096 T 142 115
D2001 T 117 138
D2002 T 105 87
D2003 B 66 135
D2004 B 98 58
D2005 B 43 37
D2006 B 30 14
D2007 T 75 130
D2010 T 67 15
D2013 B 40 137
D2014 B 31 142
D2015 B 41 123
D2016 B 54 44
D2017 B 46 43
D2026 T 124 101
D2027 T 113 144
D2031 T 71 130
D2054 B 26 25
D2055 B 30 24
D2057 B 22 35
F2001 T 97 24
F2003 T 73 17
FB2001 B 46 5
FB2002 B 65 35
FB2003 B 42 5
FB2004 B 62 35
IC2001 B 89 145
IC2002 B 128 79
IC2003 B 120 110
IC2004 B 102 117
IC2005 B 50 25
IC2006 B 32 49
IC2007 B 50 16
J2001 T 77 108
J2002 T 29 54
J2003 T 94 14
J2004 T 99 149
J2005 T 44 56
J2006 T 96 9
J2007 T 81 151
J2008 T 68 65
J2009 T 110 91
J2010 T 30 41
J2011 T 57 6
J2012 T 55 26
J2013 T 61 118
J2014 T 30 57
J2017 T 57 2
J2018 T 41 132
J2019 T 70 23
J2020 T 81 113
J2021 T 125 62
J2022 T 138 62
J2023 T 125 59
J2024 T 138 59
J2025 T 138 56
J2026 T 125 56
J2027 T 143 70
J2028 T 141 75
J2030 T 125 50
J2031 T 138 53
J2032 T 138 50
J2033 T 125 53
L2001 T 131 115
L2002 T 95 83
L2003 T 93 69
L2004 T 130 145
L2005 T 98 50
L2006 T 59 18
L2010 B 132 96
L2012 B 51 53
Q2001 B 87 118
Q2002 B 93 121
R2001 T 81 134
R2002 T 120 126
R2003 B 141 108
R2004 T 92 77
R2005 B 67 127
R2006 T 73 40
R2007 B 97 151
R2008 B 138 140
R2009 B 92 116
R2010 T 131 91
R2011 B 100 45
R2012 B 97 45
R2013 B 93 145
R2014 B 120 129
R2015 B 96 39
R2016 B 59 27
R2017 B 114 117
R2018 B 116 117
R2019 B 106 117
R2020 B 97 117
R2021 B 112 117
R2022 B 17 13
R2023 B 11 13
R2024 B 19 13
R2025 B 99 117
R2026 B 90 116
R2027 B 100 39
R2028 B 100 33
R2029 B 86 123
R2030 B 96 33
R2031 B 64 40
R2032 T 113 95
R2033 B 60 23
R2034 B 38 22
R2035 B 45 49
2 - 35
R2036 B 17 57
R2037 T 62 50
R2038 B 33 13
R2039 B 43 142
R2040 B 28 37
R2041 T 43 33
R2042 B 38 37
R2043 B 16 120
R2044 B 36 137
R2045 B 20 53
R2046 B 25 139
R2047 B 34 142
R2048 B 25 37
R2049 B 30 29
R2050 B 30 33
R2051 B 32 38
R2052 B 25 14
R2053 B 52 49
R2054 B 58 46
R2055 B 35 18
R2056 B 32 29
R2057 B 34 29
R2058 B 56 23
R2060 B 126 105
R2061 B 99 121
R2062 B 23 61
R2063 B 95 145
R2064 B 32 33
R2065 B 26 61
R2067 B 28 61
R2068 B 30 61
R2069 B 23 25
R2070 B 20 25
R2071 B 20 30
R2072 B 25 30
R2074 B 130 91
R2076 B 35 13
R2077 B 27 14
R2078 B 44 21
R2079 B 38 121
R2086 T 97 95
R2087 B 42 43
S2001 T 19 9
S2002 T 124 10
S2003 T 146 117
S2004 T 88 18
S2005 T 70 6
S2006 T 7 142
S2007 T 7 124
S2008 T 7 20
S2009 T 7 35
S2010 T 101 18
T2001 B 143 144
T2002 B 50 43
T2003 B 57 33
T2006 B 44 66
T2009 B 36 66
TP1 B 93 20
TP10 B 44 28
TP100 B 80 131
TP101 B 99 77
TP102 B 66 130
TP103 B 86 114
TP104 B 33 17
TP105 B 137 96
TP106 B 110 118
TP107 B 20 56
TP108 B 23 64
TP109 B 90 65
TP11 B 22 39
TP110 B 104 27
TP111 B 126 15
TP112 B 115 10
TP113 B 101 97
POS. X Y
TP114 B 33 41
TP115 B 54 108
TP116 B 129 89
TP117 B 97 120
TP12 B 17 51
TP13 B 9 145
TP14 B 60 20
TP15 B 54 92
TP16 B 46 25
TP17 B 66 49
TP18 B 17 127
TP19 B 52 4
TP2 B 93 115
TP20 B 54 29
TP21 B 45 121
TP22 B 44 129
TP23 B 27 143
TP24 B 24 50
TP25 B 35 34
TP26 B 52 34
TP27 B 57 29
TP28 B 24 44
TP29 B 24 53
TP3 B 79 42
TP30 B 32 146
TP31 B 43 139
TP32 B 26 34
TP33 B 40 44
TP34 B 56 42
TP35 B 59 52
TP36 B 48 39
TP37 B 53 47
TP38 B 99 125
TP39 B 40 3
TP4 B 88 122
TP40 B 81 137
TP41 B 146 108
TP42 B 89 78
TP43 B 56 50
TP44 B 95 86
TP45 B 116 81
TP46 B 107 140
TP47 B 71 48
TP48 B 140 120
TP49 B 87 24
TP5 B 129 125
TP50 B 94 53
TP51 B 124 131
TP52 B 126 98
TP53 B 122 128
TP54 B 101 148
TP55 B 131 100
TP56 B 99 150
TP57 B 135 89
TP58 B 116 101
TP59 B 98 42
TP6 B 46 22
TP60 B 102 53
TP61 B 51 11
TP62 B 122 38
TP63 B 98 36
TP64 B 30 40
TP65 B 124 106
TP66 B 98 113
TP67 B 54 19
TP68 B 28 41
TP69 B 12 6
TP7 B 21 5
TP70 B 148 149
TP71 B 114 114
TP72 B 13 12
TP73 B 149 118
TP74 B 122 91
TP75 B 147 125
TP76 B 110 115
TP77 B 14 14
TP78 B 9 23
TP79 B 29 81
TP8 B 74 106
TP80 B 64 28
TP81 B 39 32
TP82 B 76 5
TP83 B 45 16
TP84 B 54 21
TP85 B 136 113
TP86 B 41 127
TP87 B 57 63
TP88 B 143 30
TP89 B 32 59
TP9 B 65 42
TP90 B 53 100
TP91 B 28 64
TP92 B 27 58
TP93 B 11 30
TP94 B 59 60
TP95 B 9 17
TP96 B 19 33
TP97 B 17 30
TP98 B 43 145
TP99 B 40 34
TR2001 T 101 114
TR2002 T 44 104
TR2003 T 42 104
ZD2001 B 23 14
ZD2002 B 135 96
ZD2003 B 124 102
ZD2004 T 63 127
Page 56
GRUNDIG Service Chassis D6
Netzteil - Inverter / Power Supply - Inverter YTF194
Ansicht von der Lötseite / View of Solder Side
2 - 36
Page 57
L2004
10uH
C2013
470uF 16V
VDD12V
VCC5V5
R2020
3K6
R2019
33K
R2025
1.5K %1
R2021
12K
R20171KR2018
3K3
C2025
47n
GNDGND
VCC5V5
C2014
100nF
R2008
10K
GND
L2001
10uH
C2003
470uF 16V
C2002
100nF
GND
GND
+12V
+5V5
112
2
334
4
556
6
778
8
9910
10
S2003
Header2X5
VDD12V
VCC5V
GND
K EY0
IR_I NT
LED0
DI M
BL ON/OFF
5
1
6
4
8
9
12
11
7
10
TR2001
SMTTRAFO _ ETD29/16/10
C2020
1n
R2014
22R
R2003
*
GND
VCC5V
GND
R2002
1k
R2007
2.2k
R2013
2.2K
D2002
UF4007F
C2019
22uF 50V
C2015 100uF 400V
1
2
4
3
L2005
10mH,0.7A
R2004
68K 2W
C2005
2n2F 2kV
2
1
S2002
220VAC / TK79A
F2001
FUSE T2AL/250V
C2011
220nF 275V
R2010
2.7K %1
C2024
1nF
2
1
C2033
2.2nF 250V
Ilim it
6
NC
5
Vfb
4
G ND
2
Vcc
3
Drain
1
IC2002
FSCM0465-D2-PAK-6L
R2028
1M
D2004
DI156S
C2023
1nF
R2015
1M
R2012
1M
C2009
220p 1kV
C2018
470uF 16V
J2004
Jumper
C2056
10uF 16V
GND
TP 49
TP 50
TP 60
TP 62
TP 42
T P57
TP 74
T P52
TP 45
TP 44
TP 66
TP 76
TP 51
TP 47
TP 41
TP 54
TP 48
TP 56
R2061
1.5K %1
TP 65
GND
C2081
1000uF 16V
GND
FB
Vc
OUT
R2086
470K_Max 3M
L2010
120R/100Mhz 3A
D2027
SB360
P1
1
P2
2
P3
3
P4
4
P5
5
S2001
CON5
KEY0
IR_I NT
LED0
GND
VCC5V
R2022 15
R2023 15
R2024 15
C2026
22p
C2027
22p
GND
TP 72
TP 70
TP 73
TP 75
TP 77
C2082
C?
TP 69
R2011
1M
R2027
1M
R2030
1M
TP 40
TP 38
TP 46
TP 53
TP 58
TP 63
TP 71
T P59
TP 55
ZD2003
STPS340
2 1
C2091
10nF/1.5kV
R2001
22R
C2096
1uF
2
3
1
D2031
DIODE
TO220
GND
D2010
STPS340
TP 82
F2003
FUSE 5AH/250V
R2005
10R
D2001
SB360
2 1
C2022
2.2nF 250V
GND
GND
D2003
1N4148
D2026
1N4148
2
1
S2004
FROM SW
2
1
S2010
TO SMPS
J2003
SWJ
J2006
SWJ
VDD12VVDD12V
+12V
2 1
C2035
2.2nF 250V
TP 1
L2002
120R/100Mhz 3A
R2060
0R
L2003
10uH
2
1
3
4
IC2003
OPTOKUPLOR1
TCLT1003
2
3 1
IC2004
ZTL431AFFTA
2
3 1
IC2001
ZTL431AFFTA
J2007
J2008
TP 7
TP 5
TP 8
TP 6
VCC5V5
R2063
2.2K
C2080
1000uF 16V
C2007
1uF /16V
GND
TP 111
TP 101
TP 105
TP 112
TP 106
TP 100
TP 103
TP 102
J2011
Jumper
J2012
J2005
R2074
0R
J2009
J2019
TP 110
T P116
TP 117
D2007
SB5100
OPSIYONEL
R2009
47K
R2029
47K
EN
C2010
1n
R2026
47K
TP 4
TP 2
1
32
Q2002
2N7002
GND
1
3
2
Q2001
2N7002
+12V
R2032
470K_Max 3M
J2001
J2020
1
3 2
T2001
PMV56XN
J2021
J2022
J2023
J2024
J2027
J2028
C2001
470p 1kV
TP 88
1
PWR
2
GND
3
GND
S2005
DS- 216
ZD2002
STPS340
TP 109
TP 113
J2032
J2031
J2030
J2033
J2025
J2026
1
2
3
4
1
2
3
4
FSCM0465R
8V/12V
31
2
4
Vref
Internal
Bias
SQQ
R
OSC
VCCV
CC
I
DELAY
I
FB
V
SD
TSD
Vovp
V
CC
SQQ
R
R
2.5R
Vcc Good
V
CC
Drain
FB
GND
Gate
Driver
V
CC
Good
0.3/0.5V
LEB
PWM
Soft start
+
-
6
I_limit
Freq.
Modulation
VCC UV Reset
0.3K
5
N.C.
Netzteil / Power Supply YTF194
VCC
1
NC
3
Rosc
2
COMP4GH
5
GL
6
FB
7
GND
8
IC2005
NCP1575DR2G
FB2003
FB
L2006
L
C2030
1nF/603
VCC5V5
C2032
330uF
C2059
1nF/ 603
C2034
330uF
C2028
10nF/603
R2058
1K/805
R2033
4.7K%1/805
C2021
1nF
C2008
4.7nF/603
R2078
10K/805
3
2
1
D2006
BAV99
R2077
33R
R2076 33R
+12V
C2017
100nF/603
C2029
33nF/603
C2037
NC/603
C2031
NC/603
R2016
0R/805
FB2002
FB
D1
5
D1
6
D2
7
D28S2
1
G2
2
S1
3
G1
4
IC2007
FDS6984AS
TP80
TP85
TP39
TP83
TP19
TP20
TP84
TP67
TP16
TP14
TP61
EN
TP3
TP10
R2006
27K
1
32
T2003
PMV65XP
C2004
10nF
R2031
47K
TP9
TP27
C2066
100nF
R2038 33R
R2052 33R
ZD2001
3v9
R2034 1R
R2055
0R
TP104
ZD2004
6V2
FB2001
FB
FB2004
FB
C2060
330uF
GRUNDIG Service Chassis D6
2 - 37
Page 58
OL P
1
OL R
2
ENA
3
S_S
4
GND
5
REF
6
ADIM
7
BDIM
8
EA_IN
9
EA_OUT10BCT
11
RT
12
CT
13
OUTD
14
OUTC
15
PGND
16
VI N
17
OUTA
18
OUTB
19
RT1
20
IC2006
FAN7314
C2046
220pF
C2043
220nF
C2052
1uF
C2038
1nF
C2048
4.7nF
C2050
10nF
R2037
10K
C2042
10nF
R2041
27K
C2047
10nF
R2040
56K
R2042
16.9K
C2044
12pF
R2048
100K
R2050
9K1
R2049
10K
FB
C2039
??
OL R
R2035
100K
R2051
330K
C2055
1uF
3
1
2
D2017
BAW56
OL P
3
1
2
D2016
BAW56
R2054
10K
OL P2
C2054
2.2nF
R2053
10K
OL P1
C2053
2.2nF
1
2
3
4
5
6 7
8
9
10
11
12
TR2002
HVT- 108
R2036
82K
RT
OUTB
OUTA
C2040
1uF
C2049
4.7nF
R2045
27K
RT
3
1
2
D2014
BAV70
3
2
1
D2015
BAV99
R2046
1K
C2051
10nF
C2045
12pF
R2047
1K
OL R
R2043
1K
FB
3
2
1
D2013
BAV99
R2044
1K
OL P2OLP1
X5Y
BL ON/OFF
DI M
BL ON/OFF
DI M
REF
T2002
BC848B
WARNING
WARNING
TP11
TP12
TP24
TP29TP28
TP25
TP26
TP17
TP32
TP34
TP33
TP36 TP37
TP35
TP15
TP18
TP13
TP21
TP31
TP22
TP23
TP30
R2064
9K1
C2062
1uF
C2063
1uF
1
2
S2006
1
2
S2007
3
1
2
D2005
BAW56
R2057
10K
OL P4
C2058
2.2nF
R2056
10K
OL P3
C2057
2.2nF
TP99
TP81
C2072
10nF
1
2
S2008
1
2
S2009
3
1
2
D2057
BAV70
R2071
1K
C2073
10nF
C2069
12pF
R2072
1K
OL R
R2069
1K
FB
R2070
1K
OL P4OL P3
TP93
TP95
TP97
TP96
TP98
WARNING
WARNING
3
2
1
D2055
BAV99
3
2
1
D2054
BAV99
2
1
7
8
4
3
9
6
5
10
TR2003
TMS93633CT
R2039
0R
J2002
VCC5V5
TP43
TP68
TP78
TP79
C2006
470uF
16V
+12V
L2012
120R/100Mhz 3A
C2036
10uF
TP87
C2016
10uF
C2064
10uF
R2065
0R
R2067
0R
1
2 3
T2006
FDD4141
1
23
T2009
FDD8778
R2062
2.7k
R2068
2.7k
+12V
C2061
10uF
TP89
TP92
TP108
TP91
TP90
TP94
+12V
J2010
Jumper
C2065
1uF
J2014
J2018
R2079
0R
TP64
TP107
TP114
TP115
C2012
27pF
C2041
470uF
16V
GND
TP86
R2087
22K
C2067
12pF
C2070
12pF
J2013
SWJ
7
6
9
5
8
5
7
6
9
8
FAN7314
BDIM
S_S
EA_OUT
OSCILLATOR
RT
Error Amp.
EA_IN
6µA
-
+
CT
max. 2V
min. 0.5V
ADIM
OUTB
OUTA
OUTC
OUTD
-
+
V
IN
2.5V
REF
ENA
UVLO 5V
UVLO
REF
BCT
+
-
max. 2V
min. 0.5V
OLR
-
+
2V
-
+
1.4V
S
olr
Q
Q
SET
CLR
S
R
UVLO
OLP
-
+
PGND
S
burst
Voltage
Reference
&
Internal
Bias
V
IN
1.4µA
UVLO
Output
Driver
Output
Control
Logic
AGND
S
olr
105µA
S
burst
85µA
Output
Driver
+
+
-
2.4V
V
a
+α
V
OLP
V
OLP
+α
2.5V 1.5V
RT1
M
RT1
Striking
Logic
OLP
S_S
2.65V
Inverter YTF194
2 - 38
GRUNDIG Service Chassis D6
Page 59
Netzteil - Inverter
Power Supply - Inverter YVL193
Ansicht von der Bestückungsseite /
View of Component Side
2 - 39
GRUNDIG Service Chassis D6
Page 60
Netzteil - Inverter / Power Supply - Inverter YVL193
Ansicht von der Lötseite / View of Solder Side
2 - 40
GRUNDIG Service Chassis D6
Page 61
GRUNDIG Service Chassis D6
VCC
1
NC
3
Rosc
2
COMP4GH
5
GL
6
FB
7
GND
8
IC2005
NCP1575DR2G
FB2003
FB
GND
L2006
L
GND
C2030
1nF/603
VCC5V5
053337R
C2032
330uF
C2040
1nF/603
C2034
330uF
GND
C2028
10nF/603
GND
R2055
1K/805
R2033
4.7K%1/805
VCC5V5
C2021
1nF
C2008
4.7nF/603
GND
R2057
10K
3
2
1
D2005
BAV99
R2056
15R
R2039
15R
+12V
C2029
10nF
C2037
NC/603
C2031
NC/603
FB2001
FB
R2016
0R/805
FB2002
FB
D1
5
D1
6
D2
7
D2
8
S2
1
G2
2
S1
3
G1
4
IC2007
FDS6984AS
J2005
EN
TP1
TP3
R2006
27K
1
3
2
T2003
PMV65XP
C2004
10nF
R2031
47K
TP2
TP6
C2066
100nF
GND
FB2004
FB
R2036
15R
R2037
15R
ZD2001
3v9
R2034 1R
C2017
1uF
TP5
TP12
TP16
TP19
TP17
TP14
TP4
TP7
TP15
TP18
TP8
TP9
TP13
TP11
TP10
FDS6984AS
4
3
2
1
5
6
7
8
Q1
Q2
NCP1575
Oscillator
200kHz
+
+
UVLO Comp
SQ
UVLO Latch
R
V
CC
GND
8.5V/7.5V
+
+
0.25 V
+
+
0.98 V
Error Amp
V
FB
COMP
+
PWM Comp
S
+
0.465 V
RQ
PWM Latch
S
Reset
Dominant
Set
Dominant
Frequency
Adjust
GATE(H)
GATE(L)
NC
R
OSC
CC
V
CC
Nonoverlap
POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y
C2001 B 19 128
C2002 B 88 107
C2003 T 95 106
C2004 B 9 96
C2005 T 48 77
C2006 T 27 99
C2007 T 84 111
C2008 B 23 64
C2009 T 71 82
C2010 B 15 116
C2011 T 47 30
C2012 B 14 128
C2013 T 90 130
C2014 B 90 128
C2015 T 51 66
C2016 B 11 128
C2017 B 8 72
C2018 T 87 121
C2019 T 83 83
C2020 B 74 127
C2021 B 15 72
C2022 T 36 6
C2023 B 89 84
C2024 B 88 78
C2025 B 77 103
C2026 B 4 4
C2027 B 6 4
C2028 B 8 60
C2029 B 15 50
C2030 B 25 74
C2031 B 27 74
C2032 T 27 70
C2033 T 31 39
C2034 T 24 49
C2035 T 30 31
C2036 B 134 59
C2037 B 19 46
C2038 B 155 30
C2039 B 157 16
C2040 B 22 46
C2041 B 134 71
C2042 B 150 16
C2043 B 147 16
C2044 T 118 144
C2045 T 108 30
T: Koordinaten für die Bauteile der Bestückungsseite / Coordinates of the Components on the component side
B: Koordinaten für die Bauteile der Lötseite / Coordinates of the Components on the solder side
C2046 B 134 27
C2047 B 150 12
C2048 B 140 16
C2049 B 136 32
C2050 B 119 132
C2051 B 121 14
C2052 B 145 16
C2053 B 129 14
C2054 B 127 14
C2055 B 155 25
C2056 B 54 132
C2057 B 140 78
C2058 B 138 78
C2059 B 138 71
C2060 T 145 48
C2061 B 136 27
C2062 B 151 38
C2063 B 138 59
C2064 T 145 75
C2066 B 11 72
C2081 T 79 131
C2082 B 9 4
C2091 T 45 63
C2096 T 92 115
D2001 T 69 139
D2002 T 61 84
D2003 B 11 136
D2004 B 50 52
D2005 B 11 49
D2009 B 133 80
D2010 B 18 20
D2011 B 147 89
D2013 B 123 20
D2014 B 128 20
D2015 B 112 125
D2016 B 128 9
D2017 B 161 17
D2026 T 82 88
D2027 T 70 145
D2031 T 39 128
F2001 T 53 18
F2003 T 24 22
FB2001 B 12 34
FB2002 B 11 80
FB2003 B 17 38
FB2004 B 14 80
H2001 T 21 155
H2002 T 95 155
H2003 T 21 5
H2004 T 95 5
H2005 T 165 6
H2006 T 165 154
H2007 T 105 154
H2008 T 105 6
IC2001 B 49 139
IC2002 B 84 66
IC2003 B 93 92
IC2004 B 73 107
IC2005 B 15 65
IC2006 B 146 26
IC2007 B 15 56
J2001 T 12 87
J2002 T 12 84
J2003 T 57 3
J2004 T 18 104
J2005 T 8 62
J2006 T 58 10
J2007 T 12 148
J2008 T 18 33
J2009 T 157 77
J2010 T 67 123
J2011 T 55 148
J2012 T 49 56
J2013 T 68 78
J2014 T 145 61
J2015 T 46 36
J2016 T 144 21
J2017 T 123 44
J2018 T 158 38
J2019 T 161 38
J2020 T 157 74
J2021 T 145 64
L2001 T 86 102
L2002 T 40 76
L2003 T 46 69
L2004 T 89 142
L2005 T 50 46
L2006 T 26 60
L2007 B 73 89
L2010 B 84 88
Q2001 B 16 111
Q2002 B 12 116
R2001 T 17 128
R2002 T 77 114
R2003 B 91 107
R2004 T 48 83
R2005 B 14 134
R2006 T 12 105
R2007 B 52 142
R2008 B 87 126
R2009 B 14 123
R2010 T 85 78
R2011 B 52 40
R2012 B 49 40
R2013 B 52 138
R2014 B 77 127
R2015 B 46 34
R2016 B 21 69
R2017 B 69 107
R2018 B 92 101
R2019 B 67 107
R2020 B 58 107
R2021 B 79 103
R2022 B 4 12
R2023 B 6 12
R2024 B 9 12
R2025 B 65 107
R2026 B 11 123
R2027 B 49 34
R2028 B 49 28
R2029 B 18 116
R2030 B 46 28
R2031 B 12 96
R2032 T 38 91
R2033 B 21 64
R2034 B 9 44
R2035 B 84 78
R2036 B 9 38
R2037 B 12 44
R2038 B 54 138
R2039 B 12 40
R2040 B 50 98
R2041 T 154 48
R2042 B 147 12
R2043 B 113 131
R2044 B 119 20
R2045 B 134 32
R2046 B 117 132
R2047 B 124 14
R2048 B 138 12
R2049 T 124 34
R2050 B 136 16
R2051 B 154 12
R2052 T 147 34
R2053 T 127 34
R2054 T 117 14
R2055 B 8 64
R2056 B 14 44
R2057 B 13 72
R2058 T 151 48
R2059 B 152 16
R2060 B 86 78
R2061 B 62 107
R2062 B 138 82
R2063 B 140 82
R2064 B 138 16
R2065 B 145 12
R2066 B 158 82
R2067 B 153 82
R2068 B 154 16
R2086 B 45 98
S2001 T 9 7
S2002 T 74 16
S2003 T 96 117
S2004 T 49 7
S2005 T 36 19
S2006 T 107 22
S2007 T 107 138
S2008 T 156 63
S2010 T 63 7
S2011 T 27 84
T2001 B 49 146
T2002 B 161 23
T2003 B 10 91
T2004 B 135 90
T2006 B 156 90
TP1 B 14 110
TP10 B 17 70
TP100 B 2 5
TP101 B 96 148
TP102 B 6 9
TP103 B 98 146
TP104 B 97 125
TP105 B 79 80
TP106 B 60 109
TP107 B 11 11
TP108 B 56 38
TP109 B 60 106
TP11 B 9 50
TP110 B 47 10
TP111 B 6 90
TP112 B 63 12
TP113 B 5 82
TP114 B 71 7
TP115 B 29 17
TP12 B 14 36
TP13 B 14 46
TP14 B 6 33
TP15 B 19 60
TP16 B 26 66
TP17 B 22 56
TP18 B 23 53
TP19 B 20 97
TP2 B 9 100
TP20 B 145 70
TP21 B 157 19
TP22 B 148 59
TP23 B 158 29
TP24 B 145 94
TP25 B 112 27
TP26 B 125 60
TP27 B 154 40
TP28 B 149 53
TP29 B 109 141
TP3 B 8 53
TP30 B 148 19
TP31 B 161 46
TP32 B 140 85
TP33 B 111 132
TP34 B 109 19
TP35 B 152 13
TP36 B 139 27
TP37 B 158 12
TP38 B 157 54
TP39 B 139 36
TP4 B 21 66
TP40 B 127 35
TP41 B 140 12
TP42 B 140 19
TP43 B 139 31
TP44 B 104 32
TP45 B 159 49
TP46 B 156 83
TP47 B 134 14
TP48 B 124 34
TP49 B 136 24
TP5 B 9 35
TP50 B 162 27
TP51 B 131 7
TP52 B 119 9
TP53 B 163 19
TP54 B 127 26
TP55 B 17 131
TP56 B 55 111
TP57 B 27 149
TP58 B 27 108
TP59 B 41 122
TP6 B 11 68
TP60 B 97 104
TP61 B 51 72
TP62 B 44 87
TP63 B 40 96
TP64 B 53 78
TP65 B 42 68
TP66 B 47 100
TP67 B 72 71
TP68 B 64 130
TP69 B 89 115
TP7 B 11 65
TP70 B 52 146
TP71 B 44 48
TP72 B 73 143
TP73 B 73 130
TP74 B 84 81
TP75 B 77 86
TP76 B 54 141
TP77 B 92 76
TP78 B 84 75
TP79 B 86 89
TP8 B 12 56
TP80 B 55 129
TP81 B 51 37
TP82 B 26 34
TP83 B 56 49
TP84 B 71 88
TP85 B 41 38
TP86 B 38 20
TP87 B 14 131
TP88 B 57 115
TP89 B 54 121
TP9 B 10 41
TP90 B 58 75
TP91 B 12 113
TP92 B 11 120
TP93 B 47 31
TP94 B 14 137
TP95 B 89 98
TP96 B 94 81
TP97 B 87 85
TP98 B 95 101
TP99 B 75 102
TR2001 T 57 104
TR2002 T 117 75
ZD2001 B 14 40
ZD2002 B 92 83
ZD2003 B 80 88
Netzteil - Inverter / Power Supply - Inverter YVL193
2 - 41
Page 62
L2004
10uH
C2006
470uF 16V
C2013
470uF 16V
VDD12V
VCC5V5
R2020
3K6
R2019
33K
R2025
1.5K %1
R2021
12K
R20171KR2018
3K3
C2025
47n
GND
GND
VCC5V5
C2014
100nF
R2008
10K
GND
L2001
10uH
C2003
470uF 16V
C2002
100nF
GND
GND
+12V
+5V5
112
2
334
4
5
5
6
6
778
8
9
9
10
10
S2003
Header2X5
VDD12V
VCC5V
GND
KEY0
IR_INT
LED0
5
1
6
4
8
9
12
11
7
10
TR2001
SMTTRAFO _ ETD29/16/10
C2001
1n
C2020
1n
R2014
22R
R2003
*
GND
VCC5V
GND
R2002
1k
R2007
2.2k
R2013
2.2K
D2002
UF4007F
C2019
22uF 50V
C2015 100uF 400V
1
2
4
3
L2005
10mH,0.7A
R2004
68K 2W
C2005
2n2F 2kV
2
1
S2002
220VAC / TK79A
F2001
FUSE T2AH/250V
C2011
220nF 275V
R2010
2.7K %1
C2024
1nF
21
C2033
2.2nF 250V
GND
Ilimit
6
NC
5
Vfb
4
GND
2
Vcc
3
Drain
1
IC2002
FSCM0465-D2-PAK-6L
R2028
1M
D2004
DI156S
C2023
1nF
R2015
1M
R2012
1M
C2009
220p 1kV
C2018
470uF 16V
J2004
Jumper
C2056
10uF 16V
GND
TP108
TP85
TP71
TP90
TP62
TP77
TP105
TP74
TP67
TP64
TP98
TP106
TP72
TP69
TP60
TP80
TP70
TP76
R2061
1.5K %1
TP97
GND
C2081
1000uF 16V
GND
FB
Vc
OUT
R2040
R
L2010
120R/100Mhz 3A
D2027
SB360
P1
1
P2
2
P3
3
P4
4
P5
5
S2001
CON5
KEY0
IR_INT
LED0
GND
VCC5V
R2022 15
R2023 15
R202415
C2026
22p
C2027
22p
GND
TP102
TP101
TP103
TP104
TP107
C2082
C?
TP100
R2011
1M
R2027
1M
R2030
1M
TP59
TP56
TP68
TP73
TP84
TP93
TP95
TP81
TP79
ZD2003
STPS340
2 1
C2091
10nF/1.5kV
R2001
22R
C2096
1uF
2
3
1
D2031
DIODE TO220
1
2
3
4
HS2006
GND
D2010
STPS340
TP115
F2003
FUSE
T5AH/250V
R2005
0R
D2001
SB360
C2007
470uF 16V
GND
GND
D2003
ES1D
D2026
UF4007
2
1
S2004
FROM SW
2
1
S2010
TO SMPS
J2003
SWJ
J2006
SWJ
VDD12VVDD12V
+12V
2 1
C2035
2.2nF 250V
TP110
L2002
120R/100Mhz 3A
R2060
0R
L2003
10uH
2
1
3
4
IC2003
OPTOKUPLOR1
2
3 1
IC2004
ZTL431AFFTA
2
3
1
IC2001
ZTL431AFFTA
J2007
J2008
TP88
TP86
TP89
TP82
DIM
BL ON/OFF
J2001
J2002
TP83
VCC5V5
R2038
2.2K
+12V
R2035
0R
2 1
C2022
2.2nF 250V
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P8
8
P7
7
S2011
INVERTOR
GND
J2015
J2012 J2013
J2010
J2011
C2012
1uF /16V
GND
TP87
TP94
R2009
68K
R2029
68K
EN
C2010
1n
R2026
68K
TP91
TP92
1
32
Q2002
2N7002
GND
1
32
Q2001
2N7002
+12V
R2032
470K_Max 3M
1
3
2
T2001
PMV56XN
1
PWR
2
GND
3
GND
S2005
DS-216
ZD2002
STPS340
C2016
1uF /16V
R2086
R
L2007
10uH
TP75
TP96
TP63
TP66
TP109
TP55
TP61
TP99
TP113
TP78
TP114
TP112
TP65
TP111
TP58
TP57
1
2
3
4
Netzteil / Power Supply YVL193
FSCM0465R
8V/12V
3 1
2
4
Vref
Internal
Bias
SQQ
R
OSC
VCCV
CC
I
DELAY
I
FB
V
SD
TSD
Vovp
V
CC
SQQ
R
R
2.5R
Vcc Good
V
CC
Drain
FB
GND
Gate
Driver
V
CC
Good
0.3/0.5V
LEB
PWM
Soft start
+
-
6
I_limit
Freq.
Modulation
VCC UV Reset
0.3K
5
N.C.
1
2
4
GRUNDIG Service Chassis D6
2 - 42
Page 63
OLP
1
OLR
2
ENA
3
S_S
4
GND
5
REF
6
ADIM1
7
BDIM1
8
EA_IN
9
EA_OUT
10
BCT
11
RT
12
CT
13
OUTD
14
OUTC
15
PGND
16
VIN
17
OUTA
18
OUTB
19
RT1
20
IC2006
FAN7314
C2046
220pF
C2043
220nF
C2052
1uF
C2038
1nF
C2048
4.7nF
C2050
10nF
R2058
10K
C2042
10nF
R2041
27K
C2047
10nF
R2065
56K
R2042
16.9K
C2044
12pF
R2048
100K
R2050
9K1
R2049
10K
FB
C2039
??
OLR
R2068
100K
R2051
330K
C2055
1uF
3
1
2
D2017
BAW56
OLP
3
1
2
D2016
BAW56
R2054
10K
OLP2
C2054
2.2nF
R2053
10K
OLP1
C2053
2.2nF
1
2
3
4
5
6 7
8
9
10
11
12
TR2002
HVT-108
R2052
82K
RT
OUTB
OUTA
C2049
4.7nF
R2045
27K
RT
C2041
10uF
3
1
2
D2014
BAV70
3
2
1
D2015
BAV99
R2046
1K
C2051
10nF
C2045
12pF
R2047
1K
OLR
R2043
1K
FB
3
2
1
D2013
BAV99
R2044
1K
OLP2OLP1
X5Y
+12V_1
BL ON/OFF1
DIM1
BL ON/OFF1
DIM1
REF
T2002
BC848B
WARNING
WARNING
TP21
TP23
TP36
TP43TP42
TP37
TP38
TP28
TP22
TP47
TP51
TP50
TP53
TP54
TP52
TP26
TP29
TP25
TP33
TP48
TP34
TP40
TP44
R2064
9K1
C2062
1uF
1
2
S2006
1
2
S2007
C2059
10uF
C2036
10uF
J2018Jumper
J2019 Jumper
GND1 GND1
TP27
TP41
GND1
R2063
0R
R2066
0R
1
2 3
T2004
FDD4141
1
23
T2006
FDD8778
C2058
1uF
R2062
2.7k
R2067
2.7k
+12V_1
C2063
10uF
DIM1
+12V_1
C2064
1000uF 35V
BL ON/OFF1
J2021 J2014
TP32
TP46
TP24
TP49
C2060
XX
J2016
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P8
8
P7
7
S2008
INVERTOR
GND1
TP35
TP39
TP30
C2061
27pF
D2011
MBRS130LT3
D2009
MBRS130LT3
TP31
TP45
TP20
R2059
22K
C2057
1uF
7
9
6
5
Inverter YVL193
FAN7314
BDIM
S_S
EA_OUT
OSCILLATOR
RT
Error Amp.
EA_IN
6µA
-
+
CT
max. 2V
min. 0.5V
ADIM
OUTB
OUTA
OUTC
OUTD
-
+
V
IN
2.5V
REF
ENA
UVLO 5V
UVLO
REF
BCT
+
-
max. 2V
min. 0.5V
OLR
-
+
2V
-
+
1.4V
S
olr
Q
Q
SET
CLR
S
R
UVLO
OLP
-
+
PGND
S
burst
Voltage
Reference
&
Internal
Bias
V
IN
1.4µA
UVLO
Output
Driver
Output
Control
Logic
AGND
S
olr
105µA
S
burst
85µA
Output
Driver
+
+
-
2.4V
V
a
+α
V
OLP
V
OLP
+α
2.5V 1.5V
RT1
M
RT1
Striking
Logic
OLP
S_S
2.65V
5
6
7
9
GRUNDIG Service Chassis D6
2 - 43
Page 64
GRUNDIG Service Chassis D6
P1
1
P2
2
P3
3
P4
4
P5
5
CN1
KEYBOARD
R3
1K
R4
470R
1
2
3
IR1
TSOP38438
R2
150R
R1
150R
GND GND
GND
Out
Vs
GND
GND
GND
KEY_5V
+
C1
10uF/
10V
D1
LED
S1
STAND BY
S2
(-)
S3
VOL/PROS4(+)
R5
270R
R6
470R
R7
1K
C2
10uF/
10V
GND
P1
1
P2
2
P3
3
P4
4
P5
5
CN1
KEYBOARD
R3
1K
R4
470R
1
2
3
IR1
TSOP38438
R2
150R
R1
150R
GND GND
GND
Out
Vs
GND
GND
GND
KEY_5V
+
C1
10uF
10V
D1
LED
S1
STAND BY
S2
(-)
S3
VOL/PRO
S4
(+)
R5
270R
R6
470RR71K
C2
10uF
10V
GND
Keyboard YSU192
Ansicht von der Bestückungsseite
View of Component Side
Ansicht von der Lötseite
View of Solder Side
Keyboard YSW192
Ansicht von der Bestückungsseite
View of Component Side
Ansicht von der Lötseite
View of Solder Side
2 - 44
Page 65
ǵ
GRUNDIG Service Chassis D6
ǵ
3 - 1
Ersatzteilliste
Spare Parts List
3 / 2010
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
GBI0019 19-2010 T DVD BLACK 19-2010 T DVD BLACK
0001.000 759551494000 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK
0002.000 759551524800 RUECKWAND SCHWARZ BACK COVER BLACK
0005.000 759551493800 FUSS SCHWARZ FOOT BLACK
0006.000 759551496300 ZWISCHENSTUECK FUSS SCHWARZ MIDDLE PART STAND FOOT BLACK
0007.000 759551493600 KNOPF PROG./ON-OFF SCHWARZ KNOB PROG./ON-OFF BLACK
0015.000 759551493300 LAUTSPRECHER 16 OHM 3/5 W LOUDSPEAKER 16 OHM 3/5 W
0020.000 S 759551505500 LCD-DISPLAY M185XW01 V00D*1 LCD-DISPLAY M185XW01 V00D*1
0020.000 S 759551530400 LCD-DISPLAY LTM185AT01-R02*2 LCD-DISPLAY LTM185AT01-R02*2
0020.000 S 759551505600 LCD-DISPLAY LMM185WH1-TLA4*3 LCD-DISPLAY LMM185WH1-TLA4*3
0021.000 759551494800 DISPLAY KABEL LVDS 120MM*1/*2 DISPLAY CABLE LVDS 120MM*1/*2
0021.000 759551494800 KABEL DISPLAY LVDS 100MM*3 DISPLAY CABLE LVDS 100MM*3
0022.000 S 759551350200 NETZKABEL 150 CM POWER CABLE 150 CM
0023.000 S 275990309500 X LP-NETZTEILMODUL 18.5 D6 *1/*2 POWER BOARD 18.5 D6 *1/*2
0023.000 S 275990309600 X LP-NETZTEILMODUL 18.5 D6 *3 POWER BOARD 18.5 D6 *3
0025.000 S 275991105400 X LP-CHASSISMODUL D6 (HQE)*1 CHASSIS BOARD D6 (HQE)*1
0025.000 S 275991105500 X LP-CHASSISMODUL D6 (ABB)*2 CHASSIS BOARD D6 (ABB)*2
0025.000 S 275991109400 X LP-CHASSISMODUL D6 (BGF)*3 CHASSIS BOARD D6 (BGF)*3
0027.000 720117145500 FERNBEDIENUNG DVD-COMBO*1/*2 REMOTE CONTROL DVD-COMBO*1/*2
0027.000 720117145700 FERNBEDIENUNG DVD-COMBO*3 REMOTE CONTROL DVD-COMBO*3
0030.000 759550451400 TASTSCHALTER KEY SWITCH
0032.000 759551504200 IR-EMPFAENGER TSOP38438 IR RECEIVER TSOP38438
0033.000 759551541500 LED 5MM 3,5V LED 5MM 3,5V
0040.000 S 759551494400 DVD-LOADER DL-08HJ-00-020E+SW DVD-LOADER DL-08HJ-00-020E+SW
0090.000 759551524900 KARTON DVD-COMBO 19" CARTON DVD-COMBO 19"
0091.000 759551525000 POLSTER OBEN CUSHION TOP
0092.000 759551525100 POLSTER UNTEN CUSHION BOTTOM
720100552000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
19-2010 T DVD
BESTELL-NR. / ORDER NO.: GBI0019 (HQE)
d©
PRODUKTCODE HQE PRODUCT CODE HQE
KEIN E-TEIL NO SPARE PART
Hinweis:
Sollte in dieser Ersatzteilliste Ihr "Product
Code" oder Ihre Display-Variante nicht
aufgeführt sein, finden Sie eine aktualisierte Version auf dem GRUNDIG Service-Portal "http://service.grundig.de".
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.DE MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Note:
If your "Product Code" or display variant is
not mentioned in the spare parts list, please
look for a current version at the GRUNDIG
service portal "http://service.grundig.de".
TV
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
GBH4719 VISION 2 19-2930 T DVD VISION 2 19-2930 T DVD
0001.000 759551494000 GEH.-VORDERTEIL SCHWARZ*1 FRONT CABINET BLACK*1
0002.000 759551524800 RUECKWAND SCHWARZ BACK COVER BLACK
0005.000 759551493800 FUSS SCHWARZ FOOT BLACK
0006.000 759551496300 ZWISCHENSTUECK FUSS SCHWARZ MIDDLE PART STAND FOOT BLACK
0007.000 759551493600 KNOPF PROG./ON-OFF SCHWARZ KNOB PROG./ON-OFF BLACK
0015.000 759551493300 LAUTSPRECHER 16 OHM 3/5 W LOUDSPEAKER 16 OHM 3/5 W
0020.000 S 759551495600 LCD-DISPLAY LTM185AT01-001*1 LCD-DISPLAY LTM185AT01-001*1
0020.000 S 759551493100 LCD-DISPLAY LC190WH1-TLA1*2 LCD-DISPLAY LC190WH1-TLA1*2
0020.000 S 759551505900 LCD-DISPLAY LTM185AT01-R04*3 LCD-DISPLAY LTM185AT01-R04*3
0020.000 S 759551530400 LCD-DISPLAY LTM185AT01-R02*4 LCD-DISPLAY LTM185AT01-R02*4
0020.000 S 759551505500 LCD-DISPLAY M185XW01 V00*5 LCD-DISPLAY M185XW01 V00*5
0020.000 S 759551505600 LCD-DISPLAY LM185WH1-TLA4*6 LCD-DISPLAY LM185WH1-TLA4*6
0021.000 759551494800 DISPLAY KABEL LVDS 120MM*1/*3/*4/*5 DISPLAY CABLE LVDS 120MM*1/*3/*4/*
0021.000 759551493200 DISPLAY KABEL LVDS 100MM*2/*6 DISPLAY CABLE LVDS 100MM*2/*6
0022.000 S 759551350200 NETZKABEL 150 CM POWER CABLE 150 CM
0023.000 S 275990309500 X LP-NETZTEILMOD. 18.5 D6 *1/*3/*4/*5 POWER BOARD 18.5 D6 *1/*3/*4/*5
0023.000 S 275990309600 X LP-NETZTEILMOD. 18.5 D6 CHA.*2/*6 POWER BOARD 18.5 D6 CHA.*2/*6
0025.000 S 275991084700 X LP-CHASSISMODUL D6 (GMG)*1 CHASSIS BOARD D6 (GMG)*1
0025.000 S 275991084800 X LP-CHASSISMODUL D6 (GTG)*2 CHASSIS BOARD D6 (GTG)*2
0025.000 S 275991084900 X LP-CHASSISMODUL D6 (VCC)*3 CHASSIS BOARD D6 (VCC)*3
0025.000 S 275991105500 X LP-CHASSISMODUL D6 (ABB)*4 CHASSIS BOARD D6 (ABB)*4
0025.000 S 275991105400 X LP-CHASSISMODUL D6 (HQE)*5 CHASSIS BOARD D6 (HQE)*5
0025.000 S 275991109400 X LP-CHASSISMODUL D6 (BGF)*6 CHASSIS BOARD D6 (BGF)*6
0027.000 720117145700 FERNBEDIENUNG DVD-COMBO REMOTE CONTROL DVD-COMBO
0030.000 759550451400 TASTSCHALTER KEY SWITCH
0032.000 759551504200 IR-EMPFAENGER TSOP38438 IR RECEIVER TSOP38438
0033.000 759551541500 LED BLAU 5MM 3,5V LED BLUE 5MM 3,5V
0040.000 S 759551494400 DVD-LOADER DL-08HJ-00-020E+SW DVD-LOADER DL-08HJ-00-020E+SW
0090.000 759551524900 KARTON DVD-COMBO 19" CARTON DVD-COMBO 19"
0091.000 759551525000 POLSTER OBEN CUSHION TOP
0092.000 759551525100 POLSTER UNTEN CUSHION BOTTOM
720100552000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
GBH4719 VISION 2 19-2930 T DVD VISION 2 19-2930 T DVD
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
VISION 2 19-2930 T DVD
BESTELL-NR. / ORDER NO.: GBH4719 (GMG, HAH, GTG)
d©
PRODUKTCODE GMG PRODUCT CODE GMG
KEIN E-TEIL NO SPARE PART
Hinweis:
Sollte in dieser Ersatzteilliste Ihr "Product
Code" oder Ihre Display-Variante nicht
aufgeführt sein, finden Sie eine aktualisierte Version auf dem GRUNDIG Service-Portal "http://service.grundig.de".
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.COM MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
PRODUKTCODE HAH PRODUCT CODE HAH
KEIN E-TEIL NO SPARE PART
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Note:
If your "Product Code" or display variant is
not mentioned in the spare parts list, please
look for a current version at the GRUNDIG
service portal "http://service.grundig.de".
TV
Page 66
3 - 2
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
0001.000 759551494000 GEH.-VORDERTEIL SCHWARZ*1 FRONT CABINET BLACK
0002.000 759551524800 RUECKWAND SCHWARZ BACK COVER BLACK
0005.000 759551493800 FUSS SCHWARZ FOOT BLACK
0006.000 759551496300 ZWISCHENSTUECK FUSS SCHWARZ MIDDLE PART STAND FOOT BLACK
0007.000 759551493600 KNOPF PROG./ON-OFF SCHWARZ KNOB PROG./ON-OFF BLACK
0015.000 759551493300 LAUTSPRECHER 16 OHM 3/5 W LOUDSPEAKER 16 OHM 3/5 W
0020.000 S 759551493100 LCD-DISPLAY LC190WH1-TLA1*1 LCD-DISPLAY LC190WH1-TLA1*1
S 759551505900 LCD-DISPLAY LTM185AT01-R04*2 LCD-DISPLAY LTM185AT01-R04*2
0020.000
0020.000
S 759551505500 LCD-DISPLAY M185XW01 V00D*3 LCD-DISPLAY M185XW01 V00D*3
0021.000 759551493200 KABEL-LVDS 15-19-22 100MM*1 CABLE-LVDS 15-19-22 100MM*1
0021.000 759551494800 DISPLAY KABEL LVDS 120MM*2/*3 DISPLAY CABLE LVDS 120MM*2/*3
0022.000 S 759551350200 NETZKABEL 150 CM POWER CABLE 150 CM
0023.000 S 275990309600 X LP-NETZTEILMOD. 18.5 D6 CHA.*1 POWER BOARD 18.5 D6 CHA.*1
0023.000 S 275990309500 X LP-NETZTEILMOD. 18.5 D6 CHA.*2/*3 POWER BOARD 18.5 D6 CHA.*2/*3
0025.000 S 275991084800 X LP-CHASSISMODUL D6 (GTG)*1 CHASSIS BOARD D6 (GTG)*1
0025.000 S 275991084900 X LP-CHASSISMODUL D6 (VCC)*2 CHASSIS BOARD D6 (VCC)*2
0025.000 S 275991105400 X LP-CHASSISMODUL D6 (HQE)*3 CHASSIS BOARD D6 (HQE)*3
0027.000 720117145700 FERNBEDIENUNG DVD-COMBO REMOTE CONTROL DVD-COMBO
0030.000 759550451400 TASTSCHALTER KEY SWITCH
0032.000 759551504200 IR-EMPFAENGER TSOP38438 IR RECEIVER TSOP38438
0033.000 759551541500 LED BLAU 5MM 3,5V LED BLAU 5MM 3,5V
0040.000 S 759551478900 DVD-LAUFWERK DL-08HJ-00-020E+S DVD-LOADER DL-08HJ-00-020E+SW
0090.000 759551524900 KARTON DVD-COMBO 19" CARTON DVD-COMBO 19"
0091.000 759551525000 POLSTER OBEN CUSHION TOP
0092.000 759551525100 POLSTER UNTEN CUSHION BOTTOM
720100552000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
GBH4719 VISION 2 19-2930 T DVD VISION 2 19-2930 T DVD
0001.000 759551494000 GEH.-VORDERTEIL SCHWARZ*1 FRONT CABINET BLACK*1
0002.000 759551524800 RUECKWAND SCHWARZ BACK COVER BLACK
0005.000 759551521500 FUSS SCHWARZ FOOT BLACK
0006.000 759551496300 ZWISCHENSTUECK FUSS SCHWARZ MIDDLE PART STAND FOOT BLACK
0007.000 759551493600 KNOPF PROG./ON-OFF SCHWARZ KNOB PROG./ON-OFF BLACK
0015.000 759551493300 LAUTSPRECHER 16 OHM 3/5 W LOUDSPEAKER 16 OHM 3/5 W
0020.000 S 759551495600 LCD-DISPLAY LTM185AT01-001*1 LCD-DISPLAY LTM185AT01-001*1
0020.000 S 759551505900 LCD-DISPLAY LTM185AT01-R04*2 LCD-DISPLAY LTM185AT01-R04*2
0021.000 759551494800 DISPLAY KABEL LVDS 30P 120MM DISPLAY CABLE LVDS 30P 120MM
0022.000 S 759551350200 NETZKABEL 150 CM POWER CABLE 150 CM
0023.000 S 275990309500 X LP-NETZTEILMODUL 18.5 D6 CHA. POWER BOARD 18.5 D6 CHA.
0025.000 S 275991084700 X LP-CHASSISMODUL D6 (GMG)*1 CHASSIS BOARD D6 (GMG)*1
0025.000 S 275991084900 X LP-CHASSISMODUL D6 (VCC)*2 CHASSIS BOARD D6 (VCC)*2
0027.000 720117145500 FERNBEDIENUNG DVD-COMBO REMOTE CONTROL DVD-COMBO
0030.000 759550451400 TASTSCHALTER KEY SWITCH
0032.000 759551504200 IR-EMPFAENGER TSOP38438 IR RECEIVER TSOP38438
0040.000 S 759551494400 DVD-LOADER DL-08HJ-00-020E+SW DVD-LOADER DL-08HJ-00-020E+SW
0090.000 759551524900 KARTON DVD-COMBO 19" CARTON DVD-COMBO 19"
0091.000 759551525000 POLSTER OBEN CUSHION TOP
0092.000 759551525100 POLSTER UNTEN CUSHION BOTTOM
720100552000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
d©
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.COM MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
PRODUKTCODE GTG PRODUCT CODE GTG
KEIN E-TEIL NO SPARE PART
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.COM MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
ǵ
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
GBH4722 VISION 2 22-2930 T DVD VISION 2 22-2930 T DVD
0001.000 759551505700 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK
0002.000 759551518000 RUECKWAND SCHWARZ BACK COVER BLACK
0005.000 759551518100 FUSS SCHWARZ FOOT BLACK
0006.000 759551507600 FUSS ZWISCHENSTUECK SCHWARZ FOOT MIDDLE PART BLACK
0007.000 759551493600 KNOPF PROG./ON-OFF SCHWARZ KNOB PROG./ON-OFF BLACK
0015.000 759551494700 LAUTSPRECHER 16 OHM 5/7 W LOUDSPEAKER 16 OHM 5/7 W
0020.000 S 759551494900 LCD-DISPLAY LC220WXE-TBA1*1 LCD-DISPLAY LC220WXE-TBA1*1
0020.000 S 759551495500 LCD-DISPLAY LTA216AT01-002*2 LCD-DISPLAY LTA216AT01-002*2
0020.000 S 759551518200 LCD-DISPLAY LTA216AT01-S04*3 LCD-DISPLAY LTA216AT01-S04*
0021.000 759551494800 DISPLAY KABEL LVDS 30P 120MM DISPLAY CABLE LVDS 30P 120MM
0022.000 S 759551350200 NETZKABEL 150 CM POWER CABLE 150 CM
0023.000 S 275990308500 X LP-NETZTEILMODUL 21.6 T5/T6/D6 POWER BOARD 21.6 T5/T6/D6
0025.000 S 275991074400 X LP-CHASSISMODUL D6 (GTH)*1 CHASSISBOARD D6 (GTH)*1
0025.000 S 275991074500 X LP-CHASSISMODUL D6 (GNP)*2 CHASSISBOARD D6 (GNP)*2
0025.000 S 275991080400 X LP-CHASSISMODUL D6 (RD5)*3 CHASSISBOARD D6 (RD5)*3
0027.000 720117145100 FERNBEDIENUNG RC22 SILBER/SCHWARZ REMOTE CONTROL RC22 SILVER/BLACK
0029.000 275990230000 LP-TT/IR/LED MODUL T6 TT/IR/LED BOARD T6
0030.000 759550451400 TASTSCHALTER KEY SWITCH
0031.000 759551504200 IR-EMPFAENGER TSOP38438 IR RECEIVER TSOP38438
0040.000 S 759551494400 DVD-LOADER DL-08HJ-00-020E+SW DVD-LOADER DL-08HJ-00-020E+SW
0090.000 759551495200 KARTON CARTON
0091.000 759551495300 POLSTER OBEN CUSHION TOP
0092.000 759551495400 POLSTER BODEN CUSHION BOTTOM
720100552000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
GBH4722 VISION 2 22-2930 T DVD VISION 2 22-2930 T DVD
0001.000 759551505700 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK
0002.000 759551518000 RUECKWAND SCHWARZ BACK COVER BLACK
0005.000 759551518100 FUSS SCHWARZ FOOT BLACK
0006.000 759551507600 FUSS ZWISCHENSTUECK SCHWARZ FOOT MIDDLE PART BLACK
0007.000 759551493600 KNOPF PROG./ON-OFF SCHWARZ KNOB PROG./ON-OFF BLACK
0015.000 759551494700 LAUTSPRECHER 16 OHM 5/7 W LOUDSPEAKER 16 OHM 5/7 W
0020.000 S 759551495500 LCD-DISPLAY SS LTA216AT01-002 LCD-DISPLAY SS LTA216AT01-002
0021.000 759551494800 DISPLAY KABEL LVDS 30P 120MM DISPLAY CABLE LVDS 30P 120MM
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
VISION 2 22-2930 T DVD
BESTELL-NR. / ORDER NO.: GBH4722 (GNP,HLA,HAD,GUU,GTH)
d©
PRODUKTCODE GNP PRODUCT CODE GNP
KEIN E-TEIL NO SPARE PART
Hinweis:
Sollte in dieser Ersatzteilliste Ihr "Product
Code" oder Ihre Display-Variante nicht
aufgeführt sein, finden Sie eine aktualisierte Version auf dem GRUNDIG Service-Portal "http://service.grundig.de".
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.COM MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
PRODUKTCODE HLA PRODUCT CODE HLA
KEIN E-TEIL NO SPARE PART
Note:
If your "Product Code" or display variant is
not mentioned in the spare parts list, please
look for a current version at the GRUNDIG
service portal "http://service.grundig.de".
TV
GRUNDIG Service Chassis D6
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 67
3 - 3
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
0022.000 S 759551350200 NETZKABEL 150 CM POWER CABLE 150 CM
0023.000 S 275990309300 X LP-NETZTEILMODUL 21.6 (PSU+INV) POWER BOARD 21.6 (PSU+INV)
0025.000 S 275991074500 X LP-CHASSISMODUL D6 (GNP) CHASSISBOARD D6 (GNP)
0027.000 720117145500 FERNBEDIENUNG DVD-COMBO REMOTE CONTROL DVD-COMBO
0030.000 759550451400 TASTSCHALTER KEY SWITCH
0031.000 275990230000 LP-TT/IR/LED MODUL T6 TT/IR/LED BOARD T6
0032.000 759551504200 IR-EMPFAENGER TSOP38438 IR RECEIVER TSOP38438
0040.000 S 759551494400 DVD-LOADER DL-08HJ-00-020E+SW DVD-LOADER DL-08HJ-00-020E+SW
0090.000 759551495200 KARTON CARTON
0091.000 759551495300 POLSTER OBEN CUSHION TOP
0092.000 759551495400 POLSTER BODEN CUSHION BOTTOM
720100552000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
GBH4722 VISION 2 22-2930 T DVD VISION 2 22-2930 T DVD
0001.000 759551505700 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK
0002.000 759551518000 RUECKWAND SCHWARZ*1/*2 BACK COVER BLACK*1/*2
0002.000 759551493600 RUECKWAND SCHWARZ*3/*4 BACK COVER BLACK*3/*4
0005.000 759551518100 FUSS SCHWARZ*1/*2/*3 FOOT BLACK*1/*2/*3
0005.000 759551493800 FUSS SCHWARZ*4 FOOT BLACK*4
0006.000 759551507600 FUSS ZWISCHENSTUECK SCHWARZ FOOT MIDDLE PART BLACK
0007.000 759551493600 KNOPF PROG./ON-OFF SCHWARZ KNOB PROG./ON-OFF BLACK
0015.000 759551494700 LAUTSPRECHER 16 OHM 5/7 W LOUDSPEAKER 16 OHM 5/7 W
0020.000 S 759551495500 LCD-DISPLAY LTA216AT01-002*1 LCD-DISPLAY SS LTA216AT01-002*1
0020.000 S 759551518200 LCD-DISPLAY LTA216AT01-S04*2 LCD-DISPLAY LTA216AT01-S04*2
0020.000 S 759551494900 LCD-DISPLAY LC220WXE-TBA1*3 LCD-DISPLAY LC220WXE-TBA1*3
0020.000 S 759551541700 LCD-DISPLAY LTA216AT01-S05*4 LCD-DISPLAY LTA216AT01-S05*4
0021.000 759551494800 DISPLAY KABEL LVDS 120MM*1/*3 DISPLAY CABLE LVDS 120MM*1/*3
0021.000 759551520900 KABEL DISPLAY-LVDS 100MM*2 CABLE DISPLAY-LVDS 100MM*2
0021.000 759551538600 KABEL DISPLAY-LVDS 120MM*4 CABLE DISPLAY-LVDS 120MM*4
0022.000 S 759551350200 NETZKABEL 150 CM POWER CABLE 150 CM
0023.000 S 275990309300 X LP-NETZTEILMODUL 21.6 *1/*2/*4 POWER BOARD 21.6 *1/*2/*4
0023.000 S 275990308500 X LP-NETZTEILMODUL 21.6 T5/T6/D6 *3 POWER BOARD 21.6 T5/T6/D6 *3
0025.000 S 275991074500 X LP-CHASSISMODUL D6 (GNP)*1 CHASSISBOARD D6 (GNP)*1
0025.000 S 275991085000 X LP-CHASSISMODUL D6 (HAD)*2 CHASSISBOARD D6 (HAD)*2
0025.000 S 275991074400 X LP-CHASSISMODUL D6 (GTH)*3 CHASSISBOARD D6 (GTH)*3
0025.000 S 275991115100 X LP-CHASSISMODUL D6 (AJQ)*4 CHASSISBOARD D6 (AJQ)*4
0027.000 720117145700 FERNBEDIENUNG DVD-COMBO REMOTE CONTROL DVD-COMBO
0030.000 759550451400 TASTSCHALTER KEY SWITCH
0031.000 275990230000 LP-TT/IR/LED MODUL T6 TT/IR/LED BOARD T6
0032.000 759551504200 IR-EMPFAENGER TSOP38438 IR RECEIVER TSOP38438
0033.000 759551541500 LED BLAU 5MM 3,5V LED BLUE 5MM 3,5V
0040.000 S 759551478900 DVD-LAUFWERK DL-08HJ-00-020E+S DVD-LOADER DL-08HJ-00-020E+SW
0090.000 759551495200 KARTON CARTON
0091.000 759551495300 POLSTER OBEN CUSHION TOP
0092.000 759551495400 POLSTER BODEN CUSHION BOTTOM
720100552000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
GBH4722 VISION 2 22-2930 T DVD VISION 2 22-2930 T DVD
d©
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.COM MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
PRODUKTCODE HAD PRODUCT CODE HAD
KEIN E-TEIL NO SPARE PART
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.COM MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
PRODUKTCODE GUU PRODUCT CODE GUU
KEIN E-TEIL NO SPARE PART
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
0001.000 759551505700 GEH.-VORDERTEIL SCHWARZ FRONT CABINET BLACK
0002.000 759551518000 RUECKWAND SCHWARZ BACK COVER BLACK
0005.000 759551518100 FUSS SCHWARZ FOOT BLACK
0006.000 759551507600 FUSS ZWISCHENSTUECK SCHWARZ FOOT MIDDLE PART BLACK
0007.000 759551493600 KNOPF PROG./ON-OFF SCHWARZ KNOB PROG./ON-OFF BLACK
0015.000 759551494700 LAUTSPRECHER 16 OHM 5/7 W 33X1 LOUDSPEAKER 16 OHM 5/7 W 33X14
0020.000 S 759551495500 LCD-DISPLAY LTA216AT01-002*1 LCD-DISPLAY LTA216AT01-002*1
S 759551518200 LCD-DISPLAY LTA216AT01-S04*2 LCD-DISPLAY LTA216AT01-S04*2
0020.000
0021.000 759551494800 DISPLAY KABEL LVDS 30P 120MM DISPLAY CABLE LVDS 30P 120MM
0021.000 759551520900 KABEL DISPLAY-LVDS 100MM*2 CABLE DISPLAY-LVDS 100MM*2
0022.000
S 759551350200 NETZKABEL 150 CM POWER CABLE 150 CM
0023.000 S 275990309300 X LP-NETZTEILMODUL 21.6 (PSU+INV) POWER BOARD 21.6 (PSU+INV)
0025.000 S 275991074500 X LP-CHASSISMODUL D6 (GNP)*1 CHASSISBOARD D6 (GNP)*1
0025.000 S 275991085000 X LP-CHASSISMODUL D6 (HAD)*2 CHASSISBOARD D6 (HAD)*2
0027.000 720117145500 FERNBEDIENUNG DVD-COMBO REMOTE CONTROL DVD-COMBO
0030.000 759550451400 TASTSCHALTER KEY SWITCH
0031.000 275990230000 LP-TT/IR/LED MODUL T6 TT/IR/LED BOARD T6
0032.000 759551504200 IR-EMPFAENGER TSOP38438 IR RECEIVER TSOP38438
0040.000 S 759551525200 DVD LOADER DL-08HJ-00-020E+SW DVD LOADER DL-08HJ-00-020E+SW
0090.000 759551495200 KARTON CARTON
0091.000 759551495300 POLSTER OBEN CUSHION TOP
0092.000 759551495400 POLSTER BODEN CUSHION BOTTOM
720100552000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
GBH4722 VISION 2 22-2930 T DVD VISION 2 22-2930 T DVD
0001.000 759551505700 GEH.-VORDERTEIL SCHWARZ*1 FRONT CABINET BLACK*1
0002.000 759551518000 RUECKWAND SCHWARZ BACK COVER BLACK
0005.000 759551518100 FUSS SCHWARZ FOOT BLACK
0006.000 759551507600 FUSS ZWISCHENSTUECK SCHWARZ FOOT MIDDLE PART BLACK
0007.000 759551493600 KNOPF PROG./ON-OFF SCHWARZ KNOB PROG./ON-OFF BLACK
0015.000 759551494700 LAUTSPRECHER 16 OHM 5/7 W LOUDSPEAKER 16 OHM 5/7 W
0020.000 S 759551495500 LCD-DISPLAY SS LTA216AT01-002*1 LCD-DISPLAY SS LTA216AT01-002*1
0020.000 S 759551518200 LCD-DISPLAY LTA216AT01-S04*2 LCD-DISPLAY LTA216AT01-S04*2
0021.000 759551494800 DISPLAY KABEL LVDS 30P 120MM*1 DISPLAY CABLE LVDS 30P 120MM*1
0021.000 759551520900 KABEL DISPLAY-LVDS 100MM*2 CABLE DISPLAY-LVDS 100MM*2
0022.000 S 759551350200 NETZKABEL 150 CM POWER CABLE 150 CM
0023.000 S 275990309300 X LP-NETZTEILMODUL 21.6 (PSU+INV POWER BOARD 21.6 (PSU+INV) (GT
0025.000 S 275991074500 X LP-CHASSISMODUL D6 (GNP)*1 CHASSISBOARD D6 (GNP)*1
0025.000 S 275991080400 X LP-CHASSISMODUL D6 (RD5)*2 CHASSISBOARD D6 (RD5)*2
0027.000 720117145500 FERNBEDIENUNG DVD-COMBO REMOTE CONTROL DVD-COMBO
0030.000 759550451400 TASTSCHALTER KEY SWITCH
0031.000 275990230000 LP-TT/IR/LED MODUL T6 TT/IR/LED BOARD T6
0032.000 759551504200 IR-EMPFAENGER TSOP38438 IR RECEIVER TSOP38438
0040.000 S 759551494400 DVD-LOADER DL-08HJ-00-020E+SW DVD-LOADER DL-08HJ-00-020E+SW
0090.000 759551495200 KARTON CARTON
0091.000 759551495300 POLSTER OBEN CUSHION TOP
0092.000 759551495400 POLSTER BODEN CUSHION BOTTOM
720100552000 SERVICE MANUAL D/GB SERVICE MANUAL D/GB
720108000001 SICHERHEITSMANUAL D/GB/E/F/I SAFETY SERVICE MANUAL D/GB/E/F/I
d©
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.COM MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
PRODUKTCODE GTH PRODUCT CODE GTH
KEIN E-TEIL NO SPARE PART
DIE BEDIENUNGSANLEITUNG KOENNEN THE INSTRUCTION MANUAL CAN BE
SIE IM INTERNET UNTER FOLGENDER DOWNLOADED FROM THE INTERNET
ADRESSE ABRUFEN: WWW.GRUNDIG.DE UNDER THE FOLLOWING ADDRESS:
MENU: DOWNLOADS WWW.GRUNDIG.COM MENU: DOWNLOADS
X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST
GRUNDIG Service Chassis D6
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 68
ǵ
GRUNDIG Service Chassis D6
ǵ
3 - 4
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
S
275990308500 LP-NETZTEILMODUL 21.6 T5/T6/D6 POWER BOARD 21.6 T5/T6/D6
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
C 2011 S 759551498900 C-PPM 220NF K305VAC R:15CLS
C 2022 S 759550965300 KONDENS 220PF M 250VAC R:10
C 2033 S 759551338300 1 NF M 250VAC Y5U R:10 KOND
C 2035 S 759550965300 KONDENS 220PF M 250VAC R:10
D 2001 759551499000 DIODE STKY SB560 5A 60V DO2
D 2002 759551395300 DIODE UF4007F R:12.5
D 2004 759551499200 DIODE-CHIP BRIDGE DI156S 1.
D 2013 759530510400 DIODE BAV 99
D 2015 759530510400 DIODE BAV 99
D 2026 759551395300 DIODE UF4007F R:12.5
D 2027 759551499000 DIODE STKY SB560 5A 60V DO2
D 2031 759551327400 MBRP3010N SCHT.30A 100V TOD 2054 759530510400 DIODE BAV 99
D 2055 759530510400 DIODE BAV 99
F 2001 S 759551198500 SICHERUNG 2AT/255V VERZOEGE
IC 2001 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 2002 759551397400 IC-CHIP FSCM0465RJX D2PAC-6
IC 2003 S 759551499400 IC-CHIP TCLT1003 OPTO COU
IC 2004 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 2006 759551397500 IC-CHIP FAN7314MX SOIC20 T&
L 2001 759550624400 SPULE 10 UH
L 2003 759550624400 SPULE 10 UH
L 2004 759551395900 SPULE 4.7UH 3A RADIAL R:10
L 2005 S 759551397700 LINE FILTER 10MH 0.7A PLA10
S 2002 S 759551499700 NETZANSCHLUSS 2PIN / VERTIC
T 2001 S 759551388000 TRANS-CHIP PMV56XN N-CH
T 2002 830100484800 SMD TRANS BC848B/ BC847B P
T 2006 759551499900 TRANS-SMD FDD4141 40V 50A P
T 2009 759551500000 TRANS-SMD FDD8778 25V 35A N
TR 2001 S 759551404300 TRAFO SMT JEWEL BCK0280904
TR 2003 S 759551504600 TRAFO INVERTER TMS93633CT
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-NETZTEILMOUL 21.6 T5/T6/D6
POWER BOARD 21.6 T5/T6/D6
MATERIAL-NR. / PART NO.: 275990308500
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
TV
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
S
275990309300 LP-NETZTEILMODUL 21.6 (PSU+INV) POWER BOARD 21.6 (PSU+INV)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
C 2011 S 759551498900 C-PPM 220NF K305VAC R:15CLS
C 2022 S 759550965300 KONDENS 220PF M 250VAC R:10
C 2033 S 759551338300 1 NF M 250VAC Y5U R:10 KOND
C 2035 S 759550965300 KONDENS 220PF M 250VAC R:10
D 2002 759551395300 DIODE UF4007F R:12.5
D 2004 759551499200 DIODE-CHIP BRIDGE DI156S 1.
D 2013 759530510400 DIODE BAV 99
D 2015 759530510400 DIODE BAV 99
D 2026 759551395300 DIODE UF4007F R:12.5
D 2031 759551327400 MBRP3010N SCHT.30A 100V TOD 2054 759530510400 DIODE BAV 99
D 2055 759530510400 DIODE BAV 99
F 2001 S 759551198500 SICHERUNG 2AT/255V VERZOEGE
IC 2001 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 2002 759551397400 IC-CHIP FSCM0465RJX D2PAC-6
IC 2003 S 759551499400 IC-CHIP TCLT1003 OPTO COU
IC 2004 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 2006 759551397500 IC-CHIP FAN7314MX SOIC20 T&
L 2001 759550624400 SPULE 10 UH
L 2003 759550624400 SPULE 10 UH
L 2004 759551395900 SPULE 4.7UH 3A RADIAL R:10
L 2005 S 759551397700 LINE FILTER 10MH 0.7A PLA10
S 2002 S 759551499700 NETZANSCHLUSS 2PIN / VERTIC
T 2001 S 759551388000 TRANS-CHIP PMV56XN N-CH
T 2002 830100484800 SMD TRANS BC848B/ BC847B P
T 2006 759551499900 TRANS-SMD FDD4141 40V 50A P
T 2009 759551500000 TRANS-SMD FDD8778 25V 35A N
TR 2001 S 759551404300 TRAFO SMT JEWEL BCK0280904
TR 2003 S 759551504600 TRAFO INVERTER TMS93633CT
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-NETZTEILMOUDUL 21.6 PSU+INV
POWER SUPPLY BOARD 21.6 PSU+INV
MATERIAL-NR. / PART NO.: 275990308900
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 69
ǵ
GRUNDIG Service Chassis D6
ǵ
3 - 5
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
S
275990309500 LP-NETZTEILMODUL 18.5 D6 CHA. POWER BOARD 18.5 D6 CHA.
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
C 2011 S 759551498900 C-PPM 220NF K305VAC R:15CLS
C 2022 S 759551338300 1 NF M 250VAC Y5U R:10 KOND
C 2033 S 759551338300 1 NF M 250VAC Y5U R:10 KOND
C 2035 S 759551338300 1 NF M 250VAC Y5U R:10 KOND
D 2001 759551229300 DIODE SCHOTTKY DO-201AD 60V
D 2002 759551395300 DIODE UF4007F R:12.5
D 2003 759551499100 DIODE-CHIP ES1D 1A 200V U.F
D 2004 759551499200 DIODE-CHIP BRIDGE DI156S 1.
D 2005 759530510400 DIODE BAV 99
D 2010 759551098600 DIODE STPS340U
D 2013 759530510400 DIODE BAV 99
D 2015 759530510400 DIODE BAV 99
D 2026 759551395300 DIODE UF4007F R:12.5
D 2027 759551229300 DIODE SCHOTTKY DO-201AD 60V
F 2003 S 759550935300 SICHERUNG T5 A / 250 V
IC 2001 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 2002 759551397400 IC-CHIP FSCM0465RJX D2PAC-6
IC 2003 S 759551499400 IC-CHIP TCLT1003 OPTO COU
IC 2004 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 2005 759551499500 IC-SMD NCP1575DR2G SO8 T&R
IC 2006 759551397500 IC-CHIP FAN7314MX SOIC20 T&
IC 2007 759551411900 TRANS FDS6984AS SO8 MOSFET
L 2001 759550624400 SPULE 10 UH
L 2003 759550624400 SPULE 10 UH
L 2004 759551378200 SPULE 3.3 UH 5.9A RADIAL
L 2005 S 759551397700 LINE FILTER 10MH 0.7A PLA10
L 2006 759551499600 SPULE 15UH 3.4A TDK TSL1112
Q 2001 759550973400 TRANS 2N7002
Q 2002 759550973400 TRANS 2N7002
S 2002 S 759551499700 NETZANSCHLUSS 2PIN / VERTIC
S 2005 S 759551499800 DC ANSCHLUSS 2MM DIK
T 2001 S 759551388000 TRANS-CHIP PMV56XN N-CH
T 2002 830100484800 SMD TRANS BC848B/ BC847B P
T 2003 759551388500 TRANS-CHIP PMV65XP P-CH
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-NETZTEILMODUL 18.5 D6
POWER BOARD 18.5 D6
MATERIAL-NR. / PART NO.: 275990309500
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
TR 2001 S 759551404300 TRAFO SMT JEWEL BCK0280904
TR 2002 S 759551404400 SMT INVERTER 19W HVT-108
TV
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
S
275990309600 LP-NETZTEILMODUL 18.5 D6 CHA. POWER BOARD 18.5 D6 CHA.
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
C 2011 S 759551498900 C-PPM 220NF K305VAC R:15CLS
C 2022 S 759551338300 1 NF M 250VAC Y5U R:10 KOND
C 2033 S 759551338300 1 NF M 250VAC Y5U R:10 KOND
C 2035 S 759551338300 1 NF M 250VAC Y5U R:10 KOND
D 2001 759551229300 DIODE SCHOTTKY DO-201AD 60V
D 2002 759551395300 DIODE UF4007F R:12.5
D 2003 759551499100 DIODE-CHIP ES1D 1A 200V U.F
D 2004 759551499200 DIODE-CHIP BRIDGE DI156S 1.
D 2005 759530510400 DIODE BAV 99
D 2010 759551098600 DIODE STPS340U
D 2013 759530510400 DIODE BAV 99
D 2015 759530510400 DIODE BAV 99
D 2026 759551395300 DIODE UF4007F R:12.5
D 2027 759551229300 DIODE SCHOTTKY DO-201AD 60V
F 2003 S 759550935300 SICHERUNG T5 A / 250 V
IC 2001 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 2002 759551397400 IC-CHIP FSCM0465RJX D2PAC-6
IC 2003 S 759551499400 IC-CHIP TCLT1003 OPTO COU
IC 2004 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 2005 759551499500 IC-SMD NCP1575DR2G SO8 T&R
IC 2006 759551397500 IC-CHIP FAN7314MX SOIC20 T&
IC 2007 759551411900 TRANS FDS6984AS SO8 MOSFET
L 2001 759550624400 SPULE 10 UH
L 2003 759550624400 SPULE 10 UH
L 2004 759551378200 SPULE 3.3 UH 5.9A RADIAL
L 2005 S 759551397700 LINE FILTER 10MH 0.7A PLA10
L 2006 759551499600 SPULE 15UH 3.4A TDK TSL1112
Q 2001 759550973400 TRANS 2N7002
Q 2002 759550973400 TRANS 2N7002
S 2002 S 759551499700 NETZANSCHLUSS 2PIN / VERTIC
S 2005 S 759551499800 DC ANSCHLUSS 2MM DIK
T 2001 759551388000 TRANS-CHIP PMV56XN N-CH
T 2002 830100484800 SMD TRANS BC848B/ BC847B P
T 2003 759551388500 TRANS-CHIP PMV65XP P-CH
T 2006 759551500000 TRANS-SMD FDD8778 25V 35A N
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-NETZTEILMODUL 18.5 D6
POWER BOARD 18.5 D6
MATERIAL-NR. / PART NO.: 275990309600
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
TR 2001 S 759551404300 TRAFO SMT JEWEL BCK0280904
TR 2002 S 759551404400 SMT INVERTER 19W HVT-108
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 70
ǵ
GRUNDIG Service Chassis D6
ǵ
3 - 6
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
S
275991074400 LP-CHASSISMODUL D6 (GTH) CHASSIS BOARD D6 (GTH)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
F 300 759551500100 FILTER SAW HDAF389A7DC SIP5
F 301 759551500200 FILTER SAW HDVF389A1DC (OFW
IC 300 759551500300 IC-SMD MSB1210-LF LQFP48 T&
IC 301 759551468300 IC-SMD 74LVC1G66GW 165 TSSO
IC 400 759551504700 SW/IC T2 HDMI
IC 401 759551468400 IC-SMD HY5DU121622DTP-D43 T
IC 402 759551505100 IC-SMD MSD2338AL-LF-Z1 LQFP
IC 404 759551504800 SW/IC T2 SYSTEM
IC 500 759551498600 IC-SMD NC7SZ08P5X SOT353 T&
IC 501 759551500600 IC-SMD STMPS2151STR SOT23-5
IC 700 759551500800 IC-SMD TL082IPWR TSSOP8 T&R
IC 702 759551477200 IC-CHIP STMAV340TTR TSSOP16
IC 703 759551504900 SW/IC T2 VGA
IC 800 759551469200 IC-SMD MAX9736BETJ+T TQFN-E
IC 802 759551480400 IC-SMD TS488IQT DFN8 T&R
IC 803 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 900 759551524700 IC-SMD MP2205ADL
IC 901 759551060700 IC NCP1117DTARK (DPAK)
IC 902 759551434500 IC-SMD ZTL431AFFTA SOT23F T
L 200 759551364700 FERRIT CHIP SBY100505T-102Y
L 201 759551364700 FERRIT CHIP SBY100505T-102Y
L 202 759551364700 FERRIT CHIP SBY100505T-102Y
L 203 759551364700 FERRIT CHIP SBY100505T-102Y
L 302 759550541900 SMD SPULE 1UH K0805
L 305 759551364700 FERRIT CHIP SBY100505T-102Y
L 703 759551364700 FERRIT CHIP SBY100505T-102Y
L 803 759551364700 FERRIT CHIP SBY100505T-102Y
L 804 759551364700 FERRIT CHIP SBY100505T-102Y
L 908 759551364700 FERRIT CHIP SBY100505T-102Y
Q 900 759551098300 TRANS BC847BDW1T1
S 001 759550451400 TASTSCHALTER
S 002 759550451400 TASTSCHALTER
S 500 759551175900 BUCHSE KOPFHOERER STEREO
S 501 759551435100 PCMCIA SINGLE BUCHSE KURZ
S 602 759551501100 CONN-SMD HDMI E110001-139 V
S 700 759551501400 EURO-AV-BUCHSE CS-102A-EN D
S 701 759551501300 BUCHSE VGA (DSUB15) 48203-9
S 703 759551501200 KOPFHOERERBU. EJ328-3 DIK 3
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL D6
CHASSIS BOARD D6
MATERIAL-NR. / PART NO.: 275991074400
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 700 759551098200 TRANS BC847BPDW1T
T 900 759551098300 TRANS BC847BDW1T1
T 901 759551501700 TRANS-SMD DMN3150L-7 30V 3.
T 903 759551501600 TRANS-SMD DMP2215L-7 20V 2.
T 904 759551098200 TRANS BC847BPDW1T
T 905 759551098300 TRANS BC847BDW1T1
T 906 759551098300 TRANS BC847BDW1T1
T 907 759551501600 TRANS-SMD DMP2215L-7 20V 2
TU 301 759551505000 TUNER HYB DTT75416
X 200 759551473200 QUARZ -CHIP 24MHZ SMU4-22-3
Y 400 759551469400 QUARZ-CHIP 12MHZ 12PF-30/30
TV
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
S
275991074500 LP-CHASSISMODUL D6 (GNP) CHASSISBOARD D6 (GNP)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
F 300 759551500100 FILTER SAW HDAF389A7DC SIP5
F 301 759551500200 FILTER SAW HDVF389A1DC (OFW
IC 300 759551500300 IC-SMD MSB1210-LF LQFP48 T&
IC 301 759551468300 IC-SMD 74LVC1G66GW 165 TSSO
IC 400 759551504700 SW/IC T2 HDMI
IC 401 759551468400 IC-SMD HY5DU121622DTP-D43 T
IC 402 759551505100 IC-SMD MSD2338AL-LF-Z1 LQFP
IC 404 759551504800 SW/IC T2 SYSTEM
IC 500 759551498600 IC-SMD NC7SZ08P5X SOT353 T&
IC 501 759551500600 IC-SMD STMPS2151STR SOT23-5
IC 700 759551500800 IC-SMD TL082IPWR TSSOP8 T&R
IC 702 759551477200 IC-CHIP STMAV340TTR TSSOP16
IC 703 759551504900 SW/IC T2 VGA
IC 800 759551469200 IC-SMD MAX9736BETJ+T TQFN-E
IC 802 759551480400 IC-SMD TS488IQT DFN8 T&R
IC 803 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 900 759551524700 IC-SMD MP2205ADL
IC 901 759551060700 IC NCP1117DTARK (DPAK)
IC 902 759551434500 IC-SMD ZTL431AFFTA SOT23F T
L 200 759551364700 FERRIT CHIP SBY100505T-102Y
L 201 759551364700 FERRIT CHIP SBY100505T-102Y
L 202 759551364700 FERRIT CHIP SBY100505T-102Y
L 203 759551364700 FERRIT CHIP SBY100505T-102Y
L 302 759550541900 SMD SPULE 1UH K0805
L 305 759551364700 FERRIT CHIP SBY100505T-102Y
L 703 759551364700 FERRIT CHIP SBY100505T-102Y
L 803 759551364700 FERRIT CHIP SBY100505T-102Y
L 804 759551364700 FERRIT CHIP SBY100505T-102Y
L 908 759551364700 FERRIT CHIP SBY100505T-102Y
Q 900 759551098300 TRANS BC847BDW1T1
S 001 759550451400 TASTSCHALTER
S 002 759550451400 TASTSCHALTER
S 500 759551175900 BUCHSE KOPFHOERER STEREO
S 501 759551435100 PCMCIA SINGLE BUCHSE KURZ
S 602 759551501100 CONN-SMD HDMI E110001-139 V
S 700 759551501400 EURO-AV-BUCHSE CS-102A-EN D
S 701 759551501300 BUCHSE VGA (DSUB15) 48203-9
S 703 759551501200 KOPFHOERERBU. EJ328-3 DIK 3
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL D6
CHASSIS BOARD D6
MATERIAL-NR. / PART NO.: 275991074500
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 700 759551098200 TRANS BC847BPDW1T
T 900 759551098300 TRANS BC847BDW1T1
T 901 759551501700 TRANS-SMD DMN3150L-7 30V 3.
T 903 759551501600 TRANS-SMD DMP2215L-7 20V 2.
T 904 759551098200 TRANS BC847BPDW1T
T 905 759551098300 TRANS BC847BDW1T1
T 906 759551098300 TRANS BC847BDW1T1
T 907 759551501600 TRANS-SMD DMP2215L-7 20V 2.
TU 301 759551505000 TUNER HYB DTT75416
X 200 759551473200 QUARZ -CHIP 24MHZ SMU4-22-3
Y 400 759551469400 QUARZ-CHIP 12MHZ 12PF-30/30
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 71
ǵ
GRUNDIG Service Chassis D6
ǵ
3 - 7
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
S
275991080400 LP-CHASSISMODUL D6 (RD5) LP-CHASSISBOARD D6 (RD5)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
F 300 759551500100 FILTER SAW HDAF389A7DC SIP5
F 301 759551500200 FILTER SAW HDVF389A1DC (OFW
IC 300 759551500300 IC-SMD MSB1210-LF LQFP48 T&
IC 301 759551468300 IC-SMD 74LVC1G66GW 165 TSSO
IC 400 759551504700 SW/IC T2 HDMI
IC 401 759551468400 IC-SMD HY5DU121622DTP-D43 T
IC 402 759551505100 IC-SMD MSD2338AL-LF-Z1 LQFP
IC 404 759551504800 SW/IC T2 SYSTEM
IC 500 759551498600 IC-SMD NC7SZ08P5X SOT353 T&
IC 501 759551500600 IC-SMD STMPS2151STR SOT23-5
IC 700 759551500800 IC-SMD TL082IPWR TSSOP8 T&R
IC 702 759551477200 IC-CHIP STMAV340TTR TSSOP16
IC 703 759551504900 SW/IC T2 VGA
IC 800 759551469200 IC-SMD MAX9736BETJ+T TQFN-E
IC 802 759551480400 IC-SMD TS488IQT DFN8 T&R
IC 803 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 900 759551524700 IC-SMD MP2205ADL
IC 901 759551060700 IC NCP1117DTARK (DPAK)
IC 902 759551434500 IC-SMD ZTL431AFFTA SOT23F T
L 200 759551364700 FERRIT CHIP SBY100505T-102Y
L 201 759551364700 FERRIT CHIP SBY100505T-102Y
L 202 759551364700 FERRIT CHIP SBY100505T-102Y
L 203 759551364700 FERRIT CHIP SBY100505T-102Y
L 302 759550541900 SMD SPULE 1UH K0805
L 305 759551364700 FERRIT CHIP SBY100505T-102Y
L 703 759551364700 FERRIT CHIP SBY100505T-102Y
L 803 759551364700 FERRIT CHIP SBY100505T-102Y
L 804 759551364700 FERRIT CHIP SBY100505T-102Y
L 908 759551364700 FERRIT CHIP SBY100505T-102Y
Q 900 759551098300 TRANS BC847BDW1T1
S 001 759550451400 TASTSCHALTER
S 002 759550451400 TASTSCHALTER
S 500 759551175900 BUCHSE KOPFHOERER STEREO
S 501 759551435100 PCMCIA SINGLE BUCHSE KURZ
S 602 759551501100 CONN-SMD HDMI E110001-139 V
S 700 759551501400 EURO-AV-BUCHSE CS-102A-EN D
S 701 759551501300 BUCHSE VGA (DSUB15) 48203-9
S 703 759551501200 KOPFHOERERBU. EJ328-3 DIK 3
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL D6
CHASSIS BOARD D6
MATERIAL-NR. / PART NO.: 275991080400
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 700 759551098200 TRANS BC847BPDW1T
T 900 759551098300 TRANS BC847BDW1T1
T 901 759551501700 TRANS-SMD DMN3150L-7 30V 3.
T 903 759551501600 TRANS-SMD DMP2215L-7 20V 2.
T 904 759551098200 TRANS BC847BPDW1T
T 905 759551098300 TRANS BC847BDW1T1
T 906 759551098300 TRANS BC847BDW1T1
T 907 759551501600 TRANS-SMD DMP2215L-7 20V 2.
TU 301 759551505000 TUNER HYB DTT75416
X 200 759551473200 QUARZ -CHIP 24MHZ SMU4-22-3
Y 400 759551469400 QUARZ-CHIP 12MHZ 12PF-30/30
TV
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
S
275991084700 LP-CHASSISMODUL D6 (GMG) CHASSIS BOARD D6 (GMG)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
F 300 759551500100 FILTER SAW HDAF389A7DC SIP5
F 301 759551500200 FILTER SAW HDVF389A1DC (OFW
IC 300 759551500300 IC-SMD MSB1210-LF LQFP48 T&
IC 301 759551468300 IC-SMD 74LVC1G66GW 165 TSSO
IC 400 759551504700 SW/IC T2 HDMI
IC 401 759551468400 IC-SMD HY5DU121622DTP-D43 T
IC 402 759551505100 IC-SMD MSD2338AL-LF-Z1 LQFP
IC 404 759551504800 SW/IC T2 SYSTEM
IC 500 759551498600 IC-SMD NC7SZ08P5X SOT353 T&
IC 501 759551500600 IC-SMD STMPS2151STR SOT23-5
IC 700 759551500800 IC-SMD TL082IPWR TSSOP8 T&R
IC 702 759551477200 IC-CHIP STMAV340TTR TSSOP16
IC 703 759551504900 SW/IC T2 VGA
IC 800 759551469200 IC-SMD MAX9736BETJ+T TQFN-E
IC 802 759551480400 IC-SMD TS488IQT DFN8 T&R
IC 803 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 900 759551524700 IC-SMD MP2205ADL
IC 901 759551060700 IC NCP1117DTARK (DPAK)
IC 902 759551434500 IC-SMD ZTL431AFFTA SOT23F T
L 200 759551364700 FERRIT CHIP SBY100505T-102Y
L 201 759551364700 FERRIT CHIP SBY100505T-102Y
L 202 759551364700 FERRIT CHIP SBY100505T-102Y
L 203 759551364700 FERRIT CHIP SBY100505T-102Y
L 302 759550541900 SMD SPULE 1UH K0805
L 305 759551364700 FERRIT CHIP SBY100505T-102Y
L 703 759551364700 FERRIT CHIP SBY100505T-102Y
L 803 759551364700 FERRIT CHIP SBY100505T-102Y
L 804 759551364700 FERRIT CHIP SBY100505T-102Y
L 908 759551364700 FERRIT CHIP SBY100505T-102Y
Q 900 759551098300 TRANS BC847BDW1T1
S 001 759550451400 TASTSCHALTER
S 002 759550451400 TASTSCHALTER
S 500 759551175900 BUCHSE KOPFHOERER STEREO
S 501 759551435100 PCMCIA SINGLE BUCHSE KURZ
S 602 759551501100 CONN-SMD HDMI E110001-139 V
S 700 759551501400 EURO-AV-BUCHSE CS-102A-EN D
S 701 759551501300 BUCHSE VGA (DSUB15) 48203-9
S 703 759551501200 KOPFHOERERBU. EJ328-3 DIK 3
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL D6
CHASSIS BOARD D6
MATERIAL-NR. / PART NO.: 275991084700
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 700 759551098200 TRANS BC847BPDW1T
T 900 759551098300 TRANS BC847BDW1T1
T 901 759551501700 TRANS-SMD DMN3150L-7 30V 3.
T 903 759551501600 TRANS-SMD DMP2215L-7 20V 2.
T 904 759551098200 TRANS BC847BPDW1T
T 905 759551098300 TRANS BC847BDW1T1
T 906 759551098300 TRANS BC847BDW1T1
T 907 759551501600 TRANS-SMD DMP2215L-7 20V 2.
TU 301 759551505000 TUNER HYB DTT75416
X 200 759551473200 QUARZ -CHIP 24MHZ SMU4-22-3
Y 400 759551469400 QUARZ-CHIP 12MHZ 12PF-30/30
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 72
ǵ
GRUNDIG Service Chassis D6
ǵ
3 - 8
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
S
275991084800 LP-CHASSISMODUL D6 (GTG) CHASSIS BOARD D6 (GTG)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
F 300 759551500100 FILTER SAW HDAF389A7DC SIP5
F 301 759551500200 FILTER SAW HDVF389A1DC (OFW
IC 300 759551500300 IC-SMD MSB1210-LF LQFP48 T&
IC 301 759551468300 IC-SMD 74LVC1G66GW 165 TSSO
IC 400 759551504700 SW/IC T2 HDMI
IC 401 759551468400 IC-SMD HY5DU121622DTP-D43 T
IC 402 759551505100 IC-SMD MSD2338AL-LF-Z1 LQFP
IC 404 759551504800 SW/IC T2 SYSTEM
IC 500 759551498600 IC-SMD NC7SZ08P5X SOT353 T&
IC 501 759551500600 IC-SMD STMPS2151STR SOT23-5
IC 700 759551500800 IC-SMD TL082IPWR TSSOP8 T&R
IC 702 759551477200 IC-CHIP STMAV340TTR TSSOP16
IC 703 759551504900 SW/IC T2 VGA
IC 800 759551469200 IC-SMD MAX9736BETJ+T TQFN-E
IC 802 759551480400 IC-SMD TS488IQT DFN8 T&R
IC 803 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 900 759551524700 IC-SMD MP2205ADL
IC 901 759551060700 IC NCP1117DTARK (DPAK)
IC 902 759551434500 IC-SMD ZTL431AFFTA SOT23F T
L 200 759551364700 FERRIT CHIP SBY100505T-102Y
L 201 759551364700 FERRIT CHIP SBY100505T-102Y
L 202 759551364700 FERRIT CHIP SBY100505T-102Y
L 203 759551364700 FERRIT CHIP SBY100505T-102Y
L 302 759550541900 SMD SPULE 1UH K0805
L 305 759551364700 FERRIT CHIP SBY100505T-102Y
L 703 759551364700 FERRIT CHIP SBY100505T-102Y
L 803 759551364700 FERRIT CHIP SBY100505T-102Y
L 804 759551364700 FERRIT CHIP SBY100505T-102Y
L 908 759551364700 FERRIT CHIP SBY100505T-102Y
Q 900 759551098300 TRANS BC847BDW1T1
S 001 759550451400 TASTSCHALTER
S 002 759550451400 TASTSCHALTER
S 500 759551175900 BUCHSE KOPFHOERER STEREO
S 501 759551435100 PCMCIA SINGLE BUCHSE KURZ
S 602 759551501100 CONN-SMD HDMI E110001-139 V
S 700 759551501400 EURO-AV-BUCHSE CS-102A-EN D
S 701 759551501300 BUCHSE VGA (DSUB15) 48203-9
S 703 759551501200 KOPFHOERERBU. EJ328-3 DIK 3
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL D6
CHASSIS BOARD D6
MATERIAL-NR. / PART NO.: 275991084800
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 700 759551098200 TRANS BC847BPDW1T
T 900 759551098300 TRANS BC847BDW1T1
T 901 759551501700 TRANS-SMD DMN3150L-7 30V 3.
T 903 759551501600 TRANS-SMD DMP2215L-7 20V 2.
T 904 759551098200 TRANS BC847BPDW1T
T 905 759551098300 TRANS BC847BDW1T1
T 906 759551098300 TRANS BC847BDW1T1
T 907 759551501600 TRANS-SMD DMP2215L-7 20V 2.
TU 301 759551505000 TUNER HYB DTT75416
X 200 759551473200 QUARZ -CHIP 24MHZ SMU4-22-3
Y 400 759551469400 QUARZ-CHIP 12MHZ 12PF-30/30
TV
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
S
275991084900 LP-CHASSISMODUL D6 (VCC) CHASSIS BOARD D6 (VCC)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
F 300 759551500100 FILTER SAW HDAF389A7DC SIP5
F 301 759551500200 FILTER SAW HDVF389A1DC (OFW
IC 300 759551500300 IC-SMD MSB1210-LF LQFP48 T&
IC 301 759551468300 IC-SMD 74LVC1G66GW 165 TSSO
IC 400 759551504700 SW/IC T2 HDMI
IC 401 759551468400 IC-SMD HY5DU121622DTP-D43 T
IC 402 759551505100 IC-SMD MSD2338AL-LF-Z1 LQFP
IC 404 759551504800 SW/IC T2 SYSTEM
IC 500 759551498600 IC-SMD NC7SZ08P5X SOT353 T&
IC 501 759551500600 IC-SMD STMPS2151STR SOT23-5
IC 700 759551500800 IC-SMD TL082IPWR TSSOP8 T&R
IC 702 759551477200 IC-CHIP STMAV340TTR TSSOP16
IC 703 759551504900 SW/IC T2 VGA
IC 800 759551469200 IC-SMD MAX9736BETJ+T TQFN-E
IC 802 759551480400 IC-SMD TS488IQT DFN8 T&R
IC 803 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 900 759551524700 IC-SMD MP2205ADL
IC 901 759551060700 IC NCP1117DTARK (DPAK)
IC 902 759551434500 IC-SMD ZTL431AFFTA SOT23F T
L 200 759551364700 FERRIT CHIP SBY100505T-102Y
L 201 759551364700 FERRIT CHIP SBY100505T-102Y
L 202 759551364700 FERRIT CHIP SBY100505T-102Y
L 203 759551364700 FERRIT CHIP SBY100505T-102Y
L 302 759550541900 SMD SPULE 1UH K0805
L 305 759551364700 FERRIT CHIP SBY100505T-102Y
L 703 759551364700 FERRIT CHIP SBY100505T-102Y
L 803 759551364700 FERRIT CHIP SBY100505T-102Y
L 804 759551364700 FERRIT CHIP SBY100505T-102Y
L 908 759551364700 FERRIT CHIP SBY100505T-102Y
Q 900 759551098300 TRANS BC847BDW1T1
S 001 759550451400 TASTSCHALTER
S 002 759550451400 TASTSCHALTER
S 500 759551175900 BUCHSE KOPFHOERER STEREO
S 501 759551435100 PCMCIA SINGLE BUCHSE KURZ
S 602 759551501100 CONN-SMD HDMI E110001-139 V
S 700 759551501400 EURO-AV-BUCHSE CS-102A-EN D
S 701 759551501300 BUCHSE VGA (DSUB15) 48203-9
S 703 759551501200 KOPFHOERERBU. EJ328-3 DIK 3
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL D6
CHASSIS BOARD D6
MATERIAL-NR. / PART NO.: 275991084900
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 700 759551098200 TRANS BC847BPDW1T
T 900 759551098300 TRANS BC847BDW1T1
T 901 759551501700 TRANS-SMD DMN3150L-7 30V 3.
T 903 759551501600 TRANS-SMD DMP2215L-7 20V 2.
T 904 759551098200 TRANS BC847BPDW1T
T 905 759551098300 TRANS BC847BDW1T1
T 906 759551098300 TRANS BC847BDW1T1
T 907 759551501600 TRANS-SMD DMP2215L-7 20V 2.
TU 301 759551505000 TUNER HYB DTT75416
X 200 759551473200 QUARZ -CHIP 24MHZ SMU4-22-3
Y 400 759551469400 QUARZ-CHIP 12MHZ 12PF-30/30
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 73
ǵ
GRUNDIG Service Chassis D6
ǵ
3 - 9
Ersatzteilliste
Spare Parts List
12 / 2009
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
S
275991085000 LP-CHASSISMODUL D6 (HAD) CHASSIS BOARD D6 (HAD)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
F 300 759551500100 FILTER SAW HDAF389A7DC SIP5
F 301 759551500200 FILTER SAW HDVF389A1DC (OFW
IC 300 759551500300 IC-SMD MSB1210-LF LQFP48 T&
IC 301 759551468300 IC-SMD 74LVC1G66GW 165 TSSO
IC 400 759551504700 SW/IC T2 HDMI
IC 401 759551468400 IC-SMD HY5DU121622DTP-D43 T
IC 402 759551505100 IC-SMD MSD2338AL-LF-Z1 LQFP
IC 404 759551504800 SW/IC T2 SYSTEM
IC 500 759551498600 IC-SMD NC7SZ08P5X SOT353 T&
IC 501 759551500600 IC-SMD STMPS2151STR SOT23-5
IC 700 759551500800 IC-SMD TL082IPWR TSSOP8 T&R
IC 702 759551477200 IC-CHIP STMAV340TTR TSSOP16
IC 703 759551504900 SW/IC T2 VGA
IC 800 759551469200 IC-SMD MAX9736BETJ+T TQFN-E
IC 802 759551480400 IC-SMD TS488IQT DFN8 T&R
IC 803 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 900 759551524700 IC-SMD MP2205ADL
IC 901 759551060700 IC NCP1117DTARK (DPAK)
IC 902 759551434500 IC-SMD ZTL431AFFTA SOT23F T
L 200 759551364700 FERRIT CHIP SBY100505T-102Y
L 201 759551364700 FERRIT CHIP SBY100505T-102Y
L 202 759551364700 FERRIT CHIP SBY100505T-102Y
L 203 759551364700 FERRIT CHIP SBY100505T-102Y
L 302 759550541900 SMD SPULE 1UH K0805
L 305 759551364700 FERRIT CHIP SBY100505T-102Y
L 703 759551364700 FERRIT CHIP SBY100505T-102Y
L 803 759551364700 FERRIT CHIP SBY100505T-102Y
L 804 759551364700 FERRIT CHIP SBY100505T-102Y
L 908 759551364700 FERRIT CHIP SBY100505T-102Y
Q 900 759551098300 TRANS BC847BDW1T1
S 001 759550451400 TASTSCHALTER
S 002 759550451400 TASTSCHALTER
S 500 759551175900 BUCHSE KOPFHOERER STEREO
S 501 759551435100 PCMCIA SINGLE BUCHSE KURZ
S 602 759551501100 CONN-SMD HDMI E110001-139 V
S 700 759551501400 EURO-AV-BUCHSE CS-102A-EN D
S 701 759551501300 BUCHSE VGA (DSUB15) 48203-9
S 703 759551501200 KOPFHOERERBU. EJ328-3 DIK 3
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL D6
CHASSIS BOARD D6
MATERIAL-NR. / PART NO.: 275991085000
d©
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 700 759551098200 TRANS BC847BPDW1T
T 900 759551098300 TRANS BC847BDW1T1
T 901 759551501700 TRANS-SMD DMN3150L-7 30V 3.
T 903 759551501600 TRANS-SMD DMP2215L-7 20V 2.
T 904 759551098200 TRANS BC847BPDW1T
T 905 759551098300 TRANS BC847BDW1T1
T 906 759551098300 TRANS BC847BDW1T1
T 907 759551501600 TRANS-SMD DMP2215L-7 20V 2.
TU 301 759551505000 TUNER HYB DTT75416
X 200 759551473200 QUARZ -CHIP 24MHZ SMU4-22-3
Y 400 759551469400 QUARZ-CHIP 12MHZ 12PF-30/30
TV
Ersatzteilliste
Spare Parts List
3 / 2010
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL D6
CHASSIS BOARD D6
MATERIAL-NR. / PART NO.: 275991105400
d©
S 275991105400 LP-CHASSISMODUL D6 (HQE) CHASSIS BOARD D6 (HQE)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
F 300 759551500100 FILTER SAW HDAF389A7DC SIP5
F 301 759551500200 FILTER SAW HDVF389A1DC (OFW
IC 300 759551500300 IC-SMD MSB1210-LF LQFP48 T&
IC 301 759551468300 IC-SMD 74LVC1G66GW 165 TSSO
IC 400 759551504700 SW/IC T2 HDMI
IC 401 759551468400 IC-SMD HY5DU121622DTP-D43 T
IC 402 759551505100 IC-SMD MSD2338AL-LF-Z1 LQFP
IC 404 759551504800 SW/IC T2 SYSTEM
IC 500 759551498600 IC-SMD NC7SZ08P5X SOT353 T&
IC 501 759551528800 IC-SMD AP2151WG-7
IC 700 759551500800 IC-SMD TL082IPWR TSSOP8 T&R
IC 702 759551477200 IC-CHIP STMAV340TTR TSSOP16
IC 703 759551504900 SW/IC T2 VGA
IC 800 759551469200 IC-SMD MAX9736BETJ+T TQFN-E
IC 802 759551480400 IC-SMD TS488IQT DFN8 T&R
IC 803 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 900 759551524700 IC-SMD MP2205ADL
IC 901 759551508600 IC-CHIP AP1117DG-13
IC 902 759551434500 IC-SMD ZTL431AFFTA SOT23F T
L 200 759551364700 FERRIT CHIP SBY100505T-102Y
L 201 759551364700 FERRIT CHIP SBY100505T-102Y
L 202 759551364700 FERRIT CHIP SBY100505T-102Y
L 203 759551364700 FERRIT CHIP SBY100505T-102Y
L 302 759550541900 SMD SPULE 1UH K0805
L 305 759551364700 FERRIT CHIP SBY100505T-102Y
L 703 759551364700 FERRIT CHIP SBY100505T-102Y
L 803 759551364700 FERRIT CHIP SBY100505T-102Y
L 804 759551364700 FERRIT CHIP SBY100505T-102Y
L 908 759551364700 FERRIT CHIP SBY100505T-102Y
Q 900 759551098300 TRANS BC847BDW1T1
S 001 759550451400 TASTSCHALTER
S 002 759550451400 TASTSCHALTER
S 500 759551175900 BUCHSE KOPFHOERER STEREO
S 501 759551435100 PCMCIA SINGLE BUCHSE KURZ
S 602 759551501100 CONN-SMD HDMI E110001-139 V
S 700 759551501400 EURO-AV-BUCHSE CS-102A-EN D
S 701 759551501300 BUCHSE VGA (DSUB15) 48203-9
S 703 759551501200 KOPFHOERERBU. EJ328-3 DIK 3
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 700 759551098200 TRANS BC847BPDW1T
T 900 759551098300 TRANS BC847BDW1T1
T 901 759551501700 TRANS-SMD DMN3150L-7 30V 3.
T 903 759551501600 TRANS-SMD DMP2215L-7 20V 2.
T 904 759551098200 TRANS BC847BPDW1T
T 905 759551098300 TRANS BC847BDW1T1
T 906 759551098300 TRANS BC847BDW1T1
T 907 759551501600 TRANS-SMD DMP2215L-7 20V 2.
TU 301 759551505000 TUNER HYB DTT75416
X 200 759551473200 QUARZ -CHIP 24MHZ SMU4-22-3
Y 400 759551469400 QUARZ-CHIP 12MHZ 12PF-30/30
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 74
ǵ
GRUNDIG Service Chassis D6
ǵ
3 - 10
Ersatzteilliste
Spare Parts List
3 / 2010
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL D6
CHASSIS BOARD D6
MATERIAL-NR. / PART NO.: 275991105500
d©
S 275991105500 LP-CHASSISMODUL D6 (ABB) CHASSIS BOARD D6 (ABB)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
F 300 759551500100 FILTER SAW HDAF389A7DC SIP5
F 301 759551500200 FILTER SAW HDVF389A1DC (OFW
IC 300 759551500300 IC-SMD MSB1210-LF LQFP48 T&
IC 301 759551468300 IC-SMD 74LVC1G66GW 165 TSSO
IC 400 759551504700 SW/IC T2 HDMI
IC 401 759551468400 IC-SMD HY5DU121622DTP-D43 T
IC 402 759551505100 IC-SMD MSD2338AL-LF-Z1 LQFP
IC 404 759551504800 SW/IC T2 SYSTEM
IC 500 759551498600 IC-SMD NC7SZ08P5X SOT353 T&
IC 501 759551528800 IC-SMD AP2151WG-7
IC 700 759551500800 IC-SMD TL082IPWR TSSOP8 T&R
IC 702 759551477200 IC-CHIP STMAV340TTR TSSOP16
IC 703 759551504900 SW/IC T2 VGA
IC 800 759551469200 IC-SMD MAX9736BETJ+T TQFN-E
IC 802 759551480400 IC-SMD TS488IQT DFN8 T&R
IC 803 759551434500 IC-SMD ZTL431AFFTA SOT23F T
IC 900 759551524700 IC-SMD MP2205ADL
IC 901 759551508600 IC-CHIP AP1117DG-13
IC 902 759551434500 IC-SMD ZTL431AFFTA SOT23F T
L 200 759551364700 FERRIT CHIP SBY100505T-102Y
L 201 759551364700 FERRIT CHIP SBY100505T-102Y
L 202 759551364700 FERRIT CHIP SBY100505T-102Y
L 203 759551364700 FERRIT CHIP SBY100505T-102Y
L 302 759550541900 SMD SPULE 1UH K0805
L 305 759551364700 FERRIT CHIP SBY100505T-102Y
L 703 759551364700 FERRIT CHIP SBY100505T-102Y
L 803 759551364700 FERRIT CHIP SBY100505T-102Y
L 804 759551364700 FERRIT CHIP SBY100505T-102Y
L 908 759551364700 FERRIT CHIP SBY100505T-102Y
Q 900 759551098300 TRANS BC847BDW1T1
S 001 759550451400 TASTSCHALTER
S 002 759550451400 TASTSCHALTER
S 500 759551175900 BUCHSE KOPFHOERER STEREO
S 501 759551435100 PCMCIA SINGLE BUCHSE KURZ
S 602 759551501100 CONN-SMD HDMI E110001-139 V
S 700 759551501400 EURO-AV-BUCHSE CS-102A-EN D
S 701 759551501300 BUCHSE VGA (DSUB15) 48203-9
S 703 759551501200 KOPFHOERERBU. EJ328-3 DIK 3
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 700 759551098200 TRANS BC847BPDW1T
T 900 759551098300 TRANS BC847BDW1T1
T 901 759551501700 TRANS-SMD DMN3150L-7 30V 3.
T 903 759551501600 TRANS-SMD DMP2215L-7 20V 2.
T 904 759551098200 TRANS BC847BPDW1T
T 905 759551098300 TRANS BC847BDW1T1
T 906 759551098300 TRANS BC847BDW1T1
T 907 759551501600 TRANS-SMD DMP2215L-7 20V 2.
TU 301 759551505000 TUNER HYB DTT75416
X 200 759551473200 QUARZ -CHIP 24MHZ SMU4-22-3
Y 400 759551469400 QUARZ-CHIP 12MHZ 12PF-30/30
TV
Ersatzteilliste
Spare Parts List
6 / 2010
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL D6
CHASSIS BOARD D6
MATERIAL-NR. / PART NO.: 275991109400
d©
S 275991109400 LP-CHASSISMODUL D6 (BGF) CHASSISBOARD D6 (BGF)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
F 300 759551500100 FILTER SAW HDAF389A7DC SIP5
F 301 759551500200 FILTER SAW HDVF389A1DC (OFW
IC 300 759551500300 IC-SMD MSB1210-LF LQFP48 T&
IC 301 759551468300 IC-SMD 74LVC1G66GW 165 TSSO
IC 400 759551504700 SW/IC T2 HDMI
IC 401 759551468400 IC-SMD HY5DU121622DTP-D43 T
IC 402 759551505100 IC-SMD MSD2338AL-LF-Z1 LQFP
IC 404 759551504800 SW/IC T2 SYSTEM
IC 500 759551498600 IC-SMD NC7SZ08P5X SOT353 T&
IC 501 759551528800 IC-SMD AP2151WG-7
IC 700 759551544000 IC-SMD TL082LP08R
IC 702 759551477200 IC-CHIP STMAV340TTR TSSOP16
IC 703 759551504900 SW/IC T2 VGA
IC 800 759551469200 IC-SMD MAX9736BETJ+T TQFN-E
IC 802 759551480400 IC-SMD TS488IQT DFN8 T&R
IC 803 759551545000 IC-SMD TL431ASDT SOT23
IC 900 759551469300 IC-SMD ST1S10PUR DFN8 T&R
IC 901 759551508600 IC-CHIP AP1117DG-13
IC 902 759551545000 IC-SMD TL431ASDT SOT23
L 200 759551364700 FERRIT CHIP SBY100505T-102Y
L 201 759551364700 FERRIT CHIP SBY100505T-102Y
L 202 759551364700 FERRIT CHIP SBY100505T-102Y
L 203 759551364700 FERRIT CHIP SBY100505T-102Y
L 302 759550541900 SMD SPULE 1UH K0805
L 305 759551364700 FERRIT CHIP SBY100505T-102Y
L 703 759551364700 FERRIT CHIP SBY100505T-102Y
L 803 759551364700 FERRIT CHIP SBY100505T-102Y
L 804 759551364700 FERRIT CHIP SBY100505T-102Y
L 908 759551364700 FERRIT CHIP SBY100505T-102Y
Q 900 759551098300 TRANS BC847BDW1T1
S 001 759550451400 TASTSCHALTER
S 002 759550451400 TASTSCHALTER
S 500 759551175900 BUCHSE KOPFHOERER STEREO
S 501 759551435100 PCMCIA SINGLE BUCHSE KURZ
S 602 759551501100 CONN-SMD HDMI E110001-139 V
S 700 759551501400 EURO-AV-BUCHSE CS-102A-EN D
S 701 759551501300 BUCHSE VGA (DSUB15) 48203-9
S 703 759551501200 KOPFHOERERBU. EJ328-3 DIK 3
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 700 759551098200 TRANS BC847BPDW1T
T 900 759551098300 TRANS BC847BDW1T1
T 901 759551501700 TRANS-SMD DMN3150L-7 30V 3.
T 903 759551501600 TRANS-SMD DMP2215L-7 20V 2.
T 904 759551098200 TRANS BC847BPDW1T
T 905 759551098300 TRANS BC847BDW1T1
T 907 759551501600 TRANS-SMD DMP2215L-7 20V 2.
TU 301 759551505000 TUNER HYB DTT75416
X 200 759551473200 QUARZ -CHIP 24MHZ SMU4-22-3
Y 400 759551469400 QUARZ-CHIP 12MHZ 12PF-30/30
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Page 75
ǵ
GRUNDIG Service Chassis D6
3 - 11
Ersatzteilliste
Spare Parts List
6 / 2010
POS. NR. ABB. MATERIAL-NR. ANZ. BEZEICHNUNG DESCRIPTION
POS. NO. FIG. PART NUMBER QTY.
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
LP-CHASSISMODUL D6
CHASSIS BOARD D6
MATERIAL-NR. / PART NO.: 275991115100
d©
S 275991115100 LP-CHASSISMODUL D6 (AJQ) CHASSISBOARD D6 (AJQ)
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
F 300 759551500100 FILTER SAW HDAF389A7DC SIP5
F 301 759551500200 FILTER SAW HDVF389A1DC (OFW
IC 300 759551500300 IC-SMD MSB1210-LF LQFP48 T&
IC 301 759551468300 IC-SMD 74LVC1G66GW 165 TSSO
IC 400 759551504700 SW/IC T2 HDMI
IC 401 759551468400 IC-SMD HY5DU121622DTP-D43 T
IC 402 759551505100 IC-SMD MSD2338AL-LF-Z1 LQFP
IC 404 759551504800 SW/IC T2 SYSTEM
IC 500 759551498600 IC-SMD NC7SZ08P5X SOT353 T&
IC 501 759551528800 IC-SMD AP2151WG-7
IC 700 759551544000 IC-SMD TL082LP08R
IC 702 759551477200 IC-CHIP STMAV340TTR TSSOP16
IC 703 759551504900 SW/IC T2 VGA
IC 800 759551469200 IC-SMD MAX9736BETJ
IC 802 759551480400 IC-SMD TS488IQT DFN8 T&R
IC 803 759551545000 IC-SMD TL431ASDT SOT23
IC 900 759551469300 IC-SMD ST1S10PUR DFN8 T&R
IC 901 759551508600 IC-CHIP AP1117DG-13
IC 902 759551545000 IC-SMD TL431ASDT SOT23
L 200 759551364700 FERRIT CHIP SBY100505T-102Y
L 201 759551364700 FERRIT CHIP SBY100505T-102Y
L 202 759551364700 FERRIT CHIP SBY100505T-102Y
L 203 759551364700 FERRIT CHIP SBY100505T-102Y
L 302 759550541900 SMD SPULE 1UH K0805
L 305 759551364700 FERRIT CHIP SBY100505T-102Y
L 703 759551364700 FERRIT CHIP SBY100505T-102Y
L 803 759551364700 FERRIT CHIP SBY100505T-102Y
L 804 759551364700 FERRIT CHIP SBY100505T-102Y
L 908 759551364700 FERRIT CHIP SBY100505T-102Y
Q 900 759551098300 TRANS BC847BDW1T1
S 001 759550451400 TASTSCHALTER
S 002 759550451400 TASTSCHALTER
S 500 759551175900 BUCHSE KOPFHOERER STEREO
S 501 759551435100 PCMCIA SINGLE BUCHSE KURZ
S 602 759551501100 CONN-SMD HDMI E110001-139 V
S 700 759551501400 EURO-AV-BUCHSE CS-102A-EN D
S 701 759551501300 BUCHSE VGA (DSUB15) 48203-9
S 703 759551501200 KOPFHOERERBU. EJ328-3 DIK 3
POS. NR. MATERIAL-NR. BEZEICHNUNG
POS. NO. PART NUMBER DESCRIPTION
T 700 759551098200 TRANS BC847BPDW1T
T 900 759551098300 TRANS BC847BDW1T1
T 901 759551501700 TRANS-SMD DMN3150L-7 30V 3.
T 903 759551501600 TRANS-SMD DMP2215L-7 20V 2.
T 904 759551098200 TRANS BC847BPDW1T
T 905 759551098300 TRANS BC847BDW1T1
T 906 759551098300 TRANS BC847BDW1T1
T 907 759551501600 TRANS-SMD DMP2215L-7 20V 2.
TU 301 759551505000 TUNER HYB DTT75416
X 200 759551473200 QUARZ -CHIP 24MHZ SMU4-22-3
Y 400 759551469400 QUARZ-CHIP 12MHZ 12PF-30/30
TV
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Mat.-Nummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
The regulations and safety instructions shall be valid
!
as provided by the "Safety" Service Manual, part
number 720108000001, as well as the respective
( ! )
national deviations.
ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION
Loading...
