IMPORTANT NOTICE
1
NEED HELP?
CALL OUR HOTLINE
OWNER’S RECORD
If, after reading this owner’s manual, you need
help learning to operate your MINI WORLDBAND 100PE,
call GRUNDIG toll free, Monday through Friday , 8.30 am
to 4.30 pm, PST at:
1-800-872-2228 from the U.S.
1-800-637-1648 from Canada
This model is the GRUNDIG MINI WORLDBAND 100
PROFESSIONAL EDITION (PE), an AM/FM-Stereo with
Earphones and 6 Shortwave bands.
The serial number is located on the sticker inside the battery
compartment. Refer to this number whenever you call
GRUNDIG regarding this product.
Page 4

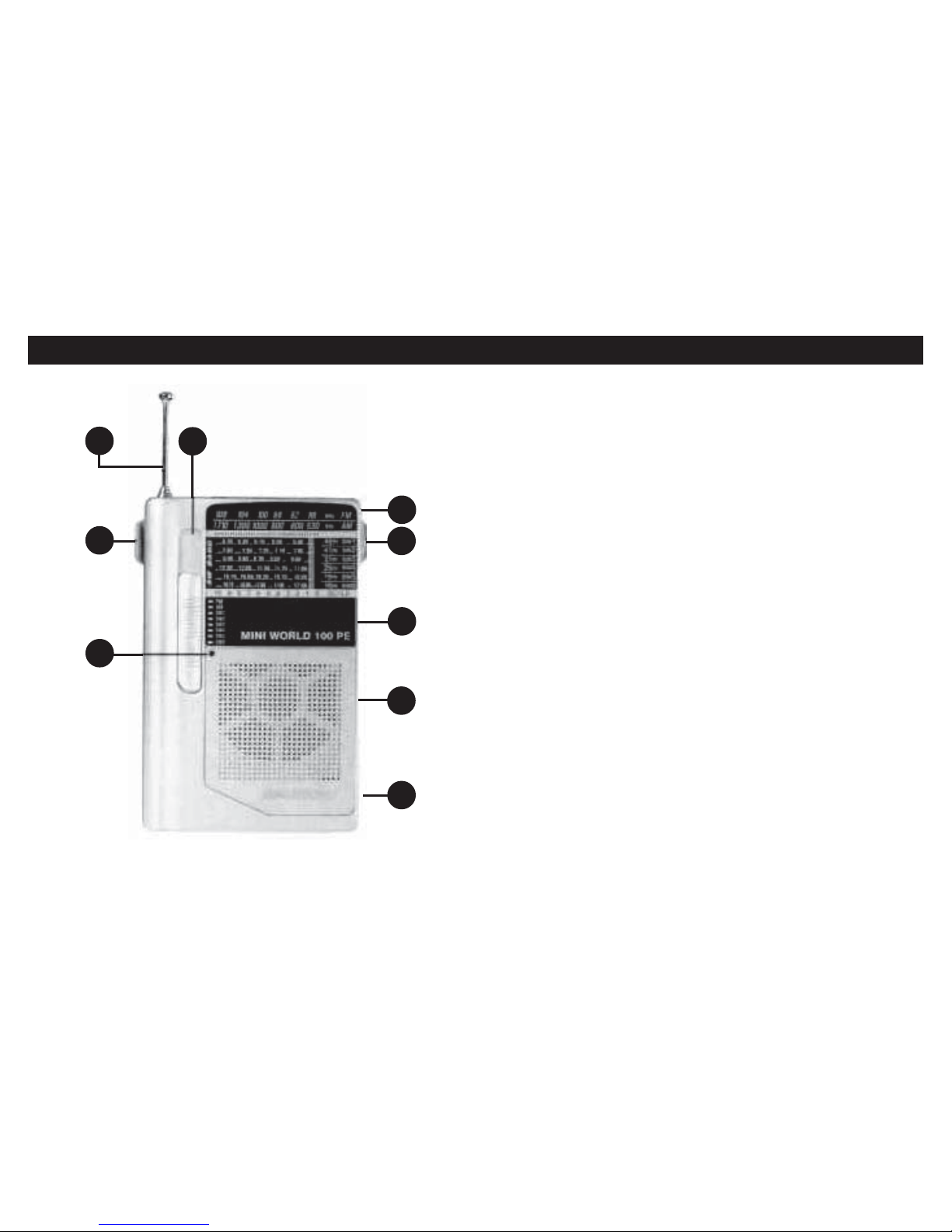

CONTROL LOCA TIONS
2
1. T elescopic Antenna for FM/SW
2. Band Selector
3. Frequency T uning Dial Scale Display
4. T uning Dial
5. V olume and Power On/Off Switch
6. Earphone Jack
7. Battery Compartment (on back)
8. LED T uning Indicator
9. Removable Belt Clip (on back)
1
2
3
4
5
6
7
8
9
Page 5
USING THE RADIO
3
Install 2 AA size batteries (not included) into the Battery
Compartment at the rear of the radio (See Control Locations
item #7 previous page).
T urn ON the radio (#5) and adjust the Volume (#5) to the
desired listening level.
Select the required frequency range with the Band
Selector (#2).
Select the desired radio station by turning the Tuning Dial
(#4). When a strong signal is obtained the Tuning LED indicator will light (#8).
FOR AM the set is provided with a built in antenna which
may be directed by turning the entire set.
FOR FM/SW the T elescopic Antenna (#1) must be extended
completely for best reception.
FOR FM-STEREO use the Earphones (included) in the
Earphone Jack (#6).
Page 6
SPECIFICA TIONS
4
1. Frequency Range
FM: 88 - 108 MHz
AM: 525 - 1710 KHz
SW1 (49m): 5.80 - 6.40 MHz
SW2 (41m): 6.90 - 7.50 MHz
SW3 (31m): 9.40 - 10.00 MHz
SW4 (25m): 11.65 - 12.15 MHz
SW5 (19m): 15.00 - 15.65 MHz
SW6 (16m): 17.50 - 18.14 MHz
2. Power Output: 100mw
3. Speaker: 0.45mm, 0.25mw , 4ohm
4. Power Supply: 2 x AA batteries (not included)
DC 3V
5. Earphone: 8-32ohm, 3.5mm dia. plug
6. Dimensions: 4 1/2”H x 2 5/8”W x 13/16”D
