Grundfos UPS3 15-50/65 Installation And Operating Instructions Manual

UPS3

Installation and operating instructions

GRUNDFOS INSTRUCTIONS

English (GB)

2

English (GB) Installation and operating instructions

Original installation and operating instructions

These installation and operating instructions describe Grundfos
UPS3.

Sections 1-4 give the information necessary to be able to unpack,
install and start up the product in a safe way.

Sections 5-11 give important information about the product, as
well as information on service, fault finding and disposal of the
product.

CONTENTS

Page

1. General information

1.1 Hazard statements

The symbols and hazard statements below may appear in
Grundfos installation and operating instructions, safety
instructions and service instructions.

The text accompanying the three hazard symbols DANGER,
WARNING and CAUTION is structured in the following way:

The hazard statements are structured in the following way:

1. General information

2

1.1 Hazard statements

2

1.2 Notes

3

2. Receiving the product

3

2.1 Inspecting the product

3

2.2 Scope of delivery

3

3. Installing the product

3

3.1 Mechanical installation

3

3.2 Pump positions

4

3.3 Control box positions

4

3.4 Insulating the pump housing

4

3.5 Electrical connection

5

3.6 Assembling the installer plug

6

4. Starting up the product

7

4.1 Before startup

7

4.2 Starting up the pump

7

4.3 Venting the pump

7

5. Product introduction

8

5.1 Product description

8

5.2 Applications

8

5.3 Pumped liquids

8

5.4 Identification

8

5.5 Accessories

9

5.6 Power supply

10

6. Control functions

11

6.1 Operating panel

11

6.2 Control modes

11

6.3 Pump performance

13

7. Setting the product

14

7.1 Constant curve I, II, III

14

7.2 Proportional pressure I, II and constant pressure mode
I, II

14

7.3 Setting the PWM input signal

14

8. Servicing the product

15

8.1 Dismantling the product

15

8.2 Dismantling the plug

15

9. Fault finding the product

16

9.1 Deblocking the shaft

17

10. Technical data

18

10.1 Dimensions, UPS3 15-50/65

19

10.2 Curve conditions

20

10.3 Performance curve, UPS3 15-50/65

20

11. Disposing of the product

21

Read this document and the quick guide before you
install the product. Installation and operation must
comply with local regulations and accepted codes of
good practice.

This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.

DANGER

Indicates a hazardous situation which, if not avoided,
will result in death or serious personal injury.

WARNING

Indicates a hazardous situation which, if not avoided,
could result in death or serious personal injury.

CAUTION

Indicates a hazardous situation which, if not avoided,
could result in minor or moderate personal injury.

SIGNAL WORD

Description of hazard

Consequence of ignoring the warning.

- Action to avoid the hazard.

English (GB)

3

1.2 Notes

The symbols and notes below may appear in Grundfos
installation and operating instructions, safety instructions and
service instructions.

2. Receiving the product

2.1 Inspecting the product

Check that the product received is in accordance with the order.
Check that the voltage and frequency of the product match

voltage and frequency of the installation site. See section

5.4.1 Nameplate.

2.2 Scope of delivery

The box contains the following items:

• UPS3 pump

• installer plug

• two gaskets

• quick guide.

3. Installing the product

3.1 Mechanical installation

3.1.1 Mounting the product

1. The arrows on the pump housing indicate the flow direction
through the pump. See fig. 1.

2. Fit the two gaskets supplied with the pump when you mount
the pump in the pipe. Install the pump with a horizontal motor
shaft. See fig. 2. See also section 3.3 Control box positions.

3. Tighten the fittings. See fig. 3.

Fig. 1 Flow direction

Fig. 2 Pump installation

Fig. 3 Tightening the fittings

Observe these instructions for explosion-proof
products.

A blue or grey circle with a white graphical symbol
indicates that an action must be taken.

A red or grey circle with a diagonal bar, possibly with
a black graphical symbol, indicates that an action
must not be taken or must be stopped.

If these instructions are not observed, it may result in
malfunction or damage to the equipment.

Tips and advice that make the work easier.

TM07 0368 1518TM07 0369 1518TM07 0370 1518

English (GB)

4

3.2 Pump positions

Always install the pump with a horizontal motor shaft. Do not
install the pump with a vertical motor shaft. See fig. 4, bottom row.

• Pump installed correctly in a vertical pipe. See fig. 4, top row,
left.

• Pump installed correctly in a horizontal pipe. See fig. 4, top
row, right.

Fig. 4 Pump positions

3.3 Control box positions

The control box can be mounted in all positions. See fig. 5.

Fig. 5 Possible control box positions

3.3.1 Changing the control box position

3.4 Insulating the pump housing

Fig. 6 Insulating the pump housing

You can reduce the heat loss from the pump and pipe by
insulating the pump housing and the pipe with insulating shells,
which can be ordered as an accessory. See section

5.5.2 Insulating shells.

TM07 0371 1518

DANGER

Electric shock

Death or serious personal injury

- Switch off the power supply before starting any
work on the product. Make sure that the power
supply cannot be accidentally switched on.

CAUTION

Hot surface

Minor or moderate personal injury

- The pump housing may be hot due to the pumped
liquid being scalding hot. Close the isolating valves
on both sides of the pump and wait for the pump
housing to cool down.

CAUTION

Pressurised system

Minor or moderate personal injury

- Before dismantling the pump, drain the system or
close the isolating valves on both sides of the
pump. The pumped liquid may be scalding hot
and under high pressure.

TM06 7297 0918

Step Action Illustration

1

Make sure that
the inlet and
outlet valves are
closed.
Unscrew the
screws on the
pump head.

TM07 0372 1518

2

Turn the pump
head to the
desired position.

TM07 0373 1518

3

Refit the screws
on the pump
head.

TM07 0374 1518

TM07 0375 1518

Do not insulate the control box or cover the operating
panel.

English (GB)

5

3.5 Electrical connection

• The motor requires no external motor protection.

• Check that the supply voltage and frequency correspond to
the values stated on the nameplate. See section

5.4.1 Nameplate.

• Connect the pump to the power supply with the plug supplied
with the pump. See steps 1 to 7.

DANGER

Electric shock

Death or serious personal injury

- All electrical connections must be carried out by a
qualified electrician in accordance with local
regulations.

DANGER

Electric shock

Death or serious personal injury

- Switch off the power supply before starting any
work on the product. Make sure that the power
supply cannot be accidentally switched on.

DANGER

Electric shock

Death or serious personal injury

- Connect the pump to earth.

- Connect the pump to an external main switch with
a minimum contact gap of 3 mm in all poles.

DANGER

Electric shock

Death or serious personal injury

- If national legislation requires a Residual-Current
Device (RCD) or equivalent in the electrical
installation, or if the pump is connected to an
electric installation where an RCD is used as an
additional protection, this must be type A or better,
due to the nature of the pulsating DC leakage
current. The RCD must be marked with the symbol
shown below:

English (GB)

6

3.6 Assembling the installer plug

Step Action Illustration

1

Loosen the cable
gland and unscrew
the union nut in the
centre of the terminal
cover.

TM06 8542 0918

2

Detach the terminal
cover.

TM06 8543 0918

3

Pull the power cable
through the cable
gland and terminal
cover.

TM06 8544 0918

4

Strip the cable
conductors as
illustrated.

TM06 8545 0918

5

Loosen the screws
on the power supply
plug and connect the
cable conductors.

TM06 8546 0918 - TM06 8547 0918

6

Tighten the screws
on the power supply
plug.

TM06 8548 0918

L

PE

N

42 mm

32 mm

Ø 5.5 - 10 mm

0.5 - 1.5 mm

2

x 3

x 3

7

Refit the terminal
cover. See A.

Note: It is possible to
turn the power
supply plug on the
side for a 90 ° cable
entry. See B.

TM06 8549 0918 - TM06 8550 0918

8

Tighten the union
nut.

TM06 8551 0918

9

Tighten the cable
gland onto the power
supply plug.

TM06 8552 0918

10

Insert the power
supply plug into the
male plug on the
pump.

TM07 0376 1518

Step Action Illustration

B

A

English (GB)

7

4. Starting up the product

4.1 Before startup

Do not start the pump until the system has been filled with liquid
and vented. Make sure that the required minimum inlet pressure
is available at the pump inlet. See section 10. Technical data.

When using the pump for the first time, the system must be
vented at the highest point. The pump is self-venting through the
system.

4.2 Starting up the pump

4.3 Venting the pump

Fig. 7 Venting the pump

Small air pockets trapped inside the pump may cause noise when
starting up the pump. However, because the pump is self-venting
through the system, the noise ceases over a period of time.

To speed up the venting process, do as follows:

1. Set the pump to speed III using the push-button on the
operating panel.

2. Let the pump run for approximately 30 minutes. How fast the
pump is vented depends on the system size and design.

When you have vented the pump, that is when the noise has
ceased, set the pump according to the recommendations. See
section 6. Control functions.

Step Action Illustration

1

Open the inlet and
outlet valves.

TM07 0377 1518

2

Switch on the power
supply.

TM06 8555 1317

3

The lights in the
operating panel
indicates that the
power supply has
been switched on
and the pump is
running.

TM07 0378 1518

0/Off

1/On

TM07 1416 1618

The pump must not run dry.

The pump is from factory set to constant curve III.

Hold 3 sec.

=

30 min.

English (GB)

8

5. Product introduction

5.1 Product description

UPS3 can be used as stand-alone or integrated circulator pump
in existing systems as replacement or in new systems with either
variable or constant flow rate.

5.1.1 Model type

These installation and operating instructions cover UPS3. The
model type is stated on the packaging and nameplate.

5.2 Applications

UPS3 is designed for circulating liquids in all kinds of heating
applications. The pumps are suitable for the following systems:

• Systems with constant or variable flows where it is desirable to
optimise the pump duty point.

• Installation in existing systems where the differential pressure
of the pump is too high during periods of reduced flow
demand.

• Installation in new systems for automatic adjustment of the
performance to flow demands without the use of bypass
valves or similar expensive components.

The speed can be controlled by a low-voltage PWM (Pulse Width
Modulation) signal.

High-efficiency ECM (Electronically Commutated Motor) pumps,
such as UPS3, must not be speed-controlled by an external
speed controller varying or pulsing the supply voltage.

The speed can be controlled by a low-voltage PWM (Pulse Width
Modulation) signal.

5.3 Pumped liquids

In heating systems, the water must meet the requirements of
accepted standards on water quality in heating systems, for
example the German guideline VDI 2035.

The pump is suitable for clean, thin, non-aggressive and
non-explosive liquids, not containing solid particles, fibres or
mineral oil.

• Maximum water/propylene glycol mixture is 50 %

• Maximum 10 mm

2

/s viscosity

Note: The water/propylene glycol mixture reduces the
performance due to higher viscosity.

See section 10. Technical data for further information.

5.4 Identification

5.4.1 Nameplate

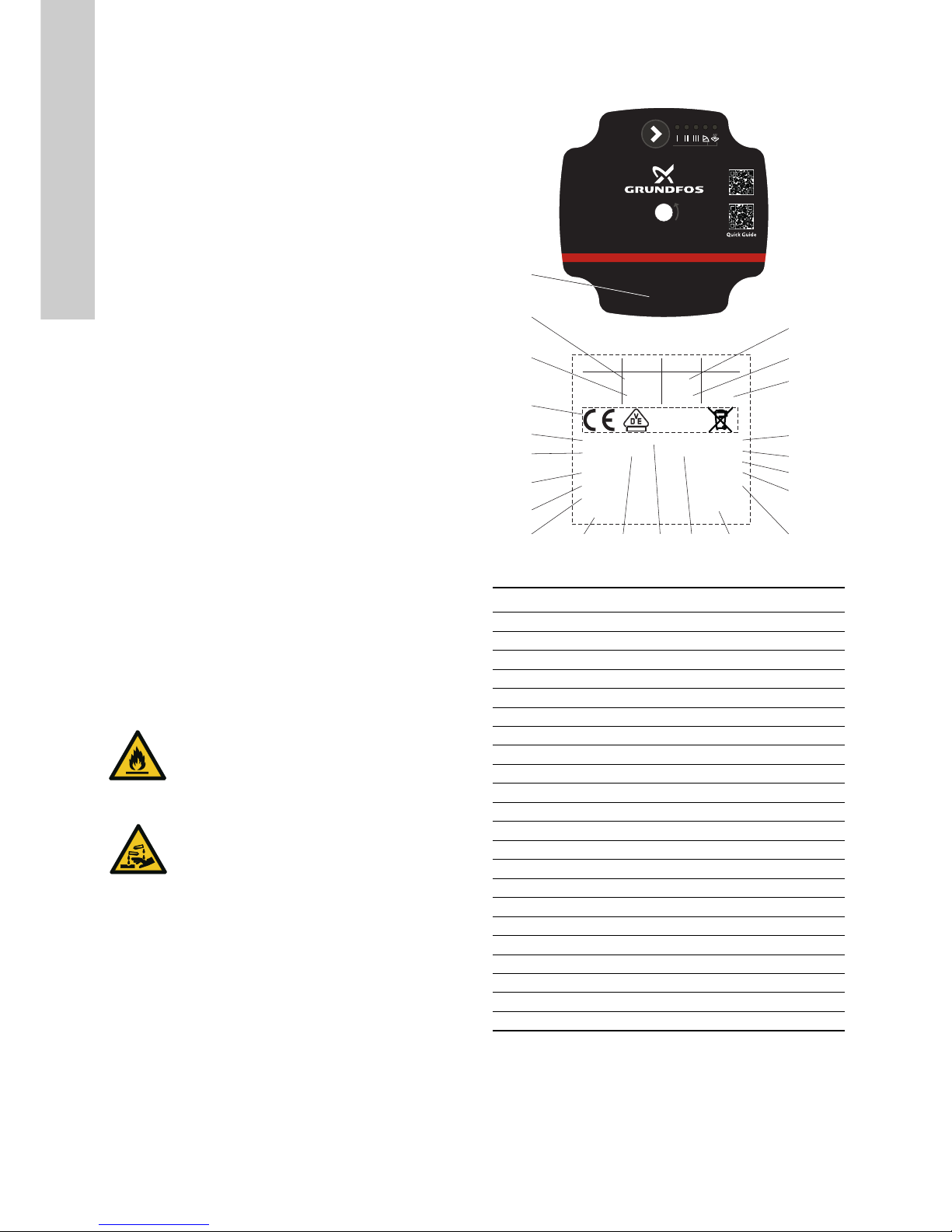

Fig. 8 Nameplate

CAUTION

Flammable material

Minor or moderate personal injury

- Do not use the pump for flammable liquids, such
as diesel oil and petrol.

CAUTION

Corrosive substance

Minor or moderate personal injury

- Do not use the pump for aggressive liquids, such
as acids and seawater.

TM07 0791 1618

Pos. Description

1 Pump name
2 Minimum current [A]
3 Maximum current [A]
4 CE mark and approvals
5 Energy Efficiency Index, EEI
6 Voltage [V]
7Product type
8 Material number

9 Serial number
10 Country of manufacture
11 Frequency [Hz]
12 Part, according to EEI
13 Enclosure class
14 Manufacturer’s name and address
15 Production code, year and week
16 Minimum liquid temperature
17 VDE code
18 TF class
19 Average compensated power input PL, avg [W]
20 Maximum system pressure
21 Maximum input power [W]
22 Minimum input power [W]

1

l1/1(A)

Grundfos Holding A/S

DK-8850 Bjerringbro

P1(W) MPa

Min.
Max.

X.XX
X.XXXXXXX X.X

((,0.XX - Part X

XXXV ~ XX/XXHz IPXXX TFXXX

P/N:XXXXXXXX PC:XXXXXXX
S/N:XXXXXXXX
Made in XXXXXXX

PL.avg.<XXW

Denmark

2

3

4

5

6

7

8

9

22

21

20

19

18
17

16

15

13 1410 11 12

Min.XX°CModel:XXXXXX X

GFNXX

UPS3

Hold 3 sec.

English (GB)

9

5.4.2 Type key

5.5 Accessories

5.5.1 Unions and valve kits

Note: The product numbers are always for one complete set,
including gaskets. The product numbers for the standard sizes
are printed in bold.

G-threads have a cylindrical form in accordance with the EN ISO
228-1 standard and are not sealing the thread. It requires a flat
gasket. You can only screw male G-threads (cylindrical) into
female G-threads. The G-threads are standard thread on the
pump housing.

R-threads are tapered external threads in accordance with the EN
10226-1 standard.

Rc- or Rp-threads are internal threads with either tapered or
cylindrical (parallel) threads. You can screw male R-threads
(conical) into female Rc- or Rp-threads. See fig. 9.

Fig. 9 G-threads and R-threads

Example UPS3 15 50/65 130

Pump type
Nominal diameter (DN) of inlet and outlet

ports [mm]
Maximum head [dm]
[ ]: Cast-iron pump housing
Port-to-port length [mm]

Product numbers, unions

Union nut with internal

threads

Union nut with

external threads

UPS3

Connection

3/4 1 1 1/4 1 1 1/4

15-xx G 1 1/2 529921 529922 529821 529925 529924

TM06 7632 3616

Rp

R

R

Rp

Rc

G

English (GB)

10

5.5.2 Insulating shells

The insulating shells, which are tailored to the individual pump
type, can be ordered as accessories. It is easy to fit the insulating
shells around the pump.

5.5.3 Control box connections

The UPS3 control box has two electrical connections on one side:
the power supply and the control signal connection.

5.6 Power supply

The installer plug is supplied with the pump and is available as an
accessory.

Power cable adapters are also available as accessories.

5.6.1 Control signal connection

The control signal cable connection has three conductors: the
signal input, the signal output and the signal reference. Connect
the cable to the control box by a mini superseal plug. See fig. 11.
The optional signal cable can be supplied with the circulator as
an accessory.

The PWM signal connection is covered by a blind plug from the
factory. See fig. 10.

Fig. 10 Control signal connection

Fig. 11 Mini superseal plug

5.6.2 Cables and plugs

Pump type Product number

UPS3 15-50/65 99270706

TM07 0379 1518

TM06 58210216

1 x 230 V + 10 / -15%
∽ 50/60 Hz

Picture Product description

Length

[mm]

Product
number

Installer plug 99439948

Signal cable with mini superseal 2000 99165309

English (GB)

11

6. Control functions

6.1 Operating panel

Fig. 12 Operating panel

The operating panel shows the following:

• The control mode, after pressing the button

• Alarm status

6.1.1 Alarm or warning

If the pump has detected one or more alarms or warnings, the
first LED switches from green to red. When the fault has been
resolved the operating panel switches back to operating status.

See section 9. Fault finding the product.

6.2 Control modes

The pump has seven different control modes. Learn more about
them in the following sections.

6.2.1 Constant curve or constant speed, I, II or III (factory
setting)

At constant-curve or constant-speed operation, the pump runs at
a constant curve. The pump performance follows the selected
performance curve, I, II or III. See fig. 15 where II has been
selected.

Fig. 13 Constant-curve/-speed curve

The selection of the constant-curve or constant-speed setting
depends on the characteristics of the heating system in question.

6.2.2 Proportional pressure I, II

In proportional-pressure mode the pump performance follows the
selected performance curve I or II and adjusts the pump
performance to the actual heat demand in the system following
the proportional-pressure curve.

Fig. 14 Proportional-pressure curve

* Proportional pressure mode is not recommended in heating

systems that include an automatic bypass valve to ensure a
minimum flow for the heating appliances.

6.2.3 Constant pressure I, II

In constant-pressure mode the pump follows the selected
constant-pressure curve I or II, adjusts the pump performance to
the actual heat demand in the system following the selected
constant-pressure curve.

Fig. 15 Constant-pressure curve

Heating systems are relatively slow systems that cannot be set to
the optimum operation within minutes or hours.

If the recommended pump setting does not give the desired
distribution of heat in the rooms of the house, change the pump
setting to the shown alternative.

TM07 1516 1618

Symbol Description

Push-button

I, II, III

Constant curve or constant speed curve I, II and
III

Proportional-pressure mode I, II

Constant-pressure mode, I, II

TM06 8822 1217

The pump is factory-set to constant curve III.

UPS3

Hold 3 sec.

Q

H

System

type

Recommended control

mode

Alternative control

mode

One-pipe

heating
system

Constant-pressure mode.

See section 6.2.3 Constant

pressure I, II

Constant curve or

constant speed, I, II

or III.

TM07 1552 1618

System

type

Recommended

control mode

Alternative control mode

Two-pipe

system

Proportional-

pressure mode*

Constant curve or constant

speed I, II, III, see section

6.2.1 Constant curve or

constant speed, I, II or III

(factory setting)

TM07 1553 1618

System

type

Recommended

control mode

Alternative control mode

Underfloor

heating

system

Constant-pressure

mode

Constant curve or constant

speed I, II, III, see section

6.2.1 Constant curve or

constant speed, I, II or III

(factory setting)

Q

H

I

II

Q

H

I

II

English (GB)

12

6.2.4 Selecting the control modes

Proportional pressure

We recommend proportional-pressure mode in variable flow
systems with relatively large pressure losses in the distribution
pipes such as:

• two-pipe heating systems with thermostatic valves and long

distribution pipes

• two-pipe heating systems with thermostatic valves and high

pressure losses in system parts with total flow

• primary circuit pumps in systems with large pressure losses in

the primary circuit.

Note: Proportional-pressure mode is not recommended in
heating systems that includes an automatic bypass valve to
ensure a minimum flow for the heating appliances.

Constant pressure

We recommend constant-pressure mode in variable flow systems
with relatively small pressure losses in the distribution pipes such
as:

• two-pipe heating systems with thermostatic valves and

dimensioned for natural circulation (former gravity systems)

• two-pipe heating systems with thermostatic valves and low

pressure losses in system parts with total flow

• one-pipe heating systems with thermostatic valves or pipe

balancing valves

• underfloor heating systems with zone valves

• primary circuit pumps in systems with small pressure losses in

the primary circuit.

Constant curve

We recommend constant-curve mode in constant-flow systems,
where both a constant flow rate and a constant head are required,
such as:

• heat surfaces

• replacement for uncontrolled circulators, for instance

integrated in boilers.

6.2.5 Externally controlled signal connection: PWM input
signal profile A (heating)

The UPS3 can be controlled via a digital low-voltage pulse-width
modulation (PWM) signal. For instructions on how to set the
connection, see section 7.3 Setting the PWM input signal.

The circulator runs on constant-speed curves depending on the
PWM input signal. The speed decreases when the PWM value
increases. If PWM equals 0, the circulator runs at maximum
speed.

Fig. 16 PWM input signal profile A (heating)

6.2.6 PWM feedback signal - power consumption

The PWM feedback signal offers pump information like in BUS
systems:

• current power consumption (accuracy ± 2 % of PWM signal)

• warning

•alarm

• operation status.

Alarms

Alarm output signals are available because some PWM output
signals are dedicated to alarm information. If a supply voltage is
measured below the specified supply voltage range, the output
signal is set to 75 %. If the rotor is locked due to deposits in the
hydraulics, the output signal is set to 90 % because this alarm
has a higher priority. See fig. 17.

Fig. 17 PWM feedback signal - power consumption

TM06 9136 1617

PWM input signal [%] Pump status

≤ 10 Maximum speed: max.
> 10 / ≤ 84 Variable speed: min. to max.
> 84 / ≤ 91 Minimum speed: IN
> 91/95 Hysteresis area: on/off
> 95 or ≤ 100 Standby mode: off

PWM input signal [%]

Max.

Speed

PWM input signal [%]

Max.

Speed [rpm]

TM07 1313 1118

25 50 100 150 200 250

10

20

30

40

50

60

70

80

90

100

Power [W]

Standby (stop)
Alarm stop: fault, blocked pump
Alarm stop: electrical fault

Warning Saturation at 70 Watt

S

l

o

p

e

:

1

W

/

%P

W

M

PWM output signal [%]

English (GB)

13

6.3 Pump performance

Figure 18 shows the relation between pump setting and pump performance by means of curves.

Fig. 18 Pump setting in relation to pump performance

TM07 1541 1618

Setting Pump curve Function

I

Constant curve or constant
speed I

The pump runs at a constant speed and consequently on a constant curve.
At speed I, the pump is set to run on the minimum curve under all operating conditions.

II

Constant curve or constant
speed II

The pump runs at a constant speed and consequently on a constant curve.
At speed II, the pump is set to run on the intermediate curve under all operating conditions.

III

Constant curve or constant
speed III (factory setting)

The pump runs at a constant speed and consequently on a constant curve.
At speed III, the pump is set to run on the maximum curve under all operating conditions.
Quick venting of the pump can be obtained by setting the pump to speed III for a short
period.

Proportional-pressure mode I,
II

The duty point of the pump will move up or down on a proportional-pressure curve,
depending on the heat demand in the system.
The head (pressure) is reduced at falling heat demand and increased at rising heat demand.

Constant-pressure mode I, II

The duty point of the pump will move out or in on a constant-pressure curve, depending on
the heat demand in the system.
The head (pressure) is kept constant, irrespective of the heat demand.

Q

H

English (GB)

14

7. Setting the product

7.1 Constant curve I, II, III

To set the product to constant curve I, II or III use the push-button
on the operating panel. Every time you press the push-button, the
pump setting is changed. The loop consists of four button
presses. The LEDs will indicate the chosen control mode. See fig.

19.

To learn more about each control mode, see section 6.2 Control

modes.

7.2 Proportional pressure I, II and constant pressure
mode I, II

To select a proportional-pressure or constant-pressure curve,
press and hold the push-button for 3 seconds. The LEDs will
indicate proportional pressure I. See fig. 19.

Press the push-button until you have set the pump to the desired
control mode. The loop consists of four button presses. The LEDs
will indicate the chosen control mode. See fig. 19.

To return to constant-curve settings, press and hold the button for
3 seconds.

To learn more about each control mode, see section 6.2 Control

modes.

Fig. 19 Operating panel LEDs indicating the different control modes

7.3 Setting the PWM input signal

To enable the external control mode (PWM profile A), you need a
signal cable connected to an external system. The cable
connection has three conductors: the signal input, the signal
output and the signal reference.

The cable is not supplied with the pump but can be ordered as an
accessory.

Fig. 20 Mini superseal plug

Set the signal connection

1. Make sure that the pump is turned off.

2. The PWM signal connection is covered by a blind plug.

Remove the plug.

3. Connect the signal cable with the mini superseal plug.

4. Switch on the power supply.

5. The pump automatically detects if a valid PWM signal is

available after which it enables the control mode on the pump.
See fig. 21.

Fig. 21 Connecting the signal cable to the UPS3

The pump is factory set to constant curve III.

TM07 0144 4817

PWM A PROFILE

CONSTANT CURVE I

CONSTANT CURVE II

CONSTANT CURVE III

3 s.

PP I

PP II

CP I

CP II

The cable must be connected to the control box via a
mini superseal plug. See fig. 20.

TM06 5821 0216

TM07 0379 1518

1 x 230 V + 10 / -15%
∽ 50/60 Hz

English (GB)

15

8. Servicing the product

8.1 Dismantling the product

1. Switch off the power supply.

2. Pull out the plug. For instructions on how to dismantle the
plug, see section 8.2 Dismantling the plug.

3. Close the two isolating valves on both sides of the pump.

4. Loosen the fittings.

5. Remove the pump from the system.

8.2 Dismantling the plug

1. Loosen the cable gland and unscrew the union nut in the
centre of the terminal cover.

2. Detach the terminal cover.

3. Loosen the screws on the power supply plug and disconnect
the cable conductors.

4. Pull the power cable back through the cable gland and
terminal cover.

DANGER

Electric shock

Death or serious personal injury

- All electrical connections must be carried out by a
qualified electrician in accordance with local
regulations.

DANGER

Electric shock

Death or serious personal injury

- Switch off the power supply before starting any
work on the product. Make sure that the power
supply cannot be accidentally switched on.

CAUTION

Hot surface

Minor or moderate personal injury

- The pump housing may be hot due to the pumped
liquid being scalding hot. Close the isolating valves
on both sides of the pump and wait for the pump
housing to cool down.

CAUTION

Pressurised system

Minor or moderate personal injury

- Before dismantling the pump, drain the system or
close the isolating valves on both sides of the
pump. The pumped liquid may be scalding hot
and under high pressure.

English (GB)

16

9. Fault finding the product

If the pump has detected one or more alarms, the first LED
switches from green to red. When an alarm is active, the LEDs
indicate the alarm type as defined in fig. 22.

When there is no active alarm anymore, the operating panel
switches back to operating status and the first LED switches from
red to green.

Fig. 22 Fault finding table

If multiple alarms are active at the same time, the
LEDs only show the error with the highest priority.
The priority is defined by the sequence of the table.

DANGER

Electric shock

Death or serious personal injury

- Switch off the power supply before starting any
work on the product. Make sure that the power
supply cannot be accidentally switched on.

CAUTION

Hot surface

Minor or moderate personal injury

- The pump housing may be hot due to the pumped
liquid being scalding hot. Close the isolating valves
on both sides of the pump and wait for the pump
housing to cool down.

CAUTION

Pressurised system

Minor or moderate personal injury

- Before dismantling the pump, drain the system or
close the isolating valves on both sides of the
pump. The pumped liquid may be scalding hot
and under high pressure.

Status Fault Display Solution

Alarm

The pump
stops.
The pump is
blocked.

Deblock the shaft.
See section

9.1 Deblocking the
shaft.

Warning

The pump
keeps running.
The supply
voltage is low.

Make sure that there
is sufficient voltage
supply to the pump.

Alarm

The pump
stops.
Electrical error.

Replace the pump
and return the pump
your supplier.

ON

230

V

No.2

5 mm

1

2

3

ON

<160 V

ON

230

V

1

2

3 4

English (GB)

17

9.1 Deblocking the shaft

If the pump is blocked it is necessary to deblock the shaft. The
UPS3 deblocking device is accessible from the front of the
circulator without having to demount the control box. The force of
the device is high enough to deblock circulators, which are seized
by lime, e.g. if the pump has been turned off during summer.

Course of action:

1. Switch off the power supply.

2. Close the valves.

3. Locate the deblocking screw in the centre of the control box.
Use a star screwdriver with a size 2 Phillips tip to push the
deblocking screw inwards.

4. When the screw can be turned counterclockwise, the shaft
has been deblocked. Repeat step 3, if necessary.

5. Switch on the power supply.

Fig. 23 Deblocking the shaft

TM07 0387 1518

Before, during and after the deblocking, the device is
tight and must not release any water.

No.2

5 mm

1

2

3

English (GB)

18

10. Technical data

To avoid condensation in the stator, the liquid temperature must
always be higher than the ambient temperature.

Operating conditions
Sound pressure level The sound pressure level of the pump is lower than 43 dB(A)
Relative humidity Maximum 95 %, non-condensing environment
System pressure PN 10: Maximum 1.0 MPa (10 bar)

Inlet pressure

Liquid temperature Minimum inlet pressure

75 °C 0.005 MPa, 0.05 bar, 0.5 m head

95 °C 0.05 MPa, 0.5 bar, 5 m head
Ambient temperature 0-55 °C
Liquid temperature 2-95 °C
Liquid Maximum water/propylene glycol mixture is 50 %
Viscosity Maximum 10 mm

2

/s
Minimum switching time power on/off No specific requirements.
Maximum altitude of installation 2000 m above sea level
Electrical data
Supply voltage 1 x 230 V - 15 %/+ 10 %, 50/60 Hz, PE
Insulation class F
Standby power consumption < 0.3 W
Miscellaneous data
Motor protection The pump requires no external motor protection.
Enclosure class IPX4D
Temperature class (TF) TF95
Specific EEI values UPS3 15-50/65: EEI ≤ 0.20

English (GB)

19

10.1 Dimensions, UPS3 15-50/65

Fig. 24 UPS3 15-50/65

TM07 0792 1518

H2H1

H4

H3

B4

L3

B2B1

B3

G

L4

L

UPS3

Pump type

Dimensions [mm]

L L3 L4B1B2B3B4H1H2H3H4 G

UPS3 15-50/65 130 89 45 54 54 64 47 25 102 47 149 G 1 1/2

English (GB)

20

10.2 Curve conditions

The guidelines below apply to the performance curves on the
following pages:

• Test liquid: airless water.

• The curves apply to a density of ρ = 983.2 kg/m

3

and a liquid

temperature of 60 °C.

• All curves show average values and must not be used as
guarantee curves. If a specific minimum performance is
required, individual measurements must be made.

• The curves for speeds I, II and III are marked.

• The curves apply to a kinematic viscosity of

 = 0.474 mm

2

/s

(0.474 cSt).

• The EEI values obtained according to EN 16297 part 3.

10.3 Performance curve, UPS3 15-50/65

TM07 0800 1318

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6

Q [m³/h]

0

1

2

3

4

5

6

[m]

H

0

10

20

30

40

50

60

[kPa]

p

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Q [l/s]

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6

Q [m³/h]

0

10

20

30

40

50

60

[W]

P1

Setting

P1

[W]

I

1

[A]

Min. 40.05

Max. 60 0.52

English (GB)

21

11. Disposing of the product

This product or parts of it must be disposed of in an
environmentally sound way:

1. Use the public or private waste collection service.

2. If this is not possible, contact your supplier.

The crossed-out wheelie bin symbol on a
product means that it must be disposed of
separately from household waste. When a
product marked with this symbol reaches its
end of life, take it to a collection point
designated by the local waste disposal
authorities. The separate collection and
recycling of such products will help protect

the environment and human health.
See also end-of-life information at
www.grundfos.com/product-recycling.

22

Grundfos companies

Argentina

Bombas GRUNDFOS de Argentina S.A.
Ruta Panamericana km. 37.500 Centro
Industrial Garin
1619 Garín Pcia. de B.A.
Phone: [phone]
Telefax: [phone]

Australia

GRUNDFOS Pumps Pty. Ltd.
P.O. Box 2040
Regency Park
South Australia 5942
Phone: [phone]
Telefax: [phone]

Austria

GRUNDFOS Pumpen Vertrieb Ges.m.b.H.
Grundfosstraße 2
A-5082 Grödig/Salzburg
Tel.: [phone]
Telefax: [phone]

Belgium

N.V. GRUNDFOS Bellux S.A.
Boomsesteenweg 81-83
B-2630 Aartselaar
Tél.: [phone]
Télécopie: [phone]

Belarus

Представительство ГРУНДФОС в
Минске
220125, Минск
ул. Шафарнянская, 11, оф. 56, БЦ
«Порт»
Тел.: [phone]
Факс: [phone]

E-mail: [e-mail]

Bosnia and Herzegovina

GRUNDFOS Sarajevo
Zmaja od Bosne 7-7A,
BH-71000 Sarajevo
Phone: [phone]
Telefax: [phone]
www.ba.grundfos.com
e-mail: [e-mail]

Brazil

BOMBAS GRUNDFOS DO BRASIL
Av. Humberto de Alencar Castelo Branco,
630
CEP 09850 - 300
São Bernardo do Campo - SP
Phone: [phone]
Telefax: [phone]

Bulgaria

Grundfos Bulgaria EOOD
Slatina District
Iztochna Tangenta street no. 100
BG - 1592 Sofia
Tel. [phone]
Fax. [phone]
email: [e-mail]

Canada

GRUNDFOS Canada Inc.
2941 Brighton Road
Oakville, Ontario
L6H 6C9
Phone: [phone]
Telefax: [phone]

China

GRUNDFOS Pumps (Shanghai) Co. Ltd.
10F The Hub, No. 33 Suhong Road
Minhang District
Shanghai 201106
PRC
Phone: [phone]
Telefax: [phone]

COLOMBIA

GRUNDFOS Colombia S.A.S.
Km 1.5 vía Siberia-Cota Conj. Potrero
Chico,
Parque Empresarial Arcos de Cota Bod.
1A.
Cota, Cundinamarca
Phone: [phone]
Telefax: [phone]

Croatia

GRUNDFOS CROATIA d.o.o.
Buzinski prilaz 38, Buzin
HR-10010 Zagreb
Phone: [phone]
Telefax: [phone]
www.hr.grundfos.com

GRUNDFOS Sales Czechia and
Slovakia s.r.o.

Čajkovského 21
779 00 Olomouc
Phone: [phone]

Denmark

GRUNDFOS DK A/S
Martin Bachs Vej 3
DK-8850 Bjerringbro
Tlf.: [phone]
Telefax: [phone]
E-mail: [e-mail]
www.grundfos.com/DK

Estonia

GRUNDFOS Pumps Eesti OÜ
Peterburi tee 92G
11415 Tallinn
Tel: + 372 606 1690
Fax: + 372 606 1691

Finland

OY GRUNDFOS Pumput AB
Trukkikuja 1
FI-01360 Vantaa
Phone: [phone]

France

Pompes GRUNDFOS Distribution S.A.
Parc d’Activités de Chesnes
57, rue de Malacombe
F-38290 St. Quentin Fallavier (Lyon)
Tél.: [phone]
Télécopie: [phone]

Germany

GRUNDFOS GMBH
Schlüterstr. 33
40699 Erkrath
Tel.: [phone]
Telefax: [phone]
e-mail: [e-mail]
Service in Deutschland:
e-mail: [e-mail]

Greece

GRUNDFOS Hellas A.E.B.E.
20th km. Athinon-Markopoulou Av.
P.O . B o x 7 1
GR-19002 Peania
Phone: [phone]
Telefax: +0030-210-66 46 273

Hong Kong

GRUNDFOS Pumps (Hong Kong) Ltd.
Unit 1, Ground floor
Siu Wai Industrial Centre
29-33 Wing Hong Street &
68 King Lam Street, Cheung Sha Wan
Kowloon
Phone: [phone]
Telefax: [phone]

Hungary

GRUNDFOS Hungária Kft.
Tópark u. 8
H-2045 Törökbálint,
Phone: [phone]
Telefax: [phone]

India

GRUNDFOS Pumps India Private Limited
118 Old Mahabalipuram Road
Thoraipakkam
Chennai 600 096
Phone: [phone]

Indonesia

PT. GRUNDFOS POMPA
Graha Intirub Lt. 2 & 3
Jln. Cililitan Besar No.454. Makasar,
Jakarta Timur
ID-Jakarta 13650
Phone: [phone]
Telefax: [phone] / 460 6901

Ireland

GRUNDFOS (Ireland) Ltd.
Unit A, Merrywell Business Park
Ballymount Road Lower
Dublin 12
Phone: [phone]
Telefax: [phone]

Italy

GRUNDFOS Pompe Italia S.r.l.
Via Gran Sasso 4
I-20060 Truccazzano (Milano)
Tel.: [phone]
Telefax: [phone] / 95838461

Japan

GRUNDFOS Pumps K.K.
1-2-3, Shin-Miyakoda, Kita-ku,
Hamamatsu
431-2103 Japan
Phone: [phone]
Telefax: [phone]

Korea

GRUNDFOS Pumps Korea Ltd.
6th Floor, Aju Building 679-5
Yeoksam-dong, Kangnam-ku, 135-916
Seoul, Korea
Phone: [phone]
Telefax: [phone]

Latvia

SIA GRUNDFOS Pumps Latvia
Deglava biznesa centrs
Augusta Deglava ielā 60, LV-1035, Rīga,
Tālr.: + 371 714 9640, 7 149 641
Fakss: + 371 914 9646

Lithuania

GRUNDFOS Pumps UAB
Smolensko g. 6
LT-03201 Vilnius
Tel: + 370 52 395 430
Fax: + 370 52 395 431

Malaysia

GRUNDFOS Pumps Sdn. Bhd.
7 Jalan Peguam U1/25
Glenmarie Industrial Park
40150 Shah Alam
Selangor
Phone: [phone]
Telefax: [phone]

Mexico

Bombas GRUNDFOS de México S.A. de
C.V.
Boulevard TLC No. 15
Parque Industrial Stiva Aeropuerto
Apodaca, N.L. 66600
Phone: [phone]
Telefax: [phone]

Netherlands

GRUNDFOS Netherlands
Velu we zo om 35
1326 AE Almere
Postbus 22015
1302 CA ALMERE
Tel.: [phone]
Telefax: [phone]
E-mail: [e-mail]

New Zealand

GRUNDFOS Pumps NZ Ltd.
17 Beatrice Tinsley Crescent
North Harbour Industrial Estate
Albany, Auckland
Phone: [phone]
Telefax: [phone]

Norway

GRUNDFOS Pumper A/S
Strømsveien 344
Postboks 235, Leirdal
N-1011 Oslo
Tlf.: [phone]
Telefax: [phone]

Poland

GRUNDFOS Pompy Sp. z o.o.
ul. Klonowa 23
Baranowo k. Poznania
PL-62-081 Przeźmierowo
Tel: [phone]
Fax: [phone]

Portugal

Bombas GRUNDFOS Portugal, S.A.
Rua Calvet de Magalhães, 241
Apartado 1079
P-2770-153 Paço de Arcos
Tel.: [phone]
Telefax: [phone]

Romania

GRUNDFOS Pompe România SRL
Bd. Biruintei, nr 103
Pantelimon county Ilfov
Phone: [phone]
Telefax: [phone]
E-mail: [e-mail]

Russia

ООО Грун дф ос Россия
ул. Школьная, 39-41
Москва, RU-109544, Russia
Тел. [phone] [phone]
Факс [phone]

E-mail [e-mail]

Serbia

Grundfos Srbija d.o.o.
Omladinskih brigada 90b
11070 Novi Beograd
Phone: [phone]
Telefax: [phone]
www.rs.grundfos.com

Singapore

GRUNDFOS (Singapore) Pte. Ltd.
25 Jalan Tukang
Singapore 619264
Phone: [phone]
Telefax: [phone]

Slovakia

GRUNDFOS s.r.o.
Prievozská 4D
821 09 BRATISLAVA
Phona: [phone]
sk.grundfos.com

Slovenia

GRUNDFOS LJUBLJANA, d.o.o.
Leskoškova 9e, 1122 Ljubljana
Phone: [phone]
Telefax: [phone]
E-mail: tehnika-si@grundfos .com

South Africa

GRUNDFOS (PTY) LTD
Corner Mountjoy and George Allen Roads
Wilbart Ext. 2
Bedfordview 2008
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]

Spain

Bombas GRUNDFOS España S.A.
Camino de la Fuentecilla, s/n
E-28110 Algete (Madrid)
Tel.: [phone]
Telefax: [phone]

Sweden

GRUNDFOS AB
Box 333 (Lunnagårdsgatan 6)
431 24 Mölndal
Tel.: [phone]
Telefax: [phone]

Switzerland

GRUNDFOS Pumpen AG
Bruggacherstrasse 10
CH-8117 Fällanden/ZH
Tel.: [phone]
Telefax: [phone]

Taiwan

GRUNDFOS Pumps (Taiwan) Ltd.
7 Floor, 219 Min-Chuan Road
Taichung, Taiwan, R.O.C.
Phone: [phone]
Telefax: [phone]

Thailand

GRUNDFOS (Thailand) Ltd.
92 Chaloem Phrakiat Rama 9 Road,
Dokmai, Pravej, Bangkok 10250
Phone: [phone]
Telefax: [phone]

Turkey

GRUNDFOS POMPA San. ve Tic. Ltd. Sti.
Gebze Organize Sanayi Bölgesi
Ihsan dede Caddesi,

2. yol 200. Sokak No. 204
41490 Gebze/ Kocaeli
Phone: +90 - 262-679 7979
Telefax: +90 - 262-679 7905
E-mail: [e-mail]

Ukraine

Бізнес Центр Європа
Столичне шосе, 103
м. Київ, 03131, Україна
Телеф он : ([phone]
Факс.: [phone]

E-mail: [e-mail]

United Arab Emirates

GRUNDFOS Gulf Distribution
P.O. Box 16768
Jebel Ali Free Zone
Dubai
Phone: [phone]
Telefax: [phone]

United Kingdom

GRUNDFOS Pumps Ltd.
Grovebury Road
Leighton Buzzard/Beds. LU7 4TL
Phone: [phone]
Telefax: [phone]

U.S.A.

GRUNDFOS Pumps Corporation
17100 West 118th Terrace
Olathe, Kansas 66061
Phone: [phone]
Telefax: [phone]

Uzbekistan

Grundfos Tashkent, Uzbekistan The Repre­sentative Office of Grundfos Kazakhstan in
Uzbekistan
38a, Oybek street, Tashkent
Телефон: [phone] / 71 150
3291
Факс: [phone]

Addresses Revised 14.03.2018

99423997 0518

ECM: 1225529

The name Grundfos, the Grundfos logo, and be think innovate are registered trademarks owned by Grundfos Holding A/S or Grundfos A/S, Denmark. All rights reserved worldwide. © Copyright Grundfos Holding A/S

www.grundfos.com
