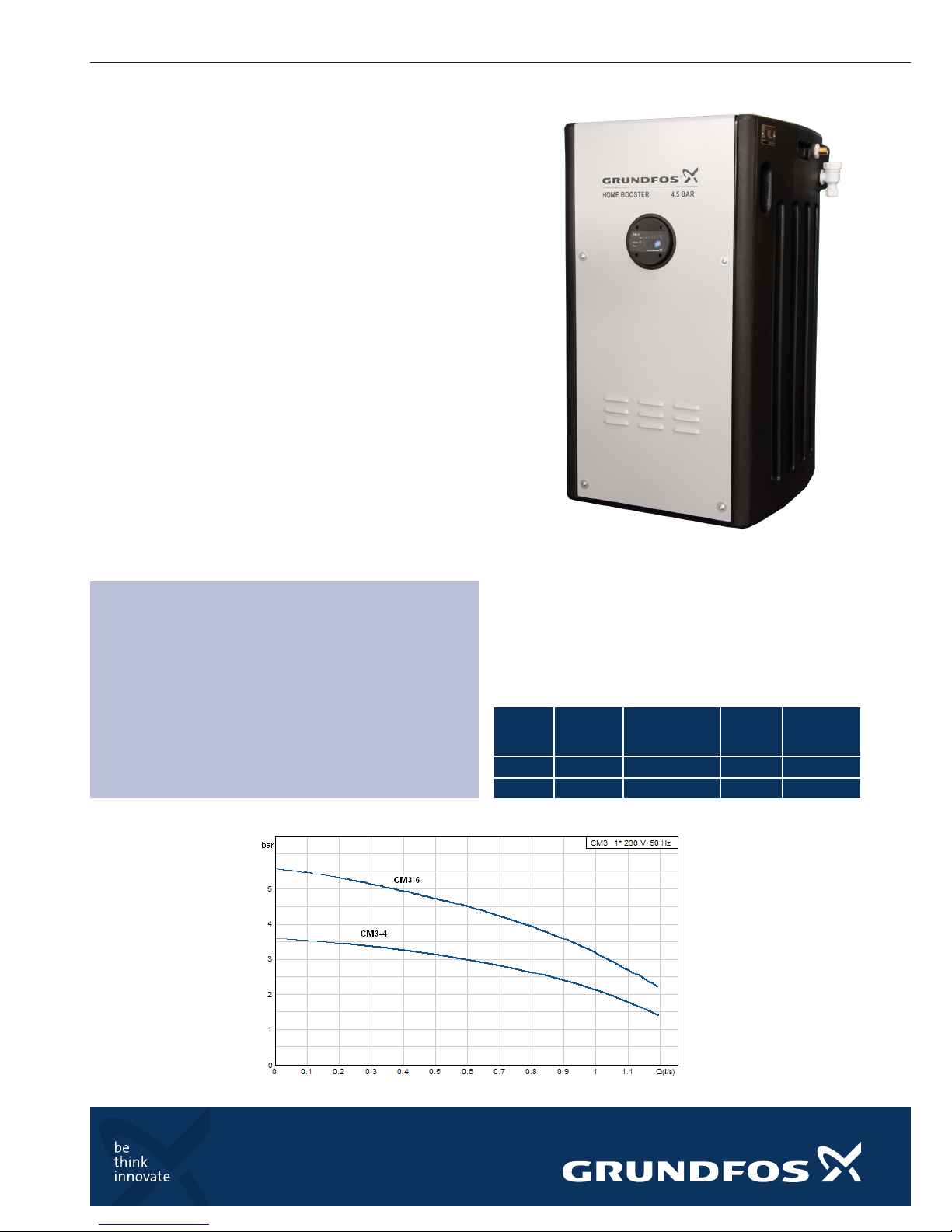

The Grundfos Home Booster is a self-contained cold water booster set,
designed for domestic properties where the existing mains water supply is
insucient to meet the demand requirements of pressurised hot and cold
water systems. The Home Booster is suitable for most domestic properties
with one or two standard bathrooms with standard ttings, or en-suite, and
cloakroom, plus other normal household appliances.
The unit features an integral 200 litre storage tank with Type AB air gap, in
accordance with Water Byelaws regulations. The high quality stainless steel
pump delivers high eciency, sustained performance, long working life and
quiet operation. The Grundfos PM2 controller on/o controls the pump, and
also provides dry run protection should the storage tank run out of water.
The Home Booster has been developed to provide a compact and costeective solution. It’s is self-contained and its compact size makes it ideal
for domestic installations where space is at a premium, and may be typically
installed in a utility room or a garage.
For larger properties, the Max-E Boost should be considered, it is not
recommended to install two Home Boosters operating together to achieve
increased ow.
Installation is straight forward requiring connection of mains cold water
supply, discharge pipe, overow pipe and electrical connections.
For properties with 4 to 5 occupants, or where the storage tank rells very
slowly due to poor mains water pressure, an additional 180 litre water
storage slave tank option is available to increase the storage capacity is
recommended.
FEATURES
• Integrated 200 litre storage tank
(180 litres useable volume)
• Electronically on/o controlled
• Nominal performance 3.0 bar or 4.5 bar at 0.5 l/s
(depending on model)
• Packaged set ready for installation
• Dry run protection
• WRAS Approved Components
HOME
BOOSTER
MODEL
Full Load
Current
(A)
Starting
Current
(A)
Input
Power
(W)
Capacitor
Rating
(uF)/ V
3.0 Bar 2.80 15.6 588 20/400
4.5 Bar 4.00 15.6 870 20/400
Electrical Data 1ph 240V 50Hz
The Home Booster is available in two models:
• Home Booster 3.0 Bar is tted with the CM 3-4 I
• Home Booster 4.5 Bar is tted with the CM 3-6 I
PUMP PERFORMANCE
GRUNDFOS HOME BOOSTER
The name Grundfos, the Grundfos logo, and be think innovate are registered trademarks owned by Grundfos Holding A/S or Grundfos A/S, Denmark. All rights reserved worldwide. © Copyright Grundfos Holding A/S GB/HOMEBOOSTER/0615
GRUNDFOS PUMPS LTD.
Grovebury Road
Leighton Buzzard
Beds LU7 4TL
Tel: 01525 850000
www.grundfos.co.uk

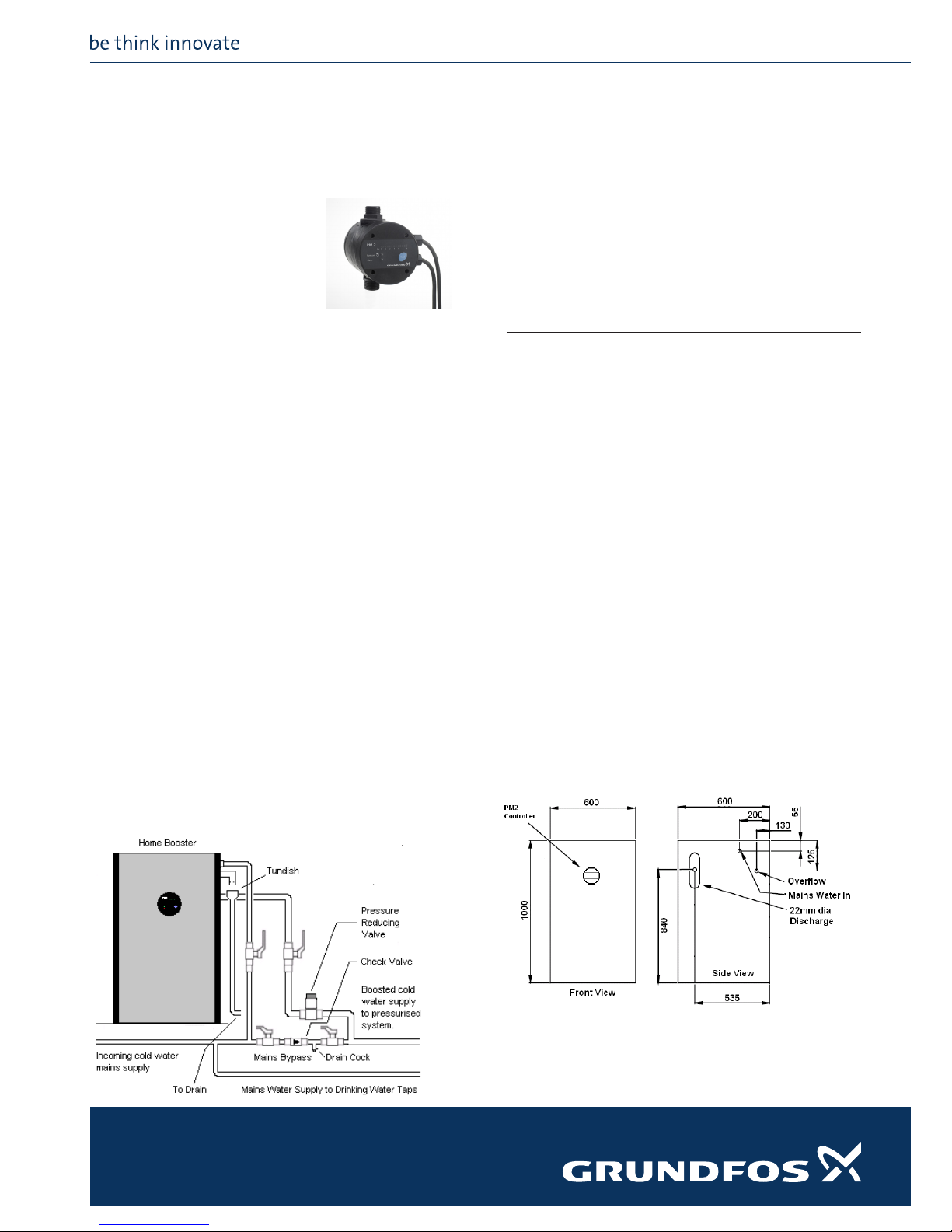

DESCRIPTION
The Home Booster is a single pump booster set with integral
cold water storage tank having a nominal capacity of 200 litres,
and a useable volume 180 litres. There is provision at the rear of
the tank for connection of an additional 180 litre slave tank. The
pump is controlled by the Grundfos PM2 Pressure Manager on/o
controller. The PM2 has indicators for pressure, pump status and
fault, and a reset button.
The PM2 also protects the pump against
loss of water, and if the pump becomes
air locked or is seized.
OPERATION
The discharge pressure is monitored by a pressure transducer
in the PM2 controller, when the pressure falls to the cut-in start
pressure, the pump is started. The cut-in pressure setting can be
set by DIP switches within the PM2 in 0.5 bar steps.
The ow switch within the PM2 continues to run the pump until
there is a no ow condition, the pump is then stopped after a
small delay.
An 8 litre pressure vessel is incorporated into the unit to maintain
pressure while the pump is o to prevent unnecessary starts due
to small draw-os.
The discharge pressure can be regulated if required by installing a
separate pressure reducing valve.
MAXIMUM OPERATING CONDITIONS
The Grundfos Home Booster unit has been designed for:
Liquid temperature range: +3 to +40°C
Ambient temperature: up to +40°C
Sound pressure level: 65 dB (A)
Maximum closed valve discharge pressure
Home Booster 3.0: 3.6 bar
Home Booster 4.5: 5.6 bar
TYPICAL OPERATING DUTIES
Home Booster 3.0: 3.0 bar at 0.5 l/s 2 bar at 0.8 l/s
Home Booster 4.5: 4.5 bar at 0.5 l/s 3 bar at 0.8 l/s
INSTALLATION
1. The unit should be sited in a dry, well ventilated but frostfree position where it will not be subjected to extremes of
temperature.
2. The unit should be installed on a solid at surface to adequately
support the weight of the water tank, and to help reduce noise/
vibration.
Ensure that there is sucient clearance, 0.5m on the right
hand side and above, and lighting around the unit to allow for
service and maintenance operations to take place safely without
obstruction.
3. The bypass arrangement must be installed strictly in accordance
with the Water Byelaws Regulations. The bypass should be drained
when not in use to prevent stagnation. A bypass must not be
installed if pumping a non potable CAT 5 contaminated liquid.
4. Attention should be given to the possibility of water leakage
from the unit during commissioning or service activities, in order
to prevent possible damage to the surrounding area.
It is not recommended to t the Home Booster in a loft/attic space.
FOUNDATION
The Home Booster unit should be installed on a solid base, which is
both level and at to avoid distortion of the base.
SERVICE CONNECTIONS
Mains cold water: ½” BSPM
Overow: 22mm solvent weld
Discharge: 22mm push t
Connection for slave tank: 2” BSPF
Mains power cable: 5m x 1.5mm² 3 core
Mains cable supplied with a 5A fused mains plug.
MATERIALS OF CONSTRUCTION
Tank: Polyproplylene
Pipe work ttings: Brass/Copper
Internal pipe work: Copper
Pump wetted parts: Stainless steel 304 grade
Pressure vessel: Steel body, with butyl rubber
diaphragm
PRODUCT CODES
Home Booster 3.0 Bar: MD300200
Home Booster 4.5 Bar: MD450200
Slave Tank: MCST0200
DIMENSIONS
The Slave Tank has the same overall dimensions as the Home Booster.
Home Booster model: 3.0 Bar 4.5 Bar
Dry Weight: 63 kg 66 kg
Wet Weight: 243 kg 246 kg
Shipping Weight: 65 kg 68 kg
Slave Tank
Dry Weight: 30 kg
Wet Weight: 210 kg
Shipping Weight: 52 kg
