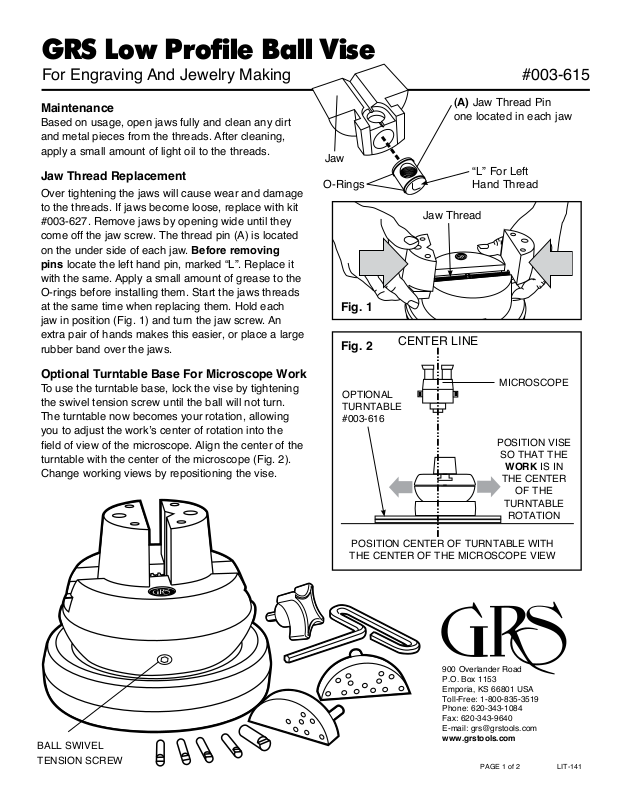

GRS 003-615 User Manual

GRS Low Profile Ball Vise

For Engraving And Jewelry Making #003-615

Maintenance

Based on usage, open jaws fully and clean any dirt
and metal pieces from the threads. After cleaning,
apply a small amount of light oil to the threads.

Jaw Thread Replacement

Over tightening the jaws will cause wear and damage
to the threads. If jaws become loose, replace with kit
#003-627. Remove jaws by opening wide until they
come off the jaw screw. The thread pin (A) is located
on the under side of each jaw. Before removing
pins locate the left hand pin, marked “L”. Replace it
with the same. Apply a small amount of grease to the
O-rings before installing them. Start the jaws threads
at the same time when replacing them. Hold each
jaw in position (Fig. 1) and turn the jaw screw. An
extra pair of hands makes this easier, or place a large
rubber band over the jaws.

Optional Turntable Base For Microscope Work

To use the turntable base, lock the vise by tightening
the swivel tension screw until the ball will not turn.
The turntable now becomes your rotation, allowing
you to adjust the work’s center of rotation into the

eld of view of the microscope. Align the center of the

turntable with the center of the microscope (Fig. 2).
Change working views by repositioning the vise.

Jaw

O-Rings

Fig. 1

Fig. 2

OPTIONAL
TURNTABLE
#003-616

(A) Jaw Thread Pin
one located in each jaw

“L” For Left
Hand Thread

Jaw Thread

CENTER LINE

MICROSCOPE

POSITION VISE

SO THAT THE

WORK IS IN

THE CENTER

OF THE

TURNTABLE

ROTATION

BALL SWIVEL
TENSION SCREW

POSITION CENTER OF TURNTABLE WITH

THE CENTER OF THE MICROSCOPE VIEW

900 Overlander Road
P.O. Box 1153
Emporia, KS 66801 USA
Toll-Free: 1-800-835-3519
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]

www.grstools.com

PAGE 1 of 2 LIT-141

4

GRS Low Prole Ball Vise
Complete Assembly #003-615

10

6

5

7

8

3

2

19 - RACE
(thick shim)

17 - BEARING

18 - RACE
(thin shim)

15

11

PART # DESCRIPTION
1 003-220 Block Base
2 003-219 Block Crown
3 003-221 Post
4 003-009 Jaw - Right Hand
5 003-008 Jaw - Left Hand
6 003-064 Pin - Left Hand
7 003-065 Pin - Right Hand
8 003-007 Screw Post
9 003-067 1/2 - 13 x 1/2 SSS Flt Pt HF Dog
10 002-127 O-Ring - 0.625" x 0.75" x 0.062"
11 022-181 Bearing 6203ZZ
12 002-214 Washer - 0.312" x 0.859" x 0.125"
13 002-112 5/16-8 x 3/4" HHB Z/P
14 003-212 Spring
15 022-180 Washer
16 003-222 Spacer
17 002-088 Bearing 3" x 3.75" x 0.078"
18 002-089 Bearing 3" x 3.75" x 0.031" Race
19 002-213 Bearing 3" x 3.75" x 0.062" Race
20 003-223 Lock Pin

003-506 Tire Assembly ( 21 & 22)
21 002-090 Tire
22 002-209 Fastener - Push-In

22

16

11

12

13

1

21

20

23

23 002-091 Wrench - 1/4" T-Handle Hex
24 003-661 1/4" Hex Drive Knob
25 003-015 Jaw Pin - 1/4"
26 003-016 Jaw Pin - 3/8"
27 003-507 Pin Plate - 2 pin
28 003-508 Pin Plate - 1 pin

Replacement Thread Pin Kit

#003-627 (Not Shown). Includes Jaw Screw, Left and
Right Thread Pins, O-Rings, and Tube of Greas

Optional Turntable For Microscope Work

#003-616 (Not Shown).

14

9

24

e.

25

26

28

27

PAGE 2 of 2 LIT-141
