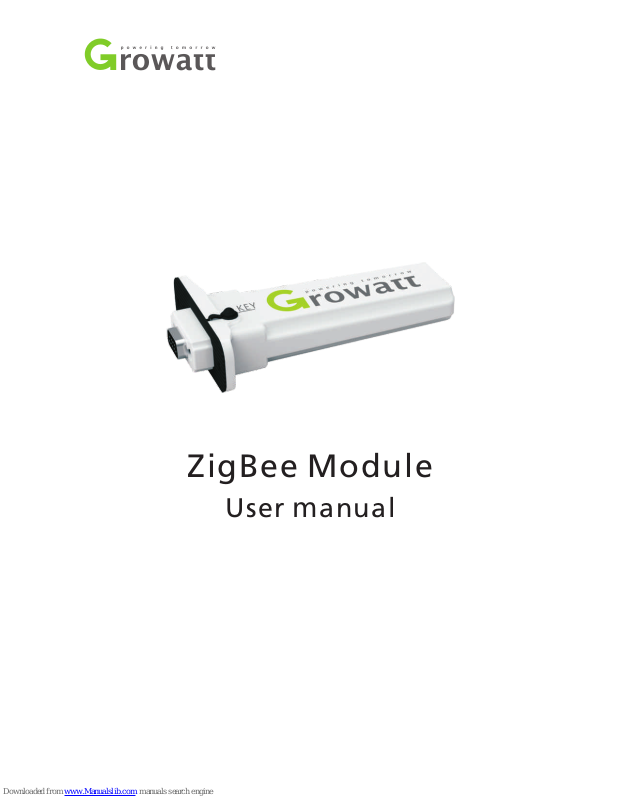

Growatt ZigBee Module User Manual

ZigBee Module

User manual

CONTENT

User Manual Information

1

Description

2

Setting the ZigBee ID and Channel of the Data Logger

3

Setting the ZigBee Module

4

Installation of ZigBee Module

5

FAQ

6

Technical Data

7

Contact

8

1 User Manual Information

1.1 Copyright Statement

Copyright © 2012 Shenzhen Growatt New Energy Co,.Ltd, hereinafter referred to as
‘Growatt’. All right reserved. No part of this document may be reproduced, stored in
a retrieval system, or transmitted, in any form or by any means, electronic,
mechanical, photographic, magnetic or otherwise, without the prior written
permission of Growatt New Energy. All infringement reserved.

Copyright No. is G1.0. Growatt reserved the final right of interpretation of this
manual. The product parameters, appearances and packages are subject to change
without notice. Readers are cautioned, however, that Growatt reserves the right to
make changes without notice and shall not be responsible for any damages,
including indirect, incidental or consequential damages, caused by reliance on the
material presented.

Distinguished users, thank you very much for your trust in our ZigBee Module
product, which is developed and manufactured by our R&D department. We sincerely
hope it can satisfy your need, also, we’re glad to receive your suggestions on
improving our product. The target of the manual is to provide the detailed product
information, installation, operation and maintenance.

1.2 About Manual

The user manual is applied for technicians and common users to operate and
maintain the ZigBee Module. The readers should be acquainted with some computer
network knowledge and operating skill.

1.3 Target Group

1

Before using the ZigBee Module, please read the manual carefully. In the meantime,
please keep it well, lest maintenance staff may not find it later. All the content,
pictures, logos, symbols are reserved. No part of this document may be transmitted in
any form without the prior written permission of our internal staff. The content of
manual could be changed. Every attempt has been made to make this document
complete, accurate and up-to-date. If there are any differences between the
contents of the instruction and the product, please regard the actual one as the
truth. You can download the newest version from our website www.growatt.com .

1.4 Guideline

2

1.5 FCC Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that

may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy,
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

RF Exposure Statement
To maintain compliance with FCC’s RF Exposure guidelines, this equipment should be

installed and operated with minimum distance 20cm between the radiator and your
body: Use only the supplied antenna.

2 Description

ZigBee Module is a wireless device used to enable the communication between
inverter and data logger. The Shine Webbox and Shine Pano serve as the data logger.

3

3 Setting the ZigBee ID and Channel of

the Data Logger

In order to adopt the ZigBee wireless communication method, the ZigBee ID and
Channel of the data logger should be configured first. Start the web browser and
enter 192.168.1.230 in the address bar, then you can set the ZigBee ID and Channel
via the integrated server of the data logger.

4

Note:
network segment, then it is available to get access into the integrated server of the
data logger. As to more details, please refer to the user manual of data logger e.g.
Shine Webbox User Manual.

Only the IP address of the data logger and the accessing PC are in the same
