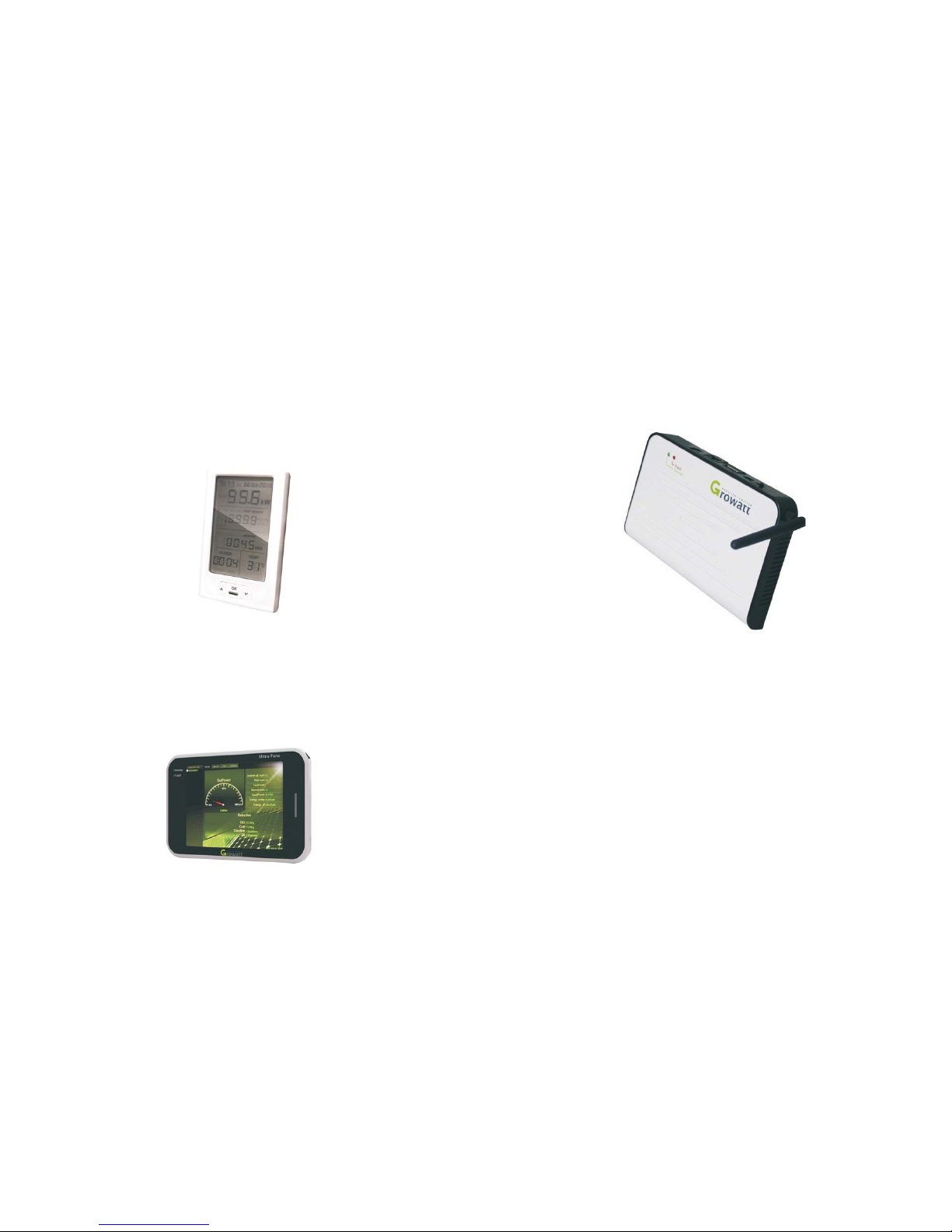

7.1 Monitoring Products

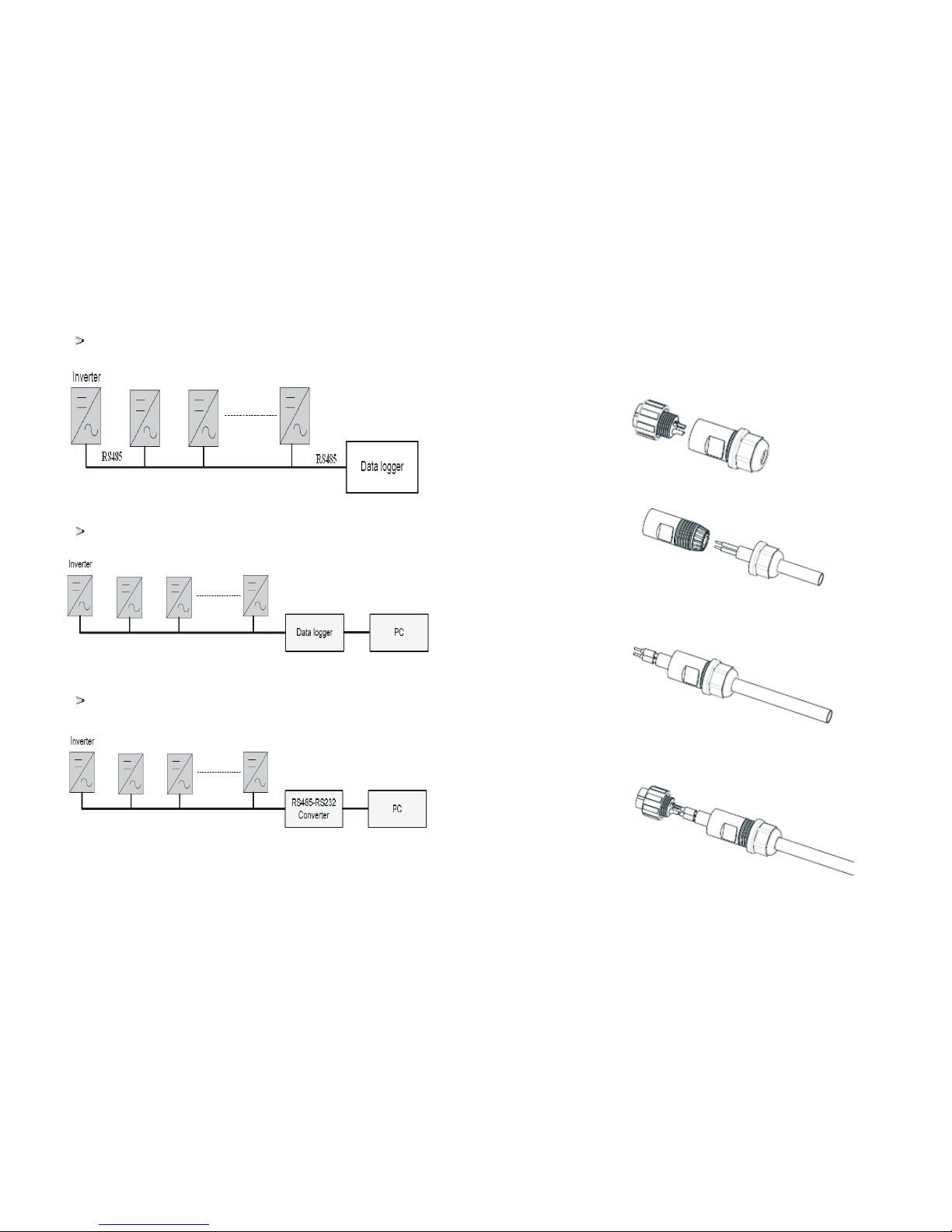

7.2 Monitoring System

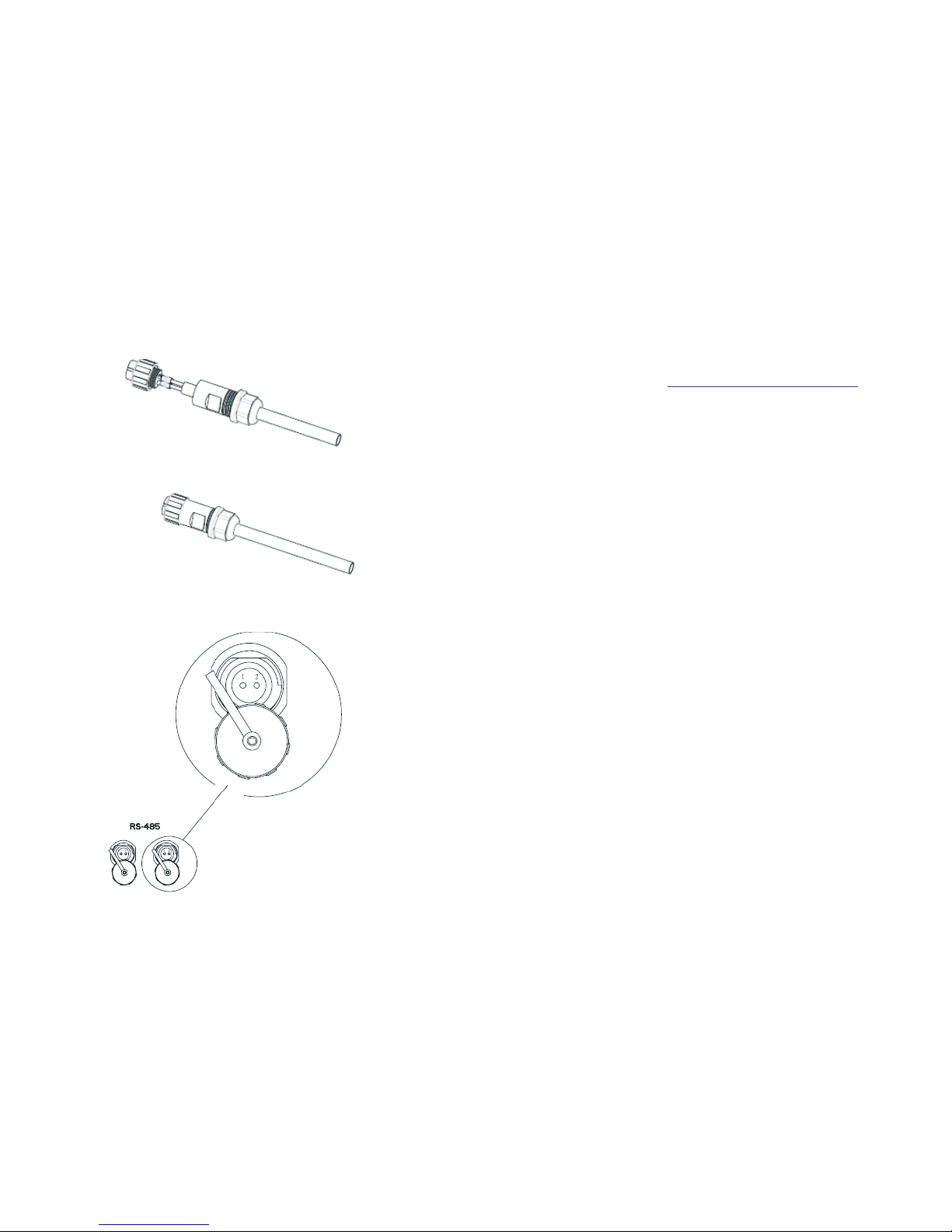

7.3 RS485 cable connection
7.4 Using shine tool to set the information of the inverter
8.1 Start-Up the inverter
8.2 Disconnecting the Inverter
9.1 Checking Heat Dissipation
9.2 Cleaning the Inverter
9.3 Checking the DC switch
Decommissioning
10.1 Dismantling the Inverter
10.3 Storing the Inverter
Trouble shooting
Operation Modes
De-rating Operation
10
11
12
13
10.2 Packing the Inverter
10.4 Disposing of the Inverter
12.1 Normal Mode
12.2 Fault Mode
12.3 Shutdown Mode
14.1 Warranted products
14.2 Limited Product Warranty
14.3 Liability
Manufacturer Warranty
14
14.4 Warranty conditions
Technical Data
15
15.1 Specification

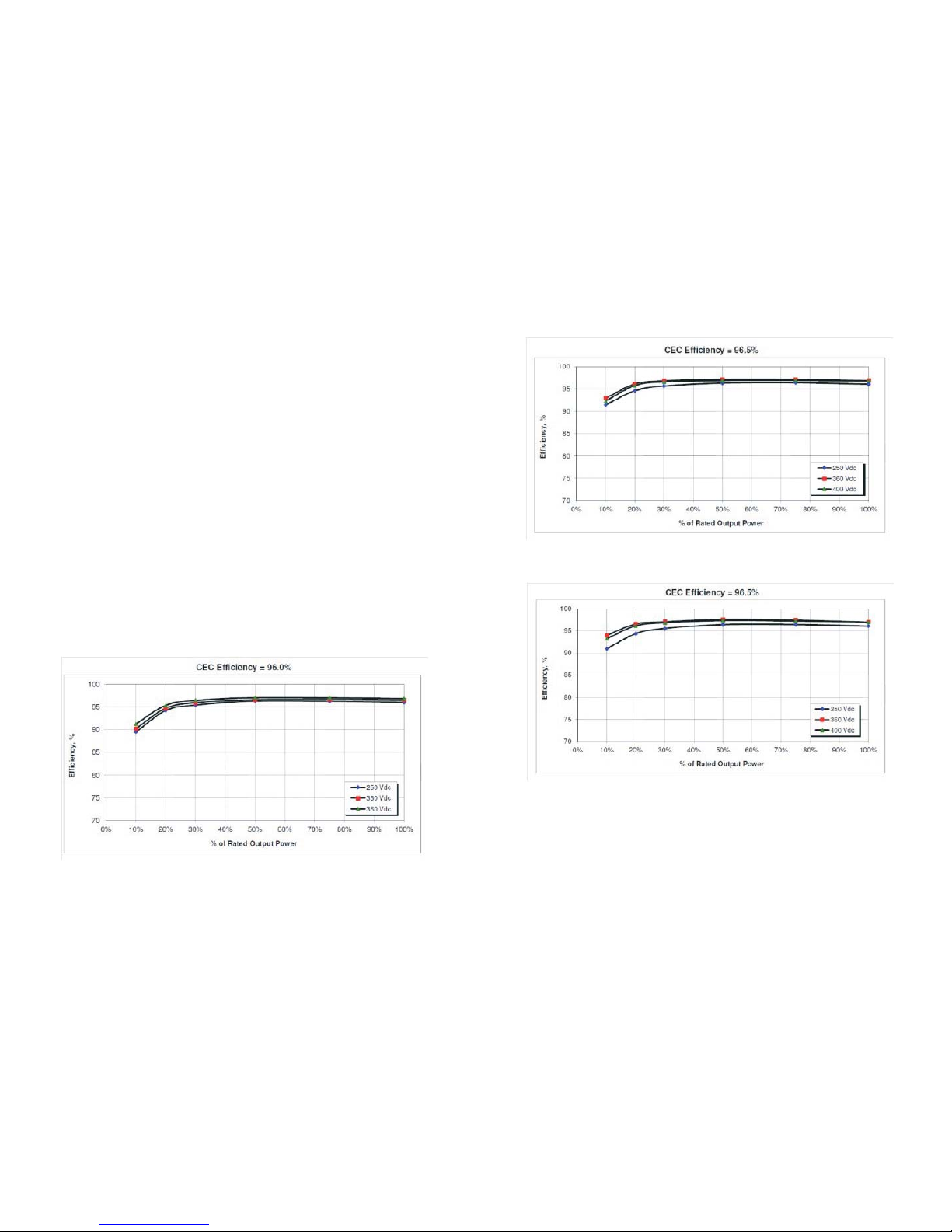

15.2 Efficiency curve
Download Address
16
Contact
17
1 2
1 Notes on this manual1 Notes on this manual
Find further information on special topics in the download area at
www.ginverter.com
1.1 Validity
1.2 Target Group
1.3 Additional information
This manual describes the assembly, installation, commissioning
and maintenance of the following Growatt Inverters:
Growatt 1500-US
Growatt 2000-US
Growatt 3000-US
This manual does not cover any details concerning equipment
connected to the Growatt inverter ( e.g. PV modules). Information
concerning the connected equipment is available from the
manufacturer of the equipment.
CAUTION
This manual is for qualified personnel. Qualified personnel have received training and have demonstrated skills and knowledge in the construction and operation of this device. Qualified personnel are trained to deal with the dangers and hazards involved in installing electric devices.
1.4 Storage of the manuals
The manual and other documents must be stored in a convenient
place and be available at all times. We assume no liability for any
damage caused by failure to observe these instructions.
1.5 Symbols Used
Read the manual!
NOTICE
Failure to observe a warning indicated in this manual may lead to damage to property
Danger indicates a hazardous situation which, if not avoided, will result in death or serious injury.
DANGER
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor moderate injury.
The following types of safety instructions and general information
appear in this document as described below:
43
FCC certificate
Point of connection for grounding protection.
Symbol
description
1.6 Markings on this product
Warning regarding dangerous voltage
The product works with high voltage. All work on the product must only be performed as described in its documentation.
Beware of hot surface
The product can become hot during operation. Do not touch the product during operation.
Observe the operating instructions
Read the product's documentation before working on it. Follow all safety precautions and instructions as described in the documentation.
Intertek ETL mark
it apply to the Growatt -US series certify that the inverter meet the safety standard UL1741.
Direct Current (DC)
Alternating Current (AC)
2Safety and conformity 2Safety and conformity
2.1 Safety Instructions
Danger to life due to lethal voltages!
Lethal voltages are present within the unit and on the power supply lines. Therefore, only authorized electricians may install and open the unit. Even when the unit is disconnected, high contact voltages may still be present within the unit.
DANGER
DANGER
Danger of burn injuries due to hot enclosure parts!
During operation, the four sides of the enclosure lid and the heat sink may become hot. Only touch the front enclosure lid during operation.
CAUTION
Possible damage to health as a result of the effects of
radiation!
In special cases, there may still be interference for the specified application area despite maintaining standardized emission limit values (e.g. when sensitive equipment is located at the setup location or when the setup location is near radio or television receivers).In this case, the operator is obliged to take proper action to rectify the situation. Do not stay closer than 20 cm to the inverter for any length of time.
NOTICE
Grounding the PV generator
Comply with the local requirements for grounding the PV modules and the PV generator. Growatt recommends connecting the generator frame and other electrically conductive surfaces in a manner which ensures continuous conduction with ground these in order to have optimal protection of the system and personnel.
5
6
The inverter may only be operated with a permanent connection to the public power grid. The inverter is not intended for mobile use. Any other or additional use is not considered the intended use. The manufacturer/supplier is not liable for damage caused by such unintended use. Damage caused by such unintended use is at the sole risk of the operator
Capacitive Discharge Currents
PV modules with large capacities relative to earth, such as thin-film PV modules with cells on a metallic substrate, may only be used if their coupling capacity does not exceed 470nF. During feed-in operation, a leakage current flows from the cells to earth, the size of which depends on the manner in which the PV modules are installed (e.g. foil on metal roof) and on the weather (rain, snow). This "normal" leakage current may not exceed 50mA due to the fact that the inverter would otherwise automatically disconnect from the electricity grid as a protective measure.
NOTICE
NOTICE
Certified countries
With the appropriate settings, the unit will comply with the requirements specified in the following standards and directives
UL 1741
IEEE 1547
CSA C22.2 No.107.1-1
FCC Part15
Growatt can preset special grid parameters for other countries installation locations according to customer requests after evaluation by Growatt. You can make later modifications yourself by changing software parameters with respective communication products (e.g. shinebus or shineNet ect). To change the grid-relevant parameters, you need a personal access code, if you need it ,please contact with Growatt
DC and AC Switch
Separate the Growatt -US securely from the grid and the PV generators using DC and AC Switch. DC and AC Switch shall be able to disconnect all unground conductors after installation.
Grounding the PV modules
The Growatt-US is a transformerless inverter. That is why it has no galvanic separation. Do not ground the DC circuits of the PV modules connected to the Growatt -US. Only ground the mounting frame of the PV modules. If you connect grounded PV modules to the Growatt -US, the error message "PV ISO Low".
Approprite Usage
The Growatt Inverter converts DC Current from PV generator into AC current. The inverter is suitable for mounting indoors and outdoors. You can use the AC current gernerated as follows:
House grid:
Public grid:
Energy flows into the house grid. The consumers connected, for example, household devices or lighting, consume the energy. The energy left over is fed into the public grid. When the Growatt is not gernerating any energy, e.g., at night, the consumers which are connected are supplied by the public grid.The Growatt does not have its own energy meter. When energy is fed into the public grid, the energy meter spins backwards.
Energy is fed directly into the public grid. The Growatt is connected to a separate energy meter. The energy produced is compensated at a rate depending on the electric power company.
7 8
Persons with limited physical or mental abilities may only work with the Growatt inverter following proper instruction and under constant supervision. Children are forbidden to play with the Growatt inverter. Must keep the Growatt inverter away from children
Qualification of Skilled Workers
Knowledge of how an inverter works and is operated
Instruction in how to deal with the dangers and risks associated with
installing and using electrical devices and plants
Training in the installation and commissioning of electrical devices and plants
Knowledge of all applicable standards and guidelines
Knowledge and observance of this manual and all safety instructions
Product Description3 Product Description3
3.1 Inverter Overview:3.1 Inverter Overview:
3.2 Information of Label
You can identify the pv inverter by the type label. It
is on the left side of the enclosure.
The type of product (Type/Model)
Device-specific characteristics
Specifications of the inverter
Serial number
3.3 Dimensions and weight
Model Height (H) Width (W) Depth (D) Weight
Growatt1500-US
Growatt2000-US
Growatt3000-US
465 mm
18.3inch
465 mm
18.3inch
465 mm
18.3inch
360 mm
14.2inch
165 mm
6.5inch
14.6 kg
32.2 lb
360 mm
14.2inch
360 mm
14.2inch
165 mm
6.5inch
165 mm
6.5inch
15.1 kg
33.3 lb
15.9 kg
35.1 lb
3.4 Transportation
The inverter is thoroughly tested and inspected strictly before delivery. Our inverters leave our factory in proper electrical and mechanical condition. Special packaging ensures safe and careful transportation. However, transport damage may still occur. The shipping company is responsible in such cases. Thoroughly inspect the inverter upon delivery. Immediately notify the responsible shipping company if you discover any damage to the packaging which indicates that the inverter may have been damaged or if you discover any visible damage to the inverter. We will be glad to assist you, if required. When transporting the inverter, the original or equivalent packaging should to be used, and the maximum layers for original carton is four, as this ensures safe transport.
Model Name:
GROWATT
PV Grid Inverter
GROWATT 1500-US
Utility Interactive 1-Phase Inverter
Range of input voltage:
100 ~ 450Vdc
Max. input short circuit current :
15Adc
Norminal output power:
1650W
Range of grid voltage:
183 ~ 228Vac @ 208Vac
Range of grid frequency :
59.3 ~ 60.5Hz
Norminal output current:
7.2A @ 208Vac
6.9A @ 240Vac
6.0A @ 277Vac
Output power factor :
0.99
Enclosure:
Type 3R
OperationAmbient Temperature:
-25~+60°C (Power derating above 45°C)
FOR HOMEAND OFFICE USE
TestedTo Comply With FCC Standards
211 ~ 264Vac @ 240Vac 244 ~ 305Vac @ 277Vac
Default grid voltage setting:
240Vac
Grid voltage and frequency trip times :
< 150mS
Max. output overcurrent protection:
4003184
15A
Max. input current of the MPPtracker:
8Adc
Max. input voltage:
450Vdc
Norminal grid voltage:
208Vac / 240Vac / 277Vac
Norminal grid frequency :
60Hz
Certified to CSASTD.C22.2 No.107.1
Conforms to ULSTD.1741
Model Name:
GROWATT
PV Grid Inverter
GROWATT 1500-US
Utility Interactive 1-Phase Inverter
Range of input voltage:
100 ~ 450Vdc
Max. input short circuit current :
15Adc
Norminal output power:
1650W
Range of grid voltage:
183 ~ 228Vac @ 208Vac
Range of grid frequency :
59.3 ~ 60.5Hz
Norminal output current:
7.2A @ 208Vac
6.9A @ 240Vac
6.0A @ 277Vac
Output power factor :
0.99
Enclosure:
Type 3R
OperationAmbient Temperature:
-25~+60°C (Power derating above 45°C)
FOR HOMEAND OFFICE USE
TestedTo Comply With FCC Standards
211 ~ 264Vac @ 240Vac 244 ~ 305Vac @ 277Vac
Default grid voltage setting:
240Vac
Grid voltage and frequency trip times :
< 150mS
Max. output overcurrent protection:
4003184
15A
Max. input current of the MPPtracker:
8Adc
Max. input voltage:
450Vdc
Norminal grid voltage:
208Vac / 240Vac / 277Vac
Norminal grid frequency :
60Hz
Certified to CSASTD.C22.2 No.107.1
Conforms to ULSTD.1741
Model Name:
GROWATT
PV Grid Inverter
Utility Interactive 1-Phase Inverter
Range of input voltage:
**************Vdc
Max. input short circuit current :
**Adc
Norminal output power:
****W
Range of grid voltage:
**** ~ ****Vac @ ****Vac
Range of grid frequency :
**** ~****Hz
Norminal output current:
****A @ ****Vac
Output power factor :
****
Enclosure:
*********
OperationAmbient Temperature:
***********************
FOR HOMEAND OFFICE USE
TestedTo Comply With FCC Standards
**** ~ ****Vac @ ****Vac **** ~ ****Vac @ ****Vac
Default grid voltage setting:
****Vac
Grid voltage and frequency trip times :
*******mS
Max. output overcurrent protection:
4003184
***A
Max. input current of the MPPtracker:
**Adc
Max. input voltage:
****Vdc
Norminal grid voltage:
****Vac / ****Vac / ****Vac
Norminal grid frequency :
**Hz
Certified to CSASTD.C22.2 No.107.1
Conforms to ULSTD.1741
**********************
****A @ ****Vac ****A @ ****Vac
9
10
3.5 Storage of Inverter
If you want to storage the inverter in your warehouse, you should choose an
appropriate location to store the inverter.
The unit must be stored in original package and desiccant must be left in the
package.
The storage temperature should be always between -25 and +60 . And the
storage relative humidity should be always between 0 and 95%.
If there are a batch of inverters need to be stored, the maximum layers for
original carton is four.
After long term storage, local installer or service department of
Growatt should perform a comprehensive test before installation
℃℃
3.6 The advantage of the unit
Maximum efficiency of 97%
Growatt 1500-US CEC efficiency of 96%
Growatt 2000-US&Growatt 3000-US CEC efficiency of 96.5%
Integrated wire box
Integrated DC switch
High MPP efficiency of 99.5%
Adapt to multi gird model(208Vac/240Vac/277Vac)
Sound control
Easy installation
Unpacking 4Unpacking 4
4.1 Unpacking and inspection
Thoroughly inspect the packaging upon received. If any damage to the
carton is visible, or if you find that the inverter unit is damaged after
unpacking, please notify the shipping company and GROWATT NEW ENERGY
TECHNOLOGY CO.,LTD immediately.
Meanwhile please check the delivery for completeness and for visible external damages of the inverter. If there are anything damaged or missing, please contact your dealer. Don't dispose its original package. If you want to transport the inverter, it is better to store the inverter into the original package.

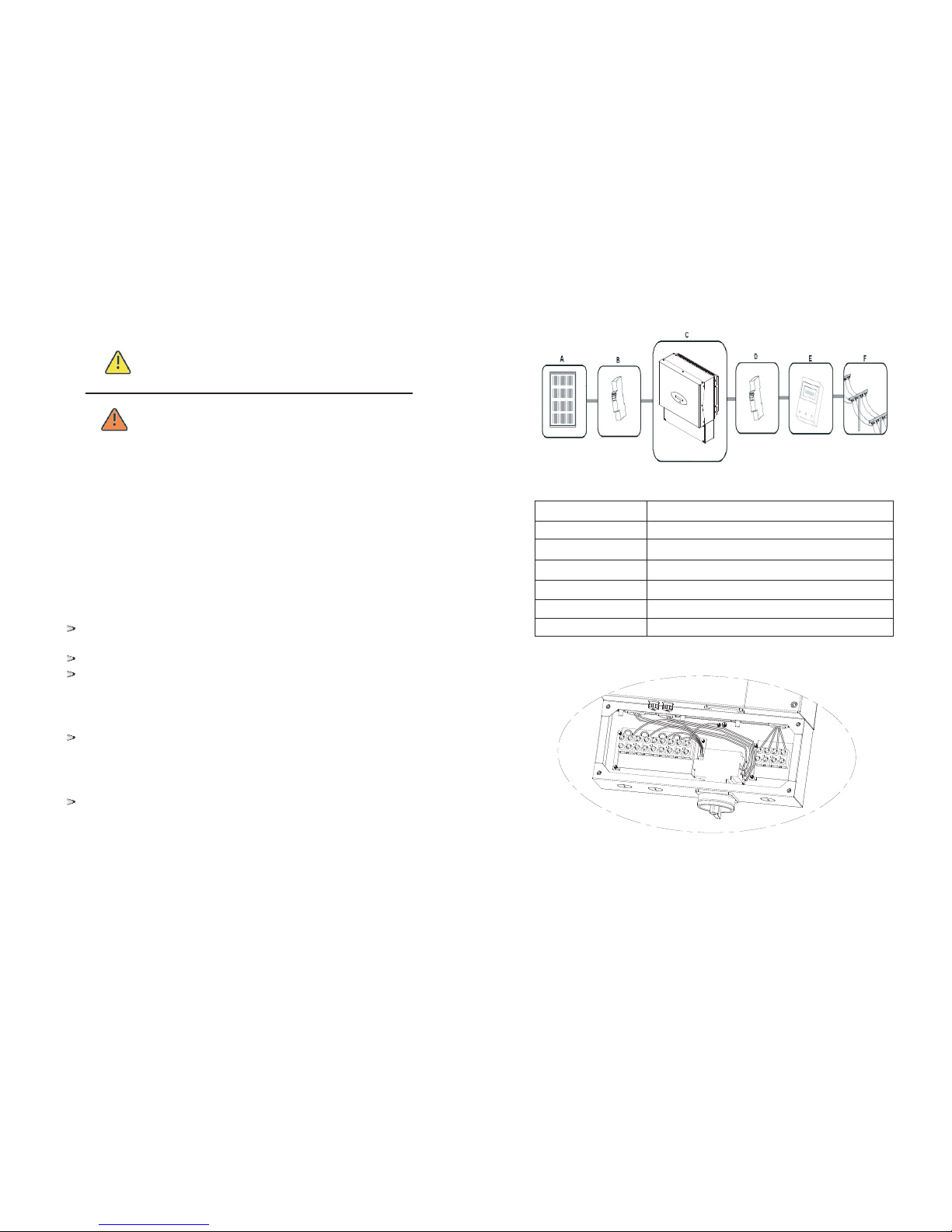

Complete delivery should contain as follows:
B
D
E
C
A
11
12
A
Item
B
C
D
E
F
G
H
I
Name
inverter
Mounting frame
Safety-lock screws
Mounting screws
Mounting frame screws sleeve
Monitor software(disk)
Manual
Bluetooth
RS485 connectors
Quantity
1
1
4
6
1
2
1(Optional)
1(Optional)
6
Though the packaging box of Growatt is durable, please treat the packing box gently and avoid dispose the packing box. In this package, they are inverter ,cystosepiment and carton from inside to outside.
NOTICE
DANGER
Risk of burns due to hot enclosure parts
Mount the inverter in such a way that it cannot be touched inadvertently.
DANGER
All electrical installations shall be done in accordance with the local and national electrical codes. Do not remove the casing. Inverter contains no user serviceable parts. Refer servicing to qualified service personnel. all wiring and electrical installation should be conducted by a qualified service personnel .
Carefully remove the unit from its packaging and inspect for external damage. If you find any imperfections, please contact your local dealer.
Be sure that the inverters connect to the ground in order to protect
property and personal safety.
The inverter must only be operated with PV generator. Do not
connect any other source of energy to it.
Both AC and DC voltage sources are terminated inside the PV
Inverter. Please disconnect these circuits before servicing.
This unit is designed to feed power to the public power grid (utility) only. Do not connect this unit to an AC source or generator. Connecting Inverter to external devices could result in serious damage to your equipment.
When a photovoltaic panel is exposed to light, it generates a DC voltage. When connected to this equipment, a photovoltaic panel will charge the DC link capacitors.
Energy stored in this equipment's DC link capacitors presents a risk of electric shock. Even after the unit is disconnected from the grid and photovoltaic panels, high voltages may still exist inside the PV-Inverter. Do not remove the casing until at least 5 minutes after disconnecting all power sources.
Although designed to meet all safety requirements, some parts and surfaces of Inverter are still hot during operation. To reduce the risk of injury, do not touch the heat sink at the back of the PV-Inverter or nearby surfaces while Inverter is operating.
5.1 Safety
DANGER
Danger to life due to fire or explosion
Despite careful construction, electrical devices can cause fires. Do not install the inverter on easily flammable materials and where flammable materials are stored.
Installation and Electrical Connection 5Installation and Electrical Connection 5
13 14

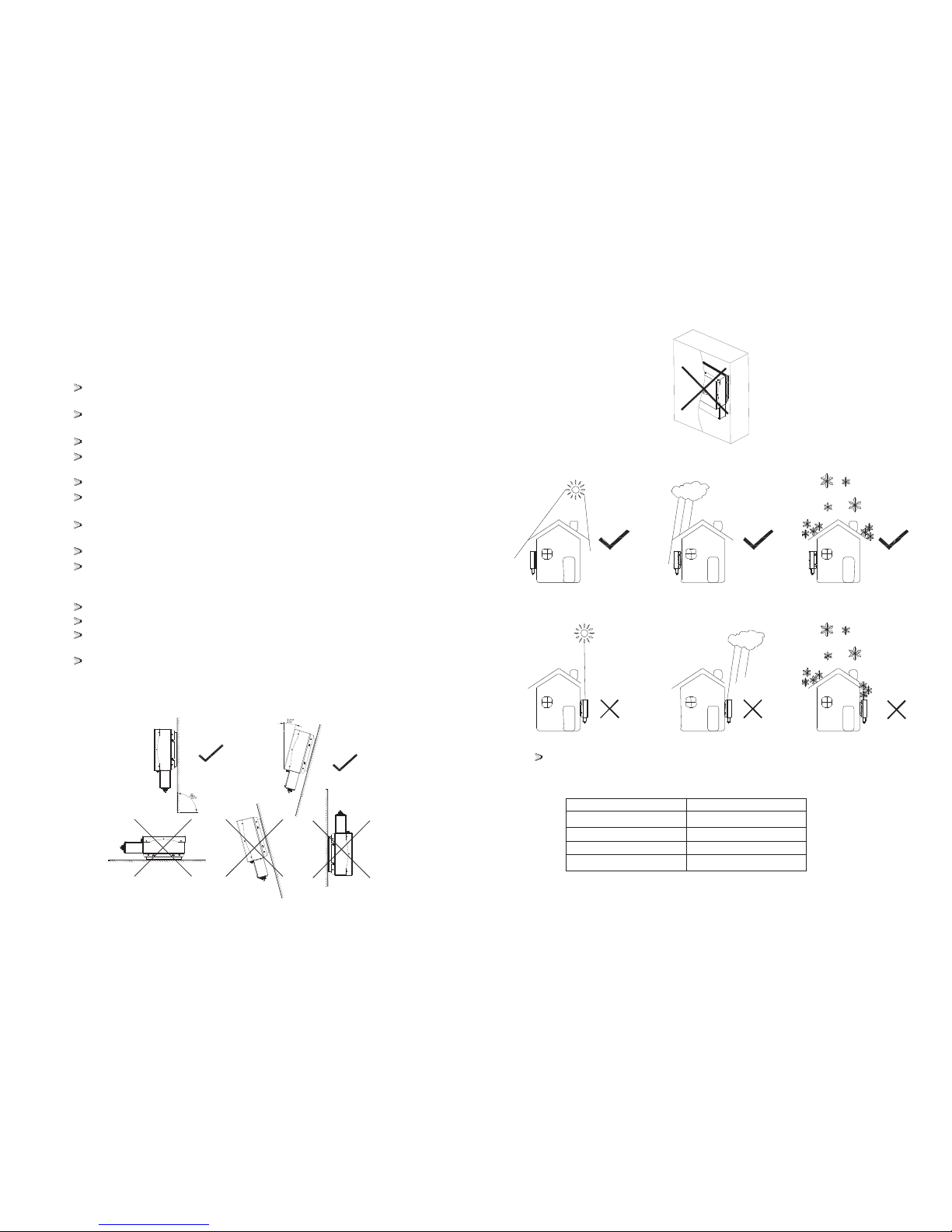

5.2 Selecting the installation location
This is guidance for installer to choose a suitable installation location, to avoid
potential damages to device and operators.
Raintight or wet location hubs that comply with the requirements in the
Standard for Conduit, Tubing, and Cable Fittings, UL 514B, are to be used.
The unit shall be mounted at least 914 mm (3 feet) above the ground. The installation location must be suitable for the inverter's weight and
dimensions for a long period time.
Select the installation location so that the status display can be easily viewed. Do not install the inverter on structures constructed of flammable or
thermolabile materials.
The humidity of the installation location should be 0~95% without
condensation.
The installation location must be freely and safely to get at all times.
Vertically installation or tilted backwards by max. 15°. and make sure the connection of inverter must be downwards. Never install horizontal and avoids forward and sideways tilt.
Be sure that the inverter is out of the children's reach. Don't put any things on the inverter. Do not cover the inverter. Do not install the inverter near television antenna or any other antennas,
antenna cables.
Inverter requires adequate cooling space. Providing better ventilation for the inverter to ensure the heat escape adequately. The ambient temperature should be below 40°C to ensure optimum operation. Please make sure the inverter is installed at the right place The inverter can't install close to trunk
The inverter can't install to direct sunlight drench,firn location. We suggest that
the inverters should be installed at the location with some cover or protection,.
Observe the minimum clearances to walls, other inverters or objects as shown in the diagram below in order to guarantee sufficient heat dissipation.
Direction Min.clearance(cm)
above
30
below
sides
front
50 30
30
15
16
There must be sufficient clearance between the individual inverters to
ensure that the cooling air of the adjacent inverter is not taken in.
If necessary, increase the clearance spaces and make sure there is enough
fresh air supply to ensure sufficient cooling of the inverters.

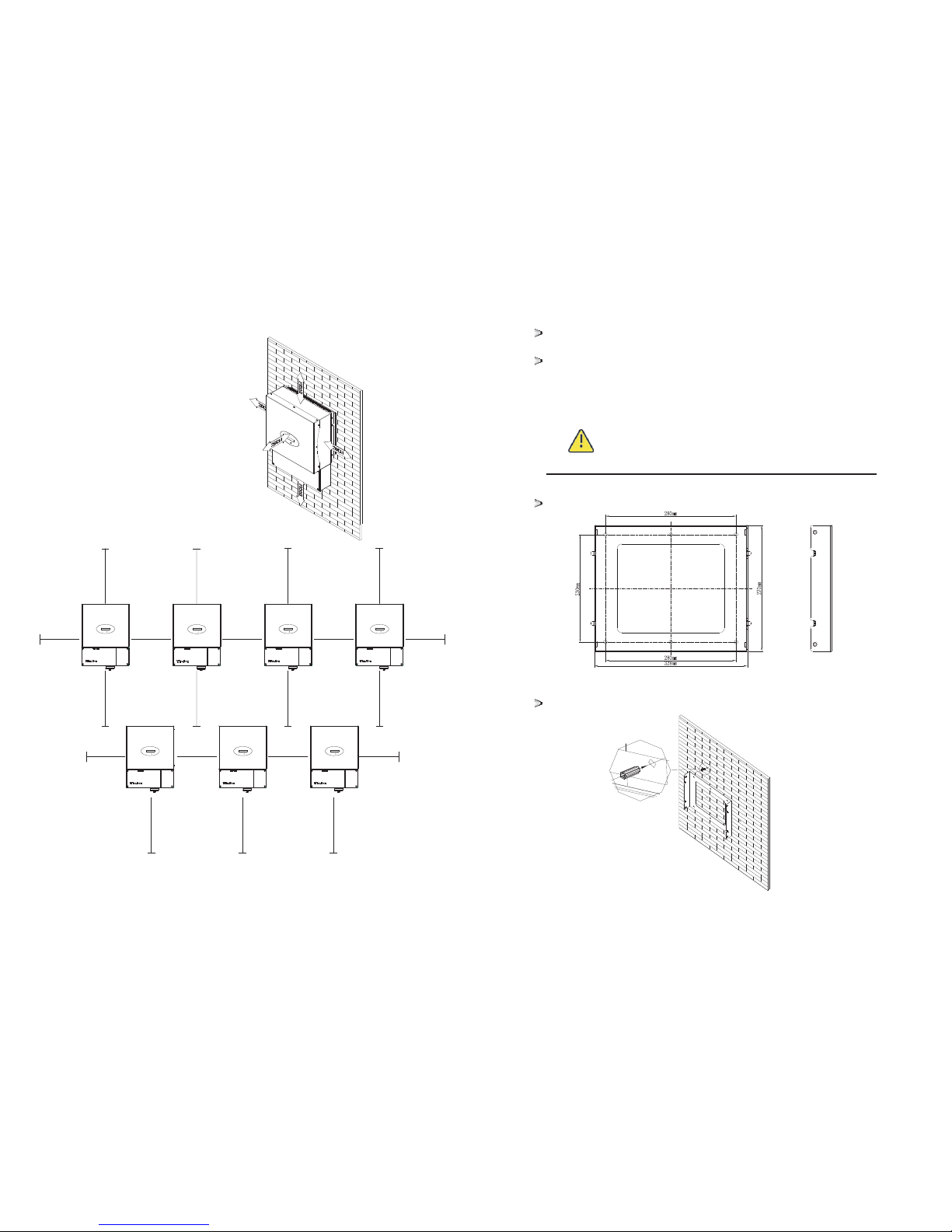

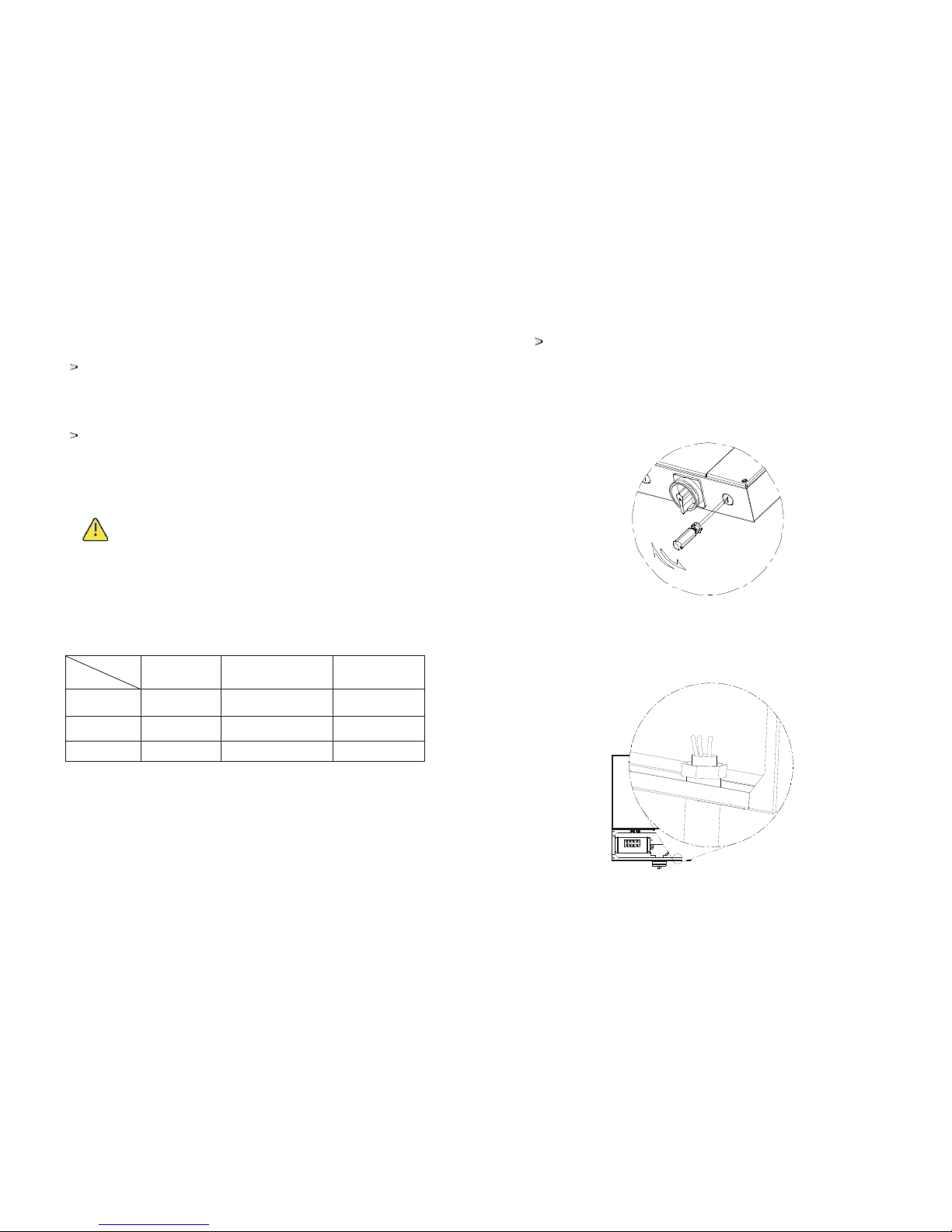

5.3 Mounting the Inverter with bracket
WARNING
In order to avoid electrical shock or other injury, inspect existing electronic or plumbing installations before drilling holes.
The dimension of bracket as follow
Using the mounting frame as a template, drill holes as illustrated in
image.
Ambient dimensions of one inverter
Ambient dimensions of a series inverters
Min 30cm.
Min.50cm
Min 30cm.
Min 30cm.
Min 30cm.
Min 30cm. Min 30cm. Min 30cm. Min 30cm.
Min 30cm.
Min.50cm
Min.50cm
Min.50cm
Min.50cm
Min.50cm
Min.50cm Min.50cm
Min.50cm
Min.50cm
Min.50cm
17 18
Fix the mounting frame as the figure shows. Do not make the screws to
be flush to the wall. Instead, leave 2 to 4mm exposed.

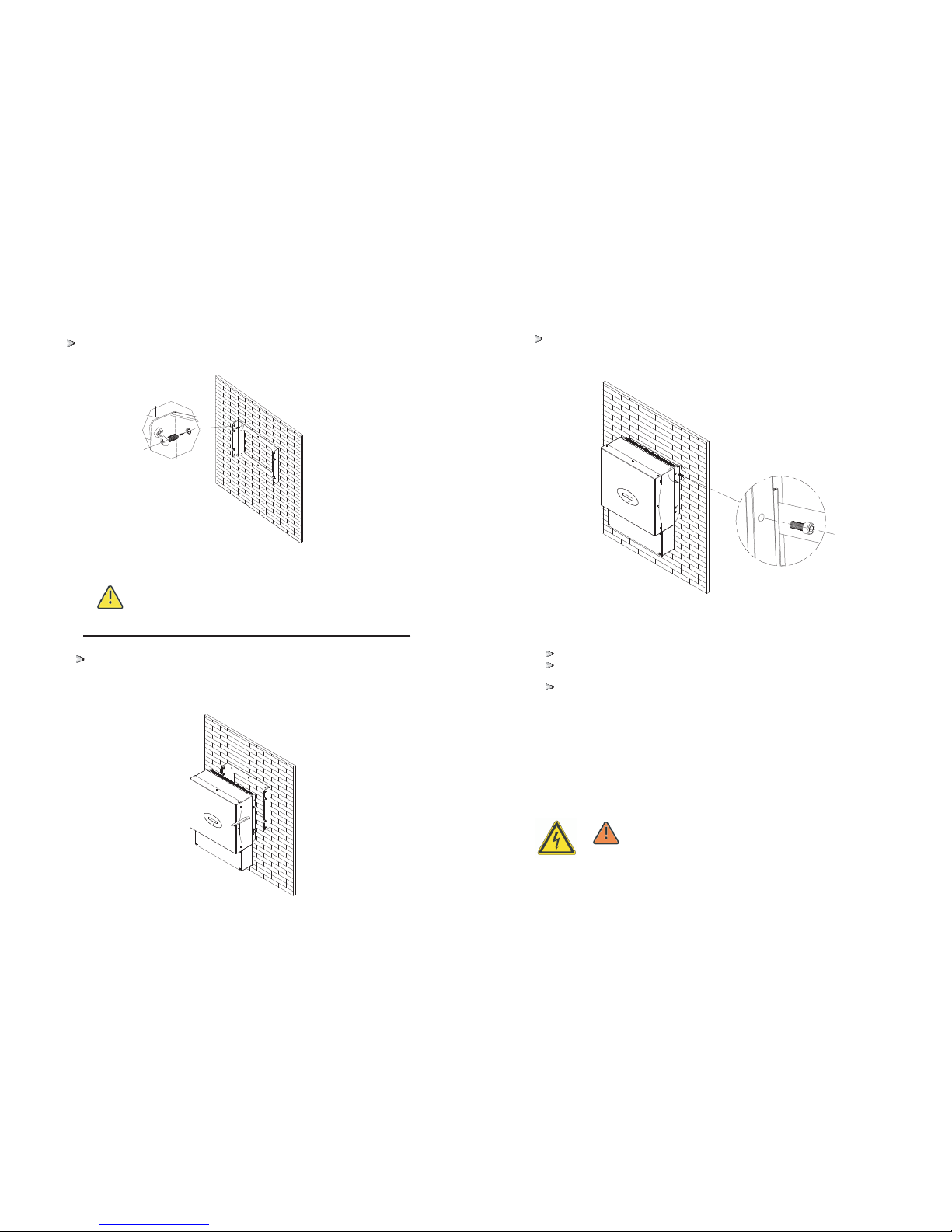

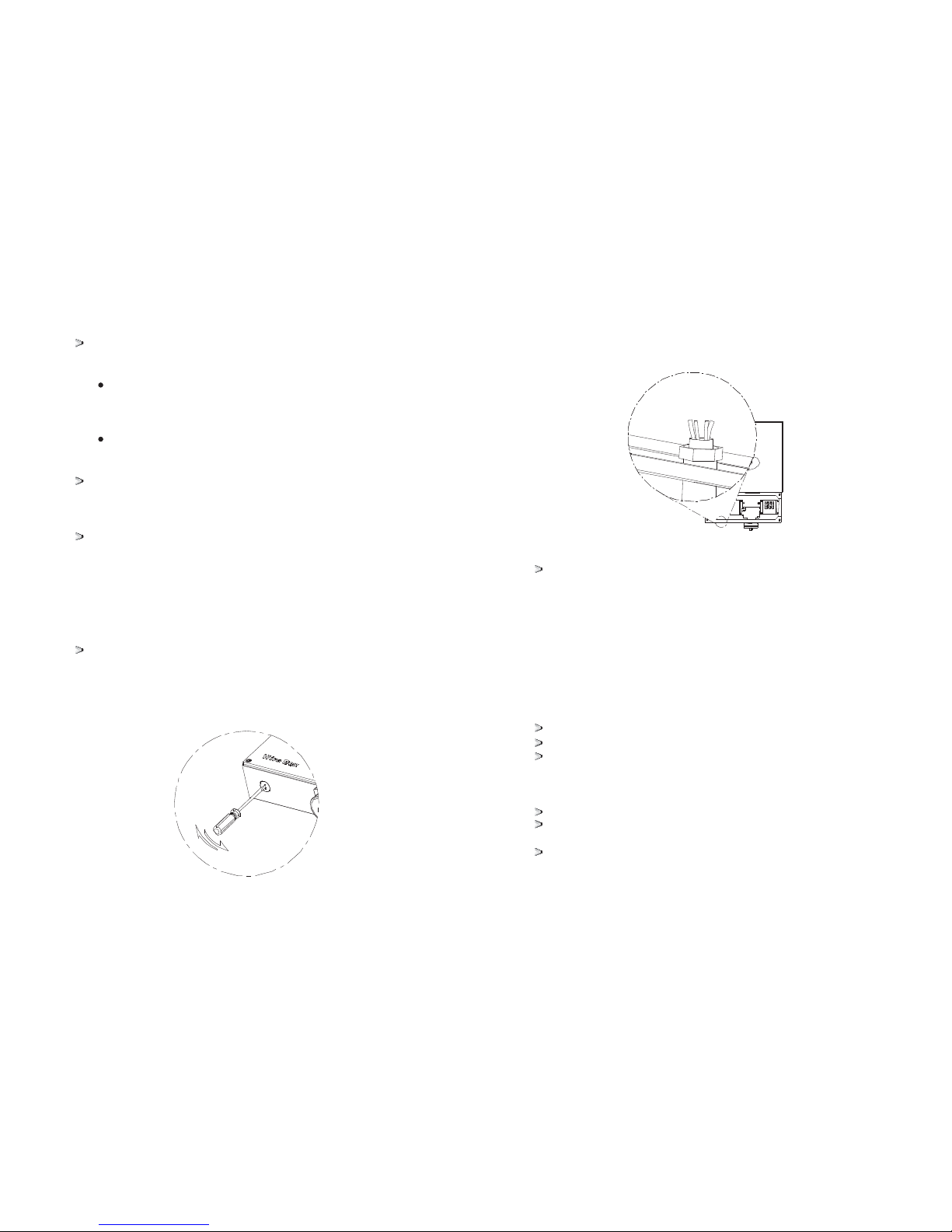

5.4 Fixed the inverter on the wall
Falling equipment can cause serious or even fatal injury, never mount the inverter on the bracket unless you are sure that the mounting frame is really firmly mounted on the wall after carefully checking.
WARNING
Rise up the inverter a little higher than the bracket. Considered the
weight of them. During the process please maintain the balance of the
inverter.Hang the inverter on the bracket through the match hooks on
bracket.
After confirming the inverter is fixed reliably, fasten four M6 safety-lock
sokets head cap screws on the left and right side firmly to prevent the
inverter from being lifted off the bracket.
5.5 Check Inverter Installation Status
Check the upper straps of inverter and ensure it fits on to the bracket.
Check the secure mounting of the inverter by trying to raise it from the
bottom. The inverter should remain firmly attached.
Choose a strong mounting wall to prevent vibrations while inverter is
operating.

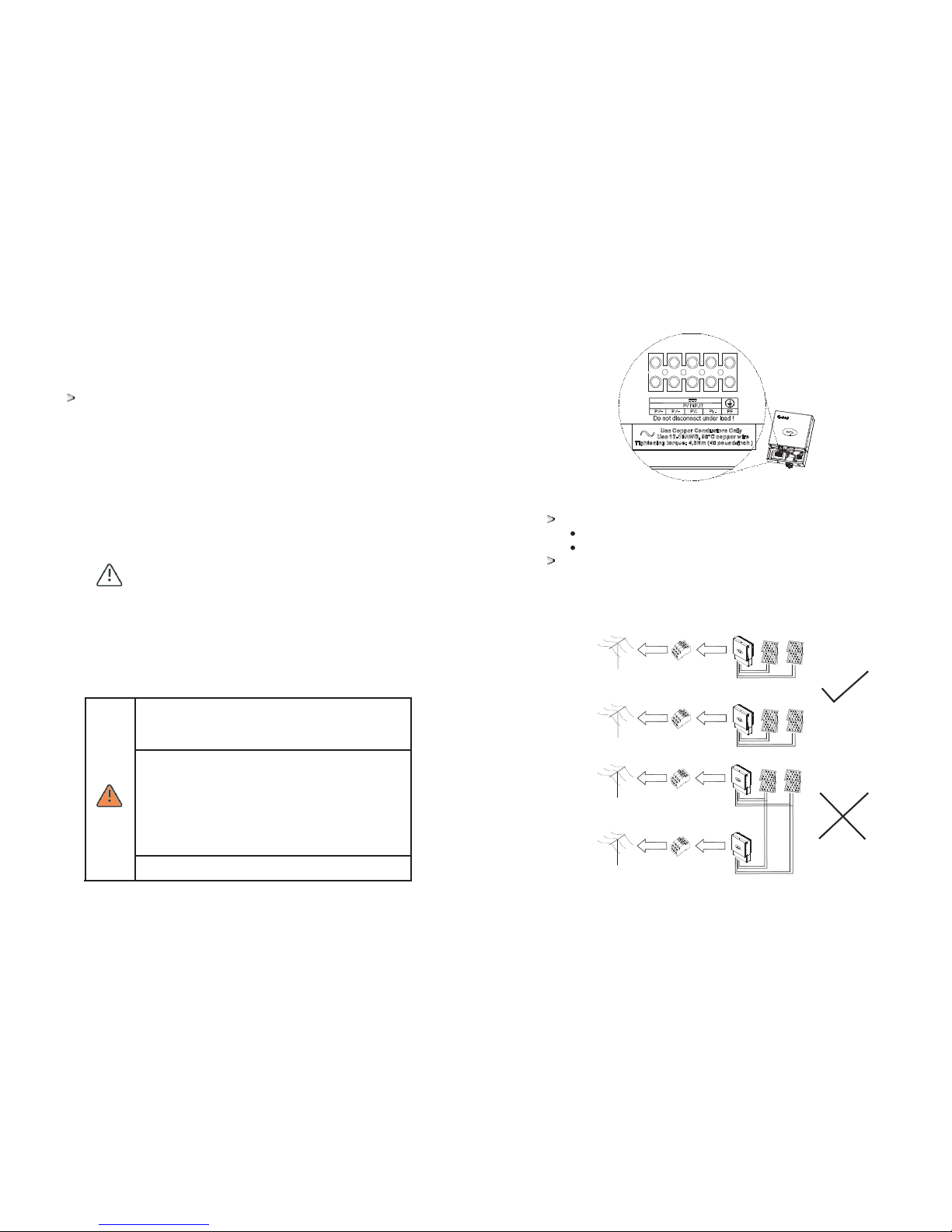

5.6 Electrical Connection
5.6.1 Safety
DANGER
Danger to life due to lethal voltages!
High voltages which may cause electric shocks are
present in the conductive parts of the inverter. Prior
to performing any work on the inverter, disconnect
the inverter on the AC and DC sides
19 20
WARNING
Danger of damage to electronic components due to electrostatic discharge. Take appropriate ESD precautions when replacing and installing the inverter.
DANGER
Before connecting the power cables, you much connect both ground wire of DC and AC side in wire box first.
5.6.2 System Diagram with Inverter Electrical
Intended Use
The unit converts the DC current generated by the photovoltaic (PV) modules to
grid-compliant alternating current and feed-in into the electricity grid. Growatt
inverters are built according to all required safety rules. Nevertheless, improper use
may cause lethal hazards for the operator or third parties, or may result in damage
to the units and other property.
This unit or system is provided with fixed trip limits and shall not be
aggregated above 30 kW on a single Point of Common Connection.
PV Panel: Provide DC power to inverter.
Converts DC (Direct Current) power from PV panel to AC (Alternating
Current) power. Because Inverter is grid-connected, it controls the current
amplitude according to the PV Panel power supply. Inverter always tries to convert
the maximum power from your PV panel.
Connection system: This“interface” between Utility and PV-Inverter may
consist of electrical breaker, fuse and connecting terminals. To comply with local
safety standards and codes, the connection system should be designed and
implemented by a qualified technician.
Utility: Referred to as “grid”in this manual, is the way your electric power
company provides power to your place.
Principle of PV plant system
Position
A
B
C
D
E
F
Description
PV modules
DC load circuit fuse or breaker
Growatt Inverter
AC load circuit fuse or breaker
Energy meter
Utility grid
Wire box
In the wire box, the right side is AC output wire connection terminal, and the left side is PV input wire connection terminal, the middle is DC switch.
21 22
Use only solid or stranded wire but not fine stranded wire.
Use cables with high ambient temperatures. Use cables with a large cross-section .
NOTICE
Code
Name
Detail
A
Conductor cross-section Conductor cross-section
B
Stripping insulation 12mm

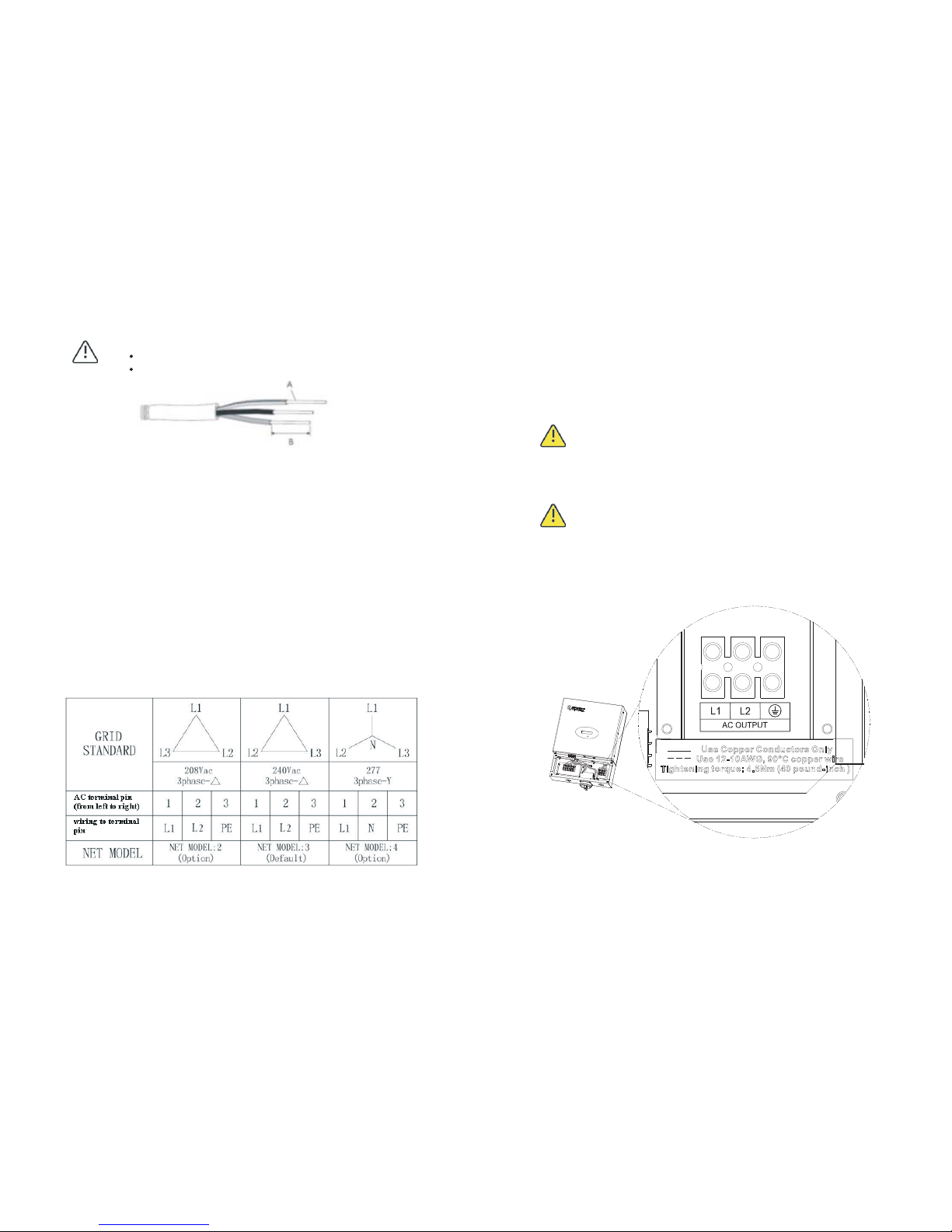

5.6.3 Connecting to the grid (AC utility)5.6.3 Connecting to the grid (AC utility)
Grid standard
Before wiring the inverter, the installer needs to determine the grid configuration that the inverter will be connected to. The Growatt inverter is default set for utility interconnection with 240Vac from factory. However, you can choose the Net MODEL through the LCD to set the inverter to be fitted the commonly used utility configuration types shown in the figure 5.6.3. Based on the local grid standards, it is possible to select differentconnection types. The available configurations are shown in the following table:
NOTE: in the inverter wire box,AC terminal pin is written as L1,L2 and PE,not the pin number,that just for the default net model. if you connect to other net model,you much connect the wire to the terminal pin number exactiude as above.
figure 5.6.3
WARNING
If several Growatt inverter are installed in a three-phase AC grid. it is recommended to distribute the inverters between the phases in order to reduce the power unbalances between the phases. Always refer to the local standards.
WARNING
si plusieurs Growatt inverter sont installés sur un réseau électrique à courant alternatif à trois phases. Il est recommandé de distribuer les onduleurs entre les phases pour réduire les déséquilibres de puissance entre les phases. Toujours vous référer aux normes locales.
Connection of the AC cable
23 24
WARNING
The separate disconnection unit spec require as follow:
Voltage:
Current:
the voltage much not less than the AC grid voltage which
you connection.
the current much not less than 1.2 times of the inverter
max output current which defined in the inverter spec.
Model
@208Vac
Growatt 1500-US
10A/400Vac
Grid type
Growatt 2000-US
Growatt 3000-US
@240Vac
@277Vac
15A/400Vac 20A/400Vac
10A/400Vac 15A/400Vac 20A/400Vac
10A/400Vac 10A/400Vac 15A/400Vac
Wiring Step :
1.Open the AC separate unit between the inverter and utility and
the DC switch on the inverter.
3.
installation rubber pipe into the knock-out hole and pull the pipe nut
slightly, feed the cables through the pipe into the wire box till the terminal
2.Open the wire box cover and the knock-out hole.
We suggest the AC separate unit spec as follow:
Output connection terminal
Make sure the grid (AC utility) configuration types .If you grid standard is not the factory default type, don't worried, you just need to wire the local AC grid according with the figure 5.6.3, after wiring both DC input and AC output, you can use the LCD to choose the NET model to make the inverter suit the local grid type in the chapter 6.2“Setting the LCD display”.
You must install a AC separate circuit-breaker or other load disconnection unit between the inverter and utility, in order to ensure that the inverter can be safely disconnected under load.
25 26
4.
Cable requirements
Product Model Area(mm²) AWG No.
Growatt1500-US 3.33~5.26 10~12
Growatt2000-US 3.33~5.26 10~12
Growatt3000-US 3.33~5.26 10~12
The AC side terminal is clear, Connect cables into relevant terminals as the figure 5.6.3
The cables length should not exceed 50 m, the resister of the cable will consume inverter output power , finally reduce the inverter efficiency .
NOTICE
5.6.4 Connect to PV Panel (DC input)
Risk of electric shock and fire, use only with PV modules, and with a maximum system voltage of 450Vdc for Growatt1500­US,500V for Growatt2000-US &Growatt3000-US.
DANGER
Electric shock hazard , the DC conductors of this photovoltaic system are normally ungrounded but will become intermittently grounded without indication when the inverter measures the PV array isolation. Because of the transformer less design, the DC positive pole and DC negative pole of PV arrays are not permitted to be grounded.
Do not disconnect the DC connectors under load!
Input connection terminal
Suggestions for the PV modules of the connected strings:
Same type
Same quantity of PV modules connected in series Wiring inverter in parallel The inverter can be connected in parallel in order to obtain more power, each inverter shall connect to its own PV array, cannot connect a single PV array to more than one inverter. That will cause the inverter to work abnormally, the worst condition inverter will be damaged.
Public Grid
AC
Breaker
+ -+-
Public Grid
AC
Breaker
+ -+-
Public Grid
AC
Breaker
+ -+-
Public Grid
AC
Breaker
+ -+-
27 28
Under any condition! Make sure the maximum open circuit voltage (Voc)
of each PV string is less than 450Vdc for Growatt1500-US,500Vdc for
Growatt2000-US&Growatt3000-US.
Wiring step:
Do not connect strings with an open circuit voltage greater than the Max. input voltage of the inverter. If the strings voltage exceeds the Max. input voltage of the inverter, it can be destroyed due to overvoltage. All warranty claims become void.
Check the design of the PV plant. The Max. open circuit voltage, which can occur at solar panels ambient temperature of -10 , must not exceed the Max. input voltage of the inverter. Before connecting PV panels to DC terminals, please make sure the polarity is correct. Incorrect polarity connection could permanently damage the unit. Check short-circuit current of the PV string. The total short-circuit current of the PV string should be less than the inverter's maximum DC current. Connect the positive and negative terminals from the PV panel to positive (+) terminals and negative (-) terminals on the Inverter. Each DC terminal on Inverter can withstand 12Adc for 1500-US,14Adc for 2000-US, 17Adc for 3000-US. High voltages exist when the PV panel is exposed to the sun. To reduce risk of electric shock, avoid touching live components and treat connection terminals carefully
1.Open the independent DC separate unit ,the DC switch on the Growatt -US inverter and the AC separate unit.
2.Open the left hand side knock-out hole.
3.installation rubber pipe into the knock-out hole and pull the pipe nut slightly, feed the cables through the pipe into the wire box till the terminal.
4.connect the PV cables to the terminal correct.
Cable requirements
Product Model Area(mm²) AWG No.
Growatt1500-US 3.33~5.26 10~12
Growatt2000-US 3.33~5.26 10~12
Growatt3000-US 3.33~5.26 10~12
5.7 Commissioning Checking
Cover the wire box. Close the DC separate unit and the DC switch on the inverter. When the PV panels are connected and PV voltage is greater than 100 Vdc but the AC grid is not yet connected, the message on the LCD display produce the following messages in order: “Growatt Inverter”-> “Waiting” -> “No AC connection”. The display repeats “No AC connection” and the LED will be red. Setting grid model choice. See the chapter 6.2“Setting the LCD display”. Close the AC separate unit between inverter and grid. The normal operating sequence begins. Under normal operating conditions the LCD displays “Power: xxxx.xW”. That is the power fed to the grid. The LED turns green. This completes the check.
29
6 LCD display6 LCD display
Glossary
AC
Abbreviation for "Alternating Current".
DC
Abbreviation for "Direct Current".
Energy
Energy is measured in Wh (watt hours), kWh (kilowatt hours) or MWh (megawatt hours). The energy is the power calculated over time. If, for example, your inverter operates at a constant power of 20,000 W for half an hour and then at a constant power of
10,000 W for another half an hour, it has fed 15 000Wh of energy into the power distribution grid within that hour.
,
Power
Power is measured in W (watts), kW (kilowatts) or MW (megawatts). Power is an instantaneous value. It displays the power your inverter is currently feeding into the power distribution grid.
Power rate
Power rate is the radio of current power feeding into the power distribution grid and the maximum power of the inverter that can feed into the power distribution grid.
Power Factor
Power factor is the ratio of true power or watts to apparent power or volt amps. They are identical only when current and voltage are in phase than the power factor is 1.0. The power in an ac circuit is very seldom equal to the direct product of the volts and amperes. In order to find the power of a single phase ac circuit the product of volts and amperes must be multiplied by the power factor.
PV
Abbreviation for photovoltaics.
6.1 Display and messages
6.1.1 LCD display
Starting-up display sequence, Once the PV power is sufficient, Inverter displays information as shown in the flow chart as follow:
Module: xxxxxx
Ser No: xxxxxxxxxx
FW Version: x.x.x
Connect in: xxS
Connect : OK
Power: xxxx.xW
6.1.2 LCD control
The LCD display's backlight automatically turns off after 30 seconds to save the power. The display on the inverter can be control by Knock on the front of it.
Symbol Description Explanation
Tap symbol
Inverter status symbol
Indicates display operation
Indicates inverter operation status
The first line will show some status of the inverter, there are 5 status listed in below table.
30
The First Line Of LCD
STATE DISPLAY CONTENT REMARK
Wait State
Standby
Waiting
Connect in xx S Reconnect in xx S
PV voltage low
Initial waiting
System checking System checking
Inverter State
Fault State
Program State
Connect OK Power: xxxx.x W
Connect to Grid Inverter watt at working
Error: xxx
System Fault
Programming
Update Software
While Growatt inverter is working, the first line will normally show Power status:
The Second line can change by knock on .
The Second Line Of LCD
Cycle display Display time/S
Remark
The inverter model
2
2
2
The software version
The Serial Number
4
The energy today
4
The energy all
4
PV input watt
4
The PV and Bus Votage
The grid system
4
Set Language
4
Set LCD Contrast
4
Set Communications Address
4
Set Net Model
4
When inverter started to connect to grid, the following message will
appear on LCD screen.
31 32
Power : 2016.4w
AC:241V F:60HZ
Power : 2123.4w
Ppv: 2123.4w
Power : 2013.4w
model: P7U1M2S4
Power : 2016.8w
FW Version: U.1.2
Power : 2012.8w
SerNO:DK00000000
Power : 2019.6w
Etoday: 7.1kwh
Power : 2017.0w
Eall: 90kwh
Power : 2013.4w
PV: 313 B: 370V
Power : 2019.5w
Set Language
Power : 2008.2w
Set LCD Contrast
Power : 2019.5w
COM Address: Move
Power : 2016.2w
Net Model: 2
Power : 2009.6w
Etoday: 7.1kwh
Power : 2016.2w
AC: 241V F: 60.0Hz
6.2 Setting the LCD display
The inverter can support three kinds of knock: single knock, double knock. Each kind
of knock has different function. Refer to specified definition in Table below
Knock type
Definition
Single knock
Double knock
Key Down
Key SET
Before light the background, the types of knock functions are the same: just light the background. That the background light will automatically off if there is no knock detected in 10 seconds.
Sound control can define the display language, luminance of the display, and utility model choice.When the LCD is dark, Knock and double knock make it becomes bright. Knock to make it display next information or change the set situation. Double knockmake the display stand for 30 second, enter to setting the menu.
Setting language Knock to make the display bright knock to “set language” double knock to enter “language: English” knock to select the language you need and wait until the display become dark.
Setting luminance of the display Knock to make the display bright knock to “set LCD contrast” double knock to enter “LCD contrast 2” knock to select the luminance you need and wait until the display become dark.
Setting communication address Knock to make the display bright-->knock to “COM Address: xx”-->double knock to change the Address model-->clock to set address.
Setting grid model choice This function is disable when the inverter work in the normal state, you much turn off the AC separate unit, and the inverter LCD will display a error “NO AC Connection”, LED turn red ,then this model choice function is enable. Knock to make the display bright knock to “Net Model: xx” double knock to enter “Net Model: xx” knock to select the grid model .need to wait for 10S till the CPU restart. Then check the“NET Model” in LCD display again. Turn on the AC separate unit, inverter begin to work.
→→
→→
→→
Communications 7Communications 7
7.1 Monitoring Products
7.1.1 Shine Net
Shine NET is a PC software that communicate with inverter to analyze the inverter
working state. It is convenient for you to know the inverter's real-time working state
and the history work information.
Specification:
Communicate with inverter by RS232 and Bluetooth.
Construct net with inverter, GRO monitor and Shine NET by RS232, Bluetooth and
Internet.
Two Interfaces: Multi Inverter Interface and Wave Data Interface.
In Multi Inverter Interface: See at most 4 inverters working data at the same time, you
can select your own compare inverters and parameters.
In Wave Data Interface: Query the inverter real time and history power wave,work
data and error information.
Multi languages: English, French, German, Spanish and etc.
Support OS: WinXP/ Vista/win7/2000/2003.
33 34
Power : 2016.2w
Net Model: 2
Power : 2016.2w
Net Model: 3
Power : 2016.2w
Net Model: 4
7.1.2 Shine Vision
Shine Vision, which consists of a power monitor and a number of transmitters, can
achieve 1 to 6 monitoring modes. The transmitters transmit the power data collected
from a photovoltaic inverter to the monitor and display the data onto the monitor
screen, as along as data of generated energy, the gross generated energy and the
generation income obtained from the above-mentioned data through some simple
calculations. We can also see AC voltage, two-way PV voltage, indoor temperature,
date and time, as well as CO2 emissions.
.
Shine Vision
7.1.3 Shine Pano
Shine Pano have a large touch screen, customers can browse data or set communication parameters, inverter parameters by touching easily. It is designed for solar power plant remote monitoring. While supporting both wired and wireless communication, ShineWebbox can simultaneously monitor, record and analyze inverter operating parameters real time with a maximum quantity of 50. Monitored data also can be sent to Shine Server.
Shine Pano
7.1.4 Shine Webbox
Shine WebBox is specially designed for solar power plant remote monitoring. While
supporting both wired and wireless communication, Shine WebBox can
simultaneously monitor, record and analyze inverter operating parameters real time
with a maximum quantity of 50. Monitored data can be sent to ShineServer.
Shine WebBox
7.1.5 Shine Server
Shine Server is a remote data server, it is based on B/S structure. It can receive
monitoring data from Shine Webbox or Shine Pano, and publish monitored data to
LAN or WAN. User can easily access data browse interface via an Internet Explorer.
7.2 Monitoring System
The inverter provides RS485 interface and RS232 interface to communicate with
remote PC or logger. User can monitor the inverter's state via the following types of
communication systems.
39 40
Through RS485 interface-Data logger
Through RS485 interface-Data logger+ PC
Through RS485 interface-RS485-232 converter+ PC
7.3 RS485 cable connection
1.
Unscr
ew the plastic connector.
2. Make the RS485 cable go through the connector.
3. Put two heat shrink tubes onto the front head of RS485 cable.
4. Insert the two metal head into relevant small cupreous hole, and fasten the connection by soldering.
35 36
5. Make the heat shrink tubes wrap the joint.
5. Make the heat shrink tubes wrap the joint.
7. Connect the RS485 connector onto the inverter. Make sure the connection matched ('1' to '1', '2' to '2').
7.4 Using shine tool to set the information of the inverter
About the software of shine tool and the usage of it please
download from the web: www.ginverter.com/Download.aspx
Start-Up and shut down the inverter 8Start-Up and shut down the inverter 8
8.1 Start-Up the inverter
1. Connect the AC circuit breaker
2.Turn on the DC switch, and the inverter will start automatically when the input voltage is higher than 150V.
8.2 Disconnecting the Inverter
1. Disconnect the AC circuit breaker and prevent it from being reactivated.
2.Turn off the dc switch.
3.
Check
the inverter operating status.
4.
W
aiting until LED,LCD display have gone out, the inverter is shut down.
Maintenance and Cleaning 9Maintenance and Cleaning 9
9.1 Checking Heat Dissipation
If the inverter regularly reduces its output power due to high temperature, please improve the heat dissipation condition. Maybe you need to clean the heat sink.
9.2 Cleaning the Inverter
If the inverter is dirty, shut down the inverter, then clean the enclosure lid, the display, and the LEDs using only a wet cloth. Do not use any cleaning agents (e.g. solvents or abrasives).
37 38
9.3 Checking the DC switch
Check for externally visible damage and discoloration of the DC disconnect and the
cables at regular intervals. If there is any visible damage to the DC disconnect, or
visible discoloration or damage to the cables, contact the installer.
WARNING
Once a year, turn the rotary switch of the DC switch from the
On position to the Off position 5 times in succession. This
cleans the contacts of the rotary switch and prolongs the
electrical endurance of the DC Disconnect.
10 Decommissioning10 Decommissioning
10.1 Dismantling the Inverter
1. Disconnect the inverter as described in chapter 10.
2.Remove all connection cables from the inverter.
DANGER
Danger of burn injuries due to hot enclosure parts!
Wait 20 minutes before disassembling until the housing has
cooled down.
3.
Scr
ew off all projecting cable glands.
4.
Lift
the inverter off the bracket and unscrew the bracket screws.
10.2 Packing the Inverter
If possible, always pack the inverter in its original carton and secure it with tension
belts. If it is no longer available, you can also use an equivalentcarton. The box must
be capable of being closed completely and made to support both the weight and the
size of the inverter.
10.3 Storing the Inverter
Store the inverter in a dry place where ambient temperatures are always between -
25°C and +60°C.
10.4 Disposing of the Inverter
Do not dispose of faulty inverters or accessories together with household
waste. Please accordance with the disposal regulations for electronic
waste which apply at the installation site at that time. Ensure that the old
unit and, where applicable, any accessories are disposed of in a proper
manner
42
11 Trouble shooting11 Trouble shooting
Sometimes, the PV inverter does not work normally, we recommend the following
solutions for common troubleshooting. The following table can help the technician
to understand the problem and take action.
Error message Description Suggestion
No AC Connection No utility grid
connected or utility grid power failure.
AC V Outrange
Utility grid voltage is out of permissible range.
AC F Outrange
Utility grid frequency out of permissible range.
1.Check AC wiring, especially the ground wire
2.ContactGrowatt.
1.Check grid typ and voltage.
2.If the error message still exists despite the grid voltage being within the tolerable range, contact Growatt.
1.Check grid frequency.
2.If the error message is displayed despite the grid frequency being within the tolerable range, contact Growatt.
Over Temperature
Temperature
outrange
1.check the inverter operation state
2.If the error message is displayed still,please contact Growatt.
PV Isolation Low
Insulation problem
1.Check if panel enclosure ground properly.
2.Check if inverter ground properly.
3.Check if the DC breaker gets wet.
4.If the error message is displayed despite the above checking passed, contact Growatt.
Output High DCI
Output current DC offset too high
1.Restart inverter.
2.If error message still exists, contact Growatt.
Residual I High Leakage current
too high
1.Restart inverter.
2.If error message still exists, contact Growatt.
PV Voltage High The DC input
voltage is exceeding the maximum tolerable value.
Disconnect the DC switch immediately.
Error: 100 2.5V reference
voltage fault
Error: 101
1.Restart inverter
2.If error message still exists, contact Growatt.
Communication fault Slave processor can't
receive data from
Master processor.
1.Restart inverter
2.If error message still exists, contact Growatt.
Error: 102
Consistent fault. Data received by Master and Slave processor are different. The reason can be utility grid voltage or frequency change frequently.
1.Restart inverter.
2.If error message appears frequently or error message still exists after replacement, check utility grid. if yourequire help, contact Growatt.
3.If error message still exists, contact Growatt.
Error: 116
EEPROM fault
Contact Growatt.
Error: 117
Relay fault
Contact Growatt.
Error: 118
Init model fault
Contact Growatt.
Error: 119
GFCI Device Damage
Contact Growatt.
Error: 120
HCT fault
Contact Growatt.
Error: 121
Communication fault. Master processor can't receive data from Slave processor.
1.Restart the inverter
2.If error message still exists, contact Growatt.
Error: 122
Bus voltage fault
Contact Growatt.
43 44
Operation Modes12 Operation Modes12
12.1 Normal Mode
In this mode, the inverter works normally and LED turns green.
1.
Whenever
the DC voltage is higher than 150Vdc, inverter converts power to grid
as generated by the PV panels;
2.
Whenever
the DC voltage is lower than 150Vdc, the inverter will work in waiting
state and attempt to connect the grid. In waiting state the inverter consumes just
enough power generated by the PV panel to monitor the internal system status;
NOTICE
The inverter starts up automatically when the DC power from
the PV panel is sufficient.
12.2 Fault Mode
The internal intelligent controller can continuously monitor and adjust the system
status. If inverter finds any unexpected conditions such as system fault and inverter
fault, the fault information will be displayed on the LCD. In fault mode the LED turns
red.
NOTICE
Detailed fault information refers to 13. Trouble shooting.
12.3Shutdown Mode
Inverters automatically stop running during periods of little or no sunlight. In
shutdown mode the inverters take no power from the grid and panel, and the LCD
and LED turns off.
NOTICE
If the PV string DC voltage is too low, the inverter will also
turn to Shutdown Mode.
De-rating Operation 13De-rating Operation 13
Temperature
The inverter will monitor the temperature of the heat-sink. Once the temperature
exceeds 75°C (167°F) ,the system will reduce the output power until the temperature
drops under the critical value. The inverter will shut down the power output to the
grid if the temperature reaches 85°C (185°F). If this occasion happens often, it is
necessary to check whether the inverter is mounted at an appropriate place with
good ventilation and not directly exposure to the sunshine.
Manufacturer Warranty 14Manufacturer Warranty 14
This certificate represents a 10 year warranty for the Growatt inverter products listed
below. Possession of this certificate validates a standard factory warranty of 5 years
from the date of purchase.
14.1 Warranted products
This warranty is applicable solely to the following products:
Growatt1500-US;Growatt2000-US;Growatt3000-US
Growatt3600MTL-US;Growatt4200MTL-US;Growatt5000MTL-US
14.2 Limited Product Warranty
(Applicable under normal application, installation, use and service conditions)
Growatt warrants the above listed products to be free from defects and/or failure
specified for a period not exceeding ten (10) years from the date of sale as shown in
the Proof of Purchase to the Original purchaser.
45 46
The warranties described in these “Limited Warranties” are exclusive and are
expressly in lieu of and exclude all other warranties, whetherwritten, oral, express or
implied, including but not limited to, warranties of merchantability and of fitness for
a particular purpose, use or application, and all other obligations or liabilities on
the part of Growatt unless such other obligations or liabilities are expressly agreed
to it in writing signed and approved by Growatt Growatt shall have no
responsibility or liability whatsoever for damage or injury to persons or property, or
for other loss or injury resulting from any cause whatsoever arising out of or related
to the modules, including, without limitation, any defects in the modules or from use
or installation. Under no circumstances shall Growatt be liable for incidental ,
consequential or specialdamages howsoever caused; loss of use, loss of production,
loss of revenues are therefore specifically and without limitation excluded to the
extent legally permissible, Growatt's aggregate liability, if any, in damages or
otherwise, shall not exceed the invoice as paid by the customer.
The “ ” described above shall not apply to, and Growatt
shall have no obligation of any kind whatsoever with respect to, any inverter which
has been subjected to:
— Misuse, abuse, neglect or accident;
— Alteration, improper installation or application;
— Unauthorized modification or attempted repairs;
— Insufficient ventilation of the product;
— Transport damage;
— Breaking of the original manufacturers seal;
— Non-observance of Growatt installation and maintenance instruction;
Failure to observe the applicable safety regulations
— Power failure surges, lighting, flood, fire, exposure to incorrect use,
negligence, accident, force majeure, explosion, terrorist act, vandalism or damage
caused by incorrect installation, modification or extreme weather conditions or other
circumstances not reasonably attributable to Growatt.
The warranty shall also cease to apply if the product cannot be correctly identified as
the product of Growatt. Warranty claims will not be honored if the type of serial
number on the inverters have been altered, removed or rendered illegible.
Limited Product Warranties
14.3 Liability
The liability of Growatt in respect of any defects in its PV inverters shall be limited to
compliance with the obligations as stated in these terms and conditions of warranty.
Maximum liability shall be limited to the sale price of the product. Growatt shall
accept no liability for loss of profit, resultant of indirect damage, any loss of electrical
power and/or compensation of energy suppliers within the express meaning of that
term.
The warranty rights as meant herein are not transferable or assignable to any third
party excepting the named warranty holder.
14.4 Warranty conditions
If a device becomes defective during the agreed Growatt factory warranty period and
provided that it will not be impossible or unreasonable, the device will be, as selected
by Growatt.
Shipped to a Growatt service centre for repair, or repaired on-site, or exchanged
for a replacement device ofequivalent value according to model and age.
The warranty shall not cover transportation costs in connection with the return of
defective modules. The cost of the installation or reinstallation of the modules shall
also be expressly excluded as are all other related logistical and process costs
incurred by all parties in relation to this warranty claim.
Technical Data 15Technical Data 15
15.1 Specification
47 48
Input data
Specifications
Growatt 1500-US
Model
Growatt 2000-US
Growatt 3000-US
Max. DC power
1800W 2300W 3200W
Max. DC voltage
450V 500V 500V
Start voltage
150V 150V 150V
DC nominal voltage
360V 360V 360V
PV voltage range
100V-450V 100V-500V 100V-500V
Output data
AC nominal voltage;
range
Default:240V single phase optional:208,240or277 single phase 183-228@208V 211-264V@240V 244-305@277V
Phase shift (cos )φ
111
THDI <3% <3% < 3%
Single phase Single phase Single phase
AC connection
MPP voltage range
120V-400V 120V-450V 120V-450V
Number of independent MPP trackers/strings per MPP tracker
1/1 1/ 21/ 2
Max. input current of the MPP tracker
12A
14A 17A
Nominal AC output power
1500W@208V ac
1650W@240&277V ac
1800W@208V ac
2000W@240&277V ac
2500W@208V ac
2800W@240&277V ac
Max. output current
8A/7.8A/6.8A 9.7A/9.4A/8.2A 15A/14.2A/12.3A
AC grid frequency;
range
60Hz;59.3-60.5Hz 60Hz;59.3-60.5Hz 60Hz;59.3-60.5Hz
Efficiency
Max. efficiency
97% 97% 97%
CEC efficiency
96% 96.5% 96.5%
MPPT efficieny
99.5%
99.5% 99.5%
Protection devices
DC reverse polarity protection
yes yes yes
DC switch ratiing for each MPPT
yes yes yes
Output Over current protection
yes yes yes
Output Overvoltage Protection-varistor
yes yes yes
Ground fault monitoring
yes yes yes
Grid monitoring
yes yes yes
Integrated all - pole sensitive leakage current monitoring unit
yes yes yes
General Data
Dimensions (W / H / D) in mm
360/465/165 360/465/165 360/465/165
Weight
14.6KG 15.1KG 15.9KG
Operating
temperature range
-25...+60
(-13...+ 140°F)
with derating above
45°C 113°F
()
-25...+60
(-13...+ 140°F)
with derating above
45°C 113°F
()
-25...+60
(-13...+ 140°F)
with derating above
45°C 113°F
()
Noise emission
(typical)
25 dB(A) 25 dB(A) 25 dB(A)
Altitude
Up to 2000m(6560ft) without power derating
49 50
Relative humidity
95%
Consumption: night
< 0.5 W
Topology
transformerless transformerless transformerless
Cooling concept
Natural Natural Natural
Enclosure
Type 3R
Features
DC connection:
AC connection
Screw terminal Screw terminal Screw terminal
display LCDLCD LCD
Interfaces: RS485/RS232/ Bluetooth/RF/Zigbee
yes/yes/opt/ opt/opt
yes/yes/opt/ opt/opt
yes/yes/opt/ opt/opt
Warranty: 10 years / 15 years yes /opt yes /opt yes /opt
Certificates and approvals
UL1741,UL1998 IEEE 1547, CSA C22.2 No.107.1-1,FCC Part15(Class A&B)
Type 3R Type 3R
Screw terminal Screw terminal Screw terminal
15.2 Efficiency curve
Growatt1500-US @240Vac
Growatt2000-US @240Vac
Growatt3000-US @240Vac
51 52
95% 95%
< 0.5 W < 0.5 W
16 Download Address16 Download Address
www.ginverter.com/Download.aspx
17 Contact17 Contact
If you have technical problems about our products, contact the Growatt
Service line. We need the following information in order to provide you with
the necessary assistance:
Inverter type
Serial number of the inverter
Event number or display message of the inverter
Type and number of PV modules connected
Optional equipment
53
Loading...
