Important safety information
PLEASE READ THIS CAREFULLY BEFORE USING WF35!
• Always treat your product with care and keep it in a clean and
dust-free place.
• Do not expose WF35 to moisture or humidity.
• Do not expose WF35 to extreme high or low temperatures.
• Do not attempt to disassemble your product.
• Use only the chargers and batteries approved by Group Sense
Mobile-Tech Limited. The use of any other type may invalidate
any approval and warranty. No reverse charging with other
chargers, they may have inverse polarity.
• Never use the charger if the plug is damaged.
• Never touch the charger if your hands/feet are wet.
• Do not expose the charger to water, it may cause electrical fires.
• Do not repair the charger yourself for your safety.
Important safety information
3
Important safety information
4
• To reduce the risk of fire or burns, do not disassemble, crush or
puncture the battery.
• Recycle or dispose of the battery safely and properly according
to local laws and regulations.
• Do not dispose of the battery in fire or water.
• Do not let the metal contacts on the battery touch other metal
object, it could lead to short-circuit and damage the battery.
• For WF35 model, only approved batteries, chargers that are
designed for the model can be used with WF35 unit.
• Do not exchange with wrong model battery, it may occurs to
explosion. Please dispose battery following instruction.
Contents
Getting to know WF35 7
WF35 overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installing/removing battery . . . . . . . . . . . . . . . . . . . . . . . 9
Charging battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Getting started 15
Turn on/off WF35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Wi-Fi connection settings. . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
To enable Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Bluetooth settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Paired Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Searching for Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . 28
Bluetooth services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Transferring files via Bluetooth . . . . . . . . . . . . . . . . . . . 30
Contents
5
Contents
WF35 settings 32
Screen rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

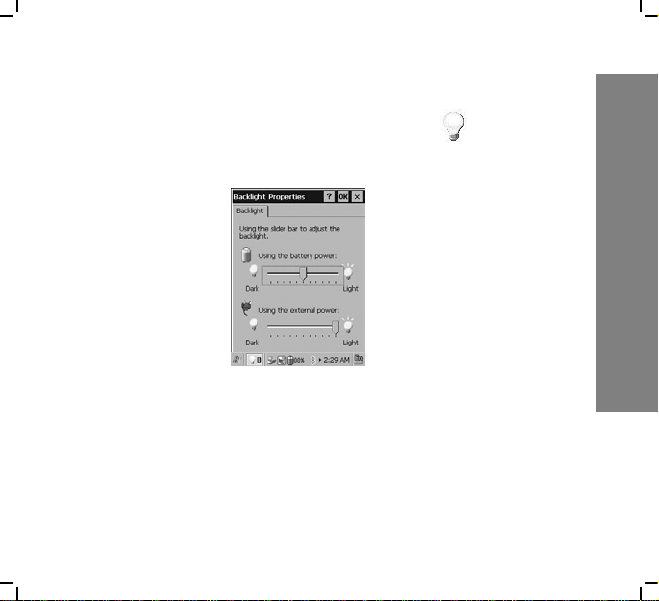

Backlight settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

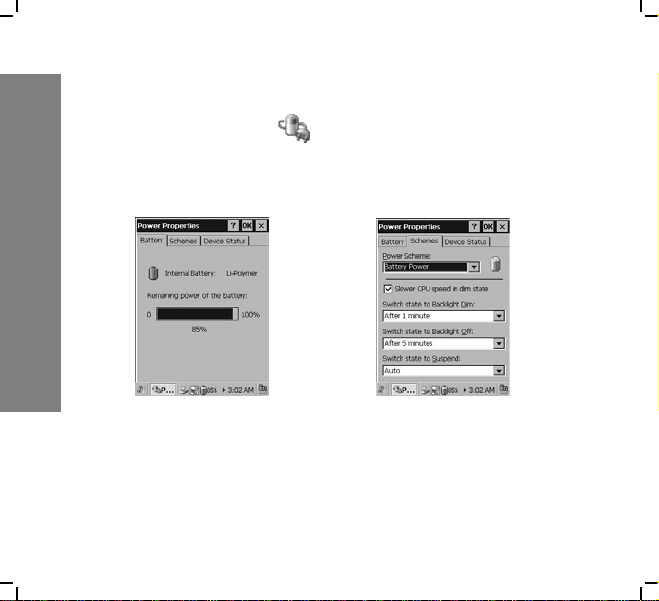

Power properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
MSR settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Date/Time settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Dialing settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

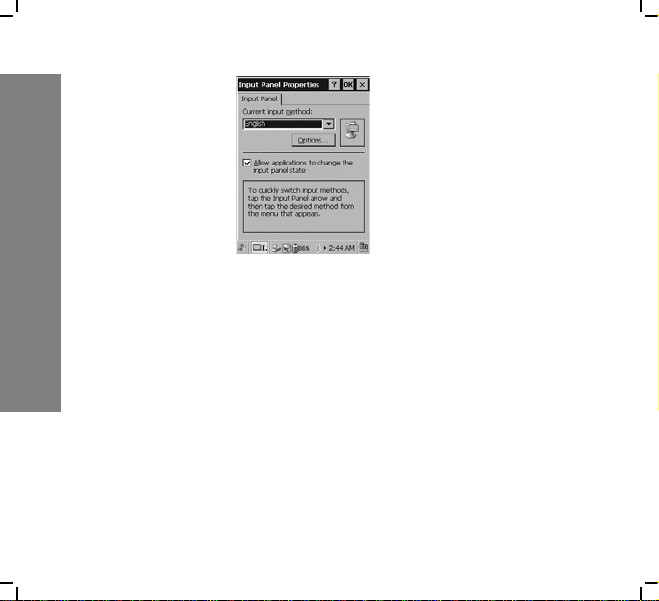

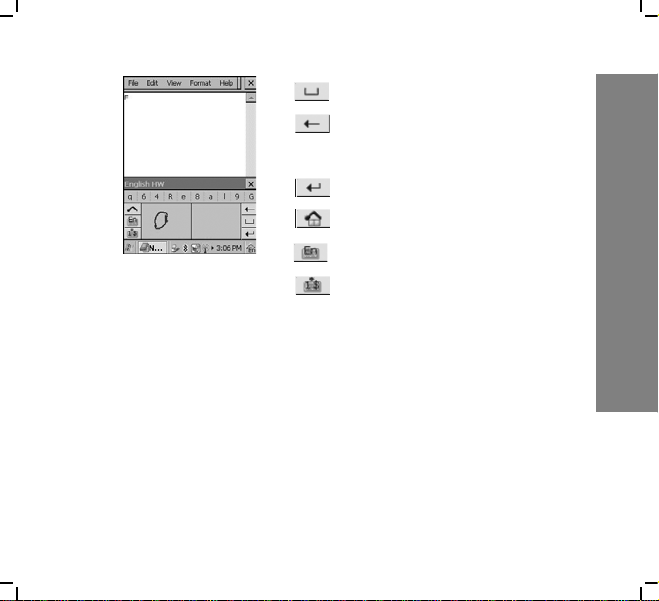

Input methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Network and dial-up connection . . . . . . . . . . . . . . . . . . 44

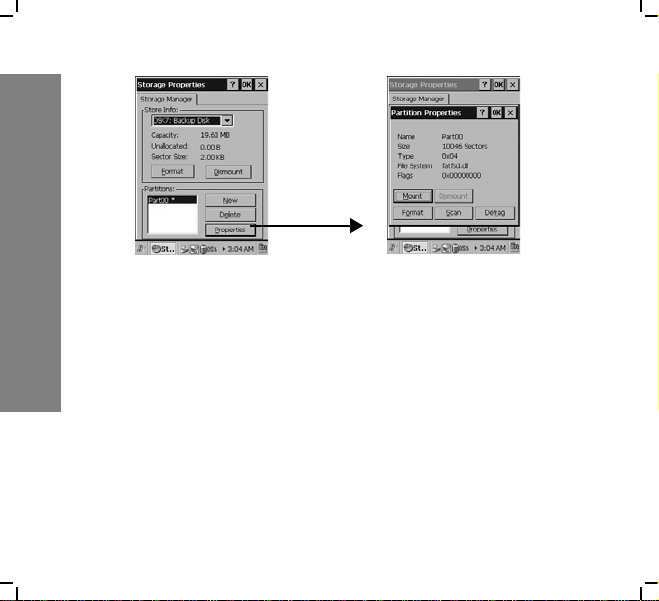

Storage manager settings . . . . . . . . . . . . . . . . . . . . . . . . 47

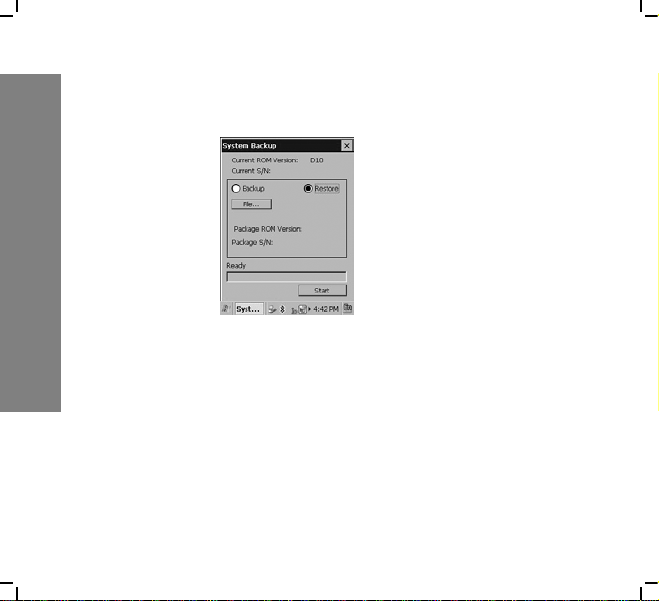

System backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6
Getting to know WF35
WF35 overview
Getting to know WF35
7
Getting to know WF35
8

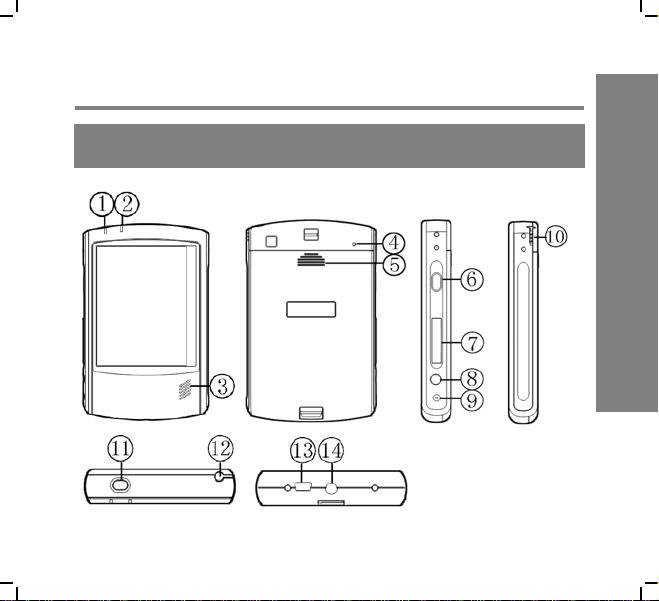

Name Description
1 LED light Show the status for Wi-Fi and battery
2 LED light Programmable LED
3 Speaker
4 Reset hole Reset device
5 Battery cover
6 Shortcut
7 SD card slot Insert external card
8 Earphone jack
9 Charging slot Connect the adapter to charge battery
10/12 Stylus
11 Power key Press to turn on WF35; press and hold to
turn off; if WF35 is on, press to suspend
13 USB socket Connect to PC for data synchronization
14 Mount slot Mount your device on other fixed place
Battery
Installing/removing battery
To install battery
1. Align the metal contacts on the battery with the contacts
inside the battery compartment.
2. Press the battery downwards until it fits the battery compartment; push the battery lock leftwards.
3. Slide the battery cover upwards.
Getting to know WF35
9
Getting to know WF35
To remove battery
1. Press and hold the Power button to turn off WF35. (See
“Turn on/off WF35“.)
2. Remove the battery cover by sliding it downwards.
3. Push the battery lock rightwards to unlock battery; gently
lift the upper edge of the battery outwards and take it out.
10
Charging battery
To charge the battery

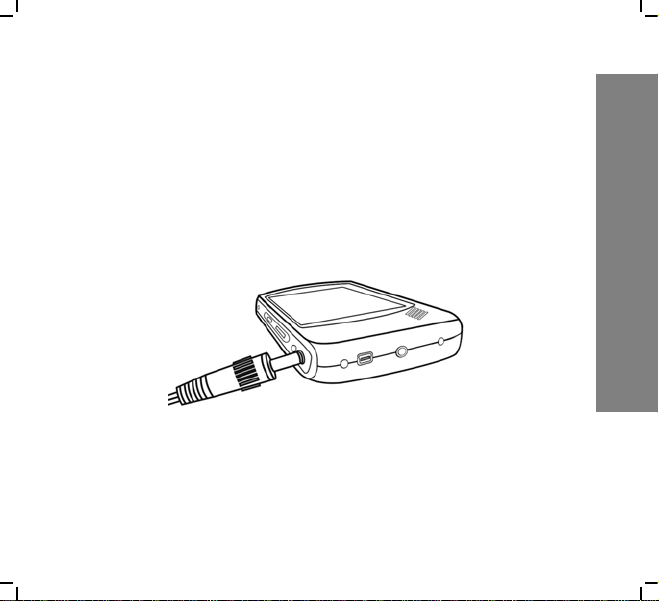

1. Connect your charger to the charging slot (as below).
2. Plug the charger to the main electrical outlet.
3. The LED light turns orange.
4. When charging is complete, the LED light turns green.
Note: Charge the unit when the LED is RED.
Getting to know WF35
11
Getting to know WF35
LED light description
There are two LED lights on the front of WF35, we will give
the information for the left one here:
• Red flash - Battery low
• Red - Battery very low
• Orange flash - Battery charging
• Green - Battery full
• Blue flash quickly - Wi-Fi searching
• Blue flash slowly - Wi-Fi connected
• Off - Wi-Fi disconnected
12
Description for icons on task bar
Icon Description
ActiveSync
MSR connected
Swipe the card successfully
Fail to swipe the card
WLAN connected
WLAN searching
WLAN disconnected
Battery indicator
Battery charging
T ap to switch application
Getting to know WF35
13
Getting to know WF35
Icon Description
Short tap to hide/show current Input method keyboard
Tap and hold to select another Input method
Start menu
14
Getting started
Turn on/off WF35
To turn on WF35
1. Press the Power button on the top of WF35.
2. The GREEN LED lights on for a second and the boot
logo is shown. It will boot to the WinCE OS.
To turn off WF35
1. Press and hold the Power button on the top of WF35 for 2
seconds to turn it off.
To suspend WF35
1. If WF35 has been turned on, press the Power button to
suspend, so as to save power.
Getting started
15
Getting started
Wi-Fi connection settings

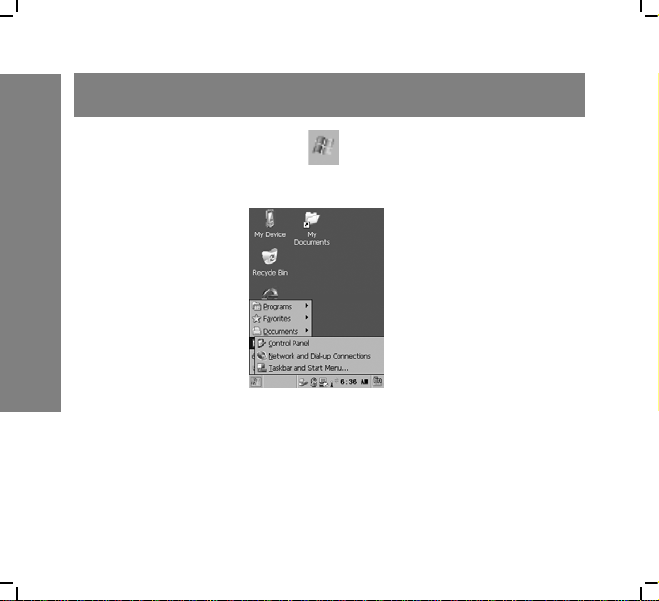

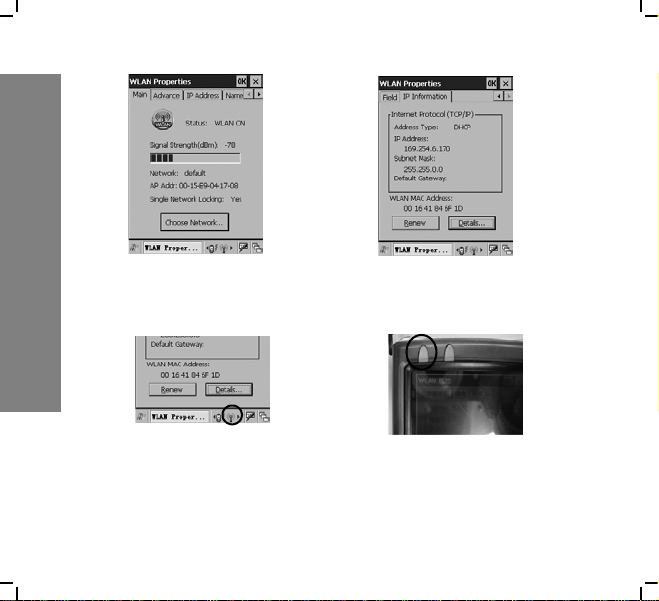

1. In WinCE desktop, tap in system tray, select “Control
Panel” in “Settings”.
2. Select “WLAN” in control panel. Then tap “Choose Network” button.
16
3. Select an available WLAN in the list or add a new connection. Tap “Connect & Lock”.
Getting started
17
Getting started
18

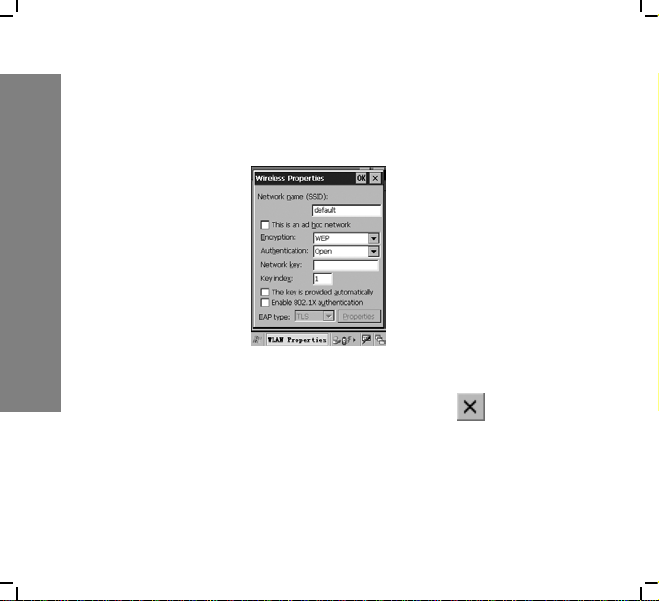

4. Input network password if needed. Tap input method
icon on system tray to open soft keyboard. Tap “OK” to
finish setting.
5. If connection succeeds, system will show on the status
field of Wireless Information screen. Tap to exit.
6. In WLAN setting main panel, you can perform Advance
Setting, IP Setting, DNS and WINS Setting, and viewing
IP info.
Getting started
19
Getting started
7. When WLAN connected, there is a taskbar icon and top
left LED (blue) to indicate connection status.
20
Using Bluetooth
To enable Bluetooth

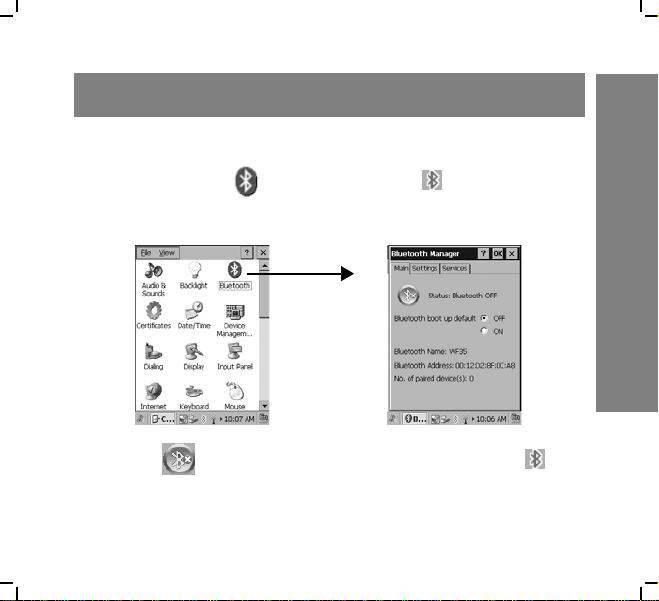

1. Double-click in Control Panel or on taskbar to
open Bluetooth Manager page.
2. Tap to enable Bluetooth, and Bluetooth icon on
Getting started
taskbar will change accordingly.
21
Getting started
Status Main page Taskbar
Bluetooth Off
Bluetooth turning on
(yellow)
Bluetooth On (Blue)
Connecting
Receiving
3. Select ON in “Bluetooth boot up default” option to
enable Bluetooth automatically when turn on your device
each time.
22
Bluetooth settings
Tap “Settings” tab in “Bluetooth Manager” page to set Bluetooth.
• Allow Connection from: you can select “All devices” to
connect all Bluetooth devices; or you can select “Paired
device only” to connect with paired Bluetooth only.
Getting started
23
Getting started
24
• Searchable by nearby Bluetooth devices: check this
option, your device will be searchable by nearby Bluetooth devices.
• Check the option “Allow Bluetooth Settings in User
mode“ and “Allow create/change of paired device in User
mode“, all tabs (Main, Paired, Search, Settings, Services)
in Bluetooth Manager will be shown;
if only check “Allow Bluetooth Settings in User mode”,
Main, Settings and Service tabs will be shown;
if only check “Allow create/change of paired device in
User mode“, Main, Paired and Search tabs will be shown.
Paired Bluetooth
Tap “Paired“ tab in Bluetooth Manager to open Paired page. If
Bluetooth is disable, Paired tab will be hidden.
To delete a paired device
If you already have paired devices, select a paired device in
paired Bluetooth list, and tap “Delete Device“.
Getting started
25
Getting started
To delete a service
When select a device in the paired Bluetooth list, you can view
the device’s details, including the device name, address and the
service supplied by the device. (the icon before the unpaired
service will be gray)
Select a paired service, and tap “Delete Service“.
26
To add a service
Select a unpaired service and tap “Add Service“ to enter pass
key to complete pairing operation.
Getting started
27
Getting started
Searching for Bluetooth
Tap “Search“ tab or “Search“ button in Paired page to open
Search page, you can search other Bluetooth device here. If
Bluetooth is disable, this tab will be hidden.
Select range of searching Bluetooth device from the pull down
menu and tap “Search“.
Available devices will be displayed in the service list. Select an
unpaired service and tap “Add Service“ to add new service.
28
Bluetooth services
Tap “Services“ in Bluetooth Manager, all services that your
device supports are listed in the Services list.
Select “File Transfer Profile“ service and tap “Advanced...“ to
change the file transfer saving path (the default path is \My
Documents).
Getting started
29
Getting started
Transferring files via Bluetooth
1. In WinCE desktop, tap in system tray, select “My
Documents“.
2. Press and hold the file you want to send and select “Send
via Bluetooth“ from the pop-up menu.
30
3. Select the paired Bluetooth you want to send the file to, a
“Send File“ box will pop up to wait for confirmation
from your partner.
Getting started
31
WF35 settings
WF35 settings
Screen rotation
Two screen view mode are supported in WF35, you can change
it as you like.

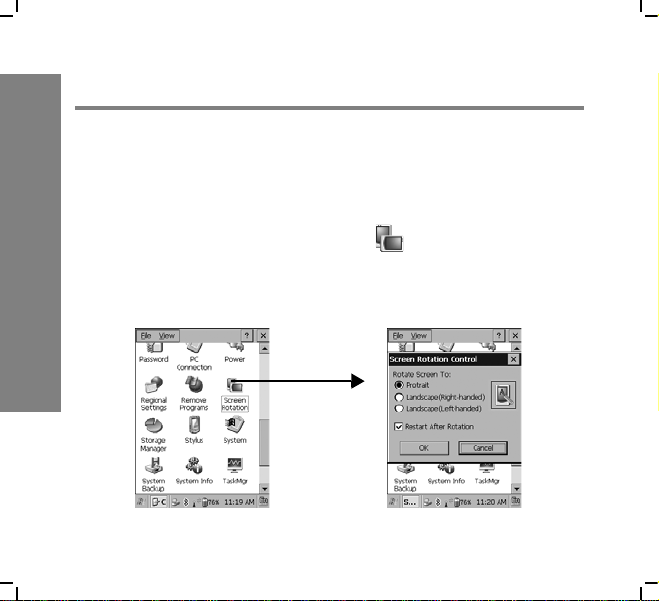

Double-click “Screen Rotation” icon in “Control Panel”,
select Portrait/Landscape (Right-handed)/Landscape (Left-
handed)
32
Backlight settings
In Control Panel, double-click Backlight icon to open Backlight Properties page. Drag the scroll bar to adjust backlight.
WF35 settings
33
WF35 settings
Power properties
Double-click Power icon in Control Panel to open Power
Properties page. you can view the battery information, set
scheme and view the device status.
34
MSR settings
When connect to the MSR, the icon displays on taskbar.
1. Double-click in “Control Panel” to access “MSR
Settings”.
2. Select On/Off to set beeps on/off; input the prefix/suffix
for the information displayed on screen when you swipe
your card.
WF35 settings
35
WF35 settings
Date/Time settings
Double-Click Date/Time icon in Control Panel to open
Date/Time Properties page.
Tap the pull down arrow of Time zone to select the location
where you are, and then set the date and time, tap “Apply” to
finish setting.
36
Dialing settings
Double-Click Dialing icon in Control Panel to set dialing
properties.
You can tap “Edit” to modify the dialing patterns if necessary.
WF35 settings
37
WF35 settings
Input methods
You have English and Simplified Chinese to use in WF35.
Before using WF35, you can adjust input methods first.
Regional settings
Double-click to open Regional and Laguage Settings page.
You can set your location, user interface language and input
methods.
38
1. Tap the pull down arrow to select your location, and tap
“Customize“ to set your location details.
2. Tap “Language” tab to set the language used for menus,
dialogs and alerts.
3. Tap “Input“ tab to select the input method when you start
your device.
Input panel settings
Double-click Input Panel icon in Control Panel to change
input methods.
WF35 settings
39
WF35 settings
You can tap “Options...“ to set details for your selected input
methods, but if you are using English or PinYin, “Options” is
invalid.
Handwriting
WF35 enables handwriting recognition in full screen or you can
write in Graffiti area. We give English HW as an example.
40
• Space
• Delete a character before the
cursor
• Go to next line
• Switch to Graffiti area
• Switch to softkeyboard
• Switch to number keyboard
Soft-keyboard
Besides handwriting input, you also can input with soft-keyboard. We give English keyboard as an example.
WF35 settings
41
WF35 settings
• Space
• Delete a character before a cursor
• Go to next line
• Switch to upper case letter
• Switch to full screen input mode
• Switch to number keyboard
• Switch to
42
Hard keyboard
You will have an external hard keyboard to connect with your
device, so you can input text via hard keyboard.
WF35 settings
43
WF35 settings
Network and dial-up connection
Double-click “Network and Dial-up Connection” icon to
open Connection page, you have three ways to set up connec-
tion: Make new connection, USB and WLAN.
To connect via making a new connection
1. Double-Click , enter a name for the connection and
44
select the connect type.
2. Tap “Next“ to set details for your new connection.
3. Tap “Next“ to continue.
4. Tap “Finish“ to complete settings.
To connect via USB
1. Connect device to PC via USB.
2. Double-click to connect.
WF35 settings
45
WF35 settings
To connect via WLAN
Double-click to set up connection.
46
Storage manager settings
Double-click to open Storage Properties.
1. Tap “Format“ to to erase all data on the storage device
permanently.
2. Tap “New” to create a new partition.
3. Tap “Delete“ to delete all data on the partition permanently.
4. Tap “Properties“ to view the selected partition properties.
WF35 settings
47
WF35 settings
5. Tap “Format“ in Partition Properties to set format param-
6. Tap “Scan“ to start scanning all FATs on volume.
7. Tap “Defrag“ to start defraging.
48
eters, and then tap “Start“ to format.
System backup
Please close all active applications/programs before proceeding
to backup, it will ensure backup data the most up-to-date snapshot of the system.
Double-click to open Syst em Backup page.
1. Tap the pull down arrow to select backup type and corresponding options below, and then tap “Start“.
WF35 settings
49
WF35 settings
50
2. Select “Restore“, tap “File“ to select files you want to
restore, tap “OK“ and tap “Start“ to start restore.
Note: Restore will overwrite all existing data in the system!
Loading...
