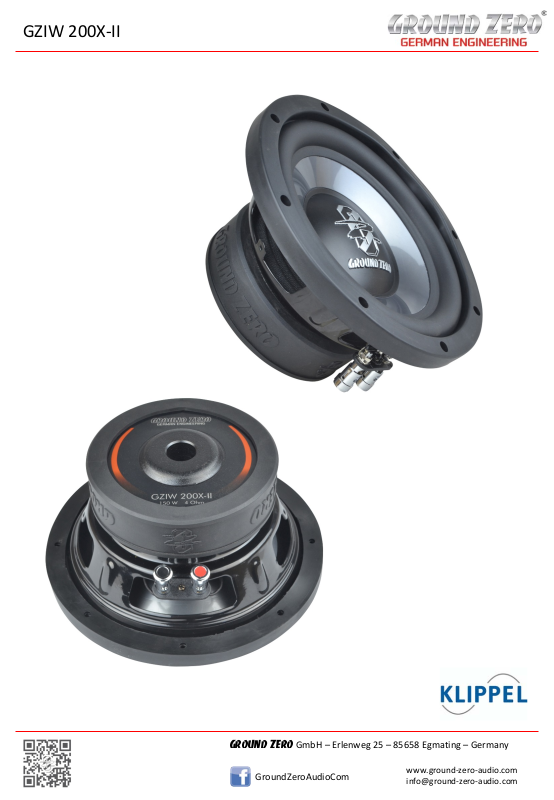

Page 1
GZIW 200X-II
GROUND ZERO GmbH – Erlenweg 25 – 85658 Egmating – Germany
GroundZeroAudioCom
www.ground-zero-audio.com
info@ground-zero-audio.com
Page 2
GZIW 200X-II
TECHNICAL SPECIFICATIONS
Product name
Product type
H.Art .nr.
Diameter
Mounting diameter
Mounting depth
Magnet dimension
Total weight
Voice coil diameter
Voice coil winding height
Voice coil wire material
Voice coil former material
Top plate height
Linear excursion (one direction)
Effective Xmax
Top Plate and T-Yoke color
Basket material
Basket color
Spider
Surround
Cone
Dustcap
Magnetcover
GZIW 200X-II
Subwoofer chassis
113143
211 mm / 8.31“ 215mm /
8.46“ incl Gasket
182 mm / 7.17“
101 mm / 3.98“
120 x 20 mm
2,5 KG
38 mm / 1,5“ Round Wire
20 mm / 0.7874“
Copper
Kapton
6 mm / 0.23622“
7 mm / 0.2756 “
12 mm / 0.47“
Black
Steel
Black high gloss
Polycot
Rubber
IMPP
Convex IMPP with 3D Logo
PVC Boot
Gasket
Terminal Push terminal
Power handling
Impedance
Re
Res
FS
Qms
Qes
Qts
Rms
Cms
Mms
BL
SPL
VAS
Le
Recommended freq. response
Recommended amplifier power
Sound Quality
SPL Competition
Low bass performance 20-50Hz
Mid bass performance 50-80Hz
PVC
150 W rms
4 Ohm
3.4 Ohm
19 Ohm
38.4 Hz
6.01
0.52
0.48
8.9 kg/s
0.42 mm/N
40.8 gr
8.0 N/A
87 dB
27 L / 0.95 cu.ft
1.38 mH
45– 150 Hz
100–200 WRMS @ 4 Ohm (1 Ohm)
(max. )
(max. )
(max. )
(max. )
A
D
B
A
211 mm / 8.31“ 215mm / 8.46“ incl. Gasket
B
182 mm / 7.17“
C
101 mm / 3.98“
D
120 mm / 4.72“ 134 mm / 5.28“ incl. Boot
E
15 mm / 0.59“
E
C
GROUND ZERO GmbH – Erlenweg 25 – 85658 Egmating – Germany
GroundZeroAudioCom
www.ground-zero-audio.com
info@ground-zero-audio.com
Page 3
GZIW 200X-II
BOX RECOMMENDATION
Small vented box
V
V
V: 15 L / 0.53 cu.ft
D: 70 mm / 2.76“
L: *210 mm / 8.27“
No damping
L
D
Medium vented box
V: 20 L / 0.706 cu.ft
D: 70 mm / 2.76“
L: *250 mm / 9.85“
No damping
Sealed box
9 - 15 L / 0.32 – 0.53 cu.ft
Qtc. 0.96- 0.80
40 - 60% polyester wool
Medium size bandpassbox
V1
V1: 15 L / 0.529 cu.ft
V2: 15 L / 0.529 cu.ft
D: 70 mm / 2.76“
L: 130 mm / 5.12“
LV2
20% polyester whool in V1
No damping in V2
D
Die hier aufgeführten Gehäusevorschläge sind nur einige, der möglichen Varianten.
Bitte beachten Sie zudem, dass die finale Abstimmung, speziell die Port Längen je nach Fahrzeug und eigenem Geschmack variiert werden sollte.
Above-mentioned enclosure recommendations are just a few possible variations.
Please note that you should find the perfect tuning, especially port length, based on your car and own taste.
GROUND ZERO GmbH – Erlenweg 25 – 85658 Egmating – Germany
GroundZeroAudioCom
www.ground-zero-audio.com
info@ground-zero-audio.com
Page 4
GZIW 200X-II
BOX RECOMMENDATION
Curve Type Volume F3/ Qtc
Red Vented small 15 L / 0.53 cu.ft 49.4 Hz
Lightgreen Vented medium 20 L / 0.706 cu.ft 42 Hz
Black Sealed 9 L / 0.32 cu.ft 61.7Hz / 0.96
Blue Sealed 15 L / 0.53 cu.ft 57.8 Hz / 0.80
Darkgreen Bandpass 4th order V1: 15 L / 0.529 cu.ft
V2: 15 L / 0.529 1 cu.ft
Die hier aufgeführten Gehäusevorschläge sind nur einige, der möglichen Varianten.
Bitte beachten Sie zudem, dass die finale Abstimmung, speziell die Port Längen je nach Fahrzeug und eigenem Geschmack variiert werden sollte.
Above-mentioned enclosure recommendations are just a few possible variations.
Please note that you should find the perfect tuning, especially port length, based on your car and own taste.
Centerfreq. 63 Hz
