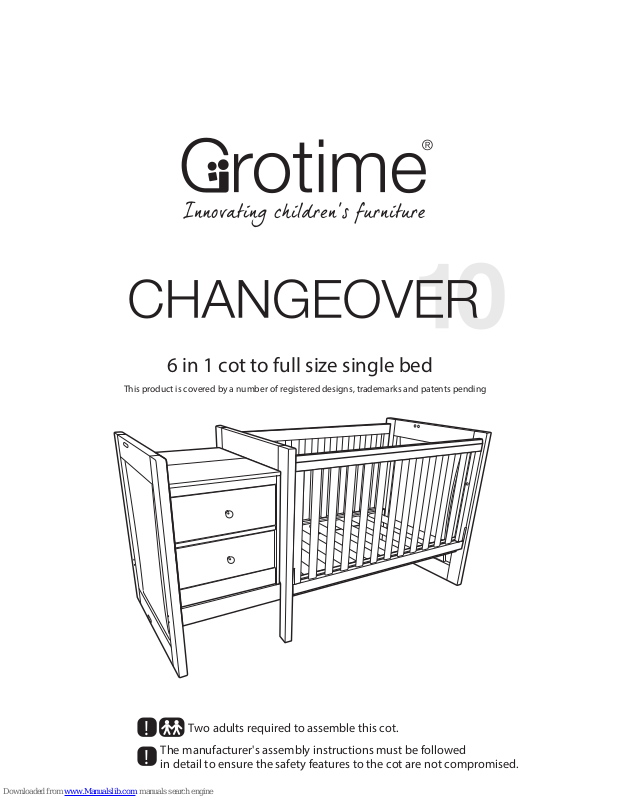

Grotime Changeover Assembly Instructions Manual

Page 1

This product is covered by a number of registered designs, trademarks and patents pending

Two adults required to assemble this cot.

The manufacturer's assembly instructions must be followed in detail to ensure the safety features to the cot are not compromised.

6 in 1 cot to full size single bed

Page 2

Allen Key

x10

Feet Pads

x12 x8

16mm Bolts

70mm Bolts

Guide Pins

Wood Screws

HARDWARE INVENTORY

PRE-INSTALLED HARDWARE

PARTS LIST

Grotime Badges

Locking Bolts Drawer Handles

2 x End Panels

1 x Fixed Side

1 x Drop Side

1 x Spacer End

2 x Drawers

11 x Single Bed Slats

11 x Cot Bed Slats

20mm Bolts

4 x BILATERAIL Base RailsPE2 x BILATERAIL

Bed Brackets

TM TM

35mm Bolt

Page 3

STEP 2

ASSEMBLE THE BASE USING THE COT BED SLATS

Lay one side rail down then slot all slats into the mortises. Place the second side rail on top. Working from one end slot all stats into the mortises.

Use the four wood screws to

x2 x11

Assembled base rails

Cot Bed Slats

Wood ScrewsHDScrew Driver

Ensure the slat with the warning labels is correctly positioned in the middle and the “this way down” lable is facing down as directed by the warning lable on the rails.

x4 x2

BILATERAIL

Base Rails

BILATERAIL

Base Brackets

PGPE

ASSEMBLE BILATERAIL TM BED RAILS

20mm Bolts

Patent pending

STEP 1

Page 4

70mm Bolts

End Panels

STEP 3

ASSEMBLE THE TWO OUTER ENDS TO THE BASE

ASSEMBLE THE FIXED SIDE BETWEEN ONE END AND THE SPACER END

STEP 4

Do not tighten bolts at this stage

Assembled base with cot slats

70mm Bolts

Spacer End

APDP

x1 x1

Fixed Side

Page 5

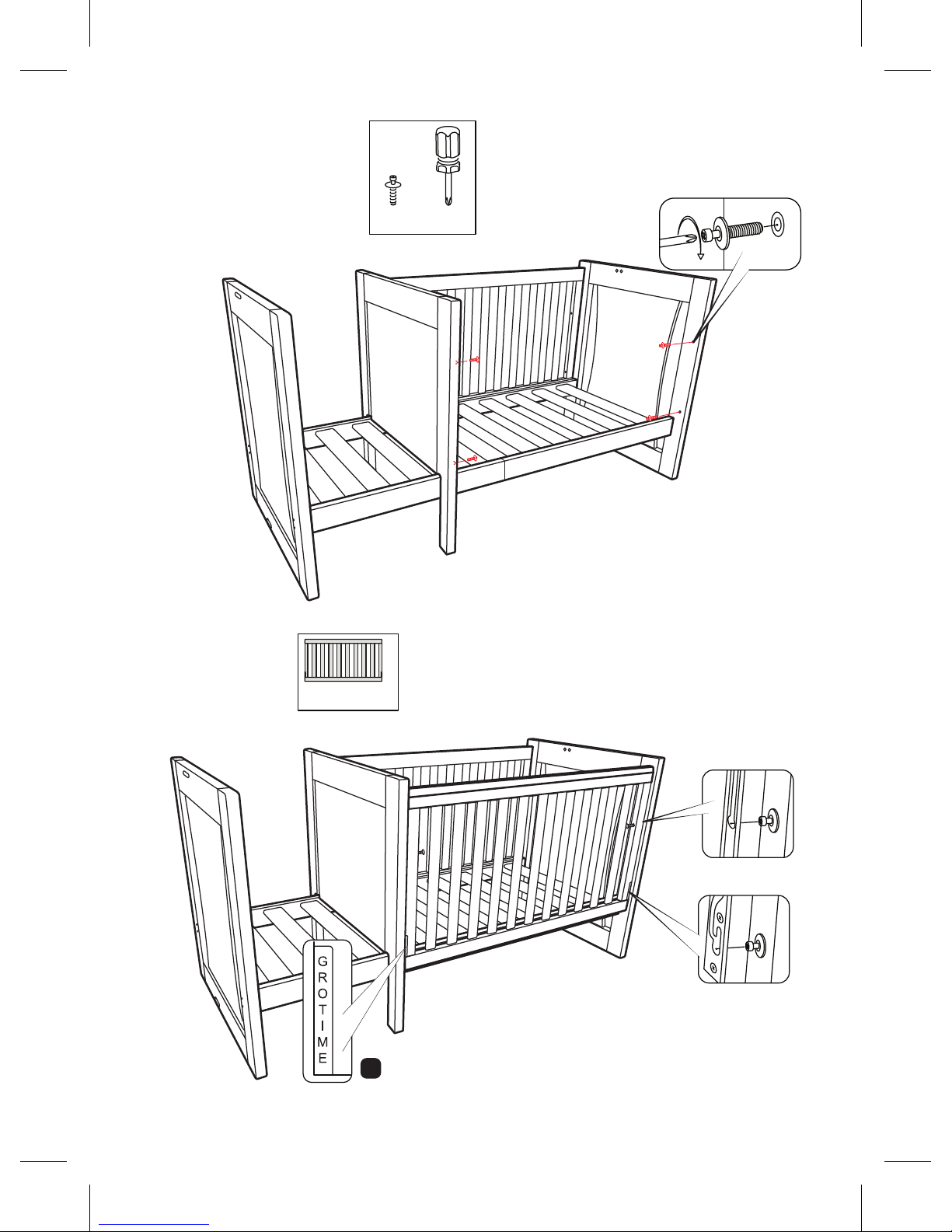

STEP 5

SCREW FOUR GUIDE PINS INTO ONE END AND THE SPACER END

Guide PinsHCScrew Driver

ASSEMBLE DROP SIDE

STEP 6

Ensure correct side is facing out.

Drop Side

Page 6

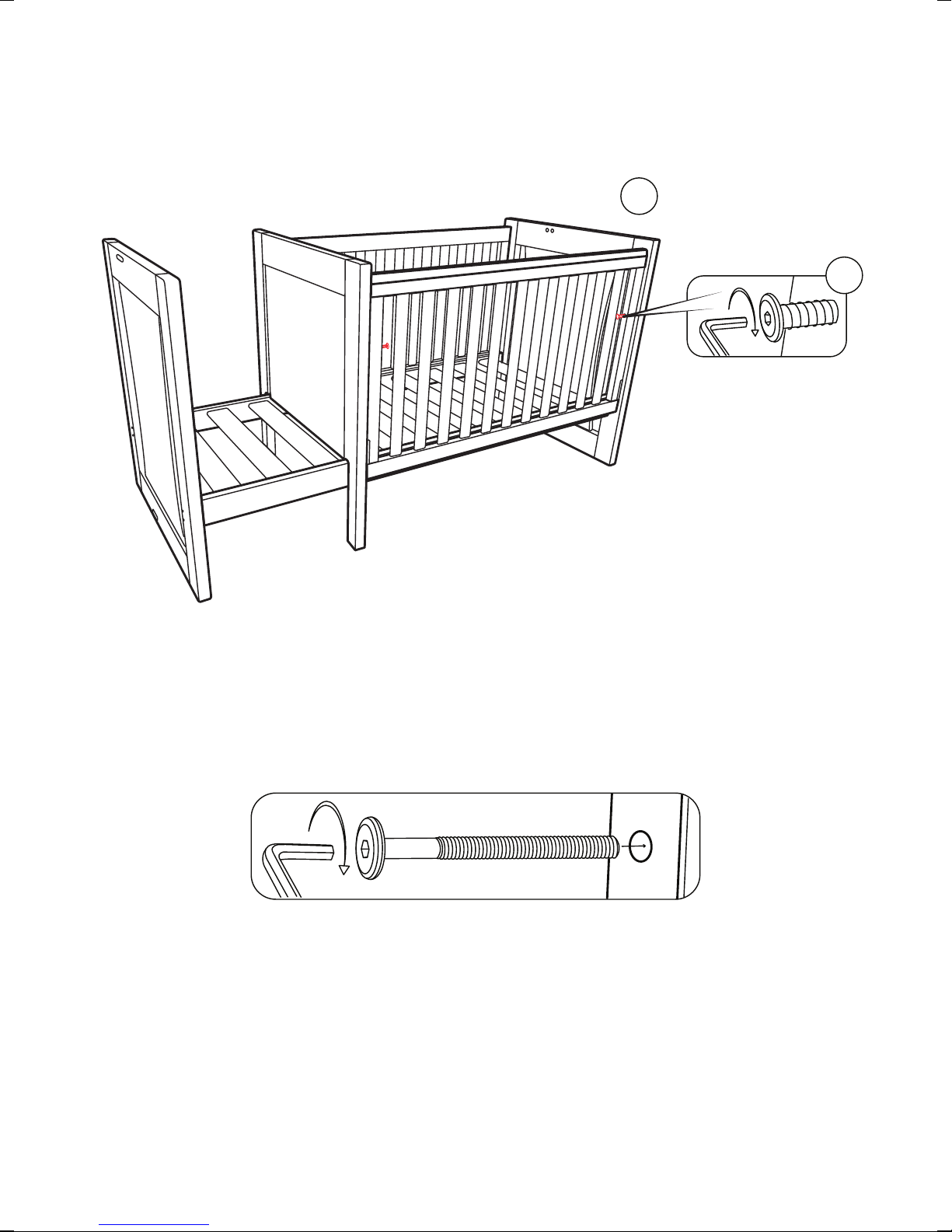

STEP 7

FULLY SCREW IN LOCKING BOLTS

Lift drop side up until it clicks

into the locking position.

STEP 8

TIGHTEN ALL BOLTS

Page 7

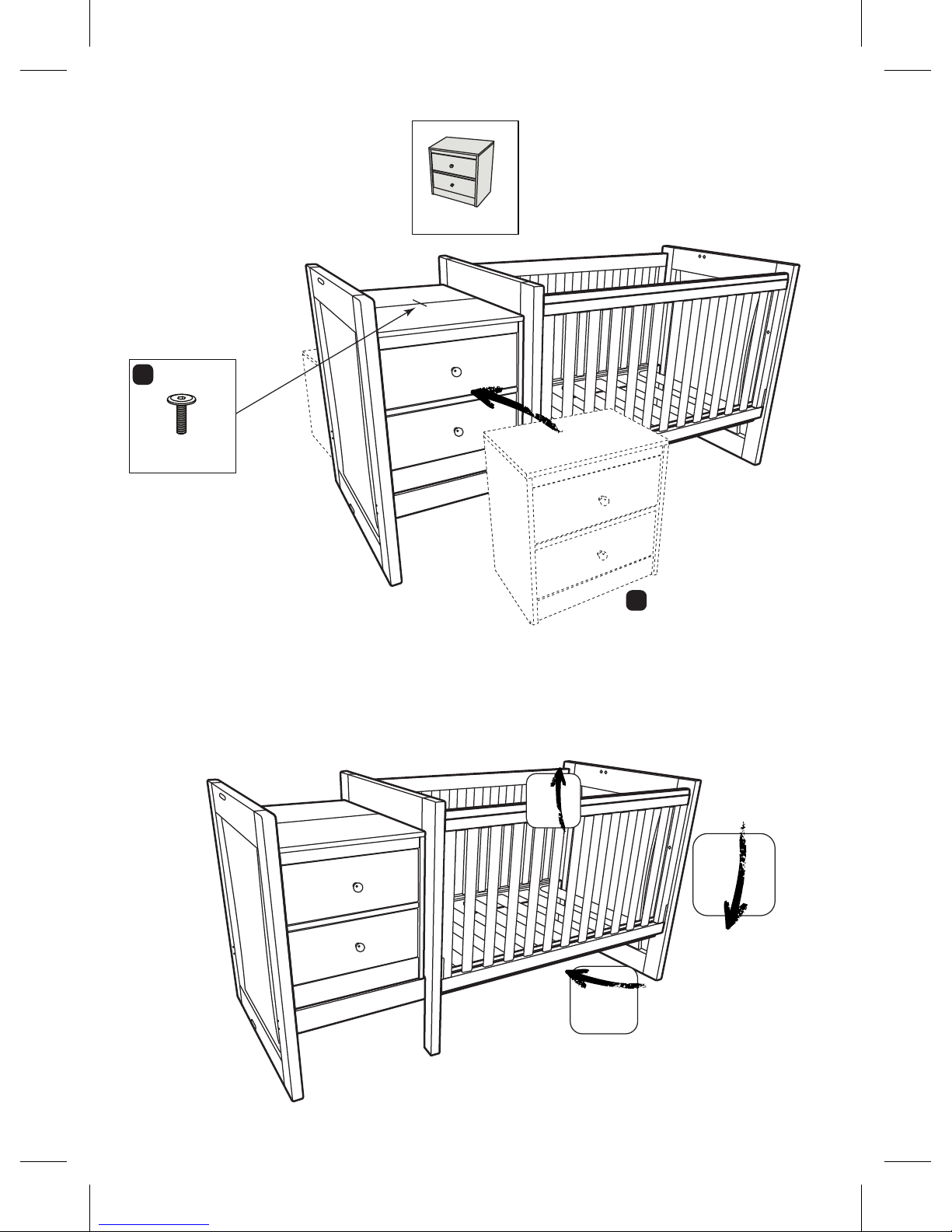

To lower drop side, lift from centre of top rail, hold side in that position while using your leg to push inward on centre of bottom rail. Then allow to slide gently down.

OPERATION

STEP 10

PLACE TWO BEDSIDE DRAWERS BACK TO BACK ON THE END OF THE COT

STEP 9

Ensure drawer handles are facing out.

Drawers

35mm Bolt

Connecting bolt to hold drawers together.

Slide drawers out to bolt the 2 units together through hole provided

Page 8

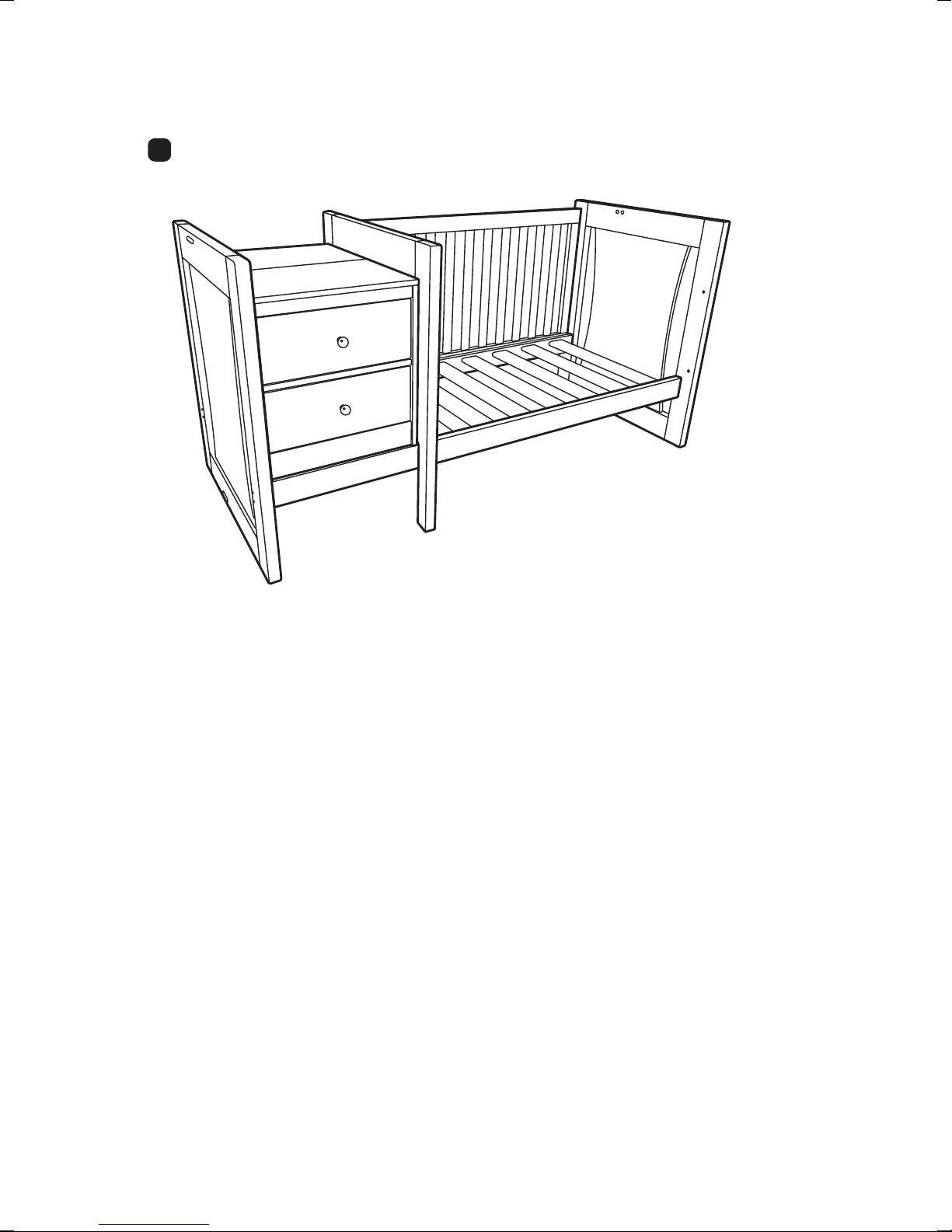

DAY BED CONVERSION

Remove dropside by reversing to step 5.

Remove dropside guide pins (HC) from the ends to prevent injury.

Day Bed with Drawers

Page 9

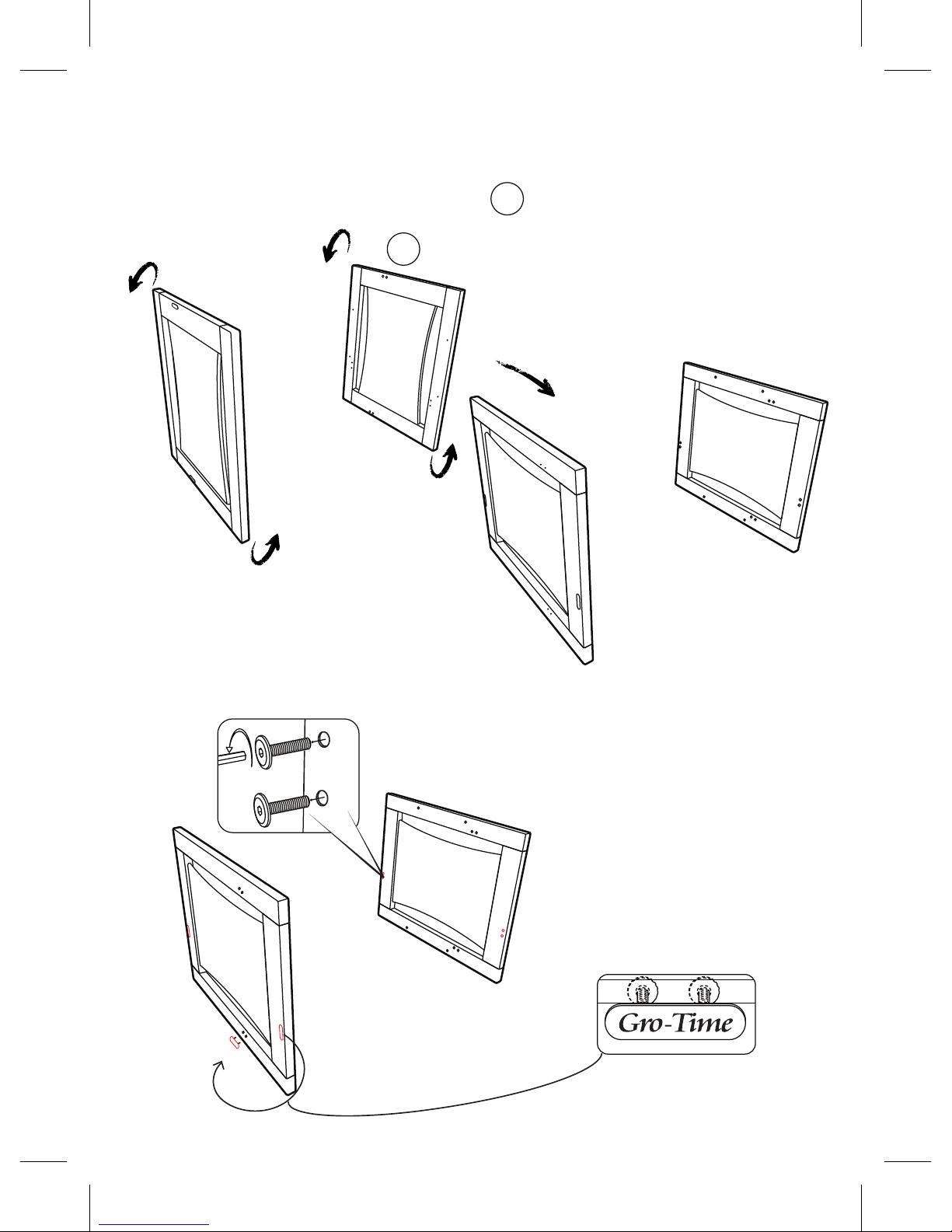

FULL SIZE SINGLE BED CONVERSION

STEP 1

Disassemble the cot following the assemble instructions in reverse ord

er.

Roll over cot ends on their sides

STEP 2

REPOSITION FOUR GROTIME BADGES TO EXPOSE THE SINGLE BED BASE HOLES AND COVER THE COT BASE HOLES

Grotime Badges

Rollover action Patent Pending

Page 10

STEP 3

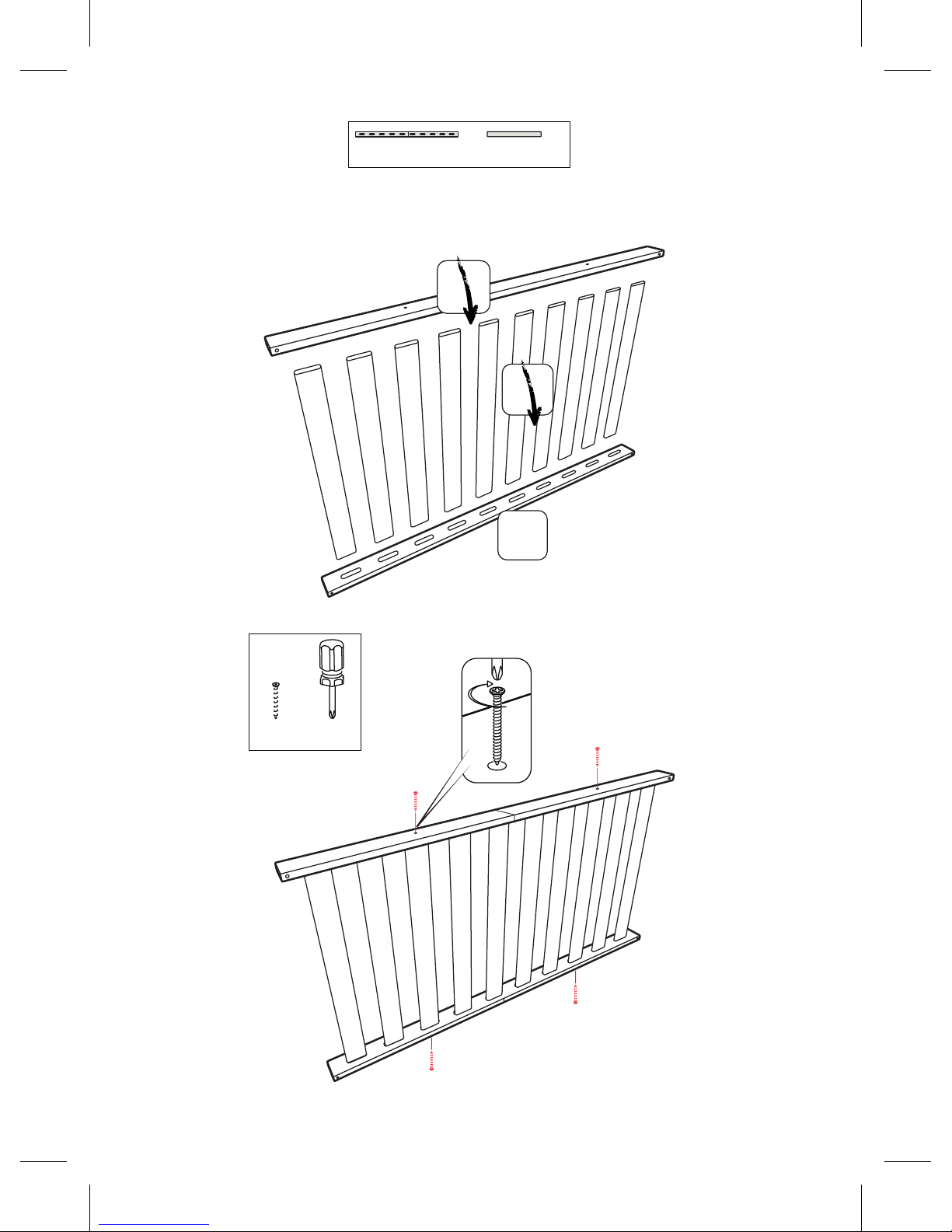

ASSEMBLE SINGLE BED BASE

Lay one side rail down then slot all slats into the mortises. Place the second side rail on top. Working from one end slot all stats into the mortises.

STEP 4

Use the four wood screws to x the rails and slats together.

x2 x11

Bed Base Rails (assembled)

Single Bed Slats

Wood ScrewsHDScrew Driver

Page 11

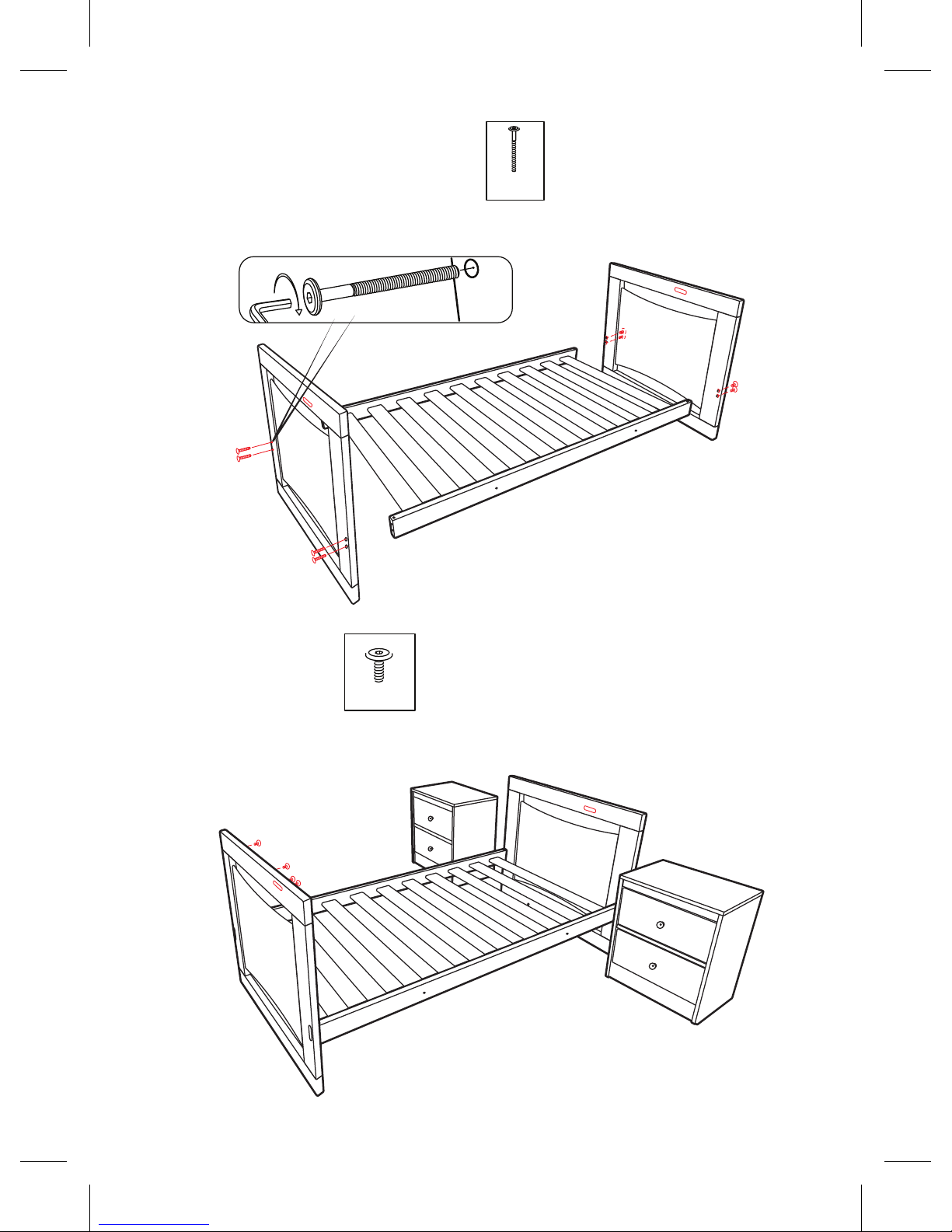

STEP 5

ASSEMBLE SINGLE BED BASE BETWEEN TWO ENDS

STEP 6

PLUG FINGER ENTRAPMENTS

Your single bed is now complete.

70mm Bolts

16mm Bolts

Page 12

MAINTENANCE

Check your cot regularly. Retighten all bolts. For after sales service contact Grotime Service Australia on 1300 799 912; or New Zealand on 0508 476 932;

AUSTRALIA - 10 Martini Parade Lithgow NSW 2790 Phone 1300 799 912 Email [email protected] Web www.grotime.net

NEW ZEALAND - 9 Greenacres Road North Richmond, Nelson 7050 Phone 0508 476 932 Email [email protected] Web www.grotime.co.nz

RECOMMENDED MATTRESS SIZE

This cot has been manufactured for use with a mattress which measures 760mm in width and 1300mm in length and 130mm in thickness. The width and length are specied because it is important that the gaps between the mattress and the sides and ends of the cot will not exceed 40mm. This is to minimise the risk of the child’s limb becoming caught in the gap. The thicknes s of the mattress has been specied to ensure that the depth of the cot is greater than 500mm with the mattress base in the lowe st position to minimise the risk of a child climbing or falling out of the cot.

5 YEAR NURSERY FURNITURE WARRANTY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. In order for your claim to be processed in an ecient timely manner please follow the warranty claims process as out lined below.

Fill in the online customer service form found on the following link http://grotime.net/customer-service-form If you are unable for any reason to process your warranty claim using the online customer service form please call our Grocorp aftersales service department on toll free 1300 799 912 or email [email protected] In order for your claim to be processed you will need to provide to

Grocorp with an original proof of purchase. For example original retailer purchase receipt, bill of sale, invoice, lay-by docket, credit card receipt or similar proof of purchase. Note; providing attached photographs with your claim will greatly enhance the speed in which your claim is processed.

This warranty does not obligate Grocorp to bear transportation costs incurred in the repair or replacement of any defective parts and excludes any supercial scratches, dents, scrapes or blemishes to paint work or timber surfaces. This Warranty does not cover faults or defects caused by:

To the fullest extent permitted by law, Grocorp excludes

all liability for damage or injury to any person, damage to any

property, and any indirect consequential or other loss or damage.

Unsuitable, improper use or use not in accordance with the manufactures specications; Incorrect installation or installation not in accordance with instructions provided; Normal wear and tear; Inadequate or complete lack of maintenance; Chemical, electrochemical or electrical inuences; or Harsh detergents or abrasive cleaners used on product nishes.

WARNING

TO PREVENT FALLS, THE MATTRESS BASE OF THIS COT SHOULD BE ADJUSTED TO THE LOWEST POSITION BEFORE CHILD CAN SIT UP.

WARNING

ENSURE YOUR CHOSEN LOCATION FOR THE COT IS A REASONABLE DISTANCE FROM CURTAINS, BLINDS, HEATERS, AND POWER POINTS. ALWAYS KEEP MEDICATION, STRING, ELASTIC, SMALL TOYS OR SMALL ITEMS SUCH AS MONEY OUT OF REACH FROM ANY POSITION IN THE COT. BEFORE ASSEMBLING THE COT, ENSURE YOU HAVE A CLEAR AREA ON CARPET OR A THICK BLANKET OR RUG. NEVER ASSEMBLE ON A HARD SURFACE.

•

Discolouration caused to timber nish by ultra violet (UV) rays or overexposure to direct sunlight

•
