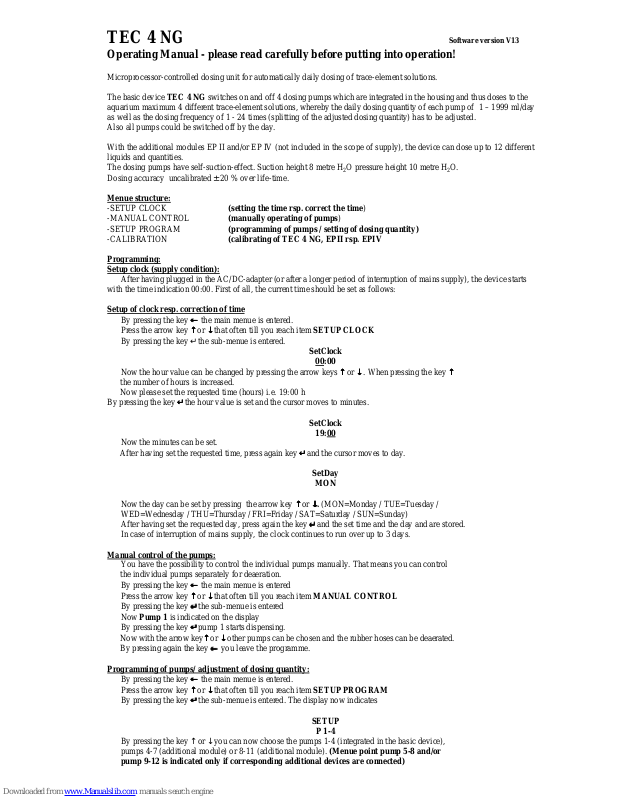

Page 1
TEC 4 NG
Software version V13
Operating Manual - please read carefully before putting into operation!
Microprocessor-controlled dosing unit for automatically daily dosing of trace-element solutions.
The basic device TEC 4 NG switches on and off 4 dosing pumps which are integrated in the housing and thus doses to the
aquarium maximum 4 different trace-element solutions, whereby the daily dosing quantity of each pump of 1 – 1999 ml/day
as well as the dosing frequency of 1 - 24 times (splitting of the adjusted dosing quantity) has to be adjusted.
Also all pumps could be switched off by the day.
With the additional modules EP II and/or EP IV (not included in the scope of supply), the device can dose up to 12 different
liquids and quantities.
The dosing pumps have self-suction-effect. Suction height 8 metre H2O pressure height 10 metre H2O.
Dosing accuracy uncalibrated ± 20 % over life-time.
Menue structure:
-SETUP CLOCK (setting the time rsp. correct the time)
-MANUAL CONTROL (manually operating of pumps)
-SETUP PROGRAM (programming of pumps / setting of dosing quantity)
-CALIBRATION (calibrating of TEC 4 NG, EPII rsp. EPIV
Programming:
Setup clock (supply condition):
After having plugged in the AC/DC-adapter (or after a longer period of interruption of mains supply), the device starts
with the time indication 00:00. First of all, the current time should be set as follows:
Setup of clock resp. correction of time
By pressing the key ←←←← the main menue is entered.
Press the arrow key ↑↑↑↑ or ↓↓↓↓ that often till you reach item SETUP CLOCK
By pressing the key ↵ the sub-menue is entered.
SetClock
00:00
Now the hour value can be changed by pressing the arrow keys ↑↑↑↑ or ↓↓↓↓ . When pressing the key ↑↑↑↑
the number of hours is increased.
Now please set the requested time (hours) i.e. 19:00 h
By pressing the key ↵↵↵↵ the hour value is set and the cursor moves to minutes.
SetClock
19:00
Now the minutes can be set.
After having set the requested time, press again key ↵↵↵↵ and the cursor moves to day.
SetDay
MON
Now the day can be set by pressing the arrow key ↑↑↑↑ or ↓↓↓↓. (MON=Monday / TUE=Tuesday /
WED=Wednesday / THU=Thursday / FRI=Friday / SAT=Saturday / SUN=Sunday)
After having set the requested day, press again the key ↵↵↵↵ and the set time and the day and are stored.
In case of interruption of mains supply, the clock continues to run over up to 3 days.
Manual control of the pumps:
You have the possibility to control the individual pumps manually. That means you can control
the individual pumps separately for deaeration.
By pressing the key ←←←← the main menue is entered
Press the arrow key ↑↑↑↑ or ↓↓↓↓ that often till you reach item MANUAL CONTROL
By pressing the key ↵↵↵↵ the sub-menue is entered
Now Pump 1 is indicated on the display
By pressing the key ↵↵↵↵ pump 1 starts dispensing.
Now with the arrow key↑↑↑↑ or ↓↓↓↓ other pumps can be chosen and the rubber hoses can be deaerated.
By pressing again the key ←←←← you leave the programme.
Programming of pumps/ adjustment of dosing quantity:
By pressing the key ←←←← the main menue is entered.
Press the arrow key ↑↑↑↑ or ↓↓↓↓ that often till you reach item SETUP PROGRAM
By pressing the key ↵↵↵↵ the sub-menue is entered. The display now indicates
SETUP
P 1-4
By pressing the key ↑ or ↓ you can now choose the pumps 1-4 (integrated in the basic device),
pumps 4-7 (additional module) or 8-11 (additional module). (Menue point pump 5-8 and/or
pump 9-12 is indicated only if corresponding additional devices are connected)
Page 2
Now please choose group 1-4 and confirm this with key ↵↵↵↵ and the sub-menue is entered:
SETUP
Pump 1
By pressing the arrow key ↑ or ↓ you can now choose the pumps 1,2,3 or 4 to be adjusted.
By pressing the key ↵↵↵↵ the sub-menue is entered for programming of pump 1.
ml/DAY
P1: 0000
Now the cursor is positioned underneath the 1. digit. Here you can change with the aid of arrow key ↑
or ↓ the first digit of the dosing quantity (1000 oder 0000).
By pressing the key ↵↵↵↵ the cursor is positioned under the 2. digit, that means 0000.
Here the 2. digit can be changed (0-9).
Please repeat this procedure for the 3. and 4. digit. Thus you can set between 1 and 1999 ml/day.
By pressing the key ↵↵↵↵ the value for the daily dosing quantity is set and the menue dosing frequency is
entered. That means here you can set in how many portions the dosing quantity adjusted before shall
be divided. Only the settings 1, 2, 3, 4, 6, 8,12 or 24 are possible.
CYCL/DAY
P1: 1
Press the arrow key ↑↑↑↑ or ↓↓↓↓ that often till the requested dosing frequency, i.e. 12.
That means in case of 24 ml dosing quantity and 12 cycles, the dosing quantity of 24 ml will be split
into 12 portions à 2 ml each.
These 2 ml will be dosed into the aquarium every 2 hours resp. in case of another number of cycles
equally be split on 24 h.
Standardized the value 1 is indicated in case of dosing quantities below 160 ml/day, with larger
dosing quantities the dosing frequency is increased automatically, so that the dosing quantity
of 160 ml per cycle will not be exceeded.
On the other hand, the number of cycles can only be increased that much, that a minimum dosing
quantity of 0,5 ml per cycle is not fallen below.
By pressing again key ↵↵↵↵ the value of the cycles is set and the menue point is entered
Start:
00:00
Here the starting time of pump 1 can be set by pressing arrow key ↑↑↑↑ or ↓↓↓↓
In case of the pumps the starting minutes are fix and only the starting hour can be changed.
The individual pumps have a preset time increment of 5 minutes, which cannot be influenced.
i.e. 1 14:00; pump 2 15:05; pump 3 18:10; pumpe 4 13:15 etc.
By pressing again key ↵↵↵↵ the start time is stored and the programm moves into the day programming.
MTWTFSS
1 1 1 1 1 1 1
Here the dosing day of pump 1 can be set by pressing arrow key ↑↑↑↑ or ↓↓↓↓.
The upper row on the display shows the week days (M=Monday / T=Tuesday / W=Wednesday a.s.o.).
The lower row on the display shows if it is dosed at this day. (1 stands for YES / 0 stands for NO)
Example:
MTWTFSS
1 0 1 1 1 0 1
Tuesday + Saturday is not dosed.
By pressing key ↵↵↵↵ programming of the pump is closed and you will enter again the setup menue.
The display now indicates
Setup
Pump 1
Now by pressing the arrow key ↑↑↑↑ or ↓↓↓↓ the other pumps to be programmed can be chosen or by pressing
key ←←←← the just set values can be stored and the sub-menue can be left.
The set and stored values will be maintained also in case of a longer interruption of the mains supply.
Calibrating:
By the calibrating operation the individual pumps can be improved in their dosing accuracy. Prepare an appropriate
measuring cup (25 ml) and deaerate the pumps which shall be calibrated. (see Manual control of the pumps).
By pressing the key ←←←← you move into the main menu.
Press the arrow key ↑↑↑↑ or ↓↓↓↓ that often until you reach the sub menu
CALI-
BRATION
Pressing the key ↵↵↵↵ to enter the sub menu.
The display indicates now:
Page 3
Setup
P 1-4
By pressing the arrow key ↑ or ↓ you can choose the pump 1- 4, 5 – 8 or 9 – 12 for calibrating.
Pressing the key ↵↵↵↵ to entert he sub menu
Calibr.
Pump 1
Now hold the hose of the pump to be calibrated into the measuring cup.
By pressing the key ↵↵↵↵ the selected pump starts and doses for 30 seconds. On the top right side the elapsed seconds are
displayed.
After the pump time has finished measure the pumped liquid quantity and set the determined quantity by pressing the
arrow key ↑ or ↓ (first full ml, then 0,1 ml steps)
Set P1
19.0 ml
(the „old“ set value is displayed – factory setting is 19)
By pressing the key ↵↵↵↵ the determined quantity is set and the pump is calibrated.
(During the pump doses it could be stopped by the key ←←←← . and the calibration process is stopped without a change).
The initial calibration should be done after at least 1 week in operation and should be done again after this time..
Experience has shown that during this period, the pump power changes. Then the pump power remains largely stable.
For new dosing pumps, additional modules rsp. pump heads please note: after initial calibration should be done a
recalibration every 4 – 6 weeks, as during this operating period, the hoses and rollers run in and the dosing quantity
may change. Thereafter, the dosing rate remains generally stable.
The dosing quantity can also vary over time as a functon of wear and pollution of the pump heads.
Regular cleaning of the pump heads and motor shafts are indispensable. See Attendance/Maintenance.
Reset to supply condition / deletion of the complete programme
By continuously pressing the key ←←←← and plugging in of the mains supply at the same time, all set values,
except the time setting are deleted, afterwards the connected devices will be indicated (EP, AUX or
NONE for no device) and all connected pumps will be switched on shortly one after the other.
Finding out the software-status
By pressing the arrow key ↑↑↑↑ and ↓↓↓↓ at the same time the software status is indicated, e.g. Ver 11.
By pressing the key ↵↵↵↵ you leave the indication.
Connection of extension modules:
Please unplug mains supply of the basic device.
Please cut free with a sharp knife the gap for the connection plug at the marked position at the rear side
of the device.
Connect the extension module with the attached connection cable with the basic device. The extension
modules EP II and EP IV can be operated at both plug positions, other additional devices only at plug
position 4-7.
Please reconnect the basic device to the mains supply (Plug in mains supply) by using the provided
AC/DC-adapter.
The basic device now recognises whether it is an EP additional device or another additional device of
Messrs. GroTech and releases the part of programme to be used.
Special case: Please connect to plug position 5-8
If an additional device is connected to plug position 5-8, the display indicates
New
Device 1
By pressing the key ↵↵↵↵ the sub-menue is entered in order to programme pump 5-8
(Please see above: programming of pumps/ adjustment of dosing quantity)
If a different extension module has been connected to this plug position, the values will be set to
0000 in the programme in order to avoid faulty dosings.
The programming of the EP-devices should otherwise be done as described above.
For programming of other additional devices of Messrs. GroTech, please see the
operating manual of the corresponding devices !
How to put the TEC 4 NG into operation:
1. Please place the TEC 4 NG close to the aquarium, below the top most water level. In order to avoid uncontrolled running
of liquids into the aquarium (in case of defect rubber hoses) that is good practice.
2. It is possible to change the direction of each of the pump heads to 90°, 180° or 270° (up, lateral and below). Therefore
please press the two clips, which are positioned left and right beneath the rubber hose outlets, pull off the pump head, turn
the pump head into the desired position and fix onto the driving shaft. Pump head is correctly installed after you heard
„click“.
3. Please connect rubber hose (rubber hose for air 4/6 millimetre) with the inlets and outlets of each pump via provided
connectors (inside of the box). Left rubber hose is pressure side and right rubber hose is suction side (to be seen if the
outlets are in below position).
Page 4
4. In order to avoid back-flow conditions (in case of defect pump rubber hoses) please make sure that the connection rubber
hoses on pressure side may not insert into the aquarium water.
5. Please insert the connection rubber hoses of the suction side into the trace-element reservoirs.
6. Please set the desired daily dosing quantity (weekly dosing quantity divided by 7) via the switches.
(Please see programming of pumps/adjustment of dosing quantity).
7. Please plug in the AC/DC-adapter (85-250 VAC/50-60 Hz).
8. Pump no. 1 starts pumping and LED begins to flash.
9. Now the rubber hoses will be deaerated.(Please see manual control of the pumps)
Attendance/Maintenance :
The TEC 4 NG is largely maintenance-free.
However, the pump cassettes of the individual dosing pumps should be dismantled every half year and the insides
of the cassettes, the rollers, the rubber hoses and the motor shaft be cleaned with a fluffy-free
cloth and some spirit.
According to the daily dosing quantity and the type of dosed liquids the cleaning intervals should be adjusted.
Under no circumstances the pumps should be oiled!
Video with cleaning instructions::
https://www.youtube.com/watch?v=UfIV9aLRgDg
Safety advice:
Before maintenance resp. cleaning of the aquarium please unplug the mains supply.
Not to be used in humid rooms. Please protect against water.
During installation, please take care that the unit will not be in direct contact with current-carrying cables/devices.
We recommend a minimum distance of 20 cm to cables and electric/electronic devices, mainly also transformers,
power supply units etc. in order to avoid malfunction of the device's electronic !
The TEC 4 NG must not plugged into multiple pockets of aquarium computers !
The TEC 4 NG is to be used for the dosing of trace-element solutions only. Usage for other purposes is not permitted
and will be consequent on exclusion of either warranty or liability.
Not to be used for solvents or volatility substances
Please unplug mains supply before opening.
Warranty:
Starting after date of invoice we grant a warranty period of 24 months for your TEC 4 NG.
This warranty includes all damages of material and manufacturing defects and is only applicable if the TEC 4 NG has been
handled correctly. Please send the defective TEC 4 NG device as well as the invoice to your supplier or directly to (to avoid
unnecessary costs please send the device free of charge)
GroTech Aquarientechnik GmbH
Bittenfelder Weg 8
D-71563 Affalterbach
Germany
Warranty exclusion:
Excluded are all claims for compensation exceeding damages of material and manufacturing defects, as well as damages
caused by uncorrect usage and opening of the housing, repairings or exchanging of parts by not authorised persons.
